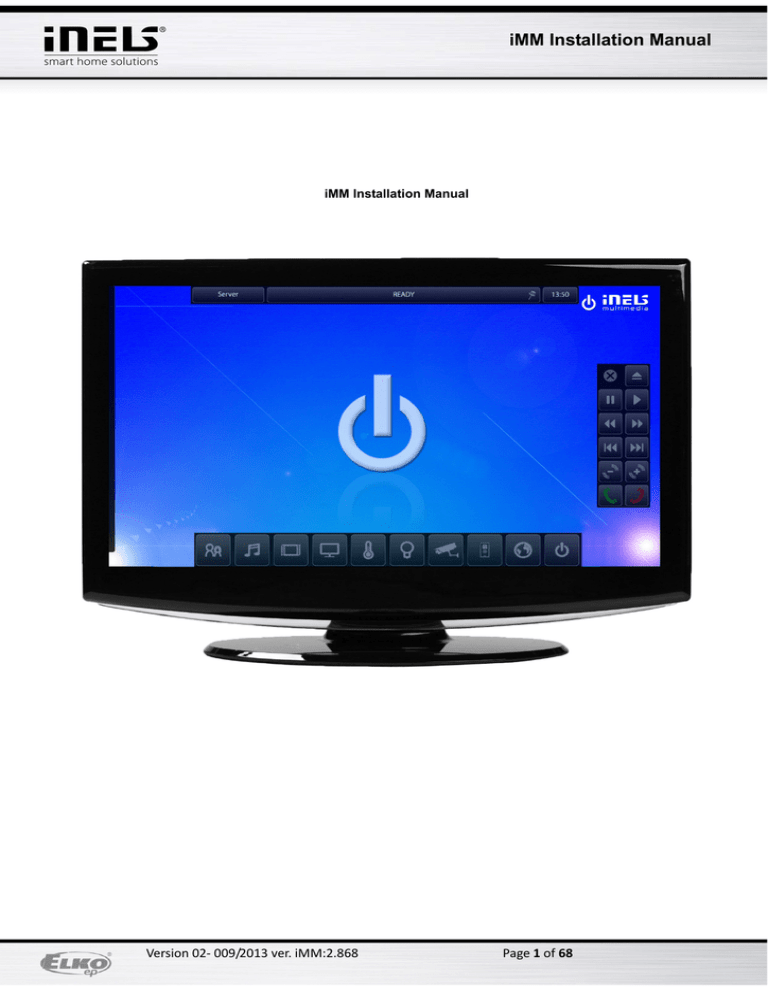

iMM Installation Manual

iMM Installation Manual

iMM Installation Manual

iMM Installation Manual





Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

Contents

1. Get started ............................................................................................................................... 4

1.1.

  Putting VZ in operation ................................................................................................ 5

1.2.



Basic setting .................................................................................................................. 7



1.2.1.

  Change of password .......................................................................................................... 7

1.2.2.

  Resolution adaptation: ....................................................................................................... 7

1.2.3.

  Installation of new version ................................................................................................ 7

1.2.4.

  Restart and turning the system off ..................................................................................... 8

1.2.5.

  Setting static VZ IP address .............................................................................................. 8

1.2.6.

  Setting the font (preset within the factory settings) .......................................................... 9

1.2.7.

  Update administration ....................................................................................................... 9

2.

  Network File System (“NFS” hereinafter) configuration ........................................... 10

2.1.

  NFS configuration to VZ iMM Server ....................................................................... 10

2.2.



NFS configuration on iMM Client ............................................................................. 12



2.3.

  Connection of external hard disk drives ..................................................................... 13

2.4.

  Sharing external storage – external HDD ................................................................... 14

2.5.



Setting shared storage NAS Synology ........................................................................ 15



2.6.

  Saving files in Storage ................................................................................................ 16

3.

  Configuration in iMM Control Center ........................................................................ 16

3.1.

  Setting iMM CC on iMM server ................................................................................ 16

3.1.1.

  Bookmark Server ............................................................................................................. 16

3.1.2.

  Bookmark CU Configuration .......................................................................................... 17

3.1.3.

  Bookmark System ........................................................................................................... 18

3.1.4.

  Bookmark RF Configuration ........................................................................................... 18

3.1.5.

  Bookmark Zones ............................................................................................................. 20

3.1.6.

  Bookmark A/C ................................................................................................................. 22

3.1.7.



Bookmark Rooms ............................................................................................................ 23



3.1.8.

  Bookmark Cameras ......................................................................................................... 24

3.1.9.

  Bookmark Energy ............................................................................................................ 25

3.1.10.

  Bookmark IP (device control by infrared signal) ..................................................... 30

3.1.11.

  Bookmark Audit ....................................................................................................... 33

3.2.

  Setting iMM CC on VZ iMM Client .......................................................................... 34

4.

  Floorplan (FP) setting ................................................................................................. 35

4.1.

  Moving between FP .................................................................................................... 35

4.2.

  FP icons ...................................................................................................................... 35

4.3.

  Adding elements in FP ............................................................................................... 36

4.4.



Heating ........................................................................................................................ 37



4.5.

  Lighting ...................................................................................................................... 38

4.6.

  Displaying variables in icon description .................................................................... 39

4.7.

  Connection of Miele household appliances ................................................................ 40

5.

  Television .................................................................................................................... 43

5.1

  Adding TV channel to iMM ............................................................................................ 43

5.2

  EPG – Electronic program guide .................................................................................... 44

5.3

  Setting a storage for TV record ....................................................................................... 44

5.4

  Recording programming ................................................................................................. 46

6.

  Installation and configuration of AudioZone (AZ) ..................................................... 47

6.1



Setting AZ-LARA ........................................................................................................... 47



6.2

  Setting iMM Audio Zone-R ............................................................................................ 48

6.3

  Setting AZ Squeezebox Touch (AZ-SQB) ...................................................................... 49

6.4

  Directing to iMM server .................................................................................................. 50

7.

  Setting scenarios ......................................................................................................... 50

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

8.

  Supplements ................................................................................................................51



8.1.

  Modification and creation of icons for FP ..................................................................51



8.2.

  Screenlet ......................................................................................................................52



8.3.

  Export of configuration file to iMM ...........................................................................53



8.4.

  Supported formats .......................................................................................................54



8.4.1.

  Photos: imm/Picture ....................................................................................................54



8.4.2.



Music: imm/Music .........................................................................................................54



8.4.3.

  Radio: imm/Music/-Internet Radios ................................................................................54



8.4.4.

  Film: iMM/Video .............................................................................................................54



8.5.

  Third parties' devices ..................................................................................................55



8.5.1.

  MeteoStation Giom ..........................................................................................................55



8.6

  Calls between individual devices and sound ...................................................................56



8.7

  IP sound ...........................................................................................................................60



8.8

  Air conditioning unit CoolMaster ....................................................................................61



8.9

  Connection of air conditioning units ...............................................................................66



Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

 Commands are given in purple, e.g.: sudo reboot

 Paths and links are given in red: imm/Pictures

 Notices are given in orange:

No characters display when writing a password in terminal

 Tips and tricks are given in green: If you do not want to run configuration via iMM CC at every server/client separately; you can open iMM CC on any PC connected to local network…

 Commands are in italic

Explanatory notes:

Folder /

Directory

space at disc where files (pictures, films, videos) are saved. Directory may contain further subdirectories. sw application on video zone

iMM application

Audio zone

EPG

Ethernet

Floorplan

applic ation

AZ

FP zone equipped with music player (Squeezebox or other) and speakers

Full HD

Floor plan of house or individual rooms

High image resolution (1920x1080px); detail and sharp image. Can be achieved from BlueRay or TV program providers in HD quality.

DB

Gyro control iDM iMM Client

GO

wireless mouse reacting to hand movement; serves to control the menu on the video zone iNELS Designer and Manager – sw environment for iNELS configuration

iMM Control

Center

IP camera

Linux

LT

NFS

Playlist

PT

Slideshow

Streamer

Stream

Storage

iMM

CC

LT

NFS

PT

SS iMM configuration administrator available via web interface camera connected to system which transfer the image on Ethernet or Wifi

Operational system VZ on which iMM application runs left button of Gyro control

(Network File Systems) protocol for sharing files and folders list of songs, videos or pictures right button of Gyro control automatic presentation of pictures satellite receiver that streams TV image top video zones is link (file) to place (on internet, in network, IP player or Streamer) which provides image or sound a place on iMM server hard disk drive where files which all iMM system users share are centrally saved

Video zone

WiFi

VZ

zone equipped with iMM Client and TV (or another monitor).

wireless network

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

Important application configuration commands in Linux (are entered in terminal):

CTRL+ALT+T

– calling up terminal

Ifconfig

- finding IP address of station/server, similar to IPCONFIG in Windows

mount

– command for connection of certain device (CD-ROM, network drive, etc.)

umount

- command for disconnection of certain device

sudo /etc/init.d/imm-webadmin restart

– command for restarting webserver

1.1. Putting VZ in operation

a) Once you unpack VZ, let the device stabilize at room temperature. b) Connect the cabling:

 230V/19V

 LAN ( iMM cannot be triggered without the presence of active network connection).

 Mouse and keyboard (connection via USB).

 Display device: TV or PC monitor by means of HDMI, DVI or DisplayPort.

 Audio output: combined (analogue + optical), HDMI.

2x USB

Digital Video output

(DVI) eSATA

LAN/1Gbit

2x USB

Power connector

HDMI

Analogue/Digital Audio IN/OUT

Version 02‐ 009/2013 ver. iMM:2.868

Reduction to optic jack 3.5

   Page of 68

iMM Installation Manual

Video zone c) Switch on by pressing the On/Off button on the front side of VZ. d) When the system starts up, iMM application starts automatically (blue screen),.

Status line:

Provides basic information about the state of system events

Zone selection: Click on a zone you want to control on the selection zone (room) list

Zone status: READY

– connected and enabled; UNPLUGGED- disconnected and disabled;

Current time:

displays the set system time

Control panel

Contains buttons for multimedia control (explained further)

Modules: Photos, Music, Film, Television, heating, Light, Cameras, Door sound, Internet,

Shutdown

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

Setting in this chapter need not be carried out; it serves for potential problem solution and general assistance in the Linux system orientation. Majority of these settings is done already in the production but one should get familiarized with them and go back to them if a problem occurs.

 Terminate Application by holding down the left mouse button (for longer than 5 seconds) on icon .

 You are on the Linux working area now.

 The application can be restarted by icon on the desktop.

1.2.1. Change of password

a) Enter sudo passwd in terminal, and confirm by Enter. b) You will be asked to enter the original password (default is “imm123“), and confirm by Enter. c) Then enter a new password, confirm by Enter; repeat the new password and confirm by Enter. d) Close the terminal with the cross in the left upper corner.

No characters display when writing a password in terminal.

The application can be run on LCD, plasma TV or PC monitor with lower resolution than Full_HD. If the resolution does not seem to be correct Application has to be re-installed. During the installation,

Application will recognize correct resolution of the display device, and will adapt to it. The TV image should be adjusted to „Adapt“. First of all, the client part has to be reinstalled. If the version is

Server/Client, also the server part will have to be reinstalled.

1.2.3. Installation of new version

a) Download the package with new Application version to VZ desktop. b) Click on the downloaded package with the right mouse button, and selection the “unzip here” option. c) A new folder named “iMM" will appear on the desktop. d) Open the folder and by double click select the “install.sh.” file. e) Select “Open in terminal” option in the dialogue window. f) A window with terminal will open, requesting a password. As default the password is “imm123”.

If you changed the password, enter the password you chose and confirm by Enter. g) Proceed by the installation instructions in the terminal. h) If the terminal requests installation of additional packages, confirm the “Y” question and press

Enter. i) During the server part installation unpack the package on the desktop, same as with the client version, and install it in the same manner. (file: “install 12.04.sh) j) When the installation is completed, terminal closes automatically, and then restarts given VZ.

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

1.2.4. Restart and turning the system off

Pressing the „F9“ key will display the upper and lower system bar. Click on icon in the top right corner.

When the menu unpacks, select the desired option: Switch off.

Pressing the button with symbol on the front VZ panel calls up a menu with options for switching off and restart of VZ.

1.2.5. Setting static VZ IP address

All VZ are preset to get automatically IP address via DHCP. For stations it is however recommended to set fixed IP address of adequate range of home network. a) Call up the system bar using the “F9” key. b) By the left mouse button click on the network icon in the upper bar. c) Select the option “Adjust connection”. d) A window opens in which select the network named "Wire connection 1", and click on the

“Adapt” option. e) In the next window select the bookmark “Setting IPv4”, and in the drop down menu select

“Manual”. f) A table activates where the "Add" option activates the line for address definition.

 enter IP address of relevant home network range in the “Address” column

 in the “network mask” column enter the network mask

 type the address of your router in the “Gate” column, and confirm by Enter g) Type again your router's address in the “DNS servers” line. h) Confirm by “Use” key, enter the password and close all windows. i) Press F9, click on the network connection icon

“Disconnect”.

by the left mouse button, and select

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

j) After disconnection click on the network connection icon instead of “Disconnect”, select “Wire connection 1".

Thus the connection restarts.

in the upper system bar and,

1.2.6. Setting the font (preset within the factory settings)

a) Call up the system bar using the “F9” key.

Applications System tools  Defaults  Advanced settings

Motive Window motive “Dust” (tick only).

In the “Fonts“ bookmark set the fonts as follows:

 Default font: Myriad Pro 16

 Document font: Myriad Pro 16

 Monospace fonf: Myriad Pro 16

 Window title font: Myriad Pro 16

 “Close” completion.

1.2.7. Update administration

The system searches own software update resources by means on the internet. To this purpose there is update administrator which, when update is found, opens itself and alerts users on the possibility of downloading new updates. It is recommended to maintain the system updated. a) You can activate update administrator by yourselves and thus check the software update status. By calling up system bar “F9”select Applications  System tools  Administration 

Update administrator. b) Click on “Install update” in the “Update administrator” window. c) The system asks you to type your password; confirm by “Verify”. d) The system will inform you on the course of download and installation of new updates. e) After the completion the wizard closes automatically, and the system should be restarted

(see Chapter 1.2.4.).

Automatic update setting

You can set download and installation of update automatically without confirmation and any other interventions of user...

1. Upload Software centre, select Adapt Software resources from the menu… open the tool for update and software resources setting and go to the Update card.

2. In the Ubunt update select which updates will be installed (for automatic update we recommend to enable only Important safety updates).

3. In the Automatic update part then select how often the system will check the availability of updates, and for direct installation of updates after the download tick the option Install security updates without confirmation.

Version 02‐ 009/2013 ver. iMM:2.868     Page of 68

iMM Installation Manual

2. Network File System (“NFS” hereinafter) configuration

NFS has to be set in case you use multiple VZ. If you use single VZ as iMM server, NFS need not be configured.

2.1. NFS configuration to VZ iMM Server

The following setting must take place physically on iMM Server.

a) Press the ”F9“ key to display the system bar, and open the web browser (default Firefox). address to open iMM CC. c) Here, in the “Configuration” bookmark, set the CU unit IP address and the IP address of server (of this station), of Sqeezebox server, path in Music folder in relevant lines. d) Confirm the change by pressing “update” and close the browser. e) Enter the command “ sudo gedit /etc/exports“ in the terminal. f) The terminal will request your password and file export opens in the text editor after confirming by Enter.

Version 02‐ 009/2013 ver. iMM:2.868     Page 10 of 68

iMM Installation Manual

Central unit address iNELS iMM Server address

Squeezebox Server address

Path to Music folder iMM assisting ID key

Licence key iMM b) Add the below line at the end of the line:

/home/imm

„IP serveru“/“maska sítě“(rw,sync,no_subtree_check)

(*in the quotation marks of the actual address) example: for server there is ALWAYS zero at the end of the IP address! c) Save the changes in the file and close it. d) Restart VZ.

Note:

The address of the Squeezebox server is the IP address of the device where the server for music playback is installed.

The path to the Music folder is a precisely pre-defined path to the folder in the system, and must always have the following format: „/home/imm/Music“ .

The secondary and licence key is generated in the production, and must not be deleted; otherwise imm will not work.

Shared folders in Storage are located here:

/home/imm/Pictures : for keeping photographs and pictures

/home/imm/Music : for saving audio files

/home/imm/Video : for saving video files

/home/imm/Television : here links to TV streams are saved, see chapter 5 „Streamer configuration“.

/home/imm/Cameras : here configuration files of cameras connected to iMM system are stored

Read more about supported formats and content of folders in chapter 8.3. Supported formats

Version 02‐ 009/2013 ver. iMM:2.868     Page 11 of 68

iMM Installation Manual

In the Czech Linux localisation you need to copy in folders with English name, i.e. Pictures

(NOT “Obrázky“), Music (NOT “Hudba“), …

2.2. NFS configuration on iMM Client

You need to do this part physically, separately for each iMM Client. a) Press the ”F9“ key to display the system bar, and open the Firefox web browser. b) Type the address http://localhost:8090 to open iMM CC. c) Here, in the “Configuration” bookmark, type the iMM Server's IP address in the “Address of IMM server““ line.

Server iMM address iMM licence key d) Confirm by pressing “update” and close the browser. e) Enter the command “ sudo gedit /etc/fstab“ in the terminal and confirm by Enter. f) You will be asked to type your password; which you will confirm by Enter. g) The fikle “fstab” will upload in the text editor. Add the below line to the end of the file:

ip_imm_serveru:/home/imm /mnt/nfs nfsver=3,bg, _netdev, nolock, hard, rw, user 0 0 h) Save the file by pressing CTRL+S and terminate the application by CTRL+X. i) Now you need to restart iMM Client; this will map automatically the needed folders from the server. j) When the system starts up, terminate the iMM Application, and in folder “Storage” delete the following folders (Video, Music, Television, Cameras, Pictures). Then open the terminal and enter the following commands:

sudo ln -s /mnt/nfs/Music /home/imm/Music

(command for connection to Music storage)

sudo ln -s /mnt/nfs/Video /home/imm/Video

(command for connection to Video storage)

sudo ln -s /mnt/nfs/Television /home/imm/Television

(command for connection to Television storage)

sudo ln -s /mnt/nfs/Cameras /home/imm/Cameras

(command for connection to Cameras storage)

sudo ln -s /mnt/nfs/Pictures /home/imm/Pictures

(command for connection to Pictures storage) k) One all the above commands are entered, end the terminal and restart the iMM application by opening the icon on the desktop.

Version 02‐ 009/2013 ver. iMM:2.868     Page 12 of 68

iMM Installation Manual

2.3. Connection of external hard disk drives

Server fstab setting

In terminal: “sudo gedit /etc/fstab “

Add a new line to the end:

“UUID= F474B7AA74B76DCC /media/My\040Passport ntfs-3g defaults,nosuid,nodev,nobootwait,locale=cs_CZ.UTF-8 0 0“

Hard disk drive identifier is in red ; in bold is the name of hard disk drive; you can find it out by the following command: “sudo blkid“ which is typed behind UUID= XXXXXXXXXXXXXXX in a line which ends with ntfs.

The HDD name can be found behind the legend.

LABEL=

xxxxxxx

Example: In terminal: “sudo blkid“ the following appears:

/dev/sda1: UUID="453a8d4f-d4fb-4c4e-8de5-ef7666e689d1" TYPE="ext4" - (iMM client's hard disk drive)

/dev/sda5: UUID="0a49bd69-20a7-490c-97db-6781bd794837" TYPE="swap - (iMM client's mechanics)

/dev/sdb1: LABEL=" My Passport " UUID=" F474B7AA74B76DCC " TYPE="ntfs" -(External hard disk drive)

Note: Instead of the space in the name of the hard disk drive (if there is any) you have to add „\040„

Setting exports

In terminal: “sudo gedit /etc/exports“

Add the following to the end of the text on a new line:

“/media/My\040Passport 192.168.88

.0/255.255.255.0(rw,fsid=0,no_root_squash,no_subtree_check,sync)“

The range of the network differs by the network iMM server is connected to … ( 192.168.88.

0). Type zero to end of this range.

Client fstab setting

In terminal: “sudo gedit /etc/fstab “

Add a new line to the end:

„ IP serveru“:/media/My\040Passport /media/My\040Passport / nfs nfsvers=3,rw,hard,intr 0 0

Note: “My\040Passport” is the name of device of concrete hard drive disk which has to be precisely defined in the client's fstab (same as in fstab on the server).

Version 02‐ 009/2013 ver. iMM:2.868     Page 13 of 68

iMM Installation Manual

2.4. Sharing external storage – external HDD

Server settings: a) Set fstab in the same manner like fstab settings of Server 2.3. b) Set Export in the same manner like the Server 2.3 Export settings. d) Now delete system folders via terminal by entering the below commands: rm -r /home/imm/Video 2>/dev/null rm -r /home/imm/Pictures 2>/dev/null rm -r /home/imm/Television 2>/dev/null rm -r /home/imm/Music 2>/dev/null rm -r /home/imm/Cameras 2>/dev/null e) In the terminal, go to Create “iMM" folder on HDD.

Notice!: The name of the hard disk "iMM HDD“ will always differ depending on how you name your concrete HDD.

Ex.: If the name of your HDD is, for instance: “Verbatim“ the names in the below links change to:

(mkdir /media/

Verbatim

/iMM) mkdir /media/iMM-HDD/iMM mkdir /media/iMM-HDD/iMM/Video 2>/dev/null mkdir /media/iMM-HDD/iMM/Video/Recording 2>/dev/null mkdir /media/iMM-HDD/iMM/Video/Cameras 2>/dev/null mkdir -m 0777 /media/iMM-HDD/iMM/Pictures 2>/dev/null mkdir /media/iMM-HDD/iMM/Television 2>/dev/null mkdir /media/iMM-HDD/iMM/Music 2>/dev/null mkdir /media/iMM-HDD/iMM/Cameras 2>/dev/null f) Then create the below system folders in the terminal: ln -s /media/iMM-HDD/iMM/Music/ Music ln -s /media/iMM-HDD/iMM/Video/ Video ln -s /media/iMM-HDD/iMM/Pictures/ Pictures ln -s /media/iMM-HDD/iMM/Television/ Television ln -s /media/iMM-HDD/iMM/Music/ Music ln -s /media/iMM-HDD/iMM/Cameras/ Cameras g) Then you can already upload your data!!!

Client

a) Set fstab in the same manner like fstab Client 2.3. settings. b) Then create the below symbolic links in the terminal: ln -s /media/iMM-HDD/iMM/Music/ Music ln -s /media/iMM-HDD/iMM/Video/ Video ln -s /media/iMM-HDD/iMM/Pictures/ Pictures ln -s /media/iMM-HDD/iMM/Television/ Television

Version 02‐ 009/2013 ver. iMM:2.868     Page 14 of 68

iMM Installation Manual

ln -s /media/iMM-HDD/iMM/Music/ Music ln -s /media/iMM-HDD/iMM/Cameras/ Cameras

Note: For visilbity of HDD in folders type the following command in the terminal: for path in Music Video Pictures; do [ ! -L ~/"$path/#EXTERNAL" ] && ln -s /media ~/"$path/#EXTERNAL"; done

2.5. Setting shared storage NAS Synology

Connect to NAS web interface by typing the IP address of the NAS device in the web browser.

Enable NFS service:

Open – Control panel > Win/Mac/NFS > NFS service > Win/Mac/NFS > Enable NFS and click on Use

Enable SSH service:

Open – Control panel > Terminal > Enable SSH Service

Open “Putty” tool for remote control on your PC, type in NAS IP address you want to share. Log in as „root“ by typing: root and password. You are remotely connected to NAS now.

Then type:

mkdir /volume1/iMM mkdir /volume1/iMM/Video mkdir /volume1/iMM/Video/Recording mkdir /volume1/iMM/Video/Cameras mkdir /volume1/iMM/Pictures mkdir /volume1/iMM/Television mkdir /volume1/iMM/Music mkdir /volume1/iMM/Cameras whilst volume 1 is a work folder (disk) intended for sharing.

You can find out The name of the folder by command cat /etc/fstab (cat space /etc/fstab). If the name differs, you have to change the names in the list of commands.

After creation of shared folders change authorisation to these folders by command “chmod -R 777

/volume1/iMM/“

Next command will export shared folders for access from other devices “vi /etc/exports“

Press enter and add the following line to the last line (if there is no last line, add it on the first one):

/volume1/iMM 192.168.88.0/255.255.255.0(rw,sync,no_subtree_check,no_root_squash)

You will do that by pressing letter “i” which enables typing, and copy the line, or write it manually; after typing press Esc and write letters “wq”.

Bear in mind that 192.168.88.0 is IP of given NAS server but with zero at the end.

In case of any doubts use the below manual: http://www.nti.tul.cz/~satrapa/docs/vim/

Setting of NAS sharing to client

Type the following command in terminal: “sudo nano /etc/fstab“

A window opens, at the end of which type the below line:

192.168.88.200:/volume1/iMM /mnt/nas nfs nfsvers=3, bg, _netdev, nolock, hard, rw, user 0 0

There is NAS device IP at the beginning of the line. (192.168.88.200)

Open the terminal and create symbolic links:

Version 02‐ 009/2013 ver. iMM:2.868     Page 15 of 68

iMM Installation Manual

ln -s /mnt/nas/Music/ Music ln -s /mnt/nas/Video/ Video ln -s /mnt/nas/Pictures/ Pictures ln -s /mnt/nas/Television/ Television ln -s /mnt/nas/Music/ Music ln -s /mnt/nas/Cameras/ Cameras

Then create a symbolic line for sharing by putting the following command in the terminal:

for path in Music Video Pictures do [ ! -L ~/"$path/#EXTERNAL" ] && ln -s /media

~/"$path/#EXTERNAL" done

2.6. Saving files in Storage

An icon of “Storage” folder with the below directories is located on the desktop: Music, Video,

Pictures, Television, Cameras. These folders are accessible from any VZ, and you can copy data inside (from USB, CD.,,,).

3. Configuration in iMM Control Center

IMM Control Center (the “iMM CC” hereinafter) is a web interface serving for setting iMM clients and iMM servers. iMM CC is activated upon entering the address http://localhost:8080 in your internet browser. If iMM Control Centre does not open, type the following in Terminal: sudo /etc/init.d/imm-web admin restart.

3.1. Setting iMM CC on iMM server

3.1.1. Bookmark Server

Epsnet server for communication with iNELS central unit

Miele server for communication with

RF server for communication with

RPC server for communication with iHC Application

Logitech media server for Audio

Button for forced shutdown of iMM application

Version 02‐ 009/2013 ver. iMM:2.868     Page 16 of 68

iMM Installation Manual

This bookmark contains control to virtual servers necessary for communication with devices of third parties. Within diagnostics, the state of individual virtual servers can be found out (button “Status”), suspend their run (button "Stop"), or activate them (button "Start"). If servers are installed (see chapter

1.2.3), they start automatically when iMM starts.

3.1.2. Bookmark CU Configuration

Address of iNELS central unit

Server iMM address

Squeezebox server address

Licence key

Path toMusic folder

Assisting ID key numberFind file „export.pub“

Upload file

„export.pub“

Save changes performed in extract from file export.pub

Extract from file

„export.pub“.

There are units, events and variables from iNELS that are imported to iMM.

Version 02‐ 009/2013 ver. iMM:2.868     Page 17 of 68

iMM Installation Manual

3.1.3. Bookmark System

IP address of sub-network to which iMM server is connected

Sub-network settings

Default gateway DNS server

Network interface settings

Button for complete shutdown

Restart button

In the System bookmark, you can reset parameters of network settings or restart, or use the “Shutdown” button to turn off the server completely. IP address is usually set to static to avoid its change in time.

3.1.4. Bookmark RF Configuration

eLAN-RF device is necessary for iMM communication with wireless RF electrical installation. RF elements are added on FP in the same manner as iNELS elements. Only the RF field under the list of elements has to be ticked. eLAN-RF IP address

Epsnet port of eLAN-RF converter iMM server IP address

Communication port

Button for adding configured

RF actor

Update settings

RF type aktoru

Version 02‐ 009/2013 ver. iMM:2.868

Optional name for RF actor (32 characters)



Hardware address of

RF actor (6-digit number displayed on

RF actor

Page 18 of 68

iMM Installation Manual

1) Procedure for RF elements configuration

a. List of supported RF elements

Element

RFTC_10_G

RFJA_12B_24V_DC

RFJA_12B_230V

Designation

Digital temperature controller

Roller actor for 12-24 V DC drives

Roller actor for 230 V AC drives

Element Designation

RFSA_61B

RFSA_62B

Switch actor; 6 functions (box)

Switch actor; 2 channels, 6 functions (box)

RFSA_61M Switch actor; 6 functions (DIN)

RFSA_66M

Switch actor; 6 channels, 2 functions (DIN) RFDA_71B

RFDAC_71B

RFDEL _71B

RFDS C_71

RFSA_11B

Dimmer actor; 7 functions

Analogue actor (flueorescent lamps, thermoheads)

Dimmer actor (economic and LED bulbs)

Dimmed outlet; 7 functions

Switch actor; single-function (box)

RFSC_61 Switched outlet; 6 functions

RFSTI_11B Switched temperature sensor

RFSTI_11/G Actor with temperature sensor

RFTI_10B_IN

Temperature sensor with integrated sensor

RFTI_10B_OU

T

Thermal sensor with connectors for connection of sensor RFSC_11 Switched outlet a. Select the type b. Type the name which you choose c. Type the address in format 0x“address“ (e.g. 0x0014AD)

2) Add the element by clicking to Add

4) Add the icon to FP but tick RF.

Switching between extract of elements from file export.pub on rf.pub

Version 02‐ 009/2013 ver. iMM:2.868     Page 19 of 68

iMM Installation Manual

3.1.5. Bookmark Zones

In this bookmark individual zones used in the iMM system are defined.

Zone name

Zone IP address

Select „yes“ for audio zone

Select „yes“ for meteo station

Select „yes“ for virtual zone

Create defined zone

List of defined zones

Remove zone

List of defined virtual zones

Version 02‐ 009/2013 ver. iMM:2.868

Read more about

IR settings in 3.1.9

   Page 20 of 68

iMM Installation Manual

Virtual zones serve for control of the device by means of eLAN-IR (infrared codes).

Each zone can have one eLAN-IR. One virtual zone can transmit up to 9 different codes.

IR code No. in eLAN-IR

Time interval between IR code

Number of IR code

Pause, Play

Forward, Rewind eLAN-IR output

Next, Previous

Volume up,

Read more about IR codes in chapter 3.1.9 IR

Proceed as follows to make Virtual zone run:

1. In the bookmark Zones type the name of the zone, and add the IP address of eLAN-IR as the IP address.

2. Ask “yes” to the question “Is it virtual zone?”, and create the zone by pressing „create“.

3. Below, in the bookmark Zones, there is a list of defined virtual zones; there click on

Configure to configure the zone.

4. The names you see are names of buttons in iMM Application (on the right side, primarily serving for control of multimedia).

5. The first optional window is the number of IR signal you want to transmit. The second column offers 3 options. These options belong to the number of output on eLAN-IR. In the third window type the number of IR signal repetitions (1 as standard). The fourth window defines the gap between repeated IR code transmission (0 as standard).

Power on/off

Version 02‐ 009/2013 ver. iMM:2.868     Page 21 of 68

iMM Installation Manual

3.1.6. Bookmark A/C

Serves for definition of air conditioning units and their control directly by means of iHC application.

Supported communication card for air conditioning units is LG je PI485. See 8.6.5 for wiring (Here you can see more information about indirect control of air conditioning units by means of CoolMaster unit).

Optional name of inner unit

Selection of communication interface

Serves for entering central air conditioning address

Creates defined air conditioning unit

IP address of

RS485/Ethernet converter

Central air conditioning

RS485/Ethernet converter communication port

List of already defined air conditioning units

Version 02‐ 009/2013 ver. iMM:2.868     Page 22 of 68

iMM Installation Manual

3.1.7. Bookmark Rooms

Serves for configuration of file rooms.cfg which uploads iHC Applications. Read more in the manual itself.

Rooms are in fact “virtual rooms” (groups) by which you can group required commands (buttons) and zones onto a single screen.

Name of new room

Control of room will be protected by password

Password and

Editing items in room

Setting and change of

Removal of room

/path_to_script/name_of_script.sh

For control scenes can be use programmed script, that can execute various functions defined in it. It is necessary to observe the absolute path, starting with "/" and ending with the suffix script. "Sh" (shell) or ". Py"

(python). Example: /home/imm/script_light.py

Version 02‐ 009/2013 ver. iMM:2.868     Page 23 of 68

iMM Installation Manual

3.1.8. Bookmark Cameras

Serves for defining IP cameras you want to check and control by by means of iMM and iHC Application.

HTTP and RTSP ports are only entered if your IP cameras are configured for access from external network.

If you remotely connect camera via HTTP port, you will get to its web interface and you can fully control the camera. If via RTSP, then you will only get to camera STREAM.

Read more about settings of these ports in the camera user manual.

Camera name

Camera IP

User name

Access password for camera

HTTP port

RTSP port

Camera type

List of already defined cameras

Version 02‐ 009/2013 ver. iMM:2.868     Page 24 of 68

iMM Installation Manual

3.1.9. Bookmark Energy

Directly in iMM Application the amount of energy consumption can be clearly displayed. Energy is recounted based on the amount of impulses that provide outputs from meters (gas-meters, electrometers, water-meters). Impulses are further processed in an optional input unit of system iNELS (IM2-140M, IM2-20/40/80B) in form of a counter. This value is by means of export.pub transferred to iMM Server where variable is assigned to Watter/Gas/Electrical in iMM CC on bookmark

Energy. The setting of pulse conversion to unit of measure, selection of currency and setting the currency/unit is performed in iMM Application in activated Energy module. The Energy module allows recording of consumed energy for a day, week, month and year. Data are saved in iMM Server – the data do not get lost even in case of power shutdown or power cut. Consumption can be displayed in a table or graph.

Consumed energy is displayed not only in given quantity but also as financial value.

See below for the list of supported measuring instruments that have an impulse output:

1. Click on the System Configuration button (icon of hammer and screwdriver – F11)

2. Select bookmark System -> counters

3. Add counter that you name by energy you want to measure

4. Create a new action that you name e.g.: uploading electricity

5. Add a command in the action which will be user action -> commands for counters -> increment counter

6. Select counter that corresponds with given action (e.g. for upload electricity you put counter electricity)

7. Add the action created as described above in system configuration to relevant binary input in action line when the input closes

8. Once the file export-pub is created and uploaded to iMM server, in bookmark Energy you can assign in the counter value line (electricity_VALUE). It must be VALUE in the line.

Connection of energy meter

Energy meter connects by means of a binary output unit. Output from supported energy meter is distinguished to + a -, that’s why polarity has to be maintained by bringing – minus to GND terminal and

+ plus to IN terminal. See 3.1.7. for the settings.

Version 02‐ 009/2013 ver. iMM:2.868     Page 25 of 68

iMM Installation Manual

Creation of counter in iDM:

Bookmark

Counters

Bookmark

System

Naming of counter

Creation of action “Counter incrementing":

Addition of other counters

User action selection

Select Increment counter

Select uploading of required energy counter

Version 02‐ 009/2013 ver. iMM:2.868     Page 26 of 68

iMM Installation Manual

Action assignment to binary input where output from measuring instrument is connected.

Add action

Energy upload

Input of binary input unit where output from measuring instrument is connected

Assignment of counter value in iMM Control Center

For hot water consumption measurement

For cold water consumption measurement

For gas consumption

Selection of counters from file export.pub

For electricity consumption measurement (for up to 5 independent measurements)

Version 02‐ 009/2013 ver. iMM:2.868     Page 27 of 68

iMM Installation Manual

Switching of basic unit

Number of impulses for given

Price of one impulse

Currency setting

Example:

1 kWh = CZK 100.00 = 100 impulses

Base Unit – kWh

Impulses – 100 per 1 kWh

Price – 1 per 1 impulse

Setting energy meter in iMM

Select the “energy management” option from the list of elements. The icon we select can be any.

After clicking on the newly added icon on FP, the basic energy management screen appears.

Displaying energy meter in iMM

Column measuring electricity consumption; grey button displays electricity consumption

Column measuring gas consumption; grey button displays gas consumption graph

Column measuring water consumption; grey button displays water consumption graph

Version 02‐ 009/2013 ver. iMM:2.868     Page 28 of 68

iMM Installation Manual

After clicking on grey icons (electricity, gas, water), consumption of given energy displays in a clear graph. You can switch between daily, weekly, monthly or yearly graph. Displaying individual graphs can be left out from the legend of energies on the right side that support measuring from multiple sources

(electricity, water)

Information is read off the counter every second into a temporary file, and every hour average values are typed in file /etc/imm/em.dat

which is used to count the values for graphs.

Version 02‐ 009/2013 ver. iMM:2.868     Page 29 of 68

iMM Installation Manual

3.1.10. Bookmark IP (device control by infrared signal)

Serves for setting the eLAN-IR converter. The eLAN-IR converter enables control of devices of third parties

(that cannot be controlled) by means of IR codes that the converter learns from the original remote control.

Control from iMM can then be used in two different ways:

1. By means of virtual control in web browser (that you optionally predefined). In iMM you can call this virtual control up by pressing the panel button in the web interface of the IP converter.

2. By pairing with the given zone in which you wish to control the 3 rd

parties device (TV, amplifiers)

Procedure for entering IR codes:

1. Type the IP address and eLAN-IR port (see more about the setting in the manual supplied with the

eLAN-IR product

)

2. Go to eLAN IR converter Builder to upload necessary codes by pressing Record and directing the remote control to eLAN-IR; specifically to the receiving lens, and press relevant button.

3. In the right column you will see uploaded codes and assigned sequence numbers.

Version 02‐ 009/2013 ver. iMM:2.868     Page 30 of 68

Web interface of IR eLAN settings converter

iMM Installation Manual

IP address eLAN-IR Port

Button Builder

Web interface of IR eLAN Builder converter button Builder

IR code number

Version 02‐ 009/2013 ver. iMM:2.868  button Record

   Page 31 of 68

eLAN-IR can be set directly on web interface under IR bookmark.

iMM Installation Manual

Displays if eLAN-IR is not connected

Field for importing icons

Field for IR codes administration

Visualisation area

Version 02‐ 009/2013 ver. iMM:2.868     Page 32 of 68

iMM Installation Manual

Field for entering IR code for volume up

Audio amplifier

Number of IR code repetitions

Field for entering

IR code number for volume down

Television

Field for entering IR code number for turning number of output for command on eLAN-IR

Time gap between IR code repetition

Bookmark Audit serves for displaying and uploading LOG of events for diagnostic purposes of the application developer.

Version 02‐ 009/2013 ver. iMM:2.868     Page 33 of 68

iMM Installation Manual

3.2. Setting iMM CC on VZ iMM Client

Setting iMM Client proceeds similarly as iMM server (see 2.1); it downloads all the information about settings from iMM Server on the address http://localhost:8090 . You only have to type the right IP address in the „Server“ bookmark in the “Address of IMM server““ line. If you earlier defined VZ as server, you need to remove duplicate zones, air conditioning units, rooms, cameras and energy meters from relevant bookmarks.

Server iMM address iMM licence key

Version 02‐ 009/2013 ver. iMM:2.868     Page 34 of 68

iMM Installation Manual

4. Floorplan (FP) setting

Floorplans for control of Lighting/Heating

The below setting has to be performed for every iMM Client separately.

Clients download from the server neither FP related information, nor images from the “floorplans” directory. Unlimited FP can be saved in “png“ format.

Resolution and dimensions of the floorplan image are always adjusted automatically to 1046x1046 pix. Save floorplans in the folder: opt/imm/gfx/floorplans . Name of FP images will correspond with the name of the floorplan in Application.

The name of the floorplan after location of elements cannot be changed!

4.1. Moving between FP

Use the upo and down arrow to move between more than 4 FP. These arrows have paging function which means that one click up or down is always movement one page up or down. A page is always 4 FP.

Icons of individual devices. If you wish to create your own icons go to chapter 8.1.

Version 02‐ 009/2013 ver. iMM:2.868     Page 35 of 68

iMM Installation Manual

4.3. Adding elements in FP

a) Click on the place of FP with the right mouse button, where you wish to place the element icon. b) A dialogue opens for selection of elements (from a list) and available icons. c) Select an icon

 Some icons in the selection dialogue filter out a list of actors (e.g. icon of thermometer filters out all actors except the temperature ones). d) Select an element from the list (In dialogue you can look up available elements based on their name). e) Type the description of the icon in the “Description” line. f) Zoom defines the size of the icon and the XY coordinates define the location of icon on FP. g) Confirm by the “Confirm” button:

Field for searching Button Find

By ticking the icon will serve only for reading the status, not for control

When NONE is used, the icon will not display and only the icon description will be visible ikony

Icon selection

Selection of element from file export.pub

Tick for switching to configured RF Icon size

Icon size on FP

Location of icon on FP

Icon description

Setting of Font and Font colour

Definition confirmation

The icon can be moved on FP by function drag and drop – press the left mouse button whilst holding down the Shift key.

Configuration of elements on FP can be copied between iMM client (VZ) by copying the below files:

/etc/imm/lights.dat

For successful transfer of FP elements you have to transfer even FP itself.

Air conditioning must always have the name on FP; otherwise it cannot be created, and the name must be the same like the one you typed in iMMCC.

Version 02‐ 009/2013 ver. iMM:2.868     Page 36 of 68

iMM Installation Manual

4.4. Heating

With the controls on the right side, FP heating is adapted to control the heating. There you can change setting of individual preset heating modes (Minimum, Low, Normal, Comfort, Attenuation, Auto).

Addition of elements is governed by rules described in chapter 4.1. a) If you wish to control individual heating modes, you have to enable export of control and setting of heating program in IDM software. In time/weekly program administrator a part of export setting for visualisation.

Enabling export of heating circuits for visualisation b) After clicking on FP select export.pub from the list of elements; it contains StateTH. c) Select the thermostat icon d) $o °C is typed automatically in “description” (in the icon description you add variable temperature value behind $o).

You can add your own icon description behind the legend. e) Thermometer icon appears on FP with selected thermal mode and temperature that corresponds with the selected mode. Modes can be alternated by buttons on the right FP side.

Version 02‐ 009/2013 ver. iMM:2.868     Page 37 of 68

iMM Installation Manual

4.5. Lighting

With its controls, FP is designed for dimming and switching the lighting. Addition of elements follows the rules described in chapter 4.1. This FP is mostly used for addition of icons to control sun blinds,

Miele household appliances and energy consumption (energy management). Use the icon to Floorplan from the basic iMM Application screen.

Floor name

to get

Light intensity setting

Dialogue window for defining a new icon on FP.

Version 02‐ 009/2013 ver. iMM:2.868     Page 38 of 68

iMM Installation Manual

4.6. Displaying variables in icon description

If you want to display variable value in icon description, e.g. information from thermal sensor, information from dimmer, etc.

Type “$“ (without the quotation marks) and the unit – e.g.

“°C” for temperature; the same procedure to display the value of brightness in dimmable lights in %. In some actors the displayed unit is added automatically.

Example:

Temperature:

Select the icon Thermometer

IDRT2_1_TERM X F 36 REAL PUB_INOUT

Dialogue window for defining a new icon

Description: $o °C Outside temperature

Displayed in iMM as: 23.5 °C Outside temperature

Dimming:

lbc02_rs_dimming_ fluorescenttube _right R F 18516 REAL PUB_INOUT

Description: $o % Fluorescent tube kitchen

Displayed in iMM as: 50 % Fluorescent tube kitchen

Filtered list of elements from file

export.pub

Icon

Thermometer

Actual value:

if there are “actual data from input”, e.g. voltage analogue input from meteostation when 5V =

100km/hr, we will use the formula “$o*20 km/h”.

Example:

Description: $o*20 km/hr Wind speed

Displayed in iMM as: 60 km/hr Wind speed

Version 02‐ 009/2013 ver. iMM:2.868     Page 39 of 68

iMM Installation Manual

4.7. Connection of Miele household appliances

To connect to iMM you need to install the Miele Gate-wayXGW 2000 which receives information from

Miele device on PowerLine, and sends it on LAN network further to iMM Server.

(All devices must be on one phase. Communication on power line is enabled by all Miele appliances that have logo [email protected])

Network settings

Name under which

Gateway will be visible

Network settings: IP address of

Miele gateway, sub-network mask, default gateway IP address

DNS server IP address

XGW 2000 network setting

The set MieleGateWay IP address is recorded on iMM server in file /etc/imm/miele where the basic shape is already set within the factory settings.

Select “miele” from the list of elements (the icon assigns automatically). To describe the icon it is

NECESSARY

to keep the same name as is the name of the room – for the appliance on the web interface (Room Name). Only appliances with the same room name will display – to ensure better arrangement in Control of Miele appliances.

To connect [email protected] to iMM system please restart the iMM Server.

Version 02‐ 009/2013 ver. iMM:2.868     Page 40 of 68

Naming of appliances

iMM Installation Manual

Room name

Miele definition

Here type the same name as on the web interface of XGW gateway in column Room

Name.

If you wish to display all appliances under a single icon, do not type any text in Description to the miele element.

Version 02‐ 009/2013 ver. iMM:2.868     Page 41 of 68

iMM Installation Manual

In the control screen you can see the status of individual appliances (name and active controls).

Information about instrument

Active instrument

Control options

Basic Miele wiring

Version 02‐ 009/2013 ver. iMM:2.868     Page 42 of 68

iMM Installation Manual

5. Television

5.1 Adding TV channel to iMM

a) Make a tune channels on VU+ Solo2 (VU+) b) In the web interface, enter the IP address VU+. c) On the main page, select your satellite provider (depending on the service used). d) Clicking the left mouse button on the first icon in the row of the screen to save the stream "Save target as ..." to the directory/home/imm/Television, in "name_program.m3u".

Files that are created automatically in your next m3u files are systemic (program_epg.txt) and contain

EPG information. These files can be deleted (by highlighting and pressing delete on the keyboard) when you have a problem with EPG readings from the server.

The file can be play back for checking the functionality in the program VLC. When you start a terminal and type: vlc (contents m3u)   e.g.. vlc http://10.10.3.155:8001/1:0:1:3700:C8C:3:EB0000:0:0:0:

Provider

TV program

Left-click and save the steam with the extension m3u

example

:

file of Stream contains this information:

http://192.168.1.251:8001/1:0:1:1F43:BC6:3:EB0000:0:0:0:

where 192.168.1.251 – is IP address VU+

where 8001 is port on which VU+ communicates

where 1:0:1:1F43:BC6:3:EB0000:0:0:0: is the stream code that program

Version 02‐ 009/2013 ver. iMM:2.868     Page 43 of 68

iMM Installation Manual

5.2 EPG – Electronic program guide

Installation of plug-in EPGREFRESH

Installation via IR controller on graphic interface in VU+ SOLO2

 updates for the Enigma interface (Menu > Settings > update software)

 system reset (Menu > Standby restart > Reset enigma)

 plugin installation EPGREFRESH (Menu > Plugin > EPGrefresh > download install)

 system reset (Menu >Standby restart > System reset)

Setting of downloading EPG

Menu > Plugin > EPGREFRESH

5.2.1 Settings of EPG in VU+

Settings > System > Setting EPG

Select all providers EITEPG, VIASAT, TEDMED, MHW.

5.3

Setting a storage for TV record

e) In Terminal (called up by pressing CTRL+ALT+T), type the command “ telnet ip_address_dreambox “ and enter login “ root “ (there is no password); confirm by Enter. f) Then type the command “ jpico /etc/fstab “ to open the “fstab” file. g) Use the arrows to move to the end of the file, and add the below line:

„ip_address_iMM_server“:/home/imm/Video/Recording /mnt/nfsnfswsize=4096, rsize=4096, nolock 0 0

Version 02‐ 009/2013 ver. iMM:2.868     Page 44 of 68

iMM Installation Manual

Example of fstab file h) Save (CTRL+O, Enter), and terminate the “fstab” file by pressing the key (CTRL+X). i) Type the command “ mkdir /mnt/nfs “ and then command “ mount /mnt/nfs “. j) Type command “ reboot “ to restart DB. k) Go to DB and set the folder in the record settings: “Setting – system - recordingpaths“. Ad

“„ /mnt/nfs “ and remove the others. Use colour buttons and the “menu” button on the control, as advised in the description on the screen. l) After the restart, your DB is ready for recording in iMM. Records are available in iMM, in module “Video” in folder “Recording” in format – the file is always - RRRRMMDD HHMM –TV program name.ts (example: 20120213 1320 - FILMBOX HD.ts).

Version 02‐ 009/2013 ver. iMM:2.868     Page 45 of 68

iMM Installation Manual

5.4

Recording programming

You can start recording immediately by pressing the button on the control panel by pressing the next one.

, and terminate

Recording is timed by clicking on the name of program in EPG. The beginning of recording is then set on the streamer by EPG, and the end of recording by the beginning of the next program. If the program runs already, recording starts immediately.

During recording iMM Client need not be on; the record takes place on iMM Server.

You can set recording so far ahead where the given program's EPG reaches.

Number of channels that are recorded at the same time is limited as online watching from streamer

(depends on the number of streamers, or on the number of tuners).

Recording by means of EPG

Version 02‐ 009/2013 ver. iMM:2.868     Page 46 of 68

iMM Installation Manual

6. Installation and configuration of AudioZone (AZ)

a) Install server for Squeezebox from: http://www.mysqueezebox.com/download/ b) c) d)

Type the below address in the web browser on iMM Server:

Click on “Next” to choose the path to music files

Click on “Next” to choose the path to the playlist http://localhost:9000

/home/imm/Music

/home/imm/Music

>.

.

> Finish >Close browser.

6.1 Setting AZ-LARA

Power button Volume +

Button Settings

Volume -

Arrows for moving

Setting IP address: Hold the Setting button on the LARA panel go with the right arrow to Settings confirm

bookmark LAN confirm and there, by means of volume buttons select a line you wish to set. Press the

Settings button to enter adjustment in line and return by pressing the Power button. The value of the figure in the line can also be changed by the volume buttons. Once all data are set press the power button; Lara asks whether you want to save the settings; go to YES with the right arrow and confirm by the Settings button.

LARA reboots.

In LARA configurator, after typing the IP address and pressing the „uploading the settings“ button tick the

„Activate audiozone mode“ option in the Audio zone bookmark, and set the IP address of Logitech media server where the server for audio zones runs. Then select the option „Save settings“.

Version 02‐ 009/2013 ver. iMM:2.868     Page 47 of 68

Lara's IP address

iMM Installation Manual

6.2 Setting iMM Audio Zone-R

Typing radio stations

Button for audio zone activation

IP address of Logitech media server iMM Audio Zone-R

Audio zone can be connected to network by means of Ethernet.

All settings of the player are done on the audio zone web interface where you can get by using the default address: “192.168.1.220“ . For the first configuration you need to set the same sub-network range, e.g.:

„192.168.1.20“

Connection: Connect the supply to iMM audio zone; wait for about 20 seconds (before the system starts) and connect to PC via Ethernet cable.

Version 02‐ 009/2013 ver. iMM:2.868     Page 48 of 68

iMM Installation Manual

Select the following after typing default address on web interface: a) name of audio zone b) IP address of Logitech media server c) IP address of audio zone, mask and gateway

Once you set all necessary save it by pressing “save”.

Then set PC to the same sub-network range – by the type of IP audio zone that you selected, and reconnect to the web interface of the audio zone; then press the Shutdown button. (button for shutting it down)

Now you can connect the audio zone to local network, connect active speaker or amplifier using 3.5 mm jack and connect to power supply. After a while, the audio zone should appear on the Logitech media server. You will add it in iMM application same as other audio zones (Squeezebox,Lara).

Note: If you are not sure with the previous or existing IP address, USB keyboard has to be connected to audio zone, connect to Ethernet network and monitor, or via TV through HDMI cable and connect the power supply; after start-up (approx. 60 seconds) press the Enter key. Then log in by typing “root“ login and password

“imm123”. Once you log in, type “ifconfig“ and confirm by Enter. You will find the current IP address in the second line behind the „inet“ inscription. Now type “shutdown –h now“ - command for shut down.

Naming of audio zone

Typing of logitech media server address

Setting of iMM audio zone network interface

6.3 Setting AZ Squeezebox Touch (AZ-SQB)

Setting IP address:

 SQB automatically assigns IP address if DHCP is enabled in the network. You can find the assigned address directly in SQB in section Settings Advanced Diagnostics.

 We however recommend that a fixed address is set to ensure reliable function, e.g. In case of power failure or when “DHCP server” is cleaned. Bear in mind that the SQB IP address is typed in iMM CC

– so in case of malfunction it should be found out whether SQB “did not change” the IP address. You can find this directly on AZ: Settings Advanced Diagnostics.

Version 02‐ 009/2013 ver. iMM:2.868     Page 49 of 68

iMM Installation Manual

Fixed IP address can only be set in connection to network where DHCP server is switched off

(some service switch where DHCP can be turned off should be used for setting).

 After unsuccessful assignment of IP address from DHCP SQB offers manual configuration – of

IP address, gateway and DNS.

 In SQB menu go to "Settings>Advanced>Connection to network>Select network>Connect in ethernet network”. Now the device attempts to get IP address from DHCP; when finishes, it report error “DHCP address not found”. Select “Enter IP information manually>Continue”; type in IP address, network submask, gateway and DNS. Confirm the entered data by pressing „Completed“.

6.4 Directing to iMM server

Menu – Settings>Advanced>Connection to network>Remote libraries“ – there type in the IP address of iMM Server>Completed.

Now you can select files to be played from AZ on iMM Server Music Storage.

By means of scenarios you can create scenes for individual events (e.g. turning off lights when film starts, etc).

In folder: etc/imm/events

There are files which start a scene at the below events:

 audioStart.py (when music is turned on)

 audioEnd.py (when music is turned off)

 tvEnd.py (when TV is turned off)

 tvStart.py (when TV is turned on)

 videoEnd.py ((when Video is turned off)

 videoStart.py (when Video is turned on)

 everyMinute.py (every minute checks the state of e.g. movement sensor)

 File contains commands from export.pub which are performed within the given scene. Format is the following: e.g. epsnet[„sa04_rs_1_roleta_dolu“]=1 - kde „sa04_rs_1_roleta_dolu“ corresponds with naming in IDM, i.e. export of *.PUB file to iMM.

 The number of commands in file is not limited.

Version 02‐ 009/2013 ver. iMM:2.868     Page 50 of 68

iMM Installation Manual

Example:

Scene created when film ends: epsnet["sa04_rs_1_zaluzie_nahoru"]=1 - sun blinds up epsnet["lbc02_rs_stmivana_zarivka_leva_ON"]=1 epsnet["lbc02_rs_stmivana_zarivka_prava_ON"]=1

- turn on fluorescent lamp

- turn on fluorescent lamp epsnet["da22_rs_stmivane_osvetleni_halogeny_ON"]=1 - halogens on

-

8. Supplements

8.1. Modification and creation of icons for FP

Icons on list of elements can be modified, and new added. Icons are located in directory opt/imm/gfx/inelsitems .

Icons must be saved in “PNG“ format. Application iMM supports displaying format RGBA where alpha channel is defined by 8 bites.

For creation of icons you can use e.g. an open source tool GIMP where the colour depth standard for

PNG images is 24 bit, and 8 bi for alpha channel.

www.gimp.org

Icons have 72 ppi resolution per screen, and are inserted in a 200 x 200 pixel frame.

When two-state icons are created, both these icons must be inserted in given directory whilst the second state is named _1

Dialogue window for creation of new image

Size 200x200 pixels

Resolution for X and for Y 72 ppi

Fill in s: select transparency

Version 02‐ 009/2013 ver. iMM:2.868     Page 51 of 68

iMM Installation Manual

8.2. Screenlet

There is a screenlet bar on the main iMM application screen on the left side. Using the bar you can add screenlets on the main screen, e.g. weather, facebook, electronic gmail and others…

Screenlet displays after getting the cursor to the left part of the screen

 If you wish to add the screenlet you desire on iMM desktop just click on its icon.

 Drag and drop to move the icon

 Setting can be done by pressing the right button.

1. Weather

Locality – type the name of town where you wish to watch the weather, e.g. Prague

Toggle – Minimizes weather just to current weather, without forecast

Size – Defines the size of the screenlet

Transparency – Defines the transparency of the screenlet

Delete – Deletes all settings and the screenelet

Close – Closes the desired screenlet; leaves the setting for its reverse call-up

2. Gmail

Properties

Update interval – Interval in which email will always be updated

Username – Your gmail user name

Password – Your gmail password

Size – Defines the size of the screenlet

Transparency – Defines the transparency of the screenlet

Delete – Deletes all settings and the screenelet

Close – Closes the desired screenlet; leaves the setting for its reverse call-up

Version 02‐ 009/2013 ver. iMM:2.868     Page 52 of 68

iMM Installation Manual

3. Facebook

Properties

Update interval – Interval in which email will always be updated

Username – Your Facebook user name

Password – Your Facebook password

Size – Defines the size of the screenlet

Transparency – Defines the transparency of the screenlet

Delete – Deletes all settings and the screenelet

8.3. Export of configuration file to iMM

In the iNELS Design Manager (iDM) environment in the window “General Settings” select by the picture.

Export will be performed when the project is saved in the central unit!

Two files Export.exp and Export.pub will be created in selected folder; the Export.pub is important for upload in iMM Control Centre.

Version 02‐ 009/2013 ver. iMM:2.868     Page 53 of 68

iMM Installation Manual

Photos in the following formats: JPG, PNG, GIF

Resolution: Not limited, the higher the resolution (and the larger the file), the longer the internal of uploading

Pictures are automatically left in the original resolution.

To display photos in FullScreen, you have to activate this function in the bottom part of the PlayList with photos by icon

8.4.2. Music: imm/Music

 Format: MP3, FLAC, WAV, WMA

 Resolution: up to 256 kb/s

Plays internet stream of the following formats: WMA, AAC, MP3

Suffix to file: m3u

Name of radio: optional, e.g.: „name radio.m3u“

Streams for CZ radios are clearly arranged on: www.play.cz

example: File name: “ RockZone.m3u“

Content: mms://netshow5.play.cz/rockzone128

You can find a list of already created CZ radio files after unpacking the installation package in directory imm/Radio which has to be copied to: imm/Music/-Internet Radios

Video in format: AVI, MPG, MP4, MKV, TS, VOB, WMV

Subtitles: File with suffix film_name.srt or film_name.sub saved in the same folder as the movie itself. The name of the film itself, and the name of the file with subtitles must be

IDENTICAL

!

The size of subtitles can be changed in subtitle settings ini PlayList under icon

If subtitles do not display correctly, subtitle encoding must be changed. The UNICODE encoding is set in the default.

Version 02‐ 009/2013 ver. iMM:2.868     Page 54 of 68

iMM Installation Manual

8.5. Third parties' devices

IP of Giom Meteo Station is connected via Ethernet with PoE supply. PoE (Power over Ethernet) is supply on data network cable, without the necessity of bringing the power cable to the device in another separate cable. Meteo Station can be thus connected directly to switch which supports PoE provided that the supply voltage does not exceed 30 V DC. Meteo Station can be also powered by adapter from an outlet.

To integrate Meteo Station in iMM you need to change its IP address to an address of the given range.

Settings can be performed via web interface. Meteo Station IP address can be found out using the

“Mlocator” software which can be downloaded in the manufacturer's website: http://www.mikrovlny.cz/cz/produkt/57

Information from meteo station can be displayed in iMM application by pressing the left button on the icon of clock in the right side of the application.

Version 02‐ 009/2013 ver. iMM:2.868     Page 55 of 68

iMM Installation Manual

Connection to iMM server is defined in iMM Control Centre in bookmark “Zones” where the status “Is it

Giom?” has to be switched from "no" status to "yes" status.

8.6 Calls between individual devices and sound

On server web interface (localhost:8080) set the following in bookmark Intercoms: name, SIP name, password and videostream of device that you optionally select beforehand for the given device (sound, iMM client, phone), and add using the Add key. Copy Videostream from individual devices as long as they support it, e.g.: sounds from web interface, webcamera or any IP camera.

For instance, for 2n sound it will be stream, e.g.: “rtsp://192.168.88.83“ which consists of “„ rtsp:// „ which is a kind of stream and sound IP address.

Once you set all calling devices, save it by pressing Apply settings.

Note: After clicking the Apply settings option, configuration files of asterisk server will overwrite. If you need own asterisk configuration, do not use "Apply settings", and modify configuration files manually.

Add new contacts in iMMCC by filling in the contact and clicking the Add key.

Version 02‐ 009/2013 ver. iMM:2.868     Page 56 of 68

iMM Installation Manual

Entry of SIP name

Device name

Password

Video Stream

8.6.2 Client settings

On client web interface (localhost:8080) click on the Intercoms folder:

There set precise data of given station like you set them on the server.

For instance: name: klient1 Secret : imm123 Lock code: (code copied from web interface of sound-e.g.

“111”); serves for opening of electronic lock.

Lock code

Version 02‐ 009/2013 ver. iMM:2.868     Page 57 of 68

iMM Installation Manual

Entering optional name Entering password Entering Lock code

Go to applications  menu  intercom settings, and there click on "Enable intercom"

Enter the same data for the signup name as on the server web interface (e.g. samsung1)

Also the password must be identical with the one entered on the server. Finally enter the IP address of

Connection Server where you completed the settings.

Version 02‐ 009/2013 ver. iMM:2.868     Page 58 of 68

iMM Installation Manual

In the application click on the intercom icon and then on “Add contact“.

Name the opposite station and enter its precise SIP name (the name you entered on the server), and then select Type of contact and select “Save”.

Naming the called device

Entering precise

SIP name

Sound settings:

Naming the sound in the phone

SIP name same as the one on the

Sound IP address

Version 02‐ 009/2013 ver. iMM:2.868

Signup name for web sound interface

Password for web sound interface

   Page 59 of 68

iMM Installation Manual

For IP sound 2N® Helios a source DC 12V/2A should be used. See the manufacturer's user manual for more detailed information on IP sound wiring. Assignment of IP address from DHCP server is set on the new IP sound. The assigned IP address of the sound has to be ensured (in the abstract on router, alternatively by means of software 2N® Helios IP Network Scanner) a) Sign up to discovered IP sound via web interface.

Signup name: admin Password:

2n

Entering signup name

Entering signup password

In the bookmark AdvancedSettings -> Network set fixed IP address from relevant range, and sub-network mask.

Version 02‐ 009/2013 ver. iMM:2.868

Network interface setting

   Page 60 of 68

iMM Installation Manual

b) The config.ini file generated from server web interface of a line where the added IP sound is located, has to be uploaded to IP sound via its web interface, in the following bookmark:

Tools > Configuration > Uploadconfigurationfile to device

Before uploading config.ini to sound, the Network Settings field must be ticked off.

Searching file config.ini

Has to be ticked off before Upload

Confirmation of selection and Upload

For successful completion of installation the device must be restarted after the installation.

8.8 Air conditioning unit CoolMaster

CoolMaster

There are 8 different versions for individual air conditioning makers

• CoolMaster Daikin 1000D

• CoolMaster Sanyo 2000S

• CoolMaster Mitsubishi Electric 4000M

• CoolMaster LG 6000L

• CoolMaster Fujitsu 7000F

• CoolMaster Mitsubishi Heavy 8000MH

• CoolMaster Hitachi 9000H

Step-by-step putting in operation

1. Connect all by the attached wiring scheme

2. Set the RS232/ETHERNET converter

3. Set the central address on the wall air conditioning unit control

4. iMM communicates via converter Papouch GNOME RS232 and its IP address has to be entered in file /etc/imm/coolMaster.cfg together with the type of the CoolMaster control unit.

Version 02‐ 009/2013 ver. iMM:2.868     Page 61 of 68

iMM Installation Manual

If everything is set correcty, the CoolMaster display will not show U00 G00 but the typed address. For instance,

U00 G01. Then everything goes via iMM client but the air conditioning unit can still be controlled via local control; they mutually synchronize.

Illustrative putting in operation:

Wiring scheme

Connectors on unit

Version 02‐ 009/2013 ver. iMM:2.868     Page 62 of 68

iMM Installation Manual

Setting the RS232/ETH converter

Version 02‐ 009/2013 ver. iMM:2.868     Page 63 of 68

iMM Installation Manual

How to set Daikin central address

Press and hold down for 5 seconds the TEST button

Setting mode 00 shows in the middle, and GROUP and the number on the left.

(GROUP should flash; if not press the on/off key; then it should flash).

Select the desired central address using the

Confirm by pressing the on/off button.

time setting button.

Complete settings by TEST button.

Version 02‐ 009/2013 ver. iMM:2.868     Page 64 of 68

iMM Installation Manual

Setting CoolMaster in iMM; see chapter 3.1.6.

On FP the CoolMaster icon is defined in the same manner as for Miele or Enery management. When selection has to be made from extract of “coolMaster“ elements.

Name must be the same as we defined in A/C bookmark

CMSkolici

Version 02‐ 009/2013 ver. iMM:2.868     Page 65 of 68

iMM Installation Manual

8.9 Connection of air conditioning units

Connection of air conditioning units

There are two ways of connecting air conditioning units in iMM system: a) Direct b) Indirect a) Direct connection means that the air conditioning unit control protocol is implemented directly in iMM.

Currently air conditioning units of LG brand are supported; others have been worked on. We support communication of LG air conditioning units which is marked as PI485. Any LG unit supports that interface; it can be interconnected to application iHC via iMM. b) Indirect connection means utilization of communication unit CoolMaster which can communicate with different types and makers of air conditioning units (

http://www.inels.cz/media/PDFexport/download/third_party_appliances.pdf

). CoolMaster is then controlled from iMM. See 8.5.4.

Version 02‐ 009/2013 ver. iMM:2.868     Page 66 of 68

iMM Installation Manual

Interconnection is performed by means of 485/ETHERNET converter. Steps for communication setting:

1. Connect the converter to communication interface of air conditioning unit and to ethernet.

2. Set central address on the air conditioning unit by means of remote control (see the air conditioning unit user manual).

Example:

RESET – hold down

MODE – hold down

When 00 displays, release MODE

Set the address inside the unit using buttons for temperature setting

Press ON/OFF for directing to the inner unit

Address displays on the unit

To finish the setting, reset the control

To check the address: RESET + PLASMA

3. Set the converter

4. Add the air conditioning unit in clims in iMM web interface (see 3.1.4.)

5. Add air conditioning units in rooms in iMM web interface (see 2.1.5.) 3.1.5.)

Version 02‐ 009/2013 ver. iMM:2.868     Page 67 of 68

Setting the 485/ethernet converter – bookmark Serial Settings

iMM Installation Manual

Setting of converter 485/ethernet; bookmark Connection

Version 02‐ 009/2013 ver. iMM:2.868     Page 68 of 68

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
