CHECKS

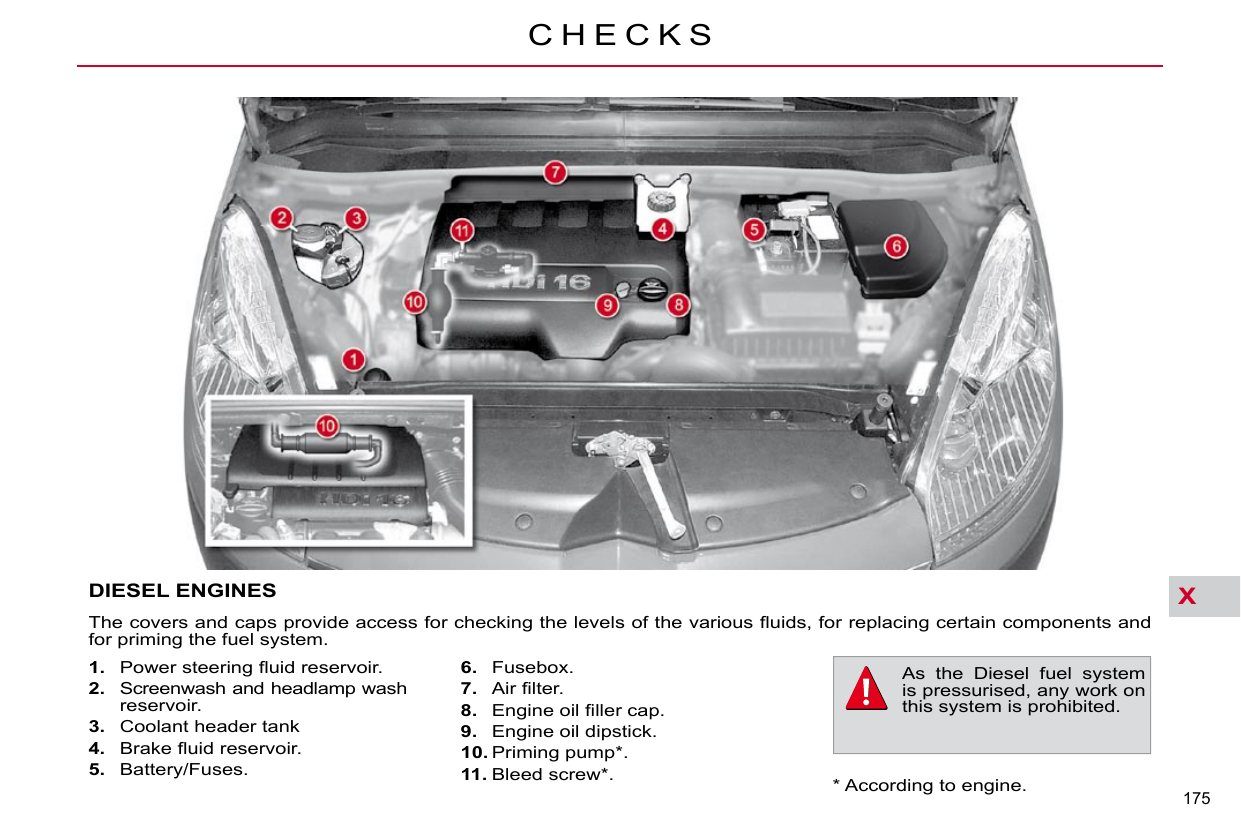

DIESEL ENGINES
The covers and caps provide access for checking the levels of the various fluids, for replacing certain components and
for priming the fuel system.
1. Power steering fluid reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant header tank
4. Brake fluid reservoir.
5. Battery/Fuses.
6. Fusebox.
7. Air filter.
8. Engine oil filler cap.
9. Engine oil dipstick.
10. Priming pump*.
11. Bleed screw*.
X
As the Diesel fuel system
is pressurised, any work on
this system is prohibited.
* According to engine.
175
