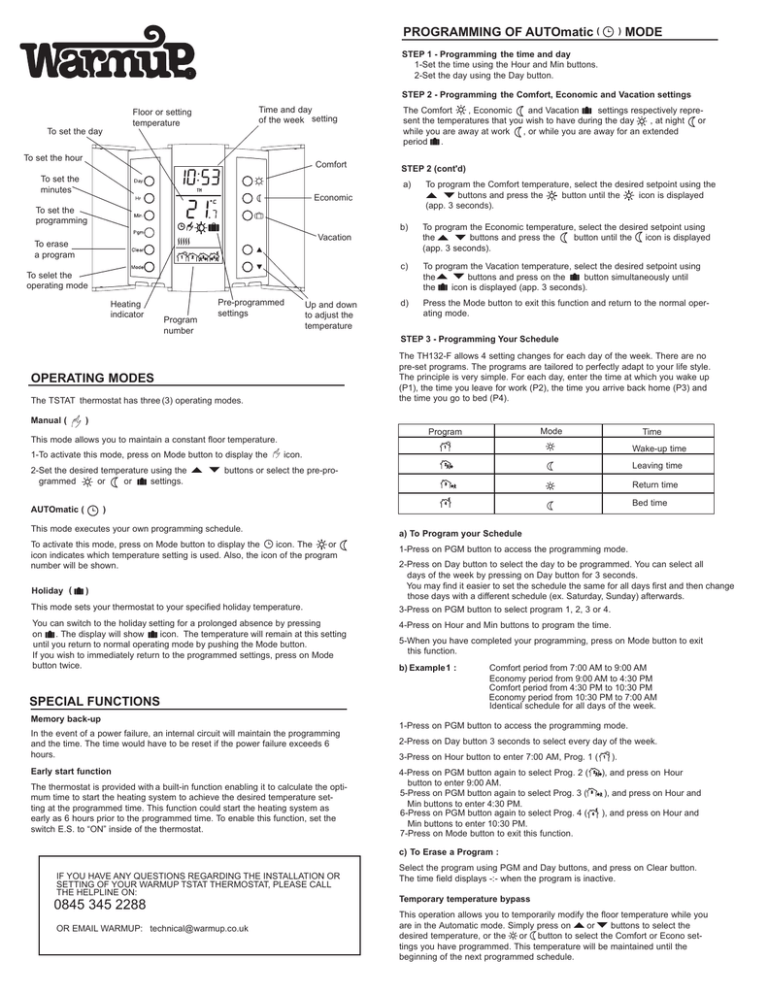

PROGRAMMING OF AUTOmatic (
)
MODE
STEP 1 - Programming the time and day
1-Set the time using the Hour and Min buttons.
2-Set the day using the Day button.
STEP 2 - Programming the Comfort, Economic and Vacation settings
Time and day
of the week setting
Floor or setting
temperature
To set the day
To set the hour
Comfort
To set the
minutes
a)
Vacation
To erase
a program
To selet the
operating mode
Heating
indicator
Program
number
Pre-programmed
settings
Up and down
to adjust the
temperature
)
To program the Economic temperature, select the desired setpoint using
the
buttons and press the
button until the
icon is displayed
(app. 3 seconds).
c)
To program the Vacation temperature, select the desired setpoint using
the
buttons and press on the
button simultaneously until
the
icon is displayed (app. 3 seconds).
d)
Press the Mode button to exit this function and return to the normal operating mode.
1-To activate this mode, press on Mode button to display the
Mode
Program
This mode allows you to maintain a constant floor temperature.
AUTOmatic (
b)
STEP 3 - Programming Your Schedule
The TSTAT thermostat has three (3) operating modes.
2-Set the desired temperature using the
grammed
or
or
settings.
To program the Comfort temperature, select the desired setpoint using the
buttons and press the
button until the
icon is displayed
(app. 3 seconds).
The TH132-F allows 4 setting changes for each day of the week. There are no
pre-set programs. The programs are tailored to perfectly adapt to your life style.
The principle is very simple. For each day, enter the time at which you wake up
(P1), the time you leave for work (P2), the time you arrive back home (P3) and
the time you go to bed (P4).
OPERATING MODES
Time
Wake-up time
icon.
Leaving time
buttons or select the pre-pro-
Return time
Bed time
)
This mode executes your own programming schedule.
To activate this mode, press on Mode button to display the
icon. The
or
icon indicates which temperature setting is used. Also, the icon of the program
number will be shown.
Holiday (
STEP 2 (cont'd)
Economic
To set the
programming
Manual (
The Comfort
, Economic
and Vacation
settings respectively represent the temperatures that you wish to have during the day
, at night
or
while you are away at work
, or while you are away for an extended
period
.
)
This mode sets your thermostat to your specified holiday temperature.
You can switch to the holiday setting for a prolonged absence by pressing
on
. The display will show
icon. The temperature will remain at this setting
until you return to normal operating mode by pushing the Mode button.
If you wish to immediately return to the programmed settings, press on Mode
button twice.
SPECIAL FUNCTIONS
Memory back-up
In the event of a power failure, an internal circuit will maintain the programming
and the time. The time would have to be reset if the power failure exceeds 6
hours.
Early start function
The thermostat is provided with a built-in function enabling it to calculate the optimum time to start the heating system to achieve the desired temperature setting at the programmed time. This function could start the heating system as
early as 6 hours prior to the programmed time. To enable this function, set the
switch E.S. to “ON” inside of the thermostat.
a) To Program your Schedule
1-Press on PGM button to access the programming mode.
2-Press on Day button to select the day to be programmed. You can select all
days of the week by pressing on Day button for 3 seconds.
You may find it easier to set the schedule the same for all days first and then change
those days with a different schedule (ex. Saturday, Sunday) afterwards.
3-Press on PGM button to select program 1, 2, 3 or 4.
4-Press on Hour and Min buttons to program the time.
5-When you have completed your programming, press on Mode button to exit
this function.
b) Example 1 :
Comfort period from 7:00 AM to 9:00 AM
Economy period from 9:00 AM to 4:30 PM
Comfort period from 4:30 PM to 10:30 PM
Economy period from 10:30 PM to 7:00 AM
Identical schedule for all days of the week.
1-Press on PGM button to access the programming mode.
2-Press on Day button 3 seconds to select every day of the week.
3-Press on Hour button to enter 7:00 AM, Prog. 1 (
4-Press on PGM button again to select Prog. 2 (
button to enter 9:00 AM.
5-Press on PGM button again to select Prog. 3 (
Min buttons to enter 4:30 PM.
6-Press on PGM button again to select Prog. 4 (
Min buttons to enter 10:30 PM.
7-Press on Mode button to exit this function.
).
), and press on Hour
), and press on Hour and
), and press on Hour and
c) To Erase a Program :
IF YOU HAVE ANY QUESTIONS REGARDING THE INSTALLATION OR
SETTING OF YOUR WARMUP TSTAT THERMOSTAT, PLEASE CALL
THE HELPLINE ON:
0845 345 2288
OR EMAIL WARMUP: [email protected]
Select the program using PGM and Day buttons, and press on Clear button.
The time field displays -:- when the program is inactive.
Temporary temperature bypass
This operation allows you to temporarily modify the floor temperature while you
are in the Automatic mode. Simply press on
or
buttons to select the
desired temperature, or the
or button to select the Comfort or Econo settings you have programmed. This temperature will be maintained until the
beginning of the next programmed schedule.
CHARACTERISTICS
MODEL TSTAT
(240 VAC)
SUMMARY
u
OPTIONS SELECTION
Inside the thermostat, there are three selection switches to set at your
preferences.
Temperature in °C or °F, time in 12 or 24 hours and early start function.
u
TO SET TIME AND DAY
TO RECORD THE
(COMFORT) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
or
button. Press on
button (2 to 3 seconds) until icon appears on display.
u
TO RECORD THE
(ECONOMIC) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
or
button. Press
on
button (2 to 3 seconds) until icon appears on display.
u
TO RECORD THE
(VACATION) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
or
button. Press on
button (2 or 3 seconds) until icon appears on display.
u
OPERATING MODES
Runs the program.
or
TSTAT
240 VAC 50/60 Hz
16 A max. (resistive only)
3840 W (NI) @ 240 VCA
CEE
0 to 60 °C (32 to 140 °F)
5 to 40 °C (40 to 104 °F)
28 °C (82 °F)
18 °C (64 °F)
10 °C (50 °F)
-20 to 50 °C (-4 to 120 °F)
WARRANTY
This product is warranted against material defects and workmanship in normal
use for a period of one year, from the date of the original purchase from authorized dealers. During this period, WARMUP plc will repair or replace
the product with a new or of equivalent quality at WARMUP's option, without
charge, any product proven defective in normal use.
Warranty does not cover transportation costs. Nor does it cover a product subjected to misuse or accidental damage. This warranty does not cover the cost of
installation, removal or reinstallation.
This limited warranty is in lieu of all other warranties, obligations or liabilities
expressed or implied by the company. In no event shall WARMUP plc
be liable for consequential or incidental damages resulting from installation of
this product.
The defective product and the original sale receipt must be returned to the original dealer or shipped pre-paid, insured and addressed to :
To select an operating mode, use MODE button.
AUTO :
Model :
Supply :
Load :
Power :
Approvals :
Display range :
Setting range :
Comfort default setting :
Econo default setting :
Vacation default setting :
Storage :
WARMUP plc ONE (1) YEAR LIMITED WARRANTY
Press on DAY, HOUR and MIN buttons to adjust time and day.
u
•
•
•
•
•
•
•
•
•
•
•
shows temperature set
ting and can override temporarily your programming up
to the next program.
MAN :
Maintains the selected temperature.
or
changes
the temperature setting.
WARMUP plc, Unit 1 Rowley Industrial Park, Roslin Rd., Acton, London, W3 8BH
If you have any questions concerning the installation or programming of this
product, please call our technical helpline
on 0845 345 2288
INSTALLATION
ALL ELECTRICAL WORK MUST CONFORM TO THE CURRENT IEE WIRING
REGULATIONS.
This thermostat is designed to control floor electric heating systems. The
resistive load must not exceed 3840 watts (NI) @ 240 VAC (16 A). Electricians or
experienced technicians should install the thermostat.
This thermostat is designed to be used with a self-protected heating system
equipped with a residual current device (RCD or RCCD).
PARTS INCLUDED
- One (1) TSTAT (240 VAC) thermostat
- One (1) temperature sensor with a 4.6 meter extension.
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN POWER
PANEL TO AVOID ELECTRICAL SHOCK. Keep air vents of the thermostat
clean and free from obstructions.
1) Connecting wires and mounting thermostat
Connect to L1 and N5 (terminals) the line wires (240 VAC) that come from the
breaker and connect the load wires to L2 and N4 (terminals) . See schematic
diagram. Push the excess wire back into the electrical box to prevent interference with the thermostat. Secure the thermostat using two (2)
screws.
Once the thermostat is properly installed, return power to the heating system.
S upply
E arth
GR E E N
Live
RED
or B R OWN
E lectrical B ox
Neutral
B LUE
or B LAC K
Live
B R OWN
2 x E arth
G R E E N/
Y E LLOW
Load
Neutral
B LUE
2) Connecting temperature sensor wire
Connect the temperature sensor wire to the S1 and S2 terminals situated at the
far right of the connector of the thermostat (no polarity needs to be respected).
The sensing probe should be placed in a representative heat area for maximum system performance. The
sensing probe should be centered between the wires
in the mat. The temperature sensor wire cannot cross
any heater wires and the sensing probe must not be
directly or adjacent to a heating wire.
Power-up
To power up :
When power is applied for the first time, the
display must show the time 0:00, the floor
temperature and the manual mode icon ( ).
Other information might show up on the display if installation is defective or does not
comply with the instructions.
The message L0 or HI will appear on the display if the temperature sensor is defective or
the temperature is below 0 °C (32 °F) or higher than 60 °C (140 °F). Also, if the LO message is displayed, the heating indicator will be present on display
and the relay will be closed (current going in the load).
