User Manual (NVR_User_Manual)

User Manual (NVR_User_Manual)

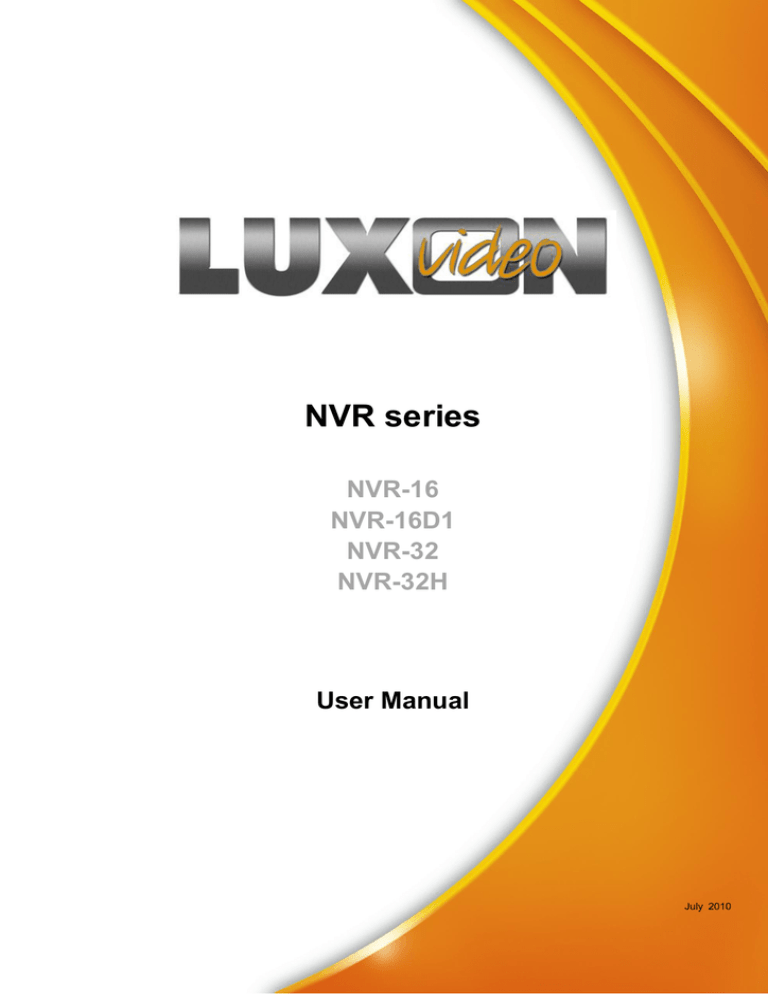

NVR series

NVR-16

NVR-16D1

NVR-32

NVR-32H

User Manual

July 2010

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Federal Communications Commission Statement

NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Class A ITE

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning ─This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive

2004/108/EC.

Warning - This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures to correct this interference.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will Luxon Video be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

Luxon Video, being authorized Luxon Video Inc. to use, is registered trademarks of Luxon Video Inc. IBM PC is a registered trademark of International Business Machines Corporation. Macintosh is a registered trademark of Apple

Computer, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. All other products or corporate names mentioned in this documentation are for identification and explanation purposes only, and may be trademarks or registered trademarks of their respective owners.

COPYRIGHT

© 2010 by Luxon Video Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Luxon Video Inc.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

WARNING

- TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

-

GUARANTEE BECOMES VOID IN CASE OF ANY UNAUTHORIZED MODIFICATIONS INTO DOM

CONTENTS.

- DO NOT REMOVE REMOVABLE HDD TRAY SHILE SYSTEM IN USE. IT WOULD DAMAGE DOM

CONTENTS.

-

DVR SUPPORTS 1024 x 768 OR 1280 x 1024 DISPLAY RESOULTIONS. OTHER DISPLAY

RESOULTUIONS WOULD CASUE ABNORMAL DVR FUNCTIONS.

- DO NOT INSTALL DVR IN THE AIRTIGHT ENVIROEMENT. IT WOULD CAUSE INSTABILITY OF

THE SYSTEM.

CAUTION

IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE

CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT

MODIFICATION.

Manual Conventions

The following conventions are used throughout this manual

Caution symbol is intended to alert the user of the important installation and operating instructions. Fail to comply may damage the system. i

Information symbol is intended to provide additional information for the purpose of clarification.

TABLE OF CONTENTS

Chapter 1 Introduction .................................................................................... 1

1.1

Package Contents .................................................................................................................... 1

1.2

Features ................................................................................................................................... 1

1.3

Hardware Introduction .............................................................................................................. 3

1.3.1

Front Panel of the NVR RACK ...................................................................................... 3

1.3.2

Back Panel of NVR Rack .............................................................................................. 3

(NOTE: Not all items are included on all models. IN/OUTPUT placement may vary slot to slot between models!) ..................................................................................................................... 3

1.4

Connecting Devices ................................................................................................................. 4

1.5

Sensor/Relay device pinhole allocation ................................................................................... 4

1.6

Formatting Hard Disk ............................................................................................................... 5

Chapter 2 Using the DVR Software ................................................................ 7

2.1

Running the Unit for the First Time .......................................................................................... 7

2.2

Function buttons in Advanced/Preview Mode .......................................................................... 7

(13) iPOSLive Images ............................................................................................................. 11

2.2.1

Using Event Log Viewer .............................................................................................. 12

2.2.1.1

Using POSViewer ......................................................................................................... 13

2.2.1.2

Using Counting Log Viewer ......................................................................................... 14

2.2.1.3

Using the Object Viewer .............................................................................................. 15

2.3

Function Buttons in Playback Mode ....................................................................................... 16

2.3.1

To Cut and Save the Wanted Portion of the Recorded Video ...................................... 19

2.3.2

To Bookmark a Section of the Video ........................................................................... 20

2.3.3

To Search Using the Visual Search ............................................................................. 21

2.3.4

To Search Using the Event Search ............................................................................. 21

2.3.5

To Search Using the Intelligent Search ....................................................................... 22

2.3.6

Watermark Verification ................................................................................................ 22

2.4

Function Buttons in Compact Mode ....................................................................................... 23

2.5

Function Buttons in PTZ Camera Controller .......................................................................... 24

2.6

Setting Up and Using the EMAP ............................................................................................ 25

2.6.1

To Set Up the EMAP ................................................................................................... 25

2.6.2

To Use the EMAP ........................................................................................................ 26

2.7

To Setup the PTZ/IP PTZ Camera ......................................................................................... 27

2.7.1

Setup the PTZ Camera ............................................................................................... 27

2.7.2

Setup the IP PTZ Camera ........................................................................................... 29

Chapter 3 Customizing the DVR System ..................................................... 31

3.1

System Setting ....................................................................................................................... 31

3.1.1

To Set the POS Setting ............................................................................................... 44

3.1.1.1

General Setting.............................................................................................................. 44

3.1.1.2

Advanced Setting .......................................................................................................... 49

3.1.1.3

POS Database Setting ................................................................................................. 49

3.1.2

UPS Connection .......................................................................................................... 50

3.2

Camera Setting ...................................................................................................................... 52

3.2.1

Setup the Object Counting .......................................................................................... 58

3.2.2

To Setup the FaceFinder ............................................................................................. 60

3.2.3

Setup PTZ Tracking..................................................................................................... 62

3.2.4

Create a Camera Group .............................................................................................. 64

3.3

Recording Setting .................................................................................................................. 66

3.3.1

To Mask/Shield an area on the screen ........................................................................ 71

3.3.2

To show and change the color of the Mask ................................................................. 71

3.3.3

To Playback Encrypted Video ...................................................................................... 71

3.4

Network Setting ...................................................................................................................... 72

3.5

Schedule Setting .................................................................................................................... 75

3.5.1

Set schedule at specific portion of time ....................................................................... 76

3.6

Backup Setting ....................................................................................................................... 77

3.6.1

To Backup file .............................................................................................................. 77

3.6.2

Setup Quick Backup .................................................................................................... 78

3.7

Sensor Setting ....................................................................................................................... 79

3.7.1

To Setup External I/O Box ........................................................................................... 80

3.8

Relay Setting .......................................................................................................................... 81

3.9

Alarm Setting ......................................................................................................................... 82

3.9.1

To Setup Alarm Relay: ................................................................................................. 88

3.9.2

To Setup the Alarm Sound Setting: ............................................................................. 88

3.9.3

To Setup Call Out List: ................................................................................................. 89

3.9.4

To Setup Send E-mail Setting: .................................................................................... 90

3.9.5

To Setup FTP Setting: ................................................................................................. 91

3.9.6

To Setup Alarm Recording Setting: ............................................................................. 91

3.9.7

To Setup SMS/MMS Setting: ....................................................................................... 92

3.9.8

To Setup PTZ Preset Point: ......................................................................................... 93

3.9.9

To Setup Alarm SOP: .................................................................................................. 93

3.9.10

To Setup CMS Setting ................................................................................................. 93

3.9.11

To Setup POS Keyword Setting .................................................................................. 94

3.9.12

Missing, Suspicious Object, and Scene Change Detected .......................................... 95

3.10

User Setting ........................................................................................................................... 97

Chapter 4 Backup Video Players .................................................................. 99

4.1

Familiarizing QPlayer Buttons ................................................................................................ 99

4.1.1

Watermark Verification .............................................................................................. 101

Chapter 5

Chapter 6

Using Functional Keys ............................................................... 102

Using the Remote Programs ..................................................... 103

6.1

Familiarizing the WebViewer Buttons ................................................................................... 104

6.1.1

To Setup Remote System Setting ............................................................................. 106

6.1.1.1

Basic Setting ................................................................................................................ 106

6.1.1.2

Advance Setting .......................................................................................................... 108

6.2

Familiarizing the WebViewer PTZ Buttons ........................................................................... 122

6.3

Familiarizing the Remote Console Buttons .......................................................................... 123

6.3.1

To Setup Remote Console Setting ............................................................................ 124

6.3.2

Familiarizing the Buttons in PTZ Camera Controller ................................................. 125

6.4

Using the Remote Playback ................................................................................................. 126

6.4.1

Familiarizing the Local Playback Buttons .................................................................. 127

6.4.2

Familiarizing the RealTime Playback Buttons ........................................................... 129

6.4.3

Familiarizing the Download and Playback Buttons .................................................... 131

6.5

Using HandyViewer to Access DVR server .......................................................................... 133

6.6

Using PDAViewer to Access DVR Server ............................................................................ 133

6.6.1

To install PDAViewer from the Internet ...................................................................... 133

6.6.2

To Use the PDAViewer .............................................................................................. 134

6.6.3

To Playback in PDAViewer ........................................................................................ 135

6.6.4

Using JavaViewer to Access DVR Server ................................................................. 136

6.6.5

To Use the JAVA-Viewer ............................................................................................ 137

Chapter 7 Image Verification ...................................................................... 138

7.1

To Run the ImageVerification program ................................................................................. 138

Chapter 8 iEnhance ..................................................................................... 139

8.1

To Use iStable ...................................................................................................................... 140

Chapter 9 Web Tools ................................................................................... 142

9.1

Dispatch Server ................................................................................................................... 142

9.2

Remote Setup ...................................................................................................................... 143

9.2.1

To Add DVR server .................................................................................................... 143

9.2.2

To Setup Remote DVR Server .................................................................................. 144

9.2.2.1

System Setting ............................................................................................................ 144

9.2.2.2

Camera Setting............................................................................................................ 147

9.2.2.3

Record Setting ............................................................................................................. 148

9.2.2.4

Network Setting ........................................................................................................... 149

9.2.2.5

Schedule Setting ......................................................................................................... 152

9.2.2.6

Alarm Setting ............................................................................................................... 153

9.3

Remote Backup ................................................................................................................... 158

Chapter 10 Using the Remote Control Server ............................................. 160

Appendix A Network Service Port ............................................................... 161

Appendix B Install Extra Hard Disk (RACK series) ..................................... 162

Chapter 1 Introduction

1.1 Package Contents

Recorder Package

(1)

(2)

 (1) Recorder RACK unit

 (2) 2 x AV cable

 (3) Utility Software CD (Manual included)

 (4) Power Cord

 (5) USB optical mouse

1.2 Features

(3)

(4)

(5)

Continuous Recording / Smart Recording / Motion Recording / Audio Recording /

Alarm Recording / Manual Recording

Recording Modes

i

All modes can be triggered by schedule

De-interlace

Options

Optimize for dynamic or static camera scenes

Motion Detection

Detecting any kind of movements within the camera focus

Privacy Protection

Editable shield preventing private areas from monitoring and recording

EMAP Function

Show the positions of cameras, sensors, relays and triggered status

Attention Please

Powerful Search

Bookmark

POS Integration

Advanced Event

Log Viewer

Alarm Triggered

Mode

Enable dialogs to trace if operator pays attention to security monitor

By date, time, camera, area, event, vision, and log file

Easily save links to particular locations of recorded data and play them directly from the saved links

Compatible with most commonly used POS system

Easy to add POS protocol

Confidential Word Filter

Change location of POS text on camera display image

Details complete event logs according to your selection on event, operation, POS, system and network events.

Single event or multiple events as alarm trigger conditions

Smart Alert

Functions

Launch EMAP / Cam display / Warning sound / Email / Make a phone call / Send files to FTP / SMS and MMS / PTZ preset point tracking / Alarm SOP wizard / Start recording / Enlarge camera view

1

Remote Access

Web Cam / Remote

Manager

Dispatch Server

PDAViewer

DDNS iStable iEnhance

Webcam via regular IE browser

Remote Console

NVR-CMS Central Management System

Multiple DVR and IP cameras on your IE browser

Record 16 cameras on remote side

Share transmission loading; enable more clients at remote access & high-speed data transmission.

4-cam view, full screen and live audio

Allow remote clients to search dynamic servers without enquiring for server

’s IP address

Fix shaking and jolts impact on video with just one click

Enhance video quality such as Brightness, Contrast, Hue, Saturation, Sharpness,

Noise Reduction, De-interlace and Gray Scale of recorded data

2

1.3 Hardware Introduction

1.3.1 Front Panel of the NVR RACK

Name

(1) Locker

(2) USB port x 2

(3) Power switch

(4) Removable HDD drawer

(5) DVD-RW

Function

To lock the front cover

To connect external USB devices

To on/off the system unit

It can be installed the SATA hard disk

To backup recorded file on DVD-R/RW disk

1.3.2 Back Panel of NVR Rack

(NOTE: Not all items are included on all models. IN/OUTPUT placement may vary slot to slot between models!)

(1)

(3)

(5)

(7)

(9) i

Sensor and Relay connection interface eSATA interface

VGA Output

Ethernet port

COM port

(2)

(4)

(6)

(8)

RS485 interface

AV Input

Audio output

USB port x 4

(10) Mouse & Keyboard Input

RS-485 interface doesn

’t support to connect with RS-485 interface of E-I/O box device directly.

3

1.4 Connecting Devices

1.5 Sensor/Relay device pinhole allocation

The I/O card enables you to connect (4) sensor inputs and (4) relay outputs. Just connect the external sensor and relay pin directly to the I/O card pinhole. Check the table below and locate which pinhole is assigned to sensor input and relay output.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

The signal from the sensor (i.e., infrared sensors, smoke detectors, proximity sensors, door sensors, etc.) is being transmitted to the I/O card and this triggers the system to respond and send signal to relay device (i.e., alarm, telephone etc).

Pin # Definition Pin # Definition

3

4

5

1

2

Sensor input signal 1+

Sensor output signal 1-(GND)

Sensor input signal 2+

Sensor output signal 2-(GND)

Sensor input signal 3+

6

7

8

Sensor output signal 3-(GND)

Sensor input signal 4+

Sensor output signal 4-(GND)

9 Relay Common 1

10 Relay Normal Open 1

16

17

18

19

20

11

12

13

14

15

Relay Normal Close 1

Relay Common 2

Relay Normal Open 2

Relay Normal Close 2

Relay Common 3

Relay Normal Open 3

Relay Normal Close 3

Relay Common 4

Relay Normal Open 4

Relay Normal Close 4

4

1.6 Formatting Hard Disk

User can format un-formatted hard disk by Disk management function. The hard disk must format in order to record the video data. Follow the below steps to format and partition the hard disk. i

-

Stop recording before formatting or partitioning hard disk.

-

The 1 st

install hard disk is not able to re-format and partition unless it is un-format when install into DVR server.

-

The hard disk has been added into storage path or formatted that is not able to re-format and partition.

-

Do Not save any recording data on DOM.

1. Turn on the power of DVR server after hard disk has installed.

2. Click Setup and enter ID and password for authentication.

3. Click SystemSystem Configuration and click Setting.

4. Select Disk Management tab.

5. User should see the installed hard disk is listed. Click on the hard disk that wants to format or partition.

5

6. Click + button to add the selected hard disk into Partition Table section.

7. User can adjust the capacity of partition by clicking Capacity column and enter the capacity. If user doesn

’t want to divide hard disk into several partitions, and then, just leave the capacity without change.

8. The partition can be named by clicking on Label column and enter the name.

9. To create more than one partition, do the steps 7 and 8 again.

10. When all the partition has been added, click Start to format all partitions.

11. When the formatting complete, the each partition status will change to OK.

12. Click OK to exit when formatting is completed.

13. Now, user can assign formatted hard disk or partition as a storage path (see also

Chapter 4.1

System setting

).

6

Chapter 2

Using the DVR Software

2.1 Running the Unit for the First Time

When the unit is turned on for the first time, the system will prompt you to enter the CD-Key. The CD Key is a located on REAR PANEL of the unit. If user wants to power off the DVR system, click Shutdown button. To restart the DVR system, click Reboot button.

2.2 Function buttons in Advanced/Preview Mode

Name Function

7

Name

(1) Exit

Function

Call up the Logout dialog box.

In the logout dialog box, you may do the following:

(1) Exit

- Exit: To shutdown the DVR program.

- Reboot: Restart the DVR system.

- Login: To sign-in in different account. Default user ID is admin and password is admin.

- Compact: To switch to compact mode

- Guest: To switch to the guest mode. In guest mode, user only can control DVR by using the remote control (see also Chapter 2.1.3.1

) and the control panel of DVR (see also Chapter

1.4.4

). The functions are limited to preview and playback function only. For complete functions of DVR, please login as an administrator.

- Cancel: To exit Logout dialog box

- About: To update patch or find about the software info.

(2) Split Screen

Mode

It provides 7 kinds of split display modes for your selection. You can select one of the split display modes by clicking the following icon. i

- If there are only

4 cameras, you won’t be able to switch to 9, 16, 13, and 32 split screen mode.

- The DVR system will save the current operating mode (split screen mode, auto scan, full screen, and compact mode status) when shutdown DVR application and apply the mode for next login.

- When you are in single screen mode, Right click and Drag a square on the area you want to enlarge.

-

When you are in multiple-screen mode, Right click the video screen of the camera and Drag on where you want to relocate it. To only display one of the video in the multiple-screen mode, Left click on the video screen you only want to display.

(3) Status Bar It shows the current time, system temperature, and the hard disk’s free space.

(4) Record

(5) E-Map

To start recording. The button turns violet when it is recording. Click it again and enter the password to stop.

To load up to 8 desired E-Maps in BMP or JPG image format, and locate cameras, sensors, and relays to desired positions (see also

Chapter 3.6

).

(6) Network

(7) Setup

To allow inbound connections. When this function is enabled, the button turns violet. Click it again to disable all inbound connections.

When setting up the system for the first time, type the word “admin” in the Password text box to access.

(8) PTZ

(9) Preview

Click button to configure settings for cameras, recording, network, scheduler, backup, sensors, relays, alarms and user authentication.

To call out a PTZ setup dialog to configure an appointed PTZ camera (see also Chapter 3.5

).

Switch to Preview/Advanced mode. This allows you to view live camera display. Press ctrl + F can freeze the live preview video screen. And then, click Snapshot can save the freeze video screen.

8

Name

(10) Playback

(11) Camera

Group Tree

Function

Switch to Playback mode. This allows you to view the recorded video file. (see Chapter 3.3

)

To view the user defined channel group tree (see also Chapter 4.2.3). Click + of group to

extend group and drag the camera to surveillance screen to view. Click + of camera to view the camera information.

(12) Camera ID Click a desired icon to play the desired channel. After you click the icon, it turns yellow. If you assign a split display mode and appoint a camera number, the icon group of the cameras will turn yellow altogether.

(13) iPOSLive To view the real time iPOS data of channels. Click the iPOSLive to call out the real time iPOS data windows.

User can move the each channel of iPOS windows apart to proper position. If user didn

’t

enable the multi-channel of iPOSLive( see aslo iPOS Pro Setting

in System Setting ), and then,

user should only can view one channel each time.

To switch to different channel, click Select Camera drop down list to select the channel. To tempore stop iPOS data coming, click Freeze. To un-freeze, click Transcation

See images after (21)

(14) Snapshot

(15) Event log

(16) AutoScan

(17) Full screen

Catch a static recording image and save it as a BMP or a JPG file.

Click it to pop-up the Event Log Viewer dialog to check Event, Operation, POS (Point of Sales),

System and Network logs. You can select a desired date and a log item to show all logs data in the table.

Click it to start Auto Scan.

Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon.

9

Name Function

(18) Alarm

(19) Live

Playback button

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

Click to view the status or advanced alarm information.

Click to playback the recorded file instantly in preview mode. When the channel is in live playback mode, the icon is . Move the mouse to the bottom of the live playback channel, the playback tool bar ( ) will show up. Using the playback tool bar to control the playback. Total 4 channels can be live playback at the same time.

(20) Volume

(21) On Screen

Keyboard

Adjust the audio volume to a proper volume.

If the keyboard is not available, you may use the Virtual Keyboard.

10

(13) iPOSLive Images

11

2.2.1 Using Event Log Viewer

Show the record of activities that take place in the system.

1. Click the Event Log button on DVR system main interface. The Event log viewer window will show up.

2. Select the Date to view or search certain event log by key word. Enter the key word in Find Text column and click Search button.

3. To filter the records, select and click the select button to display Event, System, Operation, Network or

All.

4. The event list which display on the screen can be saved as text file format. To save the event list, click

Save button.

5. To view POS event log, click POSViewer bar to call out the POSViewer window (see also Chapter .2.1.1

).

6. Click Counting Log Viewer to view object counting information (see also Chapter 3.2.1.2

).

7. To view FaceFinder log, click Object Log Viewer (see also Chapter 3.2.1.3

).

12

2.2.1.1 Using POSViewer

(4)

(5)

(1)

(2)

(3)

(6)

(7)

Name

(1) POSDB Path

Function

The storage path for POS event log. Click to change the storage path.

(2) Before/After Set a time period before and after of POS event log.

(3) Channel Select the POS event log of channel

(4) Search String Enter specific key word or word string to search the POS event log. Mark the

Match whole

word exactly

” box if wants to find exactly key word or word string of POS event log.

(5)Export POSDB

It allows user to save the POS database to selected storage path in excel format. Click to change the storage path. Click Export to save the POSDB to selected storage path.

(6) Full Reception

Display the POS event log detail that user selected from Search Result window. Click to save the POS event log. Click to print out the POS event log.

(7) Search Result

Display the POS event log of search result. Click out the search result. to save the search result. Click to print

13

2.2.1.2 Using Counting Log Viewer

Search and view the list and statistic report of object counting. If the object counting function is not enabling, there will be no any data to view.

1. Select the Date and set a time period between After and Before for object counts searching.

2. Select the search Event

In, Out or All.

3. Select one Camera or All cameras to search.

4. Click Search to start searching.

5. The result will be list out in Result table.

6. To save the search result, click .

7. Click to print out the object counts log list.

8. To view the analysis of object counts, click Statistic Report tab.

9. User can select the Date, Camera, and Cycle to view the report of object counts (In/Out).

14

2.2.1.3 Using the Object Viewer

Click Object Viewer bar to view and search FaceFinder event log.

(1)

(2)

Name Function

(1) Close

Click to close Object Log Viewer windows

(2) Search Mode Switch to face object log search mode.

In search mode UI, select the Time and

Camera to search the object.

(3)

(4)

(5)

(6)

(3) Select

Camera

(4) Clear

(5) Close up

(6) Object Log

List

Select the camera to view or select all to view all cameras

To clear all object log in Object Log list

Click to close up the Object Log List

Display the face object logs. It can display

32 object logs and when the list is full, the first row of object log will be replaced.

15

2.3 Function Buttons in Playback Mode

To switch in Playback mode, click Playback button at the lower right corner of Advanced/Preview mode user interface

Name Function

(1) Split Screen Mode Select from 6 kinds of split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.

To view 32 channels, click 16 split screen button to switch channel display. i

(2) Exit

If there are only 4 cameras, you won’t be able to switch to 9, 13, and 16 split screen mode.

To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge.

Close the playback mode and back to preview mode

(3) Progress bar

(4) Hour Buttons

Show the progress of the file being played. You may move the bar to seek at any location of the track.

Select and click to playback the recorded video file on the specific time frame. i

The Hour buttons represent the time in 24-hour clock. The blue bar on top of the hour button indicates that there is a recorded video file on that period of time. While the red bar indicates that you are currently viewing the recorded video file.

(5) Playback Control

Buttons

Begin: Move at the beginning of the recorded video file.

Previous: Go back to the previous frame.

Slower: Play the recorded video file at the speed of 1/2x, 1/4x, or 1/8x, 1/16x, or 1/32x.

Rewind: Wind back the recorded video file.

Pause: Briefly stop playing the recorded video file.

Play: Play the recorded video file.

Faster: Play the recorded video file at the speed of 2x, 4x, 8x,16x or 32x.

Next: Go to the next frame.

End: Go to the end of the recorded video file.

(6) Archive

Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

OPEN FILE: user can open the recorded file from HDD

Channel 01~ 16&Channel 17 ~ 32: Switch to different channel group of playback calendar.

16

Name Function

Day Light Saving: the playback calendar will show the available video records during day light saving time period. i

The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID. The blue colored column indicates that there is a recorded video file on that period of time.

While the red colored column indicates on where to start playing the recorded video file.

(7) Status bar Display the recorded date, time and play speed.

(8) Camera ID

(9)iPOS Serach

(10) Export

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

To find iPOS event by keyword or period.

POSOB Path: where the iPOS data located.

Start Time: select the search start time and date

End Time: select the search end time and date

Select Camera: select the camera for iPOS events search

Keyword: enter a keyword to search iPOS event

- Match whole words exactly: the iPOS event must 100% match the keyword that user has entered.

The search result will display in Search Result windows. User can click specific iPOS event to view and the iPOS detail will display in Search

Receipt.

To save the search result, click Save button. Click

Print button to print the search result.

To save the selected iPOS search receipt, click

Save. Click Print to print the selected iPOS event

’s detail.

Export includes Snapshot, Print, Output Video Clip, and Backup function.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format.

Print: Print the screen shot.

Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see also

Chapter 3.3.1

).

Backup: Save the playback file to USB device or DVD-ROM disk (see also Chapter

4.6 Backup Setting ).

17

Name

(11) Segment

(12) Full screen

Function

Keep a portion of the recorded video (see also Chapter 3.3.1

).

Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon.

Click to exit from full screen mode

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all. i

When there are dual monitors with 32 channels, the full screen mode will split into 16 channels on each monitor.

(13) Event log Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS.

(14) Bookmark

(15) Visual Search

(16) Find Next

Mark a reference point when previewing the recorded video file to which you may return

for later reference. You may also set it to protect the file. (See also Chapter 3.3.2

)

Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See

also Chapter 3.3.3

)

Search for the next event or changes in the motion detector frame. You can use this when you are using Intelligent Search or Event Search function.

(17) Event Search Search from the recorded activities that take place in the system (i.e., Sensor, Motion ,

Video Loss, POS) . (See also Chapter 3.3.4

)

(18) Intelligent Search

Search the changes in the motion detector frame (See also Chapter 3.3.5

).

(19) Audio

(20) De-interlace

(21) Watermark

Enable/disable audio sound.

To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

To verify the playback video has not been modified (also see Chapter 3.3.6

)

18

2.3.1 To Cut and Save the Wanted Portion of the Recorded Video

1. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark.

2. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to end the cut. Then, click Segment to set the end mark. To cancel segmentation or set the segment marks from the start, click Segment button again.

3. Click Export Output Video Clip button to save the wanted clip.

4. In the Save As dialog box, locate on where you want to save the file or choose to Burn the video segment to CD/DVD ROM (only for .*mpeg file format).

5. Select the file type and select the camera information display position when playback. The camera information will be the information of server name that user has defined in Network Setting.

6. If the select the file type is *.avi, user can mark Included audio to include audio in output video segment.

7. To adjust Video Quality if needed.

8.

Click Save to save the video segment.

i

Right-click function is disabling for security issue.

19

2.3.2 To Bookmark a Section of the Video

1. Click Bookmark. The video playback stops when the bookmark button is executed.

2. In the Bookmark dialog box, you may do the following:

-

Add to include the new reference mark in the bookmark list. You may select to enable/disable File

protection. i

-

Edit to change the mark description or enable/disable file protection.

- Delete to remove the selected reference mark in the list.

-

Delete All to remove all the reference marks in the list.

-

Exit to close Bookmark dialog box.

- When the bookmark is protected, the file won’t be overwritten.

- The protected bookmark file will be deleted when the Delete the recorded data is enable in the

System setting.(also refer to 4.1 System setting )

3.

Select and click one in the bookmark list to preview the file.

20

2.3.3 To Search Using the Visual Search

1. Click Visual Search.

2. In the Visual Search Setting dialog box, select the Camera number and the date. Then click OK.

3. When a series of frames appear by date, click on the frame to display another series of frames and search by every Hour of that date, every Minute of that hour, every 10 Seconds of that minute, every

Second of that 10 seconds. To go back, click search, click .

. To view from the selected frame and close event

2.3.4 To Search Using the Event Search

1. Click on the video screen on where you want to search.

2. Click Event Search. The Event Search text (red) would appear at the lower left corner of the screen.

3. In the Event Search Setting dialog box, check the type of condition you want to search. If you select

POS, in the Find Text box, type the word. Then, click OK to start searching. The video search would stop at the frame that matches the condition. To keep on searching click .

4. You may also set to search and list all the result. Just check the Output Event List box. In the Search

Duration section, set the Begin Time and End Time. Set the Searching Interval time for in a period of time won

’t list out the same events. Then, click OK to start searching.

5. When the Event list appear, click and select the item you want to view.

21

2.3.5 To Search Using the Intelligent Search

1. Click on the video screen on where you want to search.

2. Click Intelligent Search. The Intelligent Search text (red) would appear at the lower left corner of the screen.

3. When the Intelligent Search Setting dialog box and motion detector frame appear, you may adjust the sensitivity bar and the motion detector frame size and location. To set motion detector frame size and location, left click and drag on the screen. Then, click OK to start searching. The video search would stop at the frame that matches the condition. To keep on searching click .

4. You may also set to search and list all the result. Just check the List box. In the Search Duration section, set the Begin Time and End Time.

Set the Searching Interval time for in a period of time won

’t list out the same events.

Then, click OK to start searching.

2.3.6 Watermark Verification

NVR’s support watermark-checking to identify the authenticity of playback video. This program can only verify when in single channel full screen playback mode. Watermark verification doesn

’t support NVR’s with hardware compression and video that is recorded from IP camera.

To verify the playback video doesn

’t been modified. Click

to verify the playback video. i

Watermark verification doesn

’t support on hardware compression products and video that is recorded from IP camera.

22

2.4 Function Buttons in Compact Mode

To view in Compact mode, click Exit button. In the logout dialog box, click Compact.

Name Function

(1) Split Screen Mode Select from 7 kinds of split screen type to view all the camera, or one camera over the other or alongside on a single screen.

- If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode. i

- When you are in single screen mode, Right click and Drag a square on the area you want to enlarge.

-

When you are in multiple-screen mode, Right click the video screen of the camera and Drag on where you want to locate it. To only display one of the video in the multiple-screen mode, Left click the video screen you want to display.

(2) Auto Scan Start/Stop video screen cycle switch

(3) Alarm

(4) Playback

(5) Advanced

Alert and display warning info.

Switch to Playback mode. This allows you to view the recorded video file. (see

Chapter 3.3

)

Switch to Preview/Advanced mode.

23

2.5 Function Buttons in PTZ Camera Controller

Name

(1) Close

(2) Setup

(3) AutoPan

(4) Focus +/-

(5) Zoom +/-

(6) Direction buttons

(7) Camera ID panel

(8) Save Camera preset position

(9) Camera lens speed controller

(10) Camera preset position number

(11) Group AutoPan

Function

Exit PTZ camera controller.

Configure PTZ cameras.(see Chapter 3.12

)

Operate the PTZ cameras automatically based on the selected camera group preset position number.

Adjust the focus manually to produce clear image.

Zoom in and out the image.

Adjust and position the focal point of the PTZ camera.

Display the PTZ camera number that is being operated.

Save the PTZ camera preset position number. Select the camera and click the preset position number and save it.

Adjust the moving speed of the PTZ camera lens.

Move the PTZ camera to the preset point.

Select to automatically operate PTZ camera in group.

24

2.6 Setting Up and Using the EMAP

EMAP can hold up to 8 maps in *.bmp/*.jpg format. You may locate the camera, sensor and relay on the map.

2.6.1 To Set Up the EMAP

1. Click Emap.

2. When the Emap screen appears, click the area number (1 to 8 buttons) on where you want to insert the map.

3. Click Load Map to insert the map. When the open dialog box appears, locate and select the map and click Open.

4. When the inserted map appears on the Emap screen, click Edit. You may now drag the camera, sensor, and relay icons to its place on the map. Icons on the map can be relocated anywhere.

5. To set the camera direction, right click camera icon can select the camera direction in 8 angles.

6. If you are going to locate the icon on the map to other area, you need to drag the icon to the black pane at the bottom of the Emap screen and then switch to the area on where you want to locate the icon. To bring all the icons back to the black pane at the bottom of the Emap screen, click Reset Icon.

7. When you are done, click Save button to save the new setting. To close Emap screen, click X.

25

2.6.2 To Use the EMAP

To use the EMAP:

1. Click E-map.

2. In the Emap screen, click the camera icon to switch on the area where the camera is located on the map and to display the video at the upper right corner of the Emap screen. At the lower right corner of the Emap screen, it lists all the warning message.

3. To control relay, right-click relay icon and select status (on, off, or trigger) of relay.

4. To view different Emap, click Emap number button (1 ~ 8).

5. Click X to close Emap screen.

26

2.7 To Setup the PTZ/IP PTZ Camera

2.7.1 Setup the PTZ Camera

1. In the PTZ control panel, click Setup.

2. When the PTZ Setup dialog box appears, select the camera number and check the Use PTZ box.

3. In the Connection Settings section, select the COMPort where the PTZ camera is connected, PTZ ID number and PTZ camera protocol. Then, click Save to keep the settings.

4. Use the PTZ control panel and adjust the position of the PTZ camera.

5. In the Preset Setting section, select the preset number to assign a number for the PTZ camera current position. Set the DwellTime (1-60 sec) for how long the PTZ camera stays in that position before it moves to the next one. If you want to add description, check the Show Preset Name box and in the

Preset Name text box, type the word. When done, click Save to keep the settings.

6. Repeat step 4 & 5, if you want to save another PTZ camera position.

7. Restore AutoPan Time: set a time period for restoring auto path function after the PTZ camera has been moved. Mark the check box and set the time period in second.

8. Using Joystick: Enable/disable Using Joystick such as USB joystick device.

9. Show moving direction indicator line: enable/disable to show the direction line when uses mouse drag on screen in PTZ mode.

10. Iris: To adjust the iris of PTZ camera. It may not support that depends on brand of the PTZ camera.

11. OSD: To allow call out PTZ camera factory

’s OSD setup menu. The OSD setup menu may vary that depends on the brand of PTZ camera.

12. When is done, click OK to save the setting or Click Cancel, to leave without saving the new setting.

13. When PTZ camera is enabling, user can control PTZ camera by using the mouse and on screen PTZ control bar.

14. Click on screen PTZ control icon to call out the control bar.

27

15. When PTZ control icon has been click on, it will turn to red, the mouse cursor will become a red cross, and PTZ control bar will show up on the screen. i

- User can move the on screen PTZ controller to any position of screen

- The on screen PTZ controller only display on a channel screen at a time.

16. Using the red cross mouse cursor to zoom in/out the camera view by drag on the screen directly.

17. To focus in/out, click the button on PTZ control bar.

18.

28

2.7.2 Setup the IP PTZ Camera

1. In the PTZ control panel, click Setup.

2. When the PTZ Setup dialog box appears, click IP PTZ tab.

3. Select the camera number and check the Use PTZ box.

4. In the Connection Settings section, select the Protocol and Model that is brand of IP PTZ camera and enter the IP or URL of IP camera in IP Camera Site column. Mark the Authentication box if ID and

Password is required when connecting to IP PTZ camera. And then, click Save to keep the settings.

5. In the Preset Setting section, use the PTZ control panel and adjust the position of the PTZ camera and select the preset number to assign a number for the PTZ camera current position.

6. Set the DwellTime (1-60 sec) for how long the IP PTZ camera stays in that position before it moves to the next one. If you want to add description, check the Show Preset Name box and in the Preset Name text box, type the word. When done, click Save to keep the settings.

7. Repeat step 5 & 6, if you want to save another IP PTZ camera position.

8. Restore AutoPan Time: set a time period for restoring auto path function after the IP PTZ camera has been moved. Mark the check box and set the time period in second.

9. Using Joystick: Enable/disable Using Joystick such as USB joystick device.

10. Show moving direction indicator line: enable/disable to show the direction line when uses mouse drag on screen in PTZ mode.

11. Iris: To adjust the iris of IP PTZ camera. It may not support that depends on brand of the PTZ camera.

12. OSD: To allow call out IP PTZ camera factory

’s OSD setup menu. The OSD setup menu may vary that depends on the brand of IP PTZ camera.

13. When is done, click OK to save the setting or Click Cancel, to leave without saving the new setting.

14. When PTZ camera is enabling, user can control PTZ camera by using the mouse and on screen PTZ control bar.

15. Click on screen PTZ control icon to call out the control bar.

29

16. When PTZ control icon has been click on, it will turn to red, the mouse course will become a red cross, and PTZ control bar will show up on the screen. i

- User can move the on screen PTZ controller to any position of screen

- The on screen PTZ controller only display on a channel screen at a time.

17. Using the red cross mouse course to zoom in/out the camera view by drag on the screen directly.

18. To focus in/out, click the button on PTZ control bar.

30

Chapter 3

Customizing the DVR System

In the Preview/Advanced screen mode, click button to customize your DVR. When the DVR configuration setup selection appears, select and click the buttons you want to change the setting.

3.1 System Setting

In the System Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting.

(1)

(8)

(2)

(3)

(4)

(5)

(9)

(6)

(10)

(11)

(12)

(7)

(13)

(1) Storage Path

Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data. In case you have more than one storage path, the system automatically saves the data to the next storage path. You may also add additional network-attached storage

(NAS) for extremely high storage capacity. Select the Enable network storage check box to send the recorded video in network-attached storage. To add network storage, the Internet storage drive/folder

must be mapped as Network Driver in DVR server. Enable network storage first, and then, click Add. In

Browse For Folder windows, select drive C and right click mouse button, select Map Network Drive option.

31

In the Map Network Drive windows, select the Drive and fill in the network drive direction in Folder column if you know. Or click Browse to find the folder direction. Click Finish to complete the network drive mapping.

After the network drive has been added, user needs to create a folder for network storage. In Browse For

Folder windows, select the network drive and right click mouse button to add a new folder. And then, click

OK. User should see a new storage folder display in Storage path list.

By default the data is stored in C:\Data, to insert another storage path, click Add. To remove the selected path, click Delete. If you want the system to automatically erase the data after a certain days, enable the

Delete recorded data after check box and enter the numbers of days in Days text box. If you want the system to automatically erase the event and alarm log after a certain days, enable the Delete event and

alarm log after check box and enter the numbers of days in Days text box. To change logs save direction, enable Move to and select the new save direction

(2) Hard Disk Calculator

Estimate the hard disk recording capacity. The result of calculation is a rough value which only for reference.

The hard disk record capacity will be varied by the real record quality and complexity of video scene.

Click , the hard disk calculator windows will show up. Total Recording time is the current hard disk recording capacity. Enter the expect hard disk size or expect recording time in Expected HD Size or

Expected Record time, and then click Calculate button. Click OK to exit the hard disk calculator windows.

The hard disk calculation will base on the recording setup and current hard disk setup.

32

(3)Language

Customize the system to display the system, interface, and tool tips based on the selected language. By default the language is in English.

(4) Video Standard

Change and select the proper video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal.

(5) Attention Please

Check the attentiveness of the person who is monitoring the system. You may set the number of times the Attention dialog box to appear in a day in

Times per day text box. To check the graph on how fast the person response, click Analysis.

When this feature is enabled, the Attention dialog box would appear. The person who is monitoring the system must enter the same number that appears from the left box at the right text box and then click OK.

(6) TV Out

Select the camera you want to appear on TV and set the time gap from 3 to 10 sec. before it switches to the next camera.

- Advance button (some models may do not have this feature)

Select the channel and camera user want to display on TV.

In Advance mode, user has two types of display selection

– Autoscan and Fixed layout.

Autoscan

(1) Select the video source from drop down list. If user only installs one capture card on the computer, then there is only one video card channel for selection.

(2) Select the display mode as Autoscan.

(3) Preview screen: Live camera video would be displayed here.

(4) View Mode: Select the view mode user wants to display on screen. The system will auto cycle switch to display the next channels.

(5) Cameras: User can select the cameras that user wants to display on the screen. Only those selected channels would be displayed on the screen. Also, the camera will be displayed by the selecting order.

33

(1)

(2)

(3)

(4)

(5)

Fixed Layout

(1) Select the video source from drop down list.

(2) Select the display mode as FixedLayout.

(3) Preview screen: the selected camera video will preview in here.

(4) View Mode: Select the view mode of TV out display.

(5) Cameras: User can select the cameras that user wants to display on the screen. Only those selected channels would be displayed on the screen. Also, the camera will be displayed by the selecting order.

34

(1)

(2)

(3)

(4)

(5)

(7) Configuration

Backup a copy of all the settings and allows you to regain the same settings back. To save the current settings, click Export. To replace the settings with the one you have saved, click Import.

(8) Login

Enable the conditions in Login section you want the system to automatically carry out.

- Auto record when login

Automatically start video recording when the DVR system is executed.

- Auto start Network when login

Automatically enable DVR network connection when login into DVR program.

- Login to compact mode

Switch to compact mode directly when the DVR system is executed.

- Guest Mode

Automatically log in Guest mode when the DVR is executed. In guest mode, the functions are limited to preview and playback only.

- Default user

Automatically log in to the selected default user when the DVR system is executed.

35

(9) Miscellaneous

Enable the conditions in Miscellaneous section you want the system to perform.

- Status Report

Send a daily system event and attention analysis report. To change the e-mail settings, click Setup.

- Beep if no signal

Make sound when the video signal is lost.

- Mandatory Record

Always record video when software is running

- Enable Overlay

To enhance video signal for better video quality.

- Screen Saver

Set a period time to enter screen saver mode when system idle.

- Auto Scan Period

Set the time gap of the Auto Scan function from 3 to 10 seconds. This automatically switches to the next video in cycle depending on the set time gap.

- Temperature Display

Select the format of temperature -- °C or °F

- Playback Mode

Select the mode of playback the video.

Select date and time: Select the date and time which user wants to playback.

Play the last file: Automatically playback the video from the last hour

Instant Playback: Automatically playback the video which has just recorded. To set the instant playback time period, fill in the time in second at Set Instant Playback

’s Play Time column.

- Date Format

Select the date format which wants to display in Select date and time playback mode

(10) POS

Set from which camera screen to display the data from the POS equipment. Click Setting, to set the POS

Console Setting. (see also Chapter 4.1.1

)

(11) UPS (Uninterruptible Power Supply)

Protect the system from damaging, such as power surges or brownouts. This automatically gives time to close the DVR system properly when the battery backup power has reached the Shutdown when capacity

below percentage level setting. The UPS device must be connected to your computer (see also Chapter

4.1.2

).

36

(12) System Configuration

Date/Time Setup

1. Select the Time Zone of DVR server located.

2. Select the Month and Date. Click arrow button can switch to different month.

3. Adjust the Time by click spin box arrow button.

4. Click OK to save the configuration.

Display Setting

Adjust resolution of display.

37

Disk Management

Manage and format the hard disk drive. Please refer to Chapter 2.1.1

for formatting and partition hard disk.

Also, DVR system supports iSCSI HDD setup now. Click iSCSI Setup to configure.

38

Network Setting

Configure the network setting (IP address, subnet, DNS, and son on

…) of the system.

Enable DHCP: To use DHCP server assigning DVR server an IP address.

Using the following IP address: Assign a fixed IP address for DVR server

IP ADDRESS: Assign a constant IP address which a real IP addresses give from ISP to DVR system. i

Do Not assign the DVR to 1.0.0.0 network segment. It will cause the DVR cannot access to

Internet due to the un-recognize to 1.0.0.0 IP segment.

Mask: It is a bitmask used to identify the sub network and how many bits provide room for host addresses. Enter the subnet mask of the IP address which user has assigned to DVR system.

GATEWAY: A network device act as a passageway to internet. Enter the network gateway IP address

DNS: Domain Name Server translates domain names (such as www.abb.com.tw) to IP addresses.

Enter the IP address of DNS if it is available.

Map Network Drive: To add network storage, the Internet storage drive/folder must be mapped as

Network Driver in DVR server. Follow the below steps to map the network drive.

1. Click Map Network Drive button. In the Map Network Drive windows, select the Drive and fill in the IP address and file folder of file server or NAS on your network in Folder.

2. And then, click Finish to make the connection.

3. After connection successful, user should see the network drive on the Storage Path.

4. To disconnect the mapping network drive, click Disconnect Network Drive.

39

Audio Setting

Adjust audio volume of system.

Others

40

Printer Setting

Click Add Printer and following the wizard to install a printer.

Regional/Language Setting

When DVR application is using different language of UI besides English, user can select the corresponding region and language in order to make UI display correctly.

41

Power Management

To setup UPS configuration. Please refer to Chapter 4.1.2 UPS Connection .

Device Management

To manage the DVR system devices.

Network Connection

To manage the connection of the network.

42

Phone and Modem options

To setup the modem dial-up settings.

Usageinfo

To view usage of the system CPU, memory, and network.

(13) System Controller Setup

To configure the parameters that is for communicating with the System Controller (an optional accessory).

For operating of the System Controller, please refer to Chapter 4.1.3

.

Enable – Mark the check box to enable the System Controller function.

Upgrade – To update the firmware of the System Controller (see also

Upgrading the Firmware of the

System Controller ).

Model – Select model of the System Controller. If System Controller is connecting to DVR through the

43

USB port, please select the System Controller Pro mode. If System Controller is connecting to DVR through the RS485 port, please select the System Controller Pro 485 model.

Port

– Select the com port that is connected with the System Controller Pro.

i

Only when System Controller is using RS485 port connect to DVR server, the port needs to be selected.

ID – Set an ID for DVR server (0~99). This ID is a key for the System Controller to control the DVR server when there are more than one DVR servers are connecting with the System Controller through the

RS485 port(see also Switch Control on Multiple DVR Servers )

3.1.1 To Set the POS Setting

3.1.1.1 General Setting

1. In the System Setting dialog box, POS section, click Setting.

2. In the POS Console Setting dialog box, click Add to set a new POS setting, Modify to change the POS setting, and Delete to remove the selected POS setting. Click OK to save and close POS Console

Setting.

3. In the POS Mapping dialog box, click OK to accept the settings and Cancel to exit without saving the new setting.

44

(7)

(8)

(1)

(2)

(3)

(5)

(4)

(6)

(1) Name: Enter a name to identify the POS.

(2) Protocol: To select the protocol, click Setting button (see Setup POS Device)

(3) Skip first: Set the number of lines you want to be removed

(4) Start Testing: Click to test POS setting. You will see a test result on the right side of POS Mapping window.

(5) Port Setting: Select the Local or Remote port to where it is connected.

Local: Select the COM port number which is connected.

Remote: Use the UDP protocol for remote connection if POS system can broadcast to Internet. Enter the IP address of the remote station.

(6)

Setup…: Set the COM Properties. If you are not sure, please contact your POS service provider.

(7) Map to Channel: Select to which camera number to display the transaction text.

(8) Text Filter: Enter the word you want to be removed.

45

Setup POS Device

There are some default POS devices. If user uses the POS device beside defaults, user can add new POS device and rules. The POS device can be added up to 50 include defaults.

Setup Standard POS Device

1.

Add New POS Device

1. Click Add

2. Enter the POS device name in Name column

3. Select the Type as Standard

4. Click OK to save

5. To modify existing device, double click it.

6. Click Default can be reset back to original setting.

2.

Add Rules

1. Select the POS device form device list

2. Click Add in Rules section

3. In Rule Setting windows, select Group. Each group has a limited number of times ; please refer to the

Maximum” and “Remainder” information in Rule Setting windows. The Line End, Page End, and

Bill End group only can be set once.

- Line End: set a rule to separate each line.

- Page End: set a rule to switch page.

- Skip Cmd: set a rule to discard a string or character.

- Include: set a rule for a lime with a string or character to be displayed.

- Exclude: set a rule for a line with a string or character to be concealed.

- Bill End: set a rule to divide each transaction.

4. Select Type

– Ascii or XML

5. Enter the string or character as the rule in Data column. The maximum length is 31 characters.

46

6. Click OK

7. Click Save. The configuration will be lost without saving.

8. To modify existing replace rules, double click it.

3.

Character Replacement

Set a rule to replace a character or word in POS data. The maximum replacement is 8.

1. Select a POS device from device list

2. Click Add in Replace section

3. Old Data: select the Type(Ascii or Hex) and enter word or character that wants to be replaced

4. New Data: select the Type (Ascii or Hex) and enter the word or character that will replace it in Old Data.

5. Click OK

6. Click Save. The configuration will be lost without saving.

7.

To modify existing replace rules, double click it.

4.

Adjust Rule Priority

User can set the priority of rule groups. Select the group and click up/down arrow button to move the priority level. The upper position, the priority is higher.

Setup XML POS Device

XML can only work with the POS data is transmitting in XML format.

Device: select or add a new device. Only device that supports XML can be configured in here. Click Add

47

to add a device. Enter device name and select Type as XML. The POS device can be added up to 50 include defaults.

Page Start: Beginning of data for transaction

Page End: End of data for transaction

Tag: select a root tag and sub tag as a range for data transaction to DVR server. Click Add to set a tag. Click Save. The configuration will be lost without saving.

Please refer to the following example for more detail.

<TicketStart> → Page Start

<Header> → Root tag

<MessageVersion>1.0</MessageVersion>

<Date>20060317</Date>

<Time>164216</Time>

<RegisterID>3</RegisterID> → Sub tag

<Shift>4</Shift>

<CashierID>000000009</CashierID>

<JrnlTransNum>3</JrnlTransNum>

<JrnlID>0</JrnlID>

</Header>

</TicketStart>

<Item>

<SaleTotals>

<Item>

<SaleTotals>

<Item>

<SaleTotals>

<TenderEvent>

<TicketComplete>

Page End

48

3.1.1.2 Advanced Setting

To setup POS text display position, text font and color.

1. In the System Setting dialog box, POS section, click Setting >> Advanced Setting

2. Mark Show POS Text to allow POS data to be display on surveillance screen.

3. If user doesn

’t want POS data to be scroll up, mark Stop scroll POS Text and enter the time to delete

POS text at Erase POS text after column.

4. Select the POS data display position on surveillance screen

– Left-Top, Left-Bottom, Right-Top, or

Right-Bottom.

5. Mark Multiple Windows to allow more than one iPOS live data window (see also iPOS Live in Preview

mode) display on the preview screen mode.

6. Mark Save Window Position that iPOS live data window position(see also iPOS Live in Preview mode)

will be saved as next time call out position when close

7. Select the Cameras that user wants iPOS live data to be display on Preview mode when the iPOS Live function has been enabled. To select all cameras, mark All.

8. To change the POS data font and color, click Font.

9. When it is done, click Save to complete the configuration.

3.1.1.3 POS Database Setting

User can export the POS database to another save location or storage device. Click to change the save path. Mark Remove POS data after the POS data will be delete from DVR hard disk on the day that user has setup. Also, mark Move to: user can save the POS data to another folder on DVR when the POS data is removing. Click to set a storage path.

49

3.1.2 UPS Connection

Follow the below steps to connect the UPS to DVR system.

1. Refer to the below figure to connect the UPS with DVR unit.

DVR unit

RS

232

Ca ble

Po we r Cor d

UPS unit

Power Cord

LCD Monitor

2. Power on the DVR unit and UPS unit.

3. Press F8 to switch to Controls menu mode.

4. Click Power Management

5. In Power Options Properties dialog, click Select

50

6. Select the brand, model and com port of UPS unit. And then, click Finish. i

To check the com port number, go to DVR applicationSetup SystemPOS Advance

AddPort Setting Local COM

7. Click Apply to check if the UPS setting is correct.

8. And then, click OK to complete the UPS setting.

9. User also need to enable UPS and set the capacity percentage level for shutdown in the DVR

application(see also (11) UPS (Uninterruptible Power Supply in System Setup).

51

3.2 Camera Setting

In the Camera Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default1/ Default2 to revert back to original factory setting.

(1) Camera Icons

Select the camera number you want to adjust the video setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left

click on the camera icon. The camera icon turns red when it is selected. The camera icon will be different that depends on the camera type user selected.

IP camera icon Analog camera icon

(2) Enable

Set to enable/disable the selected camera. When there is no video source on the camera, we suggest disabling it so that the system won’t detect it as video loss error.

(3) Camera

- Display

Enable/disable to show the video. Even if the video of the selected camera is hidden you can still record the video and preview it in playback mode.

- Name

Change the camera name

- Description

Add a short comment

(4) Video Adjustment

Adjust the Brightness, Contrast, Hue and Saturation of the selected camera.

(5) Input

Select the type of video camera input you are using.

52

- Analog Camera

The video source is coming directly from camera that is connected to the DVR.

- Remote DVR

The video source is coming from another DVR server. In the Remote DVR dialog box, enter the server

IP, port number, user ID, password and select the camera number. If you are not sure of the server IP and port, please check the DVR server IP address in Network setting.

- IP Camera

The video source is coming from Network camera or IP camera. Click Setup to enter the IP Camera

Settings windows. In the IP Camera Settings dialog box, select to connect using Protocol or URL and then enter the required info. If the IP camera IP address is available, enter the IP address at IP

Camera Site column. Or User can click Search Device to find the selected protocol of camera on the

LAN network. If user is not sure the camera is which model, click Detect Model to find the correct model of camera. If it requires user identification, enable Authentication check box and enter ID and

Password. To enable audio, click Enable Audio check box. If you are not sure of the Protocol or URL info, please refer to the IP camera manual or contact your IP camera local distributor. Click Save &

Exit to save the setting and leave the setup windows. Click OK to save the setting but not exit the setup windows. To cancel the setting, click Cancel.

In Camera Setting interface, click Detail to configure more parameters of the IP camera. Click OK to save the configuration and exit the setup windows. To reset the configuration back to factory value, click Default.

53

54

User can select Video size, Frame rate, Video and Quality Mode of camera. And scroll the bar to adjust the Quality, Brightness, Contrast, Hue, Saturation, and Sharpness of the camera.

Recording Setting

- Save Original Format: Save the video that is compressed by IP camera’s compress mode.

- Transcode by MPEG4 Encoder: DVR system is decoding the video and compress video again by using MPEG4 encoder.

Preview Setting: preview setting will relate to the Save Original Format.

- Decode key frame for Preview: When previewing video, DVR system only shows key frame and one frame per second.

- Enable live display performance optimization: The live video performance will be optimized while display.

- Enable update when motion: The video will update only when compare the key frame has motion found, and then, the video will be displayed.

Schedule Connect

User can select a certain date and time to connect with IP camera. The blue block means connect with IP camera and the white block means disconnect with IP camera. Select the connection status (blue or white) and click the date and time block to set the connection schedule.

I/O Control: To setup the sensor and relay devices that is installed on IP camera.

Sensor Setting: To setup sensor that is embedded on the camera.

1. Click the drop-down list and select the sensor ID number.

2. Enter sensor name in Name column

3. The system automatically detects the camera and input relates information. In the Content section, enter sensor description.

4. In the test section, click Test to check the sensor status. Red is high and Green is low.

5. Click OK to exit and accept the setting and Cancel to exit without saving the setting.

55

Relay Setting: To setup relay device that is embedded on the camera.

1. Click the drop-down list and select the relay ID number.

2. Enter relay name in Name column

3. The DVR system automatically detects the camera and input relates information. In the Content section, enter relay description.

4. In the test section, click Test to trigger relay. Red is high and Green is low.

5. Click OK to exit and accept the setting and Cancel to exit without saving the setting.

Direct Link by IE

Using IE browser to connect to camera and view the real time video. Click Direct Link by IE,the

IE browser will pop up and connect to camera. The video viewing interface will be varied by different brand of camera.

(6) Noise Reduction

Reduce undesirable video signal and improve the quality of the video. i

Noise Reduction uses lots of CPU resource. Please use this feature only if it is really necessary.

(7) Auto Brightness Control

Automatically adjust the brightness.

(8) Night View

Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled.

(9) Enable Deinterlace

To enhance the video quality. Set the Enable Deinterlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

(10) Object Counting

Select the two regions on the screen and the system will count the objects that appear from one selected

region to another selected region (See also Chapter 4.2.1

).

i

The DVR system only supports 4 channels for object counting.

(11) FaceFinder

To setup the capture of human face image from live or recorded video(See also Chapter 4.2.2

).

(12) PTZ Tracking

Enable/disable object tracking of the PTZ camera (see also Chapter 4.2.3

)

56

i

The PTZ tracking only available for the PTZ/IP PTZ camera.

(13) Camera list

List all available cameras for grouping. User can drag the camera to (15) Video screen to view camera live video.

(14) Group

User can create several camera groups for managing purpose. All cameras can be group into several

different groups (see also Chapter 4.2.4

).

(15) Video Screen

Display the video of the selected camera.

57

3.2.1 Setup the Object Counting

i

The DVR system only supports 2 channels for object counting.

1. Click Detail to enter the object counting setup window.

2. Enable Detected Regions in Display section. This enables the object counting information show on the screen. Moving Object will enable the object size frame to show on the screen.

3. Click Region1 and press left button of mouse and drag the area that user wants the object to be counted.

And then, click Region2 and drag another area that user wants the object to be counted, too. Those selected regions will mark in different color. The system will count the objects that move between the selected regions.

4. Click Object size to define the detected object dimensions. Press left button of mouse and drag on the screen. To see the object size frame on screen, enable Moving Object in Display section.

5. Adjust the sensitive of object detecting.

6. To test the setting, mark the Directions (In/Out) want to be test and click Start. The testing result will show in Test section.

7. Enable Reset Counter to manual or auto reset counter.

Reset Counter

- Auto reset counter: Select the counter reset by every hour, every 12 hours, or every day automatically.

- Reset the counter now: reset counter manually.

Statistic Report

- Save statistic report after counter reset: Enable to save a counter statistic report after counter has been reset. Click to change the Stored Path.

- Remove data after: Set a time period to delete the counter data from system hard disk.

- Move to: Move the counter data to the save location that has been setup by user.

58

8. Click OK to save the setting. Click Cancel to leave the setup window without saving.

9.

The object counting information will be display on the screen of upper part.

Object Counting Information Display

Region 1 Region 2

Object Size Frame

59

3.2.2 To Setup the FaceFinder

To setup the human face detection and capturing from live and recorded video for security issue. Click Detail to enter the FaceFinder setup window. To set the value back to default, click Default button. i

- The face detection angle is around 30 ~ 45 degrees for both side of face and 25 ~ 30 degrees for look up and down of face.

-

It is to recommend that user install the camera in the position of light comes in for better face detection result.

Save Data into Object index: Mark to enable face detecting and capturing face image to display on face object log. The default is enabled when the FaceFinder is enabled.

Advanced Search(Include Human Eye Detection): Beside face recognition, the system will also focus the detection on eyes of face.

Search Region: User can select condition of face detection and setup face detects area.

- Detect Motion Object: Only when the human face is moved, the system will detect and the face will be captured.

- Define Select Region: Setup the face detects area. The system will only detect the face in the selected area. On the preview screen, use mouse to drag the area that user wants to search. User should see the blue frame on the preview screen of FaceFinder setup window. User can select multiple areas for detection. To clear the selected area, right click the mouse button and drag the selected area to clear. Or, click Clear to clear all selected areas.

Detection Sensitivity: To set the sensitivity level of face detection. More higher is more easily to detect the difference of the face.

Minimal Face Size Level: To set the face detection of minimal size. The system will only detect the face size is equal or bigger than the minimal face size. User should see a green frame on the preview screen of FaceFinder setup window.

Control Setting of External Device: Set the conditions of the face detection that is trigger by outside device such as sensor, relay device.

- Activate FaceFinder By External Device: Mark to enable trigger condition.

- Start Message: Set the sensor level that will trigger the face detection. The default is high.

- Stop Message: Set the sensor level that will reset the condition of face detection. The default is low.

- Reaction Device: Set the activate level of relay device. When the face detects condition meets the condition in Trigger Condition, the relay will send out the signal and the system will send out the face object log. The log can be viewed in Face Object Log.

- Trigger Condition: Set the condition for activating relay device to send out the log to DVR system.

Select the time (second) and times (the number of face has been detected) from drag down list.

- Reset Device Status After: Set the time period to reset activate device back to normal status. It works

60

only when the activate status is set to trigger.

After set up, click Start Test to test the configure result. When the system is detecting face, the red frame will show up on the screen. The test result will display in Face log List window as below figure shown:

61

3.2.3 Setup PTZ Tracking

PTZ tracking allows user to setup a select range for PTZ camera to track the object automatically when object is out of selected rage. i

The PTZ tracking will be available when the camera is enabled PTZ function.

1. User need to enable the PTZ function of the camera if the camera is a PTZ/IP PTZ camera.(see also

Chapter 3.13

)

2. Click Detail from the Camera Setting windows.

3. Configure the following selections to complete the PTZ tracking.

(1) Show Trigger Line in Live Video: Enable/disable the tracking line on the preview screen.

(2) Left Trigger Line(red line): Set the left edge of the tracking range. If the object is out of the range edge, the camera will automatically move to track the object.

(3) Right Trigger Line(red line): Set the right edge of the tracking range. If the object is out of the range edge, the camera will automatically move to track the object.

Left Trigger Line

Right Trigger Line

(4) Maximum Size(green frame): Set the maximum size of the object for detection.

(5) Minimum Size(green frame): Set the minimum size of the object for detection.

Minimum object size

Maximum object size

(6) Enable PTZ Auto Tracking: To restore PTZ tracking function after the camera has been manually control. The PTZ tracking will stop function when user has operated the PTZ camera manually. Therefore, user can enable this option to make sure the PTZ tracking will be restored after manually control of the

PTZ camera.

(7) Go to PTZ Preset Position: To move the PTZ camera back to the selected preset position after PTZ camera tracking the object and the object is missing or out of the camera view.

62

4. Click OK to complete the setting.

5. When the PTZ tracking has been setup, user should see the PTZ tracking icon ( screen.

) on the preview

63

3.2.4 Create a Camera Group

Follow the below steps to create a camera group. The maximum of group number is 64. The default group can be deleted and modified.

1. Click to add a new group.

2. Right-click on group to rename the group name.

3. Drag the camera from Camera list section to the group.

Select and drag the camera to the group

4. Right-click the camera can rename, delete, display/no display video of camera, and enable/disable camera.

5. To add another group, do the step 1 to 4 again.

6. To delete the group, click or right-click the group and select delete.

7. Mark sort by camera name to display group by name order.

8. Click + of the group to extend the group. Click + of the camera to view all devices that is connected with camera.

64

9. User can easy to view and manage the camera group in preview/advanced mode by click camera tree

icon (see also Chapter 3.2(11) Camera Group Tree ). From camera group tree, user can enable/disable,

display/un-display, and rename the camera and enable/disable the audio of the camera. i

To manage the camera group tree in preview/advanced mode, user need to be enabled the Group

Tree Menu control right in account setting(see also Chapter 4.9 User Setting )

65

3.3 Recording Setting

In the Recording dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting.

(1) Camera Icons

Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left

click on the camera icon. The camera icon turns red when it is selected. The camera icon will be different that depends on the camera type.

IP camera icon Analog camera icon

(2) Recording Mode

The horizontal blocks from 00 to 23 represent the time in 24-hour clock and the vertical block 1 to 7 represent the day in the week block (Sunday to Saturday). To record in full 24 hours and 7 days a week, select the recording mode and click the  button. If you want to only record at a particular time or day, click Schedule button and select the Recording Mode , and then click on the time or day blocks.

66

When the system starts recording a red triangle mark would appear at the upper left corner of the screen.

The recording modes are listed below:

- Always Recording

Record the video from the selected camera and save it to the designated storage path (see also

Chapter 4.1 #1 ).

-

Motion Recording

Start recording the video from the selected camera only when the system detects movement. Once a motion is detected, the system automatically saves the previous frames and stop based on the Start

Record Prior and Stop Record After settings.

-

Smart Recording

Automatically switch to recorded at the maximum frame rate setting once a motion is detected and if there is no motion, it records at the minimum frame rate setting Set the maximum and minimum frame

rate setting in (7) Frame Rate section.

-

Voice Detecting Recording

DVR system will record the sound when the voice exceeds the intensity value in Voice Detection setting.

-

No Recording

The system won’t do any recording.

-

KeyFrame Recording

Only record one frame per second.

(3) Enable Audio

Select to assign the audio channel of the selected camera. You can only assign one audio channel to one camera source. This way you can record both audio and video. i

An Audio I/O card is required to use this function.

(4) Motion Detection

Adjust the sensitivity of the motion detector. The higher the value, the finer the sensitivity is detected. When it detects a motion, a green triangle mark would appear at the upper left corner of the screen. Click Advanced button to select the area for motion detection. Click Region 1/2/3 button, and then, click-and-drag an area on camera screen fro motion detect. To adjust motion detect sensitive, scroll the Sensitivity 1/2/3 bar. Click OK to save and exit the setting window. To reset all setting, click Default.

(5) Voice Detection

Adjust the intensity of the audio detector. The system detects sound when it exceeds the intensity value.

(6) Quality

Adjust the video quality. The higher the value, the lower the compression level and uses more hard disk space.

(7) Frame Rate

Set the maximum and minimum number of frames to be recorded during motion and motionless state. The frame rate ranges from 1 to 30 for NTSC and 1 to 25 for PAL. The higher the frame rate, it uses more hard disk space.

67

(8) Video Size

Select the size of the video and click the  button. The higher the size, the larger the file it create. You can also activate the Enable Deinterlace to enhance the video quality. Set the Enable Deinterlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

(9) Mask/Shield Edit

Mask, mark an area on the screen to disregards the motion in the marked area and to only monitor outside the marked area. As for the Shield, it covers an area on the screen and the covered area would not be visible

on the screen and recorded. (see also Chapter 4.3.1 and 4.3.2

)

(10) Individual Adjustment

To adjust recording frame rate of each channel. Max available frames are total frames that can be used.

Used frames are the frames that have been used. Select the video size and scroll the bar to adjust frame

rate of camera. Click OK to save the configuration. To cancel, click Cancel.

68

(11) Video Encryption

Enable/disable to encrypt the recorded video that way only the person who knows the password can clearly view the video playback. The file size would become 10 to 30% more. Enabling the Video Encryption check box, you will be prompted to enter the password and retype the password for confirmation. Make sure not to forget the password for you would not be able to decrypt the video without it.

The symbol would appear on the upper right of the encrypted video screen. You may see the video

during live recording. To decrypt the video, please refer to Chapter 4.3.3

.

69

(12) Enable Storage Optimization

Enable/disable to save more storage space. Click Detail button to select the type of storage optimization.

Monochrome Mode: The video will record in black and white.

Disable Video Enhancement: To shutdown video enhancement function.

User also can select the Default Mode High/Medium/Low. Click ? button to view default mode definition.

(13) Group

Click to view the camera group that user has been setup in Camera setup (see also Chapter 4.2.4

).

(14) Camera

Click to view the camera live video on (15) Video Screen.

(15) Video Screen

Display the video of the selected camera.

70

3.3.1 To Mask/Shield an area on the screen

1. In the Mask/Shield Edit section, activate the Enable Mask/Enable Shield check box.

2. In the Edit section, select between Mask or Shield and click the  button.

3. Click and drag a frame on the (15) Video Screen to create Mask or Shield area. i

SA7000H doesn

’t support shield function

3.3.2 To show and change the color of the Mask

1. Enable the Show Mask check box.

2. In the Color section, select the color and click button.

3.3.3 To Playback Encrypted Video

On Playback, Webcam, and Remote Console video screen, just click and enter the correct password to decrypt and playback the video.

To encrypt the recoded video back, click and enter a WRONG password. i

It is important to encrypt the video again, to avoid unauthorized user viewing the video.

71

3.4 Network Setting

In the Network Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting.

(7)

(1)

(2)

(8)

(3)

(9)

(4)

(10)

(5)

(6)

(11)

(1) Server Name

Assign a name for the DVR unit. Letters of the alphabet and numbers only.

(2) Transmitting Cameras

Select and click on the camera number in the Transmitting Camera section you want to make it accessible via internet using WebViewer, Remote Console, PDAViewer and HandyViewer (still image). To select all the cameras, enable the ALL check box.

(3) Server IP

Set the Server IP and Remote Console Port number. The system will automatically detect your Server IP address. You need this when accessing DVR server from the remote location via internet.

(4) Dynamic DNS (Domain Name System)

For information about Dynamic DNS options see http://www.luxonvideo.com/quickstart201.php

and scroll down to the DynDNS Section.

(5) Remote Control Server

Enable/disable remote control from remote application (ex. NVR-CMS). Enter the remote accessing port in

Port column. The default value is 5555. i User also can manually run this function. To run, click Start > Programs > DSS > Tool > Remote

Control Server. The remote control server icon appears on the taskbar when the remote

control server is enabled. (also see Chapter 11 )

(6) Network Video Configuration

Set up the video quality and frame rate for viewing and transmitting to the remote program. Scrolling adjust bar to set the Quality level and FrameRate level.

(7) WebViewer Configuration

Activate Enable Anonymous Login to remotely access the DVR server without the need of password and

Talk to Web-Client to use the 2-Way Talk feature that allows the client and server to talk via internet using microphone. Make sure both microphone and speakers work before using this feature.

72

If the Talk to Web-Client is disabled, the person in the DVR server side can only hear the voice from the

client side that is when the WebCam 2-Way Talk button is activated. (see also Chapter 7.1 #6 ).

i

Make sure that your WebViewer Digital Signature is upda ted yearly; else you won’t be able to access the DVR server from the DVR WebViewer. To update/download your WebViewer Digital

Signature, click Update WebViewer Digital Signature. Make sure your PC is connected to internet.

(8) Voice Phone

The Talk to Web-Client is to use the 2-Way Talk feature that allows the client and server to talk via internet using microphone. Make sure both microphone and speakers work before using this feature. If the Talk to

Web-Client is disabled, the person in the DVR server side can only hear the voice from the client side that is

when the WebCam 2-Way Talk button is activated. (see also Chapter 7.1 #6)

. i

Make sure that your WebViewer

Digital Signature is updated yearly; else you won’t be able to access the DVR server from the DVR WebViewer. To update/download your WebViewer Digital

Signature, click Update WebViewer Digital Signature. Make sure your PC is connected to internet.

(9) Network Time Synchronization

Adjust the DVR system time same as network time server. Fill in the Time Server IP address or domain name. Select Automatic Synchronize time to set automatic synchronize time on a daily basis. Or, user can click Synchronize Time Right Now to adjust time right away.

(10) 3GPP

Enable 3GPP that allows user to use browser on the mobile phone to view recorded video. Just enter the http:// DVR server IP address/3GPP on the browser of mobile phone, and then, user will receive the recorded video from DVR server. Fill the RTSP PORT for 3GPP connection. Select the video size for transmitting to user

’s browser on the mobile phone.

(11) Other Configuration

- Enable Original Security Protocol

Enable DVR system to accept the connection from former version of remote access application. For example, if user uses CMS version 7.3 and connect to DVR server with version 7.7, and then, user has to enable this option to make it work. It is due to that DVR system has new security protocol and it’s not compatible with old remote access software.

- Enable White List

An access permit list for the remote accessing of DVR server. Enter the IP address and click Add. Or, enter a range of IP address and click Add. To delete the IP from the list, select the IP and click Delete button. To reset the input, click Clear button.

- Enable HandyViewer

Enable remote users to use a PDA or a mobile phone to access DVR server and select the video size and

quality. (See also Chapter 7.5 and 7.6

)

73

- Network Bandwidth Limit

By Channel: Set the network bandwidth by each channel.

All: Set the total network bandwidth consumption limit.

74

3.5 Schedule Setting

Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week.

To Set the Schedule Setting:

1. Select the date in the calendar. Use and buttons to shift the calendar to the left or right.

2. Select the condition you want to schedule in the drop down list.

-

Record

Activate all the cameras to start video recording at the set time based on the Recording setting (see

also Chapter 4.3

).

-

Backup

Save another copy of all the data at the set time and specified backup path. DVR automatically updates and only backup the data that are not yet included in the archive. To assign backup path, click .

Mirror Backup: Save a copy of all the data at the set time and specified backup path.

Incremental Backup: Only backup the data that are not yet included in the archive from last time. i

Make sure the backup folder and storage folder are not on the same drive.

-

Enable Network

Activate DVR remote system to access at the set time. After the appointed time, the Network function will be disabled. If the Network function is already enabled, the Network function will not be disabled when the appointed time has ended.

-

Reboot

Restart the PC at the appointed time.

-

Disable Alarm

Deactivate the alarm at the set time temporarily.

-

Turn on Relay #

Active the Relay at the set time. If there are no Relays are connected, Turn on Relay # function will

75

not display in drag down list. The Relay number will depend on how many Relays are connected.

3. Specify to either schedule it weekly or one time. Click  to make a selection.

4.

Click on the blocks to set the schedule (see also Chapter 4.5.1

). Or click All to select all. To store the

setting, click Save. To remove the settings, click Clear.

5. To end Schedule Setting, click OK to exit and accept the setting and Cancel to exit without saving the setting.

3.5.1 Set schedule at specific portion of time

1. Right click the colored blocks.

2. In the Select time dialog box, click to enable or disable the portion you want to set.

3. Click OK to accept the setting and Cancel to exit without saving the setting.

76

3.6 Backup Setting

In the Backup Setting dialog box, the number from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera number. When you back up the file, you may find QLogViewer and Player application included in the backup folder (see also Chapter 5 ).

3.6.1 To Backup file

1. Select the date of the recorded file in the calendar you want to backup. Use and buttons to shift the calendar to the left or right.

2. In the table below, click on the blue block to select the recorded file. The blue block turns red when it is selected. The block that appears in white doesn’t have data. If you want to set the specific time, right-click on the selected block. Then, set the time to start and end.

3. Check the information beside the calendar.

Selected Files : Show the number of files selected.

Require Space : Show the total size of the selected file.

4. Enable Auto partition and select to divide the file size into DVD-R or CD-R. DVR automatically backup and divide the file sizes to facilitate burning into DVD or CD disc.

5. If you do NOT want to keep the recorded file in the storage folder, enable Delete files after Backup check box.

77

6. Click to set the path on where to store the backup file.

7. Click to start archiving the selected file.

8.

In the Processing… dialog box, to stop archiving press Abort. When done, in the Backup Path list, shows the archived item. Select the item in the list and click Burn. Click Exit to end this procedure and burn it later.

9. In CD/DVD Backup, enable/disable Delete file after burning check box to remove the archived file after burning. Click Burn to start and Exit to cancel this process.

3.6.2 Setup Quick Backup

Set a quick backup rule for user can pressing

10

to execute backup instantly.

1. Click Quick Backup

2. In Quick Backup Setting, mark Enable

3. And then, select the channels that want to backup

4. Backup Last: Set the time before minutes to backup. For example: time before 60 minutes means backup the recorded file from now backward 60 minutes. Present time is 13:00, the system will backup start from 12:00 when press quick backup button

78

3.7 Sensor Setting

The I/O device must be installed to use this function.

1. Click the drop-down list and select the sensor ID number.

2. Enter sensor name.

3. Click External IO to configure external I/O device if it is available(see also Chapter 4.7.1

)

4. The system automatically detects the sensor and input relates information. In the Content section, enter sensor description.

5. In the test section, click Test to check the sensor status. Red is high and Green is low.

6. Click OK to exit and accept the setting and Cancel to exit without saving the setting.

79

3.7.1 To Setup External I/O Box

The DVR system can connect the external I/O box for more installed of I/O devices.

1. Click Add.

2. Mark Enable box to enable this external I/O box.

3. Select the Brand of external I/O box from drag down list.

4. In Port Setting, different brand of external I/O box may have different port parameters. Please refer to the external I/O box

’s user manual for port setting information. Using the default value if user uses

External I/O box.

5. Click OK to save the setting.

6. To add more than one external I/O box, click Add and follow the above step 2~4.

7. In External I/O box setup dialog, user will see all added External I/O. Click added External I/O box and click Add to scan the connected relays and sensors.

8.

In Add Module windows, click Scan to scan the connected relays and sensors on the External I/O box.

9. All connected relays and sensors will be listed. User can click radio button to control relays

’ status. And then, click OK to save the setting and click Cancel to exit and without saving.

80

10. All connected External I/O box and their modules will be listed as tree topology in External I/O Setup windows.

11. To view the all I/O devices information, click I/O Map.

3.8 Relay Setting

The I/O device must be installed to use this function.

1. Click the drop-down list and select the relay ID number.

2. Mark Enable to enable the selected relay.

3. Click External IO to configure external I/O device if it is available (see also Chapter 4.7.1

). When

external I/O is set and it will be available in drag down list for selecting.

4. The system automatically detects the card and input number. In the Content section, enter relay description.

5. In the test section, click Test to trigger relay. Red is high and Green is low.

6. Mark Enable Pulse trigger the relay will be triggered depends setting of Interval Time and Retrieve

Time. Interval Time is a time gap for the relay will be triggered, for example: the relay will be triggered every 3 seconds if interval time is set to 3 seconds. Retrieve Time is the time that relay is staying in trigger status, for example: when relay has been triggered and it will continuous in trigger status for 2 second if retrieve time is set to 2 seconds.

7. Click OK to exit and accept the setting and Cancel to exit without saving the setting.

81

3.9 Alarm Setting

In the Alarm Setting dialog box, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory setting.

(1)

(2)

(8)

(3)

(4)

(5)

(6) (7)

To set the Alarm Setting:

1. Click Add to insert and set a new alarm setting. Click the items in the (8) Alarm Setting List, if you want to modify the alarm setting.

2. In (1) Alarm Setting number/Name/Description, display the selected alarm setting number in the list below. Enter alarm name and description.

3. In (2) Enable Time, the number from 00 to 23 represent the time in 24-hour clock. Click Schedule to select the time and date that you want to activate or deactivate the alarm function. Select Enable or

Disable and click the block that user want to activate or deactivate the alarm function.

4. In (3) Conditions

, you can set “Trigger if any” to activate if it falls to one of the conditions or “Trigger if

all

” to activate if it falls to all conditions.

- Motion Detected: select and click on the camera number (01 to 32) to set the condition for the system to alarm. Right click on the camera number to setup the Continuous trigger duration of

Motion detected. Enter the time period for system to send out the alarm when motion has continuous detected for a period.

82

- In Video Loss, click the camera number (01 to 32) to set the alarm condition when video is lost.

Right click on the camera number to setup the Continuous trigger duration of Video Loss. Enter the time period for system to send out the alarm when video loss has continuous detected for a period.

- In Missing and Suspicious Object/Scene Change, click the camera number (01 to 32)and select the certain object on the screen (right click on camera number for detailed setting), and when

the certain object is missing or doubtful, the system will alarm.(see also Chapter 4.9.12

)

-

In Audio Detect, click the camera number (01 to 32) to the system to alarm when detect the abnormal audio.

5. In (4) Sensor, select and click on the sensor number (01 to 32) to set the condition for the system to

alarm. If the sensor normal status is high, set the sensor condition to low (see Chapter 4.7 step #4 ).

Click IP Camera Sensor to configure IP camera

’s sensor condition. To set the sensor condition for the system to alarm, click High or Low column. The column with a circle means is selected.

-

Continue trigger duration: Set a time period that when sensor has been trigger and stay in the same status for that period, then the alarm will be sent out.

- Abnormal Event: Enable/disable to set the condition of the event for system to alarm.

83

System Reboot: when the DVR system reboot without abnormal condition, the system will send out the alarm message.

Abnormal Reboot: when the DVR system reboot in irregular condition, the system will send out the alarm message.

Recording is switched off: when the recording has been stopped, the system will send out the alarm message.

Network is switched off: when the network connection of DVR system is lost, the system will send out the alarm message.

Hard Disk failed: when the hard disk can

’t work normally, the system will send out the alarm message.

Temperature: set a temperature limited of system for system to alarm. When DVR system temperature is over the temperature limited, the system will send out the alarm.

Illegal Entry: any objects move between selected regions which user has set up in Object

Counting section (see Chapter 4.2.1

), the system will send out the alarm. Select the entry

(object moves from region 1 to 2 or from region 2 to 1) and and click the Detail to select the camera and the times for system alarm.

Trigger if once: Send out the alarm when the selected camera match the illegal entry has selected.

Trigger if the amount exceeds: Send out the alarm when the selected camera and illegal entry times match the illegal entry has selected.

i

Only the camera has been setup in Object Counting will be available for selecting in

Illegal Entry.

FaceFinder: Enable to send out the alarm when the selected channel has detected face. i

Only the camera has setup FaceFinder detection will be available for selecting.

84

Enable/disable the POS Keyword check box, to scan the data from the POS if it matches the

keyword (see also Chapter 4.9.11

).

- Enable/disable the Alarm Message check box, to active with external alarm message by your own program. For the detail configuration, please contact the local reseller.

-

Enable/disable the Alarm Button check box, to active manual alarm function. To define alarm message of manually alarm trigger. Click alarm button and select the alarm button # and fill in the description of alarm button. When the alarm buttons have been setup, the Alarm Button icon will show up on the DVR application UI. User can click the Alarm button icon to trigger the pre-defined alarm.

6. In (5) Alarm Reset, click the camera number (01 to 16) to set the reset condition of alarm. Once alarm is reset, all alarm action will stop at the moment. If the sensor normal status is high, set the sensor condition to low.

To set sensor status of IP camera, click IP Camera Sensor. In IP Camera Alarm Setting windows, click

High/Low to set sensor status.

-

Alarm Reset Time: Set a time for the alarm auto reset. When an alarm happen such as motion detected and video loss, the alarm will reset at the alarm reset time.

7. In (6) Priority, set the priority of this alarm set.

8. In (7) Action, you may now set the alarm action for the system to perform when the alarm condition is activated.

-

Launch EMAP

Display mini EMAP screen.

-

TV Out

Switch to only display the video on TV from where the alarm is activated. a. Select the camera from drop down list to specify which camera video to be displayed on TV when the alarm is triggered.

Alarm Camera: when a channel has an alarm occurred, and then, the channel video

85

that has an alarm occurred will be displayed on TV.

Camera #(1~32): select the camera channel video that wants to be displayed on TV when an alarm is activated. b. Retrieve time: set the waiting duration before system switching back to original display mode on TV automatically. If the retrieve time is un-mark, the alarm video will keep displaying until user switch back to normal display mode manually. The retrieve time range is 3~ 600 seconds.

-

Enlarge Camera View

Switch to only display video in Preview mode from where the alarm is activated. a. Select the camera from drop down list to specify which camera video to be enlarged on screen when the alarm is triggered.

Alarm Camera: when a channel has an alarm occurred, and then, the channel video that has an alarm occurred will be enlarged on screen.

Camera # (1~32): the selected channel video that will be enlarged on screen when an alarm is activated. b. Retrieve time: set the waiting duration before system switching back to original Preview mode. If the retrieve time is un-mark, the alarm video will keep enlarging until user switch back to Preview mode manually. The retrieve time range is 3~ 600 seconds.

-

Relay Output

Set to enable/disable the relay operation when the alarm is activated and to extend additional time

in second before it stops the relay operation (see also Chapter 4.9.1

).

-

IP Camera Relay

To trigger on/off IP camera relay.

86

-

Play Warning Sound

Play alarm sound. To setup click Detail (see also Chapter 4.9.2

).

-

Make Phone Calls

Dial and contact the number in the list. To setup click Detail (see also Chapter 4.9.3

). To use this

feature, the PC must have a voice modem connected to it. The supported audio system is only

8KHz and 16Bit mono.

-

Send E-mail

Send an electronic text message. To setup click Detail (see also Chapter 4.9.4

).

-

File Transmission via FTP

Upload file to remote computer thru FTP (File Transfer Protocol). To setup click Detail (see also

Chapter 4.9.5

).

-

Start Recording

Record the video from the selected camera. To setup click Detail (see also Chapter 4.9.6

).

-

SMS (Short Message Service)/MMS (Multimedia Messaging System)

SMS transmits only text messages to mobile phone. MMS transmits text messages and images over wireless networks using the wireless application protocol (WAP). Make sure your mobile phone support this feature and your PC is connected to GSM/GPRS modem. To setup click Detail

(see also Chapter 4.9.7

).

-

PTZ preset point

Position the PTZ camera based on the preset point setting. To setup click Detail (see also Chapter

4.9.8

).

-

Alarm SOP (Standard Operation Procedure)

List the instructions to inform the person of what to do when the alarm is activated. To setup click

Detail (see also Chapter 4.9.9

).

-

Send to CMS (Central Management System)

Enable/disable the selected camera to send video to CMS when the alarm is activated (see also

Chapter 4.9.10

)

-

Launch Program

To call up the external program that is provided by 3 rd

party. Click Detail and click to locate the program path. Enable Multiple instance check box to allow the program can be executed many times at the same time.

-

Snapshot

Take a snapshot when the alarm is activated.

a. Select Camera: specify which channel video to be snapshot when the alarm is occurred.

Alarm Camera: when a channel has an alarm occurred, and then, the DVR system will snapshot the channel video.

Camera # (1~32): the selected channel would be snapshot when an alarm is occurred. b. Video Size: select the size of snapshot picture. c. Number of picture: the number of picture that is going to be taken.

87

d. Snapshot Interval: a time gap for next snapshot e. Save Path: a storage path for saving snapshot pictures. f. Delete image after: Set a snapshot images storage limit on hard disk. When the snapshot images storage limit has reached, the DVR system will delete the snapshot images from hard disk.

3.9.1 To Setup Alarm Relay:

1. Next to the Relay Output check box, click Detail.

2. In the Alarm Relay dialog box, select from the available relay list and in the ON column, set to enable/disable the relay operation when the alarm is activated.

3. In the Retrieve time check box, you may enable/disable to extend the relay operation time and set the duration in second.

4. Click OK to exit and accept the setting and Cancel to exit without saving the setting.

3.9.2 To Setup the Alarm Sound Setting:

1. Next to the Play Warning Sound check box, click Detail.

2. In the Alarm Sound Setting dialog box, click

to select other wav file from other source or folder, Play to listen, Record to make a new copy of a sound.

3. If you click Record, you will be prompted if you want to replace the file. Click OK to continue and Cancel to discontinue.

88

4. When the Sound Recorder appears, use the record control panel to record, stop, play, rewind and forward. If you want to keep the existing file, click File >

Save As…, enter filename and click Save. Make sure you have microphone connected to your PC.

5. Click OK to exit and accept the setting and

Cancel to exit without saving the setting.

3.9.3 To Setup Call Out List:

1. Next to the Make Phone Calls check box, click

Detail.

2.

In the Call Out List, click Add to insert a new contact number, Modify to edit the selected item, Remove to delete the selected item,

Test to check if it is working.

3. In the Call Out Setting, enter the phone number and description. Click to select existing sound recorded massager and

Record to make a new voice message.

4. When the Sound Recorder appears, use the record control panel to record, stop, play, rewind and forward. If you want to save the file, click File >

Save As…, enter filename and click Save. Make sure you have microphone connected to your PC.

The supported audio system is only 8KHz and

16Bit mono.

5.

Click OK to exit and accept the setting and

Cancel to exit without saving the setting.

89

3.9.4 To Setup Send E-mail Setting:

Next to the Send Email check box, click Detail. In the E-mail Setting dialog box, click OK to exit and save the setting and Cancel to exit without saving the setting.

(1) Mail Server

Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter User ID and Password.

(2) Mail

To check if it is working, click Test Account button.

From: Enter the sender e-mail address.

To and CC:

Enter the recipient email address and separate it with comma or a semicolon (;).

Subject: Enter the message title.

Message:

Type the message.

(3) Email Notice Setting

-

Notice Interval:Set the period of time before it sends another e-mail notice.

- Embedded image:Select the image size and set the number of frames.

-

Attach image when sensor is triggered:When the sensor is triggered, the system will capture the image and send the image to the certain e-mail address with the alarm message.

(4) Modem Dial up Setting

If you are using dial up modem, enable Auto Dial up check box and select the modem name. You may also set the time to disconnect automatically, just enable the Auto Disconnect after check box and set time.

90

3.9.5 To Setup FTP Setting:

1. Next to the File Transmission via FTP check box, click Detail.

2. In the FTP Setting dialog box, enter the FTP IP, port, user ID and password.

3. In Number of Pic text box, enter the number of sequence images that want to send when file is transmitting.

4. In Upload image when sensor is triggered, select the camera that the images will be capture and send when the sensor is triggered.

5. Click OK to exit and save the setting and Cancel to exit without saving the setting.

3.9.6 To Setup Alarm Recording Setting:

1. Next to the Start Recording check box, click Detail.

2. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording. Enable

All to select all cameras.

3. In the Frame Rate selection, select As Setting to record the number of frames based on the Recording

Setting or Max to record the maximum of frames based on the available speed.

4. In the Stop Recording after text box, set the number in second for the program to continue recording after the alarm has ended.

5. Click OK to accept the new settings and Cancel to exit without saving.

91

3.9.7 To Setup SMS/MMS Setting:

To use this feature, GSM/GPRS modem is required. Connect the GSM/GPRS modem to the serial COMM port of PC. Beside the SMS/MMS check box, click Detail.

Select the port number in Com Port drop down list from where the GSM/GPRS modem is connected.

1. Click Modem Setup button to automatically detect the Modem Baud Rate.

2. In Local Phone Number text box, enter the GSM SIM card phone number.

3. In Phone Num text box, enter the contact number.

4. You may now set to send thru SMS &/or MMS. If you enable SMS setting, just enter the message in the text box. If you enable MMS, enter the APN name, WAP IP, MMS address and the message. If you are not sure, please contact your mobile service provider.

5. Attach image when sensor is triggered select the camera that the images will be capture and send when the sensor is triggered.

6. Click OK to accept the new settings and Cancel to exit without saving. i

Make sure your ISP provider and cell phone provider both support JPG file format transmitting.

92

3.9.8 To Setup PTZ Preset Point:

Next to the PTZ preset point check box, click Detail. In the Trigger PTZ Preset Setting dialog box, select the

PTZ camera number then select the Enable check box. Select the position of the PTZ camera when the alarm is activated and ended. For the PTZ camera ended point, user also can select one preset position or

Auto Pan between preset position groups.

3.9.9 To Setup Alarm SOP:

Next to the Alarm SOP check box, click Detail. In the step text boxes, type the standard protocol when the alarm is activated. When the alarm is activated the Standard Operation Procedure dialog box will appear.

Just click Next to see the next instruction, Back to see the previous instruction, Finish to end and Abort to terminate.

3.9.10 To Setup CMS Setting

Next to the Send to CMS check box, click Detail. In the CMS Setting, select the camera to enable/disable sending the video to CMS. Enable All to select all cameras. Then, click OK to accept the new settings and

Cancel to exit without saving.

93

3.9.11 To Setup POS Keyword Setting

1. Next to the Send to POS Keyword check box, click Detail.

2. In the POS Keyword Setting, select the camera to enable/disable scanning the keyword. Enable All to select all cameras.

3. Enter the text below keyword text box. Click Add to include the keyword in the list. To remove, select the word in the list and click Delete. You may only add 8 keywords. User can define the color for each keyword. To set the color, click the color panel after next to POS keyword column and a color selection window will pop up. Select the color that user wants and click OK.

4. Click OK to accept the new settings and Cancel to exit without saving.

Click to change color of the word

94

3.9.12 Missing, Suspicious Object, and Scene Change Detected

-

Missing Object

Select the certain object on the screen for the system to detect; when the object is disappear or move and the system will alarm. Click OK to exit and save the configuration. To exam the setup condition, click

Start Test.

1. Select the camera number (0-16) and press RIGHT button on the mouse to call up the setup windows.

2. Click Save to capture the image for comparing reference first. To view the captured image, enable the

Show Reference Image check box. The captured image will display on screen. The reference image is sharing with the Suspicious Object and Scene Change function.

3. Mark the Enable check box to setup the condition.

4. Use the mouse to click and drag the frame on the screen. User can drag more than one frame.

5. Sensitivity: Set the system detects sensitivity.

6. Delay Time: Set the lasting time for system to detect the object.

7. To reset all object frames, click Clean. To clean an object frame, click right button of mouse and drag the object frame that user want to clean.

-

Suspicious Object

Suspicious Object is including the object missing or the doubtful object appears on the screen. Click OK to save and exit the setup windows. To exam the setup condition, click Start Test.

1. Select the camera number (0-16) and press right button on the mouse to call up the setup windows.

And then, click the Suspicious Object Tab.

2. Click Save to capture the image for comparing reference. To view the captured image, enable the

Show Reference Image check box. The captured image will display on screen. The reference image is sharing with the Missing Object and Scene Change function.

3. Mark the Enable check box to setup the condition.

4. Sensitive: Set the system detects sensitivity.

5. Delay Time: Set the lasting time for system to detect the object.

6. Use the mouse to click and drag the frame on the screen.

Maximum_Object: the maximum detect size. The objects are out of the maximum detect area will be disregard. Use mouse to click and drag the frame on the screen.

Minimum_Object: the minimum detect area. When the objects are smaller than the minimum detect area, the system will disregard. Use mouse to click and drag the frame on the screen.

7. Enable Mask: Mark an area on the screen to disregards the motion in the marked area and to only monitor outside the marked area. Mark the Enable Mask check box, click and drag the mask frame on the screen.

8. To reset all object frames, click Clean. To clean an object frame, click right button of mouse and drag the object frame that user want to clean

95

-

Scene Change

When the camera has been moved, the system will alarm.

1. Select the camera number (0-32) and press right button on the mouse to call up the setup windows.

And then, click the Scene Change Tab.

2. Click Save to capture the image for comparing reference. To view the captured image, enable the

Show Reference Image check box. The captured image will display on screen. The reference image is sharing with the Missing Object and Suspicious Object function.

3. Mark the Enable check box to setup the condition.

4. Sensitive: Set the system detects sensitivity.

5. Delay Time: Set the lasting time for system to detect the movement.

6. Change Rate: Set the camera movement range which compare with the original position.

7. Enable Mask: Mark an area on the screen to disregards the motion in the marked area and to only monitor outside the marked area. Mark the Enable Mask check box, click and drag the mask frame on the screen.

8. To reset all object frames, click Clean. To clean an object frame, click right button of mouse and drag the object frame that user want to clean.

96

3.10 User Setting

Only users with Administrator privileges can access User Setting. In the User Setting dialog box, click Add to insert a new user, Delete to remove the selected user, Edit to modify the user control right, OK to exit and accept the setting, and Cancel to exit without saving the setting.

After clicking Add or Edit, you may customize the user control setting. OK to exit and accept the setting, and

Cancel to exit without saving the setting

(1)

(2)

(4)

(5)

(3)

(8)

(9)

(6) (7)

(1) Authorization level

Select the status of the user. Only Administrator-level can access User Setting, and reset the Alarm status when using the Remote Console.

(2) Control Right

Enable the items that would allow the user to access.

(3) WebViewer

Enable/disable Web Viewer control right that allow the user to operate from a remote location using internet explorer.

- Remote Console

Allow the user to remote modify DVR system setting.

- Remote LogViewer

Allow the user to view the event log from remote site.

- Remote EMAP

Allow the user to view the E-map of DVR from remote site.

- Remote Record

Allow the user to record video at remote site.

97

- Remote Setup

Allow the user to modify the DVR system setup from remote site.

- IP Camera

Enable/disable user to add new IP camera when using the Web Viewer.

- Remote Access Time

Enable Infinite check box to access DVR without time limit. If you want to set time limit, enter the number of minutes in Minute text box.

(4) Visible Camera

Select the camera number that would allow the user to access or view. To select all the cameras, enable the

ALL check box.

(5) Time Span

Set the user account a specific time period that user only can use given account to login DVR program in that specific period. Mark Enable check box and select the Activation Date and Expiry Date.

(6) Name

Enter the user name.

(7) Description

Enter the user description.

(8) Password

Enter the user password.

(9) Confirm Password

Enter the same user password for confirmation.

98

Chapter 4 Backup Video Players

You can playback the backup files using QPlayer applications. When you back up the recorded file, QPlayer applications are automatically included in the backup folder.

With QPlayer, it is the same as in Playback mode and supports 6 different split screen types to view all the video at the same time. User even can select the different language of display UI. The only difference is that there are no Preview and Playback buttons.

To run the application, go to backup folder and double-click Q Player icon.

4.1 Familiarizing QPlayer Buttons

Name Function

(1) Split Screen Mode

Select from 6 different split screen types to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen. i

(2) Exit

- If there are only

4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.

- To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge.

Close the player.

(3) Progress bar

(4) Hour Buttons

Show the progress of the file being played. You may move the bar to seek at any location of the track.

Select and click to playback the recorded video file on the specific time frame. i The Hour buttons represent the time in 24-hour clock. The blue bar on top of the hour button indicates that there is a recorded video file on that period of time. While the red bar indicates that you are currently viewing the recorded video file.

(5) Playback Control Begin: Move at the beginning of the recorded video file.

Buttons

Previous: Go back to the previous frame.

Slower: Play the recorded video file at the speed of 1/2X, 1/4X, 1/8X, or 1/16X.

Rewind: Wind back the recorded video file.

Pause: Briefly stop playing the recorded video file.

Play: Play the recorded video file.

Faster: Play the recorded video file at the speed of 2x, 4x, 8x, 16x or 32x.

Next: Go to the next frame.

End: Go to the end of the recorded video file.

99

Name

(6) Archive

Function

Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

OPEN FILE: user can open the recorded file from HDD

Channel 01~ 16&Channel 17 ~ 32: Switch to different channel group of playback calendar.

Day Light Saving: the playback calendar will show the available video records during day light saving time period.

(11) Segment

(12) Full screen i

The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID. The blue colored column indicates that there is a recorded video file on that period of time. While the red colored column indicates on where to start playing the recorded video file.

(7) Status bar Display the recorded date, time and play speed.

(8) Camera ID

(9) Language

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

Select the function tip display language.

(10) Export Export includes Snapshot, Print, Output Video Clip, and Backup function.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format.

Print: Print the screen shot.

Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see also

Chapter 3.7

).

Keep a portion of the recorded video (see also Chapter 3.7

).

View in Playback-compact mode. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon.

Click the arrow icon to escape from full screen display mode i

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

When there are dual monitors with 32 channels, the full screen mode will split into 16 channels on each monitor.

100

Name

(20) Watermark

Function

(13) Event Log

(14) Visual Search

(15) Find Next

(16) Event Search

Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS.

Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See also

Chapter 3.9

)

Search for the next event or changes in the motion detector frame. You can use this when you are using Intelligent Search or Event Search function.

Search from the recorded activities that take place in the system (i.e., Sensor, Motion,

Video Loss, POS). (See also

Chapter 3.11

)

(17) Intelligent Search Search the changes in the motion detector frame (See also

Chapter 3.11

).

(18) Audio Enable/disable volume

(19) De-interlace To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

To verify the playback video has not been modified (also see Chapter 5.1.1

)

4.1.1 Watermark Verification

QPlayer program can only verify when a single channel in full screen playback mode. To verify the playback video doesn

’t been modified. Click

to verify the playback video.

The checking result is shown as below figure: i

Watermark verification doesn

’t support on hardware compression products and video that is recorded from IP camera.

101

Chapter 5 Using Functional Keys

The DVR system provides shortcut keys. The table shows the function keys and descriptions.

Function Keys

Q

F1

F2

F3

F4

F5

F6

F7

F8

Exit System

Description

Display system information

Start recording

Enable network function

Access system settings

Switch to playback mode

Access E-map setting

Access PTZ camera control panel

Snapshot

F9 Switch to Full Screen

F11 Switch to AutoScan

CTRL + F Freeze function

CTRL + B

Ctrl + A

Quick Backup

Turn on/off hardware AGC (Auto Gain Control)

102

Chapter 6 Using the Remote Programs

You can use Microsoft Internet Explorer to access DVR server by entering the IP address or domain name.

To use this feature, make sure that you are connected to the internet and the Network feature is enabled.

Accessing this feature for the first time you will be prompted by your browser to install WebCamX.cab, allow the installation and you should be able to connect and login afterwards.

For Windows 2000, click Yes when the Security Warning dialog box appears.

For Windows XP, click Install when the Internet Explorer - Security Warning dialog box appears.

After installing the WebCamX.cab and when connecting to the DVR server, you are required to enter User ID, password and select the network type. i

If you are not in a LAN network environment, remote playback video may be un-smooth due to network speed limitation. Slow network transmission speed may possibly cause system performance drop as well.

103

6.1 Familiarizing the WebViewer Buttons

Right-clicking on the webcam video screen, enables you to Start Recoding, Video Quality, Select Camera,

Enable DirectDraw, and view Server Information.

Name

(1) DirectDraw

Function

Enhance the video quality. i

Not all graphic cards can support this function.

(2) Received file size Indicate the size of the data being sent per second.

(3) Camera frames Indicate the number of frames per second.

(4) Split display mode Select from six (4) different split screen types to view all the cameras. It also allows you to switch and view different camera number.

(5) Audio

(6) 2-Way Talk

(7) Record

Enable/disable remote sound.

Enable/disable 2-way audio function. This function allows the client and server to talk via internet using MIC.

Make sure your microphone and speakers work before using this function. If the DVR server Talk to web-client setting is disable d, you won’t be able to hear from the other side.

Save the video of the selected camera in AVI format.

(8) Event Log Viewer Display the Event logs, Operation logs, POS logs, System logs, and Network logs.

(9) Remote Console

(10) Remote EMAP

(11) Remote setup

Initiate Remote Console. The interface is the same as DVR application and allows you to control DVR server (see also Chapter 7.2

).

Display the DVR server EMAP screen (see also

Chapter3.6

).

Change the DVR server settings (see also Chapter 7.1.1

).

(12) Select a PTZ camera

(13) Snapshot

(14) Full screen

Initiate PTZ camera controller (see also Chapter 7.2

Capture and save the screen shot in *.bmp format.

)

Use the entire area of the screen to only display the video.

To return, Right click the mouse or press ESC on the keyboard.

104

Name

(15) Select cameras to view

Function

Select to the view camera from different server. In Select Camera dialog box, Display column, click to enable/disable viewing the camera. In Video Quality column, click to select between High, Normal or Low.

Click Add Server and select the server type between DVR and IP Cam to add.

Click Delete Server to delete the selected item.

Click Import to replace it with the previous saved list.

Click Export to save the list.

Click Apply All to change all the camera video quality based on the selected setting.

Click OK to exit. i

To add IP Cam, user need to enable IP Camera control right at the User

setting of DVR system.(see Chapter 4.10

)

105

6.1.1 To Setup Remote System Setting

There are two type of remote setup mode

– Basic Setting and Advance Setting. Select the setup mode and click OK to enter setup window.

6.1.1.1 Basic Setting

Click OK to exit and save the setting and Cancel to exit without saving the setting. The setting here applies to Remote DVR only.

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(7)

(1) Camera Name

Select the camera you want to adjust the settings.

(2) Enable

Set to enable/disable the selected camera. When there is no video source on the camera, we suggest disabling it so that the system won’t detect it as video loss error.

(3) Camera Setting

-

Display

Enable/disable to show the video. Even if the video of the selected camera is hidden you can still record the video and preview it in playback mode.

-

Name

Change the camera name.

-

Description

Add a short comment.

(4) Video Adjustment

Adjust the Brightness, Contrast, Hue and Saturation of the selected camera.

(5) Auto Brightness Control

Automatically adjust the brightness.

106

(6) Night View

Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled.

(7) Noise Reduction

Reduce undesirable video signal and improve the quality of the video. i

Noise Reduction uses lots of CPU resource. Please use this feature only if it is really necessary.

(8) Recording Setting

-

Video Size

Select the size of the video and click the  button. The higher the size, the larger the file it create.

You can also activate the Enable Deinterlace to enhance the video quality. Set the Enable

Deinterlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

-

Enable Audio

Select to assign the audio channel of the selected camera. You can only assign one audio channel to one camera source. This way you can record both audio and video.

-

Quality

Adjust the video quality. The higher the value, the lower the compression level and uses more hard disk space.

-

Frame Rate

Set the number of images per second of the video to be recorded. The frame rate ranges from 1 to 30 for NTSC and 1 to 25 for PAL. The higher frame rate, it uses more hard disk space.

107

6.1.1.2 Advance Setting

In Advance setting, user can configure remote DVR in more detail.

System Setting

In the System Setting windows, click Update to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory setting.

(6)

(1)

(2)

(3)

(4)

(7)

(8)

(9)

(5)

(1) Delete recorded data after

If you want the system to automatically erase the data after a certain days, enable the Delete recorded data

after check box and enter the numbers of days in Days text box.

(2) Delete event and alarm log after

If you want the system to automatically erase the event and alarm log files after a certain days, enable the

Delete event and alarm log after check box and enter the numbers of days in Days text box.

(3) Video Standard

Change and select the proper video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal.

(4) Attention Please

Check the attentiveness of the person who is monitoring the system.

You may set the number of times the Attention dialog box to appear in a day in Times per day text box.

When this feature is enabled, the Attention dialog box would appear.

The person who is monitoring the system must enter the same number that appears from the left box at the right text box and then click OK.

(5) AutoScan Period

Set the TV out display time gap from 3 to 10 sec. before it switches to the next camera.

(6) Login

Enable the conditions in Login section you want the system to automatically carry out.

108

-

Auto record when login

Automatically start video recording when the DVR is executed.

-

Auto start Network when login

Automatically connect to network when the DVR is executed.

-

Login to compact mode

Switch to compact mode directly when the DVR is executed.

-

Guest Mode

Automatically log in Guest mode when the DVR is executed. In guest mode, the functions are limited to preview and playback only.

(7) Miscellaneous

Enable the conditions in Miscellaneous section you want the system to perform.

-

Beep if no signal

Make sound when the video signal is lost.

-

Mandatory Record

Always record video when software is running

-

Enable Overlay

To enhance video signal for better video quality.

-

Screen Saver

Set a period time to enter screen saver mode when system idle.

-

Auto Scan Period

Set the time gap of the Auto Scan function from 3 to 10 seconds. This automatically switches to the next video in cycle depending on the set time gap.

-

Playback Mode

Select the mode of playback the video.

Select date and time: Select the date and time which user wants to playback.

Play the last file: Automatically playback the video from the last hour

Instant Playback: Automatically playback the video which has just recorded

-

Date Format

Select the date format which wants to display in Select date and time playback mode

(8) POS

Advanced

Set from which camera screen to display the data from the POS equipment. To set the text flow, color format, and POS database export, click Advanced.

1. Mark Show POS Text to allow POS data to be display on surveillance screen.

2. Select the POS data display position on surveillance screen

– Left-Top, Left-Bottom, Right-Top, or

Right-Bottom.

3. To change the POS data font and color, click Font.

4. Mark Remove POS data after the POS data will be delete from DVR hard disk on the day that user has setup.

109

iPOS Pro Setting

Enable Multiple windows for viewing multi-channels of iPOS live data. To save the iPOS live data window position on the preview mode, mark the Save Window Position. To select all channels, mark All check box.

(9) UPS (Uninterruptible Power Supply)

Protect the system from damaging, such as power surges or brownouts. This automatically gives time to close the DVR properly when the battery backup power has reached the Shutdown when capacity below percentage level setting.The UPS device must be connected to your computer (refer to your UPS user’s guide).

110

Camera Setting

Select the camera from remote DVR servers to modify settings. In the Camera Setting window, click Update to save and apply the new settings, click Exit to exit without saving, and click Default1/ Default2 to revert back to original factory settings.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(1) Camera Icons

Select the camera number you want to adjust the video setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon. The camera icon turns red when it is selected.

(2) Enable

Set to enable/disable the selected camera. When there is no video source on the camera, we suggest disabling it so that the system won’t detect it as video loss error.

(3) Camera

- Display

Enable/disable to show the video. Even if the video of the selected camera is hidden you can still record the video and preview it in playback mode.

- Name

Change the camera name.

- Description

Add a short comment.

(4) Video Adjustment

Adjust the Brightness, Contrast, Hue and Saturation of the selected camera.

(5) Noise Reduction

Reduce undesirable video signal and improve the quality of the video. i

Noise Reduction uses lots of CPU resource. Please use this feature only if it is really necessary.

(6) Auto Brightness Control

Automatically adjust the brightness.

(7) Night View

Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled.

(8) Enable Deinterlace

To enhance the video quality. Set the deinterlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

111

Record Setting

In the Recording setup window, click OK to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory settings

.

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(7)

(1) Camera Icons

Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left

click on the camera icon. The camera icon turns red when it is selected.

(2) Recording Mode

The blocks from 00 to 23 represent the time in 24-hour clock. To record in full 24 hours, select the recording mode and click the  button. If you want to only record at a particular time, click the colored block beside the recording mode then click on the time blocks. When the system starts recording a red triangle mark would appear at the upper left corner of the screen.

The recording modes are listed below:

- Always Recording

Record the video from the selected camera and save it to the designated storage path

- Motion Recording

Start recording the video from the selected camera only when the system detects movement. Once a motion is detected, the system automatically saves the previous frames and stop based on the Start

Record Prior and Stop Record After settings.

- Smart Recording

Automatically switch to recorded at the maximum frame rate setting once a motion is detected and if there is no motion, it records at the minimum frame rate setting. Set the maximum and minimum frame

rate setting in (6) Frame Rate

section.

112

- Voice Detecting Recording

DVR system will record the sound when the voice exceeds the intensity value in Voice Detection setting.

- No Recording

The system won’t do any recording.

-

KeyFrame Recording

Only record one frame per second.

(3) Motion Detection

Adjust the sensitivity of the motion detector. The higher the value, the finer the sensitivity is detected. When it detects a motion, a green triangle mark would appear at the upper left corner of the screen.

(4) Voice Detection

Adjust the intensity of the audio detector. The system detects sound when it exceeds the intensity value.

(5) Quality

Adjust the video quality. The higher the value, the lower the compression level and uses more hard disk space.

(6) Frame Rate

Set the maximum number of frames to be recorded during motion and motionless state. The frame rate ranges from 1 to 30 for NTSC and 1 to 25 for PAL. The higher the frame rate, it uses more hard disk space.

(7) Video Size

User can activate the Enable Deinterlace to enhance the video quality. Set the Enable Deinterlace mode to

#1, if you are capturing motionless picture and #2, if it captures lots of movement.

(8) Compression Type

H264 is the latest and advanced video compression format that delivers better video quality and smaller file size but this uses more CPU resource. Advanced MPEG4 provides a standard for color picture compression rate.

Network Setting

In the Network Setting window, click Update to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory settings. For the network service ports that use by DVR server,

please see Appendix A .

(1)

(2)

(6)

(7)

(8)

(3)

(9)

(4)

(5)

(10)

(1) Server Name

Assign a name for the DVR unit. Letters of the alphabet and numbers only.

(2) Transmitting Cameras

Select and click on the camera number in the Transmitting Camera section you want to make it accessible via internet using WebCam, Remote Console, PDA Viewer and HandyViewer (still image). To select all the cameras, enable the ALL check box.

113

(3) Dynamic DNS (Domain Name System)

For information about Dynamic DNS options see http://www.luxonvideo.com/quickstart201.php

and scroll down to the DynDNS Section.

(4) Remote Control Server

Enable/disable remote control from remote application (ex. CMS). Enter the remote accessing port in Port column.

(5) Network Video Configuration

Set up the video quality and frame rate for viewing and transmitting to the remote program. Scrolling adjust bar to set the Quality level and FrameRate level.

(6) WebViewer Configuration

Activate Enable Anonymous Login to remotely access the DVR server without the need of password. The default of WebViewer port is 80.

(7) Voice Phone

Voice Phone is a 2-Way Talk feature that allows the client and server to talk via internet using microphone.

Make sure both microphone and speakers work before using this feature. If the Talk to Web-Client is disabled, the person in the DVR server side can only hear the voice from the client side that is when the

WebCam 2-Way Talk button is activated. (See also Chapter 7.1 #6 ). The default port of voice phone is 9999.

(8) Network Time Synchronization

Adjust the DVR system time same as network time server. Fill in the Time Server IP address or domain name. Select Automatic Synchronize time to set automatic synchronize time on a daily basis.

(9) Other Configuration

- Enable Original Security Protocol

Enable new version DVR system to accept remote software with former version. For example, if user uses CMS version 7.5 and connect to DVR server with version 7.7, and then, user has to enable this option to make it work. It is due to that DVR system has some new security protocol in

DVR with version

7.3 and newer version, and it’s not compatible with old remote software.

- Enable White List

An access permit list for the remote accessing of DVR server. Enter the IP address and click Add.

Or, enter a range of IP address and click Add. To delete the IP from the list, select the IP and click

Delete button. To reset the input, click Clear button.

- Enable HandyViewer

Enable remote users to use a PDA or a mobile phone to access DVR server and select the video size and quality. (See also

Chapter 7.5 and 7.6

)

114

- Network Bandwidth Limit

By Channel: Set the network bandwidth by each channel.

All: Set the total network bandwidth consumption limit.

115

Schedule Setting

Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week.

To Set the Schedule Setting:

1. Select the date in the calendar. Use and buttons to shift the calendar to the left or right.

2. Select the condition you want to schedule in the drop down list.

- Record

Activate all the cameras to start video recording at the set time based on the Recording setting (see

also Chapter 4.3

).

- Backup

Save another copy of all the data at the set time and specified backup path. DVR automatically updates and only backup the data that are not yet included in the archive.

Mirror Backup: Save a copy of all the data at the set time and specified backup path.

Incremental Backup: Only backup the data that are not yet included in the archive from last time.

- Network

Activate DVR remote system to access at the set time. After the appointed time, the Network function will be disabled. If the Network function is already enabled, the Network function will not be disabled when the appointed time has ended.

- Reboot

Restart the PC at the appointed time. i

Make sure the Windows operating system is set NOT to require you to login user name and password. This way the system will be able to run DVR program.

- Disable Alarm

Deactivate the alarm at the set time temporarily.

- Turn on Relay

Activate the relay at the set time. Number of relays are depending on the relays has connected with

DVR system.

3. Specify to either schedule it weekly or one time. Click  to make a selection.

4. Click on the blocks to set the schedule (see also Chapter 4.5.1

). Or click All to select all. To store the

setting, click Save. To remove the settings, click Clear.

5. To end Schedule Setting, click Update to exit and accept the setting and Exit to exit without saving the setting.

116

Alarm Setting

In the Alarm Setting window, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory settings.

(1)

(2)

(7)

(3)

(4)

(5)

(6)

To set the Alarm Setting:

1. Click Add to insert and set a new alarm setting. Click the items in the (8) Alarm Setting List, if you want to modify the alarm setting.

2. In (1) Alarm Setting number/Name/Description, display the selected alarm setting number in the list below. Enter alarm name and description.

3. In (2) Enable Time, the number from 00 to 23 represent the time in 24-hour clock. Select the time and click the block you want to activate or deactivate the alarm function. When it is deactivated the color of the block turns white.

4. In (3) Conditions

, you can set “Trigger if any” to activate if it falls to one of the conditions or “Trigger if

all

” to activate if it falls to all conditions.

- In Camera section, select and click on the camera number (01 to 32) in Motion Detected and Video

Loss to set the condition for the system to alarm.

- In Missing and Suspicious Object/Scene, click the camera number (01 to 32) and select the certain object on the screen (right click on camera number for detailed setting)), and when the certain

object is missing or doubtful, the system will alarm. (see also Chapter 4.9.12

) In Scene Change,

when the camera has been moved, the system will alarm, too.

- In Audio Detection, click the camera number (01 to 32) to the system to alarm when detect the abnormal voice.

5. In (4) Sensor, select and click on the sensor number (use  and  to select the sensor) to set the

117

condition for the system to alarm. If the sensor normal status is high, set the sensor condition to low.

- Continue trigger duration: Set a time period that when sensor has been trigger and stay in the same status for that period, then the alarm will be sent out.

- Abnormal Event: Enable/disable to set the condition of the event for system to alarm..

System Reboot: when the DVR system reboot without abnormal condition, the system will send out the alarm message.

Abnormal Reboot: when the DVR system reboot in irregular condition, the system will send out the alarm message.

Recording is switched off: when the recording has been stopped, the system will send out the alarm message.

Network is switched off: when the network connection of DVR system is lost, the system will send out the alarm message.

Hard Disk failed: when the hard disk can ’t work normally, the system will send out the alarm message.

- POS Keyword: Enable/disable to scan the data from the POS if it matches the keyword (see also

Chapter 4.9.11

).

- Alarm Message: To active with external alarm message by your own program. For the detail configuration, please contact the local reseller.

- Alarm Button: Enable/disable to active manual alarm function (see also Chapter 2.2#(19) ). To define alarm message of manually alarm trigger. Click alarm button and select the alarm button # and fill in the description of alarm button.

6. In (5) Alarm Reset, click the camera number (use  and  to select the alarm) to set the reset condition of alarm. Once alarm is reset, all alarm action will stop at the moment. If the sensor normal status is high, set the sensor condition to low.

- Alarm Reset Time: Set a time for the alarm auto reset. When an alarm happen such as motion detected and video loss, the alarm will reset at the alarm reset time.

7. In (6) Action, you may now set the alarm action for the system to perform when the alarm condition is activated.

- Launch E-Map

Display mini Emap screen.

- TV Out

Switch to only display the video on TV from where the alarm is activated.

Retrieve time: set the waiting duration before system switching back to original display mode on

TV automatically. If the retrieve time is un-mark, the alarm video will keep displaying until user switch back to normal display mode manually.

118

- Enlarge Camera View

Switch to only display video in Preview/Advanced mode from where the alarm is activated.

Retrieve time: set the waiting duration before system switching back to original Preview mode. If the retrieve time is un-mark, the alarm video will keep enlarging until user switch back to Preview mode manually.

- Send E-mail

Send an electronic text message. To setup click Detail (see also To Setup Send E-mail ).

- File Transmission via FTP

Upload file to remote computer thru FTP (File Transfer Protocol). To setup click Detail (see also To

Setup FTP ).

- Start Recording

Record the video from the selected camera. To setup click Detail (see also To Setup Alarm

Recording ).

- Alarm SOP (Standard Operation Procedure)

List the instructions to inform the person of what to do when the alarm is activated. To setup click

Detail (see also To Setup Alarm SOP ).

- Send to CMS (Central Management System)

Enable/disable the selected camera to send video to CMS when the alarm is activated (see also To

Setup CMS Setting )

119

To Setup Send E-mail Setting

Next to the Send Email check box, click Detail. In the E-mail Setting dialog box, click OK to exit and save the setting and Cancel to exit without saving the setting.

(1) Mail Server: Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter User ID and Password.

(2) Mail: To check if it is working, click Test Account button.

- From: Enter the sender e-mail address.

- To and CC: Enter the recipient email address and separate it with comma or a semicolon (;).

- Subject:

Enter the message title.

- Message: Type the message.

(3) Email Notice Setting

- Notice Interval: Set the period of time before it sends another e-mail notice.

- Embedded image : Select the image size and set the number of frames.

- Attach image when sensor is triggered: When the sensor is triggered, the system will capture the image and send the image to the certain e-mail address with the alarm message.

(4) Modem Dial up Setting

User may set the time to disconnect automatically, just enable the Auto Disconnect after check box and set time.

(1)

(2)

(3)

(4)

To Setup FTP Setting

1. Next to the File Transmission via FTP check box, click

Detail.

2. In the FTP Setting dialog box, enter the FTP IP, port, user ID and password.

3. In Number of Pic text box, enter the number of sequence images that want to send when file is transmitting. The maximum number of picture can be transmitted are 16.

4. In Upload image when sensor is triggered, select the camera that the images will be capture and send when the sensor is triggered.

5. Click OK to exit and save the setting and Cancel to exit without saving the setting.

120

To Setup Alarm Recording Setting

1. Next to the Start Recording check box, click Detail.

2. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording.

Enable All to select all cameras.

3. In the Frame Rate selection, select As Setting to record the number of frames based on the

Recording Setting or Max to record the maximum of frames based on the available speed.

4. In the Stop Recording after text box, set the number in second for the program to continue recording after the alarm has ended.

5. Click OK to accept the new settings and Cancel to exit without saving.

To Setup Alarm SOP

Next to the Alarm SOP check box, click Detail. In the step text boxes, type the standard protocol when the alarm is activated. When the alarm is activated, the Standard Operation Procedure dialog box will appear. Just click Next to see the next instruction, Back to see the previous instruction, Finish to end and Abort to terminate.

To Setup CMS Setting

Next to the Send to CMS check box, click Detail. In the CMS Setting, select the camera to enable/disable sending the video to CMS. Enable All to select all cameras. Then, click OK to accept the new settings and Cancel to exit without saving.

121

6.2 Familiarizing the WebViewer PTZ Buttons

(1)

(2)

(5)

(6)

(3)

(4)

Name Function

(1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically.

(2) Select PTZ

(3) AutoPan Groups

Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.

Click OK to exit and save the setting and Cancel to exit without saving the setting.

Operate the PTZ cameras automatically based on the selected camera group preset position number.

(4) Camera preset position number

(5) Zoom +/-

Move the PTZ camera to the preset point.

Zoom in and out the image.

(6) Focus +/- Adjust the focus manually to produce clear image.

122

6.3 Familiarizing the Remote Console Buttons

Name

(1) DirectDraw

Function

Enhance the video quality. i

(2) Exit

Not all graphic cards can support this function.

Close the Remote Console.

(3) Volume

(4) Split Screen

Mode

Enable/disable the sound.

Select from 6 different split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen. i

If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.

To change the video quality, right-click on the screen and select between High or Normal.

(5) Record Start/stop video recording.

(6) Emap

(7) Network

(8) Setup

(9) PTZ

(10) Preview

(11) Playback

(12) Status Bar

(13) Camera ID

(14) Snapshot

(15) Event log

(16) Auto Scan

(17) Full screen

(18) Alarm

Display the map in each area, the camera/sensor/relay location and the warning event. (see

also Chapter 3.6

)

Enable/disable remote system access. This feature allows you to access DVR server from a remote location via internet connection.

Configure the Remote Console setting. (see also

Chapter 7.3.1

)

Access PTZ control panel. Beside PTZ camera, DVR system also support mega pixel IP

camera.(see Chapter 7.3.2

)

Switch to Preview/Advanced mode. This allows you to view live camera display.

Switch to Playback mode. This allows you to view the recorded video file. (see Chapter 7.4

)

Display the current date, time and hard disk free space.

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

Capture and save the screen shot either in *.jpg or *.bmp format.

Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS.

Click it to start channel auto cycle display.

Use the entire area of the screen to only display the video.To return, Right click the mouse or press ESC on the keyboard.

Alert and display warning info. Only Administrator-level can reset and turn on, off and trigger the Sensor and Relay by right-clicking the item in the Sensor and Relay list.

123

6.3.1 To Setup Remote Console Setting

Click OK to exit and save the setting and Cancel to exit without saving the setting.

(1)

(2)

(3)

(4)

(1) Storage Path

Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data. In case you have more than one storage path, the system automatically saves the data to the next storage path.

By default the data is stored in C:\RemoteData, to insert another storage path, click Add. To remove the selected path, click Delete.

If you want the system to automatically erase the data after a certain days, enable the Delete recorded data

after check box and enter the numbers of days in Days text box.

(2) Language

Customize the system to display the tool tips and dialogs based on the selected language. By default the language is in English.

(3) Remote Server

Enter the DVR Server IP and Port number.

(4) Channel Settings

The numbers from 01 to 16 represent the camera ID. In Transmitting Channels section, enable the camera number to receive the camera signal from the server. In Visible Channels section, enable the camera number to view the camera signal on Remote Console screen. To select all the cameras, enable the ALL check box.

124

6.3.2 Familiarizing the Buttons in PTZ Camera Controller

Name

(1) Close

(2) Setup

Function

Exit PTZ camera controller.

Select the PTZ camera channel.

(3) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position number.

(4) Focus +/-

(5) Zoom +/-

Adjust the focus manually to produce clear image.

Zoom in and out the image.

(6) Direction buttons Adjust and position the focal point of the PTZ camera.

(7) Camera ID panel Display the PTZ camera number that is being operated.

(8) Camera lens speed controller

(9) Camera preset position number

Adjust the moving speed of the PTZ camera lens.

Move the PTZ camera to the preset point.

(10) Group AutoPan Select to automatically operate PTZ camera in group.

125

6.4 Using the Remote Playback

To use this feature, first you need to select the source of the file. In the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded in the DVR server. When you choose Remote Playback, select RealTime

Playback if your internet bandwidth is fast and big enough, otherwise choose Download and Playback.

Click OK to proceed and Cancel to void this operation.

In the Video Playback Date/Time Selection, the number from 00 to 23 represent the time in 24-hour clock.

The numbers from 01 to 16 represent the camera number. To switch to channel group click Channel 01-16 and Channel 17-32 button. To playback the record file during Day Light saving period, enable Day Light

Saving.

To Make a Selection:

1.

Select the date in the calendar. Use and buttons to shift the calendar to the left or right.

2.

In the table below, click on the blue block to select and open the recorded file. The blue block turns red when it is selected. The block that appears in white doesn’t have data. You can only select one block when you choose

Download and Playback.

3.

Click OK to proceed and Cancel to void this operation.

4.

If you select Download Playback and after making the selection, the system divides the selected hour into 16 video thumbnails. In the

Time Selection screen, click on the video thumbnail you want to download and open (see

also Chapter 7.4.2

).

126

6.4.1 Familiarizing the Local Playback Buttons

Name Function

(1) Split Screen Mode i

(2) Exit

Select from 6 different split screen types to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.

-

If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.

- To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge.

To close the application.

(3) Progress bar

(4) Hour Buttons

Show the progress of the file being played. You may move the bar to seek at any location of the track.

Select and click to playback the recorded video file on the specific time frame. i

The Hour buttons represent the time in 24-hour clock. The blue bar on top of the hour button indicates that there is a recorded video file on that period of time. While the red bar indicates that you are currently viewing the recorded video file.

(5) Playback Control

Buttons

Begin: Move at the beginning of the recorded video file.

Previous: Go back to the previous frame.

Slower: Play the recorded video file at the speed of 1/2x, 1/4x, 1/8x, or 1/16x.

Rewind: Wind back the recorded video file.

Pause: Briefly stop playing the recorded video file.

Play: Play the recorded video file.

Faster: Play the recorded video file at the speed of 2x, 4x, or 8x, 16x or 32x.

Next: Go to the next frame.

End: Go to the end of the recorded video file.

127

Name

(6) Archive

Function

Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

– Also, user can open the recorded file from certain location by click OPEN FILE button

– Click Channel 01~ 16 and Channel 17 ~ 32 button to switch to different channel group of playback calendar.

Mark Day Light Saving, the playback calendar will show the available playback records during day light saving period.

i

The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID. The blue colored column indicates that there is a recorded video file on that period of time.

While the red colored column indicates on where to start playing the recorded video file.

(7) Preview Switch to Preview mode.

(8) Playback

(9) Status bar

(10) Camera ID

(11) Export

(12) Segment

(13) Full screen

(14) Event Log

(15) Visual Search

(16) Find Next

(17) Intelligent Search

Switch to Playback mode. This allows you to view the recorded video file.

Display the recorded date, time and play speed.

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

Export includes Snapshot, Print, Output Video Clip, and Backup function.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format.

Print: Print the screen shot.

Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see

also Chapter 3.7

).

Backup: Save the playback file to USB device or DVD-ROM disk(see also Chapter

4.6 Backup Setting )

Keep a portion of the recorded video you want (see also

Chapter 3.7

).

Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon.

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS.

Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See

also Chapter 3.9

)

Search for the next event or changes in the motion detector frame. You can use this when you are using Intelligent Search or Event Search function.

Search the changes in the motion detector frame (See also

Chapter 3.11

).

i

The Visual and Intelligent search only available when the remote site is recording and playback from remote local hard disk.

(18) Audio Enable/disable audio play

(19) De-interlace To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

128

6.4.2 Familiarizing the RealTime Playback Buttons

Name

(1) Exit

(2) Split Screen Mode

Function

Close the program

Select from 6 different split screen type to playback the recorded video file of all the camera, or one camera. i

To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge.

(3) Progress bar

Show the progress of the file being played. You may move the bar to seek at any location of the track.

Select and click to playback the recorded video file on the specific time frame.

(4) Hour Buttons i

The Hour buttons represent the time in 24-hour clock. The blue bar on top of the hour button indicates that there is a recorded video file on that period of time. While the red bar indicates that you are currently viewing the recorded video file.

(5) Playback Control

Buttons

Begin: Move at the beginning of the recorded video file.

Previous: Go back to the previous frame.

Slower: Play the recorded video file at the speed of 1/2x, 1/6x, 1/8x, or 1/16x

Rewind: Wind back the recorded video file.

Pause: Briefly stop playing the recorded video file.

Play: Play the recorded video file.

Faster: Play the recorded video file at the speed of 2x, 4x, 8x, 16x or 32x.

Next: Go to the next frame.

End: Go to the end of the recorded video file.

129

Name Function

(6) Archive

Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file.

– Also, user can open the recorded file from certain location by click OPEN FILE button

Click Channel 01~ 16 and Channel 17 ~ 32 button to switch to different channel group of playback calendar.

i

The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID. The blue colored column indicates that there is a recorded video file on that period of time. While the red colored column indicates on where to start playing the recorded video file.

(7) Preview Switch to Preview/Advanced mode.

(8) Playback

(9) Status bar

(10) Camera ID

(11) Export

(12) Full screen

(13) Event log

(14) Audio

(15) De-interlace

Switch to Playback mode. This allows you to view the recorded video file.

Display the recorded date, time and play speed.

Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format.

Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard or click the arrow icon.

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS.

Enable/disable audio play

To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

130

6.4.3 Familiarizing the Download and Playback Buttons

Name

(1) Exit

(2) Progress bar

(3) Playback Control

Buttons

(4) Status bar

(5) Language

(6) Export

(7) Segment

(8) Full screen

Function

Close the program

Show the progress of the file being played. You may move the bar to seek at any location of the track.

Begin: Move at the beginning of the recorded video file.

Previous: Go back to the previous frame.

Slower: Play the recorded video file at the speed of 1/2x, 1/6x, 1/8x, or 1/16x.

Rewind: Wind back the recorded video file.

Pause: Briefly stop playing the recorded video file.

Play: Play the recorded video file.

Faster: Play the recorded video file at the speed of 2x, 4x, 8x, 16x or 32x.

Next: Go to the next frame.

End: Go to the end of the recorded video file.

Display the recorded date, time and play speed.

Select the language of function tips

Export includes Snapshot, Print, and Output Video Clip function.

Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format.

Print: Print the screen shot.

Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see

also Chapter 3.7

).

Keep a portion of the recorded video you want (see also Chapter 3.7

).

Use the entire area of the screen to only display the video. To return, press the right

131

Name

(9) Visual Search

(10) Find Next

(1) Event Search

(2) Intelligent Search

(13) Audio

(14) De-interlace

Function

button of the mouse or ESC on the keyboard or click the arrow icon.

When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.

Search from a specific camera by Date, Hour, Minute, 10 Seconds and Second. (See also

Chapter 3.9

)

Search for the next event or changes in the motion detector frame. You can use this when you are using Intelligent Search or Event Search function.

Search from the recorded activities that take place in the system (i.e., Sensor, Motion,

Video Loss, POS). (See also Chapter 3.10

)

Search the changes in the motion detector frame (See also Chapter 3.11

)

Enable/disable audio play

To enhance the video quality. Set the de-interlace mode to #1, if you are capturing motionless picture and select #2, if it captures lots of movement.

132

6.5 Using HandyViewer to Access DVR server

Users can use a mobile phone to access the DVR through Internet. Make sure your mobile phone support IE browser and is connected to the internet. To access the DVR server, open IE browser and enter http://enter server IP or domain name here/mobile. You can see the latest screen shot. Click << >> to change the channel or camera and Refresh to reload new screen shot.

6.6 Using PDAViewer to Access DVR Server

Users can also use a PDA to access the DVR through Internet. Make sure your PDA support IE browser and is connected to the internet. To use this feature, you need to install the PDAViewer software either thru

ActiveSync connection or download it from the internet. Please check if your PDA meets the 2 requirements below.

OS: MS Windows CE 4.0, PocketPC 2002/2003, Mobile 5 PDA version

CPU: ARM architecture

6.6.1 To install PDAViewer from the Internet

1. Make sure you are connected to the internet.

2. Open the web browser and enter the server IP. Then c lick the hyperlink Download PDAViewer.

3. When the Download dialog box appears, enable Open file after download and click Yes.

4. After the installation, the PDAViewer icon will appear in the

Programs list.

133

6.6.2 To Use the PDAViewer

1.

Run the PDAViewer in the Programs.

2.

Familiarizing the PDAViewer buttons.

(2)

(1)

Name

(1) Connect

(3)

(4)

(5)

(10)

(9)

(8)

(6)

(7)

Function

Hook up to the DVR server. Make sure you are connected to internet.

When the iView screen appears, click Add to add DVR server.

Enter the server IP, port, user ID, password and select the connection type. Then, click

OK.

(2) Split Screen Mode

(3) About

(4) Minimize

(5) Exit

(6) Focus

(7) Full Screen

(8) Snapshot

User can playback the recorded video from remote DVR server in PDAViewer.(see

Chapter 7.6.4

)

Select between 2 screen display types. It also allows you to switch and view different camera number or channels.

Display the PDA-Viewer software version.

Reduce the size to taskbar.

Close the PDA-Viewer.

Adjust the focus of PTZ camera to produce clear image.

Use the entire screen to only display the video.

Capture and save the screen shot in *.bmp format.

134

Name

(9) Zoom

(10) Direction buttons

Function

Zoom in and out the PTZ camera image.

Adjust and position the focal point of the PTZ camera.

3.

To change the video quality, enable/disable audio, and select to display different camera, tap on the video screen longer the popup menu will appear.

6.6.3 To Playback in PDAViewer

1. Run the PDAViewer in the Programs.

2. Hook up to the DVR server.

3. Click Connect icon and select the DVR server

4. Click Playback to enter playback option screen

5. Select the camera, data, and time

6. Click Playback to start playing the recorded video

7. While playback, user can view and change status of I/O devices

8. On the playback screen, tap on video screen longer the pop up menu will appear

9. Select the Remote IO

10. The sensor and relay devices will list as below:

135

11. User can change the relay status. Select the relay and tap on video screen longer the popup menu will appear, and then, select the status (ON, OFF, Tigger)

6.6.4 Using JavaViewer to Access DVR Server

Using the mobile phone within Symbian Smart Phone OS to access the DVR through Internet. Make sure your mobile phone supports Symbian Smart Phone OS and can be connected to the internet. To use this feature, you need to install the JAVAViewer program that it can be downloading it from the DVR server through the internet.

To install JAVAViewer from the DVR Server

1. Open the web browser and enter the DVR server IP (http://DVR server IP: port/JAVA-Viewer.html). Then click Connect.

2. When the Download screen appears, select JAVA-Viewer.jad and download it to your mobile phone.

3. After the installation, the JAVA-Viewer will be in your mobile phone system. To find the JAVA-Viewer program where is located, please refer to your mobile phone user

’s manual.

136

6.6.5 To Use the JAVA-Viewer

1.

Run the JAVA-Viewer program.

2.

Enter the DVR IP address, port number, user ID, and password. Please refer to your DVR server setting for that information.

3.

And then, select the Connect to connect to DVR server.

4.

Click Yes to accept the data from DVR server.

5.

When connection is success, you will see the camera video on the screen.

6.

To switch to different camera view, select menu and select the channel.

7.

The JAVA-Viewer support PTZ control function, you can refer to Help file for detail function control key.

Select menu and go the way down to select the

Help file.

137

Chapter 7 Image Verification

ImageVerification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files.

7.1 To Run the ImageVerification program

1.

Click Start>Programs>DSS>ImageVerification.

2.

In the ImageVerification screen, click Load Source Image and locate the image source.

3.

Click Verify Image to begin the process.

4.

Check the result in the Processed Image screen. If the picture is unmodified, the image in the Source

Image and Processed Image screen would be exactly the same. If the picture is being modified, a warning dialog box would prompt you and the modified area is highlighted.

138

Chapter 8 iEnhance

The bundled iEnhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the wanted portion of the video, zoom in and out the image, and print or save the screen shot. You can also save the setting and apply it on other files.

(16)

(15)

(17)

(18)

(19)

(20)

(21)

(22)

(23)

(24)

(25)

(14)

(13)

(12)

(11)

(10)

(9)

Name

(1) Open File

(2) Save Image

(3) Playback Control

Buttons

(4) Save Video

(5) Print

(6) Segment

(7) Zoom Buttons

(8) Full Screen

(9) Default

(10) History Box

(11) Undo

(12) Noise Reduce

(13) Sharpness

(14) Effects

(15) Picture

Adjustment

(1) (2) (3) (4) (5) (6) (7) (8)

Function

Access *.dvr video file.

Capture and save the screen shot in *.bmp format.

Begin: Move to the beginning of the video file.

Previous: Go back to the previous frame.

Pause: Briefly stop playing the video file.

Play: Play the video file.

Faster: Play the video file at faster speed

Next: Go to the next frame.

End: Go to the end of the video file.

Save the edited or segmented video in *.avi format.

Print the screen shot.

Mark the beginning and the end of the wanted portion of the video. Two triangle marks will appear on the slider. To cancel video segmentation, click this button again.

Enlarge, reduce, and set the image back to normal size.

Use the entire screen to only display the video.

Set the video back to original state and delete all the changes in the history box.

List all the actions.

Delete the last action.

Adjust the softness and repair the damaged colours.

Improve the overall image by enhancing edges. This gives the image more depth.

Gray Scale: convert the image into black and white (monochrome).

Normalize: adjust the brightness intensity.

Equalize: automatically adjust the images that are too dark.

De-interlace: smooth out the overlying frames.

Static: de-interlace for motionless scene.

Dynamic: de-interlace for moving scene.

Adjust the Brightness, Contrast, Saturation, Hue and Gamma.

139

Name Function

(16) Original Screen Display the original state of the image.

(17) Temporary

Setting Block

Display the sample settings. Click the sample to apply the setting on the current video.

(18) Status Bar

(19) Progress Bar

Display the date, and time of the video.

Show the progress of the file being played. You may move the bar to seek at any location of the track.

(20) iStable

To reduce the jolt in the recorded video.(also see Chapter 9.1)

(21) Add Setting

(22) Rename

(23) Delete

(24) Load Setting

(25) Save Setting

Include the new setting to the temporary setting block.

Change the name of the selected setting in the temporary setting block.

Permanently remove the selected setting in the temporary setting block.

Call the saved settings.

Store the settings in the temporary setting block.

8.1 To Use iStable

The iStable function can reduce the jolt in the recorded video.

1. Click Open File button and select the recorded video.

2. And then, click iStable button.

3. iStable windows will show up.

4. Select the smoothness level

– 1(Low), 2, 3, 4, and 5(High). The default value is 3.

5. Click Play button, and then i-Stable function will start to initial the recorded video.

6. When the initialize is done, user will see the original and stabilized recorded video play in two windows.

7. While the video is playing, user can select a portion of video to play and save. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark. And, Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to end the cut. Then, click Segment to set the end mark. To cancel segmentation or set the segment marks from the start, click Segment button again.

8. Click Save Video button to save the wanted clip.

9. In the Save As dialog box, locate on where you want to save the file, type the filename, and select the video compress mode

Optimize for speed or Optimize for storage.

140

10. To switch back to iEnhance interface, click iEnhance button

141

Chapter 9 Web Tools

The bundled Web Tools includes Dispatch Server and Remote Backup program. To install Web Tools, place the CD into the CD-ROM drive then click Install Web Tools.

9.1 Dispatch Server

Dispatch is designed to reduce the network traffic of the DVR server. Instead of connecting directly to the

DVR server, the client can connect to the computer that is connected to the DVR server using the Dispatch program.

To Run Dispatch program:

1.

Make sure you are connected to the internet.

2.

Click Start>Programs >DVR >Web Tool > iDispatch

Server.

3.

In the DVR Server section, enter the DVR server IP, port, user ID and password. You can also select to display the language you prefer.

4.

Auto connect when start

Enable to automatically connect the dispatch server when start up

5.

3GPP Service

Enable to allow user using 3GPP service to receive video stream from Dispatch server. The Service Port must same as RTSP port of 3GPP on DVR server.

6.

In the Dispatch Service section, if you have installed more than one network card, select the Service IP number.

7.

In the Dynamic DNS Configuration section, enter the

DNS server Name and Password. The DNS server can be the remote storage server for sharing the DVR system loading.

8.

Click START to connect.

142

9.2 Remote Setup

Remote Setup is a tool for configuring DVR server from remote site. To install Remote Setup application, insert the Installation CD into CD-ROM drive and click Web Tools. After installation, click to start the

Remote Setup application.

9.2.1 To Add DVR server

User need to add a DVR server and make connection in order to setup remote DVR server.

1. Click Add

2. In Edit DVR windows, fill in the following items:

- Name: give a name for remote DVR server for easy managing

- IP: fill in remote DVR server

’s IP address

- Port: the port use to connect to remote DVR server. The port number is same the WebViewer port on the remote DVR server. The default is 80.

- User ID: fill in the remote DVR server

’s login account

- Password: fill in the remote DVR server

’s login password

-

Description: fill in a short description for the remote DVR server

3. Click OK to complete adding remote DVR server.

4. The added DVR server will be listed and auto connects to DVR server.

5. Once the connecting is success, user can start to configure DVR server.

6. When connection is lost, click Reconnect to connect again.

7. To modify or delete the added DVR server, select the DVR server from listing and click Modify to change the setting and click Delete to remove the DVR server.

8.

User also can import the setting by clicking Import button. To save the setting to local hard disk, click

Export button.

143

9.2.2 To Setup Remote DVR Server

Select the DVR server from listing and click Setup to configure remote DVR server.

9.2.2.1 System Setting

In the System Setting windows, click Update to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory setting.

(6)

(1)

(2)

(3)

(4)

(7)

(8)

(9)

(5)

(1) Delete recorded data after

If you want the system to automatically erase the data after a certain days, enable the Delete recorded data

after check box and enter the numbers of days in Days text box.

(2) Delete event and alarm log after

If you want the system to automatically erase the event and alarm log files after a certain days, enable the

Delete event and alarm log after check box and enter the numbers of days in Days text box.

(3) Video Standard

Change and select the proper video system according to your camera video system. If the video system setting is wrong, the video would appear abnormal.

(4) Attention Please

Check the attentiveness of the person who is monitoring the system.

You may set the number of times the Attention dialog box to appear in a day in Times per day text box.

When this feature is enabled, the Attention dialog box would appear.

The person who is monitoring the system must enter the same number that appears from the left box at the right text box and then click OK.

(5) AutoScan Period

Set the TV out display time gap from 3 to 10 sec. before it switches to the next camera.

(6) Login

Enable the conditions in Login section you want the system to automatically carry out.

-

Auto record when login

Automatically start video recording when the DVR is executed.

-

Auto start Network when login

Automatically connect to network when the DVR is executed.

-

Login to compact mode

Switch to compact mode directly when the DVR is executed.

-

Guest Mode

Automatically log in Guest mode when the DVR is executed. In guest mode, the functions are limited to

144

preview and playback only.

(7) Miscellaneous

Enable the conditions in Miscellaneous section you want the system to perform.

-

Beep if no signal

Make sound when the video signal is lost.

-

Mandatory Record

Always record video when software is running

-

Enable Overlay

To enhance video signal for better video quality.

-

Screen Saver

Set a period time to enter screen saver mode when system idle.

-

Auto Scan Period

Set the time gap of the Auto Scan function from 3 to 10 seconds. This automatically switches to the next video in cycle depending on the set time gap.

-

Playback Mode

Select the mode of playback the video.

Select date and time: Select the date and time which user wants to playback.

Play the last file: Automatically playback the video from the last hour

Instant Playback: Automatically playback the video which has just recorded

-

Date Format

Select the date format which wants to display in Select date and time playback mode

(8) POS

Advanced

Set from which camera screen to display the data from the POS equipment. To set the text flow, color format, and POS database export, click Advanced.

1. Mark Show POS Text to allow POS data to be display on surveillance screen.

2. Select the POS data display position on surveillance screen

– Left-Top, Left-Bottom, Right-Top, or

Right-Bottom.

3. To change the POS data font and color, click Font.

4. Mark Remove POS data after the POS data will be delete from DVR hard disk on the day that user has setup.

145

iPOS Pro Setting

Enable Multiple Windows for viewing multi-channels of iPOS live data. To save the iPOS live data window position on the preview mode, mark the Save Window Position. To select all channels, mark All check box.

(9) UPS (Uninterruptible Power Supply)

Protect the system from damaging, such as power surges or brownouts. This automatically gives time to close the DVR properly when the battery backup power has reached the Shutdown when capacity below percentage level setting.

The UPS device must be connected to your computer (refer to your UPS user’s guide). i

The UPS application must meet Windows XP or Windows Vista system requirements.

146

9.2.2.2

Camera Setting

Select the camera from remote DVR servers to modify settings. In the Camera Setting window, click Update to save and apply the new settings, click Exit to exit without saving, and click Default1/ Default2 to revert back to original factory settings.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(1) Camera Icons

Select the camera number you want to adjust the video setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon. The camera icon turns red when it is selected.

(2) Enable

Set to enable/disable the selected camera. When there is no video source on the camera, we suggest disabling it so that the system won’t detect it as video loss error.

(3) Camera

- Display

Enable/disable to show the video. Even if the video of the selected camera is hidden you can still record the video and preview it in playback mode.

- Name

Change the camera name.

- Description

Add a short comment.

(4) Video Adjustment

Adjust the Brightness, Contrast, Hue and Saturation of the selected camera.

(5) Noise Reduction

Reduce undesirable video signal and improve the quality of the video. i

Noise Reduction uses lots of CPU resource. Please use this feature only if it is really necessary.

(6) Auto Brightness Control

Automatically adjust the brightness.

(7) Night View

Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled.

(8) Enable Deinterlace

To enhance the video quality. Set the deinterlace mode to #1, if you are capturing motionless picture and #2, if it captures lots of movement.

147

9.2.2.3 Record Setting

In the Recording setup window, click OK to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory settings

.

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(7)

(1) Camera Icons

Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left

click on the camera icon. The camera icon turns red when it is selected.

(2) Recording Mode

The blocks from 00 to 23 represent the time in 24-hour clock. To record in full 24 hours, select the recording mode and click the  button. If you want to only record at a particular time, click the colored block beside the recording mode then click on the time blocks. When the system starts recording a red triangle mark would appear at the upper left corner of the screen.

The recording modes are listed below:

- Always Recording

Record the video from the selected camera and save it to the designated storage path

- Motion Recording

Start recording the video from the selected camera only when the system detects movement. Once a motion is detected, the system automatically saves the previous frames and stop based on the Start

Record Prior and Stop Record After settings.

- Smart Recording

Automatically switch to recorded at the maximum frame rate setting once a motion is detected and if there is no motion, it records at the minimum frame rate setting. Set the maximum and minimum frame

rate setting in (6) Frame Rate

section.

148

- Voice Detecting Recording

DVR system will record the sound when the voice exceeds the intensity value in Voice Detection setting.

- No Recording

The system won’t do any recording.

-

KeyFrame Recording

Only record one frame per second.

(3) Motion Detection

Adjust the sensitivity of the motion detector. The higher the value, the finer the sensitivity is detected. When it detects a motion, a green triangle mark would appear at the upper left corner of the screen.

(4) Voice Detection

Adjust the intensity of the audio detector. The system detects sound when it exceeds the intensity value.

(5) Quality

Adjust the video quality. The higher the value, the lower the compression level and uses more hard disk space.

(6) Frame Rate

Set the maximum number of frames to be recorded during motion and motionless state. The frame rate ranges from 1 to 30 for NTSC and 1 to 25 for PAL. The higher the frame rate, it uses more hard disk space.

(7) Video Size

User can activate the Enable Deinterlace to enhance the video quality. Set the Enable Deinterlace mode to

#1, if you are capturing motionless picture and #2, if it captures lots of movement.

(8) Compression Type

H264 is the latest and advanced video compression format that delivers better video quality and smaller file size but this uses more CPU resource. Advanced MPEG4 provides a standard for color picture compression rate.

9.2.2.4

Network Setting

In the Network Setting window, click Update to accept the new settings, click Exit to exit without saving, and click Default to revert back to original factory settings. For the network service ports that use by DVR server,

please see Appendix A .

(1)

(2)

(6)

(7)

(8)

(3)

(9)

(4)

(5)

(10)

(1) Server Name

Assign a name for the DVR unit. Letters of the alphabet and numbers only.

(2) Transmitting Cameras

Select and click on the camera number in the Transmitting Camera section you want to make it accessible via internet using WebCam, Remote Console, PDA Viewer and HandyViewer (still image). To select all the cameras, enable the ALL check box.

149

(3) Dynamic DNS (Domain Name System)

For information about Dynamic DNS options see http://www.luxonvideo.com/quickstart201.php

and scroll down to the DynDNS Section.

(4) Remote Control Server

Enable/disable remote control from remote application (ex. CMS). Enter the remote accessing port in Port column.

(5) Network Video Configuration

Set up the video quality and frame rate for viewing and transmitting to the remote program. Scrolling adjust bar to set the Quality level and FrameRate level.

(6) WebViewer Port

Activate Enable Anonymous Login to remotely access the DVR server without the need of password. The default of WebCam port is 80.

(7) Voice Phone

Voice Phone is a 2-Way Talk feature that allows the client and server to talk via internet using microphone.

Make sure both microphone and speakers work before using this feature. If the Talk to Web-Client is disabled, the person in the DVR server side can only hear the voice from the client side that is when the

WebCam 2-Way Talk button is activated. (See also Chapter 7.1 #6 ). The default port of voice phone is 9999.

(8) Network Time Synchronization

Adjust the DVR system time same as network time server. Fill in the Time Server IP address or domain name. Select Automatic Synchronize time to set automatic synchronize time on a daily basis.

(9) Other Configuration

- Enable Original Security Protocol

Enable new version DVR system to accept remote software with former version. For example, if user uses CMS version 7.5 and connect to DVR server with version 7.7, and then, user has to enable this option to make it work. It is due to that DVR system has some new security protocol in DVR with version

7.3 and newer version, and it’s not compatible with old remote software.

- Enable White List

An access permit list for the remote accessing of DVR server. Enter the IP address and click Add. Or, enter a range of IP address and click Add. To delete the IP from the list, select the IP and click Delete button. To reset the input, click Clear button.

- Enable HandyViewer

Enable remote users to use a PDA or a mobile phone to access DVR server and select the video size and quality. (See also

Chapter 7.5 and 7.6

)

150

- Network Bandwidth Limit

By Channel: Set the network bandwidth by each channel.

All: Set the total network bandwidth consumption limit.

151

9.2.2.5

Schedule Setting

Schedule to record, backup, enable network, reboot and disable alarm of all the cameras either weekly or one time. The number from 00 to 23 represent the time in 24-hour clock. The left most column display the days in a week.

To Set the Schedule Setting:

1. Select the date in the calendar. Use and buttons to shift the calendar to the left or right.

2. Select the condition you want to schedule in the drop down list.

- Record

Activate all the cameras to start video recording at the set time based on the Recording setting (see

also Chapter 4.3

).

- Backup

Save another copy of all the data at the set time and specified backup path. DVR automatically updates and only backup the data that are not yet included in the archive.

Mirror Backup: Save a copy of all the data at the set time and specified backup path.

Incremental Backup: Only backup the data that are not yet included in the archive from last time.

- Network

Activate DVR remote system to access at the set time. After the appointed time, the Network function will be disabled. If the Network function is already enabled, the Network function will not be disabled when the appointed time has ended.

- Reboot

Restart the PC at the appointed time. i

Make sure the Windows operating system is set NOT to require you to login user name and password. This way the system will be able to run DVR program.

- Disable Alarm

Deactivate the alarm at the set time temporarily.

- Turn on Relay

Activate the relay at the set time. Number of relays are depending on the relays has connected with

DVR system.

3. Specify to either schedule it weekly or one time. Click  to make a selection.

4. Click on the blocks to set the schedule (see also Chapter 4.5.1

). Or click All to select all. To store the

setting, click Save. To remove the settings, click Clear.

5. To end Schedule Setting, click Update to exit and accept the setting and Exit to exit without saving the setting.

152

9.2.2.6

Alarm Setting

In the Alarm Setting window, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory settings.

(1)

(2)

(7)

(3)

(4)

(5)

(6)

To set the Alarm Setting:

1. Click Add to insert and set a new alarm setting. Click the items in the (8) Alarm Setting List, if you want to modify the alarm setting.

2. In (1) Alarm Setting number/Name/Description, display the selected alarm setting number in the list below. Enter alarm name and description.

3. In (2) Enable Time, the number from 00 to 23 represent the time in 24-hour clock. Select the time and click the block you want to activate or deactivate the alarm function. When it is deactivated the color of the block turns white.

4. In (3) Conditions

, you can set “Trigger if any” to activate if it falls to one of the conditions or “Trigger if

all

” to activate if it falls to all conditions.

- In Camera section, select and click on the camera number (01 to 32) in Motion Detected and Video

Loss to set the condition for the system to alarm.

- In Missing and Suspicious Object/Scene, click the camera number (01 to 32) and select the certain object on the screen (right click on camera number for detailed setting)), and when the certain

object is missing or doubtful, the system will alarm. (see also Chapter 4.9.12

) In Scene Change,

when the camera has been moved, the system will alarm, too.

- In Audio Detection, click the camera number (01 to 32) to the system to alarm when detect the abnormal voice.

5. In (4) Sensor, select and click on the sensor number (use  and  to select the sensor) to set the

153

condition for the system to alarm. If the sensor normal status is high, set the sensor condition to low.

- Continue trigger duration: Set a time period that when sensor has been trigger and stay in the same status for that period, then the alarm will be sent out.

- Abnormal Event: Enable/disable to set the condition of the event for system to alarm..

System Reboot: when the DVR system reboot without abnormal condition, the system will send out the alarm message.

Abnormal Reboot: when the DVR system reboot in irregular condition, the system will send out the alarm message.

Recording is switched off: when the recording has been stopped, the system will send out the alarm message.

Network is switched off: when the network connection of DVR system is lost, the system will send out the alarm message.

Hard Disk failed: when the hard disk can ’t work normally, the system will send out the alarm message.

- POS Keyword: Enable/disable to scan the data from the POS if it matches the keyword (see also

Chapter 4.9.11

).

- Alarm Message: To active with external alarm message by your own program. For the detail configuration, please contact the local reseller.

- Alarm Button: Enable/disable to active manual alarm function (see also Chapter 2.2#(19) ). To define alarm message of manually alarm trigger. Click alarm button and select the alarm button # and fill in the description of alarm button.

6. In (5) Alarm Reset, click the camera number (use  and  to select the alarm) to set the reset condition of alarm. Once alarm is reset, all alarm action will stop at the moment. If the sensor normal status is high, set the sensor condition to low.

- Alarm Reset Time: Set a time for the alarm auto reset. When an alarm happen such as motion detected and video loss, the alarm will reset at the alarm reset time.

7. In (6) Action, you may now set the alarm action for the system to perform when the alarm condition is activated.

- Launch E-Map

Display mini Emap screen.

- TV Out

Switch to only display the video on TV from where the alarm is activated.

Retrieve time: set the waiting duration before system switching back to original display mode on

TV automatically. If the retrieve time is un-mark, the alarm video will keep displaying until user switch back to normal display mode manually.

154

- Enlarge Camera View

Switch to only display video in Preview/Advanced mode from where the alarm is activated.

Retrieve time: set the waiting duration before system switching back to original Preview mode. If the retrieve time is un-mark, the alarm video will keep enlarging until user switch back to Preview mode manually.

- Send E-mail

Send an electronic text message. To setup click Detail (see also To Setup Send E-mail ).

- File Transmission via FTP

Upload file to remote computer thru FTP (File Transfer Protocol). To setup click Detail (see also To

Setup FTP ).

- Start Recording

Record the video from the selected camera. To setup click Detail (see also To Setup Alarm

Recording ).

- Alarm SOP (Standard Operation Procedure)

List the instructions to inform the person of what to do when the alarm is activated. To setup click

Detail (see also To Setup Alarm SOP ).

- Send to CMS (Central Management System)

Enable/disable the selected camera to send video to CMS when the alarm is activated (see also To

Setup CMS Setting )

155

To Setup Send E-mail Setting

Next to the Send Email check box, click Detail. In the E-mail Setting dialog box, click OK to exit and save the setting and Cancel to exit without saving the setting.

(1) Mail Server: Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter User ID and Password.

(2) Mail: To check if it is working, click Test Account button.

- From: Enter the sender e-mail address.

- To and CC: Enter the recipient email address and separate it with comma or a semicolon (;).

- Subject: Enter the message title.

- Message: Type the message.

(3) Email Notice Setting

- Notice Interval: Set the period of time before it sends another e-mail notice.

- Embedded image : Select the image size and set the number of frames.

- Attach image when sensor is triggered: When the sensor is triggered, the system will capture the image and send the image to the certain e-mail address with the alarm message.

(4) Modem Dial up Setting: User may set the time to disconnect automatically, just enable the Auto

Disconnect after check box and set time.

(1)

(2)

(3)

(4)

To Setup FTP Setting

1. Next to the File Transmission via FTP check box, click Detail.

2. In the FTP Setting dialog box, enter the FTP IP, port, user ID and password.

3. In Number of Pic text box, enter the number of sequence images that want to send when file is transmitting. The maximum number of picture can be transmitted are 16.

4. In Upload image when sensor is triggered, select the camera that the images will be capture and send when the sensor is triggered.

5. Click OK to exit and save the setting and Cancel to exit without saving the setting.

156

To Setup Alarm Recording Setting

1. Next to the Start Recording check box, click Detail.

2. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording.

Enable All to select all cameras.

3. In the Frame Rate selection, select As Setting to record the number of frames based on the

Recording Setting or Max to record the maximum of frames based on the available speed.

4. In the Stop Recording after text box, set the number in second for the program to continue recording after the alarm has ended.

5. Click OK to accept the new settings and Cancel to exit without saving.

To Setup Alarm SOP

Next to the Alarm SOP check box, click Detail. In the step text boxes, type the standard protocol when the alarm is activated. When the alarm is activated, the Standard Operation Procedure dialog box will appear. Just click Next to see the next instruction, Back to see the previous instruction, Finish to end and Abort to terminate.

To Setup CMS Setting

Next to the Send to CMS check box, click Detail. In the CMS Setting, select the camera to enable/disable sending the video to CMS. Enable All to select all cameras. Then, click OK to accept the new settings and Cancel to exit without saving.

157

9.3 Remote Backup

Remote Backup is purely for backing up the *.dvr file from the DVR sever. You can select between Auto

Backup and Manual Backup. Auto Backup continuously archives one hour of the recorded data at a time, starting from the specified date. As for Manual Backup, it only archives the recorded data of selected date. i

To back up the data, you must have at least 2G hard disk space.

To back up the recoded data from the DVR server:

1. Make sure you are connected to the internet.

2. Click Start >> Programs >> DVR >> Web Tool >> Remote iBackup

3. To add the DVR server, click Add

4. In the Add New DVR windows, enter the Name, IP, user ID, and password.

5. Select the Backup mode:

Auto Backup mode: the backup will automatically execute when the setup is completed

- In Begin Date drop down calendar, select the date from where to start

- Click Add to set the storage path.

- Click Delete to remove the selected storage path.

- Click Schedule to select/unselect the time you want to backup. The red block turns white when it is unselected.

- Enable/disable Disk Recycle check box, to automatically overwrite the oldest file when there is not enough free space to backup the file.

Manual Backup mode: the backup progress will start when user press the backup button

- Click File Select to choose the date, time and camera you want to back up.

158

- Click Browse to set the storage path.

6. Click OK to complete the adding DVR server. The added DVR server will display in Remote Backup main windows.

Un-mark check box to disable backup

7. Click Start to begin backup and click Stop to stop backup progress.

Click to start backup progress

While backup, the start button will turn to stop button

8. For manually backup, click file select button and select the DVR wants to backup

159

Chapter 10 Using the Remote Control Server

The bundled Remote Control Server enables the PC with Central Management System program (NVR-CMS) installed in it remotely access the DVR server. You many need to manually run this program for CMS access the DVR server. To run, click Start > Programs > DSS > DVR > Remote Control Server.

The remote control server icon appears on the taskbar when the remote control server is enabled. To change the port setting or stop server, right-click icon and then make a selection. i

User can also setup Remote Control Server in DVR Network setting, please see Chapter 4.4 #(5) .

160

Appendix A Network Service Port

The following table shows the ports that DVR server uses for certain network service.

Remote Console (CM 3000)

WebCam

2-way audio

Remote Control (NVR-CMS)

DVR POS

DVR DDNS (Upload / Download)

Port #

5550

80

9999

5555

5150

53 / 1053

Variable

Y

Y

Y

Y

Y

N

161

Appendix B Install Extra Hard Disk (RACK series)

Beside one hard disk can be installed in one hard disk in removable HDD drawer, user can install four more

SATA hard disks inside the DVR unit.

Please refer to the below steps to install the hard disk:

1. Loosen all screws (2 sides and back) and push the cover backward and lift to open the case cover.

2. Loosen all screws of HDD rack and remove the HDD rack from DVR unit.

3. Place the SATA hard disk into the HDD rack. The

HDD rack can hold up to 4 SATA hard disks in total.

When place the hard disk inside the HDD rack, user needs to pay attention about the round hole at button of HDD rack that must match the round bump on the chassis bottom of the DVR unit. Therefore, please refer to the below figures to place the hard disk inside the HDD rack.

The round hole of HDD rack must match the round bump at chassis bottom of the DVR unit.

The connection interface of hard disk should be this direction inside the HDD rack.

162

Four hard disks inside the HDD rack

4. Secure the all hard disks on HDD rack (both side).

5. And then, put the HDD rack back into the DVR unit and screw the HDD rack.

The round hole of HDD rack must match the round bump at chassis bottom of the DVR unit.

The connection interface of hard disk should be this direction inside the HDD rack.

163

6. Connect the power cable to hard disk. Please find a

2 power cables that one has four power connectors and another one has 3 power connectors from inside the DVR unit. Connect the power connector follow the number order in below figure shown. i

If the power connector has connected to the

HDD or other device already, please remove the connection and follow the number order to connect again.

For 5 th

hard disk

For connecting

HDD drawer

7. Connect the SATA cable to the hard disk. User should find the 4 STAT cables that are connected on the motherboard of the DVR unit.

8. Finally, push the cover backward and secure the cover.

164

Warranty Notice

LIMITED WARRANTY

LUXON VIDEO, Inc. warrants that this product to be free of defects resulting from faulty manufacturing or components under the following terms:

WARRANTY LENGTH

Labor is warranted for (1) one year from the date of purchase

Parts are warranted for (1) one year from the date of purchase

WHO IS PROTECTED

This warranty is enforceable only by the first consumer purchaser.

WHAT IS AND IS NOT COVERED

Except as specified below, this warranty covers all defects resulting from faulty manufacturing of this product.

The following are not covered by the warranty.

1. Any product on which the serial number has been defaced, modified, or removed.

2. Damage, deterioration, or malfunction resulting from: a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modification, or failure to follow instructions included with the product. b.

Misapplication of service by someone other than the manufacturer’s representative. c. Any shipment damages. (Claims must be made with carriers.) d. Any other cause that does not relate to a product defect.

3. Cartons, cases, batteries, cabinets, tapes, or accessories used with the product.

4. Luxon Video, Inc. does not warrant that this product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose.

WHAT WE WILL NOT PAY FOR

We will pay material expenses for covered items. However, we will not pay for the following:

1.

2.

3.

Removal or installation charges.

Shipping charges.

Any incidental charges.

EXCLUSION OF DAMAGES

THE MANUFACTURER’S SOLE OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS LIMITED TO

THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT AT OUR OPTION. THE

MANUFACTURER SHALL NOT, IN ANY EVENT, BE LIABLE TO THE PURCHASER OR ANY THIRD

PARTY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE (INCLUDING, BUT NOT LIMITED TO,

DAMAGES RESULTING FROM INTERRUPTION OF SERVICE AND LOSS OF BUSINESS) OR LIABILITY

LIMITATIONS OF IMPLIED WARRANTIES.

There are no other oral or written warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. Any implied warranties are limited in duration to 15 months from the date of purchase.

STATE LAW AND YOUR WARRANTY

This warranty gives you specific legal rights, and you may also have other rights granted under state law.

These rights vary from state to state.

CONTACT INFORMATION

LUXON VIDEO INC.

TEL: (208)-356-0020

Web Site: www.luxonvideo.com

Was this manual useful for you? yes no
Thank you for your participation!
