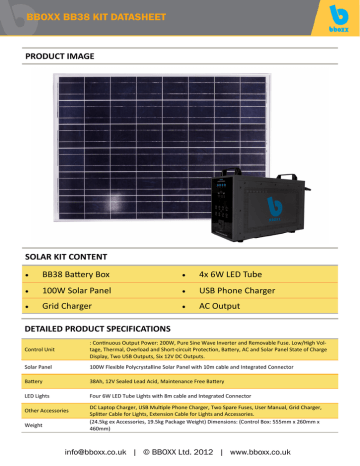

BBOXX BB38 KIT DATASHEET
PRODUCT IMAGE
SOLAR KIT CONTENT

BB38 Battery Box

4x 6W LED Tube

100W Solar Panel

USB Phone Charger

Grid Charger

AC Output
DETAILED PRODUCT SPECIFICATIONS
Control Unit
: Continuous Output Power: 200W, Pure Sine Wave Inverter and Removable Fuse. Low/High Voltage, Thermal, Overload and Short-circuit Protection, Battery, AC and Solar Panel State of Charge
Display, Two USB Outputs, Six 12V DC Outputs.
Solar Panel
100W Flexible Polycrystalline Solar Panel with 10m cable and Integrated Connector
Battery
38Ah, 12V Sealed Lead Acid, Maintenance Free Battery
LED Lights
Four 6W LED Tube Lights with 8m cable and Integrated Connector
Other Accessories
Weight
DC Laptop Charger, USB Multiple Phone Charger, Two Spare Fuses, User Manual, Grid Charger,
Splitter Cable for Lights, Extension Cable for Lights and Accessories.
(24.5kg ex Accessories, 19.5kg Package Weight) Dimensions: (Control Box: 555mm x 260mm x
460mm)
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
BBOXX BB38 CONTROL UNIT DATASHEET
CASING SPECIFICATIONS
PARAMETER
VALUE
Dimensions
555x260x460mm
Weight (whole unit)
24.5kg
Casing Material
SPCC
Drop Test
75cm
IP
IP51
CHARGE CONTROLLER/PCB SPECIFICATONS
PARAMETER
VALUE
Max DC Output
Power
200W
Fuse
30A/250V Removable x2
Inverter
Pure Sine Wave
Protections
Low voltage (disconnect point: 10.911.1V), High voltage (disconnect
point: 14.9V), Thermal, Overload,
Short-circuit
Display
Battery state of charge, USB On/Off,
12VDC On/Off, AC On/Off
Outputs
USB (5V/05A) x2, 12VDC (2.5mm,
12V/5A) x6,
Universal AC plug x1, External 12V
Battery terminals
GRID CHARGER SPECIFICATIONS
PARAMETER
VALUE
AC110-240V (Max 255V),
50/60Hz
Input
Output
16V/3A
OPERATION CONDITIONS
Inputs
PARAMETER
VALUE
Recommended Operating
Temp. Range
20—25°C
Discharging Operating
Temp. Range
-10 to 50°C
Recommended Storage
Temperature
25°C
Inverter/Charger
Max Input Voltage
28V
Max. Charging
Efficiency
95%
AC Charger
16V/3A
Charging Type
MPPT
Solar Panel Input
MC4 connectors, 300W max
WARRANTY & CERTIFICATIONS
PARAMETER
VALUE
Warranty (under terms and conditions)
Certifications
12—18 months
CE Conformity, Conform to EU EMC – Directive 2004/108/EC, EN 55022:2010, EN
61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 55024:2010, EN
61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-44:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN
61000-4-11:2004.
RoHS—Directive 2011/65/EU, EPA3050B:1996, EN1122B:2001, EPA3052:1996,
EPA3060A:1996, EPA7196A:1992, EPA3540C:1996, EPA8270D:2007
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
BBOXX 100W SOLAR MODULE DATASHEET
MODULE DIAGRAM
ELECRICAL SPECIFICATIONS
PARAMETER
VALUE
Rated Power (W)
100
Maximum Power Voltage (V)
17.2
Maximum Current (A)
5.8
Open Circuit Voltage (V)
21.8
Short Circuit Current (A)
6.2
Cell Efficiency (%)
15.2
Module Efficiency (%)
12.5
NOCT
45 °C(+2°C)
Output Tolerance (%)
+/- 5%
Fill Factor (%)
70% --- 72%
Measured at Standard Test Conditions (STC) : Irradiance of
100W/m², air mass of 1.5, cell temperature of 25°C
MECHANICAL SPECIFICATIONS
PARAMETER
VALUE
Solar Cell
44PCS
Cell Size (mm)
Module Size (mm)
Frame (Type. Material, Tickness)
156x104
1002x806 x45
Anodized Alu. alloy frame ,45
mm thickness
Weight (Kg)
dLJƉĞK Ĩ:ƵŶĐƟŽŶŽdž
TEMPERATURE COEFFICIENT
PARAMETER
Power : Pmax (%/°C)
-0.5%/ °C
Voltage : Voc (%/°C)
-0.34%/ °C
Current : Isc (%/°C)
+0.05%/ °C
WARRANTY & CERTIFICATIONS
VALUE
20 years limited 70%
Warranty
power warranty
Warranted Tolerance (+/-)
ĞƌƟĮ ĐĂƟŽŶƐ
(PV-0804-32)
Cable Length
VALUE
PARAMETER
9.6
+/- 5%
IEC-61000(CE)
Cable Size
15m
1mm²
ĞůůŶĐĂƉƐƵůĂƟŽŶ
EVA
OPERATION CONDITION & SAFETY RATINGS
PARAMETER
ŵďŝĞŶƚK ƉĞƌĂƟŶŐ
Temperature
VALUE
-40°C to 85°C
IP
Wind Bearing
Hail Impact Rate
IP65
60m/s(200kg/m²)
227g steel ball dropped 1m
height, equivalent to 25mmф
hail at 97 km/h
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
BBOXX 38AH BATTERY DATASHEET
DIMENSIONS
TECHNICAL SPECIFICATIONS
PARAMETER
VALUE
Nominal Voltage
12V
Nominal Capacity
38Ah (10h rate)
Specific Energy
38 Wh/kg
Dimensions (LxWxH, mm)
196x166x182
Weight
12 kg
CAPACITY SPECIFICATIONS
PARAMETER
CHARACTERISTIC DISCHARGE CURVES
VALUE
1.75V/cell @25°C
10h rate
4.0A
38Ah
1.75V/cell
3h rate
10.0A
28.5Ah
1.67V/cell
1h rate
22A
20.9Ah
Battery Voltage(V)
at 25¡ãC(77¡ãF)
13.0
12.0
11.0
3.8A
9.5A
10.0
114A 76A
9.0
20.9A
38A
8.0
0 1 2 3 5
10
20
30
60
2 3 5
10
20
min
h
Discharge Time
OPERATION CONDITIONS
PARAMETER
CHARGING SPECIFICATIONS
PARAMETER
Charge Voltage (constant)
VALUE
ZĞĐŽŵŵĞŶĚĞĚK ƉĞƌĂƟŶŐ
Temperature
30
-10 to 50°C
Recommended Storage
Temperature
25°C
Float 13.8 ~ 13.9V
Cycle 14.6 ~ 15.0V
Internal Resistance
;ĨƵůůLJĐŚĂƌŐĞĚďĂƩ ĞƌLJͿ
25°C
ŝƐĐŚĂƌŐŝŶŐK ƉĞƌĂƟŶŐ
Temp. Range
VALUE
Self-Discharge
< 15mΩ
ĂƉĂĐŝƚLJĂŌĞƌϯ ŵŽŶƚŚƐƚŽƌͲ
age 90%
ĂƉĂĐŝƚLJĂŌĞƌϲŵŽŶƚŚƐƚŽƌͲ
age 80%
ĂƉĂĐŝƚLJĂŌĞƌϭϮŵŽŶƚŚ
storage 62%
ACTUAL WATTAGE CAPACITY AT VARIOUS DISCHARGES (Voltage @25°C)
Cut-off voltage
5 min
15 min
30 min
45 min
60 min
10h
9,6 V
1444 W
817W
524W
391W
283W
47.1W
10.2 V
1235W
733W
567W
376W
280W
46.7W
10.5 V
1170W
692W
426W
369W
275W
46.0W
10.8 V
1113W
600W
380W
357W
270W
45.6W
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
WARRANTY & CERTIFICATIONS
PARAMETER
VALUE
t ĂƌƌĂŶƚLJ;ƵŶĚĞƌƚĞƌŵƐĂŶĚĐŽŶĚŝƟŽŶƐͿ
2 Years
Warranted Tolerance
ĞƌƟĮ ĐĂƟŽŶƐ
70%
CE Conformity, Conform to EU EMC – ŝƌĞĐƟǀ ĞϮϬϬϰͬ ϭϬϴͬ ͕ E ϲϭϬϬϬ-6-1: 2007,
EN 61000-6-3: 2007, IEC, JIS, UL, BS6290 - Part 4
IEC 60896-2/'04 and JIS C8704-2
Warning! Precautions to take against self discharge:
- The batteries should be stored in a cool, dry place.
- The batteries should not be stored in direct sunlight.
- The batteries should not be subjected to an external heat source.
- The voltage of batteries in stock should be regularly checked.
- If stored at more than 30°C, the battery sould be recharged at least once every 3 months
- The lifespan of BBOXX SLA batteries or solar kits containing SLA batteries will be guaranteed
according to BBOXX SLA batteries lifespan vs discharge curves found in the technical folder on
the BBOXX website.
- The consignee must ensure during a warranty claim that the customer did not overload the
batteries, connect loads directly to the battery terminals or modified the low voltage disconnect
points of BBOXX’s discharge controllers or inverter-chargers.
- The consignee must make sure that the system is installed and used according to BBOXX user manuals.
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
BBOXX 6W LED TUBE DATASHEET
DIMENSIONS
ELECRICAL SPECIFICATIONS
PARAMETER
VALUE
Rated Power (W)
5.46
Input Voltage (V)
13
Input Current (mA)
0.42
LED Type
White
Lifespan
>30000H
MECHANICAL SPECIFICATIONS
PARAMETER
VALUE
Socket Material
Aluminium Alloy
Cover Material
PC
PCB Material
FR4 Double-sided
Weight
CHROMACITY
0.29
Dimension A (mm)
φ34MM
Dimension B (mm)
370MM
Dimension C (mm)
Various
IP Class
Switch Life Expectancy
IP53
Over 10000 Cycles
OPTICAL SPECIFICATIONS
PARAMETER
VALUE
Luminous Flux (Lm)
>367Lm
Color Temperature
6000--6500K
Color Rendering Index
Lens Light Angle
>70
150° ± 5°
OPERATION CONDITIONS
PARAMETER
VALUE
K ƉĞƌĂƟŶŐdĞŵƉ͘ ZĂŶŐĞ
-40 to +85°C
Storage Temp. Range
-40 to +85°C
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
BBOXX USB PHONE CHARGER DATASHEET
OUTPUTS

10 kind Jack

IPHONE

NOKIA 3.5

NOKIA Small

SAMSUNG

Mini USB

SONY-ERICSSON

LG

PSP

Micro USB
TYPES OF PHONES SUPPORTED
NOKIA-8210
1100, 1101, 1110, 1600, 2100, 2112, 2116, 2118, 2125, 2140, 2280, 2300, 2600, 2650, 2652, 3100, 3105,
3108, 3120, 3125, 3155, 3200, 3205, 3210, 3220, 3230, 3300, 3310, 3315, 3330, 3350, 3390, 3410, 3510,
3510i, 3530, 3585, 3586, 3610, 3650, 3660, 5100, 5110, 5140, 5140i, 5210, 5510, 6012, 6015, 6020, 6021,
6030, 6060, 6100, 6108, 6110, 6150, 6155, 6170, 6200, 6210, 6220, 6225, 6230, 6230i, 6235, 6250, 6255,
6260, 6270, 6310, 6310i, 6385, 6500, 6510, 6585, 6600, 6610, 6610i, 6620, 6630, 6650, 6670, 6680, 6681,
6800, 6820, 6822, 7110, 7200, 7210, 7250, 7250i, 7260, 7270, 7280, 7600, 7610, 7650, 7700, 7710, 8110,
8210, 8250, 8280,8290, 8310, 8800, 8810, 8850, 8855, 8890, 8910, 8910i, 9110, 9210, 9210i, 9290, 9300,
9500, E60, N-Gag
NOKIA-6101
N70, N71, N72, N73, N80, N80ie, N90, N91, N918GB, N92, N93, E61, E62, 770, 2865i, 3155i,5310, 3250,
5500, 6070, 6080, 6101, 6102, 6102i, 6103, 6111, 6125, 6126, 6131, 6133, 6136, 6151, 6155i, 6165i,
6233,6265i, 6270, 6280, 7360, 7370
NOKIA-8600
8600-6500-6500C-6300-E65-E61I-8800A-5610-3500C-7500-7900-5700
SAM-A288
A300, A400, A561, A601, A800, C100, D410, D500, D508, D510, D600, E100, E310, E330, E360, E600, E630,
E700, E730, E738, E770 , E800, E820, N181, N361, N500, P400, P510, R210, R220, S300, S308, S500, SCH600, SCH-620, T100, T108, T400, T500, T508, V200, X100, X150, X200, X430, X460, X480, X600, X640, X660
SCH-A210, SCH-A310, SCH-A399, SCH-A475, SCH-A505, SCH-A509, SCH-A530, SCH-A539, SCH-A563, SCHA564, SCH-A570, SCH-A591, SCH-A592, SCH-A595, SCH-A599, SCH-A610, SCH-A650, SCH-A670, SCH-A795,
SCH-A809, SCH-N181, SCH-N181, SCH-N182, SCH-N191, SCH-N195, SCH-N288, SCH-N330, SCH-N370, SCHN375, SCH-X199, SCH-X209, SCH-X309, SCH-X319, SCH-X359, SGH-A200, SGH-A288, SGH-A300, SGH-A308,
SGH-A400, SGH-A408, SGH-A500, SGH A561, SGH-A608, SGH-A800, SGH-C100, SGH-C130, SGH-C207, SGHC225, SGH-C417, SGH-D100, SGH-D307, SGH-D347, SGH-D357, SGH-D407, SGH-D415, SGH-D500, SGHD600, SGH-D800, SGH-E100, SGH-E105, SGH-E300, SGH-E315, SGH-E316, SGH-E317, SGH-E330, SGHE330N, SGH-E350, SGH-E335, SGH-E370, SGH-E400, SGH-E600, SGH-E630, SGH-E635, SGH-E700, SGHE710, SGH-E715, SGH-E760, SGH-E770, SGH-E800, SGH-K528, SGH-N200, SGH-N400, SGH-N500,SGHN620, SGH-N625, SGH-N628, SGH-P107, SGH-P207, SGH-P400, SGH-P408, SGH-P510, SGH-P735, SGHQ100, SGH-Q200, SGH-Q208, SGH-Q300, SGH-R200, SGH-R208, SGH-R210, SGH-R210S, SGH-R220, SGHR225, SGH-R225M, SGH-S100, SGH-S200, SGH-S208, SGH-S300, SGH-S300M, SGH-S307, SGH-S308, SGH
S500, SGH-T100, SGH-T108, SGH-T200, SGH-T208, SGH-T209, SGH-T309, SGH-T319, SGH-T410, SGH-T400,
SGH-T408, SGH-T500, SGH-T609, SGH-T619, SGH-T709, SGH-T719, SGH-V100, SGH-V200, SGH-V205, SGHV206, SGH-X100, SGH-X105, SGH-X426, SGH-X427, SGH-X427M, SGH-X450, SGH-X460, SGH-X475, SGHX480, SGH-X495, SGH-X497, SGH-X507, SGH-X600, SGH-X640, SGH-X660, SPH-A420, SPH-A580, SPH-A640,
SPH-A900, SPH-M500, SPH-T100
SAM-G600
G600-M300-M510-G608-G808-M618-M608-L288-I550W-W159-P318
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
TYPES OF PHONES SUPPORTED
SAM-D800
MOTO-V8
MOTO-V998
159/W109/X609/X619/X699/X809/X859/X869/C208/D108/D410/D418/
D428/D488/D508/E338/E608/E618/E638/E808/E810/E818/P518/P738/X108/X430/X458/X458/X468/
X608/Z105/C128/B200/D518/E239/F209/F319/M299/M309/M329/M339/M509/M709/S200/T309/
W219/W379/X639/X708/X839/X889/X899/X909/X919/X929/X939/X969/i539/C218/C238/D608/D720/
D730/D808/D828/E348/E358/E568/E628/E648/E728/E738/E758/E768/E778/E888/E910/P308/P858/
X138/X208/X478/X488/X628/X648/X668/X808/Z130/Z300/Z308/Z500/Z510/Z540/Z700/ZX10/i308/i530/
i858/B600/ D728/ F359/ W399/ X979/ i819/ D528/ D870/
E368/ E900/ P900/ X308/ X678/ X818/ Z150/ Z350/ Z400/ Z550/ Z560/ Z600/ Z710/ i310/ i320/ S4300/
Z140VSGH-D520, D800, D820, D830, D840, D900, E250, E390, E500, E570, E780, E870, E900, P300, P310,
X820, X830, Z400, Z400v, Z510, Z520, Z530, Z540, Z540v, Z560, Z720, ZV40
V8-E8-Q8-Z8-Z6-V9-U9-A1800-W230-V1600-W510
920/328/V998/V999/T689/L2000/V3688/STAR/L2168/V6088/3690/
928/V8160/T189/388/C289/8088/8160/7790/CD928/C350/C359/2088/308/338/366/306/
MOTO-V66
E365/E360/E380/C365/T2688/T360/XGF520/T2988/T205/FUNAI/A630, A830, A835, A920, A925, A1000,
C331 and C332 (TDMA versions), C333 (CDMA with antenna), C341, C343, C353 (TDMA), C975, E310,
E550, E1000, MPx220, ROKR, T280i, T300p, T720, T720i, T721, T721i, T722i, T730, T731, V70, V260, V262,
V265, V300, V400, V500, V505, V525, V545, V547, V550, V551, V600, V620, V635, V710, V810, V975,
V1050, V60, V60i, V60c, V60p(PTT), V60s, V60t, V60t Colour, V60g, V60x, V66, V66i, V120c, 120t, 120x,
120c, 120e, 270c, 280, phones and V200 Personal Communicator.
S2688 /NEC998D/Konka5218/Haier3000/Pang60/V66
MOTO-V3
A780, E1070, E770v, KRZR K1, L2, L6, L7 i-mode, MPx200, PEBL V6, RAZR maxx V6, RAZR V3, RAZR V3i,
RAZR V3x, RIZR Z3, SLVR L7, U6, V235, V360, V360vT10 series, T30 series, PMP-100 series, PMC-100 series, H300 Series, iGP-100, iFP-1000 series, iFP-900 series, iFP-800 series, iFP-700 series, iFP-300 series,
N10 V220/T300/ E1000/ E390/ E398/ E610/ E615/E680/E1060/E1070/ E1120/ E375/ E680i/ E685/E725/
E770/ E790/ E895 /V3
SONYERI-T28
2618, 3618, A2618s, A2628 , A3618s - Blue, A3618s - Silver, F500i, J200i, J210i, J220i, J230i, J300, K300i,
K500i, K508i, K600i, K608i, K700i, P800, P900, P910, P910i, R310s, R320c, R380, R520, R600, S700i, T100,
T105, T20, T200, T20e, T20s , T230, T28, T28s, T29, T290, T29s, T300, T310 , T39, T39s, T60, T600, T606,
T608, T610, T630 , T65, T66, T68, T68i, V600, V800, Z1010, Z200, Z500 A2218z, A2618, A2618s, A2628,
A3618s, F500i, J210i, J300i, K300i, K500i, K508i, K600i, K608i, K700i, P800, P900, P910i, R300d, R300LX,
R300z, R320, R320s, R380 WORLD, R380e, R380s, R520m, R600, S700i, T20e, T20s, T28 WORLD, T28z, T29,
T29s, T39m, T60c, T60d, T61c, T61d, T61LX, T61z, T62u, T65, T66, T68, T68i, T100, T105, T200, T226, T230,
T290i, T300, T306, T310, T316, T600, T610, T616, T620, T630, V600i, V800, Z200, Z300i, Z600, Z800i,
Z1010
SONYERI-750
J200c/J200c/K506c/K508c/K700c/P908/P910c/S700c/T290c/V800/Z1010/Z500/J210c/J220/J230/J230i/
J300c(J300i)/K300c/K600i/K608i/K750c/K758c/P990c/V600i/W550c/W800c/W900c/Z300/Z520c/Z800i/
J220c/J220c/K310c/K510c/K610c/K790c/K800c/M600c/W300c/W600c/W810c/W810i
/W950c/Z530c/Z530iD750i, J100a, J100c, J100i, J220a, J220c, J220i, J230c, J230i, K310a, K310c, K310i,
K320i, K510a, K510c, K510i, K610i, K610im, K750c, K750i, K758c, K790a, K790c, K790i, K800i, M600i,
M608c, P990i, V630i, W300c, W300i, W550c, W550i, W600c, W600i, W700c, W700i, W710c, W710i,
W800i, W810c, W810i, W830i, W850i, W900c, W900i, W950i, W958c , Z520a, Z520c, Z520i, Z525a, Z525i,
Z530c, Z530i, Z550a, Z550c, Z550i, Z558c, Z558i, Z610i, Z710c, Z710i, J220i, K618i, M600i, W800c, W830
SIE-C25
C25/X25/C35/C45/3518/6618/C2588/3518/3618/3508/3568/6688/2118/M35/M50/ME45/MT50/S35/
S45/SL42/A35/A36/A45/A10/SL50/SL45/S25/S35/S45/2508
SIE-C55
A56/A55/A52/C46/C55/C56/C62/C65/M45/M65/MC60/S56/S57/SL55/SL56/SX1-4/2128/SC55/SL55
LG-8080
LG8080//SC9288/SC9388//LG6260/SC9288/SC9388/LG8180/LG7020
LG-KG90
LG KG800 Chocolate, LG KG810, LG KG320KG225/KG320/KG800/KG920/KG90/VX8500
TREO-650
TREO-650-TREO-680
[email protected] | © BBOXX Ltd. 2012 | www.bboxx.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
