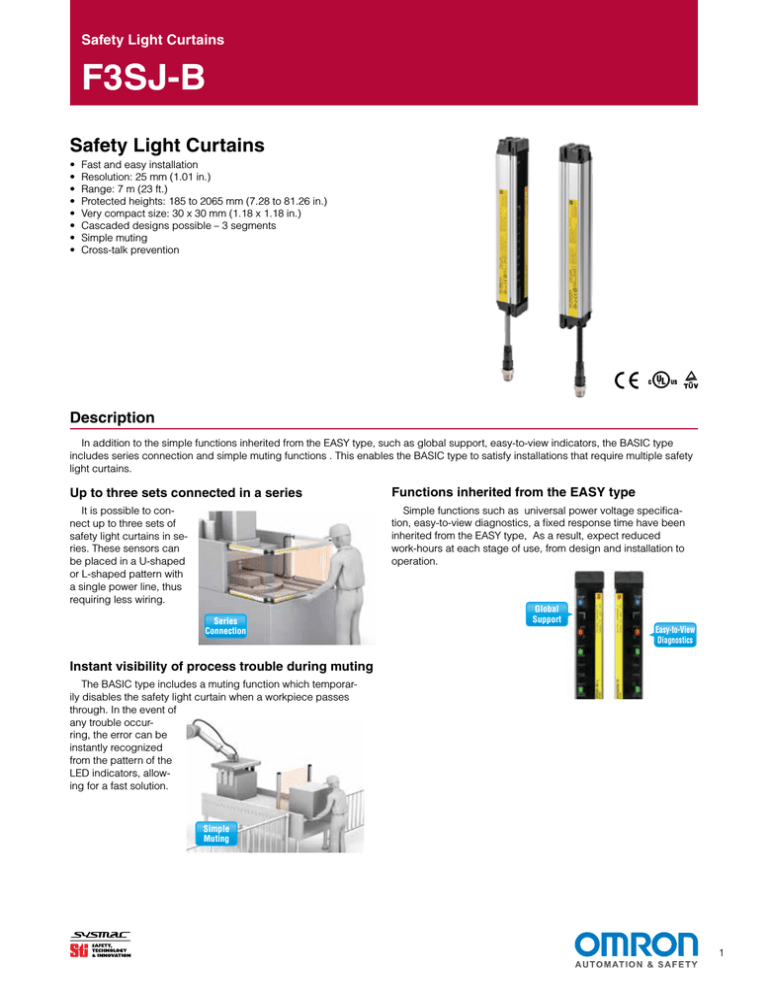

Safety Light Curtains F3SJ-B

Safety Light Curtains F3SJ-B

Safety Light Curtains

F3SJ-B

Safety Light Curtains

• Fast and easy installation

• Resolution: 25 mm (1.01 in.)

• Range: 7 m (23 ft.)

• Protected heights: 185 to 2065 mm (7.28 to 81.26 in.)

• Very compact size: 30 x 30 mm (1.18 x 1.18 in.)

• Cascaded designs possible – 3 segments

• Simple muting

• Cross-talk prevention

Description

In addition to the simple functions inherited from the EASY type, such as global support, easy-to-view indicators, the BASIC type includes series connection and simple muting functions . This enables the BASIC type to satisfy installations that require multiple safety light curtains.

Up to three sets connected in a series

It is possible to connect up to three sets of safety light curtains in series. These sensors can be placed in a U-shaped or L-shaped pattern with a single power line, thus requiring less wiring.

Functions inherited from the EASY type

Simple functions such as universal power voltage specification, easy-to-view diagnostics, a fixed response time have been inherited from the EASY type, As a result, expect reduced work-hours at each stage of use, from design and installation to operation.

Series

Connection

Global

Support

Easy-to-View

Diagnostics

Instant visibility of process trouble during muting

The BASIC type includes a muting function which temporarily disables the safety light curtain when a workpiece passes through. In the event of any trouble occurring, the error can be instantly recognized from the pattern of the

LED indicators, allowing for a fast solution.

Simple

Muting

D-282

F3SJ-B

Safety Light Curtains

Specifications

Main Units

F3SJ-B

££££

P25

Sensor type

Setting tool connection *1

Safety category

Detection capability

Beam gap (P)

Number of beams (n)

Protective height (PH)

Lens diameter

Operating range *2

Response time

(under stable light incident condition)

ON to OFF

OFF to ON

Startup waiting time

Power supply voltage (Vs)

Consumption current

(no load)

Emitter

Receiver

Light source (emitted wavelength)

Effective aperture angle (EAA)

Safety outputs (OSSD)

Auxiliary output 1

Output operation mode

Input voltage

Mutual interference prevention function

Series connection

Test function

Safety-related functions

Connection type

Protection circuit

Ambient temperature

Ambient humidity

Operating ambient light intensity

Insulation resistance

Dielectric strength

Degree of protection

Vibration resistance

Shock resistance

Pollution degree

Type 4 safety light curtain

Parameter settings: Not available

Safety purpose of category 4, 3, 2, 1, or B

Opaque objects 25 mm in diameter

20 mm

8 to 102

185 to 2,065 mm

Diameter 5 mm

0.2 to 7 m

15 ms max. (response time at 1 set connection, series connection of 2 sets or 3 sets)

70 ms max. (response time at 1 set connection, series connection of 2 sets or 3 sets)

2 s max.

SELV/PELV 24 VDC±20% (ripple p-p 10% max.)

Up to 22 beams: 52 mA max., 26 to 42 beams: 68 mA max., 46 to 62 beams: 75 mA max.,

66 to 82 beams: 88 mA max., 86 to 102 beams: 101 mA max.

Up to 22 beams: 45 mA max., 26 to 42 beams: 50 mA max., 46 to 62 beams: 46 mA max.,

66 to 82 beams: 61 mA max., 86 to 102 beams: 67 mA max.

Infrared LED (870 nm)

Based on IEC 61496-2. Within ±2.5° for both emitter and receiver when the detection distance is 3 m or over

Two PNP transistor outputs, load current 200 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension), Leakage current 1 mA max., load inductance 2.2 H max. *3

Maximum capacity load 1 µF *4

Two PNP transistor outputs, load current 100 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension), leak current 1 mA max.

Safety output: On when receiving light

Auxiliary output:

– Reverse output of safety output for a basic system

– ON when muting/override for a muting system

ON voltage: Vs-3 V to Vs *5

OFF voltage: 0 V to 1/2 Vs or open

Mutual interference prevention algorithm prevents interference in up to 3 sets.

Time division emission by series connection

• Number of connections: up to 3 sets (between F3SJ-Bs only) Other models cannot be connected.

• Total number of beams: up to 192 beams

• Maximum cable length for 2 sets: no longer than 7 m

• Self test (at power-ON and at power distribution)

• External test (emission stop function by test input)

• Interlock (basic system)

• External device monitoring (basic system)

• Muting (muting system)

• Override (muting system)

Connector method (M12, 8-pin)

Output short-circuit protection, and power supply reverse polarity protection

Operating: -10 to 55°C (non-freezing), Storage: -25 to 70°C

Operating: 35% to 85% (no condensation), Storage: 35% to 95% RH

Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.

20 MΩ min. (at 500 VDC)

1,000 VAC 50/60 Hz, 1 min

IP65 (IEC 60529)

Malfunction: 10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps in X, Y, and Z directions

Malfunction: 100 m/s2, 1,000 times each in X, Y, and Z directions

Pollution degree 3 (IEC 60664-1)

(Continued on next page)

*1. Do not use the Support Software and Setting Console for F3SJ-A.

Operation cannot be guaranteed.

*2. Use of the Spatter Protection Cover causes a 10% maximum sensing distance attenuation.

*3. The load inductance is the maximum value when the safety output frequently repeats ON and OFF. When you use the safety output at 4 Hz or less, the usable load inductance becomes larger.

*4. These values must be taken into consideration when connecting elements including a capacitive load such as capacitor.

*5. The Vs indicates a voltage value in your environment.

*7. Mounting brackets are sold separately.

F3SJ-B

Safety Light Curtains

Specifications (continued)

Main Units

F3SJ-B

££££

P25 (continued)

Power cable

Connection method: Prewired connector cable, cable length 0.3 m, connector type (M12, 8-pin), connector: IP67 rated (when mated)

Number of wires: Emitter: 8 wires

Cable diameter: Dia. 6 mm

Allowable bending radius: R5 mm

Extension cable

Material

30 m max.

Case: Aluminum

Cap: ABS resin, PBT

Optical cover: PMMA resin (acrylic)

Cable: Oil resistant PVC

Weight (packed state) Weight (g) = (protective height) x 2.7 + 500

Accessories

Applicable standards

Test rod, User’s Manual (CD-ROM) *7

IEC 61496-1, EN 61496-1 UL 61496-1, Type 4

ESPE (Electro-Sensitive Protective Equipment)

IEC 61496-2, CLC/TS 61496-2, UL 61496-2,

Type 4 AOPD (Active Opto-electronic Protective

Devices)

IEC 61508-1 to -3, EN 61508-1 to -3 SIL3

IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe,

Cat.4)

UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/

CSA C22.2 No.0.8

Accessories

Control Unit

F3SP-B1P

Applicable sensor

Power supply voltage

Power supply consumption

Operation time

Response time

F3SJ-B/A (Only for PNP output type)*

24 VDC ±10%

DC1.7 W max. (not including sensor’s current consumption)

100 ms max. (not including sensor’s response time)

100 ms max. (not including sensor’s response time)

Number of contacts

3NO + 1NC

Relay output Rated load

Rated current

250 VAC 5 A (cos = 1), 30 VDC 5 A L/R

= 0 ms

5 A

Connection type

Between sensors M12 connector (8-pin)

Others Terminal block

Weight (packed state)

Accessories

Approx. 280 g

Instruction manual

*NPN output type cannot be connected. Also, the system cannot be used as a muting system.

Applications

Selecting the Best Configuration

Space Efficient and Low Cost

The built-in external device monitoring function eliminates the need for a safety relay unit.

No Safety Relay Unit

F39-JD®A

G7SA

Reduced Wiring and Easy Maintenance

Cables with connectors on both ends simplify connections and prevent wiring errors.

Connector Type

F39-JD®B

Contactor Motor

F3SP-B1P

Dedicated controller

Contactor

Motor

F3SJ-B

Safety Light Curtains

Wiring

Basic Wiring Diagram

Wiring when using manual reset mode, external device monitoring

F39-JD

@A-L

(Gray) Communication line (+)

(Pink)

Communication line (−)

F39-JD

@A-D

S1 S2

KM1

KM2

K1

KM1 KM2

S1

S2

KM1, KM2

K1

: External test switch (connect to 0 V if a switch is not required)

: Interlock/lockout reset switch

: Safety relay with force-guided contact (G7SA) or magnetic contactor

: Load or PLC, etc. (for monitoring)

Wiring for auto reset mode and deactivated external device monitoring

F39-JD

@A-L

(Gray) Communication line (+)

(Pink)

Communication line (−)

F39-JD

@A-D

+24 VDC

Power supply

0 V

S1 S2

K1 KM1 KM2

D-304

S1

S2

KM1, KM2

K1

: External test switch (connect to 0 V if a switch is not required)

: Lockout reset switch

: Safety relay with force-guided contact (G7SA) or magnetic contactor

: Load or PLC, etc. (for monitoring)

+24 VDC

0 V

Power supply

Dimensions

F3SJ-B/F3SJ-E Dimensions

The dimensions of the F3SJ-B and F3SJ-E are the same except for connector cables and cable leads.

Main Units

Mounting Top/Bottom and Intermediate Brackets

F3SJ-B

Safety Light Curtains

(mm)

Backside mounting

Top/Bottom Bracket

(F39-LJB1)

43

2

13

Intermediate

Bracket

(F39-LJB2)

30

30

22

7

30

30

19 dia.9

4-M5

22

19

Mounting screw holes

22

2-M8

C (protective height): 4-digit number in the table

A = C + 69, B = C + 42.2

D = C - 45, E = See table below, P = 20

Protective height

185 to 1,105

1,185 to 1,345

1,425 to 2,065

Number of intermediate brackets

0

1

2

E

C/2 max.

C/3 max.

53 42

2-M5 2-M5

Top/Bottom

Bracket

(F39-LJB1)

Side mounting

Top/Bottom

Bracket

(F39-LJB1) dia.9

30

19

6.5

Intermediate

Bracket

(F39-LJB2)

7

30

B A

34

42

Top/Bottom

Bracket

(F39-LJB1)

12

<M5 screw fixed> <M8 screw fixed>

30

46

4-M5

19

Mounting screw holes

2-M8

16

2-M5

22

2-M5

22

<M5 screw fixed> <M8 screw fixed>

45

C (protective height): 4-digit number in the table

A = C + 69, B = C + 42.2

D = C - 45, E = See table below, P = 20

Protective height

185 to 1,105

1,185 to 1,345

1,425 to 2,065

Number of intermediate brackets

0

1

2

E

C/2 max.

C/3 max.

Dimensions of top/bottom bracket for F39-LJB1

19

6.5

dia.9

16

30

Material : Stainless

Dimensions (continued)

Main Units

When Using Quick Mount Brackets

Backside mounting

Quick Mount Bracket

(F39-LJB3-M6 or

F39-LJB3-M8)

43

30

30

F3SJ-B

Safety Light Curtains

(mm)

2-M6

Mounting screw holes

2-M8

C (protective height): 4-digit number in the table

F = See the table below.

Protective height

185 to 1,105

1,185 to 1,585

1,665 to 2,065

Number of intermediate brackets

2

3

4

F

555 mm max.

555 mm max.

555 mm max.

Quick Mount Bracket

(F39-LJB3-M6 or

F39-LJB3-M8)

15

Side mounting

Quick Mount Bracket

(F39-LJB3-M6 or

F39-LJB3-M8)

16

30

33

45

<M6 screw fixed> <M8 screw fixed>

Mounting screw holes

2-M6 2-M8

C (protective height): 4-digit number in the table

F = See the table below.

Protective height

185 to 1,105

1,185 to 1,585

1,665 to 2,065

Number of intermediate brackets

2

3

4

F

555 mm max.

555 mm max.

555 mm max.

Quick Mount Bracket

(F39-LJB3-M6 or

F39-LJB3-M8)

3

12

<M6 screw fixed> <M8 screw fixed>

Dimensions of quick mount bracket for F39-LJB3

Backside mounting

dia.22

(32.1)

80

(32.1) dia.22

D-326

30

53

Material : Zinc die-cast

Quick mount M6 bracket Quick mount M8 bracket

dia.6.2

dia.8.2

dia.13

1.5

8

Material : Stainless dia.17

1.5

8

Material : Stainless

Side mounting

dia.22

(32.1)

80

(32.1)

26 dia.22

53

Material : Zinc die-cast

F3SJ-B

Safety Light Curtains

Ordering

Main Units

Safety Light Curtains

Application

Hand protection

Detection capability

Dia. 25 mm

Beam gap

20 mm

Operating range

0.2 to 7 m

Protective height

(mm)

185 to 2,065

Model

PNP output

F3SJ-B££££P25

Safety Light Curtain Model List

Please contact our sales representatives.

F3SJ-B Series (20 mm pitch)

Model

F3SJ-B0185P25

F3SJ-B0225P25

F3SJ-B0305P25

F3SJ-B0385P25

F3SJ-B0465P25

F3SJ-B0545P25

F3SJ-B0625P25

F3SJ-B0705P25

F3SJ-B0785P25

F3SJ-B0865P25

F3SJ-B0945P25

F3SJ-B1025P25

F3SJ-B1105P25

Number of beams

8

10

14

18

42

46

50

54

22

26

30

34

38

Protective height

[mm] *

185

225

305

385

465

545

625

705

785

865

945

1,025

1,105

Model

F3SJ-B1185P25

F3SJ-B1265P25

F3SJ-B1345P25

F3SJ-B1425P25

F3SJ-B1505P25

F3SJ-B1585P25

F3SJ-B1665P25

F3SJ-B1745P25

F3SJ-B1825P25

F3SJ-B1905P25

F3SJ-B1985P25

F3SJ-B2065P25

Number of beams

58

62

66

70

74

78

82

86

90

94

98

102

*Protective height (mm) = Total sensor length

Accessories (sold separately)

Single-end Connector Cable (2 cables per set, for emitter and receiver)

For wiring with safety circuit such as single safety relay, safety relay unit, and safety controller.

Appearance Specifications Cable length

3 m

7 m

10 m

15 m

20 m

M12 connector (8-pin)

Model

F39-JD3A

F39-JD7A

F39-JD10A

F39-JD15A

F39-JD20A

Protective height

[mm] *

1,185

1,265

1,345

1,425

1,505

1,585

1,665

1,745

1,825

1,905

1,985

2,065

Double-end Connector Cable (2 cables per set, for emitter and receiver)

Control unit for connection with F3SP-B1P, to extend the length under series connection.*

Appearance Cable length

0.5 m

Specifications Model

F39-JDR5B

1 m

3 m

5 m

7 m

10 m

M12 connector (8-pin)

F39-JD1B

F39-JD3B

F39-JD5B

F39-JD7B

F39-JD10B

15 m F39-JD15B

20 m F39-JD20B

*To extend the cable length under series connection, use F39-JBR2W and F39-JD£B in combination. Also, the cable length 10 to 20 m cannot be used.

D-348

F3SJ-B

Safety Light Curtains

Ordering (continued)

Accessories (sold separately) (continued)

Series-connection Cable (2 cables per set, for emitter and receiver)

Type Appearance Cable length

Series connection cable for extension

0.2 m

Model

F39-JBR2W *1

Application

For series connection *2

Extension cable 0.5 to 7 m F39-JD£B

To change series connection length in combination with F39-JBR2W

*1. This product is for F3SJ-B only.

*2. Total cable length of series connection is 0.5 m to connect to connector cable of the main sensor unit.

Relays with Forcibly Guided Contacts

Type Appearance Model

G7SA Relays with

Forcibly Guided Contacts

G7S-£-E Relays with

Forcibly Guided Contacts

Specifications

• Nodes: 4

• Contact type: 2A2B

• Rated switch load:

250 VAC 6A, 30 VDC 6A

• Nodes: 4

• Contact type: 3NO+1NC

• Rated switch load:

250 VAC 6A, 30 VDC 6A

• Nodes: 6

• Contact type: 4NO+2NC

• Rated switch load:

250 VAC 10 A, 30 VDC 10 A

• Nodes: 6

• Contact type: 3NO+3NC

• Rated switch load:

250 VAC 10 A, 30 VDC 10 A

G7SA-2A2B

G7SA-3A1B

G7S-4A2B-E

G7S-3A3B-E

Laser Pointer

Appearance Description Model

Remarks

For information on the

G7SA, contact Omron or visit website.

For information on the G7S-£-E, contact

Omron or visit website

Laser Pointer for F3SJ F39-PTJ

Key Cap for Muting

Appearance Description

Muting key cap for F3SJ-B

Model

F39-CN10

F3SJ-B

Safety Light Curtains

Ordering (continued)

Accessories (sold separately) (continued)

Sensor Mounting Bracket (sold separately)

Appearance Specifications

Top/bottom bracket

Model Application Remarks

F39-LJB1 Top/bottom bracket for F3SJ-E/B

2 for the emitter,

2 for the receiver, total of 4 per set

Intermediate bracket F39-LJB2 *1 *2

In combination use with top/bottom bracket for F3SJ-E/B

Can be used as free-location bracket.

1 set with 2 pieces

Quick mount bracket

M6 slide nut

M8 slide nut

F39-LJB3-M6 *1

F39-LJB3-M8 *2

Quick mount bracket for F3SJ-E/B

Supports M6 slide nut for aluminum frame.

1 set with 2 pieces

Quick mount bracket for F3SJ-E/B

Supports M8 slide nut for aluminum frame.

F39-LJB3-M6K *1

F39-LJB3-M8K *2

Spare slide nut for use with Quick mount bracket.

Hexagon socket head cap screws (M6 x 10) are included.

Hexagon socket head cap screws (M8 x 14) are included.

Compatible mounting bracket

Note: All the sensor mounting brackets for the F3SJ-E are sold separately.

*1. Combining F39-LJB2 and F39-LJB3-M6K makes F39-LJB3-M6.

*2. Combining F39-LJB2 and F39-LJB3-M8K makes F39-LJB3-M8.

F39-LJB4

Mounting bracket used when replacing existing area sensors

(F3SJ-A or F3SN) with the

F3SJ-E/B.

2 for the emitter,

2 for the receiver, total of 4 per set

F3SJ-B

Safety Light Curtains

Ordering (continued)

Accessories (sold separately) (continued)

Spatter Protection Cover (2 cables per set, common for emitter/receiver)

Appearance Model

F39-HB££££*1 *2

*1. The same 4-digit numbers as the protective heights (££££ in the light curtain model names) are substituted in the model names.

*2. It cannot be mounted to the models with the suffix “-02TS”.

Protective Bar

Appearance Model

F39-PB££££*1

F39-PB££££-S *1 *2

Remarks

• 2 light curtain brackets

• 4 mounting brackets

• 0 to 4 intermediate brackets for backside mounting

(quantity required for the sensing width)

• 0 to 4 intermediate brackets for mounting to the sides

(quantity required for the sensing width)

• 1 light curtain bracket

• 2 mounting brackets

• 0 to 2 intermediate brackets for backside mounting

(quantity required for the sensing width)

• 0 to 2 intermediate brackets for mounting to the sides

(quantity required for the sensing width)

Note: The following are not provided with the protective bars: Safety Light Curtain, Safety Light Curtain Top/Bottom Brackets, Wall Mounting Screw Unit

*1. The same 4-digit numbers indicating the protective height that is used in the Sensor model number (££££) are used in the part of the Protector model number.

*2. Purchase the F39-PB££££ (which contains two sets of brackets) to use Protective Bars for both the Emitter and Receiver.

Terms and Conditions of Sale

1.

Offer; Acceptance. These terms and conditions (these "Terms") are deemed part of all quotes, agreements, purchase orders, acknowledgments, price lists, catalogs, manuals, brochures and other documents, whether electronic or in writing, relating to the sale of products or services (collectively, the "Products") by Omron Electronics LLC and its subsidiary companies (“Omron”). Omron objects to any terms or conditions proposed in Buyer’s purchase order or other documents which are inconsistent with, or in addition to, these Terms.

2.

Prices; Payment Terms. All prices stated are current, subject to change without notice by Omron. Omron reserves the right to increase or decrease prices on any unshipped portions of outstanding orders. Payments for Products are due net 30 days unless otherwise stated in the invoice.

3.

Discounts. Cash discounts, if any, will apply only on the net amount of invoices sent to Buyer after deducting transportation charges, taxes and duties, and will be allowed only if (i) the invoice is paid according to Omron’s payment terms and (ii) Buyer has no past due amounts.

4.

Interest. Omron, at its option, may charge Buyer 1-1/2% interest per month or the maximum legal rate, whichever is less, on any balance not paid within the stated terms.

5.

Orders. Omron will accept no order less than $200 net billing.

6.

Governmental Approvals. Buyer shall be responsible for, and shall bear all costs involved in, obtaining any government approvals required for the importation or sale of the Products.

7.

Taxes. All taxes, duties and other governmental charges (other than general real property and income taxes), including any interest or penalties thereon, imposed directly or indirectly on Omron or required to be collected directly or indirectly by Omron for the manufacture, production, sale, delivery, importation, consumption or use of the Products sold hereunder (including customs duties and sales, excise, use, turnover and license taxes) shall be charged to and remitted by Buyer to Omron.

8.

Financial. If the financial position of Buyer at any time becomes unsatisfactory to Omron, Omron reserves the right to stop shipments or require satisfactory security or payment in advance. If Buyer fails to make payment or otherwise comply with these Terms or any related agreement, Omron may (without liability and in addition to other remedies) cancel any unshipped portion of Products sold hereunder and stop any Products in transit until Buyer pays all amounts, including amounts payable hereunder, whether or not then due, which are owing to it by Buyer. Buyer shall in any event remain liable for all unpaid accounts.

9.

Cancellation; Etc. Orders are not subject to rescheduling or cancellation unless Buyer indemnifies Omron against all related costs or expenses.

10. Force Majeure. Omron shall not be liable for any delay or failure in delivery resulting from causes beyond its control, including earthquakes, fires, floods, strikes or other labor disputes, shortage of labor or materials, accidents to machinery, acts of sabotage, riots, delay in or lack of transportation or the requirements of any government authority.

11. Shipping; Delivery. Unless otherwise expressly agreed in writing by Omron: a. Shipments shall be by a carrier selected by Omron; Omron will not drop ship except in “break down” situations.

b. Such carrier shall act as the agent of Buyer and delivery to such carrier shall constitute delivery to Buyer; c. All sales and shipments of Products shall be FOB shipping point (unless otherwise stated in writing by Omron), at which point title and risk of loss shall pass from Omron to Buyer; provided that Omron shall retain a security interest in the Products until the full purchase price is paid; d. Delivery and shipping dates are estimates only; and e. Omron will package Products as it deems proper for protection against normal handling and extra charges apply to special conditions.

12. Claims. Any claim by Buyer against Omron for shortage or damage to the

Products occurring before delivery to the carrier must be presented in writing to Omron within 30 days of receipt of shipment and include the original transportation bill signed by the carrier noting that the carrier received the Products from Omron in the condition claimed.

13. Warranties. (a) Exclusive Warranty. Omron’s exclusive warranty is that the

Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.

(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION,

EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS.

BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE

PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR

INTENDED USE. Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right. (c) Buyer Remedy. Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the non-complying Product, (ii) repair the non-complying

Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by

Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty.

See http://www.omron247.com or contact your Omron representative for published information.

14. Limitation on Liability; Etc. OMRON COMPANIES SHALL NOT BE LIABLE

FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,

LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY

WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS

BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

15. Indemnities. Buyer shall indemnify and hold harmless Omron Companies and their employees from and against all liabilities, losses, claims, costs and expenses (including attorney's fees and expenses) related to any claim, investigation, litigation or proceeding (whether or not Omron is a party) which arises or is alleged to arise from Buyer's acts or omissions under these Terms or in any way with respect to the Products. Without limiting the foregoing, Buyer (at its own expense) shall indemnify and hold harmless Omron and defend or settle any action brought against such Companies to the extent based on a claim that any Product made to Buyer specifications infringed intellectual property rights of another party.

16. Property; Confidentiality. Any intellectual property in the Products is the exclusive property of Omron Companies and Buyer shall not attempt to duplicate it in any way without the written permission of Omron. Notwithstanding any charges to Buyer for engineering or tooling, all engineering and tooling shall remain the exclusive property of Omron. All information and materials supplied by Omron to Buyer relating to the Products are confidential and proprietary, and Buyer shall limit distribution thereof to its trusted employees and strictly prevent disclosure to any third party.

17. Export Controls. Buyer shall comply with all applicable laws, regulations and licenses regarding (i) export of products or information; (iii) sale of products to

“forbidden” or other proscribed persons; and (ii) disclosure to non-citizens of regulated technology or information.

18. Miscellaneous. (a) Waiver. No failure or delay by Omron in exercising any right and no course of dealing between Buyer and Omron shall operate as a waiver of rights by Omron. (b) Assignment. Buyer may not assign its rights hereunder without Omron's written consent. (c) Law. These Terms are governed by the law of the jurisdiction of the home office of the Omron company from which

Buyer is purchasing the Products (without regard to conflict of law principles). (d) Amendment. These Terms constitute the entire agreement between

Buyer and Omron relating to the Products, and no provision may be changed or waived unless in writing signed by the parties. (e) Severability. If any provision hereof is rendered ineffective or invalid, such provision shall not invalidate any other provision. (f) Setoff. Buyer shall have no right to set off any amounts against the amount owing in respect of this invoice. (g) Definitions. As used herein, “including” means “including without limitation”; and “Omron Companies” (or similar words) mean Omron Corporation and any direct or indirect subsidiary or affiliate thereof.

Certain Precautions on Specifications and Use

1.

Suitability of Use. Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the

Product in the Buyer’s application or use of the Product. At Buyer’s request,

Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application, product or system.

Buyer shall take application responsibility in all cases but the following is a non-exhaustive list of applications for which particular attention must be given:

(i) Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document.

(ii) Use in consumer products or any use in significant quantities.

(iii) Energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations.

(iv) Systems, machines and equipment that could present a risk to life or property. Please know and observe all prohibitions of use applicable to this Product.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS

RISK TO LIFE OR PROPERTY OR IN LARGE QUANTITIES WITHOUT

ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO

ADDRESS THE RISKS, AND THAT THE OMRON’S PRODUCT IS PROP-

ERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE

OVERALL EQUIPMENT OR SYSTEM.

2.

Programmable Products. Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof.

3.

Performance Data. Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.

4.

Change in Specifications. Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at any time to confirm actual specifications of purchased Product.

5.

Errors and Omissions. Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.

OMRON AUTOMATION AND SAFETY • THE AMERICAS HEADQUARTERS • Hoffman Estates, IL USA847.843.7900800.556.6766www.omron247.com

OMRON CANADA, INC. • HEAD OFFICE

Toronto, ON, Canada • 416.286.6465 • 866.986.6766 • www.omron247.com

OMRON ELECTRONICS DE MEXICO • HEAD OFFICE

México DF • 52.55.59.01.43.00 • 01-800-226-6766 • [email protected]

OMRON ELECTRONICS DE MEXICO • SALES OFFICE

Apodaca, N.L. • 52.81.11.56.99.20 • 01-800-226-6766 • [email protected]

OMRON ELETRÔNICA DO BRASIL LTDA • HEAD OFFICE

São Paulo, SP, Brasil • 55.11.2101.6300 • www.omron.com.br

OMRON ARGENTINA • SALES OFFICE

Cono Sur • 54.11.4783.5300

OMRON CHILE • SALES OFFICE

Santiago • 56.9.9917.3920

OTHER OMRON LATIN AMERICA SALES

54.11.4783.5300

OMrOn EurOPE B.V. •

Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands.+31 (0) 23 568 13 00www.industrial.omron.eu

F3SJ-B

Authorized Distributor:

Automation Control Systems

• Machine Automation Controllers (MAC) • Programmable Controllers (PLC)

• Operator interfaces (HMI) • Distributed I/O • Software

Drives & Motion Controls

• Servo & AC Drives • Motion Controllers & Encoders

Temperature & Process Controllers

• Single and Multi-loop Controllers

Sensors & Vision

• Proximity Sensors • Photoelectric Sensors • Fiber-Optic Sensors

• Amplified Photomicrosensors • Measurement Sensors

• Ultrasonic Sensors • Vision Sensors

Industrial Components

• RFID/Code Readers • Relays • Pushbuttons & Indicators

• Limit and Basic Switches • Timers • Counters • Metering Devices

• Power Supplies

Safety

• Laser Scanners • Safety Mats • Edges and Bumpers • Programmable Safety

Controllers • Light Curtains • Safety Relays • Safety Interlock Switches

F24I-E-01 Note: Specifications are subject to change. © 2014 Omron Electronics LLC Printed in U.S.A.

Printed on recycled paper.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
