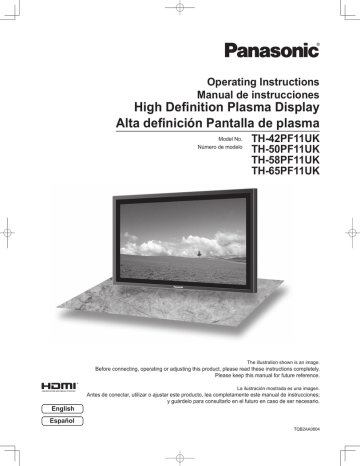

Spec / User Manual

Operating Instructions

Manual de instrucciones

High Defi nition Plasma Display

Alta defi nición Pantalla de plasma

Model No.

Número de modelo

TH-42PF11UK

TH-50PF11UK

TH-58PF11UK

TH-65PF11UK

English

Español

The illustration shown is an image.

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

La ilustración mostrada es una imagen.

Antes de conectar, utilizar o ajustar este producto, lea completamente este manual de instrucciones; y guárdelo para consultarlo en el futuro en caso de ser necesario.

TQB2AA0804

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualifi ed service personnel.

The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a t r i a n g l e i s i n t e n d e d t o tell the user that important o p e r a t i n g a n d s e r v i c i n g instructions are in the papers with the ap pli ance.

WARNING : To prevent damage which may result in fi re or shock hazard, do not expose this apparatus to rain or mois ture.

Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualifi ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fi t a grounding-type power outlet. This is a safety fea ture.

If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

2

This video monitor is designed to display television content from a separate TV tuner. Full-power analog TV broadcasting in the United States will end (as required by law) on February 17, 2009, after which full-power TV broadcasts will be digital only. If this device is used after that date to record or display programming from a product with a TV tuner that relies on a TV antenna, that product would need to contain a digital tuner, or a TV Converter would be necessary to tune the digital signal received with a TV antenna. Analog TVs should continue to work as before for other purposes

(e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video games). When a Converter is used with an older television receiver or directly with this product, a signal splitter might be necessary to continue to receive low-power analog broadcasts via an antenna. For more information, please see www.DTV.gov or 1-888-CALL-FCC. For information on the TV Converter program, and on government coupons that may be used toward the purchase of one, see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please check with your cable or satellite service provider if you have questions about your cable or satellite set-top box.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specifi ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

3

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the space provided on the rear cover of these instructions.

4

Table of Contents

Important Safety Instructions .................................. 3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

Accessories .............................................................. 8

Accessories Supplied .............................................. 8

Remote Control Batteries ........................................ 8

Connections .............................................................. 9

PC Input Terminals connection .............................. 10

SERIAL Terminals connection ............................... 11

HDMI connection ................................................... 12

COMPONENT / RGB connection .......................... 12

Power ON / OFF ..................................................... 13

Initial selections ..................................................... 15

Selecting the input signal ...................................... 15

Selecting the On-Screen Menu Language ............ 15

Basic Controls ........................................................ 16

ASPECT Controls ................................................... 18

MULTI PIP ................................................................ 19

Digital Zoom ............................................................ 22

On-Screen Menu Displays ..................................... 23

Adjusting POS. /SIZE ............................................. 24

PICTURE Adjustments ........................................... 26

ADVANCED SETTINGS ........................................ 27

SOUND Adjustment ................................................ 28

SDI SOUND OUTPUT ........................................... 28

PRESENT TIME SETUP / SET UP TIMER .............. 29

PRESENT TIME SETUP ....................................... 29

SET UP TIMER ..................................................... 29

SCREENSAVER (For preventing image retention) .. 30

Setup of SCREENSAVER Time ............................ 30

Reduces screen image retention ........................... 31

SIDE BAR ADJUST ............................................... 31

Reduces power consumption ............................... 32

Customizing the Input labels ................................. 33

DISPLAY ORIENTATION ......................................... 33

SET UP for MULTI DISPLAY ................................... 34

How to setup MULTI DISPLAY .............................. 34

ID Remote Control Function .................................. 35

MULTI PIP SETUP ................................................... 36

SET UP for PORTRAIT ........................................... 37

How to setup PORTRAIT ...................................... 37

SET UP for Input Signals ....................................... 39

COMPONENT / RGB IN SELECT ......................... 39

YUV / RGB IN SELECT ......................................... 39

SIGNAL menu ....................................................... 40

3D Y/C FILTER ...................................................... 40

COLOR SYSTEM / Panasonic AUTO ................... 41

3:2 PULLDOWN .................................................... 41

XGA MODE ........................................................... 41

REFRESH RATE ................................................... 42

NOISE REDUCTION ............................................. 42

SYNC .................................................................... 43

SDI THROUGH ..................................................... 43

Input signal display ................................................ 43

Options Adjustments ............................................. 44

Weekly Command Timer ....................................... 47

Shipping condition ................................................. 48

Troubleshooting ..................................................... 49

List of Aspect Modes ............................................. 50

Applicable Input Signals ........................................ 51

Command list of Weekly Command Timer ........... 53

Specifi cations ......................................................... 54

Panasonic Professional Flat Panel Display Limited Warranty .. 56

LIMITED WARRANTY STATEMENT ....................... 57

Customer Service ................................................... 58

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifi cations not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-42PF11UK, TH-50PF11UK, TH-58PF11UK, TH-65PF11UK

Responsible Party: Panasonic Corporation of North America

One Panasonic Way 1F-10, Secaucus, NJ 07094

Contact Source: Panasonic Professional Display Company

Panasonic Plasma Concierge 1-800-973-4390

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

• HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

5

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation.)

• Speakers .................................................... TY-SP42P8W-K (for TH-42PF11UK), TY-SP50P8W-K (for TH-50PF11UK),

TY-SP58P10WK (for TH-58PF11UK), TY-SP65P11WK (for TH-65PF11UK)

• Pedestal ..................................................... TY-ST07-K (for TH-42PF11UK), TY-ST08-K (for TH-42PF11UK, TH-50PF11UK),

TY-ST58-K (for TH-58PF11UK), TY-ST65P11-K (for TH-65PF11UK)

• Mobile stand .............................................. TY-ST42PF3 (for TH-42PF11UK),

TY-ST58PF10 (for TH-42PF11UK, TH-50PF11UK, TH-58PF11UK)

• Wall-hanging bracket (vertical) .................. TY-WK42PV7 (for TH-42PF11UK, TH-50PF11UK, TH-58PF11UK),

TY-WK65PV7 (for TH-65PF11UK)

• Wall-hanging bracket (angled) ................... TY-WK42PR7 (for TH-42PF11UK, TH-50PF11UK, TH-58PF11UK),

TY-WK65PR8 (for TH-65PF11UK)

• Wall-hanging bracket (drawer type) ...........TY-WK42DR1 (for TH-42PF11UK, TH-50PF11UK)

• Ceiling-hanging bracket .............................TY-CE42PS7 (for TH-42PF11UK, TH-50PF11UK)

• BNC Component Video Terminal Board ....TY-42TM6A

• BNC Composite Video Terminal Board ......TY-42TM6B

• BNC Dual Video Terminal Board ................TY-FB9BD

• RCA Component Video Terminal Board .....TY-42TM6Z

• RCA Composite Video Terminal Board ......TY-42TM6V

• RGB Active Through Terminal Board .........TY-42TM6G

• PC Input Terminal Board ............................TY-42TM6P

• Composite / Component Video Terminal Board ..TY-42TM6Y

• SDI Terminal Board ....................................TY-FB7SD

• HD-SDI Terminal Board ............................TY-FB9HD

• HD-SDI Terminal Board with audio ............TY-FB10HD

• Dual Link HD-SDI Terminal Board .............TY-FB11DHD

• HDMI Terminal Board ................................TY-FB8HM

• Dual HDMI Terminal Board ........................TY-FB10HMD

• DVI-D Terminal Board ................................TY-FB11DD

• Touch Panel ............................................... TY-TP42P10S (for TH-42PF11UK), TY-TP50P10S (for TH-50PF11UK),

TY-TP50P8-S (for TH-50PF11UK), TY-TP58P10S (for TH-58PF11UK),

TY-TP65P10S (for TH-65PF11UK)

• Touch Pen ..................................................TY-TPEN6 (for TH-50PF11UK)

• Ir Through Terminal Board .........................TY-FB9RT

• Wireless Presentation Board ....................TY-FB10WPU

• AV Terminal Box .........................................TY-TB10AV

• Anti Glare Filter .......................................... TY-AR42P9W (for TH-42PF11UK), TY-AR50P9W (for TH-50PF11UK),

TY-AR58P10W (for TH-58PF11UK), TY-AR65P9W (for TH-65PF11UK)

Always be sure to ask a qualifi ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the

Plasma Display.

• Moving the Display with its cables attached might damage the cables which, in turn, can cause fi re or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fi re. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.

Install your infrared sensor in a place away from direct or refl ected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

6

Safety Precautions / Maintenance

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma

Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fi re or electric shock. If any foreign objects get inside the Plasma Display, please consult an Authorized

Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma

Display.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

If using the pedestal (optional accessory), leave a space of 3

15

/

16

” (10 cm) or more at the top, left and right, and

2

3

/

4

” (7 cm) or more at the rear, and also keep the space between the bottom of the display and the fl oor surface.

If using some other setting-up method, follow the manual of it. (If there is no specifi c indication of installation dimension in the installation manual, leave a space of

3

15

/

16

” (10 cm) or more at the top, bottom, left and right, and 2

3

/

4

” (7 cm) or more at the rear.)

AC Power Supply Cord

The Plasma Display is designed to operate on 110 - 127 V

AC, 50/60 Hz.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause fi re or electric shocks.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fi re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable.

When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modifi cations, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fi re or electric shock.

If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the

Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause fi re or permanent damage to the unit.

Have the Display evaluated at an Authorized Service

Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause fi re. Contact an

Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

7

Accessories

Accessories Supplied

Operating

Instruction book

Check that you have the Accessories and items shown

Remote Control

Transmitter

EUR7636070R

Batteries for the

Remote Control

Transmitter

(2 × AA Size)

Fixing band × 1 AC cord

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity ( + and -).

3. Replace the cover.

+

-

+

“AA” size

-

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

6. Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.

8

Connections

When connecting the speakers, be sure to use only the optional accessory speakers.

Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

1

2

1

Speaker terminal (R)

Speaker terminal (L)

AC cord connection (see page 13)

– AC cord fi xing

1

1

Plug the AC cord into

the display unit.

Plug the AC cord until it clicks.

Close

2 Fix the AC cord with the clamper

2

the left and right sides.

which is attached to the unit.

For TH-42PF11UK, TH-58PF11UK:

Note:

Make sure that the AC

Clampers are not installed to this unit. Ensure there is suffi cient slack cord is locked on both in the AC cord and fi rmly bind with the supplied cable fi xing band, etc.

Open

Push until t h e h o o k clicks.

2. Pull off.

1. Keep the

knob

pressed.

2

Unplug the AC cord

Unplug the AC cord pressing the two knobs.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet fi rst.

– Cable fi xing band

Secure any excess cables with band as required.

Note:

One fi xing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.

Pass the attached cable fi xing band through the clip as shown in the fi gure.

To secure cables connected to Terminals, wrap the cable fi xing band around them then pass the pointed end through the locking block, as shown in the fi gure.

While ensuring there is suffi cient slack in cables to minimize stress (especially in the power cord), fi rmly bind all cables with the supplied fi xing band.

To tighten:

To loosen:

Push the catch

Pull

1

2

Pull

SLOT1 SLOT2

R AUDIO L P

R

/C

R

/R P

B

/C

B

/B

COMPONENT/RGB IN

Y/G

SLOT3 PC IN

AUDIO

SERIAL

Optional Terminal

Board Insert Slot

(covered)

Dual HDMI Terminals

(equivalent of Dual

HDMI Terminal Board

(TY-FB10HMD))

(see page 12)

COMPONENT/RGB IN and

Audio IN Terminals (equivalent of BNC Component Video

Terminal Board (TY-42TM6A))

(see page 12)

From EXTERNAL monitor terminal on Computer

(see page 10)

From SERIAL

Terminal on

Computer

(see page 11)

Note: At factory shipment, Terminal boards are installed in SLOT 2 and SLOT 3.

9

Connections

PC Input Terminals connection

COMPUTER

(Female)

PC IN

AUDIO

TH-42PS9

Conversion adapter

(if necessary)

RGB

PC cable

Mini D-sub 15p

(Male)

Audio

Connect a cable which matches the audio output terminal on the computer.

Stereo plug

Notes:

• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input Terminal.

• With regard to the typical PC input signals that are described in the applicable input signals list (see page 51), adjustment values such as for the standard picture positions and sizes have already been stored in this unit. You can add up to eight

PC input signal types that are not included in the list.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080 dots when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show fi ne detail with suffi cient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed frequency range.

• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 39)

Signal Names for Mini D-sub 15P Connector

5 4 3 2 1

10 9 8 7

15 14 13 12 11

6

Pin Layout for PC Input

Terminal

Pin No.

Signal Name

1

R (P

R

/C

R

)

2

3

4

5

G (Y)

B (P

B

/C

B

)

NC (not connected)

GND (Ground)

Pin No.

6

7

8

9

10

Signal Name Pin No.

GND (Ground)

11

12 GND (Ground)

GND (Ground)

+5 V DC

GND (Ground)

13

14

15

Signal Name

NC (not connected)

SDA

HD/SYNC

VD

SCL

10

Connections

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

(Male)

COMPUTER

RS-232C Straight cable

(Female)

SERIAL

1 2 3 4 5

6 7 8 9

Pin layout for SERIAL Terminal

D-sub 9p

Notes:

• Use the RS-232C straight cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specifi cation, so that the Plasma Display can be controlled by a computer which is connected to this terminal.

The computer will require software which allows the sending and receiving of control data which satisfi es the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Signal names for D-sub 9P connector

Pin No.

2

Details

R X D

3

5

4

6

7

8

T X D

GND

Non use

(Shorted in this set)

1

9 NC

These signal names are those of computer specifi cations.

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

Flow control

RS-232C compliant

Asynchronous

9600 bps

None

8 bits

1 bit

-

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX C1 C2 C3 : P1 P2 P3 P4 P5 ETX

Start

(02h)

Colon

3-character command (3 bytes)

Parameter(s)

(1 - 5 bytes)

End

(03h)

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the fi rst command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

• SL1A, SL1B, SL2A and SL2B of Command IMS are available only when a dual input terminal board is attached.

Command

Command Parameter

PON None

POF

AVL

None

**

AMT

IMS

0

1

None

SL1

SL2

SL3

PC1

SL1A

SL1B

SL2A

SL2B

Control details

Power ON

Power OFF

Volume 00 - 63

Audio MUTE OFF

Audio MUTE ON

Input select (toggle)

Slot1 input

Slot2 input

Slot3 input

PC input

Slot1 input (INPUT1A)

Slot1 input (INPUT1B)

Slot2 input (INPUT2A)

Slot2 input (INPUT2B)

DAM None

ZOOM

FULL

JUST

NORM

SELF

SJST

SNOM

SFUL

Screen mode select (toggle)

ZOOM

FULL

JUST

4:3

Panasonic Auto

JUST

4:3

H-FILL

With the power off, this display responds to PON command only.

11

Connections

HDMI connection

This unit has terminal boards equivalent to Dual HDMI Terminal Board (TY-FB10HMD) and BNC Component Video Terminal

Board (TY-42TM6A) as standard equipment.

Pin No.

1

2

[Pin assignments and signal names]

Signal

T.M.D.S Data2+

Pin No.

11

Signal

T.M.D.S Clock

Shield

12

T.M.D.S Clock-

3

4

5

6

7

8

9

10

T.M.D.S Data2

Shield

T.M.D.S Data2-

T.M.D.S Data1+

T.M.D.S Data1

Shield

T.M.D.S Data1-

T.M.D.S Data0+

T.M.D.S Data0

Shield

T.M.D.S Data0-

T.M.D.S Clock+

13

14

15

16

17

18

19

CEC

Reserved

(N.C. on device)

SCL

SDA

DDC/CEC

Ground

+5V Power

Hot Plug Detect

SLOT1 SLOT2

R AUDIO L P

R

/C

R

/R P

B

/C

B

/B

COMPONENT/RGB IN

Y/G

SLOT3

HDMI cables

PC

19 3 1

HDMI

AV OUT

18 4 2

Note:

Additional equipment and HDMI cables shown are not supplied with this set.

DVD player

COMPONENT / RGB connection

Example of input signal source

COMPONEN T VIDEO OUT

P

R

DVD

Y , P

B

, P

R

,

OUT

P

B

Y

Digital TV-SET-TOP-BOX

(DTV-STB)

L

AUDIO

OUT

R

HDMI

AV OUT

DVD player

RCA-BNC adapter plug

R AUDIO L P

R

/C

R

/R P

B

/C

B

/B

COMPONENT/RGB IN

SLOT3

Y/G

Computer or

RGB Camcorder

12

Notes:

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 39)

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

• SYNC ON G signal is needed. (see page 43)

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Connecting the plug to the Wall Outlet.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet fi rst.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

VOL +/ ENTER/

Power Indicator

Remote Control Sensor

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

13

14

Power ON / OFF

When fi rst switching on the unit

Following screen will be displayed when the unit is turned on for the fi rst time.

Select the items with the remote control. Unit buttons are invalid.

OSD LANGUAGE

1

Select the language.

2

Set.

OSD LANGUAGE

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

PRESENT TIME SETUP

1

Select “DAY” or “PRESENT TIME OF DAY”.

2 Setup “DAY” or “PRESENT TIME OF DAY”.

1

Select “SET”.

2

Set.

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET

DAY

PRESENT TIME OF DAY

MON

99:99

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET

DAY

PRESENT TIME OF DAY

TUE

10:00

DISPLAY ORIENTATION

1

For vertical installation, select “PORTRAIT”.

2

Set.

DISPLAY ORIENTATION

LANDSCAPE

PORTRAIT

Notes:

• Once the items are set, the screens won't be displayed when switching on the unit next time.

• After the setting, the items can be changed in the following menus.

OSD LANGUAGE (see page 15)

PRESENT TIME SETUP (see page 29)

DISPLAY ORIENTATION (see page 33)

From the second time on, the below screen is displayed for a while (setting condition is an example).

P C

F U L L

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follows:

INPUT1 INPUT2A INPUT2B INPUT3 PC

SLOT2 is for dual input so that you can select INPUT2A or

INPUT2B for INPUT2.

INPUT2A : HDMI signal terminal in SLOT2

INPUT2B : HDMI signal terminal in SLOT2

Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to select the INPUT mode.

Press to switch the input mode between INPUT2A and

INPUT2B.

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 39)

• In two-screen display, the same input mode cannot be selected for the main picture and sub picture.

• Image retention (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent image retention (see page 49), but this function is not the perfect solution to image retention.

Selecting the On-Screen Menu Language

INPUT MENU - VOL

+ /

ENTER/

VOL

+

/ ENTER/

Press to display the SET UP menu.

Press to select OSD LANGUAGE.

Press to select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

.......(Chinese)

.......(Japanese)

Русский

.......(Russian)

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

RGB

INPUT LABEL

POWER SAVE

PC

OFF

OFF

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

OFF

OFF

ENGLISH (US)

15

Basic Controls

Main Unit

Remote control sensor

Volume Adjustment

Volume Up “+” Down “–”

W h e n t h e m e n u s c r e e n i s displayed:

“+” : press to move the cursor up

“–” : press to move the cursor down

(see page 23)

Enter / Aspect button

(see page 18, 23)

INPUT MENU -/ VOL

+

/ ENTER/

Main Power On / Off Switch

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ......... Red

• Power-ON ...... Green

• DPMS .............Orange (With PC input signal and during operation of PC’s screensaver.)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 23)

Normal Viewing PICTURE SET UP

SOUND POS. /SIZE

INPUT button

(INPUT1, INPUT2, INPUT3 and PC selection)

(see page 15)

16

Remote Control Transmitter

R button (see page 23)

Press the R button to return to previous menu screen.

Standby (ON / OFF) button

The Plasma Display must fi rst be plugged into the wall outlet and turned on at the power switch (see page 13).

Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to

Standby mode.

N button

(see page 25, 26, 27, 28)

POSITION buttons

ACTION button

Press to make selections.

POS. /SIZE button

(see page 24)

PICTURE button

(see page 26)

INPUT button

Press to select INPUT1, INPUT2,

INPUT3 and PC input SLOTS sequentially. (see page 15)

When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Sound mute On / Off

Press this button to mute the sound.

Press again to reactivate sound.

Sound is also reactivated when power is turned off or volume level is changed.

Numeric buttons

(see page 35)

ASPECT button

Press to adjust the aspect.

(see page 18)

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed.

The benefi ts of surround sound are enormous.

You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized s e p a r a t e l y f o r e a c h A U D I O M E N U

(STANDARD, DYNAMIC, CLEAR).

SURROUND ON

Basic Controls

Status button

Press the “Status” button to display the current system status.

1

Input label

2

Aspect mode (see page 18)

3

Off timer

The off timer indicator is displayed only

4 when the off timer has been set.

Clock display (see page 46)

P C

4 : 3

1

2

4

1 0 : 0 0

OFF TIMER 90

3

SET UP button (see page 23)

SOUND button (see page 28)

DIRECT INPUT buttons

Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to select the INPUT mode. (see page 15)

This button is used to switch directly to INPUT mode.

Channel Adjustment

This button cannot be used for this model.

Volume Adjustment

Press the Volume Up “+” or Down

“–” button to increase or decrease the sound volume level.

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fi xed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and

0 minutes (off timer cancelled) each time the button is pressed.

30 60 90

0

When three minutes remain, “OFF

TIMER 3” will fl ash.

The off timer is cancelled if a power interruption occurs.

Remote ID lock (see page 35)

Digital Zoom (see page 22)

MULTI Window buttons

(see page 20)

17

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Note:

Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the aspect mode select function to shrink or expand the picture, you may be violating the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.

Press repeatedly to move through the aspect options:

For details about the aspect mode, please see “List of Aspect Modes” (page 50).

For VIDEO (S VIDEO) signal input:

4:3 ZOOM Panasonic AUTO FULL JUST

[from the unit]

INPUT MENU -/ VOL

+

/

For PC signal input:

4:3 ZOOM

Note:

When selecting an input slot that attaches BNC Dual Video Terminal

Board (TY-FB9BD), Panasonic AUTO cannot be selected.

ENTER/

FULL

The aspect mode changes each time the ENTER button is pressed.

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

4:3 ZOOM FULL JUST

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 H-FILL ZOOM FULL JUST

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

• Others

4:3 FULL

: Aspect switching is not possible.

Notes:

• Panasonic AUTO can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image retention to remain on the Plasma Display Panel.

Panasonic AUTO

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

4 16

Panasonic AUTO

For letter box image Image is expanded

4

3

3

9

Notes:

• Panasonic AUTO mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material.

Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly.

When viewing such programs, it is recommended that the ASPECT be set to 4:3.

• If adjusting the PICTURE V-POS/V-SIZE in Panasonic AUTO with

FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

For a 4:3 image

Changes in accordance with the Panasonic AUTO mode setting (see page 41).

All Aspect mode

Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 46). When All Aspect mode, the aspect mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 50).

For VIDEO (S VIDEO) signal input:

4:3 Zoom1 Zoom2 Zoom3 Panasonic Auto 16:9 14:9 Just

Notes:

• When selecting an input slot that attaches BNC Dual Video Terminal Board (TY-FB9BD), Panasonic Auto cannot be selected.

• In All Aspect mode, “Panasonic AUTO” is displayed as “Panasonic Auto”.

18

ASPECT Controls

For PC signal input:

4:3 Zoom 16:9

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

4:3 Zoom1 Zoom2 Zoom3 16:9 14:9 Just

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 Full Zoom1 Zoom2 Zoom3 16:9 14:9 Just1 Just2 4:3 (1) 4:3 (2)

MULTI PIP

You can display two pictures, such as a video image and computer image, in a two-screen display. (Use the remote control for this operation. It cannot be performed with the buttons on the main unit.)

MULTI PIP SETUP

Set the functions and mode for two-screen display in “MULTI PIP SETUP” in the SET UP menu.

(see page 36)

Selecting the Display Mode

Each time this button is pressed, the screen changes.

Note:

The screen changes in the same way when “DISPLAY MODE” in “MULTI PIP SETUP” is changed. (see page 36)

During PIP:

One screen Two screens (P AND P)

INPUT1 PC

Main screen input mode

During Advanced PIP:

One screen Advanced PIP

Sub screen

1

Main screen

Two screens (P IN P)

INPUT1

PC

Main screen Sub screen

Two screens (P OUT P)

INPUT1

PC

Sub screen input mode

2 3

4

8 7 6 5

Note:

and

button operations are not available during advanced PIP.

19

MULTI PIP

During Blend PIP (Composite Screen Function) :

A composite picture is displayed with the sub screen positioned over the main screen. For example, text data such as a computer image can be displayed as a caption over a movie or still image.

One screen FULL P IN P

Transparent Function and Insertion Function

Two functions are available for blend PIP: the transparent function and the insertion function. Set these functions with

“TRANSPARENCY” or “INSERT” in “MULTI PIP SETUP”. (see page 36)

Transparent Function

Data such as text are displayed transparently on the background image.

Insertion Function

The sub screen image is divided into transparent and nontransparent areas, and only the non-transparent areas are inserted and displayed on the background image.

Note:

Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the blend

PIP function to make a composite screen display, you may be violating the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.

Swapping Screens

Each time this button is pressed, the main screen and sub screen are swapped.

Two screens

(P AND P)

Two screens

(P OUT P)

Two screens

(P IN P)

Main screen Sub screen

20

MULTI PIP

Selecting the Target Screen for Operations

Each time this button is pressed, the target screen for operations changes.

Operations on the main screen

INPUT1

PC

Operations on the sub screen

INPUT1

PC

Main screen Sub screen

Main screen input mode Sub screen input mode

Notes:

• When operations are performed for the sub screen, the sub screen audio is played.

• If no operations are performed, the operation target returns to the main screen after about 5 seconds*. You can also return to main screen operations by operating the remote control buttons (except for ).

* It takes more than 5 seconds if a slot mounted with a Dual HDMI Terminal Board (TY-FB10HMD) is selected.

Selecting the Sub Screen Position (During P IN P Display)

Each time this button is pressed, the sub screen position changes.

Note:

Some sub screen positions may hide the display of the menu screen.

Notes:

• Do not use the two-screen display for a long time. It will cause a permanent image retention to remain on the screen.

• If “INPUT lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in AUDIO OUT (PIP) (see page 28).

• In two-screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the two-screen display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• 2k1k signals that are received with the Dual Link HD-SDI Terminal Board (TY-FB11DHD) cannot be displayed in two-screen display.

21

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

1

Display the operation guide.

Press to access Digital Zoom.

The operation guide will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

[Unit]

POSITION / ACTION button

VOL button

INPUT MENU -/ VOL

+

/ ENTER/

VOL button

MUTE button

SURROUND button

OFF TIMER button

2

Select the area of the image to be enlarged.

Press on the enlargement location to select.

The cursor will move.

EXIT

1

EXIT

3

Select the magnifi cation required for the enlarged display.

Each time this is pressed, the magnifi cation factor changes.

This is shown in the image being displayed.

×

1

×

2

×

3

4

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state:

“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 20)

When MULTI DISPLAY SETUP is ON (see page 34).

When PORTRAIT SETUP is ON (see page 37).

When SCREENSAVER (except for NEGATIVE IMAGE) is running. (see page 30)

• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.

22

×

4

On-Screen Menu Display

1

Display the menu screen.

2

Select the item.

PICTURE 1/2

NORMALIZE NORMAL

PICTURE MENU


BRIGHTNESS

COLOR

TINT

SHARPNESS

3

Set.

STANDARD

25

0

0

0

5

( Example:

PICTURE menu)

Remote Control

Press to select.

(Example: PICTURE menu)

Unit

Press several times.

MENU

Each time the MENU button is pressed, the menu screen will switch.

Normal Viewing PICTURE

SOUND POS. /SIZE SET UP

Select.

Set.

Select.

Press.

Set.

Press.

4

Exit the menu.

Press several times.

MENU

Press.

Press to return to the previous menu.

Overview

Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

POS. /SIZE

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

V-SIZE

NORMAL

DOT CLOCK

CLOCK PHASE

1:1 PIXEL MODE

0

0

0

0

0

0

OFF

(see page 24)

PICTURE 2/2


COLOR TEMP

COLOR MANAGEMENT

PICTURE MENU


BRIGHTNESS

25

0

COLOR

TINT

SHARPNESS

0

0

5

OFF

(see page 26, 27)

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

SIGNAL

[ VIDEO ]

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

REFRESH RATE

NOISE REDUCTION

ON

AUTO

OFF

4:3

100 Hz

OFF

(see page 40-43)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SCROLLING BAR ONLY

TIME OF DAY

6:15

12:30

BRIGHT SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

OFF

OFF

(see page 30, 31)

ADVANCED SETTINGS

W/B HIGH B

INPUT LEVEL

W/B LOW G

W/B LOW B

2/2

0

0

0

0

0

0

0

0

2.2

OFF

1/2

(see page 26, 27)

SDI SOUND OUTPUT 2/2

SOUND

LEFT CHANNEL

RIGHT CHANNEL

SOUND OUT

AUDIO MENU

BASS

MID

TREBLE

BALANCE

SURROUND

AUDIO OUT (PIP)

1/2

CHANNEL 1

CHANNEL 1

0

0

0

0

OFF

OFF

MAIN

(see page 28)

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET

DAY

PRESENT TIME OF DAY

MON

99:99

(see page 29)

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION

POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

OFF

0:00

OFF

0:00

(see page 29)

PORTRAIT SETUP

PORTRAIT SETUP

SEAM HIDES VIDEO

VIEWING AREA

LOCATION

AI-SYNCHRONIZATION

OFF

OFF

16:9

1

OFF

(see page 37, 38)

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

AI-SYNCHRONIZATION

OFF

× 2

× 2

OFF

A1

OFF

(see page 34, 35)

MULTI PIP SETUP

MULTI PIP

DISPLAY MODE

TRANSPARENCY

TRANSPARENCY LEVEL

INSERT

INSERT LEVEL

PIP

OFF

0 %

OFF

1

(see page 36)

23

Adjusting POS. /SIZE

1

Press to display the POS. /SIZE menu.

Press to select the menu to adjust.

During “VIDEO (S VIDEO)”, “Digital”,

“SDI” and “HDMI” input signal.

POS. /SIZE

2

3

Press to adjust the menu.

NORMALIZE

AUTO SETUP

H-POS

H-SIZE

V-POS

NORMAL

V-SIZE

1:1 PIXEL MODE

0

0

0

0

OFF

During “COMPONENT”, “RGB” and “PC” input signal.

POS. /SIZE

4

Press to exit from adjust mode.

NORMALIZE

AUTO SETUP

NORMAL

H-POS

H-SIZE

V-POS

0

0

0

0

Notes:

• Unadjustable items are grayed out.

Adjustable items differ depending on the input signal and the display mode.

• Adjustment details are memorized separately for different input signal formats.

V-SIZE

DOT CLOCK

CLOCK PHASE

1:1 PIXEL MODE

0

0

OFF

(Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i ·

50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the POS. /SIZE function.

• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

AUTO

SETUP

H-POS

Automatically adjust H-POS / V-POS / CLOCK PHASE / DOT CLOCK and set H-SIZE / V-SIZE the standard value when RGB signal is input.

Notes:

• If the dot clock frequency is 162 MHz or higher, DOT CLOCK cannot be made.

• If the image is that the edge is hardly fi gured out or shadowy, that cannot be adjusted automatically.

In such case, press AUTO SETUP again after changing the image to the clearer one.

• When DVI-D is input, CLOCK PHASE cannot be adjusted automatically.

• Select NORMALIZE in POS. /SIZE and press the ACTION ( ) button when appropriate adjustment cannot be made.

Adjust the horizontal position.

V-POS

Adjust the vertical position.

H-SIZE

Adjust the horizontal size.

V-SIZE

Adjust the vertical size.

DOT

CLOCK

CLOCK

PHASE

(During “COMPONENT”, “RGB” and “PC” input signal)

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

(During “COMPONENT”, “RGB” and “PC” input signal)

Eliminate the fl ickering and distortion.

24

Adjusting POS. /SIZE

1:1 PIXEL MODE Adjusts the display size when 1125i, 1125p or 1250i signal is input.

Notes:

• Select ON when you would like to replay 1920 × 1080 input signal.

• Applicable input signal;

1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i

• Select OFF when fl ickering is shown around the image.

• H-SIZE, V-SIZE and DOT CLOCK cannot be adjusted when ON is selected.

OFF ON

1:1 PIXEL MODE

(2k1k)

(For 2k1k signals)

When the input signal is a 2k1k signal (2048×1080 / 24p, 2048×1080 / 24sF), the display size is adjusted as follows.

OFF ON (LEFT) ON (CENTER) ON (RIGHT)

Note:

2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) is installed.

Helpful Hint ( /

NORMALIZE

Normalization)

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

25

PICTURE Adjustments

1

Press to display the PICTURE menu.

2

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.


NORMALIZE NORMAL

PICTURE MENU


BRIGHTNESS

COLOR

TINT

SHARPNESS

1/2

STANDARD

25

0

0

0

5


COLOR TEMP

COLOR MANAGEMENT

ADVANCED SETTINGS

NORMAL

OFF

ON

2/2

Press to select “ON”.

Press to enter Advanced

Settings.

ADVANCED SETTINGS ON

Enables fi ne picture adjustment at a professional level

(see next page).

ADVANCED SETTINGS 1/2

NORMALIZE NORMAL

BLACK EXTENSION

INPUT LEVEL

GAMMA

AGC

0

0

2.2

OFF

ADVANCED SETTINGS 2/2

W/B HIGH R

W/B HIGH G

W/B HIGH B

W/B LOW R

W/B LOW G

W/B LOW B

0

0

0

0

0

0

ADVANCED SETTINGS OFF

Displays images with settings of the PICTURE menu.

Press the left or right button to switch between modes.

STANDARD

MONITOR

DYNAMIC

CINEMA

STANDARD

For viewing in standard (evening lighting) environments.

This menu selects the normal levels of BRIGHTNESS and PICTURE.

DYNAMIC

For viewing in brighter environments.

This menu selects higher than normal levels of

BRIGHTNESS and PICTURE.

CINEMA

Ideal for movies.

MONITOR

For use when creating broadcast or movie content. With this picture, even if the overall average picture level (APL) changes, the brightness of areas with the same signal level does not change.

Notes:

● When “MONITOR” is selected in PICTURE MENU, the following menu items cannot be set.

PICTURE menu: PICTURE

SCREENSAVER menu: PEAK LIMIT (see page 31)

SET UP menu: POWER SAVE (see page 32)

MULTI DISPLAY SETUP menu: AI-SYNCHRONIZATION (see page 35)

PORTRAIT SETUP menu: AI-SYNCHRONIZATION (see page 38)

● If you would like to change the picture and color of the selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left or right button to switch between modes.

NORMAL COOL WARM

COLOR MANAGEMENT ON

Enables vivid color adjustment automatically.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

26

PICTURE Adjustments

Item


COLOR

Less

BRIGHTNESS

Darker

Less

Effect Adjustments

More

Brighter

Adjusts the proper picture contrast.

Adjusts for easier viewing of dark pictures such as night scenes and black hair.

Adjusts color saturation.

More

TINT

SHARPNESS

Reddish Greenish

Less More

Adjusts for natural fl esh tones.

Adjusts picture sharpness.

Notes:

• “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “Digital” input signal.

• You can change the level of each function

(PICTURE, BRIGHTNESS, COLOR, TINT,

SHARPNESS) for each PICTURE MENU.

• The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input terminal.

• The “TINT” setting can be adjusted for NTSC signal only during “VIDEO

(S VIDEO)” input signal.

• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

ADVANCED SETTINGS

Item

BLACK

EXTENSION

Less

INPUT

LEVEL

Less

GAMMA

Down

Effect Details

More

More

Up

Adjusts the dark shades of the image in gradation.

Adjustment of parts which are extremely bright and hard to see.

(This cannot be adjusted when the input signal is Digital.)

S CURVE 2.0 2.2 2.5 2.6*

* When 2k1k signals are received with the Dual Link HD-SDI Terminal Board (TY-

FB11DHD), GAMMA “2.6” can also be selected.

AGC

Increases the brightness of dark signal automatically.

OFF ON

W/B HIGH R

Adjusts the white balance for light red areas.

Less More

W/B HIGH G

Adjusts the white balance for light green areas.

Less More

W/B HIGH B

Adjusts the white balance for light blue areas.

Less More

W/B LOW R

Adjusts the white balance for dark red areas.

Less More

W/B LOW G

Adjusts the white balance for dark green areas.

Less More

W/B LOW B

Adjusts the white balance for dark blue areas.

Less More

Notes:

• Carry out “W/B” adjustment as follows.

1. Adjust the white balance of the bright sections using the “W/B HIGH R” , “W/B HIGH G” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R” , “W/B LOW G” and “W/B LOW B” settings.

3. Repeat steps 1 and 2 to adjust.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Helpful Hint ( /

NORMALIZE

Normalization)

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

27

SOUND Adjustment

1

Press to display the SOUND menu.

2

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

SOUND

NORMALIZE NORMAL

AUDIO MENU

BASS

MID

TREBLE

BALANCE

SURROUND

AUDIO OUT (PIP)

1/2

STANDARD

0

0

0

0

OFF

MAIN

3

Press to exit from adjust mode.

Item

AUDIO MENU

BASS

MID

TREBLE

BALANCE

SURROUND

STANDARD: Emits the original sound.

DYNAMIC: Accentuates sharp sound.

CLEAR: Attenuates human voice.

Adjusts low pitch sounds.

Adjusts normal sounds.

Adjusts pitch sound.

Adjusts left and right volumes.

Select ON or OFF.

MAIN: Selects main picture sound.

SUB: Selects PIP frame sound.

Details

A

INPUT1

PC

B

A

INPUT1

PC

B

AUDIO OUT (PIP)

Musical note

♪ is displayed on right side of the audio output screen label.

Note: BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION

( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

SDI SOUND OUTPUT

This menu is displayed when HD-SDI Terminal Board with audio (TY-FB10HD) or Dual Link HD-SDI Terminal Board (TY-

FB11DHD) is installed to the unit.

SDI SOUND OUTPUT 2/2

Item

LEFT CHANNEL

RIGHT CHANNEL

SOUND OUT

LEVEL METER

CHANNEL 1

CHANNEL 1

OFF

OFF

LEFT CHANNEL

RIGHT CHANNEL

Details

CHANNEL 1 to CHANNEL 16

Selects left audio channel.

CHANNEL 1 to CHANNEL 16

Selects right audio channel.

SOUND OUT

ON: Enables audio output.

OFF: Disables audio output.

Notes:

• This menu is available only when selecting a slot that HD-SDI Terminal Board with audio

(TY-FB10HD) or Dual Link HD-SDI Terminal

Board (TY-FB11DHD) is installed.

• This menu is unavailable when two-screen display mode is active.

LEVEL METER

Sets audio channels to show in the audio level meter.

8 channels are displayed in the audio level meter; 4 channels each on both right and left sides of the display.

OFF: Hides the audio level meter.

1-8CH: Displays the audio level meter (1-8ch)

9-16CH: Displays the audio level meter (9-16ch)

28

PRESENT TIME SETUP / SET UP TIMER

The timer can switch the Plasma Display ON or OFF.

Before attempting Timer Set, confi rm the PRESENT TIME OF DAY and adjust if necessary. Then set POWER ON TIME / POWER OFF TIME.

1

Press to display the SET UP menu.

2

Press to select SET UP TIMER or

PRESENT TIME SETUP.

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen.

1

PRESENT TIME SETUP

Press to select DAY or PRESENT TIME OF DAY.

PRESENT TIME SETUP

Press to set up DAY or PRESENT TIME OF DAY.

button: Forward

button: Back

Notes:

PRESENT TIME OF DAY MON 99:99

SET

DAY

PRESENT TIME OF DAY

• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1 minute.

MON

99:99

2

Press to select SET.

Press to store PRESENT TIME SETUP.

Notes:

• SET cannot be selected unless PRESENT TIME OF DAY is set.

• Unless setting the present time other than “99:99”, DAY setting is invalid.

• The settings of “DAY” and “PRESENT TIME OF DAY” are reset when leaving the display turned off for about 7 days for the following reasons:

Pressing switch of the unit to turn off the display.

Disconnecting the AC cord.

Interruption of power supply.

1

2

SET UP TIMER

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

SET UP TIMER

PRESENT TIME OF DAY 99:99

button: Forward

button: Back

POWER ON FUNCTION

POWER ON TIME

Notes:

• Pressing “ ” or “ ” button once changes POWER ON TIME

POWER OFF FUNCTION

POWER OFF TIME

/ POWER OFF TIME 1 minute.

• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF

TIME by 15 minutes.

Press to select POWER ON FUNCTION / POWER OFF FUNCTION.

Press to select ON.

OFF

0:00

OFF

0:00

Note:

Timer function will not work unless “PRESENT TIME OF DAY” is set.

29

SCREENSAVER

(For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for any length of time.

If the display must remain on, a SCREENSAVER should be used.

1

2

3

4

5

Press to display the SET UP menu.

Press to select the SCREENSAVER.

Press to select the SCREENSAVER screen.

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

SCREENSAVER

FUNCTION selection

Press to select the FUNCTION.

Press to select the desired function.

NEGATIVE IMAGE

WHITE SCREEN

NEGATIVE IMAGE

SCROLLING BAR ONLY

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SCROLLING BAR ONLY

OFF

6:15

12:30

BRIGHT

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

OFF

OFF

OVERLAY SCROLLING BAR

: A negative image will be displayed on the screen.

SCROLLING BAR ONLY : A white bar will scroll from left to right. The image won't be displayed.

OVERLAY SCROLLING BAR : The brightness of the image will be decreased and a white bar will scroll on it.

WHITE SCREEN : The whole screen will be white.

Note: OVERLAY SCROLLING BAR is not effective during two screen display.

MODE selection

Press to select the MODE.

Press to select each mode items.

Off

INTERVAL : Operates when SHOW DURATION and SAVER

DURATION are set up and those times arrive.

TIME OF DAY : Operates when START TIME and FINISH TIME are set up and those times arrive.

START setting

ON : Operates when START is selected and the

ACTION ( ) button is pressed.

When the MODE is set to ON, press to select START.

Press to start SCREENSAVER.

The menu screen will disappear and the SCREENSAVER will be activated. To stop the

SCREENSAVER under ON, press the R button or any buttons on the main unit.

Note: When the display is turned off, the SCREENSAVER will be deactivated.

Setup of SCREENSAVER Time

After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating

Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)

Press to select START TIME / FINISH TIME (When TIME OF DAY is selected).

Press to select SHOW DURATION / SAVER DURATION (When

INTERVAL is selected).

SCREENSAVER

PRESENT TIME OF DAY 15:00

START

FUNCTION

MODE

START TIME

FINISH TIME

SCROLLING BAR ONLY

TIME OF DAY

6:15

12:30

Press to setup.

button: Forward

button: Back

Notes:

• Pressing “ ” or “ ” button once changes the Time 1 minute.

[However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

SCREENSAVER

PRESENT TIME OF DAY 15:00

START

FUNCTION

MODE

SCROLLING BAR ONLY

SHOW DURATION

SAVER DURATION

INTERVAL

12:00

3:00

Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.

30

SCREENSAVER (For preventing image retention)

Reduces screen image retention

These functions prevent the occurrence of an “image retention” on the display when turned ON.

WOBBLING: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of sharper contour of image.

ON1: Shifts the image every 30 seconds.

ON2: Shifts the image at a dot level pitch depending on screen-detection.

PEAK LIMIT: Suppresses image contrast (peak brightness).

Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 49)

Press to select “WOBBLING” or “PEAK LIMIT”.

Press to select “ON1”, “ON2” or “OFF” (WOBBLING).

“ON” or “OFF” (PEAK LIMIT).

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SCROLLING BAR ONLY

OFF

SIDE BAR ADJUST

WOBBLING

PEAK LIMIT

6:15

12:30

BRIGHT

OFF

OFF

SIDE BAR ADJUST

Do not display a picture in 4:3 mode for an extended period, as this can cause an image retention to remain on the side bars on either side of the display fi eld.

To reduce the risk of such an image retention, illuminate the side bars.

side bars

4:3 mode

This function may be applicable to the non-picture area.

Non picture area image retention

Picture out Picture Picture and Picture

1

2

Press to select the SIDE BAR ADJUST.

Press to select OFF, DARK, MID, BRIGHT.

OFF DARK MID BRIGHT

SCREENSAVER

PRESENT TIME OF DAY 99:99

START

FUNCTION

MODE

START TIME

FINISH TIME

SCROLLING BAR ONLY

OFF

SIDE BAR ADJUST

6:15

12:30

BRIGHT

WOBBLING

PEAK LIMIT

OFF

OFF

Press to exit from SCREENSAVER.

Notes:

• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.

• The side bar may fl ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode will reduce such fl ashing.

31

Reduces power consumption

• POWER SAVE:

• STANDBY SAVE:

When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced.

When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 13, 16, 17), so standby power of the set is reduced.

• POWER MANAGEMENT: When this function is set to ON, it operates under the following conditions to turn the power on or off automatically.

When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC IN signal input:

→ Power is turned off (standby); the power indicator lights up orange.

When pictures (HD/VD sync signals) are subsequently detected:

→ Power is turned on; the power indicator lights up green.

Notes:

• This function operates only during PC IN signal input.

• This function is invalid during input from PC Input Terminal Board (TY-42TM6P).

• AUTO POWER OFF: is set to “RGB” and during normal viewing (one picture screen).

Equipment power supply is turned OFF when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input signals stop.

Notes:

• This function operates only during PC IN signal input.

is set to “RGB” and during normal viewing (one picture screen).

1

2

Press to select

“POWER SAVE”

“STANDBY SAVE”

“POWER MANAGEMENT”

“AUTO POWER OFF”.

Press to select “ON” or “OFF”.

On Off

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

3

Press to exit from SET UP.

32

Customizing the Input labels

This function can change the label of the Input signal to be displayed.

Select the input signal which you would like to change its label before customizing the

Input labels. (see page 15, 17)

Press to select INPUT LABEL.

Press to change the INPUT LABEL.

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

RGB

PC

OFF

OFF STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

OFF

OFF

ENGLISH (US)

Note:

While selecting a Input signal through Optional Terminal Board connected to Slot 1,

Slot 2 and Slot 3, the Input label will depend on each Optional Terminal Board.

INPUT LABELS for Slot 1, Slot 2, Slot 3 and Mini D-sub:

[Slot1 Input] INPUT1/VIDEO1/COMPONENT1/RGB1/DIGITAL1/PC1/DVD1/CATV1/VCR1/STB1

[Slot2 Input]

[Slot3 Input]

INPUT2/VIDEO2/COMPONENT2/RGB2/DIGITAL2/PC2/DVD2/CATV2/VCR2/STB2

INPUT3/VIDEO3/COMPONENT3/RGB3/PC3/DVD3/CATV3/VCR3/STB3

[PC (Mini D-sub) input] PC/COMPONENT/RGB/DVD/STB

When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label, depending on the input selected (see below).

Addition sign

Selected Input

“A”

Composite

“B”

S VIDEO

DISPLAY ORIENTATION

Sets the fan control and the display style of on-screen menu for vertical installation.

1

Press to display the SET UP menu.

2

Press to select DISPLAY ORIENTATION.

Press to select “LANDSCAPE” or “PORTRAIT”.

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

3

Press to exit from adjust mode

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION PORTRAIT

LANDSCAPE PORTRAIT

Fan control for horizontal installation.

Fan control for vertical installation. On-screen menu will be rotated

90 degrees counterclockwise to be suitable for the setting.

Notes:

• Turn up the power switch for the upward direction when you set Display vertically.

• Fan control will be switched when turning on the unit next time.

33

SET UP for MULTI DISPLAY

By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens.

For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

(Example) group of 4 (2 × 2) group of 9 (3 × 3) group of 16 (4 × 4) group of 25 (5 × 5)

How to setup MULTI DISPLAY

1

2

3

Press to display the SET UP menu.

Press to select the MULTI DISPLAY SETUP.

Press to display the “MULTI DISPLAY SETUP” menu.

Press to select the menu to adjust.

Press to adjust the menu.

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

SEAM HIDES VIDEO

LOCATION

AI-SYNCHRONIZATION

OFF

× 2

× 2

OFF

A1

OFF

Item

MULTI DISPLAY SETUP

HORIZONTAL SCALE

VERTICAL SCALE

Details

Select “ON” or “OFF”.

Note: If you set MULTI DISPLAY SETUP to ON, PORTRAIT SETUP will be unavailable.

Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.

Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.

Select “ON” or “OFF”.

To hide joints between displays.

To show joints between displays.

SEAM HIDES VIDEO

LOCATION

Suitable for moving image display.

ON

Suitable for still image display.

OFF

Select the required arrangement number. (A1-E5 : Refer to the following)

Display Number locations for each arrangement.

(Examples)

( 2 × 1) ( 2 × 3 ) ( 4 × 2 ) ( 4 × 4 ) ( 5 × 5 )

A1

B1

C1

D1

E1

A2

B2

C2

D2

E2

A3

B3

C3

D3

E3

A4

B4

C4

D4

E4

A5

B5

C5

D5

E5

34

Item

Select “OFF” or “ON”.

SET UP for MULTI DISPLAY

Details

The brightness depends on each display’s setting.

Equalize the brightness of all the displays.

4

AI-SYNCRONIZATION

OFF ON

Note:

If you set AI-SYNCRONIZATION to ON, the following menus will be unavailable and these settings will be fi xed to the initial values.

PICTURE menu: COLOR, TINT, INPUT LEVEL (ADVANCED SETTINGS)

Press to exit from adjust mode.

ID Remote Control Function

You can set the remote control ID when you want to use this remote control on one of several different displays.

1

2

3

4

Switch to on the right side.

Press the button on the remote control.

Press one of - , for the tens digit setting.

Press one of - , for the units digit setting.

Notes:

• The numbers in 2, 3 and 4 should be set up quickly.

• Adjustable ID number range is 0 - 99.

• If a number button is pressed more than two times, the fi rst two numbers become the ID number for the remote control.

ID remote control button operation

The operation is the same as normal remote control except for the button.

ID Cancellation

Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)

Notes:

• Set the Remote ID “On” to operate the ID remote control.

If remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.

(see page 45)

• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not the same as the ID select number (see page 45).

35

MULTI PIP SETUP

Set the two-screen display function that is activated when

1

Press to display the SET UP menu.

Press to select the MULTI PIP SETUP.

2

3

Press to display the “MULTI PIP SETUP” menu.

Press to select the menu to adjust.

Press to adjust the menu.

MULTI PIP

Set the two-screen function.

PIP ADVANCED PIP

BLEND PIP

is pressed.

SET UP

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

MULTI PIP SETUP

MULTI PIP

DISPLAY MODE

TRANSPARENCY

TRANSPARENCY LEVEL

INSERT

INSERT LEVEL

PIP

OFF

0 %

OFF

1

2/2

DISPLAY MODE

The display mode can be changed separately for each function that was set in “MULTI PIP SETUP”.

For “PIP”: — (One screen) P AND P P OUT P P IN P

For “ADVANCED PIP”:

— (One screen) 1 to 8

— (One screen) FULL P IN P

For “BLEND PIP”:

Note: The display mode changes in the same way when is pressed.

Transparent Display of the Sub Screen (During BLEND PIP)

1

Select “ON” in “TRANSPARENCY”.

2

Set the transparency level for the sub screen in “TRANSPARENCY LEVEL”. (0 to 100 %)

Setting example Transparent image (sub screen)

0 %: No transparency

Note: “INSERT” cannot be set when “TRANSPARENCY” is “ON”.

100 %: Fully transparent

Sub Screen Insertion (During BLEND PIP)

1

2

Select “ON” in “INSERT”.

Set the “INSERT LEVEL”. (1 to 10 %)

Set the brightness level threshold for discriminating between the transparent areas and non-transparent areas on the sub screen.

Setting example Image to insert (sub screen) INSERT LEVEL

10 % Only the areas on the overlay image that are brighter than the “INSERT LEVEL” are displayed on the background image.

Background image

(main screen) Two-picture insertion

1 %

Note: “TRANSPARENCY” cannot be set when “INSERT” is “ON”.

36

SET UP for PORTRAIT

Divide an input image into 3 parts, and display one of them to a plasma display which is set vertically. The image will be enlarged 3 times and rotated 90-degree.

(Example)

Note:

When using the PORTRAIT function with displays set vertically, “DISPLAY ORIENTATION” in SET UP menu has to be set to “PORTRAIT” (see page 33).

How to setup PORTRAIT

1

Press to display the SET UP menu.

2

Press to select the PORTRAIT SETUP.

Press to display the “PORTRAIT SETUP” menu.

3

4

Press to select the PORTRAIT SETUP.

Press to select “ON” or “OFF”.

Note:

If you set PORTRAIT SETUP to ON, MULTI

DISPLAY SETUP will be unavailable.

Press to select SEAM HIDES VIDEO.

Press to select “OFF” , “ON”.

To hide joints between displays.

To show joints between displays.

SET UP 2/2

MULTI DISPLAY SETUP

MULTI PIP SETUP

PORTRAIT SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION LANDSCAPE

PORTRAIT SETUP

PORTRAIT SETUP

SEAM HIDES VIDEO

VIEWING AREA

LOCATION

AI-SYNCHRONIZATION

OFF

OFF

16:9

1

OFF

PORTRAIT SETUP

PORTRAIT SETUP

SEAM HIDES VIDEO

VIEWING AREA

LOCATION

AI-SYNCHRONIZATION

OFF

OFF

16:9

1

OFF

Suitable for moving image display.

ON

Suitable for still image display.

OFF

37

SET UP for PORTRAIT

5

VIEWING AREA / LOCATION

VIEWING AREA: Set a mode of image division for PORTRAIT function.

LOCATION: Set a location of image to be displayed for PORTRAIT function.

PORTRAIT SETUP

Press to select VIEWING AREA or LOCATION.

PORTRAIT SETUP OFF

Press to select each function.

SEAM HIDES VIDEO

VIEWING AREA

LOCATION

AI-SYNCHRONIZATION

Notes:

• For HD signal videos, the “VIEWING AREA” is set at “16:9”, and cannot be changed.

OFF

16:9

1

OFF

HD signal: 1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 750 (720) / 60p • 50p, 1250

(1080) / 50i

• When “VIEWING AREA”is “16:9”, the aspect mode is set to “FULL”.

LOCATION setting

When PORTRAIT SETUP “ON”:

Display the image of the selected LOCATION.

When PORTRAIT SETUP is “OFF”:

Represent an area of the selected LOCATION at a normal brightness and darken the rest of it.

VIEWING AREA and LOCATION

The mode of image division and the LOCATION by setting of VIEWING AREA is as follows.

VIEWING AREA: 16:9

Suitable to display FULL images. NORMAL

(4:3) images extend transversely.

Both right and left sides of the image are cut by 48 dots.

LOCATION 1

Undisplayed area (48 dots)

LOCATION 2 LOCATION 3

VIEWING AREA: 4:3

4:3 images are displayed without changing aspect ratio.

Although the images of each LOCATION overlap, you can adjust POS. / SIZE to display the image normally. (see page 24)

LOCATION 1 LOCATION 2 LOCATION 3

6

AI-SYNCHRONIZATION

Adjust to equalize the brightness of the 3 displays when using PORTRAIT setting.

Press to select AI-SYNCHRONIZATION.

PORTRAIT SETUP

Press to select “OFF” , “ON”.

The brightness depends on each display’s setting.

Equalize the brightness of all the displays.

PORTRAIT SETUP

SEAM HIDES VIDEO

VIEWING AREA

LOCATION

AI-SYNCHRONIZATION

OFF

OFF

16:9

1

OFF

OFF ON

Note:

If you set AI-SYNCHRONIZATION to ON, the following menus will be unavailable and these settings will be fi xed to the initial values.

PICTURE menu: COLOR, TINT, INPUT LEVEL

(ADVANCED SETTINGS)

7

Press twice to exit from SET UP.

38

SET UP for Input Signals

1

COMPONENT / RGB IN SELECT

Select to match the signals from the source connected to the COMPONENT / RGB input terminals.

Y, P

B

, P

R

signals “COMPONENT”

RGB signals “RGB”

SET UP

Press to display the SET UP menu.

2

1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

3

Press to select the “COMPONENT / RGB-IN SELECT”.

Press to select the desired mode.

Press to exit from adjust mode.

Notes:

• Selection may not be possible, depending on which optional board is installed.

• Make setting of the selected input terminal (SLOT1, SLOT2, SLOT3 or PC IN).

YUV / RGB IN SELECT

Select to match the signals from the source connected to the DVI input terminals.

YUV signals

“YUV”

RGB signals

“RGB”

1

Press to display the SET UP menu.

2

Press to select the “YUV / RGB-IN SELECT”.

Press to select the desired mode.

SET UP 1/2

SIGNAL

SCREENSAVER

YUV/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

3

Press to exit from adjust mode.

Notes:

• Selection may not be possible, depending on which optional board is installed.

• Make setting of the selected input terminal (SLOT1 or SLOT2).

39

SET UP for Input Signals

SIGNAL menu

Note:

“SIGNAL” setup menu displays a different setting condition for each input signal.

1

2

3

4

Press to display the SET UP menu.

Press to select the “SIGNAL”.

Press to display the SIGNAL menu.

Press to select the menu to adjust.

Press to adjust the menu.

Press to exit from adjust mode.

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

For VIDEO (S VIDEO)

SIGNAL

[ VIDEO ]

For RGB

SIGNAL

[ RGB ]

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

Panasonic AUTO (4 : 3)

REFRESH RATE

NOISE REDUCTION

ON

AUTO

OFF

4:3

100 Hz

OFF

For COMPONENT

SIGNAL

[ COMPONENT ]

SYNC

3 : 2 PULLDOWN

XGA MODE

REFRESH RATE

NOISE REDUCTION

H-FREQ.

63.98

kHz

V-FREQ.

60.02

Hz

SIGNAL FORMAT 1280×1024/60

AUTO

OFF

1024 × 768

100 Hz

OFF

For Digital

SIGNAL

[ Digital ]

3 : 2 PULLDOWN

XGA MODE

REFRESH RATE

NOISE REDUCTION

OFF

1024 × 768

100 Hz

OFF

H-FREQ.

V-FREQ.

63.98

60.02

kHz

Hz

SIGNAL FORMAT 1280×1024/60

3 : 2 PULLDOWN

REFRESH RATE

NOISE REDUCTION

H-FREQ.

V-FREQ.

63.98

60.02

kHz

Hz

DOT CLOCK FREQ.

108.0

MHz

SIGNAL FORMAT 1280×1024/60

OFF

100 Hz

OFF

3D Y/C FILTER

– For NTSC AV images

Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.

(“SIGNAL [VIDEO]” menu is displayed.)

Press to select the “3D Y/C FILTER (NTSC)”.

Press to set ON / OFF.

3D Y/C FILTER (NTSC) ON

Note:

When ON, this setting only affects NTSC input signals.

40

SET UP for Input Signals

COLOR SYSTEM / Panasonic AUTO

Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.)

Press to select the “COLOR SYSTEM” or “Panasonic AUTO”.

SIGNAL

[ VIDEO ]

Press to select each function.

3D Y/C FILTER (NTSC)

COLOR SYSTEM

3 : 2 PULLDOWN

If the image becomes unstable:

With the system set on Auto, under conditions of low level or noisy

Panasonic AUTO (4 : 3) input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

ON

AUTO

OFF

4:3

Mode Function

COLOR SYSTEM Set the color system to match the input signal. When selecting “AUTO”, the color system is automatically selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on the attached terminal board. To display M.NTSC signal, select “M.NTSC” in COLOR SYSTEM.

AUTO PAL SECAM M.NTSC

NTSC

Panasonic AUTO

(4 : 3 )

Set to “4:3” to view 4:3 images in an unchanged format when Panasonic AUTO is selected.

If you would like to view 4:3 images in Just format, set to “JUST”.

Note:

Panasonic AUTO does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.

3:2 PULLDOWN

3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second.

If the picture is not stable, turn the setting to OFF.

Notes:

When ON, this setting only affects the following signal input:

• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.

• 525i(480i), 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.

Press to select “3:2 PULLDOWN”.

3 : 2 PULLDOWN OFF

Press to set ON/OFF.

XGA MODE

This menu is displayed when the input signal is analog (Component/PC). This unit supports three types of XGA signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz, 1,280 × 768 @ 60Hz, and 1,366 × 768 @ 60Hz). Be sure to make settings in accordance with the input signal in order to achieve a more appropriate and attractive display.

In addition, after making this setting, be sure to make each adjustment (such as “AUTO SETUP”) on the “POS. /SIZE” menu as necessary. (see page 24)

Press to select “XGA MODE”.

Press to select “1024×768”, “1280×768” ,

“1366×768”.

XGA MODE 1024 × 768

41

SET UP for Input Signals

REFRESH RATE

This function sets the refresh rate of the display.

This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.

100 Hz: Reduce screen fl icker.

50 Hz: Enhance the resolution of moving images.

Note:

It is recommended to set to 100 Hz normally.

Press to select REFRESH RATE.

q

REFRESH RATE

Press to adjust.

100 Hz

NOISE REDUCTION

Sets the following three NR (Noise Reduction) functions together.

VIDEO NR, MOSQUITO NR, BLOCK NR

Press to select “NOISE REDUCTION”.

Press to select “OFF”, “MIN”, “MID”, “MAX”,

“ADVANCED”.

( )

NOISE REDUCTION OFF

Advanced NR

Sets the three NR functions separately.

1

Press to select “ADVANCED”.

Press to enter ADVANCED NR.

ADVANCED NR

VIDEO NR

MOSQUITO NR

BLOCK NR

2

P r e s s t o s e l e c t V I D E O N R ,

MOSQUITO NR or BLOCK NR.

Press to select “OFF”, “MIN”, “MID”,

“MAX”.

ADVANCED NR

VIDEO NR

MOSQUITO NR

BLOCK NR

VIDEO NR: Automatically reduces unwanted picture noise.

MOSQUITO NR: Reduces mosquito noise around subtitles on MPEG videos.

BLOCK NR: Reduces block noise when playing MPEG videos.

Notes:

• NOISE REDUCTION cannot be adjusted while a PC signal is being applied.

• BLOCK NR cannot be adjusted while a HD signal is being applied.

( )

NOISE REDUCTION

[ VIDEO ]

OFF

OFF

OFF

ADVANCED NR

VIDEO NR

MOSQUITO NR

BLOCK NR

ADVANCED

[ RGB ]

OFF

OFF

OFF

[ COMPONENT ]

OFF

OFF

OFF

ADVANCED NR

VIDEO NR

MOSQUITO NR

BLOCK NR

[ Digital ]

OFF

OFF

OFF

42

SET UP for Input Signals

SYNC

Select SIGNAL from the “SET UP” menu during RGB input signal.

Press to select the “SYNC”.

Press to adjust.

SIGNAL

SYNC

3 : 2 PULLDOWN

XGA MODE

[ RGB ]

AUTO

OFF

1024 × 768

Setting RGB sync signal

Confi rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal).

AUTO:

ON G:

VBS:

The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

Uses a synchronized signal on the Video G signal, which is input from the G connector.

Uses a synchronized signal of Composite Sync input, which is input from the HD connector.

SYNC

SYNC

SYNC

AUTO

ON G

VBS

SDI THROUGH

Set the active through function of the Dual Link HD-SDI Terminal Board (TY-FB11DHD).

Note:

Settings can only be performed for this menu when a slot mounted with a Dual Link HD-SDI Terminal Board (TY-FB11DHD) is selected.

Press to select the “SDI THROUGH”.

Press to select “ON” or “OFF”.

ON: Enables active through.

OFF: Disables active through.

SIGNAL

3 : 2 PULLDOWN

SDI THROUGH

REFRESH RATE

NOISE REDUCTION

[ Digital ]

OFF

OFF

100 Hz

OFF

Input signal display

Displays the frequency and the type of the current input signal.

This display is valid only for COMPONENT/RGB/PC and Digital input signal.

Display range:

Horizontal 15 - 110 kHz

Vertical 48 - 120 Hz

The dot clock frequency is displayed during digital signal input.

H-FREQ.

63.98

kHz

V-FREQ.

60.02

Hz

SIGNAL FORMAT 1280×1024/60

H-FREQ.

63.98

kHz

V-FREQ.

DOT CLOCK FREQ.

60.02

108.0

Hz

MHz

SIGNAL FORMAT 1280×1024/60

43

Options Adjustments

1

2

3

4

5

6

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select your preferred menu.

Press to adjust the menu.

Press to exit from Options menu.

Options

Weekly Command Timer

Onscreen display

Initial INPUT

Initial VOL level Off

Maximum VOL level

INPUT lock

Button lock

Remocon User level

Off

On

O f f

Off

Off

Off

0

0

1/3

Options

2/3

Off-timer function

Initial Power Mode

ID select

Remote ID

Serial ID

Display size

Studio W/B

Studio Gain

Options

Enable

Normal

0

Off

Off

Off

Off

Off

3/3

Slot power

Power On Screen Delay

Clock Display

All Aspect

Rotate

Serial Slot Select

O f f

Off

Off

Off

Off

Slot1

Item

Weekly Command Timer

Sets Weekly Command Timer. (see page 47)

Adjustments

Onscreen display

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after was pressed.

Off: Hides all the items above from view.

Initial INPUT

Adjusts the input signal when the unit is turned on.

Notes:

• Only the adjusted signal is displayed. (see page 15)

• Signal can be displayed when the Terminal board is installed.

• This menu is available only when “INPUT lock” is “Off”.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Press

button to adjust the volume when the unit is turned on.

Initial VOL level

On: Sets your preferred volume.

Notes:

• When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Press

button to adjust the maximum volume.

Maximum VOL level

Off: Sets auto maximum volume.

On: Sets your preferred maximum volume.

Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically becomes the same as the “Maximum VOL level”.

• The volume display can go up to 63 regardless of the settings.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

44

Options Adjustments

Item

INPUT lock

Adjustments

Off PC INPUT1 INPUT2 INPUT3

Locks the input switch operation.

Notes:

• Only the adjusted signal is displayed (see page 15).

• Signal can be displayed when the Terminal board is installed.

• Input switch can be used when this is set to “Off”.

• In two screen display mode, if anything other than “Off” is set, the value will be fi xed as the value input in the single screen display mode.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal.

(Ex. INPUT1A, INPUT1B)

Button lock

Remocon User level

Off-timer function

Off: All the buttons on main unit can be used.

MENU&ENTER: Locks and buttons on main unit.

MENU ENTER/

On: Locks all the button on main unit.

Sets Button lock with the unit buttons in the following procedure.

Off: Press four times

→Press

four times

→Press four times→Press

MENU&ENTER: Press

INPUT

four times

→Press four times→Press

ENTER/

On: Press four times

→Press

four times

INPUT

ENTER/

four times

→Press four times→Press

→Press

ENTER/

ENTER/ ENTER/

Off User1 User2 User3

Off: You can use all of the buttons on the remote control.

User1: You can only use , , , , , , , buttons on the remote control.

User2: You can only use , buttons on the remote control.

User3: Locks all the buttons on remote control.

Enable: Enables the “Off-timer function”.

Disable: Disables the “Off-timer function”.

Note: When “Disable” is set, the Off-timer is cancelled.

Initial Power Mode

ID select

Remote ID

Serial ID

Display size

Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.

Normal: Power returns in as the same state as before the power interruption.

Standby: Power returns in standby mode. (Power Indicator : red/orange)

On: Power returns in power On. (Power Indicator : green)

Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.

Set value range: 0 - 100

(Standard value: 0)

Off: Disables ID remote control functions. You can use normal remote control operations.

On: Enable ID remote control functions.

Note: To use the ID remote control function, it is necessary to set each ID number of remote control and display unit. About the setting method, please refer to “ID Remote Control Function” (see page 35) and “ID select” (above-mentioned).

Sets the panel ID Control.

Off: Disables external control by the ID.

On: Enables the external control by the ID.

Adjusts the image display size on screen.

Off: Sets the normal image display size on screen.

On: Sets the image display size approximately 95 % of the normal image display.

Off On

Notes:

• This setting is valid only when the input signals are as follows;

NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board (TY-FB9BD))

525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p,

1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• This setting is invalid when two screen display, digital zoom, Multi display or Portrait display is selected.

• When “Display size” is set to “On”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.

• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.

45

Options Adjustments

Item

Studio W/B

Adjustments

Off: Nullify all the settings adjusted.

On: Sets the color temperature for TV studio.

Note: Valid only when the “WARM” is set as “COLOR TEMP” in PICTURE menu.

Sharpens the contrast for a better view when a part of the image is too light to see.

Studio Gain

Note: This setting is valid only when the input signals are as follows:

Component Video, RGB (analog), SDI, HDMI

Slot Power

Off: Power is not transmitted to the slot power.

Auto: Power is transmitted to the slot power only when main power is on.

On: Power is transmitted to the slot power when main power is on or in the standby state.

Note: In some cases, power is transmitted to the slot power when main power is on or in the standby state regardless of the slot power setting.

Power On Screen

Delay

You can set the power-on delay time of the displays to reduce the power load, when you press on the multiple displays that are set together, for example, on MULTI DISPLAY system.

Set each display’s setting individually.

Off: The display will be turned on at the same time as is pressed.

to turn

1 to 30 (sec.): Set the power-on delay time (second).

After pressing , the display will be powered on with time delay depending on this setting.

Notes:

• During this function is working, the power indicator is blinking green.

• This function also works when the power recovers from failure or after plugging off and in again the power cord.

After you unplug and plug the power cord in while the unit is in standby mode and also the power is being supplied to a terminal board, the unit will start supplying the power to the board with time delay according to the setting.

The power indicator lights up red fi rst and it turns orange when the power starts being supplied to the board.

Off: Not display the clock.

The clock is displayed at the lower left of the screen when button is pressed.

Clock Display

10:00

Note: When “PRESENT TIME SETUP” is not set, the clock is not displayed even if “Clock Display” is “On”

(see page 29)

Sets All Aspect mode (advanced aspect setting) or default aspect mode.

With each press of button, the aspect changes in the selected mode.

Off: Default aspect mode

All Aspect

Rotate

Serial Slot

Select

Aspect mode of each setting is as follows:

(Example: HD signal)

Off 4:3

→H-FILL→ZOOM→FULL→JUST

On 4:3 (1)

→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2

Off: Does not rotate the image.

On: Rotates the image 180 degrees.

Slot1 Slot2 Slot3

Selects the slot which communicates serial.

Note: The setting of an external command can be set only from the fi xed serial terminal. (see page 11)

Normalization

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote

ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the button on main unit together with button on the remote control and hold for more than 5 seconds. The

“SHIPPING” menu is displayed and the lock is released when it disappears.

46

3

4

5

Press to select Program Edit.

Press to show the Program Edit screen.

Press to select Program.

Press to change the program numbers (1-7).

Press to select a command number.

Press to show the previous / next command pages (1-8) of the selected program.

Press to show the command setting screen.

Options Adjustments

Weekly Command Timer

You can set 7-day timer programming by setting time and command.

Note:

Before setting Weekly Command Timer, set PRESENT TIME SETUP. (see page 29)

1

Press to select Function.

Press to select “On”.

Note:

• When Function is set to On, SET UP TIMER (see page 29) is unavailable and INTERVAL / TIME OF DAY in MODE of SCREENSAVER (see page 30) cannot be selected.

2

Press to select a day.

Press to select a program number.

Note:

• You can set the program from 1 to 7.

Options

1/3

Weekly Command Timer

Onscreen display On

Press ACTION ( ) button

Weekly Command Timer

Function

Monday

Tuesday

Wednesday

Thursday

Friday

Saturday

Sunday

Program Edit

On

Program1

Program3

---

Program3

---

Program6

Program4

Program number y

Thursday

Friday

Saturday

Sunday

Program Edit

Program3

---

Program6

Program4

Program Edit screen

Weekly Command Timer

Program

01

02

03

04

05

06

07

08

8:00

10:30

--:--

--:--

--:--

12:00

9:12

--:--

1

PON

IMS:SL1

---

---

---

DAM:ZOOM

AVL:10

---

1/8

Weekly Command Timer

1/8

Program

01

02

03

04

05

06

07

08

8:00

10:30

--:--

--:--

--:--

12:00

9:12

--:--

1

PON

IMS:SL1

---

---

---

DAM:ZOOM

AVL:10

---

Command (--- indicates unset)

Set time of timer (--:-- indicates unset)

Command numbers

Weekly Command Timer

Program

57

58

59

60

61

62

63

64

20:00

20:30

22:00

--:--

--:--

--:--

--:--

--:--

---

---

---

---

---

1

AVL:00

DAM:NORM

POF

8/8

47

Options Adjustments

6

7

Press to select Command No.

Press to select a command number.

Command setting screen

Weekly Command Timer

Command No

Time

Command

Program 1

02

10:30

IMS:SL1

Press to select Time / Command.

Weekly Command Timer

Time

Command

Program 1

Press to set each item.

Time: Set the time to execute a command program.

Pressing “ ” or “ ” button once changes “Time” 1 minute.

Command No

10:30

IMS:SL1

02

Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.

Command:Select a command to execute at the set time. This unit has 64 commands to set. (see page 53)

Notes:

• Command is performed in order of execution time, regardless of the command number.

• If a command execution time overlaps with that of other commands, these commands are performed in number order.

• Pressing , Time becomes --:-- and Command becomes ---.

Note:

Press to return to the previous screen.

Shipping condition

This function allows you to reset the unit to the factory setting.

1

Press to display the SET UP menu.

Press to select “OSD LANGUAGE”.

2

3

Press and hold till the SHIPPING menu is displayed.

SET UP 1/2

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE

STANDBY SAVE

POWER MANAGEMENT

AUTO POWER OFF

OSD LANGUAGE

RGB

PC

OFF

OFF

OFF

OFF

ENGLISH (US)

4

Press to select “YES”.

Press to confi rm.

[from the unit]

1 Press the MENU button till the SET UP menu is displayed.

2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”.

3 Press and hold the ENTER button till the SHIPPING menu is displayed.

4 Press the Volume Up “+” or Down “–” button to select “YES”.

5 Press the ENTER button and wait for 10 sec.

Note:

Press the R button to return to SET UP menu when SHIPPING menu is displayed.

48

SHIPPING

YES

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms


Interference

Normal Picture

No Picture

No Picture

Sound

Noisy Sound

No Sound

No Sound

Normal Sound

Checks

Electrical Appliances

Cars / Motorcycles

Fluorescent light

Volume

(Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet

Not switched on

PICTURE and BRIGHTNESS/Volume setting

(Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable color system format, or frequency is input, only the input terminal indication is displayed.

No Color Normal Sound

Color controls set at minimum level. (see page 26, 27)

COLOR SYSTEM (see page 41)

No remote control operations can be performed.

Check whether the batteries have discharged completely and, if they have not, whether they were inserted properly.

Check whether the remote control sensor is exposed to an outdoor light or a strong fl uorescent light.

Check whether the remote control designed specifi cally for use with the unit is being used.

(The unit cannot be operated by any other remote control.)

A cracking sound is sometimes heard from the unit.

If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

I can hear sounds coming from inside the unit.

When the power is turned on, a sound of the display panel being driven may be heard: This is normal and not indicative of malfunctioning.

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

Plasma Display panel

Symptoms

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear.

The edges of the images fl icker.

Check

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce image retention on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.

Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.

The brightness on both sides of images in 4:3 mode changes.

Some parts of the screen do not light up.

When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.

The plasma display panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

Image retention appears

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Note:

The permanent image retention on the Plasma Display resulting from fi xed image use is not an operating defect and as such is not covered by the Warranty.

This product is not designed to display fi xed images for extended periods of time.

Whirring sounds can be heard from the display unit.

The display unit is fi tted with a cooling fan to dissipate heat generated during normal use. The whirring sound is caused by rotation of the fan and is not a malfunction.

49

14:9 –

Just

Just1

JUST

Just2 JUST

4:3

4:3 (1)

4:3

4:3 (2) 4:3

4:3 Full H-FILL

Zoom

Zoom1

ZOOM

Zoom2 ZOOM

List of Aspect Modes

Aspect mode

All Aspect:

On

Factory setting

All Aspect: Off

Picture Enlarged screen

Description

The display of the pictures fi lls the screen.

In the case of SD signals, pictures with a 4:3 aspect ratio are enlarged horizontally, and displayed. This mode is suited to displaying anamorphic pictures with a 16:9 aspect ratio.

16:9 FULL

Zoom3 –

Letterbox pictures with a 14:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen vertically and is slightly smaller than the screen horizontally. The top and bottom edges of the pictures are cut off. Side panels are displayed at the left and right edges of the screen.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The display of the areas around the left and right edges of the screen is slightly elongated.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The left and right edges of the pictures are cut off. The display of the areas around the left and right edges of the screen is slightly elongated.

Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. Side panels are displayed at the left and right edges of the screen.

Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. The left and right edges of the pictures are masked by side panels.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that their display fi lls the screen. The left and right edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen.

The top and bottom edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen.

The top and bottom edges as well as the left and right edges of the pictures are cut off.

Letterbox pictures with a 2.35:1 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen vertically and is slightly larger than the screen horizontally.

The top and bottom edges as well as the left and right edges of the pictures are cut off.

50

Applicable Input Signals

Signal name

Horizontal frequency

(kHz)

Vertical frequency

(Hz)

Component / RGB

/ Mini D-sub 15P

(Dot clock (MHz))

DVI-D

8

(Dot clock (MHz))

1 525

2 525

3

4

625 (575) / 50i

625 (575) / 50p

5

6

625 (576) / 50p

750 (720) / 60p

7 750 (720) / 50p

8 1,125

9 1,125

10 1,125 (1,080) / 50p

11 1,125 (1,080) / 50i

16 1,250 (1,080) / 50i

17 2,048 × 1,080 / 24sF

7

18 2,048 × 1,080 / 24p

7

400 Hz

25

480 Hz

480 Hz

480 Hz

480 Hz

600 Hz

800 × 600 @60 Hz

600 Hz

600 Hz

600 Hz

480 Hz

31 1,024 × 768 @60 Hz

35 1,066 × 600 @60 Hz

41 1,280 × 1,024 @60 Hz

42 1,280 × 1,024 @75 Hz

43 1,280 × 1,024 @85 Hz

45 1,366 × 768 @60 Hz

46 1,400 × 1,050 @60 Hz

47 1,600 × 1,200 @60 Hz

48 1,600 × 1,200 @65 Hz

49 1,920 × 1,080 @60 Hz

50 1,920 × 1,200 @60 Hz

51 Macintosh13” (640 × 480)

52 Macintosh16” (832 × 624)

53 Macintosh21” (1,152 × 870)

60.00

85.00

60.02

75.03

85.02

50.00

60.00

60.00

60.00

65.00

60.00

59.95

66.67

74.54

75.06

60.32

72.19

75.00

85.06

59.94

50.00

60.00

70.07

75.03

85.00

59.94

60.00

75.00

60.00

48.00

30.00

25.00

24.00

50.00

48.00

24.00

70.07

59.94

72.81

75.00

85.01

56.25

59.94

59.94

50.00

50.00

50.00

60.00

50.00

60.00

60.00

50.00

50.00

60.00

85.94

63.98

79.98

91.15

39.55

48.36

65.22

75.00

81.25

67.50

74.04

35.00

49.72

68.68

37.88

48.08

46.88

53.67

31.47

39.55

48.36

56.48

60.02

68.68

37.64

53.70

67.50

47.70

27.00

33.75

28.13

27.00

31.25

27.00

27.00

31.46

31.47

37.86

37.50

43.27

35.16

15.73

31.47

15.63

31.25

31.25

45.00

37.50

67.50

33.75

56.26

28.13

* (13.5)

* (27.0)

* (74.25)

* (74.25)

* (148.5)

* (74.25)

* (74.25)

* (40.0)

* (65.0)

* (53.0)

* (108.0)

* (135.0)

* (157.5)

* (86.71)

* (162.0)

* (175.5)

* (148.5)

* (30.24)

* (57.28)

* (100.0)

5

1

1

1

1

2

1

1

1

3

6

6

4

* (27.0)

* (27.0)

* (74.25)

* (74.25)

* (148.5)

* (74.25)

* (148.5)

* (74.25)

* (74.25)

* (74.25)

* (74.25)

* (25.18)

* (40.0)

*

(34.24)

(51.89)

* (65.0)

* (53.0)

* (108.0)

* (87.44)

* (122.61)

* (162.0)

* (148.5)

* (154.0)

1: Based on SMPTE 274M standard.

3: Based on SMPTE 295M standard.

2: Based on SMPTE RP211 standard.

4: The input signal is recognized as 1,125 (1,080) / 60p.

5: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.

6: When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

7: Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal Board

(TY-FB11DHD) is installed.

∗8: These signals can be received when the DVI-D Terminal Board (TY-FB11DD) is installed.

Note: Signals without above specifi cation may not be displayed properly.

51

Applicable Input Signals

VIDEO input (HDMI)

Signal format

1 VGA60

2 525/60p

3 625/50p

4 750/60p

5 750/50p

Vertical frequency (Hz)

59.94

59.94

50.00

60.00

50.00

Horizontal frequency (kHz)

31.47

31.47

31.25

45.00

37.50

Dot clock

(MHz)

25.18

27.00

27.00

74.25

74.25

Number of active pixels

640

720

720

1280

1280

6 1125/60i 60.00

33.75

74.25

1920

7 1125/50i

8 1125/60p

9 1125/50p

10 1125/24p

50.00

24.00

28.13

50.00 56.26

27.00

74.25

148.50 1920

74.25

∗Not compatible with HDMI Terminal Board (TY-FB8HM).

Audio signal Linear PCM : 48/44.1/32 kHz

1920

1920

Total number of pixels

800

858

864

1650

1980

2200

2640

2200

2640

2750

Number of active lines

480

480

576

720

720

1080

1080

1080

1080

1080

Total number of lines

525

525

625

750

750

1125

1125

1125

1125

1125

52

Command list of Weekly Command Timer

34

35

36

37

38

30

31

32

33

26

27

28

29

22

23

24

25

51

52

53

54

47

48

49

50

55

56

57

58

59

43

44

45

46

39

40

41

42

18

19

20

21

14

15

16

17

9

10

11

12

13

No.

1

2

3

4

7

8

5

6

IMS:PC1

IMS:SL1

IMS:SL1A

IMS:SL1B

IMS:SL2

IMS:SL2A

IMS:SL2B

IMS:SL3

ISS:PC1

ISS:SL1

ISS:SL1A

ISS:SL1B

ISS:SL2

ISS:SL2A

ISS:SL2B

ISS:SL3

OSP:SCR0

OSP:SCR1

POF

PON

SSC:FNC0

Command

AAC:MENCLR Audio Menu (Clear)

AAC:MENDYN Audio Menu (Dynamic)

AAC:MENSTD Audio Menu (Standard)

AAC:SURMON Surround (ON)

AAC:SUROFF

AMT:0

AMT:1

ASO:M

Surround (OFF)

Audio Mute (OFF)

Audio Mute (ON)

Control details

Audio out when PIP mode (Main Picture)

ASO:S

AVL:00

AVL:10

AVL:20

AVL:30

Audio out when PIP mode (Sub Picture)

Audio Volume (00)

Audio Volume (10)

Audio Volume (20)

Audio Volume (30)

AVL:40

AVL:50

AVL:60

DAM:FULL

DAM:JUST

DAM:NORM

DAM:SELF

DAM:ZOOM

DWA:OFF

DWA:OVL1

DWA:OVL2

DWA:OVL3

DWA:OVL4

DWA:OVL5

DWA:OVL6

DWA:OVLOF

DWA:OVLON

DWA:PIN0

DWA:PIN1

DWA:PIN2

DWA:PIN3

DWA:PIP

DWA:POP

DWA:SWP

DWA:TWN

Audio Volume (40)

Audio Volume (50)

Audio Volume (60)

Aspect (FULL)

Aspect (JUST)

Aspect (4:3)

Aspect (Panasonic Auto)

Aspect (ZOOM)

Dual Picture mode (OFF)

Advanced PIP mode (1) (see page 19)

Advanced PIP mode (2) (see page 19)

Advanced PIP mode (3) (see page 19)

Advanced PIP mode (4) (see page 19)

Advanced PIP mode (5) (see page 19)

Advanced PIP mode (6) (see page 19)

Advanced PIP mode (OFF) (normal two screen display mode)

Advanced PIP mode (ON)

The location of the sub picture (lower right)

The location of the sub picture (lower left)

The location of the sub picture (upper left)

The location of the sub picture (upper right)

Dual Picture mode (Picture in Picture)

Dual Picture mode (Picture out Picture)

Swap main picture and sub picture when PIP mode

Dual Picture mode (Picture and Picture)

Input select (PC1) (Main Picture when PIP mode)

Input select (SLOT1) (Main Picture when PIP mode)

Input select (SLOT1A) (Main Picture when PIP mode)

Input select (SLOT1B) (Main Picture when PIP mode)

Input select (SLOT2) (Main Picture when PIP mode)

Input select (SLOT2A) (Main Picture when PIP mode)

Input select (SLOT2B) (Main Picture when PIP mode)

Input select (SLOT3) (Main Picture when PIP mode)

Sub Picture Input Select (PC1)

Sub Picture Input Select (SLOT1)

Sub Picture Input Select (SLOT1A)

Sub Picture Input Select (SLOT1B)

Sub Picture Input Select (SLOT2)

Sub Picture Input Select (SLOT2A)

Sub Picture Input Select (SLOT2B)

Sub Picture Input Select (SLOT3)

Screen Saver SCROLLING BAR ONLY (OFF)

Screen Saver SCROLLING BAR ONLY (ON)

Power OFF

Power ON

Screen Saver function (SCROLLING BAR ONLY)

60

61

SSC:FNC1

SSC:MOD0

Screen Saver function (NEGATIVE IMAGE)

Screen Saver (Mode (OFF))

62

63

SSC:MOD3

VMT:0∗

Screen Saver (Mode (ON))

Picture Mute (OFF)

64 VMT:1∗ Picture Mute (ON)

Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button on the unit or enter the command VMT:0 to unlock Picture Mute.

53

Specifi cations

TH-42PF11UK TH-50PF11UK

Power Source

Power Consumption

Screen size

Power on

Stand-by condition

Power off condition

Plasma Display panel

(No.of pixels)

110 - 127 V AC, 50/60 Hz

525 W

Save OFF 0.9 W, Save ON 0.5 W

0.1 W

Drive method : AC type 42-inch,

16:9 aspect ratio

605 W

Save OFF 0.9 W, Save ON 0.5 W

0.1 W

Drive method : AC type 50-inch,

16:9 aspect ratio

36.2” (922 mm) (W) × 20.4” (518 mm) (H)

× 41.6” (1,057 mm) (diagonal)

43.5” (1,106 mm) (W) × 24.4” (622 mm) (H)

× 49.9” (1,269 mm) (diagonal)

2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

Operating condition

Temperature

Humidity

Applicable signals

Scanning format

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

PC signals

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i

VGA, SVGA, XGA, SXGA

UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

HDMI A-B

COMPONENT/RGB IN

PC IN

Y/G (BNC)

P

B

/B (BNC), P

R

/R (BNC)

AUDIO IN (RCA PIN JACK × 2)

(HIGH-DENSITY MINI D-SUB 15PIN)

TYPE A Connector × 2 with sync 1.0 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

B/P

R/P

B

R

/C

/C

B

R

:

:

HD/VD:

0.5 Vrms

Y or G with sync 1.0 Vp-p (75

Ω)

Y or G without sync 0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

1.0 - 5.0 Vp-p (high impedance)

AUDIO IN (M3 JACK) 0.5 Vrms

SERIAL

SPEAKERS

EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

6

Ω, 16 W [8 W + 8 W] (10 % THD)

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing band

EUR7636070R

AA Size × 2

TMME203 × 1

40.2” (1,020 mm) × 24.1” (610 mm) × 3.9” (99 mm) 47.7” (1,210 mm) × 28.5” (724 mm) × 3.8” (95 mm)

Dimensions (W × H × D)

Mass (weight)

main unit only with speakers approx. 64.0 lbs approx. 72.8 lbs approx. 79.4 lbs approx. 88.2 lbs

Note:

Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.

54

Specifi cations

TH-58PF11UK TH-65PF11UK

Power Source

Power Consumption

Screen size

Power on

Stand-by condition

Power off condition

Plasma Display panel

(No.of pixels)

110 - 127 V AC, 50/60 Hz

700 W

Save OFF 1.0 W, Save ON 0.5 W

0.2 W

Drive method : AC type 58-inch,

16:9 aspect ratio

755 W

Save OFF 1.0 W, Save ON 0.5 W

0.2 W

Drive method : AC type 65-inch,

16:9 aspect ratio

50.5” (1,284 mm) (W) × 28.4” (723 mm) (H)

× 58.0” (1,474 mm) (diagonal)

56.4” (1,434 mm) (W) × 31.7” (807 mm) (H)

× 64.7” (1,646 mm) (diagonal)

2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

Operating condition

Temperature

Humidity

Applicable signals

Scanning format

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

PC signals

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i

VGA, SVGA, XGA, SXGA

UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

HDMI A-B

COMPONENT/RGB IN

PC IN

Y/G (BNC)

P

B

/B (BNC), P

R

/R (BNC)

AUDIO IN (RCA PIN JACK × 2)

(HIGH-DENSITY MINI D-SUB 15PIN)

TYPE A Connector × 2 with sync 1.0 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

B/P

R/P

B

R

/C

/C

B

R

:

:

HD/VD:

0.5 Vrms

Y or G with sync 1.0 Vp-p (75

Ω)

Y or G without sync 0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

0.7 Vp-p (75

Ω)

1.0 - 5.0 Vp-p (high impedance)

AUDIO IN (M3 JACK) 0.5 Vrms

SERIAL

SPEAKERS

EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

6

Ω, 16 W [8 W + 8 W] (10 % THD)

8

Ω, 20 W [10 W + 10 W] (10 % THD)

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing band

EUR7636070R

AA Size × 2

TMME203 × 1

55.1” (1,399 mm) × 33.2” (843 mm) × 3.9” (99 mm) 61.2” (1,554 mm) × 36.5” (925 mm) × 3.9” (99 mm)

Dimensions (W × H × D)

Mass (weight)

main unit only with speakers approx. 120.2 lbs approx. 131.2 lbs approx. 150.0 lbs approx. 163.2 lbs

Note:

Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.

55

(for the U.S.A and Puerto Rico)

Panasonic Professional Display Company

Unit of Panasonic Corporation of

North America

One Panasonic Way 1F-10

Secaucus, NJ 07094

Panasonic Professional Flat Panel Display

Limited Warranty

Panasonic Professional Display Company. (referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follows: antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

Models or Parts

Part

Warranty

Labor

Warranty

There are no express warranties except as listed above.

Professional Flat

Panel Display

2 Years 2 Years

On-site or carry-in service in the USA and Puerto Rico may be obtained during the warranty period by contacting

Panasonic Professional Display Company Service toll free at 1-800-973-4390.

THE WARRANTOR SHALL NOT BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, WITHOUT LIMITION, DAMAGE

TO DISCS) RESULTING FROM THE USE OF THIS

PRODUCT, OR ARISING OUT OF ANY BREACH OF

THE WARRANTY. ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR

PARTICULAR PURPOSE, ARE LIMITED TO THE

APPLICABLE WARRANTY PERIOD SET FORTH

ABOVE.

This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from improper installation, set-up adjustments, improper

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may nor apply to you. This warranty gives you specific legal rights and you may other rights, which vary from state to state.

If you have a problem with this product that is not handled to your satisfaction, then write the Consumer

Affairs Department at the Company address indicated above.

In the USA and Puerto Rico

FOR SERVICE

CALL TOLL FREE

1-800-973-4390

56

(for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

LIMITED WARRANTY STATEMENT

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. The product or part that shows evidence of defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast

Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with the date of original end user purchase, subject to the exceptions as stated below.

Repaired or replacement parts supplied during the warranty coverage period carry the unexpired portion of the original warranty coverage period. Proof of product purchase is a condition of warranty service. The owner must produce the product purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs, safety windows, etc. This warranty does not apply to any part, or parts, of the product, installed, altered, repaired or misused in any way that, in the opinion of PCI, affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This warranty does not cover replacements or repairs necessitated by loss or damage resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of fixed images on video display products are not defects and are not covered under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR

ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item Parts

Video Tape 30 days—Replacement only

(content not covered)

P2/SD Cards

Video Heads

(Content not covered)

1 year or 2,000 hrs. (prorated)

Whichever comes first

D5 Video heads

* LCD Projectors above

2,500 ANSI Lumens

1 year or 1,000 hrs.

Whichever comes first

90 days Maintenance Items

Colour Camera CCD

Imaging Block

BT-H Series LCD Monitors

* DLP™ Projectors

2 years

2 years

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first

* LCD Projectors below

2,500 ANSI Lumens

Projector Lamps

103 inch Plasma displays

Hard Drive Disk Unit

3 years or 1,500 hrs.

Whichever comes first

50% of the rated lamp life or 1 year.

Whichever comes first

3 year (burn-in not covered)

1 year plus balance (if any) of the original Manufacturer’s

Limited Warranty.

(Content not covered)

Labour

N/A

N/A

1 year or 2,000 hrs.

Whichever comes first

1 year or 1,000 hrs.

Whichever comes first

90 days

1 year

1 year

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first.

3 years or 1,500 hrs.

Whichever comes first

50% of the rated lamp life or 1 year.

Whichever comes first.

3 year

1 year

• Dust, smoke, rental/staging environment and twenty-four/seven operation, dramatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage.

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the original carton) and enclose a letter, detailing the complaint. Send prepaid and adequately insured to the local authorized Panasonic Service Centre in your area or to Panasonic Technical Support and Product Services Department, 5770

Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location requires a return authorization before shipment. No liability is assumed for loss or damage to the product while in transit.

57

58

Note

59

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

©

Panasonic Corporation 2008

Panasonic Professional Display Company

Unit of Panasonic Corporation of North America

Executive Offi ce :

One Panasonic Way 1F-10, Secaucus, NJ 07094

EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621

Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621

Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835

Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200

WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500

Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726

No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108

Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!
