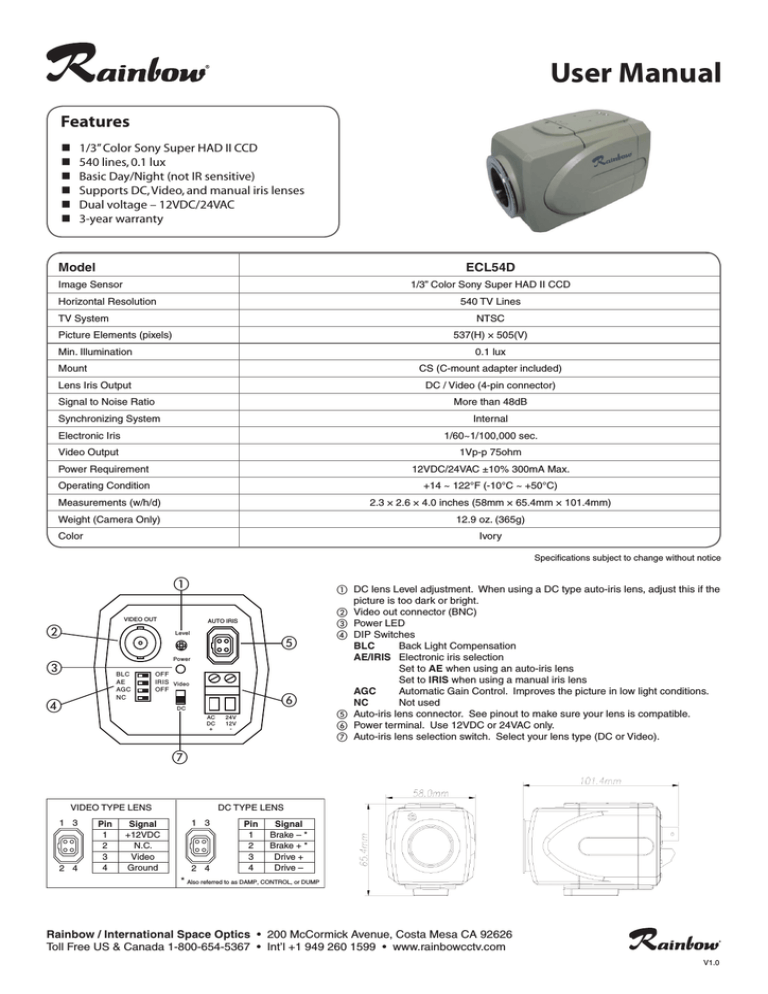

User Manual
Features






1/3” Color Sony Super HAD II CCD
540 lines, 0.1 lux
Basic Day/Night (not IR sensitive)
Supports DC, Video, and manual iris lenses
Dual voltage – 12VDC/24VAC
3-year warranty
Model
ECL54D
Image Sensor
1/3” Color Sony Super HAD II CCD
Horizontal Resolution
540 TV Lines
TV System
NTSC
Picture Elements (pixels)
537(H) × 505(V)
Min. Illumination
0.1 lux
Mount
CS (C-mount adapter included)
Lens Iris Output
DC / Video (4-pin connector)
Signal to Noise Ratio
More than 48dB
Synchronizing System
Internal
Electronic Iris
1/60~1/100,000 sec.
Video Output
1Vp-p 75ohm
Power Requirement
12VDC/24VAC ±10% 300mA Max.
Operating Condition
+14 ~ 122°F (-10°C ~ +50°C)
Measurements (w/h/d)
2.3 × 2.6 × 4.0 inches (58mm × 65.4mm × 101.4mm)
Weight (Camera Only)
12.9 oz. (365g)
Color
Ivory
Specifications subject to change without notice
VIDEO OUT
AUTO IRIS
Level
Power
BLC
AE
AGC
NC
OFF
IRIS Video
OFF
DC
AC
DC
+
24V
12V
-
DC lens Level adjustment. When using a DC type auto-iris lens, adjust this if the
picture is too dark or bright.
Video out connector (BNC)
Power LED
DIP Switches
BLC
Back Light Compensation
AE/IRIS Electronic iris selection
Set to AE when using an auto-iris lens
Set to IRIS when using a manual iris lens
AGC
Automatic Gain Control. Improves the picture in low light conditions.
NC
Not used
Auto-iris lens connector. See pinout to make sure your lens is compatible.
Power terminal. Use 12VDC or 24VAC only.
Auto-iris lens selection switch. Select your lens type (DC or Video).
VIDEO TYPE LENS
1 3
2 4
Pin
1
2
3
4
Signal
+12VDC
N.C.
Video
Ground
DC TYPE LENS
1 3
2 4
Pin
1
2
3
4
Signal
Brake – *
Brake + *
Drive +
Drive –
* Also referred to as DAMP, CONTROL, or DUMP
Rainbow / International Space Optics • 200 McCormick Avenue, Costa Mesa CA 92626
Toll Free US & Canada 1-800-654-5367 • Int’l +1 949 260 1599 • www.rainbowcctv.com
V1.0
