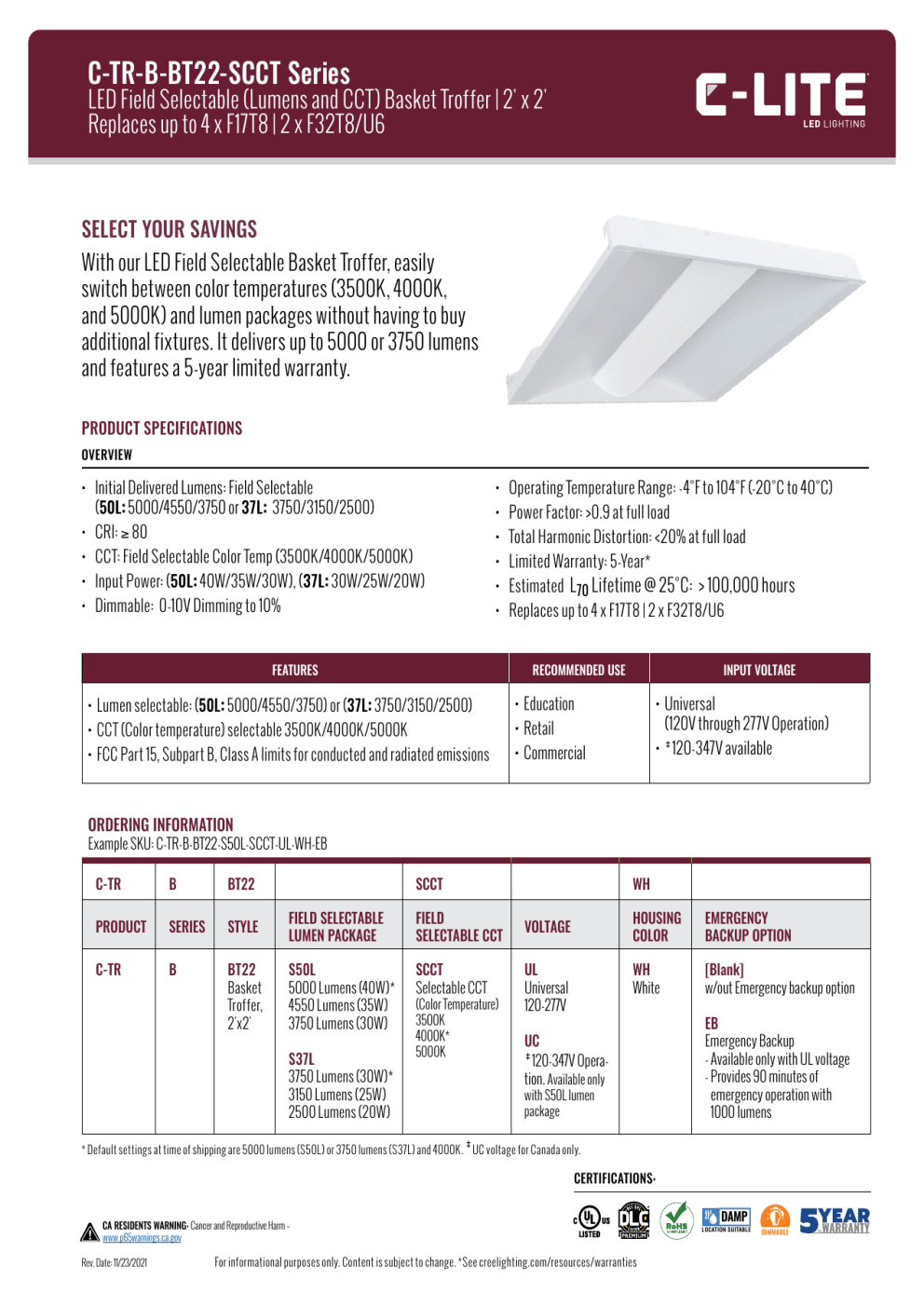

Cree Lighting C-TR-B-BT22-SCCT Series Spec Sheet

C-TR-B-BT22-SCCT Series
LED Field Selectable (Lumens and CCT) Basket Troffer | 2' x 2'
Replaces up to 4 x F17T8 | 2 x F32T8/U6
SELECT YOUR SAVINGS
With our LED Field Selectable Basket Troffer, easily
switch between color temperatures (3500K, 4000K,
and 5000K) and lumen packages without having to buy
additional fixtures. It delivers up to 5000 or 3750 lumens
and features a 5-year limited warranty.
PRODUCT SPECIFICATIONS
OVERVIEW
• Initial Delivered Lumens: Field Selectable
(50L: 5000/4550/3750 or 37L: 3750/3150/2500)
• CRI: ≥ 80
• CCT: Field Selectable Color Temp (3500K/4000K/5000K)
• Input Power: (50L: 40W/35W/30W), (37L: 30W/25W/20W)
• Dimmable: 0-10V Dimming to 10%
•
•
•
•
•
•
FEATURES
Operating Temperature Range: -4°F to 104°F (-20°C to 40°C)
Power Factor: >0.9 at full load
Total Harmonic Distortion: <20% at full load
Limited Warranty: 5-Year*
Estimated L70 Lifetime @ 25˚C: > 100,000 hours
Replaces up to 4 x F17T8 | 2 x F32T8/U6
RECOMMENDED USE
• L umen selectable: (50L: 5000/4550/3750) or (37L: 3750/3150/2500)
• CCT (Color temperature) selectable 3500K/4000K/5000K
• F CC Part 15, Subpart B, Class A limits for conducted and radiated emissions
INPUT VOLTAGE
• Education
• Retail
• Commercial
•U
niversal
(120V through 277V Operation)
• ‡ 120-347V available
ORDERING INFORMATION
Example SKU: C-TR-B-BT22-S50L-SCCT-UL-WH-EB
C-TR
B
BT22
SCCT
PRODUCT
SERIES
STYLE
FIELD SELECTABLE
LUMEN PACKAGE
FIELD
SELECTABLE CCT
C-TR
B
BT22
Basket
Troffer,
2'x2'
S50L
5000 Lumens (40W)*
4550 Lumens (35W)
3750 Lumens (30W)
SCCT
Selectable CCT
S37L
3750 Lumens (30W)*
3150 Lumens (25W)
2500 Lumens (20W)
(Color Temperature)
3500K
4000K*
5000K
WH
VOLTAGE
UL
Universal
120-277V
HOUSING
COLOR
EMERGENCY
BACKUP OPTION
WH
White
[Blank]
w/out Emergency backup option
UC
‡ 120-347V Operation. Available only
with S50L lumen
package
* Default settings at time of shipping are 5000 lumens (S50L) or 3750 lumens (S37L) and 4000K. ‡ UC voltage for Canada only.
CERTIFICATIONS:
CA RESIDENTS WARNING: Cancer and Reproductive Harm –
www.p65warnings.ca.gov
Rev. Date: 11/23/2021
For informational purposes only. Content is subject to change. *See creelighting.com/resources/warranties
EB
Emergency Backup
- Available only with UL voltage
DRY
- Provides
DRY 90 minutes of
LOCATION SUITABLE
emergency operation with
1000 lumens
3
DRY
WET
LOCATION SUITABLE
LOCATION SUITABLE
WET
DAMP
DRY
3
LOCATION SUITABLE
DAMP
3
WET
LOCATION SUITABLE
DR
DIMMABLE
LOCATION SUI
DIMMABLE
WET
SUITABLE
LOCATION
LOCATIONSUITABLE
SUITABLE LOCATION
DIMMABLE
LOCATION SUITABLE
LOCATION SUITABLE
DAMP
LOCATION SUITABLE
DAMP
LOCATION SUITABLE
DIMMABLE
WE
LOCATION SUI
DAM
LOCATION SUIT
C-TR-B-BT22-SCCT Series
w/out EB
w/EB
2-3/4" H
2-3/4" H
23-3/4" W
23-3/4" W
23-3/4"L
23-3/4"L
SERIES OVERVIEW
DIMENSIONS
PRODUCT WEIGHT
MOUNTING HEIGHT
SPACING
(w/out EB): 23-3/4"L x 23-3/4"W x 2-3/4"H
7.7 lbs.
8-12 Feet
8'x 8' – 10'x 10'
(w/EB): 23-3/4"L x 23-3/4"W x 2-3/4"H
8.8 lbs.
8-12 Feet
8'x 8' – 10'x 10'
FIXTURE SPECIFICATIONS
HOUSING
Steel construction, white polyester powder-coat
LENS ASSEMBLY
Flexible polycarbonate lens
MOUNTING
Recessed, installs into conventional grid ceilings
ELECTRICAL PERFORMANCE
OPERATING TEMPERATURE RANGE
ESTIMATED L70 LIFETIME
@ 25˚C (77˚F)
POWER FACTOR
TOTAL HARMONIC
DISTORTION
- 4°F to 104°F (-20°C to 40°C)
> 100,000 Hours
> 0.9 at full load
< 20% at full load
LUMEN PACKAGE
S50L
S37L
Rev. Date: 11/23/2021
FIELD SELECTABLE LUMENS
(35K/40K/50K)
SYSTEM WATTTS
(120-277V AND 120-347V)
5000*
CURRENT DRAW (AMPS)
120V
208V
240V
277V
347V
40W
0.33
0.19
0.17
0.14
0.12
4550
35W
0.29
0.17
0.15
0.13
0.10
3750
30W
0.25
0.14
0.13
0.11
0.09
3750*
30W
0.25
0.14
0.13
0.11
N/A
3150
25W
0.21
0.12
0.10
0.09
N/A
2500
20W
0.17
0.10
0.08
0.07
N/A
