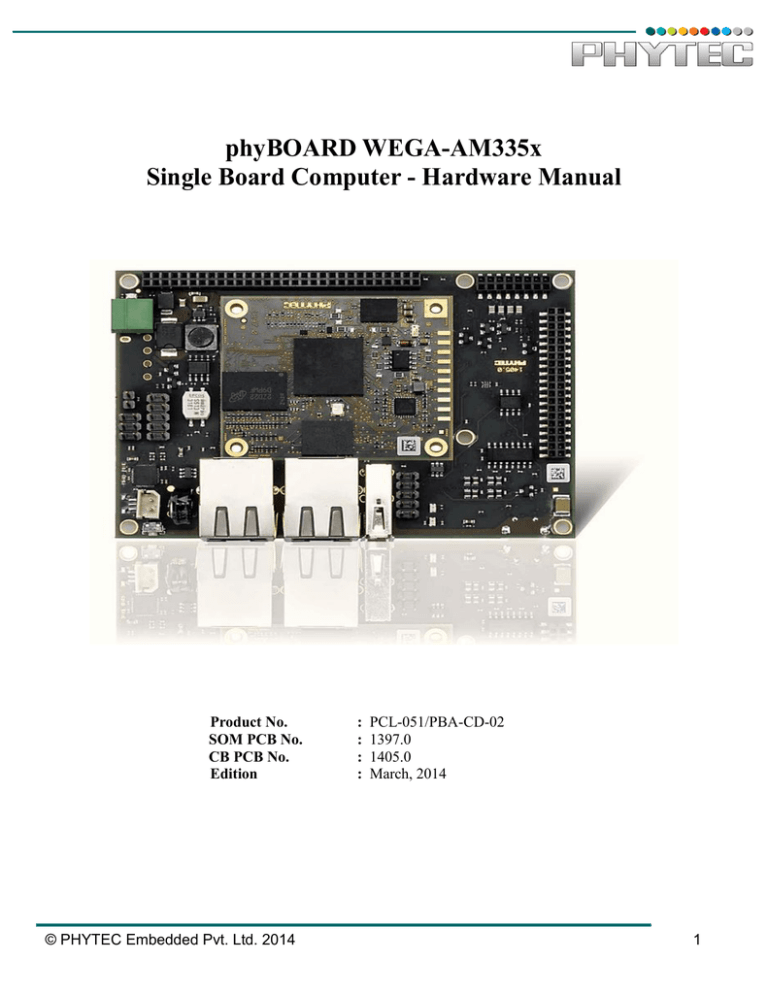

phyBOARD WEGA-AM335x

Single Board Computer - Hardware Manual

Product No.

: PCL-051/PBA-CD-02

SOM PCB No. : 1397.0

CB PCB No.

: 1405.0

Edition

: March, 2014

© PHYTEC Embedded Pvt. Ltd. 2014 1

In this manual descriptions are for copyrighted products that are not explicitly indicated as such. The absence of the trademark (TM) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered patents and trademarks are similarly not explicitly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable.

However, PHYTEC Embedded Pvt. Ltd assumes no responsibility for any inaccuracies. PHYTEC

Embedded Pvt. Ltd neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Embedded Pvt. Ltd reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC Embedded Pvt. Ltd offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC

Embedded Pvt. Ltd further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2014 PHYTEC Embedded Pvt. Ltd, Koramangala, Bangalore INDIA.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without the express written consent from PHYTEC Embedded Pvt. Ltd.

India Europe North America

Address:

Ordering

Information:

Web Site:

PHYTEC Embedded Pvt.

Ltd.

#16/9C, 3rd Floor, 3rd

Main, Opp. Police Station

Koramangala, 8 th block,

Bangalore -560095

India

PHYTEC Technologies

Holding AG

Robert-Koch-Str. 39

PHYTEC America LLC

203 Parfitt Way SW,

Suite G100 Bainbridge

55129 Mainz GERMANY Island, WA 98110 USA

+91-80-40867046

[email protected]

+49 (800) 0749832 [email protected]

1 (800) 278-9913 [email protected]

http://www.phytec.in

http://www.phytec.de

http://www.phytec.com

© PHYTEC Embedded Pvt. Ltd. 2014 2

Table of Contents

TABLE OF CONTENTS

................................................................................................................................................................. 3

CONVENTIONS, ABBREVIATIONS, AND ACRONYMS

............................................................................................................ 5

CONVENTIONS

.............................................................................................................................................................................. 5

A

BBREVIATIONS AND

A

CRONYMS

.......................................................................................................................................................... 5

TABLE-1. ABBREVIATIONS AND ACRONYMS USED IN THIS MANUAL

........................................................................... 5

TABLE-2. ABBREVIATIONS AND ACRONYMS USED IN THIS MANUAL

........................................................................... 6

TABLE-3. TYPES OF SIGNALS

................................................................................................................................................... 6

D

ECLARATION OF

E

LECTRO

M

AGNETIC

C

ONFORMITY OF THE PHY

BOARD-WEGA-AM335

X

............................................................. 7

PRODUCT CHANGE MANAGEMENT

........................................................................................................................................ 8

A

VOIDANCE STRATEGIES

........................................................................................................................................................................ 8

C

HANGE MANAGEMENT IN CASE OF FUNCTIONAL CHANGES

.................................................................................................................. 8

SW

MAINTENANCE

................................................................................................................................................................................. 8

C

HANGE MANAGEMENT IN RARE EVENT OF AN OBSOLETE AND NON REPLACEABLE PART

....................................................................... 8

1. INTRODUCTION

........................................................................................................................................................................ 9

1.1 HARDWARE OVERVIEW:

................................................................................................................................................... 9

1.2

F

EATURES OF THE PHY

BOARD-W

EGA

-AM335

X

:

.......................................................................................................................... 9

1.4

V

IEW OF THE PHY

BOARD-W

EGA

-AM335

X

:

................................................................................................................................ 11

2. PCL-051/PHYCORE-AM335X SYSTEM ON MODULE

........................................................................................................ 12

3. ACCESSING THE PHYBOARD-WEGA INTERFACES:

....................................................................................................... 13

3.1

C

ONCEPT OF THE PHY

BOARD-W

EGA

:

.......................................................................................................................................... 13

3.2

O

VERVIEW OF THE PHY

BOARD-W

EGA

P

ERIPHERALS

:

................................................................................................................. 13

3.3

C

ONNECTORS AND

P

IN

H

EADER

:

................................................................................................................................................... 14

TABLE-4: CONNECTORS DESCRIPTION

................................................................................................................................ 14

4. LEDS:

........................................................................................................................................................................................ 15

5. FUNCTIONAL COMPONENTS ON THE PHYBOARD-WEGA BOARD:

............................................................................ 15

5.1

P

OWER

S

UPPLY

C

AUTION

:

............................................................................................................................................................. 15

5.1.1

PHOENIX 2-

POLE

B

ASE

S

TRIP

................................................................................................................................................. 16

5.1.2

USB M

ICRO

AB

......................................................................................................................................................................... 16

5.1.3.

WAGO 6-

POLE

M

ALE

H

EADER

................................................................................................................................................. 17

5.2

P

OWER

LED D58

........................................................................................................................................................................... 17

5.3

VBAT

AND

RTC

............................................................................................................................................................................. 17

5.4

RS-232 C

ONNECTIVITY

(X66)

....................................................................................................................................................... 17

5.5

E

THERNET

C

ONNECTIVITY

(X16

AND

X17)

.................................................................................................................................... 18

5.6

USB C

ONNECTIVITY

(X15

AND

X42)

.......................................................................................................................................... 19

C

OMPONENTS SUPPORTING THE

USB I

NTERFACES

............................................................................................................................... 19

5.8

CAN C

ONNECTIVITY

..................................................................................................................................................................... 20

5.9

S

ECURE

D

IGITAL

M

EMORY

C

ARD

/ M

ULTIMEDIA

C

ARD

(X11)

...................................................................................................... 21

© PHYTEC Embedded Pvt. Ltd. 2014 3

5.10

I2C C

ONNECTIVITY

................................................................................................................................................................... 22

5.11

S

Y S TE M

R

ESET

B

UTTON

(S2):

.................................................................................................................................................... 22

6. SYSTEM LEVEL HARDWARE INFORMATION

.................................................................................................................. 23

6.1

A

UDIO

/V

IDEO CONNECTORS

(X70 & X71)

................................................................................................................................... 23

7. EXPANSION CONNECTOR:

.................................................................................................................................................. 25

8. TECHNICAL SPECIFICATIONS

............................................................................................................................................. 27

T

ABLE

-5.

T

ECHNICAL

S

PECIFICATIONS

................................................................................................................................................. 27

9. REVISION HISTORY

............................................................................................................................................................... 27

T

ABLE

-6 R

EVISION

H

ISTORY

............................................................................................................................................................... 27

10. PLACMENT DIAGRAMS

...................................................................................................................................................... 28

F

IGURE

16.

P

LACEMENT

D

IAGRAM OF PHY

BOARD-WEGA-AM335

X

............................................................................................... 28

© PHYTEC Embedded Pvt. Ltd. 2014 4

Conventions, Abbreviations, and Acronyms

Conventions

The conventions used in this manual are as follows:

• Signals that are preceded by a “/” character are designated as active low signals. Their active state is when they are driven low, or are driving low;

for Example: /RESET.

• Tables show the default setting or jumper position in bold

,

text.

• References made to the phyCORE-Connector always refer to the high density SAMTEC connectors on the underside of the phyBOARD-WEGA-AM335x System on Module.

Abbreviations and Acronyms

Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar terms used in this document.

Table-1. Abbreviations and Acronyms Used in This Manual

Abbreviation

Definition

BSP

JP

PCB

PDI

PEB

PMIC

PoE

PoP

RTC

SMT

CB

DFF

EMB

EMI

GPI

GPIO

GPO

IRAM

J

Board Support Package (Software delivered with the

Development Kit including an operating system (Windows or

Linux) preinstalled on the module and Development Tools).

Carrier Board; used in reference to the 1404.0

D flip-flop

External memory bus

Electromagnetic Interference

General purpose input

General purpose input and output

General purpose output

Internal RAM; the internal static RAM on the TI AM335x processor

Solder jumper; these types of jumpers require solder equipment to remove and place

Solder less jumper; these types of jumpers can be removed and placed by hand with no special tools

Printed circuit board

PHYTEC Display Interface; defined to connect PHYTEC display adapter boards or custom adapters

PHYTEC Extension Board

Power Management Integrated Circuit

Power over Ethernet

Package on Package

Real-time clock

Surface mount technology

© PHYTEC Embedded Pvt. Ltd. 2014 5

Table-2. Abbreviations and Acronyms Used in This Manual

Abbreviation

SOM

Definition

System on Module; used in reference to the PCL-051/WEGA Board

System on Module

Technical Reference Manual TRM

VBAT SOM battery supply input

Different types of signals are brought out at the phyCORE-Connector. The following table lists the abbreviations used to specify the type of a signal.

Table-3. Types of Signals

Type of Signal

Power

Ref-Voltage

USB-Power

Input

Output

Input with pull-up

Input/output

5V Input with pull-down

LVDS

Description

Supply voltage

Reference voltage

USB voltage

Digital input

Digital output

Input with pull-up (jumper or open-collector output)

Bidirectional input/output

5V tolerant input with pull-down

Differential line pairs 100 Ohm

LVDS level

Differential line pairs 90 Ohm

Abbreviation

PWR

REF

USB

IN

OUT

IPU

IO

5V_PD

LVDS

DIFF90 Differential 90

Ohm

Differential 100

Ohm

Analog

Differential line pairs 100 Ohm

Analog input or output

DIFF100

Analog

© PHYTEC Embedded Pvt. Ltd. 2014 6

Preface

This phyBOARD-WEGA-AM335x Board Hardware Manual describes the System on Module's design and functions. Precise specifications for the TI AM335x processor can be found in the processor datasheet and/or user’s manual.

In this hardware manual and in the schematics, active low signals are denoted by a "/" preceding the signal name, for example: /RD. A "0" represents logic-zero or low-level signal, while a "1" represents a logic one or high-level signal.

Declaration of Electro Magnetic Conformity of the phyBOARD-WEGA-AM335x

PHYTEC System on Modules (SOMs) are designed for installation in electrical appliances or, combined with the PHYTEC Carrier Board, can be used as dedicated Evaluation Boards (for use as a test and prototype platform for hardware/software development) in laboratory environments.

CAUTION:

PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be unpacked, handled or operated in environments in which sufficient precautionary measures have been taken in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians, technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be operated without protection circuitry if connections to the product's pin header rows are longer than 3 mm.

PHYTEC products fulfil the norms of the European Union's Directive for Electro Magnetic Conformity only in accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to the pin header row connectors, power connector and serial interface to a host-PC).

Implementation of PHYTEC products into target devices, as well as user modifications and extensions of PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro Magnetic Directives.

Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.

The phyBOARD-WEGA-AM335x Board is one of a series of PHYTEC System on Modules that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a variety of 8/16 and 32-bit controllers in two ways:

1. As the basis for Rapid Development Kits which serve as a reference and Evaluation platform.

2. As insert-ready, fully functional phyCORE OEM modules, which can be

Embedded directly into the user's peripheral hardware design.

© PHYTEC Embedded Pvt. Ltd. 2014 7

Implementation of an OEM-able SOM subassembly as the "core" of your embedded design allows you to focus on hardware peripherals and firmware without expending resources to "re-invent" microcontroller circuitry. Furthermore, much of the value of the phyCORE module lies in its layout and test.

“Production-ready Board Support Packages (BSPs)” and Design Services for our hardware further reduce development time and expenses. Take advantage of PHYTEC products to shorten time-tomarket, reduce development costs, and avoid substantial design issues and risks.

For more information refer to: http://www.phytec.in/services/hardware.html

Product Change Management

In addition to our HW and SW offerings, the buyer will receive a free obsolescence maintenance service for the HW provided when purchasing a PHYTEC SOM.

Our Product Change Management Team of developers is continuously processing all incoming

PCN's (Product Change Notifications) from vendors and distributors concerning parts which are being used in our products. Possible impacts to the functionality of our products, due to changes of functionality or obsolesce of a certain part, are evaluated in order to take the right measures in purchasing or within our HW/SW design.

Our general philosophy here is: We never discontinue a product as long as there is demand for it.

Therefore a set of methods has been established to fulfil our philosophy:

Avoidance strategies

• Avoid changes by evaluating longevity of a part during design-in phase.

• Ensure availability of equivalent second source parts.

• Maintain close contact with part vendors for awareness of roadmap strategies.

Change management in case of functional changes

• Avoid impacts on Product functionality by choosing equivalent replacement parts.

• Avoid impacts on Product functionality by compensating changes through HW redesign or backward compatibility

SW maintenance

• Provide early change notifications concerning functional relevant changes of our Products.

Change management in rare event of an obsolete and non replaceable part

• Ensure long term availability by stocking parts through last time buy management, according to product forecasts.

• Offer long term frame contract to customers.

We refrain from providing detailed, part-specific information within this manual, which is subject to changes, due to ongoing part maintenance for our products.

© PHYTEC Embedded Pvt. Ltd. 2014 8

1. Introduction

1.1 Hardware Overview:

The WEGA Board for phyCORE-AM335x is a low-cost, feature-rich software development platform supporting the TI AM335x processor families. At the core of the phyBOARD-WEGA-AM335x is the

PCL-051/phyCORE-AM335x System On Module (SOM) in a direct solder form factor, containing the

AM335x processor, SDRAM, NAND Flash, power regulation, supervision, transceivers and other core functions required to support the phyBOARD-WEGA-AM335x. Surrounding the SOM is the PBA-CD-

02/ phyBOARD-WEGA-AM335x Carrier, adding power input, buttons, connectors, signal breakout amongst other features.

The PCL-051 System On Module is a connector-less, BGA style variant of the PCM-051/phyCORE-

AM335x SOM. Unlike traditional PHYTEC SOM products that support high density connectors, the

PCL-051 SOM is directly soldered down to its Carrier Board using PHYTEC's Direct Solder Connect technology. This solution offers an ultra-low cost Single Board Computer for the AM335x processor, while maintaining most of the advantages of the SOM concept.

Adding the phyCORE-AM335x SOM into your own design is as simple as ordering the connectored version (PCM-051) and making use of our phyBOARD-WEGA-AM335x Carrier Board (PBA-CD-02), or RDK Carrier Board (PCM-953) reference schematics. A summary of the phyBOARD-WEGA-

AM335x features, along with a block diagram are presented below.

1.2 Features of the phyBOARD-Wega-AM335x:

The phyBOARD-Wega-AM335x supports the following features

PHYTEC’s phyCORE-AM335x SOM with Direct Solder Connect (DSC)

Pico ITX standard dimensions (100mm×72mm) Boot from MMC or NAND Flash Max. 1 GHz core clock frequency.

Three different power supply options (5V only with 3.5mm comb icon or micro USB connector, external power module e.g. 12V-24V input voltage).

Two RJ45 jacks for 10/100 Mbps Ethernet

One USB OTG interface available at an USB Micro-AB connector at the back side one secure

Digital/Multi Media memory card interface brought out to a Micro-SD connector at the back side

CAN interface at 5x2 pin header 2.54mm

Audio codec with stereo Line in and Line out (3x2 pin header 2.54mm) and mono speaker (2-pole

Molex)

RS-232 transceiver supporting UART1 incl. Handshake signals with data rates of up to 1 Mbps

(5x2 pin header 2.54mm)

Reset – Button

Audio/Video (A/V)connectors

Expansion connector

Backup battery supply for RTC with Gold cap (lasts approx. 17 ½ days)

© PHYTEC Embedded Pvt. Ltd. 2014 9

phyBOARD Wega AM335x Block Diagram.

© PHYTEC Embedded Pvt. Ltd. 2014 10

phyBOARD Wega AM335x

1.4 View of the phyBOARD-Wega-AM335x:

X66

© PHYTEC Embedded Pvt. Ltd. 2014 11

2. PCL-051/phyCORE-AM335x System on Module

This chapter gives a brief introduction to the PCL-051/phyCORE-AM335x System on Module

(SOM), highlighting its benefits and features. For more detailed information, please refer to the

Hardware Manual for the modular, connectored version of the SOM (PCM-051) by clicking here .

The phyCORE-AM335x belongs to PHYTEC’s phyCORE System on Module (SOM) family. The phyCORE SOMs represent the continuous development of PHYTEC SOM technology. Like its mini-, micro-, and nano MODULE predecessors, the phyCORE boards integrate all core elements of a microcontroller system on a sub miniature board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware developments.

As independent research indicates that approximately 70% of all EMI (Electro Magnetic

Interference) problems stem from insufficient supply voltage grounding of electronic components in high frequency environments, the phyCORE board design features an increased pin package. The increased pin package allows dedication of approximately 20% of all connector pins on the phyCORE boards to ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCORE boards even in high noise environments. phyCORE boards achieve their small size through modern SMD technology and multi-layer design.

In accordance with the complexity of the module, 0402-packaged SMD components and laser-drilled

Microwave are used on the boards, providing phyCORE users with access to this cutting edge miniaturization technology for integration into their own design.

The PCM-051, connector version of the phyCORE-AM335x is a sub-miniature (44 mm x 50 mm) insert-ready SOM populated with AM335x processor. Its universal design enables its insertion into a wide range of embedded applications. All processor signals and ports extend from the processor to highdensity pitch (0.5 mm) connectors aligning two sides of the board. This allows the SOM to be plugged like a "big chip" into a target application.

The PCL-051, connector less version of the phyCORE-AM335x populating the phyBOARD-

WEGA-AM335x is identical to the connectored version, with the exception of the connection interface.

Instead of two high density connectors aligning the edges of the board, the PCL-051 solders directly down to its Carrier Board with a BGA style footprint.

Precise specifications for the processor populating the board can be found in the applicable processor user's manual and datasheet. The descriptions in this manual are based on the AM335x processor. No description of compatible processor derivative functions is included; as such functions are not relevant for the basic functioning of the WEGA Board.

© PHYTEC Embedded Pvt. Ltd. 2014 12

3. Accessing the phyBOARD-Wega Interfaces:

PHYTEC phyBOARD-Wega is fully equipped with all mechanical and electrical components necessary for the speedy and secure start-up and subsequent communication to and programming of applicable PHYTEC System on Module (SOM) modules. phyBOARD-Wega

Boards are designed for evaluation, testing and prototyping of PHYTEC System on Module in laboratory environments prior to their use in customer designed applications.

3.1 Concept of the phyBOARD-Wega:

The phyBOARD-Wega provides a flexible development platform enabling quick and easy startup and subsequent programming of its soldered phyCORE-AM335x System on Module. The carrier board design allows easy connection of additional extension boards featuring various functions that support fast and convenient prototyping and software evaluation. The carrier board is compatible with phyCORE-AM335x only.

This modular development platform concept includes the following components:

The phyCORE-AM335x module populated by default with the AM3354 processor and all applicable

SOM circuitry such as DDR SDRAM, Flash, PHYs, and transceivers to name a few.

The phyBOARD-Wega which offers all essential components and connectors for start-up including: A power socket which enables connection to an external power adapter, interface connectors such as DB-9,

USB and Ethernet allowing for use of the SOM's interfaces with standard cable.

The following sections contain specific information relevant to the operation of the phyCORE-

AM335x mounted on the phyBOARD-Wega Carrier Board.

3.2 Overview of the phyBOARD-Wega Peripherals:

The phyBOARD-Wega is depicted in

above section

. It features many different interfaces and is equipped with the components as listed in

above section

. For a more detailed description of each peripheral refer to the appropriate chapter listed in the applicable highlights the location of each peripheral for easy identification.

© PHYTEC Embedded Pvt. Ltd. 2014 13

3.3 Connectors and Pin Header:

This lists all available connectors on the phyBOARD-Wega

.

Table-4: Connectors description

Reference

Designator

Description

X11 Secure Digital / Multi Media Card (Micro-slot)

X15

X16

X17

X42

X55

X65

X66

X67

USB Host connector (USB 2.0 Standard-A)

Ethernet 0 connector (RJ45 with speed and link LED)

Ethernet 1 connector (RJ45 with speed and link LED)

USB On-The-Go connector (USB Micro-AB)

Mono Speaker output (2-pole Molex)

CAN connector (5×2 pin header)

RS-232 with RTS and CTS (UART1 5×2 pin header)

Power supply 5 V only (via 6-pole WAGO male header, or

2-pole PHOENIX base strip)

X69

X70

X71

X72

X73

Expansion connector (2×30 socket connector)

A/V connector #1 (2×20 socket connector)

A/V connector #2 (2×8 socket connector)

Optional 5 V power supply via USB Micro-AB connector

Stereo Line Out and Line In connector

(2×3 pin header)

Note:

Ensure that all module connections are not to exceed their expressed maximum voltage or current.

Maximum signal input values are indicated in the corresponding controller User's Manual/Data Sheets.

As damage from improper connections varies according to use and application, it is the user‘s responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

© PHYTEC Embedded Pvt. Ltd. 2014 14

4. LEDs:

The phyBOARD-Wega is populated with three LEDs to indicate the status of the USB VBUS voltages, as well as of the power supply voltage.

Shows the location of the LEDs. Their function is listed in the table below:

LED Colour

Description

D7 green Indicates presence of VBUS1 at the USB Host interface

D8

D5 green red

Indicates presence of VBUS0 at the USB OTG interface

3.3 V voltage generation of the phyBOARD-Wega

5. Functional Components on the phyBOARD-WEGA Board:

This section describes the functional components of the phyBOARD-Wega. Each subsection details a particular connector/interface and associated jumpers for configuring that interface.

5.1 Power Supply Caution:

Do not change modules or jumper settings while the phyBOARD-Wega is supplied With power.

Power Connectors (X67 and X72)

The phyBOARD-Wega is available with three different power supply connectors. Depending on your order you will find one of the following connectors on your SBC:

1. A 2-pole PHOENIX base strip 3.5 mm connector suitable for a single 5 V supply voltage, or

2. AN USB Micro-AB connector to connect a standard 5 V USB power supply, or

3. A 6-pole WAGO male header to attach the Power Module for phyBOARD-Wega (PEB-POW-01) which provides connectivity for 12 V – 24 V

The required current load capacity for all power supply solutions depends on the specific configuration of the phyCORE mounted on the phyBOARD-Wega the particular interfaces enabled while executing software as well as whether an optional expansion board is connected to the carrier board. A 5 V adapter with a minimum Supply of 1.5 A is recommended.

© PHYTEC Embedded Pvt. Ltd. 2014 15

PHOENIX base strip WAGO male header 6-pole

5.1.1 PHOENIX 2-pole Base Strip

The permissible input voltage is +5 V DC if your SBC is equipped with a 2-pole

PHOENIX connector.

The following table show the pin assignment.

Pin Signal

Description

1 VCC5V_IN +5V power supply

2 GND Ground

Pin Assignment of the 2-pole PHOENIX Connector atX67

5.1.2 USB Micro AB

If your board provides an USB Micro-AB female connector at the upper side of the board a standard USB Micro power supply with +5 V DC can be used to supply the phyBOARD-Wega.

Caution!

Do not confuse the USB Micro connector on the upper side of the board with the one on the back side of the board which provides USB OTG connectivity. The USB Micro connector on the upper side is exclusively used for power supply and has no other USB functionality!

© PHYTEC Embedded Pvt. Ltd. 2014 16

5.1.3. WAGO 6-pole Male Header

If a WAGO 6-pole male header is mounted on your board, your board is prepared to connect to a phyBOARD-Wega Power Module (PEB-POW-01), or a custom power supply circuitry. The mating connector from WAGO has the EAN 4045454120610.

Pin Signal

Description

1

2

3

4

5

VCC5V_IN

GND

VCC3V3_PMOD

VCC_BL

PMOD_PWRGOOD

+5 V power supply

Ground

+3.3 V power supply

Backlight power supply

Power good signal (connected to reset nRESET_IN)

6

PMOD_PWRFAIL Power fail signal

Pin Assignment of the 6-pole WAGO Connector at X67

5.2 Power LED D58

The red LED D58 right next to the power connector indicates the presence of the 3.3 V supply voltage generated from the 5 V input voltage.

5.3 VBAT and RTC

On the phyBOARD-Wega the internal RTC of the AM335x is used for real-time or timedriven applications. To backup the RTC on the module, a gold cap (C339) is placed on the phyBOARD-Wega. This voltage source supplies the backup voltage domain VBAT of the AM335x which supplies the RTC and some critical registers when the primary system power, VCC5V_IN, is removed. The backup supply lasts approximately.

5.4 RS-232 Connectivity (X66)

RS-232 Interface Connector X66

© PHYTEC Embedded Pvt. Ltd. 2014 17

Pin header connector X66 located next to the USB host connector provides the UART1 signals of the AM335x at RS-232 level. The serial interface is intended to be used as data terminal equipment (DTE) and allows for a 5-wire connection including the signals RTS and CTS for hardware flow control. Below table shows the signal mapping of the RS-232 level signals at connector X66.

Pin Signal Pin

Signal

1

3

5

NC

UART1_RXD_RS232

UART1_TXD_RS232

2

4

6

NC

UART1_RTS_RS232

UART1_CTS_RS232

7

NC

8

NC

9

GND

10

NC

Pin Assignment of RS-232 Connector X66

An adapter cable is included in the phyBOARD-Wega-Am335x Kit to facilitate the use of the

UART1 interface. The following figure shows the signal mapping of the adapter.

5.5 Ethernet Connectivity (X16 andX17)

The Ethernet interfaces of the phyBOARD-Wega are accessible at two RJ45 connectors (X16 and

X17) on the board.

Ethernet Interfaces at Connectors X16 and X17

Both Ethernet interfaces are configured as 10/100Base-T networks. The LEDs for LINK (green) and SPEED (yellow) indication are integrated in the connector. Both LAN8710AI Ethernet transceivers support HP Auto-MDIX technology, eliminating the need for the consideration of a direct connect

LAN cable, or a cross-over path cable. They detect the TX and RX pins of the connected device and automatically configure the PHY TX and RX pins accordingly.

© PHYTEC Embedded Pvt. Ltd. 2014 18

5.6 USB Connectivity (X15 and X42)

The phyBOARD-Wega provides one USB Host and one USB OTG interface.

USB0 is accessible at connector X42 (USB Micro-AB) located at the back side of the phyBOARD-

Wega. It is configured as USB OTG. USB OTG devices are capable to initiate a session, control the connection and exchange host and peripheral roles between each other. This interface is compliant with USB revision 2.0.

USB1 is accessible on the top at connector X15 (USB Standard-A) and is configured as USB Host.

Components supporting the USB Interfaces

LED D8 displays the status of USB0_VBUS and LED D7 the status of USB1_VBUS. For later expansion boards the USB1 interface can be routed to the expansion connector (X69) by populating

J72 and J73 (2+3).

5.7 Audio Interface (X55 andX73)

The audio interface provides a method of exploring AM335x’s audio capabilities. The phyBOARD-

Wega is populated with an audio codec at U35. The audio codec is connected to the AM335x’s

McASP0 interface to support stereo line input and stereo line output at connector X73. In addition to that the phyBOARD-Wega has one direct mono speaker output (2 × 1 W) at the Molex connector X55.

X55: Speaker

Audio Interfaces at Connectors X55 and X73 X73:LINE IN LINEOUT

© PHYTEC Embedded Pvt. Ltd. 2014 19

Pin assignment at X73

Pin

1

3

5

Pin assignment at X55

Pin

Signal

LINE_IN_L

AGND

LINE_OUT_L

Signal

Pin

2

4

6

Signal

LINE_IN_R

AGND

LINE_OUT_R

Description

1

SPOP

Class-D positive differential output

2

SPOM

Class-D negative differential output

For additional audio applications the McASP0 interface of the AM335x including the signals

X_MCASP0_AHCLKX, X_I2S_CLK, X_I2S_FRM, X_I2S_ADC and X_I2S_DAC are routed to the

A/V connector.

5.8 CAN Connectivity

The CAN1 interface of the phyBOARD-Wega-AM335x is accessible at connector X65

(2×5 2.54 mm pin header).

Jumper JP3 can be installed to add a 120 Ohm termination resistor across the CAN data lines if needed.

Components supporting the CAN Interface

© PHYTEC Embedded Pvt. Ltd. 2014 20

Below table shows the signal mapping of the CAN1 signals at connector X65.

Pin Signal Pin

Signal

1

3

5

7

NC

X_CANL

GND

NC

2

4

6

8

GND

X_CANH

NC

NC

9 Shield 10

Pin Assignment of CAN Connector X65

NC

An adapter cable is included in the phyBOARD-Wega-Am335x Kit to facilitate the use of the

CAN interface. The following figure shows the signal mapping of the adapter.

5.9 Secure Digital Memory Card/ Multimedia Card (X11)

SD / MM Card interface at connector X11 he phyBOARD-Wega provides a standard micro SDHC card slot at X11 for connection to

SD/MMC interface cards. It allows easy and convenient connection to peripheral devices like SD - and MMC cards. Power to the SD interface is supplied by inserting the appropriate card into the

SD/MMC connector, who features a card detection, a lock mechanism and a smooth extraction function by Push-in /-out of card.

“The AM335x processor on the phyBOARD-Wega can BOOT from this interface.”

© PHYTEC Embedded Pvt. Ltd. 2014 21

5.10 I2C Connectivity

The I2C interface of the AM335x is available at different connectors on the phyBOARD -

Wega. The following table provides a list of the connectors and pins with I2C connectivity.

Connector

Location

Expansion connector X69

A/V connector X71 pin 11 (I2C_SDA);

pin 13 (I2C_SCL) pin 16 (I2C_SDA);

pin 15 (I2C_SCL)

To avoid any conflicts when connecting external I2C devices to the phyBOARD-Wega the addresses o f the on-board I2 C devices must be considered.

5.11 System Reset Button (S2):

"The phyBOARD-Wega is equipped with a system reset button at S2. Pressing this button will toggle the X_nRESET_IN pin of the phyCORE SOM low, causing the module to reset. Additionally, a reset is generated on nRESET_OUT to reset peripherals."

System Reset Button S2

© PHYTEC Embedded Pvt. Ltd. 2014 22

6. System Level Hardware Information

6.1 Audio/Video connectors (X70 & X71)

18

19

20

21

22

23

24

11

12

13

14

15

16

17

The Audio/Video (A/V) connectors X70 and 71 provide an easy way to add typical A/V functions and features to the phyBOARD-Wega. Standard interfaces such as parallel display, I²S and I²C as well as different supply voltages are available at the two A/V female dual entry connectors. Special feature of these connectors are their connectivity from the bottom or the top. The pin out of the A/V connectors is shown in

below tables.

X70 Connector Details:

Pin No Signal Name Description Pin(Ball-no)of

Processor

1

2

3

4

GND

X_LCD_D21

X_LCD_D18

X_LCD_D16

Ground

LCD D21

LCD D18

LCD D16

T11

R12

U13

5

6

7

8

9

10

X_LCD_D0

GND

X_LCD_D1

X_LCD_D2

X_LCD_D3

X_LCD_D4

LCD D0

Ground

LCD D1

LCD D2

LCD D3

LCD D4

R1

R2

R3

R4

T1

25

26

27

28

29

30

GND

X_LCD_D22

X_LCD_D19

X_LCD_D5

X_LCD_D6

GND

X_LCD_D7

X_LCD_D8

X_LCD_D9

X_LCD_D10

GND

X_LCD_D23

X_LCD_D20

X_LCD_D17

X_LCD_D11

GND

X_LCD_D12

X_LCD_D13

X_LCD_D14

X_LCD_D15

Ground

LCD D22

LCD D19

LCD D5

LCD D6

Ground

LCD D7

LCD D8

LCD D9

LCD D10

Ground

LCD D23

LCD D20

X_LCD_D17

LCD D11

Ground

LCD D12

LCD D13

LCD D14

LCD D15

T10

T12

T2

T3

T4

U1

U2

U3

U10

U12

V13

U4

V2

V3

V4

T5

© PHYTEC Embedded Pvt. Ltd. 2014 23

31

32

33

GND

X_LCD_PCLK

X_LCD_BIAS_EN

34

35

36

37

38

X_LCD_HSYNC

X_LCD_VSYNC

GND

GND

X_PWM1_OUT

39 VCC_BL

40

X71 Connector Details:

Pin No

VCC5V

Signal Name

1

2

3

X_I2S_CLK

X_I2S_FRM

X_I2S_ADC

Ground

LCD Pixel Clock

LCD BIAS

LCD Horizontal

Synchronisation

LCD Vertical

Synchronisation

Ground

Ground

Pulse Wide

Modulation

Backlight power supply

5V powersupply

V5

R6

R5

U5

C15

4

5

6

7

8

9

10

11

12

13

14

15

16

X_I2S_DAC

X_AV_INT_GPIO1_3

0

X_MCASP0_AHCLK

X

GND nRESET_OUT

TS_X+

TS_X-

TS_Y+

TS_Y-

VCC3V3

GND

X_I2C0_SCL

X_I2C0_SDA

Description

I²S Clock

I²S Frame

I²S Analog-Digital converter

(microphone)

I²S Digital-Analog converter (speaker)

A/V interrupt;

GPIO1_30

McASP0 high frequency clock

Ground

Reset

Touch X+

Touch X-

Touch Y+

Touch Y-

3.3 V power supply

Ground

I²C Clock

I²C Data

Pin(Ball-no)of

Processor

A13

B13

D12

D13

U9

A14

A10

B6

C7

B7

A7

C16

C17

© PHYTEC Embedded Pvt. Ltd. 2014 24

7. Expansion connector:

The expansion connector X69 provides an easy way to add other functions and features to the phyBOARD-Wega. Standard interfaces such as UART, SPI and I2C as well as different supply voltages and some GPIOs are available at the expansion female connector. The pinout of the expansion connector is shown in S e c u r e Digital Memory Card/ MultiMedia Card (X11).

Pin No Signal Name Description Pin of Processor

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

VCC3V3

VCC5V

VDIG1_1P8V

GND

X_SPI0_CS0

X_SPI0_MOSI

X_SPI0_MISO

X_SPI0_CLK

GND

X_UART0_RXD

X_I2C0_SDA

X_UART0_TXD

X_I2C0_SCL

GND

X_JTAG_TMS

X_nJTAG_TRST

X_JTAG_TDI

X_JTAG_TDO

GND

X_JTAG_TCK

X_USB1_DP_EXP

X_USB1_DM_EXP nRESET_OUT

GND

X_MMC2_CMD

X_MMC2_DAT0

X_MMC2_CLK

X_MMC2_DAT1

3.3 V power supply

5 V power supply

1.8 V power supply

Ground

SPI 0 chip select 0

SPI 0 master output/slave input

SPI 0 master input/slave output

SPI 0 clock output

Ground

UART 0 receive data

(standard debug interface)

I²C 0 Data

UART 0 transmit data

(standard debug interface)

I²C 0 Clock

Ground

JTAG Chain Test Mode

Select signal

JTAG Chain Test Reset

JTAG Chain Test Data Input

JTAG Chain Test Data

Output

Ground

JTAG Chain Test Clock signal

USB1 data plus

USB1 data minus

Reset

Ground

MMC command

MMC data 0

MMC clock

MMC data 1

A16

B17

B16

A17

E15

C17

E16

C16

C11

B10

B11

A11

A12

R17

R18

A10

J16

J17

L15

J18

© PHYTEC Embedded Pvt. Ltd. 2014 25

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

GND

X_MMC2_DAT2

X_UART2_RX_GPIO3

_9

X_MMC2_DAT3

X_UART2_TX_GPIO3

_10

GND

X_UART3_RX_GPIO2

_18

X_UART3_TX_GPIO2

_19

X_INTR1_GPIO0_20

X_GPIO0_7

X_AM335_EXT_WAK

EUP

X_INT_RTCn

GND

X_GPIO3_7

Ground

MMC data 2

UART 2 receive data;

GPIO3_19

MMC data 3

UART 2 transmit data;

GPIO3_10

Ground

UART 3 receive data;

GPIO2_18

UART 3 transmit data;

GPIO2_19

Interrupt 1; GPIO0_20

GPIO0_7

External wakeup

K15

A17

H16

B17

C15

C18

D14

C18

C5

52

53

54

55

56

57

46

47

48

49

50

51

58

58 nRESET_IN

X_GPIO3_8

X_AM335_NMIn

GND

X_AIN4

X_AIN5

X_AIN6

X_AIN7

GND

X_USB1_DRVVBUS

X_USB1_ID

USB1_VBUS

X_USB1_CE

GND

X_PMIC_POWER_EN

X_PB_POWER

Interrupt from the RTC

Ground

GPIO3_7;

Caution: [Also connected to powerfail signal through R415!]

Push-button reset

GPIO 3_8;

Caution: [Also connected to power-down circuit through R412!]

AM335x non-maskable interrupt

Ground

Analog input 4

Analog input 5

Analog input 6

Analog input 7

Ground

USB 1 bus control output

USB 1 port identification

USB 1 bus voltage

USB 1 charger enable

Ground

Enable Power Management

IC for AM335x

Power On for Power

Management IC for

AM335x

C14

A10

B14

B18

C8

B8

A8

C9

F15

P17

T18

P18

© PHYTEC Embedded Pvt. Ltd. 2014 26

59

60

GND

VCC5V_IN

8. Technical Specifications

Ground

5 V input supply voltage

Table-5. Technical Specifications

Dimensions

Weight

Storage Temperature

Operating Temperature

Humidity

Operating Voltage

Power Consumption

100 x 72mm

64.2g / 2.26oz typ.

-40 °C to +125 °C

-40°C to + 85 °C (Industrial)

95% r.F. not condensed

+5VDC +- 5%

2.05W typ.; Linux booted from Micro SD card, running ping test

9. Revision History

Table-6 Revision History

Date

08/11/2013

Version Number

Hardware Manual

PBA-CD-02

Changes in this Manual

Preliminary documentation.

Describes the phyBOARD-WEGA-

AM335x With phyCORE-AM335x

SOM.

© PHYTEC Embedded Pvt. Ltd. 2014 27

10. PLACMENT DIAGRAMS

Figure 16. Placement Diagram of phyBOARD-WEGA-AM335x

Top Placement Diagram of phyBOARD-WEGA-AM335x

© PHYTEC Embedded Pvt. Ltd. 2014 28

Bottom Placement Diagram of phyBOARD-WEGA-AM335x

Note:

If you want more information about mechanical dimensions please visit the this FTP link:

ftp://ftp.phytec.de/pub/Products/phyBOARD-WEGA-AM335x/Layout/PL1397_0/

© PHYTEC Embedded Pvt. Ltd. 2014 29

Get the dialog going ...

... and stay in touch

INDIA

PHYTEC Embedded Pvt.Ltd.

#16/9C, 3rd Floor, 3rd Main

8th Block, Opp. Police Station

Kormangala, Bangalore-560095

Tel.: +91-80-40867046-49 www.phytec.in

Germany

PHYTEC Messtechnik GmbH

Robert-Koch-Straße 39

D-55129 Mainz

Tel.: +49 6131 9221-32

Fax: +49 6131 9221-33 www.phytec.de

www.phytec.eu

America

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

Tel.: +1 206 780-9047

Fax: +1 206 780-9135 www.phytec.com

France

PHYTEC France SARL

17, place St. Etienne

F-72140 Sillé le Guillaume

Tel.: +33 2 43 29 22 33

© PHYTEC Embedded Pvt. Ltd. 2014 30

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
