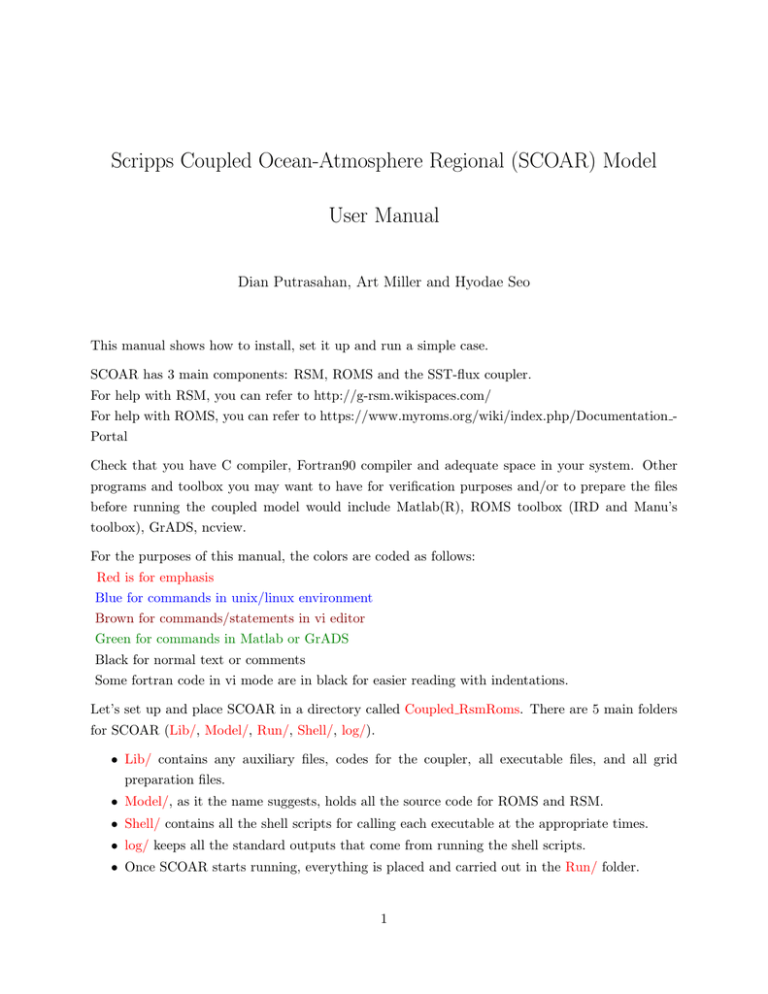

Scripps Coupled Ocean-Atmosphere Regional (SCOAR) Model

User Manual

Dian Putrasahan, Art Miller and Hyodae Seo

This manual shows how to install, set it up and run a simple case.

SCOAR has 3 main components: RSM, ROMS and the SST-flux coupler.

For help with RSM, you can refer to http://g-rsm.wikispaces.com/

For help with ROMS, you can refer to https://www.myroms.org/wiki/index.php/Documentation -

Portal

Check that you have C compiler, Fortran90 compiler and adequate space in your system. Other programs and toolbox you may want to have for verification purposes and/or to prepare the files before running the coupled model would include Matlab(R), ROMS toolbox (IRD and Manu’s toolbox), GrADS, ncview.

For the purposes of this manual, the colors are coded as follows:

Red is for emphasis

Blue for commands in unix/linux environment

Brown for commands/statements in vi editor

Green for commands in Matlab or GrADS

Black for normal text or comments

Some fortran code in vi mode are in black for easier reading with indentations.

Let’s set up and place SCOAR in a directory called Coupled RsmRoms . There are 5 main folders for SCOAR ( Lib/ , Model/ , Run/ , Shell/ , log/ ).

Lib/ contains any auxiliary files, codes for the coupler, all executable files, and all grid preparation files.

Model/ , as it the name suggests, holds all the source code for ROMS and RSM.

Shell/ contains all the shell scripts for calling each executable at the appropriate times.

• log/ keeps all the standard outputs that come from running the shell scripts.

• Once SCOAR starts running, everything is placed and carried out in the

Run/ folder.

1

mkdir Couple RsmRoms cd Couple RsmRoms mkdir Lib/ Model/ Run/ Shell/ log/ cd Lib mkdir aux-files/ codes/ exec/ grids/ cd exec mkdir Coupler/ RSM/ ROMS/ cd ../../Model mkdir ROMS/ RSM/ misc/

1. Download and Installation

Check that netcdf has been installed. If not, go to http://www.unidata.ucar.edu/software/netcdf/ and download netcdf-version.tar file.

tar xvf netcdf-3.6.1.tar

cd netcdf-3.6.1/src

./configure –prefix=/home/username/netcdf/ make check make install

Set environment for NETCDF a. RSM

You would need CVS in your system to download RSM. You can check this by typing cvs . If CVS is not installed in your system, go to http://www.nongnu.org/cvs/ and have it installed.

• Set your environment for CVSROOT, example setenv CVSROOT :pserver:[email protected]:/rokka1/kana/cvs-server-root/cpscvs

Note that password for user ”anoncvs” is <return>

• Be sure to add current directory ”.” to your path in .cshrc or equivalent

• cd Couple RsmRoms/Model/RSM

• cvs co INSTALL

Creates several different directories (CVS/, def/, expscr/ instscr/ makefiles/) and install executable.

Interactive installation, proceed as follow.

./install

Install G-RSM library, source and run scripts from cvs repository

The default version of this run is: trunk

./install –help for help. PRESS <ENTER> TO PROCEED.

2

<return>

Model choices gsm rsm crsm nhm roms scm gdas cpl ? [return=gsm]==>

• rsm

Machine architecture:

Type single/thread/mpi/hybrid [return=single]?==>

• mpi

Institution

Enter INSTITUTION, ? for list, [return=sio] ==>? sio, ecpc, esc, navo, ncar, ncep, ncsa, nersc, tacc, sdsc or any name [return=ecpc]==>

• sio

Machine CPU type

Type MACHINE, ? for list [return=linux].==>?

sgi origin ibmsp sun dec nec hp cray t90 t3e es linux mac ==>

• linux

Machine nickname

Type the machine nickname [return=atlas] ==> atlas

Compiler

Enter COMPILER, ? for list [return=pgi]. ==>?

pgi or intel ==>

• pgi

Additional options:

If you need to change mpi-version=1 compile-in-64-bit=no linux-distribution=1 linux-vsn=0 netcdf-vsn=3 debug option=no username=m0101 enter yes, else press enter or no==>

<return>

Model resolution and domain specification

(1) through (43) options

Type the number associated with your model dimension specification.

If there is no choice available, type 999 [return=36]==>

9

Number of pes rsm: type number of cpus to use [return=4]==>

3

64

Choice of run script: rsm: Which script do you want to run?

rcases rsim rsm rsmrt test [return=test]==>

• rsm

Creates libs/, rsm/, rsm runs/, .hist and tmp.14054

You have compiled RSM!!!

Node list in your home directory is important.

cd vi nodelist

Files that need to be added to RSM for coupler to work.

cd ∼/Couple RsmRoms/Model/RSM/expscr/rsm scp [email protected]:∼/Research/SCOARv2/rsim scoar.in ./ cd ∼/Couple RsmRoms/Model/RSM/libs/etc scp [email protected]:∼/Research/SCOARv2/ieee2grb sst scoar.in ./ cd ∼/Couple RsmRoms/Model/RSM/libs/etc/utils scp [email protected]:∼/Research/SCOARv2/ieee2grb sst scoar.F ./

Compile added codes: cd ∼/Couple RsmRoms/Model/RSM/libs/etc/utils vi Makefile.in

EXECS = date.x ifdef.x ieee2grb sst.x ieee2grb sst scoar.x mpiset.x incdte.x

cd ../..

configure-libs cd etc/utils make

Adjustment to allow RSM to use ROMS SST at time t=0: cd ∼/Couple RsmRoms/Model/RSM/rsm/src/rsml vi rsmsmf.F

#Line 215: insert: c c Kei & Dian addition (May 13, 2009) c Attempting to call sfc.F so as to use the sfc field at beginning of integration c

#ifdef MP if (mype.eq.master) then

#endif print *,’ **** surface update *** fhour is ’,fhour

4

print *,’ **** surface update *** idate is ’,idate

#ifdef MP endif

#endif c thour = 0.

call sfc(nrsmo1,idate(4),idate(2),idate(3),idate(1),fhour) c c end of addition (May 13, 2009) c cd ../..

make b. ROMS

In order to download ROMS, you would need to register with the ROMS community (http://www.myroms.org/).

Once you have a username and password, ROMS maybe downloaded using SVN.

• svn checkout –username <username> https://www.myroms.org/svn/src/trunk ∼/Couple -

RsmRoms/Model/ROMS/

Authentication realm: <https://www.myroms.org:443> Subversion Repository

Password for <username>

• Type in your password and download of ROMS will commence.

Directories created: Atmosphere/, Compilers/, Data/, Lib/, Master/, ROMS/, .svn/, User/,

Waves/, makefile

• Ensure that your netcdf path and mpif90 location is correct.

cd Compilers vi Linux-pgi.mk

ifdef USE NETCDF4

NETCDF INCDIR ?= /opt/pgisoft/netcdf4/include

NETCDF LIBDIR ?= /opt/pgisoft/netcdf4/lib

HDF5 LIBDIR ?= /opt/pgisoft/hdf5/lib else

NETCDF INCDIR ?= /share/apps/netcdf/pgi/include

NETCDF LIBDIR ?= /share/apps/netcdf/pgi/lib endif ifdef USE MPIF90

FC := /share/apps/mpich1/pgi/bin/mpif90

LD := $(FC) else

5

LIBS += -Bdynamic -lfmpi-pgi -lmpi-pgi -Bstatic endif

• Turn on MPI and 64-bit setting cd ..

vi makefile

USE MPI ?= on

USE MPIF90 ?= on

USE LARGE ?= on make c. Coupler

Need to copy over shell scripts, coupler code, and auxiliary files.

• cd ∼/Couple RsmRoms/Shell scp [email protected]:∼/Research/SCOARv2/102910 Shell.tar ./ tar xvf 102910 Shell.tar

• cd ../Lib/aux-files scp [email protected]:∼/Research/SCOARv2/090808 aux.tar ./ tar xvf 090808 aux.tar

• cd ../codes scp [email protected]:∼/Research/SCOARv2/102910 code.tar ./ tar xvf 102910 code.tar

• Make sure path and directories in compilecode.sh is correct, then compile.

compilecode.sh

2. Grid Set-up

The domain is to be created in RSM first, since there are certain requisites that must be met for

RSM to run smoothly with a given grid. In choosing the number of grid points, certain contraints apply.

• igrd (x-direction) should be a product of the integer powers of 2,3 and 5. Also, the integer power of 3 cannot be more than 2.

• jgrd (y-direction) must be an odd number.

To learn more details on this, go to http://g-rsm.wikispaces.com/+Choosing+a+regional+domain

For the purpose of this study, let’s take the case for the Humboldt Current System.

6

a. I) Setting up domain in RSM (LINUX MACHINE)

For the Humboldt Current System (hcs), we want to include 3 upwelling centers (20-22S,32-34S,36-

38S). You would want to consider sponge layer when you create your domain. So say you want 5S

- 40S, then you’d make your domain from 0S to 45S. We’d like to get at least 600km offshore, that would put it to 90W.

cd ∼/Couple RsmRoms/Model/RSM cd rsm vi define.h

#define igrd 128

#define jgrd 237 cd ../rruns vi rsm

RPROJ=0.

RTRUTH=-20.

RORIENT=-80.

RDELX=20000.

RDELY=20000.

RCENLAT=-20.

RCENLON=-80.

RLFTGRD=63.

RBTMGRD=142.

prmap rsm ga-> d lat ga-> quit

Check the domain. Keep changing your number of grid points, resolution, location of cenlat and cenlon, and number of grid points from left and bottom, till you get the domain you desire.

view prmap.ctl

xdef 129 linear 268.037 0.191

ydef 238 levels

-42.842 -42.701 -42.561 ......

b. II) Setup domain in ROMS and RSM (local computer)

Here we create grid.nc files. Note that grdname must NOT contain ”-” for the region part. Also note that roms and rsm grid is the same. This is part of the preparation for ROMS spin up run.

We will use a mix of ROMS toolboxes (IRD toolbox and Manu’s toolbox).

• Set parameters and file names cd ∼/ROMS/IRD toolbox/Roms tools

7

cp -r Preprocessing tools/ Preprocessing tools hcs/ cd !$ vi romstool param.m

title = ’Humboldt Current System - Ocean Spin Up ’; config = ’hcs’;

% values for dl, lonr and latr are taken from prmap.ctl

dl = 0.191; lonr=[268.037:0.191:268.037+0.191*(129-1)]; latr=[-42.842 -42.701 -42.561 ...

N=30; theta s=6.5; theta b=0.; hc=10.; hmin=75; vi make grid.m

grdname=’hcs-grid.nc’; vi make forcing.m

title=[’Forcing (COADS)’]; grdname=’hcs-grid.nc’; frcname=’hcs-forc.nc’; vi make clim.m

title=’Climatology’; grdname=’hcs-grid.nc’; frcname=’hcs-forc.nc’; clmname=’hcs-clim.nc’; ininame=’hcs-init.nc’; oaname=’hcs-oa.nc’;

• Preparing the files using matlab.

matlab make grid close all make forcing close all make clim close all exit

• Set information of grids in rnt gridinfo.m . This is to ensure that matlab would search for the right grid files. 3 cases must be provided: gridname = ’hcs’, model resolution gridname

= ’roms20 hcs’ and ’rsm20 hcs’.

8

cd ∼/ROMS/Manu toolbox/matlib/rnt/ vi rnt gridinfo.m

case ’hcs’ gridindo.id = gridid; gridindo.name = ’Humboldt Current System Ocean Spinup 20km’; gridindo.grdfile = ’∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs/hcs-grid.nc’; gridindo.N = 30; gridindo.thetas = 6.5; gridindo.thetab = 0.0; gridindo.tcline = 75; gridindo.hc = 10; gridindo.cstfile = ’∼/ROMS/Manu toolbox/matlib/rgrd/rgrd WorldCstLinePacific.mat’; case ’roms20 hcs’ gridindo.id = gridid; gridindo.name = ’HCS ROMS 20km’; gridindo.grdfile = ’∼/Research/SCOARv2/Lib/grids/hcs/ROMS/roms20 hcs-grid.nc’; gridindo.N = 30; gridindo.thetas = 6.5; gridindo.thetab = 0.0; gridindo.tcline = 75; gridindo.hc = 10; gridindo.cstfile = ’∼/ROMS/Manu toolbox/matlib/rgrd/rgrd WorldCstLinePacific.mat’; case ’rsm20 hcs’ gridindo.id = gridid; gridindo.name = ’HCS RSM 20km’; gridindo.grdfile = ’∼/Research/SCOARv2/Lib/grids/hcs/RSM/rsm20 hcs-grid.nc’; gridindo.N = 30; gridindo.thetas = 6.5; gridindo.thetab = 0.0; gridindo.tcline = 75; gridindo.hc = 10; gridindo.cstfile = ’∼/ROMS/Manu toolbox/matlib/rgrd/rgrd WorldCstLinePacific.mat’;

• Create climatology, boundary and initial files for ROMS spin up run.

cd ∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs matlab grd=rnt gridload(’hcs’); indir=”∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs/’; nameof=’hcs’; clmfile=[indir,nameof,’-clim.nc’];

9

bryfile=[indir,nameof,’-bry.nc’]; initfile=[indir,nameof,’-init.nc’]; forcfile=[indir,nameof,’-forc.nc’]; rnc CreateBryFile(grd,bryfile); rnc SetBryFromClim(grd,clmfile,bryfile); rnc CreateIniFile(grd,initfile);

% If you want to set initial month to June, imon=6; rnc SetInitFromClim(grd,clmfile,initfile,imon); exit

3. ROMS spin-up

A spin-up for the ocean model is required in order for the ocean state to be stable. Typically, we would give it a 10 year spin-up run. The atmosphere itself only requires about 2 days for spin up.

• Create folder for ROMS application (LINUX machine) cd ∼/Couple RsmRoms/Model/ROMS/ mkdir spinup hcs cp -r Compilers/ spinup hcs/ cp -r Master/ spinup hcs/ cp -r ROMS/ spinup hcs/ cp makefile spinup hcs/ cp ∼/node list spinup hcs/

• Modify makefile provide a name for ROMS application cd spinup hcs vi makefile

ROMS APPLICATION ?= SPINUP HCS

• Create ”apps.h” file to specify all the definitions for the ROMS application. Listing of definitions that can be used are located in ∼/Couple RsmRoms/Model/ROMS/ROMS/Include/cppdefs.h.

Many examples of ”apps.h” are located in the same folder. Below is a sample for this case study.

cd ROMS/Include vi spinup hcs.h

#define NL MODEL

#ifdef NL MODEL

#undef ADJOINT

#undef TANGENT

#endif

10

#define UV ADV

#define UV COR

#define UV VIS2

#define UV LDRAG

#undef MIX GEO UV

#define MIX S UV

#define TS U3HADVECTION

#define TS C4VADVECTION

#define TS DIF2

#undef TS DIF4

#undef MIX GEO TS

#define MIX S TS

#define DJ GRADPS

#define SALINITY

#define QCORRECTION

#define SCORRECTION

#define NONLIN EOS

#define CURVGRID

#define MASKING

#define SOLVE3D

#define SPLINES

#define OUT DOUBLE

#define AVERAGES

#define AVERAGES FLUXES

#ifdef NL MODEL

#define LMD MIXING

#undef MY25 MIXING

# ifdef LMD MIXING

# undef DIURNAL SRFLUX

# define SOLAR SOURCE

# define LMD RIMIX

# define LMD CONVEC

# define LMD NONLOCAL

# define LMD SKPP

# endif

#else

#undef LMD MIXING

#endif

#undef CLIM NUDGING

11

#undef CLOSED OBC

#ifndef CLOSED OBC

#define EASTERN WALL

#undef NORTHERN WALL

#undef SOUTHERN WALL

#undef WESTERN WALL

#endif

#undef CLAMPED BC

#ifndef CLAMPED BC

# define SPONGE

# define WEST VOLCONS

# define SOUTH VOLCONS

# define NORTH VOLCONS

# define RADIATION 2D

# define WEST FSGRADIENT

# define WEST M2RADIATION

# define WEST M2NUDGING

# define WEST M3RADIATION

# define WEST M3NUDGING

# define WEST TRADIATION

# define WEST TNUDGING

# define NORTH FSGRADIENT

# define NORTH M2RADIATION

# define NORTH M2NUDGING

# define NORTH M3RADIATION

# define NORTH M3NUDGING

# define NORTH TRADIATION

# define NORTH TNUDGING

# define SOUTH FSGRADIENT

# define SOUTH M2RADIATION

# define SOUTH M2NUDGING

# define SOUTH M3RADIATION

# define SOUTH M3NUDGING

# define SOUTH TRADIATION

# define SOUTH TNUDGING

#endif

#define ANA BSFLUX

#define ANA BTFLUX

• Ensure that sponge layer is turned on and applied to the case.

12

cd ../Functionals vi ana hmixcoef.h

#ifdef SPONGE

!

!-----------------------------------------------------------------------

!

Increase horizontal mixing in the sponge areas.

!-----------------------------------------------------------------------

!

!! User modifiable section.

Please specify the appropiate sponge area

!! by increasing its horizontal mixing coefficients.

!!

# if defined ADRIA02

# elif defined SPINUP_HCS

!

!

HUMBOLDT CURRENT SYSTEM , taken from

!

Southern California Bight sponge areas.

!

}} fac=4.0_r8

# if defined UV_VIS2

!SOUTH

DO j=JstrR,MIN(6,JendR) cff=visc2(ng)+REAL(6-j,r8)*(fac*visc2(ng)-visc2(ng))/6.0_r8

DO i=IstrR,IendR visc2_r(i,j)=cff visc2_p(i,j)=cff

END DO

END DO

!NORTH

DO j=MAX(JstrR,Mm(ng)+1-6),JendR cff=fac*visc2(ng)+

& REAL(Mm(ng)+1-j,r8)*(visc2(ng)-fac*visc2(ng))/6.0_r8

DO i=IstrR,IendR visc2_r(i,j)=cff visc2_p(i,j)=cff

END DO

END DO

!WEST

DO i=IstrR,MIN(6,IendR)

DO j=MAX(JstrR,i),MIN(Mm(ng)+1-i,JendR)

&

13

cff=visc2(ng)+REAL(6-i,r8)*(fac*visc2(ng)-visc2(ng))/6.0_r8

visc2_r(i,j)=cff visc2_p(i,j)=cff

END DO

END DO

# endif

# if defined TS_DIF2

&

DO j=JstrR,MIN(6,JendR) cff1=tnu2(itemp,ng)+

REAL(6-j,r8)*(fac*tnu2(itemp,ng)-tnu2(itemp,ng))/6.0_r8

& cff2=tnu2(isalt,ng)+

REAL(6-j,r8)*(fac*tnu2(isalt,ng)-tnu2(isalt,ng))/6.0_r8

DO i=IstrR,IendR diff2(i,j,itemp)=cff1 diff2(i,j,isalt)=cff2

DO itrc=3,NT(ng) diff2(i,j,itrc)=cff1*4.0_r8

ENDDO

END DO

&

&

&

&

END DO

DO j=MAX(JstrR,Mm(ng)+1-6),JendR cff1=fac*tnu2(itemp,ng)+

REAL(Mm(ng)+1-j,r8)*(tnu2(itemp,ng)fac*tnu2(itemp,ng))/6.0_r8

cff2=fac*tnu2(isalt,ng)+

REAL(Mm(ng)+1-j,r8)*(tnu2(isalt,ng)fac*tnu2(isalt,ng))/6.0_r8

DO i=IstrR,IendR diff2(i,j,itemp)=cff1 diff2(i,j,isalt)=cff2

DO itrc=3,NT(ng) diff2(i,j,itrc)=cff1*4.0_r8

ENDDO

&

END DO

END DO

DO i=IstrR,MIN(6,IendR)

DO j=MAX(JstrR,i),MIN(Mm(ng)+1-i,JendR) cff1=tnu2(itemp,ng)+

REAL(6-i,r8)*(fac*tnu2(itemp,ng)-tnu2(itemp,ng))/6.0_r8

&

&

&

&

&

&

&

14

& cff2=tnu2(isalt,ng)+

REAL(6-i,r8)*(fac*tnu2(isalt,ng)-tnu2(isalt,ng))/6.0_r8

diff2(i,j,itemp)=cff1 diff2(i,j,isalt)=cff2

DO itrc=3,NT(ng) diff2(i,j,itrc)=cff1*4.0_r8

ENDDO

&

END DO

END DO

# endif

• Now to make the ROMS executable file, oceanM will be created in ∼/Couple RsmRoms/Model/ROMS/spinup hcs.

cd ../..

make

• Create input file (ocean spinuphcs.in) to ensure that ROMS takes in all the right values, according the the domain, model and cpu specifications. Myriad examples can be found in

∼/Couple RsmRoms/Model/ROMS/ROMS/External/ . Take one for them and modify accordingly.

cd ∼/Couple RsmRoms/Model/ROMS/spinup hcs cp ∼/Couple RsmRoms/Model/ROMS/ROMS/External/ocean upwelling.in ./ocean spinuphcs.in

vi ocean spinhcs.in

TITLE = HUMBOLDT CURRENT SYSTEM

MyAppCPP = SPINUP HCS

VARNAME = ROMS/External/varinfo.dat

Lm == 127 ! Number of I-direction INTERIOR RHO-points

Mm == 236 ! Number of J-direction INTERIOR RHO-points

N == 30 ! Number of vertical levels

NtileI == 8 ! I-direction partition

NtileJ == 8 ! J-direction partition

NTIMES == 518400

DT == 600.0d0

NDTFAST == 30

LDEFOUT == T

NHIS == 4320

NDEFHIS == 51840

15

NTSAVG == 1

NAVG == 4320

NDEFAVG == 51840

TNU2 == 20.0d0 20.0d0 ! m2/s

TNU4 == 0.0d0 0.0d0 ! m4/s

VISC2 == 5.0d0 ! m2/s

VISC4 == 0.0d0 ! m4/s

BLK ZQ == 2.0d0 ! air humidity

BLK ZT == 2.0d0 ! air temperature

THETA S == 6.5d0 ! 0 < THETA S < 20

THETA B == 0.0d0 ! 0 < THETA B < 1

TCLINE == 75.0d0 ! m

DSTART = 15.0d0 ! days

TIDE START = 0.0d0 ! days

TIME REF = -1.0d0 ! yyyymmdd.dd

TNUDG == 30.0d0 30.0d0 30.0d0 30.0d0 30.0d0 30.0d0 ! days

ZNUDG == 30.0d0 ! days

M2NUDG == 30.0d0 ! days

M3NUDG == 30.0d0 ! days

OBCFAC == 10.0d0 ! nondimensional

GAMMA2 == -1.0d0

GRDNAME == hcs-grid.nc

ININAME == hcs-init.nc

CLMNAME == hcs-clim.nc

BRYNAME == hcs-bry.nc

NFFILES == 1 ! number of forcing files

FRCNAME == hcs-forc.nc ! forcing file 1, grid 1

RSTNAME == rst.nc

HISNAME == his.nc

AVGNAME == avg.nc

• Transfer of files from home computer to cluster (home computer)

16

cd ∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs scp hcs-grid.nc [email protected]:∼/Couple RsmRoms/Model/ROMS/spinup hcs/.

scp hcs-forc.nc [email protected]:∼/Couple RsmRoms/Model/ROMS/spinup hcs/.

scp hcs-init.nc [email protected]:∼/Couple RsmRoms/Model/ROMS/spinup hcs/.

scp hcs-bry.nc [email protected]:∼/Couple RsmRoms/Model/ROMS/spinup hcs/.

• Initiate spin up run of ROMS (LINUX machine) cd ∼/Couple RsmRoms/Model/ROMS/spinup hcs vi launch64

/share/apps/mpich1/pgi/bin/mpirun -nolocal -np 64 -machinefile node list oceanM ocean spinuphcs.in

launch64 >& 1spinuphcs.log

4. Executables for RSM and ROMS

With the spin up running, we now prepare for the SCOAR run. Beginning with RSM.

a. RSM

• Create folders for RSM model that is specific to our case study.

cd ∼/Couple RsmRoms/Model/RSM cp -r rruns/ hcs/ cp -r rsm/ hcs/ cd hcs mv rruns/ runs 64cpu/ mv rsm/ rsm 64cpu/ cd rsm 64cpu/def cp -r rsm6228r160199/ rsm6228r128237/

• Specifying number of grid points for domain cd ∼/Couple RsmRoms/Model/RSM/hcs/rsm 64cpu/def/rsm6228r128237/ vi define.h

#define igrd 128

#define jgrd 237

• Specifying definitions for the physics package.

cd ∼/Couple RsmRoms/Model/RSM/hcs/rsm 64cpu/def/ vi physics.h

#define CLDSLINGO /* Slingo cloud scheme */

#define INSA CLD /* Insa’s cloudiness adjustment to Slingo scheme */

#undef CLDADJ /* empirical cloudiness adjustment */

#define INTERACTIVE STRATUS /* cloudiness based on cloud water and RH */

17

/* only applicable for predicted cloud water */

#define ICECLOUD /* cloud water feed into radiation */

#define RAS /* Relaxed Arakawa Schubert scheme */

#define CLD3 /* Song-You Hong prognostic qc/qi, qr/qs */

#define NEW MPHYS /* additional option for CLD3/CLD5/CLDWSMMPS */

#define VCI /* additional option for CLD3/CLD5/CLDWSMMPS */

#define DIFFQ /* horizontal diffusion of moisture */

#define DIFUC /* strong horizontal diffusion of cloud water variables to stabilize cloud water prediction schemes and allow for larger time step */

#undef RASC2 /* RAS with detarained cloud water like RASV2 */ vi misc.h

#undef STDAMP /* Spectral tendency damping scheme for rsm */

#undef STDAMP3 /* area average log ps correction to be used with stdamp */

#undef NFDR /* national fire danger rating system */

#define SPNG WID /* wide (original) sponge zone in rsml/rltbini.F */

#undef SPNG NRW /* narrow sponge zone in rsml/rltbini.F */

• Configure RSM model cd ∼/Couple RsmRoms/Model/RSM/hcs/rsm 64cpu make clean configure-model

• Build file directories in RSM that pertains to application case. While doing so, several things to check for. The grid must match and allow SST from ROMS to be used on the initial step

(t=t0) in RSM.

• Edit makefile for source code cd src vi makefile

GSM PROGS = share co2 mtn chgr sfcl fcst pgb sgb sfc0 #p2sig

RSM PROGS = share rsml sfcl rgsm rmtn rinpg rfcst rpgb co2 sfc0 #p2sig mtn

RESCON = co2 #mtn

• Check for matching grid, especially with rtruth ∼=0 cd sfcl vi rgetarea.F

# Originally on line 53-60: c delx=(rlon2-rlon1)/float(kgds(02)-1) delx=kgds(12) ! dx (meter) on truth latitude dely=kgds(13) ! dy (meter) on truth latitude orient=rlon1 truth=kgds(09)*1.e-3 ! truth latitude cotru=truth ! co-truth latitude

18

delx=delx*cos(truth*rad)*rerth_*rad

# Modified to include rtruth=-20 c delx=(rlon2-rlon1)/float(kgds(02)-1) delx=kgds(12) ! dx (meter) on truth latitude c dely=kgds(13) ! dy (meter) on truth latitude orient=rlon1 truth=kgds(09)*1.e-3 ! truth latitude truth=-20.

cotru=truth ! co-truth latitude c delx=delx*cos(truth*rad)*rerth_*rad

• Make RSM (set model up) cd ∼/Couple RsmRoms/Model/RSM/hcs/rsm 64cpu make

• Create RSM executable cd ∼/Couple RsmRoms/Model/RSM/hcs/runs 64cpu configure-scr rsim scoar

• Account for change in time step in Southern Hemisphere, because seasons are in reference to Northern Hemisphere. (Only needed when doing SH). Winter requires shorter time steps because of the the storms passing through.

vi rsim scoar

DELTAT REG SPRING=90

DELTAT REG SUMMER=60

DELTAT REG FALL=90

DELTAT REG WINTER=100 b. ROMS

This is very similar to the ROMS spin-up set up, except the application name is now HCS instead of SPINUP HCS. All conducted in the linux machine.

• Create folder for ROMS application cd ∼/Couple RsmRoms/Model/ROMS/ mkdir hcs/ cd spinup hcs/ cp -r Compilers/ ../hcs/ cp -r Master/ ../hcs/ cp -r ROMS/ ../hcs/ cp makefile ../hcs/ cd ..

19

cp launch64 hcs/ cp node list hcs/

• Modify makefile provide a name for ROMS application cd hcs vi makefile

ROMS APPLICATION ?= HCS

• Create ”apps.h” file.

Similar to spinup hcs.h, but with some adjustments, as noted below for this case study.

cd ROMS/Include mv spinup hcs.h hcs.h

vi hcs.h

#undef QCORRECTION

#undef SCORRECTION

#define BULK FLUXES

#define COOL SKIN

#define LONGWAVE OUT

#define EMINUSP

• Ensure that sponge layer is turned on and applied to the case.

cd ../Functionals vi ana hmixcoef.h

Substitute SPINUP HCS with HCS

#ifdef SPONGE

# if defined ADRIA02

# elif defined HCS

• Now to make the ROMS executable file, oceanM will be created in ∼/Couple RsmRoms/Model/ROMS/hcs cd ../..

make

• Create input file (ocean hcs.in)

Also pretty similar to ocean spinuphcs.in with some adjustments.

cd ∼/Couple RsmRoms/Model/ROMS/hcs cp ../spinup hcs/ocean spinuphcs.in ./ocean hcs.in

vi ocean hcs.in

TITLE = HUMBOLDT CURRENT SYSTEM

MyAppCPP = HCS

VARNAME = varinfo.dat

Lm == 127 ! Number of I-direction INTERIOR RHO-points

Mm == 236 ! Number of J-direction INTERIOR RHO-points

N == 30 ! Number of vertical levels

20

NtileI == 8 ! I-direction partition

NtileJ == 8 ! J-direction partition

NTIMES == 144

DT == 600.0d0

NDTFAST == 30

NRREC == 0

LcycleRST == T

NRST == 145

LDEFOUT == T

NHIS == 145

NDEFHIS == 0

NTSAVG == 1

NAVG == 144

NDEFAVG == 0

NTSDIA == 1

NDIA == 145

NDEFDIA == 0

DSTART = 0.0d0 ! days

TIDE START = 0.0d0 ! days

TIME REF = 0.0d0 ! yyyymmdd.dd

GRDNAME == ocean grd.nc

ININAME == ocean ini.nc

CLMNAME == ocean clm.nc

BRYNAME == ocean bry.nc

NFFILES == 1 ! number of forcing files

FRCNAME == ocean frc.nc ! forcing file 1, grid 1

RSTNAME == ocean rst.nc

HISNAME == ocean his.nc

AVGNAME == ocean avg.nc

APARNAM = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/s4dvar.in

SPOSNAM = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/stations.in

21

FPOSNAM = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/floats.in

BPARNAM = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/bioFasham.in

SPARNAM = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/sediment.in

USRNAME = ∼/Couple RsmRoms/Model/ROMS/upwelling/ROMS/External/MyFile.dat

5. Files containing grid information for ROMS, RSM and coupler

• Create grid.nc files for ROMS and RSM (local machine) cd ∼/Research/SCOARv2/Lib/grids mkdir hcs cd hcs mkdir Coupler/ matlab/ ROMS/ RSM/ grid.nc files the same as the one created previously (hcs-grid.nc), since grid for ocean and atmosphere is the same. Note that grid.nc files are named as ”model-resolution gridnamegrid.nc”.

cp ∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs/hcs-grid.nc ∼/Research/SCOARv2/Lib/grids/hcs/ROMS/roms20 hcs-grid.nc cp ∼/ROMS/IRD toolbox/Roms tools/Preprocessing tools hcs/hcs-grid.nc ∼/Research/SCOARv2/Lib/grids/hcs/RSM/rsm20 hcs-grid.nc

• Create associated files (grid info) for ROMS and RSM

Since we’ll use Manu’s toolbox for this, check that ∼/ROMS/Manu toolbox/matlib/rnt/rnt gridinfo.m contains the correct locations of the grid.nc files cd ∼/Research/SCOARv2/Lib/grids cp gen grid.m hcs/Coupler/ cp gridmask.m hcs/matlab/ cd hcs/Coupler vi gen grid.m

cd ∼/Research/SCOARv2/Lib/grids/hcs/Coupler

Ensure that all are correctly named (model-resolution gridname)

Example in vi editor, you can do substitution of all ”word1” into ”word2”

:1,$ s/rsm20 pcr/rsm20 hcs/g

:1,$ s/roms10 pcr/roms20 hcs/g cd ../matlab vi gridmask.m

cd ∼/Research/SCOARv2/Lib/grids/hcs/matlab rgn1=’rsm20 hcs’; rgn2=’roms20 hcs’; cd ../Coupler matlab gen grid

22

cd ../matlab gridmask exit

• Make text file for tiling purposes

No tiling in this case, so skip this. But below is an example if needed.

cd ∼/Research/SCOARv2/Lib/grids/hcs vi hcs tile.txt

1

• Make text file (rgrd.dat) for input into ieee2grib sst scoar.f

rgrd.txt contains xlon1a, xlon2a, xlat1a, xlat2a, delx, dely, ortru, idrt ortru -> real orientation of regional polar projection or truth for regional mercater projection

(needs a ’.’ at the end) idrt -> integer data representation type (0=latlon, 1=mercater, 2=, 3=lambert, 4=gaussian,

5=polar) if lon1a=-95.695, then xlon1a=360+(-95.695)=264.305

delx and dely are horizontal resolution in metres.

cd ∼/Research/SCOARv2/Lib/grids/hcs/RSM vi rgrd.dat

268.037

292.485

-42.842

-2.140

20000

20000

-20.

1

6. Initial, forcing and boundary files for ROMS and RSM

RSM only requires initial SST forcing from ROMS spin up run. Initial state and boundary conditions for RSM are provided by NCEP Reanalysis II (R2), making RSM a dynamical downscaling of

NCEP. ROMS on the other hand can use boundary conditions from a variety of sources (including

Levitus, SODA, OFES, etc). Initial state of ROMS can be taken from the spin up run. Forcing for

ROMS comes from RSM, but dependent upon which options are chosen (bulk parameterization or not), RSM can provide the necessary variables needed for either computation.

• Create forcing and initial .nc file template for ROMS cd ∼/Research/SCOARv2/Lib/preparerun/ROMS mkdir hcs/

23

cd !$ mkdir general forcing/ coldstart/ bdry clim/ cd ../..

cp create bulk forc init.m ROMS/hcs/general forcing cp coldstart init.m ROMS/hcs/coldstart cp create clim bdry.m ROMS/hcs/bdry clim cd ROMS/hcs/general forcing/ vi create bulk forc init.m

cd ∼/Research/SCOARv2/Lib/preparerun/ROMS/hcs/general forcing nameit=’roms20 hcs’; nameit2=’hcs’; matlab create bulk forc init exit

• Create boundary files for ROMS

Assumes climatology file was already made from SODA products and is named roms20 hcsclim.nc

cd /Research/SCOARv2/Lib/preparerun/ROMS/hcs/bdry clim vi create clim bdry.m

nameit=’roms20 hcs’; nameit2=’hcs’;

%dataset=0; % 0=dataset for general clim and bdry that has been made from IRD toolbox

%dataset = 1; % 1=WOA2001 (Uses IRD toolbox) dataset = 2; % 2=SODA (Uses Manu’s toolbox)

%dataset = 3; % 3=Levitus (Uses Manu’s toolbox)

BC dir=[’∼/Research/SCOARv2/Lib/preparerun/ROMS/hcs/bdry clim/’]; elseif dataset == 2 nameit=’roms20 hcs’;

BC dir=[’∼/Research/SCOARv2/Lib/preparerun/ROMS/hcs/bdry clim’]; grd=rnt gridload(nameit); clmfile=[nameit,’-clim.nc’]; bryfile=[nameit,’-bry.nc’]; matlab create clim bdry exit

• Create very first initial file for ROMS from spin up run cd /Research/SCOARv2/Lib/preparerun/ROMS/hcs/coldstart/ scp [email protected]:∼/Couple RsmRoms/Model/ROMS/spinup hcs/avg 0010.nc ./

One can use ncview to see which initial file to use, and which initial month to pick.

24

vi coldstart init.m

cd ∼/Research/SCOARv2/Lib/preparerun/ROMS/hcs/coldstart grd=rnt gridload(’roms20 hcs’); initfile=’./roms20 hcs-spinup.nc’; climfile=’avg 0010.nc’; rnc CreateIniFile(grd,initfile); timeindex=3; %1 to length(t)=12 June-May, 3 is for September matlab coldstart init exit

7. Folders and files in their appropriate places

• Archive folders (local machine) cd ∼/storage mkdir SCOAR output cd !$ mkdir hcs/ cd !$ mkdir ROMS/ RSM/ cd RSM mkdir 2008/ cd ../ROMS mkdir avg/ dia/ forc/ his/

• Create folders to place files needed for the SCOAR application run (LINUX machine) cd ∼/Couple RsmRoms/Model/misc mkdir hcs cd ∼/Couple RsmRoms/Lib/grids mkdir hcs/ cd !$ mkdir ROMS/ RSM/ cd ∼/Couple RsmRoms/Lib/exec mkdir ROMS/hcs RSM/hcs

• Create folder that would contain the scripts for the application run.

cd ∼/Couple RsmRoms/Shell mkdir hcs/ cp couple Nday.sh hcs cp Rsm2Roms bulk.sh hcs cp prepareROMS.sh hcs

25

cp uauo.sh hcs cp Roms2Rsm.sh hcs cp sst t0.sh hcs

• Edit the driver script according to your application needs.

cd ∼/Couple RsmRoms/Shell/main couple cp main couple.sh main couple hcs.sh

vi main couple hcs.sh

YYYYS=2008 #start year

MMS=09 #start month

DDS=15 #start day

YYYYE=2008 #end year

MME=12 #end month

DDE=16 #end day

RESTART=no #restart option

LastNDay= #Model day for restart gridname=hcs #name of application rsmNCPU=64 #number of CPUs used for RSM romsNCPU=64 #number of CPUs used for ROMS

Nameit RSM=rsm20 hcs # model, resolution, grid name

Nameit ROMS=roms20 hcs # model, resolution, grid name

BCFile=SODA #Boundary conditions for ocean model archive=yes #archive in local computer, not cluster archive dir rsm=∼/storage/SCOAR output/hcs/RSM archive dir roms=∼/storage/SCOAR output/hcs/ROMS nd=30 #number of vertical layers in ocean model

SSTt0=yes #use ROMS SST from spin up run as initial forcing for RSM filterSST=no #smoothing of SST fields at each coupling needinterp=no #interpolation between ROMS and RSM grids tiling=no #tiling between ROMS and RSM grids

• NOTE: At this point, you should check the rest of the shell scripts to make sure you’ve accounted for any changes.

• Transfer grid information files cd ∼/Couple RsmRoms/Lib/grids scp -r [email protected]:∼/Research/SCOARv2/Lib/grids/hcs/ROMS ∼/Couple RsmRoms/Lib/grids/hcs scp -r [email protected]:∼/Research/SCOARv2/Lib/grids/hcs/RSM ∼/Couple RsmRoms/Lib/grids/hcs

If tiling was used, then we must also transfer the required file. Example, scp [email protected]:∼/Research/SCOARv2/Lib/grids/hcs/hcs-tile.txt ∼/Couple RsmRoms/Lib/grids/hcs

• Transfer ROMS initial and template files cd ∼/Couple RsmRoms/Model/misc/hcs

26

sftp [email protected]

cd ∼/Research/SCOARv2/Lib/preparerun/ROMS/hcs/coldstart get roms*-spinup.nc

cd ../general forcing mget *.nc

exit

• Transfer ROMS files to run ocean model cd ∼/Couple RsmRoms/Model/ROMS/hcs cp node list ∼/Couple RsmRoms/Lib/exec/ROMS/hcs/ vi launch64

/share/apps/mpich1/pgi/bin/mpirun -nolocal -np 64 -machinefile node list oceanM ocean.in

cp launch64 ∼/Couple RsmRoms/Lib/exec/ROMS/hcs/launch64 cp ocean hcs.in ∼/Couple RsmRoms/Lib/exec/ROMS/hcs/ocean64 roms30 day hcs.in

cp oceanM ∼/Couple RsmRoms/Lib/exec/ROMS/hcs

• Transfer RSM executable file to run atmospheric model cd ∼/Couple RsmRoms/Model/RSM/hcs/runs 64cpu cp rsim scoar ∼/Couple RsmRoms/Lib/exec/RSM/hcs/rsm 64cpu day hcs

• Create a log dir for keep your log files cd ∼/Couple RsmRoms/log mkdir hcs log

8. Running SCOAR

Now at last we can run the model. Typically, you would want to run it on a background.

cd ∼/Couple RsmRoms/Shell/main couple main couple hcs.sh >& ../../log/hcs log/log1 &

27

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
