30" Wide-Format LCD-TV

30" Wide-Format LCD-TV

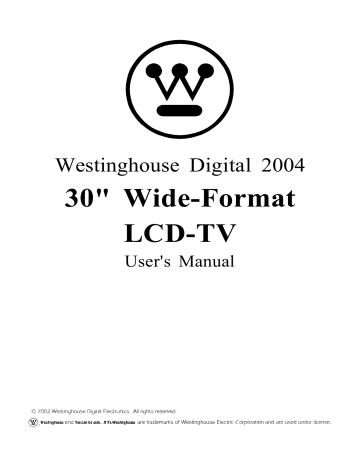

Westinghouse Digital 2004

30" Wide-Format

LCD-TV

User's Manual

30" Wide-Format LCD-TV User Manual

Preface

This manual is designed to assist you in setting up and using your LCD-TV. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Westinghouse Digital Electronics.

Read and follow the

Important Safety Instructions

and

FCC Statement

located in the Appendix.

C

Copyright 2003, 2004 Westinghouse Digital Electronics

Viacom Inc. owns the Westinghouse brand.

All Rights Reserved.

Revised November 9, 2004

1

30" Wide-Format LCD-TV User Manual

Table of Contents

Introduction

Features

Installation Guide

Unpacking

Connections

Planning Your Connections

Antenna Connection

Video Connections

PC & Audio Output Connections

Power Connection

Using The Remote

Programming TV Channels

Enjoying Wide-Format Movies

Picture-in-Picture

Reference Guide

Connector Descriptions

Push-Button Control Descriptions

Remote Control Description

Menu Items


Advance

Audio

TV

Parent

Setting

Appendices

Trouble-Shooting

Specifications

Europe Option

Important Safety Instructions

FCC Statement

2

28

28

30

32

33

35

20

22

23

24

25

26

27

13

13

15

16

8

10

10

11

11

12

7

7

5

6

3

3

4

4

30" Wide-Format LCD-TV User Manual

Introduction

Thank you and congratulations!

This user guide is divided into two parts: an Installation Guide and a Reference Guide. The first time you setup and use this LCD-TV, please follow the instructions in the Installation Guide. To fully explore the abilities and individual features of this LCD-TV, a Reference Guide follows this Installstion

Guide.

Features

This LCD-TV is HD-ready and requires an external high-definition source device that is not included with this product.

Features (typical):

Dual cable-ready NTSC TV tuner

Built-in 3D comb filter

Built-in progressive scan de-interlacing

HDTV, ATSC, NTSC, PC, VESA: 720p, 1080i, 480p, 480i, VGA, SVGA, XGA, SXGA and WXGA compatible

PIP, a variety of picture-in-picture and multiple picture arrangements

Stereo speakers (8W/channel)

Wireless remote control with direct source buttons

Thin timeless styling, optional wall mount

Connectors (typical):

VGA and DVI inputs with HDCP

2 Component Video: YPbPr (HD) & YCbCr (SD) inputs

S-Video, Video and RF NTSC inputs

5 separate stereo audio inputs: 4+1 (AV+PC)

1 audio output for external 5.1 surround sound processor

1 subwoofer output for 2.1 sound

Performance (typical)

High (1280 x 768) native resolution for PC & HDTV

Wide 170 viewing angle

Bright 500nit display

High 500:1 contrast

Fast 16ms response time

Outstanding 75-110% NTSC 24bit color gamut

3

30" Wide-Format LCD-TV User Manual

Installation Guide

You will soon be enjoying your LCD-TV. The following are instructions on what parts to expect to find within the box, how to connect your LCD-TV and how to use your remote to setup and configure basic options.

Unpacking

To open the shipping box, stand the box upright and locate the two white plastic clips on the lower left and right ends of the box. Remove this clip by reaching behind the plastic door and unlatching the clasp on the top edge of the clip. The entire plastic clip should come out easily. Lift the top half of the box off of the LCD-TV.

Carefully remove the LCD-TV and other contents from the box. Place the LCD-TV in a safe upright position with easy access to the connectors located on the rear of the display.

Please confirm the following list of items is included:

LCD-TV w/ attached table stand

Remote control

2 AAA batteries

AC Power cord

VGA cable (analog RGB). This has a large blue connector on each end.

AV cable. (The Yellow connector is for video, the white connector is for left audio channel and the red connector is for the right audio channel.)

Dust covers (for wall mounting)

Documentation

WestinghouseDigital2004

30" Wide-Format

LCD-TV

User'sManual

4

30" Wide-Format LCD-TV User Manual

Connections

There are 4 separate locations for connectors on the rear of the LCD-TV: Antenna, Video, PC and

Power.

Key Pad

PC Connectors Video Connectors

Dust Cover

Antenna

5

Power

Dust Cover

30" Wide-Format LCD-TV User Manual

There are two user accessible covers that can be removed (without tools) by gently squeezing the plastic clip. Carefully remove both covers to expose the PC and AV connections. Replace these covers as desired.

Planning Your Connections

Below is a table of some common configurations that may help you to determine how best to connect your particular devices.

LCD-TV Good Better Best

Your devices

DVI in

VGA in

PC

PC Audio in

PC audio

HD cable/sat

Receiver

HD audio

HDTV in

480p, 1080i,

720p only

YCbCr in

480i only

S-Video in

Video in

Antenna in

DVD Player

Cable/Set

Game console

VCR

Progressive

DVD

Game console

VCR

Antenna

PC

PC audio

HD cable/sat

Receiver

DVD

Recorder

Game console

Antenna

Audio Out

Subwoofer

Out

Subwoofer

6

Surround

Sound

30" Wide-Format LCD-TV User Manual

To share an input or reduce the number of wires to the display, use a VCR or AV Receiver to consolidate connections. It is common to route the output of your camcorder, cable box (STB), satellite receiver (IRD) and personal video recorder (PVR) through your VCR for recording, editing and time shifting.

Not all devices are the same and many may need additional cables, adapters and setup. In particular, computers, game consoles, high-definition receivers and progressive DVD players must be set accordingly.

Antenna Connection

This LCD-TV has a built-in cable-ready NTSC tuner for analog cable and NTSC broadcast singnals.

You may choose to connect the analog cable or TV antenna wire (not included) directly to this LCD-TV antenna input.

Tuner

Video Connections

There are four types of video inputs: HDTV (480p, 1080i, 720p only), YCbCr (480i only), S-Video and

Video. Each of these video inputs has a corresponding set of stereo left and right audio inputs. These connectors are color-coded to match the colors of the corresponding connectors on other devices and cables.

The HDTV input will only accept 480p, 1080i and 720p signals.

Use this to connect high definition devices such as a terrestrial HDTV receiver, HD satellite box, HD cable box or progressive scan DVD player.

The YCbCr (480i only) input will only accept

NTSC signals

. Use this to obtain better color performance from devices such as a DVD player. The built-in

progressive

scan logic will automatically convert interlaced DVD to non-interlaced.

The S-Video and Video inputs are provided for use with devices such as a VCR, satellite receiver, digital cable box, or game console. The built-in these interlaced NTSC signals to non-interlaced.

progressive

scan logic will also automatically convert

7

30" Wide-Format LCD-TV User Manual

L

AUDIO

HDTV receiver

OUT

VIDEO

R Pr Pb Y

(Green)

(Blue)

(Red)

(Red)

(White)

(Red)

(White)

HDTV

In

R

L

S-Video

R

L

Y

Pb

Pr

Y

Cb

Cr

R

L

Video

R

L

Component

VideoIn

(Green)

(Blue)

(Red)

(Red)

(White)

(Yellow)

(Red)

(White)

VIDEO

OUT

DVD player

AUDIO

Y Cb Cr R L

R L

S-VIDEO

OUT

AUDIO

VCR

R L

AUDIO

OUT

VIDEO

Game console

PC & Audio Output Connections

There are two PC inputs: DVI, VGA and one PC audio input. There is also an audio output and a subwoofer output.

The DVI input (or more specifically DVI-D input) is a digital interface that requires the computer to have a corresponding DVI or DFP output. Using this interface provides a superior on screen image when the PC output is set to the full native resolution of the LCD panel. Neither a DVI cable nor

DFP adapter is included and must be purchased separately.

The VGA input is an analog RGB interface with separate H & V sync signals. VGA is more commonly found on computers. Attach the LCD-TV to your computer using the included (blue color-coded)

VGA cable. The PC audio cable is not included and must be purchased separately.

8

30" Wide-Format LCD-TV User Manual

For both the DVI and VGA inputs, please remember to

adjust your computer resolution to match the

1280x768 resolution of the 30" LCD-TV for best performance. An additional software driver may be required from your PC graphics chip vendor to obtain wide-format resolution support.

The audio output is commonly used to connect to an external audio amplifier or surround sound processor.

The subwoofer output is used to attach an external powered subwoofer.

Remember to enable this feature from the Audio Menu of the LCD-TV. When the subwoofer software command is set to On, an internal crossover cuts off the low frequency signal to the built-in speakers.

When the subwoofer software command is set to Off, the built-in speakers will output full range audio.

(White)

(Red)

L R

R

IN

AUDIO

L

IN

SW

Connection jack for subwoofer with built-in amplifier.

9

PC RGB (Analog)

PC DVI (Digital)

PC Audio Input

RS232

Audio Output (L/R)

Subwoofer Output

30" Wide-Format LCD-TV User Manual

Power Connection

Attach the AC power cord to the LCD-TV and plug into an appropriate wall outlet. When the TV is first plugged in, you may have to wait several seconds for the ready indicator to glow red. This is normal.

Power

A C 100~240V

Using The Remote

Carefully open the rear cover on the battery compartment and insert a fresh set of two AAA batteries.

Replace the battery cover on the remote.

Turn on the TV by pressing the POWER button.

Adjust the volume using the volume up and down buttons, VOL+ and VOL-.

Select a video source in two ways. You may select a source directly using one of the buttons at the buttom of your remote control: TV, S-VIDEO, AV, PC, DVI, HDTV or YCbCr. You may also scroll through a list of video sources using the SOURCE button located on top of the LCD-TV.

TV S-VIDEO AV YCbCr

or

HDTV DVI PC

10

30" Wide-Format LCD-TV User Manual

Programming TV Channels

This TV will search out TV channels for you. Use the following instructions to program your own list of preferred channels:

1. Press the MENU button at the center of the remote.

2. Use the arrow keys to switch to the "TV" menu.

3. Choose the type of "source": "antenna" for a rooftop or rabbit ears or "cable" for analog cable television.

4. Use the "auto fine tune" command to automatically search and add all TV channels to your favorite list.

5. Use the "program edit" command to customize and further refine this list by adding and removing individual channels.

You can now watch TV. Change channels by pressing the channel up and down buttons CH and

CH . Direct access to individual channels can be entered using 1, 2 or 3 digits. To speed direct access, you may optionally use the ENTER key to complete the entry.

+

channel searching please wait

022

<menu> to exit save

2 skip k e y p a d a d d t o i n c l u d e

< e n t e r > t o r e t u r n

< m e n u > t o e x i t

Enjoying Wide-Format Movies

As NTSC transitions to HDTV, you may experience a variety of content presented in different aspect ratios. This LCD-TV can scale the incoming video while maintaining the original aspect ratio or stretch the video to use the entire screen.

Use the SCALING button on the remote control to switch the aspect ratio as indicated here:

Use

FILL ALL

to stretch programs to occupy more of the screen. Use

FILL ALL

to view wide format (anamorphic) DVD movies. In particular, look for DVD movies that are labeled:

"Anamorphic Widescreen"

or

"Enhanced for 16:9 TV"

to obtain better performance.

11

30" Wide-Format LCD-TV User Manual

Use

NORMAL

to maintain the correct original aspect ratio for most videotape, broadcast television, cable, satellite, HDTV and PC content. The unused portions on the left and right or top and bottom edges of the screen will appear black.

Note: Plasma users are often advised to use FILL ALL to stretch all content to the edges of the screen in order to reduce burn-in. This LCD-TV has no such problem with burn-in.

Use

WIDE

to expand letterbox content to occupy more of the screen. Occasionally, you may find a TV program or older DVD movie that is actually presented as letterbox format within an NTSC signal.

Use this mode to zoom the image up to full screen. The unused portions on the top and bottom of the screen will appear black.

Note: In WIDE mode, non-letterbox content will enlarge beyond the boundaries of the screen. Some portions of the video will not be visible above and below the screen. This may include OSD information from you DVD player, cable decoder or satellite receiver. To see the entire screen, switch to a different

SCALING mode.

Use

PANORAMIC

to expand NORMAL 4:3 aspect ratio content horizontally using a creative non-linear formula. Objects in the middle maintain the original aspect ratio and only the two sides are expanded.

Experiment with these SCALING setting to determine your personal preferences.

+

FILL ALL NORMAL WIDE

PANORAMIC

Picture-in-Picture

For Picture-in-Picture (PIP) configurations that have two images, use the left and right arrow keys to switch the audio between the two video sources.

For all PIP configurations, use the up and down arrow keys to select a particular window. You can now use the numeric keys to directly enter the channel for that window. The PIP CH and CH buttons will operate on child windows only. The regular CH and CH buttons are always for the main window source.

+

12

30" Wide-Format LCD-TV User Manual

Reference Guide

Use this section of the user manual to learn about individual features and functions of this LCD-TV.

Learn the purpose of each connector on the back panel. Learn to use each control button on the

LCD-TV and remote control. Learn how to use the software features that appear in a menu displayed on-screen.

Connector Descriptions

There are 4 sets of color-coded connectors on the rear of the LCD-TV: Power; PC inputs and audio outputs; video inputs; and antenna input. The power and antenna inputs are located along the lower rear-edge of the LCD-TV. The PC and video connections are located behind two covers on the rear of the LCD-TV.

Antenna input

Connector

Tuner Input

Color

Code

Description

Silver

75ohm coaxial cable with F-type connector. Attach your TV antenna or analog cable service here.

PC inputs & audio output

Connectors

Color

Code

Description

PC DVI Input

White

PC RGB

(analog)

PC Audio

Input

Blue

Green

Audio Output

Subwoofer

Output

White,

Red

White,

Red

Use this micro-cross input for better performance from a personal computer. An appropriate DVI-D cable is required.

Use the included VGA cable to use this LCD-TV as a personal computer monitor.

Use this miniature stereo input to attach to your computer audio output.

Use these 2 RCA jacks to provide audio to an external amplifier or surround sound decoder.

Use these 2 RCA jacks to provide audio to an external powered subwoofer.

13

30" Wide-Format LCD-TV User Manual

Video

Connectors

HDTV Input

(480p, 1080i,

720p only)

Y

Pb

Pr

Right audio

Left audio

Component

Input

(480i only)

Y

Cb

Cr

Right audio

Left audio

S-Video Input

Right audio

Left audio

Video Input

Right audio

Left audio

Color

Code

Green

Blue

Red

Red

White

Green

Blue

Red

Red

White

Black

Red

White

Yellow

Red

White

Description

5 RCA jacks. Use this set of component video connectors to attach a high-definition HDTV receiver that can output 480p, 1080i or 720p format.

May also be used to attach a progressive scan DVD player.

Note that 480i is not supported on this connector.

5 RCA jacks. Use this set of component video connectors to attach a DVD player that is set to output 480i format.

1 DIN, 2 RCA jacks. S-Video is superior to

Composite Video but not as good as Component or

RGB video.

3 RCA jacks. Use the included composite video cable to attach a popular device such as a VCR or game console.

Power

Connector

Power Input

Color

Code

Description

Black

Use the include power cord to attach to an appropriate AC wall outlet.

100-240VAC, 50-60Hz, 2.4A

14

30" Wide-Format LCD-TV User Manual

Push-Button Control Descriptions

The power button is located separately on the front lower right of the display.

Button

POWER

Description

Use this button to switch the LCD-TV between on and standby modes.

The power indicator will glow green when the power is on.

The power indicator will glow red when the LCD-TV is in standby.

The power indicator will not glow if the power cord is unplugged.

The MENU, CHANNEL, VOLUME and SOURCE buttons are conveniently located on the top of the LCD-TV.

Button

MENU

CHANNEL

FUNCTION

VOLUME

ADJUST

Description

Use this button to display and adjust the software-controlled features of this LCD-TV.

Use this button with the 4 arrow keys (channel and volume adjustments) to traverse the menu options.

Use these two buttons to switch between preprogrammed channels.

When used with the MENU button, use these to switch between functions to adjust.

Use these two buttons to make the sound softer and louder.

When used with the MENU button, use these to adjust the particular value of a function.

SOURCE

Use this button to change between video input signals.

Press the SOURCE button repeatedly to scroll through the following list of inputs: AV, YCbCr, PC, DVI, HDTV, TV, and S-Video. (Direct access to a particular source is available from the remote control.)

15

30" Wide-Format LCD-TV User Manual

2

Remote Control Description

The remote control uses 2 AAA (1.5VDC) batteries. The buttons are grouped in 4 categories:

Power & Mute Buttons

Picture-in-Picture Buttons

Audio & Video Adjustment Buttons

Volume & Channel Control Buttons

The index number corresponds to the callout number for each button depicted in the illustration.

1

Index

Power &

Mute

Buttons

Description

1

2

POWER

MUTE

Use this button to switch the LCD-TV between on and standby modes.

The power indicator will glow green when the power is on.

The power indicator will glow red when the LCD-TV is in standby.

The power indicator will not glow if the power cord is unplugged.

Use this button to toggle audio on and off.

16

3

6

30" Wide-Format LCD-TV User Manual

5

7

4

Index

3

15

15

4

5

6

7

Picture-in-


Buttons

Description

LAYOUT

Use this button to activate and adjust Picture-in-Picture features in conjunction with POSITION, OFF, SWAP, and CH .

Use the four arrow keys ( ) to change the focus for audio and direct channel changes.

(See also Picture-in-Picture Description.)

POSITION

OFF

SWAP

CH

Use this to move the position of the child video window.

Use this to remove the child window and turn off

Picture-in-Picture.

Use this to exchange the two PIP video sources.

Use these two buttons to change the child windows video source.

17

8

11

13

30" Wide-Format LCD-TV User Manual

9

10

12

Index

Audio &

Video

Adjustment

Buttons

14

8

9

10

SCALING

FREEZE

SLEEP

Description

Use this button to adjust aspect ratio and to fill the screen.

Use NORMAL for HD content.

Use NORMAL for PC content.

Use NORMAL for 4:3 content.

Use WIDE for letterboxed content.

Use FILL ALL for anamorphic DVD content.

Use this button to hold a particular image on screen.

This may be useful in making fine color adjustments.

The SLEEP feature is used to automatically shut off this LCD-TV after a preset period of time has passed.

Press the SLEEP button repeatedly to select 0, 30, 60,

90 or 120 minutes. Selecting 0 turns the SLEEP feature off.

11

12

13

14

STEREO

MONO

CCD

SOURCE

MENU

Use this button with the two arrow buttons to select among stereo, mono and the secondary audio program. (SAP).

Use this button to turn on and off closed caption display.

Use this button to scroll through the video input sources: TV, AV, S-VIDEO, HDTV, YCbCr, and VGA.

Press this button to activate the OSD menu. To exit, press the button again.

18

18

19

20

30" Wide-Format LCD-TV User Manual

15

16

17

Index

15

16

17

18

19

20

Volume &

Channel

Control

Buttons

ENTER

Description

VOL+-

CH

0-9, 100

Press these buttons to navigate through the options and confirm your choice.

Use VOL+ and VOL- keys to adjust the audio louder and quieter.

Use the CH and CH keys to surf forwards and backwards between pre-programmed TV channels.

Press two digits for channels 01 through 99. Press 100 followed by two digits for channels 100 or greater.

R

(RETURN)

TV,

S-VIDEO,

AV, PC, DVI

HDTV,

YCbCr

Use the R button to see the previous channel.

Use these buttons to switch directly to a video source.

19

30" Wide-Format LCD-TV User Manual

Menu Items

1. User may select the most suitable mode by pressing the source buttons (TV, S-VIDEO, AV, PC,

DVI, SCART, HDTV, YCbCr) on the remote control. After detecting the source, the LCD will show the selected system mode on the right bottom of the screen.

2. After selecting the system mode, user may execute the following functions by pressing the MENU button: picture

Adjusts the picture settings.

advance

Provides more display modes and functions according to the type of p rogram.

audio

Provides more audiooptions. You may also customizethe audio settingsofthe LCDmonitor.

TV

Sets yourfavorite TV c hannels. Automatic programming is available in multiple systemsandinput signal s ources.

parent

(Applicable in USAonly)

Restricts access to some channels according tothe type of program.

setting

Provides other options such as automatic power-off time, language, and reset.

20


Advance

Audio

TV

Option brightness contrast color tint sharpness filter phase frequency force autotune

WindowLayout pipposition pipsize gamma colortemp imagesize h-position v-position channel volume treble bass balance subwoofer simulativesurround source programedit autofinetune

Parent

Setting change norating rating set tvchannelblocking movie b locking language osd timeout factoryreset

The OSD menu varies withthe modes and regions.

21

30" Wide-Format LCD-TV User Manual

Range

0~100

0~100

0~100

0~100

0~100 sharpest/sharp/normal/soft/softest

0~100

0~100 f s pipsplit screen/pop 3/ pop 12 position 1/2/3/4/5

30~75 liner/hdtv/video warm/normal/cold fillall/normal/wide/panoramic

0~100

0~100 stereo/sap 1/sap2/mono

0~100

0~100

0~100

0~100 on/off on/off antenna/cable

<right> toenable

(NTSCCH1~125, PALCH1~99)

<right> toenable

(autoscan)

Mode

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV

AV/Scart/TV/S-Video/YCbCr/HDTV

AV/Scart/TV/S-Video/YCbCr

HDTV/PC/DVI

HDTV/PC

PC

PC

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC

AV/Scart/TV/S-Video/YCbCr/HDTV/PC

TV

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

TV

TV

TV allow/block off/child/youth/Y.adult/user

Y/Y7/G/PG/14/MA/FV/D/L/S/V

G/PG/PG-13/R/NC-17/X/NR

English/French/Spanish

5/15/60 second

<right> t o activate

AV/Scart/TV/S-Video/YCbCr(Default: HDTV/PC/DVI)

AV/Scart/TV/S-Video/YCbCr(Default: HDTV/PC/DVI)

AV/Scart/TV/S-Video/YCbCr(Default: HDTV/PC/DVI)

AV/Scart/TV/S-Video/YCbCr(Default: HDTV/PC/DVI)

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

AV/Scart/TV/S-Video/YCbCr/HDTV/PC/DVI

30" Wide-Format LCD-TV User Manual


(For AV/SCART/S-VIDEO/

YCbCr/TV Mode)

1. To call the main menu, press the MENU button on the remote control.

2. Navigate through the Picture options by using the or button.

3. To select the option you want to adjust, press the button on the remotecontrol.

4. To enter the submenu and adjust the settings wherein, press the button.

5. To return to the previous menu, press the ENTER button. To exit, press the MENU button.

For HDTV

For PC

Submenu Description

Brightness

Press the or buttontoincreaseor reduce brightness.

Contrast

Press t h e or button to increase or reducecontrast.

Color

Press t he or button to increase or reducesaturation.

Tint

Press the or button to make the picture morereddishor greenish.

Sharpness

Press the or button to adjust the sharpness of the picture.

Filter

Press the or button to adjust the sharpness of noise display.

Phase

Press the or button to adjust phase.

Frequency

Press the or button to adjust frequency.

Force AutoTune

The LCD monitor executes automatic tuning and adjusts to better picture settings in about 10seconds.

For DVI

22

30" Wide-Format LCD-TV User Manual

Advance

Submenu

1. To call the main menu, press the MENU button on the remotecontrol.

2. Navigate through theAdvance options by using the or button.

3. To select the option you want to adjust, press the button on the remote control.

4. To enter the submenu and adjust the settings wherein, press the button.

5. To return to the previous menu, press the ENTER button.

To exit, press the MENU button.

Description

Window L a yo ut

Pressthe or buttontoswitchto the value desired. Press ENTER toloadthevalue.

PIPPosition (Make surethatyouareinthePIPmodewhensettingthis option.)

Pressthe or button to l ocate the PIPto left t op, right top,center,leftbottom, and right bottom.

PIP Size (Make surethat you are in the PIP m odewhen setting this option.)

Pressthe or buttonto set the size of PIP.

Gamma

Press the or button to adjust Gamma.

Color Temp

Pressthe or button to adjust color temperature.

ImageSize

Press the or button to adjust image size.

H Position

Pressthe or button to adjust horizontal position.

V P osition

Press the or button to adjust v ertical position.

Image size options:

Normal:original size(15:9/4:3)

Fillall:proportionally enlarges size tofillscreen.

Wide: enlarges the sizeof 18:9 o r 20:9 to 15:9.

Panoramic: fill t he screen with the sizeof 4:3 by means o f n on-linearity modification.

If theonscreen text is incomplete, adjust the imagesizeuntil the text is fully displayed.

23

30" Wide-Format LCD-TV User Manual

Audio

1. To call the main menu, press the MENU button on the remote control.

2. Navigate through the Audio options by using the or button.

3. To select the option you want to adjust, press the button on the remote control.

4. To enter the submenu and adjust the settingswherein, press the button.

5. To return to the previous menu, press the ENTER button. To exit, press the MENU button.

Option

Channel

Volume

Treble

Bass

Balance

Subwoofer

Simulative Surround

Description

Stereo

Press the

SAP1 SAP2 Mono button tomoveto the option desired.

Stereo

SAP1

Select the Stereomode.

Select the bilingual SAP1 mode.

(TV mode only)

SAP2 Select thebilingual SAP2 mode.

Mono Select Mono to reduce noise inthe Stereo mode.

If thereceivedsignal doesnot include a usablesecond language, broadcast willstay in stereomode.

Press the button to adjust volume.

Press the

Press the button to adjust the volume of treble.

button to adjust the volume of bass.

Press the button to adjust the balance of left and rightsound channels.

Press the O N o r OFF buttonto turnonor offsubwoofer.

Press t he O N o r OFF button toturn on or off simulative surround.

24

30" Wide-Format LCD-TV User Manual

TV

Option

Source

Program Edit sav e

2 skip ke y p a d a d d t o i n c l u d e

<enter>to return

<menu>to exit

Auto FineTune

1. To call the main m enu, press the MENU button on the remote control.

2. Navigate through the TV options byusing t h e or button.

3. To select the option you want to adjust, press the button onthe remote control.

4. To enter the submenu and adjustthesettings wherein, press the button.

5. To returntotheprevious menu, press the ENTER button.

To exit, press the MENU button.

Description

Antenna Cable

Press the or buttons to navigatethrough the options.

Cable: selectthis optionifyouhaveaccesstoCATVprograms.

Antenna: selectthisoptionifyou use an antenna forTVprograms.

Add/Delete Channel

1. Press the button toenter the Program Editmenu.

2. Press the or button to select a channel. To add or delete the channel, press t h e or button.

3.

Toreturnto the previous menu, press the ENTER button.

To exit, presstheMENU button.

Press the button to startAuto FineTune.

It is necessary to execute Auto Fine Tune when youinstallthe LCD forthe first time.

25

30" Wide-Format LCD-TV User Manual

Parent

1. To callthemainmenu,press the MENU button on the remote control.

2. Navigate throughthePARENToptions by usingthe or button.

3. Press the button and key in default password to get parent menu.

4.

To select the option you want toadjust, press the button on the remote control.

5.

To enter thesubmenuand adjust the settings wherein, pressthe button.

The following tables set forth the options in the Parent mode:

Option

Change

Description

P r e s s t h e b u t t o n t o i n p u t a n e w p a s s w o r d .

NoRating

RatingSet

To enableordisablethe Parentmode,pressthe or Button.

allow Viewable

Non-viewable block

RatingSet

P r e s s t h e buttontoselectblockinglevel.

o f f child youth

Y. adult

User

DisabletheParentmode.

Forchildren:

Forteen-agers:

Foradult:

TV-Y,TV-G, G

TV-PG,PG

TV-14,PG-13

User may customize theratingsettingsaccordingtopersonalneeds.

<Thefollowingtableshowsthe optionsavailable. Tocustomizethe

TVand movieblocking,pressthe Buttons.>

TVchannelblocking

MA

FV

S

V

D

L

Y

Y7

G

PG

14 suitableforchildrenofallages.

suitableforolderchildren.

suitableforgeneralaudiences.

parentguidancerequired.

parentsshouldbeawareofwhether the program is suitablefor their children.

suitableforadults only.

fantasyviolence dialogueindicatingsex coarse language sex-relatedsituation violence

Movieblocking

G general audiences, i ncluding children.

parentguidance.

PG

PG-13

R childrenundertheage of13mustbeaccompanied byaparentorguardian.

restricted. Children under theageof17mustbe accompaniedbyaparentorguardian.

NC-17 childrenundertheage of17notadmitted.

X

NR childrenundertheage of17notadmitted.

norestriction.

26

Setting

Option

Language

OSD timeout

Factory reset

30" Wide-Format LCD-TV User Manual

1. To callthemainmenu,press the MENU button on the remote control.

2. NavigatethroughtheSettings options by u singthe or button.

3. To selecttheoptionyouwanttoadjust,pressthe button on the remotecontrol.

4. To enter the submenu and adjust the settings wherein, pressthe button.

5. To return to the previous menu, presstheENTERbutton.

To exit, press the MENU button.

Description

Language: English/French/Spanish

Press t he button t o select fromthe following options from the OSD:

5 sec 15 sec 60 seconds

Press the button to reset to factory settings.

27

30" Wide-Format LCD-TV User Manual

Appendices

Trouble-Shooting

Q: Why doesn't my video

fill

the whole screen?

A: Some people prefer to maintain the original aspect ratio to avoid seeing abnormally fat or skinny characters.

Other people prefer to fill more of the screen. Use the SCALING button on your remote to adjust the image aspect ratio and fill more of the screen.

Q: Why do I have to keep changing the

SCALING

adjustment?

A: Each type of programming content may be different. Most NTSC TV programs and videotapes are 4:3 aspect ratio.

DVD movies are available in several formats and can be adjusted accordingly.

HD content is typically wide fviewed using the NORMAL ormatsetting. Occasionally DVD movies and TV programs are letterboxed and can be zoomed to fill the entire screen using the WIDE setting.

Q: I have no video from my

progressive

DVD player. How do I fix this?

A: You may need to connect the DVD player to another video input. Match the settings on your DVD player to progressive or interlaced output. For progressive output, use the HDTV(YPbPr) input on the LCD-TV. For interlaced output, use the

YCbCr input on the LCD-TV.

Q: I have no video from the

HDTV

input. What is wrong?

A: Adjust the settings on your HD receiver to 720p, 1080i or 480p output. On the Sony SAT-HD200, this button is on the front panel and remote. For the Samsung model SIR-TS160, this switch is on the rear panel.

Q: Will a

progressive scan

DVD player provide better video?

A: This LCD-TV includes a progressive scan converter that is comparable to the scan-converter built into progressive scan

DVD players.

Q: What are

anamorphic

widescreen DVD movies?

A: There are two common ways of recording wide format movies on a DVD: letterbox and anamorphic. Anamorphic recordings are also commonly labeled "

Enhanced for 16:9 TV's"

. Anamorphic recordings have over 30% more vertical resolution than letterbox format. Use the SCALING button on your remote to adjust the image aspect ratio and fill more of the screen.

Q: Do LCD's have a

burn-in

problem?

A: No. Unlike CRT and plasma TV's, liquid crystal displays (LCD) do not use phosphor and thus have no problems with a still image becoming permanently stored on the screen.

Q: Can I use a

game console

such as Sony Playstation 2, Nintendo Game Cube or Microsoft XBOX with my LCD-TV?

A: Yes. If you intend to use a game console and/or watch standard TV broadcasts over cable, satellite or antenna, an

LCD-TV is a necessary and superior choice over widescreen plasma and CRT televisions. The repetitive image from games and unused black filled borders will damage a plasma TV by burning a permanent image into the phosphor.

Q: Will leaving my LCD-TV on cause the image to degrade?

A: No. Unlike plasma TV's, this LCD-TV does not exhibit

aging

over time. The brightness of the image remains the same. Sufficient airflow is important to maintain a cool operating temperature.

Q: I forgot my

parental control password

. How do I reset the parental control?

A: Enter 00000 as the password.

Q: I have video, but no audio. What's up?

A: Adjust the volume up, turn off the mute button, and confirm the audio cables for this video source properly are connected.

28

30" Wide-Format LCD-TV User Manual

Q: I have audio, but no video. What's up?

A: Match the video output format (720p, 1080i, 480p, 480i) of your video source to the appropriate input connector on the

LCD-TV.

Q: I am using the component video input. Why are the colors all wrong?

A: Confirm the Cb and Cr cables are not switched by matching the color codes on the cable to the connectors.

Q: My cable TV reception is not very clear. Why is this?

A: Many homes split a signal from their antenna or cable many times. The number of splitters and the quality of the connectors on the 75ohm cable will visibly affect TV reception. Computers, microwave ovens and other electronic devices emit electronic noise. Identify the interfering device by shutting it off and try relocating the interfering device away from your LCD-TV.

Q: My computer images appear stretched. How do I fix this?

A: Adjust the display properties of your PC to 1280x768. (You may need to download a 1280x768 driver.)

Q: The text on my PC is too small. How do I make it larger?

A: Adjust the font size using the large system font (125%) found in your PC's Display Properties Settings under the

Advanced button.

Q: The audio sounds "thin" and is missing bass sounds.

A: Adjust the audio bass and treble settings from the audio menu. Be sure to set the subwoofer value to off when there is no subwoofer.

Q: Changing channels using the 0-9 numbers is a little slow. How can speed this up?

A: Press enter after entering the channel. The software is designed to accept 1, 2 or 3 digit channel numbers.

29

30" Wide-Format LCD-TV User Manual

Specifications

Active

Range

640 x 350

640 x 480

VGA

720 x 400

800 x 600

SVGA

1024 x 768

XGA

1280 x 1024

56

60

72

75

75

85

70

85

60

70

75

85

60

70

60

72

Refresh

Rate

H

31.5

31.469

37.861

37.5

43.269

31.46

35.156

37.879

48.077

46.875

53.674

48.363

56.476

60.023

68.677

63.981

V

70

59.940

72.809

75

85.008

70.08

56.250

60.317

72.188

75

85.061

60.004

70.069

75.029

84.997

60.020

Dot Pol.

Horizontal Vertical

Clock

H V

Sync Back Front Total Sync Back Front Total

MHz

25.175

N N

Width Porch Porch

96 48 16 800

Width Porch Porch

2 60 37 449

96 48 16 800 2 33 10 525 25.175

N N

31.5

N N

31.5

36

N N

N N

28.32

36

N

P

P

P

40 128

64 120

56

108

24

16

80 56

54

72 128

18

24

832

840

832

900

1024

3

3

3

2

2

28

16

25

35

22

9

1

1

12

1

520

500

509

449

625

4

6

23

23

1

37

628

666

40

50

P P 128

P P

120

49.5

P P

56.25

P P

80

64

88

64

160

152

40

56

16

32

1056

1040

1056

1048

65

75

N

N

N

N

136

136

160

144

24

24

1344

1328

3

3

6

6

21

27

29

29

1

1

3

3

625

631

806

806

78.75

P P

94.5

P P

108

96

96

176

208

P P

112 248

16

48

48

1312

1376

1688

3

3

3

28

36

38

1

1

800

808

1 1066

30

30" Wide-Format LCD-TV User Manual

Specifications

Displaypanel

SignalsInput/out

Compatibility

Audio Output

Regulation

Other

Screen Size

Aspect Ratio

Pixel Pitch

NumberofPixels

Luminance

Contrast

ResponseTime

Viewing Angle

*

Video in

*

Scart

*

S-Video in

*

HDTV in

*

Component Video in

*

Tuner i n

Audio in

RGB in

DVI i n

RS232 in

Audio o u t

POP/PIP

Display Mode

Color system

Videosystem

PC/Mac

HDTVscanning format

Built-in speaker

Subwoofer

Safety/ EMC

Accessories

Package Size

Net Weight/ GrossWeight

PowerSource

Operative temperature

643.2(H) X 385.92(V)mm(diagonal29.54inches)

15:9WIDE

0.1675(H) X R.G.B. X 0.5025(V)mm

1280(H)X R.G.B. X 768(V)

31

500:1(Typical)

16ms

Typical 170Degree(Horizontal/Vertical)

RCAJack X 1

RGB+Audio/Composite + A u d io(Europeregion)

Y / C X 1

Y P b P r X 1 ( R C A J a c k )

YCbCr X 1 ( R C A J a c k )

NTSC/PAL/SECAM(OPTIONAL)

H e a d p h o n e X 1 ( P C )

*

RCAJack(R+L)X 4

D-sub 1 5 p i n 3 r o w t y p e

D-sub 2 4 p i n 3 r o w t y p e

D-sub 9 p i n 2 r o w t y p e

R C A J a c k ( R + L ) X 1 / SubwooferRCA Jack X 1

4 Modes

Normal,FillAll, Wide,Panorama

NTSC/PAL/SECAM

NTSC/PAL/SECAM

VGA/SVGA/XGA/SXGA

1080i,720p,480p

8 w + 8 w ( S t e r e o )

RCAJack X 1

UL/CUL, VCCI, CB, C E , F C C C l a s s B

RGBCable / Power Cable / R e moteController /

Batteries / User's M a nual/WarrantyCard

*

AVCable

1 0 5 X 3 7 X 65cm

1 9 . 0 k g / 2 6 . 5 k g

A C Adapter(Accessory):100-240V, 1.8A, 50-60Hz

Monitor:12V ,12.5A(MAX)

0~40 C

30" Wide-Format LCD-TV User Manual

Wall Mounting

Use a qualified and insured professional installation service to mount your LCD-TV on a wall. Improper mounting can cause this LCD-TV to fall and both be damaged and cause severe damage.

The wall mounting bracket and screws are sold separately and not included with this product. This product conforms to

VESA flat panel display mounting interface specification.

Be sure the mounting solution can support more than the weight of the 30" LCD-TV, 19kg (42lb)

.

Please provide the mounting kit and these instructions to the installation professional:

A. Turn off and unplug the LCD-TV. Place your LCD display face down on a soft clean surface paying particular attention not to scratch the LCD surface, speakers or enclosure.

B. Remove the TV stand by unscrewing the 6 screws attaching the base from the LCD-TV as shown in figure B.

Save the 6 screws and stand in a safe place.

C. Screw and securely

tighten

the 4 wall hanging screws into the rear of the LCD-TV as shown in figure C.

D. Locate several studs in the wall. Attach the mounting bracket

securely

to multiple studs in the wall. Often one or more wood cleats are required to allow the mounting bracket to be located between studs. Double-check for strength to support more than the weight of the 30" LCD-TV, 19kg (42lb). See figure D.

E. Attach any cables to your LCD-TV at this time.

F. Carefully place the LCD-TV on the wall-mounting bracket by matching up the 4 wall hanging screw heads to the corresponding holes in the mounting bracket. See figure F.

G. Carefully test for strength before releasing the LCD-TV.

A B

C D

32

E

10cm 10cm

F

30" Wide-Format LCD-TV User Manual

Important Safety Instructions

Read the following instructions carefully. Follow all instructions and heed all warnings to prevent personal injury or damage to the product. Keep these instructions in a safe place for future reference.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do no place your

LCD-TV near water. Exposing the apparatus to rain, water, moisture or sunlight can severely damage it.

Clean only with a soft dry cloth.

Do not block ventilation openings. Increased temperature may cause fire or device failure.

Install in accordance with the manufacturer's instructions.

Do no place the apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

Only use the attachments and accessories that were included with the apparatus.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Refer all servicing to qualified service personnel.

If you notice smoke or any other odor or noise coming from the apparatus, stop using the product immediately and unplug the power cord. Contact a qualified service technician.

Keep the apparatus at least four (4) inches away from the wall. Make sure there is sufficient airflow to ventilate the unit.

Hold the apparatus with two hands at the base of the panel when moving it.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

33

30" Wide-Format LCD-TV User Manual

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Cleanonly with dry cloth.

7) Do not block any ventilation openings. Install inaccordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug.Apolarized plughas twobladeswith one wider than the other.Agrounding type plug has two blades and a third grounding prong. The wide blade or the third prongareprovided for your safety. If the provided plug does not fitinto your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked onorpinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified bythemanufacturer.

12) Use only with thecart,stand,tripod, bracket, or table specifi ed by the manufacturer, or soldwith the apparatus.When a cart is used, use caution when moving the cart/apparatus combination toavoidinjury from tipover.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,suchaspower-supplycord or plug is damaged, liquid has been spilledorobjects have fallen into the apparatus, theapparatus has been exposed to rain or moisture, does not operate normally, or has beendropped.

15) To Reduce the Risk of Fire or Electric Shock,Do not Expose ThisApparatus To Rain or Moisture.

16) Apparatus shall not be exposed todripping or splashing and no objects filled with liquids,such as vases, shall be placed on the apparatus.

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

!

The lightning flash with arrow head symbol, within an equilateral triangle, is intended toalert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a riskofelectricshocktopersons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating andmaintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION!

For use only with the following power supplies:Delta/ADP-150BB B;Delta/ADP-180CB B

34

30" Wide-Format LCD-TV User Manual

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Caution: To comply with the limits for an FCC Class B computing device, always use the signal cord and power cord supplied with this unit. The Federal Communications Commission warns that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

35

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
