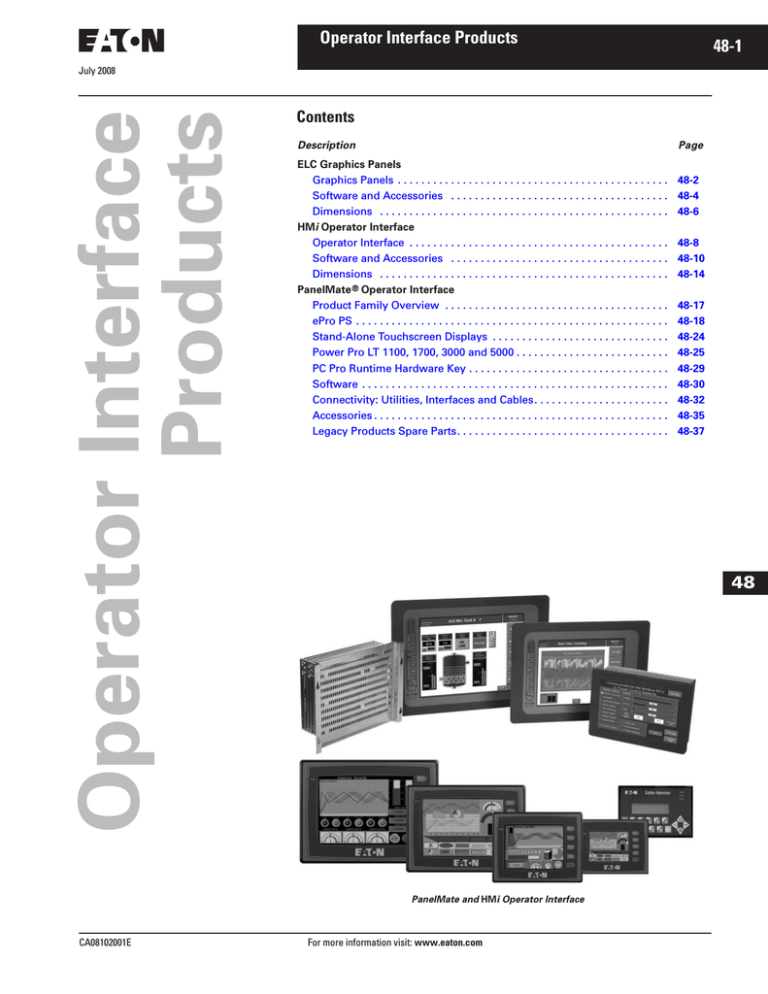

Operator Interface Products
48-1
Operator Interface
Products
July 2008
Contents
Description
Page
ELC Graphics Panels
Graphics Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HMi Operator Interface
Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PanelMate ® Operator Interface
Product Family Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ePro PS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stand-Alone Touchscreen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Pro LT 1100, 1700, 3000 and 5000 . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Pro Runtime Hardware Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectivity: Utilities, Interfaces and Cables. . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legacy Products Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48-8
48-10
48-14
48-17
48-18
48-24
48-25
48-29
48-30
48-32
48-35
48-37
48
PanelMate and HMi Operator Interface
CA08102001E
48-2
48-4
48-6
For more information visit: www.eaton.com
Operator Interface Products
ELC Graphics Panels
48-2
July 2008
Graphics Panels
ELC Graphics Panels
Product Description
ELC Graphics Panels are simple to
program and easily connect to ELC
products. ELC graphics panels make
modifying an application quick and easy
and also connect to Cutler-Hammer ®
MVX drives, IQ MODBUS meters and
many other devices. With over 30
objects that can be placed anywhere
on the display, these tough panels
also communicate to other major
controllers. These graphics panels
have two serial ports which can be
used simultaneously to communicate.
Transfer applications to or from these
graphics panels using the handy
transfer module. Ten programmable
functions keys provide easy to change
pages, input numeric values, enter
alpha-numeric passwords, set, reset
and more. Create alarms, password
protect, import bitmaps, and use many
different fonts.
Protocols Supported
■
■
■
■
■
■
■
■
48
■
■
■
■
■
■
■
Eaton D50/D32LT, D320
Eaton ELC
Eaton MVX ASCII
Eaton MVX RTU
MODBUS ASCII
MODBUS RTU
AB DF1
Mitsubishi FX Series
Mitsubishi FX2N Series
Koyo K-Sequence
LG 200S
OMRON C-Series
Siemens 57-200 Series
ASCII Slave Mode
And more...
0
50
100
No Alarms
Tank Fill Level
RUN
F3
RUN
F4
STOP
ELC-GP02
ELC-GP04
Features
Table 48-1. ELC Graphics Panel Features
Item
ELC-GP02
ELC-GP04
Display Screen
Screen
STN-LCD
Color
Back-light
Monochromatic
The back-light automatic turn off time is 1 – 99 minutes
(0 = do not to turn off)
(back-light life is 50 thousand hours at 25°C)
Resolution
160 x 32 pixels
128 x 64 pixels
Display Range
72 mm (W) x 22 mm (H)
67mm (W) x 32mm (H);
3.00" (diagonal preferred)
Contrast Adjustment
15-step contrast adjustment
10-step contrast adjustment
Language Font
ASCII: characters (including European Fonts)
Taiwan: (BIG 5 code) traditional Chinese character font
China: (GB2324-80 code) simplified Chinese character font
Font Size (ASCII)
ALARM Indication LED
5 x 8, 8 x 8, 8 x 12, 8 x 16
1. Power on indication (Flash three times)
2. Flash for communication error or other alarm
3. Special Indication by user programming
RS-232 LED (Yellow)
Flashes when communicating
RS-485 LED (Green)
Flashes when communicating
Program Memory
Program Memory
256KB flash memory
External Interface
Serial Communication Port
RS-232 (COM1)
9 PIN D-SUB male
Data length: 7 or 8 bits
Stop bits: 1 or 2 bits
Parity: None/Odd/Even
Baud Rate: 4800 bps – 115200 bps
Extension Communication port
RS-485 (COM2)
5-Pin Removal Terminal
(RS-485 or RS-422)
Data length: 7 or 8 bits
Stop bits: 1 or 2 bits
Parity: None/Odd/Even
Baud Rate: 4800 bps – 115200 bps
Extension Slot
Power
The slot for program copy card
24V DC input
Product Selection
Table 48-2. Graphics Panels
Description
Catalog
Number
160 x 32 pixels, 10 Function Keys, Monochrome
ELC-GP02
128 x 64 pixels, 10 Function Keys, Monochrome
ELC-GP04
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . 2CD-5
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
ELC Graphics Panels
48-3
July 2008
Graphics Panels
Standards and Certifications
Table 48-3. Approvals/Certifications
Description
Specifications
Electrical/EMC
Electrostatic Discharge Immunity
EN61000-4-2/1995
Radiated Immunity
EN61000-4-3/1995
Electrical Fast Transient
EN61000-4-4/1995
Radiated Emission
CISPR22, Class A
Other Approvals
Waterproof Class of Front Panel
UL Type 4X Outdoor Rated
Agency Certifications
UL 508, cUL (CSA C22.2 No. 14); CE (Low Voltage Directive);
Class 1 Div 2 Groups A, B, C, D
Technical Data and Specifications
Table 48-4. Environmental Ratings/Specifications
Description
Specification
Transportation & Storage
Temperature
-4° – 140°F (-20° – 60°C)
Operating
Temperature
32° – 122°F (0° – 50°C)
Humidity
20 – 90% RH (non-condensing)
Communication Interface
COM1: RS-232; COM2: RS-485/RS-422
Vibration
0.5 mm displacement, 10 – 55 Hz, X, Y, Z three directions and
two hours for each direction
Impact
10G, 11 mS, from X, Y, Z three directions and three times for
each direction
Weight
0.53 Lbs. (0.24 kg)
Cooling Method
Natural Air Cooling
48
CA08102001E
For more information visit: www.eaton.com
48-4
Operator Interface Products
ELC Graphics Panels
July 2008
Software and Accessories
ELCSoftGP Programming
Software
ELCSoftGP Programming Software
configures all ELC graphic panels. With
ELCSoftGP, applications can be created,
edited, downloaded, uploaded, etc.
Move programs from one controller to
a different one with ease.
48
Requirements:
Operating Systems – Windows 98,
Windows ME, Windows 2000,
Windows XP
■ Hard Drive – At least 100M bytes
■ RAM – At least 256M bytes
■
ELCSoftGP Editing Environment
Accessories
ELC-GPXFERMOD Program
Transfer Module
The ELC-GPXFERMOD is a multifunction device that provides the ability to
back up an application already loaded
onto one of the ELC-GPxx units. It will
store all system settings like baud, ID,
etc., as well as passwords and the
application itself. Once stored in the
module, the application and settings
can be transferred to another ELCGPxx unit of the same model number.
Figure 48-1. ELC-GPXFERMOD
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
ELC Graphics Panels
48-5
July 2008
Software and Accessories
ELC-CBPCGP3 Cable
■
Use this cable to download or upload
applications between a PC and the
ELC-GPxx graphics panels. This cable
can also be used to transfer a program
from an ELC-GPxx to another ELCGPxx. This cable is 3 meters long.
The Pin definition of 9 PIN D-SUB
RS-232:
ELC-GP04 COM Port
RS-232 9 PIN D-SUB Male
3
2
5
Tx
Rx
GND
ON PC (RS-232)
ON ELC-GP02/04
9
5
1
6
6
1
5
9
9 PIN D-SUB
9 PIN D-SUB
PC COM Port
9 PIN D-SUB Female
GP02/04 COM Port
9 PIN D-SUB Female
Rx
Tx
2
3
3
2
Tx
Rx
GND
5
5
GND
Figure 48-2. PC to ELC-GPxx Cable
ELC Power Supplies
All ELC modules operate from 24V DC.
These power supplies provide a convenient way to provide robust DC voltage.
L
L
N
N
24V
24V
0V
0V
POWER
ELC-PS01
POWER
ELC-PS02
48
Figure 48-3. ELC Power Supplies
Table 48-5. ELC Power Supply Specifications
Item
ELC-PS01
ELC-PS02
Dimensions W x H x D
in Inches (mm)
1.44 x 3.54 x 2.36
(36.5 x 90 x 60)
2.17 x 3.54 x 2.36
(55 x 90 x 60)
Input Power
100 – 240V AC 50/60 Hz
Output Volts
24V DC
Output Current (A)
1A
2A
Watts
24
48
Product Selection
Table 48-6. Software and Accessories
Description
Catalog
Number
Programming Software for GP Units
ELCSOFTGP
Program Transfer Module
ELC-GPXFERMOD
Cable, PC to ELC-GPxx, 9.8 ft. (3 m)
ELC-CBPCGP3
Power Supply, 24 Watt, 1 Amp
ELC-PS01
Power Supply, 48 Watt, 2 Amp
ELC-PS02
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . 2CD-5
CA08102001E
For more information visit: www.eaton.com
48-6
Operator Interface Products
ELC Graphics Panels
July 2008
Dimensions
Dimensions
ALARM
RS-232
RS-485
Up
Pg Up
3.82
(97.0)
Pg Dn
Down
Esc
Shift
3.35
(85.0)
Right
Left
F0
F2
F1
F5
F6
F3
F7
F4
F8
F9
Enter
5.79
(147.0)
1.20
(30.5)
.14
1.40
(3.5) (35.5)
Cut-Out Dimensions
5.31
(135.0)
3.35
(85.0)
48
5.31 ~ 5.37
(135 ~ 136.5)
Figure 48-4. ECL-GP04 — Approximate Dimensions in Inches (mm)
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
ELC Graphics Panels
48-7
July 2008
Dimensions
ALARM
RS-232
RS-485
3.82
(97.0)
3.35
(85.0)
F0
Esc
F1
F2
F3
F4
0
1
2
3
F6
F7
F8
F9
Up
Pg Up
4
Right
Left
F5
5
6
7
8
9
Enter
Pg Dn
Down
5.79
(147.0)
1.20
(30.5)
.14
1.40
(3.5) (35.5)
Cut-Out Dimensions
5.31
(135.0)
3.35
(85.0)
48
5.31 ~ 5.37
(135 ~ 136.5)
Figure 48-5. ECL-GP02 — Approximate Dimensions in Inches (mm)
CA08102001E
For more information visit: www.eaton.com
Operator Interface Products
HMi Operator Interface
48-8
July 2008
Operator Interface
HMi Operator Interface
Product Description
Positioned between the ELC graphics
panels and the ePro series of operator
interfaces, HMi is the work horse of the
industry. All units feature a touchscreen and function keys to suit all
environments and applications. They
range in screen size and color to fit
available space and application needs.
All units offer RS-232, RS-485 and
RS-422 communications. The 6", 8"
and 10" units also offer Ethernet
communication with an accessory card.
Features
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
48
■
■
■
True analog touchscreen
Retentive internal data storage
Real time trending
Trend stored data
Alarming and alarm storage
Alarm frequency
Event storage (History)
USB programming
USB memory storage
USB printer
Add I/O
Macro programming
Multi-language
Recipe storage
Auto-scale application from 10 – 4"
On-line simulation
Off-line simulation
8-level password protection
Protocols Supported
Table 48-7. Protocols Supported by HMi
Manufacturer Protocol
Manufacturer Protocol
Allen Bradley
MKS
CT150
Modbus
ASCII (Master)
984 RTU (Master)
RTU 2W (Master)
ASCII Hex Address (Master)
RTU Hex Address (Master)
ASCII nW (Master)
RTU nW (Master)
ASCII (Slave)
RTU (Slave)
Modicon
TSX Micro (Uni-Telway)
NEZA (Uni-Telway)
TWINDO
Danfoss
Micro Logix
SLC 5
VLT 2800 (FC Protocol)
Eaton
ELC Series
Facon
FB Series
Festo
Festo PLC
GE Fanuc
90 Series SNP
Hust
Hust CNC Controller
Hust CNC Controller v2
Jetter
Nano Series
Keyence
KV/KZ Series
Koyo
DL/SU Series
K-Sequence
Lenze
LECOM-A/B protocol
LG
Master-K 120S/200S
Glofa GM6 CNET
Master-K CNET
Li Yan
LYPLC EX
M2i
M2i Master
M2i Slave
Matsushita
FP Series
Vigor
M Series
Mirle
FAMA SC
VIPA
S7 300 (with PC Adapter)
Mitsubishi
FX Series
FX2N
A Series/J71UC24
A2A/A2AS/A2USH
A1SH/A3N/A2ASH CPU Port
Q Series CPU Port
YOKOGAWA
ACE
NIKKI DENSO NCS-FI/FS Series
Omron
C Series
CJ1 Series
TPM1A
SIEMENS
S7 200
S7 300 (with PC Adapter)
S7 300 (without PC Adapter)
Taian
TP02
Ti
Ti435
Product Selection
Table 48-8. HMi Product Selection
Description
Catalog
Number
4" Blue Mode Touchscreen
HMI04BU
6" Blue Mode with Expansion Slot
HMI06BE
6" Gray Scale Mode with Expansion Slot
HMI06GE
6" Color Mode with Expansion Slot
HMI06CE
8" Color Mode with Expansion Slot
HMI08CE
10" Color Mode with Expansion Slot
HMI10CE
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
HMi Operator Interface
48-9
July 2008
Operator Interface
Technical Data and Specifications
Table 48-9. Specifications
Model
HMI04BU
HMI06BE
Display Type
Display Color
Screen Pixels
Back-light Life
STN
8 Blues
320 x240 pixels
About 20,000 hours
at 25°C
3.8"
STN
8 Blues
Display Size
Operation System
MCU
Memory
Program
History
Recipe
Alarm
Data Registers
Volatile
Non-volatile
Backup Memory (Bytes)
Ext. Memory
SM Card
USB Disk
Extension Interface
USB for Download (USB Client)
USB for Data Storage / Printer
(USB Host)
LCD Module
Function Key
Perpetual Calendar (RTC)
Cooling Method
Standards and Certifications
Operating Temp.
Storage Temp.
Ambient Humidity
Shock
Vibration Resistance
Dimensions
(W) x (H) x (D) in Inches (mm)
Weight in Lbs. (kg)
Backup Battery
Buzzer
Operation Voltage
Wattage
NIT Rating
HMI06GE
HMI06CE
5.7" (118.2 x 89.4 mm)
HMI10CE
TFT-LCD
65536 Colors
640 x 480 pixels
About 30,000 hours at 25°C
8.0"
(162.2 x 121.77 mm)
10.4"
(215.2 x 162.4 mm)
Real Time OS
32-bit RISC Micro-controller / 206.4 MHz
1M
120K
64K 4K
3M
360K
128K
16K
3M
360K
128K
16K
3M
360K
128K
16K
7M
360K
128K
16K
7M
360K
128K
16K
64K
1K
128K
64K
1K
64K
1K
64K
1K
✔
✔
✔
✔
✔
✔
1 Client Ver. 1.1
64K
1K
512K
✔
✔
✔
64K
1K
512K
✔
✔
✔
✔
✔
512K
✔
✔
LED Back Light
4
CCFL Back Light
4
CCFL Back Light
4
CCFL Back Light CCFL Back Light
4
6
Built-In
Natural Air Circulation
IP65 / UL Type 4X (Indoor Only) / CE / UL / cUL / C-Tick
32° – 122°F (0° – 50°C)
-4° – 140°F (-20° – 60°C)
10% – 90% RH (0 – 40°C), 10% – 55% RH (41 – 50°C)
30G @ 11 mS
IEC61131-2 compliant
When vibration is NOT continuous: 5 Hz – 9 Hz 3.5 mm, 9 Hz – 150 Hz 1G
X, Y, Z directions for 10 times
5.54 x 4.13 x 1.76
7.25 x 5.67 x 1.85
9.57 x 7.01 x 2.06
(140.8 x 104.8 x 44.8)
(184.1 x 144.1 x 47)
(243.1 x 178.1 x 52.4)
.69 (.315)
1.69 (.768)
2.52 (1.147)
3V Lithium Battery CR2032 x 1 / Battery Life: 5 Years
85dB
DC +24V (10% – 20%) (Please use isolated power supply) 2.64
7.2
7.2
7.2
14
100 cd/m2
130 cd/m2
100 cd/m2
400 cd/m2
Please use isolated power supply (Not applicable for HMI08CE and HMI10CE).
Recipe memory uses program memory.
CA08102001E
HMI08CE
FSTN
STN
16 Grays
256 Colors
320 x 240 pixels
About 50,000 hours at 25°C
For more information visit: www.eaton.com
2CCFL Back Light
7
11.70 x 8.74 x 2.01
(297.1 x 222.1 x 51.1)
3.79 (1.721)
15
330 cd/m2
48
48-10
Operator Interface Products
HMi Operator Interface
July 2008
Software and Accessories
HMisoft Programming
Software
■
For use with the HMi series of touchscreens, this software supports all
of the features of HMi (listed on
Page 48-8). This easy to use Windowsbased software can run on Windows
2000 and XP with a minimum CPU of
Pentium III 500 Mhz, 256 MB RAM,
100 MB free hard disk space and
mouse.
■
■
■
■
■
■
Simulate an application on or off
line
Built in picture library
Create your own picture library
Screen manager
70 on-screen object
Easy object setup
Monitor all states of objects
■
■
■
■
■
■
Macro editing
Scale application from 10" – 4"
Upload/download applications over
USB
Upload/download register data over
USB
Logic configuration for I/O expansion
modules
Ethernet communications
HMi Screen Management
48
HMi Editor
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
HMi Operator Interface
48-11
July 2008
Software and Accessories
Accessories
I/O Expansion Modules
The HMIEC0806 and HMIEC1612 are 14 and 28 discrete I/0
expansion modules providing 8 DC inputs and 6 relay outputs or 16 DC inputs and 12 relay outputs. Plug this module
into the available expansion slot on the back of the HMi unit
(not available on the 4" model) and it’s ready to use. No need
for a separate PLC controller as it is built into the unit. Combine operator interface and logic into a single platform —
use HMISOFT to build both the ladder logic and OI program.
Connection Port
Input/Output Terminals
HMIECENT Ethernet Expansion Module
Ethernet Expansion Module
The HMIECENT expansion module adds 10/100 MB Modbus
TCP ability when plugged into the expansion slot of a 6", 8"
or 10" HMi unit. Up load and download programs and communicate to other Modbus TCP devices. No need for patch
or crossover cables as this module auto-detects and adjusts
for proper operation.
Connection Port for
Ethernet
Nameplate
Connection Port for
Extension Module
Nameplate
Direct Mounting Hole
Figure 48-7. I/O Expansion Modules — Product Outline
Table 48-11. I/O Expansion Modules
Catalog
Number
Input/Output
Power
Input Unit
Point
Output Unit
Type
Point
Type
DC Type
Sink or
Source
6
Relay
12
Relay
Direct Mounting Hole
HMIEC0806
Figure 48-6. Ethernet Expansion Module — Product Outline
HMIEC1612
Table 48-10. HMIECENT Function Specifications
Item
Specifications
Power Supply Voltage
DC 5V ±10%, 1A (provided by HMi )
Interfaced Supported
RJ-45 with Auto MDI/MDIX
Number of Ports
1 Port
Transmission Method
(Standard Conformance)
IEEE 802.3, IEEE 802.3u
Transmission Cable
Category 5e (TIA/EIA-568-A, TIA/EIA-568-B)
Transmission Speed
10/100 Mbps Auto Detection
Ethernet Protocol
ICMP, IP, TCP, UDP, DHCP, Modbus TCP
Noise Immunity
ESD (IEC 61131-2,
IEC 61000-4-2): 8 kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4):
Power Line: 2 kV,
Communication I/O: 1 kV
Damped-Oscillatory Wave:
Power Line: 1 kV, Digital I/O: 1 kV
RS (IEC 61131-2,
IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Certifications
C-Tick, cULus, CE
CA08102001E
For more information visit: www.eaton.com
5V DC
supplied
by HMi
8
16
48
Operator Interface Products
HMi Operator Interface
48-12
July 2008
Software and Accessories
Table 48-12. HMIEC0806/HMIEC1612 Function Specifications
Item
Specifications
Remark
Control Method
Stored program, cyclic
scan system
—
I/O Processing Method
Batch I/O (refresh)
Immediate refresh command available only
with I/O of the MPU
Execution Speed
Basic command (30 us)
Application command (30 ~ hundreds us)
Program Language
Commands + Ladder
Diagram + SFC
Step commands included
Program Capacity
999 Steps
Built-in EEPROM
Commands
Basic commands: 32
(including the STL
commands)
Application commands: 59
Step Relay
(Latched)
General Step
Point
128 Points
S0 ~ S127
Auxiliary
Relay
General
1024 Points
M0 ~ M511, M768 ~ M999, 744 points;
M1000 ~ M1279, 280 points Latched
256 Points
M512 ~ M767
Digital
64 Points
T0 ~ T63 (100 ms time base)
63 Points
T64 ~ T126 (10 ms time base)
1 Points
T127 (1 ms time base)
Timer
Counter
General
112 Points
C0 ~ C111
Latched
16 Points
C112 ~ C127
32 bit
13 Points
C235,C236,C237,C238,C241,C242,
C244,C246,C247,C249,C251,C252, C254
(all of them are latched type)
Data
Register
General
408 Points
D0 ~ D407
Latched
192 Points
D408 ~ D599
Pointer
P
64 Points
P0 ~ P63
Index
Register
E/F
2
E, F
Decimal K
16 bit: -32768 ~ +32767
32 bit: -2147483648 ~ +2147483647
Constant
Hexadecimal H 16 bit: 0000 ~ FFFF
Self Diagnosis / Protection
48
32 bit: 00000000 ~ FFFFFFFF
I/O check, system execution timeout check, invalid command check,
program check and password settings
Monitor / Debug
Program execution time display, bit / word, device settings
Certifications
C-Tick, cULus, CE
M1000, M1001, M1002, M1003, M1020, M1021, M1022, M1067, M10068, and M1161 are the
special auxiliary relays (special M).
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
HMi Operator Interface
48-13
July 2008
Software and Accessories
Table 48-13. HMIEC0806/HMIEC1612 Electrical Specifications
Item / Model Name
HMIEC0806
Power Supply Voltage
Power Consumption
HMIEC1612
5V DC, 1A (supplied by HMi )
0.25W
Noise Immunity
RS
CS
0.5W
Frequency: 80MHz ~ 1GHz, 1.4GHz ~ 2.0GHz, Test level 10V/m
Frequency: 0.15MHz ~ 80MHz, Test level 10V
(HMi power port & I/O line)
Air discharge ±8 kV
±1.5 kV (HMI power port), ± 1 kV (I/O line)
±2 kV (HMI power port)
ESD
EFT
Surge
Ambient
Temperature/Humidity
Operation: 0°C ~ 50°C (Temperature), 10 ~ 90% (Humidity),
Storage: -40°C ~ 85°C (Temperature), 10 ~ 90% (Humidity)
Vibration / Shock
IEC 61131-2 Compliant
5 Hz ≤ f < 9 Hz = Continuous: 1.75mm / Occasional: 3.5mm
9 Hz ≤ f ≤ 150 Hz = Continuous: 0.5g / Occasional: 1.0g
X, Y, Z directions for 10 times
Weight
Approx. 95.5g
Approx. 116g
Input Point Electric Specifications
Input Type
DC (SINK or SOURCE)
Input Voltage
24V DC (5mA)
Active Level
Off ➝ On, above 16V DC
On ➝ Off, below 14.4V DC
Response Time
Approx. 10 mS
Output Point Electric Specifications
Output Type
Current Specifications
Voltage Specifications
Maximum Loading
Relay-R
1.5A / 1 Point (5A/COM)
250V AC, below 30V DC
75 VA (Inductive), 90W (Resistive)
Response Time
Approx. 10 mS
Mechanical Life
2 – 107 times (without load)
Electrical Life
100,000 times (3A 250V AC/30V DC)
6,000 times (5A 250V AC/30V DC)
Product Selection
Table 48-14. Product Selection — Software and Accessories
Description
Catalog
Number
Programming Software
HMISOFT
Ethernet Modbus TCP Expansion Module
HMIECENT
I/O Expansion Module, 8 In/6 Out
HMIEC0806
I/O Expansion Module, 16 In/12 Out
HMIEC1612
6" Adapter Plate for PM1000
APPM1HMI6
48
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48-14
Operator Interface Products
HMi Operator Interface
July 2008
Dimensions
Dimensions
1.44
(36.7)
.12 (3.0) R
Typ.
.06~.12
(1.6~3.0)
4.64
(117.8)
5.54
(140.8)
F1
POWER
3.61
(91.8)
F2
4.13
(104.8)
F3
F4
SYS
Cut-Out Dimensions
Figure 48-8. HMI04__ — Approximate Dimensions in Inches (mm)
1.54
(39.0)
.06~.12
(1.6~3.0)
7.25
(184.1)
6.1
(.24)
.12 (3.0) R
Typ.
6.79
(172.4)
F1
POWER
F2
5.21
(132.4)
5.67
(144.1)
F3
F4
SYS
Cut-Out Dimensions
48
Figure 48-9. HMI06__ — Approximate Dimensions in Inches (mm)
1.75
(44.4)
.06~.12
(1.6~3.0)
9.57
(243.1)
6.1
(.24)
.12 (3.0) R
Typ.
9.11
(231.4)
POWER
F1
F2
F3
F4
7.01
(178.1)
6.55
(166.4)
F5
F6
SYS
Cut-Out Dimensions
Figure 48-10. HMI08CE — Approximate Dimensions in Inches (mm)
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
HMi Operator Interface
48-15
July 2008
Dimensions
1.70
(43.1)
.06~.12
(1.6~3.0)
11.70
(297.1)
6.1
(.24)
.12 (3.0) R
Typ.
11.22
(285.2)
POWER
F1
F2
F3
F4
8.74
(222.1)
F5
8.27
(210.2)
F6
F7
SYS
Cut-Out Dimensions
Figure 48-11. HMI10CE — Approximate Dimensions in Inches (mm)
2.50
(63.6)
.46
(11.8)
.20
(5.0)
1.25
(31.8)
.33
(8.3)
4.22
(107.3)
.74
(18.9)
3.56
(90.4)
48
1.57
(40.0)
2.13
(54.2)
.15
(3.9)
.26
(6.5)
.14
(3.5)
HMIEC1612
.20
(5.0)
2.50
(63.6)
.33
(8.3)
6.0
(15.2)
.27
(6.9)
3.86
(98.1)
2.36
(60.0)
4.22
(107.3)
3.56
(90.4)
2.50
(63.6)
HMIEC0806
Figure 48-12. HMIEC0806 and HMIEC1612 Expansion Modules — Approximate Dimensions in Inches (mm)
CA08102001E
.46
(11.8)
For more information visit: www.eaton.com
.46
(11.8)
48-16
Operator Interface Products
HMi Operator Interface
July 2008
Dimensions
.27
(6.9)
2.76
(70)
3.54
(90)
.16
(4)
.91
(23)
4.15
(105.3)
2.13
(54)
.42
(10.6)
1.18
(29.9)
Figure 48-13. HMIECENT Ethernet Expansion Module — Approximate Dimensions in Inches (mm)
48
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-17
July 2008
Product Family Overview
Product Family Overview
■
■
Machine builders and manufacturing
system designers increasingly recognize the benefits of using electronic
operator interface devices to replace
pushbuttons, lights, gauges and other
traditional hardwired devices.
How to Select
PanelMate System Components
Most choose dedicated operator interface systems because they are easy to
use, fully integrated and cost-effective.
PanelMate: The Industry Standard
PanelMate units are flexible, expandable, cost-effective alternatives to
traditional operator control panels.
A single PanelMate unit easily replaces
panels that once contained numerous
pushbuttons, indicator lights, thumbwheels, message displays and alarm
annunciators.
■
■
■
■
■
Each PanelMate system requires
component selection from three major
categories:
Operator Interface — the online unit
or operator station.
■ Configuration Software — PC-based
software, used to configure and
transfer applications to and from
the Operator Interface.
■ Connectivity — includes optional
cables, hardware interfaces and
software utilities.
■
Selection Criteria
■
PanelMate Technology
Benefits
■
Automates documentation.
Meets tight panel space requirements.
Replaces conventional control
panels at less than half the cost.
Gives operators more information
for better control decisions.
Standardizes operator stations and
minimizes operator training.
Saves processor memory by utilizing Boolean logic and math functions.
Reduces hardwiring costs and
minimizes installation time.
Adds advanced capabilities such as
machine diagnostics, troubleshooting,
trending and alarms at no additional
cost.
First, select the most appropriate
Operator Interface, Display Type and
Size, and Operator Input options for
the customer’s application.
❑ The selection of the Operator
Interface model line is driven by
such considerations as the size
and complexity of the operator
interface application, performance requirements, as well as
the economic factors of the overall control system.
❑ The Display Type is chosen based
on the operator’s needs — text
only, text and graphics, color or
grayscale. Display Size is selected
based on application complexity
and the operator’s proximity to
the Operator Interface.
Operator Input options include
either touchpanel (keypad) or
touchscreen Operator Interface
models. Criteria for selection of
the best input method include
environmental factors (airborne
particles, grease, etc.), and application design (numeric input,
one-touch control, etc.).
■ Second, select the appropriate
configuration editing software for
the chosen Operator Interface.
❑
Note: If the customer already has configuration software, they may only need a
software upgrade.
■
Finally, select required connectivity
features, such as interface cables,
optional high-speed interface cards,
and, for some Allen-Bradley drivers,
licensing enabler utilities.
Eaton’s Cutler-Hammer interface
cables are ideal for system and
application testing. For actual plant
floor applications, custom cables
are generally required to meet the
customer’s requirements for length,
environment, termination, etc.
Note: In order to specify the proper
cabling and other connectivity options,
you must know the target PLC or controller to be used with the Operator Interface. Required information may include
the PLC brand, Model Number, software/
firmware revision level, and hardware/
software interface type.
48
Table 48-15. PanelMate Operator Interface Model Selection Guide
Glossary
Family
Classic — Support PanelMate Power
Pro and Canvas applications
Series
ePro PS 7685T-8
ePro PS 7685T-10
ePro PS 7685T-12
7685T-15
ePro PS 7600
PP
PP
PP
PP
PP
1155
1175
1755
1775
1785
3985
5485
5785
Display
8.4" Color TFT
10.4" Color TFT
12.1" Color TFT
15.0" Color TFT
Display with TS or
other input device
purchased separately.
7.4" Grayscale LCD
7.7" Color DSTN
7.4" Grayscale LCD
7.7" Color DSTN
8.4" Color TFT
10.4" Color TFT
10.4" Color TFT
10.4" Color TFT
TS KP
✓
✓
✓
SST OD Classic EE Ethernet Power Canvas
Pro
SW
SW
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
ePro — PanelMate ePro Series
ePro PS — PanelMate ePro PS
(Performance Series)
KP — Keypad (Touchpanel)
OD — Outdoor Series
PP — PanelMate Power Pro Series
✓
✓
✓
✓
✓ ✓
✓
✓
✓
✓
✓
TS and KP options are mutually exclusive.
Split architecture.
Classic model required.
CA08102001E
EE — Enterprise Edition (extended
capabilities)
For more information visit: www.eaton.com
SST — Stainless Steel Front Panel
Option
TS — Touchscreen
Operator Interface Products
PanelMate Operator Interface
48-18
July 2008
ePro PS
PanelMate ePro PS
PanelMate ePro PS OD
The PanelMate ePro PS OD (Outdoor
Series) operator interface is designed
for use in outdoor applications. The
OD models offer increased visibility in
high ambient light, broad temperature
specifications and UV resistance.
PanelMate ePro PS EE
PanelMate ePro PS
Product Description
The PanelMate ePro PS family is made
up of high performance yet costeffective operator interface products.
The ePro PS family carries on the
PanelMate tradition of performance in
balance with ease of use. The ePro PS
family sets the standard for hybrid OI
systems by combining the flexibility of
Microsoft’s Windows XP Embedded
operating with the stability and reliability achieved through the solid-state
hardware design and exclusive Protect
Mode™ that provides protection for
the operating system and software.
The ePro PS family provides the performance and flexibility of PC based
operator interfaces without the associated complexity of a PC on the plant
floor. With integrated high-speed
Ethernet, serial ports, USB ports,
removable CompactFlash and
PCMCIA, the ePro PS models can be
adapted for a wide variety of user
requirements.
48
The ePro PS family of products are
configured with the Canvas editing
software. The Canvas editor supports
a modern suite of graphical templates,
called controls, for replacing hardwired panel devices such as pushbuttons, indicator lights, bars, readouts,
message displays, etc.
The PanelMate ePro PS EE (Enterprise
Edition) operator interface is designed
for end-users that need more system
memory, more data storage or
additional Windows XP Embedded
components and services to support
large Canvas applications or thirdparty software.
PanelMate ePro PS Classic
The PanelMate ePro PS Classic operator interface is designed for use by
end-users that are currently using the
PanelMate Power Pro software and are
ready for the new PanelMate ePro PS
hardware but are not quite ready to
convert their PanelMate Power Pro
configurations to Canvas applications.
Since the PanelMate ePro PS Classic
OI supports Power Pro and Canvas
Runtime software, the user can utilize
the Canvas Runtime software if and
when they are ready.
Application Description
Whether replacing hard-wired pilot
devices and pushbuttons or providing
machine control and even SCADA
functions, the ePro PS family of products will fit from both a form and functional standpoint. In monitoring and
diagnostic applications, as well as
operator controls for critical start/stop,
ramp/jog and set point adjustment, the
PanelMate ePro PS products offer a
reliable and safe interface for a wide
range of industrial applications such as:
■
■
■
■
■
■
■
■
Discrete manufacturing machine
diagnostics and controls
Oil platform monitoring and control
in the petroleum industry
Central and remote water and
wastewater control panels
Monitoring and control panels for
local facilities/air handling
equipment
Tire manufacturing mixing and
building processes
Industrial and commercial power
house controls; building HVAC
controls
Material handling and palletizing
monitoring and control
Automotive press and machine
parts controls
The ePro PS Classic OI is based on the
PanelMate ePro PS hardware models
with the addition of software and
licenses that allow users to run the
PanelMate Power Pro Runtime software. One difference is in the area of
drivers: the ePro PS Classic OI running
PanelMate Power Pro configurations
does not support native (non-OPC)
communication drivers, but does
support up to three OPC drivers
simultaneously.
The PanelMate ePro PS family of products includes:
PanelMate ePro PS
PanelMate ePro PS OD (Outdoor
Series)
■ PanelMate ePro PS EE (Enterprise
Edition)
■ PanelMate ePro PS Classic
■
■
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-19
July 2008
ePro PS
Features
Table 48-16. PanelMate ePro PS Features
Feature
Description
8" Display Models
■
■
■
■
■
8.40" (213.4 mm), color TFT display, 16 million colors
SVGA (800 x 600) resolution
400 nits (400 cd/m2), OD Models 425 nits (425 cd/m2) brightness
50,000 hours typical life for backlight; field replaceable
Auto dimming
10" Display Models
■
■
■
■
■
10.40" (260 mm), color TFT display, 16 million colors
SVGA (800 x 600) resolution
420 nits (420 cd/m2) brightness
50,000 hours typical life for backlight; field replaceable
Auto dimming
12" Display Models
■
■
■
■
■
12.10" (307.3 mm), color TFT display, 16 million colors
SVGA (800 x 600) resolution
450 nits (450 cd/m2), OD Models 505 nits (505 cd/m2) brightness
50,000 hours typical life for backlight, field replaceable
Auto dimming
15" Display Models
■
■
■
■
■
15.00" (381.0 mm), color TFT display, 16 million colors
XGA (1024 x 768) resolution
250 nits (250 cd/m2), OD Models 600 nits (600 cd/m2) brightness
50,000 hours typical life for backlight, field replaceable
Auto dimming
■ VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1024),
Blind Node
UXGA (1600 x 1200) resolution
(No Display) Models
■ 16 million colors (SXGA and UXGA — 65K colors)
Operator Entry
■ Touchscreen interface with resistive technology for gloved-hand operation
■ Pop-up, on-screen alphanumeric keypad support
Hardware/Mounting
■ Single-piece lightweight design for easy panel mounting
Powerful OI
Capabilities
■ Supports Canvas controls
■ Built-in two-touch control
■ Full math and logic expressions
Communications
and I/O Capabilities
■
■
■
■
■
■
(except blind node models)
Protect Mode
One integrated Ethernet port: 10/100Base-T
Two serial ports: RS-232 and RS-232/422/485 (optically isolated)
Four USB ports: V2.0
One CompactFlash memory card slot
Two PCMCIA Type II slots (or one Type III)
Built-in OPC Client/Server with support for over 100 OPC drivers for both
Ethernet and serial connectivity
■ One video output port
■ Safeguards the integrity of operating system files and data files by
preventing unauthorized alterations and corruption caused by viruses or
unexpected power disruptions
CA08102001E
For more information visit: www.eaton.com
48
48-20
Operator Interface Products
PanelMate Operator Interface
July 2008
ePro PS
Technical Data
Table 48-17. PanelMate ePro PS Technical Data
48
Description
Specification
Memory
PS, OD and Classic Models:
512 MB DDR2 RAM, 1 GB Internal CompactFlash (C and D drive)
EE Models:
512 MB DDR2 RAM, 4 GB Internal CompactFlash (C drive), 512 MB external
CompactFlash (D drive)
All Models:
External CompactFlash card slot, USB and PCMCIA ports available for
additional memory
Voltage
24V DC Nominal (16 – 30V DC)
Power
Consumption/
Heat Output
8" Display Models: 31 watts (105 BTU/hour)
10" Display Models: 33 watts (113 BTU/hour)
12" Display Models: 35 watts (120 BTU/hour)
15" Display Models: 54 watts (184 BTU/hour), OD 52 watts (178 BTU/hour)
Blind Node (No Display) Models: 24 watts (82 BTU/hour)
Current
8" Display Models: 1.3 amperes
10" Display Models: 1.4 amperes
12" Display Models: 1.5 amperes
15" Display Models: 2.25 amperes
Blind Node (No Display) Models: 1.0 amperes
Peak Inrush
Current
8" Display Models: 7.0 amperes
10" Display Models: 7.0 amperes
12" Display Models: 7.0 amperes
15" Display Models: 8.0 amperes
Blind Node (No Display) Models: 7.0 amperes
Installation
Rating
All ePro PS display models are approved for use in Type 4, 4X, 12 and IP65
installations when properly mounted in a correspondingly rated enclosure.
System Ambient
Temperature
All Models —
■ Operating: 0 – 60°C [32 – 140°F]
■ Non-operating: -25 to 70°C [-13 to 158°F]
System Vibration
Operating and Non-operating: 1G from 5 – 500 Hz
System Shock
Operating and Non-operating: 100G
Relative
Humidity
Operating: 20 – 95% non-condensing
Non-operating: 20 – 95% non-condensing
Altitude
Operating: 10,000 ft. (3,048m) above sea level
Non-operating: 40,000 ft. (12,192m) above sea level
Emissions
CISPR 11 Class A, Radiated and Conducted
Noise Immunity
IEC 61000-4-2, 3, 4, 5, 6, 8, 11
Agency
Certifications
RoHS, CE mark
UL/cUL and CSA Class I, Div 2, Groups A, B, C, D
Overall
Dimensions
(H x W x D)
8" Display Models: 7.63 x 10.51 x 3.90 in. (193.8 x 267.0 x 99.1 mm)
10" Display Models: 12.00 x 12.30 x 3.90 in. (304.8 x 312.4 x 99.1 mm)
12" Display Models: 11.60 x 15.90 x 3.90 in. (294.6 x 403.9 x 99.1 mm)
15" Display Models: 13.50 x 18.60 x 4.00 in. (342.9 x 472.4 x 101.6 mm)
Blind Node (No Display) Models: 9.30 x 12.00 x 3.60 in. (236.2 x 304.8 x 91.4 mm)
Cutout
Dimensions
(H x W)
8" Display Models: 6.50 x 9.38 in. (165.1 x 238.3 mm)
10" Display Models: 11.02 x 11.40 in. (279.9 x 289.6 mm)
12" Display Models: 10.12 x 14.34 in. (257.0 x 364.2 mm)
15" Display Models: 12.05 x 17.01 in. (306.1 x 432.1 mm)
Blind Node (No Display) Models: Designed for mounting in a cabinet
Weight
8" Display Models: 6.0 lbs. (2.73 kg)
10" Display Models: 10.5 lbs. (4.77 kg)
12" Display Models: 13.0 lbs. (5.91 kg)
15" Display Models: 17.0 lbs. (7.73 kg)
Blind Node (No Display) Models: 4.5 lbs. (2.05 kg)
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-21
July 2008
ePro PS
Product Selection
Table 48-18. PanelMate ePro PS Operator Interface (76xx Series)
Description
Catalog
Number
Price
U.S. $
PanelMate ePro PS
8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-8
7685T-10
7685ST-10
12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-12
7685ST-12
15.0" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
15.0" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
Blind Node (No Display, see Table 48-22 for display options), OPC, DC, User Manual on CD-ROM
7685T-15
7685ST-15
7600
PanelMate ePro PS EE (Enterprise Edition)
8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-8E
7685T-10E
7685ST-10E
12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-12E
7685ST-12E
15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
15.0" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
Blind Node (No Display, see Table 48-22 for display options), OPC, DC, User Manual on CD-ROM
7685T-15E
7685ST-15E
7600E
PanelMate ePro PS OD (Outdoor)
8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM
12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-8OD
7685T-12OD
7685ST-12OD
15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
15.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-15OD
7685ST-15OD
PanelMate ePro PS Classic
8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-8C
7685T-10C
7685ST-10C
12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
7685T-12C
7685ST-12C
15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM
15.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM
Blind Node (No Display, Table 48-22 for display options), OPC, DC, User Manual on CD-ROM
7685T-15C
7685ST-15C
7600C
Note: Customs available upon request.
48
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
Operator Interface Products
PanelMate Operator Interface
48-22
July 2008
ePro PS
✓
Outdoor
Enterprise
Editor
✓
✓
Classic
Standard
Table 48-19. PanelMate ePro PS Spare Parts for all New RoHS Compliant Models Catalog
Number
Description
Price
U.S. $
8.4" Models
✓
✓
✓
Color TFT Display Assembly
Acrylic Touchscreen (gaskets 32-01682 and 32-02208 required)
Acrylic Touchscreen (gaskets 32-01682 and 32-02208 required)
35-4756-3
47-50888
47-50888-1
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Front Panel Assembly
Gasket for Front Panel
Gasket for Touchscreen
91-01494
32-01682
32-02208
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Backlight Kit
Ship Kit
Outdoor Color TFT Display Assembly
Outdoor Acrylic Touchscreen (gaskets 32-1682 and 32-02208 required)
99-5704
86-00088
34-4290
47-50888-2
✓
✓
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
35-4756-2
63-00585
✓
32-02544
32-02619
32-02550
32-02545
32-02546
99-5704-2
86-00090
10.4" Models
✓
✓
✓
✓
✓
Front Panel (CRS) Assembly (gaskets 32-02545 and 32-02546 required)
Front Panel (CRS) Assembly (gaskets 32-02545 and 32-02546 required)
Front Panel (SST) Assembly (gaskets 32-02545 and 32-02546 required)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
✓
✓
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
35-4756
63-00808
✓
32-02489
32-02534
32-02514
12.1" Models
✓
✓
✓
✓
✓
✓
Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
Front Panel (SST) Assembly (gaskets 32-02491 and 32-02492 required)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
32-02491
32-02492
99-5704-3
86-00089
✓
✓
✓
Outdoor Color TFT Display Assembly
Outdoor Glass Touchscreen
Outdoor Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
34-4289
63-00841
32-02533
15.0" Models
48
✓
✓
✓
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
63-00814
63-00809
✓
Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Front Panel (SST) Assembly (gaskets 32-02497 and 32-02498 required)
32-02490
32-02535
32-02515
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
32-02497
32-02498
87-02457
86-00089
✓
✓
✓
✓
Outdoor Color TFT Display Assembly
Outdoor Glass Touchscreen
Outdoor Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Outdoor Backlight Kit
63-00853
63-00850
32-02540
87-02515
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Blind Node
✓
✓
✓
Ship Kit
86-00087
RoHS compliant units have a silver-colored galvanized steel back cover. Non-RoHS compliant units have a gold-colored plated steel back cover.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-23
July 2008
ePro PS
Enterprise
Editor
Classic
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Outdoor
Standard
Table 48-20. PanelMate ePro PS Spare Parts for all Legacy Non-RoHS Compliant Models Catalog
Number
Description
Price
U.S. $
8.4" Models
✓
Color TFT Display Assembly
Acrylic Touchscreen (gaskets 32-01682 and 32-02208 required)
Front Panel Assembly
63-00544
63-00833
91-01494
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
32-01682
32-02208
87-02455
✓
✓
✓
Ship Kit
Outdoor Color TFT Display Assembly
Outdoor Acrylic Touchscreen (gaskets 32-1682 and 32-02208 required)
86-00088
63-00854
63-00848
10.4" Models
✓
✓
✓
✓
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
Front Panel (CRS) Assembly (gaskets 32-02545 and 32-02546 required)
Front Panel (SST) Assembly (gaskets 32-02545 and 32-02546 required)
63-00852
63-00585
32-02544
32-02550
✓
✓
✓
✓
✓
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
32-02545
32-02546
87-02514
86-00090
12.1" Models
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
63-00815
63-00808
✓
✓
✓
✓
Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
Front Panel (SST) Assembly (gaskets 32-02491 and 32-02492 required)
32-02489
32-02534
32-02514
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
32-02491
32-02492
87-02456
86-00089
✓
✓
✓
Outdoor Color TFT Display Assembly
Outdoor Glass Touchscreen
Outdoor Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)
63-00842
63-00841
32-02533
✓
15.0" Models
✓
✓
✓
✓
Color TFT Display Assembly
Glass Touchscreen
63-00814
63-00809
✓
✓
✓
Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Front Panel (SST) Assembly (gaskets 32-02497 and 32-02498 required)
32-02490
32-02535
32-02515
✓
✓
✓
✓
✓
✓
✓
✓
✓
Gasket for Front Panel
Gasket for Touchscreen
Backlight Kit
Ship Kit
32-02497
32-02498
87-02457
86-00089
✓
✓
✓
✓
Outdoor Color TFT Display Assembly
Outdoor Glass Touchscreen
Outdoor Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)
Outdoor Backlight Kit
63-00853
63-00850
32-02540
87-02515
✓
✓
✓
✓
Blind Node
✓
✓
✓
Ship Kit
86-00087
RoHS compliant units have a silver-colored galvanized steel back cover. Non-RoHS compliant units have a gold-colored plated steel back cover.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48
Operator Interface Products
PanelMate Operator Interface
48-24
July 2008
Stand-Alone Touchscreen Displays
PanelMate Stand-Alone
Touchscreen Displays
Technical Data
Table 48-21. PanelMate Stand-Alone Touchscreen Displays Technical Data
Description
Specification
Voltage
System Ambient
Operating Temperature
System Vibration
100 – 240V AC
Operating: 32 – 122°F (0 – 50°C)
System Shock
Backlight
TFT Stand-Alone Touchscreen Display
Product Description
Three sizes of color TFT flat panel
displays with touchscreens are
available for use with the PanelMate
ePro Blind Nodes. Models are available
in 12.1, 15.0 and 17.0-inch sizes. These
displays are constructed to handle
rugged environments and can be easily
mounted in a cabinet or a kiosk.
Overall Dimensions
(H x W x D)
Cutout Dimensions
(H x W)
Weight
12.1" Models: 10 – 200 Hz, 0.15 mm, 10 cycle, 1G
15.0" Models: 10 Hz, 0.15 mm, 10 cycle, 1G
17.0" Models: 10 – 500 Hz
12.1" Models: 15G peak acceleration (50 mS duration)
15.0" Models: 30G peak acceleration (11 mS duration)
17.0" Models: 30G peak acceleration (11 mS duration)
12.1" Models: 50,000 typical life
15.0" Models: 50,000 typical life
17.0" Models: 30,000 typical life
12.1" Models: 11.46 x 14.41 x 1.92 in. (291.1 x 366.0 x 48.8 mm)
15.0" Models: 13.23 x 17.48 x 2.10 in. (336.0 x 444.0 x 53.3 mm)
17.0" Models: 15.71 x 19.02 x 2.25 in. (399.0 x 483.1 x 57.2 mm)
12.1" Models: 10.16 x 13.11 in. (258.1 x 333.0 mm)
15.0" Models: 11.77 x 15.94 in. (299.0 x 404.9 mm)
17.0" Models: 14.45 x 17.68 in. (367.0 x 449.1 mm)
12.1" Models: 12 lbs. (5.5 kg)
15.0" Models: 14 lbs. (6.5 kg)
17.0" Models: 34 lbs. (15.4 kg)
Product Selection
Table 48-22. Stand-Alone Touchscreen Displays
Description
Catalog
Number
12.1" Color TFT Display, ELO Touchscreen (glass), AC
15.0" Color TFT Display, ELO Touchscreen (glass), AC
17.0" Color TFT Display, ELO Touchscreen (glass), AC
7585DT-12
7585DT-15
7585DT-17
Features
■
■
■
48
■
■
■
12.1-inch SVGA, 15.0-inch XGA
and 17.0-inch SXGA Color TFT LCD
displays.
5-wire analog resistive ELO
touchscreen.
Stainless steel open-frame
architecture.
Aluminum front bezel.
Strengthened glass protects the
front panel from shock damage.
Approved for use in Type 4, 12 and
IP65 installations when properly
mounted in a correspondingly rated
enclosure.
Price
U.S. $
Standards and Certifications
CE
FCC Class A
■ UL
■
■
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-25
July 2008
Power Pro LT1100, 1700, 3000 and 5000
PanelMate Power Pro
Overview
PanelMate Power Pro
Product Description
The PanelMate Power Pro Operator
Interfaces are a cost-efficient, easy-tointegrate alternative to traditional
hardwired operator panels in control
systems. The PanelMate Power Pro
products pack the latest advancedtechnology operator interface functionality into a unique, versatile line of
flatpanel designs.
The PanelMate Power Pro products
have the same cutout and stud pattern
as earlier model PanelMate products
and offer increased capabilities.
Control functions, such as machine
status indication and pushbutton-style
control, are accomplished using built-in
templates displayed on a vivid screen.
The PanelMate Power Pro simulates
the action and performance of hardwired pushbuttons using sealed,
recessed membrane control buttons
on the touchpanel version or on-screen
buttons on the touchscreen version.
The proven intuitive operation remains
the same in all PanelMate products.
Operators select templates or graphic
images by moving a finger around
the touchpanel or touchscreen. After
selecting a template, the operator
performs control actions by pressing
control buttons. New functionality also
allows users to navigate and initiate
control action with just one touch
(touchscreen only), if such functionality
is configured for the unit using the
PanelMate Power Pro Windows-based
configuration software.
CA08102001E
Simplified Machine Control
Higher level functions such as
machine setup, diagnostics, alarming, trending and custom graphics
can be configured easily using the
PanelMate Power Pro configuration
software. This intuitive software
significantly reduces the time and
effort needed to create your application. The software also provides
complete compatibility of configuration files with other PanelMate series
products (Version 2.1 or later).
■ Realistic representations of
machines and processes can be
displayed on all PanelMate models.
Detailed symbols can be designed
to the pixel level or selected from a
symbol library of over 3000 customizable and scalable images. These
graphics make displays more meaningful and allow operators to easily
recognize and understand the displayed data. The eight-state blinking
feature can be used to highlight
critical functions, provide animation
effects and attract the operator’s
attention to important information.
■ Application flexibility is provided by
hardware features that include:
❑ Approved for use in Type 4, 4X
and 12 installations when properly
mounted in a correspondingly
rated enclosure. Stainless steel
models available for PanelMate
Power Pro 3000 and 5000 series.
❑ Executive firmware stored in nonvolatile flash memory for easy
upgrades.
❑ Battery-backed clock that can be
synchronized externally.
❑ Two RS-232/RS-422 serial ports
for communications or printing
alarms and messages (except
PM 1100 models).
❑ Optional, high-speed, network
interface boards for connectivity
to a variety of networks.
❑ System diagnostics.
❑ All PanelMate Power Pro systems
meet UL, CSA, CE requirements
and UL/CSA Class I Division 2
Groups A, B, C, D requirements.
❑ All PanelMate Power Pro models
have up to 100-page, 5000message capacity.
❑ PanelMate Pro LT supports up to
64 I/O references (expandable up
to 512 I/O points) and a single
communication driver.
■
■
For more information visit: www.eaton.com
Display features on all units provide
VGA (640 x 480) resolution with:
❑ 256-level grayscale on the grayscale versions or 256-color palette
on color versions.
Touchpanel for all models include
a display with electronics module
and membrane keypad with offscreen 3 x 5 cell control selection,
cancel key and numeric entry keypad,
with four redefinable membrane
control buttons to the right of the
display. The PanelMate 5000 units
have five membrane control buttons.
■ Touchscreen for all models include a
display with electronics module and
on-screen 3 x 5 cell control selection,
four redefinable on-screen control
buttons, on-screen cancel key and
non-intrusive, pop-up, on-screen
numeric keypad. The PanelMate
5000 units have five on-screen
control buttons.
■
Displays Available
■
■
■
■
■
■
7.4-inch grayscale LCD Flatpanel
(PM Pro LT 1100, PMPP 1700).
7.7-inch color DSTN Flatpanel
(PM Pro LT 1100, PMPP 1700).
8.4-inch color TFT Flatpanel
(PMPP 1700).
10.4-inch color TFT Flatpanel
(PMPP 3000 and 5000).
Split Architecture 10.4-inch color
TFT Flatpanel (PMPP 5000).
All models available in touchscreen
and touchpanel (keypad).
48
Operator Interface Products
PanelMate Operator Interface
48-26
July 2008
Power Pro LT 1100, 1700, 3000 and 5000
PanelMate Pro LT 1100
PanelMate Power Pro 1700
Product Description
Product Description
The PanelMate Pro LT 1100 is available with a 7.4-inch
grayscale LCD or 7.7-inch color Dual Scan (DSTN) display
with full VGA resolution and 256 shades/colors. Models are
available with either touchscreen (acrylic) or touchpanel for
operator input and can be mounted in a 4-inch deep enclosure.
The PanelMate Pro LT 1100 supports applications with up
to 64 I/O references and a single communication driver. The
number of supported I/O references can be upgraded to 512
I/O points (done in blocks of 64 I/O points — see 1100TAG
Options). The PanelMate Pro LT 1100 requires 24V DC
power input.
The PanelMate Power Pro 1700 is available with a 7.4-inch
grayscale LCD, 7.7-inch color Dual-Scan (DSTN) or 8.4-inch
color TFT display with full VGA resolution and 256 shades/
colors. Models are available with either touchscreen (acrylic)
or touchpanel for operator input and can be mounted in a
4-inch deep enclosure. The PanelMate Power Pro models
require 24V DC power input.
Product Selection
Table 48-25. PanelMate Power Pro 1700 Operator Stations
Description
Product Selection
Table 48-23. PanelMate Pro LT 1100 Operator Stations Description
Catalog
Number
7.4" Grayscale LCD Display
Touchpanel
Touchscreen
1155K
1155T
7.7" Color DSTN Display
Touchpanel
Touchscreen
1175K
1175T
Price
U.S. $
48
Catalog
Number
7.4" Grayscale LCD Display Assembly for 1155
7.7" Color DSTN Display Assembly for 1175
63-00494
63-00678
Keypad (4- & 15-position combined with
window) for 1155K, 1175K (gasket 32-01941
required)
63-00742
Gasket for Keypad (between keypad and display) 32-01941
for 1155K, 1175K
Touchscreen for 1155T and 1175T
(gaskets 32-01682 and 32-01941 required)
Do not replace 63-00632, contact factory
63-00838
Gasket for Touchscreen for 1155T, 1175T:
Between touchscreen and front panel
Between touchscreen and display
32-01682
32-01941
Front Panel Assembly for 1155K, 1175K
Front Panel Assembly for 1155T, 1175T
91-01913
91-01494
Backlight Kit for 1155
Backlight Kit for 1175
87-02144
Ship Kit for 1155K, 1175K
Ship Kit for 1155T, 1175T
86-00078
86-00077
Contact factory.
Price
U.S. $
1755K
1755T
1775K
1775T
1785K
1785T
Add “-CC” after the Catalog Number for comformal coating.
Example: 1755K-CC.
Table 48-26. PanelMate Power Pro 1700 Spare Parts
Table 48-24. PanelMate Pro LT 1100 Spare Parts
Description
7.4" Grayscale LCD Display
Touchpanel
Touchscreen
7.7" Color DSTN Display
Touchpanel
Touchscreen
8.4" Color TFT Display
Touchpanel
Touchscreen
Discount Symbol PM-2.
Catalog
Number Price
U.S. $
Description
Catalog
Number
7.4" Grayscale LCD Display Assembly for 1755
7.7" Color DSTN Display Assembly for 1775
(units with PN greater than 92-01902)
8.4" Color TFT Display Assembly for 1785
Keypad (4- & 15-position combined with
window) for 1755K, 1775K (gasket 32-01941
required)
Gasket for Keypad (between keypad and display)
for 1755K, 1775K
Front Panel Gasket for 1755K, 1775K
Keypad (4- & 15-position combined with
window) for 1785K (gasket 32-02208 required)
Gasket for Keypad (between keypad and display)
for 1785K
Touchscreen for 1755T, 1775T (gaskets 32-01682
and 32-01941 required)
Do not replace 63-00632; contact factory
Gasket for Touchscreen for 1755T, 1775T:
Between touchscreen and front panel
Between touchscreen and display
Touchscreen for 1785T (gaskets 32-01682 and
32-02208 required)
Gasket for Touchscreen for 1785T:
Between touchscreen and front panel
Between touchscreen and display
Front Panel Assembly for 1755K, 1775K
Front Panel Assembly for 1785K
Front Panel Assembly for 1755T, 1775T, 1785T
Gasket for Mounting 1785T Front Panel
Assembly
Backlight Kit for 1755
Backlight Kit for 1775
Backlight Kit for 1785
Ship Kit for 1755K, 1775K, 1785K
Ship Kit for 1755T, 1775T, 1785T
63-00494
63-00678
Price
U.S. $
63-00544
63-00742
32-01941
32-02229
63-00741
32-02208
63-00835
32-01682
32-01941
63-00831
32-01682
32-02208
91-01801
91-01826
91-01494
32-02005
87-02144
87-02455
86-00060
86-00059
Contact factory.
Accessories . . . . . . . . . . . . . . . . . . . . . . Page 48-35
Discount Symbol . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-27
July 2008
Power Pro LT 1100, 1700, 3000 and 5000
PanelMate Power Pro 3000
PanelMate Power Pro 5000
Product Description
Product Description
The PanelMate Power Pro 3000 is available with a 10.4-inch
color TFT display with full VGA resolution and 256 colors.
Models are available with either touchscreen (glass or
acrylic) or touchpanel for operator input and with painted
steel or stainless steel front panels. These units can be
mounted in a 5-inch deep enclosure. The PanelMate Power
Pro models require 24V DC power input.
The PanelMate Power Pro 5000 features a large, easy-to-see
10.4-inch color TFT display with full VGA resolution and 256
colors. Models are available with a touchscreen (glass) or
touchpanel for operator input and with painted steel or
stainless steel. The touchpanel versions are available with
either of two designs — single-piece front panel or the split
architecture design. The touchpanel models can be mounted
in a 19-inch rack. The cutout and stud patterns for all models
are the same as earlier versions of PanelMate products that
featured the 13-inch display, including the PanelMate I/II/III.
The PanelMate Power Pro models require 24V DC power
input. The PanelMate Power Pro 5000 can also be ordered
with an ac power converter mounted on the back.
Product Selection
Table 48-27. PanelMate Power Pro 3000 Operator Stations
Description
10.4-Inch Color TFT Display
Touchpanel Painted Steel
Touchpanel Stainless Steel
Touchscreen (glass) Painted Steel
Touchscreen (glass) Stainless Steel
Touchscreen (acrylic) Painted Steel
Touchscreen (acrylic) Stainless Steel
Catalog
Number Price
U.S. $
3985K
3985SK
3985T
3985ST
3985AT
3985SAT
Product Selection
Table 48-29. PanelMate Power Pro 5000 Operator Stations
Description
Add “-CC” after the Catalog Number for comformal coating.
Example: 3985K-CC.
Table 48-28. PanelMate Power Pro 3000 Spare Parts
Description
Catalog
Number
10.4" Color TFT Display Assembly for 3985
63-00778
Keypad (4- & 15-position combined with window)
for 3985K
Plexi-Glass Window for 3985K Series
63-00740
Touchscreen (glass) for 3985T and 3885ST
Touchscreen (acrylic) for 3985AT and 3985SAT
63-00585
63-00592
Front Panel for 3985K (gasket 32-02143 required)
Front Panel for 3985SK (gasket 32-02143 required)
Gasket for Front Panel for 3985K and 3985SK
32-02141
32-02288
32-02143
Front Panel for 3985T and 3985AT
(gaskets 32-02144 and 32-02145 required)
Front Panel for 3985ST and 3985SAT
(gaskets 32-02144 and 32-02145 required)
Gasket for Front Panel for 3985T, 3985ST, 3985AT
and 3985SAT
Gasket for Touchscreen for 3985T, 3985ST, 3985AT
and 3985SAT
32-02142
Backlight Kit for 3985
87-02379
Ship Kit for 3985
86-00066
32-02151
Price
U.S. $
Catalog
Number 10.4" Color TFT, Single Piece Front Panel
Touchpanel Painted Steel
Touchpanel Stainless Steel
Touchpanel Painted with ac Power Converter
Touchscreen Painted Steel
Touchpanel Stainless Steel
Touchscreen Painted with ac Power Converter
5785K
5785SK
5785K-AC
5785T
5785ST
5785T-AC
10.4" Color TFT, Split Architecture Design
Touchpanel Painted Steel
Touchpanel Stainless Steel
Touchpanel Painted with ac Power Converter
5485K
5485SK
5485K-AC
Price
U.S. $
Add “-CC” after the Catalog Number for comformal coating.
Example: 5785K-CC.
48
32-02289
32-02144
32-02145
Accessories . . . . . . . . . . . . . . . . . . . . . . . Page 48-35
Discount Symbol . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48-28
Operator Interface Products
PanelMate Operator Interface
July 2008
Power Pro LT 1100, 1700, 3000 and 5000
Table 48-30. PanelMate Power Pro 5000 Spare Parts
48
Description
Catalog
Number
10.4" Color TFT Display Assembly for 5485, 5785
10.4" Backlight Kit for 5485, 5785
10.4" Front Panel for 5585K, 5785K
(gasket 32-02301 and 32-02145 required)
63-00778
87-02379
47-50632
10.4" Front Panel (SST) for 5585SK, 5785SK
(gasket 32-02301 and 32-02145 required)
10.4" Front Panel for 55885T, 5785T
(gaskets 32-02204 and 32-02145 required)
10.4" Front Panel (SST) for 5585ST, 5785ST
(gaskets 32-02204 and 32-02145 required)
47-50632-2
10.4" Front Panel (Upper) for 5285K, 5485K
(gasket 32-02308 and 32-02145 required)
10.4" Front Panel (Upper, SST) for 5285SK, 5485SK
(gasket 32-02308 and 32-02145 required)
10.4" Gasket for Front Panel for 5585K, 5585SK, 5785K, 5785SK
10.4" Gasket for Front Panel
10.4" Touchscreen Glass for 5585T, 5785T
47-51016
13.0" Color TFT Display Assembly for 5485, 5785
13.0" Touchscreen for 5585T, 5785T
13.0" Front Panel for 5585K, 5785K (gasket 32-02301 required)
13.0" Front Panel (SST) for 5585SK, 5785SK (gasket 32-02301 required)
PM5000-DSPKIT
63-00658
32-02206
32-02432
13.0" Front Panel for 55885T, 5785T
(gaskets 32-02204 and 32-02066 required)
13.0" Front Panel (SST) for 5585ST, 5785ST
(gaskets 32-02204 and 32-02066 required)
13.0" Front Panel (Upper) for 5285K, 5485K (gasket 32-02308 required)
32-02200
13.0" Front Panel (Upper, SST) for 5285SK, 5485SK
(gasket 32-02308 required)
13.0" Gasket for Front Panel for 5585K, 5585SK, 5785K, 5785SK
13.0" Gasket for Touchscreen for 5585T, 5585ST
32-02433
Gasket for Front Panel for 5585T, 5585ST
Gasket for Upper Front Panel for 5285K, 5285SK, 5485K, 5485SK
32-02204
32-02308
Membrane Keypad (5- & 15-position combined) for 5585K, 5785K
Membrane Keypad (5-position) for 5285K, 5485K
Membrane Keypad (15-position) for 5285K, 5485K
63-00714
63-00715
63-00375
Front Panel (Lower) for 5285K, 5485K (gasket 32-01392 required)
Front Panel (Lower, SST) for 5285SK, 5485SK
(gasket 32-01392 required)
32-02303
32-01388
Gasket for Lower Front Panel for 5285K, 5285SK, 5485K, 5485SK
32-01392
Backlight Kit for 5585, 5285
87-02137
Price
U.S. $
47-51017
47-51017-2
47-51016-2
32-02301
32-02145
63-00585
32-02430
32-02297
32-02301
32-02066
Add-On 115/230V AC to 24V DC Power Converter for PanelMate Power PM5000-ACKIT
Pro 5000, all models Mounts on back of unit and adds 1.5" of depth
Ship Kit for 5585K, 5785K
Ship Kit for 5585T, 5785T
Ship Kit for 5285K, 5485K
86-00067
86-00068
86-00069
Accessories . . . . . . . . . . . . . . . . . . . . . . Page 48-35
Discount Symbol . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-29
July 2008
PC Pro Runtime Hardware Key
PanelMate PC Pro Runtime
Hardware Key
PanelMate PC Pro System
Requirements
Product Description
PanelMate PC Pro software can be
installed on any PC running Windows
NT 4.0 or greater which meets the
following minimum requirements:
PanelMate PC Pro is an online version
of the PanelMate Power Pro executive
software and communication drivers,
designed to run on an industry-standard
Intel-based personal computer and the
Windows NT 4.0 operating system.
PanelMate PC Pro is a full 32-bit,
Windows NT-compliant software
package with 32-bit Windows NT PLC
drivers, created to take advantage of
standard, open architecture hardware
and software developed by other vendors, while maintaining the PanelMate’s
legendary simplicity and ease of use.
■
■
■
■
■
■
Intel Pentium 133 MHz (200 MHz
recommended).
32 MB DRAM (64 MB recommended).
1 GB hard drive.
VGA controller and monitor.
Pointing device (touchscreen
preferred).
Windows NT Workstation V 4.0.
Benefits
PanelMate PC Pro allows the user to
tap into the valuable data in PanelMate from other PC applications
because PanelMate PC Pro is open
— Bring data from the plant level
down to PanelMate, or feed data
from PanelMate PC Pro to other
information systems in the plant.
■ PanelMate PC Pro adheres to
Windows standards and is 100%
Windows compatible, allowing you
to use the extensive networking
capabilities of Windows NT.
■
Use of an open hardware/software
platform allows the customer to
precisely meet their ever-changing
needs with easy processor or capacity
upgrades, using off-the-shelf hardware. Supplemental functionality
can be added using off-the-shelf
software, allowing the user to incorporate control, operator interface,
analysis, reporting, communications,
etc., into one workstation.
■ Use an efficient, Dynamic Link
Library (DLL) interface to connect
the tried-and-true PanelMate operator
interface with Steeplechase’s popular
Visual Logic Controller soft logic PC
control package.
■ PanelMate PC Pro has the same
functionality as the PanelMate
Power Pro and is fully compatible
with applications created for PanelMate Power Series/PanelMate
Power Pro products. Any Power
Series/Power Pro application will
run on PanelMate PC Pro.
■
Note: When purchasing a PanelMate ePro
PS Classic Operator Interface, PanelMate PC
Pro is already integrated and ready to run.
Product Selection
Table 48-31. PanelMate PC Pro Runtime Hardware Key and License
Description
Catalog
Number
Price
U.S. $
Runtime Hardware Key to Enable PanelMate PC Pro Runtime Software PMPC-RT
Key connects to the PC parallel port and has pass-through capabilities.
The hardware key is required for PanelMate online operation.
Note: Runtime software is included with PanelMate Configuration Software #PMPROSW and
#PMPROSWSL, see Page 48-30.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48
Operator Interface Products
PanelMate Operator Interface
48-30
July 2008
Software
PanelMate Power Pro and
PanelMate PC Pro
Configuration Software
Application Description
Windows-based configuration
software is used to create PanelMate
Power Pro, PanelMate PC Pro and
PanelMate ePro configurations offline
on a PC. It also permits the editing of
character-based configurations from
earlier-version PanelMate Series
products. The following items can be
configured:
■
■
■
■
■
■
■
■
One-touch control (for touchscreen
models).
Customizable pixel-level graphics.
8-state blink (for 256-level/color
models).
3-level password protection.
International character set support.
Page change by operators and/or
PLC.
User-definable online system
prompts to permit non-English or
customized text that can be toggled
with standard online prompts by
operators.
Alarm window with a 100-alarm
capacity.
Features
■
48
■
■
■
■
■
■
■
■
■
■
■
■
Indicator templates.
Readout templates.
Bar templates.
Display templates.
Trend templates.
Table templates.
Variable-size control button
templates.
Pop-up maintenance window.
Alarm window.
Advanced trend templates.
Tag name file support.
Expression management.
3000 symbol factory clipart.
PLC Communication Interfaces
Communication interfaces are available for the following programmable
controllers and are downloaded from
the configuration software.
Note: Multiple interfaces may be run
simultaneously on PanelMate Power Pro
1700, 2000, 3000, 4000 and 5000 units.
■
■
■
■
■
■
■
■
Allen-Bradley PLC-2, PLC-3, PLC-5
and SLC-500.
Cutler-Hammer D50, D300, D320.
GE Fanuc Series 5, 6, 90.
Mitsubishi “A” Series and “FX”
Series.
Modicon Modbus ASCII/RTU.
Omron “C” Series plus CV500,
CV1000.
PLC-Direct DL 405 Family.
Square D SyMax.
Siemens S5 Series, 3964R Protocol,
AS511.
■ Simatic TI 305/405 and 500/505
Series.
■ Reliance AutoMate.
■ Toshiba T2.
■
High Speed Direct Connectivity Available
■
■
■
■
■
■
Allen-Bradley Data Highway and
Data Highway Plus.
Allen-Bradley Remote I/O Link.
GE Fanuc Genius I/O Network.
DeviceNet.
Modicon Modbus Plus.
PROFIBUS.
Transfer Cables
PanelMate configuration software packages #PMPROSW and #PMPROSWSL
include a PanelMate 1100, 1700, 3000,
5000 (#0518) Transfer Serial Cable.
Product Selection
Table 48-32. Windows Configuration Software for PanelMate Power Pro and PanelMate PC Pro
Description
Catalog
Number
Price
U.S. $
PanelMate Power Pro Windows Configuration Software and
PMPROSW
Manuals with Communication Software Interfaces for all major
PLCs and High Speed Industrial Networks on CD-ROM with Tag and
Expression Management and Symbol Factory Clipart.
#PMPROSW includes transfer serial cable for PM1700, 3000, 5000
(#0518). #PMPROSW includes electronic copies of manuals in .PDF
format. Single User License.
Site License — See PMPROSW (for all users at 1 site location)
PMPROSWSL
PanelMate Power Pro Upgrade from previous PanelMate Power
Series Software to PanelMate Power Pro software version on CDROM. Requires earlier version of PanelMate Power Series software
for installation. Single User License.
PMPROSWUP
PanelMate Power Pro Software Upgrade — Site License
Requires previous installation of PanelMate Power Pro Software
Site License (PMPROSWSL). On CD-ROM.
PMPROSWSLUP
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-31
July 2008
Software
Canvas Editing Software
Canvas Editor
Because the typical application development expense of a Human Machine
Interface (HMI) often far outweighs the
expense of the hardware, the demand
to design and implement these
advanced solutions quickly is of paramount importance. That is why the
Canvas advanced Operator Interface
software package was designed with
ease of use and timesavings in mind.
Consistent functionality in Canvas
from one control to the next and from
one area to the next will help you
maintain your sense of place within
the project and shorten the development time. Canvas makes it easy to
create and maintain an application
with advanced features such as multilanguage, security, recipe management and data archiving. Data may
be exported, edited and imported
with Microsoft Excel, saving time
and ultimately reducing the cost of
the project.
Features
■
Canvas Editor with Page Thumbnails
■
■
■
■
■
■
Operator Interface — Monitor and
Control
High-resolution graphical interface
Built-in two-touch control for safety
applications
Process/Machine Diagnostics
Conversion of Legacy PanelMate
Configurations
Secure Document and Web/Network
Browser
Full Mathematical Evaluation
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Advanced Search and Replace
Security (Passwords and other
Security Devices)
Recipe Management
Real-time and Historical Alarms and
Events
Real-time and Historical Data
Archiving and Trending
Notification of Data and Events via
e-Mail
Import/Export from XML
Customizable Templates/Controls
Scripting (IF, THEN, ELSE, GOTO
capability)
Launch and Control of 3rd Party
Applications
Multi Language
Reusable Controls, Images and
Pages via Index Lists
Master Pages
Online and Offline Simulation
Interface for DVT & Cognex Vision
Systems
Hardware Requirements
System Requirements for Running Canvas
Software Operating system — Microsoft ®
Windows XP (SP1 or later) or
Microsoft ® Windows Vista (Canvas
V3.3 or later)
■ Minimum Video Resolution — XGA
(1024 x 768)
■
File transfers can be done via Ethernet or
USB memory devices.
48
Product Selection
Canvas Application
Table 48-33. Canvas
Description
Catalog
Number
Product Description
The Canvas Software includes the
Canvas ® application development
software in addition to the Runtime
software for the PanelMate ePro PS
and the OPC servers/drivers. Canvas
software is used to develop Operator
Interface applications for PanelMate
ePro PS industrial Operator Interface
products. The powerful editing
environment in Canvas delivers stateof-the-art features previously available
only on more expensive, high-end
SCADA packages. The included drivers
in the form of OPC servers support
Ethernet and serial connectivity to
virtually any PLC platform or network,
as well as a wide array of drives,
motion controllers and databases.
No additional fees are required.
Price
U.S. $
Includes Canvas software for developing applications, Runtime
CANVASPRO
software for the PanelMate ePro PS Series and supporting OPC
servers/drivers. Single User License. On CD-ROM. Development
software requires Windows 2000 or Windows XP Operating System.
Site License — See CANVASPRO (for all users at 1 site location)
CANVASPROSL
Installation CD and licensing to run Canvas runtime software on a
PC with Windows XP Professional OS. Licenses for Kepware OPC
servers, Data Archiving and Recipe Management are included.
CANVASPC
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
Operator Interface Products
PanelMate Operator Interface
48-32
July 2008
Connectivity: Utilities, Interfaces and Cables
Allen-Bradley Connectivity
Allen-Bradley Communication Cables
Remote I/O, Data Highway, Data Highway Plus
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 and ePro
Accelerate/On Interface
Licensed under A-B patented technology, the interface provides
a communication port for connecting directly to the user’s
choice of Allen-Bradley PLC networks: Remote I/O Link, Data
Highway or Data Highway Plus. Can be used simultaneously
with PanelMate 1700, 3000 and 5000 serial ports.
Table 48-34. Remote I/O, Data Highway, Data Highway Plus
Description
Accelerate/On™ Interface
Direct connect to Remote I/O Link, Data
Highway or Data Highway Plus
PanelMate Power Pro 1100, 1700
PanelMate Power Pro 3000, 5000
Catalog
Number
Price
U.S. $
1241
1251
Note: Includes royalty for license under Allen-Bradley patented
technology.
Allen-Bradley PLC Network Upload/Download
“One-time use” diskette enables the PanelMate unit to
upload and download PanelMate configurations to PCs via
Allen-Bradley PLC networks. This Upload/Download feature
can be used to conduct the following operations without
having to disconnect the PanelMate Unit from the PLC, or
open the enclosure to access the serial ports:
Download configurations from a PC in a central location
to PanelMate units on a network.
■ Upload PanelMate configurations (while units are
monitoring and controlling) to a PC for backup.
■ Download new PanelMate software enhancements
to units.
■
Note: Requires Accelerate/On Interface (#XX41) and Windows
Configuration Software or Transfer Utility option #0621.
48
■
Requires A-B RSLinx-OEM version 2.0 or higher or A-B
Interchange software.
Table 48-35. Allen-Bradley PLC Network Upload/Download
Description
Catalog
Number
One-time use diskette. Enables upload/
download on operator station.
0524
Price
U.S. $
One 15-foot (4.6 m) cable, unless otherwise stated, for
communications between a PanelMate 1100, 1700, 3000,
5000 or ePro unit serial port and the PLC communications
port using D-Shell connectors. Cables used with PanelMate
ePro require a DB9(M)/DB9(F) converter (converts DB9(M)
to DB9(F)).
Table 48-37. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 and ePro
Description
Catalog
Number
1785-KE, 1771-KC, KD, KE, KF, KG
AB 1747 AIC for SLC 500 (DH-485 INTFC)
AB SLC 500 Direct (6 ft./1.8 m) Cable
AB SLC503/504 (RS-232) Channel 0
AB PLC5 (RS-232) Channel 0, DF1
AB PLC5 (RS-422) Channel 0, DF1 Cable
AB 1747 AIC for SLC 500, CPU Connector (J1)
AB MicroLogix Adapter Cable (1 ft./.3 m)
(DB9F to DB9M)
AB21
AB23A
AB24A
AB25
AB26
AB27A
AB28A
AB29
Price
U.S. $
Eaton’s Cutler-Hammer Connectivity
Cutler-Hammer Communication Cables
PLC Interface Cables for PanelMate Power Pro 1100, 1700, 3000,
5000, ePro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors.
Table 48-38. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000, ePro
Description
Catalog
Number
Cutler-Hammer D200 Cable, for use with 1100,
1700, 3000 or 5000 only
Cutler-Hammer D50/D150/D300/D320 (RS-485)
Cable, for use with 1100, 1700, 3000 or 5000 only
Cutler-Hammer D50/D320/D32LT (RS-232)
Cable for use with ePro and PMPC-RT only —
requires D50CPM485
ELC (RS-485) Cable for use with ePro PS and
Power Pro only
CH21A
Price
U.S. $
CH22A
CH23
CH24
Allen-Bradley DH-485 (SLC-500) Communications
“One-time use” diskette. Licensed under A-B patented
technology, this option enables communications to AllenBradley SLC-500 PLCs through the DH-485 network in a
single target Power Series online unit. A-B 1747-AIC Module
is only required when simultaneous interface to PanelMate
and PLC programming equipment is desired.
Table 48-36. DH-485
Description
Allen-Bradley DH-485 (SLC-500)
Communications — One-time use diskette
PanelMate Power Pro 1100, 1700
PanelMate Power Pro 3000, 5000
Catalog
Number
Price
U.S. $
1525
0725
Note: Includes royalty for license under Allen-Bradley patented
technology.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-33
July 2008
Connectivity: Utilities, Interfaces and Cables
DeviceNet Connectivity
Table 48-42. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
The PanelMate DeviceNet implementation features the ability
to “monitor” status from other slave devices without the
need for active involvement from the master device. When
installed on DeviceNet, PanelMate can update its screens
with data from the slave devices or from the PC. It can also
input control (pushbutton) operations or numeric information to the PC. These capabilities permit PanelMate units to
function as complete control and monitoring stations on
DeviceNet.
Table 48-39. DeviceNet Interface
Description
Catalog
Number
For all PanelMate Power Pro 1100, 1700,
3000, 5000
1245DN
Price
U.S. $
General Electric Connectivity
GE Fanuc GEnius I/O Interface to GE PLCs
This interface provides a communication port for connection to
GE Series 6 and Series 90 PLCs over the GEnius I/O Network.
Table 48-40. GEnius I/O Interface
Description
GEnius I/O Interface
For all PanelMate Power Pro 1100, 1700,
3000, 5000
Catalog
Number
Price
U.S. $
1243
General Electric Communication Cables
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or e-Pro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
Table 48-41. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Description
Catalog
Number
Series 90 Programming Port
Series 90 (RS-422) Com 311/711 Module
Series 90 (RS-232) Com 311/711 Module
GE21A
GE22
GE23
Series 6/6+ (RS-422) Com 2 – J1 Port
Series 6/6+ (RS-232) Com 2 – J2 Port
GE24
GE25
Price
U.S. $
Description
Catalog
Number
A Series — AJ71C24 Module (RS-232)
A Series — AJ71C24 Module (RS-422) Cable
FX/FXo Series — (RS-232/RS-422) Converter
MI21
MI22A
MI23
Price
U.S. $
Modicon Connectivity
Modicon Modbus Plus PLC Network Upload/Download
“One-time use” diskette enables the PanelMate unit to
upload and download PanelMate configurations to PCs via
Modicon Modbus Plus PLC networks. This Upload/Download feature can be used to conduct the following operations
without having to disconnect the PanelMate Unit from the
PLC, or open the enclosure to access the serial ports:
■ Download configurations from a PC in a central location
to PanelMate units on a network.
■ Upload PanelMate configurations (while units are
monitoring and controlling) to a PC for backup.
■ Download new PanelMate software enhancements to units.
Note: Requires Modbus Plus Interface, Configuration Software
or Transfer Utility.
Table 48-43. Modicon Modbus Plus Network Upload/Download
Description
Catalog
Number
Price
U.S. $
One-time use diskette. Enables upload/down0548
load on operator station. To operate,
customer requires:
1) Modbus Plus Interface (1248) to be installed
in unit
2) Windows Configuration Software OR
Transfer Utility on the PC
Modbus Plus Communications and PanelMate
This interface provides a communication port for connection
to Modicon PLCs over the Modbus Plus network. Interface
mounts to the back of the online unit and can be mounted in
a 4-inch (102 mm) deep enclosure.
Table 48-44. Modbus Interface
Description
Catalog
Number
Direct Modbus Plus Interface
PanelMate Power Pro 1100, 1700, 3000, 5000
Price
U.S. $
1248
Modicon Communication Cables
PLC Interface Cables for PanelMate Power Pro 1100, 1700, 3000,
5000 or ePro
Mitsubishi Connectivity
Mitsubishi Communication Cables
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
Table 48-45. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Description
Catalog
Number
9-Pin Modbus
Micro PLC (RJ-45) Modbus Cable
MB21
MB22
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48
48-34
Operator Interface Products
PanelMate Operator Interface
July 2008
Connectivity: Utilities, Interfaces and Cables
Omron Connectivity
Simatic TI Connectivity
Omron Communication Cables
Simatic TI Communication Cables
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
Table 48-46. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Table 48-49. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Description
Catalog
Number
C Series (RS-232)
CV Series (RS-232)
OM21
OM22
C Series (RS-422) Cable
CV Series (RS-422) Cable
OM23A
OM24A
CS/CQ Series (RS-232) Cable
OM25
Price
U.S. $
Catalog
Number
TI 500, 305 (RS-232)
TI 405 (RS-232)
TI 545 (RS-232)
TI21
TI22
TI23
TI 305-02DM, TI 405 DCM (RS-422) Cable
TI 545-1101 (RS-422) Cable
TI 545-12102, 1104, 1105 Cable
TI25A
TI26A
TI27A
PROFIBUS DP Connectivity
Square D Connectivity
PROFIBUS DP Interface
Square D Communication Cables
This PROFIBUS DP Slave Adapter interface provides communications between a PanelMate operator interface and a
PROFIBUS network without requiring any additional communications modules. A maximum of one interface can be
installed on each PanelMate unit.
Table 48-47. PROFIBUS DP Interface
48
Description
Description
Catalog
Number
PROFIBUS DP Slave I/O Interface
For all PanelMate Power Pro 1100, 1700,
3000, 5000
1247
Price
U.S. $
Price
U.S. $
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
Table 48-50. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Siemens Connectivity
Description
Catalog
Number
PLC Processor Cable
NIM Network Interface Module Cable
SD21A
SD22A
Price
U.S. $
PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
One 15-foot (4.6 m) cable, unless otherwise stated, for communications between a PanelMate 1100, 1700, 3000, 5000 or
ePro unit serial port and the PLC communications port using
D-Shell connectors. Cables used with PanelMate ePro require
a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).
Table 48-48. PLC Interface Cables for PanelMate Power Pro 1100, 1700,
3000, 5000 or ePro
Description
Catalog
Number
Siemens (RS-232)
Siemens S7 HMi Cable
SI21
SI22
Price
U.S. $
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-35
July 2008
Accessories
Accessories
Mounting Collars and Plates
Transfer Serial Cable
Mounting plates and collars can be used when replacing
older PanelMate products with newer models with no or
minimal cutout changes required.
One 15-foot (4.6 m), RS-232 cable with DB9 connectors on
each end, for upload/download between standard serial PC
communication port and PanelMate serial port.
Table 48-54. Adapter Plates (Similar Look to a Painted Steel Front Panel)
Description
Catalog
Number
Table 48-51. Transfer Serial Cable
Description
Catalog
Number
Price
U.S. $
PanelMate 1100, 1700, 3000, 5000 Additional 0518
Included in configuration software package #PMPROSW and
#PMPROSWSL.
Converter Connectors
Connectors that convert a 9-pin D-Shell connector to a RJ11
phone jack-style connector.
Table 48-52. Converter Connectors
Description
Catalog
Number
RS-232 DB9 (F) / RJ11 (M) converter [converts
DB9 (M) to RJ11 (M)]. Ideal for converting
PMPP 1700 cables for use with PMPS 1500
0820
RS-232 RJ11 (F) / DB9 (M) converter [converts
RJ11 (M) to DB9 (M)]. Ideal for converting
PMPS 1500 cables for use with PMPP 1700
0821
Price
U.S. $
Price
U.S. $
Micro PanelMate (D820, D830, D840) to 2- or APPM1ELCGP4
4-line ELC Graphics Panel (ELC-GPxx) Keypad
6" PM 500, 1000 to 6" (HMI06xx) Touchscreen APPM1HMI6
and Function Buttons
8" PM (11xxK, 17xxK, 75xxK-8) Keypad
to 8" (11xxT, 17xxT, 75xxT-8, 76xxT-8x)
Touchscreen
APPS8A
8" PM (11xxK, 17xxK, 75xxK-8) Keypad
to 8" (HMI08CE) Touchscreen
APPM1HMI8
9" PM 2000/Compact (24xx/25xx) Keypad to
8" PM (11xxK, 17xxK, 75xxK-8) Keypad 1524TP
9" PM 2000/Compact (24xx/25xx) Keypad
to 8" PM (11xxT, 17xxT, 75xxT-8, 76xxT-8x)
Touchscreen
1524TPTS
9" PM 2000 (26xx/27xx) Keypad to 8" PM
(11xxK, 17xxK, 75xxK-8) Keypad 1527TP
9" PM 2000 (26xx/27xx) Keypad to 8" PM
11xxT, 17xxT, 75xxT-8, 76xxT-8 Touchscreen
1527TPTS
9" PM 2000 (26xx/27xx) Touchscreen to 8" PM 1527TS
(11xxT, 17xxT, 75xxT-8, 76xxT-8x)
Touchscreen Table 48-53. Storage Modules for PanelMate 1100, 1700, 3000, 5000
Description
Catalog
Number
Configuration Storage Module
Memory unit that allows transfer of one
configuration to or from the target PanelMate
unit.
0614
Price
U.S. $
10" PM 3000 (39xxK, 75xxK-10) Keypad
to 10" (HMI10CE) Touchscreen and Function
Buttons
APPM2HMI10
10" PM 3000 (39xxT, 75xxT-10, 76xxT-10x)
Touchscreen to (HMI10CE) Touchscreen and
Function Buttons
APPM1HMI10
10" PM ePro (7585K-10) Keypad to 10"
ePro PS (76xxT-10x) Touchscreen
APPS10A
13" PM 5000 (54xx) Keypad-Split to 12"
(76xxT-12x) Touchscreen
APPS12B
14" PM 4000 (45xx), 13" 5000 (55xx/57xx)
Keypad to 12" PM ePro PS 12" (7685T-12)
Touchscreen
APPS12A
14" PM 4000 (45xx), 13" 5000 (55xx/57xx)
Keypad to 15" (7585DT-15) Remote
Touchscreen Display
APFP15A
Cutting is required to make the cutout wider; drilling is required for
new stud holes. For touchpanel units, see Table 48-55 if cutting and
drilling is not an option.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
48
48-36
Operator Interface Products
PanelMate Operator Interface
July 2008
Accessories
Table 48-55. Adapter Collars (Raises front of PanelMate 1.00-Inch
(25.4 mm) from the Mounting Surface)
Description
Catalog
Number
Price
U.S. $
PM 2000/Compact (24xx) Touchpanel to PM 1524TPCOLLAR
11xxK, 17xxK, 75xxK-8 Touchpanel Collar.
For Type 12 installations only.
PM 2000 (26xx/27xx) Touchpanel to PM
11xxK, 17xxK, 75xxK-8 Touchpanel Collar.
For Type 12 installations only.
1527TPCOLLAR
The PanelMate Pro LT 1100 I/O Reference Point Expansion is
an upgrade kit that includes a hardware key and download
software. The upgrades are provided on the hardware key and
are downloaded to a PanelMate Pro LT 1100 from a PC using
the provided hardware key and software. The PanelMate Pro
LT supports 64 I/O points as standard and can be upgraded to
support a maximum of 512 I/O points (7 upgrades installed).
Table 48-57. PanelMate Pro LT Expansion Description
PanelMate Overlay Kits
The overlay kits are ideal for protecting your screens from dirt,
grime and abrasion and are particularly desirable for PanelMate touchscreen models installed in dirty environments.
These overlays can be ordered as clear or with an additional
anti-glare feature. The overlays simply adhere to the front of
the display and can be easily removed and replaced when
required. Five overlays are included in each kit.
Catalog
Number
I/O Reference Point Expansion
(64 points per upgrade)
1 x 64 I/O point expansion
5 x 64 I/O point expansion
10 x 64 I/O point expansion
50 x 64 I/O point expansion
Price
U.S. $
1100TAG1
1100TAG5
1100TAG10
1100TAG50
Discount Symbol PM-2.
PanelMate ePro PS Restore Kits
Table 48-56. Overlay Kits
48
PanelMate Pro LT 1100 Tags
Description
Catalog
Number
8.4" Anti-Glare Overlay Kit, 5 overlays/kit, for
use with PanelMate 11xxT, 15xxT, 17xxT,
75xxT-8, 76xxT-8x
17AGT
8.4" Clear Protective Overlay Kit, 5 overlays/kit,
for use with PanelMate 11xxT, 15xxT, 17xxT,
75xxT-8, 76xxT-8x
17CPT
10.4" Anti-Glare Overlay Kit, 5 overlays/kit, for
use with PanelMate Power Pro 3000, 5000 (All
10.4" Models), 75xx-10 (All Models), 76xxT-10x
39AG
10.4" Clear Protective Overlay Kit, 5 overlays/
kit, for use with PanelMate Power Pro 3000,
5000 (All 10.4" Models), 75xx-10 (All Models),
76xxT-10x
39CP
13.0" Anti-Glare Overlay Kit, 5 overlays/kit, for
use with PanelMate Power Pro 5000 (All 13.0"
Models)
55AG
Price
U.S. $
Each Restore Kit provides a simple way to reset the load of
the PanelMate ePro PS internal CompactFlash that holds
the operating system to the factory-installed image. This kit
is typically used as a field-recovery method for operating
system problems, but it can also be used to upgrade the
image load of installed units.
Each Restore Kit can be re-used to restore multiple PanelMate ePro PS units or to restore the same PS unit multiple
times. The kit used for restoring the factory-installed image
must match the model type of the unit being restored to
maintain product integrity.
Installation requires a Microsoft-compatible USB keyboard
and mouse and an Ethernet network connection.
Table 48-58. PanelMate ePro PS Restore Kits
Description
13.0" Clear Protective Overlay Kit, 5 overlays/
55CP
kit, for use with PanelMate Power Pro 5000 (All
13.0" Models)
12.1" Anti-Glare Overlay Kit, 5 overlays/kit for
use with 12" PanelMate ePro PS 12" models
(76xxT-12x) and 12" Stand-Alone Touchscreen
Displays (7585DT-12)
AG-12
15.0" Anti-Glare Overlay Kit, 5 overlays/kit for
use with PanelMate ePro PS 15" models
(76xxT-15x) and 15" Stand-Alone Touchscreen
Displays (7585DT-15)
AG-15
17.0" Anti-Glare Overlay Kit, 5 overlays/kit for
use with 17" Stand-Alone Touchscreen Displays (7585DT-17)
AG-17
Catalog
Number
Price
U.S. $
New RoHS Compliant Models Kit to restore PanelMate ePro PS, OD, and Classic 76MLPS
units to the current factory image load
Kit to restore PanelMate ePro PS EE units to the
current factory image load
76MLEE
Legacy Non-RoHS Compliant Models Kit to restore PanelMate ePro PS and PS OD
Display units to the current factory image load
76MLPSD
Kit to restore PanelMate ePro PS Blind Node
units to the current factory image load
76MLPSB
Kit to restore PanelMate ePro PS EE Display units 76MLEED
to the current factory image load
Kit to restore PanelMate ePro PS EE Blind Node
units to the current factory image load
76MLEEB
Kit to restore PanelMate ePro PS Classic Display
units to the current factory image load
76MLPSCD
Kit to restore PanelMate ePro PS Classic Blind
Node units to the current factory image load
76MLPSCB
RoHS compliant units have a silver-colored galvanized steel back
cover. Non-RoHS compliant units have a gold-colored plated steel
back cover.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Operator Interface Products
PanelMate Operator Interface
48-37
July 2008
Legacy Products Spare Parts
Table 48-59. PanelMate ePro (75xx Series) Spare Parts
Description
Catalog
Number
7.7" Color DSTN Display Assembly for 7575T-8 Series
8.4" Color TFT Display Assembly for 7585K-8 and 7585T-8 Series
10.4" Color TFT Display Assembly for 7585K-10 and 7585T-10 Series
63-00678
63-00544
63-00778
Keypad with Window for 7585K-8 Series
63-00796
Price
U.S. $
Touchscreen for 7575T-8 Series (gaskets 32-01682 and 32-02437 required) 63-00837
Gasket for Touchscreen (between touchscreen and front panel)
for 7575T-8 Series
Gasket for Touchscreen (between touchscreen and display)
for 7575T-8 Series
32-01682
32-02437
Touchscreen for 7585T-8 Series (gaskets 32-01682 and 32-02208 required) 63-00832
Gasket for Touchscreen (between touchscreen and front panel)
for 7585T-8 Series
Gasket for Touchscreen (between touchscreen and display)
for 7585T-8 Series
32-01682
Keypad for 7585K-10 Series (does not include window)
Plexi-Glass Window for 7585K-10 Series
63-00805
32-02151
Touchscreen for 7585T-10 Series
63-00585
Gasket for Touchscreen for 7585T-10 Series
(between touchscreen and display)
32-02145
Front Panel Assembly for 7585K-8 Series
91-01985
Front Panel Assembly for 7575T-8 and 7585T-8 Series
91-01494
32-02208
Front Panel for 7585T-10 Series (gaskets 32-02144 and 32-02145 required) 32-02444
Gasket for Front Panel for 7585T-10 Series
32-02144
Gasket for Touchscreen for 7585T-10 Series
32-02145
Backlight Kit for 7585K-8 and 7585T-8 Series
Backlight Kit for 7585K-10 and 7585T-10 Series
87-02455
87-02379
Ship Kit for 7585K-8 Series
Ship Kit for 7575T-8 and 7585T-8 Series
Ship Kit for 7585T-10 Series
86-00086
86-00083
86-00085
ISA 1 Port PanelMate PC Adapter
D712-DHP-ISA
Table 48-60. PanelMate Power Series 2000 Spare Parts
Description
Catalog
Number
Display Assembly for 24xx
Display Assembly for 26xx
91-01430
91-01425
PanelMate Power Series Upgrade Kit (adds high capacity, dynamic
graphics, advanced trending and Modbus enabler)
PMUPGRADE
Membrane Keypad (4-position) for 24xx, 26xx, 27xx
63-00395
Price
U.S. $
48
Table 48-61. PanelMate Power Series 3000 Spare Parts
Description
Catalog
Number
Keypad with Window for 39xx
Touchscreen for 39xx
63-00743
63-00285
PanelMate Power Series Upgrade Kit (adds high capacity, dynamic
graphics, advanced trending and Modbus enabler)
PMUPGRADE
Backlight Kit for 37xx
Backlight Kit for 39xx
Price
U.S. $
87-01216
Contact factory.
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
CA08102001E
For more information visit: www.eaton.com
Operator Interface Products
PanelMate Operator Interface
48-38
July 2008
Legacy Products Spare Parts
Table 48-62. PanelMate Power Series 4000 Spare Parts
Description
Catalog
Number
Display Assembly for 42xx, 45xx
91-01538
Membrane Keypad (5-position) for 42xx
Membrane Keypad (15-position) for 42xx
Cable for Remote Keypad
63-00376
63-00375
90-00594
Membrane Keypad (5-position) for 45xx
63-00391
PanelMate Power Series Upgrade Kit (adds high capacity, dynamic
graphics, advanced trending and Modbus enabler)
PMUPGRADE
Touchscreen for 45xx
63-00773
Price
U.S. $
Table 48-63. PanelMate Power Series 5000 Spare Parts
Description
Catalog
Number
Membrane Keypad (5-position) for 52xx
Membrane Keypad (15-position) for 52xx
Cable and Remote Keypad for 52xx
63-00458
63-00375
90-00594
Membrane Keypad (5-position) for 55xx
63-00372
Touchscreen for 55xx
Touchscreen Cable for 55xx
63-00773
90-00715
PanelMate Power Series Upgrade Kit (adds high capacity, dynamic
graphics, advanced trending and Modbus enabler)
PMUPGRADE
Backlight Kit for 52xx, 55xx
87-01783
Price
U.S. $
Table 48-64. PanelMate Power Series 1000 Spare Parts
Description
Catalog
Number
Front Panel, Keypad Assembly, Painted Steel for 1218
Front Panel, Keypad Assembly, Stainless Steel for 218S
Backlight Kit for 1218, 218S
87-02143
Price
U.S. $
FRPNL-1218
Contact factory.
48
Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1
For more information visit: www.eaton.com
CA08102001E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
