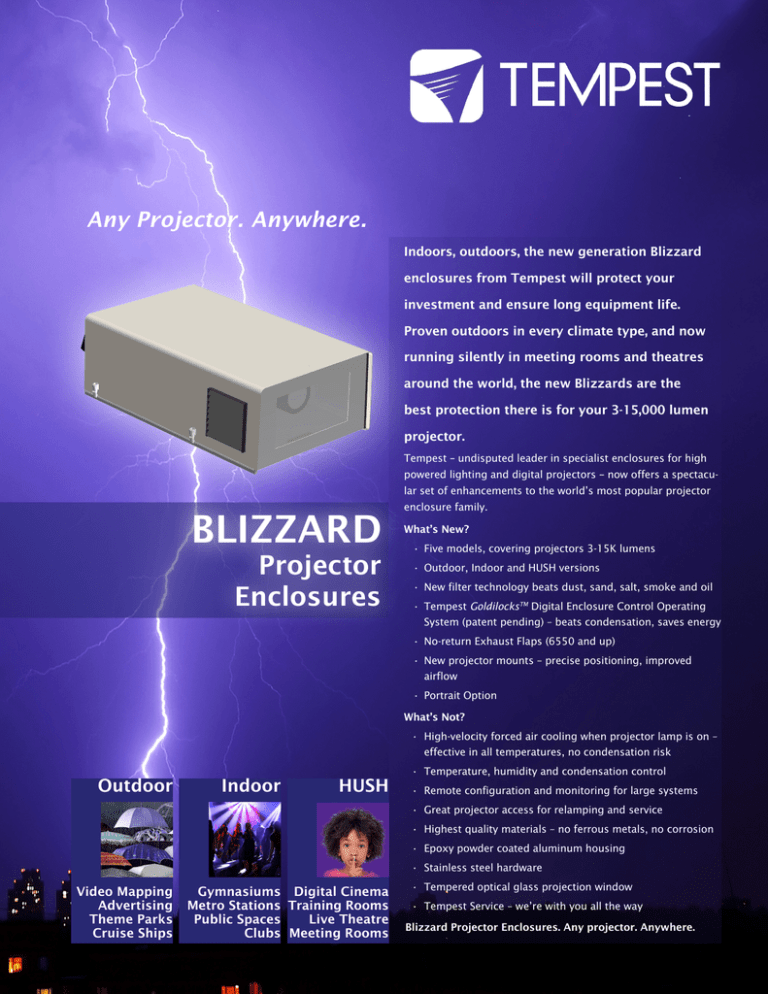

Blizzard Enclosure
Any Projector. Anywhere.
Indoors, outdoors, the new generation Blizzard
enclosures from Tempest will protect your
investment and ensure long equipment life.
Proven outdoors in every climate type, and now
running silently in meeting rooms and theatres
around the world, the new Blizzards are the
best protection there is for your 3-15,000 lumen
projector.
Tempest – undisputed leader in specialist enclosures for high
powered lighting and digital projectors – now offers a spectacular set of enhancements to the world’s most popular projector
BLIZZARD
Projector
Enclosures
enclosure family.
What’s New?
• Five models, covering projectors 3-15K lumens
• Outdoor, Indoor and HUSH versions
• New filter technology beats dust, sand, salt, smoke and oil
• Tempest GoldilocksTM Digital Enclosure Control Operating
System (patent pending) – beats condensation, saves energy
• No-return Exhaust Flaps (6550 and up)
• New projector mounts – precise positioning, improved
airflow
• Portrait Option
What’s Not?
• High-velocity forced air cooling when projector lamp is on –
effective in all temperatures, no condensation risk
Outdoor
Indoor
HUSH
• Temperature, humidity and condensation control
• Remote configuration and monitoring for large systems
• Great projector access for relamping and service
• Highest quality materials – no ferrous metals, no corrosion
• Epoxy powder coated aluminum housing
• Stainless steel hardware
Video Mapping
Advertising
Theme Parks
Cruise Ships
Gymnasiums Digital Cinema
Metro Stations Training Rooms
Public Spaces
Live Theatre
Clubs Meeting Rooms
• Tempered optical glass projection window
• Tempest Service – we’re with you all the way
Blizzard Projector Enclosures. Any projector. Anywhere.
Outdoor
Tempest enclosures are
installed in some very hot
places — think Las Vegas,
Dubai, Singapore.
Video Mapping
Advertising
Theme Parks
Cruise Ships
Tempest Blizzard Outdoor projector
enclosures are running every day in
every climate type we know. Deserts, tropical heat, northern winters — even at sea.
GoldilocksTM
How do we keep projectors
New Filter Technology
Remote Monitoring
Pools, Spas and Ice Rinks
from roasting when it’s 50°C
All new Blizzards come with
high performance hydrophobic
air filters that block dust, sand,
oil, moisture and contaminates
like salt and chlorine, keeping
the interior clean and pristine in
any environment.
Outdoor enclosures can end
up in some inaccessible places.
Now you can
monitor the
environment in
your enclosures
over a simple
RS485 link with our RDM interface and PC application.
Use Blizzard Outdoor for
protection from humidity and
corrosive chemicals, and a Blizzard Remote Exhaust Fan kit
(two kits for Blizzard 6555 and
up). The exhaust fan is on a
25’/7.6m hose, and installs outside the pool area, to eliminate
‘back-door’ entry of harmful
contaminants.
and there’s no shade?
Part # 6500.REF
Goldilocks keeps the air tem-
New Projector Mounts
All Blizzards now incorporate
flexible and secure projector
mounting clamps. Any projector, anywhere. Now at any
angle, with fingertip pan, tilt
and roll adjustment.
No-return Exhaust
Protection
Exhaust doors on Outdoor
Blizzard 6550 models and up
open when the enclosure fans
are running and close automatically when not in use, further
protecting the interior from
winblown particles.
Part # 2000.190
New Blizzard projector mount
adapts to any projector, with
precise pan, tilt, and roll
adjustment
No-return exhaust flaps (6555
and up) prevent passive ingress
of dust, bugs and pollutants
Powerful AC fans change the
air every 1-2 seconds when the
projector lamp is running
EPDM Rubber
weather seals
from destroying your projector overnight?
Tempest’s new GoldilocksTM
Operating System (patents
pending) brings enclosure
control to a new level:
perature inside your enclosure just right, removing heat
from the projector when the
lamp is on or when the enclosure is heated by the sun.
We’re changing the air about
every second.
Goldilocks uses a heater to
maintain a minimum temperature in cold climates.
And Goldilocks tracks tem-
Extreme Temperatures?
Specify a Blizzard Thermal
Insulation kit to moderate
temperatures in hot (>40°C) and
Tempered
cold (<0°C) environments. Save
optical glass
energy and prolong equipment
window
life.
Part # 6500.TI
And prevent condensation
Heater (outdoor
models)
perature and humidity 24/7,
keeping relative humidity inside your enclosure just right
by using heaters to raise the
air temperature when needed,
DEC3.3 Control with GoldilocksTM technology
– never too hot, never too cold, and a big NO
to condensation (outdoor models)
adapting constantly to prevent deadly condensation.
HUSH
Digital Cinema
Meeting Rooms
Home Theatre
Churches
Live Theatre
Silence.
Tempest HUSH projector
enclosures virtually eliminate projector noise in
sensitive environments,
Blizzard is for indoors too! Blizzard HUSH enclosures
silence any projector, and our rugged Indoor enclosures
protect your equipment in public spaces.
The Sound of Silence
Indoor Security
...is about 2dB! Blizzard HUSH
virtually eliminates projector
noise in acoustically sensitive
spaces.
Projection in public spaces is
growing all the time. But there’s
a problem. That projector needs
protecting — from thieves,
vandals, and pollutants. Think
smoky clubs, metro stations
full of iron particles from train
brakes, and all manner of dust
and industrial pollutants in
factories.
Blizzard HUSH enclosures are
lined with acoustic insulation
material and feature airtight
seals to keep projector noise
safely inside.
And Each HUSH enclosure comes
with a powerful exhaust fan at
the end of a 25’/8m padded
hose — run it into a ceiling void
or to the next room for perfect
silence where you need it most.
Indoor Control
Blizzard HUSH and Indoor
enclosures feature Tempest
MiniDECTM control. MiniDEC
monitors temperature and also
power to the projector, and
runs the enclosure fan(s) when
either is above a factory-set
limit. MinDEC is completely
automatic and needs no setup
or user adjustment.
XYZ Mount Option
Attaches enclosure to the bottom of a vertical pipe (1½” ID,
48mm OD), with 360° pan, ± 80°
tilt and ± 5° roll adjustments for
precise positioning.
Indoor
Gymnasiums
Metro Stations
Clubs
Public Spaces
Museums
Industry
Part # 6500.XYZ
NEW — Portrait Option
Blizzard
enclosures are
now available to
special order in
portrait format.
Contact factory
for details.
Protection.
Tempest Indoor enclosures protect delicate
projector optics and electronics from dust, pollutants and theft in clubs,
public spaces, gyms, and
industrial applications.
ConstructionAluminum, plated and epoxy powder coated for
excellent corrosion resistance, stainless steel.
Heating
Heating element maintains minimum operating
temperature and prevents condensation (Outdoor)
Mounting
Enclosure may be mounted base down or base up.
Cooldown
2 x stainless steel Unistruts under base.
Fan(s) run for up to 15 minutes after lamp turns
off
Optional Accessories (4 per enclosure)
Protection
Projector power is safely isolated by a 2-pole
power relay in the event of overheating (Outdoor).
Power
120VAC or 200-240VAC, 50/60Hz, 5amps max.
Single or split feed wiring for enclosure and projector
4900.MB Stainless Steel Bolt kit: 1/2” bolt, washer,
Spring nut (shaded)
4900.MC Stainless Steel pipe clamp kit, for
pipes 1.5” (38mm) to 2” (50mm) OD.
Projector
Power OutletIEC C14, rated 15amps (USA),10amps (International). Rewireable plug provided.
4925.MC Stainless Steel pipe clamp kit, for
pipes 2” (50mm) to 2.5”/64mm OD.
Security
Approvals
Heavy duty stainless steel latches, may be padlocked for security.
Access
Removable cover for projector access
Color
Standard light bronze (Outdoor/Indoor), White
(HUSH). Custom colors to order.
Control
Tempest Lighting patented DEC3.3 control system
(Outdoor), Tempest MiniDEC (Indoor, HUSH).
Cooling
High-power AC fan(s) change(s) air every 1-2 seconds when projector lamp is on
Ordering Guide:
____.___
Americas: ETL and cETL listed to UL 50, 508
International: Low Voltage Directive 2006/95/
EC, Electromagnetic Compatibility Directive
2004/108/EC, EN 60065:2002, EN 60529:20012002, EN 61000-6-3:2007+A1:2011, EN61000-61:2007, EN55015:2006+A2:2009
NEMA Type 3R Enclosure (≈IP54)
Patents
Protected by US Patent # 6,352,358. Other patents
pending.
example:
6550.INH
Electrical
US 120V, NEMA standard
North America
IN 230V, CE Standard
Need Something
Bigger?
Our Cyclone Series
picks up where
Blizzard leaves off,
for projectors up to
40,000 ANSI lumens
Type
O Outdoor
I Indoor
H Hush Box
International
Model
Description
Dimensions (lwh)
Weight
Projector Maximum (lwh) *
6515
Blizzard Baby
24x20x11”
61x51x28cm
30lb/14kg
17”/43cm
16.5”/42cm
8.5”/22cm
6540
Blizzard Midi
28x24x11”
71x61x28cm
45lb/20kg
21.5”/55cm
20”/51cm
8.5”/22cm
6550
Blizzard
33x30x14”
79x76x36cm
69lb/31kg
25”/64cm
26”/66cm
12”/30cm
6555
Blizzard Stretch
45x30x16”
114x76x41cm
89lb/40kg
35”/89cm
26”/66cm
14”/36cm
6556
Blizzard X-Stretch
53x30x16”
135x76x41cm
98lb/45kg
42”/107cm
26”/66cm
14”/36cm
Options and Accessories
* Be sure to include the lens and
cables/connectors in your projector size calculation!
2000.190
JESE RDM-TRI PC Interface and GetSet Software
6500.REF
Remote Exhaust Fan Kit for Outdoor or Indoor models
6500.TI
Thermal Insulation Kit for Outdoor Models
6500.ECK
Exterior Cowl Kit for Blizzard HUSH Remote Fan
6500.XYZ
Blizzard XYZ Mount
6500.977.HF
Spare 8.5”/22cm Hydrophobic Filter (Baby, Midi, Blizzard). 2 per enclosure.
6500.799.HF
Spare 11”/28cm Hydrophobic Filter (Stretch, X-Stretch). 2 per enclosure.
Shipping
6515
Carton 26” x 26” x 13” (66 x 66 x 33cm), weight 45lb/20kg
6540
Carton 36” x 36” x 24” (91 x 91 x 61cm), weight 65lb/30kg
6550
Carton 36” x 36” x 24” (91 x 91 x 61cm), weight 95lb/43kg
6555
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 120lb/55kg
6556
Carton 52” x 34” x 20” (130 x 84 x 48cm), weight 135lb/61kg
All Schedule B Export Code: 8536.30.0000
User Manual
For installation/operating instructions, download the Blizzard User Manual from www.tempestlighting.com
Made in the USA
©Tempest Lighting, Inc., December, 2013
In the interest of continuous product improvement, specifications are subject to change without notice
Tempest Lighting, Inc.,
13110 Saticoy Street, Unit C, North Hollywood, CA 91605, USA
www.tempest.org [email protected]
t: +1 818 787 8984
f: +1 818 982 5582
