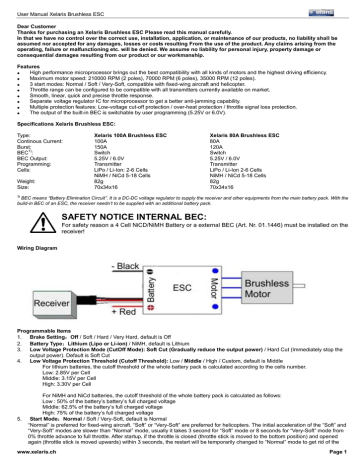

User Manual Xelaris Brushless ESC
Dear Customer
Thanks for purchasing an Xelaris Brushless ESC Please read this manual carefully.
In that we have no control over the correct use, installation, application, or maintenance of our products, no liability shall be
assumed nor accepted for any damages, losses or costs resulting From the use of the product. Any claims arising from the
operating, failure or malfunctioning etc. will be denied. We assume no liability for personal injury, property damage or
consequential damages resulting from our product or our workmanship.
Features
High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.

Maximum motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).

3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.

Throttle range can be configured to be compatible with all transmitters currently available on market.

Smooth, linear, quick and precise throttle response.

Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.

Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.

The output of the built-in BEC is switchable by user programming (5.25V or 6.0V).

Specifications Xelaris Brushless ESC:
Type:
Continous Current:
Burst:
1)
BEC :
BEC Output:
Programming:
Cells:
Weight:
Size:
Xelaris 100A Brushless ESC
100A
150A
Switch
5.25V / 6.0V
Transmitter
LiPo / Li-Ion: 2-6 Cells
NiMH / NiCd 5-18 Cells
82g
70x34x16
Xelaris 80A Brushless ESC
80A
120A
Switch
5.25V / 6.0V
Transmitter
LiPo / Li-Ion 2-6 Cells
NiMH / NiCd 5-18 Cells
82g
70x34x16
1)
BEC means “Battery Elimination Circuit”. It is a DC-DC voltage regulator to supply the receiver and other equipments from the main battery pack. With the
build-in BEC of an ESC, the receiver needn’t to be supplied with an additional battery pack.
SAFETY NOTICE INTERNAL BEC:
For safety reason a 4 Cell NiCD/NiMH Battery or a external BEC (Art. Nr. 01.1446) must be installed on the
receiver!
Wiring Diagram
Programmable Items
1. Brake Setting:Off / Soft / Hard / Very Hard, default is Off
2. Battery Type:Lithium (Lipo or Li-ion) / NiMH, default is Lithium
3. Low Voltage Protection Mode (CutOff Mode): Soft Cut (Gradually reduce the output power) / Hard Cut (Immediately stop the
output power). Default is Soft Cut
4. Low Voltage Protection Threshold (Cutoff Threshold): Low / Middle / High / Custom, default is Middle
For lithium batteries, the cutoff threshold of the whole battery pack is calculated according to the cells number.
Low: 2.85V per Cell
Middle: 3.15V per Cell
High: 3.30V per Cell
5.
For NiMH and NiCd batteries, the cutoff threshold of the whole battery pack is calculated as follows:
Low : 50% of the battery’s battery’s full charged voltage
Middle: 62.5% of the battery’s full charged voltage
High: 75% of the battery’s full charged voltage
Start Mode:Normal / Soft / Very-Soft, default is Normal
“Normal” is preferred for fixed-wing aircraft. “Soft” or “Very-Soft” are preferred for helicopters. The initial acceleration of the “Soft” and
“Very-Soft” modes are slower than “Normal” mode, usually it takes 3 second for “Soft” mode or 8 seconds for “Very-Soft” mode from
0% throttle advance to full throttle. After startup, if the throttle is closed (throttle stick is moved to the bottom position) and opened
again (throttle stick is moved upwards) within 3 seconds, the restart will be temporarily changed to “Normal” mode to get rid of the
www.xelaris.ch
Page 1
User Manual Xelaris Brushless ESC
chances of a crash caused by slow throttle response. This special design is usedful for aerobatic flight.
6.
2)
Timing:0°/ 3.75° / 7.5° / 11.25° / 15° / 18.75° / 22.5° / 26.25°, default is 15°
Usually, low timing value is suitable for most motors. But there are many differences among structures and parameters of different
motors so please try and select the most suitable timing value according to the motor you are just using. The correct timing value
makes the motor run smoothly. And generally, higher timing value brings out higher output power and higher speed.
2)
After changing the timing setting, please test your RC model on ground prior to flight!
7. Reserved for future
8. Reserved for future
9. PWM Frequency: 12KHz / 8KHz, default is 12KHz
For some motors with high KV (high speed) and many poles, the 12KHz PWM frequency may let them work more smoothly. But the
higher PWM frequency will make the ESC hotter. Generally, the 8KHz PWM frequency is suitable for most motors.
10. BEC Output: 5.25V / 6V, default is 6V
11. Reserved for future.
3)
12. Lipo Cells: Auto / 2S / 3S / 4S / 5S / 6S, the default is Auto
This programmable item is available for lithium battery. In the startup process, the motor will emits several “Beep-” tones to represent
the Lipo cells number, it is helpful for you to check whether it is coincident with the actual battery pack or not.
3)
If you choose “Auto”, the ESC may mistakenly judge the battery cells when the voltage is less than 3.7V/Cell, so we strongly
suggest setting the “Lipo Cells” manually.
Begin To Use The New ESC
Please check the wiring and connections carefully, and then start the ESC in the following sequences:
1.
Move the throttle stick to the bottom position and then switch on the transmitter.
2.
Connect the battery pack to the ESC, the ESC begins the self-test process, a special tone “♪ 123” is emitted, which means the
voltage of the battery pack is in normal range, and then N “Beep” tones will be emitted, means the number of lipo battery cells. Finally
a long “Beep—” tone will be emitted, which means the self-test is OK, the aircraft or helicopter is ready to go flying.

If nothing is happened, please check the battery pack and all the connections;

If a special tone “♪
” is emitted after 2 Beep tones (“Beep-Beep-”), means the ESC has entered the program mode, it is
because the throttle channel of your transmitter is reversed, please set it correctly;

If the red LED flashes very quickly (2 times per second), means the input voltage is too low or too high, please check your
battery’s voltage.
3. VERY IMPORTANT! Because different transmitter has different throttle range, you need to calibrate the throttle range. Please read
the instruction Throttle Range Setting”.
After correctly setting the throttle range, the red LED lights when the throttle stick is moved to the top position (Maximum throttle).
Alert Tone
1. Input voltage is abnormal: The ESC begins to check the voltage when the battery pack is connected, if the voltage is not in the
acceptable range, such an alert tone will be emitted: “Beep-Beep-, Beep-Beep-” (Every “Beep-Beep-” has a time interval of about 1
second), and at the same time, the red LED also flashes.
2. Throttle signal is lost: When the ESC can’t detect the normal throttle signal, such an alert tone will be emitted: “Beep-, Beep-, Beep-”.
(Every “Beep-” has a time interval of about 2 seconds)
3. Throttle stick is not in the bottom position: When the throttle stick is not in the bottom (lowest) position, a very rapid alert tone will be
emitted: “Beep-, Beep-, Beep-”. (Every “Beep-” has a time interval of about 0.25 second.)
Protection Function
1. Abnormal startup protection: If the motor fails to start within 2 seconds of throttle application, the ESC will cut-off the output power. In
this case, the throttle stick MUST be moved to the bottom position again to restart the motor. (This happens in the following cases:
The connection between ESC and motor is not reliable, the propeller or the motor is blocked, the gearbox is damaged, etc.)
2. Over-heat protection: When the temperature of the ESC is to high, the ESC will reduce the output power.
3. Throttle signal loss protection: The ESC will cutoff the output power if throttle signal is lost for more than 0.25 second, the output
power will be resumed as soon as the throttle signal is normal again.
www.xelaris.ch
Page 2
User Manual Xelaris Brushless ESC
Trouble Shooting
Trouble
Possible Reason
Action
After power on, motor does not work, no sound is
emitted
After power on, motor does not work, such an
alert tone is emitted and the red LED flashes at
the same time.
“Beep-Beep-, Beep-Beep-” (Every “Beep-Beep-”
has a time interval of about 1 second)
After power on, motor does not work, such an
alert tone is emitted:
“Beep-, Beep-, Beep- ”(Every “Beep-” has a time
interval of about 2 seconds)
After power on, motor does not work, such an
alert tone is emitted:
“Beep-, Beep-, Beep-” (Every “Beep-” has a time
interval of about 0.25 second)
After power on, motor does not work, a special
tone “♪
” is emitted after 2 “Beep” tones
(Beep-Beep-)
The motor runs in the opposite direction
The connection between battery
pack and ESC is not correct
Input voltage is abnormal, too high
or too low.
Check the power connection.
Replace the connector with new one
Check the voltage of battery pack
Throttle signal is irregular or lost
Check the receiver and transmitter
Check the control cable of the ESC
The throttle stick is not in the
bottom (lowest) position
Move the throttle stick to bottom position
Direction of the throttle channel is
reversed, so the ESC has entered
the program mode
The connection between ESC and
the motor need to be changed.
Throttle signal is lost
Set the direction of throttle channel correctly
(Please refer to the user manual of your
transmitter)
Swap any two wire connections between
ESC and motor
Check the receiver and transmitter
Check the control cable of throttle channel
Land RC model as soon as possible, and
replace the battery pack
Check all the connections: battery pack
connection, throttle signal cable, motor
connections, etc.
The motor stop running while in working state
ESC has entered Low Voltage
Protection mode
Some connections are not reliable
Normal Startup Procedure
Move the throttle
stick to bottom
position and then
switch on your
transmitter
Connect the battery pack to
the ESC, a special tone
“♪123” emits, that means
the battery supply is OK
Several “Beep-” tones
emits to represent the
number of lipo battery
cells
As soon as the self-test
process is finished, a
long “Beep—” tone will
be emitted
Move the throttle
stick upwards to
go flying now
Throttle Range Setting
Switch on the
transmitter, and
then move the
throttle stick to
top position
www.xelaris.ch
Connect battery pack to
the ESC, a special tone
“♪123” emits, that means
the battery supply is OK,
then wait for 2 seconds
“Beep-Beep-” tone emits,
that means the highest
point of throttle range has
been correctly confirmed
Move throttle stick to the
bottom position, several
“Beep-” tones emits to
represent the number of
Lipo battery cells
A long “Beep—”
tone emits, means
the lowest position
of throttle range has
been confirmed
Page 3
User Manual Xelaris Brushless ESC
Program The ESC With The Transmitter
1.
2.
3.
4.
1.
Enter program mode
Select programmable items
Set item’s value (Programmable value)
Exit program mode
2. Select programmable items:
After entering program mode, you will hear 14 groups of “Beep”
tones in a loop with the following sequence. If you move the throttle
stick to bottom position within 3 seconds after one kind of tones, the
corresponding item will be selected.
Enter program mode
1. Switch on transmitter, move the throttle
stick to the top position.
2. Connect the battery pack to the ESC, a
special tone “♪123” emits, that means the
battery supply is OK.
3. Wait for 2 seconds, the motor will emit
“Beep-Beep-” tone.
4. Wait for another 5 seconds, special tone
like “♪
” emits, that means the
program mode is entered
1
B
Brake
(1 short tone)
2
BB
Battery Type
(2 short tones)
3
BBB
Cutoff Mode
(3 short tones)
4
BBBB
Cutoff Threshold
(4 short tones)
5
Beep—
Start Mode
(1 long tone)
6
Beep— B
Timing
(1 long 1 short)
7
Beep— BB
Reserved Item
(1 long 2 short)
8
Beep— BBB
Reserved Item
(1 long 3 short)
9
Beep— BBBB
PWM Frequency
(1 long 4 short)
10 Beep— Beep—
Built-in BEC Output
(2 long tones)
11 Beep— Beep— B
Reserved Item
(2 long 1 short)
12 Beep— Beep— BB
Lipo Cells
(2 long 2 short)
13 Beep— Beep— Beep— B
Reset All To Defaults
(3 long 1 short)
14 Beep— Beep— Beep— BB Exit
(3 long 2 short)
Note: “Beep—” means a long “Beep” tone, “B” means a short “Beep”
tone. Usually, 1 long “Beep—” = 5 short “B” .
3. Set item value (Programmable value):
You will hear several “Beep” tones in loop. Set the value matching to a tone by moving the
throttle stick to top position when you hear the tone, then a special tone “♪
” emits, that
means the value is set and saved. (Keep the throttle stick at the top position, you will go
back to Step #2 and you can select other items; Or Move the stick to bottom position within
2 seconds will exit program mode directly)
1 short
Beep
Items
Brake
2 short
3 short
4 short
Hard
Very Hard
Custom
Off
Soft
Battery Type
LiPo
NiMH
Cutoff Mode
Soft Cut
Hard Cut
Low
Middle
High
Normal
Soft
Very Soft
0°
3.75°
7.5°
PWM Frequency
12KHz
8KHz
Built-in BEC Output
*5.25V
6V
Cutoff Threshold
Start Mode
Timing
Reserved Item
Reserved Item
11.25°
1 long
1 long
1 short
1 long
2 short
1 long
3 short
15°
18.75°
22.5°
26.25°
4. Exit program mode
There are 2 ways to exit
the program mode:
a) In Step #3, after
special tone “♪
”,
move the throttle stick
to the bottom position
within 2 seconds.
b) In Step #2, after tone
Beep—Beep—Beep
—BB” (3 long 2 short
Beep tones, that is
the item #14), move
the throttle stick to the
bottom position within
3 seconds.
Reserved Item
When you have exit the
programming mode, please
wait for 5 seconds and
restart the ESC before you
use it.
www.xelaris.ch
Page 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
