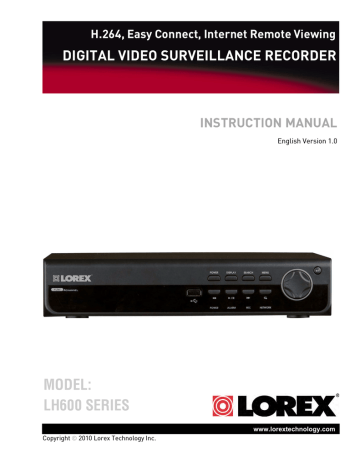

MODEL: LH600 SERIES
H.264, Easy Connect, Internet Remote Viewing
DIGITAL VIDEO SURVEILLANCE RECORDER
INSTRUCTION MANUAL
English Version 1.0
MODEL:
LH600 SERIES
www.lorextechnology.com
Copyright © 2010 Lorex Technology Inc.
Thank you for purchasing this product. Lorex is committed to providing our customers
with a high quality, reliable security solution.
This manual refers to the following model(s):
• LH604501
For more information on this product, firmware updates, and accessory products, please
visit us at:
www.lorextechnology.com
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER. NO USER SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated "dangerous voltage"
within the products ' enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT.
NEED HELP?
CONTACT US FIRST
DO NOT RETURN THIS PRODUCT TO THE STORE
Please make sure to register your product at www.lorextechnology.com to receive product updates and information
3
EASY WAYS TO CONTACT US:

Online:
Product Support is a vaila ble 24/7 including product
inf orma tion, user manuals, quick start up guides an d FA Q ’s
a t www.lorextechnolog y.com/support
To order accessories, visit
w ww.lorextechnolog y.com

By Email:
Technical Support (f or technical/installa tion issues)
s u [email protected]
Customer Care (f or warranty and accessor y sales)
c u stomerser [email protected]
Customer Feedback
i n f [email protected]

By Phone:
NORTH AMERICA:
CUSTOMER SERVICE: 1-888-425-6739 (1-888-42-LOREX)
TECH SUPPORT: 1-877-755-6739 (1-877-75-LOREX)
MEXICO: 1-866-427-6739
INTERNATIONAL: +800-425-6739-0
(Example: From the UK, dial 00 instead of +)
Ve r sion 8 - April 27 2010
NECESITA AYUDA
VOUS AVEZ BESOIN
D’AIDE?
COMUNÍQUESE PRIMERO
CON NOSOTROS
CONTACTEZ-NOUS
D’ABORD
NO DEVUELVA ESTE PRODUCTO A LA TIENDA
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN
Cerciórese de por favor colocar su producto en www.
lorexcctv.com/registration para recibir actualizaciones y la información del producto
Veuillez veiller à enregistrer votre produit à www.
lorexcctv.com/registration pour recevoir des mises à
jour et l’information de produit
3
3
maneras sencillas de comunicarse
con nosotros :

www
En línea:
apoyo al producto disponible 24/7 incluyendo información
del producto, manuales para el usuario, guías de inicio
rápido y preguntas más frecuentes en
façons faciles de nous contacter :

www
www.lorextechnology.com/support

le support des produits est disponible 24 heures sur 24, 7
jours sur 7, y compris les informations sur les produits, les
guides de l’utilisateur, les guides de démarrage rapide et
les foires à questions
Para colocar pedidos de accesorios, visite
www.lorextechnology.com/support
www.lorextechnology.com
Pour commander des accessoires, visitez
Por Correo Electrónico:
soporte técnico (para asuntos técnicos/la instalación)
[email protected]
O
www.lorextechnology.com

Par Courriel:
support technique (pour les questions techniques et
d’installation) [email protected]
OU
servicio al cliente (respecto a la garantía y a la venta
de accesorios)
service à la clientèle (pour les questions de garantie
et les ventes d’accessoires)
[email protected]
[email protected]
Commentaires des clients
Comentarios de cliente
[email protected]
[email protected]

En ligne:
Por Teléfono:
L’AMÉRIQUE DU NORD:
ATENCIÓN AL CLIENTE: 1-888-425-6739 (1-888-42-LOREX)
SOPORTE TÉCNICO: 1-877-755-6739 (1-877-75-LOREX)

Par Téléphone:
NORTE AMÉRICA:
SERVICE À LA CLIENTÈLE: 1-888-425-6739 (1-888-42-LOREX)
SUPPORT TECHNIQUE: 1-877-755-6739 (1-877-75-LOREX)
MEXICO: 1-866-427-6739
MEXICO: 1-866-427-6739
INTERNACIONAL: +800-425-6739-0
INTERNATIONAL: +800-425-6739-0
(Ejemplo: Desde el Reino Unido, marque el 00 en lugar del +)
(Exemple: À partir du Royaume-Uni, composez 00 au lieu de +)
sus opiniones son bienvenidas en
[email protected]
para colocar pedidos de accesorios, visite
nous serions heureux de recevoir vos
commentaires à [email protected] pour
commander des accessoires, visitez
www.lorextechnology.com
www.lorextechnology.com
Ve r sion 8 - April 27 2010
B E F O R E Y O U S TA R T
THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION
LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS
• We have developed user friendly products and documentation.
Please read the Quick Start Guide and User Manual before you
install this product.
• Consumer Guides and Video Tutorials are available on our web
site at www.lorextechnology.com/support
• If you require further installation assistance, please visit
www.lorextechnology.com/installation or contact a
professional installer.
• Please refer to the “Need Help” insert for technical support and
customer care information.
• Please note that once the components of this product have been
unsealed, you cannot return this product directly to the store
without the original packaging.
April 27 2010 R3
www.lorexcctv.com
AVANT DE
COMMENCER
ANTES DE
EMPEZAR
CE PRODUIT POURRAIT EXIGER UNE
INSTALLATION PROFESSIONNELLE
ESTE PRODUCTO PUEDE EXIGIR UNA
INSTALACIÓN PROFESIONAL
LOREX S’ENGAGE À SATISFAIRE
VOS BESOINS SÉCURITAIRES
LOREX SE COMPROMETE A SATISFACER
SUS NECESIDADES EN SEGURIDAD
• Veuillez lire le guide de démarrage rapide et le
mode d’emploi avant d’installer ce produit.
• Favor de leer la guía de instalación rápida y la
guía del usuario antes de instalar este producto.
• Les guides du consommateur et les séances
de tutorat vidéo sont disponibles sur l’Internet en
visitant www.lorextechnology.com/support
• Puede conseguir las guías del consumidor y
los cursos en enseñanza video sobre el Internet
visitando www.lorexcctv.com/support
• Si vous avez besoin de l’aide pour l’installation,
veuillez visiter www.lorextechnology.com/installation
ou contactez un spécialiste en installation
• Si necesita ayuda para la instalación, visite
www.lorextechnology.com/installation o contacte un
especialista en instalaciones
• Veuillez référer à l’insert “Need Help” pour
ob¬tenir de l’information sur le service à la clientèle et le support technique
• Favor de referir al documento “Need Help” para
obtener información acerca del servicio al cliente
y al soporte técnico
• Veuillez constater qu’une fois que les
com¬posantes de ce produit ont été retirées de
l’emballage, vous ne pourrez plus retourner ce
produit directement au magasin.
• Favor de notar que una vez que los componentes de este producto han sido removidos del
embalaje, no podrá devolver este producto directamente a la tienda
www.lorextechnology.com
April 27 2010 R3
TABLE OF CONTENTS
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1. Connect The BNC Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Connect The Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3. Connect The Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4. Connect a DVI Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5. Connect The Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6. Verify Camera Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
7. Set The Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting The Cameras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Camera Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting and Removing BNC cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mouse Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Control Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Quickly Access System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Powering on/off The System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Logging In To The System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Logging Out Of The System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Virtual Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Changing Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using Auto Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Quick Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Understanding the Quick Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Searching For Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Searching For Video By Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Searching For Video By Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Video Playback Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Archiving VIdeo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Viewing Archived Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Backup Player Playback Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Panic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Searching for Panic Recording Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
iii
Setting the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Automatic Time Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Daylight Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Continuous Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Motion Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarm Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Panic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Recording Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuring Recording Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting Pre & Post Event Recording Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Configuring Recording Modes (Simple Recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Enable Simple Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Configure Recording Quality, Screen Resolution and Frame Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Configure Recording Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Scheduling Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Configuring Recording Modes (Advanced Recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Enable Advanced Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Customize Recording Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Customizing Recording Type (Daily mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Customizing Recording Type (Weekly mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Configuring Panic Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Configuring System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
System Setup Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
OSD Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing OSD (On Screen Display) options: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Monitor Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing Motion , Alarm Pop-up, Spot and Sequence settings: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Camera Title Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the Camera Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Enabling Covert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Color Setup Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Adjusting Camera Brightness and Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
PTZ Setup Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
PTZ Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Motion Sensor Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Configuring Motion Sensor Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Camera Mode Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Audio Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Enabling System Network Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Buzzer Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Disabling System ’Beeps’ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Date/Time Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Configuring system Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
iv
Configuring system Date format and
24 HR vs 12HR time notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Configuring Time Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Enabling/Disabling Daylight Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Adjusting System Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Network Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Enabling DDNS & DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Configuring DDNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Auto Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Configuring System Transmission speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Mail Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Configuring the E-mail Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Configuring Your System To Send Notification E-Mails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
User Management Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Configuring Email Notification Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Configuring Password Expiry Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Adding New Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
System Management Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Viewing System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Changing The System Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Upgrading The System Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Restoring System Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Saving and Loading System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Enabling and Disabling The System Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Control Device Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Event/Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
HDD Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Alarm Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Alarm Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Behavior Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Action Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Buzzer Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Behavior Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Action Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
E-mail Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Behavior Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Action Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Disk Manage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Formatting the HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using Web Remote Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Connecting to Web Remote Viewer Locally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Connecting to Web Remote Viewer using DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Web Remote Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Logging into Web Remote Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
The System Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Using The Navigation Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
The Live Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Viewing Video In Different Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Viewing Channels In A Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
v
Enabling Audio During Viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Syncing Video Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Muting Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Switching Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Choosing a Save Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Saving Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Printing An Image Of A Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Changing Hardware Video Acceleration Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Monitoring Your Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Increasing and Reducing Video Refresh Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Viewing An Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Configuring PTZ Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
The Search Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Searching For A Video By Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Searching For A Video By Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Backing Up A Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
The Setup Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Configuring Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Setting Camera Name, Covert Settings and Camera Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Adjusting Camera Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Adjusting PTZ Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Configuring Camera Motion Detection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Configuring Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Adjusting Video Monitoring Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Adjusting Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Configuring System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configuring Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Adjusting DVR Bandwidth Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configuring An E-mail Server For The DVR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Configuring User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Adding Users To The DVR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Viewing System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Changing Your DVR’s Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Enabling / Disabling the DVR’s Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing PTZ Keyboard Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Configuring DDNS Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Enabling DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Configuring Recording Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Adjusting Pre and Post Alarm Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Selecting Recording Mode: Simple vs Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Configuring "Simple" Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Adjusting Advanced Recording Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Configuring Panic Recording Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Configuring HDD Event Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Configuring Alarm Input Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Configuring Alarm Output Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Configuring Buzzer Out Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Configure E-mail Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Setting Up Remote Viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Advanced Monitoring using DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
vi
Advanced Remote Monitoring Using DDNS . . . . . . . . . . . . . . . . . . . . . . . . . 96
What Do I Need? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
How Do I Find My IP and MAC addresses? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
What is Port Forwarding? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Lorex Auto Port Forwarding Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Obtaining Your Router Model Number and Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Initial Startup: Select language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Step 1: Populate the router database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Step 2: Enter your router settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Step 3: Update the router settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Step 4: Test your connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Configuring multiple routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Scenario A: Router/Modem combination + Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Scearnio B: Multiple Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Setting Up DDNS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
How Do I Enable DDNS On My System? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Enabling DDNS & DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Networking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Remote Viewing On Mobile Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Viewing Your DVR From Your iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Web Remote Viewer iPhone Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Viewing Your DVR From Your 3G Blackberry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Appendix A: System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix B: Replacing The Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix C: Using The Storage Calculator . . . . . . . . . . . . . . . . . . . . . . . .
Appendix D: Enabling E-Mail Notifications . . . . . . . . . . . . . . . . . . . . . . . .
Appendix E: Full Connectivity Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix F: Connecting PTZ Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix G: Connecting Additional External Monitors . . . . . . . . . . . . . .
Appendix H: Connecting Motion / Alarm Devices . . . . . . . . . . . . . . . . . . .
Appendix I: Connecting Audio Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
114
118
122
123
127
128
130
131
132
133
vii
viii
Important Safeguards
In addition to the careful attention devoted to quality standards in the manufacturing process of
your video product, safety is a major factor in the design of every instrument. However, safety is
your responsibility too. This sheet lists important information that will help to assure your
enjoyment and proper use of the video product and accessory equipment. Please read them
carefully before operating and using your video product.
Installation
1.
2.
3.
4.
5.
6.
7.
Read and Follow Instructions - All the safety and
operating instructions should be read before the
video product is operated. Follow all operating
instructions.
Retain Instructions - The safety and operating
instructions should be retained for future reference.
Heed Warnings - Comply with all warnings on the
video product and in the operating instructions.
Polarization - Do not defeat the
safety purpose of the polarized or
grounding-type plug.
A polarized plug has two blades
with one wider than the other.
A grounding type plug has two
blades and a third grounding prong.
The wide blade or the third prong
are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
Power Sources - This video product should be
operated only from the type of power source
indicated on the marking label. If you are not sure of
the type of power supply to your location, consult
your video dealer or local power company. For video
products intended to operate from battery power, or
other sources, refer to the operating instructions.
Overloading - Do not overload wall outlets of
extension cords as this can result in the risk of fire
or electric shock. Overloaded AC outlets, extension
cords, frayed power cords, damaged or cracked wire
insulation, and broken plugs are dangerous. They
may result in a shock or fire hazard. Periodically
examine the cord, and if its appearance indicates
damage or deteriorated insulation, have it replaced
by your service technician.
Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they
exit from the video product.
8.
Ventilation - Slots and openings in the case are
provided for ventilation to ensure reliable operation
of the video product and to protect it from
overheating. These openings must not be blocked or
covered. The openings should never be blocked by
placing the video equipment on a bed, sofa, rug, or
other similar surface. This video product should
never be placed near or over a radiator or heat
register. This video product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the video
product manufacturer’s instructions have been
followed.
9. Attachments - Do not use attachments unless
recommended by the video product manufacturer as
they may cause a hazard.
10. Camera Extension Cables – Check the rating of
your extension cable(s) to verify compliance with
your local authority regulations prior to installation.
11. Water and Moisture - Do not use this video product
near water. For example, near a bath tub, wash
bowl, kitchen sink or laundry tub, in a wet
basement, near a swimming pool and the like.
Caution: Maintain electrical safety. Powerline
operated equipment or accessories connected to
this unit should bear the UL listing mark of CSA
certification mark on the accessory itself and should
not be modified so as to defeat the safety features.
This will help avoid any potential hazard from
electrical shock or fire. If in doubt, contact qualified
service personnel.
12. Accessories - Do not place this
video equipment on an unstable
cart, stand, tripod, or table. The
video equipment may fall, causing
serious damage to the video
product. Use this video product
only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer or sold with the video product. Any
mounting of the product should follow the
manufacturer’s instructions and use a mounting
accessory recommended by the manufacturer.
ix
Service
Use
13. Servicing - Do not attempt to service this video
equipment yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
14. Conditions Requiring Service - Unplug this video
product from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
19. Cleaning - Unplug the video product from the wall
outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
20. Product and Cart Combination - Video and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may
cause the video product and car combination to
overturn.
21. Object and Liquid Entry - Never push objects for
any kind into this video product through openings as
they may touch dangerous voltage points or
“short-out” parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
video product.
22. Lightning - For added protection for this video
product during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage
to the video product due to lightning and power line
surges.
• If liquid has been spilled or objects have fallen into
the video product.
• If the video product has been exposed to rain or
water.
• If the video product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions. Improper adjustment of other controls
may result in damage and will often require
extensive work by a qualified technician to restore
the video product to its normal operation.
• If the video product has been dropped or the cabinet
has been damaged.
• When the video product exhibits a distinct change
in performance. This indicates a need for service.
15. Replacement Parts - When replacement parts are
required, have the service technician verify that the
replacements used have the same safety
characteristics as the original parts. Use of
replacements specified by the video product
manufacturer can prevent fire, electric shock or
other hazards.
16. Safety Check - Upon completion of any service or
repairs to this video product, ask the service
technician to perform safety checks recommended
by the manufacturer to determine that the video
product is in safe operating condition.
17. Wall or Ceiling Mounting - The cameras provided
with this system should be mounted to a wall or
ceiling only as instructed in this guide, using the
provided mounting brackets.
18. Heat - The product should be situated away from
heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that
produce heat.
General Precautions
x
General Precautions
1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a
water dampened cloth for cleaning.
3. Do not use this unit in humid or wet places.
4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet
should not be blocked.
5. During lightning storms, or when the unit is not used for a long time, disconnect the power
supply, antenna, and cables to protect the unit from electrical surge.
FCC CLASS B NOTICE
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not in-stalled and used in accordance with the instruction, may cause harmful interference to
radio communications.However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception (which can be
determined by turning the equipment on and off), the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for assistance
This equipment has been certified and found to comply with the limits regulated by FCC, EMC, and
LVD. Therefore, it is designated to provide reasonable protection against interference and will not
cause interference with other appliance usage.
However, it is imperative that the user follows the guidelines in this manual to avoid improper
usage which may result in damage to the unit, electrical shock and fire hazard injury.
In order to improve the feature functions and quality of this product, the specifications are subject
to change without notice from time to time.
www.lorextechnology.com
xi
Features
Digital Video Recorder Features
• H.264 compression supports D1 (704x480) resolution video recording (1)
• Pentaplex operation - View, Record, Playback, Back up & Remotely control the system
simultaneously
• DVI (with VGA converter) & BNC outputs for display on PC or TV monitor
• 24/7 100% duty cycle hard drive pre-installed, expandable up to 2TB
• Back-up critical images to USB media: flash drive, external HDD
• GUI with mouse navigation for easy set-up and programming
Connectivity
• LOREX Instant Mobile Viewing on iPhone™, Blackberry™, Windows® Mobile and other
compatible 3G smart phones†
• Exclusive LOREX Easy Connect Internet Set-up Wizard (2)
• PC (Microsoft Windows™ 7/Vista/XP compatible) using Internet Explorer® browser
• Apple Mac compatible (3) using the Safari browser for selectable single channel live viewing
• Free LOREX DDNS (Dynamic Domain Name Service) for advanced remote connectivity at all
times
• Instant email alerts
1.
2.
3.
4.
Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene. Storage
calculator included on your CD.
Requires a high speed internet connection and UPNP (Universal Plug & Play) router - not included.
Apple MAC compatible using Safari Web browser for selectable single channel live viewing.
Always use discretion when installing video and/or audio surveillance equipment especially when there is perceived privacy.
Inquire regarding federal, state and/or local regulations applicable to the lawful installation of video and or audio recording
or surveillance. Party consent may be required.
†Instant Mobile Viewing on Blackberry™, iPhone™ or Windows Mobile™ 6.0 and above: selectable one channel live viewing. Mobile
phone data plan is required (not included). Router port-forwarding required. For the latest smart phone compatibility list check
www.lorextechnology.com Microsoft Windows™ 7, XP™, Vista™ are trademarks of Microsoft Corporation. iPhone is a trademark
of Apple Inc. Blackberry is a trade mark of Research In Motion Ltd. Other trademarks are the property of Lorex Technology Inc. We
reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as
shown. Images are simulated.
xii
GETTING STARTED
The system comes with the following components:
DIGITAL VIDEO RECORDER
POWER CABLE
AND POWER ADAPTER
REMOTE
CONTROL
DVI TO VGA ADAPTER
MOUSE
ETHERNET CABLE
QUICK START GUIDE,
MANUAL, (ELECTRONIC MANUAL CD)
HARD DRIVE SIZE, NUMBER OF CHANNELS, AND CAMERA CONFIGURATION MAY VARY
BY MODEL. PLEASE REFER TO YOUR PACKAGE FOR SPECIFIC CONTENT DETAILS.
CHECK YOUR PACKAGE TO CONFIRM THAT YOU HAVE RECEIVED THE COMPLETE SYSTEM,
INCLUDING ALL COMPONENTS SHOWN ABOVE.
1
BASIC SETUP
Power Connection
BNC Camera connection
DVI Connection
USB Mouse connection
PAL/NTSC Switch
Ethernet Port
1. CONNECT THE BNC CAMERAS
• Connect the BNC cameras to the BNC ports on the rear panel of the system.
BNC Port
2. CONNECT THE MOUSE
• Connect a USB mouse to the USB port on the rear panel of the system.
USB Port
3. CONNECT THE ETHERNET CABLE
• Connect the ethernet cable to the ethernet port on the rear panel of the system.
Ethernet Port
2
4. CONNECT A DVI DISPLAY
• Connect a DVI display to the DVI port. Use a DVI to VGA converter for VGA displays.
DVI Port
5. CONNECT THE POWER ADAPTER
• Connect the power adapter to the system. Connect the end of the power adapter to a wall
socket or a surge protector.
DC12V Port
6. VERIFY CAMERA IMAGE
• Verify camera video quality before mounting the cameras to a permanent location.
• If your region uses PAL output, use the PAL/NTSC switch on the rear panel of the system to
change your region’s display mode.
7. SET THE TIME
• Set the system time for accurate video time stamps. Videos with inacurate times may not be
valid as surveillance evidence.
• For details on setting the time, see “Setting the Time” on page 25.
The Default System Password is: 1234
3
Connecting The Cameras
CONNECTING THE CAMERAS
Before you mount the cameras, test to ensure the cameras have no problems. Plan where you will
route the wiring for the camera, and where you will aim the camera.
Installation Tips
1.
2.
3.
4.
5.
Mount the camera where the lenses are away from direct and intense sunlight.
Plan your cable wiring so that it does not interfere with power lines or telephone lines.
Ensure that the camera wiring is not exposed, or easily cut.
Adjust the camera angle so that it covers an area with high traffic.
In "high-risk" locations, have multiple cameras point in the same area. This provides camera
redundancy if a camera malfunctions, or if a vandal attempts to damage the camera.
6. Mount the camera in an area that is visible, but out of reach.
CAMERA STAND INSTALLATION
1. Mount the camera stand to the desired mounting surface. Choose a firm mounting surface.
NOTE: If you wish to mount the camera stand to drywall, it is recommended to use drywall plugs
(not included).
2. Attach the camera to the stand.
Secure to camera thread
Top thread
(Ceiling mount, Wall mount)
Bottom thread
(Table mount)
*Camera model not be exactly as shown.
Figure 1.0 Camera stand installation.
NOTE: There are two connection points for certain cameras. Secure the stand to the top thread
for wall-mounts or ceiling mounts. Secure the stand to the bottom thread for table-mounts or
wall mounts.
Table Mount
Wall Mount
Figure 1.1 Camera mounting options. Camera model not be exactly as shown.
4
Ceiling Mount
Connecting BNC Cameras
To install BNC cameras to your system:
1. Connect the male power connector on the BNC extension cable to the female power
connector on the camera.
• Connect the BNC connector to the camera.
2. Connect the female power connector on the BNC extension cable to the power adapter.
• Connect the BNC connector to the BNC port on the system.
3. Plug the power adapter to a power outlet.
Digital Video Recorder
BNC Extension cable
Male power connector
Female power connector
Figure 1.2 BNC camera connectivity diagram.
Connecting and Removing BNC cables
BNC (Bayonet Nut Connector) is a special connector that locks on to the system port, and cannot
be accidently removed.
To connect or remove a BNC connector:
• Push the BNC connector firmly into the BNC port and simultaneously twist the connector
clockwise to tighten.
• To remove a BNC connector from a BNC port, push and simultaneously twist the connector
counter-clockwise to loosen the BNC connector.
5
FRONT PANEL
6
1
2
3
4
7
8
9
10
5
11
Figure 1.3 Front system panel.
1.
2.
3.
4.
5.
6.
7.
Power: Shuts down the system.
Display: Switches viewing mode between single-channel, quad mode, and sequence mode.
Search: Opens the video search menu.
Menu: Opens the quick menu.
Enter: Confirms selections in the menu.
USB Port: Reads USB memory keys for firmware upgrades.
REWIND: During video playback, press rewind to view video in reverse playback (-1x,- 2x, -4x,
-8x, -16x, -32x and -64x).
8. PLAY/PAUSE: During video playback, press pause/play to stop or resume video playback.
9. FAST FORWARD: During video playback, press fast forward to view video in forward playback
(1x, 2x, 4x, 8x, 16x, 32x and 64x).
10. RETURN (
): Exits the screen selection.
11. Direction Pad: Use the direction pad to navigate the system menus.
6
Rear Panel
REAR PANEL
1
2
3
4
5
6
7
8
9
10
11
Figure 1.4 Rear system panel (4-channel model shown).
1.
DC 12V: Port for 12V power cable (included).
2.
ETHERNET PORT: Connect an Ethernet cable to connect the system to a router or switch (not
included).
3.
VIDEO IN : Camera input ports for BNC cameras; (4-channel configuration shown).
4.
MONITOR: BNC output (top) to connect the system to a secondary monitor or DVR.
5.
SPOT OUT: Spot Monitor output (bottom). Spot monitor only displays a single channel of a camera and
does not display system menus.
6.
DVI: DVI output to connect the system to a DVI monitor (not included). Use a DVI to VGA adapter (not
included) to connect a VGA monitor to the system.
7.
USB port: Connect a USB mouse to navigate the system.
8. AUDIO IN: Connect one audio input device (i.e. amplafied microphone, not included).
9.
AUDIO OUT: Connect a single audio output (i.e. speakers, not included).
10. ALARM Block: Connect external alarm, motion devices , or a PTZ (Pan Tilt Zoom) camera to the
system (not included).
11. PAL / NTSC : Switch between PAL and NTSC video output.
Keep the exaust fan on the side
panel clear for proper ventilation.
Inadequate ventilation causes the
unit to overheat.
7
Control Devices
Audio buttons:
• + / - : Not in use.
• AUDIO: Not in use.
7. Mode buttons:
• P/T/Z (Pan, Tilt, Zoom): Press to open the
PTZ control menu (on channels with PTZ
cameras only, not included).
• KEYLOCK: Press to open the Log Off window.
• SEQUENCE: Press to start/stop Auto
Sequence mode.
• ZOOM: N/A
8. ARCHIVE: Press to open the Archive menu.
6.
CONTROL DEVICES
Remote Control
1.
POWER: Press to power the system ON/OFF
(password required).
2.
System Mode buttons:
• MODE: N/A.
• SETUP: Opens the DVR Setup menu.
• ID: Press to select the DVR ID (to control
multiple DVRs with a single remote).
• F1: Opens the System Information window.
• F2: N/A.
• F3: N/A
• REC START: Starts panic recording.
3.
About the ID button: Changes the ID for the
remote control to match the System ID (if
changed). Exit to the main viewing screen, and
press the ID button twice to open the REMOTE
ID window. Press the number keys on the remote
to assign the remote an ID and then press the
ENTER key.
Navigation / Menu buttons:
• ENTER
selections.
2
3
4
5
: Press to confirm menu options/
: Press to cancel/deselect
• RETURN
previous screen.
• S: Press to move cursor up; increase values in
certain menu options.
• T: Press to move cursor down; decrease values
in certain menu options.
• W: Press to move cursor left.
• X: Press to move cursor right.
• : Press to pause playback.
• : Press to increase reverse playback speed
1X, 2X, 4X, 8X,16X, 32X, and 64X.
• : Press to increase forward playback speed
1X, 2X, 4X, 8X, 16X, 32X, and 64X.
4. MENU/ SEARCH / DISPLAY buttons:
• MENU: Opens the Quick Menu.
• SEARCH: Opens the system search menu.
• DISPLAY: Switches between single channel and
4-channel view.
5. Channel buttons: Press to view individual
channels in full-screen; press to input
passwords; when entering camera titles, press
for alpha-numeric characters.
8
1
7
6
Figure 2.0 Remote Control.
System Navigation
SYSTEM NAVIGATION
Mouse Control
The mouse is an optional control device for the system.
To connect a USB mouse:
• Connect a USB mouse to the USB port on the front panel
NOTE: If using a PS/2 mouse (not included), a PS/2-to-USB
adapter (not included) is required
1.
Left-Button: While in a split-screen display mode,
double-click an individual channel to view it in full-screen;
double-click again to return to the split-screen display mode.
While navigating menus, click to select a menu option.
2.
Right-Button: Right-click anywhere on the screen to open the
Quick Menu.
Scroll-Wheel: N/A
3.
1
2
3
Figure 2.1Mouse buttons
Remote Control Navigation
When navigating the menus using the remote
control, perform the following:
• Press the STWX buttons to move the
on-screen cursor
) to select an
• Press the ENTER button (
option
) to de-select
• Press the RETURN button (
the option
F1 button
Quickly Access System Information
• To access vital system information such as
your system’s MAC address and IP address,
press F1 on your remote.
Return button
Enter button
Figure 2.2 Accessing system information using the remote.
9
Using the System
USING THE SYSTEM
Once the system is properly connected, you may power on your system and log in.
Powering on/off The System
To power on the system:
1. Connect the DC12V power adapter to the rear panel of the system.
2. Press the POWER button on the front panel.
• The system powers on.
• Wait for the system to boot up into the main screen.
To power off the system:
1. Press the POWER button on the front panel of the system.
• A confirmation window opens.
2. Click YES to shut down the system.
or
1. Right-click anywhere on the screen.
• The Quick Menu opens.
2. Click SHUTDOWN.
• A confirmation window opens.
3. Click YES to shut down the system.
Right-click to open the Quick Menu.
Click SHUTDOWN.
Figure 3.0 Powering off the system.
It is recommended to plug your system into a backup power
supply (not included). Backup power supplies provide power
to your system and cameras in case of an electrical outtage.
10
Using the System
Logging In To The System
When you power on the system, it performs a hard drive and system integrity check. Wait for the
system to boot into the main viewing window before operating.
Live video channel
Login window
Status bar
Figure 3.1 Main viewing window. (4-channel model shown).
NOTE: By default, the system login window is disabled. To enable password login to your system,
see “Enabling and Disabling The System Password” on page 51.
To log in to the system (if password is enabled):
1. Double-click on the blank PASSWORD field in the Login window.
• A Virtual Keyboard window opens.
Double-click to open Virtual Keyboard
Default System Password:
1234
Figure 3.2 Entering your password into the Virtual Keyboard.
2. Enter 1234 and then click the OK button.
• The Virtual Keyboard closes, and the Login window re-appears.
3. Click OK in the Login window.
11
Using the System
Logging Out Of The System
To log out of the system:
1. Exit to the main viewing window if necessary.
2. Right-click anywhere on the screen.
• The Quick Menu window opens.
3. Click LOGOFF.
• The LOG OFF window opens.
Log Off window
Click LOG OFF
Figure 3.3 Logging off the system.
4. Click
(Log Off).
• A Log off prompt window opens.
5. Click YES to log off the system.
The system disables the Quick Menu options when the system is logged out. You can continue
viewing video streams when the system is logged out.
NOTE: Panic Recording, Sequence and PTZ remains enabled even when the system is logged out.
USING THE VIRTUAL KEYBOARD
Use the Virtual Keyboard to enter passwords and
camera titles on the system.
To use the Virtual Keyboard:
1. Select any desired letter, number, or
character.
2. Press ENTER on the remote control or front
panel to confirm your selection; or click the
ENTER button.
NOTE: Click the "A"(
) button to shift
between upper and lowercase letters.
12
Caps Lock
button
Figure 3.4 Virtual Keyboard.
Using the System
On-Screen Display
By default, the system launches with a live, quad-screen view also called the Main Viewing mode:
C
1
C
2
C
C
3
Figure 3.5 Main viewing mode (4-channel model shown).
1.
Channel Title: Displays the channel number or title.
2.
Recording Status: Different icons represent different recording modes: Continuous, Motion, Panic, and
Alarm.
C
Continuous Recording
M
Motion Recording
P
Panic Recording
A
Alarm Recording
• Continuous Recording records 24 hours a
day.
• Motion Recording records only when the
camera detects movement.
• Panic Recording marks the video as a
’Panic’ event, allowing for easy searchability.
• Alarm Recording marks the video when an
alarm is triggered.
Figure 3.6 Recording Status types.
3.
Status Bar: Displays system time, date, and recording status.
1. Network Icon
2. Year/ Month/ Date/ Time
3. Hard drive
recording mode
4. Hard Drive Storage Indicator
Figure 3.7 System status bar.
13
Using the System
The Status Bar gives you an overview status of the system.
1. Network Status: Shows the status of the network connection. Blue=network connection is
connected; Grey=network connection is not connected.
2. Date & Time: Shows the current date and time on the system.
3. HDD Status: "OW" indicates disk overwrite is enabled. For details, see “Disk Manage” on
page 56.
4. Hard Drive Storage Indicator: Displays the percentage of the hard drive space used for video
storage.
Changing Display Modes
The system has different display modes as well as an Auto Sequence mode.
Full-Screen
Quad
Auto Sequence
Figure 3.8 Display Viewing modes.
To change display modes:
• Press the DISPLAY button repeatedly until you reach the desired display mode.
USING AUTO SEQUENCE
Auto Sequence allows you to view channels in full-screen in an automatic sequence. In sequence
mode, the screen cycles channels through the channels one channel at a time in full screen view.
To start Auto Sequence:
1. Press the DISPLAY button on the front control panel until the
appears near the top of the screen.
(Auto Sequence) icon
or
1. Right-click anywhere on the screen in the main
viewing window.
• The Quick Menu opens.
2. Click SEQUENCE.
Sequence button
NOTE: You must exit from system setup menus
before enabling Auto Sequence.
To customize the duration of the sequence, see
“Monitor Tab” on page 38.
Figure 3.9 Enabling Auto Sequence.
14
Quick Menu
The Quick Menu gives you an overview of all the
available settings on your DVR.
Quick Menu
To open Quick Menu:
1. Right-click anywhere on the screen in the
main viewing window.
NOTE: If you are configuring the system, you
cannot open Quick Menu.
or
1. Press the MENU button on the front panel.
Figure 4.0 Opening Quick Menu in the main viewing window.
Understanding the Quick Menu
Configure system Display, Camera,
Sound, and system settings.
Configure recording type
(continuous, motion, alarm),
and camera resolution settings.
Mark a live event as a "Panic"
recording. This allows you to search
and watch "Panic" events only.
View live video in sequence mode.
Opens the PTZ (Pan, Tilt, Zoom)
menu for PTZ enabled cameras
(not included).
Search for archived videos by time,
or search a video by event.
Backup videos to an external device.
Locks the system.
Power off the system.
Figure 4.1 Understanding the Quick Menu.
15
Using the System
Searching For Video
You can search for videos by time, or search videos by event.
To open the Search menu:
1. Right-click anywhere in the main viewing window to open the Quick Menu.
2. Click the
button
• The Search window opens.
Selection cursor
Time
Month
Year
Play button
Timeline Slider
Event Calendar
Figure 4.2 Search window layout.
SEARCHING FOR VIDEO BY TIME
Searching for video by time is useful if you know the approximate date and time an event occurred.
To search for an event by time:
Selection Cursor
1. Right-click anywhere in the main
viewing window to open the Quick
Menu.
2. Click the
button.
• The Search window opens.
3. In the event calendar, select the Year
and Month using the selection cursors.
4. Click on the date the event occurred.
• The date highlights with an orange box.
16
Figure 4.3 Event Calendar.
5. Double-click on the Hour, Minute and Second the event occurred to enter the time.
• A number window opens each time you double-click on the Hour, Minute and Second.
Time selection
Selection Cursor
Double-click to adjust value
Number window opens
Figure 4.4 Adjusting video search time.
• Enter the desired value and click the OK button to save your settings.
OR
• Drag the Timeline Slider to adjust the
time.
OR
Drag Timeline Slider to adjust the time
Figure 4.5 Adjusting the time using the Timeline Slider
• The video playback screen opens.
17
• Click the hour/minute and then use
the selection cursor to adjust the
values.
6.Click
video.
to view the
Using the System
SEARCHING FOR VIDEO BY EVENT
Searching for video by event allows you to sort video events by category. For example, if you want
to view all the events where the camera detected movement, you can search by motion.
To search a video by event:
1. Right-click anywhere in the main viewing window to open the Quick Menu.
2. Click the
button.
• The Search window opens.
3. Click the SEARCH BY EVENT tab.
• The Search By Event window opens.
Select date and
time range
Select event type
Select
channel(s)
Click Start to begin
search
Click to view the next
page of the log
Figure 4.6 Search by Event window.
4. Under SEARCH BY TIME, select the date and time range the event occurred.
• Click on the Hour, Month, Year, Time, and then use the ST(selection cursors) to adjust the
values.
OR
• Double-click on the Hour, Month, Year, time to use the number window to enter the value.
5. Select the channel you wish to search under (Channels 1~4)
6. Under SEARCH BY EVENT, select the type of event you wish to search for.
• Search by: Alarm, Motion, Continuous, Other.
7. Click
to begin video search.
• The event types populate in the Log.
8. Double-click on the date or time of the event to begin playback.
Double-click date or time to begin video playback
Figure 4.7 Starting video playback.
18
Using the System
VIDEO PLAYBACK CONTROLS
The video playback controls allows you to navigate through the video. The playback window opens
after you START or PLAY in the Search menu.
1
2
8
3
4
5
9
6
7
10
Figure 4.8 Video playback controls.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Channel List: Click to adjust playback view (single-channel view, or Quad view).
Increase Reverse Playback Speed: Speed up reverse playback.
Reverse Playback: Watch video backward.
Play/Pause: Click once to play. Click again to pause.
Forward playback: Watch video forward in normal speed (1x).
Increase Forward Playback Speed: Fast forward video playback.
Exit video playback: Exits the playback screen and returns to main system view.
Date: Displayed as Year, Month, Date by default.
Video Timeline: Displays the current time of the event being played.
Video Playback Speed Indicator: Displays forward and reverse playback speed.
19
Archiving VIdeo
ARCHIVING VIDEO
The system allows you to archive your videos onto external media such as a USB memory stick,
or an external hard drive.
Hardware required:
• A blank USB memory key (2 Gigabytes and up recommended) or an external USB hard drive
To back up video onto an external device:
1. Insert a blank USB memory key or USB hard drive into the USB port on the front panel of the
system.
2. Right-click anywhere in the main viewing window to open the Quick Menu.
3. Click
.
• The Archiving window opens.
Select date and time
range.
Preview button
Select channel(s) to
back up.
Select whether you
want the backup to
include audio or a
system log.
Select backup
device.
Click START to
begin backup.
Select backup mode.
Figure 5.0 Archiving menu.
4. Beside the FROM and TO fields, select the Year, Month, Date, Time you wish to back up.
• Click on the desired value and use the
buttons to adjust the values.
OR
• Double-click on the Year, Month, Date, Time to use the number window to enter the value.
5. Beside CH1, CH2, CH3, CH4, select the channels you wish to back up.
6. Beside the Include Audio and Include Log checkbox, select whether you want the back up to
include audio or a system log.
buttons.
7. Beside DEVICE, select the back up device using the
8. Beside MODE, select ERASING & BURNING to format the USB memory key before backing up
the video contents.
• Select BURNING to back up the video onto the USB memory key.
9. Click START to begin video back up.
20
Archiving VIdeo
Viewing Archived Video
Once you have backed up video onto your USB memory key or USB hard drive, you can view the
video on your PC. The system includes a proprietary video player called Backup Player. Use
Backup Player to play video archived video from your USB device.
Prerequisites:
• A free USB port
To view archived video from your USB memory key / USB hard drive:
1. Insert the USB memory key or USB hard drive into the computer’s USB port.
USB drive contents
Click "Open folder to view files"
Figure 5.1 AutoPlay window in Windows Vista/7.
2. Browse your system for your USB device.
• On Windows XP: Double-click My Computer and then double-click the Removable Disk
directory (or the name of your USB hard drive).
• On Windows Vista/7: An autoplay window pops-up. Click "Open folder to view files" to browse
your USB device
3. Double-click the folder named ARCHIVE _XXXXXX_XXXXXX (where X is the date, year, time)
in the USB memory key/hard drive directory.
Figure 5.2 USB device directory.
21
4. Double-click on setup.exe to install the video codec.
• Follow the on-screen instructions and install the video codec.
USB Folder Contents:
• bplayer (Backup Player): Proprietary video player.
• setup.exe: Video codec required to watch the video.
• arch_info.txt: A technical log of the archived video.
• AVI video file: Shown as "Ch01_XXXX .....", where CH01 is
dependant on what channel you chose to back up.
• Log file: Displays what time the archive was made, and by
which user.
Figure 5.3 Backup Player contents.
5. Double-click on bplayer.exe to start the video player.
• The Backup Player opens.
Screen Capture
button
Main video window
Browse button
Video Playback Controls
Print Button
Figure 5.4 Backup Player interface.
22
Archiving VIdeo
6. Click the Browse button on the bottom-right hand corner of the screen (Figure 5.4).
• An "Open" window appears.
7. Double-click on the video file.
• A Watermark notification window opens.
8. Click YES to begin video playback.
NOTE: By default, the "Open" window automatically opens in the same directory where the video
file is located. If this is not the case, manually browse for your video file.
Backup Player Playback Controls
Video Playback Controls
Browse button
Speed Slider
Print button
Playback Time
Figure 5.5 Backup Player Controls.
• In the Playback Time display, you can manually enter the time you wish to jump to.
• Use the Print button to print a screen capture of the current video being played. Stop the video
before pressing the Print button.
• Click the Screen Capture button on the top-left corner of the player to print a BMP (bitmap)
or JPG (Jpeg) image.
Panic Recording
Panic recording tags the video as a "Panic" recording, and records video with the highest quality
settings. Tagging a video as "Panic" allows you to search for the video as a Panic recording.
To start Panic recording using the mouse:
1. Right-click anywhere on in the main viewing
window to open the quick menu.
2. Click REC START. The recording icon on the
top-right corner of the channel changes to P
(Panic).
3. To exit Panic recording, right-click to open the
quick menu and click REC START to stop panic
recording.
P
Panic Recording
Indicator
Figure 5.6 Panic Recording.
23
Archiving VIdeo
To start Panic recording using the remote:
1. Press the REC START button in viewing
mode (must exit from all system menus).
2. Press the REC START button again to stop
panic recording.
Searching for Panic Recording Video
Once you have "bookmarked" panic events,
you can search your video archive for "panic"
video events.
REC START (Panic) button
Figure 5.7 Triggering panic recording using the remote.
To search for Panic Recording Video:
1. Right-click anywhere in the main viewing window to open the Quick Menu.
2. Click the
button.
• The Search window opens.
3. Click the SEARCH BY EVENT tab.
• The Search By Event window opens.
Panic event
Figure 5.8 Search menu populating a panic event in the log list.
4. Double-click on the field that shows a "panic" recording to begin playback.
24
Setting the Time
SETTING THE TIME
Set the time before recording. Inaccurate time stamps on videos reduces the effectiveness of the
surveillance video as evidence. The time can be synchronized to a Network Time Server, or can be
set manually.
To set the date and time:
1. Right-click anywhere on in the main viewing window to open the quick menu.
2. Click
.
• The System Setup window opens.
SYSTEM button
Figure 6.0 System Setup Menu.
3. Click
(System).
• The System window opens.
4. Beside DATE TIME, click on the time (yyyy/mm/dd; hh/
mm/ss) and adjust the values using the
buttons.
OR
• Double-click the values to open the number window to
input the values.
5. Beside DATE FORMAT, use the
the date format.
6. Click APPLY to save your settings.
button to adjust
ATTENTION
If the saved time is earlier
than the current time on
the system, you will be
warned that overlapped
data will be erased.
Click YES to accept the
changes. Please allow a
few moments for the
overlapped video data to
be deleted.
Automatic Time Synchronization
• Click the
button to synchronize your time with a time server. You must connect
the system to the internet to synchronize your system time.
Daylight Savings Time
• To enable daylight savings, under D.S.T, select ON using the
button and then click APPLY.
25
Recording
RECORDING
By default, the system is set to record continuously at startup from any connected cameras. It is
highly recommended to keep continuous recording on at all times.
The system can perform Continuous Recording, Motion Recording, Alarm Recording, and Panic
Recording. You can set a customized daily or weekly recording schedule using these recording
modes. For details, see “Configuring Recording Settings” on page 28.
Continuous Recording
By default, all camera channels are enabled with continuous recording. During Continuous
Recording, the letter "C" appears in the top-right corner of each channel.
C
Figure 6.1 Continuous Recording.
Motion Recording
The system will only record when motion is detected by a camera. When Motion Recording is
enabled, an "M" in the top-right corner of every channel indicates the system is recording. You can
set the pre and post recording time in the Recording Operations menu.
For details, see “Configuring Recording Modes (Simple Recording)” on page 29.
M
Figure 6.2 Motion Recording icons (inactive and active)
26
Recording
Alarm Recording
When an alarm input is triggered, the system continues to record, but can apply unique recording
parameters that you can set in the Alarm menu. You can also set the system to activate an alarm
output. For example, if a window sensor (not included) connected to the alarm input block on the
rear panel is triggered, the system begins alarm recording. The system simultaneously activates
an external siren (not included) connected to the alarm output block on the rear panel.
For details, see “Alarm Input” on page 53.
Panic Recording
Press the REC START button on the remote control or right-click in the main viewing window, and
click on REC START. Panic Recording features the highest quality recording parameters available
on the system. A "P" appears in the top-right corner during Panic Recording. For details on
enabling Panic recording, see “Panic Recording” on page 27.
P
Figure 6.3 Panic Recording icon (top-right corner)
Recording Audio
The system can record one channel of audio. You must have an audio enabled camera or
self-powered microphone connected to the system to use this function (not included). You can
enable/disable audio recording in the Continuous/Motion Recording menu. For details, see
“Sound” on page 43.
27
Configuring Recording Settings
CONFIGURING RECORDING SETTINGS
To access Record Setup menu:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
Quick Menu
Figure 7.0 Opening the Quick Menu.
2. Click
.
• The Record Setup menu opens.
Record Setup Button
Record Setup Menu
Figure 7.1 Opening the Record Setup window.
ADJUSTING PRE & POST EVENT RECORDING TIME
After an event occurs in the system, such as a motion event, you can configure how many seconds
before and after the system continues to record.
To configure Pre Event and Post Event recording time:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The Record Setup menu opens.
28
Configuring Recording Settings
3. Beside PRE EVENT RECORDING TIME, use the
recording time in seconds (1~5 seconds).
4. Beside POST EVENT RECORDING TIME, use the
recording time in seconds (5~180 seconds).
5. Click
buttons to adjust the pre-event
buttons to adjust the post-event
to save your settings.
CONFIGURING RECORDING MODES (SIMPLE RECORDING)
You can customize what time the system records in Contiuous, Motion or Alarm mode.
• Continuous recording mode sets the system to record in a loop, regardless if the camera
captures any movement.
• Motion recording only records when the camera detects movement.
• Alarm recording marks the video as an "Alarm" event when an external sensor (not included)
connected to the alarm block in the system is triggered.
To configure the type of recording mode during a particular time:
Enable Simple Recording Mode
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The Record Setup menu opens.
Select SIMPLE (default)
Simple Recording Tab
Figure 7.2 Enabling Simple Recording mode.
3. Beside RECORDING MODE, select SIMPLE (default) using the
4. Click
buttons.
to save your settings.
29
Configuring Recording Settings
Configure Recording Quality, Screen Resolution and Frame Rate
1. Click the SIMPLE RECORDING tab on the left.
• The Simple Recording window opens.
Recording quality
Screen Resolution
Video Frame Rate
Recording Schedule
Figure 7.3 Record Setup - Simple Recoring mode.
2. Beside RECORD QUALITY, select the video recording quality (Low, Standard, High, Highest)
using the
buttons .
3. Beside RECORD SIZE, select the video resolution that the camera records at using the
buttons.
• Recording resolutions: 352 x 240 at 30 FPS / 704 x 240 at 15 FPS / 704 x 480 at 7 FPS /
4. Beside FPS, select the video frame rate of the cameras using the
buttons.
NOTE: The recording settings applied in steps 2 to 4 are global and apply to all of the cameras.
To configure each camera individually, you must switch the recording setup to Advanced
Recording. For details, see “Configuring Recording Modes (Advanced Recording)” on page 31.
Configure Recording Schedule
1. Drag the mouse cursor in the Recording Schedule to select the duration you wish to enable a
recording type.
Drag the mouse cursor to select recording duration
Figure 7.4 Configuring recording schedule duration.
30
Configuring Recording Settings
• A Recording Type pop-up opens.
2.Select the type of recording you want to
enable (Continuous, Motion, Alarm).
3.Click OK to save your settings.
Scheduling Tips
Figure 7.5 Recording pop-up menu.
• Customize the recording schedule
according to foot traffic in a particular area.
For example, if you monitor a vacant parking
lot with light traffic, consider setting Motion
recording. This reduces video storage
space, and enables the camera to only
record when there is movement.
• Customize the recording schedule of when it is busiest. For example, you may only want
Continuous recording during the day to monitor a high traffic area.
CONFIGURING RECORDING MODES (ADVANCED RECORDING)
Advanced Recording allows you to customize how the camera records depending on the time of
day. For example, you can have Camera 1 record at a higher resolution during the day, and record
at a lower resolution at night. You can also configure the type of recording each camera will record
at depending on the time of day. You can schedule the Advanced Recording mode to Daily or
Weekly.
Daily recording settings apply the same recording settings to all 7 days of the week. Weekly
recording settings are customizable for each day of the week.
To configure Advanced Recording mode:
Enable Advanced Recording
1. Right-click anywhere in the main
viewing window.
• The quick-menu opens.
2. Click
.
• The Record Setup menu opens.
3. Beside RECORDING MODE, select
Select ADVANCED
ADVANCED using the
buttons.
4. Click
to save your
Figure 7.6 Enabling Simple Recording mode.
settings.
• The SCHEDULE MODE option is now enabled. For details on configuring Weekly Schedule
mode, see “Customizing Recording Type (Weekly mode)” on page 35.
31
• The ADVANCED RECORDING tab appears on the left.
Advanced
Recording Tab
Customizable to Weekly or Daily
Figure 7.7 Enabling Advanced Recording.
5. Click the ADVANCED RECORDING tab on the left.
• The Advanced Recording Menu opens.
Recording Timeline
Figure 7.8 Customizing recording quality.
Customize Recording Quality
You can customize the recording quality depending on the hour of the day. For example, you may
want your cameras to record at the highest quality between 9:00am and 4:00pm, and reduce the
video quality after 4:00pm to conserve storage space.
To customize video recording quality:
1. Drag your mouse cursor across the Recording Timeline (Figure X) and select the desired hour
you wish to customize the recording quality.
32
Configuring Recording Settings
• A Recording Quality window opens.
Recording Quality window
Frame rate indicator
Figure 7.9 Configuring recording quality.
2. For each camera, customize the following using the
buttons:
• Size: Customize the video resolution
• FPS (Frames Per Second): Adjust the video frame rate. Higher frame rates yield smoother
video, but increase file sizes.
NOTE: The Frame rate indicator displays the remaining frames that you can allocate to the
cameras.
• Quality: Adjust video quality. Higher video quality yields higher quality video images, but
increase file sizes.
• Audio: Enable or disable audio (audio capable cameras only).
• Alarm: Enable or Disable external alarm devices (not included).
3. Click OK to save your settings. Repeat as necessary for different times.
33
Configuring Recording Settings
Customizing Recording Type (Daily mode)
After you customize each camera’s recording quality, you must assign each camera’s recording
type. For example, you may want Camera 1 to record with Continuous recording between 9:00 am
until 11:00 am. Then you may want Camera 1 to record with Motion recording between 11:30 am
until 3:00 pm.
To customize the camera’s recording type in Daily mode:
1. Click the ACTIVATION tab.
• The Activation tab opens.
Camera Schedule
Figure 7.10 Customizing camera recording type (Daily mode).
2. Drag the mouse cursor in the Camera Schedule to select the time range you want a
particular recording event to take place.
• A Recording pop-up window opens.
Figure 7.11 Recording pop-up menu.
3. Select the recording type (Continuous, Motion, Alarm) and then click OK.
4. Click
to save your settings.
5. Repeat the process as needed.
34
Configuring Recording Settings
Customizing Recording Type (Weekly mode)
To customize the camera’s recording type in Weekly mode:
1. Click the RECORDING OPERATIONS tab on the left.
2. Beside RECORDING MODE, select ADVANCED using the
3. Beside SCHEDULE MODE, select WEEKLY using the
buttons.
buttons.
4. Click
to save your settings.
5. Click the ADVANCED RECORDING tab on the left.
6. Click the ACTIVATION tab.
• The Activation tab opens.
Activation Tab
Date selection box
Camera Schedule
Figure 7.12 Customizing camera recording type (Weekly mode).
7. In the Date selection box, select the day you wish to apply the settings to.
8. Drag the mouse cursor in the Camera Schedule to select the time range you want a
particular recording event to take place.
• A Recording pop-up window opens.
Figure 7.13 Recording pop-up menu.
9. Select the recording type (Continuous, Motion, Alarm) and then click OK.
10. Click
to save your settings.
11. Repeat the process as needed.
35
Configuring Recording Settings
CONFIGURING PANIC RECORDING
Panic recording allows the camera to switch into "panic" mode, and mark the video as a panic
event. When a camera is in panic mode, it automatically adjusts its recording parameters, and
records at a higher video quality. You can customize the recording quality of your camera in panic
recording to suit your preferences.
To configure Manual Recording settings:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The Record Setup menu opens.
3. Click the PANIC RECORDING tab on the left.
4. The Panic Recording menu opens.
Panic Recording tab
Frame rate indicator
Figure 7.14 Configuring Manual Recording settings.
5. For each camera, customize the following using the
buttons:
• Size: Customize the video resolution
• FPS (Frames Per Second): Adjust the video frame rate. Higher frame rates yield smoother
video, but increase file sizes.
NOTE: The Frame rate indicator displays the remaining frames that you can allocate to the
cameras.
• Quality: Adjust video quality. Higher video quality yields higher quality video images, but
increase file sizes.
• Audio: Enable or disable audio in panic recording mode (audio capable cameras only, not
included).
• Panic Recording Time: Adjust the maximum duration of panic recording.
6. Click APPLY to save your settings.
36
Configuring System Setup
CONFIGURING SYSTEM SETUP
System setup allows you to configure the system’s Display, Camera, Sound, System, Sensor,
Network and Hard Drive recording settings.
To open the System Setup menu:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
System Setup button
Figure 8.0 Activating quick menu.
2. Click
.
• The System Setup menu opens.
Figure 8.1 System Setup menu.
System Setup Overview
• Display: Configure system OSD (On-screen display), language, and display options.
• Camera: Configure camera color adjustments, PTZ Camera settings, and motion sensor
settings.
• Sound: Configure system buzzer and live audio from audio-enabled cameras (not included).
• System: Configure Network, User management
• Event/Sensor: Configure external alarm sensor devices (not included) and system notification
settings.
• Disk Manage: Configure hard drive recording and formatting settings.
37
Configuring System Setup
DISPLAY
The Display tab configures the system OSD
(On-screen display), language and display
options.
To open the Display menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click DISPLAY.
• The Display menu opens.
• EVENT ICON: Toggle ON/OFF to enable or
disable the recording icon of the system on
the top-right corner of the channel.
• BORDER: Toggle ON/OFF to enable or
disable the black border around the
channels.
• Beside LANGUAGE, use the
buttons
to change the system language.
2. Click APPLY to save your settings.
MONITOR TAB
Changing Motion , Alarm Pop-up, Spot
and Sequence settings:
1. Click The MONITOR tab on the left.
• The Monitor tab opens.
Monitor tab
OSD tab
Figure 9.1 Display Monitor setting window.
Figure 9.0 Display OSD setting window.
OSD TAB
Changing OSD (On Screen Display)
options:
1. Configure the following using the
buttons:
• STATUS BAR: Toggle ON/OFF to enable or
disable the system status bar.
• CAMERA TITLE: Toggle ON/OFF to enable
or disable the camera title on the top-left
corner of the channel.
38
1. Configure the following using the
buttons:
• SEQUENCE DWELL: Adjust the duration of
how long the a channel remains on screen
in Sequence mode.
• SPOT OUT DWELL: Adjust the duration of
how long the channel remains on screen in
Spot Out mode.
• DEINTERLACE MODE: Deinterlace mode
increases image sharpness. Turn on/off to
enable or disable.
• ALARM POP-UP MODE: If Alarm Pop-Up
mode is enabled, the channel
Configuring System Setup
automatically displays in full screen when
an alarm event is triggered.
• ALARM POP-UP DWELL: Adjust the
duration that the Alarm-pop-up channel
remains on screen.
• MOTION POP-UP MODE: If Motion
Pop-Up-Mode is enabled, the channel with
motion detected displays in full screen.
• MOTION POP-UP DWELL: Adjust the
duration the Alarm-Pop-Up window
remains on screen.
2. Click APPLY to save your settings.
39
Configuring System Setup
CAMERA
Use the Camera menu to configure
camera title, color, PTZ and motion
settings.
To open the Camera menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click CAMERA.
• The Camera setup window opens.
• If ON, the channel will appear blacked out
on-screen, but the system will actually be
recording.
2. Click APPLY to save your settings.
COLOR SETUP TAB
Adjusting Camera Brightness and Color
To adjust camera color settings:
1. Click the COLOR SETUP tab on the left.
• The Color Setup tab opens.
Color Setup tab
Figure 10.1 Color Setup menu.
Camera Title tab
2. Double-click on the value you wish to
adjust in the desired channel.
• The channel opens in full-screen with a
color-configuration bar near the bottom of
the window.
Figure 10.0 Camera Setup menu.
CAMERA TITLE TAB
Changing the Camera Title
To change a camera title:
1. Under TITLE, double-click the field to open
the Virtual Keyboard.
2. Enter a title for the camera (up to eleven
alphanumeric characters), and click OK.
The Virtual Keyboard closes.
3. Click APPLY to save your settings.
To enable/disable covert camera:
40
Close button
Figure 10.2 Color Configuration bar.
3. Click
to adjust the Brightness,
Contrast, Tint and Color Values.
Enabling Covert Mode
1. Under COVERT, click
covert mode.
Channel number
to turn ON/OFF
4. Beside
, click
change the camera channel.
5. Click the Close button (
save your settings.
to
) to exit and
Configuring System Setup
PTZ SETUP TAB
• Baud Rate choices: 9600 (default),19200,
38400, 57600, 115200, 230400, 1200, 2400
or 4800,
PTZ Setup
Use the PTZ Setup menu to configure any
connected PTZ cameras (not included).
5. Click
window.
to open the PTZ property
NOTE: Make sure your PTZ camera is
properly connected to the system prior to
configuring PTZ options. Please refer to
your PTZ camera’s instruction manual to
determine the correct settings for your PTZ
camera.
To configure PTZ settings:
1. Click the PTZ SETUP tab on the left.
• The PTZ Setup tab opens.
Figure 10.4 PTZ property window.
6. In the PTZ Property window, click
to
configure the following PTZ properties:
• Channel Number
• Auto Focus
• Auto Iris
• P/T (pan / tilt) speed
7. Click OK to save your settings.
PTZ Setup tab
PTZ Property button
Figure 10.3 PTZ Setup menu.
2. Under ADDRESS, select a channel and
click
; select the PTZ address
(1~255).
3. Under PROTOCOL, select the PTZ protocol
using the
button.
• Protocol types: PelcoD, PelcoP
MESA-DOME, D-MAX, Ganz PT ,FastraxII
2, SCC_641, SCC_643a, Spd_3300, Multix,
MRX_1000, Panisonic WV-CS850,
Panisonic WV-csr-604, PTC-400c,
PTC-200, LPT-A100L
4. Under BAUD RATE, click
desired baud rate.
to select
41
Configuring System Setup
MOTION SENSOR TAB
• A grid selection menu opens.
Configuring Motion Sensor Sensitivity
Use the Motion Sensor menu to configure
motion detection settings for each camera.
To configure motion settings:
1. Click the MOTION SENSOR tab on the left.
• The Motion Sensor tab opens.
Figure 10.7 Grid selection menu.
6. Click SAVE & EXIT to save your changes
OR
• Click SELECT ALL to select the entire grid
and then click SAVE & EXIT.
• Click DESELECT ALL to clear the grid and
then click SAVE & EXIT.
7. Repeat for the remaining channels.
Motion Sensor tab
Figure 10.5 Motion Sensor menu
2. Under SENSITIVITY, click
to adjust
the sensitivity level for the desired
channel.
• The higher the number, the greater the
sensitivity.
3. Click the AREA button.
• The Motion Area Grid opens.
4. Drag the mouse cursor to select the area
that you want to monitor for motion.
Figure 10.6 Motion Grid.
5. Right-click anywhere on the screen.
42
CAMERA MODE TAB
The camera mode tab allows you to enable/
disable Camera Line Lock. Select ON or OFF to
enable or disable camera line lock.
NOTE: Camera Line Lock is an optional
setting for line-lock cameras. You do not
have to enable Camera Line Lock for your
camera to view or record.
Configuring System Setup
SOUND
Configure live audio, network
audio, and buzzer settings.
NOTE: You must use audio-capable cameras
(not included) for live audio to transmit from
the camera to the system.
2. Beside NETWORK AUDIO TX
NOTE: Audio-capable cameras or
self-powered microphones (not included)
must be connected to the system in order
to use listen-in audio (live audio
monitoring).
Use the audio menu to configure live audio and
network audio settings.
To open the Sound menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click SOUND.
• The Sound setup window opens.
(transmit),click
to select ON to
enable network audio transmission.
3. Beside NETWORK AUDIO RX (receive),
select ON to enable the system to receive
audio from the cameras.
4. Click APPLY to save your settings.
BUZZER TAB
Disabling System ’Beeps’
To disable the system ’beeps’:
1. Click the BUZZER tab on the left.
• The Buzzer menu opens.
Buzzer tab
Figure 11.1 Buzzer Menu.
Audio tab
Figure 11.0 Audio Menu
2. Under KEYPAD, click
to select OFF.
NOTE: Network audio will consume more
bandwidth and may affect the transmission
of the video signal. Enable or disable
network audio based on your network
settings.
3. Under REMOTE CONTROL, click
select OFF.
4. Click APPLY to save your settings.
to
AUDIO TAB
Enabling System Network Audio
1. Beside LIVE AUDIO, click
ON to enable live audio.
to select
43
Configuring System Setup
SYSTEM
2. Enter the desired value and then click OK
to save your settings.
Configure date and time, system
management settings, and control
device options.
Configuring system Date format and
24 HR vs 12HR time notation
To open the System menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click SYSTEM.
• The System setup window opens.
To configure the system date and time format:
1. Beside DATE FORMAT, click
to adjust
the date and time format (ie. Year, Month
Date VS. Month, Date, Year).
2. Beside TIME FORMAT, click
to select
24 hour or 12 hour time notation.
3. Click APPLY to save your settings.
Configuring Time Server
A time server allows the system to sync itself
with a specified server time. This ensures that
your system always has an accurate time.
Date/Time tab
To change the default time server:
1. Under NETWORK TIME SERVER SETUP,
double-click on the field below.
• A virtual keyboard opens.
2. Enter a new time server address.
3. Click OK to save your settings.
4. Click the SYNC button.
• A success message appears.
5. Click APPLY to save your settings.
Figure 12.0 System menu.
DATE/TIME TAB
Enabling/Disabling Daylight Savings Time
To enable/disable daylight savings time (DST):
Configuring system Date and Time
By default, once you open the system menu,
the DATE/TIME menu opens.
To configure the system date and time:
1. Beside DATE TIME, double-click on the
numeric values (Year, month, date).
• A number window opens.
1. Under D.S.T,click
to select ON/OFF
to enable or disable daylight savings time.
2. Click APPLY to save your settings.
Adjusting System Time Zone
To manually adjust the system time zone:
1. Under TIME ZONE SETUP,click
adjust the system time zone.
2. Click APPLY to save your settings.
Figure 12.1 Number window.
44
to
Configuring System Setup
NETWORK TAB
• A DDNS Setup window opens.
To open the Network tab:
1. Click the NETWORK tab on the left.
• The network configuration window opens.
Figure 13.3 DDNS Setup window.
2. Beside DOMAIN NAME, double-click the
blank field.
• The Virtual Keyboard opens.
3. Enter the name of your DDNS address (i.e.
tomsmith).
Network tab
Figure 13.0 System Network tab.
Enabling DDNS & DHCP
You must enable DDNS and and DHCP for
remote connectivity.
To enable DDNS & DHCP:
1. Select the DHCP or DDNS checkbox.
2. Click APPLY to save your settings.
Configuring DDNS Settings
After you have set up your DDNS account, you
must enter your DDNS address into the
system.
Prerequisites: Create a Lorex DDNS account.
For details, see “Setting Up DDNS Service” on
page 106.
To configure DDNS settings in your system:
1. Double-click the field beside DDNS
SERVER.
NOTE: You do not have to enter the entire
domain name in the DOMAIN NAME field.
For example, if your DDNS address is
tomsmith.lorexddns.net, you only have to
enter tomsmith.
4. Beside USER ID, double-click the blank
field.
• The Virtual Keyboard opens.
5. Enter your DDNS login name created
during the DDNS account creation
process.
6. Click OK to save your settings.
7. Beside PASSWORD, double-click the blank
field.
• The Virtual Keyboard opens.
8. Enter the DDNS password that you created
during the DDNS account creation
process.
9. Click OK to save your settings.
NOTE: Your DDNS information is sent to your
e-mail address when you create a DDNS
account. For details, see “Setting Up DDNS
Service” on page 106.
Double-click blank field
After you have entered the required DDNS
information, click the DDNS STATUS button. A
success message appears if DDNS is running
properly.
Figure 13.2 Configuring DDNS settings.
45
Configuring System Setup
Auto Port Forwarding
Configuring System Transmission speed
The LH600 series DVR features a built in
Auto-Port Forwarding function. This allows
you to port forward your UPnP router without
router configuration.
The system transmission speed determines
how fast data transmits from the ethernet
port. By default, the system is set to 8 Mbps
transmission speed.
To configure the system transmission speed:
Auto port forward button
1. Beside MAX TX SPEED, click
to
adjust the maximum data transmission
speed.
2. Click APPLY to save your settings.
MAIL TAB
Double-click field
Figure 13.4 Auto port forwarding.
To port forward a port in your router:
1. Beside RTSP SERVER PORT, double-click
the field.
• A Number window opens.
2. Enter the desired port number (by default,
port 554).
3. Click OK to save your settings
4. Beside RTSP SERVER PORT,click the
AUTO button.
• A success message appears.
5. Beside WEB SERVER PORT, double-click
the field.
• A Number window opens.
6. Enter the desired port number (by default,
port 80)
7. Click OK to save your settings.
8. Beside WEB SERVER PORT, click the
AUTO button.
• A success message appears.
The Mail tab allows you to configure the
system to send e-mail notifications when a
system detects motion, or when an alarm
event triggers.
• For details, see “Appendix D: Enabling
E-Mail Notifications” on page 123.
Prerequisites: Enable e-mail notifications,
and enter in an email address into the system
in the USER MANAGEMENT tab.
To open the Mail tab:
1. Click the MAIL tab on the left.
• The Mail configuration window opens.
If you do not receive a success message:
• Double check that you have entered the
correct system user name, password, and
DDNS address (enter your sub-domain
name only.)
• Use the Lorex DDNS Auto Port Forwarding
Wizard. For details, see “Lorex Auto Port
Forwarding Wizard” on page 99.
46
Mail tab
Figure 13.5 Mail tab.
Configuring the E-mail Server
By default, the system uses the Lorex email
server to send notification e-mails.
Notification e-mails allow the system to send
Configuring System Setup
To use the Lorex e-mail server:
5. Enter the port number (specified by the
e-mail server).
6. Click OK to save your settings.
1. Select the checkbox beside DEFAULT
SERVER (default).
Enter your E-mail User name and Password
you a message when an event occurrs (i.e. a
motion event).
NOTE: The SERVER, PORT, SECURITY,
USER, PASSWORD fields gray-out if
DEFAULT is selected.
2. Beside TEST-EMAIL, click the PRESS
button.
• An email will be sent to your email address
entered under the USER MANAGEMENT
tab.
3. Click APPLY to save your settings.
To configure the e-mail server using custom
settings:
1. De-select the check box beside DEFAULT
SERVER.
• The SERVER, PORT, SECURITY, USER,
PASSWORD fields can now be edited.
1. Beside USER, double-click the blank field.
• The Virtual Keyboard opens.
2. Enter your e-mail user name.
3. Click OK to save your settings.
Test your E-mail Account
Beside TEST E-MAIL, click the PRESS button
to verify that the system can properly connect
to your e-mail server.
Configuring Your System To Send
Notification E-Mails
To configure your system to send notification
e-mails, see “Appendix D: Enabling E-Mail
Notifications” on page 123.
USER MANAGEMENT TAB
The user management tab allows you to add,
remove and edit users who log in to the
system.
De-select Default Server
To open the User Management tab:
1. Click the USER MANAGEMENT tab on the
left.
• The User Management window opens.
Figure 13.6 Configuring the e-mail server.
Enter your E-mail Server & Port Information
1. Double-click on the blank field beside
SERVER.
• The Virtual Keyboard opens.
2. Enter the e-mail server name using the
Virtual Keyboard.
3. Click OK to save your settings.
4. Double-click the field beside PORT.
• The Number window opens.
User Management tab
Figure 13.7 User management tab.
47
Configuring System Setup
Configuring Email Notification Settings
Configuring Password Expiry Duration
To configure email notification settings:
1. Under USER ID, double-click the user you
wish to modify (ADMIN, USER or
MANAGER).
• The Edit window opens.
You can configure the system to refresh its
password list by enabling the Password Expiry
feature. This ensures that the system
password changes every few months.
To configure the system’s Password Expiry
Duration:
1. Beside PASSWORD EXPIRY, click
to
select the duration of when you would like
the password to expire.
• Select from 1 MONTH, 2 MONTHS, 4
MONTHS, 6 MONTHS, 12 MONTHS or OFF.
• Click APPLY to save your settings.
Figure 13.8 Edit window.
2. Double-click the blank field beside
E-MAIL.
• The Virtual Keyboard opens.
3. Enter the desired email you wish to receive
notification emails.
4. Click OK to save your settings.
5. Beside E-MAIL NOTIFICATION, click
to select ON.
6. Click OK to save your settings.
NOTE: Ensure the EMAIL checkbox is
selected.
Figure 13.10 Configuring Password Expiry duration.
Adding New Users
To add new users to the system:
1. Click the ADD button near the bottom of
the window.
• The Add window opens.
Figure 13.9 Enabling email notifications.
Figure 13.11 Adding new users.
48
Configuring System Setup
2. Configure the following:
• USER ID: Enter in the desired user name
by double-clicking the blank field beside
USER ID.
• PASSWORD: Enter in the desired user
password by double-clicking the blank field
beside PASSWORD.
• GROUP ID: Select the type of user account
you wish to create (MANAGER or USER).
• E-MAIL: Enter the e-mail address
associated with the account. This will be
the e-mail account that receives e-mail
notifications.
• E-MAIL NOTIFICATION: Select ON to
enable e-mail notifications for the account
• Click OK and then click APPLY to save your
settings.
Viewing System Information
• To view system information, click the
PRESS button beside SYSTEM
INFORMATION.
Figure 13.13 System Information window.
SYSTEM MANAGEMENT TAB
The System Management tab allows you to
upgrade the system firmware, restore system
factory defaults, and view vital system
information.
To open the System Management tab:
1. Click the SYSTEM MANAGEMENT tab on
the left.
• The System Management window opens.
Changing The System Name
• To change the system name, double-click
the field beside SYSTEM NAME. Use the
Virtual Keyboard to enter the desired
system name (up to 15 characters).
Upgrading The System Firmware
Firmware updates enhance system stability
and performance.
Prerequisites:
Download the latest firmware from
www.lorextechnology.com and then extract the
file onto your USB flash drive.
System Management tab
Figure 13.12 System Management window
To update the system firmware:
1. Insert the USB flash drive with the latest
firmware into the USB port of the system.
2. Beside F/W UPDATE, click the PRESS
button.
• A Login window opens.
3. Enter your user name and password and
then click OK.
• A firmware file browser window opens.
49
Configuring System Setup
4. Click the GET F/W button.
• The system searches for the firmware files
on your USB device.
Double-click here to begin
firmware upgrade
Restoring System Defaults
To restore the system back to the factory
default configuration:
1. Beside FACTORY DEFAULT, click the
PRESS button.
• A Login window opens.
2. Enter your user name and password and
then click OK.
• A warning window opens.
GET F/W button
Figure 14.0 Firmware upgrade window.
5. Under F/W VERSION, double-click the
name of the firmware file.
• A firmware confirmation window opens.
Figure 14.3 System factory default prompt.
3. Click YES to restore factory defaults.
• A Format Disk window opens.
Figure 14.1 Firmware upgrade confirmation window.
Figure 14.4 Format disk prompt.
6. Click YES to upgrade the system firmware.
• When the firmware upgrade completes, a
success message window opens.
4. Click YES to format the hard drive or click
NO to continue without formatting the hard
drive.
• The system restarts itself and loads with
the factory settings.
NOTE: Formatting the hard drive erases all
videos from the system.
Figure 14.2 Firmware success window.
7. Click OK to restart your system.
50
Configuring System Setup
Saving and Loading System Settings
You can save your system settings and re-load
the system settings when required (i.e. after
reformatting your system).
Enabling and Disabling The System
Password
To enable or disable the system password:
1. Beside the PASSWORD field, click
select ON or OFF.
2. Click APPLY to save your settings.
Saving System Settings
to
Prerequisites:
• Format a USB flash drive and insert the
USB flash drive into the USB port of the
system.
To save your system settings:
1. Beside SYSTEM DATA, click the SAVE
button.
• A success window opens when the system
settings save onto the USB flash drive.
Password field
Figure 14.6 Enabling / disabling the system password.
3. Enter your name and password when the
Login window opens.
4. Click OK to save your settings.
Save & Load buttons
Figure 14.5 Saving system settings.
2. Click OK to exit.
Loading System Settings
Prerequisites:
• Save your system settings onto a USB flash
drive, and insert the USB flash drive into
the USB port of the system.
To load your system settings:
1. Click the LOAD button.
• A Login window opens.
2. Enter your user name and password and
then click OK.
• A success window opens.
3. Click OK to restart the system.
51
Configuring System Setup
CONTROL DEVICE TAB
The Control Device tab allows you to configure
PTZ (Pan Tilt Zoom) cameras (sold separately)
on your system. Refer to the PTZ camera’s
manual for the proper settings.
For details on connecting your PTZ camera
into the system, see “Appendix F: Connecting
PTZ Cameras” on page 128.
To configure the PTZ protocols:
1. Click the CONTROL DEVICE tab on the left.
• The Control Device window opens.
Figure 14.7 Control Device window.
2. Configure the following:
• SYSTEM ID: Select the desired system ID
(1~254).
• PROTOCOL: Select the protocol used by the
PTZ camera (D-MAX, ZCA-SC201,
MESA-KB, ICK-3000).
• BAUDRATE: Select the baudrate of the PTZ
camera (1200, 2400, 4800, 9600, 19200,
38400, 57600, 115200, 230400)
3. Click APPLY to save your settings.
52
Configuring System Setup
EVENT/SENSOR
The EVENT/SENSOR tab allows you
to configure how the system
interprets devices connected to the
Alarm block on the rear panel of the system.
Configure HDD events, alarm input/output,
buzzer, and email notifications.
To open the System menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
ALARM INPUT
Use the Alarm Input menu to configure alarm
input types (i.e. motion sensors, not included).
To open the Alarm Input menu:
1. Click the ALARM INPUT tab on the left.
• The Alarm Input window opens.
2. Click
.
• The System Setup menu opens.
3. Click EVENT/SENSOR.
• The Event/Sensor window opens.
Alarm Input Tab
Figure 15.1 Alarm Input menu (4-channel model shown).
NOTE: Make sure you have properly
Figure 15.0 Event / Sensor window.
HDD EVENT
Use the HDD Event menu to allow the system
to monitor the internal hard disk. If the system
detects a hard drive error, an email is sent to
your email address (email notification must be
configured).
To set HDD event alarms:
1. Beside DISK FULL EVENT, click
to
select ON or OFF to enable or disable the
system from reporting that the hard drive
is full.
connected an external alarm device to the
alarm block on the rear panel of the system
prior to configure alarm settings. For more
details, see “Appendix H: Connecting
Motion / Alarm Devices” on page 131.
To configure alarm inputs:
1. Under OPERATION, click
ENABLE.
to select
2. Under TYPE, click
to select N/O
(normally open) or N/C (normally closed).
3. Repeat for the remaining channels.
4. Click APPLY to save your settings.
NOTE: Refer to your alarm input device’s
instructions on how to set the alarm type
(i.e. N/O or N/C).
53
Configuring System Setup
ALARM OUTPUT
Use the Alarm Output menu to configure
behavior and action settings for an external
alarm output (i.e a strobe light, not included)
device connected to the alarm block of the
system. For example, when an alarm triggers,
the strobe light begins to flash.
To open the Alarm Output Menu:
1. Click the ALARM OUTPUT tab on the left.
• The Alarm Output window opens.
Click
to select 5 SEC (default), 10 SEC,
15 SEC, 20 SEC, 30 SEC, 40 SEC, 60 SEC,
120 SEC, 180 SEC, 300 SEC, or Until Key
(until a key is pressed on the system).
NOTE: In Latched mode, "Duration" refers to
the time that the alarm output remains
active after it has been triggered.
• HDD EVENT: Select ON or OFF to enable/
disable the system from reporting hard
drive errors.
Action Settings
Select the type of events you want each
channel to trigger. For example, you may only
want Video Loss events to trigger an alarm.
To configure action settings:
1. Set the following:
• ALARM: Select the box to enable the alarm
output when an alarm input is triggered
• VIDEO LOSS: Select the box to enable the
alarm output when video loss occurs on the
system (i.e. if the video cable from the
camera is disconnected from the system).
• MOTION: Select the box to enable the alarm
output when motion is detected on the
system
2. Click APPLY to save your settings.
Alarm Out tab
Figure 15.2 Alarm Output menu.
Behavior Settings
To configure behavior settings:
1. Under OPERATION, click
ENABLE.
to select
NOTE: You must select ENABLE in order to
configure the Action settings.
2. Configure the following settings:
• MODE: Select TRANSPARENT or
LATCHED.
NOTE: "Transparent" indicates the output is
active only when the trigger criteria (ie.
movement) is present. "Latched" indicates
the output is active for a set period of time
after a trigger.
• DURATION: Latched mode must be
selected to configure the duration setting.
Duration refers to the time the alarm
continues to activate after an alarm
triggers.
54
Configuring System Setup
BUZZER OUT
Use the Buzzer Out menu to configure
behavior and actions for sirens or speakers
connected to the system (not included). When
an alarm triggers, the siren/speaker will
sound.
To open the Buzzer Out menu:
1. Click the BUZZER OUTPUT tab on the left.
• The Buzzer Output window opens.
Action Settings
Set event triggers for each channel.
To configure action settings:
1. Set the following:
• ALARM: Select the box to enable the alarm
output when an alarm input is triggered
• VIDEO LOSS: Select the box to enable the
alarm output when video loss occurs on the
system
• MOTION: Select the box to enable the alarm
output when motion is detected on the
system
2. Click APPLY to save your settings.
E-MAIL NOTIFICATION
Figure 15.3 E-mail Notification window.
Behavior Settings
To configure behavior settings:
1. Under OPERATION, select ENABLE.
2. Under HDD EVENT, select ON/OFF. If ON,
an HDD event will trigger an alarm output.
3. Under MODE, select TRANSPARENT or
LATCHED.
Use the Email Notification menu to send
notification emails when an event occurrs. For
example, if the system detects a motion event,
the system can send out an e-mail to notify
you.
For details on how to set up e-mail notification,
see “Appendix D: Enabling E-Mail
Notifications” on page 123.
To open the E-Mail Notification menu:
1. Click the E-MAIL NOTIFICATION tab on the
left.
• The E-mail Notification window opens.
NOTE: "Transparent" indicates the output is
active only when the trigger criteria is
present. "Latched" indicates the output is
active for a set period of time after a trigger.
4. Under DURATION, select 5 SEC (default),
10 SEC, 15 SEC, 20 SEC, 30 SEC, 40 SEC,
60 SEC, 120 SEC, 180 SEC, 300 SEC, or
Until Key (until a key is pressed on the
system).
NOTE: In Latched mode, "Duration" refers to
the time that the alarm output remains
active after it has been triggered.
Figure 15.4 E-Mail Notification window.
55
Configuring System Setup
Behavior Settings
To configure behavior settings:
1. Under NOTIFICATION, select ON. If ON, the
system will send an email notification to
selected users.
NOTE: You must select ON in order to
configure action settings.
2. Under BOOTING EVENT, select ON/OFF. If
ON, the system will send an email
notification when the system restarts
(powers on/off).
3. Under HDD EVENT, select ON/OFF. If ON,
the system will send an email notification
when an error occurrs in the internal HDD.
DISK MANAGE
Configure settings for the internal
hard drive.
To open the Disk Manage menu:
1. Right-click anywhere in the main viewing
window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click DISK MANAGEMENT.
• The Disk Management window opens.
Action Settings
Set event triggers for each channel.
To configure action settings:
1. Set the following:
• ALARM: Select the box to enable e-mail
notifications when an alarm input is
triggered
• VIDEO LOSS: Select the box to enable
e-mail notifications when video loss occurs
on the system
• MOTION: Select the box to enable e-mail
notifications when motion is detected on
the system
2. Under FREQUENCY, select the time
interval that the system sends email
notifications.
3. Click APPLY to save your settings.
Figure 15.5 Disk management menu.
Configure the following:
• RECORD TIME LIMIT: Select 12 HOUR, 1
DAY, 2 DAY, 3 DAY, 1 WEEK, 1 MONTH or
OFF.
NOTE: Record Time Limit refers to the length
of time data will be kept on the HDD. For
example: if the Record Time Limit is set for
1 week, the system records data from the
1st of the month through the 7th of the
month. On the 8th of the month, it will begin
overwriting data (hour by hour) that
occurred on the 1st of the month. On the 9th
of the month, it will begin overwriting data
that occurred on the 2nd of the month.
• DELETE DATA: Deletes the data once the
hard drive reaches the record time limit (i.e.
1 week, 1 month)RECORD TIME LIMIT must
be ON for this function to work. The system
deletes the oldest data (first in, first out).
56
Configuring System Setup
• DISK INFORMATION: Click the START
button beside DISK INFORMATION to view
the make and storage size of your hard
drive.
• OVERWRITE: Select ON/OFF. If ON, the
system will overwite the earliest recorded
video data once the HDD(s) is full.
ATTENTION: The OVERWRITE feature
must be ON for the Record Time Limit
feature to function.
4. Click APPLY to save your settings.
FORMATTING THE HDD
It may be necessary to format the hard disk(s),
such as when installing a new HDD(s).
ATTENTION: Formatting erases ALL video
data on the HDD. This step cannot be undone.
To format the hard drive:
1. Click the START button beside the
FORMAT field.
• The Login window opens.
2. Enter in your user name and password and
then click OK.
• A warning window opens.
Figure 15.6 Format Disk prompt.
3. Click YES to format your hard drive.
• Wait for the system to erase the hard drive.
The system restarts automatically once the
formatting process completes.
57
Configuring System Setup
58
USING WEB REMOTE VIEWER
To access Web Remote Viewer, you must be connected to the internet, or the Local Area Network.
Connecting to Web Remote Viewer Locally
• To log in to Web Remote Viewer from a local network , enter http://, then your DVR’s IP
address, followed by a semi-colon, followed by the Web Server Port # into Internet Explorer.
For example, enter http:// 92.168.2.1:2000 into Internet Explorer. 192.168.2.1 is the local IP
address of the DVR. 2000 is the Web Server Port number. The DVR and computer must connect
to the same router for this method to work.
• Press the F1 button on your remote to view the DVR’s network information.
• OR, right-click to open the quick menu, then click on SYSTEM>SYSTEM MANAGEMENT.
Beside SYSTEM INFORMATION, click the PRESS button.
Connecting to Web Remote Viewer using DDNS
Register for a DDNS address, and enable DDNS on your DVR to access your system remotely. By
registering for a DDNS address, you can access your system from any computer with a web
browser. Connecting to Web Remote Viewer using DDNS also allows you to monitor your system
from your iPhone™ or Blackberry™ mobile device.
Step 1: Port Forward
• Use the AUTOPORT feature on the system to auto port forward ports 80 & 554 (default ports)
to your router. For details, see “Auto Port Forwarding” on page 46.
OR
• Use the Lorex Auto Port Forwarding Wizard (included on CD) to port forward ports 80 & 554
to your router. For details, see “Lorex Auto Port Forwarding Wizard” on page 99.
Step 2: Register for DDNS
To register for a Lorex DDNS account, see “Setting Up DDNS Service” on page 106.
Step 3: Enable DDNS on your system
To enable DDNS on your system, see “Network Tab” on page 45.
Step 4: Connect
Enter the DDNS address of your system into your computer or mobile device’s web browser.
59
WEB REMOTE VIEWER
Web Remote Viewer is a remote surveillance software built into your DVR that allows for live
viewing and playback. Web Remote Viewer does not need additional software to be installed on
your system. Everything is accessed remotely.
System Requirements
Before using Web Remote Viewer, ensure your system meets or exceeds the following system
requirements:
Description
Requirement
CPU
2.4 GHz Pentium® 4 or above
Operating
System
Windows XP/Vista/7
Browser
Internet Explorer 7 or greater/ Safari
Memory
1 GB RAM (more than 1 GB recommended)
Video
16 MB of video memory
HDD
2 GB of free space
Network (LAN)
10/100 Base-T Network
Network
(WAN)
384 Kbps upstream. High speed internet connection required for live
video/audio streaming.
Mac OSX 10.4 or greater
60
Web Remote Viewer
Logging into Web Remote Viewer
To log into Web Remote Viewer on your web browser:
1. Open Internet Explorer, and type in the DDNS address you registered with the LH600. A login
window appears.
2. Enter in your DVR’s user ID and password. The Web Remote Viewer window opens.
ActiveX tool bar
Figure 16.0 Web Remote Viewer window prompting for an Active X install.
3. Click the Active X menu bar near the top of the browser. Click Install ActiveX Control.
Click to install ActiveX
Figure 16.1 Click Install ActiveX Control to install ActiveX onto your browswer.
4. Click Install when the security window opens.
Figure 16.2 Internet Explorer Security Warning window. Click Install to continue.
61
Web Remote Viewer
5. Click the ActiveX toolbar when the main Web Remote Viewer window opens. Click Install
ActiveX Control.
Click the ActiveX tool
bar; click Install ActiveX
control
Figure 16.3 An ActiveX tool bar opens again upon initial log in. Install ActiveX to continue.
6. Click Install when the security window opens.
Security Window. Click
Install to continue.
Figure 16.4 Security Warning window.
62
Web Remote Viewer
• The Web Remote Viewer automatically detects and connects to your DVR after the ActiveX
plug-in installs.
System Tabs
Viewer window
Configuration Menu
Figure 16.5 Web Remote Viewer basic layout.
The System Tabs
The System tabs near the top of the screen has four tabs: Live, Search, Setup, Information. Click
the tab to access its features.
Figure 31.6 System Tabs.
• Live tab: View live, streaming video from your DVR
• Search tab: Search recorded events from your DVR
• Setup tab: Configure camera, recording, and Web Remote Viewer settings
• Information tab: Displays Web Remote Viewer version
63
Web Remote Viewer
Using The Navigation Bar
The Navigation Bar allows you to view videos in several split screen modes, save videos, take
snapshots of video, and print images of video.
4-channel view
*9-channel view
Next-window
Full-screen
Sequence view
Print
Save
Volume
Audio input
Channel list
*16-channel view
*8-channel view
1-channel view
Figure 17.0 Navigation Bar (16-channel model shown). *16-channel model only.
Viewing Modes
• 1-channel view: Displays one channel of video.
• 4-channel view: Displays four channels of video
• *8-channel view: Displays one main channel, with seven smaller channels
• *9-channel view: Displays nine-channels in a grid
• *16-channel view: Displays sixteen-channels in a grid
• Sequence view: View channels in a sequence
• Next-window: View next channel of video
• Full-screen: View video in full screen
*16-channel models only
Audio Modes
• Audio input: Toggle on/off incoming audio
• Volume: Mute/Unmute volume
Basic Settings
• Save: Saves streaming video onto your computer.
• Print: Print the current screenshot of the channel
• Settings: Configure video, audio, and save directory settings
64
Settings
Snapshot
Web Remote Viewer
The Live Tab
The Live tab allows you to view live, streaming video from your DVR.
Channel
Name
Recording
Mode
Date
Resolution
Navigation Bar
Figure 18.0 Live Tab, main view in single channel mode (16-channel model shown).
Viewing Video In Different Modes
To view video in different modes:
• Click the
buttons in the Navigation Bar to view video in 1-channel,
4-channel, 8-channel (8 or 16 channel models only) , 9-channel and 16-channel (16 channel
model only) modes.
• Click
to view the next channel.
• Click
to view video in full screen mode.
Viewing Channels In A Sequence
You can view channels on a rotation by using the Sequence feature. For example, you may want to
view channels 1 through 9 in full screen, and have them change channels every 3 seconds.
To view video in a sequence:
• Click the
button in the Navigation Bar.
65
Web Remote Viewer
Enabling Audio During Viewing
You must have a microphone installed onto your system before you can hear audio during remote
viewing.
To enable the audio source while viewing:
• Click the
to enable audio. Click again to disable audio
Syncing Video Audio
It is recommended to synchornize audio with the video (if audio is available). It is recommended
to have this setting ON when saving video files. Syncing audio with video ensures that there is no
delay between the video and audio.
To sync audio with video:
1.
2.
3.
4.
Click
in the Navigation Bar. The Setup window opens.
Under Audio, select Sync.
Click the Live CH drop-down menu, and select the desired audio channel (CH 1~4).
Click Save.
Muting Audio
• To mute audio, press
.
The speaker icon displays a red X to indicate muted audio:
Switching Channels
• To switch channels, click the
select desired channel (Channels 1~16).
drop-down menu in the Navigation Bar, and
Choosing a Save Directory
To select your DVR’s save directory:
1. Click
in the Navigation Bar. The Setup window opens.
Click here to open directory tree.
Figure 18.1 Settings Window.
66
Web Remote Viewer
2. Click
to open a directory tree, and select the desired save location.
Saving Video Clips
You can save a video clip of streaming video and audio from any channel. Video clips save into the
save directory you specify.
To save video from a channel:
1. Click on the channel you wish to record. The channel outlines in red.
2. Click
to begin saving the video. Click
again to stop recording.
Printing An Image Of A Channel
To print an image of a channel:
1. Click
in the Navigation Bar. The Print window opens.
2. Select desired print settings, and press OK to print.
Changing Hardware Video Acceleration Type
If your computer has problems processing the streaming video, you can try changing the video
acceleration.
To change video acceleration type:
1. Click
. The Settings window opens.
Select DirectDraw or GDI.
Select GDI if you have video acceleration
problems.
Figure 18.2 Settings Window.
2. Select GDI and then press Save.
67
Web Remote Viewer
Monitoring Your Cameras
You can monitor all your cameras at a glance by using the Status tab (Figure 33.3).
Figure 18.3 Monitor your cameras using the Status tab. (16-channel model shown).
The Status tab allows you to have a "bird’s eye view" of
all the connected cameras.
For example, in figure 33.3, motion was detected in
icon. If you click
, you
Channel 6, indicated by the
will jump to Channel 6. This allows you to quickly and
easily view a channel with activity.
Legend
•
Pre-alarm recording (green
square)
•
Motion Detected
Increasing and Reducing Video Refresh Rates
•
No Camera Connected
You can increase and reduce how often the video feed
images refresh. Reducing the refresh time improves
video fluidity. Increasing refresh times reduces video
fluidity.
If you have a fast internet connection, it is
recommended to set the refresh time to the lowest
possible setting (3 second refresh rate). This allows you
to view video with more movement.
If you have a slow internet connection, it is
recommended to set the refresh rate to higher settings
(6~10 second refresh rate) to reduce bandwidth
consumption.
• M - Motion Recording
• C - Continuous Recording
• A - Alarm Recording
• P - Panic Recording
To change image refresh rates:
• Click the Refresh Time drop-down menu, select
desired refresh rate, and then press Reload (Figure
33.4).
Figure 18.4 Refresh Time drop-down menu
68
Web Remote Viewer
Viewing An Event Log
Viewing an Event Log allows you to view a list of events that happened. For example, you may want
to see if there were any system changes during the weekend.
To view an event log:
• Click the Log tab and press the Page Down and Page Up buttons to scroll through the log.
Page Down & Page Up buttons
Figure 18.5 View events in a list by using the Log tab.
Configuring PTZ Settings
You can configure your PTZ (Pant, Tilt, Zoom) camera remotely.
To configure your PTZ camera:
1. Click the PTZ tab to open the configuration window (Figure 34.0).
PTZ Controls
Figure 18.6 PTZ tab.
• Pattern and Swing are grayed out because they must be configured through the PTZ camera.
• Use the PTZ controls to manipulate camera movement.
• Refer to your PTZ owner’s manual for configuration information.
NOTE: PTZ cameras require independant configuration, and cannot be configured through the
DVR.
69
Web Remote Viewer
The Search Tab
The Search tab allows you to search video events on your DVR.
Searching For A Video By Time
You can narrow your searches by searching for events by time.
To search for events by time:
1. Click the Search tab near the top of the window. The Search window opens.
Click the Search tab to open the
search window
Viewing Area
Search By Time tab
Figure 19.0 Search tab (16-channel model shown).
2. Click the Search By Time tab (default).
Figure 19.1 Search By Time tab (16-channel model shown).
3. Click the drop-down menus and select the year, month, date and time of the event you wish to
search for. Click Play to start video viewing.
Figure 19.2 Click the drop-down menus to select the time and date of the event.
70
Web Remote Viewer
4. Drag the vertical, blue bar left or right to scan through the video time frame.
Drag blue search bar to scan through video time.
Figure 19.3 Searching video by time.
5. Use the video playback toolbar underneath the video window to control video playback, and
viewing modes.
Reverse Playback
Forward Playback
Pause
Speed Up Forward Playback
Speed Up Reverse Playback
Figure 19.4 Video playback toolbar (16-channel model shown).
• To increase reverse playback or forforwardward playback speed, click
to increase the playback speed.
or
repeatedly
• Reverse playback speeds are: -1x, -2x, -4x, -8x, - 16x, -32x, -64x.
• Forward playback speeds are: 1x, 2x, 4x, 8x, 16x, 32x, 64x.
Searching For A Video By Event
You can search for videos by event. This allows you to narrow your searches with specific criteria.
To search for a video by event:
1. Click the Search By Event Tab.
Figure 19.5 Search By Event tab.
71
2. Under Event, select/de-select the criteria you want to search your video with.
3. Under Period, select the year, time, and date range you wish wish to search your video with.
4. Beside Search button, click the drop-down menu, and select whether you want to search the
video Nearest or Farthest to the event.
Figure 19.6 Click the drop-down menu to search the event
nearest, or farthest date and time to the video event.
5. Click Search to populate the search list (Figure 34.6).
Populated search results
Figure 19.7 Search By Event tab with a populated search result list.
6. Click on the desired event in the populated search result list. Video playback begins.
Backing Up A Video
To back up video to your computer:
1. Under the Search Tab click the Search By Time tab and then click Backup.
Backup Button
Figure 19.8 Click the Backup button to open the backup menu.
2. The Backup window opens. Using the drop-down menus, select the day, month, year and time
range (Figure 34.8).
72
Web Remote Viewer
3. Under Channel Select, select what channels you wish to back up.
Select date and time range using the
drop-down menus
Select the channels you wish to back up.
Figure 19.9 Backup menu (16-channel model shown).
4. Click Start to begin video backup.
NOTE: If selecting multiple cameras to record, multiple files are created. For example, if you
select channels 1~3 to be recorded, three individual video files will be created.
NOTE: Videos are in AVI format.
The Setup Tab
The setup tab allows you to configure your camera,
DVR and network settings.
The Setup tab allows you to configure eight main
settings: Camera, Display, Sound, System, Record,
and Sensor.
Each main menu expands into sub-menus. For
example, the Camera setting expands into the
Camera sub-menu, Color sub-menu, PTZ
sub-menu, Motion sub-menu, and Mode sub-menu
(Figure X).
Main menu
Sub-menu
Figure 20.0 Navigation Menu.
73
Web Remote Viewer
Configuring Camera Settings
Setting Camera Name, Covert Settings and Camera Audio Input
To set up camera properties:
1. Click the Setup Tab near the top of the window. The Camera settings window opens.
Setup tab
Figure 20.1 Camera Settings: Change camera title, enable/disable Covert recording mode, and
enabling audio.
2. Under Camera Title, enter in a name of the camera. Enter in a name beside the All field to
give all your cameras the same name.
3. Under Covert, select ON or OFF.
NOTE: Under Covert recording, the camera view blacks out during recording. This gives the
impression that the particular channels is inactive.
4. Under Audio select desired audio channel (Channels 0~4) to use with the specific channel.
5. Click OK to save your settings.
Adjusting Camera Color
To adjust the camera color:
1. Click the Color sub-menu (Camera>Color). The Color-Setting window opens.
Figure 20.2 Adjust camera color settings.
2. Adjust Brightness, Contrast, Tint and Color by entering values between 0~100.
• To apply the same settings across all cameras, enter all values beside All.
3. Click OK to save the settings.
74
Web Remote Viewer
Adjusting PTZ Settings
To adjust PTZ camera settings:
1. Click the PTZ sub-menu (Camera> PTZ). The PTZ sub-menu opens.
Figure 20.3 PTZ settings menu.
2. Under Address Protocol select the desired PTZ protocol to use from the drop-down menu.
• Refer to your PTZ camera’s user manual for the correct protocol to select.
3. Under Auto Focus Baudrate, select the desired baudrate from the drop-down menu.
• Refer to your PTZ camera’s user manual for the baudrate to select.
4. Under P/T Speed/ Auto Iris, select ON or OFF from the drop-down menu to enable or disable
auto iris.
• Select values between 1~10 from the drop-down menu to select the P/T (Pan/Tilt) speed of
the PTZ camera.
5. Click OK near the bottom of the window to save your settings.
75
Web Remote Viewer
Configuring Camera Motion Detection Settings
Configuring motion settings on your camera allows you to tell the camera to trigger motion
recording in a certain portion of the screen.
To configure the camera motion recording settings:
1. Click the Motion sub-menu (Camera>Motion). The Motion window opens.
Grid Window
Channel Number Selection
Drop-down Menu
Sensitivity drop-down menu
Figure 20.4 Motion Settings menu.
2. Under CH No select the channel number from the drop-down menu you wish to configure.
3. Under Sensitivity select sensitivity levels (1~10) from the drop-down menu.
4. Drag your cursor in the Grid Window, of where you wish to increase motion sensitivity.
In this example, the area around the van is
highlighted. Once the van moves, it triggers
motion recording.
Movement around the van will not trigger
motion recording.
Highlighted grid area (red box
for illustration purposes only)
Figure 20.5 Adjusting motion sensitivity.
5. Click the Select All button to highlight the entire grid or;
• Click the Reverse All button to reverse the grid area selection.
• Click the Delete All button to delete all highlighted areas in the grid.
6. Click OK to save your settings.
76
Web Remote Viewer
Configuring Display Settings
Adjusting OSD (On Screen Display) Settings
To configure OSD settings:
1. Click Display on the navigation bar on the left. The OSD Settings window opens.
Figure 21.0 OSD Setting window.
2. Under the Status Bar Timeout drop-down menu, select the duration of when the status bar in
the DVR menu "hides" or times out.
• The Status Bar Timeout choices are: Always, 5 seconds, 10 seconds, 15 seconds, 20 seconds,
30 seconds, 1 minute.
3. Under the Camera Title drop-down menu, select ON or OFF to toggle the camera name
display on or off when viewing video.
4. Under the Recording Mode Icon drop-down menu, select ON or OFF to toggle the recording
mode icon on or off when viewing video.
5. Under the Border drop-down menu, select ON or OFF to toggle a border around a viewing
window when a window is clicked.
6. Click OK to save your settings.
77
Web Remote Viewer
Adjusting Video Monitoring Settings
To adjust Montior Settings:
1. Click the Monitor sub-menu (Display>Monitor). The Monitor Setting window opens.
Figure 21.1 Monitor Setting window.
2. Under the Sequence Dwell drop-down menu, select the duration you want a sequence to
remain on screen.
• Sequence Dwell choices are: 1 second, 2 seconds, 3 seconds, 5 seconds, 10 seconds, 15
seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds.
3. Under the Spot Out Dwell drop-down menu, select the duration you want the spot dwell to
last.
• Spot Dwell choices are: 1 second, 2 seconds, 3 seconds, 5 seconds, 10 seconds, 15 seconds,
20 seconds, 30 seconds, 40 seconds, 60 seconds.
4. Under the De-interlace Mode drop-down menu, select ON or OFF to turn on or off
de-interlacing mode.
• It is recommended to turn de-interlacing mode on for improved image quality.
5. Under the Alarm Pop-up Mode drop-down menu, select ON or OFF to turn on or off Alarm
Pop-up.
• When an alarm recording is triggered, the Alarm Pop-up mode will automatically bring the
channel with the alarm recording into full screen.
6. Under the Alarm Pop-up Dwell drop-down menu, select the duration of the Alarm Pop-up.
• Alarm Pop-up Dwell durations are: 1 second, 2 seconds, 3 seconds, 5 seconds, 10 seconds,
15 seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds.
7. Under the Motion Pop-up Mode drop-down menu, select ON or OFF to turn on or off Motion
Pop-up Mode.
• When a Motion Recording is triggered, the Motion Pop-up mode will automatically bring the
channel with the motion recording into full screen.
8. Under the Motion Pop-up Dwell drop-down menu, select the duration of the motion pop-up
window.
• Motion Pop-up Durations are:1 second, 2 seconds, 3 seconds, 5 seconds, 10 seconds, 15
seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds.
9. Click OK to save your settings.
78
Web Remote Viewer
Adjusting Audio Settings
To adjust audio settings:
1. Click Sound on the navigation bar on the left. The Audio Setting window opens.
Figure 21.2 Audio Setting window.
2. Under the Live Audio drop-down menu, select ON or OFF to enable or disable live audio.
3. Under the Network Audio Transmission (2-way audio) drop-down menu, select ON or OFF to
enable or disable two-way audio.
4. Under the Network Audio Receive (1-way audio) drop-down menu, select ON or OFF to
enable or disable one-way audio.
5. Under the Keypad drop-down menu, select ON or OFF to enable or disable the button ’beeps’
on the DVR.
6. Under the Remote Control drop-down menu, select ON or OFF to enable or disable the
remote control "beeps".
7. Click OK to save your settings.
79
Web Remote Viewer
Configuring System Settings
Configuring Date and Time
To configure your DVR’s date and time:
1. Click System on the navigation bar on the left. The Date/Time setting window opens.
Figure 21.3 Date/Time setting window.
2. Under the Date Format drop-down menu, select the format you want the dates to display.
• Date format options are: YYYY/MM/DD or MM/DD/YYYY or DD/MM/YYYY.
3. Under the Time Format drop-down menu, select 24-hour to enable 24-hour clock display.
Select AM/PM to enable 12-hour clock display.
4. Under Network Time Server Setup, type in the address you want the DVR to retrieve the time
(by default: POOL.NTP.ORG).
5. Under the Time Zone Setup drop-down menu, select your local time zone.
6. Under the D.S.T drop-down menu, select ON or OFF to enable or disable daylight savings
time.
7. Click OK to save your settings.
Configuring Network Settings
Adjusting DVR Bandwidth Speed
To adjust DVR bandwidth speed:
1. Click Network on the navigation menu on the left. The IP Setup Setting window opens.
Bandwidth drop-down menu
Figure 21.4 IP Setup Setting window.
80
Web Remote Viewer
2. Under the Bandwidth drop-down menu, select the desired bandwidth speed. It is
recommended to leave this at the highest setting (8192 Kbyte).
3. Click OK to save your settings.
Configuring An E-mail Server For The DVR
To configure the e-mail server settings for your DVR:
1. Click the E-mail sub-menu on navigation bar on the left (System >E-mail).The E-mail setting
window opens.
De-select Default Server
checkbox to configure e-mail
settings.
Test Email button
Figure 21.5 E-mail Setting window.
2. De-select the Default Server checkbox to manually input your e-mail server information.
• By default, the Default Server is left enabled.
• It is recommended to leave the Default Server on.
NOTE: If you select the Default Server checkbox, the system uses the Lorex e-mail server to
send you notification e-mails. It is recommended to leave the Default Server enabled.
• When the Default Server is left enabled, you cannot configure the e-mail settings.
3. Fill in the blank fields with the appropriate information.
• The blank fields are: Server, Port, Security, User, Password, From.
• Under Server, enter in your e-mail server’s SMTP address.
• Under Port, enter the port number of the e-mail server.
• Under User and Password, enter in the e-mail user name and password.
• Under From, enter where the e-mail address of the sender.
4. Click OK to save your settings.
Testing the E-mail Server
• In the Test Email field, enter an e-mail address to receive a test e-mail from the system. Click
the Test button to send out the e-mail. If the e-mail configuration is functional, a success
message appears.
81
Web Remote Viewer
Configuring User Settings
Adding Users To The DVR
Setting User types allows the administrator to grant access to multiple users. The admin can set
user password and email notifications settings.
To set user privileges on the DVR:
1. Click User sub-menu on the navigation bar on the left (System > User Management). The
User Management Setting window opens.
Figure 21.6 User Management Setting window.
2. Under the User ID field, enter in the desired user name. By default, the ADMIN user name is
grayed out.
3. Under the Password field, enter desired user password.
4. Under the Group drop-down menu, select the desired user level: ADMIN, MANAGER, USER.
5. Under the E-mail field, enter a desired e-mail address to receive e-mail notifications from
the DVR.
6. Under Notification, select the blank checkbox to enable e-mail notification for the particular
user. De-select the checkbox to disable e-mail notification for the particular user.
7. Under Del/Add, click the Add button to add user to the list.
• Click the Del button beside a user name to remove a user from the list.
8. Click OK to save your settings.
82
Web Remote Viewer
Viewing System Information
To view your DVR’s system information:
1. Click the System Management sub-menu (System>System Management). The System
Information Setting window opens.
System information
Figure 21.7 System Management window.
• Under System Information Setting, your DVR’s system information is displayed.
Figure 21.8 System Information Setting window.
Changing Your DVR’s Name
To change your DVR’s name:
1. Click the System Management sub-menu (System> System Management). The System
Information Setting window opens.
Figure 21.9 System Management Settings.
Password drop-down menu
83
Web Remote Viewer
2. Under the System Name field, enter in your desired DVR name.
3. Click OK to save your settings.
Enabling / Disabling the DVR’s Password
1. Click the System Management sub-menu (System> System Management). The System
Information Setting window opens.
2. Under the Password drop-down menu, select ON or OFF to enable or disable your DVR’s
password prompt during login (Figure 36.6).
3. Click OK to save your settings.
Changing PTZ Keyboard Settings
Refer to your PTZ (pan tilt zoom) Keyboard manual for the proper protocol and baud rate settings.
To change your PTZ Keyboard settings:
1. Click Control Device in the sub-menu (System>Control Device). The Control Device Setting
window opens.
Figure 21.10 Control Device Setting window.
2. Under the System ID drop-down menu, select an ID between 00~255.
3. Under the Protocol drop-down menu, select desired protocol.
4. Click OK to save your settings.
84
Web Remote Viewer
Configuring DDNS Settings.
Enabling DDNS
Create a DDNS account and before configuring your DDNS settings.
• For details on setting up a DDNS account, see “Setting Up DDNS Service” on page 106.
To enter your DDNS settings remotely using Web Remote Viewer:
1. Click the DDNS sub-menu on the navigation menu on the left (System > DDNS). The IP Setup
Setting window opens.
2. Click DDNS. The DDNS Setup Setting window opens.
Figure 22.0 DDNS Configuration.
3. In the DDNS drop-down menu, select ON
4. In the User ID field, enter the User ID of your DDNS account.
5. In the Domain Name field, enter the sub-domain of your DDNS address.
• For example if your DDNS address is tomsmith.lorexddns.net, your sub-domain is tomsmith.
6. In the Password field, enter your DDNS account’s login password.
7. Click the DDNS Status button to confirm DDNS is functional.
8. Click OK to save your settings.
85
Configuring Recording Settings
Adjusting Pre and Post Alarm Duration
The Pre and Post Alarm Duration recording refers to the time the system records before and after
an event occurs. For example, when you search for video, the event begins playing 5 seconds
before the event happened, and 30 seconds after the event occured.
To configure Pre and Post recording time:
1. Click Record on the navigation bar on the left. The Record Operation Setting window opens.
Figure 22.1 Record Operation Setting window.
2. Under the Pre Event Recording Time drop-down menu, select the duration of the pre-event
recording.
3. Under the Post Event Recording Time drop-down menu, select the duration of the post-event
recording.
4. Click OK to save your settings.
Selecting Recording Mode: Simple vs Advanced
The system offers Simple and Advanced recording modes. Simple recording mode allows you to
configure the system to record with basic recording settings, with limited customization to the
type of recording (i.e. motion recording) that applies.
Advanced recording mode allows you to configure the system to record with customized settings.
For example, you can configure the system to record with a certain resolution on a Saturday, and
have the system record with another resolution on a Monday.
To configure the system’s recording type:
1. Click Record on the navigation bar on the left. The Record Operation Setting window opens.
2. Under the Record Mode drop-down menu, select Simple or Advanced.
3. Click OK to save your settings.
Select Recording Mode (Simple or Advanced)
Figure 22.2 Recording Operation Setting window.
86
Configuring "Simple" Recording Mode
To configure "Simple" recording mode:
1. Click Simple on the navigation bar on the left. The Simple Recording window opens.
Click Simple
Figure 22.3 Simple Recording window.
2. Configure the following:
• Quality: Use the drop-down menu and select the video quality (Low, Standard, High, Highest).
• Resolution: Use the drop-down menu and select video resolution the system should record
with (352 x 240, 704 x 240, 704 x 480).
• Frame Rate: Use the drop-down menu and select the desired recording frame rate ( frame
rate values differ depending on resolution selected).
3. Select a recording type (Continuous, Motion, Alarm, None).
4. Drag the mouse cursor on the channel grids to apply the desired recording type.
NOTE: You can combine different recording types within the same channel.
5. Click OK to save your settings.
87
Web Remote Viewer
Adjusting Advanced Recording Settings
To configure "Advanced" recording mode:
1. Click Advanced on the navigation bar on the left. The Advanced Recording window opens.
Click Advanced
The FPS counter tells
you how many FPS
you have remaining to
assign to cameras
Figure 22.4 Advanced Recording window.
2. Beside Time, drag your cursor across the grayed out boxes to highlight what time you want to
activate recording. When you release the cursor, the boxes turn pink to confirm your
selection. This applies the recording time globally.
Activation tab
Selected Recording Time
Figure 22.5 Setting the time duration of continuous and motion recording. The pink boxes indicate active
recording times. In this example, the active recording times are from 12:00PM to 6:00PM.
3. Configure the recording parameter of each channel:
• Resolution: Select the resolution the video records in.
NOTE: The far-right column, under FPS, shows you how many FPS you have remaining.
• Frame Rate: Select the frame rate of the video. Frame rate values differ depending on
resolution settings.
• Quality: Select the video recording quality.
• Audio: Select ON or OFF to enable or disable audio recording (microphone required, not
included).
• Alarm: Select the alarm device connected to the Alarm block of the system (i.e. motion sensor,
not included).
88
• To configure each channel with specific recording parameters, click the Activation tab.
Configuring the Activation Tab
Figure 22.6 Activation tab.
To configure the Activation tab:
1. Select the recording type (Cont (continuous recording); Mot (motion recording); Cont/Mot
(continuous and motion recording) ); Alarm (alarm recording)
2. Drag your cursor across the channel bar to select the duration of recording.
• Optional: Select a second and third recording type (Cont, Mot, Cont/Mot) and drag your cursor
across the channel bar.
3. Use the Select All, Reverse All, Delete All buttons near the bottom of the window to
manipulate what you select.
4. Click OK to save your settings.
NOTE: You can mix recording types in a channel.
Configuring Panic Recording Settings
To configure Panic Recording Settings:
1. Click the Panic sub-menu on the navigation bar on the left (Record>Panic). The Panic
Recording Setting window opens.
Figure 22.7 Panic Recording Setting window.
89
Web Remote Viewer
2. Under the Size (resolution) drop-down menu, select the desired resolution for the specific
channel.
• The Resolution choices are: 352 x 240, 704 x 240, 704 x 480.
3. Under the Framerate drop-down menu, select the desired frame rate for the specific
channel.
• Frame rate choices (in FPS) are: 1, 2, 3, 7, 15, 30.
• The far-right column, under FPS, shows you how many FPS you have remaining.
4. Under Quality, select the quality of video during panic recording for the specific channel.
5. Under Audio, select ON or OFF to enable or disable audio for the specific channel during
Panic recording.
6. Click OK to save your settings.
90
Web Remote Viewer
Configuring HDD Event Settings
Your DVR’s hard drive can detect immenent failure. You can configure how often the hard drive
monitors itself for failure. If the hard drive detects a error, it sends out a notification e-mail.
To configure your HDDs monitoring settings:
1. Click Sensor on the navigation menu on the left. The HDD Event Setting window opens.
Figure 23.0 HDD Event Setting window.
2. Under the Disk Full Event drop-down menu, select ON or OFF to enable or disable the hard
drive from notifying you via e-mail, if the hard drive is full.
3. Click OK to save your settings.
Configuring Alarm Input Settings
To configure your alarm input settings:
1. Click the Alarm Input sub-menu on the navigation bar on the left (Sensor>Alarm Input). The
Alarm Input Setting window opens.
Figure 23.1 Alarm Input Setting window.
2. Under the Operation drop-down menu, select Enable or Disable to enable or disable alarm
input on the particular channel.
91
Web Remote Viewer
NOTE: To apply changes across all channels, use the ALL drop-down menu.
Use the ALL tab to
apply changes
across all channels.
Figure 23.2 Alarm Input Setting window.
3. Under the Type drop-down menu, select if the alarm is normally open (N/O) or normally
closed (N/C).
4. Click OK to save your settings.
Configuring Alarm Output Settings
To configure alarm output settings:
1. Click the Alarm Output sub-menu on the left navigation bar (Sensor>Alarm Output). The
Alarm Output Setting window opens.
Figure 23.3 Alarm Output window.
2. Under the Operation drop-down menu, select Enable or Disable to turn on or off alarm the
alarm output.
3. Under the Mode drop-down menu, select Latched or Transparent.
• Latched alarms continually "beep" long after a camera detects motion. Transparent alarms
"beep" only when there is motion. Once the camera does not detect motion, the "beeping"
stops.
4. Under the HDD Event drop-down menu, select ON or OFF to enable or disable a hard disk
failure to send out an e-mail notification.
5. For each channel, select which events you want to trigger an alarm (Figure 38.4).
• For example, you may want a video loss and motion event in channel 2 to trigger an alarm.
6. Click OK to save your settings.
92
Web Remote Viewer
Configuring Buzzer Out Settings
In this example, Video Loss and
Motion is selected in channel 2.
If video loss or motion occurs in
channel 2, it triggers an alarm
output.
Figure 23.4 Alarm output selection.
To configure Buzzer Out settings:
1. Click the Buzzer Out sub-menu on the navigation bar on the left (Sensor>Buzzer Out). The
Buzzer Out Setting window opens.
Figure 23.5 Buzzer Out Settings window.
2. Under the Operation drop-down menu, select Enable configure buzzer settings.
3. Under the Mode drop-down menu, select Transparent or Latched.
4. Under the HDD Event drop-down menu, select ON to enable to trigger the buzzer when an
HDD event occurs.
5. For each channel, select which events you want to trigger the buzzer (Figure 38.4).
• For example, you may want a video loss and motion event in channel 2 to trigger a buzzer.
6. Click OK to save your settings.
93
Web Remote Viewer
Configure E-mail Notification
To configure your e-mail notification settings:
1. Click the E-mail Notification sub-menu on the navigation bar on the left (Sensor>E-mail
Notification). The E-mail Notification Setting window opens.
Figure 23.6 E-mail Notification Setting window.
2. Under the Notification drop-down menu, select ON to enable e-mail notification.
3. Under the HDD Event drop-down menu, select ON to enable the DVR to send out an e-mail
notification when a hard drive event occurs.
4. Under the Booting Event drop down menu, select ON to enable the DVR to send out an e-mail
when the DVR reboots.
5. Under the Frequency drop-down menu, select the interval of how often e-mail notifications
are sent to you when an event occurs.
6. For each channel, select which events you want to trigger an e-mail notification (Figure 38.4).
• For example, you may want a video loss and motion event in channel 2 to trigger a e-mail
notification to be sent.
94
Setting Up Remote Viewing
SETTING UP REMOTE VIEWING
Your LH600 Series system is capable of remote connectivity. You can connect to your system
through:
• A remote computer via web browser (Internet Explorer & Safari)
• A Mobile Device (iPhone™, Blackberry™, Windows Mobile™)
Advanced Monitoring using DDNS
• DDNS allows you to connect to your system remotely using a computer or mobile device.
• Port forwarding is required.
Steps Required:
1. Port forward ports 80 and 554 to your router using one of the following:
• The Auto Port Forwarding feature on the system.
• The Auto Port Forwarding Wizard (included on software CD).
2. Create a Lorex DDNS account.
3. Enable DDNS on your system.
• For details on the Auto Port Forwarding feature on the system, see “Auto Port Forwarding”
on page 46.
• For details on the Auto Port Forwarding Wizard, see “Lorex Auto Port Forwarding Wizard” on
page 99.
• For details on creating a DDNS account, see “Setting Up DDNS Service” on page 106.
• For details on enabling DDNS on your system,see “Network Tab” on page 45.
95
Advanced Remote Monitoring Using DDNS
ADVANCED REMOTE MONITORING USING DDNS
Setting up remote viewing requires several steps. Networking skills are required to correctly
configure the remote viewing functions.
What Do I Need?
• DVR System
• A router (not provided with the system) and High Speed Cable or DSL Internet Connectivity
(for remote viewing outside your network)
DVR
World Wide Web
(INTERNET)
ROUTER
(Not Included)
PC
(Not Included)
Figure 24.0 Remote monitoring connectivity diagram.
Network Setup / Remote Access Overview
To setup remote viewing:
1. With the system powered off, connect the system to the router using an Ethernet cable.
NOTE: You must connect the system to the router prior to turning on the system. This allows the system
and router to communicate over the network.
2. Power on the system.
• Wait for the system to boot to the main viewing window.
3. Press the Return button on the front panel to find your system's IP address.
4. Port Forward the required ports on your router using one of the following:
• Lorex Auto Port Forwarding Wizard (For details, see “Lorex Auto Port Forwarding Wizard” on
page 99).
• The AUTOPORT button in the system’s network settings.
5. Setup an account at http://www.lorexddns.net
96
Advanced Remote Monitoring Using DDNS
How Do I Find My IP and MAC addresses?
The IP and MAC address of your system are necessary for DDNS setup. DDNS allows you to view
and control your system from a remote location by using a simple and easy to remember web
address (i.e tomsmith.lorexddns.net).
IP address & system MAC address
Figure 24.1 DVR Status screen.
To find your IP and MAC address:
• Press the RETURN button on the front control panel of the system (in main viewing mode)
OR
• Press the F1 button on the remote control (in main viewing mode).
OR
1. Right-click in the main viewing window to open the Quick Menu.
2. Click SYSTEM SETUP>SYSTEM>SYSTEM MANAGEMENT
3. Beside SYSTEM INFORMATION, click the PRESS button.
97
Advanced Remote Monitoring Using DDNS
What is Port Forwarding?
You need to enable port forwarding on your router to allow for external communications with your
system for the following ports:
• 80 and 554 (default)
Computers, DVRs, and other devices inside your network can only communicate directly with each
other within the internal network. Computers and systems outside your network cannot directly
communicate with these devices. When a system on the internal network needs to send or receive
information from a system outside the network (i.e. from the Internet), the information is sent to
the router.
NETWORK EXAMPLE
Router
External IP
216.13.154.34
Router
Internal IP
192.168.0.1
PC
Internal IP
192.168.0.2
DVR
Internal IP
192.168.0.3
Internet
Internal Network
Figure 24.2 Port forwarding diagram.
When a computer on the Internet needs to send data to your internal network, it sends this data
to the external IP address of the Router. The Router then needs to decide where this data is to be
sent to. This is where setting up Port Forwarding becomes important.
Port Forwarding tells the router which device on the internal network to send the data to. When
you set up port forwarding on your Router, it takes the data from the external IP address:port
number and sends that data to an internal IP address:port number (i.e. Router External IP
216.13.154.34 to DVR Internal IP 192.168.0.3:554).
To port forward, use the Lorex Auto Port Forwarding Wizard (included in the Software CD), or use
the AUTOPORT feature on the system.
98
Lorex Auto Port Forwarding Wizard
LOREX AUTO PORT FORWARDING WIZARD
The Lorex Auto Port Forwarding Wizard is an exclusive software that easily automates router port
forwarding. Before setting up a DDNS account, it is recommended to run the Auto Port
Forwarding Wizard to port forward the required ports.
Installation
To install the Lorex Auto Port Forwarding Wizard:
1. Insert the system’s software CD, and follow the instructions to launch the Lorex Auto Port
Forwarding Wizard software.
• The installation window opens.
2. Click Next to continue.
Select
installation
directory
(optional)
Click Next
Figure 25.0 Auto Port Forwarding Wizard installation menu.
3. Click the Change button to change the default installation directory (optional). Click the Next
button to continue.
4. Select the users who can see the Auto Port Forwarding shortcut (Optional). Click the Next
button to continue.
Select the users who can see the software shortcut (optional)
Figure 25.1 Auto Port Forwarding Wizard installation - user selection.
99
Lorex Auto Port Forwarding Wizard
5. Click the Next button and then click Finish to complete the software installation.
Finish button
Figure 25.6 Completing the installation.
6. Double-click the Lorex Auto Port Forwarding shortcut (
the program.
)from your desktop to start
Obtaining Your Router Model Number and Version
On most routers, the model and version number can be found underneath the router, printed on
a sticker.
Example
• WGR614 refers to the model number
• v9 refers to the version number
Figure 25.7 X Finding your router model and version.
100
Lorex Auto Port Forwarding Wizard
Configuration
You must have the following before you configure the software:
1. Your router’s model number and version number
2. Your router’s user name and password
3. Your Lorex device’s IP address
4. Your Lorex device’s port numbers that require port forwarding
Initial Startup: Select language
1. Click the Language drop-down menu and select a language (English, French, Spanish). Click
the Start button to continue.
Software update section
Start button
Language drop-down menu
Download Now button
A software update includes an updated list of routers
compatible with the Auto Port forwarding Wizard.
Figure 25.8 Initial setup window.
2. If software updates are available, click the Download Now button in the top-right corner.
• Run the update file and install the latest version of the software.
Step 1: Populate the router database
The Auto Port Forwarding Wizard automatically populates a list of current routers, and detects
the number of connected routers.
1. Click the Next button after the software detects your router configuration.
Click to update router database
Click to check for multiple routers
If more than one router is detected, you
may need to contact your ISP (Internet
Service Provider) to port forward.
For details on configuring multiple
routers, see “Configuring multiple
routers” on page 103.
Figure 25.9 Router detection window.
101
Lorex Auto Port Forwarding Wizard
Step 2: Enter your router settings
1. Under the Router drop-down list, select the model of your router.
OR
• Click the Search button (
) to enter the name of your router model.
NOTE: Click the Auto Detect button (
most Linksys or Netgear models).
)if you have a Linksys or Netgear router (works with
Router drop-down list
Search and Auto detect
button
Router IP
Router user name &
password
Enter port 80 under
Ports
Enter port 554 under
2nd Port
Figure 25.10 Router settings window.
).
2. Under Router IP, click the Detect Router IP button (
• The router’s IP populates in the blank field. Click OK to exit the prompt.
3. Under Username and Password, enter the router’s username and password.
• Optional: Under HTTP Type (default http://) and HTTP Port (default, 80), you may have to
change the values depending on your router model. Consult your router manual for details.
Enter your Lorex
device’s IP
Enter port
number
Figure 25.11 Router settings window.
4. Under IP, enter the IP address of your Lorex device.
• To find your system IP, exit to the main viewing mode, and then press the INFO button on your
remote, or press the RETURN button on the front panel of the system.
5. Under Port, enter the Web Port (80). Under 2nd Port, enter the RTSP port (554).
6. Click Next to continue.
102
Lorex Auto Port Forwarding Wizard
Step 3: Update the router settings
1. Click the Update Router button.
• You will see your router window open. The Auto Port Forwarding Wizard automatically
populates your router with the relevant information. This will take a few moments.
Update Router button
Figure 25.12 Router settings window.
2. Close the update window when the update finishes.
Step 4: Test your connection
1. Click the Test Your Connection button.
• Your system’s default browser opens and connects to your Lorex device.
NOTE: Ensure that Internet Explorer is your system’s default internet browser.
NOTE: A window opens that prompts you to enter in your DVR’s user name and password (do
not enter your DDNS log in information).
NOTE: ActiveX warnings may appear. Accept all ActiveX installation warnings to connect to your
system. For details, see “Logging into Web Remote Viewer” on page 61.
Configuring multiple routers
Your network may have two or more connected routers. During the initial launch of the auto port
forwarding wizard, the program scans the network to detect the number of connected routers.
To check for multiple routers:
).
1. Click the Detect Multiple Routers button (
• A list of connected router populates in the window.
"2" indicates two routers
have been detected
Figure 25.13 Router settings window.
103
Lorex Auto Port Forwarding Wizard
• The "Possible 1st Router" refers to the router directly connected to your system. This is the
router that requires the port forward information.
• The "Possible 2nd Router" refers to the router immediate to the internet connection. This is
the router that requires you to configure a DMZ host connection.
Scenario A: Router/Modem combination + Router
• You may have a router/modem combination, with a second router in your network.
Scearnio B: Multiple Routers
• You may have two routers in your network.
Internet
DMZ IP
Port Forward port 80 &
554 to Router 1
Computer
Modem
Router 2
EXAMPLE
Router 1
DVR System
Enter 192.168.1.100 into the DMZ
Host IP section into Router 2
IP Address: 192.168.1.100
Figure 25.14 Configuring multiple routers.
(Assigned by Router 2)
In both scenarios, the router that is immediate to the internet connection (Router 2 in illustration)
must act as a "bridge" to another router (Router 1 in illustration). The Auto Port Forwarding
Wizard must connect to Router 1.
A proper DMZ configuration in Router 2 allows all incoming traffic going through Router 2 to
automatically pass to Router 1. Router 2 acts as a "dummy" router and passes all the incoming
data onto Router 1. Router 1 is the router that needs the port forwarding information.
104
Lorex Auto Port Forwarding Wizard
Configuring a DMZ host connection
• Connect to "Router 1" on your network (referred
to as "Possible 1st Router" in the Auto Port
Forwarding Wizard). Obtain the IP address of
Router 1. Usually this can be found in the
"Status" section of your router menu. The IP
should begin with "192.168...."This IP address is
your DMZ IP.
Example
DMZ stands for Demilitarized Zone. Enabling a DMZ
IP on your router enables one of the routers to pass
information onto the second router.
DMZ IP address
assigned by a
secondary router
• Enter the IP address obtained from Router 1 into
the DMZ section of Router 2.
• Once you have configured Router 2 with a DMZ
connection, run the Auto Port Forwarding
Wizard to begin auto port forwarding to Router 1.
Figure 25.15 Entering DMZ information.
• Consult your router’s owner’s manual for details
on configuring DMZ settings.
Locating your Router IP - The Status Page
The "Status Page" of a router normally includes the router’s
vital information such as the IP address.
EXAMPLE
The IP information is
normally under a
header called "WAN" or
"Internet Port". Each
router has different
terminology.
Router IP assigned by
the main router. Enter
this IP into the DMZ
section of the primary
router.
Figure 25.16 Router status page.
105
Setting Up DDNS Service
SETTING UP DDNS SERVICE
Lorex offers a free DDNS service for use with your system. A DDNS account allows you to set up
a web site address that points back to your local network. The following outlines how to set up
your free DDNS account.
To setup your free Lorex DDNS account:
1. In your browser, go to www.lorexddns.net and click Create Account.
Figure 26.0 DDNS registration.
2. Complete the Account Information fields with your personal information. Complete the
Warranty Information with your purchase details (optional).
3. Complete the System Information fields:
• Product License (Code): Select your product model from the Product License drop down
menu.
• MAC Address: The physical address of your system on your network.
• URL Request: Choose a URL for your DDNS connection (i.e. your name, your company or
business name, or anything of your choice)
Enter system
MAC address
Figure 26.1 Entering system MAC address.
4. Click Create New Account to create a new account and save your settings.
5. Your Account information will be sent to you at the email Address you used in step 2
You will need this information for remote access to your system. Record your information below
Username:
Domain name*:
Password:
106
* Only the first part of the Domain Name is
required for setup on the system. For example, if
the full domain sent is tomsmith.lorexddns.net,
you only need to enter tomsmith on the system.
Setting Up DDNS Service
How Do I Enable DDNS On My System?
Once you have registered for free DDNS service, use the information in the confirmation email to
configure DDNS settings on your system.
To open the DDNS on your system:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click SYSTEM.
• The System setup window opens.
4. Click the NETWORK tab on the left.
• The Network window opens.
Select DDNS checkbox
Network tab
Figure 26.2 System Network tab.
Enabling DDNS & DHCP
You must enable DDNS and and DHCP for remote connectivity.
To enable DDNS & DHCP:
1. Select the DHCP or DDNS checkbox.
• Click APPLY to save your settings.
With DDNS entered on your system, you can access your DVR from a remote location by entering
the Lorex DDNS domain name in your web browser on your computer or mobile device.
107
Setting Up DDNS Service
Networking Checklist
Use this checklist to confirm you have completed all the steps of the Network Setup.
I have the following:
• High-Speed Internet
• Router (not included)
• Ethernet cable (not included)
• Computer with Internet Explorer 6 or later
I have turned off the system and performed the following:
• Connected the Ethernet cable to the back of the system
• Connected the other end of the Ethernet cable to my router
I have found my System Information:
• Press the RETURN button (
) on the remote control or front panel of the system.
OR
• SYSTEM SETUP
> SYSTEM > SYSTEM MANAGEMENT > SYSTEM INFORMATION
My IP Address is: ________________________________________________
My MAC Address is: ______________________________________________.
I have enabled Port Forwarding on my router:
• Port 80 & 554
NOTE: Use the AUTOPORT feature in the system or use the Lorex Auto Port Forwarding Wizard to port
forward your router.
• For details on the AUTOPORT button feature, see “Auto Port Forwarding” on page 46.
• For details on the Lorex Auto Port Forwarding Wizard, see “Lorex Auto Port Forwarding
Wizard” on page 99.
108
Setting Up DDNS Service
I have configured DDNS for remote access to my system:
Go to www.lorexddns.net and create a new account
Domain: ____________________________________
User ID: ____________________________________
Password: __________________________________
I have configured my system to connect to the DDNS server:
ATTENTION: You MUST enter your DDNS information LOCALLY (in your
system’s DDNS menu) before attempting remote access.
To enable DDNS on your system:
To open the DDNS on your system:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click SYSTEM.
• The System setup window opens.
4. Click the NETWORK tab on the left.
• The Network window opens.
5. Select the DDNS checkbox.
• Click APPLY to save your settings.
NOTE: Once you have saved your DDNS settings, you must reset your DVR for the changes to take effect.
Disconnect and reconnect the power cable from the rear panel to reset the system.
I can access my system from a remote PC:
To access your system remotely:
1. Open Internet Explorer and enter your DDNS address from the confirmation email. For
example, tomsmith.lorexddns.net
NOTE: Remote viewing is compatible with Internet Explorer only.
2. Log in using your user name and password (by default, user name: ADMIN; password: 1234).
109
Remote Viewing On Mobile Devices
REMOTE VIEWING ON MOBILE DEVICES
You can access your DVR from your mobile device such as an iPhone™, Blackberry™ or Windows
Mobile™.
Before You Begin
Data charges may appear on your
phone bill as a result of browsing
streaming video.
Always check with your cell phone
carrier on how your data plan works.
Lorex is not responsible for data plan
fees that may result.
You must enable DDNS on your DVR and set up a DDNS account before you can begin viewing
video on your mobile device.
• To set enable DDNS on your DVR, see “Setting Up DDNS Service” on page 106.
• To set up a DDNS account on your DVR,see “Network Tab” on page 45.
• Connect to your system by entering the DDNS address of your system into your mobile device’s
web browser.
Viewing Your DVR From Your iPhone
Once you have enabled DDNS on your DVR, and set up a DDNS address, you can begin live viewing
from your iPhone.
Connecting to your system on your iPhone:
1. Touch the Safari icon(
) to start web
browsing.
2. In the address bar, enter your DDNS address
in full (For example
http://tomsmith.lorexddns.net).
• A login window opens.
3. Enter the system’s user name and password
(by default ADMIN ; 1234)
• The Mobile View page opens and automatically
connects to channel 1.
Figure 27.0 Router settings window.
110
Remote Viewing On Mobile Devices
Web Remote Viewer iPhone Interface
Changing Channels
1. Touch the channel drop-down menu to access a list of channels.
2. Touch a channel (ie. 03 CH) to switch channels.
• A checkmark appears beside the selected channel.
3. Touch the Done button to exit.
Flick your finger on the
channel list to scroll
through list.
Channel drop-down menu
Figure 27.1 Web Remote Viewer iPhone interface.
Adjusting Video Frame Rate
1. Touch the frame rate drop-down menu to access a list of frame rates.
2. Select a desired frame rate.
• A checkmark appears beside the selected frame rate.
3. Touch the Done button to exit.
Frame rate drop-down menu
Figure 27.2 Adjusting channel frame rates.
111
Remote Viewing On Mobile Devices
Viewing Your DVR From Your 3G Blackberry
To begin live viewing from your Blackberry:
1. Open your web browser, and enter in the DDNS address of your DVR. The Mobile Viewer page
opens.
Enter in your username and password and
click OK.
Channel list drop-down menu
Figure 27.3.Blackberry Web Remote Viewer login.
2. Enter in your DVR user name and password when the authentication window appears. Click
OK.
3. Click the channel list drop-down menu to view a list of DVR channels.
Channel list drop-down menu
Close up view of channel list.
Figure 27.4 Channel selection on Web Remote Viewer.
NOTE: The Auto checkbox refers to auto-refreshing of images. Leave this option selected.
112
Remote Viewing On Mobile Devices
Viewing Your DVR From Your Windows Mobile device
To begin live viewing from your Windows Mobile device:
1. Open the Opera web browser, and enter in the DDNS address of your DVR.
Enter the DDNS address
of your DVR
Opera Browser
Figure 27.5 Launching Web Remote Viewer on Windows Mobile.
2. Enter in your DVR user name and password when the authentication window appears.
3. Click OK to log in to the system.
Figure 27.6 Web Remote Viewer, full view in Windows Mobile.
4. Use the stylus to navigate the system menus. Navigation is identical to accessing the system
through Internet Explorer.
113
Appendix A: System Specifications
APPENDIX A: SYSTEM SPECIFICATIONS
SYSTEM
Operating System
Linux (embedded)
Pentaplex
Simultaneous View, Record, Playback, Backup & Remote
Monitoring
Number of Channels
4 Channel
Inputs / Outputs
Video IN
4 x 1Vp-p, CVBS, 75ohms, BNC
Video Out
BNC
Spot Out
BNC
DVI OUT
DVI to VGA converter included
Audio IN
1 Line in(RCA), CODEC:G.711
Audio Out
1 line out(RCA), CODEC:G.711
USB Port
2 - front & back
Alarm IN
4 x TTL, programmable as NC/NO
Alarm Out
1 x Relay with NO/NC contact; 24VDC/2A, 120VAC/2.0A resistive
PTZ control
RS485
Keyboard Control
RS485 compatible
Display
Live Display
1 or 4
Live Display Speed
120/100 fps (4ch)
OSD
ON/OFF
System Navigation
USB Mouse, Remote Control, Front Panel, Virtual Keyboard
control, Quick Setup
Border Color
ON/OFF
Sensitivity Levels
10
114
Appendix A: System Specifications
Motion Area Setting
Adjustable grid (11 x 8), 10 steps sensitivity level
Firmware Upgrade
Via USB Device
Configuration Export &
Import
Via USB
User Authority
ADMIN/MANAGER/USER
Audio
2-way Audio Conference (via nework)
RECORDING
Video Compression
H.264
Audio Compression
G.711
Recording Speed
120/100 fps (CIF),
60/50 fps (2CIF) (4 Ch)
Recording Resolution
120/100 (NTSC/PAL) @ 352x240 (CIF)
60/50 (NTSC/PAL) @ 704x 240 (2 CIF)
30/25 (NTSC/PAL) @ 704x 480 (D1)
Recording Resolution
Setting
By each camera for different resolution setting (CIF/2CIF/D1)
Recording Quality
Control
4 levels (low/standard/high/highest)
Image Size
2-3 Kbyte (352x240), 4-9 Kbyte (704x240) 5-15 Kbyte (704x480)
Recording Schedule
By hour, by day, by recording mode, by alarm, by Ch
Pre Recording
Max. 5 seconds
Post Recording
Max. 180 seconds
Alarm Recording
Programmable per camera
Panic Recording
Overrides all other recording settings to provide the best quality
recording
S.M.A.R.T Alarm
HDD Health Check
Reliability
Watch-Dog, Auto-recovery after power failure
Convert Video
Yes
PLAYBACK
Playback Channel
1,4 (4ch)
115
Appendix A: System Specifications
Instant Playback
Instant playback mode for quick review of log events
Playback Speed
Variable playback (Max. 64x)
Playback Players
Backup Player, Windows Media Player (after installing the
codec)
Calendar Search
Search by time
Event Search
Search by event
Log Search
Up to 1000 for user login/out, configuration changes, remote
access, connects/disconnects
Audio Play
Synchronized with video
STORAGE & ARCHIVE
Storage
Up to 1 HDD’s (SATA)
Maximum Capacity
Up to 2TB
Backup Media
USB (flash drive & HDD)
Backup File Format
AVI file (Codec included)
Watermark
Watermarked video & audio for security
CONNECTIVITY
Easy Connect
1. Built-in Auto Port Forwarding (UPnP router required)
2. Lorex Auto Port Forward Wizard
Software
Web browser
Supported Operating
Systems
Windows™ XP, Vista, 7 and Apple Mac (via Safari browser)
Browsers
I.E.: Multi channel viewing playback and configuration.
Mozilla Firefox, Safari, Google Chrome: Selectable single
channel live viewing & configuration
Email Notification
Text with web link
Mobile Connectivity
Blackberry™, iPhone™, Windows Mobile™ 6.0 and above Smart
phones (via Opera browser)
DDNS
Free Lorex DDNS
System Configuration
Full setup configuration over network
Bandwidth Limit
Limitable network bandwidth by user
116
Appendix A: System Specifications
Web Server Port
Programmable by User
Network Protocol
LAN, DHCP, Dynamic IP, DDNS
Network Interface
10/100-Base-TX, RJ-45
Network Speed Control
8 levels (56Kb ~ 8MB)/sec.
GENERAL
Power Consumption
Approx. 18 watts
Supply Voltage
100VAC-240VAC, 12VDC , 3.3A, 50/60Hz
Unit Dimensions (W x D
x H)
11.4" /290mm x 8.3"/211mm x 2.3"/60mm (W X D X H)
Unit Weight (KGs)
1.6 kg/3.5 lbs
Operating temperature
0° ~ 40° C
Humidity
10 ~ 90% NC
As our products are subject to continuous improvement, Lorex Technology Inc. and its
subsidiaries reserve the right to modify product design, specifications, and prices without notice
and without incurring any obligation. E&OE
117
Appendix B: Replacing The Hard Drive
APPENDIX B: REPLACING THE HARD DRIVE
The system comes with a pre-installed 3.5" SATA hard drive. Make sure that the system is OFF
and the power cable has been disconnected before changing the hard drive.
Ground yourself before opening the system.
Work on a carpet-free surface. Static electricity
damages electronic parts and hard drives.
Removing The System Cover
1. Remove the screws on the side and rear panel of the system.
x2
2. Slide the system cover all the way back and gently lift the cover.
Slide cover back and lift
118
Be careful of sharp edges when
removing the system cover!
Appendix B: Replacing The Hard Drive
Removing The Hard Drive Bracket
1. Remove the four (4) silver screws to loosen the hard drive bracket.
Grounding Cable
2. Gently slide the hard drive bracket to remove it from the SATA connector.
Slide hard drive to remove
3. Unscrew the four (4) silver screws to remove the bracket from the hard drive.
x4 Screws
119
Appendix B: Replacing The Hard Drive
Replacing The Hard Drive
1. Install the two mounting brackets onto the new hard drive using the four silver screws.
x4 Screws
2. Slide the hard drive (with the mounting bracket installed) into the SATA data port until the
hard drive locks in place.
• Orient the hard drive so that the SATA data port faces towards the SATA data port on the
system board.
Slide hard drive towards SATA
data port
SATA data
3. Secure the mounting bracket onto the chassis using the four (4) silver screws.
NOTE: Secure the grounding cable onto the mounting bracket.
Grounding Cable
120
Appendix B: Replacing The Hard Drive
Formatting The Hard Drive
Format your new hard drive so that the system properly detects it.
To format your hard drive:
1. Right-click anywhere in the main viewing window.
• The quick-menu opens.
2. Click
.
• The System Setup menu opens.
3. Click DISK MANAGEMENT.
• The Disk Management window opens.
Formatting a hard drive
permantely erases all data.
This cannot be undone.
Start button
4. Beside FORMAT, click the START button.
• The Login window opens.
5. Enter in your user name and password and then click OK.
• A warning window opens.
6. Click YES to format your hard drive.
• Wait for the system to erase the hard drive. The system restarts automatically once the
formatting process completes.
121
Appendix C: Using The Storage Calculator
APPENDIX C: USING THE STORAGE CALCULATOR
The Storage Calculator software calculates the amount of recording time available on your hard
drive, based on the System Recording Settings. This software is located on the CD included with
your system.
1. Select the settings to reflect
the options you have chosen on
your system:
• Channel: Select the number
of channels your system has
(4CH, 8CH, 16 CH).
• CH1~CH8: Select the
channels to include in the
Recording Calculation.
• Resolution: Set the recording
resolution to CIF (352x240),
2CIF (704x240) or D1
(704x480).
• Quality: Set the recording
quality to Highest, High,
Standard, Low.
• FPS (Frames Per Second):
Set the Frames Per Second for
the recording to 1, 2, 3, 7, 15
or 30 FPS.
• Audio: Set the Audio
Recording selection to ON or
OFF (if audio is being recorded
on the system).
• HDD Size: Select the size of
the system hard drive.
2. Click the Calculate button.
• The software populates the
results of your system’s
recording time.
122
Maximum recording time
Calculate button
Appendix D: Enabling E-Mail Notifications
APPENDIX D: ENABLING E-MAIL NOTIFICATIONS
This system has the ability to automatically send email notifications when an event is detected (i.e.
motion event).
NOTE: These instructions rely on the Lorex DDNS email server to send out email notifications.
If you wish to enable email notification using your own custom email server settings, see “Mail
Tab” on page 46.
Step 1: Connect Your System To The Internet
1. Connect an ethernet cable to the Ethernet port on the rear panel of the system. Connect the
other end of the ethernet cable to a router that is connected to the internet.
2. Ensure that DHCP and DDNS is enabled on your system (ON by default):
a. Right-click anywhere in the main viewing window.
b. Click
c. Click SYSTEM.
• The System setup window opens.
d. Click the NETWORK tab on the left.
• The Network window opens.
Select the DHCP and DDNS checkbox
Network tab
e. Click the DHCP and DDNS checkbox to make sure the checkboxes are selected.
f. Click APPLY to save your settings.
123
Appendix D: Enabling E-Mail Notifications
Step 3: Select Users
1. Click the USER MANAGEMENT tab on the left.
• The User Management window opens.
User Management tab
2. Under USER ID, double-click the user you wish to modify (ADMIN, USER or MANAGER).
• The Edit window opens.
E-Mail field
3. Double-click the blank field beside E-MAIL.
• The Virtual Keyboard opens.
4. Enter the desired email you wish to receive notification emails.
5. Click OK to save your settings.
6. Beside E-MAIL NOTIFICATION, click
7. Click OK to save your settings.
to select ON.
NOTE: Ensure the EMAIL checkbox is selected.
124
Appendix D: Enabling E-Mail Notifications
Step 4: Enable The Default E-Mail Server
1. Click the MAIL tab on the left.
• The Mail window opens.
2. Select the DEFAULT SERVER checkbox.
3. Click APPLY to save your settings.
4. Beside TEST E-MAIL, click the PRESS button.
• A test e-mail is sent to the e-mail address
entered in "Step 3: Select Users".
NOTE: Please wait for several minutes before
a test e-mail to be sent. Double-check your
"Spam" folder in your e-mail for the test
message.
Select Default Server
Step 5: Select Event Type
Next, select the event type that you wish to trigger an email notification. For example, you may
only want all Motion events to trigger an email notification.
1. Click the "X" on the top-right corner of the window to return to the main menu.
Click X
EVENT/SENSOR
2. Click EVENT/SENSOR.
3. Click the E-MAIL NOTIFICATION tab on the left.
• The E-mail Notification window opens.
125
Appendix D: Enabling E-Mail Notifications
Behavior Settings
To configure behavior settings:
1. Under NOTIFICATION, select ON.
2. Under HDD EVENT, select ON/OFF. If ON, the system will send an email notification when an
error occurrs in the internal HDD.
3. Under BOOTING EVENT, select ON/OFF. If ON, the system will send an email notification
when the system restarts (powers on/off).
Action Settings
Set event triggers for each channel.
To configure action settings:
1. Set the following:
• ALARM: Select the box to enable e-mail notifications when an alarm input is triggered
• VIDEO LOSS: Select the box to enable e-mail notifications when video loss occurs on the system
• MOTION: Select the box to enable e-mail notifications when motion is detected on the system
2. Under FREQUENCY, select the time interval that the system sends email notifications.
• Click APPLY to save your settings.
Reading Received E-Mails
When the system detects an event, such as a motion or alarm event, a notification email is
automatically sent to your email.
Example of a system notification email
From: DVR
[mailto:[email protected]]
Sent: May-18-10 3:07 PM
To: [email protected]
Subject: [DVR NAME:SYSTEM ID] 05/18/
2010 15:07:00
DVR Event E-Mail !!
Time : 05/18/2010 15:07:00
System ID : SYSTEM ID
Motion Detection In Channel 1 occurred
Motion Detection In Channel 2 occurred
Motion Detection In Channel 6 occurred
http://tomsmith.lorexddns.net:80
126
Events that the system detected
Live link to connect to your system (DDNS must
be enabled and properly configured)
Appendix E: Full Connectivity Diagram
APPENDIX E: FULL CONNECTIVITY DIAGRAM
The following diagram outlines a general set of connections available with the DVR.
BNC CAMERAS*
(Not Included)
Internet
SLAVE MONITOR/ TV**
(Not included)
Monitor
(Not Included)
LINE OUT/AMPLIFIED
SPEAKERS
(Not Included)
(Not Included)
POWER
PTZ CAMERA
(Not Included)
MOUSE
(Not Included)
SPOT MONITOR/TV
(Not Included)
SELF-POWERED
MICROPHONE
(Not Included)
OR
SENSOR
(Not Included)
To audio-enabled BNC
Cameras, not included
*Number and type of cameras variy by model.
** To connect to a TV, use a BNC to RCA connector (not included).
127
Appendix F: Connecting PTZ Cameras
APPENDIX F: CONNECTING PTZ CAMERAS
You can connect a RS-485 PTZ camera (not included) to the PTZ Control Block on the rear panel
of the system.
VIDEO (BNC)
D+ (TX+)
DVR
D- (TX-)
PTZ CAMERA
(not included)
Connecting a PTZ camera (not included)
To install a PTZ Camera:
1.
2.
3.
4.
5.
Connect the Transmit Cable to the RS-485 D+ (TX+) port of the PTZ block on the rear panel.
Connect the Receive Cable to the RS-485 D- (TX-)port of the PTZ block on the rear panel.
Connect the video cable to a BNC port (usually channel 1).
Open the SYSTEM SETUP menu and select CAMERA.
Select PTZ SETUP and configure the ADDRESS, PROTOCOL, and BAUD RATE of your PTZ
camera.
NOTE: The PTZ camera settings depend on the type of PTZ camera. Please refer to the specific camera
manual for your brand and model of PTZ camera.
6. Select APPLY and press ENTER to save your settings.
128
Appendix F: Connecting PTZ Cameras
Controlling the PTZ Camera
To control the PTZ camera:
1. Double-click on the channel with the PTZ camera.
2. Right-click in the main viewing mode to open the quick menu.
3. Click on PTZ.
• The PTZ menu opens.
Click arrows to pan camera left, right, up, or down.
4. Configure the following:
• Zoom: Click the arrows to zoom in / out of the image.
• Focus: Click the arrows to improve image focus.
• Iris: Click the arrows to increase or decrease the camera iris. The camera iris controls the
amount of light that passes through the camera lens. Increasing the iris improves image
brightness.
Configuring Pre-sets
A pre-set allows you to quickly move the camera to a pre-assigned location. For example, you can
have the camera point to the main hallway in pre-set 1. Then, you can have a camera point to the
main entrance in pre-set 2.
To configure camera pre-sets:
1. Move the camera to the position you would like the first pre-set. Configure the Zoom, Focus
and Iris settings if desired.
2. Under PRESET, select a pre-set number (1~255).
3. Click the SET button.
Running Pre-sets
• Select the pre-set number, and then click the RUN button. The camera automatically pan/
tilt/zooms to the pre-set position.
129
Appendix G: Connecting Additional External Monitors
APPENDIX G: CONNECTING ADDITIONAL
EXTERNAL MONITORS
Spot Out
The Spot out port displays the camera channels in sequence. You can change the dwell time of the
sequence in the Display menu (see “Camera” on page 40, under sub section "Monitor Tab"). This
is useful for a monitor in public view: you can make people aware that they are being watched.
Monitor Out
Use the Monitor Out port to connect an external monitor. Monitor Out mirrors the entire screen
image of your system. This is useful if you need to monitor the system from a second location (e.g.
a back office).
Public View Monitor
MONITOR (TV)
SPOT MONITOR /TV*
(Not Included)
(not included)
DVR
* To connect to a TV, use a BNC to RCA connector (not included).
130
Appendix H: Connecting Motion / Alarm Devices
APPENDIX H: CONNECTING MOTION / ALARM
DEVICES
You can also connect external alarm input and alarm output devices to the system (i.e. motion
sensors, door/window sensors). Use a motion detector or sensor to send a signal to the system to
begin camera viewing and recording on the matching camera channel (when enabled in the
Menu); simultaneously, the system sends an output signal to a device such as an alarm or siren.
To connect an external sensor/alarm to the system:
1.
2.
3.
4.
Connect the Signal Cable to the desired Channel number + port in the ALARM IN block.
Connect the Ground cable to the Ground port (G) in the ALARM IN block.
Open the SYSTEM SETUP menu and select EVENT/SENSOR.
Select ALARM INPUT / ALARM OUTPUT and configure the following:
• OPERATION: Select ENABLE for the corresponding alarm channel
• TYPE: Select N.C. (Normally closed) or N.O. (normally open) depending on your alarm/sensor
setup. Select APPLY and press ENTER to save your settings.
DVR
ALARM OUTPUT
ALARM INPUT
GROUND (G)
SIGNAL CABLE
Connect to N/C or N/O
depending on device.
ALARM or SIREN
(Not Included)
SIGNAL CABLE
GROUND (G)
SENSOR
(Not Included)
131
Appendix I: Connecting Audio Devices
APPENDIX I: CONNECTING AUDIO DEVICES
You can connect one audio capable camera or one self-powered microphone to the system. Use
the Line Out port to connect the system to amplified speakers*.
DVR
AUDIO CAPABLE CAMERA
(not included)
OR
SELF-POWERED MICROPHONE
(not included)
LINE OUT / AMPLIFIED
SPEAKERS
(not included)
To connect audio devices:
1. Connect the audio cable (RCA) from an audio capable camera to the AUDIO IN port on the rear
panel of the system.
2. Connect a line out/audio cable from amplified speakers (or other audio device) to the AUDIO
OUT port.
3. Open the MAIN MENU and select SYSTEM SETUP. If necessary, login with your user name
and password (by default, user name: ADMIN; password: 1234).
4. Click SOUND.
5. Configure Live Audio and select ON.
6. Beside NETWORK AUDIO TX and NETWORK AUDIO RX, select ON.
7. Click APPLY to save your settings.
8. Open the RECORD SETUP menu and select ADVANCED RECORDING.
9. Enable audio recording for each corresponding channel.
10. Click APPLY to save your settings.
*Audio capable cameras, self-powered microphones, and amplified speakers are not included
with the system.
132
Troubleshooting
TROUBLESHOOTING
When a malfunction occurs, it may not be serious and can be corrected easily. The following
describes the most common problems and solutions. Please refer to the following before calling
Lorex Technical Support:
Error
Possible Causes
Solutions
• DVR is not receiving
power, or is not
powering up
• Power cable is loose or is
unplugged
• Confirm that all cables are connected correctly
• Cables are connected, but DVR
unit is not receiving sufficient
power
• Confirm that the unit is powered on (LED
indicators on the front should be ON)
• Confirm that the power cable is securely
connected to the back of the unit
• If the unit is connected through a power bar or
surge protector, try bypassing the bar and
connecting the power directly to the wall outlet
• Confirm that there is power at the outlet:
• Connecting the power cable to another outlet
• Test the outlet with another plugged device
(such as an electric calculator or phone
charger)
• Remote control is
not detected by the
system
• Hard drive is not
detected by the
system
Hard drive is full (0%)
and the unit is no
longer recording
• Batteries in the remote control
are drained
• Install a new battery in the remote control
• There are no batteries in the
remote control
• Hard drive cables are loose or
not properly connected
• Remove the housing and check that hard drive
cables are firmly connected
• Hard drive has not been
initialized (formatted) by the
system
• From the Main Menu, select System Setup>Disk
Manage>Format and then click Start.
ATTENTION: Formatting erases all video data on
the hard drive
• There is no hard drive in the
system
• Open the housing and install a 3.5" SATA hard
drive
• Overwrite is not enabled
• From the Main Menu, select System Setup>Disk
Manage>Overwrite and select ON. This enables the
system to continuously record by overwriting data
once the hard drive is full
133
Troubleshooting
Troubleshooting (cont’d.)
Error
Possible Causes
Solutions
Mouse not detected
by system
• Mouse cable is not firmly
connected to the system
• Firmly connect the mouse cable to the USB port
on the front panel
• Mouse is not connected to the
system
• There is no picture
on selected channels
/ camera picture is
not being displayed
• System needs to be reset
• Turn the system OFF (press Power button on the
front panel). Firmly connect a mouse to any of the
USB ports on the system; press the Power button
again to turn the system ON
• Camera cables are loose or
have become disconnected
• Check the camera video cable and connections
• Disconnect and reconnect the cable at the DVR
and at the Camera
• Try moving the camera to another channel or use
another cable
• The image on the
DVR appears, but
does not have sound
• I can’t log in to the
Web Client
• Audio cables are loose or have
been disconnected
• Check the AUDIO connections to the DVR
• Live Audio is disabled
• From the Main Menu, select System
Setup>Sound>Live Audio and select ON
• Audio is associated with the
wrong video channel
• The default audio channel is channel 1—connect
the audio capable camera to channel 1 or select the
correct default audio channel (CH1~4) from the
Sound menu
• You have the wrong port
number
• Enter the system’s Web Serverport—by default, 80
& 554
• If you have customized the Web Server Port, you
may need to port forward the new port number on
your router
• You have the wrong user name
and password
• Log in as the administrator (by default, user
name: ADMIN; password: 1234)
• The system Admin may have disabled Remote
Agent access for the Manager or User profiles; have
the Admin grant you access to Remote Agent
• My system does not
seem to be recording
134
• Recording mode may be set to
"None"
• From the Main Menu select Record
Setup>Continuous Motion Recording>Activation
• Motion Recording may be
enabled
• During Motion Recording, the system ONLY
records when motion is detected by one of the
cameras; enable Continuous Recording, or
Continuous + Motion Recording
1 year (Warranted parts do not include Bulbs, LED’s and Batteries)
Lorex does not make any claims or warranties of any kind whatsoever regarding the Product’s potential, ability or
effectiveness to prevent minimize, or in any way affect personal or property damage or injury. Lorex is not
responsible for any personal damage, loss or theft related to the Product or to its use for any harm, whether
physical or mental related thereto. Any and all claims or statements, whether written or verbal, by salespeople,
retailers, dealers or distributors to the contrary are not authorized by Lorex, and do not affect this provision of this
warranty.
This warranty shall not apply to the appearance or accessory items including, but not limited to cabinets, cabinet
parts, knobs etc., and the uncrating, setup, installation or the removal and reinstallation of products after repair.
Lorex reserves the right to make changes in design or to make additions to or improvements in its products
without incurring any obligation to modify any product which has already been manufactured. Lorex will make
every effort to provide updates and fixes to its software via its website. This warranty does not cover any
alteration or damage to any other software that may be or may become resident on the users system as a result
of installing the software provided. This warranty is in lieu of other warranties, express or implied, and Lorex
neither assumes nor authorizes any person to assume for it any other obligation or liability in correction with the
sale or service of the Product. In no event shall Lorex be liable for any special or consequential damages arising
from the use of the Product or arising from the malfunctioning or non-functioning of the Product, or for any delay
in the performance of this warranty due to any cause beyond its control.
This warranty does not cover the performance or functionality of any computer software included in the package
with the Product. This warranty only covers defects in the CD-ROM media such as a broken or a defect in the
CD-ROM that would prevent the CD-ROM from being read by your personal computer’s CD-ROM drive. Lorex
makes no warranty that the software provided with the Product will function without interruption or otherwise be
free of anomalies, errors or ‘Bugs’. Lorex makes no warranty with regard to any software provided with the
Product unless specifically set forth otherwise in a license agreement accompanying such software. This warranty
does not cover any costs relating to removal or replacement of any Product, CD-ROM, or software installed on
your computer.
This warranty does not apply to defects or damages arising by use of the Product in other than normal (including
normal atmospheric, moisture and humidity) conditions or by installation or use of the Product other than in strict
accordance with the instructions contained in the Product’s Owner’s Manual.
This warranty does not apply to defects in or damages to the Product caused by (i) negligent use of the Product,
(ii) misuse, abuse, neglect, alteration, repair or improper installation of the Product, (iii) electrical short circuits or
transients, (iv) Purchaser usage not in accordance with product installation, (v) use of replacement parts not
supplied by Lorex (vi) improper Product maintenance, or (viii) accident, fire, flood or other Acts of God.
Warranty Exclusions
This warranty does not apply to Bulbs, LED’s and Batteries supplied with or forming part of the product.
This warranty is invalidated if other than Lorex accessories are or have been used in or in connection with the
Product or in any modification or repair is made to the Product by other than a service depot authorized by Lorex.
Lorex’s obligations under this warranty shall be limited to
• The repair and or replacement of the product by means of hardware and/or software (at option of Lorex);
• The replacement of any warranted parts found by Lorex to be defective in the Product or, in Lorex’s sole
discretion, the replacement of the Product found be Lorex to be defective.
• If Lorex is unable to repair or replace the Product or CD-ROM, refund the then-current value of the Product.
Any replacement parts furnished by Lorex in connection with this warranty shall be warranted to the Purchaser for
a period equal to the un expired portion of Warranty Period for the Product.
Parts and Labor:
Lorex warrants, to the original retail purchaser only (the “Purchaser”), that this item (the “Product”) if properly used
and installed, and where applicable, the CD-ROM on which the accompanying software is provided, is free from
manufacturing defects in material and workmanship, provided the Product is used in normal conditions and is
installed and used in strict accordance with the instructions contained.
This warranty shall be for the following warranty periods (the “Warranty Period”), commencing on the date the
Purchaser buys the Product at retail in an unused condition.
LOREX PRODUCT LIMITED WARRANTY
Revision 3.0
b.
a.
Always use discretion when installing video and/or audio surveillance equipment especially
when there is perceived privacy. Inquire regarding federal, state and/or local regulations
applicable to the lawful installation of video and or audio recording or surveillance. Party
consent may be required. www.strategicvista.com
TOLL FREE CUSTOMER SUPPORT
North America: 1-888-42-LOREX (1-888-425-6739)
Local: 905-940-5355
International: 800-42-LOREX 0 (800-425-67390)
www.lorexcctv.com
www.lorexinternational.com for return instructions.
ii). If the unit was purchased in Canada proceed as follows:
Please contact our customer service department to obtain a return
authorization number.
Return the unit to:
Lorex Service Center.
250 Royal Crest Court, Markham, Ont. L3R 3S1
iii) If the unit was purchased in Europe please visit:
1 Pack the Product in a well-padded sturdy carton.
2.
i). If the unit was purchased in the United States proceed as follows:
a.
Please contact our customer service department to obtain a return
authorization number.
b.
Return the unit to:
Lorex Returns
c/o Russell Farrow
15 Lawrence Bell Drive, Amherst, NY 14221
In order to obtain service, please make sure that you have registered your product
on-line (www.lorexcctv.com) in the warranty registration section. Should the
Product require service under this warranty, the Purchaser must provide Lorex with
a copy of his/ her original, dated bill of sale; receipt or invoice, failing which Lorex
will not perform any of its obligations under this warranty. If you return the Product
and/or CD-ROM to Lorex, you must assume the risk of damage or loss during
shipment. You must use the original packaging or the equivalent, and you must pay
postage.
To claim on this warranty, proceed with the following steps.
Obtaining Service
The purchaser may have other rights under state, provincial, or federal laws and
where the whole or part of any item of this warranty is prohibited by such laws, it
shall be deemed null and void, but the remainder of the warranty shall remain in
effect.
All expressed and implied warranties are limited in duration to the limited warranty
period. No warranties apply after that period. Some states do not allow limitation on
how long an implied warranty lasts, so this limitation may not apply to you. Some
states do not allow the exclusion or limitation of incidental or consequential
damages, so the above warranty may not apply to you. This limited warranty gives
you specific legal rights and you may also have other rights that vary from state to
state.
Lorex does not warrant that the software will operate with any other software except
that which is indicated. Lorex cannot be responsible for characteristics of third party
hardware or software which may effect the operation of the software included.
Lorex’s responsibility under this, or any other warranty, implied or expressed, is
limited to repair, replacement or refund, as set forth above. These remedies are the
sole and exclusive remedies for any breach of warranty. Lorex is not responsible for
direct, special, incidental, or consequential damages resulting from any breach of
warranty or under any other legal theory including but not limited to, loss profits,
downtime, goodwill, damage to or replacement of equipment and property and any
costs of recovering, reprogramming or reproducing any program or data stored in or
used with a system containing the Product CD-ROM or accompanying software.
Lorex se réserve le droit de modifier la conception ou d'apporter des ajouts ou des améliorations à
ses produits, sans obligation de sa part de modifier les produits déjà fabriqués. Lorex fera tout en
son pouvoir pour fournir des améliorations et des réparations à son logiciel via son site web.
Cette garantie ne couvre pas les altérations ni les dommages effectues tout autre logiciel, ni les
bogues pouvant résider de fa on permanente sur le système de l'utilisateur suite l'installation du
logiciel ci-inclus.
Cette garantie ne couvre pas la performance ni la fonctionnalité de tout logiciel informatique inclus
avec le produit. Cette garantie ne couvre pas les défauts que pourrait contenir le support optique
(disque CD-ROM) ou magnétique (disquette), tel qu'un CD-ROM brisé ou comportant un défaut qui
l'empêcherait d'être lu adéquatement par le lecteur de disque de votre ordinateur. Lorex ne garantit
pas que le logiciel fourni avec le produit fonctionnera sans interruption ni qu'il sera libre de tout
défaut, d'erreurs ou de 'bogues'. Lorex ne garantit pas le logiciel inclus à moins que cela ne le soit
mentionné spécifiquement dans l'entente de la licence incluse avec le produit. Cette garantie ne
couvre pas les frais se rapportant à l'enlèvement ni à la réinsertion de tout produit, logiciel,
périphérique ou disque CD-ROM installé sur votre ordinateur.
Cette garantie ne s'applique pas aux défauts ni aux dommages causés au produit suite à (i) une
utilisation insouciante du produit, (ii) mauvaise utilisation, abus, négligence, modification ou
mauvaise installation du produit, (iii) court-circuits ou transitoires électriques, (iv) tout usage de
l'acheteur qui ne correspond pas à l'installation prescrite du produit, (v) l'utilisation de pièces non
fournies par Lorex, (vi) un entretien inadéquat du produit, ou (vii) tout accident, incendie, inondation
ou autres désastres naturels.
Cette garantie ne s'applique pas aux défauts ni aux dommages survenus suite à une utilisation
anormale du produit (incluant des conditions atmosphériques et des taux d'humidité anormaux) ou
suite à une installation ou une utilisation du produit autre que celle décrite dans le guide
accompagnant le produit.
Exclusions de la garantie
Pour obtenir du service, veuillez vous assurer que vous avez inscrit votre produit en ligne
(www.lorexcctv.com) dans la section d'abonnement à la garantie. Cette garantie ne couvre pas
les ampoules, voyants à DEL ni les piles incluses avec le produit ou faisant partie de celui-ci.
Cette garantie deviendra nulle si des accessoires autres que ceux vendus ou distribués par Lorex
sont utilisés ou ont été utilisés conjointement avec le produit ou si des modifications ou des
réparations ont été effectuées au produit par une entité autre qu'un centre de service autorisé par
Lorex.
Lorex garantit à l'acheteur original (ci-après désigné comme étant "l'acheteur") dans un magasin au
détail seulement, et que ce produit (ci-après désigné comme étant le "produit"), s'il est installé
correctement et - s’il y a lieu - utilisé conformément aux instructions ci-incluses, et le disque CDROM qui comporte le logiciel, seront libres de tout défaut de fabrication, tant dans les pièces que la
main-d'oeuvre, pourvu que le produit soit utilisé dans des conditions normales et installé et utilisé
strictement selon les instructions incluses dans le guide qui l'accompagne.
Cette garantie couvrira la période mentionnée ci-dessous (ci-après désignée comme étant la
"période de garantie"), commençant le jour où l'acheteur se procure le produit à l'état neuf dans un
magasin au détail.
Pièces et main-d'oeuvre :
1 année (les pièces couvertes n'incluent
pas les ampoules, voyants à DEL ni les
piles).
Les obligations de Lorex selon les termes de cette garantie se limitent exclusivement aux points
suivants :
•
Lorex se réserve le droit de réparer ou de remplacer, sa seule discrétion, le logiciel et/ou le
matériel.
•
Le remplacement des pièces sous garantie que Lorex estime être défectueuses dans le
produit ou le disque CD-ROM ou, à sa seule discrétion, le remplacement du produit jugé
défectueux.
•
Si Lorex ne peut réparer ni remplacer le produit ou le disque CD-ROM, rembourser la valeur
monétaire du produit ou du disque CD-ROM en cours au moment de l'achat.
Toutes les pièces remplacées par Lorex seront couvertes pendant la période résiduelle de la
garantie dudit produit.
GARANTIE LIMITÉE DES PRODUITS LOREX
Soyez toujours très discret lorsque vous installez des systèmes de surveillance, surtout dans les endroits plus retirés. Informezvous au sujet des lois et règlements municipaux, provinciaux ou fédéraux qui s’appliquent à l’installation d’appareils de
surveillance audio et vidéo. Il se peut que le consentement de la partie surveillée soit exigé.
COMPOSEZ LA LIGNE D’ASSISTANCE SANS FRAIS AUS CONOMMATEURS:
L'Amérique du nord: 1-888-42-LOREX (1-888-425-6739)
Local : 905-940-5355
International : 800-42-LOREX 0 (800-425-67390)
www.lorexcctv.com
b.
Retournez le produit à :
Lorex Customer Service
250 Royal Crest Court, Markham, ON L3R 3S1
iii) Si l'unité a été achetée dans Europe veuillez visiter : www.lorexinternational.com pour les
instructions de retour
ii) Si l'appareil a été acheté au Canada, suivez ces
étapes-ci :
a. Veuillez contacter notre département de service à la clientèle pour obtenir un numéro
d'autorisation pour le retour.
Obtention du service
Si l'acheteur a besoin de service pour son produit, selon les termes de cette garantie limitée, il doit fournir à Lorex
une copie de la facture d'achat affichant clairement la date et l'endroit où le produit a été acheté. Sans cette
preuve d'achat, Lorex ne sera pas dans l'obligation de remplir ses obligations envers l'acheteur. Si vous retournez
le produit et/ou le disque CD-ROM à Lorex, vous devez assumer le risque que ceux-ci soient endommagés ou
perdus au cours de l'expédition. Vous devez emballer le produit dans sa boîte originale ou un emballage adéquat
et vous devez défrayer les coûts d'expédition à l'une des adresses mentionnées ci-dessous.
Pour bénéficier du service sous garantie, vous devez suivre les étapes ci-dessous :
1.
Emballez le produit dans une boîte solide et remplie de matériau d'expédition.
2.
i) Si l'appareil a été acheté aux États-Unis, suivez ces étapes-ci :
a. Veuillez contacter notre département de service à la clientèle pour obtenir un numéro
d'autorisation pour le retour.
b. Retournez le produit à :
Lorex Returns
c/o Russell Farrow
15 Lawrence Bell Drive, Amherst, NY 14221
Toutes les garanties tacites ou explicites se limitent à la durée de la garantie limitée. Aucune garantie ne sera
applicable après cette période de temps. Certains états ou provinces ne permettent pas de restrictions en ce qui a
trait aux termes d’une garantie tacite, ni d’exclusions aux dommages-intérêts directs ou indirects et il se peut que
ces restrictions ne s'appliquent pas à vous. Cette garantie donne à l’acheteur original des droits spécifiques et il se
peut que d’autres droits, variant d’un état ou d’une province à l’autre, puissent lui être conférés.
Lorex ne garantit pas que ce logiciel fonctionnera conjointement avec tout autre logiciel ou suite logicielle, ˆ
moins que cela ne soit indique. Lorex ne sera pas tenue responsable des caractéristiques ni des fonctions du
matériel ou des logiciels d'un tiers pouvant entrer en conflit avec le fonctionnement du logiciel ci-inclus.
La seule responsabilité de Lorex, selon les termes de cette garantie, qu'ils soient tacites ou explicites, se limite à
une réparation, un remplacement ou un remboursement, selon les clauses décrites dans les présentes. Ces
recours constituent les seuls auxquels a droit l'acheteur pour les bris des clauses de la garantie. Lorex ne sera pas
responsable des dommages-intérêts spéciaux, directs ou indirects, qui résulteraient d'un bris des clauses de cette
garantie ou de toute autre convention législative, incluant mais ne s'y limitant pas, les pertes de profits, pannes de
courant immobilisant des équipements, la valeur ajoutée des biens incorporels, les dommages effectués au produit
et à la propriété ou les coûts reliés à leur remplacement, ainsi que les frais de recouvrement, reprogrammation ou
reproduction d'un programme ou des données stockées dans un système contenant le disque CD-ROM du produit
ou le logiciel qui accompagne celui-ci.
L'acheteur peut bénéficier de certains droits provinciaux ou fédéraux additionnels et toute clause de cette garantie
qui soit prohibée par de telles lois sera jugée nulle et sans effet mais les autres clauses demeureront en vigueur.
Lorex ne garantit pas et ne fait aucune revendication en ce qui a trait au potentiel, à la capacité ou l'efficacité de
prévenir, réduire ou d'une façon quelconque, d'influer sur les dommages à la propriété privée ou sur les blessures
corporelles. Lorex ne sera pas tenue responsable des blessures corporelles, dommages à la propriété
personnelle, perte ni au vol se rapportant de près ou de loin au produit ou son usage dans un cadre malveillant,
qu'il soit physique ou mental. Lorex n'autorise aucunement les représentants, détaillants ou grossistes, à faire des
revendications ou des énoncés de la part de Lorex, tant par voie écrite que verbale et ces énoncés n'influent
d'aucune manière sur les clauses de cette garantie.
Lorex ne garantit d’aucune manière l'apparence extérieure du produit, ni les pièces ou accessoires incluant, mais
ne s'y limitant pas, le boîtier, les pièces du boîtier, les boutons, etc., ainsi que le déballage, l'installation,
l'enlèvement et la réinstallation du produit après une réparation.
Cette garantie a préséance sur toutes les autres garanties tacites ou explicites, incluant la garantie en qualité
loyale et marchande et les aptitudes visant toute autre obligation ou responsabilité de la part de Lorex, et par les
présentes, Lorex n’autorise aucune personne ni entité à assumer pour elle nulle autre responsabilité en rapport
avec la vente de ce produit. Lorex ne sera pas tenue responsable, en aucune circonstance, des dommagesintérêts directs ou indirects survenant de l'utilisation du produit ou suite au mauvais fonctionnement ou à l'absence
de fonctionnement dudit produit, ainsi que pour tout délai dans l'exécution de cette garantie suite à des
circonstances hors du contrôle de Lorex.
Esta garantía no se aplicará a la apariencia o artículos accesorios incluyendo, sin estar limitado a ellos,
gabinetes, piezas de gabinetes, perillas, etc., y el desembalaje, instalación, configuración, o remoción y
reinstalación del producto después de ser reparado.
Esta garantía no cubre el rendimiento o funcionalidad de ningún software de computadora incluido en el paquete
con el Producto. Esta garantía sólo cubre defectos en el material de CD-ROM, tal como roturas o defectos en el
CD-ROM que impida que sea leído por la unidad de CD-ROM de su computadora personal. Lorex no garantiza
que el software provisto con el Producto funcione sin interrupción o que de otra forma esté libre de anomalías,
errores o “bugs”. Lorex no ofrece ninguna garantiza con respecto a algún software provisto con el equipo a
menos que específicamente se establezca de otra forma en un acuerdo de licencia que acompañe a dicho
software.
Esta garantía no cubre ningún costo relativo a la remoción o reemplazo de algún Producto, CD-ROM, o software
instalado en su computadora.
Lorex se reserva el derecho de hacer cambios en el diseño o hacer adiciones o mejoras a sus productos sin
incurrir en ninguna obligación de modificar algún producto que ya haya sido fabricado.
Lorex tratará en lo posible de proporcionar actualizaciones y arreglos a su software por medio de su página en la
red.
Esta garantía no cubre ninguna alteración ni daño a algún otro software que pueda ser instalado o pueda quedar
instalado en el sistema del usuario como resultado de la instalación del software provisto.
Esta garantía es el reemplazo de otras garantías, expresas o implícitas, y Lorex no asume ni autoriza a ninguna
persona a asumir por ella ninguna obligación en relación con la venta o servicio del producto. En ningún caso
Lorex será responsable por ningún daño o perjuicio especial o consecuente resultante del uso del Producto o de
su mal funcionamiento o incapacidad de funcionar, o por cualquier demora en la atención de esta garantía
debida a causas fuera de su control.
Esta garantía no se aplica a defectos o daños al Producto causados por (i) uso negligente del Producto, (ii) mal
uso, abuso, negligencia, alteración, reparación o instalación incorrecta del Producto, (iii) cortocircuitos o
corrientes eléctricas transitorias, (iv) uso por el Comprador que no está de acuerdo con la instalación del
producto, (v) uso de piezas de repuesto no suplidas por Lorex (vi) inadecuado mantenimiento del Producto, o
(vii) accidente, incendio, inundación u otros accidentes naturales.
Esta garantía no se aplica a defectos o daños resultantes del uso del producto en condiciones diferentes a las
normales (incluyendo condiciones atmosféricas o de humedad normales) o por la instalación o uso del Producto
en forma distinta a seguir estrictamente las instrucciones contenidas en el Manual del Propietario del Producto.
Exclusiones de la garantía
Esta garantía no se aplica a las bombillas, LEDs y baterías suministradas con el producto o que formen parte del
mismo.
Esta garantía quedará nula si se han usado accesorios que no son Lorex en el Producto o en relación con el
mismo o si se hace alguna modificación o reparación al Producto en algún taller que no sea un local de servicio
autorizado por Lorex.
Esta garantía no se aplica a defectos o daños resultantes del uso del producto en condiciones diferentes a las
normales (incluyendo condiciones atmosféricas o de humedad normales) o por la instalación o uso del Producto
en forma distinta a seguir estrictamente las instrucciones contenidas en el Manual del Propietario del Producto.
Exclusiones de la garantía
Esta garantía no se aplica a las bombillas, LEDs y baterías suministradas con el producto o que formen parte del
mismo.
Esta garantía quedará nula si se han usado accesorios que no son Lorex en el Producto o en relación con el
mismo o si se hace alguna modificación o reparación al Producto en algún taller que no sea un local de servicio
autorizado por Lorex.
Lorex garantiza, sólo al comprador original al por menor (el “Comprador”) que este artículo
(el “Producto”), si se usa e instala debidamente, y – si hay lugar - el CD-ROM en el que se proporciona el
software asociado, está libre de defectos de fabricación en materiales y mano de obra, sujeto a que el Producto
sea usado en condiciones normales y que sea instalado y usado estrictamente de acuerdo con las instrucciones
contenidas.
Esta garantía será para los siguientes períodos de garantía (el “Período de Garantía”), a partir de la fecha en que
el Comprador adquiera el Producto al por menor en la condición de no haber sido usado previamente.
Repuestos y Mano de Obra:
1 año (Las piezas garantizadas no incluyen bombillas, LEDs y baterías)
Las obligaciones de Lorex bajo esta garantía estarán limitadas a:
•
la reparación o el reemplazo del producto por medio de hardware y/o software (a opción de Lorex).
•
el reemplazo de cualquier parte garantizada que Lorex determine que está defectuosa en el Producto o
CD-ROM o, por decisión única de Lorex, al reemplazo del Producto que Lorex encuentre defectuoso.
•
Si a Lorex no le es posible reparar o reemplazar el Producto o el CD-ROM, se devolverá el valor vigente
en ese momento del Producto o CD-ROM.
Se garantizará al Comprador cualquier pieza de repuesto provista por Lorex en conexión con esta garantía por
un período igual a la parte no vencida del Período de Garantía del Producto.
GARANTÍA LIMITADA DEL PRODUCTO LOREX
b.
a.
b.
1.
2.
a.
Use siempre discreción cuando instale equipo de vigilancia por video y/o audio especialmente cuando se
percibe privacidad. Consulte acerca de las regulaciones federales, estatales y /o locales aplicables a la
instalación legal de equipos de grabación o vigilancia por video y/o audio. Puede requerirse el
consentimiento de las partes.
www.lorexcctv.com
NUMERO GRATUITO DE SERVICIO A CLIENTES:
Norteamérica: 1-888-42-LOREX (1-888-425-6739)
Internacional: 800-42-LOREX 0 (800-425-67390)
Local : 905-940-5355
iii) Si la unidad fue adquirida en Europa y desea devolver el producto por favor visite:
www.lorexinternational.com para obtener instrucciones.
ii). Si la unidad fue comprada en Canadá proceda en la siguiente forma:
Para devoluciones por favor contacte nuestro departamento de servicio para obtener un número de
autorización.
Devuelva la unidad a:
Lorex Customer Service.
250 Royal Crest Court, Markham, Ont. L3R 3S1
Empaque el Producto en una caja robusta bien acolchada.
i). Si la unidad fue comprada en Estados Unidos proceda en la siguiente forma:
Para devoluciones por favor contacte nuestro departamento de servicio para obtener un número de
autorización
Devuelva la unidad a:
Lorex Returns
c/o Russell Farrow
15 Lawrence Bell Drive, Amherst, NY 14221
Con el fin de obtener servicio, por favor asegúrese de registrar haber registrado su producto en nuestra pagina
web www.lorexcctv.com en la sección de registro de garantía. Si el Producto necesitase servicio bajo esta
garantía, el Comprador debe hacer llegar a Lorex una copia del recibo o factura de compra, con su fecha
respectiva, sin lo cual Lorex no estará obligada a cumplir con ninguna de sus obligaciones bajo esta garantía. Si
devuelve el Producto y/o el CD-ROM a Lorex, debe usted asumir el riesgo de daño o pérdida durante el envío.
Debe usar el envase original o equivalente y debe pagar el flete.
Para hacer un reclamo bajo esta garantía, proceda con los siguientes pasos.
El comprador puede tener otros derechos de acuerdo con las leyes federales, provinciales o estatales y cuando
toda esta garantía o parte de la misma sea prohibida por dichas leyes, será considerada nula, pero el resto de la
garantía permanecerá vigente.
Todas las garantías expresadas e implícitas están limitadas en duración al período de garantía limitada. Ninguna
garantía se aplicará después de dicho período. Algunos estados no permiten limitación a la duración de una
garantía implícita, de modo que esta limitación puede no serle de aplicación. Algunos estados no permiten la
exclusión o limitación de daños y perjuicios incidentes o consecuentes, por lo que la garantía anterior puede no
serle de aplicación. Esta garantía limitada le otorga derechos legales específicos y usted puede también tener
otros derechos que varía de un estado a otro.
Cómo obtener servicio
Lorex no garantiza que el software operará con ningún otro software excepto con el que se indica. Lorex no
