INDESIT ING 922S BK Hob Instruction for Use

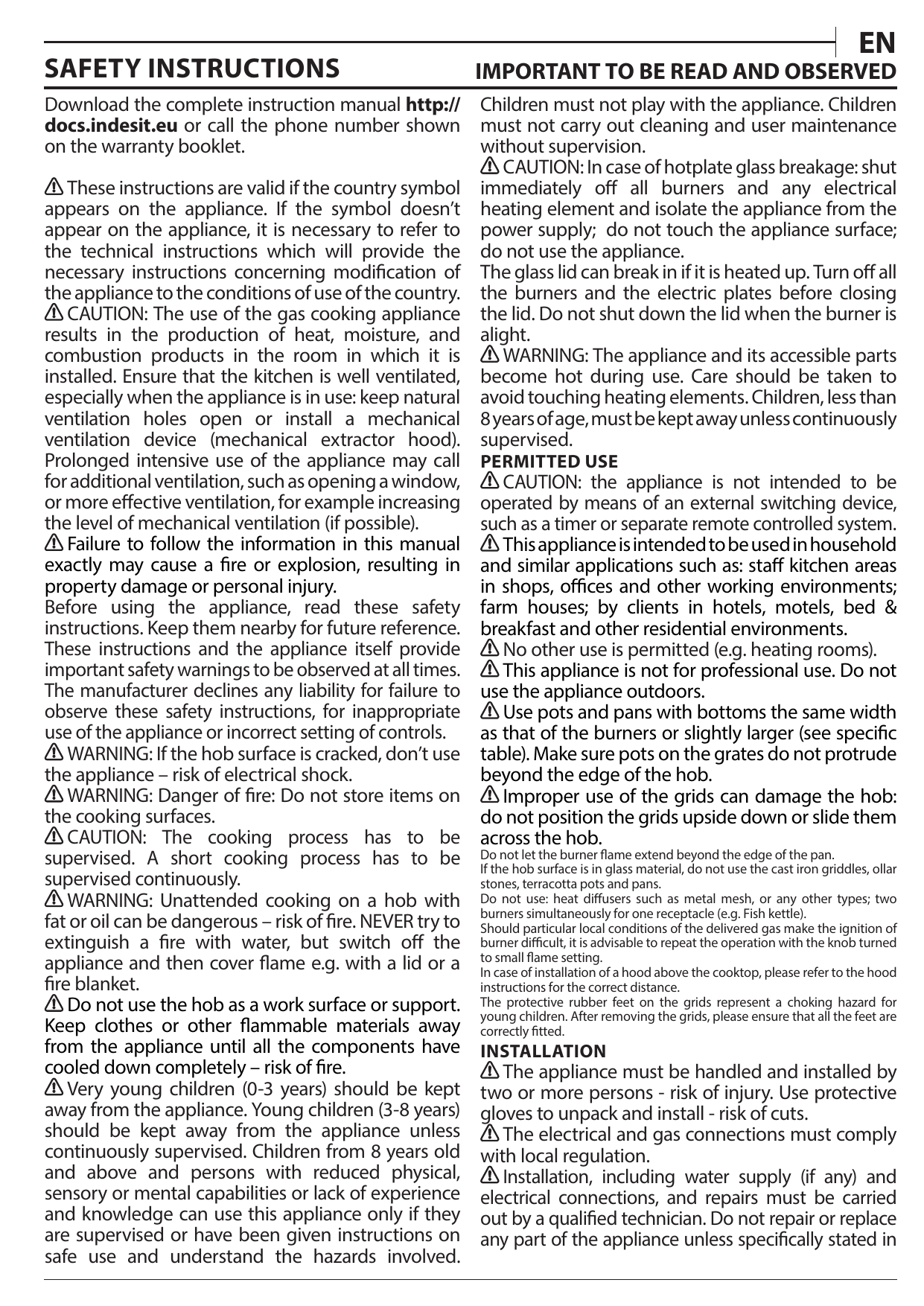

SAFETY INSTRUCTIONS
EN
IMPORTANT TO BE READ AND OBSERVED
Download the complete instruction manual http:// Children must not play with the appliance. Children
docs.indesit.eu or call the phone number shown must not carry out cleaning and user maintenance
without supervision.
on the warranty booklet.
CAUTION: In case of hotplate glass breakage: shut
These instructions are valid if the country symbol immediately off all burners and any electrical
appears on the appliance. If the symbol doesn’t heating element and isolate the appliance from the
appear on the appliance, it is necessary to refer to power supply; do not touch the appliance surface;
the technical instructions which will provide the do not use the appliance.
necessary instructions concerning modification of The glass lid can break in if it is heated up. Turn off all
the appliance to the conditions of use of the country. the burners and the electric plates before closing
CAUTION: The use of the gas cooking appliance the lid. Do not shut down the lid when the burner is
results in the production of heat, moisture, and alight.
combustion products in the room in which it is
WARNING: The appliance and its accessible parts
installed. Ensure that the kitchen is well ventilated, become hot during use. Care should be taken to
especially when the appliance is in use: keep natural avoid touching heating elements. Children, less than
ventilation holes open or install a mechanical 8 years of age, must be kept away unless continuously
ventilation device (mechanical extractor hood). supervised.
Prolonged intensive use of the appliance may call PERMITTED USE
for additional ventilation, such as opening a window,
CAUTION: the appliance is not intended to be
or more effective ventilation, for example increasing operated by means of an external switching device,
the level of mechanical ventilation (if possible).
such as a timer or separate remote controlled system.
Failure to follow the information in this manual
This appliance is intended to be used in household
exactly may cause a fire or explosion, resulting in and similar applications such as: staff kitchen areas
property damage or personal injury.
in shops, offices and other working environments;
Before using the appliance, read these safety farm houses; by clients in hotels, motels, bed &
instructions. Keep them nearby for future reference. breakfast and other residential environments.
These instructions and the appliance itself provide
No other use is permitted (e.g. heating rooms).
important safety warnings to be observed at all times.
This appliance is not for professional use. Do not
The manufacturer declines any liability for failure to use the appliance outdoors.
observe these safety instructions, for inappropriate
Use pots and pans with bottoms the same width
use of the appliance or incorrect setting of controls.
as that of the burners or slightly larger (see specific
WARNING: If the hob surface is cracked, don’t use table). Make sure pots on the grates do not protrude
the appliance – risk of electrical shock.
beyond the edge of the hob.
WARNING: Danger of fire: Do not store items on
Improper use of the grids can damage the hob:
the cooking surfaces.
do not position the grids upside down or slide them
CAUTION: The cooking process has to be across the hob.
not let the burner flame extend beyond the edge of the pan.
supervised. A short cooking process has to be Do
If the hob surface is in glass material, do not use the cast iron griddles, ollar
supervised continuously.
stones, terracotta pots and pans.
WARNING: Unattended cooking on a hob with Do not use: heat diffusers such as metal mesh, or any other types; two
simultaneously for one receptacle (e.g. Fish kettle).
fat or oil can be dangerous – risk of fire. NEVER try to burners
Should particular local conditions of the delivered gas make the ignition of
extinguish a fire with water, but switch off the burner difficult, it is advisable to repeat the operation with the knob turned
small flame setting.
appliance and then cover flame e.g. with a lid or a to
In case of installation of a hood above the cooktop, please refer to the hood
fire blanket.
instructions for the correct distance.
protective rubber feet on the grids represent a choking hazard for
Do not use the hob as a work surface or support. The
young children. After removing the grids, please ensure that all the feet are
Keep clothes or other flammable materials away correctly fitted.
from the appliance until all the components have INSTALLATION
cooled down completely – risk of fire.
The appliance must be handled and installed by
Very young children (0-3 years) should be kept two or more persons - risk of injury. Use protective
away from the appliance. Young children (3-8 years) gloves to unpack and install - risk of cuts.
should be kept away from the appliance unless
The electrical and gas connections must comply
continuously supervised. Children from 8 years old with local regulation.
and above and persons with reduced physical,
Installation, including water supply (if any) and
sensory or mental capabilities or lack of experience electrical connections, and repairs must be carried
and knowledge can use this appliance only if they out by a qualified technician. Do not repair or replace
are supervised or have been given instructions on any part of the appliance unless specifically stated in
safe use and understand the hazards involved.
the user manual. Keep children away from the
installation site. After unpacking the appliance, make
sure that it has not been damaged during transport.
In the event of problems, contact the dealer or your
nearest After-sales Service. Once installed, packaging
waste (plastic, styrofoam parts etc.) must be stored
out of reach of children - risk of suffocation. The
appliance must be disconnected from the power
supply before any installation operation - risk of
electrical shock. During installation, make sure the
appliance does not damage the power cable - risk of
fire or electrical shock. Only activate the appliance
when the installation has been completed.
WARNING: Modification of the appliance and its
method of installation are essential in order to use
the appliance safely and correctly in all the additional
countries.
Use pressure regulators suitable for the gas
pressure indicated in the instruction.
The room must be equipped with an air extraction
system that expels any combustion fumes.
The room must also allow proper air circulation,
as air is needed for combustion to occur normally.
The flow of air must not be less than 2 m3/h per kW
of installed power.
The air circulation system may take air directly
from the outside by means of a pipe with an inner
cross section of at least 100 cm2; the opening must
not be vulnerable to any type of blockages.
The system can also provide the air needed for
combustion indirectly, i.e. from adjacent rooms
fitted with air circulation tubes as described above.
However, these rooms must not be communal
rooms, bedrooms or rooms that may present a fire
hazard.
Liquid petroleum gas sinks to the floor as it is
heavier than air. Therefore, rooms containing LPG
cylinders must also be equipped with vents to allow
gas to escape in the event of a leak. As a result LPG
cylinders, whether partially or completely full, must
not be installed or stored in rooms or storage areas
that are below ground level (cellars, etc.). It is
advisable to keep only the cylinder being used in
the room, positioned so that it is not subject to heat
produced by external sources (ovens, fireplaces,
stoves, etc.) which could raise the temperature of
the cylinder above 50°C.
Should you experience difficulty in turning the burner’s knobs, please
contact After Sales Service for replacement of the burner tap if found to be
faulty.
The openings used for the ventilation and dispersion of heat must never
be covered.
Carry out all cabinet cutting works before fitting
the appliance in the furniture and remove all wood
chips and sawdust.
If the appliance is not installed above an oven, a
separator panel (not included) must be installed in
the compartment under the appliance.
GAS CONNECTION
WARNING: Prior to installation, ensure that the local
distribution conditions (nature of gas and gas pressure)
and the adjustment of the appliance are compatible.
Check that the pressure of the gas supply is
consistent with the values indicated in “Injectors
Table”.
WARNING: The configuration conditions of this
appliance are stated on the label (or data plate).
WARNING: This appliance is not connected to a
combustion products evacuation device. It must be
installed and connected in accordance with current
installation regulations. Particular attention must be
paid to the relevant requirements regarding ventilation.
If the appliance is connected to liquid gas, the
regulation screw must be fasted as tightly as possible.
IMPORTANT: When the gas cylinder or gas
container is installed, it must be properly settled
(vertical orientation).
WARNING: This operation must be performed by
a qualified technician
Use only flexible or rigid metal hose for gas
connection.
Connection with a rigid pipe (copper or steel):
Connection to the gas system must be carried out in
such a way as not to place any strain of any kind on
the appliance. There is an adjustable L-shaped pipe
fitting on the appliance supply ramp and this is
fitted with a seal in order to prevent leaks. The seal
must always be replaced after rotating the pipe
fitting (the seal is provided with the appliance). The
gas supply pipe fitting is a threaded 1/2 gas
cylindrical male attachment.
Connecting a flexible jointless stainless steel pipe
to a threaded attachment: The gas supply pipe fitting
is a threaded 1/2 gas cylindrical male attachment.
These pipes must be installed so that they are never
longer than 2000 mm when fully extended. Once
connection has been carried out, make sure that the
flexible metal pipe does not touch any moving parts
and is not compressed. Only use pipes and seals that
comply with current National regulations.
IMPORTANT: If a stainless steel hose is used, it
must be installed so as not touch any moving part of
the furniture (e.g. drawer). It must pass through an
area where there are no obstructions and where it is
possible to inspect it on all its length.
The appliance should be connected to the main
gas supply or to gas cylinder in compliance with the
current national regulations. Before making the
connection, make sure that the appliance is compatible
with the gas supply you wish to use. If this is not the
case, follow the instructions indicated in the paragraph
“Adapting to different types of gas”.
After connection to the gas supply, check for
leaks with soapy water. Light up the burners and
turn the knobs from max position 1* to minimum ENERGY SAVING TIPS
Use pots and pans with bottom width equal to that of the cooking zone.
position 2* to check flame stability.
Only use flat-bottomed pots and pans.
ADAPTING TO DIFFERENT TYPES OF GAS
When possible, keep pot lids on during cooking.
ELECTRICAL WARNINGS
Information (Amendment) (EU Exit) Regulations 2019 in compliance with
the European standard EN 30-2-1.
a pressure cooker to save even more energy and time.
In order to adapt the appliance to a type of gas Use
Place the pot in the middle of the cooking zone marked on the hob.
other than the type for which it was manufactured DECLARATION OF CONFORMITY
(indicated on the rating label), follow the dedicated This appliance meets Ecodesign requirements of European Regulation
66/2014 and The Ecodesign for Energy-Related Products and Energy
steps provided after installation drawings.
IMPORTANT: Information about current and
voltage consumption is provided on the rating plate.
It must be possible to disconnect the appliance
from the power supply by unplugging it if plug is
accessible, or by a multi-pole switch installed
upstream of the socket in accordance with the
wiring rules and the appliance must be earthed in
conformity with national electrical safety standards.
The power cable must be long enough to connect
the appliance, once fitted in its housing, to the main
power supply. Do not pull the power supply cable.
Do not use extension leads, multiple sockets or
adapters. The electrical components must not be
accessible to the user after installation. Do not use
the appliance when you are wet or barefoot. Do not
operate this appliance if it has a damaged power
cable or plug, if it is not working properly, or if it has
been damaged or dropped.
If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its service
agent or similarly qualified persons in order to avoid
a hazard - risk of electrical shock.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched
off and disconnected from the power supply before
performing any maintenance operation; never use
steam cleaning equipment - risk of electric shock.
Do not use abrasive or corrosive products,
chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle
symbol .
The various parts of the packaging must therefore be disposed of responsibly
and in full compliance with local authority regulations governing waste
disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.
Dispose of it in accordance with local waste disposal regulations. For further
information on the treatment, recovery and recycling of household electrical
appliances, contact your local authority, the collection service for household
waste or the store where you purchased the appliance. This appliance is
marked in compliance with European Directive 2012/19/EU, Waste Electrical
and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic
Equipment regulations 2013 (as amended).
By ensuring this product is disposed of correctly, you will help prevent
negative consequences for the environment and human health.
on the product or on the accompanying documentation
The symbol
indicates that it should not be treated as domestic waste but must be
taken to an appropriate collection center for the recycling of electrical and
electronic equipment.
INJECTORS TABLE
Type of gas used
CATEGORY
Type of burner
Injector
marking
Rated thermal
flow rate
Rated
consumption
Reduced heat
capacity
kW
kW
II2H3+
Gas pressure
mbar
min.
rat.
max.
NATURAL GAS
(Methane) G20
Rapid
Semi-rapid
Auxiliary
2 Ring
128 B
97 A
78 A)
140 H1
3,00
1,65
1,00
3,50
286 l/h
157 l/h
95 l/h
333 l/h
0,70
0,40
0,40
2,20
17
20
25
LIQUEFIED
PETROLEUM GAS
(Butane)
G30
Rapid
Semi-rapid
Auxiliary
2 Ring
85 A
66 A
50
91
3,00
1,65
1,00
3,30
218 g/h
120 g/h
73 g/h
240 g/h
0,70
0,40
0,40
2,20
20
28-30
35
LIQUEFIED
PETROLEUM GAS
(Propane)
G31
Rapid
Semi-rapid
Auxiliary
2 Ring
85 A
66 A
50
91
3,00
1,65
1,00
3,30
214 g/h
118 g/h
71 g/h
236 g/h
0,70
0,40
0,40
2,20
25
37
45
Type of gas used
Model configuration
5 BURNERS
Rated thermal flow rate
(kW)
Total rated
consumption
Air required (m3) for burning
1m3 of gas
G20 20 mbar
1R - 2SR - 1AUX - 1DC
10,80
1028 l/h
9,52
G30 28-30 mbar
1R - 2SR - 1AUX - 1DC
10,60
771 g/h
30,94
G31 37 mbar
1R - 2SR - 1AUX - 1DC
10,60
757 g/h
23,80
ELECTRIC SUPPLY: 220-240 V ~ 50-60 Hz - 1,1 W
EN
INSTALLATION
TECHNICAL INFORMATION FOR THE INSTALLER
• Use protective gloves for handling, preparing and installing the product.
• This product can be embedded in a worktop 20 ÷ 60 mm thick with standard installation. For flush installation 30 ÷ 68
• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the work surface. This panel must be
positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of the
hob. In the case that you intend to install an oven beneath the hob, make sure that it is equipped with a cooling system.
DIMENSIONS AND DISTANCES TO BE MAINTAINED
Standard installation
min 20 mm
max 60 mm
837 mm
860 mm
10 mm
Min. 55 mm
R= 8 mm
486 mm
A
510 mm
Flush installation
40 mm
471 mm
R= 6,5 mm
828 mm
min 30 mm
max 68 mm
min. 750mm
R= 8 mm
+2
863 0 mm
12 mm
+2
Min. 55 mm
486 mm
B
513 0 mm
837 mm
min. 100mm
Before applying silicon, the cooktop should be centered in the cut-out
NOTE: if distance “A” between the kitchen cabinets is between 600 mm and 730 mm, height “B” must be at least 530 mm.
If distance “A” between the kitchen cabinets is greater than the width of the hob, height “B” must be at least 400 mm.
If a hood is installed above the hob, refer to the assembly instructions for the hood to see the necessary distance.
ASSEMBLY
After cleaning the perimeter surface, apply the supplied gasket to the hob as shown in the figure.
Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction.
NOTE: the power supply cable must be long enough to permit its upward extraction.
To secure the hob, use the brackets (A) provided with it. Fit the brackets into the relevant bores shown by the arrow
and fasten them by means of their screws in accordance with the thickness of the worktop (see the following figures).
Standard Installation
20
30
40
60
A
Flush installation
30 mm
40 mm
68 mm
GAS CONNECTION
• Connect elbow (A)* or (B)* supplied with to the hob inlet main pipe and interpose the washer (C) supplied, in compliance
with EN 549.
* Use elbow (A) for France and elbow (B) for all other destinations..
• After connection to the gas supply, check for leaks with soapy water. Light up the burners and turn the knobs from
position
to minimum position to check flame stability.
C
ELECTRICAL CONNECTION
L
Ground cable
(yellow / green)
N
A
C
B
C
PRODUCT DESCRIPTION
1
1
Symbols
1. Removable panstand grids
2. 2 Ring burner
1
3. Semi-rapid burner
4. Semi-rapid burner
4
5
1
1
5. Rapid burner
6. Auxiliary burner
Shaded circle
Tap closed
Large flame
Maximum opening/delivery
and electric ignition
Small flame
Minimum opening
or reduced delivery
7. 2 Ring burner control knob
2
8. Semi-rapid burner control knob
3
6
9. Semi-rapid burner control knob
10. Rapid burner control knob
11. Auxiliary burner control knob
7
8
9
10
11
DAILY USE
HOW TO USE THE HOB
ADAPTING TO DIFFERENT TYPES OF GAS
Do not let the burner flame extend beyond the edge of the pan.
IMPORTANT: when the hob is in use, the entire hob area may become hot.
• To ignite one of the burners, turn the relative knob anti-clockwise to
the maximum flame setting.
• Press the knob against the control panel to ignite the burner.
• After the burner has ignited, keep the knob pressed for about 5-10
seconds to allow proper device operation.
• This burner safety device shuts off the gas supply to the burner if
the flame goes out accidentally (because of sudden draught, an
interruption in the gas delivery, boiling over liquids, etc.).
• The knob must not be pressed for more than 15 sec. If, after that
time has elapsed, the burner does not remain lit, wait at least one
minute before trying to light it again.
NOTE: should particular local conditions of the delivered gas make the
ignition of burner difficult, it is advisable to repeat the operation with
the knob turned to the small flame setting.
The burner might go out when the knob is released. This means that
the safety device has not warmed up enough. In this case, repeat the
operations described above.
If the burner flame is accidentally extinguished, switch off the burner control
and do not try to ignite for at least 1 minute.
PRACTICAL ADVICE FOR USING THE BURNERS
This hob has burners of different diameters. For better burner performance,
please stick to the following rules:
• use pots and pans with bottoms the same width as that of the burners
or slightly larger (see table on the right);
• only use flat-bottomed pots and pans;
• use the correct amount of water for cooking foods and keep the pot covered;
• make sure pots on the grates do not protrude beyond the edge of the hob;
• In the case of pans with convex bottoms (WOK), use the support grille
(not provided), which should be positioned only on the multi-ring burner;
• avoid accidentally knocking the hob with pans, racks or other kitchen utensils;
• do not leave empty steak grills over the lit burner for longer than 5 minutes.
IMPORTANT: improper use of the grids can damage the hob: do not
position the grids upside down or slide them across the hob.
BURNER
POT Ø
2 Ring
From 24 to 26 cm
Rapid
From 24 to 26 cm
Semi-rapid
From 16 to 22 cm
Auxiliary
From 8 to 14 cm
Do not use:
• cast iron griddles, ollar stones, terracotta pots and pans;
• heat diffusers such as metal mesh, or any other types;
• two burners simultaneously for one receptacle (e.g. fish kettle).
Liquids spilled on hot hob area can cause glass damage.
This operation must be performed by a qualified technician.
If the appliance is intended to operate with a different gas from the gas
type stated on the rating plate and information label on the top of the hob,
change the injectors.
Remove the information label and keep it with the instructions booklet.
Use pressure regulators suitable for the gas pressure indicated in the
Instruction:
• the gas injector must be changed by After Sales Service or a qualified
technician;
• injector not supplied with the appliance must be ordered from After
Sales Service;
• adjust the minimum setting of the taps.
NOTE: when liquid petroleum gas is used (G30/G31), the minimum gas
setting screw must be tightened as far as it will go.
IMPORTANT: should you experience difficulty turning the burners
knobs, please contact the After Sales Service to replace the burner tap
if found to be faulty.
IMPORTANT: when the gas cylinder is adopted, the gas cylinder or gas
container must be appropriately settled (vertical orientation).
REPLACING THE INJECTORS (see the injector table in the Safety
Instructions)
•
•
•
•
•
•
This operation must be performed by a qualified technician.
Remove grids (A).
Extract burners (B).
Using a socket spanner of the appropriate size unscrew the injector (C),
to be replaced.
Replace it with the injector suitable for the new type of gas.
Re-assemble the injector in (D).
If you have a multiple crown burner, use a side spanner to replace the
injector (E).
D
A
C
E
B
Before installing the hob, remember to affix the gas calibration plate
supplied with the injectors in such a way that it covers the existing
information relating to gas calibration.
EN
ADJUSTING MINIMUM GAS SETTING OF TAPS
F
This operation must be performed by a qualified technician.
The adjustment must be performed with the tap in a minimum gas setting
position (small flame).
The primary air of the burners does not need to be adjusted.
To ensure that the minimum setting is correctly adjusted, remove the knob
(F) and proceed as follows:
• tighten the screw to reduce the flame height (−);
• loosen the screw to increase the flame height (+).
Upon completion of adjustment, reseal using sealing wax or an equivalent
material.
At this stage, light up the burners and turn the knobs from max. position
to minimum position to check flame stability.
MY MENU FLAME CONTROL
LEVEL
1-2
3-4
5-6
7-8
9
COOKING METHOD/TYPE
(SUGGESTED FOR)
KEEPWARM
GENTILE COOK
SIMMERING
STEWING
ROASTING
FRYING
STIR FRYING
GRILLING
FAST HEATING
COOKING TIPS
Ideal for softening butter, gently melting chocolate in bagnemarie, thawing small portions, creaming
risotto.
Ideal for slow-cook recipes (rice,sauces,roast,fish) using liquids (water, wine, broth), and for creaming
pasta, maintaining a gentle boiling.
Ideal for sauteing, stewing vegetables, cooking for longer period, preheating accessories, cooking
until creamy.
Ideal for browning, starting to cook, bringing liquids to the boil quickly, frying deep-frozen products,
grilling meat and fish, maintaining a lively boil.
Ideal for rapidly increasing the temperature of food or for heating up liquids (water).
MAINTENANCE AND CLEANING
Disconnect the appliance from the power supply.
CLEANING THE HOB SURFACE
• All the enamelled and glass parts should be cleaned with warm water
and a neutral solution.
• Stainless steel surfaces may be stained by calcareous water or
aggressive detergents if left in contact for too long. Any food spills
(water, sauce, coffee, etc.) should be wiped away before they dry.
• Clean with warm water and neutral detergent, and then dry with a
soft cloth or chamois. Remove baked-on dirt with specific cleaners for
stainless steel surfaces.
NOTE: clean stainless steel only with soft cloth or sponge.
• Do not use abrasive or corrosive products, chlorine-based cleaners or
pan scourers.
• Do not use steam cleaning appliances.
• Do not use flammable products.
• Do not leave acid or alkaline substances, such as vinegar, mustard, salt,
sugar or lemon juice on the hob.
CLEANING THE HOB PARTS
• Clean glass and enamelled parts only with soft cloth or sponge.
• Grids, burner caps and burners can be removed to be cleaned.
• Clean them by hand with warm water and non-abrasive detergent,
removing any food residues and checking that none of the burner
openings is clogged.
• Rinse and dry.
• The cast-iron grates may be cleaned in the dishwasher.
Remove any burnt-on food before placing the grates in the lowest
rack in the dishwasher.
• Refit burners and burner caps correctly in the respective housings.
• When replacing the grids, make sure that the panstand area is aligned
with the burner.
• Models equipped with electrical ignition plugs and safety device require
thorough cleaning of the plug end in order to ensure correct operation.
Check these items frequently, and if necessary, clean them with a damp
cloth. Any baked-on food should be removed with a toothpick or needle.
NOTE: to avoid damaging the electric ignition device, do not use it
when the burners are not in their housing.
TROUBLESHOOTING
If the hob does not operate correctly, before calling the After-Sales Service,
refer to the Troubleshooting Guide to determine the problem
1. The burner fails to ignite, or the flame is not even
Check that:
• the gas or electrical supplies are not shut off and especially that
the gas supply tap is open;
• the gas cylinder (liquid gas) is not empty;
• the burner openings are not clogged;
• the plug end is not dirty;
• all the burner parts have been positioned correctly;
• there are no draughts near the hob.
2. The burner does not stay lit
Check that:
• when lighting the burner, the knob has been pressed for enough
time to activate the protection device;
• the burner openings are not clogged near the thermocouple;
• the end of the safety device is not dirty;
• the minimum gas setting is correct (see relevant paragraph).
3. The containers are not stable
Check that:
• the bottom of the container is perfectly flat;
• the container is centred on the burner;
• the grids have not been exchanged or positioned incorrectly.
If after the above checks the fault still occurs, get in touch with the nearest
After Sales Service.
AFTER-SALES SERVICE
In order to receive complete assistance, please register your product on
www.indesit.com/register.
•
BEFORE CALLING THE AFTER-SALES SERVICE:
1. See if you can solve the problem by yourself with the help of the
TROUBLESHOOTING suggestions.
2. Switch the appliance off and back on again to see if the fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN
TOUCH WITH THE NEAREST AFTER-SALES SERVICE.
To receive assistance, call the number shown on the warranty booklet or
follow the website’s instructions on www.indesit.com.
When contacting our Client After-sales service, always specify:
• a brief description of the fault;
• the type and exact model of the appliance;
Type: XXX
Mod.: XXX
XXXXXXXXXXXXXXXXXXXX
Made in X
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXX
400011626210
01
XXXX XXX XXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XX XXXX XXXXX
the serial number (number after the word SN on the rating plate
located under the appliance). The serial number is also indicated in the
documentation;
Mod.
Ind.C.
XXX XXX
XXXX XXXX XXXX
Prod.N. 86999XXXXXXX S.N. XXXX XXXX XXXX
•
•
your full address;
your telephone number.
If any repairs are required, please contact an authorized after-sales service
(to guarantee that original spare parts will be used and repairs carried out
correctly).

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
