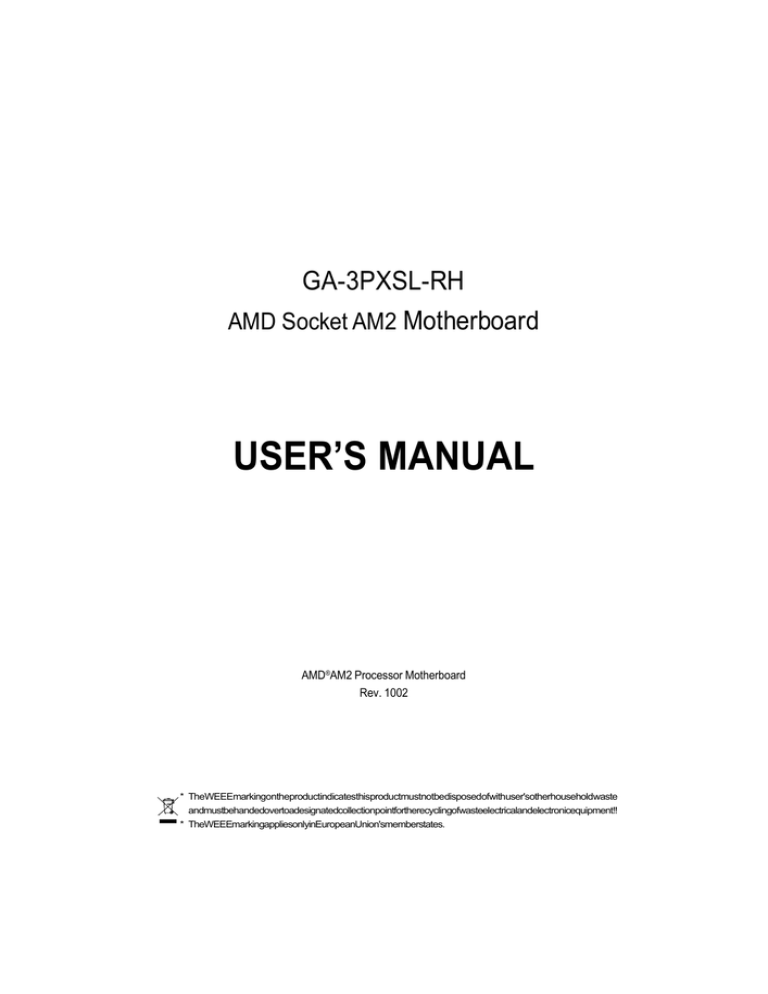

USER`S MANUAL

GA-3PXSL-RH

AMD Socket AM2

Motherboard

USER’S MANUAL

AMD

®

AM2 Processor Motherboard

Rev. 1002

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

GA-3PXSL-RH Motherboard

Table of Content

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 4

Chapter 1 Introduction ............................................................................ 5

1.1.Features Summary ................................................................................ 5

1.2GA-3PXSL-RH Motherboard Components ............................................ 7

Chapter 2Hardware Installation Process ................................................ 9

2-1: Installing Processor and CPU Haet Sink ............................................. 9

2-1-1: Installing CPU ......................................................................................................... 9

2-1-2: Installing CPU Cooler Fan ................................................................................... 10

2-2: Install memory modules ..................................................................... 11

2-3: Install expansion cards ...................................................................... 13

2-4: Connect ribbon cables, cabinet wires, and power supply ................ 14

2-4-1 : I/O Back Panel Introduction ................................................................................ 14

2-5: Connectors & Jumper Setting Introduction........................................ 16

2-6: Block Diagram .................................................................................... 24

Chapter 3 BIOS Setup .......................................................................... 25

Main ........................................................................................................... 27

Advanced ................................................................................................... 32

Advanced BIOS Feature ................................................................................................. 33

Advanced Chipset ........................................................................................................... 36

Integrated Peripherals ...................................................................................................... 38

Power Management Setup ............................................................................................. 46

PnP/PCI Configuration ..................................................................................................... 48

Security ...................................................................................................... 50

Boot ............................................................................................................ 51

PC Health ................................................................................................... 52

Exit ............................................................................................................. 54

2

Table of Content

Chapter 4 Application Driver Installation ............................................... 55

A.NVDIA Chipset Driver Installation ............................................................................... 55

B.nVIDIA VGA Driver Installation .................................................................................... 61

C.Marvell LAN Driver Installation .................................................................................. 63

D.DirectX 9.0 Driver Installation ...................................................................................... 66

Chapter 5 Appendix .............................................................................. 69

3

GA-3PXSL-RH Motherboard

Item Checklist

The GA-3PXSL-RH motherboard

IDE (ATA100 ) cable x 1 / Floppy cable x 1

CD for motherboard driver & utility

GA-3PXSL-RH user’s manual

Serial ATA cable x 4

I/O Shield Kit

WARNING!

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

1.

Unplug your computer when working on the inside.

2.

Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3.

Hold components by the edges and try not touch the IC chips, leads or connectors, or other components.

4.

Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.

5.

Ensure that the ATX power supply is switched off before you plug in or remove the ATX power connector on the motherboard.

Installing the motherboard to the chassis…

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful of your hands). In this way you can still attach the motherboard to the base without worrying about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

4

Introduction

Chapter 1 Introduction

1.1. Features Summary

Form Factor

CPU

Chipset

Memory

I/O Control

Expansion Slots

On-Board SATA RAID

On-Board Peripherals

Hardware Monitor

On-Board Graphic

On-Board LAN

12” x 9.6” ATX size form factor, 4 layers PCB

Supports AMD

®

Opteron

TM

1000 series (Socket AM2) processor

AMD

TM

Single/Dual Core in AM2 socket

L2 cache on-die per processor from 1M

NVIDIA ® GeForce 6150 Chipset

NVIDIA

®

nForce 430 Chipset

4 x DDRII-533/667 socket up to 16 GB

Supports Un-buffered DDRII 533/667/800

Dual Channel memory bus

Support 512MB, and 1GB memory

Single-bit Errors Correction, Multiple-bit Errors Detection

ITE IT8712F-A Super I/O

Supports 3 PCI slots 32-Bit/33MHz (5V)

Supports 1 PCI-Express x1 slot

Supports 1 PCI-Express x16 slot

Build in NVIDIA

®

nForce 430 chipset

Supports SATAII RAID 0, 1, 0+1, 5

2 ATA-133 connectors

1 Floppy port supports 2 FDD with 1.2M, 1.44M and 2.88M bytes.

2 PS/2 connectors

1 Parallel port supports Normal/EPP/ECP mode

2 Serial port (COM, 1 by cable)

6 x USB 2.0 (4 by cable)

1 VGA connector

2 x LAN RJ45

4 x SATAII connectors

CPU/Power/System Fan Revolution Detect

CPU shutdown when overheat

System Voltage Detect

Integrated in NVIDIA

®

GeForce 6150 Chipset

Marvell 88E8056 GbE controller/Marvell 88E1116 GbE PHY

Supports WOL, PXE

5

GA-3PXSL-RH Motherboard

BIOS

Additional Features

Licensed Award BIOS on 4MB flash ROM

SMBIOS Spec. Rev 2.3.3. compliant

ACPI defined S1, S3, and S5

PS/2 Mouse power on under Windows Operating System

External Modem wake up

Supports S1, S3, S5 under Windows Operating System

Wake on LAN (WOL)

AC Recovery

6

Introduction

1.2 GA-3PXSL-RH Motherboard Components

1.

2.

3.

4.

5.

6.

7.

8.

9.

CPU

NVIDIA

GeForce 6150

NVIDIA nForce 430

ITE 8712F-A

BIOS Flash

Marvel 88E1116 GbE PHY

Marvel 8056 GbE

IDE1 Connector

IDE2 Connector

10.

Floppy Connector

11.

SATA1 Connector

12.

SATA2 Connector

13.

SATA3 Connector

14.

SATA4 Connector

15.

Front Panel Connector

16.

Battery

17.

Front USB2 Connector

18.

Front USB3 Connector

19.

COMB Connector

20.

CPU 1 FAN

21.

System Fan1

22.

System Fan2

23.

System Fan3

24.

System Fan4

25.

DIMMA1

26.

DIMMB1

27.

DIMMA2

28.

DIMMB2

29.

PCI-E x1 Slot

30.

PCI-E x16 Slot

31.

PCI 3 Slot (32bit/33MHz)

32.

PCI 2 Slot (32bit/33MHz)

33.

PCI 1 Slot (32bit/33MHz)

34.

PS/2 Connectors

35.

USB ports

36.

Serial Port

37.

Parallel Port

38.

VGA Port

39.

RJ45 LAN/USB ports

40.

Auxiliary Power (ATX1)

41.

Auxiliary Power (+12V)

42.

Jumper Block

43.

Jumper Block

7

GA-3PXSL-RH Motherboard

40

27

25

21

22

41

1

20

24

23

10

9

8

14

13

3

42

12

11

43

18

15

17

2

30

16

31 32 33

28 26

6 7

29

4

5

34

35

36

37

38

39 39

19

8

Hardware Installation Process

Chapter 2 Hardware Installation Process

2-1: Installing Processor and CPU Haet Sink

Before installing the processor and cooling fan, adhere to the following cautions:

1. The processor will overheat without the heatsink and/or fan, resulting in permanent irreparable damage.

2. Never force the processor into the socket.

3. Apply thermal grease on the processor before placing cooling fan.

4. Please make sure the CPU type is supported by the motherboard.

5. If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper installation. Please change the insert orientation.

2-1-1: Installing CPU

Step 1. Check the CPU pins are not bent. Raise the locking lever next to the socket prior to installing the CPU.

Step 2. The pin 1 location is designated on the CPU by a copper triangle that corresponds to a triangle marking on the socket as shown in Fig. 2.

Step 3. Insert the CPU with the correct orientation. The CPU only fits in one orientation. When CPU is placed into socket properly, push the locking lever back into locked position.

Fig.1

Raise locking lever at a 90 degree angle.

9

Pin One

Fig.2

Pin 1 location on the socket and CPU.

Gently place the CPU into position and amke sure the CPU pins fit perfectly into the holes. Once the

CPU is positioned into its socket, place one finger down on the middle of the CPU and gently press the metal lever back into its original position.

GA-3PXSL-RH Motherboard

2-1-2: Installing CPU Cooler Fan

Fig.1

Before installing the CPU cooler fan, please first add an even layer of heat paste on the surface of the CPU. Install all the CPU cooler components

(Please refer to the cooler manual for detailed installation instructions).

Fig.2

Please connect the CPU cooler fan power connector to the CPU_FAN connector located on the motherboard.

1 0

Hardware Installation Process

2-2: Install memory modules

GA-3PXSL-RH has 4 dual inline memory module (DIMM) socets. It supports the Dual Channel

Technology. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM socket .The DIMM module can only fit in one direction due to the notch. Wrong orientation will cause improper installation. Please change the insert orientation.

Memory size can vary between sockets.

CHANNEL B

CHANNEL A

1 1

GA-3PXSL-RH Motherboard

Installation Step:

1. Unlock a DIMM socket by pressing the retaining clips outwards.

2. Aling a DIMM on the socket such that the notch on the DIMM exactly match the notches in the socket.

3. Firmly insert the DIMMinto the socket until the retaining clips snap back in place.

4. When installing the DIMM into the DIMM socket, we recommend to populate one DIMM in

Channel A module and one in Channel B module for best performance.

Please note that each logical DIMM must be made of two identical DIMMs having the same device size on each and the same DIMM size.

5. Reverse the installation steps when you wish to remove the DIMM module.

Table 2-3-1: DDRII DIMM Slot Populations

Mode

Single Channel

DIMMA1

Install

Dual Channel

Dual Channel

Install

Install

DIMMB1

Slot

DIMMA2

Install

Install

Install Install

DIMMB2

Install

1 2

Hardware Installation Process

2-3: Install expansion cards

1. Read the related expansion card’s instruction document before install the expansion card into the computer.

2. Remove your server’s chassis cover, necessary screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer’s chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

1 3

GA-3PXSL-RH Motherboard

2-4: Connect ribbon cables, cabinet wires, and power supply

2-4-1 : I/O Back Panel Introduction

1 4

Hardware Installation Process

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple).

USB Port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface.

Also make sure your OS supports USB controller. If your OS does not support USB controller, please contact OS vendor for possible patch or driver updated. For more information please contact your OS or device(s) vendors.

/ /

Parallel Port / Serial Port / VGA Port

This connector supports 1 standard COM port and 1 Parallel port. Device like printer can be connected to Parallel port ; mouse and modem etc can be connected to Serial port.

LAN Ports

The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/

100/1000Mbps.

LAN LED Description

Yellow

Green

Name

LAN

Link/ Activity

10/100 LAN

Speed

Color

Green

Green

--

Green

--

Condition

ON

BLINK

OFF

ON

OFF

Description

LAN Link / no Access

LAN Access

Idle

100Mbps connection

10Mbps connection

1 5

GA-3PXSL-RH Motherboard

2-5: Connectors & Jumper Setting Introduction

O

P

S

R

E

D

C

H

I

G

F

A

T

Q

L

K

J

B

N

A) ATX

B) ATX _12V

C) IDE1

D) IDE2

E) FDD

F) SATA1

G) SATA2

H) SATA3

I) SATA4

J) F_USB2

K) F_USB3

L) F_Panel1

1 6

M

M) COMB

N) Battery

O) SYS_FAN1

P) SYS_FAN2

Q) SYS_FAN3

R) SYS_FAN4

S) CPU_FAN

T) CLR_CMOS (CMOS Clear Jumper)

Connector Introduction

A) ATX (ATX Power Connector)

AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard.

12

24

1

13

22

23

24

18

19

20

21

14

15

16

17

10

11

12

13

6

7

8

9

2

3

4

5

PIN No.

Definition

1 +3.3V

+3.3V

GND

+5V

GND

+5V

GND

POK

5VSB

+12V

+12V

+3.3V

+3.3V

-12V

GND

PSON

GND

GND

GND

-5V

+5V

+5V

+5V

GND

B ) ATX_12V( +12V Power Connector)

1

Pin No.

1

2

3

4

Definition

GND

GND

12V

12V

This connector (ATX +12V) is used only for

CPU1 Core Voltage.

1 7

GA-3PXSL-RH Motherboard

C/D ) IDE1/IDE2 Connector

Please connect first harddisk to IDE1. The red stripe of the ribbon cable must be the same side with the Pin1.

IDE2

IDE1

2 1

40

39

E) FDD (Floppy Connector)

Please connect the floppy drive ribbon cables to FDD. It supports 1.2M,1.44M and 2.88Mbytes

floppy disk types. The red stripe of the ribbon cable must be the same side with the

Pin1.

1

2

33

34

1 8

Connector Introduction

F/ G/ H/ I ) SATA1/ 2/ 3/ 4 (Serial ATA Connectors)

You can connect the Serial ATA device to this connector, it provides you high speed transfer rates

(150MB/sec).

SATA3

SATA4

SATA2

SATA1

1

7

Pin No.

Definition

1 GND

4

5

2

3

6

7

TXP

TXN

GND

RXN

RXP

GND

J / K )F_USB 2/3 (Front USB Connectors)

Be careful with the polarity of the front panel USB connector. Check the pin assignment while you connect the front panel USB cable. Please contact your nearest dealer for optional front panel

USB cable.

1 2

1 9

Pin No.

1

4

5

2

3

8

9

6

7

10

9 10

Definition

Power

Power

USB DX-

USB DY-

USB DX+

USB DY+

GND

GND

Key (No Pin)

USB Over Current

Pin No

13

14

15

16

9

10

11

12

17

18

19

20

7

8

5

6

3

4

1

2

GA-3PXSL-RH Motherboard

L ) F_Panel1 (2x10 Pins Front Panel Connectors)

Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front panel to the front panel jumper according to the pin assignment below.

Speaker

Connector

SPEAK-

SPEAK+

20 19

Soft Power

Button

PW-

PW+

MSG-

MSG+

Reset Switch

RES-

RES+

HD-

HD+

IDE Hard Disk

Active LED

Message LED

2 1

KEY

KEY

KEY

KEY

PW-

N C

KEY

KEY

Signal Name Description

HD+ Hard Disk LED pull up (330 ohm)

MSG+

HD-

Message LED Signal (Pull up 330 ohm)

Hard Disk Active LED Signal

MSG-

RES+

PW+

RES-

Message Suspend LED (Blinking)

Front Panel Reset Button Signal

Front Panel Power On/Off Button

Front Panel Reset Button Signal

KEY

KEY

KEY

SPEAKER+

SPEAKER-

Front Panel Power On/Off Button

No Connect

KEY

KEY

KEY

KEY

KEY

KEY

KEY

KEY

KEY

Speaker connector

Speaker connector

2 0

M ) COMB

Connector Introduction

9 10

1 2

8

9

6

7

10

Pin No.

1

4

5

2

3

Definition

DCD-

SIN2

SOUT2

DTR2-

GND

DSR2-

RTS2-

CTS2-

RI2-

Key Pin

N ) Battery

If you want to erase CMOS...

1.Turn OFF the computer and unplug the power cord.

2.Remove the battery, wait for 30 second.

3.Re-install the battery.

4.Plug the power cord and turn ON the computer.

2 1

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

GA-3PXSL-RH Motherboard

O / P / Q / R ) SYS_FAN1/2/3/4 (System Fan Connectors)

This connector allows you to link with the cooling fan on the system case to lower the system temperature.

SYS_FAN2

SYS_FAN1

SYS_FAN4

SYS_FAN3

1

Pin No.

Definition

1

2

3

GND

+12V

Sense

S ) CPU_FAN (CPU Fan Connector)

Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating.The CPU fan connector supports Max.

current up to 1A .

1

Pin No.

Definition

1 GND

2

3

+12V

Sense

2 2

Jumper Setting

T ) CLR_CMOS (Clear CMOS Function)

You may clear the CMOS data to its default values by this jumper.

Default value doesn’t include the “Shunter” to prevent from improper use this jumper. To clear CMOS, temporarily short 1-2 pin.

1

1

1-2 close: Clear CMOS

2-3 close: Normal (Default value)

2 3

GA-3PXSL-RH Motherboard

2-6: Block Diagram

Power

Supply

Connector

VREG

AMD K8 CPU

Socket 940 (M2)

DDDR2 SDRAM CNN1

DDDR2 SDRAM CNN2

DDDR2 SDRAM CNN3

DDDR2 SDRAM CNN4

HT 16X16 1GHz

4GB/sec

PCI Slot 5

PCI-E X16

PCI Express X16

PCI Slot 7

PCI-E X1

PCI Express X1

Marvell 88E8056

Gigabit Ethernet

PCI Express X1

Primary IDE

Secondary IDE

ATA133

Integrated DATA

SATAII x 4

SIO

ITE

IT8712-IX

LPC BUS 33MHz

4MB FLASH

Floppy Connector

PS2/KB Connector

Parallel Connector

Serial Connector

NVIDIA

C51P

HT 8X8 1GHz

VGA

PCI 32/33MHz

NVIDIA

MCP51

RGMII

Marvell

LAN

M88E1116

USB2.0 x 6 Ports

RJ45

BACKPANEL

PCI Slot 1

PCI Slot 2

PCI Slot 3

BACKPANEL

USB2.0 Ports 0-1

FRONTPANEL

USB2.0 Ports 4-5

USB2.0 Ports 6-7

2 4

BIOS Setup

Chapter 3 BIOS Setup

BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.

ENTERING SETUP

Power ON the computer and press <DEL> immediately will allow you to enter Setup.

CONTROL KEYS

<Ç> Move to previous item

<È>

<Å>

Move to next item

Move to the item in the left hand

<F2>

<F3>

<F4>

<F5>

<F6>

<F7>

<Æ>

<Esc>

Move to the item in the right hand

Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and

Option Page Setup Menu - Exit current page and return to Main Menu

<+/PgUp> Increase the numeric value or make changes

<-/PgDn> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu

<F8>

<F9>

<F10>

Item Help

Reserved

Change Menu Color

Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

Reserved

Load the Optimized Defaults

Reserved

Reserved

Save all the CMOS changes, only for Main Menu

2 5

GA-3PXSL-RH Motherboard

GETTING HELP

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

Main

This setup page includes all the items in standard compatible BIOS.

Advanced

This setup page includes all the items of AWARD special enhanced features.

(ex: onboard device enable/disable, power management)

Security

Change, set, or disable password. It allows you to limit access to the system and Setup,

or just to Setup.

Boot

This setup page include all the items of first boot function features.

PC Health Status

This setup page displays the System auto detect Temperature, voltage, fan speed.

Exit

Save CMOS value settings to CMOS and exit setup or abandon all CMOS value changes and exit setup.

2 6

BIOS Setup

Main

Once you enter Award BIOS Setup Utility, the Main Menu (Figure 1) will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

Date (mm:dd:yy)

Time (hh:mm:ss)

Thr. Jan. 29 2006

23:1:52

Item Help

System Information

Drive A

Floppy 3 Mode Support

Halt On x Base Memory x Extended Memory x Total Memory

[Press Enter]

[1.44M, 3.5

1/2 ]

[Disabled]

[All, But Keyboard]

K B

K B

K B

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 1: Main

Date

The date format is <date> <month>, <day>, <year>.

Date

Month

Day

Year

The date, Monday to Sunday.

The month, Jan. Through Dec.

The day, from 1 to 31 (or the maximum allowed in the month)

The year, from 1999 through 2098

Time

The times format is set in <hour>, <minute> and <second>. The time is calculated base on the 24hour military-time clock. For example, 1 p.m. is 13:00:00.

Note that “x” indicates Display ONLY

2 7

GA-3PXSL-RH Motherboard

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

System Information

*************** System Information ***************

Item Help

Product Name:

BIOS Version:

Build Date:

Manufactory:

GA-XXXXXX

F1 xx-xx-xx

Chipset Type:

LAN1 MAC Address:

LAN2 MAC Address:

CPU Core Frequency

CPU Frequency Ratio

CPU L1 Cache

CPU L2 Cache

IDE Channel 0 Master

IDE Channel 0 Slave

IDE Channel 1 Master

IDE Channel 1 Slave

IDE Channel 2 Master

IDE Channel 3 Master

IDE Channel 4 Master

IDE Channel 5 Master

[None]

[None]

[CD-540E]

[None]

[None]

[None]

[None]

[None]

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 1-1: Main

System Information

This category includes the information of motherboard, BIOS version, Build Date, Manufactory, relative chipset type, and processors information.

2 8

BIOS Setup

IDE HDD Auto Detection

Press [Enter] to auto-detect the HDD’s size, head, etc on this channel.

IDE Channel 0~5 Master / Channel 0~1 Slave

The category identifies the types of hard disk from drive C to F that has been installed in the computer.

There are two types: auto type, and manual type. Manual type is user-definable; Auto type that will automatically detect HDD type.

Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items. Enter the information directly from the keyboard and press <Enter>. Such information should be provided in the documentation form your hard disk vendor or the system manufacturer.

Access Mode

This option allows user to set hard drive parameters.

Option: CHS, LBA, Large, Auto (Default Value)

Capacity

Cylinder

Heads

Precmp

Landind Zone

Sectors

Displays the capacity of HDD

Number of cylinders

Number of heads

Write precomp

Landing zone

Number of sectors

If a hard disk has not been installed, select NONE and press <Enter>.

2 9

GA-3PXSL-RH Motherboard

Drive A

The category identifies the types of floppy disk drive A that has been installed in the computer.

None

360K, 5

1.2M, 5

1/4

1/4

in.

in.

No floppy drive installed

5.25 inch PC-type standard drive; 360K byte capacity.

5.25 inch AT-type high-density drive; 1.2M byte capacity

(3.5 inch when 3 Mode is Enabled).

720K, 3

1/2

in.

3.5 inch double-sided drive; 720K byte capacity

1.44M, 3

1/2

in.

3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3

1/2

in.

3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support

This is required to support older Japanese floppy drives. Floppy 3 Mode Support will allow reading and writing of 1.2MB (as opposed 1.44MB) on a 3.5-inch diskette.

Disabled

Drive A

Drive B

Both

Normal Floppy Drive. (Default value)

Drive A is 3 mode Floppy Drive.

Drive B is 3 mode Floppy Drive.

Drive A & B are 3 mode Floppy Drives.

Halt On

This function allows system to halt when an error is detected during Power-On-Self -Test.

NO Errors

All Errors

The system boot will not stop for any error that may be detected and you will be prompted.

Whenever the BIOS detects a non-fatal error the system boot will be stopped.

All, But Keyboard The system boot will not stop for all errors except a keyboard error.

(Default value)

All, But Diskette The system boot will not stop for all errors except a disk error.

All, But Disk/Key The system boot will not stop for all errors except keyboard and disk errors.

3 0

BIOS Setup

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system.

Extended Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the C PU’s memory address map.

Total Memory

The POST of the BIOS will determine the amount of total memory installed in the system.

3 1

GA-3PXSL-RH Motherboard

Advanced

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

Item Help Advanced BIOS Feature

Advanced Chipset

Integrated Peripherals

Power Management Setup

PnP/PCI Configuration

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2: Advanced

3 2

BIOS Setup

Advanced BIOS Feature

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Advanced

Advanced BIOS Feature Item Help

Quick Power On Self Test

Boot Up Floppy Seek

Boot Up Num-Lock Status x APIC Mode

[Enabled]

[Disabled]

[On]

Enabled

Full Screen LOGO Show

Summary Screen Show

DMI Event Log

Clear All Event Log

View DMI Event Log

Mark DMI events Log as Read x Event Log Capacity x Event Log Vaildity

[Disabled]

[Enabled]

[Enabled]

[No]

[Enter]

[Enter]

Space Available

Vaild

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2-1: Advanced BIOS Features

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST.

Enabled

Disabled

Enables quick POST.(Default value)

Normal POST.

3 3

GA-3PXSL-RH Motherboard

Boot Up Floppy Seek

During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360K type is

40 tracks 720K, 1.2M and 1.44M are all 80 tracks.

Enabled

Disabled

BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note that BIOS can not tell from 720K, 1.2M or 1.44M

drive type as they are all 80 tracks. (Default value)

BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360K.

Boot Up Num-Lock Status

This option allows user to select power-on status for NumLock.

Auto System auto assign. (Default value)

Enabled Enable NumLock.

Disabled Disable this function.

Full Screen Logo Show

Enabled

Disabled

Show Full Logo when system boot.

Disable this function. (Default value)

Summary Screen Show

Enabled

Disabled

Show Summary screen when system boot. (Default value)

Disable this function.

DMI Event Log

Enabled

Disabled

Store POST error message to the DMI Event Log. (Default value)

Disable this function.

Clear all DMI Event Log

Yes

No

System will clear DMI event logs at next POST stage, and set this item to

[No] automatically.

Do not clear DMI event logs at next POST stage. (Default value)

3 4

BIOS Setup

View DMI Event Log

Press [Enter] to view all DMI event logs.

Mark DMI Events Log as Read

This option allows user to clear all DMI Event Logs immediately. Press [Enter] will pop up a confirmation window. Hit [Y] and [Enter] to clear all DMI event logs immediately.

Event Log Capacity

This item displays the information of Event Log Capacity.

Events Log Vaildity

This item displays the information of Event Log Vaildity.

3 5

GA-3PXSL-RH Motherboard

Advanced Chipset

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Advanced

Advanced Chipset Item Help

OnChip VGA

Frame Buffer Size

System BIOS Cacheable

[Enabled]

[64M]

[Disabled]

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2-2: Advanced Chipset

3 6

OnChip VGA

Enabled

Disabled

Enable Onboard VGA chipset. (Default value)

Disable this device.

Frame Buffer Size

This item allows user to select the frame buffer size.

Options 16M, 32M, 64M, 128MB, 256MB.

System BIOS Cacheable

Enabled

Disabled

Enable System BIOS Cacheable function.

Disabled this function. (Default value)

BIOS Setup

3 7

GA-3PXSL-RH Motherboard

Integrated Peripherals

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Advanced

Integrated Peripherals Item Help

IDE Function Setup

RAID Config

OnChip USB

USB Memory Type

USB Keyboard Support

USB Mouse Support

MAC Lan

MAC Media Interface

2nd Lan Controller

IDE HDD Block Mode

Onboard FDC Controller

Onboard Serial Port 1

Onboard Serial Port 2

UART Mode Select x UR2 Duplex Mode

Onboard Parallel Port

[V1.1+V2.0]

[SHADOW]

[Disabled]

[Disabled]

[Auto]

[Pin Strap]

[Auto]

[Enabled]

[Enabled]

[3F8,IRQ4]

[2F8,IRQ3]

[Normal]

Half

[378/IRQ7] x ECP Mode Use DAM 3

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2-3: Integrated Peripherals

3 8

BIOS Setup

IDE Function Setup

OnChip IDE Channel 0

Enabled Enable onboard Onchip IDE Channel 0. (Default value)

Disabled Disable this function.

Primary Master PIO

Auto

Mode 0

Auto detect the IDE secondary master PIO. (Default value)

Select Mode 0 as IDE secondary master PIO.

Mode 1

Mode 2

Mode 3

Mode 4

Select Mode 1 as IDE secondary master PIO.

Select Mode 2 as IDE secondary master PIO.

Select Mode 3 as IDE secondary master PIO.

Select Mode 4 as IDE secondary master PIO.

Primary Slave PIO

Auto

Mode 0

Auto detect the IDE secondary slave PIO. (Default value)

Select Mode 0 as IDE secondary slave PIO.

Mode 1

Mode 2

Mode 3

Mode 4

Select Mode 1 as IDE secondary slave PIO.

Select Mode 2 as IDE secondary slave PIO.

Select Mode 3 as IDE secondary slave PIO.

Select Mode 4 as IDE secondary slave PIO.

Primary Master UDMA

Auto

Disabled

Auto detect the IDE Primary Master Ultra DMA in the specified IDE channel. (Default value)

Disable this function.

Primary Slave UDMA

Auto Auto detect the IDE Primary Slave Ultra DMA in the specified IDE channel.

(Default value)

Disabled Disable this function.

3 9

GA-3PXSL-RH Motherboard

OnChip IDE Channel 1

Enabled Enable onboard Onchip IDE Channel 0. (Default value)

Disabled Disable this function.

Secondary Master PIO

Auto

Mode 0

Auto detect the IDE secondary master PIO. (Default value)

Select Mode 0 as IDE secondary master PIO.

Mode 1

Mode 2

Mode 3

Mode 4

Select Mode 1 as IDE secondary master PIO.

Select Mode 2 as IDE secondary master PIO.

Select Mode 3 as IDE secondary master PIO.

Select Mode 4 as IDE secondary master PIO.

Secondary Slave PIO

Auto

Mode 0

Mode 1

Auto detect the IDE secondary slave PIO. (Default value)

Select Mode 0 as IDE secondary slave PIO.

Select Mode 1 as IDE secondary slave PIO.

Mode 2

Mode 3

Mode 4

Select Mode 2 as IDE secondary slave PIO.

Select Mode 3 as IDE secondary slave PIO.

Select Mode 4 as IDE secondary slave PIO.

Secondary Master UDMA

Auto Auto detect the IDE Primary Master Ultra DMA in the specified IDE channel. (Default value)

Disabled Disable this function.

Secondary Slave UDMA

Auto Auto detect the IDE Primary Slave Ultra DMA in the specified IDE channel.

(Default value)

Disabled Disable this function.

4 0

IDE DMA transfer access

Enabled Enable IDE DMA transfer access. (Default value)

Disabled Disable this function.

Serial-ATA Controller

All Enabled Enable all serial device controllers. (Default value)

Disabled Disable this device.

SATA-1 Only enable SATA-1 device.

IDE Prefetch Mode

Enabled

Disabled

Enable IDE Prefetch Mode. (Default value)

Disable this function.

BIOS Setup

4 1

GA-3PXSL-RH Motherboard

RAID Enable

Enabled

Disabled

Enable RAID function.

Disable this function. (Default value)

SATA1 Primary RAID

Enabled

Disabled

Enable SATA1 Primary RAID function.

Disable this function. (Default value)

SATA1 Secondary RAID

Enabled

Disabled

Enable SATA1 Secondary RAID function.

Disable this function. (Default value)

SATA2 Primary RAID

Enabled Enable SATA1 Primary RAID function.

Disabled Disable this function. (Default value)

SATA2 Secondary RAID

Enabled

Disabled

Enable SATA1 Secondary RAID function.

Disable this function. (Default value)

4 2

BIOS Setup

OnChip USB

Options V1.1+V2.0, V1.1, Disabled.

Default value is V1.1+V2.0

USB Memory Type

Options SHADOW, Base Memory (640K).

USB Keyboard Support

Enabled Enable USB Keyboard Support.

Disabled Disable USB Keyboard Support. (Default value)

USB Mouse Support

Enabled

Disabled

Enable USB Mouse Support.

Disable USB Mouse Support. (Default value)

MAC LAN

Auto

Disabled

Auto detect onboard H/W LAN. (Default value)

Disable this function.

MAC Media Interface

This BIOS feature determines which MAC interface is used to connect the Gigabit MAC to the external PHY devices.

Pin Strap

MII

RGMII

When set to Pin Strap, the Gigabit MAC will automatically determine the right interface by querying the interface pins. (Default value)

When set to MII, the Gigabit MAC is set to use the MII which will be connected to Fast Ethernet PHY devices. This only allows transfers of up to 100Mbps.

When set to RGMII, the Gigabit MAC is set to use the RGMII which will be connected to reduced pin-count Gigabit PHY devices. This allows transfers of up to 1000Mbps.

4 3

GA-3PXSL-RH Motherboard

2nd LAN Controller

Auto

Disabled

Auto detect onboard second H/W LAN. (Default value)

Disable this function.

IDE HDD Block Mode

The IDE HDD Block Mode feature speeds up hard disk access by transferring data from multiple sectors at once instead of using the old single sector transfer mode. When you enable it, the BIOS will automatically detect if your hard disk supports block transfers and configure the proper block transfer settings for it. Up to 64KB of data can be transferred per interrupt with IDE

HDD Block Mode enabled.

Enabled

Disabled

Enable IDE HDD Block Mode. (Default value)

Disable this function.

Onboard FDC Controller

Enabled

Disabled

Select “enabled” to active Onboard Floppy Controller. (Default value)

Disable this function.

Onboard Serial Port 1

Auto BIOS will automatically setup the port 1 address.

3F8/IRQ4 Enable onboard Serial port 1 and set IO address to 3F8. (Default value)

2F8/IRQ3 Enable onboard Serial port 1 and set IO address to 2F8.

3E8/IRQ4 Enable onboard Serial port 1 and set IO address to 3E8.

2E8/IRQ3 Enable onboard Serial port 1 and set IO address to 2E8.

Disabled Disable onboard Serial port 1.

Onboard Serial Port 2

Auto BIOS will automatically setup the port 2 address.

3F8/IRQ4 Enable onboard Serial port 2 and set IO address to 3F8.

2F8/IRQ3 Enable onboard Serial port 2 and set IO address to 2F8. (Default value)

3E8/IRQ4 Enable onboard Serial port 2 and set IO address to 3E8.

2E8/IRQ3 Enable onboard Serial port 2 and set IO address to 2E8.

Disabled Disable onboard Serial port 2.

4 4

BIOS Setup

UART Mode Select

Normal Using as standard serial port. (Default value)

IrDA Using as IR and set to IrDA mode.

ASKIR Using as IR and set to ASKIR mode.

SCR Using as Smart Card Interface.

UR2 Duplex Mode

This entry can be adjust when user select [IrDA] in UART Mode item.

Full IR function Duplex Full.

Half IR function Duplex Half.

Onboard Parallel Port

378/IRQ7

278/IRQ5

3BC/IRQ7

Disabled

Enable onboard LPT port and set address to 378/IRQ7.

(Default value)

Enable onboard LPT port and set address to 278/IRQ5.

Enable onboard LPT port and set address to 3BC/IRQ7.

Disable onboard LPT port.

Parallel Port Mode

3BC/IRQ7

Disabled

SPP

EPP

ECP

ECP+EPP

Normal

Enable onboard LPT port and set address to 3BC/IRQ7.

Disable onboard LPT port.

Using Parallel port as Standard Parallel Port. (Default value)

Using Parallel port as Enhanced Parallel Port.

Using Parallel port as Extended Capabilities Port.

Using Parallel port as ECP & EPP mode.

Using Parallel port as Normal.

ECP Mode Use DMA

This option is only available if the setting for the Parallel Port Mode option is ECP. This option sets the DMA channel used by parallel port.

The options: 1, 3 (Default value)

4 5

GA-3PXSL-RH Motherboard

Power Management Setup

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Advanced

Power Management Item Help

ACPI Function

ACPI Suspend Type

Power Management

Video off Method

[Enabled]

[S1,S3]

[User Define]

[DPMS Support]

HDD Power Down

HDD Down In Suspend

Soft-off by PBNT

AC Back

WOL (PME#) From Soft -Off

WOR (RI#) From Soft -Off

Power-On by Alarm x Day of Moth Alarm

[Disabled]

[Disabled]

[Instant-off]

[Off]

[Disabled]

[Disabled]

[Disabled]

0 x Time (hh:mm:ss) Alarm 0:0:0

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2-4: Power Management

4 6

ACPI Function

Enabled

Disabled

Enable ACPI function. (Default Value)

Disable this function.

ACPI Suspend Type

S1(POS)

S3(STR)

S1, S3

Set ACPI suspend type to S1.

Set ACPI suspend type to S3.

Set ACPI suspend type to S1&S3. (Default value)

BIOS Setup

Soft-off by PBTTN

Instant-off

Delay 4 Sec.

Press power button then Power off instantly. (Default)

Press power button 4 sec to Power off. Enter suspend if button is pressed less than 4 sec.

WOL (PME#) From Soft-Off

Disabled Disable Wake Up On LAN and PME wakeup function. (Default value)

Enabled Enable Wake Up On Ring function.

WOR (RI#) From Soft-off

Disabled Disable Wake Up On Ring function. (Default value)

Enabled Enable Wake Up On Ring function.

Power -On by Alarm

You can set "Power -On by Alarm" item to enabled and key in Data/time to power on system.

Disabled Disable this function. (Default value)

Enabled Enable alarm function to POWER ON system.

If Power on by Alarm Lead To Power On is Enabled.

Date ( of Month) Alarm : Everyday, 0~31 (0 indicates repeat daily)

Time ( hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)

4 7

GA-3PXSL-RH Motherboard

PnP/PCI Configuration

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Advanced

PnP/PCI Configuration

Init Display First [PCIEx]

Item Help

Reset Configuration Data

Resource Controller By x IRQ Resource

PCI VGA Palette Snoop

[Disabled]

[Auto (ESCD)]

[Disabled]

***** PCI Express relative items *****

Maximum Payloads Size [4096]

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 2-5: PnP/PCI Configuration

Init Display First

This feature allows you to select the first initation of the monitor display from which card, when you install an AGP VGA card and a PCI VGA card on board.

PCIEx

PCI Slot

Set Init Display First to PCI Express Slot. (Default value)

Set Init Display First to PCI Slot.

Reset Configuration Data

Yes

No

Clear the Extended System Configuration Data (ESCD) area.

Disable this function. (Default value)

4 8

BIOS Setup

Resource Controller By

This BIOS items provides function for configuring all of the boot and Plug & Play compatible devices. Normally, user should set this items Auto, then the BIOS can automatically assign the IRQs and DMA channels. All the IRQ and DMA assignment fields should disappear as a result.

But if you are having problems assigning the resources automatically via the BIOS, you can select Manual to reveal the IRQ and DMA assignment fields. Then you can assign each IRQ or DMA channel to either Legacy ISA or PCI/ISA PnP devices.

Options Auto (ESCD), Manual. Default value is Auto (ESCD).

PCI VGA Palette Snoop

This option is only useful if you use an MPEG card or an add-on card that makes use of the graphics card's Feature Connector. It corrects incorrect color reproduction by "snooping" into the graphics card's framebuffer memory and modifying (synchronizing) the information delivered from the graphics card's Feature Connector to the MPEG or add-on card. It will also solve the problem of display inversion to a black screen after using the MPEG card.

Enabled

Disabled

Enable PCI VGA Palette Snoop.

Disable this function. (Default value)

Maximum Payloads Size

This option provides function for user to set the maximum TLP payloads size for the PCI

Express devices. The unit is “byte”.

Options 128, 256, 512, 1024, 2048, 4096.

4 9

GA-3PXSL-RH Motherboard

Security

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

Item Help Set Supervisor Password

Set User Password

Supervisor Password Status

User Password Status

Not Installed

Not Installed

Security Option [Setup]

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 3: Security

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the entered password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable password, just press <Enter> when you are prompted to enter password. A message

“PASSWORD DISABLEDwill appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

The BIOS Setup program allows you to specify two separate passwords:

SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS Setup program function. When enabled, the Supervisor password is required for entering the

BIOS Setup program and having full configuration fields, the User password is required to access only basic items.

If you select Systemat Password Check in Advance BIOS Features Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu.

If you select “Setup” at “Password Check” in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup.

Security Option

Select whether the password is required every time when the system boots or only when user enter the setup.

5 0

BIOS Setup

Boot

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

Removable Device Priority Item Help

Hard Disk Boot Priority

CD-ROM Boot Priority

Network Boot Priority

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 4: Boot

**

About This Section: Boot

The “Boot” menu allows user to select among four possible types of boot devices listed

using the up and down arrow keys. By applying <+> and <Space> key, you can promote

devices and by using the <-> key, you can demote devices. Promotion or demotion of devices

alerts the priority that the system uses to search for boot device on system power on.

Removable Device / Hard Drive / CD-ROM Drive/ Network Boot Priority

These three fields determines which type of device the system attempt to boot from after

BIOS Post completed. Specifies the boot sequence from the available devices. If the first device is not a bootable device, the system will seek for next available device.

5 1

GA-3PXSL-RH Motherboard

PC Health

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

[Disabled] Item Help Shutdown Temperature

VCC

VCORE

+3.3V

+12V

DDR 1.8V

3VDUAL

Voltage Battery

System Temperature1

System Temperature2

CPU Temperature

SYS Fan 1 Temperature

SYS Fan 2 Temperature

SYS Fan 3 Temperature

SYS Fan 4 Temperature

Fan Control Mode

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 5: PC Health

5 2

Shutdown Temperature

Determine CPU overheat shutdown temperature.

Voltage: VCC/VCORE +3.3V/ +12V/ DDER 1.8V/ 3VDUAL/

Voltage Battery

Detect system's voltage status automatically.

CPU /System 1/ System 2 Temperature

Display the current CPU temperature, System1 & 2 ambient temperature.

CPU SYS 1/2/3/4 FAN Speed (RPM)

Display the current CPUs and System 1/23/4 FAN speed.

Fan Control Mode

Depend om CPU Temp

Control By CPU&SYS1

Control bt CPU temperature. (Default value)

Control by CPU and System 1 temperature.

BIOS Setup

5 3

GA-3PXSL-RH Motherboard

Exit

Phoenix-Award WorkstationBIOS CMOS Setup Utility

Main Advanced Security Boot PC Health Exit

Load Optimized Defaults Item Help

Save & Exit Setup

Exit Without Saving

K L J I

: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F7: Optimized Defaults

Figure 7: Exit

Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation dialog box with a message as below:

Load Optimal Defaults? ( ( Y/N ) Y

Save & Exit Setup

Type “Y” will quit the Setup Utility and save the user setup value to RTC CMOS.

Type “N” will return to Setup Utility.

Exit Without Saving

Type “Y” will abandon all data and quit without saving.

Type “N” will return to Setup Utility.

5 4

Driver Installation

A.

NVDIA Chipset Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.

Installation Procedures:

1. The CD auto run program starts, Click on “nVDIA Chipset Driver” to start the installation.

2. Then, a series of installation wizards appear. Follow up the wizards to install the drivers.

3.Setup completed, click “Finish” to restart your computer.

1. Autorun

1. Click " nVDIA Chipset

Driver" item.

5 5

GA-3PXSL-RH Motherboard

2. InstallShield Wizard Welcome Window

3. Select Features

2. Click "Next" to start the installation

3. Select the feature setup that you want to install. And click "Next".

5 6

4. NVDIA IDE SW Driver Information

Driver Installation

4. Click "Next" to process the installation.

5. IDE SW Driver Installation Confirmation Dialog

5. Click “Yes”.

5 7

GA-3PXSL-RH Motherboard

6. Firewall and ForceWare Network Access Manager Installation Confirmation Dialog

6. Click “Yes”.

7. Network Access Manager Installation

5 8

7. Click “Next”.

8. Network Access Manager Setup Type Selection

Driver Installation

8. Select the setup type and determine the driver destination folder. Click

“Next”

9. Network Access Manager Installation Language Preference

5 9

9. Select the language, and click “Next”.

GA-3PXSL-RH Motherboard

10. ActiveAmor FireWall Installation

11. Installation Complete. Restart Computer

10. Select ‘Yes, I want to restart my computer now’ and click “Finish”.

6 0

Driver Installation

B.

nVIDIA VGA Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.

Installation Procedures:

1. The CD auto run program starts, Click on “nVIDIA VGA Driver” to start the installation.

2. Then, a series of installation wizards appear. Follow up the wizards to install the drivers.

3.Setup completed, click “Finish” to restart your computer.

1. Autorun

1. Click "nDIVIA VGA Driver” item.

6 1

GA-3PXSL-RH Motherboard

2. InstallShield Wizard Welcom Window

3. Installaiton Wizard Completed

2. Click "Next" to start the installation

3. Select ‘Yes, I want to restart my computer now’ and click “Finish”.

6 2

Driver Installation

C.

Marvell LAN Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.

Installation Procedures:

1. The CD auto run program starts, Click on “Marvell LAN Driver” to start the installation.

2. Then, a series of installation wizards appear. Follow up the wizards to install the drivers.

3.Setup completed, click “Finish” to restart your computer.

1. Autorun

1. Click "Marvell LAN Driver” item.

6 3

GA-3PXSL-RH Motherboard

2. InstallShield Wizard Welcome Window

3. License Agreement

2. Click "Next" to start the installation

2. Select “I accept the terms in the license agreement andclick "Next" to process the installation.

6 4

Driver Installation

4. Ready to Install the Program

5. Installaiton Wizard Completed

4. Click "Install" to start the installation

4. Click "Finish". Installation Completed

6 5

GA-3PXSL-RH Motherboard

D.

DirectX 9.0 Driver Installation

Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver

CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.

Installation Procedures:

1. The CD auto run program starts, Double click on “Directx9.0” to start the installation.

2. Then, a series of installation wizards appear. Follow up the wizards to install the drivers.

3.Setup completed, click “Finish” to restart your computer.

1. Autorun

1. Click "DirectX 9.0 Driver" item

6 6

Driver Installation

2. License Agreement

3. Start Installaiton

2. Select “I accept the agreement andclick

"Next" to process the installation.

6 7

3. Click “Next” to start the installation .

GA-3PXSL-RH Motherboard

4. Installaiton Wizard completed

4. Click "Finish". Installation complete.

6 8

Appendix

Appendix : Acronyms

Acronyms

ACPI

Meaning

Advanced Configuration and Power Interface

ECP

ESCD

ECC

EMC

EPP

ESD

FDD

FSB

HDD

IDE

IRQ

CRIMM

CNR

DMA

DMI

DIMM

DRM

DRAM

DDR

APM

AGP

AMR

ACR

BBS

BIOS

CPU

CMOS

Advanced Power Management

Accelerated Graphics Port

Audio Modem Riser

Advanced Communications Riser

BIOS Boot Specification

Basic Input / Output System

Central Processing Unit

Complementary Metal Oxide Semiconductor

Continuity RIMM

Communication and Networking Riser

Direct Memory Access

Desktop Management Interface

Dual Inline Memory Module

Dual Retention Mechanism

Dynamic Random Access Memory

Double Data Rate

Extended Capabilities Port

Extended System Configuration Data

Error Checking and Correcting

Electromagnetic Compatibility

Enhanced Parallel Port

Electrostatic Discharge

Floppy Disk Device

Front Side Bus

Hard Disk Device

Integrated Dual Channel Enhanced

Interrupt Request

6 9 to be continued......

GA-3PXSL-RH Motherboard

MIDI

MTH

MPT

NIC

OS

OEM

PAC

POST

Acronyms

I/O

IOAPIC

ISA

LAN

LBA

LED

MHz

PCI

RIMM

SCI

SECC

SRAM

SMP

SMI

USB

VID

Meaning

Input / Output

Input Output Advanced Programmable Input Controller

Industry Standard Architecture

Local Area Network

Logical Block Addressing

Light Emitting Diode

Megahertz

Musical Instrument Digital Interface

Memory Translator Hub

Memory Protocol Translator

Network Interface Card

Operating System

Original Equipment Manufacturer

PCI A.G.P. Controller

Power-On Self Test

Peripheral Component Interconnect

Rambus in-line Memory Module

Special Circumstance Instructions

Single Edge Contact Cartridge

Static Random Access Memory

Symmetric Multi-Processing

System Management Interrupt

Universal Serial Bus

Voltage ID

7 0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
