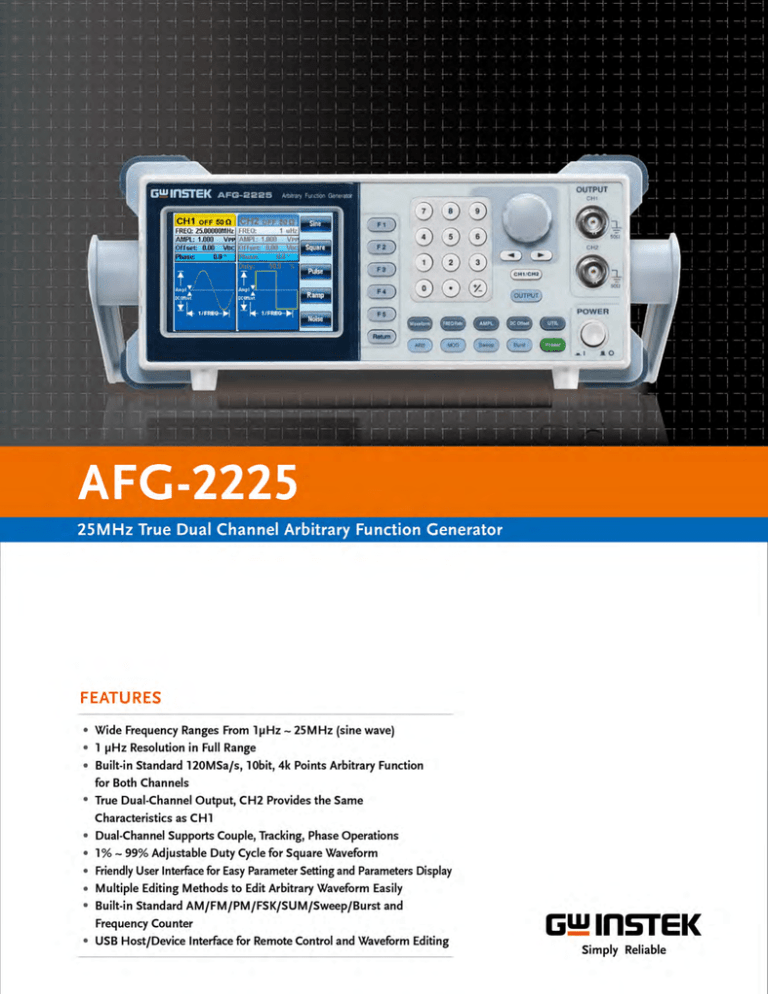

 AFG-2225
25MHz True Dual Channel Arbitrary Function Generator
FEATURES
* Wide Frequency Ranges From TpHz ~ 25MHz (sine wave)
* ] pHz Resolution in Full Range
* Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Function
for Both Channels
® True Dual-Channel Output, CH2 Provides the Same
Characteristics as CH1
* Dual-Channel Supports Couple, Tracking, Phase Operations
* 1% ~ 99% Adjustable Duty Cycle for Square Waveform
* Friendly User Interface for Easy Parameter Setting and Parameters Display
» Multiple Editing Methods to Edit Arbitrary Waveform Easily
* Built-in Standard AM/FM/PM/FSK/SUM/Sweep/Burst and
Frequency Counter [5143 INSTEK
* USB Host/Device Interface for Remote Control and Waveform Editing Simply Reliable
Equivalent Dual-Channel Provides Augmented Value for Customers
GW Instek is launching AFG-2225, its first basic level dual-channel arbitrary function generator, which provides superior features in its
class. Both channels are equipped with same characteristics to adapt dual-signal applications such as differential signaling or 1Q
modulation. The outstanding cost-performance value makes the AFG-2225 a practical instrument to accelerate the development process.
The major features for both channels include 10Vpp output amplitude; 2SMHz frequency bandwidth with 1p Hz resolution; built-in
waveforms of Sine, Square, Ramp (Triangle) and Noise. As to the 19%6~99% adjustable duty cycle of Square waveform can be used as pulse
signal sources. For the arbitrary waveform, user can edit the 66 built-in waveforms or create a whole new one. Moreover, AFG-2225 carries
features of AM/FM /PM /FSK/SUM Modulation, Sweep, Burst and Frequency Counter, which can be applied to various communication fields.
Ih addition to the intuitive and friendly user interface, the 3.5-inch color LCD displays the comprehensive operation information including
the true waveform presented at the output. USB Host and Device interfaces are equipped to link the AFG-2225 with other devices, which
provide the flexibility of waveform generation for more practical usages. With link to GW Instek GDS-series Digital Storage Oscilloscopes
(DSOs), the waveforms of interest can be captured and reconstructed. User can also use the arbitrary waveform PC software to edit the
waveform and then send to AFG-2225 directly, or save the waveform into flash drive and then transfer to AFG-2225.
M FREQUENCY RANGES AND OFFERS MULTIPLE STANDARD WAVEFORMS | - FULL-FUNCTIONS EQUIPPED DUAL-CHANNEL SIGNAL OUTPUT CAPABILITY
CH1 ofr 500 | [ERD
The Equivalent Function in Dual-Channel
Wide Frequency Range In most two-channel signals applications, such as digital modulation
and vehicle electronic simulation signals, the similar or identical
waveform capabilities are required for both channel outputs. Unlike
frequency is 25 MHz and offers full-range 14 Hz frequency other dual-channel AFG in this class, AFG-2225 is fully equipped
resolution. The built-in functions include Sine, Square, Ramp/ with equal capabilities on dual outputs. Most of dual-channel
arbitrary waveform generators in this basic level cluster offer one
major channel and one minor channel, in which the minor channel
only provides less functions or inferior performances. This sort of
non-full-function dual-channel AFGs cannot meet the requirements
of reality.
AFG-2225 offers signal output by DDS technique. The maximum
Triangle, Pulse, and Noise.
CORRELATED FUNCTIONS OF DUAL-CHANNEL OUTPUTS
Frequency Couple Type: OFF
Frequency Couple Offset: DuHz
Frequency Couple Ratio: 0.000
Amplitude Couple; DFE
Tracking: OFF
Correlated Functions of Dual-Channel Differential Signals Quadrature (Sine and Cosine) Signals
The two channels can be used in either independent or correlated such as PECL, LVPECL and LVDS digital signals or automotive
configuration. AFG-2225 provides three correlated functions which sensors like temperature, speed signals are all able to be simulated
are Couple, Tracking and Phase functions. For Couple function, by tracking function. The Phase function is designed to create two
two signals with a ratio or offset in amplitude or frequency can be signals with specified phase offset. When user wants to create two
generated. One of two signals with adjustable offset frequency is quadrature (sine and cosine) signals, the phase offset is set to be
an example which can form the two-tone signals for testing the 90 degrees in the Phase function. In conclusion, compared with
third order inter-modulation distortion of an amplifier. With other arbitrary function generators only equipped with phase
Tracking function, two differential signals with equal-frequency, function, AFG-2225 provides great convenience to fulfill the
equal-amplitude but inverted phase can be produced. Examples various challenges coming from modern electronic industries.
D. HIGH-FLEXIBILITY OF ARBITRARY WAVEFORMS EDITING
Direct Panel Operation
Direct Waveform Reconstruction (DWR) Capability
AFG-2225 provides 120MSa/s sampling rate, 10-bit vertical
resolution, 4k-point waveform length, and the maximum waveform
repeated rate of 60MHz, regarded as an outstanding arbitrary
waveform capability. There are four ways for AFG-2225 to generate
customized arbitrary waveforms, which are editing waveform via
PC software, point-by-point editing on the panel, loading CSV file
and loading the captured waveform from GWlnstek GDS-Series
Oscilloscopes.
The PC software editing and point-by-point editing particularly
provide the way to create the user-defined and post-modification
waveform.
= 170-93% ADJUSTABLE DUTY CYCLE OF SQUARE WAVE
| 6 gemas
| i % sine wave generation program
A NE. Ds Ja resultaroond(215"sinfi:0.01-2*pi))
1 Start: 0 save gensin csv resulf /ascil:
% end
№ Length: 629
3 ¡Sample Rate: 20000000 a PE
à | 0 Sample Rate: 200000000
0
5 | 328 328
6 655 983
FET 1310
7 | 083 a
8 | 1310
Supports CSV file upload
Arbitrary Waveform Editing PC Software
CSV file loading capability allows AFG-2225 to produce the
waveforms with complicated math operation result. Engineer can
use PC math software to process the integral and then send the
results in CSV format to AFG-2225. With the link to GWInstek
GDS-Series Digital Storage Oscilloscopes (DSOs), the waveforms
of interest can be captured by DSO and then reconstructed by
AFG-2225. User can capture the waveform during the operation
and then reconstructed by AFG-2225 for further analysis or
diagnosis in the laboratory. Thus, plus the dual-channel feature,
numerous derivative applications of capturing signal can be
achieved.
F. FRIENDLY OPERATING INTERFACES AND INSTANT PARAMETER DISPLAY
LA
ft 1784
1% Duty Cycle of Square Wave
Inheriting the advantage of AFG-2000 Series, AFG-2225 provides
a 19%-99% variable duty cycle for its Square waveform within
100kHz bandwidth, which is considered practical for the tests
such as simulating pulse and transient signals without purchasing
extra advanced function generator and pulse generator.
High-Flexable Editing/Output Method
AFG-2225 provides friendly panel operation setting as well as
What You See Is What You Get operating way. From editing to
output, the process can be manipulated via panel. Besides
equipped with highly-flexible editing method, the immediate
diagram is capable for users to understand the current waveform
status and the output waveform contents under the storage/
output setup.
G. 66 BUILT-IN ARBITRARY WAVEFORMS Н. IMPEDANCE SWITCH FUNCTION
fod [FT TTL ERT
AM TET TH
PRE ete RL г.
50 О / High Z Impedance Switch Function
66 frequently used function waveforms in all fields are built Majority of users are using oscilloscope to observe the waveforms
in arbitrary waveform memory for user's selection. They are of function generators. However, the differences of input
impedance of function generators and oscilloscopes are not the
same, and the oscilloscope will not necessarily be equipped with
built-in input impedance switch function; the correct amplifier
can only be received through computing. AFG-2225 provides
developed by further editing. 50102 and high-input impedance switching modes, which can
efficiently enhance the accuracy while users reading the results.
categorized into four groups, Common, Math, Window and
Engineer. The trigonometric derivative functions, Blackman,
Chebyshev, Bessel, Gamma, Gauss ... can be selected and
В SUPPORT MULTI-CHANGE SIGNAL APPLICATION
FSK Sweep Burst
AFG-2225 owns built-in functions, such as Modulation, Sweep, function supports two modes, Gate and N-Cycle, which can be
Burst, and RF Counter. The modulation waveforms contain AM, used to control parameters such as phase angles, duration
FM, PM, FSK, SUM, and either an internal signal or an external frequency, and duration time. The built-in Frequency Counter is
signal can be selected to perform the modulation. Sweep available to provide the maximum 150MHz frequency range
Function includes two sweep ways, linear and log mode, which without additional purchase.
can also perform sweep function in internal or external. Burst
|В PROVIDE USB HOST/DEVICE INTERFACE
USB Host & USB Device
The USB Host/Device Interfaces are located at the rear panel USB Flash Drive; as to USB Device, which is used to connecting
of AFG-2225. The USB Host is mainly used for directly with PC, besides controlling through software on PC, USB Device
reconstruction of waveforms of GW Instek GDS-Series also supports IEEE488.2 Command List for users to process
Oscilloscope, thus, it can be stored and recalled at portable customized functional control.
PANEL INTRODUCTION
GWINSTEK ae:
SPECIFICATIONS
| USB E Pc
EJEA
. LCD Display
, Function Keys, Return Key
. Scroll Wheel
‚Arrow Keys
Output Terminals
. Channel Select Key
. Power Switch
1
2
3
4
3.
6
7
6
. Output key
9. Operation Keys
10. Number Pad
11. Power Socket Input
12. Fan
13. Input Terminals
14. Trigger Output
15. USB Host Port
16. USB Device Port
WAVEFORMS
ARITRARY FUNCTION
FREQUENCY CHARACTERISTICS
OUTPUT CHARACTERISTICS
SINE WAVE CHARACTERISTICS
SQUARE WAVE CHARACTERISTICS
RAMP CHARACTERISTICS
PULSE CHARACTERISTICS
AM MODULATION
Sample Rate
Repetition Rate
Waveform Length
Amplitude Resolution
Non-Volatile Memory
Range Sine/Square
Ramp
Resolution
Accuracy Stability
Aging
Tolerance
Amplitude Range
Accuracy
Resolution
Flatness
Units
Offset Range
Accuracy
Waveform Output Impedance
Protection
Harmonic Distortion
Rise/Fall Time
Overshoot
Asymmetry
Variable Duty Cycle
Linearity
Variable Symmetry
Period
Pulse Width
Overshoot
Jitter
Carrier Waveforms
Modulating Waveforms
Modulating Frequency
Depth
Source
CH1 CH2
Sine, Square, Ramp, Pulse, Moise, ARB
120MSa/s
60MHz
4k point
10 bit
4k points
1uHz — 25MHz
1MHz
TpHz
+20ppm
=lppm, per | year
simHz
1mVpp-10Vpp{(into 50201), 2mVpp-Z20Vpp{(open-circuit)
ImYpp-5Vpp{(into 500)}for 20MHz-25MHz; 2rnVpp-10 pp{(open-circuit}for 2Z0MHz-25MHz
=2% of setting +1mYpp(at 1kHz)
ImY or 3digits
+1% (0.1d8) <100kHz, 3% (0.3 dB) S5MHz, +5% (0.4 dB) <12MHz, +10%(0.9d8)<25MHz
(sine wave relative to TkHz)
Vpp, Vrms, dBm
+5Vpk ac+de(into 500); =10Vpk ac+dc(open circuit); +2.5Vpk ac+de(into 500) for 20MHz-25MHz
+5Vpk ac+de(open circuit) for 20MHz-25MHz
2% of setting + 5mY+ 0,5% of amplitude
500 typical (fixed); > TOM) (output disabled)
Short-circuit protected ; Overload relay auto matically disables main output
=-55 dBc, DC — 200kHz, Ampl > 0.1Vpp; =-50 dBc, 200kHz — 1MHz, Ampl > 0.1Ypp
=-35 dBc, TMHz —- 5MHz, Ampl > 0.1¥pp; =-30 dBc, 5MHz — 25MHz, Ampl > 0.1Vpp
=25ns at maximum output (into 500 load)
5%
1% of period + 5 ns
1.0%~99%=100kHz ; 10.0%6~90.0%=1MHz ; 50.0%= 25MHz
< 0.1% of peak output
0%-10096(0.1% Resolution)
d0ns — 20005
20ns ~ 1999.95
<5%
20ppm + 5ns
Sine, Square, Ramp, Pulse, Arb
Sine, Square, Tnangle, Upramp, Dnramp
2mHz — 20kHz (INT); DC — 20kHz (EXT)
0% ~ 120.0%
Internal / External
Sine, Square, Ramp, Pulse, Arb
Sine, Square, Tangle, Upramp, Dnramp
2mHz — 20kHz (INT); DC — 20kHz (EXT)
0% — 120.0%
Internal / External
SPECIFICATIONS
CH1 CHZ
FM MODULATION Carrier Waveforms Sine, Square, Ramp Sire, Square, Ramp
Modulating Waveforms Sine, Square, Triangle, Upramp, Dnramp Sine, Square, Triangle, Upramp, Onramp
Modulating Frequency 2mHz - 20kHz (INT); DC — 20kHz (EXT) 2mHz— 20kHz (INT); DC — 20kHz (EXT)
Peak Deviation DC — Мах Frequency DC — Мах Frequency
Source Internal / External Internal / External
PM Carrier Waveforms Sine, Square, Ramp Sine, Square, Ramp
Modulating Waveforms Sine. Square, Triangle, Upramp, Dnramp ‘Sine, Square, Triangle, Upramp, Dnramp
Modulation Frequency 2ZmHz ~ 20kHz (INT): DC ~ 20kHz (EXT) ZmHz —20kHz (INT); DE = 20kHz (EXT)
Phase Deviation 0° —360° 0° ~ 360°
Source Internal / External Internal / External
FSK Carrier Waveforms Sine, Square, Ramp, Pulse Sing, Square, Ramp, Pulse
Modulating Waveforms 50% duty cycle sguare 50% duty cycle square
Modulation Frequency ImHz - 100 kHz (INT); DC — 100 kHz (EXT) Эт — 100 kHz (INT); DC ~ 100 kHz(EXT)
Phase Deviation 1uHz = Max Frequency 1uHz = Max Frequency
Source Internal / External Internal | External
Sum Carrier Waveforms Sine, Square, Ramp, Pulse, Noise Sine, Square, Ramp, Pulse, Noise
Modulating Waveforms Sine, Square, Triangle, Upramp, Dnramp Sine, Square, Triangle, Upramp, Dnramp
Modulation Frequency 2mHz ~ 20kHz (INT); DC - 20kHz (EXT) 2mHz — 20kHz (INTI; DE — 20kHz (EXT)
Phase Deviation 076 — 100.076 0% — 100.096
Source Internal / External Internal | External
SWEEP Waveforms Sine, Square, Ramp Sine, Square, Ramp
Type Linear or Logarithmic Linear or Logarithmic
Start/Stop Freq TuHz to Max Frequency 1uHzto Max Frequency
Sweep Time Ims = 5005 15 = 5005
Source Internal / External (Manual Internal / External {Manual
BURST Waveforms Sine, Square, Ramp Sine, Square, Ramp
Frequency InHz -25MHz IuHz —25MH2
Burst Count 1- 65535 cycles or Infinite 1 — 65535 cycles or Infinite
Start/Stop Phase -350 — +360 -360— +360
Internal Period Ims = 5005 1ms - 5005
Gate Source External Trigger External Trigger
Trigger Source Single, External or Internal Rate Single, External or Internal Rate
N-Cycle, Infinite bs = 655350ns Os — 655350ns
FREQUENCY COUNTER Range 5Hz — 150MHz
Accuracy Time Base accuracysTcount
Time Base +20ppm (23°C = 5°C) after 30 minutes warrm up
Resolution The maximum resolution is * 10OnHz far 1Hz, O1Hz for 100M Hz
Input Impedance Tkca/1pf
Sensitivity IS5Smyrms — 30Vms (5Hz - 150MHz)
DUAL CHANNEL FUNCTION. Phase -180° ~ 180°, Synchronize phase -180* — 180", Synehronize phase
Tracking CH2=CHI CHI=CH2 | |
Coupling Frequency(Ratio pr Difference) Amplitude & DC Offset Frequency(Ratio or Difference) Amplitude & DC Offset
DsOlink af o
EXTERNAL TRIGGER INPUT Type Far FSK, Burst. Sweep
Input Level TTL Compatibility
Slope Rising or Falling(Selectable)
Pulse Width >100ns
Input Impedance 10k£2, DC coupled
EXTERNAL MODULATION INPUT Type Ear AM, EM, PM, SUM
Voltage Range +5V full scale
Input Impedance Токо
Frequency BC — 20kHz
TRIGGER OUTPUT Type For Burst, Sweep, Arb
Level TTL Compatible into 5002
Pulse Width =450n5
Maximum Rate IMHz
ar 24 TTL Load
Impedance 5001 Typical
SAVE/RECALL 10 Groups ef Setting Memories
ACE USB(Host €: Device)
DISPLAY 35a" TFT LCD
POWER SOURCE ACTOO -740V , 50-60Hz
POWER CONSUMPTION 25W (Max)
OPERATING ENVIRONMENT Temperature ta satisfy the specification: 18-28"C; Operating temperature; 040°C; Relative Humidity: S80%, 0-40°C; 70%, 15-40"C,
Installation category: CAT Il
OPERATING ALTITUDE 2000 meters
STORAGE TEMPERATURE 10-707C, Humidity: 705
DIMENSIONS & WEIGHT 266/W)=107(H)<293(D) mm; Approx. 2.5 kg
* The specifications apply when the function generator is powered on for at least 30 minutes under +18°C~+28°C. Specifications subject to change without notice. FG-22256D1BH
ORDERING INFORMATION OPTIONAL ASSESSORIES
AFG-2225 25MHz True Dual Channel Arbitrary Function Generator GTL-T10 BNC(M)-BNC(M) RF Cable
GTL-246 USB Cable, USB 2.0 Type A = Type B, 4P
ACCESSORIES FREE DOWNLOAD
User Manual CD х 1, Quick Start Manual x 7, GTL-101 Test Lead x 2, Power Cord x 1 PC Software Arbitrary Waveform Editing Software
Global Headquarters U.S.A, Subsidiary
GOOD WILL INSTRUMENT CO., LTD. INSTEK AMERICA CORP.
Mo, 7-1, |hongsing Road, Tucheng Dist, New Taipei City 236, Tarwan 3661 Walnut Avenue China, CA 91710, USA
T +886-2-2268-0389 F +886-2-2268-0639 T +1-909-5918358 F +1-509-5912280
China Subsidiary Japan Subsidiary
GOOD WILL INSTRUMENT (SUHZOU) CO., LTD. INSTEK JAPAN CORPORATION
NO, 69, Lushan Road, Snd, Suzhou Jiangsu 215011 China 4F, Prosper Bldg, 1-3-3 lwamoto-Cha Chiyada-Ku,,
T +86-512-6661-7177 F +86-512-6661-7277 Tokyo 101-0032 Japan CC INSTEK
—
T +81-3-5823-5656 F +81-3-5823-5655
Malaysia Subsidiary Korea Subsidiary . .
GOOD WILL INSTRUMENT (M) SDN. BHD. GOOD WILL INSTRUMENT KOREA CO., LTD. Simply Reliable
27, Perstaran Mahsuri 1/1, Sumway Tunas, Room No. 805, Ace Hightech-City B/D 1Dong,
11900 Bayan Lepas, Penang, Malaysia Mullae-Dong 3Ga 55-20, Yeongduengpo-Gu, Seoul, Korea a
T +604-6309988 F +604-6309989 T +82-2-14192205 F +82-2-3439-7207 WWW. Е wins te k COM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
