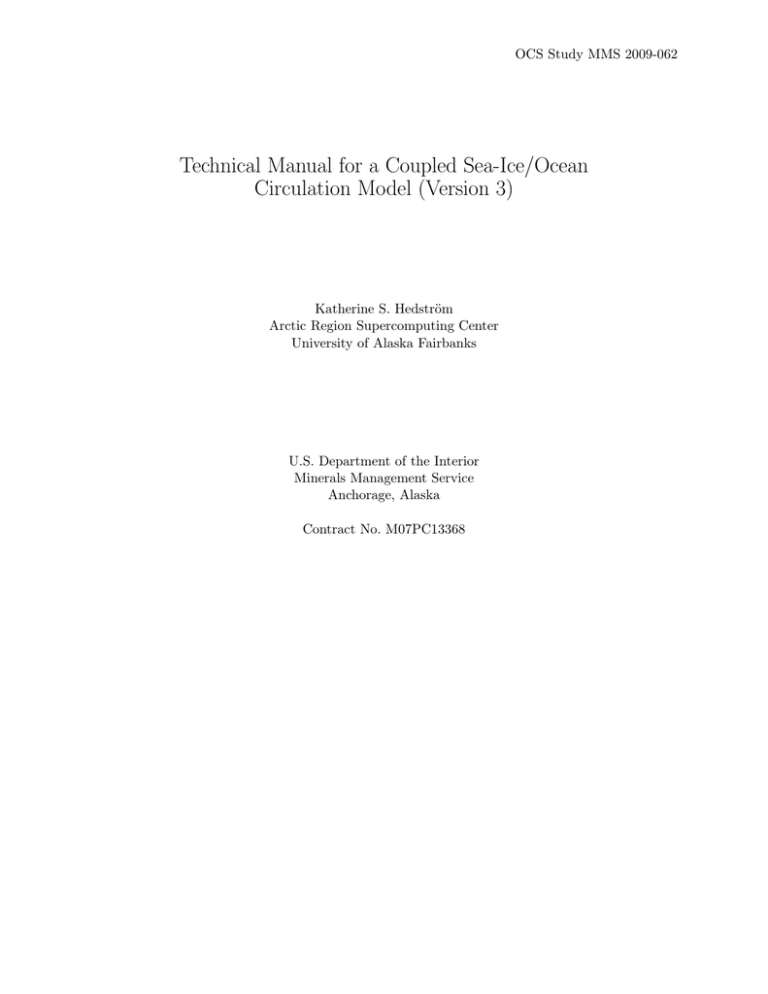

Technical Manual for a Coupled Sea-Ice/Ocean Circulation

Technical Manual for a Coupled Sea-Ice/Ocean Circulation
OCS Study MMS 2009-062
Technical Manual for a Coupled Sea-Ice/Ocean
Circulation Model (Version 3)
Katherine S. Hedström
Arctic Region Supercomputing Center
University of Alaska Fairbanks
U.S. Department of the Interior
Minerals Management Service
Anchorage, Alaska
Contract No. M07PC13368
OCS Study MMS 2009-062
Technical Manual for a Coupled Sea-Ice/Ocean
Circulation Model (Version 3)
Katherine S. Hedström
Arctic Region Supercomputing Center
University of Alaska Fairbanks
Nov 2009
This study was funded by the Alaska Outer Continental Shelf Region of the Minerals Management Service, U.S. Department of the Interior, Anchorage, Alaska, through Contract M07PC13368
with Rutgers University, Institute of Marine and Coastal Sciences.
The opinions, findings, conclusions, or recommendations expressed in this report or product are
those of the authors and do not necessarily reflect the views of the U.S. Department of the Interior,
nor does mention of trade names or commercial products constitute endorsement or recommendation for use by the Federal Government.
This document was prepared with LATEX xfig, and inkscape.
Acknowledgments
The ROMS model is descended from the SPEM and SCRUM models, but has been entirely
rewritten by Sasha Shchepetkin, Hernan Arango and John Warner, with many, many other contributors. I am indebted to every one of them for their hard work.
Bill Hibler first came up with the viscous-plastic rheology we are using. Paul Budgell has
rewritten the dynamic sea-ice model, improving the solution procedure and making the waterstress term implicit in time, then changing it again to use the elastic-viscous-plastic rheology of
Hunke and Dukowicz. I am very grateful that he is allowing us to use his version of the code. The
sea-ice thermodynamics is derived from Sirpa Häkkinen’s implementation of the Mellor-Kantha
scheme. She was kind enough to allow Paul and I to start with her code.
Thanks to the internet community for providing great tools like Perl, patch, cpp, svn, and
gmake to aid in software development (and to make it more fun).
This work was supported in part by a grant of HPC resources from the Arctic Region Supercomputing Center and the DoD High Performance Computing Modernization Program.
Development and testing of the ROMS model has been funded by many, including the USGS
Coastal and Marine Program, the Office of Naval Research, the National Ocean Partnership Program...
UNIX is a registered trademark of the Open Group.
Cygwin is a registered trademark of Red Hat, Inc.
Abstract
The Regional Ocean Modeling System (ROMS), authored by many, most notably Sasha
Shchepetkin, is one approach to regional and basin-scale ocean modeling. This user’s manual for
ROMS describes the model equations and algorithms, as well as additional user configurations
necessary for specific applications. ROMS itself has now branched out as well - the version
described here is that available through the myroms.org svn site with modifications to include
sea ice and other minor changes.

Contents
1 Introduction
1
2 Getting started
2.1 myroms.org . . . . . . . . . . . . . . . .
2.2 Prerequisites . . . . . . . . . . . . . . .
2.3 Acquiring the ROMS code . . . . . . . .
2.4 Compiling ROMS . . . . . . . . . . . . .
2.4.1 Environment Variables for make
2.4.2 Providing the Environment . . .
2.4.3 Build scripts . . . . . . . . . . .
2.5 Running ROMS . . . . . . . . . . . . . .
2.6 Warnings and bugs . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
3 Ocean Model Formulation
3.1 Equations of motion . . . . . . . . .
3.2 Vertical boundary conditions . . . .
3.3 Horizontal boundary conditions . . .
3.4 Terrain-following coordinate system
3.5 Horizontal curvilinear coordinates . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
8
. 8
. 9
. 10
. 10
. 11
4 Numerical Solution Technique
4.1 Vertical and horizontal discretization . . . . . . . . . . . . .
4.1.1 Horizontal grid . . . . . . . . . . . . . . . . . . . . .
4.1.2 Vertical grid . . . . . . . . . . . . . . . . . . . . . .
4.2 Masking of land areas . . . . . . . . . . . . . . . . . . . . .
4.2.1 Velocity . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.2 Temperature, salinity and surface elevation . . . . .
4.2.3 Wetting and drying . . . . . . . . . . . . . . . . . .
4.3 Time-stepping overview . . . . . . . . . . . . . . . . . . . .
4.4 Conservation properties . . . . . . . . . . . . . . . . . . . .
4.5 Depth-integrated equations . . . . . . . . . . . . . . . . . .
4.6 Density in the mode coupling . . . . . . . . . . . . . . . . .
4.7 Time stepping: internal velocity modes and tracers . . . . .
4.8 Advection schemes . . . . . . . . . . . . . . . . . . . . . . .
4.8.1 Second-order Centered . . . . . . . . . . . . . . . . .
4.8.2 Fourth-order Centered . . . . . . . . . . . . . . . . .
4.8.3 Fourth-order Akima . . . . . . . . . . . . . . . . . .
4.8.4 Third-order Upwind . . . . . . . . . . . . . . . . . .
4.9 Determination of the vertical velocity and density fields . .
4.10 Horizontal mixing . . . . . . . . . . . . . . . . . . . . . . . .
4.10.1 Deviatory stress tensor . . . . . . . . . . . . . . . . .
4.10.2 Transverse stress tensor . . . . . . . . . . . . . . . .
4.10.3 Rotated Transverse Stress Tensor . . . . . . . . . . .
4.10.4 Biharmonic . . . . . . . . . . . . . . . . . . . . . . .
4.11 Vertical mixing schemes . . . . . . . . . . . . . . . . . . . .
4.11.1 Mellor-Yamada . . . . . . . . . . . . . . . . . . . . .
4.11.2 The Large, McWilliams and Doney parameterization
4.12 Timestepping vertical viscosity and diffusion . . . . . . . . .
4.13 Boundary Conditions . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
3
3
3
3
4
4
5
6
6
7
13
13
13
13
14
14
14
15
15
17
18
20
22
22
23
23
24
24
25
25
25
27
27
28
28
29
30
33
35
4.13.1
4.13.2
4.13.3
4.13.4
4.13.5
4.13.6
4.13.7
Gradient boundary condition . . .
Wall boundary condition . . . . .
Clamped boundary condition . . .
Flather boundary condition . . . .
Chapman boundary condition . . .
Radiation boundary condition . . .
Mixed radiation-nudging boundary
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
. . . . . .
condition
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
35
35
35
35
35
35
36
5 Ice Model Formulation
5.1 Dynamics . . . . . . . . . . . . . . . . . . .
5.2 Thermodynamics . . . . . . . . . . . . . . .
5.2.1 Ocean surface boundary conditions .
5.2.2 Frazil ice formation . . . . . . . . . .
5.2.3 Differences from Mellor and Kantha
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
37
37
38
43
44
45
6 Details of the Code
6.1 Directory structure . . . . . . . .
6.2 Main subroutines . . . . . . . . .
6.2.1 master.F . . . . . . . . . .
6.2.2 ocean_control.F . . . . .
6.2.3 ROMS_initialize . . . . .
6.2.4 ROMS_run . . . . . . . .
6.2.5 ROMS_finalize . . . . . .
6.2.6 main3d . . . . . . . . . .
6.3 Initialization . . . . . . . . . . .
6.4 Modules . . . . . . . . . . . . . .
6.5 Functionals . . . . . . . . . . . .
6.6 Other subroutines and functions
6.7 C preprocessor variables . . . . .
6.8 Important parameters . . . . . .
6.9 Domain decomposition . . . . . .
6.9.1 ROMS internal numbers .
6.9.2 MPI exchange . . . . . .
6.9.3 Code syntax . . . . . . .
6.9.4 Input/output . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
46
46
48
48
48
48
49
49
49
52
52
54
56
56
65
65
66
68
69
72
7 Configuring ROMS for a Specific Application
7.1 Configuring ROMS . . . . . . . . . . . . . . . .
7.1.1 Case Name . . . . . . . . . . . . . . . .
7.1.2 Case-specific Include File . . . . . . . .
7.1.3 Functionals . . . . . . . . . . . . . . . .
7.1.4 checkdefs.F . . . . . . . . . . . . . . .
7.1.5 Model domain . . . . . . . . . . . . . .
7.1.6 x, y grid . . . . . . . . . . . . . . . . . .
7.1.7 ξ, η grid . . . . . . . . . . . . . . . . . .
7.1.8 Initial conditions . . . . . . . . . . . . .
7.1.9 Equation of state . . . . . . . . . . . . .
7.1.10 Boundary conditions . . . . . . . . . . .
7.1.11 Model forcing . . . . . . . . . . . . . . .
7.1.12 ocean.in . . . . . . . . . . . . . . . . .
7.1.13 User variables and subroutines . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
75
75
75
76
76
76
76
77
77
77
78
78
78
79
88
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7.2
7.3
Upwelling/Downwelling Example . . . . . . . . . .
7.2.1 cppdefs.h . . . . . . . . . . . . . . . . . .
7.2.2 Model domain . . . . . . . . . . . . . . . .
7.2.3 ana_grid . . . . . . . . . . . . . . . . . . .
7.2.4 Initial conditions and the equation of state
7.2.5 Boundary conditions . . . . . . . . . . . . .
7.2.6 Model forcing . . . . . . . . . . . . . . . . .
7.2.7 ocean.in . . . . . . . . . . . . . . . . . . . .
7.2.8 Output . . . . . . . . . . . . . . . . . . . .
Northeast Pacific example . . . . . . . . . . . . . .
7.3.1 nep5.h . . . . . . . . . . . . . . . . . . . .
7.3.2 NEP5 code chunks . . . . . . . . . . . . . .
7.3.3 Model domain . . . . . . . . . . . . . . . .
7.3.4 Initial and boundary conditions . . . . . . .
7.3.5 Forcing . . . . . . . . . . . . . . . . . . . .
7.3.6 ocean.in . . . . . . . . . . . . . . . . . . . .
7.3.7 Output . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
8 Plotting Programs for Postprocessing
88
88
90
90
90
91
91
91
92
99
99
110
112
113
113
113
113
117
A Model Time-stepping Schemes
A.1 Euler . . . . . . . . . . . . . . . . . . . .
A.2 Leapfrog . . . . . . . . . . . . . . . . . .
A.3 Third-order Adams-Bashforth (AB3) . .
A.4 Forward-Backward . . . . . . . . . . . .
A.5 Forward-Backward Feedback (RK2-FB)
A.6 LF-TR and LF-AM3 with FB Feedback
A.7 Generalized FB with an AB3-AM4 Step
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
120
120
120
120
121
121
122
122
B The vertical σ-coordinate
123
C Horizontal curvilinear coordinates
125
D Viscosity and Diffusion
126
D.1 Horizontal viscosity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
D.2 Horizontal Diffusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
D.3 Vertical Viscosity and Diffusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
E Radiant heat fluxes
E.1 Shortwave radiation
E.2 Longwave radiation .
E.3 Sensible heat . . . .
E.4 Latent heat . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
127
127
127
127
127
F The
F.1
F.2
F.3
F.4
F.5
F.6
F.7
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
129
129
129
130
131
131
131
132
C preprocessor
File inclusion . . . .
Macro substitution .
Conditional inclusion
C comments . . . . .
A note on style . . .
Potential problems .
Modern Fortran . . .
3
G Makefiles
G.1 Introduction to Portable make . . . . . . .
G.1.1 Macros . . . . . . . . . . . . . . . .
G.1.2 Implicit Rules . . . . . . . . . . . . .
G.1.3 Dependencies . . . . . . . . . . . . .
G.2 gnu make . . . . . . . . . . . . . . . . . .
G.2.1 Make rules . . . . . . . . . . . . . .
G.2.2 Assignments . . . . . . . . . . . . .
G.2.3 Include and a Few Functions . . . .
G.2.4 Conditionals . . . . . . . . . . . . .
G.3 Multiple Source Directories the ROMS Way
G.3.1 Directory Structure . . . . . . . . .
G.3.2 Conditionally Including Components
G.3.3 User-defined make Functions . . . .
G.3.4 Library Module.mk . . . . . . . . .
G.3.5 Main Program . . . . . . . . . . . .
G.3.6 Top Level Makefile . . . . . . . . . .
G.4 Final warnings . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
133
. 133
. 134
. 134
. 135
. 135
. 136
. 136
. 137
. 138
. 139
. 139
. 139
. 140
. 142
. 142
. 143
. 146
H sfmakedepend
I
147
Subversion
I.1 Overview . . . . . . . . . . . . . . . . . . .
I.2 Checking out the code . . . . . . . . . . . .
I.3 Updates . . . . . . . . . . . . . . . . . . . .
I.4 Code changes . . . . . . . . . . . . . . . . .
I.5 Conflicts . . . . . . . . . . . . . . . . . . . .
I.5.1 Merging conflicts by hand . . . . . .
I.5.2 Copying a file onto your working file
I.5.3 Punting: Using svn revert . . . . . .
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
149
149
149
150
150
150
151
152
152
List of Figures
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Placement of variables on an Arakawa C grid . . . . . . . . . . . . . . . . . . . . .
Placement of variables on staggered vertical grid . . . . . . . . . . . . . . . . . . .
Masked region within the domain . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagrams of the time stepping and mode coupling used in various ROMS versions. (a)
Rutgers University ROMS (from myroms.org), (b) ROMS AGRIF, (c) UCLA ROMS,
described in [73], (d) non-hydrostatic ROMS ([35]). In all, the curved arrows update
the 3-D fields; those with “pillars” are leapfrog in nature with the pillar representing
the r.h.s. terms. Straight arrows indicate exchange between the barotropic and
baroclinic modes. The shape functions for the fast time steps show just one option
out of many possibilities. The grey function has weights to produce an estimate at
time n + 1, while the light red function has weights to produce an estimate at time
n + 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The split time stepping used in the model. . . . . . . . . . . . . . . . . . . . . . . .
Weights for the barotropic time stepping. The upper panel shows the primary
weights, centered at time n + 1, while the lower panel shows the secondary weights
weights, centered at time n + 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagram of the different locations where ice melting and freezing can occur. . . . .
Diagram of internal ice temperatures and fluxes. The hashed layer is the snow. . .
ROMS directory structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ROMS main structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flow chart of the model main program. . . . . . . . . . . . . . . . . . . . . . . . .
The whole grid. Note that there are Lm by Mm interior computational points. The
points on the thick outer line and those outside it are provided by the boundary
conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A tiled grid with some ROMS tile variables. . . . . . . . . . . . . . . . . . . . . . .
A choice of numbering schemes: (a) each tile is numbered the same, and (b) each
tile retains the numbering of the parent domain. . . . . . . . . . . . . . . . . . . .
Some ROMS variables for tiles, for both a periodic and non-periodic case. Shown
are the variables in the i-direction, the j-direction is similar. . . . . . . . . . . . . .
A tiled grid with out-of-date halo regions shown in grey and the interior points
color-coded by tile: (a) before an exchange and (b) after an exchange. . . . . . . .
The upwelling/downwelling bathymetry. . . . . . . . . . . . . . . . . . . . . . . . .
Surface velocities after one day, showing the flow to the left of the wind (southern
hemisphere). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Constant ξ slices of the u, v, T and w fields at day 1. . . . . . . . . . . . . . . . . .
Constant ξ slices of the u, v, T , and w fields at day 5. . . . . . . . . . . . . . . . . .
Bathymetry of the Northeast Pacific domain (NEP5). . . . . . . . . . . . . . . . .
Surface elevation after 200 days showing tides. This is from a snapshot in a history
file—the averages files have been detided. . . . . . . . . . . . . . . . . . . . . . . .
Ice concentration averaged over the month of April, 1959. . . . . . . . . . . . . . .
Vertical slice if temperature, averaged over the month of April, 1959. The slice is
across the Bering Sea shelf, showing the transition from vertically mixed at the coast,
a two layer system at mid-shelf, then a thermocline over the shelf-break. . . . . . .
The σ-surfaces for the North Atlantic with (a) θ = 0.0001 and b = 0, (b) θ = 8 and
b = 0, (c) θ = 8 and b = 1. (d) The actual values used in this domain were θ = 5
and b = 0.4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
. 13
. 13
. 14
. 16
. 19
.
.
.
.
.
.
21
40
40
47
48
50
. 67
. 68
. 69
. 70
. 71
. 100
.
.
.
.
101
102
103
104
. 114
. 115
. 116
. 124
List of Tables
1
2
3
4
5
6
7
8
The variables used in the description of the ocean model . . . . . . . . . . . . . . .
The variables used in the vertical boundary conditions for the ocean model . . . .
The time stepping schemes used in the various ROMS versions. α ≡ ωδt is the
Courant number and ω = ck is the frequency for a wave component with wavenumber
k. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Variables used in the ice momentum equations . . . . . . . . . . . . . . . . . . . .
Variables used in the ice thermodynamics . . . . . . . . . . . . . . . . . . . . . . .
Ocean surface variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frazil ice variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Variables used in computing the incoming radiation and latent and sensible heat .
6
.
.
9
9
.
.
.
.
.
.
17
39
41
43
44
128
1
Introduction
This user’s manual for the Regional Ocean Modeling System (ROMS) describes the model equations
and algorithms, as well as additional user configurations necessary for specific applications. This
manual also describes the sea-ice model that we are using (Budgell [5]).
The principle attributes of the model are as follows:
General
• Primitive equations with potential temperature, salinity, and an equation of state.
• Hydrostatic and Boussinesq approximations.
• Optional third-order upwind advection scheme.
• Optional Smolarkiewicz advection scheme for tracers (potential temperature, salinity, etc.).
• Optional Lagrangian floats.
• Option for point sources and sinks.
Horizontal
• Orthogonal-curvilinear coordinates.
• Arakawa C grid.
• Closed basin, periodic, prescribed, radiation, and gradient open boundary conditions.
• Masking of land areas.
Vertical
• σ (terrain-following) coordinate.
• Free surface.
• Tridiagonal solve with implicit treatment of vertical viscosity and diffusivity.
Ice
• Hunke and Dukowicz elastic-viscous-plastic dynamics.
• Mellor-Kantha thermodynamics.
• Orthogonal-curvilinear coordinates.
• Arakawa C grid.
• Smolarkiewicz advection of tracers.
Mixing options
• Horizontal Laplacian and biharmonic diffusion along constant s, z or density surfaces.
• Horizontal Laplacian and biharmonic viscosity along constant s or z surfaces.
• Optional Smagorinsky horizontal viscosity and diffusion (but not recommended for
diffusion).
• Horizontal free-slip or no-slip boundaries.
• Vertical harmonic viscosity and diffusion with a spatially variable coefficient, with
options to compute the coefficients with Large et al. [41], Mellor-Yamada [56], or
generic length scale (GLS) [85] mixing schemes.
Implementation
1
• Dimensional in meter, kilogram, second (MKS) units.
• Fortran 90.
• Runs under UNIX, requires the C preprocessor, gnu make, and Perl.
• All input and output is done in NetCDF [68] (Network Common Data Format),
requires the NetCDF library.
• Options include serial, parallel with MPI, and parallel with OpenMP.
The above list hasn’t changed so very much in the past ten to fifteen years, but many of the
numerical details have changed a great deal. Examples include consistent temporal averaging of
the barotropic mode to guarantee both exact conservation and constancy preservation properties for
tracers; redefined barotropic pressure-gradient terms to account for local variations in the density
field; vertical interpolation performed using conservative parabolic splines; and higher-order, quasimonotone advection algorithms.
ROMS now comes with a full suite of advanced data assimilation routines; these options are
beyond the scope of this document.
Chapter 2 has some information on getting started with ROMS. Chapters 3 and 4 describe the
model physics and numerical techniques and contain information from Shchepetkin and McWilliams
[75] and Haidvogel et al. [24]. Chapter 5 describes the ice equations and Chapter 6 lists the model
subroutines and functions. As distributed, ROMS is ready to run with a number of example
problems. The process of configuring ROMS for a particular application and running it is described
in Chapter 7, including a discussion of a few example applications. Chapter 8 describes Hernan
Arango’s plotting programs cnt, ccnt, sec, and csec.
2
2
Getting started
2.1
myroms.org
Starting off with ROMS is not the easiest thing to do, and it just seems to be getting more complex
as time goes by. There are some resources, however, beginning with the electronic home for ROMS
users at www.myroms.org. Go to register, which gives you access to the subversion server for the
code and to the discussion forum for all things ROMS. There is also a wiki, a bug tracking system,
and even a developer blog.
The wiki contains parts of this manual, but the nature of wikis is that they can be more fluid,
with more authors, than a static document such as this. Dave Robertson ([email protected])
is the one to talk to if you would like to contribute to the wiki.
2.2
Prerequisites
As mentioned in Chapter 1, ROMS has some external requirements. These are:
• UNIX or UNIX-like environment, such as Cygwin.
• A Fortran 90 compiler.
• The NetCDF library compiled with the above compiler, including the Fortran 90 interface.
• svn, the subversion revision control software. See Appendix I and the ROMS wiki.
• Gnu make version 3.81 or higher. Appendix G contains more than you ever wanted to know
about this software.
• A C preprocessor—the one from gnu with the -traditional flag works well. See Appendix F.
• The Perl scripting language.
• Matlab is optional, but it is a common tool for pre- and post-processing of ROMS files.
Make sure you’ve got the right environment before attempting to download or compile ROMS.
2.3
Acquiring the ROMS code
The main ROMS code is available for download via svn at https://www.myroms.org/svn/src/.
The version of the model described in this document is a merger between ROMS 3.2 and a sea-ice
model. The sea ice code is a branch off a different repository and requires special access—contact
Dave Robertson (as above) for more information.
ROMS comes with several cases all ready to go at the flip of a switch. Try these out first and
get to understand how they are set up.
• §2.4 describes how to pick the cases and set up the build environment.
• §6.7 lists all the ROMS options that can be added to your case.
• §6.5 lists the fields which can be provided to ROMS via analytic expressions.
• §7.1.12 lists the input parameters ROMS reads from a text file at run time.
• Chapters 6 and 7 are meant to be informative for the simple and not-so-simple cases. If that
isn’t the case, please let me know.
In addition to this manual, there are some other ROMS resources:
3
• You may be best served by going to the ROMS wiki which includes sections called Getting
Started and Tutorials.
• Don’t be afraid to use the forum. It has everything from employment opportunities to debugging help. Posting there can get you help from one of several people, improving your odds of
success over private emails. Registered users get an email once a day about new postings, so
you might have to wait a day (or more) for a reply.
• There have been ROMS meetings and classes in which a tutorial session is included as part
of the program.
• There are various resources from these online—I’ve heard good things about the tutorials
from Manu Di Lorenzo.
2.4
2.4.1
Compiling ROMS
Environment Variables for make
ROMS has a growing list of choices the user must make about the compilation before starting the
compile process, set in user-defined variables. Since we now use gnu make, it is possible to set the
value of these variables in the Unix environment, rather than necessarily inside the Makefile (see
§G). The user-definable variables understood by the ROMS makefile are:
ROMS_APPLICATION Set the cpp option defining the particular application. This is used
for setting up options inside the code specific to this application and also determines
the name of the .h header file for it. This can be either a predefined case, such as
BENCHMARK, or one of your own, such as NEP5.
MY_HEADER_DIR Sets the path to the user’s header file, if any. It can be left empty for the
standard cases, where benchmark.h and the like are found in ROMS/Include, which
is already in the search path. In the case of NEP5, this is set to Apps/NEP where
nep5.h resides.
MY_ANALYTICAL_DIR Sets the path to the user’s analytic files described in §6.5, if any.
This can be User/Functionals or some other location. I tend to place both the header
file and the functionals in the same directory, one directory per application.
MY_CPP_FLAGS Set tunable cpp options. Sometimes it is desirable to activate one or more
cpp options to run different variants of the same application without modifying its header
file. If this is the case, specify each option here using the -D syntax. Notice that you need
to use the shell’s quoting syntax (either single or double quotes) to enclose the definition
if you are using one of the build scripts below.
NestedGrids Integer number of grids in the setup, usually 1.
Compiler-specific Options These flags are used by the files inside the Compilers directory.
USE_DEBUG Set this to on to turn off optimization and turn on the -g flag for
debugging.
USE_MPI Set this if running an MPI parallel job.
USE_OpenMP Set this if running an OpenMP parallel job.
USE_MPIF90 I’m frankly not sure about this one. I suppose if you have both mpich
and some other MPI for a given compiler/system pair, this could be used to
switch between them.
4
USE_LARGE Some systems support both 32-bit and 64-bit options. Select this to get
64-bit addressing, usually used for programs need more than 2 GB of memory.
NETCDF_INCDIR The location of the netcdf.mod and typesizes.mod files.
NETCDF_LIBDIR The location of the NetCDF library.
USE_NETCDF4 Set this if linking against the NetCDF4 library, which needs the
HDF5 library and therefore:
HDF5_LIBDIR The location of the HDF5 library.
FORT
A shorthand name for the compiler to be used when selecting which system-compiler file
is to be included from the Compilers directory. See section §G.2.3 and §2.4.2.
Local File Options BINDIR Directory in which to place the binary executable. The default is
“.”, the current (top) directory.
SCRATCH_DIR Put the .f90 and the temporary binary files in a build directory to
avoid clutter. The default is Build under the top directory. It can also point to
differing places if you want to keep these files for multiple projects at the same
time, each in their own directory.
2.4.2
Providing the Environment
Before compiling, you will need to find out some background information:
• What is the name of your compiler?
• What is returned by uname -s on your system?
• Is there a working NetCDF library?
• Where is it?
• Was it built with the above compiler?
• Do you have access to MPI or OpenMP?
As described more fully in §G.2.3, the makefile will be looking for a file in the Compilers directory
with the combination of your operating system and your compiler. For instance, using Linux and
the Pathscale compiler, the file would be called Linux-path.mk. Is the corresponding file for your
system and compiler in the Compilers directory? If not, you will have to create it following the
existing examples there.
Next, there are two ways to provide the location for the NetCDF files (and optional HDF5
library). One is by editing the corresponding lines in your system-compiler file. Another way is
through the Unix environment variables. If you are always going to be using the same compiler on
each system, you can edit your .profile or .login files to globally set them. Here is an example for
tcsh:
setenv NETCDF_INCDIR /usr/local/netcdf4/include
setenv NETCDF_LIBDIR /usr/local/netcdf4/lib
setenv HDF5_LIBDIR /usr/local/hdf5/lib
The ksh/bash equivalent is:
export NETCDF_INCDIR=/usr/local/netcdf4/include
export NETCDF_LIBDIR=/usr/local/netcdf4/lib
export HDF5_LIBDIR=/usr/local/hdf5/lib
5
2.4.3
Build scripts
If you have more than one application (or more than one compiler), you will get tired of editing
the makefile. One option is to have a makefile for each configuration, then type:
make -f makefile.circle_pgi
for instance. Another option of keeping track of the user-defined choices in a build script. The
advantage is that updates to the build scripts are less frequent than updates to the makefile.
There are now two of these scripts in the ROMS/Bin directory: build.sh (which is surprisingly
a csh script) and build.bash. The build scripts use environment variables to provide values for
the list above, overwriting those found in the ROMS makefile. Just as in the multiple makefile
option, you will need as many copies of the build script as you have applications. The scope of
these variables is local to the build script, allowing you to compile different applications at the
same time from the same sources as long as each $(SCRATCH_DIR) is unique.
Both scripts have the same options:
-j [N]
Compile in parallel using N cpus, omit argument for all available CPUs.
-noclean Do not clean already compiled objects.
Note that the default is to compile serially and to issue a “make clean” before compiling. It is
left as an exercise for the user if they prefer different default behavior.
There are also a few variables which are not recognized by the ROMS makefile, but are used
locally inside the build script. These are:
MY_PROJECT_DIR This is used in setting $(SCRATCH_DIR) and $(BINDIR).
MY_ROMS_SRC Set the path to the user’s local current ROMS source code. This is used so
that the script can be run from any directory, not necessarily only from the top ROMS
directory.
2.5
Running ROMS
ROMS expects to read a number of variables from an ASCII file (details of the file are in §7.1.12).
For serial or OpenMP execution, the syntax is:
oceanS (or oceanO) < ocean.in > roms.out &
while MPI execution requires:
oceanM ocean.in > roms.out &
so that each process can read the file.
Realistically, you would only want to run relatively small applications such as UPWELLING
interactively on the command line as shown here. Also, for either of the parallel options, you will
have to provide some information to ROMS and to the operating system about how many threads
or processes to use. Parallel computers may also have some sort of batch queuing system in place
in which you would submit a job script. I have easy access to two Linux clusters with differing
details in the systems, requiring different job scripts. Some MPI environments require that you
submit your job with:
cd $PBS_O_WORKDIR
mpirun -np 32 ./oceanM ocean_benchmark3.in
while others need:
6
aprun -np 32 ./oceanM ocean_benchmark3.in
You just have to find out from the locals.
If all goes according to plan, ROMS will create both a collection of NetCDF files and a verbose
text file on standard out. Chapter 8 describes one way to view the gridded NetCDF files. Other
tools that have been used include Matlab, NCL, and Python.
If things don’t go according to plan, the text output file is your friend. Examine it carefully. If
it fails on the UPWELLING problem, you can compare your output to that in §7.2.8.
2.6
Warnings and bugs
ROMS is not a large program by some standards, but it is still complex enough to require some
effort to use effectively. Some specific things to be wary of include:
• It is recommended that you use 64 bits of precision rather than 32 bits.
• The code must be run through the C preprocessor before it is compiled. This can occasionally
be dangerous, especially with the newer ANSI C versions of cpp. Potential problems are listed
in Appendix F. The gnu cpp with the -traditional flag is known to work well.
• The vertical σ-coordinate was chosen as being a sensible way to handle variations in the water
depth as seen in the coastal oceans. Changes to the code have allowed us to expand the wellbehaved range of depths and the range of values for THETA_S, plus there are some new
vertical coordinate options. I used to give guidelines on “reasonable” values for THETA_S,
but I no longer know what’s reasonable.
• σ-coordinates have long had a bad reputation because errors in the pressure gradient terms
can lead to spurious currents. These errors are must less troublesome than in the past due to
code improvements and can also be controlled with some smoothing of the bathymetry. This
in turn changes the shape of the basin and leads to its own set of problems, such as altered
sill depths. Also, the currents will react to the change in shelf slope—you are now solving
a different problem. You may want to explore a matlab tool for minimally smoothing the
bathymetry found at: http://www.liga.ens.fr/∼dutour/Bathymetry/index.html.
• There remain bugs in ROMS. If you find any, please report them on the forum and/or the
bug tracking system at myroms.org.
7
3
3.1
Ocean Model Formulation
Equations of motion
ROMS is a member of a general class of three-dimensional, free-surface, terrain-following numerical models that solve the Reynolds-averaged Navier-Stokes equations using the hydrostatic and
Boussinesq assumptions. The governing equations in Cartesian coordinates can be written:
∂φ
∂
∂u
+ ~v · ∇u − f v = −
−
∂t
∂x ∂z
∂v
∂φ
∂
+ ~v · ∇v + f u = −
−
∂t
∂y
∂z
u0 w 0
v 0 w0
∂u
−ν
∂z
∂v
−ν
∂z
+ Fu + Du
(1)
+ Fv + Dv
(2)
−ρg
∂φ
=
∂z
ρo
(3)
∂u ∂v ∂w
+
+
= 0.
∂x ∂y
∂z
(4)
with the continuity equation:
and scalar transport given by:
∂
∂C
+ ~v · ∇C = −
∂t
∂z
C 0 w0
∂C
− νθ
∂z
+ FC + DC .
(5)
An equation of state is also required:
ρ = ρ(T, S, P )
(6)
The variables are shown in Table 3.1. An overbar represents a time average and a prime represents
a fluctuation about the mean. These equations are closed by parameterizing the Reynolds stresses
and turbulent tracer fluxes as:
u0 w0 = −KM
∂u
;
∂z
v 0 w0 = −KM
∂v
;
∂z
C 0 w0 = −KC
∂C
.
∂z
(7)
Equations (1) and (2) express the momentum balance in the x- and y-directions, respectively.
The time evolution of all scalar concentration fields, including those for T (x, y, z, t) and S(x, y, z, t),
are governed by the advective-diffusive equation (5). The equation of state is given by equation
(6). In the Boussinesq approximation, density variations are neglected in the momentum equations
except in their contribution to the buoyancy force in the vertical momentum equation (3). Under
the hydrostatic approximation, it is further assumed that the vertical pressure gradient balances
the buoyancy force. Lastly, equation (4) expresses the continuity equation for an incompressible
fluid. For the moment, the effects of forcing and horizontal dissipation will be represented by the
schematic terms F and D, respectively. The horizontal and vertical mixing will be described more
fully in §4.10.1.
8
Variable
C(x, y, z, t)
Du , Dv , DC
Fu , Fv , FC
f (x, y)
g
h(x, y)
Hz (x, y, z)
ν, νθ
KM , K C
P
φ(x, y, z, t)
ρo + ρ(x, y, z, t)
S(x, y, z, t)
t
T (x, y, z, t)
u, v, w
x, y
z
ζ(x, y, t)
Description
scalar quantity, i.e. temperature, salinity, nutrient concentration
optional horizontal diffusive terms
forcing/source terms
Coriolis parameter
acceleration of gravity
depth of sea floor below mean sea level
vertical grid spacing
molecular viscosity and diffusivity
vertical eddy viscosity and diffusivity
total pressure P ≈ −ρo gz
dynamic pressure φ = (P/ρo )
total in situ density
salinity
time
potential temperature
the (x, y, z) components of vector velocity ~v
horizontal coordinates
vertical coordinate
the surface elevation
Table 1: The variables used in the description of the ocean model
3.2
Vertical boundary conditions
The vertical boundary conditions can be prescribed as follows:
top (z = ζ(x, y, t))
and bottom (z = −h(x, y))
∂u
x
∂z = τs (x, y, t)
y
Km ∂v
∂z = τs (x, y, t)
QC
KC ∂C
∂z = ρo cP
w = ∂ζ
∂t
∂u
Km ∂z = τbx (x, y, t)
y
Km ∂v
∂z = τb (x, y, t)
KC ∂C
∂z = 0
Km
−w + ~v · ∇h = 0.
Variable
QC
τsx , τsy
τbx , τby
Description
surface concentration flux
surface wind stress
bottom stress
Table 2: The variables used in the vertical boundary conditions for the ocean model
The surface boundary condition variables are defined in Table 3.2. Since QT is a strong function
of the surface temperature, we usually choose to compute QT using the surface temperature and
the atmospheric fields in an atmospheric bulk flux parameterization. This bulk flux routine also
computes the wind stress from the winds.
On the variable bottom, z = −h(x, y), the horizontal velocity has a prescribed bottom stress
which is a choice between linear, quadratic, or logarithmic terms. The vertical concentration flux
9
may also be prescribed at the bottom, although it is usually set to zero.
3.3
Horizontal boundary conditions
As distributed, the model can easily be configured for a periodic channel, a doubly periodic domain,
or a closed basin. Code is also included for open boundaries which may or may not work for your
particular application. Appropriate boundary conditions are provided for u, v, T, S, and ζ.
The model domain is logically rectangular, but it is possible to mask out land areas on the
boundary and in the interior. Boundary conditions on these masked regions are straightforward,
with a choice of no-slip or free-slip walls.
If biharmonic friction is used, a higher order boundary condition must also be provided. The
model currently has this built into the code where
biharmonic terms are calculated. The high
2 the
∂ u
∂
order boundary conditions used for u are ∂x ν ∂x2 = 0 on the eastern and western boundaries
2 ∂
ν ∂∂yu2 = 0 on the northern and southern boundaries. The boundary conditions for v and
and ∂y
C are similar. These boundary conditions were chosen because they preserve the property of no
gain or loss of volume-integrated momentum or scalar concentration.
3.4
Terrain-following coordinate system
From the point of view of the computational model, it is highly convenient to introduce a stretched
vertical coordinate system which essentially “flattens out” the variable bottom at z = −h(x, y).
Such “σ” coordinate systems have long been used, with slight appropriate modification, in both
meteorology and oceanography (e.g., Phillips [63] and Freeman et al. [19]). To proceed, we make
the coordinate transformation:
x̂ = x
ŷ = y
σ = σ(x, y, z)
z = z(x, y, σ)
and
t̂ = t.
See Appendix B for the form of σ used here. Also, see Shchepetkin and McWilliams, 2005 [73] for
a discussion about the nature of this form of σ and how it differs from that used in SCRUM.
In the stretched system, the vertical coordinate σ spans the range −1 ≤ σ ≤ 0; we are therefore
left with level upper (σ = 0) and lower (σ = −1) bounding surfaces. The chain rules for this
transformation are:
∂
1
∂
∂
∂z
=
−
∂x z
∂x σ
Hz
∂x σ ∂σ
∂
∂
1
∂z
∂
=
−
∂y z
∂y σ
Hz
∂y σ ∂σ
1 ∂
∂
∂s ∂
=
=
∂z
∂z ∂σ
Hz ∂σ
where
∂z
∂σ
As a trade-off for this geometric simplification, the dynamic equations become somewhat more
complicated. The resulting dynamic equations are, after dropping the carats:
∂u
∂φ
gρ ∂z
∂ζ
1 ∂ Km ∂u
− f v + ~v · ∇u = −
−
−g
+
+ Fu + Du
(8)
∂t
∂x
ρo ∂x
∂x Hz ∂σ Hz ∂σ
Hz ≡
10
∂ζ
1 ∂ Km ∂v
∂z
−g
+
+ Fv + Dv
∂y
∂y Hz ∂σ Hz ∂σ
∂C
1 ∂ KC ∂C
+ ~v · ∇C =
+ FT + DT
∂t
Hz ∂σ Hz ∂σ
∂φ
∂v
+ f u + ~v · ∇v = −
−
∂t
∂y
gρ
ρo
ρ = ρ(T, S, P )
∂φ
−gHz ρ
=
∂σ
ρo
(9)
(10)
(11)
(12)
∂(Hz u) ∂(Hz v) ∂(Hz Ω)
∂Hz
+
+
+
=0
∂t
∂x
∂y
∂σ
(13)
where
~v = (u, v, Ω)
~v · ∇ = u
∂
∂
∂
+v
+Ω .
∂x
∂y
∂σ
The vertical velocity in σ coordinates is
1
∂z
∂z
z + h ∂ζ
Ω(x, y, σ, t) =
w−
−u
−v
Hz
ζ + h ∂t
∂x
∂y
and
w=
∂z
∂z
∂z
+u
+v
+ ΩHz .
∂t
∂x
∂y
In the stretched coordinate system, the vertical boundary conditions become:
Km ∂u
x
top (σ= 0)
Hz
∂σ = τs (x, y, t)
y
Km ∂v
Hz
∂σ = τs (x, y, t)
QC
KC ∂C
Hz
∂σ = ρo cP
Ω=0
Km
and bottom (σ = −1)
∂u
Hz ∂σ
Km
Hz KC
Hz
= τbx (x, y, t)
∂v
∂σ
= τby (x, y, t)
∂C
∂s
=0
Ω = 0.
Note the simplification of the boundary conditions on vertical velocity that arises from the σ
coordinate transformation.
3.5
Horizontal curvilinear coordinates
In many applications of interest (e.g., flow adjacent to a coastal boundary), the fluid may be confined
horizontally within an irregular region. In such problems, a horizontal coordinate system which
conforms to the irregular lateral boundaries is advantageous. It is often also true in many geophysical problems that the simulated flow fields have regions of enhanced structure (e.g., boundary
currents or fronts) which occupy a relatively small fraction of the physical/computational domain.
In these problems, added efficiency can be gained by placing more computational resolution in such
regions.
The requirement for a boundary-following coordinate system and for a laterally variable grid
resolution can both be met, for suitably smooth domains, by introducing an appropriate orthogonal
11
coordinate transformation in the horizontal. Let the new coordinates be ξ(x, y) and η(x, y), where
the relationship of horizontal arc length to the differential distance is given by:
1
dξ
(14)
(ds)ξ =
m
1
(ds)η =
dη
(15)
n
Here, m(ξ, η) and n(ξ, η) are the scale factors which relate the differential distances (∆ξ, ∆η) to
the actual (physical) arc lengths. Appendix C contains the curvilinear version of several common
vector quantities.
Denoting the velocity components in the new coordinate system by
~v · ξˆ = u
(16)
~v · η̂ = v
(17)
and
the equations of motion (8)-(13) can be re-written (see, e.g., Arakawa and Lamb [2]) as:
∂
∂t
Hz u
mn
∂
∂t
Hz v
mn
∂
∂t
Hz C
mn
∂
∂ξ
Hz u 2
n
∂
+
∂ξ
∂ Hz v 2
∂ Hz vΩ
+
+
∂η
m
∂σ
mn
f
∂ 1
∂
1
+
+v
−u
Hz u =
mn
∂ξ n
∂η m
1 ∂ Km
Hz
∂φ gρ ∂z
∂ζ
Hz
+
∂v∂σ +
−
+
+g
(Fv + Dv ) (19)
m
∂η
ρo ∂η
∂η
mn ∂σ Hz
mn
+
+
∂
∂ξ
∂ Hz uv
∂ Hz uΩ
+
+
∂η
m
∂σ
mn
f
∂ 1
∂
1
−
+v
−u
Hz v =
mn
∂ξ n
∂η m
1 ∂ Km ∂u
Hz
Hz
∂φ gρ ∂z
∂ζ
+
+
−
+
+g
(Fu + Du ) (18)
n
∂ξ
ρo ∂ξ
∂ξ
mn ∂σ Hz ∂σ
mn
Hz uv
n
Hz uC
n
+
∂
∂η
Hz vC
m
+
∂
∂σ
Hz ΩC
=
mn
1 ∂ KC ∂C
Hz
+
(FC + DC ) (20)
mn ∂s Hz ∂σ
mn
ρ = ρ(T, S, P )
∂φ
gHz ρ
=−
∂σ
ρo
∂ Hz u
∂ Hz v
∂ Hz Ω
∂ Hz
+
+
+
= 0.
∂t mn
∂ξ
n
∂η
m
∂σ mn
All boundary conditions remain unchanged.
12
(21)
(22)
(23)
4
Numerical Solution Technique
4.1
4.1.1
Vertical and horizontal discretization
Horizontal grid
In the horizontal (ξ, η), a traditional, centered, second-order finite-difference approximation is
adopted. In particular, the horizontal arrangement of variables is as shown in Fig. 1. This is
equivalent to the well known Arakawa “C” grid, which is well suited for problems with horizontal
resolution that is fine compared to the first radius of deformation (Arakawa and Lamb [2]).
∆ξ
vi,j+1
-
6
6
(ρ, h, f, Ω)i,j ui+1,j
ui,j
f
-
vi,j
- ∆η
?
6
Figure 1: Placement of variables on an Arakawa C grid
4.1.2
Vertical grid
The vertical discretization also uses a second-order finite-difference approximation. Just as we use
a staggered horizontal grid, the model was found to be more well-behaved with a staggered vertical
grid. The vertical grid is shown in Fig. 2.
v ρN
wN
wN−1
v ρN−1
v
v
w2
v ρ2
w1
v ρ1
w0
Figure 2: Placement of variables on staggered vertical grid
13
A
B
C
D
E
F
G
H
I
K
L
M
N
J
– u points
– v points
– ρ points
– ψ points
Figure 3: Masked region within the domain
4.2
Masking of land areas
ROMS has the ability to work with interior land areas, although the computations occur over
the entire model domain. One grid cell is shown in Fig. 1 while several cells are shown in Fig.
3, including two land cells. The process of defining which areas are to be masked is external to
ROMS and is usually accomplished in Matlab; this section describes how the masking affects the
computation of the various terms in the equations of motion.
4.2.1
Velocity
At the end of every time step, the values of many variables within the masked region are set to zero
by multiplying by the mask for either the u, v or ρ points. This is appropriate for the v points E
and L in Fig. 3, since the flow in and out of the land should be zero. It is likewise appropriate for
the u point at I, but is not necessarily correct for point G. The only term in the u equation that
∂ ∂u
requires the u value at point G is the horizontal viscosity, which has a term of the form ∂η
ν ∂η .
Since point G is used in this term by both points A and M, it is not sufficient to replace its value
with that of the image point for A. Instead, the term ∂u
∂η is computed and the values at points D
and K are replaced with the values appropriate for either free-slip or no-slip boundary conditions.
∂ ∂v
Likewise, the term ∂ξ
ν ∂ξ in the v equation must be corrected at the mask boundaries.
This is accomplished by having a fourth mask array defined at the ψ points, in which the values
are set to be no-slip in metrics. For no-slip boundaries, we count on the values inside the land
(point G) having been zeroed out. For point D, the image point at G should contain minus the
value of u at point A. The desired value of ∂u
∂η is therefore 2uA while instead we have simply uA .
In order to achieve the correct result, we multiply by a mask which contains the value 2 at point
D. It also contains a 2 at point K so that ∂u
∂η there will acquire the desired value of −2uM . The
corner point F is set to have a value of 1.
4.2.2
Temperature, salinity and surface elevation
The handling of masks by the temperature, salinity and surface elevation equations is similar to
that in the momentum equations, and is in fact simpler. Values of T , S and ζ inside the land
14
masks, such as point H in Fig. 3, are set to zero after every time step. This point would be used by
the horizontal diffusion term for points B, J, and N. This is corrected by setting the first derivative
terms at points E, I, and L to zero, to be consistent with a no-flux boundary condition. Note
that the equation of state must be able to handle T = S = 0 since this is the value inside masked
regions.
4.2.3
Wetting and drying
There is now an option to have wetting and drying in the model, in which a cell can switch between
being wet or being dry as the tides come in and go out, for instance. Cells which are masked out
as in Fig. 3 are never allowed to be wet, however.
• In the case of wetting and drying, a critical depth, Dcrit , is supplied by the user.
• The total water depth (D = h + ζ) is compared to Dcrit . If the water level is less than this
depth, no flux is allowed out of that cell. Water can always flow in and resubmerge the cell.
• The wetting and drying only happens during the 2-D computations; the 3-D computations
see a depth of Dcrit in the “dry” areas.
• The ice component now checks for dry cells when computing the ice rheology.
4.3
Time-stepping overview
While time stepping the model, we have a stored history of the model fields at time n − 1, an
estimate of the fields at the current time n, and we need to come up with an estimate for time
n + 1. For reasons of efficiency, we choose to use a split-explicit time step, integrating the depthintegrated equations with a shorter time step than the full 3-D equations. There is an integer ratio
M between the time steps. The exact details of how the time stepping is done vary from one version
of ROMS to the next, with the east coast ROMS described here being older than other branches.
Still, all versions have these steps:
1. Take a predictor step for at least the 3-D tracers to time n + 12 .
2. Compute ρ and ρ∗ for use in the depth-integrated time steps, from the density either at time
n or time n + 12 .
3. Depth integrate the 3-D momentum right-hand side terms at time n + 12 for use in the depthintegrated time steps (or extrapolate to obtain an estimate of those terms).
4. Take all the depth-integrated steps. Store weighted time-means of the u, v fields centered at
both time n + 12 and time n + 1 (plus ζ at time n + 1). The latter requires this time stepping
to extend past time n + 1, using M ∗ steps rather than just M .
5. Use the weighted time-means from depth-integrated fields to complete the corrector step for
the 3-D fields to time n + 1.
Great care is taken to avoid the introduction of a mode-splitting instability due to the use of shorter
time steps for the depth-integrated computations.
The mode coupling has evolved through the various ROMS versions, as shown in Fig. 4 (from
[74]). The time stepping schemes are also listed in Table 4.3 and described in detail in [73] and
[75]; the relevant ones are described in Appendix A.
15
Figure 4: Diagrams of the time stepping and mode coupling used in various ROMS versions. (a)
Rutgers University ROMS (from myroms.org), (b) ROMS AGRIF, (c) UCLA ROMS, described
in [73], (d) non-hydrostatic ROMS ([35]). In all, the curved arrows update the 3-D fields; those
with “pillars” are leapfrog in nature with the pillar representing the r.h.s. terms. Straight arrows
indicate exchange between the barotropic and baroclinic modes. The shape functions for the fast
time steps show just one option out of many possibilities. The grey function has weights to produce
an estimate at time n + 1, while the light red function has weights to produce an estimate at time
n + 21 .
16
Reference
Barotropic
mode
2-D αmax , iter.
3-D momenta
Tracers
Internal
waves
αmax , advect.
αmax , Cor.
αmax , int. w.
SCRUM 3.0
[28]
LF-TR
√
2, (2)2
AB3
AB3
AB3
0.72
0.72
0.72, (1)
Rutgers
[25]
LF-AM3 with
FB feedback
1.85, (2)
AB3
LF-TR
Gen. FB
(AB3-TR)
0.72
0.72
1.14, (1,2)
AGRIF
[61]
LF-AM3 with
FB feedback1
1.85, (2)
LF-AM3
LF-AM3
LF-AM3,
FB feedback
1.587
1.587
1.85, (2)
UCLA
[73]
Gen. FB
(AB3-AM4)
1.78, (1)
LF-AM3
LF-AM3
LF-AM3,
FB feedback
1.587
1.587
1.85, (2)
Non-hydrostatic
[35]
Gen. FB
(AB3-AM4)
1.78, (1)
AB3 (mod)
AB3 (mod)
Gen. FB
(AB3-AM4)
0.78
0.78
1.78, (1)
Table 3: The time stepping schemes used in the various ROMS versions. α ≡ ωδt is the Courant
number and ω = ck is the frequency for a wave component with wavenumber k.
4.4
Conservation properties
From Shchepetkin and McWilliams (2005) [73], we have a tracer concentration equation in advective
form:
∂C
+ (u · ∇)C = 0
(24)
∂t
and also a tracer concentration equation in conservation form:
∂C
+ ∇ · (uC) = 0.
∂t
(25)
(∇ · u) = 0
(26)
The continuity equation:
can be used to get from one tracer equation to the other. As a consequence of eq. (24), if the tracer is
spatially uniform, it will remain so regardless of the velocity field (constancy preservation). On the
other hand, as a consequence of (25), the volume integral of the tracer concentration is conserved
in the absence of internal sources and fluxes through the boundary. Both properties are valuable
and should be retained when constructing numerical ocean models.
The semi-discrete form of the tracer equation (20) is:
∂
∂t
Hz C
+δξ
mn
ξ
uHz C
nξ
ξ
η
!
+δη
vHz C
mη
η
!
+δσ C
σ Hz Ω
mn
1 ∂
=
mn ∂σ
Km ∂C
+DC +FC (27)
∆z ∂σ
Here δξ , δη and δσ denote simple centered finite-difference approximations to ∂/∂ξ, ∂/∂η and ∂/∂σ
with the differences taken over the distances ∆ξ, ∆η and ∆σ, respectively. ∆z is the vertical
ξ
η
σ
distance from one ρ point to another. ( ) , ( ) and ( ) represent averages taken over the
distances ∆ξ, ∆η and ∆σ.
The finite volume version of the same equation is no different, except that a quantity C is
defined as the volume-averaged concentration over the grid box ∆V :
Z
mn
Hz C
C=
δξ δη δσ
(28)
Hz ∆V mn
The quantity
ξ
uHz C
nξ
ξ
is the flux through an interface between adjacent grid boxes.
17
This method of averaging was chosen because it internally conserves first moments in the model
domain, although it is still possible to exchange mass and energy through the open boundaries.
The method is similar to that used in Arakawa and Lamb [2]; though their scheme also conserves
enstrophy. Instead, we will focus on (nearly) retaining constancy preservation while coupling the
barotropic (depth-integrated) equations and the baroclinic equations.
The time step in eq. (27) is assumed to be from time n to time n + 1, with the other terms being
evaluated at time n + 12 for second-order accuracy. Setting C to 1 everywhere reduces eq. (27) to:
∂
∂t
Hz
mn
+ δξ
uHz
nξ
ξ
!
vHz
mη
+ δη
η
!
+ δσ
Hz Ω
mn
=0
(29)
If this equation holds true for the step from time n to time n + 1, then our constancy preservation
will hold.
In a hydrostatic model such as ROMS, the discrete continuity equation is needed to compute
Hz
(the latter is controlled by changes in ζ in the
vertical velocity rather than grid-box volume mn
Hz Ω
barotropic mode computations). Here, mn is the finite-volume flux across the moving grid-box
interface, vertically on the w grid.
The vertical integral of the continuity eq. (23), using the vertical boundary conditions on Ω, is:
∂
∂t
ζ
mn
+ δξ
uD
nξ
ξ
η
!
+ δη
vD
mη
!
=0
(30)
where ζ is the surface elevation, D = h + ζ is the total depth, and u, v are the depth-integrated
horizontal velocities. This equation and the corresponding 2-D momentum equations are time
stepped on a shorter time step than eq. (27) and the other 3-D equations. Due to the details in
the mode coupling, it is only possible to maintain constancy preservation to the accuracy of the
barotropic time steps.
4.5
Depth-integrated equations
The depth average of a quantity A is given by:
A=
1
D
Z
0
Hz Adσ
(31)
−1
where the overbar indicates a vertically averaged quantity and
D ≡ ζ(ξ, η, t) + h(ξ, η)
(32)
is the total depth of the water column. The vertical integral of equation (18) is:
∂
∂t
Du
mn
∂
+
∂ξ
Duu
∂ Duv
Df v
+
−
n
∂η
m
mn
∂ 1
∂
1
D ∂φ2
∂ζ
− vv
− uv
D=−
+g
∂ξ n
∂η m
n
∂ξ
∂ξ
D
1 ξ
+
F u + D hu +
τs − τbξ
(33)
mn
mn
where φ2 includes the ∂z
∂ξ term, D hu is the horizontal viscosity, and the vertical viscosity only
contributes through the upper and lower boundary conditions. The corresponding vertical integral
18
of equation (19) is:
∂
∂t
Dv
mn
∂
+
∂ξ
Duv
∂ Dvv
Df u
+
+
n
∂η
m
mn
∂ 1
∂
1
D ∂φ2
∂ζ
− uu
D=−
+g
+ uv
∂ξ n
∂η m
m ∂η
∂η
1
D
F v + D hv +
+
τsη − τbη . (34)
mn
mn
We also need the vertical integral of equation (23), shown above as eq. (30).
√
The presence of a free surface introduces waves which propagate at a speed of gh. These
waves usually impose a more severe time-step limit than any of the internal processes. We have
therefore chosen to solve the full equations by means of a split time step. In other words, the depth
integrated equations (33), (34), and (30) are integrated using a short time step and the values of
u and v are used to replace those found by integrating the full equations on a longer time step. A
diagram of the barotropic time stepping is shown in Fig. 5.
Barotropic steps
m=0
n
m=M
n+1
m=M *
Figure 5: The split time stepping used in the model.
Some of the terms in equations (33) and (34) are updated on the short time step while others
are not. The contributions from the slow terms are computed once per long time step and stored.
If we call these terms Ruslow and Rvslow , equations (33) and (34) become:
∂
∂t
Du
mn
∂
+
∂ξ
Du u
∂ Du v
Df v
+
−
n
∂η
m
mn
∂ 1
∂
1
gD ∂ζ
D
1 ξ
− vv
− uv
D = Ruslow −
+
Du −
τ (35)
∂ξ n
∂η m
n ∂ξ
mn
mn b
∂
∂t
Dv
mn
∂
+
∂ξ
Du v
∂ Dv v
Df u
+
+
n
∂η
m
mn
∂ 1
∂
1
gD ∂ζ
D
1 η
+ uv
− uu
D = Rvslow −
+
Dv −
τ . (36)
∂ξ n
∂η m
m ∂η mn
mn b
When time stepping the model, we compute the right-hand-sides for equations (18) and (19) as
well as the right-hand-sides for equations (35) and (36). The vertical integral of the 3-D righthand-sides are obtained and then the 2-D right-hand-sides are subtracted. The resulting fields are
the slow forcings Ruslow and Rvslow . This was found to be the easiest way to retain the baroclinic
contributions of the non-linear terms such as uu − u u.
19
The model is time stepped from time n to time n+1 by using short time steps on equations (35),
(36) and (30). Equation (30) is time stepped first, so that an estimate of the new D is available for
the time rate of change terms in equations (35) and (36). A third-order predictor-corrector time
stepping is used. In practice, we actually time step all the way to time (n + dtfast × M ? ), while
maintaining weighted averages of the values of u, v and ζ. The averages are used to replace the
values at time n + 1 in both the baroclinic and barotropic modes, and for recomputing the vertical
grid spacing Hz . Fig. 6 shows one option for how these weights might
PM ? look.m
The primary weights, am , are used to compute hζin+1 ≡
m=1 am ζ . There is a related
PM ?
n+ 12
m
≡
set of secondary weights bm , used as hhuii
m=1 bm u . In order to maintain constancy
preservation, this relation must hold:
"
n+ 1
n+ 1
n+ 1
n+ 1 #
2
2
2
2
Du
Du
Dv
Dv
n
=
hζi
hζin+1
−
(mn)
∆t
−
+
−
i,j
i,j
i,j
n
n
m
m
i+ 12 ,j
i− 21 ,j
i,j+ 21
i,j− 12
(37)
Shchepetkin and McWilliams ([73]) introduce a range of possible weights, but the ones used here
have a shape function:
q p τ
τ
τ
1−
−r
(38)
A(τ ) = A0
τ0
τ0
τ0
where p, q are parameters and A0 , τ0 , and r are chosen to satisfy normalization, consistency, and
second-order accuracy conditions,
Z
τ?
In =
τ n A(τ )dτ = 1,
n = 0, 1, 2
(39)
0
using Newton iterations. τ ? is the upper limit of τ with A(τ ) ≥ 0. In practice we initially set
A0 = 1, r = 0 and τ =
(p + 2)(p + q + 2)
,
(p + 1)(p + q + 1)
compute A(τ ) using eq. (38), normalize using:
?
M
X
?
am ≡ 1,
m=1
M
X
m=1
am
m
≡ 1,
M
(40)
and adjust r iteratively to satisfy the n = 2 condition of (39). We are using values of p = 2, q = 4,
and r = 0.284. This form allows some negative weights for small m, allowing M ? to be less than
1.5M .
ROMS also supports an older cosine weighting option, which isn’t recommended since it is only
first-order accurate.
4.6
Density in the mode coupling
Equation (35) contains the term Ruslow , computed as the difference between the 3-D right-hand-side
and the 2-D right-hand-side. The pressure gradient therefore has the form:
gD ∂ζ
gD ∂ζ
−
+
+F
(41)
n ∂ξ
n ∂ξ
where the term in square brackets is the mode coupling term and is held fixed over all the barotropic
steps and
Z ζ
1
∂P
F =−
dz
(42)
ρ0 n −h ∂ξ
20
Figure 6: Weights for the barotropic time stepping. The upper panel shows the primary weights,
centered at time n + 1, while the lower panel shows the secondary weights weights, centered at time
n + 21 .
21
is the vertically integrated pressure gradient. The latter is a function of the bathymetry, free surface
gradient, and the free surface itself, as well as the vertical distribution of density.
The disadvantage of this approach is that after the barotropic time stepping is complete and
the new free surface is substituted into the full baroclinic pressure gradient, its vertical integral will
no longer be equal to the sum of the new surface slope term and the original coupling term based
on the old free surface. This is one form of mode-splitting error which can lead to trouble because
the vertically integrated pressure gradient is not in balance with the barotropic mass flux.
Instead, let us define the following:
Z
Z ζ Z ζ
1 ζ
1
?
0
ρ=
ρdz, ρ = 1 2
ρdz dz
(43)
D −h
−h
z
2D
Changing the vertical coordinate to σ yields:
Z 0
Z
?
ρ=
ρdσ, ρ = 2
−1
0
Z
−1
0
ρdσ
0
dσ
(44)
σ
which implies that ρ and ρ? are actually independent of ζ as long as the density profile ρ = ρ(σ)
does not change. The vertically integrated pressure gradient becomes:
∂h
1 g
∂h
D ∂ρ?
1 g ∂ ρ? D 2
?
? ∂ζ
−
− ρD
=−
(45)
D ρ
+
+ (ρ − ρ)
ρ0 n ∂ξ
2
∂ξ
ρ0 n
∂ξ
2 ∂ξ
∂ξ
In the case of uniform density ρ0 , we obtain ρ? ≡ ρ ≡ ρ0 , but we otherwise have two new terms.
The accuracy of these terms depends on an accurate vertical integration of the density, as described
in Shchepetkin and McWilliams (2005, [73]).
4.7
Time stepping: internal velocity modes and tracers
The momentum equations (18) and(19) are advanced before the tracer equation, by computing all
the terms except the vertical viscosity and then using the implicit scheme described in §4.12 to
find the new values for u and v. The depth-averaged component is then removed and replaced by
the hui and hvi computed as in §4.5. A third-order Adams-Bashforth (AB3) time stepping is used,
requiring multiple right-hand-side time levels (see Appendix A). These stored up r.h.s. values can
be used to extrapolate to a value at time n + 21 for use in the barotropic steps as shown in Fig. 4.
The tracer concentration equation (27) is advanced in a predictor-corrector leapfrog-trapezoidal
step, with great care taken to optimize both the conservation and constancy-preserving properties
of the continuous equations. The corrector step can maintain both, as long as it uses velocities
and column depths which satisfy eq. (37). This also requires tracer values centered at time n + 12 ,
obtained from the predictor step. The vertical diffusion is computed as in §4.12.
The predictor step cannot be both constancy-preserving and conservative; it was therefore
decided to make it constancy-preserving. Also, since it is only being used to compute the advection
for the corrector step, the expensive diffusion operations are not carried out during the predictor
step.
The preceeding notes on tracer advection refer to all but the MPDATA option. The MPDATA
algorithm has its own predictor-corrector with emphasis on not allowing values to exceed their
original range; it therefore gives up the constancy-preservation. This is most noticeable in shallow
areas with large tides.
4.8
Advection schemes
The advection of a tracer C has an equation of the form
∂ Hz C
∂
∂ η
∂ σ
= − Fξ −
F −
F ,
∂t mn
∂ξ
∂η
∂σ
22
(46)
where we have introduced the advective fluxes:
Hz uC
n
Hz vC
η
F =
m
H
z ΩC
.
Fσ =
mn
Fξ =
4.8.1
(47)
(48)
(49)
Second-order Centered
The simplest form of the advective fluxes is the centered second-order:
ξ
ξ
Hz uC
nξ
η
η
Hz vC
Fη =
mη
σ
σ
Hz ΩC
σ
F =
.
mn
Fξ =
(50)
(51)
(52)
This scheme is known to have some unfortunate properties in the presence of strong gradients,
such as large over- and under-shoots of tracers, leading to the need for large amounts of horizontal
smoothing. ROMS provides alternative advection schemes with better behavior in many situations,
but retains this one for comparison purposes.
4.8.2
Fourth-order Centered
The barotropic advection is centered fourth-order unless you specifically pick centered second-order
as your horizontal advection scheme. To get fourth-order, create gradient terms:
ξ
G =
η
G =
σ
G =
∂C
∂ξ
ξ
∂C
∂η
η
∂C
∂σ
σ
(53)
(54)
.
(55)
The fluxes now become:
ξ Hz
1 ∂Gξ
ξ
F = ξ u C −
3 ∂ξ
n
η Hz
1 ∂Gη
η
η
F = η v C −
m
3 ∂η
σ 1 ∂Gσ
Hz
σ
σ
F =
Ω C −
.
mn
3 ∂σ
ξ
23
(56)
(57)
(58)
4.8.3
Fourth-order Akima
An alternate fourth-order algorithm is that by Akima:
∂C ∂C
∂C
∂C
Gξ = 2
+
∂ξ i ∂ξ i+1
∂ξ
∂ξ i+1
i
∂C
∂C ∂C
∂C
η
G =2
+
∂η j ∂η j+1
∂η j
∂η j+1
∂C ∂C
∂C
∂C
σ
G =2
+
∂σ k ∂σ k−1
∂σ k ∂σ k−1
(59)
(60)
(61)
(62)
With the fluxes as in 56–58.
4.8.4
Third-order Upwind
There is a class of third-order upwind advection schemes, both one-dimensional (Leonard [44])
and two-dimensional (Rasch [66] and Shchepetkin and McWilliams [71]). This scheme is known
as UTOPIA (Uniformly Third-Order Polynomial Interpolation Algorithm). Applying flux limiters
to UTOPIA is explored in Thuburn [83], although it is not implemented in ROMS. The twodimensional formulation in Rasch contains terms of order u2 C and u3 C, including cross terms
(uvC). The terms which are nonlinear in velocity have been dropped in ROMS, leaving one extra
upwind term in the computation of the advective fluxes:
∂2C
Hz u
ξ
C −γ 2
(63)
F =
n
∂ξ
Hz v
∂2C
Fη =
(64)
C −γ 2
m
∂η
The second derivative terms are centered on a ρ point in the grid, but are needed at a u or v point
in the flux. The upstream value is used:
ξ
ξ
Fi,j,k
Hz
= ξ [max(0, ui,j,k )Ci−1,j,k + min(0, ui,j,k )Ci,j,k ] .
n
(65)
The value of γ in the model is 18 while that in Rasch [66] is 16 .
Because the third-order upwind scheme is designed to be two-dimensional, it is not used in the
vertical (though one might argue that we are simply performing one-dimensional operations here).
Instead, we use a centered fourth-order scheme in the vertical when the third-order upwind option
is turned on:
Hz w
1
9
9
1
Fs =
− Ci,j,k−1 + Ci,j,k + Ci,j,k+1 − Ci,j,k+2
(66)
mn
16
16
16
16
One advantage of UTOPIA over MPDATA is that it can be used on variables having both
negative and positive values. Therefore, it can be used on velocity as well as scalars. For the
u-velocity, we have:
∂2u
Hz u
∂ 2 Hz u
ξ
F = u−γ 2
−γ 2
(67)
∂ξ
n
∂ξ
n
∂ 2 Hz v
∂2u
Hz v
Fη = u − γ 2
−γ 2
(68)
∂η
m
∂ξ
m
1
9
9
1
Hz w
σ
F =
− ui,j,k−1 + ui,j,k + ui,j,k+1 − ui,j,k+2
(69)
mn
16
16
16
16
24
while for the v-velocity we have:
∂ 2 Hz u
∂2v
Hz u
ξ
−γ 2
F = v−γ 2
∂ξ
n
∂η
n
2
2
∂ v
Hz v
∂
Hz v
η
F = v−γ 2
−γ 2
∂η
m
∂η
m
Hz w
1
9
9
1
Fσ =
− vi,j,k−1 + vi,j,k + vi,j,k+1 − vi,j,k+2
mn
16
16
16
16
(70)
(71)
(72)
In all these terms, the second derivatives are evaluated at an upstream location.
4.9
Determination of the vertical velocity and density fields
Having obtained a complete specification of the u, v, T, and S fields at the next time level by the
methods outlined above, the vertical velocity and density fields can be calculated. The vertical
velocity is obtained by combining equations (23) and (30) to obtain:
∂ Hz v
∂ Hz Ω
∂ Du
∂ Dv
∂ Hz u
+
+
−
−
= 0.
(73)
∂ξ
n
∂η
m
∂σ mn
∂ξ
n
∂η m
Solving for Hz Ω/mn and using the semi-discrete notation of §4.4 we obtain:
Hz Ω
=
mn
Z "
δξ
uD
nξ
ξ
η
!
+ δη
vD
mη
!
− δξ
uHz
nξ
ξ
!
− δη
vHz
mη
η
!#
dσ.
(74)
The integral is actually computed as a sum from the bottom upwards and also as a sum from the
top downwards. The value used is a linear combination of the two, weighted so that the surface
down value is used near the surface while the other is used near the bottom.
The density is obtained from temperature and salinity via an equation of state. ROMS provides
a choice of a nonlinear equation of state ρ = ρ(T, S, z) or a linear equation of state ρ = ρ(T ). The
nonlinear equation of state has been modified and now corresponds to the UNESCO equation
of state as derived by Jackett and McDougall [34]. It computes in situ density as a function of
potential temperature, salinity and pressure.
Warning: although we have used it quite extensively, McDougall (personal communication)
claims that the single-variable (ρ = ρ(T )) equation of state is not dynamically appropriate as is.
He has worked out the extra source and sink terms required, arising from vertical motions and the
compressibility of water. They are quite complicated and we have not implemented them to see if
they alter the flow.
4.10
Horizontal mixing
In Chapter 3, the diffusive terms were written simply as Du , Dv , DT , and DS . The vertical component of these terms was described in §4.12. Here we describe the ROMS options for representing
the horizontal component of these terms.
4.10.1
Deviatory stress tensor
Note: this material was copied from the wiki, where it was contributed by Hernan Arango. The horizontal components of the divergence of the stress tensor (Wajsowicz, 1993 [86]) in nondimesional,
1
orthogonal curvilinear coordinates (ξ, η, s) with dimensional, spatially-varying metric factors ( m
,
1
n , Hz ) and velocity components (u, v, ωHz ) are given by:
25
"
∂
mn
F ≡ ξb · (∇ · ~σ ) =
Hz ∂ξ
!
!
Hz σξξ
∂ Hz σξη
∂
+
+
n
∂η
m
∂s
∂
1
∂ 1
Hz σξη
− Hz σηη
−
∂η m
∂ξ n
u
"
mn ∂
F ≡ ηb · (∇ · ~σ ) =
Hz ∂ξ
!
!
Hz σηξ
∂ Hz σηη
∂
+
+
n
∂η
m
∂s
∂
1
∂ 1
− Hz σξξ
−
Hz σηξ
∂ξ n
∂η m
v
!
σξs
+
mn
1
∂Hz
σss
n
∂ξ
(75)
#
(76)
!
σηs
+
mn
1
∂Hz
σss
m
∂η
(77)
#
(78)
where
σξξ = (AM + ν) eξξ + (ν − AM ) eηη ,
(79)
σηη = (ν − AM ) eξξ + (AM + ν) eηη ,
(80)
σss = 2 ν ess ,
(81)
σξη = σηξ = 2 AM eξη ,
(82)
σξs = 2 KM eξs ,
(83)
σηs = 2 KM eηs ,
(84)
and the strain field is:
eξξ
eηη
1
,
m
∂v
∂ 1
=n
,
+ mnu
∂η
∂ξ n
∂u
∂
+ mnv
=m
∂ξ
∂η
(85)
(86)
1 ∂ (ωHz )
m ∂Hz
n ∂Hz
u
v
+
+
,
Hz ∂s
Hz ∂ξ
Hz ∂η
(87)
2 eξη =
m ∂ (nv)
n ∂ (mu)
+
,
n ∂ξ
m ∂η
(88)
2 eξs =
1 ∂ (mu)
∂ω
+ mHz
,
mHz ∂s
∂ξ
(89)
2 eηs =
1 ∂ (nv)
∂ω
+ n Hz
.
nHz ∂s
∂η
(90)
ess =
Here, AM (ξ, η) and KM (ξ, η, s) are the spatially varying horizontal and vertical viscosity coefficients, respectively, and ν is another (very small, often neglected) horizontal viscosity coefficient.
Notice that because of the generalized terrain-following vertical coordinates of ROMS, we need to
transform the horizontal partial derivatives from constant ”z-”surfaces to constant ”s-”surfaces.
And the vertical metric or level thickness is the Jacobian of the transformation, Hz = ∂z
∂s . Also in
ωHz
3
these models, the ”vertical” velocity is computed as mn and has units of m /s.
26
4.10.2
Transverse stress tensor
Assuming transverse isotropy, as in Sadourny and Maynard (1997) [69] and Griffies and Hallberg
(2000) [23], the deviatoric stress tensor can be split into vertical and horizontal sub-tensors. The
horizontal (or transverse) sub-tensor is symmetric, it has a null trace, and it possesses axial symmetry in the local vertical direction. Then, transverse stress tensor can be derived from eq. (76)
and (76), yielding
∂
Hz F = n m
∂ξ
∂
Hz F = n m
∂ξ
u
2
v
2
Hz F uξ
n
Hz F vξ
n
∂
+m n
∂η
∂
+m n
∂η
2
2
Hz F uη
m
Hz F vη
m
(91)
(92)
where
F
uξ
F uη
F vξ
F vη
1
m ∂ (nu)
n ∂ (mv)
= AM
,
−
n
n ∂ξ
m ∂η
1
n ∂ (mu) m ∂ (nv)
= AM
,
+
m
m ∂η
n ∂ξ
1
m ∂ (nv)
n ∂ (mu)
= AM
+
,
n
n ∂ξ
m ∂η
1
n ∂ (mv) m ∂ (nu)
.
= AM
−
m
m ∂η
n ∂ξ
(93)
(94)
(95)
(96)
Notice the flux form of eq. (91) and (92) and the symmetry between the F uξ and F vη terms
which are defined at density points on a C-grid. Similarly, the F uη and F vξ terms are symmetric
and defined at vorticity points. These staggering positions are optimal for the discretization of the
tensor; it has no computational modes and satisfies first-moment conservation.
The biharmonic friction operator can be computed by applying twice the tensor operator eq.
(91) and (92), but with the squared root of the biharmonic viscosity coefficient (Griffies and Hallberg, 2000 [23]). For simplicity and momentum balance, the thickness Hz appears only when
computing the second harmonic operator as in Griffies and Hallberg (2000).
4.10.3
Rotated Transverse Stress Tensor
In some applications with tall and steep topography, it will be advantageous to reduce substantially
the contribution of the stress tensor eq. (91) and (92) to the vertical mixing when operating along
constant s-surfaces. The transverse stress tensor rotated along geopotentials (constant depth) is
then given by
∂
Hz R u = n2 m
∂ξ
Hz Ruξ
n
!
∂
Hz R v = n2 m
∂ξ
Hz Rvξ
n
!
∂
+ m2 n
∂η
+ m2 n
where
27
∂
∂η
!
∂
+
Rus
∂s
!
!
Hz Rvη
∂
+
Rvs
m
∂s
Hz Ruη
m
!
(97)
(98)
R
uξ
Ruη
Rus
R
vξ
Rvη
Rvs
1
∂ (nu)
∂z 1 ∂ (nu)
1
∂ (mv)
∂z 1 ∂ (mv)
1
= AM
m
−m
−
n
−n
,
n
n
∂ξ
∂ξ Hz ∂s
m
∂η
∂η Hz ∂s
∂ (mu)
∂z 1 ∂ (mu)
1
∂ (nv)
∂z 1 ∂ (nv)
1
1
= AM
n
−n
+
m
−m
,
m
m
∂η
∂η Hz ∂s
n
∂ξ
∂ξ Hz ∂s
1
∂z 1 ∂ (nu)
∂ (nu)
1
∂z 1 ∂ (mv)
∂ (mv)
∂z
m
−m
−
n
−n
+
=m AM
∂ξ
n
∂ξ Hz ∂s
∂ξ
m
∂η Hz ∂s
∂η
∂z
∂z 1 ∂ (mu)
∂ (mu)
1
∂z 1 ∂ (nv)
∂ (nv)
1
n
AM
n
−n
+
m
−m
,
∂η
m
∂η Hz ∂s
∂η
n
∂ξ Hz ∂s
∂ξ
1
1
∂ (nv)
∂z 1 ∂ (nv)
1
∂ (mu)
∂z 1 ∂ (mu)
m
−m
+
n
−n
,
= AM
n
n
∂ξ
∂ξ Hz ∂s
m
∂η
∂η Hz ∂s
1
∂ (mv)
∂z 1 ∂ (mv)
1
∂ (nu)
∂z 1 ∂ (nu)
1
= AM
n
−n
−
m
−m
,
m
m
∂η
∂η Hz ∂s
n
∂ξ
∂ξ Hz ∂s
∂z 1 ∂ (nv)
1
∂z 1 ∂ (mu)
∂ (nv)
∂ (mu)
1
∂z
m
+
n
+
=m AM
−m
−n
∂ξ
n
∂ξ Hz ∂s
∂ξ
m
∂η Hz ∂s
∂η
∂z
1
∂z 1 ∂ (mv)
∂ (mv)
1
∂z 1 ∂ (nu)
∂ (nu)
n
AM
n
−n
−
m
−m
.
∂η
m
∂η Hz ∂s
∂η
n
∂ξ Hz ∂s
∂ξ
(99)
(100)
(101)
(102)
(103)
(104)
(105)
(106)
Notice that transverse stress tensor remains invariant under coordinate transformation. The
rotated tensor (97) and (98) retains the same properties as the unrotated tensor (91) and (92). The
additional terms that arise from the slopes of s-surfaces along geopotentials are discretized using a
modified version of the triad approach of Griffies et al. (1998) [22].
4.10.4
Biharmonic
Biharmonic mixing has less of a physical justification and is used for damping of numerical noise
at the 2∆x scale. The biharmonic operator is ∇4 = ∇2 ∇2 ; the corresponding term is computed
using a temporary variable Y :
mn ∂ ν4 Hz m ∂ψ
∂ ν4 Hz n ∂ψ
Y =
+
(107)
Hz ∂ξ
n
∂ξ
∂η
m ∂η
and is
∂ Hz n ∂Y
∂ Hz m ∂Y
−
+
∂ξ
n ∂ξ
∂η m ∂η
(108)
where ψ is any of u, v, T , and S. Note that u and v are treated as independent scalar quantities
rather than as a vector. The complete Laplacian operator on a vector quantity ~u contains additional
terms, including v terms in the u equation and vice versa. These extra terms were found to be
small in a test problem and have been left out of the model.
4.11
Vertical mixing schemes
ROMS contains a variety of methods for setting the vertical viscous and diffusive coefficients. The
choices range from simply choosing fixed values to the KPP, generic lengthscale (GLS) and MellorYamada turbulence closure schemes. See Large [40] for a review of surface ocean mixing schemes.
Many schemes have a background molecular value which is used when the turbulent processes are
assumed to be small (such as in the interior).
28
4.11.1
Mellor-Yamada
One of the more popular closure schemes is that of Mellor and Yamada [56], [57]. They actually
present a hierarchy of closures of increasing complexity. ROMS provides only the “Level 2.5”
closure with the Galperin et al. [20] modifications as described in Allen et al. [1]. This closure
scheme adds two prognostic equations, one for the turbulent kinetic energy ( 12 q 2 ) and one for the
turbulent kinetic energy times a length scale (q 2 l).
The turbulent kinetic energy equation is:
D q2
∂
∂ q2
−
Kq
= Ps + Pb − ξd
(109)
Dt 2
∂z
∂z 2
where Ps is the shear production, Pb is the buoyant production and ξd is the dissipation of turbulent
kinetic energy. These terms are given by
" 2 #
∂u 2
∂v
+
,
(110)
Ps = K m
∂z
∂z
Pb = K s N 2 ,
ξd =
(111)
q3
(112)
B1 l
where B1 is a constant. One can also add a traditional horizontal Laplacian or biharmonic diffusion
(Dq ) to the turbulent kinetic energy equation. The form of this equation in the model coordinates
becomes
∂
∂t
Hz q 2
mn
∂
+
∂ξ
Hz uq 2
n
∂
+
∂η
2Hz Km
mn
Kq ∂q 2
∂ Hz Ωq 2
∂
Hz vq 2
+
−
=
m
∂s
mn
∂s mnHz ∂s
" #
2
2Hz Ks 2
∂u 2
2Hz q 3
Hz
∂v
+
+
N −
+
Dq . (113)
∂z
∂z
mn
mnB1 l mn
The vertical boundary conditions are:
top (z = ζ(x, y, t))
Hz Ω
mn
=0
2
ξ
η 2
=
τs + (τs )
ξ η
∂u ∂v
1
∂z , ∂z = ρo τs , τs
Kq ∂q 2
mnHz ∂s
Hz Km
Hz Ks N 2 =
and bottom (z = −h(x, y))
Hz Ω
mn
2/3
B1
ρo
Q
ρo c P
=0
2
ξ
η 2
=
τb + τb
ξ η
∂u ∂v
1
,
=
τ
,
τ
b b
∂z ∂z
ρo
Kq ∂q 2
mnHz ∂s
Hz Km
2/3
B1
ρo
Hz Ks N 2 = 0
The equation is timestepped much like the model tracer equations, including an implicit solve for
the vertical operations and an option for using the third-order upwind advection.
There is also an equation for the turbulent length scale l:
D
∂
∂lq 2
q3
2
lq −
Kl
= lE1 (Ps + Pb ) −
W̃
(114)
Dt
∂z
∂z
B1
29
where W̃ is the wall proximity function:
l 2
W̃ = 1 + E2
kL
1
1
+
L−1 =
ζ −z H +z
(115)
(116)
The form of this equation in the model coordinates becomes
∂
∂t
Hz q 2 l
mn
∂
+
∂ξ
Hz uq 2 l
n
∂
+
∂η
Hz vq 2 l
m
Kq ∂q 2 l
∂ Hz Ωq 2 l
∂
+
−
=
∂s
mn
∂s mnHz ∂s
Hz
Hz q 3
Hz
lE1 (Ps + Pb ) −
Dql . (117)
W̃ +
mn
mnB1
mn
where Dql is the horizontal diffusion of the quantity q 2 l.
Given these solutions for q and l, the vertical viscosity and diffusivity coefficients are:
Km = qlSm + Kmbackground
(118)
Ks = qlSh + Ksbackground
(119)
Kq = qlSq + Kqbackground
(120)
and the stability coefficients Sm , Sh and Sq are found by solving
Ss [1 − (3A2 B2 + 18A1 A2 )Gh ] = A2 1 − 6A1 B1−1
Sm [1 − 9A1 A2 Gh ] − Ss Gh (18A21 + 9A1 A2 )Gh = A1 1 − 3C1 − 6A1 B1−1
l2 N 2
, 0.028).
q2
Sq = 0.41Sm
Gh = min(−
(121)
(122)
(123)
(124)
The constants are set to (A1 , A2 , B1 , B2 , C1 , E1 , E2 ) = (0.92, 0.74, 16.6, 10.1, 0.08, 1.8, 1.33). The
quantities q 2 and q 2 l are both constrained to be no smaller than 10−8 while l is set to be no larger
than 0.53q/N .
4.11.2
The Large, McWilliams and Doney parameterization
The vertical mixing parameterization introduced by Large, McWilliams and Doney [41] is a versatile
first order scheme which has been shown to perform well in open ocean settings. Its design facilitates
experimentation with additional or modified representations of specific turbulent processes.
Surface boundary layer The Large, McWilliams and Doney scheme (LMD) matches separate
parameterizations for vertical mixing of the surface boundary layer and the ocean interior. A
formulation based on boundary layer similarity theory is applied in the water column above a
calculated boundary layer depth hsbl . This parameterization is then matched at the interior with
schemes to account for local shear, internal wave and double diffusive mixing effects.
Viscosity and diffusivities at model levels above a calculated surface boundary layer depth
(hsbl ) are expressed as the product of the length scale hsbl , a turbulent velocity scale wx and a
non-dimensional shape function.
νx = hsbl wx (σ)Gx (σ)
(125)
where σ is a non-dimensional coordinate ranging from 0 to 1 indicating depth within the surface
boundary layer. The x subscript stands for one of momentum, temperature and salinity.
30
Surface Boundary layer depth The boundary layer depth hsbl is calculated as the minimum
of the Ekman depth, estimated as,
he = 0.7u∗ /f
(126)
q
(where u∗ is the friction velocity u∗ = τx2 + τy2 /ρ ), the Monin-Obukhov depth:
L = u3∗ /(κBf )
(127)
(where κ = 0.4 is von Karman’s contant and Bf is the surface buoyancy flux), and the shallowest
depth at which a critical bulk Richardson number is reached. The critical bulk Richardson number
(Ric ) is typically in the range 0.25–0.5. The bulk Richardson number (Rib ) is calculated as:
Rib (z) =
(Br − B(d))d
~
~ (d)|2 + Vt 2 (d)
|Vr − V
(128)
where d is distance down from the surface, B is the buoyancy, Br is the buoyancy at a near surface
~ is the mean horizontal velocity, V
~r the velocity at the near surface reference
reference depth, V
depth and Vt is an estimate of the turbulent velocity contribution to velocity shear.
The turbulent velocity shear term in this equation is given by LMD as,
Vt2 (d) =
Cv (−βT )1/2
(cs )−1/2 dN ws
Ric κ
(129)
where Cv is the ratio of interior N to N at the entrainment depth, βT is ratio of entrainment flux
to surface buoyancy flux, cs and are constants, and ws is the turbulent velocity scale for scalars.
LMD derive (129) based on the expected behavior in the pure convective limit. The empirical rule
of convection states that the ratio of the surface buoyancy flux to that at the entrainment depth be
a constant. Thus the entrainment flux at the bottom of the boundary layer under such conditions
should be independent of the stratification at that depth. Without a turbulent shear term in the
denominator of the bulk Richardson number calculation, the estimated boundary layer depth is too
shallow and the diffusivity at the entrainment depth is too low to obtain the necessary entrainment
flux. Thus by adding a turbulent shear term proportional to the stratification in the denominator,
the calculated boundary layer depth will be deeper and will lead to a high enough diffusivity to
satisfy the empirical rule of convection.
turbulent velocity scale To estimate wx (where x is m - momentum or s - any scalar)
throughout the boundary layer, surface layer similarity theory is utilized. Following an argument
by Troen and Mahrt [84], Large et al. estimate the velocity scale as
κu∗
(130)
wx =
φx (ζ)
where ζ is the surface layer stability parameter defined as z/L. φx is a non-dimensional flux profile
which varies based on the stability of the boundary layer forcing. The stability parameter used in
this equation is assumed to vary over the entire depth of the boundary layer in stable and neutral
conditions. In unstable conditions it is assumed only to vary through the surface layer which is
defined as hsbl (where is set at 0.10) . Beyond this depth ζ is set equal to its value at hsbl .
The flux profiles are expressed as analytical fits to atmospheric surface boundary layer data. In
stable conditions they vary linearly with the stability parameter ζ as
φx = 1 + 5ζ
(131)
In near-neutral unstable conditions common Businger-Dyer forms are used which match with the
formulation for stable conditions at ζ = 0. Near neutral conditions are defined as
− 0.2 ≤ ζ < 0
31
(132)
for momentum and,
− 1.0 ≤ ζ < 0
(133)
for scalars. The non dimensional flux profiles in this regime are,
φm = (1 − 16ζ)1/4
(134)
1/2
(135)
φs = (1 − 16ζ)
In more unstable conditions φx is chosen to match the Businger-Dyer forms and with the free
convective limit. Here the flux profiles are
φm = (1.26 − 8.38ζ)1/3
φs = (−28.86 − 98.96ζ)1/3
(136)
(137)
The shape function The non-dimensional shape function G(σ) is a third order polynomial
with coefficients chosen to match the interior viscosity at the bottom of the boundary layer and
Monin-Obukhov similarity theory approaching the surface. This function is defined as a 3rd order
polynomial.
G(σ) = ao + a1 σ + a2 σ 2 + a3 σ 3
(138)
with the coefficients specified to match surface boundary conditions and to smoothly blend with
the interior,
ao = 0
(139)
a1 = 1
(140)
νx (hsbl ) ∂x νx (h) νx (h)∂σ wx (1)
+
+
hwx (1)
wx (1)
hwx2 (1)
νx (hsbl ) ∂x νx (h) νx (h)∂σ wx (1)
−
−
a3 = 1 − 2
hwx (1)
wx (1)
hwx2 (1)
a2 = −2 + 3
(141)
(142)
where νx (h) is the viscosity calculated by the interior parameterization at the boundary layer depth.
Countergradient flux term The second term of the LMD scheme’s surface boundary layer
formulation is the non-local transport term γ which can play a significant role in mixing during
surface cooling events. This is a redistribution term included in the tracer equation separate from
the diffusion term and is written as
∂
−
Kγ.
(143)
∂z
LMD base their formulation for non-local scalar transport on a parameterization for pure free
convection from Mailhôt and Benoit [48]. They extend this parameterization to cover any unstable
surface forcing conditions to give
wT0 + wTR
γT = Cs
(144)
wT (σ)h
for temperature and
γS = Cs
wS0
wS (σ)h
(145)
for salinity (other scalar quantities with surface fluxes can be treated similarly). LMD argue that
although there is evidence of non-local transport of momentum as well, the form the term would
take is unclear so they simply specify γm = 0.
32
The interior scheme The interior scheme of Large, McWilliams and Doney estimates the viscosity coefficient by adding the effects of several generating mechanisms: shear mixing, double-diffusive
mixing and internal wave generated mixing.
νx (d) = νxs + νxd + νxw
(146)
Shear generated mixing The shear mixing term is calculated using a gradient Richardson
number formulation, with viscosity estimated as:


Rig < 0,
ν0
νxs = ν0 [1 − (Rig /Ri0 )2 ]3 0 < Rig < Ri0 ,
(147)


0
Rig > Ri0 .
where ν0 is 5.0 × 10−3 , Ri0 = 0.7.
Double diffusive processes The second component of the interior mixing parameterization represents double diffusive mixing. From limited sources of laboratory and field data LMD
parameterize the salt fingering case (Rρ > 1.0)
νsd (Rρ )
=
(
(R −1
1 × 10−4 [1 − ( R0ρ−1 )2 )3
ρ
0
for 1.0 < Rρ < Rρ0 = 1.9,
(148)
otherwise.
νθd (Rρ ) = 0.7νsd
(149)
For diffusive convection (0 < Rρ < 1.0) LMD suggest several formulations from the literature
and choose the one with the most significant impact on mixing (Fedorov [12]).
νθd = (1.5−6 )(0.909 exp(4.6 exp[−0.54(Rρ−1 − 1)])
for temperature. For other scalars,
(
νθd (1.85 − 0.85Rρ−1 )Rρ
d
νs =
νθd 0.15Rρ
for 0.5 <= Rρ < 1.0,
otherwise.
(150)
(151)
Internal wave generated mixing Internal wave generated mixing serves as the background
mixing in the LMD scheme. It is specified as a constant for both scalars and momentum. Eddy
diffusivity is estimated based on the data of Ledwell et al. [43]. While Peters et al. [62] suggest
eddy viscosity should be 7 to 10 times larger than diffusivity for gradient Richardson numbers
below approximately 0.7. Therefore LMD use
w
νm
= 1.0 × 10−4 m2 s−1
νsw
4.12
= 1.0 × 10
−5
2 −1
m s
(152)
(153)
Timestepping vertical viscosity and diffusion
The Du , Dv , and DC terms in equations (18)–(20) represent both horizontal and vertical mixing
processes. The horizontal options will be covered in §4.10.1. The model has several options for
computing the vertical coefficients; these will be described in §4.11. The vertical viscosity and
diffusion terms have the form:
K ∂φ
∂
(154)
∂σ Hz mn ∂σ
33
where φ represents one of u, v, or C, and K is the corresponding vertical viscous or diffusive
coefficient. This is timestepped using a semi-implicit Crank-Nicholson scheme with a weighting of
0.5 on the old timestep and 0.5 on the new timestep. Specifically, the equation of motion for φ can
be written as:
∂
K ∂φ
∂(Hz φ)
= mnRφ +
(155)
∂t
∂σ Hz ∂σ
where Rφ represents all of the forcing terms other than the vertical viscosity or diffusion. Since we
want the diffusion term to be evaluated partly at the current timestep n and partly at the next
timestep n + 1, we introduce the parameter λ and rewrite equation (155) as:
∂(Hz φ)
∂
∂
K ∂φn
K ∂φn+1
= mnRφ + (1 − λ)
+λ
.
(156)
∂t
∂σ Hz ∂σ
∂σ Hz ∂σ
The discrete form of equation (156) is:
Hzn+1
φn+1
− Hznk φnk
(1 − λ) Kk n
Kk−1 n
k
n
n
k
= mnRφ +
(φ
(φ − φk−1 )
− φk ) −
∆t
∆s2
Hzk k+1
Hzk−1 k
λ
Kk n+1
Kk−1 n+1
n+1
n+1
(φ
− φk ) −
(φ
− φk−1 ) (157)
+
∆s2 Hzk k+1
Hzk−1 k
where k is used as the vertical level index. This can be reorganized so that all the terms involving
φn+1 are on the left and all the other terms are on the right. The equation for φn+1
will contain
k
n+1
n−1
terms involving the neighbors above and below (φk+1 and φk+1 ) which leads to a set of coupled
equations with boundary conditions for the top and bottom. The general form of these equations
is:
n+1
Ak φn+1
+ Ck φn+1
(158)
k+1 + Bk φk
k−1 = Dk
where the boundary conditions are written into the coefficients for the end points. In this case the
coefficients become:
A(1) = 0
(159)
λ∆t Kk−1
∆σ 2 Hzn+1
k−1
λ∆t K1
n+1
H z1 +
∆σ 2 Hzn+1
1
λ∆t
K
λ∆t Kk−1
k
Hzn+1
+
n+1 +
k
2
∆σ Hzk
∆σ 2 Hzn+1
k−1
λ∆t
K
Nm
Hzn+1
+
N
∆σ 2 Hzn+1
Nm
λ∆t Kk
−
∆σ 2 Hzn+1
k
0
∆t
∆t(1 − λ) K1 n
Hzn1 φn1 + ∆t mnRφ1 +
(φ2 − φn1 ) −
τb
2
n
∆σ
H z1
∆σ
Hznk φnk + ∆t mnRφk +
"
#
∆t(1 − λ) Kk n
Kk−1 n
n
n
(φ
− φk ) − n (φk − φk−1 )
∆σ 2
Hznk k+1
Hzk−1
A(2 : N) = −
(160)
B(1) =
(161)
B(2 : Nm) =
B(N) =
C(1 : Nm) =
C(N) =
D(1) =
D(2 : Nm) =
D(N) = HznN φnN + ∆t mnRφN −
∆t(1 − λ) KNm n
∆t
(φN − φnNm ) +
τs
2
n
∆σ
HzNm
∆σ
(162)
(163)
(164)
(165)
(166)
(167)
(168)
(169)
This is a standard tridiagonal system for which the solution procedure can be found in any standard
reference, such as Press et al. [65].
34
4.13
Boundary Conditions
ROMS comes with a variety of boundary conditions, including open, closed, and periodic. See
Marchesiello et al. [49] for a more thorough exploration of the options. Some options require
a value for the boundary points from either an included analytic expression (§6.5) or from an
external NetCDF file. Here, φext represents the exterior value of a quantity φ.
4.13.1
Gradient boundary condition
This boundary condition is extremely simple and consists of setting the gradient of a field to zero
at the edge. The outside value is set equal to the closest interior value.
4.13.2
Wall boundary condition
ROMS now assumes a wall condition if no other boundary condition is chosen. This is a zero
gradient condition for tracers and the surface elevation and zero flow for the normal velocity. For
tangential velocities, the wall is treated as either no-slip or free-slip, depending on the value of
gamma2 chosen by the user.
4.13.3
Clamped boundary condition
Almost as simple is setting the boundary value to a known exterior value.
φ = φext
4.13.4
(170)
Flather boundary condition
For the normal component of the barotropic velocity, one option is to radiate out deviations from
exterior values at the speed of the external gravity waves (Flather, [14]):
p
u = uext − gD (ζ − ζ ext )
(171)
The exterior values are often used to provide tidal boundary contitions to the barotropic mode.
However, there are times when only the tidal elevation is known. A reduced physics option is
available for estimating uext in that case.
4.13.5
Chapman boundary condition
The corresponding condition for surface elevation was investigated
by Chapman ([8]), assuming all
√
outgoing signals leave at the shallow-water wave speed of gD. This can be useful when using the
Flather condition on the 2-D momentum equations.
r
∂ζ
g ∂ζ
=±
(172)
∂t
h ∂ξ
The time derivative here can be handled either explicitly or implicitly. The model uses an implicit
timestep, with the term ∂ζ
∂ξ being evaluated at the new timestep.
4.13.6
Radiation boundary condition
In realistic domains, open boundary conditions can be extremely difficult to get right. There are
situations in which incoming flow and outgoing flow happen along the same boundary or even at
different depths at the same horizontal location. Orlanski [59] proposed a radiation scheme in which
a local normal phase velocity is computed and used to radiate things out (if it is indeed going out).
35
This works well for a wave propagating normal to the boundary, but has problems when waves
approach the boundary at an angle. Raymond and Kuo [67] have modified the scheme to account
for propagation in all three directions. In ROMS, only the two horizontal directions are accounted
for (with the recommended RADIATION_2D option):
∂φ
∂φ
∂φ
= − φξ
+ φη )
(173)
∂t
∂ξ
∂η
where
F ∂φ
∂ξ
2 2
∂φ
+ ∂φ
∂ξ
∂η
(174)
F ∂φ
∂η
φη = 2 2
∂φ
+ ∂φ
∂ξ
∂η
(175)
φξ = F =−
∂φ
∂t
(176)
These terms are evaluated at the closest interior point in a manner consistent with the time stepping
scheme used. The phase velocities are limited so that the local CFL condition is satisfied. They are
then applied to the boundary point using equation (173), again using a consistent time stepping
scheme. Raymond and Kuo give the form used for centered differencing and a leapfrog time step
while ROMS uses one-sided differences.
The radiation approach is appropriate for waves leaving the domain. A check is made to see
which way the phase velocity is headed. If it is entering the domain, a zero gradient condition is
applied unless the next option is also specified.
4.13.7
Mixed radiation-nudging boundary condition
As described in Marchesiello et al. ([49]), ROMS has an option for providing radiation conditions
on outflow and nudging to a known exterior value on inflow. This is implemented as a variation
on the radiation condition, requiring two timescales: the inflow nudging timescale and the outflow
nudging timescale. These timescales are provided in the input to ROMS (§7.1.12).
36
5
Ice Model Formulation
The sea-ice component of ROMS is a combination of the elastic-viscous-plastic (EVP) rheology
(Hunke and Dukowicz [33], Hunke [32]) and simple one-layer ice and snow thermodynamics with a
molecular sublayer under the ice (Mellor and Kantha [55]). It is tightly coupled, having the same
grid (Arakawa-C) and timestep as the ocean and sharing the same parallel coding structure for use
with MPI or OpenMP (Budgell [5]).
5.1
Dynamics
The momentum equations describe the change in ice/snow velocity due to the combined effects of
the Coriolis force, surface ocean tilt, air and water stress, and internal ice stress: (177) and (178):
∂ζw
∂u
= Mfv − Mg
+ τax + τwx + Fx
∂t
∂x
∂v
∂ζw
M
= −M f u − M g
+ τay + τwy + Fy .
∂t
∂y
M
(177)
(178)
In this model, we neglect the nonlinear advection terms as well as the curvilinear terms in the
internal ice stress. Nonlinear formulas are used for both the ocean-ice and air-ice surface stress:
~10 |V
~10
~τa = ρa Ca |V
1
Ca = Cd [1 − cos(2π min(hi + .1, .5)]
2
~τw = ρw Cw |~vw − ~v |(~vw − ~v ).
(179)
(180)
(181)
The force due to the internal ice stress is given by the divergence of the stress tensor σ. The rheology
is given by the stress-strain relation of the medium. We would like to emulate the viscous-plastic
rheology of Hibler (1979) [29]:
σij = 2η ˙ij + (ζ − η)˙kk δij −
1
˙ij ≡
2
∂uj
∂ui
+
∂xj
∂xi
P
δij
2
(182)
P = P ∗ Ahi e−C(1−A)
(183)
(184)
where the nonlinear viscosities are given by
ζ=
P
2
1/2
2 (11 + 222 )(1 + 1/e2 ) + 4e−2 212 + 211 22 (1 − 1/e2 )
(185)
ζ
.
(186)
e2
We would also like to have an explicit model that can be solved efficiently on parallel computers.
The EVP rheology has a tunable coefficient E (the Young’s modulus) which can be chosen to make
the elastic term small compared to the other terms. We rearrange the VP rheology:
η=
η−ζ
P
1
σij +
σkk δij + δij = ˙ij
2η
4ηζ
4ζ
(187)
1 ∂σij
1
η−ζ
P
+ σij +
σkk δij + δij = ˙ij
E ∂t
2η
4ηζ
4ζ
(188)
then add the elastic term:
37
Much like the ocean model, the ice model has a split timestep. The internal ice stress term is
updated on a shorter timestep so as to allow the elastic wave velocity to be resolved.
Once the new ice velocities are computed, the ice tracers can be advected using the MPDATA
scheme [77]. The tracers in this case are the ice thickness, ice concentration, snow thickness, internal
ice temperature, and surface melt ponds. The continuity equations describing the evolution of these
parameters (equations (189)–(191)) also include thermodynamic terms (Sh , Ss and SA ), which will
be described in §5.2:
∂(uAhi ) ∂(vAhi )
∂Ahi
=−
−
+ Sh + D h
∂t
∂x
∂y
∂(uAhs ) ∂(vAhs )
∂Ahs
=−
−
+ Ss + D s
∂t
∂x
∂y
∂A
∂(uA) ∂(vA)
=−
−
+ SA + D A
∂t
∂x
∂y
(189)
(190)
0 ≤ A ≤ 1.
(191)
The first two equations represent the conservation of ice and snow. Equation 191 is discussed in
some detail in MK89, but represents the advection of ice blocks in which no ridging occurs as long
as there is any open water. An optional ridging term can be added (Gray and Killworth [21]):
∂(uA) ∂(vA)
∂A
=−
−
− Aα(A) ∇ · ~v H(−∇ · ~v ) + SA + DA
∂t
∂x
∂y
0 ≤ A ≤ 1.
(192)
where α(A) is an arbitrary function such that α(0) = 0, α(1) = 1, and 0 ≤ α(A) ≤ 1. The ridging
term leads to an increase in hi under convergent flow as would be produced by ridging. The function
α(A) should be chosen so that it is near zero until the ice concentration is large enough that ridging
is expected to occur, then should increase smoothly to one.
The symbols used in these equations along with the values for the constants are listed in Table
4.
Note that Hibler’s hI variable is equivalent to our Ahi combination - his hI is the average
thickness over the whole gridbox while our hi is the average thickness over the ice-covered fraction
of the gridbox.
5.2
Thermodynamics
The thermodynamics is based on calculating how much ice grows and melts on each of the surface,
bottom, and sides of the ice floes, as well as frazil ice formation (Mellor and Kantha [55]). Once
the ice tracers are advected, the ice concentration and thickness are timestepped according to the
terms on the right:
(189) and (191) is:
DAhi
ρo
=
[A(Wio − Wai ) + (1 − A)Wao + Wf r ]
Dt
ρi
DA
ρo A
=
[Φ(1 − A)Wao + (1 − A)Wf r ]
Dt
ρi h i
(193)
0 ≤ A ≤ 1.
(194)
The term Ahi is the “effective thickness”, a measure of the ice volume. Its evolution equation
is simply quantifying the change in the amount of ice. The ice concentration equation is more
interesting in that it provides the partitioning between ice melt/growth on the sides vs. on the top
and bottom. The parameter Φ controls this and has differing values for ice melt and retreat. In
principle, most of the ice growth is assumed to happen at the base of the ice while rather more of
the melt happens on the sides of the ice due to warming of the water in the leads.
The heat fluxes through the ice are based on a simple one layer Semtner [70] type model
with snow on top. The temperature is assumed to be linear within the snow and within the ice.
38
Variable
A(x, y, t)
α(A)
Ca
Cd
Cw
(Dh , Ds , DA )
δij
E
e
ij (x, y, t)
η(x, y, t)
f (x, y)
(Fx , Fy )
g
H
hi (x, y, t)
ho
hs (x, y, t)
M (x, y, t)
P (x, y, t)
(P ∗ , C)
(Sh , Ss , SA )
σij (x, y, t)
~τa
~τw
(u, v)
~10 , ~vw )
(V
(ρa , ρw )
ζ(x, y, t)
ζw (x, y, t)
Value
2.2 × 10−3
10 × 10−3
2
9.8 m s−2
1m
(2.75 × 104 , 20)
(1.3 kg m−3 , 1025 kg m−3 )
Description
ice concentration
ridging function
nonlinear air drag coefficient
air drag coefficient
water drag coefficient
diffusion terms
Kronecker delta function
Young’s modulus
eccentricity of the elliptical yield curve
strain rate tensor
nonlinear shear viscosity
Coriolis parameter
internal ice stress
acceleration of gravity
Heaviside function
ice thickness of ice-covered fraction
ice cutoff thickness
snow thickness on ice-covered fraction
ice mass (density times thickness)
ice pressure or strength
ice strength parameters
thermodynamic terms
stress tensor
air stress
water stress
the (x, y) components of ice velocity ~v
10 meter air and surface water velocities
air and water densities
nonlinear bulk viscosity
height of the ocean surface
Table 4: Variables used in the ice momentum equations
39
The ice contains brine pockets for a total ice salinity of 5. The surface ocean temperature and
salinity is half a dz below the surface. The water right below the surface is assumed to be at
the freezing temperature; a logarithmic boundary layer is computed having the temperature and
salinity matched at freezing.
Here, the W variables are the freeze or melt rates as shown in Fig. 7 and Table 5. The frazil
ice growth Wf r will be discussed further in §5.2.2—note that it contributes to changes in A as well
as to changes in hi . The other term that contributes to A is Wao . This term includes a factor Φ
which Mellor and Kantha set to different values depending on whether ice is melting or freezing:
Φ = 4.0
Wao ≥ 0
(195)
Φ = 0.5
Wao < 0
(196)
(197)
6
Wai
Wao
6
6
?
Wro
Wf r
Wio
Figure 7: Diagram of the different locations where ice melting and freezing can occur.
Figure 8 shows the locations of the ice and snow temperatures and the heat fluxes. The temperature profile is assumed to be linear between adjacent temperature points. The interior of the
ice contains “brine pockets”, leading to a prognostic equation for the temperature T1 .
The surface flux to the air is:
Qai = −H ↓ −LE ↓ −s LW↓ −(1 − αs )SW↓ +s σ(T3 + 273)4
(198)
The formulas for sensible heat, latent heat, and incoming longwave and shortwave radiations are
the same as in Parkinson and Washington [60] and are shown in Appendix E. The sensible heat is
11111111111111111
00000000000000000
00000000000000000
11111111111111111
00000000000000000
11111111111111111
Qai
hs
Qs
Qi2
hi
T3
Qao
T2
FT
11111
00000
00000
11111
00000
11111
T1
Qio
T0
FT
Figure 8: Diagram of internal ice temperatures and fluxes. The hashed layer is the snow.
40
Variable
αw
αi
αi
αs
αs
Ck
Cpi
Cpo
w
i
s
E(T, r)
FT ↑
H↓
iw
ki
ks
Li
Ls
LE ↓
LW↓
m
Φ
Qai
Qao
Qi2
Qio
Qs
r
ρi
Si
SW↓
σ
T0
T1
T2
T3
Tf
Tmelt_i
Tmelt_s
Wai
Wao
Wf r
Wio
Wro
Value
0.10
0.60
0.65
0.72
0.85
2093 J kg−1 K−1
3990 J kg−1 K−1
0.97
0.97
0.99
2.04 W m−1 K− 1
0.31 W m−1 K− 1
302 MJ m−3
110 MJ m−3
−0.054◦ C/PSU
910 m3 /kg
5 PSU
5.67 × 10−8 W m−2 K−4
mSi
0◦ C
Wai
Description
shortwave albedo of water
shortwave albedo of wet ice
shortwave albedo of dry ice
shortwave albedo of wet snow
shortwave albedo of dry snow
snow correction factor
specific heat of ice
specific heat of water
longwave emissivity of water
longwave emissivity of ice
longwave emissivity of snow
enthalpy of the ice/brine system
heat flux from the ocean into the ice
sensible heat
fraction of the solar heating transmitted
through a lead into the water below
thermal conductivity of ice
thermal conductivity of snow
latent heat of fusion of ice
latent heat of fusion of snow
latent heat
incoming longwave radiation
coefficient in linear Tf (S) = mS equation
contribution to A equation from freezing water
heat flux out of the snow/ice surface
heat flux out of the ocean surface
heat flux up out of the ice
heat flux up into the ice
heat flux up through the snow
brine fraction in ice
density of ice
salinity of the ice
incoming shortwave radiation
Stefan-Boltzmann constant
temperature of the bottom of the ice
temperature of the interior of the ice
temperature at the upper surface of the ice
temperature at the upper surface of the snow
freezing temperature
melting temperature of ice
melting temperature of snow
melt rate on the upper ice/snow surface
freeze rate at the air/water interface
rate of frazil ice growth
freeze rate at the ice/water interface
rate of run-off of surface melt water
Table 5: Variables used in the ice thermodynamics
41
a function of T3 , as is the heat flux through the snow Qs . Setting Qai = Qs , we can solve for T3
by setting T3n+1 = T3n + ∆T3 and linearizing in ∆T3 . The temperature T3 is found by an iterative
solution of the surface heat flux balance (using the previous value of T1 in equation 206). As in
Parkinson and Washington, if T3 is found to be above the melting temperature, it is set to Tmelt
and the extra energy goes into melting the snow or ice:
Qai − Qi2
ρo L3
L3 ≡ [E(T3 , 1) − E(T1 , R1 )]
Wai =
(199)
(200)
Note that L3 = (1 − r)Li plus a small sensible heat correction. We are not storing water on
the surface in melt pools, so everything melted at the surface is assumed to flow into the ocean
(Wro = Wai ).
Inside the ice there are brine pockets in which there is salt water at the in situ freezing temperature. It is assumed that the ice has a uniform overall salinity of Si and that the freezing
temperature is a linear function of salinity. The brine fraction r is given by
r=
Si m
T1
The enthalpy of the combined ice/brine system is given by
E(T, r) = r(Li + Cpo T ) + (1 − r)Cpi T
(201)
Substituting in for r and differentiating gives:
∂E
Si mLi
+ Cpi
=−
∂T
T12
(202)
Inside the snow, we have
Qs =
ks
(T2 − T3 )
hs
(203)
The heat conduction in the upper part of the ice layer is
QI2 =
2ki
(T1 − T2 )
hi
(204)
These can be set equal to each other to solve for T2
T2 =
T3 + Ck T1
1 + Ck
where
Ck ≡
(205)
2ki hs
.
hi ks
Substituting into (204), we get:
Qs = QI2 =
2ki (T1 − T3 )
hi (1 + Ck )
(206)
Note that in the absence of snow, Ck becomes zero and we recover the formula for the no-snow
case in which T3 = T2 .
At the bottom of the ice, we have
QI0 =
2ki
(T0 − T1 )
hi
42
(207)
Variable
b
Ė
k
ν
Ṗ
Pr
Prt
S0
τio
τao
T
uτ
z0
Value
3.0
0.4
1.8 × 10−6 m2 s−1
13.0
0.85
Definition
factor
evaporation
von Karman’s constant
kinematic viscosity of seawater
precipitation
molecular Prandtl number
turbulent Prandtl number
surface salinity
stress on the ocean from the ice
stress on the ocean from the wind
internal ocean temperature
−1/2
friction velocity |τio |1/2 ρo
roughness parameter
Table 6: Ocean surface variables
The difference between QI0 and QI2 goes into the enthalpy of the ice:
∂E
+ ~v · ∇E = QI0 − QI2
ρi h i
∂t
We can use the chain rule to obtain an equation for timestepping T1 :
∂E ∂T1
ρi h i
+ ~v · ∇T1 = QI0 − QI2
∂T ∂t
(208)
(209)
where
QI0 − QI2
5.2.1
2ki
(T1 − T3 )
(T0 − T1 ) −
=
hi
1 + Ck
2ki
T3 − (2 + Ck )T1
=
(T0 +
hi
1 + Ck
Ocean surface boundary conditions
The ocean receives surface stresses from both the atmosphere and the ice, according to the ice
concentration:
∂uw
A x 1−A x
= τio
+
τ
(210)
Km
∂z
ρo
ρo ao
∂vw
A y
1−A y
Km
= τio
+
τ
(211)
∂z
ρo
ρo ao
where the relevant variables are in table 6.
The surface ocean is assumed to be at the freezing temperature for the surface salinity (T0 = mS)
where we use the salinity from the uppermost model point at z = − 12 ∆z. From this, we can obtain
a vertical temperature gradient for the upper ocean to use in the heat flux formula:
FT
= −CTz (T0 − T )
ρo Cp o
z→0
(212)
where
CTz =
Prt
uτ
−1
k ln(−z/z
BT = b
0)
+ BT
z u 1/2
0 τ
P r2/3
ν
43
(213)
(214)
Variable
Cpi
Cpw
γ
L
mi
mw 1
mw 2
m
n
S1
S2
T1
T2
Value
1994 J kg−1 K−1
3987 J kg−1 K−1
mi /mw2
3.16e5 J kg−1
−0.0543
7.59 × 10−4
Definition
specific heat of ice
specific heat of water
fraction of water that froze
latent heat of fusion
mass of ice formed
mass of water before freezing
mass of water after freezing
constant in freezing equation
constant in freezing equation
salinity before freezing
salinity after freezing
temperature before freezing
temperature after freezing
Table 7: Frazil ice variables
Once we have a the value for FT , we can use it to find the ice growth rates:
1
(Qio − FT )
ρo Lo
1
(Qao − FT )
=
ρo Lo
Wio =
(215)
Wao
(216)
(217)
where
Lo ≡ [E(T0 , 1) − E(T1 , r1 )]
(218)
The ocean model receives the following heat and salt fluxes:
5.2.2
FT = AQio + (1 − A)Qao − Wo Lo
(219)
FS = (Wo − AWro )(Si − S0 ) + (1 − A)So (Ṗ − Ė)
(220)
Wo ≡ AWio + (1 − A)Wao
(221)
Frazil ice formation
Following Steele et al. [80], we check to see if any of the ocean temperatures are below freezing at
the end of each timestep. If so, frazil ice is assumed to form, changing the local temperature and
salinity. The ice that forms is assumed to instantly float up to the surface and add to the ice layer
there. We assume balances in the mass, heat, and salt before and after the ice is formed:
mw 1 = mw 2 + mi
mw1 (Cpw T1 + L) = mw2 (Cpw T2 + L) + mi Cpi T2
mw 1 S 1 = mw 2 S 2 .
(222)
(223)
(224)
The variables are defined in Table 7. Defining γ = mi /mw2 and dropping terms of order γ 2 leads
to:
Cpi
L
T2 = T1 + γ
+ T1 1 −
(225)
Cpw
Cpw
S2 = S1 (1 + γ).
(226)
44
We also want the final temperature and salinity to be on the freezing line, which we approximate
as:
Tf = mS + nz.
(227)
We can then solve for γ:
γ=
−T1 + mS1 + nz
.
Cpi
LCpw + T1 1 − Cpw
− mS1
(228)
The ocean is checked at each depth k and at each timestep for supercooling. If the water is below
freezing, the temperature and salinity are adjusted as in equations (225) and (226) and the ice
above is thickened by the amount:
ρw
(229)
∆h = γk ∆zk .
ρi
5.2.3
Differences from Mellor and Kantha
We have tried to modify the hakkis model to more closely follow MK89. However, there are also
ways in which we have deviated from it.
• Add advection of snow.
• Add lateral melting of snow when ice is melting laterally.
• We iterate on the solution of T3 .
• We added various limiters:
– Ice concentration:Amin ≤ A ≤ 1.0, Amin = 0.0.
– Ice thickness: hi ≥ 0.0.
– Snow thickness: hs ≥ 0.0.
– Brine fraction: r ≤ rmax , rmax = 0.2
– Surface water: 0.0 ≤ Ws ≤ Ws max , Ws max = 0.1
45
6
Details of the Code
6.1
Directory structure
The directory structure is as shown in Fig. 9, with the ability to run the ocean alone or coupled to
atmospheric and/or wave models. If running just the ocean, the model can be run forward in time
(the nonlinear model) or as an adjoint, tangent linear, or representer model for data assimilation
purposes. This document describes the uncoupled forward model only, specifically the version used
for the Northeast Pacific domain containing sea ice and other changes from the main trunk code.
Details are subject to change without notice - check your own source code for specific details as
they apply to you.
The directories shown here are:
Apps
This directory contains a subdirectory for each of my personal applications. The subdirectory contains files used by that application: the ROMS header file for setting cpp
definitions, the analytic formulations for fields computed in the model rather than read
from files (bottom heat flux of zero, for instance), and ASCII input files read by ROMS
on startup to set things such as forcing file names and model time-step. Some of these
applications are:
Bering This is a 4 km grid of the Bering Sea, aligned with the Northeast Pacific grid
but at three times the resolution.
Bering_10k This is a 10 km grid of the Bering Sea, a subset of the Northeast Pacific
domain, with the same extent as the 4 km grid above.
CGOA This is a 3 km grid of the Gulf of Alaska. It is a subset of the Northeast Pacific
grid, but at four times the resolution.
Circle
This is a circular domain wave propagation problem with an analytic solution
used as a test problem ([39]).
NEP
This is the Northeast Pacific domain covering the waters off the west coast of
the US, from California to the Bering Sea. It is a rectangular domain at about
11 km resolution when viewed in a conformal conic projection with standard
latitudes of 40 and 60 N.
Paul Budgell’s applications are also here. The application-specific files included in the
main trunk ROMS are elsewhere.
Atmosphere This directory is under development, not currently supported.
Compilers This contains makefile fragments as described in §G.3.
Data
Directories under here contain example forcing, grid, and initial condition NetCDF files.
There is also a directory containing the headers of these files in the format produced by
ncdump (CDL).
Lib
The ARPACK and MCT libraries are needed by the data assimilation codes and by the
coupled models, respectively.
makefile This is the standard ROMS makefile as described in §G.
Master The ROMS main program is here, in various forms for the forward model, coupled models
and others. See §6.2.
ROMS These files are for the ocean model, as opposed to other components of the coupled system.
46
Bering/
Apps/
Bering_10k/
Atmosphere/
CGOA/
Adjoint/
Compilers/
Circle/
Bin/
Data/
NEP/
Drivers/
Libs/
External/
makefile
Master/
Functionals/
Include/
ROMS/
License_ROMS.txt
User/
Modules/
Waves/
Nonlinear/
Biology/
Obsolete/
Sediment/
Programs/
Representer/
SeaIce/
Tangent/
Utility/
Version
Figure 9: ROMS directory structure.
Adjoint This is the adjoint of the forward model, for data assimilation.
Bin
Various shell and Perl scripts for use with the model. Note that the .sh files are
actually csh scripts, not sh scripts—if it were up to me, I’d rename them all to
.csh.
Drivers The main program includes one of these files, depending on how you are running
the model. The forward model is in nl_ocean.h.
External ROMS reads an ASCII file on startup. Here are examples for various applications, also examples of the optional files for extra components such as a sediment
model.
Functionals The file analytical.F can include one or more code bits for the analytic
specification of for instance the initial conditions. Here are examples for the
supported model test problems.
Include Each application has a header file with C preprocessor options for that application. For instance, the UPWELLING case has the include file upwelling.h
containing C preprocessor options for its periodic channel domain. The full list
of available options is in cppdefs.h.
License_ROMS.txt The open source license under which ROMS is copyrighted.
Modules The ROMS data structures are now in Fortran 90 module files, located here.
Nonlinear The routines used by the nonlinear forward model are here, implementing the
physics described in §4.
Biology The files for the ecosystem parts of the forward model are here.
47
mpi_init
initialize_parallel
ROMS_initialize
wclock_on
get_data
ROMS_run
inp_par
main3d or main2d
ROMS_finalize
mod_arrays
mpi_finalize
initial
get_data
<loop>
if (trouble) wrt_rst
wclock_off
close_io
Figure 10: ROMS main structure.
Sediment The files for the sediment parts of the forward model are here.
Obsolete Long unused versions of the boundary conditions are stored here.
Programs Not all computer architectures or compilers are the same. The types.F program checks your compiler for the sizes of the Fortran floating point types.
Representer This is the representer of the forward model, for data assimilation.
SeaIce The sea ice model described in §5 is here.
Tangent This is the tangent linear of the forward model, for data assimilation.
Utility Here are utility functions used by the various ROMS routines, many dealing with
I/O.
Version A file containing the time and date of this svn revision, also the svn URL.
User
Some might choose to use this directory rather than the Apps directory. It serves the
same purpose but is arranged by file type rather than by application.
Waves The SWAN wave model is here.
6.2
6.2.1
Main subroutines
master.F
The main program is in master.F. It is simply a shell, including one of mct_coupler.h,
esmf_coupler.h or ocean.h. In our case, ocean.h contains the actual main program, which
initializes MPI (if needed), calls ROMS_initialize, calls ROMS_run with arguments for how
many steps to take, then ROMS_finalize, and finally wraps up the MPI. See Fig. 10.
6.2.2
ocean_control.F
This is again a shell which includes one of many other files to do the actual work. In this case, the
worker files all contain ROMS_initialize, ROMS_run and ROMS_finalize and live in the
ROMS/Drivers directory. The driver file we will be looking at is nl_ocean.h.
6.2.3
ROMS_initialize
This is called at the beginning of the run and therefore starts off by finding out how many parallel
processes are running and which one this is, then calls the following ROMS routines:
48
initialize_parallel is in the mod_parallel module and sets up a few variables, including some
for the built-in profiling.
wclock_on is in timers.F and initializes a timer for the built-in profiling.
inp_par reads in the ASCII input file(s) used by ROMS.
mod_arrays allocates and initializes the dynamically sized arrays in ROMS based on the grid
sizes read in by inp_par.
initial
reads in the initial conditions from a NetCDF file or computes them analytically. Likewise
for the grid, plus it sets up the vertical grid spacing to be used and many other details.
get_data reads in the first record of time-varying forcing fields, boundary conditions, etc.
6.2.4
ROMS_run
This loops over all the steps from the starting iteration to the ending iteration in its argument list.
The loop consists of calls to:
get_data reads in the second and subsequent records of time-varying forcing fields, boundary
conditions, etc.
main3d or main2d solves the full equations described in §4 (main3d) or the depth-integrated
version only (main2d).
6.2.5
ROMS_finalize
This is called at the end of the run, whether it was otherwise successful or not. The routines called
are:
wrt_rst if the run had an error code set, it will write out a restart record of the current model
fields in case they are useful in diagnosing the trouble.
wclock_off ends the built-in timers and causes them to print out a report.
close_io closes all open files so as to flush the buffers and put NetCDF files into a finished state.
6.2.6
main3d
This solves the full three-dimensional equations described in §4. It has siblings main2d for solving
the depth-integrated equations and main3d_offline for reading files from a prior simulation and
using them to advect the biological tracers or the Lagrangian floats. The full version is shown in Fig.
11. Note that many subroutines are optional and only get called if the appropriate C preprocessor
switches have been set. The subroutines are described as follows:
set_data time interpolates between the records read in by get_data.
ini_zeta checks for wet/dry cells if needed and initializes all the time levels of zeta.
ini_fields initializes the 2-D velocities to match the vertical integral of the 3-D velocities, making
all the time levels match.
set_massflux computes horizontal mass fluxes,
Hz u
n
rho_eos computes the nonlinear equation of state.
49
and
Hz v
m .
set_data
first step only:
ini_zeta
ini_fields
set_massflux
rho_eos
diag
radiation_stress
cawdir_eval
ccsm_flux
bulk_flux
ncep_flux
bblm
set_vbc
set_tides
-
ana_vmix
-
lmd_vmix
bvf_mix
hmixing
omega
wvelocity
set_zeta
set_diags
set_filter
set_avg
set_avg2
output
exit if last
step done
rhs3d
my25_prestep
gls_prestep
<loop>
step2d
step2d
step3d_uv
omega
my25_corstep
gls_corstep
biology
sediment
step3d_t
ice_frazil
step_floats
seaice
Figure 11: Flow chart of the model main program.
diag
computes some global sums, prints them, and checks them to see if they are sensible. If
not, it stops the model run.
radiation_stress computes the radiation stresses due to wave-current interactions ([53] and [54]).
cawdir_eval computes a 24-hour mean albedo at the marine surface. Not in the trunk code.
ccsm_flux computes the surface fluxes from the atmosphere based on a marine boundary layer.
This version comes from CCSM and is reputed to do better outside of the tropics. Not
in the trunk code.
bulk_flux computes the surface fluxes from the atmosphere based on a marine boundary layer.
This version comes from COARE version 3.0 ([11], [82] and [58]).
ncep_flux computes the surface fluxes from the NCEP atmospheric model. Not in the trunk
code.
bblm
compute the bottom stresses from one of three bottom boundary layer models.
set_vbc computes the surface and bottom fluxes and stresses that aren’t computed elsewhere—set
vertical boundary conditions.
set_tides computes the tidal boundary conditions from the tidal constituents.
seaice
runs the sea ice model described in §5. It changes the surface boundary conditions for
the ocean and therefore gets called before the call to output or anything else that would
be needing the surface boundary conditions. Not in the trunk code.
50
ana_vmix is called if there’s an analytic profile for the vertical mixing coefficient.
lmd_vmix is called when using the K-profile parameterization of vertical mixing ([41] and [40]).
bvf_mix computes the vertical mixing as a function of the Brunt-Väisälä frequency.
hmixing computes time-dependent horizontal mixing coefficients ([76], [31], [88] and [23]).
omega computes the Ω vertical velocity from the horizontal divergences.
wvelocity computes the physical vertical velocity for the model output.
set_zeta sets the surface elevation to the time-mean over the last baroclinic time-step.
set_diags accumulates the time-average of the diagnostics fields.
set_filter accumulates a weighted sum using a Lanczos filter for detiding the most important of
the output fields. Not in the trunk code.
set_avg accumulates time-averaged fields for the averages output.
set_avg2 accumulates the time-averaged surface fields for the second averages output. Not in the
trunk code.
output writes to various output NetCDF files.
rhs3d
computes right-hand-sides of the three-dimensional velocity and tracer fields.
my25_prestep computes the predictor step for turbulent kinetic energy prognostic variables, tke
and gls.
gls_prestep computes the predictor step for turbulent kinetic energy prognostic variables, tke
and gls.
step2d computes the depth-integrated time-step. It is called in a loop over all the short timesteps, first as a predictor step, then as a corrector step.
step3d_uv completes the time-step for the three-dimensional velocities.
omega computes the Ω vertical velocity.
my25_corstep performs the corrector step for turbulent kinetic energy and length scale prognostic variables, tke and gls ([57] and [20]).
my25_corstep performs the corrector step for turbulent kinetic energy and length scale prognostic variables, tke and gls ([85]).
biology computes the changes to the biological tracers due to biological activity using one of
several options for the ecosystem model.
sediment computes changes to the sediment tracers ([87]).
step3d_t completes the tracer time-step.
ice_frazil computes the frazil ice growth, if any. Not in the trunk code.
step_floats time-steps the Lagrangian floats.
51
6.3
Initialization
checkdefs Reports on which C preprocessor variables have been #defined and checks their consistency.
ana_grid Computes the grid internally.
ana_mask Computes the land mask internally.
get_grid Reads in the curvilinear coordinate arrays as well as f and h from a grid NetCDF file.
set_scoord Sets and initializes relevant variables associated with the vertical transformation to
nondimensional σ-coordinate described in Appendix B.
set_weights Sets the barotropic time-step average weighting function.
metrics Computes the metric term combinations which do not depend on the surface elevation
and therefore remain constant in time.
ana_hmixcoef Computes the horizontal mixing coefficients.
ana_nudgcoef Computes the nudging time scales.
ana_initial Analytic initial conditions for momentum and active tracers.
ana_passive Analytic initial conditions for passive tracers.
ana_biology Analytic initial conditions for ecosystem tracers.
ana_sediment Analytic initial conditions for sediment tracers.
ana_ice Analytic initial conditions for ice variables.
get_state Reads initial fields from disk—either restart or from some other source which has been
converted to the appropriate format of NetCDF file.
set_depth Compute time-evolving depths.
set_massflux Compute initial horizontal mass fluxes.
get_idata Read in time-invariant forcing data.
stiffness Compute grid stiffness.
grid_coords Convert initial float and station locations to fractional grid coordinates.
6.4
Modules
Now that we are using Fortran 90, the method of choice for managing data structures is modules.
The ROMS/Modules directory contains all of the ROMS modules that contain globally used
variables. The complete list is:
mod_arrays.F This actually has no data structures, but has the routine that calls the allocate
and initialize routines for all the others.
mod_average.F If AVERAGES is defined, this will provide the storage for the running means
of the fields you are averaging.
52
mod_average2.F If AVERAGES2 is defined, this will provide the storage for the surface running means of the fields you are averaging.
mod_bbl.F If BBL_MODEL is defined, this will provide the storage for the bottom boundary
fields.
mod_biology.F If BIOLOGY is defined, this will provide the storage for the biology interaction
parameters.
mod_boundary.F This contains the storage for the open boundary conditions. If they aren’t
provided analytically, this will also provide the storage for fields read from a file that need
to be time-interpolated.
mod_clima.F If one of CLIMATOLOGY or several other options is defined, this will provide
the storage for the climatology fields.
mod_coupler.F If either MODEL_COUPLING or ESMF_LIB is defined, this will set up
the requisite fields and data structures for the coupling.
mod_coupling.F If SOLVE3D is defined, this will provide the storage for the fields used in
coupling the 2-D and 3-D components of the simulation.
mod_diags.F If DIAGNOSTICS is defined, this will provide the storage for the various tendency terms.
mod_eclight.F If both BIOLOGY and ECOSIM are defined, this will set up the spectral
irradiance variables.
mod_eoscoef.F If NONLIN_EOS is defined, this will provide the polynomial expansion coefficients for the nonlinear equation of state for sea water.
mod_filter.F If FILTERED is defined, this will provide the storage for the weighted means
used in detiding the averages.
mod_floats.F If FLOATS is defined, this will provide the storage for the float tracking variables.
mod_forces.F This provides the storage for the surface and bottom forcing fields.
mod_fourdvar.F If either FOUR_DVAR or VERIFICATION is defined, this will set up
the variational data assimilation variables.
mod_grid.F This provides the storage for the model grid fields.
mod_ice.F If ICE_MODEL is defined, this will provide storage for the ice fields.
mod_iounits.F This contains a number of variables used by the I/O, including file names and
file IDs.
mod_kinds.F This contains the integers associated with the various integer and real Fortran
types. If you find more systems supporting 128-bit reals, let us know.
mod_mixing.F This contains the arrays for the various optional horizontal and vertical mixing
parameterizations.
mod_ncparam.F This contains all sorts of parameters relating to the NetCDF I/O files, including that read from the varinfo.dat file. The parameters MV and NV are set here, giving
the maximum number of variables that can be read [this is a change from the trunk code].
53
mod_nesting.F If NESTING is defined, this module defines generic structures used for nesting,
composed, and mosaic grids. Not yet functional.
mod_netcdf.F This brings in netcdf.mod and defines a few type variables based upon it.
mod_obs.F If either ASSIMILATION or NUDGING is defined, this contains variables for
the observed fields.
mod_ocean.F This contains the 2-D and 3-D fields of the primitive ocean variables and optionally
the sediment variables.
mod_parallel.F This sets up some global variables such as Master, which is true for the master
thread or process. It also initializes the internal ROMS profiling arrays.
mod_param.F This contains the sizes of each grid used, plus things like how many tidal constituents are being used. Many of these are read from the input files during initialization,
not known at compile time.
mod_scalars.F This contains a large number of scalars, i.e. values which don’t have spatial
dependence. Some are fixed constants such as itemp referring to the temperature tracer.
Others could have a different value on each grid.
mod_sediment.F If either SEDIMENT or BBL_MODEL is defined, this contains parameters for the respective model.
mod_sources.F If one of UV_PSOURCE, TS_PSOURCE or Q_PSOURCE is defined,
this contains the variables used for point sources.
mod_stepping.F This contains the time-stepping variables used to point to the relevant time
level.
mod_storage.F If PROPAGATOR is defined, this module defines the work space for the
Generalized Stability Theory (GST) Analysis package (ARPACK).
mod_strings.F This contains strings such as a title for the run, the list of cpp options defined,
and the names of the sections of code being profiled.
mod_tides.F If SSH_TIDES and/or UV_TIDES is defined, this will provide the storage for
the tidal constituents.
6.5
Functionals
The Functionals directory contains analytical.F which conditionally includes code bits for computing analytic values for a wide variety of fields. Many are alternates for reading from NetCDF
files, especially for idealized problems.
ana_aiobc Computes open boundary conditions for the ice concentration.
ana_biology Computes analytic initial conditions for the biology tracers.
ana_bmflux Computes analytic kinematic bottom momentum flux.
ana_btflux Computes analytic kinematic bottom flux of tracer type variables.
ana_cloud Computes analytic cloud fraction.
ana_diag Computes customized diagnostics.
54
ana_fsobc Computes analytic open boundary conditions for the free surface.
ana_grid Sets up an analytic grid.
ana_hiobc Computes open boundary conditions for the ice thickness.
ana_hmixcoef Computes spatially variable horizontal mixing coefficients.
ana_hsnobc Computes open boundary conditions for the snow thickness.
ana_humid Computes analytic atmospheric humidity.
ana_ice Computes analytic initial conditions for the sea ice.
ana_initial Sets up analytic initial conditions for the ocean.
ana_m2clima Sets up an analytic climatology for the two-dimensional momentum.
ana_m2obc Computes open boundary conditions for the two-dimensional momentum.
ana_m3clima Sets up an analytic climatology for the three-dimensional momentum.
ana_m3obc Computes open boundary conditions for the three-dimensional momentum.
ana_mask Sets up an analytic mask.
ana_ncep Sets up analytic fields as if they came from NCEP.
ana_nudgcoef Sets up spatially dependent nudging coefficients for nudging to a climatology.
ana_pair Computes analytic sea-level air pressure.
ana_passive Computes analytic initial conditions for passive tracers.
ana_perturb Computes analytic perturbations to the initial conditions.
ana_psource Computes analytic point source fluxes.
ana_rain Computes analytic rainfall.
ana_scope Sets adjoint sensitivity spatial scope masking arrays.
ana_sediment Computes analytic initial conditions for the sediment tracers.
ana_smflux Computes analytic kinematic surface momentum flux (wind stress).
ana_specir Sets surface solar downwelling spectral irradiance at just beneath the sea surface.
ana_spinning Sets time-variable rotation force as the sum of Coriolis and Centripetal accelerations. This is used in polar coordinate applications (annulus grid).
ana_srflux Computes analytic kinematic surface shortwave radiation.
ana_ssh Computes analytic sea surface height.
ana_sss Computes analytic sea surface salinity.
ana_sst Computes analytic sea surface temperature and dQdSST which are used in the surface
heat flux correction.
ana_stflux Computes analytic kinematic surface flux of tracer type variables.
55
ana_tair Computes analytic air temperature.
ana_tclima Computes analytic tracer climatology fields.
ana_tobc Computes analytic open boundary conditions for all tracers (active, passive, biology,
and sediment).
ana_vmix Computes analytic vertical mixing coefficients.
ana_winds Computes analytic winds.
ana_wwave Computes analytic wind-induced wave amplitude, direction and period.
6.6
Other subroutines and functions
NetCDF I/O
def_*
Creates the ROMS NetCDF file of the appropriate type, including dimensions,
attributes, and variables.
def_info Adds some standard scalar variables to any NetCDF file.
get_srflux Reads shortwave radiation flux
wrt_* Writes to the ROMS NetCDF file of the appropriate type.
6.7
C preprocessor variables
Before it can be compiled, the model must be run through the C preprocessor cpp, as described
in Appendix F. The C preprocessor has its own variables, which may be defined either with an
explicit #define command or with a command line option to cpp. We have chosen to define these
variables in an application-specific include file, except for some machine-dependent ones, which are
defined in the makefile. These variables allow you to conditionally compile sections of the code.
For instance, if MASKING is not defined, the masking code will not be seen by the compiler,
and the masking variables will not be declared. These cpp variables can be grouped into several
categories:
Momentum terms The default horizontal advection is 3rd-order upstream bias for 3D momentum and 4th-order centered for 2D momentum. The default vertical advection is 4th-order
centered for 3D momentum. If this is the case, no flags for momentum advection need to
be activated except for UV_ADV.
The 3rd-order upstream split advection (UV_U3ADV_SPLIT) can be used to correct
for the spurious mixing of the advection operator in terrain-following coordinates. If this
is the case, the advection operator is split in advective and viscosity components and
several internal flags are activated in globaldefs.h. Notice that horizontal and vertical
advection of momentum is 4th-order centered plus biharmonic viscosity to correct for
spurious mixing.
UV_ADV Define to compute the momentum advection terms.
CURVGRID Define to compute the extra non-linear advection terms which arise when
using curvilinear coordinates.
UV_COR Define to compute the Coriolis term.
UV_U3ADV_SPLIT Define for 3rd-order upstream split momentum advection.
UV_C2ADVECTION Define for 2nd-order centered advection.
56
UV_C4ADVECTION Define for 4rd-order centered advection.
UV_SADVECTION Define for splines vertical advection (for shallow, vertically wellresolved domains).
UV_VIS2 Define to compute the horizontal Laplacian viscosity.
UV_VIS4 Define to compute the horizontal biharmonic viscosity.
UV_SMAGORINSKY Define for Smagorinsky-like viscosity.
UV_LOGDRAG Define for logarithmic bottom friction.
UV_LDRAG Define for linear bottom friction.
UV_QDRAG Define for quadratic bottom friction.
RDRG_GRID Define for spatially variable bottom drag.
DRAG_LIMITER Define for bottom drag limiter.
UV_PSOURCE Define for point sources/sinks.
Q_PSOURCE Define for mass point sources/sinks.
Tracers The default horizontal and vertical advection is 4th-order centered.
The 3rd-order upstream split advection (TS_U3ADV_SPLIT) can be used to correct for the spurious diapycnal diffusion of the advection operator in terrain-following
coordinates. If this is the case, the advection operator is split in advective and diffusive
components and several internal flags are activated in globaldefs.h. Notice that horizontal and vertical advection of tracer is 4th-order centered plus biharmonic diffusion to
correct for spurious diapycnal mixing. The total time-dependent horizontal mixing coefficient are computed in hmixing.F. It is also recommended to use the rotated mixing
tensor along geopotentials (MIX_GEO_TS) for the biharmonic operator.
TS_U3ADV_SPLIT Define for 3rd-order upstream split tracer advection.
TS_A4HADVECTION Define for 4nd-order Akima horizontal advection.
TS_C2HADVECTION Define for 2nd-order centered horizontal advection.
TS_C4HADVECTION Define for 4rd-order centered horizontal advection.
TS_MPDATA Define for recursive MPDATA 3D advection ([50]).
TS_U3HADVECTION Define for 3nd-order upstream horizontal advection.
TS_A4VADVECTION Define for 4nd-order Akima vertical advection.
TS_C2VADVECTION Define for 2nd-order centered vertical advection.
TS_C4VADVECTION Define for 4rd-order centered vertical advection.
TS_SADVECTION Define for splines vertical advection (for shallow, vertically wellresolved domains).
TS_DIF2 Define to compute horizontal Laplacian diffusion.
TS_DIF4 Define to compute horizontal biharmonic diffusion.
TS_SMAGORINSKY Define for Smagorinsky-like diffusion.
TS_FIXED Define for a diagnostic calculation in which the tracer fields do not change
in time.
T_PASSIVE Define for passive tracers.
SALINITY Define if salinity is used as one of the active tracers.
NONLIN_EOS Define to use the nonlinear equation of state.
57
QCORRECTION Define to use the net heat flux correction.
SCORRECTION Define to use freshwater flux correction.
SOLAR_SOURCE Define to use solar radiation source term.
SRELAXATION Define to use salinity relaxation as a freshwater flux.
TS_PSOURCE Define for point sources/sinks.
Pressure gradient options If no option is selected, the pressure gradient term is computed
using standard density Jacobian algorithm. Notice that there are two quartic pressure
Jacobian options. They differ on how the WENO reconciliation step is done and in the
monotonicity constraining algorithms.
DJ_GRADPS Define for splines density Jacobian ([72]).
PJ_GRADP Define for finite volume Pressure Jacobian ([45]).
PJ_GRADPSQ2 Define for quartic 2 Pressure Jacobian ([72]).
PJ_GRADPSQ4 Define for quartic 4 Pressure Jacobian ([72]).
DJ_GRADPS Define for weighted density Jacobian ([78]).
ATM_PRESS Define to impose atmospheric sea-level pressure onto the sea surface.
Atmospheric boundary layer There are three ways to provide longwave radiation in the atmospheric boundary layer: (1) Compute the net longwave radiation internally using the
Berliand (1952) equation (LONGWAVE) as function of air temperature, sea surface
temperature, relative humidity, and cloud fraction; (2) provide (read) longwave downwelling radiation only and then add outgoing longwave radiation (LONGWAVE_OUT)
as a function of the model sea surface temperature; (3) provide net longwave radiation
(default).
The shortwave radiation can be computed using the global albedo equation with a cloud
correction. Alternatively, input shortwave radiation data computed from averaged data
(with snapshots greater or equal than 24 hours) can be modulated by the local diurnal
cycle which is a function longitude, latitude and day-of-year.
BULK_FLUXES Define for bulk flux computation.
CCSM_FLUXES Define for CCSM version of bulk flux computation.
NCEP_FLUXES Define if NCEP forcing files are used.
NL_BULK_FLUXES Define to use bulk fluxes computed by nonlinear (forward)
model.
COOL_SKIN Define for cool skin correction.
LONGWAVE Define to compute net longwave radiation.
LONGWAVE_OUT Define to compute outgoing longwave radiation.
EMINUSP Define to compute evaporation minus precipitation.
COARE_TAYLOR_YELLAND Define to use Taylor and Yelland wave roughness
([82]).
COARE_OOST Define to use Oost et al. wave roughness ([58]).
DEEPWATER_WAVES Define to use deep water waves approximation.
ALBEDO Define to use albedo equation for shortwave radiation.
DIURNAL_SRFLUX Define to impose the local diurnal cycle onto the shortwave
radiation.
58
General model configuration
SOLVE3D Define to solve the 3-D primitive equations.
MASKING Define if there is land in the domain to be masked out.
BODYFORCE Define to apply the surface stress as a body force.
PROFILE Define for time profiling.
AVERAGES Define to write out time-averaged model fields.
AVERAGES2 Define to write out secondary time-averaged model fields.
AVERAGES_AKV Define to write out time-averaged AKv.
AVERAGES_AKT Define to write out time-averaged AKt.
AVERAGES_AKS Define to write out time-averaged AKs.
AVERAGES_DETIDE Define to write out time-averaged detided fields, one method.
FILTERED Define to write out time-averaged detided fields, using a Lanczos filter.
AVERAGES_FLUXES Define to write out time-averaged surface fluxes.
AVERAGES_NEARSHORE Define to write out time-averaged nearshore stresses.
AVERAGES_QUADRATIC Define to write out time-averaged quadratic terms.
AVERAGES_BEDLOAD Define to write out time-averaged bed load.
ICESHELF Define for ice shelf cavities.
SPHERICAL Define if lat/lon coordinates rather than x/y.
SPLINES Define for conservative, parabolic spline reconstruction of vertical derivatives.
STATIONS Define to write out time-series information at specific points in the model.
STATIONS_CGRID Define if stations are on native C-grid.
FLOATS Define for simulated Lagrangian drifters.
FLOATS_VWALK Define if floats do vertical random walk.
VWALK_FORWARD Define for forward time stepping of vertical random walk.
DEBUGGING Define to suppress timestamps for easier comparisons between files.
Analytic fields
ANA_BIOLOGY Define for analytic biology initial conditions.
ANA_BPFLUX Define for an analytic bottom passive tracer flux.
ANA_BSFLUX Define for an analytic bottom salt flux.
ANA_BTFLUX Define for an analytic bottom heat flux.
ANA_CLOUD Define for an analytic cloud fraction.
ANA_DIAG Define for customized diagnostics.
ANA_FSOBC Define for analytic free-surface boundary conditions.
ANA_GRID Define for an analytic model grid set-up.
ANA_HUMIDITY Define for analytic surface air humidity.
ANA_ICE Define for analytic ice initial conditions.
ANA_INITIAL Define for analytic initial conditions.
ANA_M2CLIMA Define for an analytic 2D momentum climatology.
ANA_M2OBC Define for analytic 2D momentum boundary conditions.
59
ANA_M3CLIMA Define for an analytic 3D momentum climatology.
ANA_M3OBC Define for analytic 3D momentum boundary conditions.
ANA_MASK Define for an analytic mask.
ANA_PAIR Define for an analytic surface air pressure.
ANA_PASSIVE Define for analytic initial conditions for inert tracers.
ANA_PERTURB Define for analytic perturbation of initial conditions.
ANA_PSOURCE Define for analytic point sources.
ANA_RAIN Define for analytic rain fall rate.
ANA_SEDIMENT Define for analytic sediment initial fields.
ANA_SMFLUX Define for an analytic kinematic surface momentum stress.
ANA_SPFLUX Define for analytic surface passive tracers fluxes.
ANA_SPINNING Define for an analytic time-varying rotation force.
ANA_SRFLUX Define for an analytic kinematic surface shortwave radiation.
ANA_SSFLUX Define for an analytic kinematic surface freshwater flux.
ANA_SSH Define for an analytic sea surface height.
ANA_SSS Define for an analytic sea surface salinity.
ANA_SST Define for an analytic SST and ∂Q/∂SST.
ANA_STFLUX Define for an analytic kinematic surface heat flux.
ANA_TAIR Define for analytic surface air temperature.
ANA_TCLIMA Define for an analytic tracer climatology.
ANA_TOBC Define for analytic tracer open boundary conditions.
ANA_VMIX Define for analytic vertical mixing coefficients.
ANA_WIND Define for analytic surface winds.
ANA_WWAVE Define for an analytic wind induced wave field.
Horizontal mixing of momentum
MIX_GEO_UV Define for viscosity along constant z (geopotential) surfaces.
MIX_S_UV Define for viscosity along constant s surfaces.
VISC_GRID Define for horizontally variable viscosity coefficient.
Horizontal mixing of tracers
DIFF_GRID Define for horizontally variable diffusion coefficient.
MIX_GEO_TS Define for diffusion along constant z (geopotential) surfaces.
MIX_ISO_TS Define for diffusion along constant potential density (epineutral) surfaces.
MIX_S_TS Define for diffusion along constant s surfaces.
CLIMA_TS_MIX Define for diffusion of tracer perturbation T − T clm
Vertical mixing
BVF_MIXING Define to activate Brunt-Väisälä frequency mixing.
GLS_MIXING Define for Generic Length-Scale mixing.
60
CANUTO_A Define for Canuto A-stability function formulation.
CANUTO_B Define for Canuto B-stability function formulation.
CHARNOK Define for Charnok surface roughness from wind stress.
CRAIG_BANNER Define for Craig and Banner wave breaking surface flux.
KANTHA_CLAYSON Define for Kantha and Clayson stability function.
K_C2ADVECTION Define for 2th-order centered advection.
K_C4ADVECTION Define for 4th-order centered advection.
N2S2_HORAVG Define for horizontal smoothing of buoyancy/shear.
ZOS_HSIG Define for surface roughness from wave amplitude.
TKE_WAVEDISS Define for wave breaking surface flux from wave amplitude.
LMD_MIXING Define to activate Large/McWilliams/Doney interior closure.
LMD_BKPP Define to add a bottom boundary layer from a local K-Profile
Parameterization (KPP).
LMD_CONVEC Define to add convective mixing due to shear instabilities.
LMD_DDMIX Define to add double-diffusive mixing.
LMD_NONLOCAL Define to add convective nonlocal transport.
LMD_RIMIX Define to add diffusivity due to shear instabilities.
LMD_SHAPIRO Define to Shapiro filtering boundary layer depths.
LMD_SKPP Define to add a surface boundary layer from a local K-Profile
Parameterization (KPP).
MY25_MIXING Define to activate Mellor/Yamada Level-2.5 closure.
KANTHA_CLAYSON Define for Kantha and Clayson stability function.
K_C2ADVECTION Define for 2th-order centered advection.
K_C4ADVECTION Define for 4th-order centered advection.
N2S2_HORAVG Define for horizontal smoothing of buoyancy/shear.
PP_MIXING Define to activate Pacanowski/Philander closure.
RI_HORAVG Define for horizontal Richardson number smoothing.
RI_VERAVG Define for vertical Richardson number smoothing.
Bottom boundary layer The Options MB_Z0BL and MB_Z0RIP should be activated concurrently.
MB_BBL Define to activate Meinte Blaas BBL closure.
MB_CALC_ZNOT Define to compute bottom roughness internally.
MB_CALC_UB Define to compute bottom orbital velocity internally.
MB_Z0BIO Define for biogenic bedform roughness for ripples.
MB_Z0BL Define for bedload roughness for ripples.
MB_Z0RIP Define for bedform roughness for ripples.
SG_BBL Define to activate Styles/Glenn bottom boundary layer formulation.
SG_CALC_ZNOT Define to compute bottom roughness internally.
SG_CALC_UB Define to compute bottom orbital velocity internally.
SG_LOGINT Define for logarithmic interpolation of (Ur,Vr).
SSW_BBL Define to activate Sherwood/Signell/Warner bottom boundary layer closure.
SSW_CALC_ZNOT Define to compute bottom roughness internally.
61
SSW_CALC_UB Define to compute bottom orbital velocity internally.
SSW_LOGINT Define for logarithmic interpolation of (Ur,Vr).
SSW_FORM_DRAG_COR Define to activate form drag coefficient.
SSW_Z0BIO Define for biogenic bedform roughness for ripples.
SSW_Z0BL Define for bedload roughness for ripples.
SSW_Z0RIP Define for bedform roughness for ripples.
Sea ice
ICE_MODEL Define to use ice component of the model (see §5).
ICE_THERMO Define for ice thermodynamics.
ICE_MK Define for Mellor-Kantha ([55]) ice thermodynamics—this is the only
choice.
ICE_SMOOTH Define to smooth some ice fields.
ICE_ALB_EC92 Define for albedo computations from Ebert and Curry ([10]).
ICE_MOMENTUM Define for momentum component of the ice.
ICE_MOM_BULK Define for alternate ice-water stress computation.
ICE_EVP Define for elastic-viscous-plastic rheology ([33] and [32]).
ICE_ADVECT Define for advection of ice tracers.
ICE_SMOLAR Define to use MPDATA for ice tracers (no other option).
ICE_UPWIND Define for upwind advection (not available).
ICE_BULK_FLUXES Define for ice part of bulk flux computation.
Boundary conditions
EW_PERIODIC Define for periodic boundaries in the ξ-direction.
SPONGE Define to use SSH climatology as 2D inflow data.
NS_PERIODIC Define for periodic boundaries in the η-direction.
RADIATION_2D Define for tangential phase speed in radiation conditions.
Detailed eastern open boundary conditions Other sides have similar. If none of these are
defined, it is assumed to be a closed wall.
EAST_FSCHAPMAN Define for a Chapman condition on the free surface.
EAST_FSGRADIENT Define for a gradient condition on the free surface.
EAST_FSRADIATION Define for a radiation condition on the free surface.
EAST_FSNUDGING Define for an active/passive nudging term on the free surface.
EAST_FSCLAMPED Define for a clamped free surface.
EAST_M2FLATHER Define for a Flather condition on the 2-D momentum.
EAST_M2GRADIENT Define for a gradient condition on the 2-D momentum.
EAST_M2RADIATION Define for a radiation condition on the 2-D momentum.
EAST_M2REDUCED Define for a reduced physics condition on the 2-D momentum.
EAST_M2NUDGING Define for an active passive nudging term on the 2-D momentum.
EAST_M2CLAMPED Define for clamped 2-D momentum.
EAST_M3GRADIENT Define for a gradient condition on the 3-D momentum.
62
EAST_M3RADIATION Define for a radiation condition on the 3-D momentum.
EAST_M3NUDGING Define for an active passive nudging term on the 3-D momentum.
EAST_M3CLAMPED Define for clamped 3-D momentum.
EAST_KGRADIENT Define for a gradient condition on the TKE fields.
EAST_KRADIATION Define for a radiation condition on the TKE fields.
EAST_TGRADIENT Define for a gradient condition on the tracers.
EAST_TRADIATION Define for a radiation condition on the tracers.
EAST_TNUDGING Define for an active passive nudging term on the tracers.
EAST_TCLAMPED Define for clamped tracers.
EAST_VOLCONS Define for Eastern edge mass conservation enforcement.
Tides
The tidal data is processed in terms of tidal constituents, classified by period. The tidal
forcing is computed for the full horizontal grid. If requested, the tidal forcing is added to
the processed open boundary data.
Both tidal elevation and tidal currents are required to force the model properly. However,
if only the tidal elevation is available, the tidal currents at the open boundary can be estimated by reduced physics. Only the pressure gradient, Coriolis, and surface and bottom
stresses terms are considered at the open boundary. See u2dbc_im.F or v2dbc_im.F
for details. Notice that there is an additional option (FSOBC_REDUCED) for the
computation of the pressure gradient term in both Flather or reduced physics conditions
(*_M2FLATHER, *_M2REDUCED).
SSH_TIDES Define if imposing tidal elevation.
UV_TIDES Define if imposing tidal currents.
RAMP_TIDES Define if ramping (over one day) tidal forcing from zero.
ADD_FSOBC Define to tidal elevation to processed OBC data.
ADD_M2OBC Define to tidal currents to processed OBC data.
TIDES_ASTRO Define to add contributions from the long-period tides as done by
Foreman.
Climatology
M2CLIMATOLOGY Define for processing the 2-D momentum climatology arrays.
M3CLIMATOLOGY Define for processing the 3-D momentum climatology arrays.
OCLIMATOLOGY Define for processing the vertical momentum climatology arrays.
TCLIMATOLOGY Define for processing the tracer climatology arrays.
ZCLIMATOLOGY Define for processing the sea surface height climatology arrays.
M2CLM_NUDGING Define for nudging to 2-D momentum climatology.
M3CLM_NUDGING Define for nudging to 3-D momentum climatology.
TCLM_NUDGING Define for nudging to tracer climatology.
ZCLM_NUDGING Define for nudging to sea surface height climatology.
Ecosystem models
BIO_FENNEL Define for Fennel ([13]) nitrogen-based model.
63
BIO_SEDIMENT Define to restore fallen material to the nutrient pool.
CARBON Define to add carbon constituents.
DENITRIFICATION Define to add denitrification processes.
OXYGEN Define to add oxygen dynamics.
OCMIP_OXYGEN_SC Define if Schmidt number from Keeling et al. ([36]).
RIVER_BIOLOGY Define for river biology point-sources.
TALK_NONCONSERV Define for nonconservative computation of alkalinity.
BEST_NPZ Define for Gibson et al. (personal communication) Bering Sea model.
STATIONARY Define for extra output.
BENTHIC Define for benthic components.
ICE_BIO Define for ice algae.
JELLY Define for jellyfish.
CLIM_ICE_1D Define if 1-D with ice.
BIO_UMAINE Define for Chai et al. ([7]) model.
BIO_GOANPZ Define for Hinckley et al. ([30]) Gulf of Alaska model.
NPZD_FRANKS Define for NPZD model of Franks et al. ([18]).
NPZD_IRON Define for NPZD model with iron limitation.
NPZD_POWELL Define for NPZD model of Powell et al. ([64]).
IRON_LIMIT Define for iron limitation on phytoplankton growth.
IRON_RELAX Define for nudging to iron over the shelf.
ECOSIM Define for bio-optical EcoSim model.
NEMURO Define for Nemuro ecosystem model ([38]). Need to choose a zooplankton
grazing option (HOLLING_GRAZING or IVLEV_EXPLICIT). The default implicit IVLEV algorithm does not work yet.
BIO_SEDIMENT Define to restore fallen material to the nutrient pool.
HOLLING_GRAZING Define for Holling-type s-shaped curve grazing (implicit).
IVLEV_EXPLICIT Define for Ivlev explicit grazing algorithm.
Sediment transport model
SEDIMENT Define to activate sediment transport model ([87]).
BEDLOAD_MPM Define to activate Meyer-Peter-Mueller bed load.
BEDLOAD_SOULSBY Define to activate Soulsby wave/current bed load.
RIVER_SEDIMENT Define to activate river sediment point-sources.
SED_DENS Define to allow sediment to affect equation of state.
SED_MORPH Define to allow bottom model elevation to evolve.
SUSPLOAD Define to activate suspended load transport.
Nearshore options
WET_DRY Define to allow wetting and drying of cells.
NEARSHORE_MELLOR Define for radiation stress terms from waves.
NetCDF input/output
64
DEFLATE Define to set compression of NetCDF-4/HDF5 format files.
NETCDF4 Define to create NetCDF-4/HDF5 format files.
PARALLEL_IO Define to create NetCDF-4/HDF5 format files with MPI-I/O.
NO_READ_GHOST Define to not include ghost points during read/scatter.
NO_WRITE_GRID Define to omit writing grid arrays.
PERFECT_RESTART Define to include perfect restart variables.
READ_WATER Define to only read water points.
WRITE_WATER Define to only write water points.
RST_SINGLE Define to write single precision restart fields.
OUT_DOUBLE Define to write double precision output fields.
INLINE_2DIO Define to read/write 3D fields level by level.
6.8
Important parameters
The following is a list of the important parameters in the model. These are in mod_param.F
and many of them are read from the standard input file as described in §7.1.12.
Lm
Number of interior grid points in the ξ-direction.
Mm
Number of interior grid points in the η-direction.
N
Number of grid points in the vertical.
NAT
Number of active tracers (usually 2 for temperature and salinity).
NBT
Number of biological tracers. This will depend on the ecosystem model used.
NST
Number of sediment tracers.
NPT
Number of passive tracers.
NT
Total number of tracer fields. NT = NAT+NBT+NST+NPT
Nfloats Number of Lagrangian floats to track.
Nstation Number of stations for station output.
MTC
Maximum number of tidal constituents.
NtileI
Number of tiles in the ξ-direction.
NtileJ
Number of tiles in the η-direction.
6.9
Domain decomposition
ROMS supports serial, OpenMP, and MPI computations, with the user choosing between them at
compile time. The serial code can also take advantage of multiple small tiles which can be sized
to fit in cache. All are accomplished through domain decomposition in the horizontal. All of the
horizontal operations are explicit with a relatively small footprint, so the tiling is a logical choice.
Some goals in the parallel design of ROMS were:
• Minimize code changes.
• Don’t hard-code the number of processes.
65
• MPI and OpenMP share the same basic structure.
• Don’t break the serial optimizations.
• Same result as serial code for any number of processes.
• Portability—able to run on any (Unix) system.
First, some cpp options. If we’re compiling for MPI, the option -DMPI gets added to the
argument list for cpp. Then, in globaldefs.h, we have:
#if defined MPI
# define DISTRIBUTE
#endif
The rest of the code uses DISTRIBUTE to identify distributed memory jobs. The OpenMP case
is more straightforward, with -D_OPENMP getting passed to cpp and _OPENMP being the
tag to check within ROMS.
The whole horizontal ROMS grid is shown in Fig. 12. The computations are done over the
cells inside the darker line; the cells are numbered 1 to Lm in the ξ-direction and 1 to Mm in the
η-direction. Those looking ahead to running in parallel would be wise to include factors of two in
their choice of Lm and Mm. ROMS will run in parallel with any values of Lm and Mm, but the
computations might not be load-balanced.
6.9.1
ROMS internal numbers
A domain with tiles is shown in Fig. 13. The overlap areas are known as ghost points or halo
points. Each tile is an MPI process, an OpenMP thread, or a discrete unit of computation in a
serial run. The tile contains enough information to time-step all the interior points, so the number
of ghost points is dictated by the footprint of the algorithm using the largest number of neighbor
points. In ROMS, the halo area would be two grids points wide unless the MPDATA advection
scheme is used, in which case it needs three. The variable GHOST_POINTS is set accordingly:
#if defined TS_MPDATA || defined UV_VIS4
# define GHOST_POINTS 3
# if defined DISTRIBUTE || defined EW_PERIODIC || defined NS_PERIODIC
#
define THREE_GHOST
# endif
#else
# define GHOST_POINTS 2
#endif
The number of tiles is set in the input file as NtileI and NtileJ. For an MPI job, the product
of the two must equal the number of MPI processes. For an OpenMP job, the number of threads
must be a multiple of the number of tiles. For instance, for NtileI= 4 and NtileJ= 6, you must
have 24 MPI processes while 2, 3, 4, 6, 8, 12 and 24 are all valid numbers of OpenMP threads.
Also, a serial run could have 24 tiles and would just compute them sequentially.
Once the input file has been read, we can compute the tile sizes:
ChunkSizeI = (Lm+NtileI-1)/NtileI
ChunkSizeJ = (Mm+NtileJ-1)/NtileJ
MarginI = (NtileI*ChunkSizeI-Lm)/2
MarginJ = (NtileJ*ChunkSizeJ-Mm)/2
66
M d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
d
×
d
×
d
×
d
×
d
×
d
×
d
×
d
i=0
1
1
2
2
3
3
Lm Lm L
L
M
Mm d
Mm
..
.
6
η
2
2
1
1
j=0
···
-
ξ
× – u points
– v points
d – ρ points
Figure 12: The whole grid. Note that there are Lm by Mm interior computational points. The
points on the thick outer line and those outside it are provided by the boundary conditions.
67
ChunkSizeI
3
6
7
2
4
5
1
2
3
tile = 0
1
Jtile = 0
ChunkSizeJ
MarginJ
Itile = 0
1
Figure 13: A tiled grid with some ROMS tile variables.
Some internal ROMS numbers are shown in Fig. 13 and are in the BOUNDS structure in
mod_param.F. MarginI and MarginJ are zero if the numbers work out perfectly, i.e. Lm/NtileI
and Mm/NtileJ are integers. The tile numbers match the MPI process numbers.
In picking a numbering scheme for indices within a tile, there are two common choices, as shown
in Fig. 14. Each tile can be numbered from 1 to ChunksizeI or it can retain the numbering it
would have in the whole grid. We have chosen this second option for ease when debugging features
such as river inputs which apply to specific locations on the grid. It is simple to do using Fortran
90 dynamic memory allocation.
With the tile sizes known, we can assign beginning and ending indices for each tile. Some of
the details depend on whether or not the domain is periodic in that direction, as shown in Fig. 15.
6.9.2
MPI exchange
For MPI jobs, the ghost points need to be updated between interior point computations. The
routines mp_exchange2d, mp_exchange3d and mp_exchange4d can be used to update the
halo points of up to four arrays at a time. Each of these routines call tile_neighbors to figure
out which tiles are neighboring and whether or not there really is a neighboring tile on each side.
The mp_exchangexd routines then call:
mpi_irecv
mpi_send
mpi_wait
The exchanges happen first in the east-west direction, then in the north-south direction, saving
the need for diagonal exchanges. A figure with interior points colored by tile and grey halo points
needing an update is shown in Fig. 16(a). The updated halo points are shown in Fig. 16(b).
68
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
(a)
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
(b)
Figure 14: A choice of numbering schemes: (a) each tile is numbered the same, and (b) each tile
retains the numbering of the parent domain.
6.9.3
Code syntax
In main3d, many function calls are surrounded by OpenMP parallel code such as:
!$OMP PARALLEL DO PRIVATE(thread,subs,tile) SHARED(ng,numthreads)
DO thread=0,numthreads-1
subs=NtileX(ng)*NtileE(ng)/numthreads
DO tile=subs*thread,subs*(thread+1)-1,+1
CALL set_data (ng, TILE)
END DO
END DO
!$OMP END PARALLEL DO
What isn’t obvious from this is that the argument TILE means different things depending on if
we’re using OpenMP or MPI:
#ifdef DISTRIBUTE
# define TILE MyRank
#else
# define TILE tile
#endif
Likewise, NtileX also depends on whether or not we’re using MPI:
#ifdef DISTRIBUTE
NtileX(1:Ngrids)=1
#else
NtileX(1:Ngrids)=NtileI(1:Ngrids)
#endif
In other words, for MPI, TILE becomes the process number and the loop is only executed once.
In looking at a typical routine that’s called from main3d, the routine is usually quite short,
calling a _tile version of itself in which the actual work happens:
69
Non−periodic
western tile
Istr IstrU
IstrR
0
1
central tile
Iend
IstrU Istr
Iend
IendR
IstrR
3
4
2
eastern tile
IstrU Istr
IendR
IstrR
6
7
5
Iend
IendR
8
Lm
L
Periodic
western tile
IstrU Istr
Iend
IstrR
1
central tile
2
IstrU Istr
IendR
IstrR
3
4
eastern tile
Iend
5
IstrU Istr
IendR
IstrR
6
7
Iend
IendR
8
Lm
Figure 15: Some ROMS variables for tiles, for both a periodic and non-periodic case. Shown are
the variables in the i-direction, the j-direction is similar.
SUBROUTINE set_data (ng, tile)
# include "tile.h"
CALL set_data_tile (ng, tile,
&
LBi, UBi, LBj, UBj,
&
IminS, ImaxS, JminS, JmaxS)
RETURN
END SUBROUTINE set_data
&
&
Here, there are two sets of array lower and upper bounds, those in the LBi family and those in the
IminS family. Both depend on the Istr family shown in Fig. 15. The IminS family is for work
arrays that are local to an MPI process or to an OpenMP thread, also local to a _tile routine.
They are initialized:
IminS=BOUNDS(ng)%Istr(tile)-3
ImaxS=BOUNDS(ng)%Iend(tile)+3
JminS=BOUNDS(ng)%Jstr(tile)-3
JmaxS=BOUNDS(ng)%Jend(tile)+3
and used:
real(r8), dimension(IminS:ImaxS,JminS:JmaxS) ::
real(r8), dimension(IminS:ImaxS,JminS:JmaxS) ::
work1
work2
The Istr and LBi families are dimensioned by the number of tiles once it is known by inp_par:
DO ng=1,Ngrids
Ntiles=NtileI(ng)*NtileJ(ng)-1
allocate ( BOUNDS(ng) % LBi (-1:Ntiles) )
:
allocate ( BOUNDS(ng) % Jend (-1:Ntiles) )
END DO
70
(a)
(b)
Figure 16: A tiled grid with out-of-date halo regions shown in grey and the interior points colorcoded by tile: (a) before an exchange and (b) after an exchange.
71
They are then initialized in calls to the routines in get_bounds.F. If a tile is on the “western”
edge (Itile= 0), then UBi is set to LOWER_BOUND_I.
Imin=LOWER_BOUND_I
:
IF ((Itile.eq.-1).or.(Itile.eq.0)) THEN
LBi=Imin
ELSE
LBi=Istr-Nghost
END IF
Tracking the origins of LOWER_BOUND_I, we find it in globaldefs.h:
#ifdef EW_PERIODIC
# define LOWER_BOUND_I -GHOST_POINTS
#else
# define LOWER_BOUND_I 0
#endif
In the case of set_data, we are simply passing array indices for the tiled arrays. To access the
tiled arrays from within set_data_tile, we need to use the relevant modules and then refer to
the array with its full name:
USE mod_forces
:
CALL set_2dfld_tile (ng, tile, iNLM, idCfra,
&
LBi, UBi, LBj, UBj,
&
FORCES(ng)%cloudG,
&
FORCES(ng)%cloud,
&
update)
&
&
&
&
In other cases, the parent routine would have the use, then would pass the relevant array to the
_tile routine:
USE mod_grid
:
CALL prsgrd_tile (ng, tile,
:
&
GRID(ng) % Hz,
:
SUBROUTINE prsgrd_tile (ng, tile,
:
&
Hz, z_r, z_w,
:
real(r8), intent(in) :: Hz(LBi:,LBj:,:)
&
&
&
&
This allows the _tile routine to use Hz with the same syntax as the pre-parallel, pre-module code
once had.
6.9.4
Input/output
In ROMS, the distributed memory I/O is all happening on the master process (0) unless you
specifically ask it to use MPI-I/O, which requires both the NETCDF4 and PARALLEL_IO
cpp flags to be defined. If you do this, you will be reading and writing HDF5 files and will need
72
to update your pre- and post-processing tools accordingly. I have tentatively tried the parallel I/O
and found it to be exceedingly slow—I’ve been told since that this is the fault of the NetCDF-4
layer sitting on top of HDF5—HDF5 alone should be fast.
In the case of having all the I/O pass through the master process, we can still read and write
classic NetCDF-3 files. Care must be taken though, in the event of an error. ROMS has been
cleaned up so that the master process will broadcast its return state to the other processes and
they can all die gracefully together when there is a problem.
An example of a routine which reads from disk is get_grid, called from initial. Each MPI
process calls get_grid:
CALL get_grid (ng, iNLM)
# ifdef DISTRIBUTE
CALL mp_bcasti (ng, iNLM, exit_flag)
# endif
if (exit_flag.ne.NoError) RETURN
If any one of the processes has trouble, it will enter into the exit_flag which is then shared by all.
To read in an array variable, all processes in get_grid uses nf_fread2d and friends:
&
&
&
&
&
&
status=nf_fread2d(ng, model, ncname, ncGRDid(ng),
var_name(it), var_id(it),
0, gtype, Vsize,
LBi, UBi, LBj, UBj,
Fscl, Fmin, Fmax,
GRID(ng) % rmask,
GRID(ng) % rmask)
IF (status.ne.nf90_noerr) THEN
exit_flag=2
ioerror=status
EXIT
END IF
&
&
&
&
&
&
Within nf_fread2d, we get to a call to the NetCDF library from just the master process:
IF (InpThread) THEN
status=nf90_get_var(ncid, ncvarid, wrk, start, total)
:
END IF
# ifdef DISTRIBUTE
CALL mp_bcasti (ng, model, status)
# endif
IF (status.ne.nf90_noerr) THEN
exit_flag=2
ioerror=status
nf_fread2d=status
RETURN
END IF
At this point, the master process has the entire 2-D array stored in wrk. This then needs to be
divvied out to the various tiles to their copy of the array in question (stored in the A argument to
nf_fread2d):
73
# ifdef DISTRIBUTE
CALL mp_scatter2d (ng, model, LBi, UBi, LBj, UBj,
&
Nghost, MyType, Amin, Amax,
# if defined READ_WATER && defined MASKING
&
NWpts, SCALARS(ng)%IJwater(:,wtype),
# endif
&
Npts, wrk, A)
Something similar happens when writing to output files.
74
&
&
&
7
Configuring ROMS for a Specific Application
This chapter describes the parts of ROMS for which the user is responsible when configuring it
for a given application. Section 7.1 describes the process in a generic fashion while §7.2 and §7.3
step through the application of ROMS to upwelling/downwelling and wind-driven Northeast Pacific
problems, respectively. As distributed, ROMS is ready to run quite a few examples, where the C
preprocessor flags determine which is to be executed. Some of these examples are described in
Haidvogel and Beckmann [26], some are listed here:
BASIN This is a rectangular, flat-bottomed basin with double-gyre wind forcing. When run, it
produces a western boundary current flowing into a central “Gulf Stream” which goes
unstable and generates eddies. The goal is to run adiabatically to study the homogenization of potential vorticity. It earned its nickname of Big Bad Basin by taking a long time
to run and causing difficulties for the spectral versions of SPEM.
GRAV_ADJ The gravitational adjustment problem takes place in a long narrow domain which
is initialized with dense water at one end and light water at the other. At time zero, the
water is released and it generates two propagating fronts as the light water rushes to fill
the top and the dense water rushes to fill the bottom. This configuration was used to test
various advection schemes.
OVERFLOW This configuration is similar to the GRAV_ADJ problem, but is initialized with
dense water in the shallow part of a domain with a sloping bottom.
SEAMOUNT The seamount test was used to test the pressure gradient errors. It has an idealized
seamount in a periodic channel. See Beckmann and Haidvogel [4] and McCalpin [51] for
more information.
UPWELLING The upwelling/downwelling example was contributed by Anthony Macks and Jason Middleton [47] and consists of a periodic channel with shelves on each side. There
is along-channel wind forcing and the Coriolis term leads to upwelling on one side and
downwelling on the other side. If you run it for several days without vertical mixing, you
end up with dense water over light water.
Some NetCDF input files for the ROMS examples can be found under Data/ROMS in the ROMS
distribution. The ASCII input files are under ROMS/External.
7.1
Configuring ROMS
The four main sections you need to change in ROMS are the makefile or build.bash, an include
file with cpp options, any analytic functions, and the ASCII input file. If more realistic fields are
desired, you will have to provide other input files as well, for instance for the grid and the wind
forcing.
7.1.1
Case Name
First, you need to decide on a name for your particular application or configuration. This name is
provided via the ROMS_APPLICATION in either the makefile or the build script. This name
should be reasonably short, all uppercase, with spaces converted to underscores. For example, let’s
say we pick the name WIKI_TEST. This name gets defined during the build, so you can add
code protected by #ifdef WIKI_TEST as needed. This would be a good time to either copy
the makefile or the build Script to create one specific to this case prior to editing it.
75
7.1.2
Case-specific Include File
Each application has its own include file, included by cppdefs.h. The name of this file is the name of
your application (WIKI_TEST here) turned into lower case, with ’.h’ appended (wiki_test.h).
The location of this file is set by MY_HEADER_DIR, pointing to User/Include or some
other location of your choosing.
The complete list of options to be set prior to compilation are listed in §6.7. Place those you
need in the wiki_test.h file. These include algorithm choices (e.g. advection and turbulence
closure schemes), boundary conditions, output options (averages, diagnostics, stations, floats), and
application modules (biology, sediments). Each line should be of the form:
#define SOME_VAR
Note that any undefined variable need not be mentioned.
Also note that if you copy a predefined application from ROMS/Include as a template for
your application, you must rename it. If you don’t change the name, ROMS will use the one in
ROMS/Include and your file will be ignored during the build procedure.
7.1.3
Functionals
Some of the cpp Options have names beginning with ANA_. For each one of these, you will be
expected to provide an analytic expression for the field in question in the corresponding include file.
These files are listed in §6.5 and their location is determined by MY_ANALYTICAL_DIR.
You may chose to copy those from User/Functionals to some new directory and place your version
of the assignments within
#ifdef WIKI_TEST
! Set weird and wonderful winds
:
#endif
This makes it easy to search for later, if nothing else.
7.1.4
checkdefs.F
For each new cpp variable other than your application name, it is recommended that you also add
the appropriate code to checkdefs.F, such as:
#ifdef SLEET
IF (Master) WRITE(stdout,20) ’SLEET’,
&
’Sleet falling on the ice option.’
is=lenstr(Coptions)+1
Coptions(is:is+7)=’ SLEET,’
#endif /* ICE */
&
Note that the number “7” on the Coptions line must be set according to the length of the string
you are adding. In this case 7 is for “ SLEET,”, including the comma and the space. Again, you
do not need to do this for your application name (WIKI_TEST here), since checkdefs will print
whatever is in MyAppCPP.
7.1.5
Model domain
One of the first things the user must decide is how many grid points to use, and can be afforded.
There are three parameters in ocean.in which specify the grid size and one parameter for the
number of active tracers:
76
Lm
Mm
N
NAT
Number
Number
Number
Number
of
of
of
of
finite-difference points in ξ.
finite-difference points in η.
finite-difference points in the vertical.
active tracers.
The number of biological tracers is set in the biology.in file. There are no constraints on these
except Lm ≥ 2, Mm ≥ 2, N ≥ 2 and NAT ≥ 1. Lm and Mm should be at least 3 if the domain
is periodic in that direction.
x, y grid
7.1.6
The subroutine get_grid or ana_grid is called by initial to set the grid arrays, the bathymetry,
and the Coriolis parameter. Most of the simple test problems have their grid information specified
in ana_grid.h in the directory ROMS/Functionals. More realistic problems require a NetCDF
grid file, produced by the grid generation programs described in Wilkin and Hedstrom [89], by the
Matlab SeaGrid, or by some other method. The variables which are read by get_grid are:
xl, el, spherical, f, h, pm, pn, x_rho, y_rho, lon_rho, lat_rho, angle.
If the grid is curved, get_grid will also read:
dndx, dmde.
Likewise, if MASKING is defined, it will read:
mask_rho, mask_u, mask_v, mask_psi.
ξ, η grid
7.1.7
Before providing initial conditions and boundary conditions, the user must understand the model
grid. The fields are laid out on an Arakawa C grid as in Fig. 1. The overall grid is shown in Fig. 12.
The thick outer line shows the position of the model boundary. The points inside this boundary
are those which are advanced in time using the model physics. The points on the boundary and
those on the outside must be supplied by the boundary conditions.
The three-dimensional model fields are carried in four-dimensional arrays, where the fourth
array index refers to one of two or three time levels. The tracers have a fifth array index telling
which tracer is being referred to. For instance, itemp = 1 refers to potential temperature while
isalt = 2 refers to salinity. The integers i, j, and k are used throughout the model to index the
three spatial dimensions:
i
j
k
7.1.8
Index variable for the ξ-direction.
Index variable for the η-direction.
Index variable for the σ-direction. k = 1 refers to the bottom
while k = N refers to the surface.
Initial conditions
The initial values for the model fields are provided by either ana_initial or get_state. get_state
is also used to read a restart file if the model is being restarted from a previous run.
Also in initial, rho_eos is called to initialize the density field. rho_eos also computes rhoA,
the vertically averaged density, and rhoS, the density perturbation. Both rhoA and rhoS are
used in the barotropic pressure gradient.
77
7.1.9
Equation of state
The equation of state is defined in the subroutine rho_eos. Two versions are provided in ROMS:
a nonlinear ρ = ρ(T, S, z) from Jackett and McDougall [34] and a linear ρ(T, S). The linear form is
ρ = R0 − Tcoef · (T − T 0) + Scoef · (S − S0)
or
ρ = R0 + Tcoef · (T − T 0),
depending on whether or not SALINITY is defined. Specify which equation of state you would
like to use with the NONLIN_EOS C preprocessor flag in your application include file. The
linear coefficients R0, T0, Tcoef, S0, and Scoef are set in ocean.in. Note that we are computing
in situ density from potential temperature and salinity. Some of the vertical mixing schemes require
potential density and some other fields, which are computed by rho_eos as well.
7.1.10
Boundary conditions
The horizontal boundary conditions are provided by the subroutines in u3dbc_im, v3dbc_im,
u2dbc_im, v2dbc_im, t3dbc_im, and zetabc. They are called every time-step and provide
the boundary values for the fields u, v, u, v, all tracers, and ζ, respectively. They are currently
configured for a closed basin, a periodic channel, a doubly periodic domain or a domain with
various open boundary conditions. Each side is controlled independently with WEST being the
i=1 boundary, EAST being the i=L boundary, SOUTH being the j=1 boundary, and NORTH
being the j=M boundary. These choices are made via the cpp options in your include file.
Many of the choices for open boundaries require that the model have some boundary values for the field in question. These can be specified in the appropriate ana_xxx.h file for say
ANA_TOBC or they can be read from a boundary NetCDF file. There is logic in globaldefs.h
by which ROMS decides whether or not it needs to read a boundary file.
7.1.11
Model forcing
(a) Winds and thermal fluxes
There are two different ways to apply a wind forcing: as a surface momentum flux in the vertical
viscosity term, or as a body force over the upper water column. Usually, we set the vertical σcoordinate parameters to retain some resolution near the surface and apply the fluxes as boundary
conditions to the vertical viscosity/diffusivity. In either case, the surface and bottom fluxes are
either defined analytically, read from a forcing file, or computed inside ROMS using a bulk flux
formula from the appropriate atmospheric fields (air temperature and winds, for instance). You
must either edit the appropriate ana_xxx.h or create a NetCDF forcing file in the format expected
by ROMS. Note that it is quite common to put the surface variables in the forcing file while having
an analytic bottom heat flux. ROMS now has the capability of reading in a list of forcing fields—it
can be convenient to have one file per field rather than stuffing tides, winds, river inputs all into
one file.
In the past, our vertical resolution was relatively coarse and the vertical viscosity would have
to have been unreasonably large for us to resolve the surface Ekman layer. If that is your situation,
define BODYFORCE in cppdefs.h and provide a value for levsfrc in ocean.in. The forcing is
applied over the levels from levsfrc to N. The above caution about vertical resolution also applies
to the surface fluxes of T and S, although BODYFORCE only refers to wind stress, not the
surface tracer fluxes.
(b) Climatology
One way to force the model is via a nudging to the tracer and/or momentum climatologies.
Nudging to tracers was used in the North Atlantic simulations in sponge layers along the northern
78
and southern boundaries. Set the climatologies in ana_tclima.h or in a file read by get_data,
set TCLM_NUDGING in wiki_test.h and also set the array Tnudgcof in ana_nudgcoef.h.
(c) Tides
There is also more than one way to force with tides. One way is to provide boundary conditions
with enough temporal resolution to resolve the tides. Another is to provide ROMS with the tidal
constituents at all grid points and to have ROMS reconstruct the tidal currents (UV_TIDES)
and/or elevations (SSH_TIDES) for any given time. An example of such a tidal forcing file is in
Data/ROMS/Forcing/test_head_frc.nc.
The non-trunk code with ice, etc. includes the TIDES_ASTRO option to add on the longperiod tides from Foreman ([15] and [16]). There is also an option to include the tidal potential
forcing term (POT_TIDES), requiring the tidal potential to be included in the tides forcing file.
(d) Rivers
Point sources can be used to provide river inflow to the model. These too can be specified in a
forcing file if not provided via ana_psource.
7.1.12
ocean.in
ROMS expects to read a number of variables from an ASCII file as described in §2.5. Example input
files are in ROMS/External with names like ocean_grav_adj.in, where “grav_adj” refers to
the name of the application. Lines beginning with “!” are comments and will be ignored by ROMS
on reading them.
The input is organized as key/value pairs, separated by one or two equals signs. It is possible
for ROMS to run on more than one grid simultaneously, with the number of grids being set at
compile time via the build script and/or the makefile. If there is one equals sign (=), ROMS
will use the corresponding value for all grids. If there are two (==), ROMS will read a value for
each grid. Thus far, our domains have used just one grid since the inter-grid coupling has not been
released.
ROMS will ignore the parameters not needed by the current simulation, e.g., the GLS parameters will not be read if you are not using that mixing scheme. However, I believe all the example
files contain all possible parameters (except the ice branch ones). The input parameters are in
groups, as follows:
Header
TITLE A text string to put in the output files.
MyAppCPP The shorthand name for this application.
VARNAME The location of the varinfo.dat file containing information about fields to
read/write from/to NetCDF files.
Grid-dimension parameters
Lm
Number of i-direction INTERIOR RHO-points.
Mm
Number of j-direction INTERIOR RHO-points.
N
Number of vertical levels.
Nbed
Number of sediment bed layers.
NAT
Number of active tracers (usually 2).
NPT
Number of passive tracers.
NCS
Number of cohesive (mud) sediment tracers.
NNS
Number of non-cohesive (sand) sediment tracers.
79
Domain-decomposition parameters
NtileI
Number of i-direction partitions.
NtileJ
Number of j-direction partitions.
Time-stepping parameters
NTIMES Number of time-steps to evolve the 3-D equations in the current run. This is
actually the total number, including any previous segments of the same run. For
instance, if you already did a three-month run and wish to continue for another
three months, set NTIMES to the number of steps needed for six months.
DT
Time-step in seconds for the 3-D equations.
NDTFAST Number of time-steps for the 2-D equations to be executed each dt.
Model iteration loops parameters
ERstr
Starting ensemble run number.
ERend Ending ensemble run number.
Nouter Maximum number of 4DVAR outer loop iterations.
Ninner Maximum number of 4DVAR inner loop iterations.
Nintervals Number of time interval divisions for stochastic optimals computations.
Generalized Stability Theory (GST) parameters
NEV
Number of eigenvalues.
NCV
Number of eigenvectors.
Input/Output parameters
ROMS has several possible output files. The output files can include a restart file, a
history file, an averages file, and a station file, for instance. The restart file often contains
only two records with the older record being overwritten during the next write. The
history file can contain a subset of the restart fields, for instance just the surface elevation
and the surface temperature. The averages file contains time-averages of the model fields,
for instance daily or monthly means, depending on NAVG. The station file contains
timeseries for specified points, possibly quite frequently since each record is small. For
some, machinery is in place to write multiple files, numbering them _0001, _0002, etc.
NRREC Record number of the restart file to read as the initial conditions. Set to 0 at
the beginning of the run, -1 to read the latest record.
LcycleRST Logical, true to cycle between two records of the restart file.
NRST Number of time-steps between writing of restart fields.
NSTA
Number of time-steps between writing fields into the stations file.
NFLT
Number of time-steps between writing fields into the floats file.
NINFO Number of time-steps between calling diag to write some global information
and check for NaN values.
History, average, diagnostic output parameters
LDEFOUT True for creating new output files for stations, history, floats, etc. If false,
output is appended to these files.
80
NHIS
Number of time-steps between writing history records.
NDEFHIS Number of time-steps between starting new history files.
NTSAVG Starting time-step for the accumulation of output time-averaged data. For
instance, you might want to average over the last day of a thirty-day run.
NAVG Number of time-steps between writing time-averaged data into the averages file.
NDEFAVG Number of time-steps between starting new averages files.
NTSDIA Starting time-step for the accumulation of output diagnostics data. For instance, you might want to write diagnostics for the last day of a thirty-day run.
NDIA
Number of time-steps between writing diagnostics data into the diagnostics file.
NDEFDIA Number of time-steps between starting new diagnostics files.
Tangent linear and adjoint output parameters
LcycleTLM Logical, true to cycle between two records
NTLM Number of time-steps between writing tangent linear data.
NDEFTLM Number of time-steps between starting new tangent linear files.
LcycleADJ Logical, true to cycle between two records of the restart file.
NADJ Number of time-steps between writing adjoint data.
NDEFADJ Number of time-steps between starting new adjoint files.
NSFF
Number of time-steps between 4DVAR adjustment of surface forcing fluxes.
NOBC Number of time-steps between 4DVAR adjustment of open boundary fields.
Check-pointing GST restart parameters
LrstGST GST restart switch.
MaxIterGST Maximum number of iterations.
NGST Check-pointing interval.
Ritz GST parameter
Ritz_tol Relative accuracy of the Ritz values computed in the GST analysis.
Horizontal mixing of tracers
TNU2 Constant mixing coefficient for the horizontal Laplacian diffusion of each tracer.
A value is expected for each of the NAT+NPT tracers.
TNU4 Constant mixing coefficient for the horizontal biharmonic diffusion of each tracer.
A value is expected for each of the NAT+NPT tracers.
Horizontal viscosity coefficients
VISC2 Constant mixing coefficient for the horizontal Laplacian viscosity.
VISC4 Constant mixing coefficient for the horizontal biharmonic viscosity.
Vertical mixing coefficients for tracers
AKT_BAK Background vertical mixing coefficient for the tracers (NAT+NPT values).
Vertical mixing coefficient for momentum
81
AKV_BAK Background vertical mixing coefficient for momentum.
Turbulent closure parameters
AKK_BAK Background vertical mixing coefficient for turbulent kinetic energy.
AKP_BAK Background vertical mixing coefficient for turbulent kinetic energy.
TKENU2 Constant mixing coefficient for the horizontal Laplacian diffusion of turbulent
kinetic energy.
TKENU4 Constant mixing coefficient for the horizontal biharmonic diffusion of turbulent kinetic energy.
Generic length-scale turbulence closure parameters
GLS_P Stability exponent.
GLS_M Turbulent kinetic energy exponent.
GLS_N Turbulent length scale exponent.
GLS_Kmin Minimum value of specific turbulent kinetic energy.
GLS_Pmin Minimum value of dissipation.
GLS_CMU0 Stability coefficient.
GLS_C1 Shear production coefficient.
GLS_C2 Dissipation coefficient.
GLS_C3M Buoyancy production coefficient (minus).
GLS_C3P Buoyancy production coefficient (plus).
GLS_SIGK Constant Schmidt number (non-dimensional) for turbulent kinetic energy
diffusivity.
GLS_SIGP Constant Schmidt number (non-dimensional) for turbulent generic statistical field, “psi”.
Constants used in surface TKE flux computation
CHARNOK_ALPHA Charnok surface roughness.
ZOS_HSIG_ALPHA Roughness from wave amplitude.
SZ_ALPHA Roughness from wave dissipation.
CRGBAN_CW Craig and Banner wave breaking.
Bottom drag coefficients
RDRG Linear bottom drag coefficient.
RDRG2 Quadratic bottom drag coefficient.
Zob
Bottom roughness.
Zos
Surface roughness (under ice shelves).
Height of atmospheric measurements for bulk flux parameterizations
BLK_ZQ Height of air humidity values.
BLK_ZT Height of air temperature values.
BLK_ZW Height of wind values.
82
Wetting and drying parameter
DCRIT Minimum depth for dry cells.
Various parameters
WTYPE Jerlov water type.
LEVSFRC Deepest level to apply surface momentum stresses as a body force. Used
when the C-preprocessor option BODYFORCE is defined.
LEVBFRC Shallowest level to apply bottom momentum stresses as a body force. Used
when the C-preprocessor option BODYFORCE is defined.
Vertical coordinate parameters
Vtransform Transformation equation, 1 for old style.
Vstretching Stretching function, 1 for old style.
Vertical σ-coordinates parameters
theta_s σ-coordinate surface control parameter, [0 < theta_s < 20].
theta_b σ-coordinate bottom control parameter, [0 < theta_b < 1].
Tcline
Width of the surface or bottom boundary layer in which higher vertical resolution
is required during stretching.
Mean Density and Brunt-Väisälä frequency
RHO0 Mean density used in the Boussinesq approximation.
BVF_BAK Background Brunt-Väisälä frequency squared.
Time parameters
DSTART Time stamp assigned to model initialization (days).
TIDE_START Time of tidal origin relative to model origin.
TIME_REF Reference time in the format yyyymmdd.dd or else a special value for
specific calendars as documented in the ocean.in files.
Nudging time scales
TNUDG Time scale (days) of nudging towards tracer climatology at the interior and at
the boundaries. A value is expected for each active tracer.
ZNUDG Time scale (days) of nudging towards free surface climatology at the interior
and at the boundaries.
M2NUDG Time scale (days) of nudging towards 2-D momentum climatology at the
interior and at the boundaries.
M3NUDG Time scale (days) of nudging towards 3-D momentum climatology at the
interior and at the boundaries.
Open boundary factor
OBCFAC Ratio of inflow and outflow nudging time scales.
Linear equation of state parameters
83
R0
Background density value used in the linear equation of state.
T0
Background potential temperature constant.
S0
Background salinity constant.
TCOEF Thermal expansion coefficient in the linear equation of state.
SCOEF Saline contraction coefficient in the linear equation of state.
Slipperiness parameter
gamma2 Slipperiness variable, either 1.0 (free slip) or −1.0 (no slip).
Adjoint sensitivity time parameters
DstrS
Starting day.
DendS Ending day.
Adjoint sensitivity vertical level parameters
KstrS
Starting level.
KendS Ending level.
Adjoint sensitivity logical parameters
Lstate(isFsur) Free surface.
Lstate(isUbar) 2D u-momentum.
Lstate(isVbar) 2D v-momentum.
Lstate(isUvel) 3D u-momentum.
Lstate(isVvel) 3D v-momentum.
Lstate(isTvar) Tracers (NT values expected).
Stochastic optimals time scale
SO_decay Stochastic optimals time decorrelation scale (days) assumed for red noise
processes.
Logicals for stochastic optimals
SOstate(isUstr) Surface u-stress.
SOstate(isVstr) Surface v-stress.
Lstate(isTsur) Surface tracer flux (NT values expected).
Stochastic optimals surface standard deviations
SO_sdev(isUstr) Surface u-stress.
SO_sdev(isVstr) Surface v-stress.
SO_sdev(isTsur) Surface tracer flux (NT values expected).
Logical switches to activate the writing of history/averages fields
Hout(idUvel) 3-D u-velocity component.
Hout(idVvel) 3-D v-velocity component.
Hout(idWvel) 3-D w-velocity component.
84
Hout(idOvel) 3-D Ω vertical velocity.
Hout(idUbar) 2-D u-velocity component.
Hout(idVbar) 2-D v-velocity component.
Hout(idFsur) Free-surface.
Hout(idBath) Time-dependent bathymetry.
Hout(idTvar) Tracer type variables: potential temperature, salinity, etc.
Hout(idUsms) Surface u-stress.
Hout(idVsms) Surface v-stress.
Hout(idUbms) Bottom u-stress.
Hout(idVbms) Bottom v-stress.
Hout(idUbrs) Bottom u-current stress.
Hout(idVbrs) Bottom v-current stress.
Hout(idUbws) Bottom u-wave stress.
Hout(idVbws) Bottom v-wave stress.
Hout(idUbcs) Bottom max wave-current u-stress.
Hout(idVbcs) Bottom max wave-current v-stress.
Hout(idUbot) Bed wave orbital u-velocity.
Hout(idVbot) Bed wave orbital v-velocity.
Hout(idUbur) Bottom max wave-current u-stress.
Hout(idVbur) Bottom max wave-current v-stress.
Hout(idW2xx) 2D radiation stress, Sxx component.
Hout(idW2xy) 2D radiation stress, Sxy component.
Hout(idW2yy) 2D radiation stress, Syy component.
Hout(idU2rs) 2D u-radiation stress.
Hout(idV2rs) 2D v-radiation stress.
Hout(idU2Sd) 2D u-Stokes velocity.
Hout(idV2Sd) 2D v-Stokes velocity.
Hout(idW3xx) 3D radiation stress, Sxx component.
Hout(idW3xy) 3D radiation stress, Sxy component.
Hout(idW3yy) 3D radiation stress, Syy component.
Hout(idW3zx) 3D radiation stress, Szx component.
Hout(idW3zy) 3D radiation stress, Szy component.
Hout(idU3rs) 3D u-radiation stress.
Hout(idV3rs) 3D v-radiation stress.
Hout(idU3Sd) 3D u-Stokes velocity.
Hout(idV3Sd) 3D v-Stokes velocity.
Hout(idWamp) Wave height.
85
Hout(idWlen) Wave length.
Hout(idWdir) Wave direction.
Hout(idTsur) Surface net heat and salt flux (NAT values).
Hout(idLhea) Latent heat flux.
Hout(idShea) Sensible heat flux.
Hout(idLrad) Longwave radiation flux.
Hout(idSrad) Shortwave radiation flux.
Hout(idEmPf ) E-P flux.
Hout(idevap) Evaporation rate.
Hout(idrain) Precipitation rate.
Hout(idDano) Density anomaly.
Hout(idVvis) Vertical viscosity coefficient.
Hout(idTdif ) Vertical diffusion coefficient for temperature.
Hout(idSdif ) Vertical diffusion coefficient for salinity.
Hout(idHsbl) Depth of the surface boundary layer.
Hout(idHbbl) Depth of the bottom boundary layer.
Hout(idMtke) Turbulent kinetic energy.
Hout(idMtls) Turbulent length scale.
Ice fields
Hout(idUice) Ice u-velocity.
Hout(idVice) Ice v-velocity.
Hout(idAice) Ice concentration.
Hout(idHice) Ice thickness.
Hout(idTice) Ice surface temperature.
Hout(idHsno) Snow thickness.
Hout(idTimid) Ice internal temperature.
Hout(idSfwat) Surface water (melt ponds).
Hout(idTauiw) Tauiw.
Hout(idChuiw) Chuiw.
Hout(idAgeice) Ice age.
Hout(idSig11) Ice internal stress, 11 component.
Hout(idSig12) Ice internal stress, 12 component.
Hout(idSig22) Ice internal stress, 22 component.
Hout(idS0mk) Under-ice salinity.
Hout(idT0mk) under-ice temperature.
Hout(idWfr) Frazil ice growth rate.
Hout(idWai) Air-ice melt rate.
Hout(idWao) Air-ocean ice growth rate.
86
Hout(idWio) Ice-ocean ice melt/growth rate.
Hout(idWro) Surface water runoff rate.
Inert (passive) tracers
Hout(inert) Passive tracers (NPT values).
Sediment tracers
Hout(idBott) Sediment tracers (MBOTP values).
User parameters
NUSER Number of user parameters
USER Values of user parameters (NUSER values).
NetCDF-4/HDF5 parameters
NC_SHUFFLE If non-zero, turn on shuffle filter.
NC_DEFLATE If non-zero, turn on deflate filter.
NC_DLEVEL Deflate level (0–9).
Input NetCDF file names
GRDNAME Grid file.
ININAME Initial conditions file.
ITLNAME Initial tangent linear file.
IRPNAME Initial representer file.
IADNAME Initial adjoint file.
CLMNAME Climatology file.
BRYNAME Boundary condition file.
FWDNAME Forward model file.
ADSNAME Adjoint sensitivity functional file.
Forcing NetCDF files
NFFILES Number of forcing files.
FRCNAME Forcing files.
Output NetCDF file names
GSTNAME GST analysis restart file.
RSTNAME Restart file.
HISNAME History file.
TLMNAME Tangent linear file.
TLFNAME Impulse forcing file (for tangent linear model).
ADJNAME Adjoint file.
AVGNAME Averages file.
STANAME Stations file.
FLTNAME Lagrangian floats file.
87
ASCII input file names
APARNAM Assimilation parameters.
SPOSNAM Stations positions.
FPOSNAM Initial drifter positions.
IPARNAM Ice parameters.
BPARNAM Biology parameters.
SPARNAM Sediment parameters.
USRNAME User’s generic input.
The bottom of the sample files contain comments describing some of these in greater detail.
7.1.13
User variables and subroutines
It is possible for the user to add new variables and functionality, though it is discouraged. The
design goal is to isolate the most common features a user would change to the cpp switches (§6.7),
the ana_xx.h files (§6.5) and the ASCII input file (§7.1.12). A query on the ROMS forum might
be in order if you have something specific in mind.
If you do choose to add bits, know that the makefile fragments called Module.mk will attempt
to compile anything with a .F extension in the directories already populated with such code.
7.2
Upwelling/Downwelling Example
The application which ROMS is configured to run as distributed is a wind-driven upwelling and
downwelling example, described in Macks and Middleton [47]. There is a shelf on each wall of
a periodic channel and an along-channel wind forcing, which drives upwelling at one wall and
downwelling at the other. This problem depends on the Ekman layer, so a surface stress is used
with vertical viscosity. The Ekman depth is estimated to be 9 m if Av = 0.01m2 /s, so the vertical
grid spacing must resolve this. The maximum depth is 150 m and our choice of the vertical grid
parameters leads to a surface ∆z of 4.0 m.
7.2.1
cppdefs.h
The C preprocessor variable UPWELLING is used for the upwelling configuration of the model.
The makefile will direct cppdefs.h to include the file upwelling.h:
#define
#define
#define
#define
#undef
#define
#define
#define
#undef
#define
#define
#undef
#undef
#define
UV_ADV
UV_COR
UV_LDRAG
UV_VIS2
MIX_GEO_UV
MIX_S_UV
TS_U3HADVECTION
TS_C4VADVECTION
TS_MPDATA
DJ_GRADPS
TS_DIF2
TS_DIF4
MIX_GEO_TS
MIX_S_TS
88
#define
#define
#define
#define
#define
#define
#define
SALINITY
SOLVE3D
SPLINES
AVERAGES
DIAGNOSTICS_TS
DIAGNOSTICS_UV
EW_PERIODIC
#define
#define
#define
#define
#define
#define
#define
ANA_GRID
ANA_INITIAL
ANA_SMFLUX
ANA_STFLUX
ANA_SSFLUX
ANA_BTFLUX
ANA_BSFLUX
#if defined GLS_MIXING || defined MY25_MIXING
# define KANTHA_CLAYSON
# define N2S2_HORAVG
#else
# define ANA_VMIX
#endif
#if defined BIO_FENNEL || defined ECOSIM || \
defined NPZD_POWELL || defined NEMURO || \
defined BIO_UMAINE
# define ANA_BIOLOGY
# define ANA_SPFLUX
# define ANA_BPFLUX
# define ANA_SRFLUX
#endif
#if defined NEMURO
# define HOLLING_GRAZING
# undef IVLEV_EXPLICIT
#endif
#ifdef BIO_FENNEL
# define CARBON
# define DENITRIFICATION
# define BIO_SEDIMENT
# define DIAGNOSTICS_BIO
#endif
#ifdef BIO_UMAINE
# define OXYGEN
# undef CARBON
#endif
#ifdef PERFECT_RESTART
89
# undef
# undef
# undef
# undef
# define
#endif
AVERAGES
DIAGNOSTICS_BIO
DIAGNOSTICS_TS
DIAGNOSTICS_UV
OUT_DOUBLE
Here we have declared that we want a periodic channel (EW_PERIODIC) but no masking. There
is salinity but we’re using a linear equation of state. The momentum equations have advection,
Coriolis force and pressure gradients. There is both horizontal viscosity and diffusion, but they are
along constant σ-surfaces and if you check the input file, you find that the horizontal diffusion is
set to zero.
There are ifdefs for various biology cases, none of which have been defined. Likewise, we are
using the default of ANA_VMIX as distributed. We are asking for many other analytic functions
too, including the grid. We are asking for diagnostic output with the DIAGNOSTICS_TS and
DIAGNOSTICS_UV.
7.2.2
Model domain
The flow does not vary in x, so Lm can be small. Set the values for Lm, Mm, N and NT in the
input file:
Lm == 41
Mm == 80
N == 16
NAT =
7.2.3
2
! Number of I-direction INTERIOR RHO-points
! Number of J-direction INTERIOR RHO-points
! Number of vertical levels
! Number of active tracers (usually, 2)
ana_grid
For this geometry one has a choice of using one of the external grid-generation programs or of using
ana_grid to create the grid analytically. The code in ana_grid.h was modified to produce a
bathymetry with a shelf on both walls of the channel when UPWELLING is defined. The fluid
depth ranges from 27 m on the shelves to 150 m in the center of the channel. The horizontal grid
spacing is uniform at 1 km and the Coriolis parameter f is set to a constant value suitable for
Sydney, Australia.
7.2.4
Initial conditions and the equation of state
We would like the initial conditions to be a motionless fluid with an exponential stratification. The
UPWELLING section of ana_initial.h is configured accordingly.
The stratification can be provided by either T or S, or by both T and S. For simplicity we
will only have an active temperature field and we will use the linear equation of state by setting
NONLIN_EOS to #undef. We want the density to be 26.35 at the bottom and 24.22 at the top
with an e-folding scale of 50 meters. The initial temperature is set to T0+8ez/50 in ana_initial.
The linear equation of state parameters are set in ocean_upwelling.in:
R0
T0
S0
TCOEF
SCOEF
==
==
==
==
==
1027.0d0
14.0d0
35.0d0
1.7d-4
0.0d0
!
!
!
!
!
90
kg/m3
Celsius
PSU
1/Celsius
1/PSU
Since density does not depend on salinity, we have a choice of how to handle the second tracer.
The salinity is set to a uniform value of S0, though it could be left out entirely if we undefine
SALINITY and set NAT to 1.
7.2.5
Boundary conditions
The option EW_PERIODIC has been chosen for the eastern and western edges. None of the
open boundary options have been selected for the Northern and Southern edges; they are both then
given the default wall conditions and no boundary values are required.
7.2.6
Model forcing
In this problem we want to resolve the surface Ekman layer and to use a surface wind stress
rather than a body force. We want the amplitude of the wind to ramp up with time so we modify
ana_smflux.h accordingly. The wind will build to an amplitude of 0.1 Pascals / ρo , or 10−4 m2 s−2 .
We need to edit ana_vmix.h to make sure that the vertical viscosity Akv is set to the value
we want. This must be large at the surface (10−2 m2 s−1 ) to create a thick Ekman layer, but has
been chosen to decrease with depth. We also need to check that ana_sbflux, ana_stflux, etc.
are set correctly, in this case taking the default of zero rather than explicitly setting anything for
UPWELLING. However, we do set ana_srflux to be non-zero in case we opt to turn on one of
the biology models.
7.2.7
ocean.in
The model has been set up to run for five days with an internal time-step of 300 s and an external
time-step of 10 s.
NTIMES == 1440
DT == 300.0d0
NDTFAST == 30
We will write history, averages, and diagnostics records every 1/4 day, restart records once a day.
NRREC
LcycleRST
NRST
LDEFOUT
NHIS
NDEFHIS
NTSAVG
NAVG
NDEFAVG
NTSDIA
NDIA
NDEFDIA
==
==
==
==
==
==
==
==
==
==
==
==
0
T
288
T
72
0
1
72
0
1
72
0
The value of the linear bottom friction coefficient rdrg is set to 3.0 × 10−4 and the channel walls
are set to be free-slip:
RDRG == 3.0d-04
GAMMA2 == 1.0d0
! m/s
The vertical stretching is set to a modest value of theta_s= 3:
91
Vtransform
Vstretching
THETA_S
THETA_B
TCLINE
7.2.8
==
==
==
==
==
1
1
3.0d0
0.0d0
50.0d0
!
!
!
!
!
transformation equation
stretching function
surface stretching parameter
bottom stretching parameter
critical depth (m)
Output
The model writes some information to standard out, after setting ninfo to 72:
Process Information:
Thread #
0 (pid=
32022) is active.
Model Input Parameters:
ROMS/TOMS version 3.2
Friday - October 30, 2009 - 9:11:20 AM
----------------------------------------------------------------------------Wind-Driven Upwelling/Downwelling over a Periodic Channel
Operating system
CPU/hardware
Compiler system
Compiler command
Compiler flags
SVN Root URL
SVN Revision
:
:
:
:
:
Linux
x86_64
pgi
/usr/local/pkg/pgi/current/linux86-64/6.1/bin/pgf90
-O3 -tp k8-64 -Mfree
: https://www.myroms.org/svn/omlab/branches/kate/trunk
:
Local Root
:
Header Dir
:
Header file
:
Analytical Dir:
/export/staffdata/kate/roms/kate_svn
/export/staffdata/kate/roms/kate_svn/ROMS/Include
upwelling.h
/export/staffdata/kate/roms/kate_svn/ROMS/Functionals
Resolution, Grid 01: 0041x0080x016,
Parallel Threads:
1,
Tiling: 001x001
Physical Parameters, Grid: 01
=============================
1440
300.000
30
1
1
0
T
288
1
ntimes
dt
ndtfast
ERstr
ERend
nrrec
LcycleRST
nRST
ninfo
Number of timesteps for 3-D equations.
Timestep size (s) for 3-D equations.
Number of timesteps for 2-D equations between
each 3D timestep.
Starting ensemble/perturbation run number.
Ending ensemble/perturbation run number.
Number of restart records to read from disk.
Switch to recycle time-records in restart file.
Number of timesteps between the writing of data
into restart fields.
Number of timesteps between print of information
92
T
72
ldefout
nHIS
1
ntsAVG
72
1
72
nAVG
ntsDIA
nDIA
0.0000E+00
tnu2(01)
0.0000E+00
tnu2(02)
5.0000E+00
visc2
1.0000E-06
Akt_bak(01)
1.0000E-06
Akt_bak(02)
1.0000E-05
Akv_bak
3.0000E-04
3.0000E-03
2.0000E-02
1
1
3.0000E+00
0.0000E+00
50.000
rdrg
rdrg2
Zob
Vtransform
Vstretching
theta_s
theta_b
Tcline
1025.000
0.000
0.00
0.0000E+00
rho0
dstart
time_ref
Tnudg(01)
0.0000E+00
Tnudg(02)
0.0000E+00
Znudg
0.0000E+00
M2nudg
0.0000E+00
M3nudg
0.0000E+00
obcfac
14.000
35.000
T0
S0
to standard output.
Switch to create a new output NetCDF file(s).
Number of timesteps between the writing fields
into history file.
Starting timestep for the accumulation of output
time-averaged data.
Number of timesteps between the writing of
time-averaged data into averages file.
Starting timestep for the accumulation of output
time-averaged diagnostics data.
Number of timesteps between the writing of
time-averaged data into diagnostics file.
Horizontal, harmonic mixing coefficient (m2/s)
for tracer 01: temp
Horizontal, harmonic mixing coefficient (m2/s)
for tracer 02: salt
Horizontal, harmonic mixing coefficient (m2/s)
for momentum.
Background vertical mixing coefficient (m2/s)
for tracer 01: temp
Background vertical mixing coefficient (m2/s)
for tracer 02: salt
Background vertical mixing coefficient (m2/s)
for momentum.
Linear bottom drag coefficient (m/s).
Quadratic bottom drag coefficient.
Bottom roughness (m).
S-coordinate transformation equation.
S-coordinate stretching function.
S-coordinate surface control parameter.
S-coordinate bottom control parameter.
S-coordinate surface/bottom layer width (m) used
in vertical coordinate stretching.
Mean density (kg/m3) for Boussinesq approximation.
Time-stamp assigned to model initialization (days).
Reference time for units attribute (yyyymmdd.dd)
Nudging/relaxation time scale (days)
for tracer 01: temp
Nudging/relaxation time scale (days)
for tracer 02: salt
Nudging/relaxation time scale (days)
for free-surface.
Nudging/relaxation time scale (days)
for 2D momentum.
Nudging/relaxation time scale (days)
for 3D momentum.
Factor between passive and active
open boundary conditions.
Background potential temperature (C) constant.
Background salinity (PSU) constant.
93
1027.000
1.7000E-04
0.0000E+00
1.000
T
T
T
T
T
T
T
T
T
R0
Background density (kg/m3) used in linear Equation
of State.
Thermal expansion coefficient (1/Celsius).
Saline contraction coefficient (1/PSU).
Slipperiness variable: free-slip (1.0) or
no-slip (-1.0).
Write out free-surface.
Write out 2D U-momentum component.
Write out 2D V-momentum component.
Write out 3D U-momentum component.
Write out 3D V-momentum component.
Write out W-momentum component.
Write out omega vertical velocity.
Write out tracer 01: temp
Write out tracer 02: salt
Tcoef
Scoef
gamma2
Hout(idFsur)
Hout(idUbar)
Hout(idVbar)
Hout(idUvel)
Hout(idVvel)
Hout(idWvel)
Hout(idOvel)
Hout(idTvar)
Hout(idTvar)
Output/Input Files:
Output Restart
Output History
Output Averages
Output Diagnostics
IO Variable Information
File:
File:
File:
File:
File:
ocean_rst.nc
ocean_his.nc
ocean_avg.nc
ocean_dia.nc
ROMS/External/varinfo.dat
Tile partition information for Grid 01:
tile
Istr
Number of tracers:
0
1
Iend
Jstr
0041x0080x0016
Jend
Npts
80
52480
tiling: 001x001
2
41
1
Tile minimum and maximum fractional grid coordinates:
(interior points only)
tile
Xmin
Xmax
Ymin
Ymax
grid
0
-2.50
43.50
-0.50
82.50
RHO-points
0
-2.50
43.50
-0.50
82.50
U-points
0
-2.50
43.50
-0.50
82.50
V-points
Activated C-preprocessing Options:
UPWELLING
ANA_BSFLUX
ANA_BTFLUX
ANA_GRID
ANA_INITIAL
ANA_SMFLUX
Wind-Driven Upwelling/Downwelling over a Periodic Channel
Analytical kinematic bottom salinity flux.
Analytical kinematic bottom temperature flux.
Analytical grid set-up.
Analytical initial conditions.
Analytical kinematic surface momentum flux.
94
ANA_SSFLUX
ANA_STFLUX
ANA_VMIX
ASSUMED_SHAPE
AVERAGES
DIAGNOSTICS_TS
DIAGNOSTICS_UV
DJ_GRADPS
DOUBLE_PRECISION
EW_PERIODIC
MIX_S_TS
MIX_S_UV
NONLINEAR
!NONLIN_EOS
POWER_LAW
PROFILE
!RST_SINGLE
SALINITY
SOLVE3D
SPLINES
TS_U3HADVECTION
TS_C4VADVECTION
TS_DIF2
UV_ADV
UV_COR
UV_U3HADVECTION
UV_C4VADVECTION
UV_LDRAG
UV_VIS2
VAR_RHO_2D
Analytical kinematic surface salinity flux.
Analytical kinematic surface temperature flux.
Analytical vertical mixing coefficients.
Using assumed-shape arrays.
Writing out time-averaged fields.
Computing and writing tracer diagnostic terms.
Computing and writing momentum diagnostic terms.
Parabolic Splines density Jacobian (Shchepetkin, 2002).
Double precision arithmetic.
East-West periodic boundaries.
Mixing of tracers along constant S-surfaces.
Mixing of momentum along constant S-surfaces.
Nonlinear Model.
Linear Equation of State for seawater.
Power-law shape time-averaging barotropic filter.
Time profiling activated .
Double precision fields in restart NetCDF file.
Using salinity.
Solving 3D Primitive Equations.
Conservative parabolic spline reconstruction.
Third-order upstream horizontal advection of tracers.
Fourth-order centered vertical advection of tracers.
Harmonic mixing of tracers.
Advection of momentum.
Coriolis term.
Third-order upstream horizontal advection of 3D momentum.
Fourth-order centered vertical advection of momentum.
Linear bottom stress.
Harmonic mixing of momentum.
Variable density barotropic mode.
INITIAL: Configuring and initializing forward nonlinear model ...
Vertical S-coordinate System:
level
16
15
14
13
12
11
10
9
8
7
6
5
S-coord
Cs-curve
at_hmin
over_slope
at_hmax
0.0000000
-0.0625000
-0.1250000
-0.1875000
-0.2500000
-0.3125000
-0.3750000
-0.4375000
-0.5000000
-0.5625000
-0.6250000
-0.6875000
0.0000000
-0.0188264
-0.0383166
-0.0591578
-0.0820849
-0.1079063
-0.1375324
-0.1720078
-0.2125480
-0.2605826
-0.3178051
-0.3862333
0.000
-1.575
-3.150
-4.725
-6.300
-7.875
-9.450
-11.025
-12.600
-14.175
-15.750
-17.325
0.000
-2.750
-5.541
-8.417
-11.422
-14.608
-18.032
-21.758
-25.863
-30.436
-35.581
-41.426
0.000
-3.925
-7.932
-12.108
-16.544
-21.342
-26.614
-32.492
-39.126
-46.696
-55.412
-65.527
95
4
3
2
1
0
-0.7500000
-0.8125000
-0.8750000
-0.9375000
-1.0000000
-0.4682798
-0.5668375
-0.6853816
-0.8280918
-1.0000000
Time Splitting Weights: ndtfast =
Primary
1-0.0008094437383769
2-0.0014053566728197
3-0.0017877524645903
4-0.0019566842408176
5-0.0019122901320372
6-0.0016548570247459
7-0.0011849025289723
8-0.0005032751608632
9 0.0003887272597151
10 0.0014892209965583
11 0.0027955815694920
12 0.0043042707117221
13 0.0060106451121704
14 0.0079087469427945
15 0.0099910761708919
16 0.0122483446563884
17 0.0146692120341107
18 0.0172400033810439
19 0.0199444086685725
20 0.0227631639997064
21 0.0256737146312911
22 0.0286498597812016
23 0.0316613792205220
24 0.0346736416507075
25 0.0376471948657328
26 0.0405373376992232
27 0.0432936737565710
28 0.0458596469320356
29 0.0481720587108285
30 0.0501605672561820
31 0.0517471682814031
32 0.0528456577069106
33 0.0533610761022577
34 0.0531891349131380
35 0.0522156244733761
36 0.0503158038019030
37 0.0473537721847154
38 0.0431818225418188
39 0.0376397765791564
40 0.0305543017255206
-18.900
-20.475
-22.050
-23.625
-25.200
30
nfast =
Secondary
-48.121
-55.846
-64.818
-75.298
-87.600
-77.341
-91.216
-107.586
-126.971
-150.000
42
Accumulated to Current Step
0.0333333333333333-0.0008094437383769
0.0333603147912792-0.0022148004111966
0.0334071600137066-0.0040025528757869
0.0334667517625262-0.0059592371166046
0.0335319745705535-0.0078715272486418
0.0335957175749547-0.0095263842733877
0.0336508794757796-0.0107112868023601
0.0336903762267453-0.0112145619632232
0.0337071520654408-0.0108258347035082
0.0336941944901169-0.0093366137069498
0.0336445537902317-0.0065410321374578
0.0335513677379153-0.0022367614257357
0.0334078920475245 0.0037738836864347
0.0332075372104522 0.0116826306292293
0.0329439123123590 0.0216737068001212
0.0326108764399960 0.0339220514565096
0.0322025982847830 0.0485912634906203
0.0317136245503127 0.0658312668716642
0.0311389577709445 0.0857756755402367
0.0304741441486588 0.1085388395399431
0.0297153720153352 0.1342125541712341
0.0288595815276255 0.1628624139524358
0.0279045862015855 0.1945237931729577
0.0268492068942347 0.2291974348236652
0.0256934188392112 0.2668446296893980
0.0244385123436867 0.3073819673886213
0.0230872677537126 0.3506756411451923
0.0216441452951603 0.3965352880772279
0.0201154903974257 0.4447073467880564
0.0185097551070648 0.4948679140442383
0.0168377361985254 0.5466150823256414
0.0151128305891453 0.5994607400325521
0.0133513086655816 0.6528218161348097
0.0115726061288397 0.7060109510479476
0.0097996349650684 0.7582265755213236
0.0080591141492892 0.8085423793232266
0.0063819206892258 0.8558961515079421
0.0048034616164019 0.8990779740497608
0.0033640675316746 0.9367177506289172
0.0021094083123694 0.9672720523544379
96
0.0333333333333333
0.0666936481246126
0.1001008081383191
0.1335675599008453
0.1670995344713988
0.2006952520463535
0.2343461315221331
0.2680365077488784
0.3017436598143192
0.3354378543044362
0.3690824080946679
0.4026337758325830
0.4360416678801077
0.4692492050905598
0.5021931174029188
0.5348039938429148
0.5670065921276978
0.5987202166780104
0.6298591744489550
0.6603333185976138
0.6900486906129490
0.7189082721405745
0.7468128583421599
0.7736620652363947
0.7993554840756058
0.8237939964192925
0.8468812641730052
0.8685254094681655
0.8886408998655913
0.9071506549726561
0.9239883911711814
0.9391012217603267
0.9524525304259083
0.9640251365547480
0.9738247715198163
0.9818838856691055
0.9882658063583314
0.9930692679747333
0.9964333355064079
0.9985427438187774
41 0.0217382098544504 0.0010909315881854 0.9890102622088882 0.9996336754069628
42 0.0109897377911118 0.0003663245930371 1.0000000000000000 0.9999999999999998
ndtfast, nfast =
30
42
nfast/ndtfast = 1.40000
Centers of gravity and integrals (values must be 1, 1, approx 1/2, 1, 1):
1.000000000000 1.047601458608 0.523800729304 1.000000000000 1.000000000000
Power filter parameters, Fgamma, gamma =
Minimum
Maximum
Minimum
Maximum
Minimum
Maximum
X-grid
X-grid
Y-grid
Y-grid
Z-grid
Z-grid
spacing,
spacing,
spacing,
spacing,
spacing,
spacing,
DXmin
DXmax
DYmin
DYmax
DZmin
DZmax
=
=
=
=
=
=
1.00000000E+00
1.00000000E+00
1.00000000E+00
1.00000000E+00
1.57503054E+00
2.30290891E+01
Minimum barotropic Courant Number =
Maximum barotropic Courant Number =
Maximum Coriolis
Courant Number =
Maximum grid stiffness ratios:
0.28400
=
=
=
=
km
km
km
km
m
m
2.22358627E-01
5.42494240E-01
2.47800000E-02
rx0 =
rx1 =
Initial basin volumes: TotVolume
MinVolume
MaxVolume
Max/Min
0.18933
6.931666E-02 (Beckmann and Haidvogel)
1.188435E+00 (Haney)
3.8843755884E+11 m3
1.6168290365E+06 m3
2.3029089059E+07 m3
1.4243366824E+01
NL ROMS/TOMS: started time-stepping: (Grid: 01 TimeSteps: 00000001 - 00001440)
STEP
Day HH:MM:SS KINETIC_ENRG
POTEN_ENRG
TOTAL_ENRG
NET_VOLUME
0
0 00:00:00 0.000000E+00 6.579497E+02 6.579497E+02 3.884376E+11
DEF_HIS
- creating history file: ocean_his.nc
WRT_HIS
- wrote history fields (Index=1,1) into time record = 0000001
DEF_AVG
- creating average file: ocean_avg.nc
DEF_DIAGS - creating diagnostics file: ocean_dia.nc
72
0 06:00:00 8.366194E-06 6.579497E+02 6.579497E+02 3.884376E+11
WRT_HIS
- wrote history fields (Index=1,1) into time record = 0000002
WRT_AVG
- wrote averaged fields into time record = 0000001
WRT_DIAGS - wrote diagnostics fields into time record = 0000001
144
0 12:00:00 7.416156E-05 6.579497E+02 6.579498E+02 3.884376E+11
WRT_HIS
- wrote history fields (Index=1,1) into time record = 0000003
WRT_AVG
- wrote averaged fields into time record = 0000002
WRT_DIAGS - wrote diagnostics fields into time record = 0000002
216
0 18:00:00 2.317054E-04 6.579497E+02 6.579499E+02 3.884376E+11
WRT_HIS
- wrote history fields (Index=1,1) into time record = 0000004
97
WRT_AVG
- wrote
WRT_DIAGS - wrote
288
1 00:00:00
WRT_HIS
- wrote
WRT_AVG
- wrote
WRT_DIAGS - wrote
WRT_RST
- wrote
:
1440
5 00:00:00
3.884376E+11
WRT_HIS
- wrote
= 0000021
WRT_AVG
- wrote
0000020
WRT_DIAGS - wrote
0000020
WRT_RST
- wrote
= 0000001
averaged fields into time record = 0000003
diagnostics fields into time record = 0000003
5.382882E-04 6.579497E+02 6.579503E+02 3.884376E+11
history fields (Index=1,1) into time record = 0000005
averaged fields into time record = 0000004
diagnostics fields into time record = 0000004
re-start fields (Index=1,1) into time record = 0000001
2.476731E-02
history
6.579533E+02
6.579781E+02
fields (Index=1,1) into time record
averaged fields into time record =
diagnostics fields into time record =
re-start fields (Index=1,1) into time record
Elapsed CPU time (seconds):
Thread #
Total:
0 CPU:
557.021
557.021
Nonlinear model elapsed time profile:
Initialization ...................................
Reading of input data ............................
Processing of input data .........................
Processing of output time averaged data ..........
Computation of vertical boundary conditions ......
Computation of global information integrals ......
Writing of output data ...........................
Model 2D kernel ..................................
2D/3D coupling, vertical metrics .................
Omega vertical velocity ..........................
Equation of state for seawater ...................
3D equations right-side terms ....................
3D equations predictor step ......................
Pressure gradient ................................
Harmonic mixing of tracers, S-surfaces ...........
Harmonic stress tensor, S-surfaces ...............
Corrector time-step for 3D momentum ..............
Corrector time-step for tracers ..................
Total:
All percentages are with respect to total time =
0.015
0.002
0.127
55.303
0.419
2.316
1.923
365.560
1.950
3.135
1.645
14.268
31.518
10.157
4.130
8.211
27.976
19.558
548.216
( 0.0027
( 0.0004
( 0.0229
( 9.9284
( 0.0752
( 0.4159
( 0.3453
(65.6278
( 0.3500
( 0.5628
( 0.2954
( 2.5615
( 5.6583
( 1.8235
( 0.7414
( 1.4741
( 5.0225
( 3.5112
98.4193
557.021
ROMS/TOMS - Output NetCDF summary for Grid 01:
number of time records written in HISTORY file = 00000021
98
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
%)
number of time records written in RESTART file = 00000002
number of time records written in AVERAGE file = 00000020
Analytical header files used:
ROMS/Functionals/ana_btflux.h
ROMS/Functionals/ana_grid.h
ROMS/Functionals/ana_initial.h
ROMS/Functionals/ana_smflux.h
ROMS/Functionals/ana_stflux.h
ROMS/Functionals/ana_vmix.h
ROMS/TOMS: DONE... Friday - October 30, 2009 -
9:20:38 AM
Note that it ends by printing out a profile of where the time was used—the ratios will vary depending
on the application.
NetCDF history and restart files are also created, containing the model fields at the requested
times. We have asked it to save restart records every day. In this case, the restart file has been told
to “cycle”, or to write over the second last record. The restart file at the end of the run contains
the fields at day 4 and day 5. The history file contains records for 0, 1/4, 1/2, 3/4, and 1 day, etc.,
while the averages and diagnostics files are at 1/8, 3/8, 5/8, and 7/8 day, etc.. Plots can be made
from any one of these files, using the plotting software described in §8. Selected frames from such
plots are shown in Fig. 17 to 20.
7.3
Northeast Pacific example
The upwelling/downwelling examples is one in which all the start-up fields are defined analytically.
The other extreme is one in which everything is read from files, as in our Northeast Pacific simulations. Figure 21 shows the bathymetry and the extent of this domain, which is rectangular in a
conic map projection.
7.3.1
nep5.h
The C preprocessor variable NEP5 has been chosen to label our Northeast Pacific domain, using
the fifth generation grid file. The header include file then becomes nep5.h:
/*
**
*/
Options for Northeast Pacific (NEP5) simulation
#undef NETCDF4
#undef PARALLEL_IO
#undef OFFLINE_FLOATS
/* general */
#define CURVGRID
#define MASKING
#define NONLIN_EOS
#define SOLVE3D
#define SALINITY
#ifdef SOLVE3D
99
Figure 17: The upwelling/downwelling bathymetry.
100
Figure 18: Surface velocities after one day, showing the flow to the left of the wind (southern
hemisphere).
101
Figure 19: Constant ξ slices of the u, v, T and w fields at day 1.
102
Figure 20: Constant ξ slices of the u, v, T , and w fields at day 5.
103
Figure 21: Bathymetry of the Northeast Pacific domain (NEP5).
104
# undef SPLINES
#endif
#define FLOATS
#define STATIONS
#undef WET_DRY
#undef T_PASSIVE
#ifdef T_PASSIVE
# define ANA_PASSIVE
#endif
/* ice */
#ifdef SOLVE3D
# define ICE_MODEL
# ifdef ICE_MODEL
# define ICE_THERMO
# define ICE_MK
# undef
ICE_ALB_EC92
# undef
ICE_SMOOTH
# define ICE_MOMENTUM
# define ICE_MOM_BULK
# define ICE_EVP
# define ICE_ADVECT
# define ICE_SMOLAR
# define ICE_UPWIND
# define ICE_BULK_FLUXES
# define ANA_AIOBC
# define ANA_HIOBC
# define ANA_HSNOBC
# endif
#endif
/* output stuff */
#define NO_WRITE_GRID
#undef OUT_DOUBLE
#define RST_SINGLE
#define AVERAGES
#undef AVERAGES2
#ifdef SOLVE3D
# undef AVERAGES_DETIDE
# define AVERAGES_AKT
# define AVERAGES_AKS
# define AVERAGES_AKV
# define AVERAGES_FLUXES
# undef AVERAGES_QUADRATIC
# undef DIAGNOSTICS_TS
#endif
#undef DIAGNOSTICS_UV
