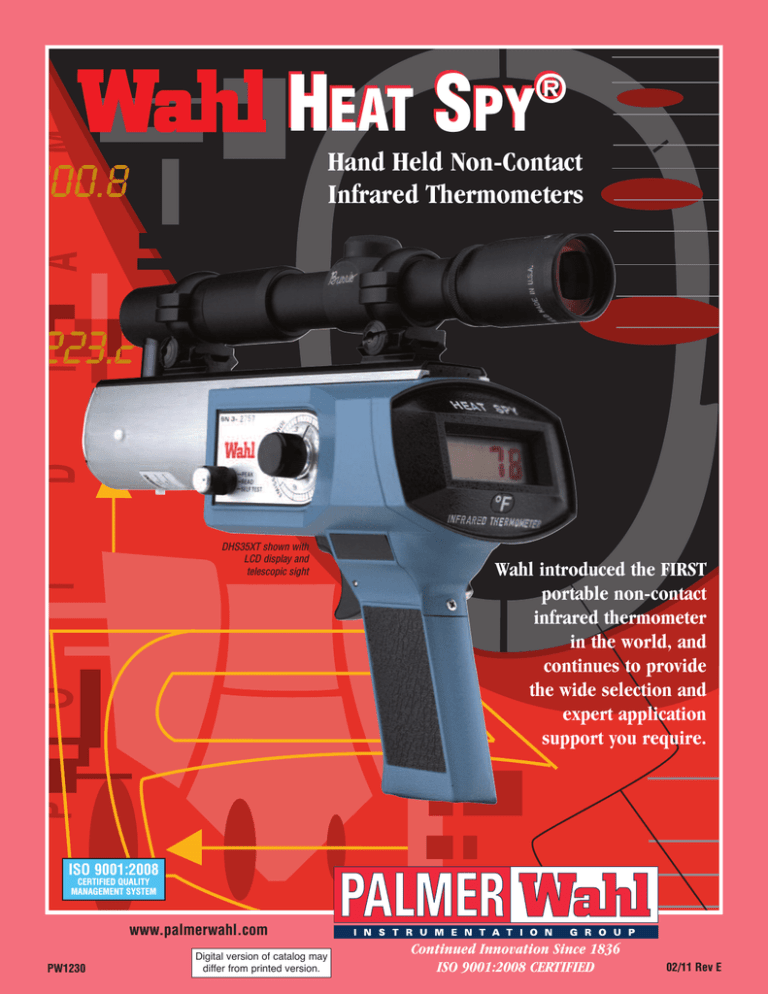

Heat Spy Catalog
®
HEAT SPY
Hand Held Non-Contact
Infrared Thermometers
DHS35XT shown with
LCD display and
telescopic sight
Wahl introduced the FIRST
portable non-contact
infrared thermometer
in the world, and
continues to provide
the wide selection and
expert application
support you require.
ISO 9001:2008
CERTIFIED QUALITY
MANAGEMENT SYSTEM
www.palmerwahl.com
PW1230
Digitalversionofcatalogmay
differfromprintedversion.
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
02/11 Rev E
High Performance
Infrareds
DHSA24 • DHSA26 • DHSA28 Series
Since Wahl introduced the FIRST digital portable infrared thermometer
thousands have been in use trouble-free for years.
With NIST traceable accuracy, Wahl’s DHSA24, DHSA26, DHSA28
Heat Spy® Infrared Thermometers are the most advanced, easy to
use and durable Infrareds in the world.
Their precision ground mirrors are protected by rare-earth germanium
filters, and tightly focus infrared energy on the patented detector for
accuracy as accurate as ±0.3% full scale with 1°F / °C resolution.
Rugged, cast and extruded aluminum case, provides shielding
against stray EMF from machinery and engines.
Temperature readings are updated 3 times per second on your
choice of standard LCD display, or LED for low light levels.
High reliability and higher accuracy than others.
Telescopic Sight
For long distances (20 to 100 feet) or
precise aiming on small objects such as
bolts, thick cable, tubing, forgings, and
castings. The Heat Spy “T” version telescopic sight provides sighting on the
centerline of the infrared optics.
Switchable Laser
Aiming Sight
Enclosed Optical
Sight
Highly visible narrow red light beam
pinpoints objects up to 100 feet away.
Good choice for locating hot spots and
for centering on targets.
For most applications, the
standard enclosed optical sight
provides target definition at 4 feet
and 20 feet with parallax correction.
WARRANTY
Features for All Models
• Adjustable Emissivity
• Maxitemp® Peak Temperature Hold
• Self Test
• Auto Calibration
• °F/°C Switchable
• NIST Traceable Accuracy
• Rugged Aluminum Housing
• Sighting and Display Options
• Output to Recorder
• AC Adapter
• Input Jack for Battery Pack on
non-X models
Display Options and Modes
Display options for LCD and LED. LCD is best for most uses. Select LED for low light conditions.
Measured temperature is
updated 3 times per second on large LCD.
PEAK holds highest
measured temperature,
and is especially useful in
high temperature scans.
TEST mode flashes room
temperature to show Heat
Spy is working properly.
BATT displays low battery. ---- indicates measurement
HLP flashes when instruis over or under the range
ment is out of specification. of the instrument.
Register your product at www.palmerwahl.com/register
2
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
DHSA24 • DHSA26 • DHSA28 Series
High Performance
Infrareds
DHSA24 • DHSA26 • DHSA28 Series Features
• Superior accuracy and sensitivity between 0° to 1000°F (-20° to 550°C)
• Accuracy of ±0.3% of full scale
• Repeatability of ±1°F
• Enclosed Optical, Closed Laser, or Telescopic Sighting options
• Anti-reflective filter for accurate use in strong sunlight or other
light sources
• Applications include all normal materials, including glass surfaces
• Not affected by IR heaters, carbon dioxide or water vapor. Will not
measure through glass
DHSA24L
• 3 Year Warranty
Please see page 5 for a complete listing of DHS24 specifications.
DHSA26 Series Additional Features
• Wider Temperature Range: 0° to 2000°F (-20° to 1000°C)
• Accuracy of ±0.3% of full scale
• Application for all normal material, including glass surfaces
• Sighting and Display options available
• 3 Year Warranty
Please see page 5 for a complete listing of DHS26 specifications.
DHSA24XT
DHSA28 Series Additional Features
• Ultra High Range: 32° to 2500°F (0° to 1380°C)
• Specialized tool for measurement of glass gobs, heat treating,
annealing, welding, and metal ingot operations, does not measure
through glass ports
• Accuracy of ±0.3% of full scale
• Repeatability is 3°F
• 3 Year Warranty
• Telescopic Sight option recommended
Please see page 5 for a complete listing of DHS28 specifications.
DHSA28XT
DHSA24, 26, and 28 Series Heat Spy
Distance to Spot Ratio: 20:1
WARRANTY
Register your product at www.palmerwahl.com/register
PW1230
02/11 Rev E
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
3
High Performance
Infrareds
DHS29X • DHS35XT Series
Designed for measurements in the processing of Ferrous and
Non Ferrous Metal, the Wahl DHS29X and DHS35XT Heat Spy®
models are built from the bottom up for precise, accurate
measurement of high temperatures under the toughest factory
conditions. Rugged, cast and extruded aluminum case, provides
shielding against stray EMF from machinery and engines.
DHS29X Series Features
• Measures through glass ports, flames, and products
of combustion
• High Temperature Range: 900° to 3200°F (482° to 1760°C)
• Narrow spectral range of 2.1 - 2.5 microns for general
purpose, high temperature measurement through glass
• Small target resolution and long telescopic range
• Aim through ports in furnace walls at refractories, glass
gobs, furnace tubes, ceramics, billets, slag, and annealing
materials
• Sapphire window protects the silicon optics from heat
and contamination
• 3 Year Warranty
DHS29X
Please see page 5 for a complete listing of DHS29X specifications.
DHS35XT Features
• Measures furnace tube temperatures through open ports
• High Temperature Range: 800° to 3200°F (426° to 1760°C)
• Narrow spectral range of 3.5 - 4.1 microns
• Specialized Reflex Sighting to enable readings from very
small target areas
• Minimizes errors caused by the reflectance from walls and
flames
• Does not measure through glass ports
• Best choice for high temperature general purpose operations
• Offered with telescopic sighting system only
• 3 Year Warranty
Please see page 5 for a complete listing of DHS35XT specifications.
DHS35XT
WARRANTY
DHS29X, and 35XT Series Heat Spy
Distance to Spot Ratio 100:1
Register your product at www.palmerwahl.com/register
4
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
High Performance
Infrareds
DHSA24 • DHSA26 • DHSA28
DHS29X • DHS35XT Series
Specifications
Model Number
Temperature Range
DHSA24 (LED)
DHSA24X (LCD)
DHSA26 (LED)
DHSA26X (LCD)
DHSA28X (LCD)
DHS29X (LCD)
DHS29XT (LCD)
DHS35XT (LCD)
0° to 1000°F
-20° to 550°C
0° to 2000°F
-20° to 1000°C
32° to 2500°F
0° to 1380°C
900° to 3200°F
482° to 1760°C
800° to 3200°F
426° to 1760°C
8 to 14 µm
8 to 14 µm
8 to 14 µm
2.1 to 2.5 µm
Distance to Spot Ratio
20:1
Spectral Range
100:1
Emissivity
Adjustable 0.2 - 1.0
Accuracy at 77°F ±5°
± 0.3% FS
Repeatability
± 1°F
± 0.5% FS
± 2°F
± 3°F
Resolution
1°F / °C
Response Time to 95% of Reading
1 second
Operating Temperature
25° to 125°F (-4° to 52°C)
Temperature Coefficient
± 0.1 deg/deg
Practical Working Distance
0 to 40 ft.
Sighting System
0 to 40 ft. (T) 150 ft.
Enclosed, Laser, or Telescope
Output to Recorder
0 to 150 ft.
Enclosed or Telescope
Telescope Only
1mV/deg.
Power Supply
LCD 1 - 9V Alkaline Battery, LED 2 - 6V Batteries
Battery Life
Weight (Lbs.)
3.5 to 4.1 µm
40 hours Laser Operation Will Reduce Battery Life
2.2 lbs (0.99 kg),
(T) 2.8 lbs (01.27 kg)
2.2 lbs (0.99 kg)
40 hours
2.5 lbs (1.13 kg)
(T) 3.0 lbs (1.36 kg)
3.0 lbs (1.36 kg)
User Manual, LCD, 1-9V Battery, LED, 2-6V Rechargeable Batteries,
Carrying Case, Trigger Lock, AC Adapter (Specify 110V or 220V AC)
Included Accessories
Specifications are subject to change without notice
Model No. Suffix Codes and Availability
Suffix
No Suffix
X
L1
L5
XL1
XL5
T
XT
Heat Spy
Series
F&C, LED
enclosed
optical sight
F&C, LCD
enclosed
optical sight
F&C, LED
laser sight
1mW
F&C, LED
laser sight
5mW
F&C, LCD
laser sight
1mW
F&C, LCD
laser sight
5mW
F&C, LED
telescopic
sight
F&C, LCD
telescopic
sight
DHSA24
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DHSA26
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DHSA28
NA
Yes
NA
NA
Yes
Yes
NA
Yes
DHS29
NA
Yes
NA
NA
NA
NA
NA
Yes
DHS35
NA
NA
NA
NA
NA
NA
NA
Yes
Specifications are subject to change without notice
WARRANTY
Register your product at www.palmerwahl.com/register
PW1230
02/11 Rev E
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
5
Economy
Infrareds
DHS85XL • DHS115XL • DHS115XEL
Wahl is pleased to introduce six models to our famous line of Heat Spy®
Infrared Thermometers, the DHS85XL, DHS115XL, DHS115XEL, DHS135XEL,
DHS215XEL and the NEW! DHS235XEL (see pg 9). These incredibly accurate
and robust instruments will help you diagnose any problem, and prevent costly
equipment downtime. The variety of features enable you to select the most
appropriate Heat Spy® for your application.
DHS85XL
DHS85XL Model Features
• The most economical and highest
performing Heat Spy in its class
• Used for Close Range: 8:1 (D:S Ratio)
• Maximum temperature: 619°F (326°C)
• Ultra low power consumption in
shut-down mode
Note: The DHS85XL replaces discontinued
model DHS100X and DHS110XL
DHS115XL Model Features
• Used for Short Range: 12:1 (D:S Ratio)
• Temperature Range to 999°F (535°C)
• Easy Aiming
• Quick Response
• Easy location of hot spots
• Ultra low power consumption in shut-down mode
DHS115XEL
and DHS115XL
DHS115XEL Model Extended Features
Same great features as the 115XL, Plus:
• Includes Hi, Low Alarms
• MAX/MIN/AVG/∆T calculations
• Adjustable Emissivity for better accuracy
• 10 points of memory to record temperature
• Electronic trigger lock which allows readings
to be taken continuously
Note: The DHS115XL and DHS115XEL
replace discontinued models DHS100XL,
DHS100XEL and DHS110XL.
APPLICATIONS
WARRANTY
• Quality/Non-Destructive Testing
• Electrical Troubleshooting
• Manufacturing Process Control
• Diesel/Fleet Maintenance
• Plant/Facilities Maintenance
• HVAC/Refrigeration
• Automotive Repair and Diagnostics
Register your product at www.palmerwahl.com/register
6
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
Economy
Infrareds
DHS135XEL • DHS215XEL and
NEW! DHS235XEL
Model Features
DHS135XEL
• High Temperature 1832°F (1000°C)
• Long Range: 30:1 (D:S Ratio)
DHS215XEL
• High Temperature 1832°F (1000°C)
• Extra Long Range: 50:1 (D:S Ratio)
NEW! DHS235XEL
• Extra High Temperature 2732°F (1500°C)
• Extra Long Range: 50:1 (D:S Ratio)
All Models offer:
• 10 point memory log that can save current
temperature
• MAX/MIN/AVG/∆T
• Electronic Trigger Lock allows continuous
readings
• Ultra low power consumption in shut-down
mode
Easy to read digital display on
models DHS135 and DHS215
and DHS235.
DHS215XEL Model Additional Features
DHS215XEL shown with optional TC869 - 45° Spring Articulated Surface Probe,
rugged Delrin® handle, ANSI mini-connector and 5-foot flexible compensated cable.
For more information on optional probes visit www.palmerwahl.com.
• Type K Thermocouple ANSI mini-connector
input for probe to determine emissivity
• Heat Spy® Data Logging Software
DHS215XEL Heat Spy® Data Logging Software
The DHS215XEL can be interfaced with a computer
via the supplied USB cable and Heat Spy® Data Logging
software. The software provides a convenient way to log
temperature readings at user selectable time sampling intervals of 1 second to 999 hours in
1-second increments.
HighPerformanceInfraredThermometer
Temperature data is genItem Date
Time
Temperature
Unit
erated with a date and
1
5/4
17:39:59
75.9
Fahrenheit
24-hour
format time
2
5/4
17:40:29
94.3
Fahrenheit
stamp in a text file that
3
5/4
17:40:59
94.3
Fahrenheit
can be used by programs
4
5/4
17:41:29
102.2
Fahrenheit
5
5/4
17:41:59
90.7
Fahrenheit
such as Excel, Access,
and Word for further
analysis, graphing and
report writing.
DHS215XEL interfaced with a laptop computer via USB cable and Heat Spy® Data
Logging software for online data acquisition. Shown with optional tripod.
WARRANTY
Register your product at www.palmerwahl.com/register
PW1230
02/11 Rev E
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
7
Economy
Infrareds
DHS85XL • DHS115XL • DHS115XEL
DHS135XEL • DHS215XEL • DHS235XEL
Specifications
Model Number
Description
Temperature Range
Distance to Spot Ratio
Spectral Range
DHS85XL
DHS115XL
DHS115XEL
DHS135XEL
DHS215XEL
NEW! DHS235XEL
Close Range
Mid Temperature
Short Range
Mid Temperature
Short Range
Extended Features
High Temperature
Long Range
Extended Features
High Temperature
Extra Long Range
Extended Features
USB, Type K Probe
Extra High Temperature
Extra Long Range
Extended Features
-4° to 619°F
-20° to 326°C
-25° to 999°F
-32° to 535°C
-25° to 999°F
-32° to 535°C
-58° to 1832°F
-50° to 1000°C
-58° to 1832°F
-50° to 1000°C
-58° to 2732°F
-50° to 1500°C
8 to 14µm
8:1
12:1
30:1
5 to 14µm
5 to 14µm
5 to 14µm
Emissivity
Fixed at 0.95
Fixed
Adjustable 0.10 to 1.00
Accuracy
±2% of reading
or 2°C whichever
is greater
50:1
8 to 14µm
8 to 14µm
Adjustable 0.10 to 1.00
±5°F (±3°C) from -25° to -4°F (-32° to -20°C)
±3°F (±2°C) from -4° to 212°F (-20° to
100°C)
±5°F (±3°C) from -58° to -4°F (-50° to -20°C)
±3°F (±2°C) from -4° to 212°F (-20° to 100°C)
±2% above 212°F (100°C)
Repeatability
±2°F (±1°C)
±2°F (±1°C)
±2°F (±1°C)
±2°F (±1°C)
±2°F (±1°C)
±2°F (±1°C)
Resolution
0.1°F (0.1°C)
0.1°F (0.1°C)
0.1°F (0.1°C)
0.1°F (0.1°C)
0.1°F (0.1°C)
0.1°F (0.1°C)
500 ms.
500 ms.
500 ms.
500 ms.
500 ms.
500 ms.
Operating Temperature
32° to 122°F
(0 to 50°C)
10 - 90% RH
32° to 122°F
(0 to 50°C)
10 - 90% RH
32° to 122°F
(0 to 50°C)
10 - 90% RH
32° to 122°F
(0 to 50°C)
10 - 90% RH
32° to 122°F
(0 to 50°C)
10 - 90% RH
32° to 122°F
(0 to 50°C)
10 - 90% RH
Storage Temperature
14° to 140°F
(-10° to 60°C)
14° to 140°F
(-10° to 60°C)
14° to 140°F
(-10° to 60°C)
14° to 140°F
(-10° to 60°C)
14° to 140°F
(-10° to 60°C)
14° to 140°F
(-10° to 60°C)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Response Time
LCD Backlight
Dual Display
°F &°C Selectable
NA
Yes
Laser Sight Switchable
User Selectable, Class II Laser, less than 1mW
Auto Power Off
Automatically after
approx. 6 seconds
Automatically after
approx. 6 seconds
Automatically after
approx. 6 seconds
Automatically after
approx. 6 seconds
Automatically after
approx. 30 seconds
Automatically after
approx. 6 seconds
Max/Min/Avg/∆T
No
No
Yes
Yes
Yes
Yes
Auto Measuring
No
No
Yes
Yes
Yes
Yes
Audible Alarm
No
Yes
Yes
Yes
Yes
Yes
10 Point Memory
No
No
Yes
Yes
Yes
Yes
Electronic Trigger Lock
No
Yes
Yes
Yes
Yes
Yes
Tripod Mount
Yes
No
No
Yes
Yes
Yes
USB Data Output
No
No
No
No
Yes
No
Type K Thermocouple
No
No
No
No
Operating Software
Power Supply
NA
9V Battery
Battery Life
16 hrs for
with Laser Off continuous operation
Dimensions
Weight with Battery
9V Battery
6.8 x 3.6 x 1.8"
(173 x 93 x 45mm)
4.7 oz (135g)
7.8 oz (220g)
9V Battery
User Manual, 9V Battery, Soft Pouch
No
NA
9V Battery
9V Battery
9V Battery
15 hrs for
continuous operation
5.9 x 5.2 x 1.8"
(150 x 133 x 45mm)
User Manual,
Included
Accessories
9V Battery
Yes
Software Cd Included
15 hrs for
continuous operation
7.9 x 5.0 x 1.9"
(200 x 127 x 47mm)
6.7 x 5.2 x 1.8"
(200 x 132 x 45mm)
12.7 oz (360g)
User Manual, 9V
Battery, Carrying Case,
and Wrist Strap
User Manual, 9V Battery,
Carrying Case, Wrist Strap
& Software
11.6 oz (330g)
User Manual, 9V Battery,
Carrying Case, and
Wrist Strap
USB Cable, Type K
Probe*
Optional Accessories
Soft Pouch
No
No
Optional T/C Probes**
No
* Wire Bead thermocouple - 1 meter in length, ** For more information on optional probes visit www.palmerwahl.com.
Specifications are subject to change without notice
Register your product at www.palmerwahl.com/register
8
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
NEW! DHS125XEL Hybrid Infrared
Hybrid
Infrared
The NEW! DHS125XEL Hybrid Infrared from Wahl is an intelligent
contact and non-contact infrared thermometer which goes beyond the
conventional temperature measurement capabilities of other infrared
thermometers.
Specifications
Model Number
Temperature Range
DHS125XEL
-25° to +1400°F (-32° to +760°C)
Distance to Spot Ratio
Emissivity
12:1
Adjustable 0.1 to 1.0
Accuracy ±5°F (±3°C) From -25° to -4°F (-32° to -20°C)
Ambient Operating ±3°F (±2°C) From -4° to 212°F (-20° to 100°C)
Temperature of 77°F (25°C) ±2% Above 212°F (100°C)
Repeatability
±1°C (±2°F)
Resolution
0.1°C (0.1°F)
Response Time
Operating Temperature
• eSmart Technology: Using
an external Type K
Thermocouple as a reference,
the built-in software determines
the emissivity of the target
object, and automatically sets
the emissivity of the instrument.
500 ms
0° to 50°C (32° to 122°F), 10 to 95% RH
Auto Power Off
Automatically after approx. 6 seconds
Spectral Range
5 to 14 µm
Yes
• Color Identification Signal
Technology: Display backlight
changes to red when alarm setpoints are exceeded.
Thermocouple Range
-200° to 1380°C
• Ultra low power consumption.
Thermocouple Accuracy
±1.5% +1 degree
• Extended time measuring
reliability.
eSmart
Yes
Thermocouple Connection (K)
°F/°C Switchable
Yes
LCD Backlight
Yes
• Electronic Trigger Lock Function.
Color Identification Signal
Yes
Laser Sight Switchable
Yes
• Tripod Mount: For hands free
monitoring.
Audio Alarm
Yes
Dual Display
Yes
Trigger Lock Function
Yes
Max/Min/Avg
Yes
Auto-Measuring
Yes
10 Point Memory
Yes
Tripod Mount
Yes
Power Supply
9V, 006P, IECF22, NEDA1604
Dimensions
7.09 x 5.12 x 1.57 inches
(180mm x 130mm x40mm)
Weight
Approximately 6.87 ounces (195 grams)
Included Accessories
User Manual, 9V Battery and Carrying Case
Optional Accessories
see Wahl Heat Prober® Thermocouple
probes for surface measuring
Specifications subject to change without notice
DHS125XEL shown with optional Wahl Heat Prober® TC869 45°
Spring Articulated Surface Probe.
Applications
• Electrical Troubleshooting
• Automotive Maintenance
• HVAC Energy Audits
• Food Safety and Processing
• Test Terminals on Circuits
• Maintenance & Inspections
For more information
on optional probes visit
www.palmerwahl.com.
WARRANTY
Register your product at www.palmerwahl.com/register
PW1230
02/11 Rev E
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
9
High Temperature
Infrared with
Bluetooth®
DHS520B High Temperature Infrared
with Bluetooth® Communications
The Wahl DHS520B Series Heat Spy® models are general purpose, high
precision, portable infrared thermometers, designed for accurate high
temperature measurement in the range of 1022° to 5432°F (550° to 3000°C).
The measured temperature is displayed in four simultaneous modes:
continuous, peak, mean, and valley, with user selected mode for the
viewfinder display. The bright, back-lit external display panel indicates
status and configuration of thermometer.
Accurate sighting is ensured by the clear, wide angle (9°) field of view and
small, clearly defined (1/3°) measurement area. Focusing is variable from
1m to infinity, with close focus options available using auxiliary lenses. The
reflex optical system gives precise definition of target spot and simultaneous
backlit display of user selected values in the viewfinder.
Emissivity compensation is provided via the icon-based menu system. The
operating waveband has been carefully chosen to minimize errors due to
uncertainty in emissivity and the effects of atmospheric vapor components.
The DHS520B features
a 2-position trigger
which takes and stores
temperature readings.
Specifications
DHS520B - DHS520GB*
Model Number
Temperature Range
1022° to 5432°F (550° to 3000°C)
Distance to Spot Ratio
20:1, 4:1 with closeup lens
Spectral Response
1 µm with advance spectral filtering
Emissivity Adjustment
0.10 to 1.20 in 0.01 step graduations
Accuracy
< 0.25% (K) of reading
Repeatability
< 0.1% (K) of reading
Response Time
30 ms (98% response)
Operating Temp Range
32° to 122°F (0° to 50°C)
Measuring Mode
Features
Optical System
Focusing Range
39.3" / 1m to infinity
17.7 to 24.5" / 450 to 620mm with optional
8.5" / 215mm fixed focus close-up lens
• Advanced spectral filtering enhances performance
• Long term, drift free measurement
• High accuracy and repeatability
• Digital signal processing
• Flexible user configuration
• Robust - Ideal for
industrial use
Benefits
Target Size
Distance:
ft (m)
Target Size:
in (mm)
328 (100)
22.6 (576)
164 (50)
11.2 (287)
65.6 (20)
4.48 (114)
Display Update Time
0.5 seconds
Sealing
IP54 / NEMA 3
Output
Bluetooth Communications
Power Supply
Dimensions
32.8 (10)
2.24 (57)
• No contamination, interference or
damage to process or material
22.9 (7)
1.53 (39)
16.4 (5)
1.10 (28)
• Accurate, reliable and stable temperature measurement to aid
product quality control
6.5 (2)
0.43 (11)
3.2 (1)
0.18 (4.8)
• Maximize production rates and
efficiency
CONT, AVG, MAX & MIN
9° Field of View with 1/3° (180:1 to 98% measurement
energy) area. Eyepiece adjustable: -3.75 to +2.5 diopters
Target size can be reduced to
a minimum of 0.4mm/0.016in
with optional close-up lenses.
Weight
1 9V Battery
8.25 x 2.75 x 5.5 inches (210 x 70 x140mm)
Approximately 6.87 ounces (195 grams) 0.83kg/1.8lb
Included Accessories
Lens Cap, Dark Glass Eye Protection Filter (G model includes
2 filters), Wrist Strap, 9V Battery and User Manual
Optional Accessories
User Manual, 9V Battery, Waterproof Carrying Case,
Close-up Lenses, Datalogger Software
* Model DHS520GB includes 2 dark glass
eye protection filters for use in the Glass
industry.
Specifications subject to change without notice
Applications
Note: The DHS520 replaces
discontinued model DHS54.
WARRANTY
• Heat Treatment
• Semi-Conductors
• Any Industrial use
• Refractories
• Steel
• Glass
Register your product at www.palmerwahl.com/register
10
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
NEW! DHS1900 • DHS3000 High
Temperature • High Accuracy Infrareds
High Temperature
High Accuracy
Infrareds
NEW! Wahl DHS1900 Extra High Temperature & DHS3000
Super High Temperature are hand held infrared thermometers
designed specifically for use in the Steel and Aluminum
industries. Both models have an RS485 interface and
4-20mA analog signal output through two mini-USB ports
below the LCD.
Specifications
Model Number
Temperature Range
DHS1900
DHS3000
Extra High
Temperature
Super High
Temperature
662° to 3452°F
350° to 1900°C
1112° to 5432°F
600° to 3000°C
Spectral Range
1.6µm
1µm
Distance to Spot Ratio
150:1
150:1
Emissivity
0.1 to 1.0 adjustable
Sighting
Display Hold
Coaxial Optical
Accuracy
±1% of reading
Repeatability
±0.5% of reading
Resolution
1°F/°C
Response Time
≤ 200 mS
Operating Temperature
-0.4° to 140°F
(-18° to 60°C)
Storage Temperature
-0.4° to 140°F
(-18° to 60°C)
LCD Backlight
Yes
°F & °C Switchable
Yes
Max/Min/Avg/∆T
Yes
Tripod Mount
Yes
4-20mA; RS485; Mini-USB
Power Supply
Dimensions
Weight with Battery
Included Accessories
• Extra High Temperature
9V (NEDA 1604)
15 hrs with normal use
10.3 x 8.4 x 2.6 inches
(262 x 213 x 65 mm)
2.05 lbs (930 g)
Carrying Case, Dark Glass Eye
Protection Filter, 9V Battery, RS485
Cable, PC Cable, and User Manual
Specifications subject to change without notice
30.48 mm
4.57 m
1.2 in
15 ft
662° to 3452°F (350° to 1900°C)
High and Low
Memory
Battery Life
These new models are extremely
accurate and reliable, and packed
with features making them
indispensable for non-contact
temperature measurement in a
variety of industries.
DHS1900 Features
Yes
Audible Alarm
Output
DHS3000 Super High
Temperature Infrared
The display holds for 8 seconds
after release of trigger
20.32 mm
3.04 m
0.8 in
10 ft
10.16 mm
1.52 m
• Used for Aluminum Processing
• Distance to Spot 150:1
• Includes Hi, Low Alarms
• MAX/MIN/AVG/∆T calculations
• Adjustable Emissivity for better accuracy
DHS3000 Features
• Super High Temperature
1112° to 5432°F (600° to 3000°C)
• Used in the Steel Industry
• Distance to Spot 150:1
• Includes Hi, Low Alarms
• MAX/MIN/AVG/∆T calculations
• Adjustable Emissivity for better accuracy
0.4 in
5 ft
DHS1900 • DHS3000 Heat Spy
Distance to Spot Ratio 150:1
WARRANTY
Register your product at www.palmerwahl.com/register
PW1230
02/11 Rev E
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
11
Long Distance
Infrared
NEW! HSA300 Long Distance Portable
Thermometer
Wahl’s Heat Spy® HSA300 Long Distance Infrared
Thermometer is used for non-contact temperature
measurement and preventive maintenance in the
Electrical Power Generation and Power Transmission
industries. This model has all the features preferred by
maintenance engineers to easily search out hot spots at
a safe and convenient distance.
Specifications
Model Number
HSA300
Long Distance
0° to 572°F
-18° to 300°C
Temperature Range
Spectral Range
HSA300 Long
Distance Infrared
8 to 14µm
Distance to Spot Ratio
300:1
Emissivity
0.4 to 1.0 adjustable
Sighting
Coaxial Optic or Coaxial Laser
Accuracy
± 5°C ≤ 100°C, ± 5 % of Reading within the
range of 6 to 15 meters, or 20 to 50 feet
Repeatability
± 2% of Reading
Resolution
1°F/°C
Response Time
Operating Temperature
Storage Temperature
Wahl HSA300 is an Long Distance Infrared Thermometer
which provides a Distance to Spot of 300:1. With a 2-inch
measurement spot at 50 feet, the telescopic sight allows
precise positioning of the measurement spot.
Peak temperature is displayed on the large main display,
easing the ability to capture the hot spot. The current
temperature is displayed on the smaller secondary display.
< 500 mS
-4° to 122°F (-20° to 50°C)
32° to 104°F (0° to 40°C)
LCD Backlight
Yes
°F & °C Switchable
Yes
Auto Measuring
Yes
Max/Min/Avg/∆T
Real Time, Max
Audible Alarm
No
Memory
50 points
Tripod Mount
Yes
Digital Interface
RS232
≤ 60 mA
Milliamps
HSA300 Features
Power Supply
• Temperature Range
0° to 572°F (-18° to 300°C)
• Used in the Power Generation &Transmission Industry
• Distance to Spot 300:1
• Measures accurately at distances from 20 to 50 feet
• MAX/MIN/AVG/∆T calculations
50 mm
• Adjustable Emissivity for better accuracy
2 - 9V Batteries
Battery Life
15 hours, with Laser Off
Dimensions
9.64 x 9.44 x 2.36 in (245 x 240 x 60 mm)
Weight with Battery
Included Accessories
2.2 lbs (1 kg)
Carrying Case, 2 - 9V Batteries,
and User Manual
Specifications subject to change without notice
15 m
40 mm
12 m
30 mm
9m
2.0 in
50 ft
1.6 in
40 ft
1.2 in
30 ft
WARRANTY
ISO 9001:2008
HSA300 Heat Spy
Distance to Spot Ratio 300:1
CERTIFIED QUALITY
MANAGEMENT SYSTEM
Digitalversionofcatalogmay
differfromprintedversion.
Register your product at www.palmerwahl.com/register
12
Continued Innovation Since 1836
ISO 9001:2008 CERTIFIED
(800) 421-2853 • FAX (828) 658-0728 • www.palmerwahl.com
PW1230
02/11 Rev E
Revised 05/14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
