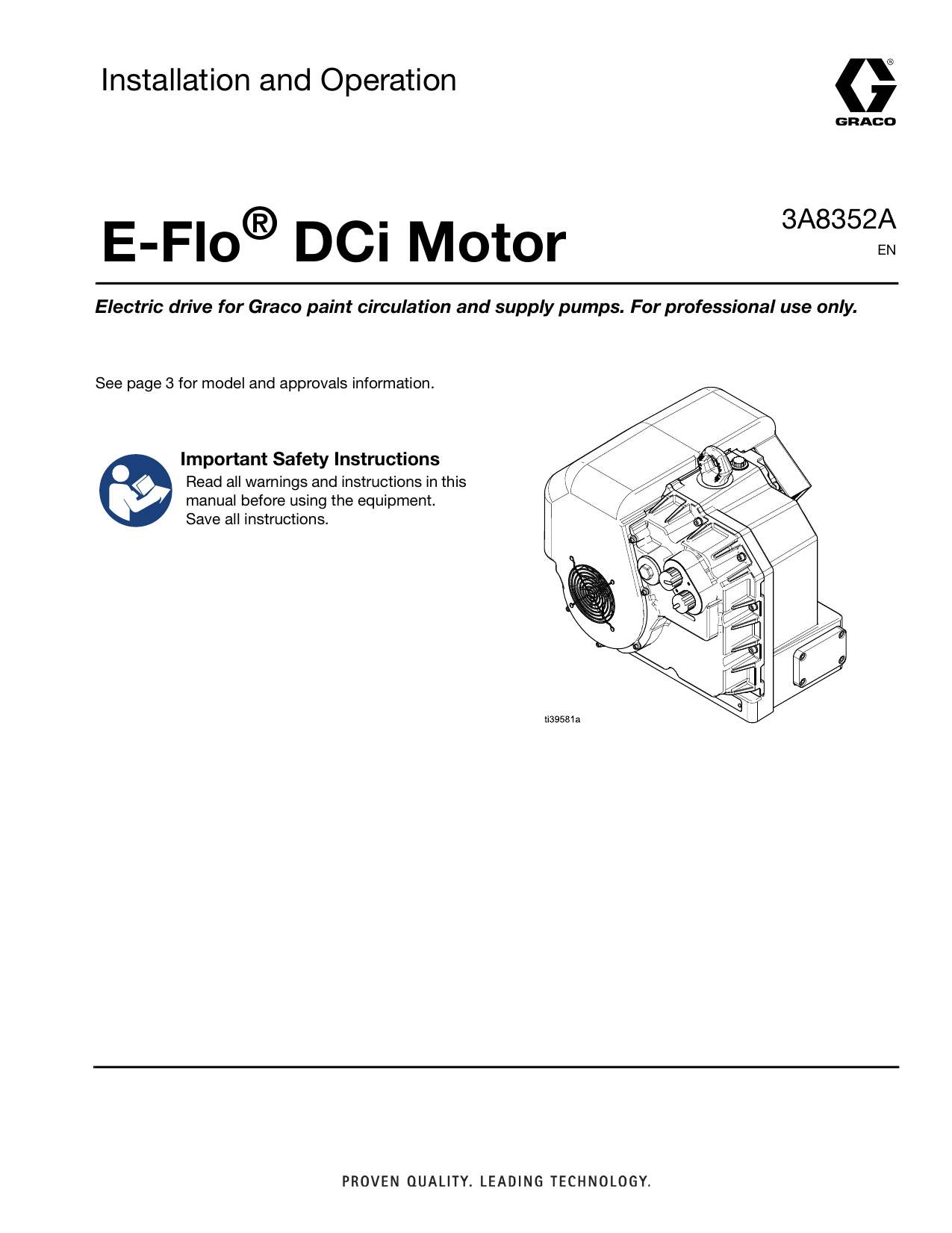

Graco 3A8532A, E-Flo DCi Motor Instructions

Installation and Operation
®
E-Flo
DCi Motor
3A8352A
Electric drive for Graco paint circulation and supply pumps. For professional use only.
See page 3 for model and approvals information.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save all instructions.
EN
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Component Identification . . . . . . . . . . . . . . . . . . . . 7
Knobs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hazardous Location Cabling and Conduit
Requirements . . . . . . . . . . . . . . . . . . . . . . . . 8
Power Requirements . . . . . . . . . . . . . . . . . . . . . . 8
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . 9
Update Software . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical Accessories . . . . . . . . . . . . . . . . . . . . 10
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connect Supply Wiring . . . . . . . . . . . . . . . . . . . 12
Install the Fill Cap. . . . . . . . . . . . . . . . . . . . . . . . 12
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Motor Operation Modes Overview. . . . . . . . . . . 13
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . 14
Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Change the Oil . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Add Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Check Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . 17
Error Code Troubleshooting . . . . . . . . . . . . . . . . . 18
Mounting Hole Pattern . . . . . . . . . . . . . . . . . . . . . . 19
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Specifications . . . . . . . . . . . . . . . . . . . . 20
California Proposition 65 . . . . . . . . . . . . . . . . . . . . 21
Graco Standard Warranty. . . . . . . . . . . . . . . . . . . . 22
Related Manuals
Manual
Description
311619
Pump Mounting Kits
Instructions
DCi Link
Communication
Module
3A8471
Referenced
Equipment
Wall and Stand
Mounting Kit
Communication
Module
3A8352A
Models
Models
Model
YM1012
YM1022
YM1032
YM1052
YM1014
YM1024
YM1034
YM1054
3A8352A
Description
1 HP (0.75 kW)
2 HP (1.49 kW)
3 HP (2.24 kW)
5 HP (3.73 kW)
1 HP (0.75 kW)
2 HP (1.49 kW)
3 HP (2.24 kW)
5 HP (3.73 kW)
kVA
1.4
2.7
3.4
5.7
Approvals
801346
Explosion proof. For Class I, Div 1, Group
C and D T4 and Class I, Zone 1, AEx db IIB
T4 Gb, Ex db IIB T4 Gb, 0°C ≤ Ta ≤ 40°C.
1.4
2.7
3.4
5.7
3
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
DANGER
SEVERE ELECTRIC SHOCK HAZARD
This equipment is powered by more than 240V. Contact with this voltage will cause death or serious
injury.
•
•
•
Turn off and disconnect all incoming power at the main switch before disconnecting any cables and
before servicing equipment.
This equipment must be grounded. Connect only to a grounded power source.
All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
•
•
•
•
•
•
•
•
•
Use equipment only in well-ventilated area.
Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static sparking).
Ground all equipment in the work area. See Grounding instructions.
Keep work area free of debris, including solvent, rags, and gasoline.
Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
Use only grounded hoses.
Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are anti-static or conductive.
Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
Keep a working fire extinguisher in the work area
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
•
4
Do not touch hot fluid or equipment.
3A8352A
Warnings
WARNING
MOVING PARTS HAZARD
Moving parts can pinch, cut, or amputate fingers and other body parts.
•
•
•
Keep clear of moving parts.
Do not operate equipment with protective guards or covers removed.
Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure in your pump manual and disconnect all power sources.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
•
•
•
•
•
•
•
Engage trigger lock when not dispensing.
Do not point dispensing device at anyone or at any part of the body.
Do not put your hand over the fluid outlet.
Do not stop or deflect leaks with your hand, body, glove, or rag.
Follow the Pressure Relief Procedure in your pump manual when you stop dispensing and before
cleaning, checking, or servicing equipment.
Tighten all fluid connections before operating the equipment.
Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
•
•
•
•
•
•
•
•
•
•
•
3A8352A
Do not operate the unit when fatigued or under the influence of drugs or alcohol.
Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer's warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
Do not leave the work area while equipment is energized or under pressure.
Turn off all equipment and follow the Pressure Relief Procedure in your pump manual when
equipment is not in use. Check equipment daily. Repair or replace worn or damaged parts
immediately with genuine manufacturer's replacement parts only.
Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
Make sure all equipment is rated and approved for the environment in which you are using it.
Use equipment only for its intended purpose. Call your distributor for information.
Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
Do not kink or over bend hoses or use hoses to pull equipment.
Keep children and animals away from work area.
Comply with all applicable safety regulations.
5
Warnings
WARNING
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
•
•
Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
•
•
6
Protective eyewear, and hearing protection.
Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A8352A
Component Identification
Component Identification
Knobs
Indicator Lights
M
Red
Error
Blue
Yellow
Green
PLC
Ethernet
Power
Blinking red light indicates an
error: See Error Code
Troubleshooting on page 18
Indicates PLC connectivity
Flashes during ethernet activity
Indicates the power is on
N
Indicator lights
FIG. 1 Motor Components
M
N
Mode Knob
Setpoint Knob
3A8352A
Selects operating mode
Customizes the mode settings
7
Installation
Installation
Installation of this equipment involves potentially
hazardous procedures. Improper wiring may cause
electric shock or fire explosion if the work is not
performed properly. All electrical wiring must be
done by a qualified electrician and comply with all
local codes and regulations.
Hazardous Location Cabling
and Conduit Requirements
Power Requirements
The system requires a dedicated circuit protected with
a circuit breaker in each ungrounded phase.
Model by
Horsepower
Voltage
Phase
Hz
kVA
1 HP (0.75 kW) 380–480 Vac 3
50/60
1.4
2 HP (1.49 kW) 380–480 Vac 3
50/60
2.7
3 HP (2.24 kW) 380–480 Vac 3
50/60
3.4
5 HP (3.73 kW) 380–480 Vac 3
50/60
5.7
Explosion Proof Requirements
All electrical wiring in the hazardous locations must be
encased in approved explosion-proof conduit that is
suitable for Class I, Division I, Group C and D locations.
Follow all national, state, and local electrical codes and
regulations.
US and Canada Conduit Location Requirement:
Install a conduit seal within 457 mm (18 in.) of the motor
enclosure.
Cable Rating Requirement: Use cables with a
minimum rating of 70°C (158°F).
8
3A8352A
Installation
Typical Installation
B
Programmable
Logic
Controller
(PLC)
B
F
E
C
A
D
D
G
G
H
C
D
H
A
Non-Hazardous
Location
Hazardous
Location
FIG. 2 Typical installation (with communication
module)
Hazardous
Location
FIG. 3 Typical Installation (no communication
module)
Key:
A
B
C
D
E
F
G
H
Motor power wire
E-Flo® DCi motor
Main electrical supply wire
Electrical disconnect
Communication module
Ethernet cable
Static ground wire
Graco pump lower
3A8352A
9
Installation
Update Software
Installation with no communication module:
1. Ensure the power is disconnected.
2. Remove the USB cover and remove the USB from
the port.
Main electrical supply wire (C): Powers the motor.
Electrical disconnect (D): Required in the system to
disconnect and isolate electricity.
Ground wire (G): Grounds the motor. Purchase Graco
part 222011 (not supplied).
Optional Communication Accessories
Communication module (E): Communicates with the
motor and monitors equipment with digital and analog
inputs and outputs.
Ethernet cable (F): Connects communication module
(E) to the PLC.
Mounting
USB Cover
FIG. 4 USB Location
3. Plug it into a computer, and upload the software
onto the USB port.
4. Reinstall USB in the motor and replace the USB
cover.
Location
Select a location for a wall or stand mount. When
selecting the location for the equipment, keep the
following in mind:
•
There must be sufficient space on all sides of the
equipment for installation, operator access,
maintenance, and air circulation.
•
Ensure that the mounting surface and mounting
hardware are strong enough to support the weight
of the equipment, fluid, hoses, and stress caused
during operation.
•
There must be an electrical disconnect (D) within
easy reach of the equipment. See Typical
Installation, page 9.
Installation with communication module:
See the communication module manual in the Related
Manuals, page 2.
Electrical Accessories
Install accessories using adapters as necessary. Make
sure they meet the system’s size and pressure rating
requirements.
Motor power wire (A): Connects the motor (B) to the
supply source. Connect power wires to the
communication module or to the electrical disconnect
(D).
Mount the Motor
Use a stand or wall mounting kit to mount the motor (B)
to a Graco pump lower (H) using the Mounting Hole
Pattern, page 19. See mounting kit in the Related
Manuals, page 2 for additional instructions.
NOTE: If using a communication module, the wire
orientation is important. See Connect Supply Wiring
on page 12.
10
3A8352A
Installation
Grounding
Electrical Grounding
1. Ensure that the electrical disconnect (D) is shut off
and locked out.
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.
D
Static Grounding
Use a ground wire (G) to connect the motor (B) to a true
earth ground.
1. Loosen the ground screw.
FIG. 6 Locked out disconnect example
2. Remove the cover to access the motor electrical
wiring compartment (EC).
2. Insert a ground wire (G).
3. Connect the supply ground wire to GND.
W1
B
W2
W3
GND
L1
L2
L3
FIG. 7 Motor wiring
FIG. 5 Motor ground wire location
3. Tighten the ground screw securely.
4. Connect the other end of the supply ground wire to
a true earth ground.
4. Connect the other end of the ground wire (G) to a
true earth ground.
3A8352A
11
Installation
Connect Supply Wiring
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
1. Ensure that the electrical disconnect (D) is shut off
and locked out. See FIG. 6.
1
Torque to 7 in-lb (0.79 N•m)
2
Torque to 15 ft-lb (20 N•m)
3
2
2. Bring the power wires (L1, L2, and L3) through the
3/4-14npt(f) inlet port of the electrical wiring
compartment. Connect the wires to the terminal
blocks.
A conduit seal is required
within 457 mm (18 in.) of the
motor for US and Canadian
installations.
EC
CS
2
CS
J
3
3/4 14 npt(f)
NOTE: The maximum wire size that can be used with
the terminal block is 8AWG (10mm2).
NOTE: When using a communication module, the wire
orientation is important. L1 and L3 transmit
communication. Incorrectly wiring the communication
module will result in communication failure. See FIG. 7.
-
L1 to W1 (black)
-
L3 to W3 (blue)
-
L2 to W2 (red)
3. Torque terminal screws (TS) to 7 in-lb (0.79 N•m).
Do not over-torque.
2
CS
1
TS
2
CS
FIG. 8 Motor electrical compartment wires
Install the Fill Cap
The motor is pre-filled with oil. Replace the shipping
plug with the fill cap (FC) before first use.
FC
4. Close the electrical wiring compartment (EC).
Torque the cover screws (CS) to 15 ft-lb (20 N•m).
FIG. 9 Fill cap
12
3A8352A
Operation
Operation
Follow the pressure relief procedure in your
pump manual whenever you see this symbol.
Motor Operation Modes
Overview
•
Select an operating mode with the mode knob (M).
Pressure Mode
Pressure Mode
Maintains constant fluid
with Integrated
pressure with speed
Runaway
limit parameters
Protection
The equipment connected to the motor stays
pressurized until the pressure is manually relieved.
Pressurized fluid can cause serious injury such as
skin injection, splashing fluid, and moving parts.
Follow the Pressure Relief Procedure in your pump
manual when you stop operating the motor.
Startup
1. Unlock the electrical disconnect (D) and turn it on.
2. Set the motor knobs. See Motor Operation Modes
Overview, page 13.
3. Turn the setpoint knob (N) away from 0 to start the
motor.
3A8352A
Maintains constant fluid
pressure
•
Flow Mode
Maintains constant
speed
Remote Mode
Remote motor control
Customize the mode settings with the setpoint
knob (N).
NOTE: Always turn the setpoint knob (N) fully
counter-clockwise to 0 before changing the operation
mode.
•
Push both knobs in to lock in place after setting the
mode to prevent accidental changes.
13
Operation
Operation Modes
Exceeding the equipment’s maximum fluid pressure
may cause components to rupture and result in a
serious injury. Do not exceed the maximum potential
working pressure. See Technical Specifications on
page 20.
Pressure Mode
Pressure Mode adjusts the motor speed to maintain a
constant fluid pressure.
Pressure Mode with Integrated Runaway
Protection
Pressure Mode with Integrated Runaway Protection
maintains a set fluid pressure, but will shut down if the
motor exceeds a set cycle rate.
1. Set the setpoint knob (N) to 0.
2. Set the mode knob (M) to the desired maximum
cycles per minute rate.
3. Set the pressure with the setpoint knob (N).
-
Clockwise increases the pressure
-
Counterclockwise decreases the pressure.
1. Set the setpoint knob (N) to 0.
2. Set the mode knob (M) to Pressure.
3. Set the pressure with the setpoint knob (N).
-
Clockwise increases the pressure
M
Counterclockwise decreases the pressure
N
FIG. 11 Pressure Mode with Integrated Runaway
Protection
M
N
FIG. 10 Pressure Mode
14
3A8352A
Operation
Flow Mode
Flow Mode maintains a constant speed regardless of
fluid pressure, up to the pump’s maximum working
pressure.
Remote Mode
Remote mode controls the motor remotely.
1. Set the setpoint knob (N) to 0.
1. Set the setpoint knob (N) to 0.
2. Set the mode knob (M) to remote.
2. Set the mode knob (M) to Flow.
3. Use the DCi Link to control the motor remotely.
3. Set the cycle rate (flow) with the setpoint knob (N).
NOTE: The setpoint knob (N) can not control the motor
in remote mode. The motor ignores setpoint knob (N)
changes during remote mode operation.
-
Clockwise increases the flow rate.
Counterclockwise decreases the flow rate.
NOTE: The flow rate scale (0-10) corresponds to a 0-30
cycles per minute cycle adjustment range.
M
M
N
N
FIG. 13 Remote Mode
FIG. 12 Flow Mode
3A8352A
15
Operation
Shutdown
The equipment connected to the motor stays
pressurized until the pressure is manually relieved.
Pressurized fluid can cause serious injury such as
skin injection, splashing fluid, and moving parts.
Follow the Pressure Relief Procedure in your pump
manual when you shutdown the motor.
Pressure Mode, Pressure Mode with Integrated
Runaway Protection Mode, and Flow Mode
1. Pull and turn the setpoint knob (N) to 0.
2. Shut-off and lock out the electrical disconnect.
3. Follow the Pressure Relief Procedure in your pump
manual.
Remote Mode
1. Shutdown the motor on the PLC.
2. Shut-off and lock out the electrical disconnect.
3. Follow the Pressure Relief Procedure in your pump
manual.
16
3A8352A
Maintenance
Maintenance
Change the Oil
Change the oil after a break-in period of
200,000–300,000 cycles. After the break-in period,
change the oil once a year.
1. Place a minimum 2 quart (1.9 liter) container under
the oil drain port.
2. Remove the oil drain plug.
Add Oil
1. Open the fill cap (FC).
2. Add a compatible oil. See Technical
Specifications on page 20.
NOTE: The oil capacity is 2.0 quarts (1.9 liters). Do not
overfill.
3. Reinstall the fill cap.
3. Allow all oil to drain from the motor.
4. Reinstall the oil drain plug. Torque to 25–30 ft-lb
(34–40 N•m).
FC
5. Add oil. See page 17.
Sight glass
FIG. 15 Fill cap
Check Oil Level
Check the oil level in the sight glass. The oil level should
be near the halfway point of the sight glass when the
unit is not running.
Oil drain plug
FIG. 14 Oil drain plug
3A8352A
17
Error Code Troubleshooting
Error Code Troubleshooting
The error indicator blinks during a motor error. See Indicator Lights, page 7.
Some blink codes have a repeating pattern.
Example: Blink code 2-6 is 2 blinks followed by a 6 blinks pattern.
Blink Code
Description
1
Flow exceeds maximum target; also indicates pump runaway condition exists
4
An internal control board hardware failure is detected
2
5
6
2–4
2–6
3–5
3–4
3–6
4–5
5–6
18
Brown out; voltage supplied to motor is too low
Over temperature
The Mode Select knob is set between Pressure and Flow.Set knob to the desired mode
Temporary circuit board communication error
AC power is lost
Internal thermistor disconnected
Software versions do not match
Circuit board communication failure
Internal software error
Calibration of the encoder and stroke range is in progress
3A8352A
Mounting Hole Pattern
Mounting Hole Pattern
CC
AA
AA
6.186 in. (157 mm)
CC
Four 3/8–16 mounting holes
BB
CC
DD
6.186 in. (157 mm)
Six 5/8–11 tie rod holes
•
OR
•
DD
8 in. (203 mm) x 120° bolt circle
5.9 in. (150 mm) x 120° bolt circle
BB
CC
CC
DD
DD
FIG. 16 Mounting Hole Pattern
Dimensions
A
19.6 in. (498 mm)
C
16.9 in. (429 mm)
B
D
21.0 in. (533 mm)
18.3 in. (465 mm)
3A8352A
19
Technical Specifications
Technical Specifications
E-Flo DCi Motor
YM1012 and YM1014
YM1022 and YM1024
YM1032 and YM1034
YM1052 and YM1054
1 HP, 380–480 VAC, 3 phase, 50/60 Hz, 1.4 kVA
2 HP, 380–480 VAC, 3 phase, 50/60 Hz, 2.7 kVA
3 HP, 380–480 VAC, 3 phase, 50/60 Hz, 3.4 kVA
5 HP, 380–480 VAC, 3 phase, 50/60 Hz, 5.7 kVA
Maximum force
U.S.
YM1012 and YM1014
YM1022 and YM1024
YM1032 and YM1034
YM1052 and YM1054
Maximum Potential Fluid
Pressure
YM1012 and YM1014
YM1022 and YM1024
YM1032 and YM1034
YM1052 and YM1054
Maximum continuous cycle
rate
Power inlet port size
Ambient temperature range
Sound data
Oil capacity
Oil specification
Weight
20
1400 lbf
2800 lbf
4400 lbf
7800 lbf
Metric
6228 N
12455 N
19572 N
34696 N
210000/v (volume of lower in cc) = psi
14500/v (volume of lower in cc) = bar
428000/v (volume of lower in cc) = psi
29500/v (volume of lower in cc) = bar
670000/v (volume of lower in cc) = psi
46200/v (volume of lower in cc) = bar
1190000/v (volume of lower in cc) = psi 82000/v (volume of lower in cc) = bar
20 cycles per minute
32–104°F
3/4–14 npt(f)
0–40°C
Less than 75 dB(A)
2.0 quarts
1.9 liters
Graco Part Number 20A933 ISO 460 silicone-free high-pressure synthetic gear oil
163 lb
74 kg
3A8352A
California Proposition 65
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm. – www.P65warnings.ca.gov.
3A8352A
21
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification
of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be
returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or
workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental
or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder,
or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered
into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu
que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés,
à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211, Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A8352
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2022, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision A, April 2022

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
