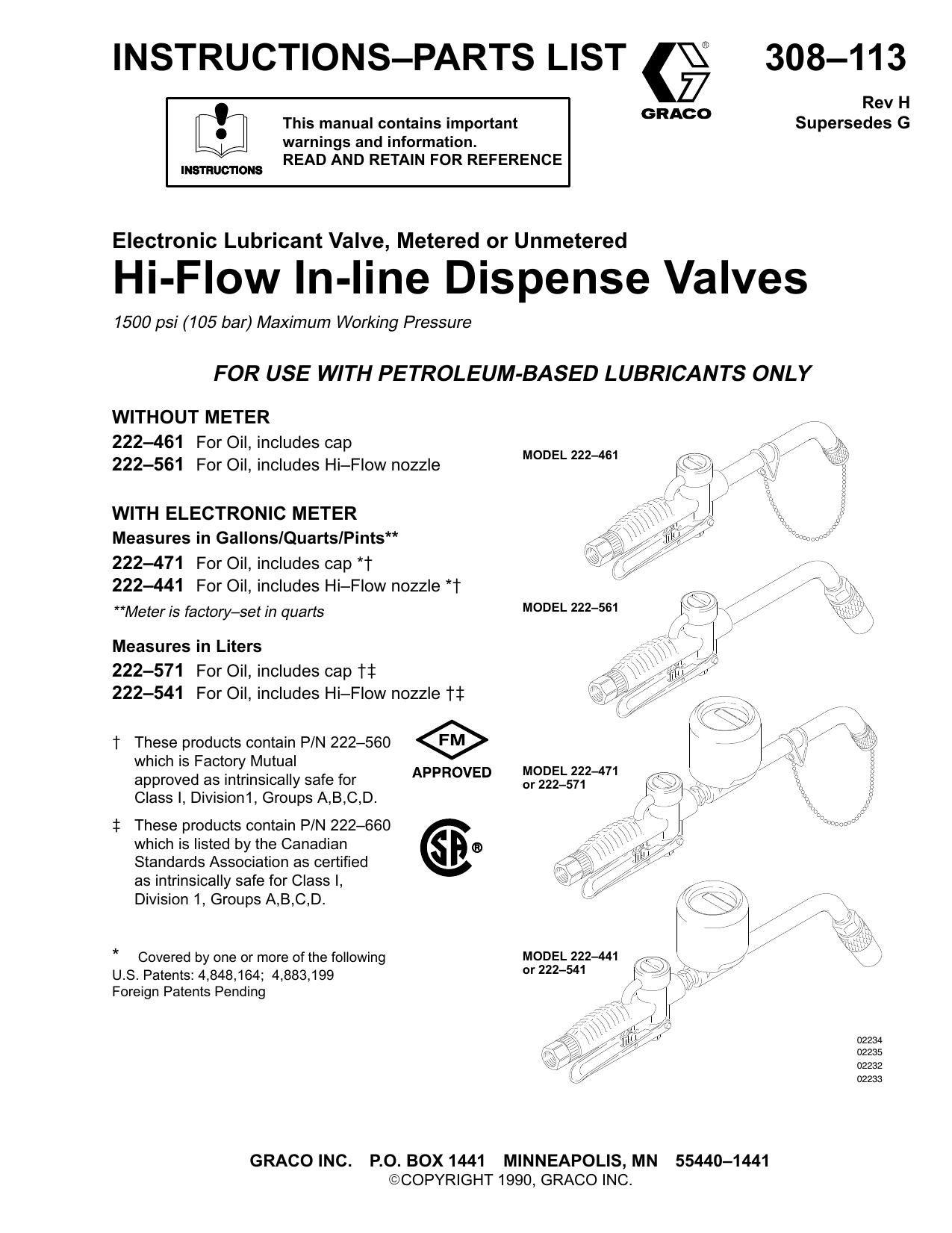

Graco 308113H Hi-Flow In-line Dispense Valves Owner's Manual

INSTRUCTIONS–PARTS LIST
308–113
Rev H
Supersedes G
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
Electronic Lubricant Valve, Metered or Unmetered
Hi-Flow In-line Dispense Valves
1500 psi (105 bar) Maximum Working Pressure
FOR USE WITH PETROLEUM-BASED LUBRICANTS ONLY
WITHOUT METER
222–461 For Oil, includes cap
222–561 For Oil, includes Hi–Flow nozzle
MODEL 222–461
WITH ELECTRONIC METER
Measures in Gallons/Quarts/Pints**
222–471 For Oil, includes cap *
222–441 For Oil, includes Hi–Flow nozzle *
MODEL 222–561
**Meter is factory–set in quarts
Measures in Liters
222–571 For Oil, includes cap 222–541 For Oil, includes Hi–Flow nozzle These products contain P/N 222–560
which is Factory Mutual
approved as intrinsically safe for
Class I, Division1, Groups A,B,C,D.
MODEL 222–471
or 222–571
These products contain P/N 222–660
which is listed by the Canadian
Standards Association as certified
as intrinsically safe for Class I,
Division 1, Groups A,B,C,D.
*
Covered by one or more of the following
U.S. Patents: 4,848,164; 4,883,199
Foreign Patents Pending
MODEL 222–441
or 222–541
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN
COPYRIGHT 1990, GRACO INC.
55440–1441
Table of Contents
Graco Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation
Electronic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dispense Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting
Electronic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dispense Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service
Electronic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dispense Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Parts Lists and Drawings
Dispense Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Unmetered Dispense Valves . . . . . . . . . . . . . . . . . . 11
Electronic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Graco Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Data
Electronic Meter
Flow Range* . . . . . . . . . . . . . 0.12 – 12.0 gallons/minute
0.456 – 45.6 liter/minute
Maximum Operating Pressure . . . . 1500 psi (105 bar)
Weight (Bare Meter) . . . . . . . . . . . . . . . . 1.9 lb (0.95 kg)
Units of Measurement . . . . . . . . . Factory-set in quarts
Display shows quantity in 0.01 increments up to
199.99 gallons, quarts or pints
Totalizes in gallons (or liters) up to 19,999 units
Inlet and Outlet . . . . . . . . . 1/2 npt, non–directional flow
Operating Temperature Range . . . . . . . . –4F to 130F
(–20C to 55C)
Storage Temperature Range . . . . . . . . . –40F to 140F
(–40C to 60C)
Battery Specifications . . . . . . . . . . . . . . Rated discharge
current: 100 microamps
Rated capacity: 1.0 amp hour
Maximum continuous discharge current: 1 milliamp
Wetted Parts . . . . . . . . . . . . Aluminum, Nickel, Bronze,
Stainless steel #304,
Carbon steel, Cast ALNICO 8, Nitrile rubber
Dispense Valve
Flow Capability . . . . 12.0 gallons/minute (45 liter/min)
at 50 psi (3.5 bar) pressure loss
using hydraulic fluid
Maximum Operating Pressure . . . . 1500 psi (103 bar)
Weight (Without Meter) . . . . . . . . . . . . . . . . 4 lb (1.8 kg)
Inlet and Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 npt
Wetted Parts . . . . . . . . . . . . . . Aluminum, Carbon steel,
Copper, Polyurethane, Nitrile rubber
Graco Phone
Numbers
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor
closest to you: 1–800–367–4023 Toll Free
FOR TECHNICAL ASSISTANCE, service repair
information or assistance regarding the application of
Graco equipment: 1–800–543–0339 Toll Free
*Tested in No. 10 motor oil. Flow rates vary with fluid
pressure and viscosity.
Manual
Change Summary
Assembly
Changed
Part
Status
Ref
No.
Part No.
Name
235–880
Deleted
105
157–628
O-ring
235–900
Deleted
105
157–628
O-ring
WARNING
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
INSTRUCTIONS
This equipment is for professional use only.
Read all instruction manuals, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are not sure, call Graco Technical Assistance at 1–800–543–0339.
Do not alter or modify this equipment.
Check equipment daily. Repair or replace worn or damaged parts immediately.
Do not exceed the maximum working pressure of the lowest rated system component. Refer to
the Technical Data on page 2 for the maximum working pressure of this component.
Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.
Do not use hoses to pull equipment.
Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose Graco hoses to temperatures above 82C (180F) or below –40C (–40F).
Do not lift pressurized equipment.
Comply with all applicable local, state, and national fire, electrical, and safety regulations.
WARNING
WARNING
INJECTION HAZARD
Spray from the dispensing valve, leaks or ruptured components can inject fluid into your body and
cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on
the skin can also cause serious injury.
Fluid injected into the skin may look like just a cut, but it is a serious injury. Get immediate medical attention.
Do not point the dispensing valve at anyone or at any part of the body.
Do not put your hand or fingers over the end of the dispensing valve.
Do not stop or deflect leaks with your hand, body, glove or rag.
Use only extensions and no-drip tips which are designed for use with your dispensing valve.
Do not use a low pressure flexible nozzle with this equipment.
Follow the Pressure Relief Procedure on page 7 before cleaning, checking or servicing the
equipment.
Tighten all fluid connections before operating the equipment.
Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Do
not repair high pressure couplings; you must replace the entire hose.
4
308-113
Operation – Electronic Meter
CAUTION
Never operate the meter with the black plastic cover removed. The cover protects the meter from
damage due to impact. Meters are factory sealed
to keep moisture and dirt out. See the SERVICE
section before servicing the meter.
For Maximum Dispensing Accuracy
(Gallon/Quart/Pint Meter only)
Set the meter to dispense in pints or quarts when dispensing 1 gallon or less.
Always press the RESET key pad to clear the meter
before a new dispense cycle.
To Activate the Digital Display
Press the RESET key pad to clear the meter before
starting a new dispense cycle. This is the best way to
activate the meter since it also clears the quantity of
the last dispense cycle.
GRACO
The digital display can also be activated by pressing
the TOTAL key pad or running fluid through the meter.
See Fig 1.
GAL
NOTE: The digital display of the meter goes blank after approximately two minutes of non–use.
TOTAL
Function of TOTAL
Press RESET to
clear
When the digital display is blank, press and release the
TOTAL key pad to display the quantity of the last dispense cycle. See Fig 2.
To see the accumulated total of fluid dispensed
through the meter, press and hold the TOTAL key pad.
The accumulated total is shown in gallons for the Gallon/Quart/Pint meter, and liters for Liter meter. The
meter can accumulate a running total of up to 19999
gallons (or liters) dispensed before returning to zero.
See Fig 3.
Function of RESET
DIGITAL DISPLAY
Fig 1
QTS
EXAMPLE OF TOTAL FOR
LAST DISPENSE CYCLE
Fig 2
Press the RESET key pad to clear the quantity of the
last dispense cycle and return the digital display to all
zeros. See Fig 1.
GAL
To Change the Measurement Units
(Gallon/Quart/Pint Meter only)
Fig 3
The meter is factory–set to dispense in quarts. To
change the measurement units, press and hold the
RESET key pad until the measurement unit on the
right side of the digital display is flashing. Then press
the TOTAL key pad until the desired measurement unit
is shown. Release both key pads. See Fig 4.
CAUTION
To be sure the proper amount of fluid is dispensed,
always use the same measurement unit for a particular fluid.Units should be changed only by authorized employees.
RESET
EXAMPLE OF ACCUMULATED TOTAL
PINTS
PTS
QUARTS
QTS
GALLONS
GAL
EXAMPLE OF MEASUREMENT UNITS
Fig 4
308-113
5
Operation – Metered and Unmetered
Dispense Valves
A
1
Unscrew before dispensing fluid
2
Rotate knurled sleeve of coupler (b)
clockwise to open it for dispensing
1
B
2
02229
Fig 5
WARNING
To reduce the risk of fluid injection, always grasp
the nozzle housing (B) from the threaded end, not
from the front, when adjusting the nozzle.
If you are not using a Hi–Flow nozzle, remove the cap
(A) from the tube. See Fig 5.
When dispensing lightweight fluids, such as automatic
transmission fluid, increase the free play of the dispense valve trigger. This reduces the flow and reduces
splashing of the fluid. To adjust the trigger free play,
loosen the adjusting screw locknut (C). Back the screw
(D) out until the desired flow is achieved, then tighten
the locknut securely. See Fig 6.
To lock the control valve in the open position, engage
the trigger latching pin in the latch (E). See Fig 6. To
release the latch, squeeze and release the trigger.
To dispense from the Hi-Flow nozzle (B), turn the
knurled sleeve clockwise until it is open. Trigger the
valve. See Fig 5.
When the dispense cycle is completed, release the
trigger and close the nozzle by screwing the knurled
sleeve fully counterclockwise. See Fig 5.
For electronic metered valves, press the RESET key
pad on the meter to clear it before the next dispense
cycle. See Fig 1.
Trigger the dispense valve. Lubricant begins to flow
with the slightest movement of the trigger, and continues to flow until the trigger is released.
6
308-113
E
C
D
Fig 6
Clean the strainer frequently. See page 8 for
instructions.
02231
Troubleshooting – Electronic Meter
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The equipment stays pressurized until
pressure is manually relieved. To reduce
the risk of serious injury from pressurized fluid, accidental spray from the dispenser or
splashing fluid, follow the Pressure Relief Procedure whenever you:
Are instructed to relieve pressure
Stop dispensing
Check, clean or service any system equipment
Install or clean fluid nozzles
1. Turn off the power supply to the pump.
2. Trigger the valve into a waste container to relieve
pressure.
3. Open any bleed-type master air valves and fluid
drain valves in the system.
4. Leave the drain valve open until you have completed repairs and are ready to pressurize the system.
NOTE: Before checking or repairing the meter, be
sure all other valves, controls and the pump are operating properly. Also see the Dispense Valve
Troubleshooting information on page 8.
Problem
Cause
Digital display will not activate
Electronic control is malfunctioning.
Solution
Replace the electronic control.
Order Part No. 235–878
for gallons/quarts/pints.
Order Part No. 235–901
for liters.
No fluid flow
Metering unit is malfunctioning.
Replace the metering unit.
Order Part No. 235–873
for gallons/quarts/pints.
Order Part No. 235–904
for liters.
Digital display is dim
Dispense Valve strainer is clogged.
Remove and clean.
Battery in electronic control is worn.
Replace electronic control within approximately one week of first noticing
the dimness. See part numbers
above.
308-113
7
Service – Electronic Meter
CAUTION
To avoid damaging the electronic components of
the control:
ALWAYS use the personal grounding strap
provided with a replacement metering unit
and electronic control before removing the
cover (1), and while replacing the parts. This
strap protects the electronic components
from damage due to electrostatic discharge.
Do not lay anything on the control.
Be sure the open side of the control faces up
if you lay it down.
Do not twist or force parts. Align parts properly as instructed.
WARNING
To reduce the risk of a fire, explosion, and serious
burns to the body, handle and dispose of a used
electronic control (103) properly.
The electronic control contains a lithium battery. Do
not short circuit, charge, force over discharge, disassemble, crush, penetrate, incinerate or heat the
battery to a temperature exceeding 185 F (85C).
Any misuse or abuse of the battery may cause it to
leak or explode.
1. Follow the Pressure Relief Procedure Warning
on page 7.
2. Attach the disposable grounding wrist strap to your
wrist. Connect the adhesive-backed copper foil at
the other end to any convenient electrical ground,
such as the grounding screw or metal case of a
grounded electrical outlet.
3. Lift the bottom edge of the black cover (101) away
from the meter (102) and pull the cover off.
Remove and discard the screws (106). Lift off the
electronic control (103). Remove and discard the
large o-ring (104).
4. Install a new metering unit (102) and/or electronic
control (103). Install the large o-ring (104) over the
lip on top of the metering unit (102). Align the
notch on the side of the electronic control (103)
with the notch on the side of the metering unit
(102). Install the new screws (106) and torque
them oppositely and evenly to 4–6 in-lb (0.45 –
0.68 N.m).
5. Install the cover so the rolled-in edges are parallel
with the inlet fluid passage of the metering unit.
WARNING
Use only genuine Graco replacement parts. The
use of any other parts may impair the intrinsic
safety of this meter. This could result in a failure
which causes serious bodily injury and/or substantial property damage.
101
DETAIL A
106
106
103
104
104
102
Fig 7
Troubleshooting – Dispense Valve
Problem
Lubricant continues to flow
after the trigger is released.
Lubricant leaks past the push
rod packing (12).
Cause
Solution
Valve may be out of adjustment.
Adjust the valve.
Valve spring weakened, or o-rings are worn,
or valve poppet is unseated.
Check internal valve parts.
Push rod or packing is worn.
Replace push rod or packing.
Service
NOTES:
1. Follow the Pressure Relief Procedure on page
7 before servicing the control valve.
2. Refer to the PARTS DRAWING on page 9 while
servicing the control valve.
3. Clean and check all parts thoroughly after disassembling them. Replace worn or damaged parts.
4. The reference numbers and letters in parentheses
in the text correspond to the numbers and letters
in the text, parts drawings and parts list.
Clean the Strainer Frequently
Relieve pressure. Remove the swivel (19) and unscrew the strainer (19a). Clean the filter in mineral spirits. Reassemble, and torque the swivel to 19–21 ft-lb
(26–28 N.m).
Check Internal Valve Parts
Relieve pressure. Disconnect the valve from the hose.
Remove the valve plug (22). Several other parts will
come out with the plug. Clean the valve cavity and
seat (18). Inspect the seat for nicks. If the seat is damaged, send the valve to a Graco–authorized service
center for repair. Reassemble the valve.
Replace Push Rod or Packing
Relieve pressure. Disconnect the valve from the hose.
Push out the pin (2) of the trigger latch. Swing the trigger out of the way. Remove the guide (10), gasket (4)
and push rod (20). Use a dull instrument to remove the
packing (12). Install a new gasket and reassemble the
valve.
Adjust the Valve
Loosen the locknut (8). Turn the adjusting screw (9) in
or out as needed. To stop the fluid flow, all of the pressure of the screw (9) against the push rod (20) must
be released.
When the valve handle is properly adjusted, there is a
small amount of free play. After adjusting the valve,
hold the adjusting screw in place and securely tighten
the locknut.
WARNING
Use only genuine Graco replacement parts. The
use of any other parts may impair the intrinsic
safety of this meter. This could result in a failure
which causes serious bodily injury and/or substantial property damage.
308-113
9
Parts – Valve
22
Model 224–304
Valve Only
**214–008
Repair Kit
Must be purchased separately.
Includes:
Includes items 1 to 23
**6
**13
14
Ref No.
Qty
4
5
6
12
13
23
1
3
2
1
1
1
23**
18
21
**5
3
19a
7
24
20
16
19b
15
17
4**
1
12**
11
10
9
8
TORQUE TO
19–21 ft-lb
(26–28 N.m)
2
Ref
No.
Part No.
Description
1
108–445
PIN, spring; 5/32” (4.0 mm) dia;
7/8” (22.2 mm) long
PIN, roll; 3/16” (5 mm) dia;
1–1/8” (28.6 mm) long
PIN, cotter; 5/8” (16 mm) dia;
3/8” (9.5 mm) long
GASKET, copper
O–RING; nitrile rubber
O–RING; nitrile rubber
WASHER, special
NUT, lock; 3/8–24
SCREW, slotted hdless set;
1/8–24 x 9/16
GUIDE, push rod
SPRING, torsion
2
101–354
3
101–421
4**
5**
6**
7
8
9
150–451
155–500
156–401
157–974
158–213
158–214
10
11
158–668
158–671
15
Qty
1
1
1
1
1
2
1
1
1
1
1
Ref
No.
Part No.
Description
12**
13**
14
15
16
17
18
19a
19b
20
21
22
23**
24
158–673
158–674
159–080
159–118
159–168
159–484
160–708
159–259
202–994
203–977
158–658
158–662
217–316
111–853
PACKING, v–block; nitrile rubber
O–RING; nitrile rubber
SPRING, compression
TRIGGER
LATCH, trigger
PIN, pivot
SEAT, valve
STRAINER
ADAPTER, swivel; 1/2 npt
ROD, push
VALVE BODY
.PLUG, valve
VALVE, piston
GASKET
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Parts – Metered and Unmetered
Dispense Valves
5
3
2
With Gallon/Quart/Pint Meter
Model 222–471, Includes Cap
6
1
4
Ref
No.
Part No.
Description
1
2
3
5
6
7
224–304*
186–660
224–062
235–880**
158–491
172–479
VALVE
SPOUT
CAP & CHAIN
METER, gallon/quart/pint
NIPPLE
TAG, WARNING, not shown
Qty
1
1
1
1
1
1
Model 222–441, Includes Hi-Flow Nozzle
2
1
4a
4e
4d
4c
4b
Ref
No.
Part No.
Description
1
2
4
5
6
7
224–304*
186–660
223–920
235–880**
158–491
172–479
VALVE
SPOUT
HI-FLOW NOZZLE see parts below
METER, gallon/quart/pint
NIPPLE
TAG, WARNING, not shown
Qty
1
1
1
1
1
1
With Liter Meter
Model 222–571, Includes Cap
Without Meter
Ref
No.
Part No.
Description
1
2
3
5
6
7
224–304*
186–660
224–062
235–900**
158–491
172–479
VALVE
SPOUT
CAP & CHAIN
METER, liter
NIPPLE
TAG, WARNING, not shown
Qty
1
1
1
1
1
1
Model 222–541, Includes Hi-Flow Nozzle
Model 222–461, Includes Cap
Ref
No.
Part No.
Description
1
2
3
7
224–304*
186–660
224–062
172–479
VALVE
SPOUT
CAP & CHAIN
TAG, WARNING, not shown
Qty
1
1
1
1
Model 222–561, Includes Hi-Flow Nozzle
Ref
No.
Part No.
Description
1
2
4
7
224–304*
186–660
223–920
172–479
VALVE
SPOUT
HI-FLOW NOZZLE see parts to right
TAG, WARNING, not shown
Ref
No.
Part No.
Description
1
2
4
5
6
7
224–304*
186–660
223–920
235–900**
158–491
172–479
VALVE
SPOUT
HI-FLOW NOZZLE see parts below
METER, liter
NIPPLE
TAG, WARNING, not shown
Qty
1
1
1
1
1
1
High Flow Nozzle
Model 223–920
Included with valves 222–561, 222–441, 222–541
Qty
1
1
1
1
Ref
No.
Part No.
Description
4a
4b
4c
4d
4e
186–528
186–529
158–032
155–463
110–956
STEM, nozzle
SLEEVE, nozzle
O–RING
O–RING
O–RING
Qty
1
1
1
1
1
Extra Warning tags available free.
* See parts on page 9.
** See parts on page 11.
Parts – Electronic Meter
Model 235–880, Meter – Gallon/Quart/Pint
101
Includes replaceable items 101 – 106.
106
103
Ref
No.
Part No.
Description
101
102
103
104
106
109–118
235–873*
235–878*
109–137
112–093
COVER
METERING UNIT – gal/qt/pt
ELECTRONIC CONTROL – gal/qt/pt
O-RING
SCREW
Qty
1
1
1
1
6
Model 235–900, Meter – Liter
Includes replaceable items 101 – 106.
104
102
02174B
Ref
No.
Part No.
Description
101
102
103
104
106
109–118
235–904*
235–901*
109–137
112–093
COVER
METERING UNIT – liter
ELECTRONIC CONTROL – liter
O-RING
SCREW
Qty
1
1
1
1
6
*Replacement screws and o–rings included with items 102
and 103.
The Graco Electronic Dispense Valve
Warranty and Disclaimers
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on the date
of sale by an authorized Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective, with the
exception of defects in the electronic meter control, including the battery, which will be repaired or replaced for twenty-four months from
the date of sale. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s
written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment
will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor and transportation.
Disclaimers and Limitations. The terms of this warranty constitute purchaser’s sole and exclusive remedy and are in lieu of any other
warranties (express or implied), including warranty of merchantability or warranty of fitness for a particular purpose, and of any
non–contractual liabilities, including product liabilities, based on negligence or strict liability. Every form of liability for direct, special or
consequential damages or loss is expressly excluded and denied. In no case shall Graco’s liability exceed the amount of the purchase
price. Any action for breach of warranty must be brought within two (2) years of the date of sale.
Equipment not covered by Graco Warranty. Graco makes no warranty, and disclaims all implied warranties of merchantability and
fitness for a particular purpose, with respect to accessories, equipment, materials, or components sold but not manufactured by
Graco. These items sold, but not manufactured by Graco (such as electric motor, switches, hose, etc.) are subject to the warranty, if
any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
Sales Offices: Atlanta, Chicago, Detroit, Los Angeles
Foreign Offices: Belgium, Canada, England, Korea, Switzerland, France, Germany, Hong Kong, Japan
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN
PRINTED IN U.S.A. 308–113 2/91 Revised July 1995
55440–1441

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
