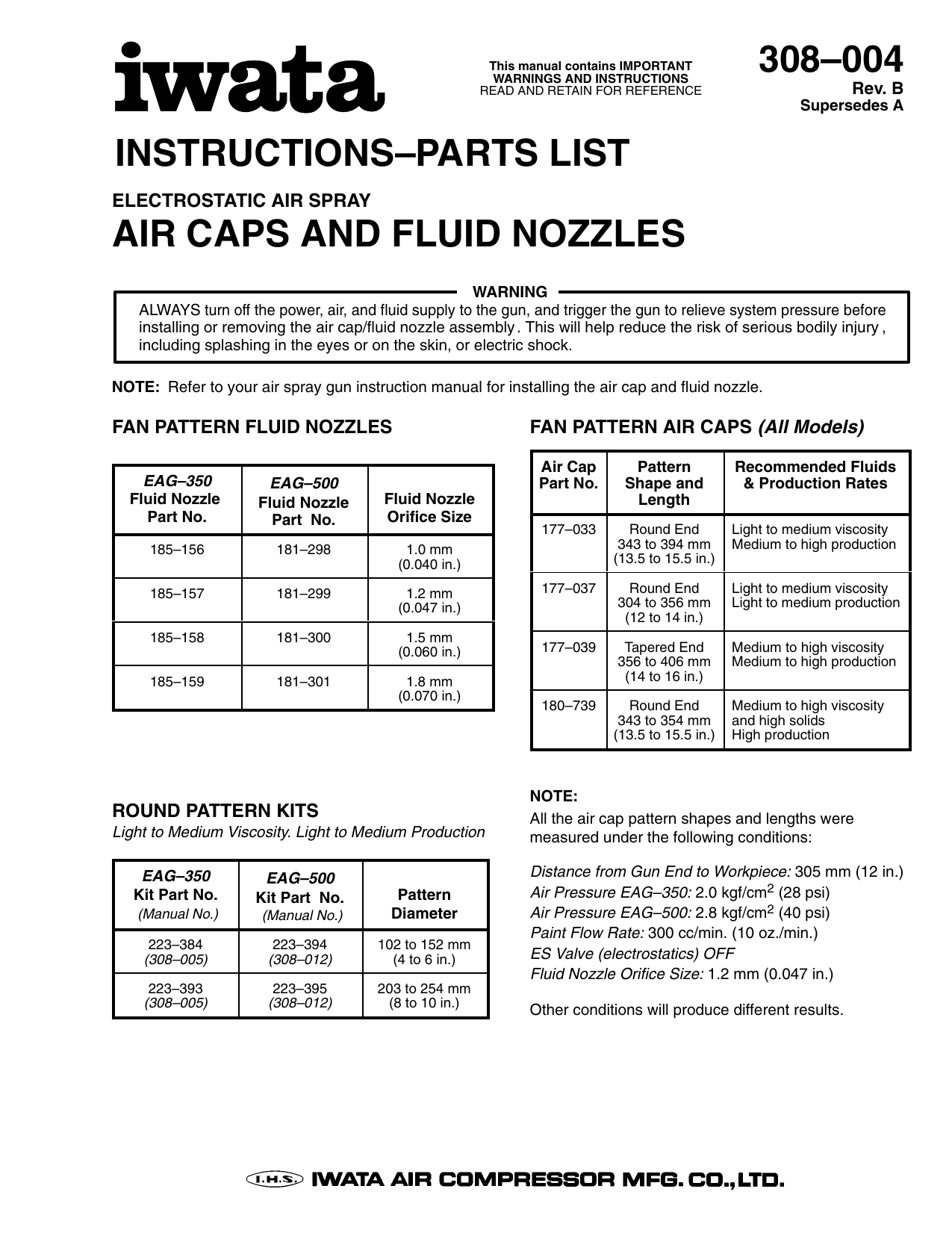

Graco 308004B ELECTROSTATIC AIR SPRAY AIR CAPS AND FLUID NOZZLES Owner's Manual

This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
308–004
Rev. B
Supersedes A
INSTRUCTIONS–PARTS LIST
ELECTROSTATIC AIR SPRAY
AIR CAPS AND FLUID NOZZLES
WARNING
ALWAYS turn off the power, air, and fluid supply to the gun, and trigger the gun to relieve system pressure before
installing or removing the air cap/fluid nozzle assembly . This will help reduce the risk of serious bodily injury ,
including splashing in the eyes or on the skin, or electric shock.
NOTE: Refer to your air spray gun instruction manual for installing the air cap and fluid nozzle.
FAN PATTERN AIR CAPS (All Models)
FAN PATTERN FLUID NOZZLES
EAG–350
Fluid Nozzle
Part No.
EAG–500
Fluid Nozzle
Part No.
185–156
181–298
1.0 mm
(0.040 in.)
185–157
181–299
1.2 mm
(0.047 in.)
185–158
181–300
1.5 mm
(0.060 in.)
185–159
181–301
1.8 mm
(0.070 in.)
Fluid Nozzle
Orifice Size
ROUND PATTERN KITS
Light to Medium Viscosity. Light to Medium Production
EAG–350
Kit Part No.
EAG–500
Kit Part No.
(Manual No.)
Pattern
Diameter
223–384
(308–005)
223–394
(308–012)
102 to 152 mm
(4 to 6 in.)
223–393
(308–005)
223–395
(308–012)
203 to 254 mm
(8 to 10 in.)
(Manual No.)
Air Cap
Part No.
Pattern
Shape and
Length
Recommended Fluids
& Production Rates
177–033
Round End
343 to 394 mm
(13.5 to 15.5 in.)
Light to medium viscosity
Medium to high production
177–037
Round End
304 to 356 mm
(12 to 14 in.)
Light to medium viscosity
Light to medium production
177–039
Tapered End
356 to 406 mm
(14 to 16 in.)
Medium to high viscosity
Medium to high production
180–739
Round End
343 to 354 mm
(13.5 to 15.5 in.)
Medium to high viscosity
and high solids
High production
NOTE:
All the air cap pattern shapes and lengths were
measured under the following conditions:
Distance from Gun End to Workpiece: 305 mm (12 in.)
Air Pressure EAG–350: 2.0 kgf/cm2 (28 psi)
Air Pressure EAG–500: 2.8 kgf/cm2 (40 psi)
Paint Flow Rate: 300 cc/min. (10 oz./min.)
ES Valve (electrostatics) OFF
Fluid Nozzle Orifice Size: 1.2 mm (0.047 in.)
Other conditions will produce different results.
TERMS
Viscosity
Fan Pattern Production Rate
Light: 20 centipoise at 70
Medium: 70 centipoise at 70
Heavy: 260 centipoise at 70
NOTE: Refer to the Viscosity Conversion Chart , below, to convert to other units of measurement.
Light Production: Fluid flow of up to 200 cc/min.
(7 oz./min.)
Medium Production: Fluid flow of up to 600 cc/min.
(14 oz./min.)
High Production: Over 400 cc/min. (14 oz./min.)
Round Pattern Production Rate
Light Production: Fluid flow of up to 150 cc/min.
(5 oz./min.)
Medium Production: Fluid flow of up to 200 cc/min.
(7 oz./min.)
VISCOSITY CONVERSION CHART
Light
Medium
Heavy
High
Solids
Poise
0.2
0.7
2.6
3.6
Centipoise
20
70
260
360
Measurement
Parlin 7
32
Parlin 10
13
20
Heavy
High
Solids
Zahn 3
30
41
Zahn 4
21
28
13
18
Measurement
Light
Medium
Iwata NK-2
5
28
Zahn 1
37
Zahn 2
18
Fisher 1
30
Fisher 2
15
33
Zahn 5
Ford Cup 3
12
36
Sears Craftsman Cup
Ford Cup 4
10
28
68
Gardner Holdt Bubble
Krebs Units KU
Saybolt Universal
SSU
100
23
Redwood No. 1 Sec.
98
286
1060
1465
0
Engler Degrees
2.9
9.4
34.65
47.75
Saybolt Furol Sec.
35
124.5
171.5
30.05
105.6
149
35
58
62
370
1280
1730
Redwood No. 2 Sec.
PRINTED IN U.S.A. 308–004 10–90 Revised 3–91
