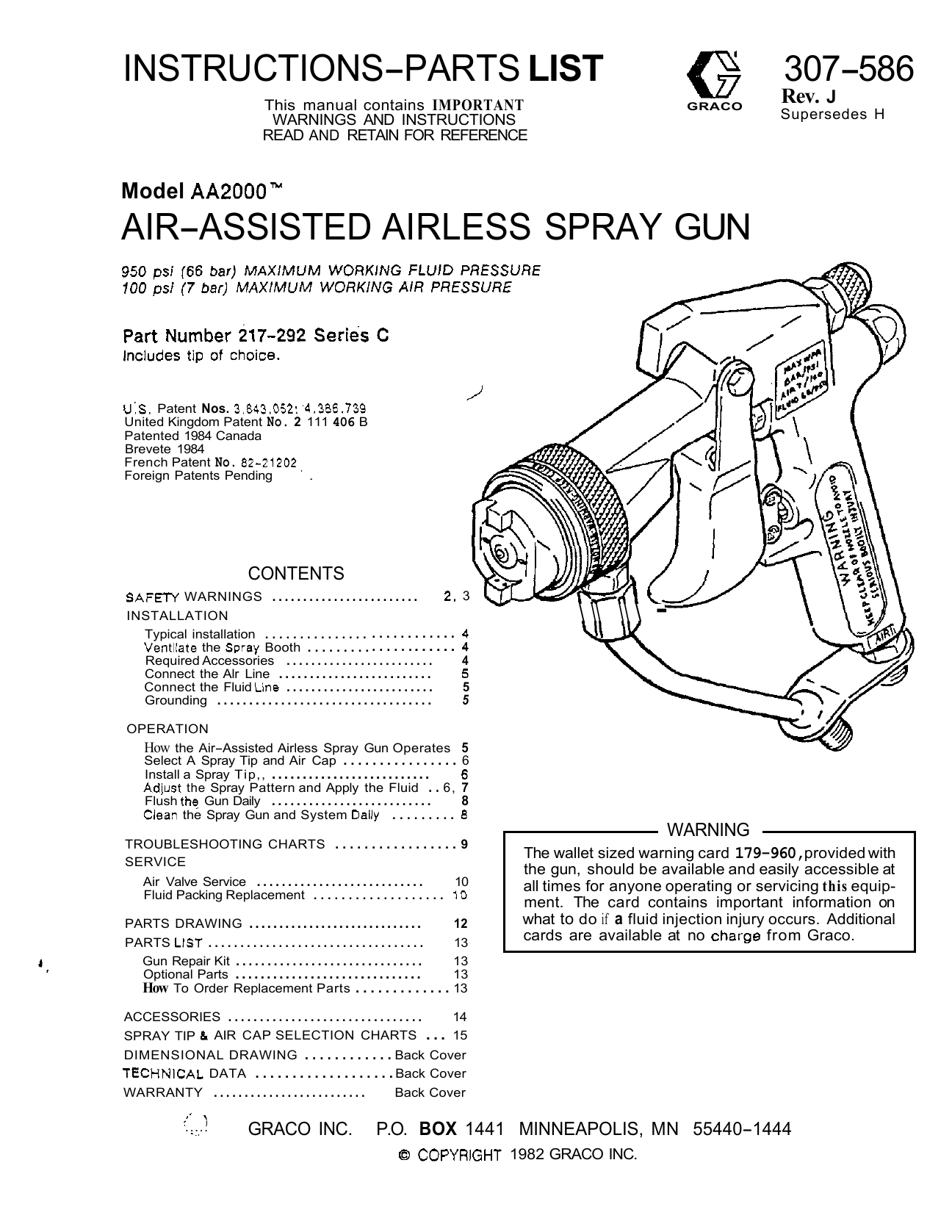

Graco 307586J Model AA2000 AIR-ASSISTED AIRLESS SPRAY GUN Owner's Manual

INSTRUCTIONS-PARTS LIST
307-586
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
GRACO
Rev. J
Supersedes H
Model AA2000
AIR-ASSISTED AIRLESS SPRAY GUN
U:S. Patent Nos. 3.843.052: '4.386.739
United Kingdom Patent No. 2 111 406 B
Patented 1984 Canada
Brevete 1984
French Patent No. 82-21202
Foreign Patents Pending
.
'
CONTENTS
2.
SAFElY WARNINGS ........................
INSTALLATION
Typical installation . . . . . . . . . . . . . . . . . . . . . ......
......
Ventllate the SDrav
. . Booth . . . . . . . . .
Required Accessories ........................
Connect the Alr Line .........................
Connect the Fluid Une ........................
Grounding ..................................
......
OPERATION
How the Air-Assisted Airless Spray Gun Operates
Select A Spray Tip and Air Cap ................
Install a Spray Tip,,
Adjust the Spray Pattern and Apply the Fluid
6,
Flush the Gun Daily ..........................
Clean the Spray Gun and System Dally . . . . . . . . .
..........................
..
TROUBLESHOOTING CHARTS
SERVICE
3
\ \\ \\ \
-
4
5
5
5
5
6
6
7
8
8
................. 9
Air Valve Service ...........................
10
Fluid Packing Replacement . . . . . . . . . . . . . . . . . . . 10
.............................
12
13
13
13
............. 13
PARTS DRAWING
PARTS LIST ..................................
Gun Repair Kit ..............................
Optional Parts
How To Order Replacement Parts
WARNING
The wallet sized warning card 179-960,provided with
the gun, should be available and easily accessible at
all times for anyone operating or servicing this equipment. The card contains important information on
what to do if a fluid injection injury occurs. Additional
cards are available at no Charge from Graco.
..............................
ACCESSORIES ...............................
SPRAY TIP & AIR CAP SELECTION CHARTS
...
14
15
. . . . . . . . . . . . Back Cover
................... Back Cover
DIMENSIONAL DRAWING
TECHNiCAL DATA
WARRANTY .........................
I.....
..
GRACO INC.
Back Cover
P.O. BOX 1441 MINNEAPOLIS, MN 55440-1444
0 COPYRiGHT 1982 GRACO INC.
HIGH PRESSURE SPRAY CAN CAUSE SERIOUS INJURY.
FOR PROFESSIONAL USE ONLY. OBSERVE ALL WARNINGS
Read and understand all instruction manuals before operating equipment.
FLUID INJECTION HAZARD
.
::...'
.
... . . .
. .
:..:..
~
:
.
.. .'
:
.
. . . ..... ...: . ... . .... .. . ... . ... ... .: . . ... .... .... . .. ...
. .. .
...
.
. ..,;. :... . .. . . ..,.:., .,.; ........ .:: . . ..:..
:.. . . . : . . . .. .. .
. . . ... ....
,
,
Use extreme caution when cleaning or changing spray tips. If the
spray tip clogs while spraying, engage the gun safety latch
immediately. ALWAYS follow the Pressure Relief Procedure,
below, and then remove the spray tip to clean it.
NEVERtry to 'blow back." paint: this is NOT an air spray gun.
NEVER wipe off build-up around the spray tip or air cap until
pressure is fully relieved and the gun safety latch is engaged.
ALWAYS follow the Pressure Reliei Procedure, at right.
before cleaning or removing the spray tip or servicing any
system equipment.
Pressure Relief Procedure
To reduce the risk of serious bodily injury. including fluid injection,splashingintheeyesoronskin,orinjuryfrommovingparts.
always follow this procedure whenever pump is shut off. when
checking or servicing any part of system. when installing or
changing spray tips and whenever you stop spraying.
NEVER try to stop or deflect leaks with your hand or body
CHECK operation of all equipment safety devices before
each use.
-
A i r l e s s Spray W o u n d s
If any fluid appears to penetrate your skin, get EMERGENCY
MEDICAL CARE AT ONCE. DO NOT TREAT AS A SiMPLE
CUT. Tell the doctor exactly what fluid was injected.
Note to Physician: Injection into the skin is a traumatic inlury it is
importantto treatthe Injurysurglcallyas soon asposslble. Donor
delay treatment 10 research toxlcity Toxicity is a concern with some
exotic coafings injected directly info rhe bloodstream. Consultation
with a plastic surgeon or reconstructive hand surgeon may be
advisable.
Spray Gun Safety Devices
Be sure all gun safety devices are operating properly before
each use. Do not remove or modify any part of the gun; this can
cause a malfunction and result in serious bodily injury.
Safety Latch
Whenever~oustop s p r a y h . even for amoment. always Set the
gun safety latch in the closed or 'Safe' POsltiOnl making the gun
inoperative. See Fig 3. page 6 . Failure to set the safety latch can
result in accidental triggering of the gun.
1 . Engage the spray gun safety latch.
2 . Shut off the power to the pump.
3. Close the bleed-type master air valve [required in system).
4 . Disengage the gun safety latch.
5 . Hold a metal part cf the gun firmly to the side of a grounded
metal waste container and trigger the gun to relieve fiuid
pressure.
6 . Engage the gun safety latch again.
7. Open the pump draln valve (required in system)to help relieve fluid pressure in th3 displacement pump.in addition,
open the drain valve connected to the fluid pressure gauge
lin a svstem with fluid reaulationl to helo relieve fluid Dresi u r e in'the hose and gun.iriggerhg the gun to relieve ;ressure may not be sufficient. Have a container ready to catch
the drainage.
8 . Leave the drain valveis1 open until YOU are ready to spray
. .
again.
I f you Suspect that the spray tip cr hose is completely clogged or
that pressure has not been fully relieved atter tollowing the
steps above. VERY SLOWLY loosen the hose end coupling and
relieve pressure gradually, then loosen completely, Now clear
the tip or hose obstruction.
. ..... .
EQUIPMENT MISUSE HAZARD
Fluid
General Safety
Any misuse of the equlpment or accessories. such as overpressurlzing. modifying parts. using incompatible chemicals and
fluids. or using worn or damaged parts. can cause them to
rupture and resuit In serlous bodily Injury. including fluid injectlon
and splashing fluid in the eyes or on the skin, or in fire. explosion
or property damage.
CHECK the gun and all spray equipment regularly and repair or
replace worn or damaged parts immediately.
Read and follow the f l u ( d p solvent manufacturer's llterature
regarding theuseofprof tiveeyewear. gloves. clothing. respirator and cther equipment..
,
2 307-586
.
Spray Tip Safety
.
NEVER alter or modlfy any part of this equipment: doing so could
cause it to maifunctlon.
.
The gun diffuser breaks up spray and reduces the risk of fluid
injection when the tip Is not installed. Check diffuser operation
regularly. Follow the Pressure Relief Procedure. below. then
remove the spray tip. Aim the gun into a grcunded metal pail.
holding the gun firmly to the pall. Using the lowest possible pressure, trigger the gun. if the fluid emitted is not diffused into an
irregular stream, replace the diffuser immediately
NEVER point spray gun at anyone or at any part of the body.
Medical A l e r l
... .
'
Diffuser
General Safety
This equipment generates very high fluid pressure. Spray from
the gun. leaks or ruptured components can inject fluid through
your skin and into your body and cause extremely serious bodiiy
injury. including the need for amputation. Also. fluid injected or
Splashed into the eyes or on the skin can cause serious damage.
NEVER put hand or fingers over the spray tip.
,
,
.. . .. . .
::,:,~.:;..,:,~:. .:.'c/;'.
',,
, . , . , ,,,,
Compatibility
BE SURE ail fluids and solvents used are chemically compatible
with the 'Wetted parts. shown in the TECHNICAL DATA on
the back cover, Always read the fluid and solvent manufacin
gun,
ture r's literature before using fluid or
System Pressure
,
The AA2000LP spray gun has a 950 Psi ( 6 6 bar)
FLUID WORKING PRESSURE and 100 Psi I7 bar) MAXIMUM
WORKING AIR PRESSURE. NEVER exceed these pressures!
Be sure that all spray equipment and accessories added t o the
spray
are properiy rated to withstand the
working Pressure Of Your system. Do
exceed
working pressure of any component or accessory used in the
system.
Static electrlcity Is created by the flow of fluid through the pump
and hose. if every part of the equipment is not properly
grounded. sparking may occur. and the system may become
hazardous. Sparks may also occur when plugglng in or unplugging a power supply cord. Sparks can ignite fumes from solvents
and the fluid belng sprayed. dust particles and other flammable
substances, whether you are pumplng indoors or outdoors, and
cause a fire or explosion. serious bodily injury. and property
damage.Do not plug in or unplug any power supply cords in the
spray area when there is any chance of igniting fumes still in
the air.
if you experience any static sparking or feel even a slight shock
while using thls equipment. STOP SPRAYiNG IMMEDIATELY. Check for proper grounding of the entire system. Do
not use the system again until the cause of the problem is identllied and corrected.
Grounding
To reduce the risk of statlc sparking. ground the pump and all
other equipment used or located in the spray area. CHECK your
local electrical code for detailed grounding instructions for your
area and type of equipment and be sure Jo ground all of the
following equipment:
1. Pump: use a ground wire and clamp as instructed in your
separate pump instruction manual.
2. AIr, fluid, and hydraulic hoses connected to the pump: use
only grounded hoses with a maximum of 500 feet 1150 m j
combined hose length to ensure grounding continuity. Refer
also to Hose Grounding Continuity. below.
High pressure fluid in the hoses can be very dangerous. if the
hose develops a leak. split or rupture due to any kind of wear.
damage or misuse. the high pressure spray emitted from it can
cause a fluid injection injury or other serious bodily injury or property damage,
A L L FLUiD SPRAY HOSES MUST H A V E A SPRiNG GUARD
ON BOTH ENDSi The spring guards help protect the hose
from kinks or bends at or close to the Coupling which can resuit In
hose rupture.
TIGHTEN ail fluld connections securely before each use. Hlgh
pressure fluid can dislodge a loose coupling or allow high pressure spray to be emitted from the coupling.
NEVER use a damaged hose. Before each use. check the entire
hose for cuts, leaks, abrasion. bulging cover. .or damage or
movement of the hose couplings. If any of these conditions
exist. replace the hose immediately. DO NOT try t o recouple
high pressure hose or mend It with tape or any other device. A
repaired hose cannot contain the high pressure fluid.
3. A i r COmpreSSorS and hydraulic power supplies: ground according to the manufacturer's recommendations.
4 . Spray gun: obtain grounding through connection to a properly grounded fluid hose and pump.
5 . Fluid supply container: wound according to local code
6 . Objecr being sprayed: ground according to local code,
7. Allsolvenr pails used when flushing. according to iocalcode.
Use only metal pails. which are conductive. Do not piace the
pail on a non-conductive surface. such as paper or cardboard. which interrupts the grounding continuity.
8. T o rnainrain grounding conrinuily when llushing or relieving
pressure. always hold a metal part of the gun firmly to the
side of a grounded metal pail, then trigger the gun.
Flushing S a f e t y
To reduce the risk of fluid injection injury. static sparking, or
splashing, follow the Pressure Relief Procedure on page 2.
and remove rhe spray tip before flushing. Hold a metal part of
the gun firmly to the side of a grounded metal pail and use the
lowest possible fluid pressure during flushing.
V e n t i l a t e the Spray Booth
To prevent hazardous concentrations of toxlc andfor flammable
vapors. spray only in a properly ventilated spray booth.
NEVER operate the spray gun unless the ventliating fans are
operatlng.
HANDLE AND ROUTE HOSES CAREFULLY. Do not pull on
hoses to move equipment. Do not use fluids or solvents which
are not compatible with the inner tube and cover of the hose. DO
NOT expose Graco hose to temperatures above 180- F (82' C)
or below -40' F 1-40' C l .
Hose Grounding Continuity
Proper hose grounding continuity is essential to malntaining a
grounded spray system. Check the electrical resistance of your
air and fluid hoses at least once a week. If your hose does not
have a tag on it which specifies the maximum electrical resistance. contact the hose supplier or manufacturer for the maximum resistance iimlts. Use a resistance meter in the appropriate range for your hose to check the resistance. If the reslstance exceeds the recommended limits. replace it immediately.
An ungrounded or poorly grounded hose can make your system
hazardous. Ais0 read FIRE OR EXPLOSION HAZARD,
above.
United States Government safety standards have been adopted under the Occupational Safety and Health Act. These standards Particularly the General Standards. Part 1910, and the Construction Standards. Part 1926 - should be consulted.
307-586 3
c
A
KEY
A Air Line Filter
B Air Line Lubricator
C Bleed-type Master Alr Valve
D Pump Air Regulator
E Fluid Drain Valve
F Fluid Shutoff Valve
G Fluid Filter
H Grounded Fluld Hose
J
Pump
K Air Line
L Air Pressure Regulator
M Pump Fluid Inlet
N In-line Fiuid Filter
P Pattern Adjustment Valve Knob
Q Fluid Pressure Regulator
R Pressure Gauge
S Trigger Safety
T Pump Runaway Valve
V Ground Wire
W Gun Fluid Connector
The Typical Installation drawing above is only a guide
for selecting and installing air-assisted airless spray
systems. It is not an actual system design. Contact
your Graco representative for assistance in designing
a system to meet your needs.
The Graco fluid pump Model 217-523 is designed for
use in air-assisted airless systems. It has a maximum
working pressure of 950 psi (66 bar). See instruction
manual 307-595 for information on this pump.
Ventilate the Spray Booth
WARNING
concentrations of toxic
andlor flammable vapors, spray only in a properly
ventilated spray booth.
I
NEVER OPERATE THE SPRAY GUN UNLESS
VENTILATION FANS ARE OPERATING.
reauirements.
4 307-586
State and
exhaust velocity
Required Accessories
WARNING
Two accessories, the bleed-type master air valve
(C). and the fluid drain valve (E) are required for
your system to reduce the risk of serious bodily
injury from moving parts, splashing, or fluid injection when shutting off the pump.
The bleed-type master air valve (located downstream of the pump air regulator) relieves air
trapped between the valve and the pump, after
the pump is shut off. Trapped air can cause the
pump to cycle unexpectedly and result in serious
bodily injury if you are adjusting or repairing
the pump.
The Nuid drain valvefs) helps relieve fluid pressure in the displacement pump. hose and gun
when shutting off the pump. Triggering the gun to
relieve pressure may not be sufficient. especially
if there is a clog in the hose, gun. or tip.
.
.
Connect the Air Line
Install an air line filter (A) to ensure a clean. dry air
supply to the gun. Dirt and moisture in the line can ruin
the appearance of your finished piece.
Install fluid drain valve(s) (E) to help relieve fluid
Dressure.
Install an air pressure regulator (L) to control the air
pressure to the gun.
NOTE: The gun fluid connector (W) has a 1/4-16
npsm (R114-19) compound male thread that
is compatible with NPSM and ESP female
connectors.
Install a bleed-type master air valve (C) which is easily
accessible from the pump and.downstream from the
pump air regulator (D) , and one that is easily accessible from the gun and downstream from the gun air
reguiator (L).
Install an in-line fluid filter (N) (see part no. 210-500 in
the ACCESSORIES Section) on the gun fluid connector
(W) to avoid clogging the spray tip with particles from
your fluid.
NOTE: The gun air inlet has a 1/4-18 npsm (R1/4-19)
compound male thread that is compatible with
NPSM and BSP female swivel connectors.
Connect the grounded fluid hose (H)to the gun fluid
connector (W) or optional in-line filter (N).
Connect the air hose (K) from the a i r h p p l y to the gun
air inlet.
Grounding
Connect the Fluid Line
Install a fluid pressure regulator (0) to control fluid
pressure to the gun. Some applications require
fine-tuned control of fluid pressure. You can control
fluid pressure more accurately with a fluid pressure
reguiator than by regulating the air pressure to the
WARNING
To reduce the risk of serious bodily injury, be sure
your entire system is properly grounded. Read
FIRE and EXPLOSION HAZARD on page 3. The
gun is grounded by connecting it to a properly
grounded pump and hose.
How the Air-Assisted Airless
Spray Gun Operates
The air-assisted airless gun combines airless and air
spraying concepts. The spray tip shapes the fluid into
a fan pattern, similar to a conventional airless spray
tip, but at a lower pressure. Air from the air cap further
atomizes the fluid and completes the atomization of
the paint tails into the pattern. The pattern adjustment
valve controls the width of the pattern.
Note that the air-assisted airless spray gun differs
from an air spray gun in that increasing the pattern air
reduces the pattern width. To increase the pattern
width, less pattern air or a larger size tip must be used.
The spray gun has a built-in lead and lag operation.
When triggered, the gun begins emitting air before the
fluid is discharged. When the trigger is released, the
fluid stops before the air flow stops. This helps assure
the spray is atomized and prevents fluid buildup on the
air cap.
safety be sure to read and follow the Warrhgs
on page 2 and 3 and throughout the text of this
instruction manual.
1
Opsrafion continued on page 6.
307-586
5
Select a Spray Tip and Air Cap
Vertical Spray Pattern
Horizontal Spray Pattern
Use the Spray Tip and Air Cap Selection Chart on
page 15, as a guide for selecting an appropriate spray
tip and air cap for your application. The fluid output
and pattern width depend on the size of the spray tip,
the fluid viscosity. and the fluid pressure.
If you are applying a solid stream of fluid. such as mastics or,sealants. refer to the Solid Stream Spray Tip
Selection Chart on page 15.
Fig 2
Use the information in the Air Cap Selection Chart to
help you choose either a Standard (provided with the
gun), Fine Finish, High Solids, or Solid Stream Air Cap,
depending on your application.
NOTE: When spraying at fluid pressures below 500 psi
(35 bar) or spraying light viscosity fluids, use
optional fluid needle 220-413 (see page 13).
The standard needle may not provide positive
shut off at those pressures or for such fluids.
When spraying acid catalyzed varnishes, use
optional fluid needle 222-497 (see page 13).
Using a standard needle may decrease needle
life and leakage may occur.
Safetv Latch Disenaaaed
or in OFF SAFE Pisilion
install a Spray Tip
WARNING
To reduce the risk of a fluid injection injury, ALWAYS follow the Pressure Relief Procedure on'
page 2 before removing or installing a spray tip.
InStall a spray tip in the gun. The air cap and spray tip
position determines the direction of the spray pattern.
Rotate the air cap (the spray tip rotates with it) as
needed for the desired spray pattern direction. See
Fig 2.
Safety Latch
or in ON SAf
Fig 3
6 307-586
Pattern
Adjuslmenl
Knob
Adjust the Spray Pattern & Apply the Fluid
WARNING
To reduce the risk of serious bodily injury, including fluid injection, and splashing in the eyes
or on the skin:
1. NEVER point the spray gun at anyone or any
part of the body or put your hand or fingers
over the spray tip when adjusting the spray
pattern or spraying fluid.
2. ALWAYS engage the trigger safety latch
when you stop spraying. See Fig 3.
No Air
Too Little Air
Right Amount
of Air
3. NEVER exceed the maximum air and fluid
working pressure of the lowest rated component in your system. See System Pressure in the EQUIPMENT MlsUSE HAZARD
Section on page 2.
NOTE Optional gun parts are available for special
applications. See page 13.
1.
Set the fluid pressure at 300 psi (21 bar).
2. Trigger the gun to check the atomization: don't be
concerned about the pattern shape yet.
3. Increase the fluid pressure just to the point where
a further increase in fluid pressure does not significantly improve fluid atomization. DO NOT exceed
950 psi (66 bar) fluid pressure to the gun.
4.
RIGHT
Close the pattern adjustment valve by turning the
knob (see Fig 3) counterclockwise all the way.
(This sets the gun for its widest pattern.)
NOTE: lf you ara using the Fine Finish Air Cap, part
no. 219-093, the pattern adjustment valve
must be open (turned fully clockwise) when
operating the gun.
5. Set the atomizing air pressure at about 20 psi (1.4
bar). Check the spray pattern, then adjust the air
pressure until all the tails are completely atomized
and pulled into the spray pattern. See Fig 4. DO
NOT exceed 100 psi (7 bar) air pressure to the
gun.
For a narrowerpattern, turn the pattern adjustment
valve knob clockwise. If the pattern is still not narrow enough, increase the air pressure to the gun
slightly or use a different size tip.
NOTE: For some spray tips, when the line air pressure
to the gun is increased to a certain level, the
spray pattern will become round. This is the
smallest pattern width. Further increases in air
pressure will force the pattern to turn from
horizontal to vertical or from vertical to
horizontal.
WRONG
. ."
6. When applying the fluid, keep the gun a consistant
distance, 8 to 10 inches (200 to 250 mm). from
the surface of the object being sprayed. Always
hold the gun at a right angle from the surface. Do
not make an arc with the gun as it causes an
uneven coat of fluid. See Fig 5.
307-586 7
5. Hold a metal part of the gun firmly against a
Flush the Gun Daily
WARNING
Pressure Relief Procedure
To reduce the risk of serious bodily injury. including fluid injection, splashing in the eyes or on
skin, or injury from moving parts, always follow
this procedure whenever the pump is shut off,
when checking or servicing any part of the system, when installing or changing spray tips and
whenever you stop spraying.
6.
Follow the Pressure Relief Procedure Warning
at left.
7.
Disconnect the solvent supply.
)
Clean the Spray Gun & System Daily
1.
Engage the spray gun safety latch.
2.
Shut off the power to the pump.
3.
Close the bleed-type master air valve
(required in system).
4.
Disengage the gun safety latch.
5.
Hold a metal part of the gun firmly to the side
of a grounded metal waste container and trigger the gun to relieve fluid pressure.
6.
Engage the gun safety latch again.
CAUTION
NEVER IMMERSE THE GUN IN SOLVENT.
Doing so can damage packings and allow solvent in the air passages, which can cause poor
atomization and gun failure.
-
7. Open the pump drain valve (required in system)to help relieve fluid pressure in the displacement pump. In addition, open the drain
valve connected to the fluid pressure gauge
(in a system with fluid regulation) to help
relieve fluid pressure in the hose and gun.
Triggering the gun to relieve pressure may
not be sufficient. Have a container ready to
catch the drainage.
1.
grounded metal waste container and trigger the
gun until ail traces of paint are removed from the
gun passages. See Fig 6.
,..~
DO NOT use metal tools to clean holes in the air
cap or spray tip. Metal instruments may damage holes and distort the spray pattern.
1.
Follow the Pressure Relief Procedure Warning
at left.
2. Clean the outside of the gun with a soft cloth
dampened with compatible solvent.
3.
If using an in-line filter. remove and clean it
thoroughly in a compatible solvent.
8. Leave the drain valve(s) open until you are
ready to spray again.
4. To avoid damaging the spray tip and air cap, clean
them with a compatible solvent and soft brush. To
If you suspecf that the spray fip or hose is cornpletely clogged or that pressure has not been fully
relieved after following the steps above, VERY
SLOWLY loosen the hose end coupling and
relieve pressure gradually, then loosen completely. Now clear the tip or hose obstruction.
5. Clean the system's fluid filter and air line filter.
Follow the Pressure Relief Procedure Warning,
above.
;I
clean the air cap pzssages. use a soft brush or
other soft tool, with an air blow gun.
Ground
Wire
2 . Disconnect the atomizing air hose and the fluid
supply line.
3. Remove the spray tip.
4 . Connect the solvent supply to the gun.
CAUTION
BE SURE the solvent is compatible with the fluid
being sprayed to avoid clogging the gun's fluid
passages.
(,-;
3
8 307-586
'
Maintain firm
metal-to-metal
contact between
gun and grounded
metal container
-
..
)
,
WARNING
To reduce the risk of serious bodily injury. including fluid injection. splashing fluid or solvent in the eyes or on
the skin, or injury from moving parts, always follow the Pressure Relief Procedure Warning on page 8 whenever you shut off the pump, when checking or servicing any part of the spray system, when installing, cleaning
or changing spray tips, and whenever you stop spraying.
NOTE: Check all possible remedies in the Troubleshooting Charts before disassembling the gun.
PROBLEM:
CAUSE
SOLUTION
Fluid leakage from back
of fluid needle
Worn packings or needle shaft.
Replace packings (47) or
needle ( 5 ) . See page 10.
Air leakage from front
of gun
Air valve (52) not seating properly.
Clean, service:See
Fluid leakage from front
of gun.
Needle worn or damaged.
Replace fluid needle ( 5 ) .
See page 10.
Worn diffuser housing.
Replace diffuser housing (30).
See page 10.
Fluid tip seal leaking.
Tighten or replace tip (28).
Fluid inlet fitting leaking.
Gasket (33) MUST be replaced if
fluid fitting (67) is removed.
Replace gasket.
CAUSE
SOLUTION
Insufficient fluid supply.
Adjust fluid'regulator
supply tank.
Air in paint supply line.
Check, tighten siphon hose
connections, bleed air from
paint line.
Fluid in air passages from
air holes in caD.
I
PROBLEM:
IMPROPER SPRAY
I Fluttering or spitting spray
I
.
j
.
.
page 10.
or fill fluid
I
Irregular pattern
Pattern pushed to one
side, same side of air cap
gets dirty.
Fluid build-up or spray tip
partially plugged.
Clean spray tip. See page 8.
On defective side of pattern, air horn
holes are partially or totally plugged.
Clean air horn holes with solvent
and soft brush. See page 8.
Air horn holes partially or totally
plugged.
Clean air horn holes with solvent
and soft brush. See page 8.
NOTE: Some improper patterns are caused by the improper balance between air and fluid
(.
9
SERVICE
WARNING
of serious bodily injury, including fluid injection, and splashing in the eyes
or on the skin, or injury from moving parts or
electric shock, always follow the Pressure
Relief Procedure Warning on page 8 before
servicing any part of the gun or system.
2 . Remove the air cap retainer (25),air cap (27),
fluid tip (28). and air separator (32).
3. Pull the trigger to back the fluid needle ball off the
seat. Unscrew the diffuser (30). Inspect the fluid
gasket (33) for any visible damage. Remove and
replace if necessary.
4 . Remove t h e trigger.
Air Valve Service
1.
Remove the trigger and valve cap (1 1 ) . See Fig 7.
2. Unscrew the needle nut (49) while holding the flats
of the air valve (52) stem with a long nose pliers.
CAUTION
To prevent leakage, be careful not to scratch
the air valve stem.
3. Remove the spring (10) and air valve (52). See
Fig 7.
4.
If there is air leakage at the air valve (52), unscrew
the packing nut (50) and carefully remove the
u-cup packing (51). Replace packing if worn or
damaged. When reinstalling, be sure the u-cup
faces inward.
5 . If leakage occurs internally or the front of the gun
leaks air when untriggered, clean and inspect the
air valve and the spring for wear or damage. Replace as needed.
6. For best air valve life. lubricate the external air
valve shaft (point A) with light oil after each day's
use.
Fluid Packing Replacement
1 . If leakage occurs at t h e back of the fluid needle
(5), replace the needle packings (47) and inspect
the needle shaft. See Fig 7.
10 307-586
5. Remove the hex nut (21) from the fluid needle (5)
while holding the square part of the fluid needle.
6. Pull the fluid needle (5) and compression spring
(24) from the front of the gun.
7. To remove the old packings, insert the packing
removal tool into the front of the gun and screw it
into the packings (47). Pull the packings from the
front of the gun. Clean and inspect all parts for
wear or damage, replacing as needed.
8. Insert the new packings (47) onto the needle (5)
shaft as shown in Detail D of Fig 7.
9. Install the fluid needle (5).
packings.
Do not damage the
10. Screw the hex nut (21) all the way onto the needle.
Do not overtighten.
11. Install the trigger. Pull the fluid needle (5) back
with the trigger while screwing the diffuser (30)
back into the gun.
12. Reassemble the air separator (32). fluid tip (28),
air cap (27). and air cap retainer (25).
NOTE: If replacing the air inlet adapter ( 2 ) or pattern
adjustment valve assembly (7). apply pipe
sealant to the threads.
I
Fluid Needle
Packlngs (47)
I
Fig 7
307-586
11
.,
. .
'
23-27 fl-lb
(31-37 N-m)
NOTE:
I
Torque to
(1410-14
19 Nvn)
It-lb
3
3
2
5
1
For Direct Hose Connection
(Parts shlpped unassernbledl
12 307-586
G a s k e t (33) M U S T be replaced If fluld connector
(67 or 1) Is r e m o v e d o r replaced. Fluld leakage intoair
chambers m a y result If n e w gasket is not installed.
_...
i
REF
NO. PART NO. DESCRIPTION
QTY
CONNECTOR. fluid (not assembled) 1
1
ADAPTER, air
1
TRIGGER. oun
NEEDLE,^ f h d : Optional Plastic Ball
Tzpped Needle available. see below
1
VALVE, pattern adjustment:
217-489
7
Includes items 62 a 63
1
10" 106-903 SPRING, compression. air valve 1
1
178-408 CAP, valve, air
11
CAPSCREW.
hex
hd.
10-24
X
203-953
18
1
0.375" long
1
160-21 7 PIN, pivot
19
217-516 BODY. gun
1
20
21" 177-528
NUT, hex
1
24" 109-022 SPRING, compression, fluid:
Optional Spring available. see below
1
1
25
217-526 RETAINER, air cap
26'. 107-079 O-RING, PTFE
1
27
217-303 AIR CAP
1
28
182-XXX FLUID TIP: Customer's choice.
See Chart on page 15.
1
1
2
R5"
178-415
106-917
178-454
2 17-488
~~
'
REF
NO. PART NO. DESCRIPTION
30" 217-300
178-414
32
33" 178-422
47" 218-042
49
50
51"
52"
55'.
62"
178-767
178-765
105-452
217-487
178-798
168-110
63"
105-456
64"
179-960
218-566
180-547
DIFFUSER-SEAT
SEPARATOR. air
GASKET, fluid, Delrin?
1
1
included with item 7
RETAINER, clip: Included with
Item 7
WARNING CARD (not shown)
1
(1 sent unassembled)
3
PACKING KIT, needle. Delrin &
UHMW polyethylene; Optional UHMW
Polyethylene Kit available. see below
1
1
NUT, needle, air
1
NUT, packing, air
1
U-CUP. PTFE
1
VALVE, .air
1
TOOL, packing
O-RING, nitrile rubber;
~~
66
67
GUARD. trigger
CONNECTOR, fluid
1
1
1
1
'Additional cards available at no charge from Graco.
**Supplied In Gun Repair Kif 217-525.
OPTIONAL PARTS
: ::..~
:: ~ , : ~ : . : ~ ~ , : ~ ~ : ~ ~ ~ , . : ~ : ~ : ~ : ? ~ : ~
~~~~~~~~~~~~~~~~~~~
~
........,......,.,..........,.............
I.........,.....
:... .
~
Repair Kits must be purchased separately.
Use only GENUINE GRACO PARTS AND ACCESSORIES.
M u t t order separately.
The Ref. NOS. shown below correspond to the reference numbers used in the parts list. The kit must be
ordered separately and includes the following:
Four Finger Trigger 183-104
Longer than standard trigger. Reduces trigger pull
when spraying mastics and heavy fluids. Replaces
item 3.
Ref
No.
5
10
21
24
26
30
47
51
52
55
62
63
Parl No.
217-488
106-903
1.77-528
109-022
107-079
21 7-300
178-422
218-042
105-452
217-487
178-798
168-110
105-456
:.......
.::il ,,.:.,.,,
:...:..
HOW TO ORDER REPLACEMENT PARTS
33
Description
Q
NEEDLE, fluid
SPRING, compression, air valve
NUT, hex
SPRING, comgression. fluid
O-RING, PTFE
DIFFUSER-SEAT
GASKET. fluid. Delrin
PACKING KIT, 'needle
U-CUP, air, PTFE
VALVE, air
TOOL, packing
O-RING, nitrile rubber
RETAINER, clip
~Y
1
1
1
1
1
1
2
1
1
1
1
1
1
:$$:$
Plastic Ball Tipped Fluid Needle 220-413
For fluid pressures below 500 psi (35 bar) and light
viscosity fluid. Replaces item 5.
Ruby Ball Tipped Fluid Needle 222-497
For use with acid catalized finishes. Replaces item 5.
Fluid Needle Compression Spring 106-452
For spraying higher solids or heavier viscosity fluids.
Repieces item 24.
Ultra High Molecular Weight Polyethylene Needle
Packing Kit 221-150
Use to replace needle packings (item 47) when spraying urethane fluids. Helps eliminate isocyanate crystallization in packing area.
1.To be sure you receive the correct replacement parts.
klts or accessories, always give all of the information
requested in the chart below.
2 . Check the parts list t o identity the correct part number:
do not use the ref. no. when ordering.
3 . Order all parts from your nearest Graco distributor.
6 digit
Part
Number
,.:\
I
QtY
I
Part Descrlptlon
307-586
13
FLUID PRESSURE REGULATOR 222-121
1O:l MONARK PUMP 217-523
950 psi (66 bar) MAXIMUM WORKING PRESSURE
1500 psi (105 bar) MAXIMUM FLUID INLET PRESSURE
150-1200 psi (10.5-84 bar) REGULATED PRESSURE
Stainless Steel
WALL BRACKET 206-220.
To convert Standard Fluid Pressure Regulator
206-661 to 1000 psi (70 bar) working pressure,
order the following parts:
CART 208-210
PUMP SUCTION HOSE 214-960
501-51 1 Compression Spring
101-696 Fluid Pressure Gauge: 0-1000 psi
(0-70 bar) regulated pressure range
PAIL SUCTION TUBE 165-787
DRUM SUCTION TUBE 206-266
FLUID FILTERS
3000 psi (207 bar) MAXIMUM WORKING PRESSURE
214-570 with carbon steel bowl and S U P P O ~ .
218-029 with aluminum bowl and support.
BLEED-TYPE MASTER AIR VALVE
300 psi (21 bar) MAXIMUM WORKING PRESSURE
Relieves air trapped in the air line between the pump
air inlet and this valve when closed.
107-141 3/4 npt(m x f) inlet & outlet
107-142 112 npt(m x f) inlet & outlet
STAINLESS STEEL SCREENS
167-024 595 micron (30 mesh)
167-025 250 micron (60 mesh)
167-026 149 micron (100 mesh)
167-027 74 micron (200 mesh)
AIR PRESSURE REGULATOR 104-267
300 psi (20 bar) MAXIMUM WORKING PRESSURE
IN-LINE FLUID FILTER 210-500
AIR PRESSURE GAUGE 101-180
100 mesh. Fits onto the gun's fluid connector,
114-1 8 nusrn.
0-200 psi (0-14 bar) Regulated Pressure Range
AIR LINE FILTER
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
106-148 318 npt(f)
106-149 112 npt(f)
HIGH PRESSURE BALL VALVES
Vitono Seals
AIR LINE LUBRICATOR
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
5000 psi (350 bar) MAXIMUM WORKING
PRESSURE
Can be used as fluid drain valve.
214-847 3/8 npt(f)
214-848 1/2 npt(f)
210-657 1 / 2 npt(m)
210-658 3/8 npt(m)
210-659 3/8 x 114 npt(rn)
AIR HOSE 205-406
225 psi (16 bar) MAXIMUM WORKING PRESSURE
114 in. (6.4 mm) ID. 25 ft (7.6 m) long, coupled,
114 npsm
STATIC FREE FLUID HOSE
3000 psi (207 bar) MAXIMUM WORKING PRESSURE
~
[Part
I No.
1 ID
I
I Length
I
214-700
214-701
214-699
214-698
214-697
214-638
214-635
214-636
3/16 in ( 4 . 8 rnm)
3116 in (4.8 mm)
3/16 in ( 4 . 8 mm)
3/16 In (4.8 mm)
3/16 In ( 4 . 8 mrn)
114 in ( 6 . 4 rnm)
1/4 in (6.4 mm).
1/4 in (6.4 mm)
214-629
210-540
210-541
114 In I R
1/4 in (6.4,.mm)
114 in (6.4
)
14 307-586
~~
2 ft (610 mm)
/.Thread
I size
1/4 npsrn(f1
3 ft I914 rnm) 114 nptlmxf)
6 ft (1.8 m)
1/4 npsrn(f)
25 it ( 7 . 6 m) 114 npsm(f)
50 ft 115.2 m) 1/4 npsm(f1
14 In 1356 mm 114 npsmlf)
2 ft I610 mm) 114 npsmlfl
3 ft 1914 mm) 1/4 npsm(f) :
114 nptlml
15 ft (4.6 mm) 1/4 npsmlfl
25 f t ( 7 . 6 m) 1/4 npsm(f)
5n tt 11s 2 m) 114 nosmlfl
1
I
GROUNDING CLAMP 103-538
GROUND WIRE 208-95
25 ft (7.6 m) lg. 1 2 ga.
BRUSH 101-892
For cleaning gun.
~~
~~~
~~
~~
~
SPRAY TIP AND AIR CAP SELECTION CHART
....................................
...............
.................
..........
.: . ......
..............
~ ;.:: .i....c..,...
:/...:.." .
..
. . ................
. . . . . . .:.................
:'
......
..:.:. .
STANDARD SPRAY TIPS
Orificl
Size
inches
(mm)
0.007
(0.178)
a1
-
0.015
(0.381)
0.017
(0.432)
0.019
(0.483)
0.021
(0.533)
-
4-6
6-8
8-10
10-12
12-14
(100-150)
(150-200)
4-6
6-8
8-10
10-12
12-14
(100-150)
(150-200)
(200-250)
(250-300)
(300-350)
(250-300)
1300-3501
(0.8)
(250-300)
(300-350)
(350-400)
(400-460)
0.025
8-10 (200-250)
:0.635) 10-12 (250-3001
12-14 (300-350)
14-16 (350-400)
16-18 (400-460)
40.0
(1.2)
182-217
182-317
182-517
t
34.0
(0.97)
182-421
182-521
182-821
182-721
182-821
I
182-423
182-523
182-623
182-723
182-823
50.0
(1.5)
42.0
(1 2 )
182-425
182-525
182-625
182-725
AIR CAPS
Application
Standard
Standard
Fine Finish,::.
Hign Solids
Tip Size
U s e d With
inches (mmJ
.-. .-. . .
1 -.0.025
(0.635)1
sm
, z l l ~ l rthan
,
1
1
0.027 10.6891
,~ ~~, I
andlarger
smaller than
10.025 (0.635)
.'
smaller than
0.025 10.635)
1
Air
Consumption
3-5 scfm
3-5 scfm
I
-
27.0
182-729
"0.035 8-10 (200-250)! 98.0
(0.889) 10-12 (250-300) (2.8)
12-14 (300-350)
182-435
12-14 1300-3501
182-641
"0.039 8-10 (200-250)
(0.991) 10-12 (250-300)
12-14 1300-350)
182-635
118.0
(3.4)
182-643
I
'Fluid output at 600 psi (41 bar).
182-319
182-419
182-519
I 182-619
182-719
10.61
12-14 (300-350)
14-16 (350-400)
16-18 (400-460)
(200-2501
182-215
182-31 5
182-415
182-515
182-615
Part
No.
182-427
I1
I
21 .o
10-12 (250-300)
12-14 (300-350)
14-16 (350-400)
-
182-213
182-313
182-413
182-513
182-613
17.0
(0.51
8-10 (200-250)
10-12 (250-300)
0.023
6-10
10.584) 10-12
12-14
14-16
16-18
-
17.0
(0.5)
I1 ozlmin
"0.031 8 10 (200 250)
78.0
(0.787) 1z"14(300~350)~ (2.2)
182-211
182-311
182-411
182-511
182-611
13.0
(0.4)
1
a1 12"
'Heavy
Viscosily
11 ozlmm
'IIrerslminJ
"0.029 8-10 (200-250J~ 68.0
(0.7371 12-14 (300-350) (1.9)
14-16 (350-400)
182-209
182-309
182-409
I
(200-2501
Size
incnes
182-107
182-207
182-307
182-407
8-lO(200-250)
0.011
10.279)
0.013
(0.330)
li ozlmin
2-4 (50-100) 4.0
4-6 (100-150) (0.1)
6-8 (150-200)
8-10 1200-2501
0.009
(0.229)
-
12"
'Llghl lo
'Heavy
ViSCOSiI'
ti ozlmin
(iirerslmin,
Part No.
1217-303t
I
1218-336
5-7 scfm
219-093tt
5-7 scfm
219-094
I
"Requires air cap 218-336.
Fiuidoutput(~)atotherpressures(~)canbe~lculatedbyVlisfo~ula:
Q = 10.041) 1QT) 1 f i ) .
.
Where OT = Fluid output (fl ozlmin) from the above table for the
selected orifice size.
NOTE:
Other tips are avanable on special work order. Allow 4
t o 6 weeks for delivery.
SOLID STREAM SPRAY TIPS
Use these tips in applications requiring a solid stream of fluid such as
wilh maslics or sealers. All these tips require Air Cap 218-336.
rt
Orifice Size
inches (mrn)
0.027 (0.689)
0.029 (0.737)
0.031 (0.7871
0.033 (0.838)
0.035 (0,889)
0.037 (0.940)
0.039 (0,991)
0.041 (1.041)
0.043 (1,092)
0.045 (1.143)
0.047 (1.194)
Parl
No.
182-027
182-029
182-031
182-033
Pattern
1
Solid stream,
approximately
0.25' (6.35 mml
182-035
182-037
182-039
182-041
182-043
182-045
*82-047
tAir cap provided wilh spray gun.
t t T h e pattern adjustment valve musr be open (turned lully
clockwisel when using this air cap.
307-586 15
Maximum Working Fluid Pressure . 950 psi (66 bar)
Maximum Working Air Pressure . 100 psi (7 bar)
Weight (less filter) . , . . . . . . . . . . 1 . 2 Ib (0.55 Kg)
W e t t e d Parts . . . , Stainless Steel. Carbide. Ultra
High
Molecular
Weight
Polyethylene, Tefionm, Delrina
.
.
PTFE and Delrinm are
Co.
Added
222-497.
Optional
. .
registered trademarks
of
the
Ruby Ball Tipped Fluid Needle
1/4- 18 n p s m (R1/4-19)
Compound Thread
WARRANTY
Graco warrants all equipment manufactured by It and bearing Its name to be free from defects In material and
workmanship on the date of Sale by an authorized Graco distributor to the original purchaser for use. As purchaser's
sole remedy for breach of this warranty. Graco WIIi. for a period of twelve months from the date of sale. repair or
replace any part of the equipment proven defective. This warranty applies only when the equipment 1s installed.
operated and maintained in accordance wlth Graco's wrltten recommendations.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective t o an authorized Graco
distributor for verlfication of the claimed defect. If the claimed defect is verified. Graco wlil repair or replace free of
charas any defectlve Darts. The euubment will be returned t o the oriainal ourchaser transoortation oreoaid. If inspeciion of the equipment does not disclose any defect in material or w6rkmanship. repairs Wlll be made a t a reasonable charge. which charges may include the costs of parts. labor and transportation.
DISCLAIMERS AND LIMITATIONS
THE TERMS OF THIS W A R R A N ~ YCONSTITUTE PURCHASER'S SOLE AND EXCLUSIVE REMEDY AND ARE IN LIEU OF ANY OTHER
WARRANTIES IEXPRESS OR IMPLIED1, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF RTNESS FOR A PAR-
EQUIPMENT NOT COVERED BY GRACO WARRANTY
GRACO MAKES NO W A R R A N T Y AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. WiTH RESPECT TO ACCESSORIES, EOUIPMENT, MATERIALS. OR COMPONENTS SOLD BUT NOT MANUFACTVRED B Y GRACO. These items Soid. but not manufactured by Graco (such as electric motor, Switches, hose, etc.)
are subJectto the warranty, If any. of their manufacturer. Graco will provide purchaser with reasonable assistance in
making any claim for breach of these warranties.
Factory Branches: Atlanta, Dallas, Detroit, Los Angeles, West Caldwell (N.J.)
Subsidiary and Affiliate
Companies: Canada: England: Switzerland: France: Germany; Hong Kong; Japan
, .,
'.GkACO INC.
P.O. BOX 1441 MINNEAPOLIS, M N 55440-1444
PRINTED IN U.S.A. 307-586 10-82
Revised 1-89

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
