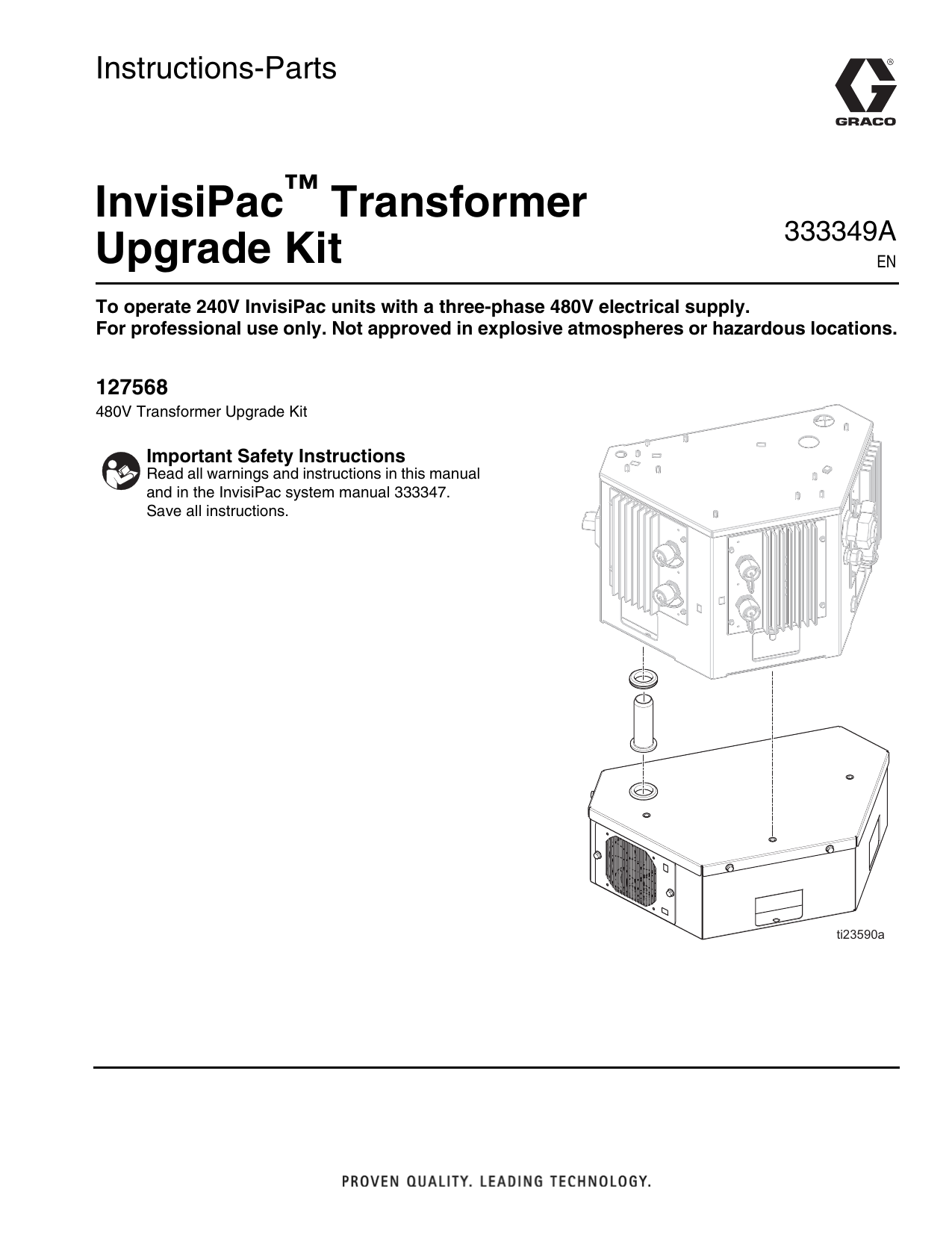

Graco 333349A - InvisiPac Transformer Upgrade Kit Instructions

Instructions-Parts
InvisiPac™ Transformer
Upgrade Kit
333349A
EN
To operate 240V InvisiPac units with a three-phase 480V electrical supply.
For professional use only. Not approved in explosive atmospheres or hazardous locations.
127568
480V Transformer Upgrade Kit
Important Safety Instructions
Read all warnings and instructions in this manual
and in the InvisiPac system manual 333347.
Save all instructions.
WLD
Installation
Installation
6. Mount main electrical enclosure onto transformer
enclosure (4) and tighten screws (1).
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
1
1
This transformer must be installed by a qualified electrician to operate 240V InvisiPac units with a three-phase
480V electrical supply.
NOTE: Installing the transformer kit changes the model
of the InvisiPac system. Refer to the InvisiPac system
manual 333347 for model information.
1. Turn main power switch OFF.
2. Remove front access panel from electrical enclosure.
155
3. Remove cables from J2 on AWB board to main
power switch (H) and main enclosure ground (G).
J2
WLD
4
H
2
7. Remove fan panel (155) on transformer enclosure
(4).
8. Insert plastic cable bushing (3) through grommet in
the top of the transformer enclosure (4) into the bottom of the main electrical enclosure.
G
WLD
4. Remove the knockout hole below main power
switch (H).
5. Insert grommet (2) in knockout hole.
3
4
WLD
2
333349A
Parts
9. Run wires/cabling from transformer enclosure (4)
through plastic cable bushing (3) into main electrical
enclosure.
11. Connect black wires from transformer enclosure (4)
to J2 on AWB board according to the table below:
AWB
Terminal
W1
W2
W3
W4
10. Connect fan connector from transformer enclosure
into J7 on AWB.
J2
J7
H
Wire Label
AWB-W1
AWB-W2
AWB-W3
AWB-W4
12. Connect ground wire from the transformer
enclosure (4) into GND on J2 of AWB and main
enclosure ground (G).
13. Connect red wires from transformer enclosure (4) to
main power switch (H) according to the following
table:
G
WLD
Main Power
Switch Terminal
Wire Label
4T2
6T3
N
P1
P2
P3
14. Re-attach fan panel (155) to transformer
enclosure (4).
15. Replace front access panel on electrical enclosure.
Parts
480V Transformer Upgrade, 127568
1
1
Ref.
1
2
3
4
Part
113802
16C252
16X916
24V015
Description
SCREW, hex hd, flanged
GROMMET, air fitting
BUSHING, cable
TRANSFORMER, assembly
Qty.
3
1
1
1
2
3
4
333349A
WLD
3
