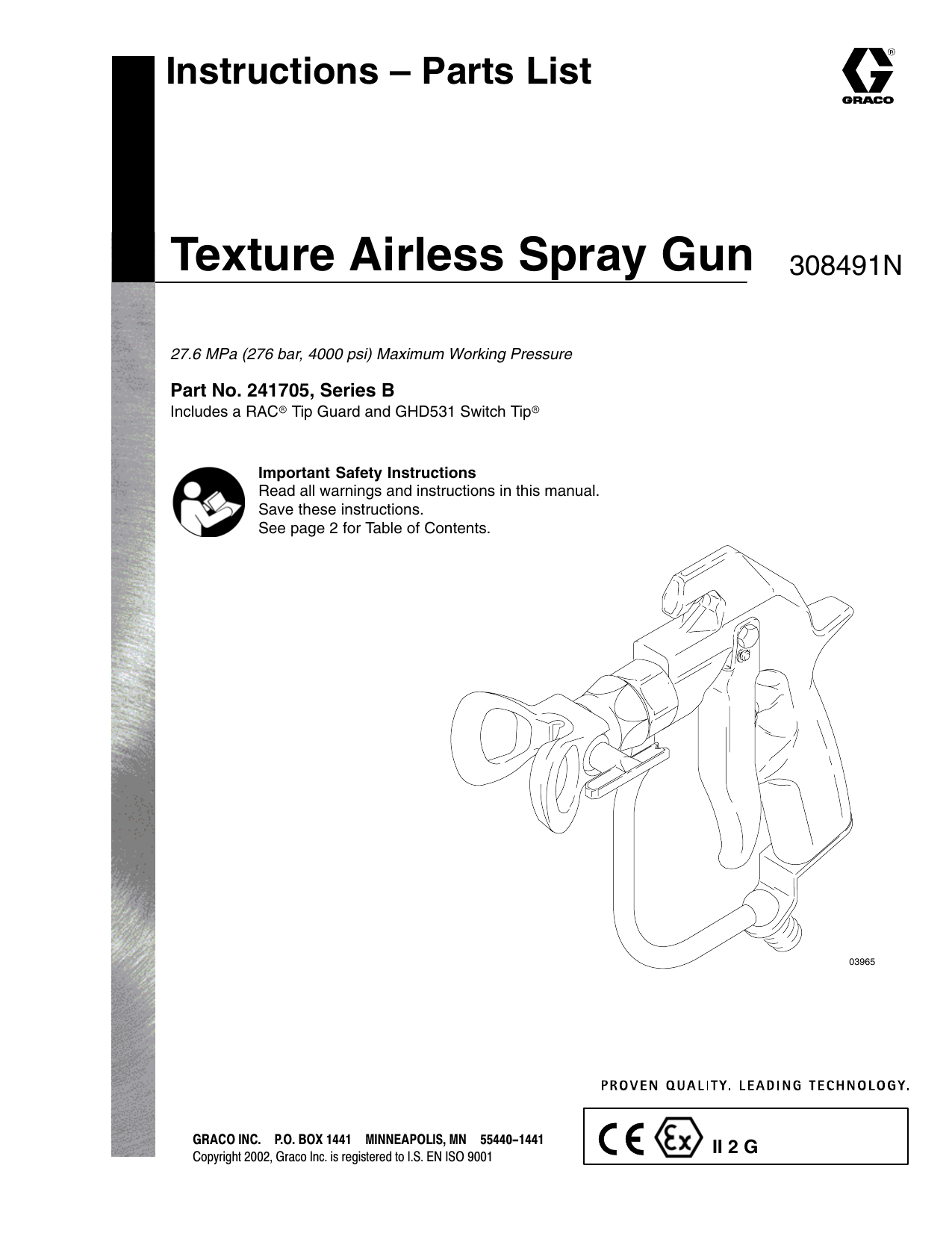

Graco 308491N - Texture Airless Spray Gun Owner's Manual

Instructions – Parts List
Texture Airless Spray Gun
308491N
27.6 MPa (276 bar, 4000 psi) Maximum Working Pressure
Part No. 241705, Series B
Includes a RACr Tip Guard and GHD531 Switch Tipr
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Table of Contents.
03965
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001
II 2 G
Table of Contents
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation/Operation . . . . . . . . . . . . . . . . . . . . . . 5
System Requirements . . . . . . . . . . . . . . . . . . . 5
Ground the System . . . . . . . . . . . . . . . . . . . . . . 5
How to Use the Gun Trigger Safety . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . 5
How to Use the Gun . . . . . . . . . . . . . . . . . . . . . 6
How to Adjust the Spray Pattern . . . . . . . . . . . 6
Care of the Spray Tip and Tip Guard . . . . . . . 7
How to Flush the Gun . . . . . . . . . . . . . . . . . . . . 8
How to Check the Gun Diffuser Operation . . 9
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Graco Phone Numbers . . . . . . . . . . . . . . . . . . . . 15
The Graco Warranty and Disclaimers . . . . . . . 16
2
308491
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
corresponding instructions.
WARNING
WARNING
SKIN INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin
can also cause serious injury.
D Fluid injected into the skin may look like just a cut, but it is a serious injury. Get immediate surgical treatment.
D Do not point the spray gun at anyone or any part of the body.
D Do not put hand or fingers over the spray tip.
D Do not stop or deflect fluid leaks with your hand, body, glove or rag.
D Do not “blow back” fluid; this is not an air spray system.
D Always have the tip guard and the trigger guard on the spray gun when spraying.
D Check the gun diffuser operation weekly. Refer to the gun manual.
D Be sure the gun trigger safety operates before spraying the gun.
D Lock the gun trigger safety when you stop spraying.
D Follow the Pressure Relief Procedure on page 5 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
D Tighten all fluid connections before each use.
D Check the hoses, tubes and couplings daily. Replace worn or damaged parts immediately. Permanently coupled hoses cannot be repaired.
D Handle and route hoses and tubes carefully. Keep hoses and tubes away from moving parts and
hot surfaces. Do not kink or over bend the hoses or use the hoses to pull equipment. Do not
expose Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).
FIRE AND EXPLOSION HAZARD
Improper grounding, poor air ventilation, open flames or sparks can cause a hazardous condition
and result in a fire or explosion and serious injury.
D Ground all equipment in the work area. See Ground the System on page 5.
D If there is any static sparking while using the equipment, stop spraying immediately. Identify
and correct the problem.
D Provide fresh air ventilation to avoid the buildup of flammable vapors from solvent or the fluid being sprayed.
D Do not smoke in the spray area.
D Extinguish all open flames or pilot lights in the spray area.
D Do not turn on or off any light switch in the spray area.
D Electrically disconnect all equipment in the spray area.
D Keep the spray area free of debris, including solvent, rags and gasoline.
D Do not operate a gasoline engine in the spray area.
D Keep a fire extinguisher in the work area.
308491
3
WARNING
WARNING
EQUIPMENT MISUSE HAZARD
INSTRUCTIONS
Equipment misuse can cause the equipment to rupture, malfunction or start unexpectedly and result
in serious injury.
D This equipment is for professional use only.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are in doubt about this, call your Graco
distributor.
D Do not alter or modify this equipment.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure of the lowest rated system component. Refer to
the Technical Data on page 15 for the maximum working pressure of this equipment.
D Do not move or lift pressurized equipment.
D Use fluids or solvents which are compatible with equipment wetted parts. Refer to the Technical
Data section on page 15 and all equipment manuals. Read the fluid and solvent manufacturer’s
warnings.
D Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.
D Fluid hoses must have spring guards on both ends to protect them from rupture caused by kinks
or bends at or close to the couplings.
D Comply with all applicable local, state and national fire, electrical and other safety regulations.
TOXIC FLUID HAZARD
Improper handling of hazardous fluids or inhaling toxic fumes can cause extremely serious injury,
even death, due to splashing in the eyes, ingestion, or bodily contamination.
D Know the specific hazards of the fluid you are using.
D Store hazardous fluid in an approved container. Dispose hazardous fluid according to all local,
state and national guidelines.
D Wear appropriate clothing, gloves, eyewear and respirator.
RECOIL HAZARD
Due to the high pressure fluid emitted, a strong recoil action may occur when you trigger this gun. If
you are unprepared, your hand could be forced back toward your body or you could lose your balance and fall, resulting in serious injury.
4
308491
Installation/Operation
System Requirements
WARNING
Keep the wallet-sized warning card provided with
this gun with the operator at all times. The card
contains important treatment information should an
injection injury occur. Additional cards are available
at no charge from Graco Inc.
Pressure Relief Procedure
WARNING
To reduce the risk of serious injury, including fluid
injection, splashing fluid or solvent in the eyes or
on the skin, follow this procedure when you are
instructed to relieve pressure, when you stop
spraying, shut off the pump, check or service any
system equipment, or install, clean or change spray
tips.
1. Lock the gun trigger safety.
1. The pressure drain valve assists in relieving fluid
pressure in the displacement pump, hose and gun;
triggering the gun to relieve pressure may not be
sufficient.
2. Strain the fluid you are spraying if it contains
particles which could clog the spray tip.
2. Shut off the power to the pump.
3. Unlock the gun trigger safety.
4. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure.
5. Lock the gun trigger safety.
Ground the System
WARNING
To reduce the risk of static sparking, ground the
pump and all other equipment used or located in
the spray area. Check your local electrical code for
detailed grounding instructions for your area and
type of equipment. Also follow the grounding
instructions provided in your pump or sprayer
manual. The gun obtains grounding through connection to a properly grounded fluid hose and pump
or sprayer. Also read FIRE OR EXPLOSION HAZARD on page 3.
6. Open the drain valve, having a container ready to
catch the drainage. Observe the pressure gauge.
The gauge reads 0 psi/bar when fully drained.
Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged or that pressure has not been fully relieved,
very slowly loosen the tip guard retaining nut or hose
end coupling and relieve pressure gradually. Clean the
tip or hose obstruction.
1
Gun trigger safety shown locked
2
Gun trigger safety shown unlocked
1
How to Use the Gun Trigger Safety
1. To lock the gun trigger safety, turn the safety to a
right angle with the gun body. See Fig. 1.
2. To unlock the gun trigger safety, push the safety
out and turn it parallel with the gun body.
See Fig. 1.
2
Fig. 1
03966
308491
5
Installation/Operation
6. If adjusting the pressure does not give a good
spray pattern, relieve pressure and then try
another tip size.
How to Operate the Gun
WARNING
To reduce the risk of component rupture, and serious injury, including fluid injection, do not exceed
the gun’s 4000 psi (276 bar, 27.6 MPa) Maximum
Working Pressure or the maximum working pressure of lowest rated component in the system.
7. Use a full-open, full-close trigger action. Hold the
gun about 14 in. (350 mm) from and at right angles
to the work surface. Don’t swing the gun in an arc.
Practice to find the best length and speed of
stroke.
How to Adjust the Spray Pattern
1. To adjust the spray pattern direction, relieve pressure. Loosen the tip guard retaining nut (B). Turn
the tip guard/tip groove horizontally (C) for a horizontal pattern and vertically (A) for a vertical
pattern. Tighten the nut. See Fig. 3.
8
A
2. The spray tip orifice and spray angle determines
the coverage and size of pattern. When more
coverage is needed, use a larger spray tip rather
than increasing fluid pressure.
30
CAUTION
04731
Fig. 2
1. Connect an electrically conductive fluid hose (A) to
the gun inlet. See Fig. 2.
Openings in the tip guard reduce paint buildup on
the guard while spraying. Damage to the sharp
edges of the openings causes paint to collect at
that area. Never hang the gun by the tip guard.
2. With no tip installed, start the pump. Flush the
pump according to the instructions supplied with it.
Use the lowest pressure possible. Prime the
system with the material.
B
A
3. Relieve pressure.
C
4. Install the SwitchTip (8) and tip guard (30). Follow
the instructions in the manual, supplied.
See Fig. 2.
5. Start the pump. Trigger the gun onto test paper.
Adjust the fluid pressure until the spray is
completely atomized. Use the lowest pressure
necessary to get the desired results. Higher pressure may not improve the spray pattern and will
cause premature tip and pump wear.
6
308491
03968
Fig. 3
Installation/Operation
Care of the Spray Tip and Tip Guard
WARNING
To reduce the risk of fluid injection or splashing in
the eyes or on the skin, do not hold a hand, body
or rag in front of the spray tip when cleaning or
checking a clogged tip. Point the gun toward the
ground or into a waste container when checking to
see if the spray tip is cleared.
Do not try to “blow back” paint; this is not an air
spray gun.
Do not wipe fluid buildup off the gun or spray tip
until pressure is relieved.
If the spray tip clogs while spraying
1. Stop spraying immediately.
2. Lock the gun trigger safety. Rotate the RAC IV tip
handle back 180_. See Fig. 4.
3. Unlock the gun trigger safety. Trigger the gun into
a pail or onto the ground to remove the clog.
4. Lock the gun trigger safety. Rotate the tip handle
to the spraying position. See Fig. 4.
5. If the tip is still clogged, engage the gun trigger
safety, shut off the sprayer and disconnect the
power source, and open the pressure drain valve
to relieve pressure. Clean the spray tip as shown
in manual 308644, supplied with the RAC IV.
CAUTION
Cleaning during the day
Never soak the entire gun in solvent. Prolonged
exposure to solvent can ruin the packings.
WARNING
SKIN INJECTION HAZARD
To reduce the risk of serious injury,
whenever you are instructed to relieve
pressure, follow the Pressure Relief
Procedure on page 5.
1
Spraying position shown.
Turn handle 180_ and
trigger gun to clear clog.
1. Relieve pressure.
2. Clean the front of the tip frequently during the day
to help reduce buildup. Also clean the tip and tip
guard at the end of each work day. Use a solventsoaked brush to clean the spray tip.
Fig. 4
1
03965
308491
7
Installation/Operation
Always flush the pump and gun before the fluid being
sprayed can dry in it.
How to Flush the Gun
WARNING
To reduce the risk of serious injury, including
splashing fluid in the eyes or on the skin, or static
electric discharge when flushing:
1. Relieve pressure.
D Be sure the entire system, including flushing
pails, are properly grounded.
2. Remove the tip guard and spray tip. Soak and
clean the parts.
D Remove the tip guard and spray tip.
3. Remove the pump intake from the original pail.
D Maintain metal to metal contact between the
gun and the flushing pail.
4. Put the pump intake in a grounded pail of compatible solvent.
D Use the lowest possible pressure.
5. Start the pump at its lowest pressure.
ÄÄÄ
ÄÄÄ
6. Trigger the gun into the original pail. When solvent
appears, release the trigger.
7. Now trigger the gun into the solvent pail. Circulate
the fluid until the system is thoroughly flushed.
04735
8
NOTE: This procedure requires a grounded pail of
compatible solvent.
308491
8. Relieve pressure.
Installation/Operation
How to Check the Gun Diffuser Operation
The Standard Needle and Seat Kit, 237398, has the
number 090 stamped on the needle and seat. The seat
does have a diffuser.
The optional Non-diffused Needle and Seat Kit,
237260, has the number 125 stamped on the needle
and seat. The seat does not have a diffuser.
WARNING
SKIN INJECTION HAZARD
To reduce the risk of serious injury,
whenever you are instructed to relieve
pressure, follow the Pressure Relief
Procedure on page 5.
1. Relieve pressure.
2. Remove the tip guard and spray tip.
WARNING
The diffuser, located in the valve seat, creates an
irregular spray pattern when the gun is sprayed
without a tip guard, such as during cleaning. This
reduces the risk of an injection injury.
If you are using the optional Kit 237260, you must
take extra precautions to keep your hands and
body away from the nozzle of the gun.
3. Start the sprayer and adjust it to the lowest
pressure.
4. Aim the gun into a grounded metal pail while holding it firmly to the pail. Trigger the gun. If the fluid
emitted is not diffused into an irregular stream,
replace the entire needle kit immediately. See Fig.
5.
1
Irregular spray pattern
ÄÄÄÄÄ
ÄÄÄÄÄ
ÄÄÄÄÄ
ÄÄÄÄÄ
Always have the tip guard in place during regular
spraying operations.
Check the diffuser operation weekly. The gun diffuser/
seat (2a) breaks up spray and reduces the risk of fluid
injection when the tip is not installed. Perform the test
below. If it fails, replace the entire Needle and Seat Kit.
Diffuser/seats and needles are not sold separately;
using old parts with new ones will result in leakage.
2a
1
Fig. 5
04735
308491
9
Service
WARNING
To reduce the risk of serious injury from fluid injection or splashing, always follow the Pressure
Relief Procedure on page 5 before servicing the
gun.
2a
2b
Repair Notes
The needle and seat are available only as a kit which
includes items 2a to 2e.
The Standard Needle and Seat Kit, 237398, has the
number 090 stamped on the needle and seat.
03969
Fig. 7
3. Unscrew the valve seat (2a). Remove the gasket
(2b). See Fig. 7.
A Non-diffused Needle and Seat Kit, 237260, has the
number 125 stamped on the needle and seat. It is recommended only for use with mastics, sealers and
other high viscosity materials which have fillers that
cannot pass through the standard seat’s diffuser.
28
18
29
27
Use high quality, general purpose grease where
grease is indicated.
Disassembly
NOTE: If replacing only the needle and seat, Step 4
and 5 are not required. However, removing them
allows you to clean the gun more thoroughly.
1. Relieve pressure.
25
04732
Fig. 8
21
4. Remove one e-clip (27). Push out the pin (18).
Remove the screw (29), pivot pin (28), and trigger
(25). See Fig. 8.
30
A
Fig. 6
04731
2. Disconnect the fluid hose (A). Remove the tip
guard (30). Unscrew the spring screw (21) about
1/4 in. (7 mm) to release spring tension.
See Fig. 6.
10
308491
Fig. 9
5. Remove the screws (24). See Fig. 9.
24
04733
Service
1
2d
2c
2e
22
Fig. 12
15
8. Remove the needle (2c). Unscrew the seal retainer
(2d). Remove the seal (2e). See Fig. 12.
04736
Fig. 10
03974
Cleaning
Clean all parts and cavities thoroughly with a compatible solvent. Dry with a rag or compressed air. Replace
any parts that are worn or damage.
6. Loosen the setscrew (15). Pull the fluid housing (22)
away from the gun body (1). See Fig. 10.
Reassembly
1
Torque to 30–40 in-lb (3.4–4.5 N.m)
2
Lips of seal must face into housing
3
Grease inner cavity of housing
16
17
Fig. 11
04734
7. While supporting the spring guide (16) to prevent
bending the needle, loosen the setscrews (17).
Remove the spring guide (16). See Fig. 11.
1
2d
2
2e
3
22
03975
Fig. 13
1. Lightly grease the inner cavities of the fluid housing (22). Install the small seal (2e) so the lips face
into the fluid housing cavity. Install the seal retainer
(2d) and torque to 30–40 in-lb (3.4–4.5 N.m). See
Fig. 13.
308491
11
Service
2c
1
19
Grease this side
20
1
22
1
03676
Fig. 14
2. Lightly grease the small end of the needle (2c) and
then guide it into the large end of the fluid housing
(22).
1
Grease the threads
2
Torque to
20–25 ft–lb
(27–34 N.m)
2a
2b
03979
Fig. 17
5. If the spring (19) was removed, grease the spring
adjuster (20) and place the spring. Drop this assembly into the gun body (1). See Fig. 17.
1
Torque to 30–40 in–lb
(3.4–4.5 N.m)
2
Fill cavity with petroleum
jelly
1
22
22
03977
Fig. 15
3. Place the gasket (2b) on the valve seat (2a).
Grease the threads of the valve seat (2a). Screw
the valve seat into the fluid housing (22). Torque to
20–25 ft–lb (27–34 N.m). See Fig. 15.
1
Seat against needle stem
2
Apply light strength LoctiteR;
Torque alternately and evenly to
25–30 in–lb (2.8–3.4 N.m)
3
Fill cavity with
petroleum jelly
Fig. 16
15
Fig. 18
2
04736
6. Push the fluid housing (22) onto the gun body (1)
until fully seated. Tighten the setscrew (15) to
30–40 in–lb (3.4–4.5 N.m). Fill the setscrew cavity
with petroleum jelly. See Fig. 18.
16
1
3
17
2
3
04729
4. Install the spring guide (16) and seat it against the
needle. Loosely thread both setscrews (17) into
the spring guide, then alternately and evenly tighten
the setscrews to 10–15 in-lb (1.1–1.6 N.m). Fill
the setscrew cavities with petroleum jelly.
12
308491
Fig. 19
7. Install the screws (24). See Fig. 19.
24
04733
Service
Test the Gun Before Regular Use
28
A
B,16
18
1. Lock the gun trigger safety. Connect a hose to the
gun. Start and prime the pump.
29
27
2. Release the gun trigger safety. Trigger the gun into
a waste container. Release the trigger to be sure
the gun immediately stops spraying and that there
are no leaks.
25
04732
Fig. 20
8. Position the trigger (25) on the gun body. Insert the
pivot pin (28) into the top hole (A) and secure with
the screw (29) on the other side. Place an e-clip
(27) on one end of the trigger pin (18). Slide the
pin through lower trigger holes and through the slot
(B) in the spring guide (16) (turn the spring guide
to align, as needed). Install the other e-clip (27).
See Fig. 20.
1
Turn in until screw
stops
Fig. 21
21
3. If the gun has a diffuser, check the diffuser using
the procedure on page 9.
4. Install the tip guard (30) before regular use.
See Fig. 22.
30
1
03980
03965
Fig. 22
9. If it was removed, install the spring tension screw
(21) at the rear of the gun. Then, turn the screw in
until it stops. See Fig. 21.
308491
13
Parts
Part No. 241705, Series B
Texture Airless Spray Gun
28
21
15
20
27
16
2e
19
18
2d
29
22
1
2b
2c
27
17
2a
30
25
36
24
8
Ref.
No. Part No.
1
2
2a
2b
2c
2d
2e
8
15
16
17
18
19
20
14
237680
237260
GHD531
102207
189960
112729
189958
102924
189990
308491
Description
TEXTURE GUN BODY
NEEDLE AND SEAT KIT
(parts not sold separately)
.VALVE SEAT
.GASKET
.NEEDLE
.SEAL RETAINER
.SEAL
SwitchTip, size 631
SETSCREW, 1/4–20
SPRING GUIDE
SETSCREW, soc hd
TRIGGER PIN
SPRING
SPRING ADJUSTER
Qty.
1
1
1
1
1
1
1
1
1
1
2
1
1
1
04730
Ref.
No. Part No.
Description
21
22
24
25
27
28
29
30
34Y
35Y
36
ADJUSTING SCREW
FLUID HOUSING
SCREW, 1/4–20
GUN TRIGGER
E-CLIP
PIVOT PIN
SCREW, hex washer hd, 10–24
KIT, TIP GUARD
WARNING SHEET not shown
WARNING CARD not shown
WASHER, flat
110637
237694
112774
189974
112410
187965
203953
222674
187346
222385
110755
Qty.
1
1
2
1
2
1
1
1
1
1
2
Y Replacement Danger and Warning labels, tags and
cards are available at no cost.
Technical Data
Dimensions
Fluid orifice size . . . . . . . . . . . . . . . . . 0.125 in. (3.2 mm)
Inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 npt (m)
Fluid tube inside diameter . . . . . . . . . . 0.245” (6.2 mm)
Sound Data:
Sound Pressure Level . . . . . . . . . . . . . . . . . 84 dB(A)*
Sound Power Level . . . . . . . . . . . . . . . . . . . 93 dB(A)*
*Measured while spraying waterbase paint through a
.031 tip at 3,000 psi (207 bar, 20.7 MPa).
Per ISO 3744.
Wetted parts . . . . . . . . . . . . . . . . . . . . Tungsten carbide,
17–4PH passivated stainless steel,
polypropylene, polyethylene
LoctiteR is a registered trademark of the Loctite Corporation.
Maximum working pressure . . . . . . . . . . . . . . 27.6 MPa
(276 bar, 4000 psi)
Weight includes tip and tip guard . . . . . . . . . . 25.7 oz (720 g)
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.25” (210 mm)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0” (203 mm)
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor
closest to you: 1–800–690–2894 Toll Free
308491
15
The Graco Warranty and Disclaimers
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended,
or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the
equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained
in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD
BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty
Program”.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
This manual contains English. MM 308491
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
1/1995, Revised 6/2007
16
308491

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
