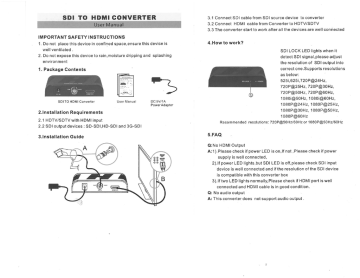

Datasheet for SDI to HDMI Signal Converter

Datasheet for SDI to HDMI Signal Converter
 IMPORTANT SAFETY INSTRUCTIONS
1. Do not place this device in confined space,ensure this device is
well ventilated .
2. Do not expose this device to rain,moisture dripping and splashing
environment
1. Package Contents
SDI TO HDMI Converter User Manual DC 5V/1A
Power Adapter
2.Installation Requirements
2.1 HDTV/SDTV with HDMI input
2.2 SDI output devices : SD-SDI,HD-SDI and 3G-SDI
3.Installation Guide
3.1 Connect SDI cable from SDI source device to converter
3.2 Connect HDMI cable from Converter to HDTV/SDTV
3.3 The converter start to work after all the devices are well connected
4 How to work?
SDI LOCK LED lights when it
detect SDI signal,please adjust
the resolution of SDI output into
correct one.Supports resolutions
as below: |
525i,625i,[email protected],
[email protected], [email protected],
[email protected], [email protected],
[email protected], [email protected],
[email protected], [email protected],
[email protected], [email protected],
[email protected]
Recommended resolutions: [email protected]/60Hz or [email protected]/60Hz
5.FAQ
Q:No HDMI Output
A:1).Please check if power LED is on, If not ,Please check if power
supply is well connected,
2).1f power LED lights,but SDI LED is off,please check SDI input
device is well connected and if the resolution of the SDI device
is compatible with this converter box
3).I1f two LED lights normally,Please check if HDMI port is well
connected and HDMI cable is in good condition.
Q: No audio output
A: This converter does not support audio output.
