3 inches Facial & Fingerprint Recognition Series Product User Manual

3 inches Facial & Fingerprint Recognition Series Product User Manual

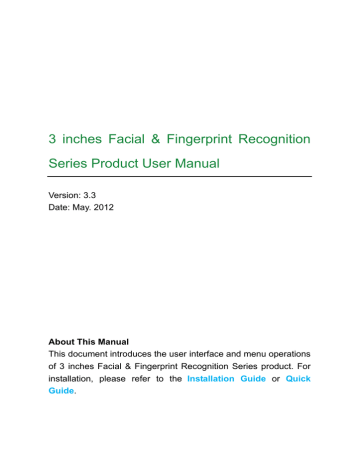

3 inches Facial & Fingerprint Recognition
Series Product User Manual
Version: 3.3
Date: May. 2012
About This Manual
This document introduces the user interface and menu operations
of 3 inches Facial & Fingerprint Recognition Series product. For
installation, please refer to the Installation Guide or Quick
Guide.
3 inches Facial Recognition Series Product User Manual Important Claim
Firstly thank you for purchasing this facial and fingerprint hybrid
terminal, before use, please read this manual carefully to avoid
the unnecessary damage! The company reminds you that the
proper user will improve the use affect and authentication speed.
No written consent by our company, any unit or individual isn’t
allowed to excerpt, copy the content of this manual in part or in full,
also spread in any form.
The product described in the manual maybe includes the software
which copyrights are shared by the licensors including our
company, Except for the permission of the relevant holder, any
person can’t copy, distribute, revise, modify, extract, decompile,
disassemble, decrypt, reverse engineering, leasing, transfer,
sub-license the software, other acts of copyright infringement, but
the limitations applied to the law is excluded.
Due to the constant renewal of products, the company can not
undertake the actual product in consistence with the information
in the document, also any dispute caused by the difference
between the actual technical parameters and the information in
this document. Please forgive any change without notice.
3 inches Facial Recognition Series Product User Manual About this manual
Not all the devices have the function withÌ. The real product prevails.
The photograph in this manual may be different from that of the real
product. The real product prevails.
3 inches Facial Recognition Series Product User Manual Table of Contents
1. Instructions for Use................................................................1
1.1 Standing Position, Posture and Face Expressions .............1
1.2 Enrollment Face Expressions .............................................2
1.3 Finger Placement .............................................................3
1.4 Use of the Touch Screen ....................................................4
1.5 Touch Operations ...............................................................5
1.6 Appearance of Device.........................................................7
1.7 Main Interface ...................................................................10
1.8 Verification Modes ............................................................12
1.8.1 Fingerprint Verification .............................................12
1.8.2 Face Verification.........................................................14
1.8.3 Password Verification .................................................16
1.8.4 ID Card Verification ..................................................17
1.8.5 Combination Verification ..........................................18
2. Main Menu.............................................................................21
3. Add User................................................................................24
3.1 Entering a User ID ............................................................25
3.2 Entering a Name ...............................................................26
3.3 Enrolling a Fingerprint ....................................................27
3.4 Enrolling a Password ........................................................29
3.5 Enrolling an ID card .......................................................30
3.6 Enrolling a Face ................................................................31
3.7 Entering a Group No. .....................................................32
3.8 Modifying User Rights.......................................................33
3.9 Enroll Photo ...................................................................34
I
3 inches Facial Recognition Series Product User Manual 3.10 User Access Settings ...................................................35
4. User Management ................................................................38
4.1 Edit a User ........................................................................39
4.2 Delete a User ....................................................................40
4.3 Query a User ....................................................................41
5. Communication Settings .....................................................42
5.1 Communication Settings ...................................................43
5.2 WIFI Configuration .........................................................45
5.3 Wiegand Output .............................................................49
5.3.1 Wiegand 26-bits Output Description...........................49
5.3.2 Wiegand 34-bits Output Description...........................51
5.3.3 Customized Format ....................................................52
5.4 Wiegand Input ...............................................................57
6. System Settings ...................................................................58
6.1 General Parameters..........................................................59
6.2 Interface Parameters ........................................................60
6.3 Fingerprint Parameters ..................................................61
6.4 Face Parameters ..............................................................62
6.5 Log Settings......................................................................64
6.6 Shortcut Definitions...........................................................65
6.7 Access Settings .............................................................68
6.7.1 Time zone setting .......................................................68
6.7.2 Holiday setting............................................................69
6.7.3 Group time zone setting .............................................71
6.7.4 Unlock Combination Setting .......................................73
6.7.5 Access control parameter ...........................................75
II
3 inches Facial Recognition Series Product User Manual 6.7.6 Duress Alarm Parameters ..........................................76
6.7.7 Anti-Pass back setting ................................................77
6.8 Update ..............................................................................78
7. Data Management.................................................................79
7.1 Query Record ...................................................................81
7.2 SMS ...............................................................................83
7.2.1 Set a Short Message..................................................83
7.2.2 View a Short Message ...............................................87
7.3 Work Code........................................................................89
7.3.1 Add a work code.........................................................89
7.3.2 Edit and delete a work code .......................................90
7.3.3. Edit and delete a work code ......................................90
8. Date/Time Setting .................................................................91
8.1 Set Date/Time ...................................................................91
8.2 Bell Setting ....................................................................92
8.3 Daylight Saving Time (DLST) ........................................94
9. Auto Test ...............................................................................96
10. USB Disk Management ......................................................98
11. System Information ............................................................99
12. Appendix ...........................................................................100
12.1 T9 Input Instructions .....................................................100
12.2 USB ..............................................................................101
12.3 Introduction of Wiegand .............................................103
12.4 Photo ID Function ......................................................105
12.5 Work Code .................................................................106
III
3 inches Facial Recognition Series Product User Manual 12.6 Print function ..............................................................107
12.7 Multi-combination Authentication Mode ..................... 112
12.8 Anti-Pass Back .......................................................... 116
12.9 Statement on Human Rights and Privacy ..................... 119
12.10 Environment-Friendly Use Description........................121
IV
3 inches Facial Recognition Series Product User Manual 1. Instructions for Use
1.1 Standing Position, Posture and Face
Expressions
1. Recommended standing-distance from device
For users 5-6 feet tall (1.55m-1.85m) we recommend
users stand about 2 feet (0.5m) from the wall.
When viewing your image on the device display
window, step away if your image appears too bright.
Step closer if your image appears too dark.
2. Recommended face Expressions vs. poor Expressions
3. Recommended Posture (pose) vs. poor Posture (pose)
Note: During enrollment and verification, try to have a relaxed
unstrained face expression and stand upright.
1
3 inches Facial Recognition Series Product User Manual 1.2 Enrollment Face Expressions
During the enrollment, position your head such way that your face appears in
the center of the device display window, and follow the voice prompts "Focus
eyes inside the green box". The user needs to move forward and backward to
adjust the eyes position during the face registration. The enrollment face
expressions as follows:
2
3 inches Facial Recognition Series Product User Manual 1.3 Finger Placement
Recommended fingers: The index finger, middle finger or the ring finger is
recommended; the thumb and little finger are not recommended (because
they are usually clumsy when pressing on the fingerprint collection screen).
1. Proper finger placement
The finger must be flat to the surface
and centered on the fingerprint
sensor.
2. Improper finger placement
Not flat to the surface
Off-center
Off-center
Slanting
Please enroll and verify your fingerprint by using the proper finger placement
mode. We shall not be held accountable for any consequences arising out of the
degradation in verification performance due to improper user operations. We shall
reserve the right of final interpretation and revision of this document.
3
3 inches Facial Recognition Series Product User Manual 1.4 Use of the Touch Screen
Touch the screen with one of your fingertips or the edge of a fingernail, as
shown in the following figure. A broad point of contact may lead to inaccurate
pointing.
When the touch screen is less sensitive to the touch, you can perform a
screen calibration through the following menu operations. Press [Menu] >
[Auto Test] > [Calibration] on the screen and a cross icon will be displayed.
After you touch the center of the cross at five locations on the screen correctly,
the system will automatically returns to the Auto Test menu. Press [Exit] to
return to the Menu interface. For details, see the description in 9. Auto Test.
Smear or dust on the touch screen may affect the performance of the touch
screen. Therefore, try to keep the screen clean and dust-free.
4
3 inches Facial Recognition Series Product User Manual 1.5 Touch Operations
1. Enter numbers: Press the [User ID] key. The system will automatically
display the number input interface. After entering the user ID, press [OK] to
save or press [X] to cancel and return to the previous interface.
2. Enter Text: Press the [Name] key. The system will automatically display
the text input interface. After entering the user name, press [X] to save and
return to the previous interface.
5
3 inches Facial Recognition Series Product User Manual 3. Modify parameters: Press the default value of a parameter and the
system will automatically switch to another value of this parameter.
☺
Note: The Enroll Fingerprint, User Access and 1: G is optional function,
only some machines have.
6
3 inches Facial Recognition Series Product User Manual 1.6 Appearance of Device
1. Type 1
(1) Front View
LED Indicator
Touch Screen
Touch keys
Camera
Push Buttons
Fingerprint Sensor
ID Card Swipe Area
(2) Side View
Reset Button
USB Port
7
3 inches Facial Recognition Series Product User Manual 2. Type 2
(1) Front View
LED Indicator
Touch Screen
Touch keys
Camera
ID Card Swipe Area
(2) Side View
USB Port
8
3 inches Facial Recognition Series Product User Manual 3. Type 3
(1) Front View
LED Indicator
Touch Screen
Touch Keys
Camera
Push Buttons
ID Card Swipe Area
(2) Side View
Reset Button
USB Port
9
3 inches Facial Recognition Series Product User Manual 1.7 Main Interface
Date
Screen Shortcut
Time
Attendance Status
1:1 Switch Key
Menu
① Date: The current date is displayed.
②Screen Shortcut Keys: Press these shortcut keys to display the
attendance status. Users can customize the function of each shortcut key.
For details, see 6.6 Shortcut Definitions.
③Time: The current time is displayed. Both 12-hour and 24-hour time
systems are supported.
④ Attendance Status: The current attendance status is displayed.
⑤1:1Switch Key: By pressing this key, you can switch to the 1:1verification
modes, and enter the digital input interface.
⑥ Menu: You can enter the main menu by pressing this key.
10
3 inches Facial Recognition Series Product User Manual ☺
Note:
(1) The Enroll Fingerprint, User Access, Door Bell Button and 1:1 Switch
Button is an optional function, some machines have these function.
(2) The 1: G is an optional function. If you need this function, please consult
our commercial representatives or fore-sale technical support personal.
11
3 inches Facial Recognition Series Product User Manual 1.8 Verification Modes
1.8.1 Fingerprint Verification
1. 1: N fingerprint verification
The terminal compares current fingerprint collected by the fingerprint
collector with all fingerprint data on the terminal.
(1) To enter the fingerprint verification mode. The device automatically
distinguishes face and fingerprint verification, just pressing finger on the
collector. Shall be fingerprint authentication mode.
(2) Press your finger on the fingerprint sensor by adopting the proper finger
placement. For details, see 1.3 Finger Placement.
(3) If the verification is successful, the device will prompt “Verified”.
(4) If the verification is not successful, the device will prompt “Please try again”.
2. 1:1 fingerprint verification
In the 1:1 fingerprint verification mode, the device compares current
fingerprint collected through the fingerprint sensor with that in relation to the
user ID entered through the keyboard. Adopt this mode only when it is difficult
to recognize the fingerprint.
12
3 inches Facial Recognition Series Product User Manual (1) Press [1:1] on the screen or [1:1] button to enter the 1:1 fingerprint
recognition mode.
(2) Enter User ID or Group No., then press the "Fingerprint” icon to enter the
1:1 fingerprint recognition mode. If the prompt “Unregistered user!” is
displayed, the user ID does not exist.
(3) Press your finger on the fingerprint sensor by adopting the proper finger
placement. For details, see 1.3 Finger Placement.
(4) If the verification is successful, the device will prompt “Verified”, otherwise
the device will prompt “Please try again”.
13
3 inches Facial Recognition Series Product User Manual 1.8.2 Face Verification
1. 1: N Face Verification
The terminal compares current face image collected
by the camera with all face data on the terminal.
(1) The device automatically distinguishes face and
fingerprint verification.
(2) Compare the facial in a proper way. For details, see
1.1 Standing Position, Posture and Face Expressions.
Comparison of interface display the current image
collected by the camera, an interface as shown in
Figure 1 on the right will be displayed.
(3) If the verification is successful, an interface as
shown in Figure 2 on the right will be displayed.
2. 1:1 face verification
In the 1:1 face verification mode, the device compares
current face collected through the camera with that in
relation to the user ID entered through the keyboard.
Adopt this mode only when it is difficult to recognize
the face.
(1) Press [1:1] on the screen button to enter the 1:1
recognition mode.
(2) Enter User ID, then press the "1:1 Face" icon to enter
1:1 face recognition mode. If the prompt "Unregistered
user!" is displayed, the user ID does not exist.
(3) Compare the face in a proper way. For details, see
1.1 Standing Position, Posture and Face Expressions.
14
3 inches Facial Recognition Series Product User Manual (4) If the verification is successful, the device will prompt "Verified". The system
will return to the main interface if the verification is not passed within 20 seconds.
3. 1: G Face Verification
When you open the 1: G Verify function, then you can make 1: G facial
verification. For detail please see 6.5 Log Settings.
Current group No. (Valid group number is 1-5) is
displayed on the facial recognition interface. Users in
current group can perform facial comparison directly.
Users of another group can perform facial comparison
only after entering the group No. or selecting it using
the shortcut key. And the system will set the group
entered or selected by users to be the current group
instantly.
(1) Press [1:1/1: G] on the screen to enter the 1: G
recognition mode.
(2) Enter user Group No. and then press the "1: G” icon (shown as following
figure 1) to enter 1: G facial recognition mode.
15
3 inches Facial Recognition Series Product User Manual (3) Compare the facial in a proper way. For details, see 1.1 Standing Position,
Posture and Face Expressions. Current Group No. is displayed on the
comparison interface, shown as following figure 2.
☺
Note: Check whether you are in current group; if not, return to Step 1.
(4) If the verification is successful, shown as following figure 3.
☺
Note: The 1: G Face group is an optional function. Some machines
have this function. But some have not. Face group function is untapped by
Factory default, users can set in System--Log Settings--1: G Verify to open
this function.
1.8.3 Password Verification
In the password verification mode, the device
compares the password entered with that in relation to
the user ID.
1. Press [1:1] on the screen or [1:1] button to enter the
password verification mode.
2. Enter the user ID and then press the "Key” icon to
16
3 inches Facial Recognition Series Product User Manual enter the password verification mode. If the prompt “Unregistered user!” is
displayed, the user ID does not exist.
3. Enter the password and press the “OK” icon to start the password
comparison.
4. If the verification is successful, the device will prompt “Verified”, otherwise
the device will prompt “Verify fail” and return to password input interface.
1.8.4 ID Card Verification
Only the products with a built-in ID card module support the ID card
verification. The products with a built-in ID card module support the following
two verification modes:
ID Card Only: Users only need to swipe their ID cards for verification.
ID + Facial Verification: After passing the ID card verification, you also need
to perform facial verification.
1.
1)
ID Card Only
Swipe your ID card on the card swipe area by adopting the proper way.
For the card swipe area, see 1.6 Appearance of Device.
2)
If the verification is successful, the device will prompt “Verified”.
3)
If the verification is not successful, the device will prompt “Not Enrolled”.
17
3 inches Facial Recognition Series Product User Manual ☺
Note:
(1) The machines that have Photo ID function’s successful verification
interface is shown as figure 1 above.
(2) The machines that don’t have Photo ID function’s successful verification
interface is shown as figure 2 above.
2.
ID + Facial Verification
(1) Swipe your ID card properly at the swiping area to
enter the 1:1 facial verification mode.
(2) Compare the facial in a proper way. For details, see
1.1 Standing Position, Posture and Face Expressions.
(3) If the verification is successful, an interface as
shown in Figure 3 on the right will be displayed. The
system will return to the main interface if the verification
is not passed within 20 seconds.
1.8.5 Combination Verification
The
device
supports
up
to
20
verification
modes,
including
FACE&PIN/FP/RF/PW、FP&PW、FP&RF、FACE&FP、FACE&PW、FACE&RF、
18
3 inches Facial Recognition Series Product User Manual FP、PW、RF、FACE&PIN、FP/RF、PW/RF、FP/PW、PW&RF、PIN&FP、
FP&PW&RF、PIN&FP&PW、FP&RF/PIN、FACE&FP&RF、FACE&FP&PW
etc. For the detail, please refer to 12.7 Multi-combination Authentication
Mode.
☺
Note: RF means ID card verification. Only the products with the built-in
ID card module support the ID card verification.
Here is the combination verification operation; we will use the FACE&FP
verification for an example.
If you verify the fingerprint first and then the face, the operations are as
follows.
1. The default main interface is the fingerprint verification mode, see the
figure below.
2. Press your finger on the fingerprint sensor by adopting the proper finger
placement. For details, see 1.3 Finger Placement.
3. If the verification is successful, the device will enter the 1:1 face recognition
mode. Compare the face in a proper way. For details, see 1.1 Standing Position,
Posture and Face Expressions.
4. If the verification is successful, the device will prompt “Verified”. The
19
3 inches Facial Recognition Series Product User Manual system will return to the main interface if the verification is not passed within
20 seconds.
Otherwise, the FACE&FP combination verification can perform such as FACE
(1: N) + FP, PIN + FACE (1:1) + FP, PIN + FP (1:1) + FACE etc. The operation
is similar to the procedure introduced before.
20
3 inches Facial Recognition Series Product User Manual 2. Main Menu
There are two types of rights respectively granted to two types of users: the
Ordinary users and administrators. Ordinary users are only granted the
rights of face, fingerprint, password or card verification, while administrators
are granted access to the main menu for various operations apart from
having all the privileges granted to ordinary users.
Press [Menu] on the initial interface to access the main menu, as shown in
the following figure:
The main menu includes nine sub menus:
Add User: Through this submenu, you can add a new user and input the
information on the device, including the user ID , name, fingerprint , face,
card , password, rights, group No.
and user access .
User Mgt.: Through this submenu, you can browse the user information
stored on the device, including the user ID, name, fingerprint , face, card ,
password, rights, group No . and user access . Here you can also add,
21
3 inches Facial Recognition Series Product User Manual modify or delete a user’s information.
Comm.: Through this submenu, you can set related parameters for
communication between the device and PC, including the IP address,
gateway, subnet mask, baud rate , device No. and communication
password.
System: Through this submenu, you can set system-related parameters,
including the basic parameters, interface parameters, fingerprint , face and
attendance parameters, Keyboard definitions, Access settings , firmware
update etc. to enable the device to meet the user’s requirements to the
greatest extent in terms of functionality and display.
Data Mgt.: Through this submenu, you can perform management of data
stored on the device, for example, deleting the attendance records, all data,
clear administrator, restore to factory settings and query records.
Date/Time: Through this submenu, you can set the alarm time and duration,
or set the Bell.
Auto Test: This submenu enables the system to automatically test whether
functions of various modules are normal, including the screen, sensor, voice,
face, keyboard, clock tests and screen calibration.
Dn/Upload: Through this submenu, you can download user information and
attendance data stored in the device through a USB disk to related software
or other fingerprint recognition equipment.
Sys Info.: Through this submenu, you can browse the records and device
22
3 inches Facial Recognition Series Product User Manual information.
Any user can access the main menu by pressing the [Menu] key if
the system does not have an administrator. After administrators are
configured on the device, the device needs to verify the administrators’
identity before granting them access to the main menu. To ensure device
security, it is recommended to set an administrator when using the
terminal initially. For detailed operations, see 3.8 Modifying User Right.
23
3 inches Facial Recognition Series Product User Manual 3. Add User
Press [Add] on the [User Mgt.] interface to display the
[Add User] interface as shown below.
User ID: Enter a user ID. 1 to 9 digits user IDs are
supported by default.
Name: Enter a user name. 12 characters user names
are supported by default.
Fingerprint : Enroll a user’s fingerprint and the device
displays the number of enrolled fingerprints. A user can
enroll 10 fingerprints at maximum.
Password: Enroll a user’s password. The device supports
1-8 digit passwords by default.
Face: Enroll a user’s face.
Group No. : Setting in the group of user.
Role: Set the rights of a user. A user is set to ordinary
user by default and can also be set to administrator.
Ordinary users are only granted the rights of face,
fingerprint or password verification, while administrators
are granted access to the main menu for various
operations apart from having all the privileges granted to
ordinary users.
Photo : Enroll a user’s photo. During user verification is success; the user’s
photo is displayed on screen.
User Access : Set the lock control and access control parameters.
24
3 inches Facial Recognition Series Product User Manual 3.1 Entering a User ID
The device automatically allocates an ID starting from
1 for every user in sequence. If you use the ID
allocated by the device, you may skip this section.
1. Press [User ID] on the [Add User] interface to
display the user ID management interface.
Tip: The user ID can be modified during
initial enrollment, but once enrolled, it cannot be
modified.
2. On the displayed keyboard interface, enter a user ID
and press [OK]. If the message “The user ID already
exists!” is displayed, enter another ID.
Tip: The device supports 1 to 9 digits user
IDs by default. If you need to extend the length of
current user ID numbers, please consult our
commercial representatives or technical pre-sales.
3. After the user ID is entered, press [Save] to save the
current information and return to the previous interface.
Press [Exit] to return to the previous interface without
saving the current information.
25
3 inches Facial Recognition Series Product User Manual 3.2 Entering a Name
Use T9 input method to enter the user name through
the keyboard.
1. Press [Name] on the [Add User] interface to
display the name input interface.
2. On the displayed keyboard interface, enter a user
name and press [X].
For details of operations on the keyboard interface,
see 12.1 T9 Input Instructions.
3. After the user name is entered, press [Save] to
save the current information and return to the
previous interface. Press [Exit] to return to the previous interface without
saving the current information.
Tip: The device supports the 1 to 12 characters names by default.
26
3 inches Facial Recognition Series Product User Manual 3.3 Enrolling a Fingerprint
1. Press [Fingerprint] on the [Add User] interface to
display the [Enroll Fingerprint] interface.
2. On the displayed [Enroll Fingerprint] interface,
place your finger on the fingerprint sensor properly
according to the system prompt. For details, see 1.3
Finger Placement.
3. Place the same finger on the fingerprint sensor for
three consecutive times correctly. If the enrollment
succeeds, the system will display a prompt message
and automatically return to the [Add User] interface. If
the enrollment fails, the system will display a prompt message and return to
the [Enroll Fingerprint] interface. In this case, you need to repeat the
operations of step 2.
4. You can enroll the backup fingerprint by pressing [Fingerprint] again. A
user can enroll 10 fingerprints at maximum.
5. Press [Save] to save the current information and return to the previous
interface. Press [Exit] to return to the previous interface without saving the
current information.
27
3 inches Facial Recognition Series Product User Manual 28
3 inches Facial Recognition Series Product User Manual 3.4 Enrolling a Password
1. Press [Password] on the [Add User] interface to
display the password management interface.
2. On the displayed keyboard interface, enter a
password and press [OK]. Re-enter the password
according to the system prompt and then press [OK].
Tip: The device supports 1-8 digit passwords
by default.
3. After the password is entered, an interface is
displayed as shown below. Press [Save] to save the
current information and return to the previous interface. Press [Exit] to return
to the previous interface without saving the current information.
29
3 inches Facial Recognition Series Product User Manual 3.5 Enrolling an ID card
1. Press [Card] on the [Add User] interface to display
the [Enroll Card] interface.
2. The [Punch Card!] interface pops up as shown below.
Swipe your ID card properly in the swiping area. For
details, see 1.6 Appearance of Device.
3. If the card passes the verification, the device will
display a prompt message “Read Successfully! Card
No.: **********”, and returns to the [Add User] interface.
4. Press [Save] to save the current information and
return to the previous interface. Press [Exit] to return
to the previous interface without saving the current information.
☺
Note: 3 inches Facial & Fingerprint Recognition support Mifare card
function. It is an option function, if you want to customize the Mifare card
function, please consult our commercial representatives or pre-sales
technical support engineers.
30
3 inches Facial Recognition Series Product User Manual 3.6 Enrolling a Face
1. Press [Face] on the [Add User] interface to display
the face enrollment interface.
2. On the displayed face enrollment interface, turn
your head to the left and right slightly, raise and lower
your head according to the voice prompts, so as to
enroll different parts of your face into the system to
assure the accurate verification. See 1.2 Enrollment
Face Expressions.
3. If your face image is enrolled successfully, the
system
will
display
a
prompt
message
and
automatically return to the [Add User] interface.
4. Press [Save] to save the current information and return to the previous
interface. Press [Exit] to return to the previous interface without saving the
current information.
31
3 inches Facial Recognition Series Product User Manual 3.7 Entering a Group No.
1. Press [Group No.] on the [Add User] interface to display the group No.
management interface.
2. On the displayed keyboard interface, enter your group No. and press [OK].
3. After the group No. is entered, an interface is displayed as shown below.
Press [Save] to save the current information and return to the previous
interface. Press [Exit] to return to the previous interface without saving the
current information.
32
3 inches Facial Recognition Series Product User Manual 3.8 Modifying User Rights
☺
Note: There are two types of rights respectively granted to two types of
users: the ordinary users and administrators. Ordinary users are only
granted the rights of face, fingerprint, or password verification, while
administrators are granted the access to the main menu for various
operations apart from having all the privileges granted to ordinary users.
1. On the [Add User] interface, press [Role: User] to change the user to an
administrator.
2. After the modification is done, the interface is as shown below. Press
[Save] to save the current information and return to the previous interface;
press [Exit] to return to the previous interface without saving the current
information.
33
3 inches Facial Recognition Series Product User Manual 3.9 Enroll Photo
If you had enrolled your photo in the system, the
system will display your enrolled photo in addition to
your ID and name after you pass the verification.
1. Press [Photo] on the [Add User] interface to
display the photo enrollment interface.
2. On the photo enrollment interface, stand naturally
in front of the screen. For details, see 1.1 Standing
Position, Posture and Face Expressions. Press
[Capture] to capture the photo.
3. After taking the photo, press [Exit] to return to the
previous interface.
4. After the photo is taken, press [Save] to save the current information and
return to the previous interface; press [Exit] to return to the previous interface
without saving the current information.
34
3 inches Facial Recognition Series Product User Manual 3.10 User Access Settings
Press [User Access] on the [Add User] interface to display the user access
settings interface.
User Access settings are to
set the user’s rights to verify
and open the door, such as the
Verify Type, Time Zone and
Duress FP management.
1. Verify Type
(1) Group Verify Mode: If the
user uses the group verify mode
that he belong to.
(2) Individual verify mode:
Select the verification mode
for this user instead of the
group verify mode. That will
not affect other users in this
group.
Note:
(1) Only the products with the
built-in ID card module support the ID card verification.
(2) For the verify type, please refer to12.7 Multi-combination Authentication
ModeÌ.Only some types of devices support Multi-combination authentication
mode.
2. Time Zone
(1) Group Time Zone: If the user uses the group time zone that he belong to.
35
3 inches Facial Recognition Series Product User Manual (2) Individual time zone: Select the time zone of this user instead of the
group time zone. That will not affect other users in the group.
3. Duress FP
User can register a new duress fingerprint or cancel
registered duress fingerprints. If a finger is registered
duress fingerprints. When compare it, will trigger the
duress alarm signal.
If cancel the duress fingerprints, does not delete the
fingerprints data, still can use the fingerprints process
normal comparison.
Duress FP management:
(1) Register Duress FP
Press [Reg. Duress FP] on the [User Access] interface
to display the [Enroll Fingerprint] interface. On the displayed [Enroll
Fingerprint] interface, place your finger on the fingerprint sensor properly
according to the system prompt. For details, see 1.3 Finger Placement.
(2) Cancel duress FP
Press [Can. Duress FP] on the [User Access] interface to pop-pup the
confirm message. Select [YES] to delete the enrolled duress FP, otherwise
36
3 inches Facial Recognition Series Product User Manual select [NO] to cancel the operation.
37
3 inches Facial Recognition Series Product User Manual 4. User Management
Browse the user information, including the user ID, name, fingerprint , face,
ID card , password, rights, group No.
and user access settings
through
this interface. To add, edit or delete the basic information of users.
Press [User Management] on the main menu interface to display the user
management interface.
This user is an administrator.
Note: The users are listed in alphabetical order by last name. If you
press a user name, you can access the editing interface of this user to edit or
delete the related user’s information.
38
3 inches Facial Recognition Series Product User Manual 4.1 Edit a User
Press a user name from the list to enter the [User Info] interface.
The User ID cannot be modified, and the other operations are similar to those
performed in add a user. You can re-enroll your fingerprint
and face,
change your password, modify the management rights and Group No.
For example: Change the user rights from Administrator to ordinary user. As
shown below.
39
3 inches Facial Recognition Series Product User Manual 4.2 Delete a User
On the [User Info] interface, you can delete all or partial user information.
1. Press [Delete] to delete a user.
2. On the displayed interface, click [YES] to delete the current user or [NO] to
return to the previous interface.
3. On the [User Info] interface, press [Name], [Fingerprint], [Face] or
[Password] to delete the related user information and to re-enroll the new
information follow the device prompt.
40
3 inches Facial Recognition Series Product User Manual 4.3 Query a User
To facilitate administrators to locate a user quickly from a large number of
enrolled users, the device enables to query by “User ID”.
User ID Query:
1. Press [Query] on the [User Management] interface to display the User ID
query interface.
2. Enter the user ID on the displayed interface, and click [OK] to locate the
cursor on the desired user.
41
3 inches Facial Recognition Series Product User Manual 5. Communication Settings
You can set related parameters for the communication between the device
and PC, including the IP address, Gateway, Subnet Mask, Baud Rate ,
Device ID, and Comm Key.
☺
Note: The comm. (RS232/RS485), WIFI、Wiegand In and Wiegand Out
are optional function, only some machines have these functions.
42
3 inches Facial Recognition Series Product User Manual 5.1 Communication Settings
IP Address: The IP address is 192.168.1.201 by default and can be changed
as required.
Subnet Mask: The subnet mask is 255.255.255.0 by default and can be
changed as required.
Gateway: The gateway is 0.0.0.0 by default and can be changed as required.
(RS232/RS485)Ì, you need to check the following settings:
RS232Ì: This parameter is
communication. If the RS232
parameter to “ON”.
RS485Ì: This parameter is
communication. If the RS485
parameter to “ON”.
used to enable or disable the RS232
communication cables are used, set this
used to enable or disable the RS485
communication cables are used, set this
Baud RateÌ: This parameter is used to set the baud rate for the
communication between the device and the PC. It includes five options: 9600,
19200, 38400, 57600, and 115200. The higher baud rate is recommended for
the RS232 communication to achieve high speed communication, while the
lower baud rate is recommended for the RS485 communication to achieve
stable low-speed communication.
43
3 inches Facial Recognition Series Product User Manual USB232Ì: Decide whether use USB to communicate or not, that is to say if
you use the USB communication, and then selected the item as "Yes".
Otherwise as "No".
Device ID: This parameter is used to set the ID of device from 1 to 254. If the
RS232/RS485 communication is adopted, you need to enter the device ID on
the software communication interface.
Comm. Key: To enhance the security of attendance data, you can set a
password for the connection between the device and PC. Once the password
is set, you can connect the PC with the device to access the attendance data
only after entering the correct password. The default password is 0 (that is,
no password). Once a password is set, you need to enter this password
before connecting the PC software with the device; otherwise, the connection
is unsuccessful. 1 to 6 digits passwords are supported.
PrintModeÌ: When user authentication is successful, you can choose
whether to print attendance information. Print mode can be set. In all, there
are 6 print modes available. See 12.7 Print function.
Considering the massive data including the fingerprint and face templates
stored in the device, it is recommended to transfer the data between the device
and PC over network to enhance the transfer speed.
44
3 inches Facial Recognition Series Product User Manual 5.2 WIFI Configuration
1.
Available WLANs
Available WLANs around a mobile phone can be searched. Select
Available WLAN to enter the Available WLAN interface and click
Refresh, then the available WLANs around the mobile phone are listed
on the interface, as well as their signal strengthen.
As shown in the third of the preceding figures, a user can search its
wireless route and set a password. For other settings, see the "WIFI
Configuration" in the following section. The password must be the same
as that of the wireless route so that the mobile phone can access to the
WLAN. Complete setting and click save button, the machine will
connect to the software automatically.The following figure shows the
initial interface when the mobile phone accesses to the WLAN:
45
3 inches Facial Recognition Series Product User Manual 2.
WIFI Configuration
Before the mobile phone is accessed to the WLAN, other physical
components of the 802.11 network are required, including access points,
distribute systems, and wireless media. In addition, the service set
identifier (ESSID) must be available.
Network ID: specifies the network identification of the wireless network
to be accessed. (Letters are case-sensitive.)
Local IP address: If the 802.11 wireless network is not configured with
the function of dynamic host configuration protocol
(DHCP), enter the Manual IP Designation interface and
input an IP address, subnet mask, and gateway address.
Otherwise, dynamically designate an IP address.
Password: The password must be the same as that of the router so
that the mobile phone can access to the WIFI. (Only
support key1 in WEP model.)
IP address: When the setting of a local IP address is in manual mode,
designate and input a correct IP address, subnet mask,
and gateway address on the Manual IP Designation
46
3 inches Facial Recognition Series Product User Manual interface. The designated IP address is the IP address of
a mobile phone in the wireless network, and does not
have any relationship with comm. WIFI IP can not share
the same network segment with the machine IP.
Subnet mask and gateway: The subnet mask and gateway address of
the designated IP address must be designated and input.
Operation Description
1)
Set SSID
Select WIFI Configuration to enter the WIFI Configuration interface.
Click the inputting button of the Network ID and input the network ID
after starting the T9 inputting method editor (IME). The network ID
must be provided for identification.
2)
Set a local IP address
Select a mode for designating a local IP address. The IP address is
designated in manual or DHCP mode.
3)
Set a password
47
3 inches Facial Recognition Series Product User Manual Click the inputting button of the password and input a password after
starting the T9 IME.
4)
Designate an IP address
When the setting of local IP addresses is in manual mode, designate
and input a correct IP address, subnet mask, and gateway address on
the Manual IP designation interface. The designated IP address is the
IP address of a mobile phone in the wireless network, and does not
have any relationship with comm.
After an IP address is designated, click Save and return to the WIFI
Configuration interface.
After performing the preceding procedures, click Save and goes back to
the previous interface.
48
3 inches Facial Recognition Series Product User Manual 5.3 Wiegand Output
Wiegand Format: The system has two built-in formats Wiegand 26-bits and
Wiegand 34-bits, and also supports the format customization function to
meet individualized requirements.
Failed ID: Refers to the value output by the system
upon verification failure. The output format is subject
to the setting of “Wiegand Format”. The default
value scope of Failed ID is 0-65535.
Site Code: The site code is used for a customized
Wiegand format. The site code is similar to the device
ID, but the site code is customizable and can be
duplicated among different devices. The default value
scope of the Site Code is 0-255.
Pulse Width: Refers to the width of the Wiegand
pulse in microseconds. The default value scope of the pulse width is 1-1000.
Pulse Interval: Refers to the interval of the Wiegand pulse in microseconds.
The default value scope of the pulse width is 1-10000.
Output: Refers to the contents output upon successful verification. You can
select the “User ID” or “Card Number” as the output.
5.3.1 Wiegand 26-bits Output Description
The system has a built-in Wiegand 26-bits format. Press [Wiegand Format],
and select “Standard Wiegand 26-bits”.
The composition of the Wiegand 26-bits format contains 2 parity bits and 24
bits for output contents (“User ID” or “Card Number”). The binary code of
24-bits represent up to 16,777,216 (0–16,777,215) different values.
49
3 inches Facial Recognition Series Product User Manual 1
2
Even parity
25 26
User ID/Card Number
Odd parity bit
Definition of Fields:
Meaning
Field
Even parity bit
Judged from bit 2 to bit 13. The even parity bit is 1 if
the character has an even number of 1 bit; otherwise,
the even parity bit is 0.
User
ID/
Card
Number (bit 2-bit
User ID/Card Number (Card Code, 0–16777215)
Bit 2 is the Most Significant Bit (MSB).
25)
Odd parity bit
Judged from bit 14 to bit 25. The odd parity bit is 1 if
the character has an even number of 1 bit; otherwise,
the odd parity bit is 0.
For example, for a user with the user ID of 12345, the enrolled card number
is 0013378512 and the failed ID is set to 1.
1. When the output is set to “User ID”, the Wiegand output is as follows upon
successful verification:
00000000000110000001110011
Even parity bit User ID = Binary code of 12345 Odd parity bit
2. When the output is set to “Card Number”, the Wiegand output is as follows
upon successful verification:
11100110000100011110100000
Even parity bit User ID = Binary code of 0013378512 Odd parity bit
3. The Wiegand output is as follows upon verification failure:
50
3 inches Facial Recognition Series Product User Manual 00000000000000000000000010
Even parity bit Failed ID = Binary code of 1
Odd parity bit
Note: If the output contents exceed the scope allowed for the Wiegand
format, the last several bits will be adopted and first several bits are
automatically discarded. For example, the user ID 888 888 888 is 110 100
111 110 110 101 111 000 111 000 in binary format. Wiegand26 only supports
24 bits, that is, it only outputs the last 24 bits, and first 6 bits “110 100” are
automatically discarded.
5.3.2 Wiegand 34-bits Output Description
The system has a built-in Wiegand 34-bits format. Press [Wiegand Format],
and select “Standard Wiegand 34-bits”.
The composition of the Wiegand 34-bits format contains 2 parity bits and 32
bits for output contents (“User ID” or “Card Number”). The binary code of
32-bits represent up to 4,294,967,296 (0~4,294,967,295) different values.
1
2
EvenParityBit
33 34
User ID/Card Number
Odd parity bit
Table 2 Definition of Fields
Meaning
Field
Even parity bit
Judged from bit 2 to bit 17. The even parity bit is 1 if
the character has an even number of 1 bit; otherwise,
the even parity bit is 0.
User
ID/Card
Number (bit 2-bit
User ID/Card Number (Card Code, 0–4,294,967,295)
Bit 2 is the Most Significant Bit (MSB).
33)
51
3 inches Facial Recognition Series Product User Manual Odd parity bit
Judged from bit 18 to bit 33. The odd parity bit is 1 if
the character has an even number of 1 bit; otherwise,
the odd parity bit is 0.
For example, for a user with the user ID of 123456789, the enrolled card
number is 0013378512 and the failed ID is set to 1.
1. When the output is set to “User ID”, the Wiegand output is as follows upon
successful verification:
0000001110101101111001101000101011
Even parity bit User ID = Binary code of 123456789
Odd parity bit
2. When the output is set to “Card Number”, the Wiegand output is as follows
upon successful verification:
0000000001100110000100011110100001
Even parity bit User ID = Binary code of 0013378512
Odd parity bit
3. The Wiegand output is as follows upon verification failure:
0000000000000000000000000000000010
Even parity bit
Failed ID = Binary code of 1
Odd parity bit
5.3.3 Customized Format
Apart from the two built-in formats Wiegand 26-bits and Wiegand 34-bits,
the system also supports the format customization function to meet
individualized requirements.
The customized format consists of two character strings: the Card Format
bits and Parity Format bits. These two character strings need to be defined
separately.
Card Format bits define the number of binary bits output by Wiegand as well
52
3 inches Facial Recognition Series Product User Manual as the meaning of each bit. The data bits output by Wiegand can be a card
number (C), site code (s), facility code (f), manufacturer code (m) and parity
bits (p).
Parity Format bits define the check mode of each bit in data bits and ensure
the correctness of data bits during transfer through the parity check. The
parity bits can be set to odd check (o), even check (e) and both odd check
and even check (b). There is a one-to-one correspondence relationship
between the data bits and parity bits.
For example, the Wiegand26 can be customized as follows:
Definition of Card Format bits: pssssssssccccccccccccccccp
Definition of Parity Format bits: eeeeeeeeeeeeeooooooooooooo
Note: Wiegand26 consists of 26 bits. The first bit is the even parity bit of
th
bits 2 to 13; the 26 bit is the odd parity bit of bits 14 to 25; the second to the
ninth bits are the site code; the 10th to the 25th bits are the card number.
For details about the Wiegand protocol, see 12.4 Introduction of Wiegand.
To customize Wiegand format, proceed as follows:
(1) Select [Define Format] and the [Set] key is then
enabled.
(2) Press [Set] to display the [User Define Format]
interface, as shown in the following figure:
(3) Click the entry box below “Card Format” to display the
following interface:
53
3 inches Facial Recognition Series Product User Manual Display Input
Display the Number of
bits in real-time
Cancel Input
Backspace
Confirm Input
Clear Input
Characters used to define Card Format bits and
their meanings:
c: Indicates the card number, that is, the output
contents, it can be set to User ID/Card Number
through menu operations.
f: Indicates the facility code which is 0 by default. It is
not configurable. To modify it, please contact the
equipment supplier.
m: Indicates the manufacturer code which is 0 by
default. It is not configurable. To modify it, please
contact the equipment supplier.
p: Indicates the parity position.
s: Indicates the site code which can be set from 0 to 255 by default.
(4) Click the entry box below “Parity Format” to display the following interface:
Characters used to define Parity Format bits and their meanings:
o: Indicates the odd check, that is, there is an odd number of 1’s in the bit
sequence (including one parity bit). For example, for 1000110(0), the parity
54
3 inches Facial Recognition Series Product User Manual bit is 0 and there are already three 1’s. After 0 is suffixed to 1000110, there is
still an odd number of 1’s.
e: Indicates the even check, that is, there is an even number of 1’s in the bit
sequence (including one parity bit). For example, for 1000110(1), the parity
bit is 1 and there are already three 1’s. After 1 is suffixed to 1000110, there is
an even number of 1’s.
b: Indicates both odd check and even check.
For example, Definitions of several universal Wiegand formats.
Wiegand34
Card Format bits:
pccccccccccccccccccccccccccccccccp
Parity Format bits:
eeeeeeeeeeeeeeeeeooooooooooooooooo
Note: Wiegand34 consists of 34 bits. The first bit is the even parity bit of bits
2 to 17; the 34th bit is the odd parity bit of bits 18 to 33; the second to the
ninth bits are the site code; the 10th to the 25th bits are the card number.
Wiegand37a
Card Format bits: pmmmmsssssssssssscccccccccccccccccccp
Parity Format bits: oeobeobeobeobeobeobeobeobeobeobeobeoe
Note: Wiegand37a consists of 37 bits. The first bit is the odd parity bit of bits
3, 4, 6, 7, 9, 10, 12, 13, 15, 16, 18, 19, 21, 22, 24, 25, 27, 28, 30, 31, 33, 34
and 36; the 37th bit is the odd parity bit of bits 2, 4, 5, 7, 8, 10, 11, 13, 14, 16,
17, 19, 20, 22, 23, 25, 26, 28, 29, 31, 32, 34 and 35; bits 4, 7, 10, 13, 16, 19,
22, 25, 28, 31 and 34 participate in both odd and even parity check. Bits 2 to
5 are manufacturer code; bits 6 to 17 are the site code; bits 18 to 36 are the
card number.
55
3 inches Facial Recognition Series Product User Manual Wiegand37
Card Format bits:
pmmmffffffffffssssssccccccccccccccccp
Parity Format bits:
eeeeeeeeeeeeeeeeeeooooooooooooooooooo
Note: Wiegand37 consists of 37 bits. The first bit is the even parity bit of bits
th
2 to 18; the 34 bit is the odd parity bit of bits 19 to 36; the second to the
fourth bits are the manufacturer code; the 5th to the 14th bits are facilitate code;
the 15th to the 20th bits are the site code; the 21st to the 36th bits are the card
number.
Wiegand50
Card Format bits: pssssssssssssssssccccccccccccccccccccccccccccccccp
Parity Format bits:
eeeeeeeeeeeeeeeeeeeeeeeeeooooooooooooooooooooooooo
Note: Wiegand50 consists of 50 bits. The first bit is the even parity bit of bits
2 to 25; the 50th bit is the odd parity bit of bits 26 to 49; the second to the 16th
bits are the site code; the 17th to the 49th bits are the card number.
56
3 inches Facial Recognition Series Product User Manual 5.4 Wiegand Input
Wiegand Format: The system has two built-in
formats Wiegand 26-bits and Wiegand 34-bits, and
also supports the format customization function to
meet individualized requirements. About the Wiegand
format, please refer to 5.3 Wiegand Output.
Bit counts: Wiegand data digit length.
Pulse width: Pulse width is 100 microseconds by
default, which can be adjusted from 20 to 800.
Pulse interval: It is 900 microseconds by default,
which can adjusted between 200 and 20000.
Input: Content contained in Wiegand input signal, including User ID or card
number.
57
3 inches Facial Recognition Series Product User Manual 6. System Settings
Through the [System] menu, you can set system-related parameters,
including the General, Display, Fingerprint , Face, Log settings, Shortcut
Def, Access Control Set , and Firmware Update, to enable the device to
meet user requirements to the greatest extent in terms of functionality and
display.
58
3 inches Facial Recognition Series Product User Manual 6.1 General Parameters
Keyboard Clicks: This parameter is used to set
whether to generate beep sound in response to every
keyboard touch. Select “ON” to enable the beep sound,
and select “OFF” to mute.
Voice Prompts: This parameter is used to set whether
to play voice prompts during the operation of the device.
Select “ON” to enable the voice prompt, and select
“OFF” to mute.
Volume: This parameter is used to adjust the volume of
voice prompts.
59
3 inches Facial Recognition Series Product User Manual 6.2 Interface Parameters
Language: This parameter is used to display the
current
language
used
by
the
device.
For
multilingual-capable devices, you can switch between
different languages through this parameter. Then you
should restart the device.
Toolbar: This parameter is used to display the style
of the shortcut keys on the initial interface. It can be
set to “Auto Hide” and “Permanent Display”. By
selecting “Auto Hide”, you can manually display or
hide the toolbar. By selecting “Permanent Display”,
you can permanently display the toolbar on the initial interface.
Sleep Time (S): This parameter is used to specify a period after which the
device is put in sleep mode if no operation within this period. You can wake
up the device from sleep by pressing any key or touching the screen.
Numerical range in 1 ~ 30 minutes, the factory default for 3 minutes.
60
3 inches Facial Recognition Series Product User Manual 6.3 Fingerprint Parameters
1: 1 Threshold: This parameter is used to set the
threshold of matching between the current fingerprint
and the fingerprint template enrolled in the device in
the 1:1 verification mode. If the similarity between the
current fingerprint and the fingerprint template
enrolled in the device is larger than this threshold, the
matching is successful; otherwise, the matching is not
successful.
1: N Threshold: This parameter is used to set the
threshold of matching between the current fingerprint
and the fingerprint template enrolled in the device in
the 1: N verification mode. If the similarity between the current fingerprint and
the fingerprint template enrolled in the device is larger than this threshold, the
matching is successful; otherwise, the matching is not successful.
The recommended thresholds are as follows:
(FRR)
High
Medium
Low
(FAR)
Low
Threshold
1: N
1: 1
45
25
Medium
35
15
High
25
10
Fingerprint Image: This parameter is used to set whether to display the
fingerprint image on the screen during fingerprint enrollment or comparison. It
has four options:
Show for Enroll: Display the fingerprint on the screen in enrolling process.
Show for Match: Display the fingerprint on the screen in verification process.
Always Show: Display the fingerprint on the screen in enrolling and verifying process.
Never Show: Never display the fingerprint on the screen in any case.
61
3 inches Facial Recognition Series Product User Manual 6.4 Face Parameters
1: 1 Threshold: This parameter is used to set the
threshold of matching between the current face and
the face template enrolled in the device in the 1:1
verification mode. If the similarity between the current
face and the face template enrolled in the device is
larger than this threshold, the matching is successful;
otherwise, the
matching is not successful. The valid
value scope is 70-120. The higher the threshold, the
lower the FAR and the higher the FRR are, and vice
versa.
1: N Threshold: This parameter is used to set the
threshold of matching between the current face and the face template
enrolled in the device in the 1: N verification mode. If the similarity between
the current face and the face template enrolled in the device is larger than
this threshold, the matching is successful; otherwise, the matching is not
successful. The valid value scope is 80-120. The higher the threshold, the
lower the FAR and the higher the FRR are, and vice versa.
The recommended thresholds are as follows:
FRR
FAR
High
Low
Threshold
1: N
1:1
85
80
Medium
Medium
82
75
Low
High
80
70
Exposure: This parameter is used to set the exposure value of the camera.
Quality: This parameter is used to set a quality threshold for the face images
obtained. The device accepts the face images and processes them by
adopting the face algorithm when their quality is higher than the threshold;
62
3 inches Facial Recognition Series Product User Manual otherwise, it filters these face images.
☺
Note: Improper adjustment of the Exposure and Quality parameters may
severely affect the performance of the device. Please adjust the Exposure
parameter only under the guidance of the after-sales service personnel from our
company.
63
3 inches Facial Recognition Series Product User Manual 6.5 Log Settings
Log Alert: When the available space is insufficient to
store the specified number of attendance records, the
device will automatically generate an alarm (Value
scope: 1-99).
Dup. Punch Period (m): If a user’s attendance
record already exists and the user punches in again
within the specified period (unit: minute), the second
attendance record will not be stored (Value scope:
1-60 minutes).
Workcode Mode: This parameter is used to select
the work code input mode among Mode 1, Mode 2 and None during
attendance verification. If you select Mode 1, the attendance verification
starts after you input the work code on the initial interface; if you select Mode
2, the attendance verification starts before you input the work code on the
initial interface; if you select None, you do not need to input the work code
during attendance verification on the initial interface. For the input of the work
code, see7.3 Work Code.
Card OnlyÌ: If this parameter is set to “YES”, you pass the verification
only after card verification. If this parameter is set to “NO”, you need to verify
your face or fingerprint after card verification.
Face interval: According your need to set it. Then default value is o, namely
don’t have interval.
1: G VerifyÌ: Select it as YES or NO, namely set whether or not start this
function.
64
3 inches Facial Recognition Series Product User Manual 6.6 Shortcut Definitions
Define touch screen functional shortcut keys. For the device with face
grouping function (MENU > System > Log Settings > 1: G Verify), the
definition method of shortcut keys is described as follows:
1.Set shortcut keys
The method to set shortcut keys is described as follows:
(1) Click the Shortcut Def. item to display the list of the existing shortcut keys;
click the shortcut key to modify, as shown in figure 1. Enter the edit screen,
and click Function box, as shown in figure 2. Enter the Function screen, and
the user can select desired settings for the type of the shortcut keys
according to practical needs, such as 1-5 groups of faces(Enable Group
Verify Function), undefined ,status ,workcode and SMS.
(2) The user can set the shortcut key as status key; click the Status, as
shown in figure 3 above; enter the edit screen of the status key, as shown in
figure 1 below; click the Label box, as shown in figure 2 below; enter the
Label screen, as shown in figure 3 below; click the row of the label (six
options for the status) to change it to the corresponding label; the user can
65
3 inches Facial Recognition Series Product User Manual modify the label of the status key according to practical needs.
(3) The Code cannot be modified; it is changed accordingly with the selected
label of the status key. Select Auto switch, and select “On”, as shown in
figure 1 below.
(4) Click the time box after “week”, as shown in figure 2 above, to enter the
time setting screen, as shown in figure 3 above. Click the key on the touch
screen to set the time; click [OK] to save and return to the edit screen.
(5) After the setting is completed, click [Save] to save the setting and return to
66
3 inches Facial Recognition Series Product User Manual the Shortcut Def. screen.
2. Use shortcut keys
Click
on the initial interface, and the related status and function keys
are displayed on the right corner of the interface for use.
67
3 inches Facial Recognition Series Product User Manual 6.7 Access Settings
Access control settings are to set user’s open door
time zone, control lock and set related device
parameters. It is not enabled by factory default, you
can click [MENU] > [System] > [Display] > [Enable
access], select YES or NO.
To unlock, the enrolled user must accord with the
following conditions:
1. The current unlock time should be in the effective
time of the user time zone or group zone.
2. The group where the user is must be in access
control (or in the same access control with other group, to open the door
together).
The new enrolled user is under the first group by default, and use the No. 1
group time zone, the No. 1 access control group. The new enrolled user is in
unlocking state (if you have modified the related settings of access control,
the system will be changed with the modification).
6.7.1 Time zone setting
Time zone is the minimum unit of access control
option. The whole system can define 50 time zones.
Every time zone consists of seven time sections (that
is, one week). Every time section is the effective time
zone within 24 hours every day. Every user can set 3
time zones. It’s “or” between the three zones. It is
effective if only one is satisfied. Every time section
format is HH:MM-HH:MM, namely, accurate to
minute.
68
3 inches Facial Recognition Series Product User Manual If end time is smaller than start time (23:57- 23:56), the whole day is
forbidden. If end time is bigger than start time (00:00- 23:59), it is effective
section.
Effective time zone for user unlocking: 00:00-23:59 or end time is bigger than
start time.
Notice: System default time zone 1 as whole day open (namely, the
new enrolled user is unlocking).
6.7.2 Holiday setting
Special access control time may be needed during
holidays. It is different to modify everybody’s access
control time. So a holiday access control time can be
set, which is applicable for all employees.
1. Add holiday:
(1) Enter holiday add interface, press the key to edit
the items.
(2) Press the touch screen number key to set the value,
after setting, press [OK] to save, and press [X] for exit
and return to the previous interface.
(3) Press [Save] to save the current information and return to the previous
interface; press [Exit] directly to return to the previous interface without
saving the current information.
69
3 inches Facial Recognition Series Product User Manual 2. Edit holiday
Select the holiday to be edited and enter the edit
interface. The edit operation is similar to add holiday.
After editing, press [Save] to save and return to the
previous interface.
Notice: If holiday access control time is set,
user’s open door time zone during holiday is subject
to the time zone here.
3. Delete holiday
Select the holiday to be deleted. Press [Delete] to
popup the confirm interface as follows. Select [Yes]
to delete this holiday, otherwise select [No] to
cancel the operation.
70
3 inches Facial Recognition Series Product User Manual 6.7.3 Group time zone setting
Grouping is to manage employees in groups.
Employees in group use group time zone by default.
Group members can also set user time zone. Every
group can hold three time zones. The new enrolled
user belongs to Group 1 by default and can also be
allocated to other groups.
1. Add group time zone
(1) Enter the Add Group interface; press the key to
edit the items.
Code: Enter the number edit interface to set the
value.
VerType: Select the Group Verify Type.
Holiday No.: Select if the Time zone is valid in
holiday.
Time Zone: Select the Group Time Zone.
(2) After editing, press [Save] to save the current information and return to the
previous interface; press [Exit] directly to return to the previous interface
without saving the current information.
Note:
(1) RF means ID card verification. Only the products with the built-in ID card
module support the ID card verification.
(2) For Multi-combination verification, please refer to 12.7 Multi-combination
71
3 inches Facial Recognition Series Product User Manual Authentication Mode.
Notice:
(1) If the holiday is valid, only when there is an intersection between group
zone and holiday time zone, can the group member open the door.
(2) If the holiday is invalid, the access control time of group member won’t be
affected by holiday.
2. Edit group time zone
Press the line to be edited, and enter the edit
interface. After editing, press [Save] to save the
current information and return to the previous
interface; press [Exit] directly to return to the
previous
interface
without
saving
information.
72
the
current
3 inches Facial Recognition Series Product User Manual 3. Delete group time zone
Select the line to be deleted. Press [Delete] to popup
the confirm interface as follows. Select [Yes] to
delete this holiday, otherwise select [No] to cancel
the operation.
6.7.4 Unlock Combination Setting
Make various groups into different access controls to
achieve multi-verification and improve security. An
access control can be made up of 5 groups at most.
1. Add Unlock Combination
(1) Enter holiday add Combination Setting interface,
press the key to edit the items.
(2) Press the touch screen number key to set the
value, after setting, press [OK] to save, and press [X]
for exit and return to the previous interface.
(3) Press [Save] to save the current information and
return to the previous interface; press [Exit] directly to return to the previous
interface without saving the current information.
73
3 inches Facial Recognition Series Product User Manual 2. Edit Unlock Combination
Select the line to be edited. Press the item directly to
enter the edit interface. After editing, press [Save] to
save the current information and return to the previous
interface; press [Exit] directly to return to the previous
interface without saving the current information.
3. Delete Unlock Combination
Select the line to be deleted. Press [Delete] to popup
the confirm interface as follows. Select [Yes] to delete
this holiday, otherwise select [No] to cancel the
operation
74
3 inches Facial Recognition Series Product User Manual 6.7.5 Access control parameter
Through the [Access] menu, you can set the
parameters of the electronic locks and related access
control devices.
Lock Delay: Indicates the duration for the device to
place the electric lock in open state. (Value scope:
1-10 seconds)
Door Sensor Delay: Indicates the delay for checking
the door sensor after the door is opened. If door
sensor state is inconsistent with the normal state set
by the door sensor switch, an alarm will be triggered,
and this period of time is regarded as the “door sensor delay”. (Value scope:
1-99 seconds)
Door Sensor Mode: Includes the None, Normally Open (NO), and Normally
Closed (NC) modes. “None” indicates that the door sensor switch is not used.
“NO” indicates that the door sensor is open in the normal state. “NC”
indicates that the door sensor is closed in the normal state.
Alarm Delay: Indicates the duration from the detection of the door sensor
exception to the generation of alarm signal. (Value scope: 1-99 seconds)
Failure Alarm Threshold: When the failed press times reach the set times,
alarm signal will come out (effective value: 1-9 times).
NC Time Zone: Set time zone for access control NC. Nobody can unlock
during this time zone.
NO Time Zone: Set time zone for access control NO. The lock is always in
valid state during this time zone.
Valid in Holiday: Define time zone for NO or NC. Whether the time zone set
in holiday time zone is valid.
75
3 inches Facial Recognition Series Product User Manual Notice:
(1) If the Time Zone of normally open or normally closed has been set, please
switch door sensor to no, otherwise it will produce alarm signal during Normal
close Time Zone or Normal open Time Zone.
(2) If the normally open or normally closed Time Zone is not defined yet by
the time, the equipment will prompt that you to define the Time Zone, and
transfer you to the Time Zone interface to add.
6.7.6 Duress Alarm Parameters
There are duress alarm parameters setting in the
device. When an employee comes across a duress
situation, he can use the set duress alarm mode to
verify. The device will open the door as usual, but
the alarm signal will be sent to the alarm.
1: 1 Trigger: if select “Yes”, when user use 1: 1
match mode, alarm signal will come out. Or there is
no alarm signal.
1: N Trigger: if select “Yes”, when user use 1: N
match mode, alarm signal will come out. Or there is
no alarm signal.
Password Trigger: If select “Yes”, when a user use password verification
mode, alarm signal will come out. Or there is no alarm signal.
Alarm Delay: After duress alarm gets started, the alarm signal will not output
directly. It can be defined. After the set time period, the alarm signal will be
generated automatically (0-255 seconds).
76
3 inches Facial Recognition Series Product User Manual 6.7.7 Anti-Pass back setting
Set the device Anti-Pass back function.
APB Direction: There are four options: None,
APB-Out, APB-In, APB-Out/In.
Device Status: There are three options: Exit Control,
Entry Control and None.
For Anti-Pass back function, please refer to 12.8
Anti-Pass Back.
Anti-Pass back setting operation:
(1) Enter Anti-Pass back setting interface, press the
key to edit the items.
(2) Press the touch screen number key to set the value, after setting, press
[OK] to save, and press [X] for exit and return to the previous interface.
(3) Press [Save] to save the current information and return to the previous
interface; press [Exit] directly to return to the previous interface without
saving the current information.
77
3 inches Facial Recognition Series Product User Manual 6.8 Update
You can upgrade the device firmware by using the upgrade file in the USB
disk through this function.
If you need the firmware upgrade file, please contact our technical
support personnel. Generally the firmware upgrade is not recommended.
78
3 inches Facial Recognition Series Product User Manual 7. Data Management
Through the [Data Mgt.] menu, you can perform management of data stored
on the device, for example, delete the attendance records, delete all data,
clear administrator, restore the device to factory settings, and query user
records.
☺
Notice: Short message services (SMS) and working number functions
are not standard configuration specifications. They are supported only by
these devices.
Delete Transactions: Delete all the attendance records.
Delete All Data: Delete all the information of enrolled personnel, including
their fingerprints, face images and attendance records.
Clear Administrator: Change all administrators to ordinary users.
Restore to Factory Settings: Restore all parameters on the device to
79
3 inches Facial Recognition Series Product User Manual factory settings.
SMSÌ: Operators can write public or personal short messages and display
them for designated persons at designated time. In addition, operators can
prepare short messages in advance.
Working numberÌ: Operators can set one or multiple working numbers for
an employee according to the type of his job. The working numbers can be
used to calculate his attendance and salary.
☺
Notice: The employee information and attendance records will not be
deleted during restoration to factory settings.
80
3 inches Facial Recognition Series Product User Manual 7.1 Query Record
After check-in successfully, the employee’s attendance records are saved in
the device. You can easily query these attendance records.
User ID: Enter the user ID of the employee to query. If this field is left blank,
you can query the attendance records of all the employees. If you enter a
user ID, you can query the attendance records of this employee.
Query Time Period: Select a time period to query, including the customized
time period, yesterday, this week, last week, this month, last month, and all
time periods.
Start and End: When you select a customized time period, you need to input
a start time and an end time. When you select other options for the time
period, the start and end time will be automatically adjusted to the related
time.
After setting the query conditions, press [Query] and the records that meet
the specified query conditions will be displayed on screen.
Select the row where the desired record is located, you can query the
detailed information of this record.
For example, press User ID and enter the edit interface, input the ID number
81
3 inches Facial Recognition Series Product User Manual and press [Query], the query result will display as below.
82
3 inches Facial Recognition Series Product User Manual 7.2 SMS
Short messages are similar to announcements and notices. Operators can
write a short message according to the contents to be announced in advance,
and display the short message on the screen during a designated period.
Short messages are classified into public and personal short messages. If a
short message is configured as public, it will be automatically displayed on
the minutes within a designated period; alternatively, users can use the
shortcut keys (can be set in the keyboard definition) to view it. If a short
message is configured as personal, the employee who receives it can view it
after his attendance information is verified.
7.2.1 Set a Short Message
1.
a)
Add a short message
Select Short Message > Add on the Data Management interface to
enter the interface shown in the following figure:
Start: means the time when the short message takes effect.
Valid: means that the short message is only displayed within a validity
83
3 inches Facial Recognition Series Product User Manual period.
Type:
Reserved: means that the short message is prepared in advance but
not configured as personal or public.
Personal: means that the short message can only be read by a specific
person.
Public: means that the short message can be read by all people.
b)
As shown in the following figures, click the short message input area,
start the T9 IME, and input SMS contents. For the inputting method, see
the attachment 1 "Operation Description of T9 Inputting Method".".
c)
Click Start or Valid to start the configuration interface shown in the
following figures:
84
3 inches Facial Recognition Series Product User Manual Press the number key to input values to be set, and click OK to save the
settings and return to the previous interface.
d)
Click Type to switch the types of a short message, including personal,
public, and reserved. The following figure shows the personal type:
e)
Click Hand out SMS to start the Hand out SMS interface. As shown in
the following figures, by clicking the name of an employee, the employee
is Checked and the short message will be handed out to him:
85
3 inches Facial Recognition Series Product User Manual f)
As shown in the following figures, click Done to save the settings and
return the previous interface. After that, click Save to store the short
message and goes back to the previous interface. Then the new short
message is displayed on the interface.
2.
Edit a short message
Click the message to be edited in the SMS interface.
The procedure of editing a short message is the same as that of adding
86
3 inches Facial Recognition Series Product User Manual a short message.
3.
Delete a short message
By clicking Delete on the Edit interface, the short message to be
deleted is removed. In addition, any information related to the message
is deleted at the same time.
7.2.2 View a Short Message
View a public short message
On the initial interface, public short messages are automatically
displayed on the minutes Alternatively, the public short messages can
be viewed by clicking the shortcut keys on the interface, as shown in the
following figures. For detailed setting methods, see 6.6 Shortcut
Definitions.
87
3 inches Facial Recognition Series Product User Manual After the viewing is finished, click Return to exit the View interface and
return the initial interface.
View a personal short message
After a user is authorized, his short message will be displayed, as
shown in the following figure:
88
3 inches Facial Recognition Series Product User Manual 7.3 Work Code
Easy for users quickly deal with data of distinguish different situation. Please
click [System] > [Shortcut Definitions] > [Undefine], select [Workcode]
and save, can opening working code function. For detail operation in [Data
Management] > [Workcode]. Can edit, add, delete and query.
7.3.1 Add a work code
1. Press [Add] on the WorkCode interface to display the [Add] interface as
figures below:
No.: A digital code of the work code.
Label: The meaning of the work code.
2. Press the corresponding entry button of [No.] on the [Add] interface
display the No. entry interface. On this interface, enter a No.
3. Press the corresponding entry button of [Label] on the Workacode
interface to display the text entry interface. On this interface, enter a label of
work code. (See 12.1 T9 Input Instructions)
89
3 inches Facial Recognition Series Product User Manual 7.3.2 Edit and delete a work code
1. Press the row of a work code on the WorkCode interface to display the
[Edit] interface.
2. To edit this work code, enter a new No. and label with the same operation
steps as described in “Add a work code”.
3. To delete this work code, press [Delete].
4. On the displayed prompt interface, press <YES> to confirm the deletion of
this work code, and press <NO> to cancel the deletion operation.
7.3.3. Edit and delete a work code
Press [Delete] on the WorkCode interface, display the keyboard interface,
prompt you want to query code, to enter the Number, and then click OK.
90
3 inches Facial Recognition Series Product User Manual 8. Date/Time Setting
8.1 Set Date/Time
The date and time of the device must be set
accurately to ensure the accuracy of attendance time.
1. Press [Menu] on the initial interface to display the
main menu interface.
2. Press [Time/Date] on the main menu interface to
display the time setting interface.
3. Select the desired date and time by pressing the
parameter. For the time format, there are 10 formats
to select from. Both 12-hour and 24-hour time
systems are supported.
4. Press [Save] to save the current information and return to the previous
interface. Press [Exit] to return to the previous interface without saving the
current information.
91
3 inches Facial Recognition Series Product User Manual 8.2 Bell Setting
Lots of companies need to ring their bells to signal the start and end of work
shifts, and they usually manually ring their bells or use electric bells. To lower
costs and facilitate management, we integrated the time bell function into the
device. You can set the alarm time and duration for ringing the bell based on
your requirements, so that the device will automatically play the selected ring
tone and triggers the relay at the alarm time, and stop playing the ring tone
after the set duration. Each device can be added with 15 alarm bells at most.
Press [Bell] on the [Date/Time] menu to display the bell setting interface, as
shown in figure below.
1. Add a bell
1) The displayed bell setting interface lists all the bells. Click [Add] to display
the [Add] interface.
2) On the [Add] interface, set the following parameters:
Bell Time: This parameter is used to set a time point when the device
automatically plays a bell ring tone every day.
Bell Date: This parameter is used to set which day the device automatically
plays a bell ring tone.
92
3 inches Facial Recognition Series Product User Manual Ring Tone: This parameter is used to set the bell ring tone.
Volume: This parameter is used to set the volume of ring tone.
Repeat: This parameter is used to set the alarm times.
State: This parameter is used to set whether to enable the bell.
Bell Type: You can select between internal ringing and external ringing. For
internal ringing, the ring tone is played by the loudspeaker of the device. For
external ringing, the ring tone is played by an external electric bell that is
connected with the device.
2. Edit and delete a bell
Press a bell in the list on the bell setting interface to
display the [Edit] interface, with the similar operation
as “Add a bell”.
Notice: Only some models have this function. If you need it, please
contact our business representative or technician.
93
3 inches Facial Recognition Series Product User Manual 8.3 Daylight Saving Time (DLST)
DLST, also called Daylight Saving Time, is a system to prescribe local time in
order to save energy. The unified time adopted
during the system date is called “DLST”. Usually, the
time will be one hour forward in summer. It can make
people sleep early and get up early. It can also
reduce lighting to save power. In autumn, the time
will be recovered. The regulations are different in
different countries. At present, nearly 110 countries
adopt DLST.
To meet the demand of DLST, a special option can
be customized on our RF Card Time & Attendance
recorder. Make the time one hour forward at XX (minute) XX (hour) XX (day)
XX (month), and make the time one hour backward at XX (minute) XX (hour)
XX (day) XX (month) if necessary.
Operation:
Select the DLST mode first. Including Mode 1, Mode 2 and None, the default
setting is None.
1. Click [None] to display the DLST mode selecting interface.
2. Select the DLST mode and return to the Date/Time interface:
94
3 inches Facial Recognition Series Product User Manual 3. Click [DST settings], enter the DLST edit interface.
Mode1
Mode2
4. After setting, click [Save] to complete and return.
95
3 inches Facial Recognition Series Product User Manual 9. Auto Test
The auto test enables the system to automatically test whether functions of
various modules are normal, including the screen, sensor, voice, face,
keyboard and clock tests.
1. Test Screen: The device automatically tests the display effect of the color
TFT display by displaying full color, pure white and pure black and checks
whether the screen displays properly. You can continue the test by touching
the screen or exit it by pressing [Exit].
2. Test Fingerprint : The device automatically tests whether the fingerprint
sensor works properly by checking whether the fingerprint images are clear
and acceptable. When the user places his/her finger on the sensor, the
collected fingerprint image is displayed on the screen in real-time. Press [Exit]
to exit the test.
3. Test Voice: The device automatically tests whether the voice files are
complete and the voice quality is good by playing the voice files stored in the
device. You can continue the test by touching the screen,
4. Test Face: The device automatically tests whether the camera works
96
3 inches Facial Recognition Series Product User Manual properly by checking whether the collected face images are clear and
acceptable. Press [Exit] to exit the test.
5. Test KeyboardÌ: The device tests whether every key on the keyboard
works normally. Press any key on the [Keyboard Test] interface to check
whether the pressed key matches the key displayed on screen. The keys are
dark-gray before pressed, and turn blue after pressed. Press [Exit] to exit the
test.
6. Test Time: The device tests whether its clock works properly by checking
the stopwatch of the clock. Touch the screen to start counting, and touch it
again to stop to check whether the counting is accurate. Press [Exit] to exit
the test.
7. Screen Calibration:
You can perform all the menu operations by touching the screen with one of
your fingers or a touch pen. When the touch screen is less sensitive to the
touch, you can perform a screen calibration through menu operations.
The Screen Calibration Operation:
(1) Press [Menu] on the initial interface to display the
main menu interface.
(2) Press [Calibration] on the [Auto Test] interface to
display the screen calibration interface.
(3) Touch the center of the cross “+”.
(4) Repeat Step 3 following the move of the “+” icon to
different locations on the screen.
(5) Touch the center of the cross at five locations on
the screen correctly. When the message “Calibrating
screen, pls wait……” is displayed on screen, the
calibration succeeds and the system automatically returns to the main menu.
If the calibration fails, the system recalibration will start from Step 3.
97
3 inches Facial Recognition Series Product User Manual 10. USB Disk Management
Through the [Dn/Upload] menu, you can download user information and
attendance data stored in a USB disk to related software or other fingerprint
recognition equipment.
1. Download Transactions: Download all the attendance data from the
device to a USB disk.
2. Download User: Download all the user information, fingerprints and face
images from the device to a USB disk.
3. Download user photosÌ: Download the employees’ photos from the
device to a USB disk.
4. Upload User: Upload the user information, fingerprints and face images
stored in a USB disk to the device.
5. Upload User PhotoÌ: Upload the JPG documents that are named after
the user IDs and stored in a USB disk to the device, so that user photos can
be displayed after the employee passes the verification. See 12.5 Photo ID
Function.
98
3 inches Facial Recognition Series Product User Manual 11. System Information
You can check the storage status as well as version
information of the device through the [System
Information] option.
Records:
The
number
of
enrolled
users,
administrators and passwords are displayed on the
[Records] interface; the total fingerprint storage
capacity and occupied capacity as well as the total
attendance storage capacity and occupied capacity
are graphically displayed respectively.
Device: The device name, serial number, version
information, vendor and date of manufacture are displayed on the [Device]
interface.
99
3 inches Facial Recognition Series Product User Manual 12. Appendix
12.1 T9 Input Instructions
The device supports to input
English
and
characters,
symbols.
Press
numbers
related
button to input text. For example,
press [Name] to display the text
input interface, as shown in the
figure:
①Keyboard Area
②Text Display Area
③Text List Area
④Exit
⑤Delete
⑥Enter
⑦Space
⑨Character/Englis
⑩Upper/Lower
100
3 inches Facial Recognition Series Product User Manual To enter a name, proceed as follows:
1. Press [Name] on the [Add] interface, as shown in figure below.
2. Enter the letter characters, and a list of characters in relation to the letter is
presented in the text display area.
3. If the desired character is displayed in the text display area, press this
character. And this character is at the same time displayed on the [Name]
button. Enter next character by repeating Step 2.
4. After finishing the entry of name, press [X] to exit the keyboard interface
and return to the previous interface.
12.2 USB
1. USB Host
Fingerprint device may be used as USB host to exchange data with external
U-disk.
The data transmission speed is quick, the traditional fingerprint device only
supports the RS232, RS485 or Ethernet way for data transmission, when as
a result of physical condition limit, data quantity big, and the data
transmission cost quite long time. But the USB data transmission is quicker
than any of the former transmission mode, may complete downloading data
101
3 inches Facial Recognition Series Product User Manual by U disk in a short period of time, like this greatly enhances the efficiency.
The operational steps of USB Host equipment please refer to 10. USB Disk
Management.
2. USB Client
Fingerprint device will be as removable storage devices and fingerprint
device data will transfer to a PC via connectedly USB cable.
When the fingerprint device is as a USB Client, the fingerprint device
communication settings menu will have USB communications options.
Please refer to 5. Communication Settings for details.
102
3 inches Facial Recognition Series Product User Manual 12.3 Introduction of Wiegand
Wiegand26 is an access control standard protocol established by the Access
Control Standard Subcommittee affiliated to the Security Industry Association
(SIA). It is a non-contact IC card reader interface and output protocol.
Wiegand26 defines the interface between the card reader and controller used
in the access control, security and other related industrial fields. Wiegand26
helps standardize the work of the card reader designers and controller
manufacturers. The access control products manufactured by our company
are also designed by following this protocol.
Digital Signals
The figure below is a sequence diagram in which the card reader sends
digital signals in bit format to the access controller. In this sequence diagram,
Wiegand follows the SIA’s access control standard protocol for the 26-bit
Wiegand card reader (one pulse time ranges between 20 us and 100 us, and
the pulse jump time ranges between 200us and 20ms). Data1 and Data0 are
high level (larger than Vol) signals till the card reader prepares to send a data
stream. The asynchronous low-level pulse (smaller than Vol) generated by
the card reader is sent to the access control panel (The saw-tooth wave as
shown in Figure below) through Data1 or Data0. Data1 and Data0 pulses will
neither overlap nor be generated synchronously. The table below lists the
maximum and minimum pulse width (a consecutive pulse) and pulse jump
time (time between pulses) allowed by the F series fingerprint access control
device.
103
3 inches Facial Recognition Series Product User Manual Figure: Sequence Diagram
Table: Pulse Time
Symbol
Definition
Typical Value of Reader
Tpw
Pulse Width
100 µs
Tpi
Pulse Interval
1 ms
104
3 inches Facial Recognition Series Product User Manual 12.4 Photo ID Function
The Photo ID function is used to display the photo
enrolled by a user or stored in a USB disk on the
screen in addition to such information as the user ID
and name.
[Operation Steps]
1. When the photo taken by the device is used, the
photo can be displayed upon successful verification.
2. To use a photo stored in a USB disk, proceed as
follows:
1) Create a folder with the name of “photo” in the
USB disk, and store users' photos under this folder.
2) The user photos must be in JPG format and named after their IDs. For
example, for the user with the user ID of 154, the photo name must be
154.jpg.
3) Insert the USB disk into USB slot on the device, and select USB Disk
Management > Upload > Upload Photos. Then user photos can be
displayed upon successful verification.
Note:
(1) The length of a user name cannot exceed 24 digits.
(2) The recommended size of a user photo is less than 64k bit.
(3) The uploaded new user photo will overwrite the existing photo in related to
the user ID.
(4) To download user photos, select USB Disk Management > Download >
Download User Photos. A folder with the name of “photo” will be
automatically created on the USB disk, and all downloaded user photos are
stored under this folder.
105
3 inches Facial Recognition Series Product User Manual 12.5 Work Code
[Function Description]
The concept of work code is introduced to facilitate the software to handle the
verification records according to different cases. For example, we define “1”
for eating, “2” for seeing a doctor and “3” for smoking, and input
corresponding value when performing a specific action. In this way, the
software can easily differentiate among events 1, 2 and 3.
[Operation Description]
You can set the "Work Code" by selecting Menu > Data Management. For
details, please refer to 7.3 Work Code.
106
3 inches Facial Recognition Series Product User Manual 12.6 Print function
External printer
[Explain]
This device is available only for USB interface export. To connect serial port
printer, first use USB cable to transport to RS232. After the printer is
connected, direct printing is available. The output content can be viewed
through hyperterminal.
[Connection]
Use USB cable to transport
Device
to RS232 and connect the
2 TXD <-----> 3 RXD
printer to RS232.
3 RXD <-----> 2 TXD
5 GND
RS232 Pin-line order
107
printer
<-----> 7 FG
3 inches Facial Recognition Series Product User Manual [Instructions]
In the device menu, enter Menu > Comm. > Comm. and select the print mode.
There are 6 print modes to choose.
☺
Note:
1. When print mode is mode 4, can enter the set company name interface.
Company nameÌ: Set the company name. The company name can be
printed together with attendance records in mode 4.
Operation:
108
3 inches Facial Recognition Series Product User Manual (1)Press [company name], on the displayed keyboard interface, enter a
company name and press [X].
For details of operations on the keyboard interface, see 12.1 T9 Input
Instructions.
(2)After the company name is entered, press [Save] to save the current
information and return to the comm. interface. Press [Exit] to return to the
comm. interface without saving the current information.
2. When print mode is mode 5, it will prompt as the follows after attendance
verification.
109
3 inches Facial Recognition Series Product User Manual Press YES to print record in mode 5. Press "NO" to not print record.
For example: San punched the card at 11:02:42 on June 11, 2012, there are
different print formats to select, shown as below:
Version 1
000000001
1
12-06-11
11:02:42
I
Version 2
ID. NO: 000000001
Date
12-06-11
Check-In
11:02:42
Version 3
1
000000001
12-06-11
San
11:02:42
Version 4
Control Asistencia
==============
Check-In
11:02…..11/06/2012
ID.NO….. 000000001
=======Thanks! =======
Version 5
000000001
12-06-11 11:02
Check-In
110
3 inches Facial Recognition Series Product User Manual Version 6
ID.NO: 000000001
Name:San
Check-In
12-06-11
11:02:42
Notice:
(1) In mode 2, paper will be changed automatically after printing.
(2) If you want to customize other print modes, please contact our
commercial representatives or pre-sales technical supporters.
111
3 inches Facial Recognition Series Product User Manual 12.7 Multi-combination Authentication Mode
Besides this function only is owned by the fingerprint access control machine
that has been appointed, most of the fingerprint machines only have two
ways to verify by fingerprint and password, we provide a personal or group
Multi-combination Authentication Mode for high security Access control area,
verification type main include five elements that are User Number (PIN),
Fingerprint (FP), Face (FACE), Password (PW) and RF card (RF), which can
combine into multi-combination.
☺
Note: The RF card is used for ID card verification, the function of ID card
verification only is validity in the machine which ID card function is provided with.
These symbols illustrate what follow the table different means.
● "/" is or
●"+" follow next operation
● "&" is and
● FACE (Face)
● FP (fingerprint)
● PWD (Password)
● RF (RF card)
● PIN (user ID)
If Fingerprint, Face, Password and Card have been enrolled for the user, the
verification procedure is follow.
Type
FACE&PIN/FP/PW/RF
What you do
FACE+PIN or RF or PW or RF are verified
1) PIN++FACE(1:1)
2) FP(1:N)
3) PIN+PW+“OK”
4) RF(1:N)
FP&PW
FP + PW are verified
1) FP(1:N)+PW+“OK”
2) PIN+FP(1:1)+PW+“OK”
112
3 inches Facial Recognition Series Product User Manual 3) PIN+PW+“OK”+FP
FP&RF
FP + RF are verified
1) RF+FP(1:1)
2) FP(1:N)+RF
3) PIN+FP(1:1)+RF
FACE&FP
FACE + FP are verified
1) FP(1:N)+FACE
2) FACE(1:N)+FP
3) PIN+FACE(1:1)+FP
4) PIN+FP(1:1)+FACE
FACE&PW
FACE + PW are verified
1) FACE(1:N)+PW+“OK”
2) PIN+FACE(1:1)+PW
3) PIN+PW+FACE
FACE&RF
FACE + RF are verified
1) FACE(1:N)+RF
2) PIN+FACE(1:1)+RF
3) RF(1:N)+FACE
FP
Only FP is verified.
1) PIN+FP(1:1)
2) FP(1:N)
PW
Only PW is verified
PIN+PW+“OK”
RF
Only RF is verified
RF(1:N)
FACE&PIN
FACE + PIN are verified
PIN+FACE(1:1)
FP/RF
FP or RF is verified
113
3 inches Facial Recognition Series Product User Manual 1) PIN+FP(1:1)
2) RF(1:N)
3) FP(1:N)
PW/RF
FP or RF is verified
1) PIN+PW+“OK”
2) RF(1:N)
FP/PW
FP or PW is verified
1) PIN+FP(1:1)
2) FP(1:N)
3) PIN+PW+“OK”
PIN&FP
PIN + FP are verified
PIN+FP(1:1)
FP&PW&RF
FP + PW + RF are verified
1) FP(1:N)+PW+“OK”+RF
2) PIN+FP(1:1)+PW+“OK”+RF
3) RF(1:N)+PW+“OK”+FP
4) PIN+ PW+“OK”+FP(1:1)+RF
PIN&FP& PW
PIN + FP + PW are verified
1) PIN+PW+“OK”+FP(1:1)
2) PIN+FP(1:1)+PW+“OK”
FP & RF/PIN
FP + PIN, or FP + RF are verified
1) RF+FP(1:1)
2) FP(1:N)+RF
3) PIN+FP(1:1)
FACE&FP&RF
FACE + FP + RF are verified
1) FACE(1:N)+FP+RF
2) FP+FACE(1:1)+RF
3) RF(1:N)+FACE+FP
114
3 inches Facial Recognition Series Product User Manual 4) PIN+FP(1:1)+FACE+RF
5) PIN+FACE(1:1)+FP+RF
FACE&FP&PW
FACE + FP + PW are verified
1) FACE(1:N) +PW+“OK”+FP
2) FP+PW+“OK”+FACE(1:1)
3) PIN+FP(1:1) +PW+“OK”+FACE
4) PIN+FACE(1:1) +PW+“OK”+FP
5) PIN+PW+“OK”+FP+FACE
☺
Note: For combined verification, it is better to enroll all the elements in
need for using verification mode, or verification will fail.
For example: User “A” use fingerprint for enrollment, while password is used
for verification, then the user cannot pass the verification.
115
3 inches Facial Recognition Series Product User Manual 12.8 Anti-Pass Back
[Overview]
Sometimes, some illegal people follow the other one into the gate, which will
cause the security problems. To prevent such risks, this function is enabled.
The In record must match the Out record, or the gate won’t open.
This function needs two machines to work together. One is installed inside of
the door (master machine hereinafter), the other is installed outside of the
door (slave machine hereinafter). Wiegand signal communication is adopted
between the two machines.
[Working principle]
The master machine has Wiegand In and slave machine has Wiegand Out
functions. Connect Wigand Out of slave machine to Wiegand In of master
machine. Wiegand output from slave machine must not own machine ID. The
number sent to master machine from slave machine must be found in the
master machine.
[Function]
Judge whether it is anti-pass back according to user’s recent in-out record. In
record and out record must be matched. This machine supports out, in, or
116
3 inches Facial Recognition Series Product User Manual out-in anti-pass back.
When the master machine is set as “out anti-pass back”, if user wants to
come in and go out normally, his recent record must be “in”, or he cannot go
out. Any “out” attempt will be refused by “anti-pass back” function. For
example, a user’s recent record is “in”, his second record can be “out” or “in”.
His third record is based on his second record. Out record and in record must
match.(Notice: If customer has no record before, then he can come in but
cannot go out).
When the master machine is set as “in anti-pass back”, if the user wants to
come in and go out normally, his recent record must be “out”, or he cannot go
out. Any out record will be “anti-pass back refused” by the system. (Notice: If
the customer has no former record, then he can go out, but cannot come in).
When the master machine is set as “out-in anti-pass back”, if the user wants
to come in and go out normally, if his recent record is “out” and “in”, then his
next record must be “in” and “out”.
[Operation]
1. Select model
Master machine: The machine with Wiegand in function, except for F10
reader.
Slave machine: The machine with Wiegand Out function.
2. Menu setting
Anti-pass back
There are four options: in/out anti-pass back, out anti-pass back, in anti-pass
back, and none.
Out anti-pass back: Only user’s last record is in-record, can the door be
open.
In anti-pass back: Only user’s last record is out-record, can the door be
open.
Device status: There are three options: Control-in, control-out and none
117
3 inches Facial Recognition Series Product User Manual Control-in: When it is set, the verified records on the device are in-records.
Control-out: When it is set, the verified records on the device are
out-records.
None: When it is set, close the device’s anti-pass back function.
3. Modify device’s Wiegand output format
When the two devices are communicating, only the Wiegand signals without
device ID are received. Enter device menu > communication option >
Wiegand option or enter software > basic setting > device management
-> Wiegand, to modify "defined format” as “wiegand26 without device ID".
4. Enroll user
The user must be on master machine and slave machine at the same time,
and user PIN must be the same. Therefore, it is necessary to enroll user on
master machine and slave machine at the same time.
5. Connection instruction
Wiegand communication is adopted for master machine and slave machine.
Refer to the following for connection:
Master
Slave
IND0
<----->
WD0
IND1
<----->
WD1
GND
<----->
GND
118
3 inches Facial Recognition Series Product User Manual 12.9 Statement on Human Rights and Privacy
Dear Customers:
Thank you for choosing the hybrid biometric products designed and
manufactured by us. As a world-renowned provider of biometric technologies
and services, we pay much attention to the compliance with the laws related
to human rights and privacy in every country while constantly performing
research and development.
We hereby make the following statements:
1.
All of our fingerprint recognition devices for civil use only collect the
characteristic points of fingerprints instead of the fingerprint images, and
therefore no privacy issues are involved.
2.
The characteristic points of fingerprints collected by our products cannot
be used to restore the original fingerprint images, and therefore no
privacy issues are involved.
3.
We, as the equipment provider, shall not be held legally accountable,
directly or indirectly, for any consequences arising due to the use of our
products.
4.
For any dispute involving the human rights or privacy when using our
products, please contact your employer directly.
Our fingerprint products for police use, or development tools support the
collection of the original fingerprint images. As for whether such a type of
fingerprint collection constitutes an infringement of your privacy, please
contact the government or the final equipment provider. We, as the original
equipment manufacturer, shall not be held legally accountable for any
infringement arising thereof.
The law of the People’s Republic of China has the following regulations
regarding the personal freedom:
119
3 inches Facial Recognition Series Product User Manual 1.
Unlawful arrest, detention or search of citizens of the People's Republic
of China is prohibited; infringement of individual privacy is prohibited.
2.
The personal dignity of citizens of the People's Republic of China is
inviolable.
3.
The home of citizens of the People's Republic of China is inviolable.
4.
The freedom and privacy of correspondence of citizens of the People's
Republic of China are protected by law.
At last we stress once again that biometrics, as an advanced recognition
technology, will be applied in a lot of sectors including e-commerce, banking,
insurance and legal affairs. Every year people around the globe suffer from
great loss due to the insecurity of passwords. The biometric products actually
provide adequate protection for your identity under a high security
environment.
120
3 inches Facial Recognition Series Product User Manual 12.10 Environment-Friendly Use Description
The Environment Friendly Use Period (EFUP) marked on this product refers to the
safety period of time in which the product is used under the conditions specified in the
product instructions without leakage of noxious and harmful substances.
The EFUP of this product does not cover the consumable parts that need to be replaced
on a regular basis such as batteries and so on. The EFUP of batteries is 5 years.
Names and Concentration of Toxic and Hazardous Substances or Elements
Parts Name
Toxic and Hazardous Substances or Elements
Pb
Hg
Cd
Cr6+
PBB
PBDE
Chip resistor
×
○
○
○
○
○
Chip capacitor
×
○
○
○
○
○
Chip inductor
×
○
○
○
○
○
Chip diode
×
○
○
○
○
○
ESD components
×
○
○
○
○
○
Buzzer
×
○
○
○
○
○
Adapter
×
○
○
○
○
○
Screws
○
○
○
×
○
○
○: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement in SJ/T11363-2006.
×: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials for this part is above the limit requirement in SJ/T11363-2006.
Note: 80% of the parts in this product are manufactured with non-hazardous environment-friendly
materials. The hazardous substances or elements contained cannot be replaced with
environment-friendly materials at present due to technical or economical constraints.
121
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
