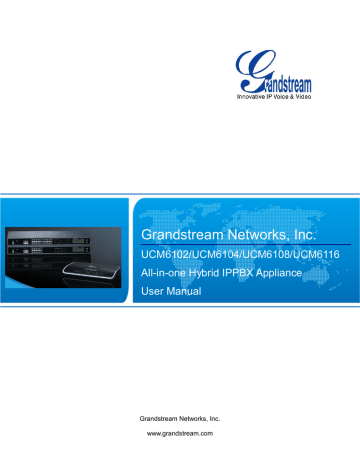

UCM6102/UCM6104/UCM6108/UCM6116

All-in-one Hybrid IPPBX Appliance

User Manual

Grandstream Networks, Inc. www.grandstream.com

UCM6102/UCM6104/UCM6108/UCM6116 User Manual

Index

CHANGE LOG ............................................................................................... 9

FIRMWARE VERSION 1.0.0.32 .......................................................................................................... 9

WELCOME .................................................................................................. 10

PRODUCT OVERVIEW................................................................................ 11

FEATURE HIGHTLIGHTS ..................................................................................................................11

TECHNICAL SPECIFICATIONS .........................................................................................................11

INSTALLATION ........................................................................................... 14

EQUIPMENT PACKAGING................................................................................................................ 14

CONNECTING YOUR UCM6102/UCM6104/UCM6108/UCM6116 ................................................... 14

CONNECTING THE UCM6102 .................................................................................................. 14

CONNECTING THE UCM6104 .................................................................................................. 15

CONNECTING THE UCM6108 .................................................................................................. 16

CONNECTING THE UCM6116 ................................................................................................... 17

SAFETY COMPLIANCES .................................................................................................................. 18

WARRANTY ...................................................................................................................................... 18

GETTING STARTED ................................................................................... 19

USING THE LCD MENU .................................................................................................................... 19

USING THE LED INDICATORS ......................................................................................................... 20

USING THE WEB GUI ....................................................................................................................... 20

ACCESSING WEB GUI .............................................................................................................. 20

WEB GUI CONFIGURATIONS ................................................................................................... 21

SAVING AND APPLYING CHANGES ......................................................................................... 22

MAKING YOUR FIRST CALL ............................................................................................................ 22

SYSTEM SETTINGS ................................................................................... 23

NETWORK SETTINGS ...................................................................................................................... 23

LAN/WAN/802.1X SETTINGS .................................................................................................... 23

NETWORK SECURITY SETTINGS ........................................................................................... 25

CHANGE PASSWORD ...................................................................................................................... 27

LDAP SERVER .................................................................................................................................. 27

LDAP SERVER CONFIGURATIONS .......................................................................................... 28

LDAP PHONEBOOK .................................................................................................................. 28

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 1 of 108

LDAP CLIENT CONFIGURATIONS ............................................................................................ 29

HTTP SERVER .................................................................................................................................. 30

EMAIL SETTINGS ............................................................................................................................. 31

TIME SETTINGS ............................................................................................................................... 31

PROVISIONING ........................................................................................... 33

OVERVIEW ....................................................................................................................................... 33

AUTO PROVISIONING ...................................................................................................................... 33

MANUAL PROVISIONING ................................................................................................................. 35

DISCOVERY ............................................................................................................................... 35

ASSIGNMENT ............................................................................................................................ 36

PROVISIONING ......................................................................................................................... 37

EXAMPLES ....................................................................................................................................... 37

EXTENSIONS .............................................................................................. 40

CREATE NEW USER ........................................................................................................................ 40

BATCH ADD EXTENSIONS .............................................................................................................. 42

EDIT EXTENSION ............................................................................................................................. 44

TRUNKS ...................................................................................................... 45

ANALOG TRUNKS ............................................................................................................................ 45

VOIP TRUNKS ................................................................................................................................... 47

CALL ROUTES ........................................................................................... 49

OUTBOUND ROUTES ...................................................................................................................... 49

INBOUND ROUTES .......................................................................................................................... 50

CONFERENCE BRIDGE ............................................................................ 53

IVR ............................................................................................................... 55

CONFIGURING IVR .......................................................................................................................... 55

CREATING IVR PROMPT ................................................................................................................. 56

RECORD NEW IVR PROMPT.................................................................................................... 56

UPLOAD IVR PROMPT .............................................................................................................. 57

VOICE PROMPT ......................................................................................... 58

VOICEMAIL ................................................................................................. 59

CONFIGURING VOICEMAIL ............................................................................................................. 59

CONFIGURING VOICEMAIL GROUP ............................................................................................... 60

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 2 of 108

RING GROUP .............................................................................................. 62

CONFIGURING RING GROUP ......................................................................................................... 62

RING GROUP PARAMETERS .......................................................................................................... 62

PAGING AND INTERCOM GROUP ........................................................... 64

CALL QUEUE .............................................................................................. 66

CONFIGURING CALL QUEUE .......................................................................................................... 66

CALL QUEUE PARAMETERS ........................................................................................................... 66

MUSIC ON HOLD ........................................................................................ 68

FAX/T.38 ...................................................................................................... 69

CONFIGURING FAX/T.38 .................................................................................................................. 69

INTERNAL OPTIONS ................................................................................. 70

INTERNAL OPTIONS/GENERAL ...................................................................................................... 70

INTERNAL OPTIONS/FEATURE CODES ......................................................................................... 71

INTERNAL OPTIONS/RTP SETTINGS ............................................................................................. 73

INTERNAL OPTIONS/HARDWARE CONFIG.................................................................................... 73

INTERNAL OPTIONS/STUN MONITOR ............................................................................................ 75

PBX SETTINGS ........................................................................................... 76

IAX SETTINGS .................................................................................................................................. 76

IAX SETTINGS/GENERAL ......................................................................................................... 76

IAX SETTINGS/CODECS ........................................................................................................... 76

IAX SETTINGS/JITTER BUFFER............................................................................................... 77

IAX SETTINGS/REGISTRATION ............................................................................................... 77

IAX SETTINGS/SECURITY ........................................................................................................ 78

SIP SETTINGS .................................................................................................................................. 78

SIP SETTINGS/GENERAL ......................................................................................................... 78

SIP SETTINGS/CODECX ........................................................................................................... 79

SIP SETTINGS/JITTER BUFFER ............................................................................................... 79

SIP SETTINGS/MISCELLANEOUS ............................................................................................ 80

SIP SETTINGS/SESSTION TIMER ............................................................................................ 80

SIP SETTINGS/TLS AND TCP ................................................................................................... 81

SIP SETTINGS/NAT ................................................................................................................... 81

SIP SETTINGS/ToS .................................................................................................................... 83

SIP SETTINGS/DEBUG ............................................................................................................. 84

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 3 of 108

STATUS AND REPORTING ........................................................................ 85

PBX STATUS ..................................................................................................................................... 85

TRUNKS ..................................................................................................................................... 85

EXTENSIONS............................................................................................................................. 86

QUEUES .................................................................................................................................... 88

CONFERENCE ROOMS ............................................................................................................ 89

INTERFACES STATUS ............................................................................................................... 89

PARKING LOT ............................................................................................................................ 91

SYSTEM STATUS ............................................................................................................................. 91

GENERAL .................................................................................................................................. 92

NETWORK ................................................................................................................................. 92

STORAGE USAGE ..................................................................................................................... 93

RESOURCE USAGE .................................................................................................................. 93

CDR (Call Detail Report) .................................................................................................................... 94

UPGRADING AND MAINTENANCE .......................................................... 98

UPGRADING ..................................................................................................................................... 98

UPGRADING VIA NETWORK .................................................................................................... 98

UPGRADING VIA LOCAL UPLOAD ........................................................................................... 99

NO LOCAL FIRMWARE SERVERS ......................................................................................... 100

BACKUP .......................................................................................................................................... 100

LOCAL BACKUP ...................................................................................................................... 100

NETWORK BACKUP ................................................................................................................ 101

CLEANER ........................................................................................................................................ 102

RESET AND REBOOT .................................................................................................................... 103

SYSLOG .......................................................................................................................................... 104

TROUBLESHOOTING ..................................................................................................................... 104

ETHERNET CAPTURE ............................................................................................................ 104

PING ......................................................................................................................................... 105

TRACEROUTE ......................................................................................................................... 106

EXPERIENCING THE UCM6102/UCM6104/UCM6108/UCM6116 ......... 107

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 4 of 108

Table of Tables

UCM6102/UCM6104/UCM6108/UCM6116 User Manual

Table 1: TECHNICAL SPECIFICATIONS ...................................................................................................11

Table 2: UCM6102/UCM6104 EQUIPMENT PACKAGING ....................................................................... 14

Table 3: UCM6108/UCM6116 EQUIPMENT PACKAGING ....................................................................... 14

Table 4: LCD MENU OPTIONS ................................................................................................................. 19

Table 5: UCM6102/UCM6104 LED INDICATORS ..................................................................................... 20

Table 6: UCM6108/UCM6116 LED INDICATORS ..................................................................................... 20

Table 7: NETWORK SETTINGS ............................................................................................................... 23

Table 8: UCM6102 NETWORK SETTINGS .............................................................................................. 24

Table 9: Firewall Rule Settings .................................................................................................................. 26

Table 10: HTTP Server Settings ................................................................................................................ 30

Table 11: Email Settings ............................................................................................................................ 31

Table 12: Time Settings ............................................................................................................................. 31

Table 13: Auto Provision Setting ............................................................................................................... 35

Table 14: Extension Configuration Parameters ......................................................................................... 40

Table 15: Batch Add Extension Parameters .............................................................................................. 42

Table 16: Analog Trunk Configuration Parameters .................................................................................... 45

Table 17: VoIP Trunk Configuration Parameters ....................................................................................... 47

Table 18: Outbound Route Configuration Parameters .............................................................................. 49

Table 19: Inbound Route Configuration Parameters ................................................................................. 51

Table 20: Conference Bridge Configuration Parameters ........................................................................... 53

Table 21: IVR Configuration Parameters ................................................................................................... 55

Table 22: Email Settings For Voicemails ................................................................................................... 59

Table 23: Voicemail Settings ..................................................................................................................... 59

Table 24: Ring Group Parameters ............................................................................................................. 62

Table 25: Page/Intercom Group Parameters ............................................................................................. 64

Table 26: Call Queue Parameters ............................................................................................................. 66

Table 27: FAX/T.38 Settings ...................................................................................................................... 69

Table 28: Trunk Status............................................................................................................................... 85

Table 29: Extension Status ........................................................................................................................ 87

Table 30: Agent Status .............................................................................................................................. 88

Table 31: Interface Status Indicators ......................................................................................................... 90

Table 32: Parking Lot Status ..................................................................................................................... 91

Table 33: System Status->General............................................................................................................ 92

Table 34: System Status->Network ........................................................................................................... 92

Table 35: CDR Filter Criteria ..................................................................................................................... 95

Table 36: CDR Statistics Filter Criteria ...................................................................................................... 97

Table 37: Network Upgrade Configuration ................................................................................................ 98

Table 38: Network Backup Configuration ................................................................................................ 102

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 5 of 108

Table 39: Cleaner Configuration .............................................................................................................. 103

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 6 of 108

Table of Figures

UCM6102/UCM6104/UCM6108/UCM6116 User manual

Figure 1: UCM6102 Front View ................................................................................................................. 14

Figure 2: UCM6102 Back View ................................................................................................................. 15

Figure 3: UCM6104 Front View ................................................................................................................. 15

Figure 4: UCM6104 Back View ................................................................................................................. 16

Figure 5: UCM6108 Front View ................................................................................................................. 16

Figure 6: UCM6108 Back View ................................................................................................................. 16

Figure 7: UCM6116 Front View ................................................................................................................. 17

Figure 8: UCM6116 Back View ................................................................................................................. 17

Figure 9: UCM6116 Web GUI Login Page ................................................................................................ 21

Figure 10: Current Service ........................................................................................................................ 25

Figure 11: Create New Firewall Rule......................................................................................................... 26

Figure 12: LDAP Server Configurations .................................................................................................... 28

Figure 13: Add New LDAP Phonebook ..................................................................................................... 29

Figure 14: GXP2200 LDAP Phonebook Configuration .............................................................................. 30

Figure 15: Auto Provision Setting .............................................................................................................. 34

Figure 16: Auto Discover ........................................................................................................................... 36

Figure 17: Discovered Devices ................................................................................................................. 36

Figure 18: Assign Extension To Device ..................................................................................................... 36

Figure 19: Create New Device .................................................................................................................. 37

Figure 20: Provisioning Example 1 ........................................................................................................... 38

Figure 21: Provisioning Example 2 ........................................................................................................... 39

Figure 22: Click On Prompt To Create IVR Prompt ................................................................................... 56

Figure 23: Record New IVR Prompt .......................................................................................................... 57

Figure 24: Language Settings For Voice Prompt ...................................................................................... 58

Figure 25: Default Email Template ............................................................................................................ 59

Figure 26: Voicemail Group....................................................................................................................... 60

Figure 27: Ring Group .............................................................................................................................. 62

Figure 28: Ring Group Configuration ........................................................................................................ 63

Figure 29: Page/Intercom Group ............................................................................................................... 64

Figure 30: Page/Intercom Group Settings ................................................................................................. 65

Figure 31: Call Queue ............................................................................................................................... 66

Figure 32: Music On Hold Default Class ................................................................................................... 68

Figure 33: Status->PBX Status.................................................................................................................. 85

Figure 34: Trunk Status ............................................................................................................................. 85

Figure 35: Extension Status ...................................................................................................................... 87

Figure 36: Queue Status ........................................................................................................................... 88

Figure 37: Conference Room Status ......................................................................................................... 89

Figure 38: UCM6116 Interfaces Status ..................................................................................................... 90

Figure 39: Parking Lot Status .................................................................................................................... 91

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 7 of 108

Figure 40: System Status->Storage Usage ............................................................................................... 93

Figure 41: System Status->Resource Usage ............................................................................................ 94

Figure 42: CDR Filter ................................................................................................................................ 95

Figure 43: Call Report ............................................................................................................................... 95

Figure 44: Call Report Entry With Audio Recording File ........................................................................... 96

Figure 45: CDR Statistics .......................................................................................................................... 96

Figure 46: Network Upgrade ..................................................................................................................... 98

Figure 47: Local Upgrade.......................................................................................................................... 99

Figure 48: Local Backup ......................................................................................................................... 101

Figure 49: Network Backup ..................................................................................................................... 102

Figure 50: Cleaner .................................................................................................................................. 103

Figure 51: Reset and Reboot .................................................................................................................. 104

Figure 52: Ethernet Capture.................................................................................................................... 105

Figure 53: PING ...................................................................................................................................... 105

Figure 54: Traceroute .............................................................................................................................. 106

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 8 of 108

CHANGE LOG

This section documents significant changes from previous versions of the

UCM6102/UCM6104/UCM6108/UCM6116 user manuals. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here.

FIRMWARE VERSION 1.0.0.32

• This is the initial version.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 9 of 108

WELCOME

Thank you for purchasing Grandstream UCM6102/UCM6104/UCM6108/UCM6116.

UCM6102/UCM6104/UCM6108/UCM6116 is an innovative, all-in-one hybrid IP PBX appliance designed for small to medium business. Powered by an advanced hardware platform with robust system resources, the UCM6102/UCM6104/UCM6108/UCM6116 offers a highly versatile state-of-the-art Unified

Communication (UC) solution for converged voice, video, data, fax and video surveillance application needs. Incorporating industry-leading features and performance, the

UCM6102/UCM6104/UCM6108/UCM6116 offers quick setup, deployment with ease and unrivaled reliability all at an unprecedented price point.

Caution:

Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.

Warning:

Please do not use a different power adaptor with the UCM6102/UCM6104/UCM6108/UCM6116 as it may cause damage to the products and void the manufacturer warranty.

This document is subject to change without notice. The latest electronic version of this user manual is available for download here: http://www.grandstream.com/support

Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 10 of 108

PRODUCT OVERVIEW

FEATURE HIGHTLIGHTS

• 1GHz ARM Cortex A8 application processor, large memory (512MB DDR RAM, 4GB NAND Flash), and dedicated high performance multi-core DSP array for advanced voice processing.

• Integrated 2/4/8/16 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options.

• Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support

(UCM6102 only).

• Supports a wide range of popular voice codes (including G.711 A-law/U-law, G.722, G.723, G.726,

G.729A/B, iLBC, GSM), video codec (including H.264, H.263, H.263+), and Fax (T.38).

• Hardware DSP based 128ms-tail-length carrier-grade line echo cancellation (LEC).

• Supports up to 60 concurrent calls and up to 32 conference attendees.

• Flexible dial plan, call routing, site peering, call recording.

• Automated detection and provisioning of IP phones, video phones, ATA and other endpoints for easy deployment.

• Hardware encryption accelerator to ensure strongest security protection using SRTP, TLS, and

HTTPS.

TECHNICAL SPECIFICATIONS

Table 1: TECHNICAL SPECIFICATIONS

Interfaces

Analog Telephone FXS Ports

2 ports

PSTN Line FXO Ports

Network Interfaces

• UCM6102: 2 ports

• UCM6104: 4 ports

• UCM6108: 8 ports

• UCM6116: 16 ports

• UCM6108/UCM6116: Single 10M/100M/1000M RJ45 Ethernet port with integrated PoE Plug (IEEE 802.3at-2009)

• UCM6102/UCM6104: Dual 10M/100M/1000M RJ45 Ethernet ports with integrated PoE Plug (IEEE 802.3at-2009)

NAT Router

Peripheral Ports

LED Indicators

Yes, UCM6102 only

USB, SD

Power/Ready, Network, PSTN Line, USB, SD

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 11 of 108

LCD Display

Reset Switch

Voice/Video Capabilities

Voice-over-Packet

Capabilities

128x32 graphic LCD with DOWN and OK button

Yes

Voice and Fax Codecs

Video Codecs

QoS

Signaling and Control

DTMF Methods

Provisioning Protocol and

Plug-and-Play

Network Protocols

Disconnect Methods

LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC,

GSM; T.38

H.264, H.263, H.263+

Layer 3 QoS

In Audio, RFC2833, and SIP INFO

TFTP/HTTP/HTTPS, auto-discovery and auto-provisioning of

Grandstream IP endpoints

TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP,

SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP

Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current

Disconnect, Busy Tone

Security

Media

Physical

Universal Power Supply

SRTP, TLS, HTTPS, SSH

Environmental

Dimensions

• Output: 12VDC, 1.5A

• Input: 100-240VAC, 50-60Hz

• Operating: 32 - 104 o

F / 0 - 40 o

C, 10-90% (non-condensing)

• Storage: 14 - 140 o

F / -10 - 60 o

C

• UCM6102/UCM6104: 226mm (L) x 155mm (W) x 34.5mm (H)

• UCM6108/UCM6116: 440mm (L) x 185mm (W) x 44mm (H)

Wall mount and Desktop

Mounting

Additional Features

Caller ID

Polarity Reversal/ Wink

Call Center

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 - BT, NTT Japan

(pending)

Yes, with enable/disable option upon call establishment and termination

Multiple configurable call queues, automatic call distribution (ACD)

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 12 of 108

Attendant

Concurrent Calls

Conference Bridges

Call Features

Compliance

based on agent skills/availability busy level, in-queue announcement

• UCM6102: Up to 30 simultaneous calls

• UCM6104: Up to 45 simultaneous calls

• UCM6108/UCM6116: Up to 60 simultaneous calls

• UCM6102/UCM6104: Up to 3 password-protected conference bridges allowing up to 25 simultaneous PSTN or IP participants

• UCM6108/UCM6116: Up to 6 password-protected conference bridges allowing up to 32 simultaneous PSTN or IP participants

Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom and etc

• FCC: Part 15 (CFR 47) Class B, Part 68

• CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,

EN60950-1, TBR21, RoHS

• TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS

60950, AS/ACIF S002

• ITU-T K.21 (Basic Level); UL 60950 (power adapter)

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 13 of 108

INSTALLATION

This section describes detailed information on installation, connection and warranty policy of the

UCM6102/UCM6104/UCM6108/UCM6116.

EQUIPMENT PACKAGING

Table 2: UCM6102/UCM6104 EQUIPMENT PACKAGING

Main Case

Power Adaptor

Ethernet Cable

Quick Installation Guide

Yes (1)

Yes (1)

Yes (1)

Yes (1)

Table 3: UCM6108/UCM6116 EQUIPMENT PACKAGING

Main Case

Power Adaptor

Ethernet Cable

Quick Installation Guide

Wall Mount

Screws

Yes (1)

Yes (1)

Yes (1)

Yes (1)

Yes (2)

Yes (6)

CONNECTING YOUR UCM6102/UCM6104/UCM6108/UCM6116

CONNECTING THE UCM6102

Figure 1: UCM6102 Front View

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 14 of 108

Figure 2: UCM6102 Back View

To set up the UCM6102, follow the steps below:

1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6102;

2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub;

3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6102. Insert the main plug of the power adapter into a surge-protected power outlet;

4. Wait for the UCM6102 to boot up. The LCD in the front will show its hardware information when the boot process is done;

5. Once the UCM6102 is successfully connected to network, the LED indicator for WAN in the front will be in solid green and the LCD shows up the IP address;

6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and fax) to the FXS ports.

CONNECTING THE UCM6104

Figure 3: UCM6104 Front View

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 15 of 108

Figure 4: UCM6104 Back View

To set up the UCM6104, follow the steps below:

1. Connect one end of an RJ-45 Ethernet cable into the LAN 1 port of the UCM6104;

2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub;

3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6104. Insert the main plug of the power adapter into a surge-protected power outlet;

4. Wait for the UCM6104 to boot up. The LCD in the front will show its hardware information when the boot process is done;

5. Once the UCM6104 is successfully connected to network, the LED indicator for LAN 1 in the front will be in solid green and the LCD shows up the IP address;

6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and fax) to the FXS ports.

CONNECTING THE UCM6108

Figure 5: UCM6108 Front View

Figure 6: UCM6108 Back View

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 16 of 108

To set up the UCM6108, follow the steps below:

1. Connect one end of an RJ-45 Ethernet cable into the LAN port of the UCM6108;

2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub;

3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6108. Insert the main plug of the power adapter into a surge-protected power outlet;

4. Wait for the UCM6108 to boot up. The LCD in the front will show its hardware information when the boot process is done;

5. Once the UCM6108 is successfully connected to network, the LED indicator for NETWORK in the front will be in solid green and the LCD shows up the IP address;

6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and fax) to the FXS ports.

CONNECTING THE UCM6116

Figure 7: UCM6116 Front View

Figure 8: UCM6116 Back View

To set up the UCM6116, follow the steps below:

1. Connect one end of an RJ-45 Ethernet cable into the LAN port of the UCM6116;

2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub;

3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6116. Insert the main plug of the power adapter into a surge-protected power outlet;

4. Wait for the UCM6116 to boot up. The LCD in the front will show its hardware information when the boot process is done;

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 17 of 108

5. Once the UCM6116 is successfully connected to network, the LED indicator for NETWORK in the front will be in solid green and the LCD shows up the IP address;

6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and fax) to the FXS ports.

SAFETY COMPLIA

NCES

The UCM6102/UCM6104/UCM6108/UCM6116 complies with FCC/CE and various safety standards. The

UCM6102/UCM6104/UCM6108/UCM6116 power adapter is compliant with the UL standard. Use the universal power adapter provided with the UCM6102/UCM6104/UCM6108/UCM6116 package only. The manufacturer’s warranty does not cover damages to the device caused by unsupported power adapters.

WARRANTY

If the UCM6102/UCM6104/UCM6108/UCM6116 was purchased from a reseller, please contact the company where the device was purchased for replacement, repair or refund. If the device was purchased directly from Grandstream, contact the Grandstream Sales and Service Representative for a RMA (Return

Materials Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty policy without prior notification.

Warning:

Use the power adapter provided with the UCM6102/UCM6104/UCM6108/UCM6116. Do not use a different power adapter as this may damage the device. This type of damage is not covered under warranty.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 18 of 108

GETTING STARTED

This section provides information about using the LCD menu, LED indicators and Web GUI of the

UCM6102/UCM6104/UCM6108/UCM6116. The last section describes how to make your first call using the

UCM6102/UCM6104/UCM6108/UCM6116 with your SIP phone.

USING THE LCD MENU

Default LCD Display

By default, when the device is powered on, the LCD will show device model, hardware version and IP address.

Menu Access

Press "Down" or "OK" button to start browsing menu options.

Menu Navigation

Press the "Down" arrow key to browser different menu options. Press the "OK" button to select an entry.

Exit

There is "Back" option in the menu. Select it to go back to previous menu. Also, the LCD will come back to default display after being idle in menu for more than 20 seconds.

The following table shows the LCD menu options.

Table 4: LCD MENU OPTIONS

View Events

Critical Events

Other Events

Device Info

Network Info

Network Menu

Hardware: Hardware version number

Software: Software version number

P/N: Part number

MAC: MAC address

Uptime: System up time

Mode: DHCP, Static IP, or PPPoE

IP: IP address

Subnet Mask

LAN Mode: Select LAN mode as DHCP, Static IP or PPPoE

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 19 of 108

Factory Menu

LCD Test Patterns: Press "Down" button to test different LCD patterns

Fan Mode: Auto or On

USING THE LED INDICATORS

The UCM6102/UCM6104/UCM6108/UCM6116 has LED indicators in the front and the following table shows the status definitions.

Table 5: UCM6102/UCM6104 LED INDICATORS

LED

LAN / WAN / FXS / FXO / USB / SD Card

LED Status

Solid: Connected

Flashing: Data Transferring

OFF: Not Connected

Table 6: UCM6108/UCM6116 LED INDICATORS

LED

NETWORK

LED Status

Solid: Connected

OFF: Not Connected

ACT / Line (FXO) /Phone (FXS) / USB / SD Card Solid: Connected

Flashing: Data Transferring

OFF: Not Connected

USING THE WEB GUI

ACCESSING WEB GUI

The UCM6102/UCM6104/UCM6108/UCM6116 embedded Web server responds to HTTP/HTTPS

GET/POST requests. Embedded HTML pages allow users to configure the device through a Web browser such as Microsoft’s IE, Mozilla Firefox, Google Chrome and etc.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 20 of 108

Figure 9: UCM6116 Web GUI Login Page

To access the Web GUI:

1. Connect the computer to the same network as the UCM6102/UCM6104/UCM6108/UCM6116;

2. Ensure the device is properly powered up and shows its IP address on the LCD;

3. Open a Web browser on the computer and enter the web GUI URL in the following format:

http(s)://IP-Address:Port where the IP-Address is the IP address displayed on the UCM6102/UCM6104/UCM6108/UCM6116

LCD.

By default, the protocol is HTTPS and the Port number is 8089.

For example, if the LCD shows 192.168.40.167, please enter the following in your web browser: https://192.168.40.167:8089

4. Enter the administrator’s login and password to access the Web Configuration Menu. The default administrator's username and password is "admin" and "admin".

WEB GUI CONFIGURATIONS

There are four main sections in the Web GUI for users to view the PBX status, configure and manage the

PBX.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 21 of 108

Status: Displays PBX status, System Status and CDR.

PBX: To configure extensions, call routes, call features, internal options, IAX settings and SIP settings.

Settings: To configure network settings, change password, LDAP Server, HTTP Server, Email

Settings and Time Settings.

Maintenance: To perform firmware upgrade, backup configurations, cleaner setup, reset/reboot, syslog setup and troubleshooting.

SAVING AND APPLYING CHANGES

After configuring the web GUI options in one page, click on the "Save" button on the bottom of the page (if displayed). After saving all the changes, make sure click on "Apply Changes" button on the top right corner to submit all the changes. Follow the prompted message to reboot the device if it's required.

MAKING YOUR FIRST CALL

Power up the UCM6102/UCM6104/UCM6108/UCM6116 and your phone with network connected. Then follow the steps below to make your first call.

1. Log in the UCM6102/UCM6104/UCM6108/UCM6116 web GUI, go to PBX->Basic/Call

Routes->Extensions;

2. Click on "Create New User" to create a new extension. You might need User ID, Password and

Voicemail Password information to register and use the extension later;

3. Register the extension on your phone with the User ID, Password information;

4. When your phone is registered with the extension and ready, dial *97 to access the voicemail box. Enter the Voicemail Password and you will be prompted with the Voice Mail Main menu.

5. You are successfully connected to the PBX system now.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 22 of 108

SYSTEM SETTINGS

This section explains configurations for system-wide parameters on the

UCM6102/UCM6104/UCM6108/UCM6116. Those parameters include Network Settings, Change

Password, LDAP server, HTTP server, Email settings and Time Settings.

NETWORK SETTINGS

LAN/WAN/802.1X SETTINGS

After successfully connecting the UCM6102/UCM6104/UCM6108/UCM6116 to the network for the first time, users could login the Web GUI and go to Settings->Network Settings to configure the network parameters for the device depending on the network environment. The settings are similar for

UCM6104/UCM6108/UCM6116. The UCM6102 supports both WAN port and LAN port, with Router or

Switch mode function configurable on the LAN port. Select each tab in the Network Settings page to configure LAN settings, WAN settings (UCM6102 only) and 802.1X.

Please refer to the following tables for the network configuration parameters on

UCM6104/UCM6108/UCM6116 and UCM6102 respectively.

Table 7: NETWORK SETTINGS

Settings -> Network Settings -> LAN

IP Method Select DHCP, Static IP, or PPPoE. The default setting is DHCP.

IP Address

Gateway IP

Enter the IP address for static IP settings.

Enter the gateway IP address for static IP settings.

Subnet Mask

DNS Server 1

DNS Server 2

User Name

Enter the subnet mask address for static IP settings.

Enter the DNS server 1 address for static IP settings.

Enter the DNS server 2 address for static IP settings.

Enter the user name to connect via PPPoE.

Password Enter the password to connect via PPPoE.

Preferred DNS Server Enter the preferred DNS server address.

Settings -> Network Settings -> 802.1X

802.1X Mode Select 802.1X mode. The default setting is "Disable". The supported 802.1X mode are:

• EAP-MD5

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 23 of 108

Identity

MD5 Password

802.1X Certificate

• EAP-TLS

• EAP-PEAPv0/MSCHAPv2

Enter 802.1X mode identity information.

Enter 802.1X mode MD5 password information.

Select 802.1X certificate from local PC and then upload.

802.1X Client

Select 802.1X client certificate from local PC and then upload.

Certificate

Table 8: UCM6102 NETWORK SETTINGS

Settings -> Network Settings -> WAN

IP Method Select DHCP, Static IP, or PPPoE. The default setting is DHCP.

IP Address

Gateway IP

Enter the IP address for static IP settings.

Enter the gateway IP address for static IP settings.

Subnet Mask

DNS Server 1

DNS Server 2

User Name

Enter the subnet mask address for static IP settings.

Enter the DNS server 1 address for static IP settings.

Enter the DNS server 2 address for static IP settings.

Enter the user name to connect via PPPoE.

Password Enter the password to connect via PPPoE.

Preferred DNS Server Enter the preferred DNS server address.

Settings -> Network Settings -> LAN

Mode Select LAN port mode as Router or Switch.

IP Address

Subnet Mask

Enter the IP address assigned to the LAN port.

Enter the subnet mask.

DHCP Server Enable Enable or disable DHCP server capability.

DNS Server 1 Enter DNS server address 1.

DNS Server 2 Enter DNS server address 2.

Allow IP Address

Enter the IP Pool starting address.

From

Allow IP Address To Enter the IP Pool ending address.

Default IP Lease Time Enter the IP lease time (in seconds).

Settings -> Network Settings -> 802.1X

802.1X Mode Select 802.1X mode. The default setting is "Disable". The supported 802.1X mode are:

• EAP-MD5

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 24 of 108

• EAP-TLS

• EAP-PEAPv0/MSCHAPv2

Enter 802.1X mode identity information. Identity

MD5 Password

802.1X Certificate

Enter 802.1X mode MD5 password information.

Select 802.1X certificate from local PC and then upload.

802.1X Client

Select 802.1X client certificate from local PC and then upload.

Certificate

Settings -> Network Settings -> Port Forwarding

WAN Port

LAN IP

LAN Port

Protocol Style

Specify the WAN port number. Up to 8 ports can be configured.

Specify the LAN IP address. Up to 8 IP address can be configured.

Specify the LAN port number. Up to 8 ports can be configured.

Select protocol type for the forwarding in the selected port.

NETWORK SECURITY SETTINGS

The UCM6102/UCM6104/UCM6108/UCM6116 provides users Firewall configurations to prevent certain malicious attack to the device system, allow, restrict or reject specific traffic through the device for security and bandwidth purpose. Go to Web GUI->Settings->Network Settings->Security page, users will see the current service information with Port, Process and Type, as well as Firewall settings.

Figure 10: Current Service

Users could configure the following options for the Firewall settings.

• Interface. Select the interface (LAN/WAN) For firewall settings.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 25 of 108

• Ping Enable. Enable or disable ICMP response for Ping request. The default setting is Yes.

• SYN Flood. Enable to prevent SYN Flood denial-of-service attack to the device.

• Death-of-Ping. Enable to prevent Death-of-Ping attack to the device.

• Create New Rule.

Click on "Create New Rule" button and a new window will pop up to specify rule options.

Rule Name

Action

Protocol

Type

Service

Figure 11: Create New Firewall Rule

Table 9: Firewall Rule Settings

Specify the Firewall rule name.

Select the action for the Firewall to perform.

• ACCEPT

• REJECT

• DROP

Select the protocol for the traffic.

• TCP

• UDP

• Both

Select the traffic type.

• IN. If selected, users will need specify the interface for the incoming packets.

• OUT

Select the service type.

• FTP

• SSH

• Telnet

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 26 of 108

Advance

• TFTP

• HTTP

• LDAP

Check the box to display advanced options.

• Source

Enter the source IP address and port.

• Destination

Enter the destination IP address and port.

Click on "Apply" button to save the change and then submit by clicking on "Apply Changes". The new rule will then display at the bottom of the page. Users can select to edit the rule, or select to delete the rule.

CHANGE PASSWORD

After login the Web GUI for the first time, it is highly recommended for users to change the default password

"admin" to more complicated password for security purpose. Follow the steps below to change the Web

GUI access password.

• Go to Web GUI->Settings->Change Password page;

• Enter the old password first;

• Enter the new password and retype the new password to confirm. The new password field has to be at least 5 characters;

• Click on "Save" and the user will be logged out;

• Once the web page comes back to the login page again, enter the username "admin" and the new password to login.

LDAP SERVER

The UCM6102/UCM6104/UCM6108/UCM6116 has an embedded LDAP server for users to manage corporate phonebook in a centralized way. By default, the LDAP server has generated the phonebook based on the created extensions already. If users have the Grandstream phone provisioned by the

UCM6102/UCM6104/UCM6108/UCM6116, the LDAP directory has been set up on the phone and can be used right away. Or users could manually configure the LDAP client settings accordingly to manipulate the built-in LDAP server on the PBX.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 27 of 108

To access LDAP Server settings, go to Web GUI->Settings->LDAP Server.

LDAP SERVER CONFIGURATIONS

Figure 12: LDAP Server Configurations

LDAP PHONEBOOK

Users could use the default phonebook, edit the default phonebook as well as add new phonebook on the

LDAP server. The first phonebook with default phonebook dn "ou=pbx,dc=pbx,dc=com" displayed on the

LDAP server page is for extensions in this PBX. Users cannot add or delete contacts directly. The contacts information will need to be modified via Web GUI->PBX->Basic/Call Routes/Extensions first. The default

LDAP phonebook will then be updated automatically.

A new sibling phonebook of the default PBX phonebook can be added by clicking on "Add" under "LDAP

Phonebook" section. Once added, users can select to edit the phonebook attributes and contact list

(see Figure below), or select to delete the phonebook.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 28 of 108

Figure 13: Add New LDAP Phonebook

LDAP CLIENT CONFIGURATIONS

To configure the LDAP client so the default PBX phonebook can be used, follow the instructions in the

LDAP Client Configuration section.

Suppose your server Base DN is "dc=Grandstream", your extension number is 1000 and your LDAP entry password is "1000", configure your LDAP client as follows (case insensitive):

Base DN: dc=Grandstream

Root DN: AccountName=1000,dc=Grandstream

Password: 1000

Filter: (&(CallerIDName=*)(AccountName=*))

Port: 389

The following figure shows the configuration information on a GXP2200 to successfully use the LDAP

server as configured in

Figure 12: LDAP Server Configurations

.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 29 of 108

Figure 14: GXP2200 LDAP Phonebook Configuration

HTTP SERVER

The UCM6102/UCM6104/UCM6108/UCM6116 embedded Web server responds to HTTP/HTTPS

GET/POST requests. Embedded HTML pages allow the users to configure the PBX through a Web browser such as Microsoft’s IE, Mozilla Firefox and Google Chrome. By default, the PBX can be accessed via

HTTPS using Port 8089 (e.g., https://192.168.40.50:8089). Users could also change the access protocol and port as preferred under Web GUI->Settings->HTTP Server.

Table 10: HTTP Server Settings

Redirect From Port 80 Enable or disable redirect from port 80. On the PBX, the default access protocol is HTTPS and the default port number is 8089. When this option

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 30 of 108

is enabled, the access using HTTP with Port 80 will be redirected to

HTTPS with Port 8089. The default setting is "Enable".

Select HTTP or HTTPS. The default setting is "HTTPS". Protocol Type

Port Specify port number to access the HTTP server.

Once the change is saved, the web page will be redirected to the login page using the new URL. Enter the username and password to login again.

EMAIL SETTINGS

The Email application on the UCM6102/UCM6104/UCM6108/UCM6116 can be used to send out Emails to users with Fax (e.g., Fax-To-Email), Voicemail (Voicemail-To-Email) and other information as attachment.

The configuration parameters can be accessed via Web GUI->Settings->Email Settings.

Table 11: Email Settings

TLS Enable

Type

Domain

Enable or disable TLS during transferring/submitting your Email to other

SMTP server. The default setting is "Yes".

Select Email type.

• MTA: Mail Transfer Agent. The Email will be sent from the configured domain. When MTA is selected, there is no need to set up SMTP server for it or no user login is required. However, the

Emails sent from MTA might be considered as spam by the target

SMTP server.

• Client: Submit Emails to the SMTP server. A SMTP server is required and users need login with correct credentials.

Specify the domain name to be used in the Email.

TIME SETTINGS

The current system time on UCM6102/UCM6104/UCM6108/UCM6116 can be checked under Web

GUI->Status->System Status. To change the time settings, go to Web GUI->Settings->Time Settings.

Table 12: Time Settings

NTP Server

Enable DHCP Option 2

Specify the URL or IP address of the NTP server for the PBX to synchronize the date and time. The default NTP server is ntp.ipvideotalk.com.

If set to "Yes", the device is allowed to get provisioned for Time Zone

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 31 of 108

Enable DHCP Option 42

Time Zone

Self-Defined Time Zone from DHCP Option 2 in the local server automatically. The default setting is "Yes".

If set to "Yes", the device is allowed to get provisioned for NTP Server from DHCP Option 42 in the local server automatically. This will then override the NTP Server manually configured on the PBX. The default setting is "Yes".

Select the proper time zone option so the PBX can display correct date and time accordingly. If "Automatic" is selected, the PBX will obtain the time zone information according to the detected IP location.

If "Self-Defined Time Zone" is selected in "Time Zone" option, users will need define their own time zone following the format below.

The syntax is: std offset dst [offset], start [/time], end [/time]

Default is set to: MTZ+6MDT+5,M4.1.0,M11.1.0

MTZ+6MDT+5

This indicates a time zone with 6 hours offset with 1 hour ahead which is

U.S central time. If it is positive (+) if the local time zone is west of the

Prime Meridian (A.K.A: International or Greenwich Meridian) and negative (-) if it is east.

M4.1.0,M11.1.0

The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)

The 2nd number indicates the nth iteration of the weekday: (1st Sunday,

3rd Tuesday…)

The 3rd number indicates weekday: 0,1,2,..,6 ( for Sun, Mon,

Tues, ... ,Sat)

Therefore, this example is the DST which starts from the First Sunday of

April to the 1st Sunday of November.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 32 of 108

PROVISIONING

OVERVIEW

Grandstream SIP Devices can be configured via Web interface as well as via configuration file through

TFTP or HTTP/HTTPS download. All Grandstream SIP devices support a proprietary binary format configuration file as well as XML format configuration file. The UCM6102/UCM6104/UCM6108/UCM6116 provides a Plug and Play mechanism to auto-provision the Grandstream SIP devices in a zero configuration manner, which allows users to finish the installation with ease and start using the SIP devices in a managed way.

To provision a phone, three steps are involved, i.e., discovery, assignment and provisioning. The

UCM6102/UCM6104/UCM6108/UCM6116 is capable to accomplish the following configurations on the SIP end point device.

• Assign an extension to the phone.

• Set up config server download path for further provisioning purpose.

• Set up LDAP client side configurations to use the PBX default phonebook.

This section explains how zero config works on the UCM6102/UCM6104/UCM6108/UCM6116. The settings for this feature can be accessed via Web GUI->PBX->Basic/Call Routes->Zero Config.

AUTO PROVISIONING

By default, the Zero Config feature is enabled on the UCM6102/6104/6108/6116 for auto provisioning. Three methods of auto provisioning are used (see below).

SIP SUBSCRIBE

The UCM6102/UCM6104/UCM6108/UCM6116 can automatically discover the phones in the same network using PnP feature with multicast SUBSCRIBE/NOTIFY. All current Grandstream phones support PnP feature and will send SUBSCRIBE at boot up and in the process be discovered by the PBX with the same type PnP feature support.

On the phone side, after the phone boots up, it will send out multicast SUBSCRIBE message. When the UCM6102/UCM6104/UCM6108/UCM6116 receives the SUBSCRIBE, a SIP NOTIFY message will

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 33 of 108

be sent to the phone with config server path URL in the NOTIFY message body. The phone will then use the path to download the config file generated in the UCM6102/UCM6104/UCM6108/UCM6116.

DHCP OPTION 66

This method should be used on the UCM6102 because only the UCM6102 has WAN and LAN port with LAN port supporting the router function. When the phone restarts (by default DHCP Option 66 is turned on), it will send out a DHCP DISCOVER request. The UCM6102 receives it and returns DHCP

OFFER with the config server path URL in Option 66. The phone will then use the path to download the config file generated in the UCM6102/UCM6104/UCM6108/UCM6116.

mDNS

The mDNS process is similar to the SIP SUBSCRIBE.

To start the auto provisioning process, under Web GUI->PBX->Basic/Call Routes->Zero Config, click on

"Auto Provision Setting" and fill in the auto provision information.

Figure 15: Auto Provision Setting

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 34 of 108

Table 13: Auto Provision Setting

Enable Zero Config Enable or disable the zero config feature on the PBX. The default setting is Yes.

Automatically Assign Extension If enabled, when the device is discovered, the PBX will automatically assign an extension to the device. The default setting is disabled.

Starting Extension Specify the starting extension to be created/assigned. If the extension is assigned to existing device already, this extension will be skipped and the next available extension will be used. The default setting is 6000.

Generate Random Password If enabled, random password will be generated for the extension when it's created. Otherwise, default password will be used.

Default Password Specify default password for the extension if no random password is generated. The default setting is "admin".

Click on "Save" to start the discovery and provisioning process. Reboot the device and the assigned extension will be registered after booting up.

MANUAL PROVISIONING

DISCOVERY

Users could manually discover the device by specifying the IP address or scanning the entire network.

Three methods are supported to scan the devices.

• PING

• ARP

• SIP MESSAGE (OPTIONS)

Click on "Auto Discover", fill in the scan method and scan IP. Then click on "Save" to start discovering the devices within the same network.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 35 of 108

Figure 16: Auto Discover

The following figure shows a list of discovered phones. The MAC address, IP Address, Extension (if assigned), Version, Vendor, Model, Connect Status, Create Config, Options (Edit/Delete) are displayed in the list.

Figure 17: Discovered Devices

ASSIGNMENT

In the discovered list, click on to assign an extension to the device.

Figure 18: Assign Extension To Device

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 36 of 108

Users could also directly create a new device and assign the extension at one time. Click on "Create New

Device" and the following window will be popped out. Fill in the MAC address or IP address, and then select the extension to assign to the device. Click on "Save" to add the device to the provision list.

Figure 19: Create New Device

PROVISIONING

After the discovery and assignment, reboot the device. It will download the config file and get provisioned with the assigned extension registered.

EXAMPLES

Depending on the topology, the discovery and provisioning can be done in different ways.

Example 1:

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 37 of 108

Figure 20: Provisioning Example 1

The above figure shows a common setup among small businesses, where the

UCM6102/UCM6104/UCM6108/UCM6116 is placed behind a company’s router or firewall. The phones are in the same network as the UCM6102/UCM6104/UCM6108/UCM6116 and can be discovered automatically by UCM6102/UCM6104/UCM6108/UCM6116 using the Zero Config feature.

Example 2:

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 38 of 108

Figure 21: Provisioning Example 2

This is another typical setup. In this setup, the UCM6102/UCM6104/UCM6108/UCM6116 is placed directly over the internet (outside from the network where the phones are deployed). Under this topology, the

UCM6102/UCM6104/UCM6108/UCM6116 cannot reach the phones on its own and the typical auto discovery will not work.

In this case, the phones can still be provisioned. But the UCM6102/UCM6104/UCM6108/UCM6116 will need help to get the phones to point itself to the UCM6102/UCM6104/UCM6108/UCM6116 first. One possible solution could be as follows.

• Turn on DHCP Option 66 in the network where the phones are deployed and set the value as:

option tftp-server-name "http(s)://ucm_ip_address:port/zccgi".

• All Grandstream phones have DHCP Option 66 turned on by default.

• Once the phone is provisioned with the DHCP Option 66, it will be redirected to the

UCM6102/UCM6104/UCM6108/UCM6116 and send request for config file.

• When the phone requests cfgMAC.xml from the UCM6102/UCM6104/UCM6108/UCM6116, the

UCM6102/UCM6104/UCM6108/UCM6116 will add the phone to the provision list.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 39 of 108

EXTENSIONS

CREATE NEW USER

To manually create new user, go to Web GUI->PBX->Basic/Call Routes->Extensions. Click on "Create

New User" and a new window will show to fill in the details. The configuration parameters are as follows.

Table 14: Extension Configuration Parameters

General

Extension

CallerID Name

CallerID Number

Permission

SIP/IAX Password

Enable Voicemail

Voicemail Password

Email Address

Call Forward Unconditional

Call Forward No Answer

Call Forward Busy

Ring Timeout

The extension number associated with the user.

Configure the CallerID Name associated with the user. Number, letter, or space are allowed.

Configure the CallerID Number that would be applied for outbound calls from this user.

Note:

The ability to manipulate your outbound Caller ID may be limited by your

VoIP provider.

Select permission for the user. The available permissions are Internal,

Local, National and International. The default permission is Internal.

Configure the password for the user. A random secure password will be automatically generated. It is recommended to use this password for security purpose.

Enable Voicemail for the user. The default setting is enabled.

Configure Voicemail password (digits only). A random numeric password is automatically generated.

Fill in the Email address for the user.

Configure the Call Forward Unconditional target number. If not configured, the Call Forward Unconditional feature is deactivated.

Configure the Call Forward No Answer target number. If not configured, the Call Forward No Answer feature is deactivated.

Configure the Call Forward Busy target number. If not configured, the

Call Forward Busy feature is deactivated.

Configure the number of seconds to ring the user before sending to the user's voicemail (if enabled) or hangup. The default setting is 60 seconds.

Technology

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 40 of 108

SIP

IAX

Analog Station

Check SIP if the user is using SIP or a SIP device.

Check IAX if the user is using IAX or a IAX device.

Select the port number if the user is attached on the analog port of the

PBX.

SIP Settings

NAT

Call Reinvite

DTMF Mode

Insecure

Use NAT when the PBX is on a public IP communicating with devices hidden behind NAT (e.g., broadband router). If there is one-way audio issue, usually it's related to NAT configuration or Firewall's support of

SIP and RTP ports.

By default, the PBX will route the media steams from SIP endpoints through itself. If enabled, the PBX will attempt to negotiate with the endpoints to route the media stream directly. It is not always possible for the PBX to negotiate endpoint-to-endpoint media routing. The default setting is No.

Select DTMF mode for the user to send DTMF. The default setting is

RFC2833. If "Info" is selected, SIP INFO message will be used. If

"Inband" is selected, 64-kbit codec PCMU and PCMA are required.

When "Auto" is selected, RFC2833 will be used if offered, otherwise

Inband will be used.

• Port: Allow matching peers by IP address without matching port number.

• Invite: Authentication of incoming INVITE messages is not required.

• No: Normal IP-based matching and authenticated INVITES.

The default setting is Port.

If enabled, keep the NAT session open. The default setting is enabled.

Configure the number of seconds for the host to be up for Keep-alive.

Enable Keep-alive

Keep-alive Frequency

Other Settings

SRTP

FAX Detect

Strategy

Enable SRTP for the call.

Enable to detect fax signal from the user/trunk during the call and send the received fax to the Email address configured in this configuration page. If no Email address can be found for the user, send the received fax to the default Email address in FAX setting page.

Note:

If enabled, FAX cannot use Passthrough.

This option controls how the extension can be used on the device.

• Allow all

Device in any network can register using the extension.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 41 of 108

Disable Password

Codec Preference

• Only local subnets

Only the user in specific subnet can register using the extension. Up to three subnet can be specified.

• A specific IP Address.

Only the device on the specific IP address can register using the extension.

The default setting is "Allow all".

If set to Yes, when dialing out with outgoing rules, the user doesn't need enter the password.

Select audio and video codec for the user. The available codecs are:

PCMU, PCMA, GSM, G.726, G.722, G.729, G.723, ILBC, ADPCM,

LPC10, H.264, H.263, H.263p.

BATCH ADD EXTENSIONS

Under Web GUI->PBX->Basic/Call Routes->Extensions, click on "Batch Add Extensions" to start adding extensions in batch.

Table 15: Batch Add Extension Parameters

General

Start Extension

Create Number

Permission

Enable Voicemail

SIP/IAX Password

Voicemail Password

The starting extension number.

The number of extensions to be added.

Select permission for the user. The available permissions are Internal,

Local, National and International. The default permission is Internal.

Enable Voicemail for the user. The default setting is enabled.

Configure the SIP/IAX password for the users.

• User Random Password.

A random secure password will be automatically generated. It is recommended to use this password for security purpose.

• Use Extension as Password.

• Enter a password to be used.

Configure Voicemail password (digits only) for the users.

• User Random Password.

A random password in digits will be automatically generated. It is recommended to use this password for security purpose.

• Use Extension as Password.

• Enter a password to be used.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 42 of 108

Technology

SIP

IAX

SIP Settings

NAT

Call Reinvite

DTMF Mode

Insecure

Enable Keep-alive

Keep-alive Frequency

IAX Settings

Max Call Numbers

Require Call Token

Other Settings

SRTP

FAX Detect

Check SIP if the users are using SIP or a SIP device.

Check IAX if the users are using IAX or a IAX device.

Use NAT when the PBX is on a public IP communicating with devices hidden behind NAT (e.g., broadband router). If there is one-way audio issue, usually it's related to NAT configuration or Firewall's support of

SIP and RTP ports.

By default, the PBX will route the media steams from SIP endpoints through itself. If enabled, the PBX will attempt to negotiate with the endpoints to route the media stream directly. It is not always possible for the PBX to negotiate endpoint-to-endpoint media routing. The default setting is No.

Select DTMF mode for the user to send DTMF. The default setting is

RFC2833. If "Info" is selected, SIP INFO message will be used. If

"Inband" is selected, 64-kbit codec PCMU and PCMA are required.

When "Auto" is selected, RFC2833 will be used if offered, otherwise

Inband will be used.

• Port: Allow matching peers by IP address without matching port number.

• Invite: Authentication of incoming INVITE messages is not required.

• No: Normal IP-based matching and authenticated INVITES.

The default setting is Port.

If enabled, keep the NAT session open. The default setting is enabled.

Configure the number of seconds for the host to be up for Keep-alive.

Limit the maximum amount of call numbers allowed for a single IP address.

If set to Yes, call token is required. If set to "Auto", it may lock out users who depend on backward compatibility when peer authentication credentials are shared between physical endpoints. The default setting is Yes.

Enable SRTP for the call.

Enable to detect fax signal from the user/trunk during the call and send the received fax to the Email address configured in this configuration page. If no Email address can be found for the user, send the received

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 43 of 108

Disable Password

Codec Preference fax to the default Email address in FAX setting page.

Note:

If enabled, FAX cannot use Passthrough.

If set to Yes, when dialing out with outgoing rules, the user doesn't need enter the password.

Select audio and video codec for the user. The available codecs are:

PCMU, PCMA, GSM, G.726, G.722, G.729, G.723, ILBC, ADPCM,

LPC10, H.264, H.263, H.263p.

EDIT EXTENSION

All the PBX extensions are listed under Web GUI->PBX->Basic/Call Routes->Extensions, with CallerID

Name, Technology, IP/Port and registration status displayed. Each extension has a checkbox to be selected and options for users to edit.

Edit single extension

Click on

to start editing the extension. The configuration options are listed in

Table 14: Extension

Configuration Parameters

.

Reboot the user

Click on to send NOTIFY reboot event to the device with the extension registered.

Delete single extension

Click on to delete the extension.

Modify selected extensions

Select the checkbox for the extension(s). Then click on "Modify Selected Extensions" to edit the

extensions in a batch. The configuration options are listed in

Table 15: Batch Add Extension Parameters

.

Delete selected extensions

Select the checkbox for the extension(s). Then click on "Delete Selected Extensions" to delete the extension(s).

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 44 of 108

TRUNKS

ANALOG TRUNKS

Go to Web GUI->PBX->Basic/Call Routes->Analog Trunks to add and edit analog trunks.

• Click on "Create New Analog Trunk" to add a new analog trunk.

• Click on

to edit the analog trunk.

• Click on

to delete the analog trunk.

The analog trunk options are listed in the table below.

Table 16: Analog Trunk Configuration Parameters

Channels

Trunk Name

Select the channel for the analog trunk.

• UCM6102: 2 channels

• UCM6104: 4 channels

• UCM6108: 8 channels

• UCM6116: 16 channels

A unique label to identify the trunk when listed in outbound rules, incoming rules, and etc.

Advanced Options

Busy Detection

Busy Count

Congestion Detection

Congestion Count

Enable Polarity Reversal

Polarity On Answer Delay

Busy Detection is used to detect far end hangup or for detecting busy signal. Enable to turn this feature on

If Busy Detection is enabled, it is also possible to specify how many busy tones to wait for before hanging up. The default is 4, but better results can be achieved if set to 6 or even 8. Mind that the higher the number, the more time that will be needed to hangup a channel, but lowers the probability that you will get random hangups.",

Congestion detection is used to detect far end congestion signal. Enable to turn this feature on.

If congestion detection is enabled, it is also possible to specify how many congestion tones to wait for. The default setting is 2.

If this option is enabled, the reception of a polarity reversal will mark when a outgoing call is answered by the remote party. in some countries, a polarity reversal is used to signal the disconnect of a phone line, the call will be considered \"hung up\" on a polarity reversal.", minimal time period (ms) between the answer polarity switch and

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 45 of 108

RX Gain

TX Gain hangup polarity switch. (default: 600ms)",

Gain for the receive channel of analog FXO port. Range: -13.5 (dB) to +

12.0 (dB).

Gain for the transmit channel of analog FXO port. Range: -13.5 (dB) to +

12.0 (dB).

Ring Timeout

Busy Tone unit: milisecond . Trunk (FXO) devices must have a timeout to determine if there was a hangup before the line was answered. This value can be tweaked to shorten how long it takes before asterisk considers a non-ringing line to have hungup.",

Enabling this option enabled Caller ID detection Use CallerID

Caller ID Start

Current Disconnect Threshold This is the periodic time in milliseconds that the PBX will use to check on

(ms) a voltage drop in the line. Default setting is 200ms.

CID Signalling This option defines the type of Caller ID signalling to use: bell (bell202 as used in the United States), v23 (as used in the UK), v23_jp (as used in Japan), or dtmf (as used in Denmark, Sweden, and Holland)."

Tone Country

This options allows one to define the start of a Caller ID signal: Ring, to start when a ring is received, or Polarity, to start when a polarity reversal is started

Select country for tone settings. You can also select Custom and set the values manually.

Syntax: f1=val[@level][,f2=val[@level]],c=on1/off1[-on2/off2[-on3/off3]];

Frequencies are in Hz and cadence on and off are in ms.

Frequencies Range: [0, 4000)

Busy Level Range: (-300, 0)

Cadence Range: [0, 16383].

Select Tone Country "Custom" to edit manually.

Default value: f1=480,f2=620,c=250/250

Congestion Tone Syntax: f1=val[@level][,f2=val[@level]],c=on1/off1[-on2/off2[-on3/off3]];

Frequencies are in Hz and cadence on and off are in ms.

Frequencies Range: [0, 4000)

Busy Level Range: (-300, 0)

Cadence Range: [0, 16383].

Select Tone Country "Custom" to edit manually.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 46 of 108

Default value: f1=480,f2=620,c=250/250

VOIP TRUNKS

Go to Web GUI->PBX->Basic/Call Routes->VoIP Trunks to add and edit VoIP trunks.

• Click on "Create New SIP/IAX Trunk" to add a new VoIP trunk first. Then click on

to configure more options for the VoIP trunk.

• Click on

to delete the VoIP trunk.

The VoIP trunk options are listed in the table below.

Table 17: VoIP Trunk Configuration Parameters

Create New SIP/IAX Trunk

Type

Provider Name

Select the VoIP trunk type.

• Peer SIP trunk

• Register SIP trunk

• Peer IAX trunk

• Register IAX trunk

A unique label to help you identify this trunk when listed in outbound rules, incoming rules etc.",

Host Name IP address or URL for your VoIP providers server.",

VoIP Trunk Configuration Parameters

Provider Name

Host Name

Configure the provider name for the VoIP trunk.

Configure the host name for the VoIP trunk.

Transport

Caller ID

CallerID Name

Codec Preference

Enable Qualify

Enable FAX Detect

Configure the SIP transport protocol "UDP", "TCP" or "TLS".

Configure the Caller ID.

The new name of caller to replace when extension was not set CallerID

Name.",

Select audio and video codec for the VoIP trunk. The available codecs are:

PCMU, PCMA, GSM, G.726, G.722, G.729, G.723, ILBC, ADPCM,

LPC10, H.264, H.263, H.263p.

If enabled, the PBX will send SIP OPTIONS to check if the device is still alive. The default setting is disabled.

Enable both CNG and T.38 detect. The default setting is disabled.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 47 of 108

SRTP Enable SRTP for the VoIP trunk. The default setting is disabled.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 48 of 108

CALL ROUTES

OUTBOUND ROUTES

An outgoing calling rule pairs an extension pattern with a trunk used to dial the pattern. This allows different patterns to be dialed through different trunks (e.g., "Local" 7-digit dials through a FXO while "Long distance"

10-digit dials through a low-cost SIP trunk). Users can also set up a failover trunk to be used when the primary trunk fails.

Go to Web GUI->PBX->Basic/Call Routes->Outbound Routes to add and edit outbound rules.

• Click on "Create New Outbound Rule" to add a new outbound route.

• Click on

to edit the outbound route.

• Click on

to delete the outbound route.

• Click on

to move the outbound route up/down to arrange the sequence.

Calling Rule Name

Pattern

Privilege Level

Pin Set

Send This Call Trough Trunk

Table 18: Outbound Route Configuration Parameters

Configure the calling rule name (e.g., local).

• All patterns are prefixed with the "_".

• X: Any Digit from 0-9.

• Z: Any Digit from 1-9.

• N: Any Digit from 2-9.

• ".": Wildcard. Match one or more characters.

• "!": Wildcard. Match zero or more characters immediately.

Example:

[12345-9]: Any digit from 1 to 9.

Select privilege level for the outbound rule.

• Local: The lowest level required. All users can use this rule.

• National: Users with National level or International level are allowed to use this rule.

• International: The highest level required. Only users with international level can use this rule.

Configure the password for users to use this rule.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 49 of 108

Use Trunk

Strip

Prepend

Select the trunk for this outbound rule.

Allows the user to specify the number of digits that will be stripped from the beginning of the dialed string before the call is placed via the selected trunk.

Example:

The users will dial 9 as the first digit of a long distance calls. However, 9 should not be sent out via analog lines and the PSTN line. In this case, 1 digit should be stripped before the call is placed.

Specify the digits to be prepended before the call is placed via the trunk.

Those digits will be prepended after the dialing number is stripped.

Use Failover Trunk

Failover Trunk

Strip

Prepend

Failover trunks can be used to make sure that a call goes through an alternate route, when the primary trunk is busy or down. If "Use Failover

Trunk" is enabled and "Failover trunk" is defined, the calls that cannot be placed via the regular trunk may have a secondary trunk to go through.

Example:

The user's primary trunk is a VoIP trunk and the user would like to use the PSTN when the VoIP trunk is not available. The PSTN trunk can be configured as the failover trunk of the VoIP trunk.

Allows the user to specify the number of digits that will be stripped from the beginning of the dialed string before the call is placed via the selected trunk.

Example:

The users will dial 9 as the first digit of a long distance calls. However, 9 should not be sent out via analog lines and the PSTN line. In this case, 1 digit should be stripped before the call is placed.

Specify the digits to be prepended before the call is placed via the trunk.

Those digits will be prepended after the dialing number is stripped.

INBOUND ROUTES

Inbound routes can be configured via Web GUI->PBX->Basic/Call Routes->Inbound Routes.

• Click on "Create New Inbound Rule" to add a new inbound route.

• Click on "DID Features" to configure DID features for the inbound route.

• Click on

to edit the inbound route.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 50 of 108

• Click on

to delete the inbound route.

Trunks

DID Pattern

Privilege Level

Default Destination

Table 19: Inbound Route Configuration Parameters

Select the trunk to configure the inbound route.

• All patterns are prefixed with the "_".

• X: Any Digit from 0-9.

• Z: Any Digit from 1-9.

• N: Any Digit from 2-9.

• ".": Wildcard. Match one or more characters.

• "!": Wildcard. Match zero or more characters immediately.

Example:

[12345-9]: Any digit from 1 to 9.

Select privilege level for the inbound rule.

• Local: The lowest level required. All users can use this rule.

• National: Users with National level or International level are allowed to use this rule.

• International: The highest level required. Only users with international level can use this rule.

Select the default destination.

• Extension

• Extension's voicemail

• Call Queue

• Conference Room

• Operator

• Hangup

• Voicemail Dial Code

• Congestion

• Local Extension by DID

Time Condition

Start Time

End Time

Date

Destination

Select the start time hour:minute for the trunk to use the inbound rule.

Select the end time hour:minute for the trunk to use the inbound rule.

Select "By Week" or "By Day" and specify the date for the trunk to use the inbound rule.

Select the destination when the inbound rule is used at the configured time range..

• Extension

• Extension's voicemail

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 51 of 108

DID Features

Dial Trunk

DID Destination

• Call Queue

• Conference Room

• Operator

• Hangup

• Voicemail Dial Code

• Congestion

• Local Extension by DID

If enabled, users can dial outbound calls by DID through inbound trunks.

The privilege level can be set according to the corresponding inbound rules.

Select the DID destination. Only the selected category can be reached by DID.

• User Extension. This is selected by default.

• Conference.

• Call Queue.

• Ring Group.

• Page/Intercom Group.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 52 of 108

CONFERENCE BRIDGE

Conference bridge configurations can be accessed under Web GUI->PBX->Call Features->Conference.

Users could create, edit, view and delete conference bridges. The conference room status and activity will show in the page as well.

• Click on "Create New Conference Room" to add a new conference bridge.

• Click on

to edit the conference room.

• Click on

to invite a user to the conference. The user will receive the ring to join the conference.

• Click on

to kick a participant in the conference. This will hang up the conference call on the user.

• Click on

to lock the conference room.

• Click on

to delete the conference bridge.

Extension

Password

Admin Password

Enable Caller Menu

Record conference

Quite Mode

Wait For Admin

Enable User Invite

Table 20: Conference Bridge Configuration Parameters

Configure the conference number for the users to dial and join the conference.

When configured, the users who would like to join the conference call must enter this password before accessing the conference room.

Configure the password to join the conference room as administrator.

When enabled, conference participant could press the * key to access the conference bridge menu. The default setting is disabled.

When enabled, the calls in this conference room will be recorded in a .wav format file. The default setting is disabled.

When enabled, if there are users entering or leaving the conference room, voice prompt or notification tone won't be played. The default setting is disabled.

When enabled, the participants will not hear each other until the admin joins the conference room. The default setting is disabled.

When enabled, users could press 0 to invite other users to join the conference. The default setting is disabled.

Note:

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 53 of 108

Announce Callers

Admin can always press 0 to invite other users to the conference.

When enabled, announcement will be made to all conference participants when there is user joining in the conference. The default setting is disabled.

Play Hold Music For First When enabled, the PBX will play Hold music to the first participant until

Caller another user joins the conference room. The default setting is disabled.

Invite User via Trunk from Web

GUI with password will skip the authentication for the invited users. Please be cautious to use this option. The default setting is disabled.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 54 of 108

IVR

CONFIGURING IVR

IVR configurations can be accessed under Web GUI->PBX->Call Features->IVR. Users could create, edit, view and delete IVR.

• Click on "Create New IVR" to add a new IVR.

• Click on

to edit the IVR configuration.

• Click on

to delete the IVR.

Name

Extension

Dial Other Extensions

Dial Trunk

Permission

Welcome Prompt

Timeout

Timeout Prompt

Invalid Prompt

Timeout Repeat Loops

Invalid Repeat Loops

Key Press Event

Table 21: IVR Configuration Parameters

Configure the name of the IVR. Letters, digits, underscore and hyphen are allowed.

Enter the extension number for users to access the IVR.

If enabled, callers to the IVR can dial extensions other than the ones explicitly defined in the IVR. The default setting is disabled.

If enabled, users can use trunk with configured permission.

Select permission for users to use trunk for outgoing calls.

Select a audio file to play as the welcome prompt. Click on "Prompt" to add additional audio file.

After playing the prompts in the IVR, the PBX will wait a period of time to detect DTMF entry. This period of time is the timeout (in seconds). The default setting is 10 seconds.

Select the prompt message to be played when timeout occurs.

Select the prompt message to be played when an invalid extension is pressed.

Select the repeat time if no DTMF input. After the repeat time, go to the timeout destination if configured, otherwise hangup. The default setting is 4.

Select the repeat time if the input is invalid. After the repeat time, go to the timeout destination if configured, otherwise hangup. The default setting is 4.

Select the event for each key pressing for 0-9, *.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 55 of 108

The event options are:

Extension

VoiceMail

Conference Rooms

VoiceMail Group

IVR

Ring Group

Queues

Page Group

IVR Prompt

Hangup

CREATING IVR PROMPT

To Record New IVR Prompt or Upload IVR Prompt, click on "Prompt" next to the "Welcome Prompt" option and the users will be redirected to IVR Prompt page. Or users could go to Web GUI->PBX->Internal

Options->IVR Prompt page directly.

Figure 22: Click On Prompt To Create IVR Prompt

RECORD NEW IVR PROMPT

In Web GUI->PBX->Internal Options->IVR Prompt page, click on "Record New IVR Prompt" and follow the steps below to record new IVR prompt.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 56 of 108

Figure 23: Record New IVR Prompt

• Specify the IVR file name.

• Select the format (GSM or WAV) for the IVR file.

• Select the extension which will be dialed for the user to start recording the voice prompt.

• Click the "Record" button. A request will be sent to the PBX and the PBX will then call the extension for recording.

• Pick up the call from the extension and start the recording.

UPLOAD IVR PROMPT

In Web GUI->PBX->Internal Options->IVR Prompt page, click on "Upload IVR Prompt" and choose a file to upload. The requirement on the audio file is as follows:

• PCM encoded.

• 16 bits.

• 8000HZ mono.

• In .mp3 or .wav format; or raw/ulaw/alaw/gsm file with .ulaw or .alaw suffix.

• File size smaller than 5M.

Click on to select audio file from local PC and click on to start uploading.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 57 of 108

VOICE PROMPT

Language settings for voice prompt can be accessed under Web GUI->PBX->Internal

Options->Language. Users could upload a voice prompt package and then select the language in the list with available language options.

Figure 24: Language Settings For Voice Prompt

• Click on

to select a voice prompt package from local PC.

The uploaded file must be smaller than 20 megabytes with package structure:

[Package]

[voice prompt dir]

│[... dir]│[... files] info.txt (containing the language name for display, in UTF8)

• Click on

to start uploading.

• Voice Prompts Package Lists allows users to select the default language for voice prompt for internal calls, inbound calls and outbound calls.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 58 of 108

VOICEMAIL

CONFIGURING VOICEMAIL

General Voicemail settings can be accessed via Web GUI->PBX->Call Features->Voicemail.

Users could configure the PBX to send the users Email with the voicemail as attachment. Click on "Email

Settings For Voicemails" button to configure the Email attributes and content.

Table 22: Email Settings For Voicemails

Attach Recordings to E-Mail If enabled, voicemails will be sent to user's Email address as the configured template. The default setting is enabled.

Template For Voicemail Emails Fill in the "From:", "Subject:" and "Message:" content. The template variables are:

• \t: TAB

• ${VM_NAME}: Recipient's firstname and lastname

• ${VM_DUR}: The duration of the voicemail message

• ${VM_MAILBOX}: The recipient's extension

• ${VM_CALLERID}: The caller id of the person who left the message

• ${VM_MSGNUM}: The message number in your mailbox

• ${VM_DATE}: The date and time the message was left

Click on "Load Default" button to view a default template as an example.

Max Greeting

Figure 25: Default Email Template

Table 23: Voicemail Settings

Configure the maximum number of seconds for the voicemail greeting.

The default setting is 60 seconds.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 59 of 108

Dial 0 For Operator

Max Messages Per Folder

Max Message Time

Say Message Caller-ID

Say Message Duration

Play Envelope

Allow Users To Review

If enabled, the caller can press 0 to exit the voicemail application and connect to the configured operator's extension.

Configure the maximum number of messages in users' voicemail folders. The default setting is 25.

Configure the maximum length of the voicemail message (in seconds).

The default setting is 2 minutes.

If enabled, the caller ID of the user leaving the message will be announced at the beginning of the voicemail message. The default setting is disabled.

If enabled, the message duration will be announced at the beginning of the voicemail message. The default setting is disabled.

If enabled, introduction of each message will be played when accessed from the voicemail application. The default setting is enabled.

If enabled, users can review the message before sending out. The default setting is disabled.

CONFIGURING VOICEMAIL GROUP

Voicemail Group can be configured under Web GUI->PBX->Call Features->Voicemail Group. In this page, users could create voicemail group which contains members that will receive the voicemail if the voicemail group extension has voice messages. Click on "Create New Voicemail Mail Group" to configure the group.

Figure 26: Voicemail Group

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 60 of 108

• Enter the Voicemail Group Extension. The voicemail messages left to this extension will be forwarded to all the voicemail group members.

• Configure the Name to identify the voicemail group. Letters, digits, underscore and hyphen are allowed.

• Select available mailboxes from the right list and add them to the left list.

• Click Save the finish the configuration.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 61 of 108

RING GROUP

Users could create extension for ring group which contains members that will receive the call with specific ring strategy if the group extension has incoming calls.

CONFIGURING RING GROUP

Ring group settings can be accessed via Web GUI->PBX->Call Features->Ring Group.

Figure 27: Ring Group

• Click on "Create New Ring Group" to add ring group.

• Click on

to edit the ring group.

• Click on

to delete the ring group.

RING GROUP PARAMETERS

Ring Group Name

Extension

Ring Group Members

Ring Strategy

Table 24: Ring Group Parameters

Configure ring group name to identify the ring group. Letters, digits, underscore and hyphen are allowed.

Configure the ring group extension.

Select available users to the ring group member list. Click on

to arrange the order.

Select the ring strategy.

• Ring All Simultaneously. Ring all the members at the same time when there is incoming call to the ring group extension. If any of the member answers the call, it will stop ringing.

• Ring In Order. Ring the members with the configured order one by one. If the first member doesn't answer the call, it will stop ringing the first member and start ringing the second member.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 62 of 108

Seconds to Ring Each Member Configure the number of seconds to ring each member. If set to 0, it will keep ringing (users could configure the ring timeout on the phone side as well). The default setting is 30 seconds.

Enable Voicemail

Secret

If enabled, the ring group extension can use voicemail.

Configure the password to access the ring group voicemail.

Email Address Configure the Email address of the ring group extension.

Figure 28: Ring Group Configuration

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 63 of 108

PAGING AND INTERCOM GROUP

Paging and intercom can be configured in group level under Web GUI->PBX->Call

Features->Paging/Intercom.

• Click on "Create New Page/Intercom Group" to add page/intercom group.

Figure 29: Page/Intercom Group

Table 25: Page/Intercom Group Parameters

Extension

Type

Configure page/intercom group extension.

Select "2-way Intercom" or "1-way Page".

Page/Intercom Group

Select available users from the right list to the left.

Members

• Click on

to edit the page/intercom group.

• Click on

to delete the page/intercom group.

• Click on "Paging/Intercom Group Settings" to edit Alert-Info Header (see figure below). To edit page/intercom feature code, click on "Feature Codes" in the following figure.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 64 of 108

Figure 30: Page/Intercom Group Settings

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 65 of 108

CALL QUEUE

CONFIGURING CALL QUEUE

Call queue settings can be accessed via Web GUI->PBX->Call Features->Call Queue.

Figure 31: Call Queue

• Click on "Create New Queue" to add call queue.

• Click on

to edit the call queue.

• Click on

to delete the call queue.

• Click on "Agent Login Settings" to configure Agent Login Extension Postfix and Agent Logout

Extension Postfix. For example, if the call queue extension is 6500, Agent Login Extension Postfix is * and Agent Logout Extension Postfix is **, users could dial 6500* to login and dial 6500** to logout.

CALL QUEUE PARAMETERS

Extension

Name

Strategy

Music On Hold

Table 26: Call Queue Parameters

Configure the call queue extension.

Configure the name to identify the call queue.

Select the strategy for the call queue.

• RingAll: Ring all available Agents simultaneously until one answers.

• Linear: Ring agents in the specified order specified.

• LeastRecent: Ring the agent being least recent called.

• FewestCalls: Ring the agent with the fewest completed calls.

• Random: Ring a random agent.

• RRmemory: Ring the agents in Round Robin scheduling with memory.

Select the Music On Hold class for the call queue.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 66 of 108

Leave When Empty

John Empty

Dynamic Login Password

TimeOut

Wrapup Time

Max Len

Report Hold Time

Wait Time

Static Agents

Note:

Music On Hold classes can be managed from PBX->Internal

Options->Music On Hold.

Configure whether forcing the caller to leave if the call queue has no agent.

• Yes: Callers will be forced to leave the call queue if the call queue is empty.

• No: Never force the callers to leave the call queue when the queue is empty.

• Strict: Callers will be forced to leave the call queue if the agents are paused, invalid or unavailable. This is the default setting.

Configure whether the callers can join the call queue if the queue has no agent. The default setting is No.

• Yes: Callers can always join a call queue.

• No: Callers cannot join the queue if the queue has no agent.

• Strict: Callers cannot join a queue if the agents are paused, in an invalid state or unavailable.

If enabled, the configured PIN number is required for the agent to login.

The default setting is disabled.

Configure the number of seconds an agent will ring before the call goes to the next agent. The default setting is 15 seconds.

How many seconds after the completion of a call an Agent will have before the Queue can ring them with a new call. 0 means no delay."

How many calls can be queued at once. This count does not include calls that have been connected with Agents, it only includes calls that have not yet been connected. Default is 0, which is no limit. When the limit has been reached, a caller will hear a busy tone and advance to the next calling rule after attempting to enter the queue.",

If enabled, the PBX will report (to the agent) the duration of time of the call before connected to the agent.

If enabled, users will be disconnected after the configured number of seconds. The default setting is disabled.

Note:

It is recommended to configure Wait Time longer than the Wrapup Time.

Select the available agents from the right list to the left. Click on

to arrange the order.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 67 of 108

MUSIC ON HOLD

Music On Hold settings can be accessed via Web GUI->PBX->Internal Options->Music On Hold. In this page, users could configure music on hold class and the music files. The "default" Music On Hold class already have 5 audio files defined for users to use.

Figure 32: Music On Hold Default Class

• Click on "Create New MOH Class" to add a new Music On Hold class.

• Click on

to delete the selected Music On Hold class.

• Click on

to select music file from local PC and click on to start uploading. The music file uploaded has to be 8 KHz Mono format with size less than 5M.

• Click on

to delete the sound file for the selected Music On Hold file.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 68 of 108

FAX/T.38

On the UCM6102/6104/6108/6116, the Fax extension can receive T.38 Fax to the specified Email address.

Fax/T.38 settings can be accessed via Web GUI->PBX->Internal Options->FAX/T.38.

CONFIGURING FAX/T.38

• Click on "Create New Fax Extension". In the popped up window, fill the extension, name and Email address to send the received FAX to.

• Click on "Settings to Fax" to configure the following options.

Table 27: FAX/T.38 Settings

Enable Error Correction Mode

(ECM)

Enable ECM for the Fax.

Maximum Transfer Rate Configure the maximum transfer rate during the Fax rate negotiation.

The possible values are 2400, 4800, 7200, 9600, 12000 and 14400. The default setting is 14400.

Minimum Transfer Rate

Default Email Address

Configure the minimum transfer rate during the Fax rate negotiation. The possible values are 2400, 4800, 7200, 9600, 12000 and 14000. The default setting is 2400.

Configure the Email address to send the received Fax to if user's Email address cannot be found.

• Click on

to edit the Fax extension.

• Click on

to delete the Fax extension.

Note:

Users could also use Fax2Mail if "FaxDetect" option is enabled for the user and VoIP trunk. The Fax signal will be detected during talking, and the detected Fax will be received and sent to user's Email. If user's

Email address is not configured, Fax will be sent to the default Email address in

Table 27: FAX/T.38 Settings

.

If the default Email address is empty, Fax will not be received.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 69 of 108

INTERNAL OPTIONS

The configuration for PBX internal options can be accessed via Web GUI->PBX->Internal Options.

INTERNAL OPTIONS/GENERAL

General Preferences

Global OutBound CID

Global OutBound CID Name

Operator Extension

Ring Timeout

This is the default global CallerID that is used for all outgoing calls when no other CallerID is defined. If ther "User" tab or "VoIP Trunks" tab does not have defined CallerID neither, this Global OutBound CID will be used for CallerID.

This is the global CallerID Name that is used for all outgoing calls. If this value is defined, all outgoing calls will have a "CallerId Name" set to this value. Usually this value could be your company name. Leave this value blank if you would like to have the users' "CallerID Name" display on outbound calls.

The operator extension is the number dialed when users press "0" to exit

Voicemail. It's also available in IVR option.

Number of seconds to ring an extension before sending to the user's voicemail box.

Extension Preferences

Enable Rand Password

Disable Extension Range

If enabled, random password will be generated when the extension is created. The default setting is enabled. It is recommended to enable it for security purpose.

If set to Yes, users could disable specified extension range. The default extension range assignment are:

User Extension: 6000-6299

Conference Extension: 6300-6399

IVR Extension: 7000-7100

Ring Group Extension: 6400-6499

Queue Extensions: 6500-6599

VoiceMail Group Extension: 6600-6699

Note:

It is recommended to keep the system assignment for PBX to work

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 70 of 108

properly.

INTERNAL OPTIONS/FEATURE CODES

Call Feature

Blind Transfer

Attended Transfer

Disconnect

Call Parking

Audio Record

Description

• Default code: #1.

• Enter the code during active call. After hearing "Transfer", enter the number to transfer to. Then the user will be disconnected.

• Options

- Neither: Disable the feature code.

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

• Default code: *2.

• Enter the code during active call. After hearing "Transfer", enter the number to transfer to and the user will be connected to this number. Hang up the call to complete the attended transfer.

• Options

- Neither: Disable the feature code.

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

• Default code: *0.

• Enter the code during active call to disconnect the call.

• Options

- Neither: Disable the feature code.

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

• Default code: #72.

• Enter the code during active call to park the call.

• Options

- Neither: Disable the feature code.

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

• Default code: *1.

• Enter the code to record the audio call.

• Options

- Neither: Disable the feature code.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 71 of 108

Audio Mix Record

Feature Digit Timeout

Extension to Dial to Park a Call

Extensions for Parked Calls

Parked Call Timeout (in secs)

Dial Voice Mail

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

• Default code: *3.

• Enter the code to record the audio call and the PBX will mix the streams natively on the fly as the call is in progress.

• Options

- Neither: Disable the feature code.

- Caller Enable: Enable the feature code on caller side only.

- Callee Enable: Enable the feature code on callee side only.

Do Not Disturb (DND) Active

Do Not Disturb (DND) Deactive

Call Forward Busy Active

• Default code: *77.

• Default code: *78.

• Default Code: *71.

• Enter the code and follow the voice prompt. Or enter the code followed by the extension to forward the call.

• Default Code: *72.

Call Forward Busy Deactive

Call Forward No Answer Active

• Default Code: *73.

• Enter the code and follow the voice prompt. Or enter the code followed by the extension to forward the call.

Call Forward No Answer Deactive

• Default Code: *74.

Call Forward Uncondition Active

• Default Code: *75.

• Enter the code and follow the voice prompt. Or enter the code followed by the extension to forward the call.

Call Forward Uncondiion Deactive

• Default Code: *76.

• Default Setting: 1000.

• This is the maximum timeout (in milliseconds) between the digits input of the feature code.

• Default Extension: 700.

• During an active call, press to park the call.

• Default Extension: 701-720.

• These are the extensions where the calls will be parked, i.e., parking lots that the parked calls can be retrieved.

• Default setting: 120.

• This is the timeout for the call to be parked. After the timeout, if the call is not retrieved, the extension who parked the call will be called back.

• Default Code: *98.

• Enter *98 and follow the voice prompt. Or dial *98 followed by the extension and # to access the entered extension's

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 72 of 108

Voice Mail Main

Agent Pause

Agent Unpause

Paging Prefix

Intercom Prefix

Call Pickup voicemail box.

• Default Code: *97.

• Press *97 to access the voicemail box.

• Default Code: *83.

• Pause the agent in all call queues.

• Default Code: *84.

• Unpause the agent in all call queues.

• Default Code: *81.

• To page an extension, enter the code followed by the extension number.

• Default Code: *80.

• To intercom an extension, enter the code followed by the extension number.

• Default Code: **.

• To pick up a call for extension xxxx, enter the code followed by the extension number xxxx.

INTERNAL OPTIONS/RTP SETTINGS

RTP Start

RTP End

Strict RTP

RTP Checksums

RTP port starting address. The default setting is 10000.

RTP port ending address. The default setting is 20000.

Enables/disables strict RTP protection. When enabled, RTP packets that do not come from the source of the RTP stream will be dropped.

The default setting is "Disable".

Enables/Disables RTP Checksums. The default setting is "Disable".

INTERNAL OPTIONS/HARDWARE CONFIG

Analog Hardware

Options

Tone Region

Advanced Settings

FXO Opermode

Select Loop Start or Kewl Start for each FXS port and FXO port.

Select country for default tones (dial tone, busy tone, ring tone and etc.

Specify On Hook Speed, Ringer Impedance, Ringer Threshold, Current

Limiting, TIP/RING voltage adjustment, Minimum Operational Loop

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 73 of 108

ACIM Override

FXS Opermode

TISS Override

PCMA Override

Boost Ringer

Fast Ringer

Low Power

Ring Detect

MWI Mode

Current, and AC Impedance as predefined for your country's analog line characteristics. Select the country in the list. FCC is equivalent to United

States. TBR21 is equivalent to Austria, Belgium, Denmark, Finland,

France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,

Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the

United Kingdom. If option is specified, FCC will be used by default.

Check to override AC Impedance.

Specify On Hook Speed, Ringer Impedance, Ringer Threshold, Current

Limiting, TIP/RING voltage adjustment, Minimum Operational Loop

Current, and AC Impedance as predefined for your country's analog line characteristics. Select the country in the list. FCC is equivalent to United

States. TBR21 is equivalent to Austria, Belgium, Denmark, Finland,

France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,

Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the

United Kingdom. The default setting is FCC.

Check to override Two-Wire Impedance Synthesis.

Specifies the codec to be used for analog lines. North American users should choose PCMU. All other countries, unless otherwise known, should be assumed to be PCMA. If no user choice is specified, the default is PCMU.

Configure whether normal ringing voltage (40V) or maximum ringing voltage (89V) for analog phones attached to the FXS port is required.

The default setting is Normal.

Configure to increase the ringing speed to 25HZ. This option can be used with "Low Power" option. The default setting is "Normal".

Configure the peak voltage during "Fast Ringer" operation. This option is used with "Fast Ringer" option. The default setting is "Normal".

Configure ring detection. If set to "Full Wave", false ring detection will be prevented for lines where Caller ID is sent before the first ring and proceeded by a polarity reversal, as in UK. The default setting is

"Standard".

Configure the type of Message Waiting Indicator detection on trunk

(FXO) interfaces.

• None: No detection

• FSK: Frequency Shift Key detection

• NEON: Neon MWI detection.

The default setting is "None".

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 74 of 108

INTERNAL OPTIONS/STUN MONITOR

STUN Server

STUN Refresh

Configures the STUN server to query.

Valid format:

[(hostname | IP-address) [':' port]

The default port number is 3478 if not specified.

Leave this field blank to disable STUN.

Number of seconds between STUN Refreshes. The default setting is 30 seconds.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 75 of 108

PBX SETTINGS

IAX SETTINGS

The UCM6102/UCM6104/UCM6108/UCM6116 IAX Settings can be accessed via Web GUI->PBX->IAX

Settings.

IAX SETTINGS/GENERAL

Bind Port

Bind Address

IAX1 Compatibility

No Checksums

Delay Reject

ADSI

Music On Hold Interpret

Music On Hold Suggest

Language

Bandwidth

Allows iax2 to listen to another port. The default setting is 4569.

Forces iax2 to bind to a specific address instead of all addresses. The default setting is 0.0.0.0.

Enables/disables iax1 style compatibility.

Enables/disables checksums.

Enables/disables iax2 to delay reject of calls to avoid DOS.

Enables/disables ADSI phone compatibility.

Specifies Music On Hold class.

Suggests Music On Hold for the channel.

Configures default language for the channel. This can be used by prompts.

Configures allowed codecs for different bandwidth requirement. The default setting is "Low".

IAX SETTINGS/CODECS

The following codes are supported in UCM6102/UCM6104/UCM6108/UCM6116 for IAX. Select the codecs from the right side list to the left side. Click on to arrange the order.

• PCMU

• PCMA

• GSM

• ILBC

• G.722

• G.726

• ADPCM

• LPC10

• G.729

• G.723

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 76 of 108

• H.263

• H.263p

• H.264

IAX SETTINGS/JITTER BUFFER

Enable Jitter Buffer

Force Jitter Buffer

Drop Count

MAX Jitter Buffer

MAX Interpolation Frames

Recync Threshold

Max Excess Buffer

Min Excess Buffer

Jitter Shrink Rate

Enables the use of jitter buffer on the receiving side of a SIP channel.

Forces the use of jitter buffer on the receiving side of a SIP channel.

Configures drop count.

Configures the maximum time (in milliseconds) 0 for the buffer.

Configures the maximum number of interpolated frames the jitter buffer should return consecutively.

Jumps in the frame timestamps over where the jitter buffer is resynchronized. This feature is useful to improve the quality of voice with big jumps in/broken timestamps sent from exotic devices and programs. The default setting is 1000.

Configures the maximum number (in milliseconds) to pad the jitter buffer.

Configures the minimum number (in milliseconds) to pad the jitter buffer.

Configures the jitter shrink rate.

IAX SETTINGS/REGISTRATION

Min Reg Expire

Max Reg Expire

IAX Thread Count

IAX Max Thread Count

Auto Kill

Authentication Debugging

Codec Priority

Type of Service

Trunk Frequency

Minimum duration (in seconds) of registrations/subscriptions. The default setting is 60.

Maximum duration (in seconds) of incoming registration/subscriptions.

The default setting is 3600.

Configures number of IAX threads.

Configures maximum number of IAX threads.

When set to "yes", the connection will be terminated if ACK for the NEW message is not received in 2000ms. Users could also specify number (in milliseconds) in addition to "yes" and "no".

Enables/disables IAX related debug output in log messages.

Configures codec negotiation priority to Caller, Host, Disabled or

Reqonly.

Configures ToS bit for preferred IP routing.

Configures frequency of trunk frames measured in milliseconds.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 77 of 108

Trunk Time Stamps

IAX SETTINGS/SECURITY

Call Token Optional

Enables/disables attaching time stamps to trunk frames.

Max Call Numbers

A single IP address or a range of IP addresses for which call token validation is not required in the form 11.11.11.11 or

11.11.11.11/22.22.22.22.

Limits the amount of call numbers allowed for a single IP address.

Numbers

Call Number Limits combined.

Limits the call numbers for a given IP range.

SIP SETTINGS

The UCM6102/UCM6104/UCM6108/UCM6116 IAX Settings can be accessed via Web GUI->PBX->SIP

Settings.

SIP SETTINGS/GENERAL

Authentication value as your host or domain name. The default setting is \"asterisk\". If a system name is configured in asterisk.conf, this value will be set to the configured system name.

The default setting is 5060. UDP Port to Bind to

IP Address to Bind to

Domain

Allow Guest Calls

Overlap Dialing Support

The default setting is 0.0.0.0, which means binding to all addresses.

Use comma to separate a list of domains that the

UCM6102/UCM6104/UCM6108/UCM6116 will be responsible for.

Enables/disables guest calls.

Enables/disables dialing support.

Allow Transfer Enables/disables all transfers (unless enabled in peers or users) initiated by the endpoint. The Dial() options 't' and 'T' are not related to whether SIP transfers are allowed or not.

Enable DNS SRV Lookups (on outbound calls)

Enables/disables DNS SRV lookups on calls.

MWI From When sending MWI NOTIFY requests, this value will be used in the

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 78 of 108

From Domain

Auto Domain

Allow External Domains

"From:" header as the \"name\" part. If no "fromuser" is configured, the

\"user\" part of the URI in the "From:" header will be filled with this value as well.

Configures the domain in the "From:" field of the SIP header. It may be required by some providers for authentication.

When turned on, the UCM6102/UCM6104/UCM6108/UCM6116 will add local host name and local IP to domain list.

Allow requests for domains that are not served by the

UCM6102/UCM6104/UCM6108/UCM6116.

SIP SETTINGS/CODECX

The following codes are supported in UCM6102/UCM6104/UCM6108/UCM6116 for IAX. Select the codecs from the right side list to the left side. Click on to arrange the order.

• PCMU

• PCMA

• GSM

• ILBC

• G.722

• G.726

• ADPCM

• LPC10

• G.729

• G.723

• H.263

• H.263p

• H.264

SIP SETTINGS/JITTER BUFFER

Enable Jitter Buffer

Force Jitter Buffer

Log Frames

Max Jitter Buffer

Resync Threshold

Enables/disables the use of jitter buffer on the receiving side of a SIP channel.

Forces the use of jitter buffer on the receiving side of a SIP channel.

Enable/disables jitter buffer frame logging.

Configures max length of the jitter buffer in milliseconds.

Jumps in the frame timestamps over where the jitter buffer is resynchronized. This feature is useful to improve the quality of voice

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 79 of 108

Implementation with big jumps in/broken timestamps sent from exotic devices and programs. The default setting is 1000.

The Jitter buffer implementation used on the receiving side of a SIP channel. Users could select "Fixed" (with size always equals to jbmaxsize) or "Adaptive" (with variable size which is the new jb of IAX2).

SIP SETTINGS/MISCELLANEOUS

Register

Register Timeout

Register Attempts

Video Max Bitrate (kb/s)

Support for SIP Video

Generate Manager Events

Reject NonMatching Invites

NonStandard G.726 Support

Register as a SIP user agent to a SIP proxy (provider).

The interval (in seconds) for the

UCM6102/UCM6104/UCM6108/UCM6116 to retry registration. The default setting is 20.

Number of registration attempts before the

UCM6102/UCM6104/UCM6108/UCM6116 gives up. The default setting is 0 (keep trying until the server side accepts the registration request).

Maximum bitrate (kb/s) for video calls. The default setting is 384.

Enables/disables SIP video support.

Generates manager events when SIP UA performs events (e.g. hold).

When rejecting an incoming INVITE or REGISTER request, always reject with "401 Unauthorized" instead of notifying the requester that if there is a matching user or peer for the request.

If the peer negotiates G726-32 audio, use AAL2 packing order instead of

RFC3551 packing order (this is required for Sipura and Grandstream

ATAs).

SIP SETTINGS/SESSTION TIMER

Session Timers

Session Expires

Min SE

Session Refresher

• Originate: always request and run session-timers.

• Accept: Run session-timers only when requested by other UA.

• Refuse: Do not run session timers.

The default setting is "Accept".

The maximum session refresh interval (in seconds). The default setting is 1800.

The minimum session refresh interval (in seconds). The default setting is

90.

Selects the session refresher to be UAC or UAS. The default setting is

UAC.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 80 of 108

TCP Bindaddr

TLS Enable

TLS Bindaddr

TLS Self Signed CA

TLS Cert

TLS CA Cert

A static address (and port) that will be in outbound SIP messages if the

SIP SETTINGS/TLS AND TCP

TCP Enable Enables/disables server for incoming TCP connections. The default setting is "No".

IP address for TCP server to bind to (0.0.0.0: binds to all interfaces). The default port number is 5060 if not specified.

Enables/disables server for incoming TLS (secure) connections. The default setting is "No".

IP address for TLS server to bind to (0.0.0.0: binds to all interfaces). The default port number is 5061 if not specified.

Note:

The IP address must match the common name (hostname) in the certificate. Please do not bind a TLS socket to multiple IP addresses.

For details on how to construct a certificate for SIP, please refer to the following document: http://tools.ietf.org/html/draft-ietf-sip-domain-certs

This is the CA certificate is the TLS server being connected to requires self signed certificate, including server's public key. This file will be renamed as "asterisk.ca" automatically.

Note:

The size of your ca file can't be larger than 2MB.

This is the Certificate file (*.pem format only) used for TLS connections.

This file will be renamed as "asterisk.pem" automatically.

Note:

The size of your certificate can't be larger than 2MB.

This file must be named with the CA subject name hash value. It contains CA's (Certificate Authority) public key, which is used to verify the accessed servers.

Note:

The size of your certificate can't be larger than 2MB.

The list of files under the CA Cert directory. TLS CA List

SIP SETTINGS/NAT

External Address

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 81 of 108

External Host

External Refresh

External TCP Port

External TLS Port

Local Network Address

NAT Mode

Allow RTP Reinvite

UCM6102/UCM6104/UCM6108/UCM6116 is behind NAT. If it's a hostname, it will only be looked up only.

Specifies an external host, which is similar to External Address except the hostname will be looked up every "External Refresh" interval and

Asterisk will perform DNS queries periodically.

Configures the refresh interval for the external host.

Configures the externally mapped TCP port when the

UCM6102/UCM6104/UCM6108/UCM6116 is behind a static NAT or

PAT.

Configures the externally mapped TLS port when

UCM6102/UCM6104/UCM6108/UCM6116 is behind a static NAT or

PAT. The default value is 5061.

A list of network addresses that are considered inside of the NAT network. Multiple entries are allowed, e.g., a reasonable set could be as follows:

192.168.0.0/255.255.0.0

This is a global NAT setting that will affects all peers and users.

• No: Use rport if the remote side requires it.

• Force rport: Force rport to always be on. This is the default setting.

• Yes: Force rport to always be on and perform comedia RTP handling.

• Comedia: Use rport if the remote side requires it and perform comedia RTP handling.

Note:

"comedia RTP handling" refers to the technique of sending RTP to the port where the other endpoint's RTP comes from. This can also be rephrased as "connection-oriented media".

When turned on, the UCM6102/UCM6104/UCM6108/UCM6116 will try to redirect the RTP media stream (audio) to go directly from the caller to the callee.

• Yes: Enables RTP Reinvite.

• NoNAT: Allows media path redirection (reinvite) but only when the peer is not be behind NAT. The RTP core can determine if the peer is behind NAT or not based on the IP address where the media comes from.

• Update: use UPDATE for media path redirection, instead of INVITE.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 82 of 108

Note:

Some devices do not support this (especially if one of them is behind

NAT).

SIP SETTINGS/ToS

The following options are provided to configure SIP ToS on the UCM6102/UCM6104/UCM6108/UCM6116.

ToS For Signaling Packets

ToS For RTP Audio Packets

Configure the Type of Service for SIP packets. The default setting is

None.

Configure the Type of Service for RTP audio packets. The default setting is None.

ToS For RTP Video Packets Configure the Type of Service for RTP video packets. The default setting is None.

Registration Time registration. The default setting is 120.

Max Registration/Subscription Configure the maximum length of time (in seconds) of incoming

Time registration and subscription allowed by the PBX. The default setting is

3600.

Min Registration/Subscription Configure the minimum length of time (in seconds) of incoming

Time registration and subscription allowed by the PBX. The default setting is

60.

Music On Hold Interpret Configure the Music On Hold class for the channel when being put on hold. This is used when the Music On Hold class is not set on the channel in the dialplan and the peer channel placing the call on hold doesn't suggest the Music On Hold class neither. The default Music On

Hold class will be used if not specified.

Music On Hold Suggest

Enable Relaxed DTMF

DTMF Mode

Configure the Music On Hold class to suggest to the peer channel when placing the peer on hold. It can be specified globally or per user/per peer. The default Music On Hold class will be used if not specified.

Configure to relax the DTMF handling. The default setting is disabled.

RTP Timeout

Select DTMF mode to send DTMF. The default setting is RFC2833. If

"Info" is selected, SIP INFO message will be used. If "Inband" is selected, 64-kbit codec PCMU and PCMA are required. When "Auto" is selected, RFC2833 will be used if offered, otherwise Inband will be used.

If there is no RTP activity in the timeout (in seconds) configured in this option, the call will be terminated. The default setting is no timeout. This

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 83 of 108

RTP Hold Timeout

Trust Remote Party ID

Send Remote Party ID

Generate In-Band Ringing

Server User Agent

Allow Nonlocal Redirect setting doesn't apply to calls on hold.

When the call is on hold, if there is no RTP activity in the timeout (in seconds) configured in this option, the call will be terminated. This value of RTP Hold Timeout should be larger than RTP Timeout. The default setting is no timeout.

Configure whether the Remote-Party-ID should be trusted. The default setting is disabled.

Configure whether the Remote-Party-ID should be sent. The default setting is disabled.

Configure whether the PBX should generate inband ringing. If "Never" is selected, inband ringing will not be generated even the end point device is not working properly. The default setting is Never.

Configure to replace the user agent string.

If enabled, 302 or Redirect is allowed to non-local SIP address. The default setting is disabled.

Add "user=phone" to URI

Send Compact SIP Headers

Time Between MWI Checks

If enabled, "user=phone" will be added to URI that contains a valid phone number. The default setting is disabled.

If enabled, compact SIP headers will be sent. The default setting is disabled.

Configure the default time (in seconds) between Mailbox checks for peers. The default setting is 10.

Min Roundtrip Time (T1 Time) Configure the minimum roundtrip time (in milliseconds) of the messages sent to the monitored hosts. The default setting is 100.

SIP SETTINGS/DEBUG

Enable SIP Debugging

Record SIP History

Dump SIP History

Subscribe Context

Allow Subscribe

Notify on Ringing

Enables/disables SIP debugging.

Records SIP history.

Dumps SIP history at the end of SIP dialog.

Configures a specific context for SUBSCRIBE requests. This setting is useful to limit subscriptions to local extensions.

Enables/disables support for subscriptions.

Sends out NOTIFY on ringing status.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 84 of 108

STATUS AND REPORTING

PBX STATUS

The UCM6102/UCM6104/UCM6108/UCM6116 monitors the status for Trunks, Extensions, Queues,

Conference Rooms, Interfaces and Parking lot. It presents administrators the real time status in different sections under web GUI->Status->PBX Status.

Figure 33: Status->PBX Status

TRUNKS

Users could see all the configured trunk status in this section.

Status

Figure 34: Trunk Status

Table 28: Trunk Status

Displays trunk status.

• For analog trunk, the possible status are:

Available

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 85 of 108

Trunks

Type

Busy

Unavailable

Unknown Error

• For SIP Peer trunk, the possible status are:

Unreachable: The hostname cannot be reached.

Unmonitored: QUALIFY feature is not turned on to be monitored.

Reachable: The hostname can be reached.

• For SIP Register trunk, the possible status are:

Registered

Unrecognized Trunk

Displays trunk name

Displays trunk Type.

• Analog: This trunk is an analog trunk

• SIP: This trunk is a SIP trunk

• IAX: This trunk is an IAX trunk

Username Displays username for this trunk.

Port/Hostname/IP Displays Port for analog trunk, or Hostname/IP for VoIP (SIP/IAX) trunk.

Other operations are also available in trunk status section:

• Click on "Trunks", the web page will redirect to trunk configuration page which can also be accessed via web GUI->PBX->Basic/Call Routes->Analog Trunks.

• Click on

to refresh the trunk status.

• Click on [ + ] to expand the status detail table.

• Click on [ - ] to hide the status detail table.

EXTENSIONS

Users could see all the configured extension status in this section.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 86 of 108

Figure 35: Extension Status

Table 29: Extension Status

Extension

Name/Label

Status

Type

Displays extension number (including feature code). The color indicator has the following definitions.

Green: Free

Blue: Ringing

Yellow: In Use

Grey: Unavailable

Displays name (callerID name) or label (feature code function) for the extension.

Displays message status for the extension.

Example: 2/4/1

Description: There are 2 urgent messages, 4 messages in total and 1 message that has been read already.

Displays extension type.

• SIP User

• IAX User

• Analog User

• Features

Other operations are also available in extension status section:

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 87 of 108

• Click on "Extensions", the web page will redirect to extension configuration page which can also be accessed via web GUI->PBX->Basic/Call Routes->Extensions.

• Click on

to refresh the extension status.

• Click on one of the tabs accordingly.

• Click on [ + ] to expand the status detail table.

• Click on [ - ] to hide the status detail table.

to display the corresponding extensions

QUEUES

Users could see all the configured call queue status in this section. The following figure shows the call queue 6500 being in used.

Figure 36: Queue Status

The current call status (caller ID, duration), agent status, service level, calls summary

(completed/abandoned) are shown for the call queue. The agent status is defined as below.

Table 30: Agent Status

The agent is available/idle.

The agent is talking/busy.

The agent is ringing.

The agent has been logged out.

On the UCM6102/UCM6104/UCM6108/UCM6116, Service Level is defined as the percentage of high-quality calls over all calls in the call queue, where high-quality call means calls answered within 10 seconds.

Other operations are also available in queue status section:

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 88 of 108

• Click on "Queues", the web page will redirect to call queue configuration page which can also be accessed via web GUI->PBX->Call Features->Call Queue.

• Click on

to refresh the call queue status.

• Click on [ + ] to expand the call queue detail.

• Click on [ - ] to hide the call queue detail.

CONFERENCE ROOMS

Users could see all the conference room status in this section. It shows all the configured conference rooms, current users and call duration for each user, as well as conference duration.

Figure 37: Conference Room Status

Other operations are also available in conference room status section:

• Click on "Conference Rooms", the web page will redirect to conference room configuration page which can also be accessed via web GUI->PBX->Call Features->Conference.

• Click on

to refresh the conference room status.

• Click on [ + ] to expand the conference room details.

• Click on [ - ] to hide the conference room details.

INTERFACES STATUS

This section displays interface/port connection status on the UCM6102/UCM6104/UCM6108/UCM6116.

The following example shows the interface status for UCM6116 with USB, SD card, LAN port, FXS1 connected.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 89 of 108

Figure 38: UCM6116 Interfaces Status

Table 31: Interface Status Indicators

USB connected.

USB disconnected.

SD Card connected.

SD Card disconnected.

LAN/WAN connected.

LAN/WAN not configured.

LAN/WAN disconnected.

FXS/FXO connected.

FXS/FXO waiting.

FXS/FXO busy.

FXS/FXO not configured.

FXS/FXO disconnected.

Other operations are also available in interface status section:

• Click on "Interfaces Status", the web page will redirect to hardware configuration page which can also be accessed via web GUI->PBX->Internal Options->Hardware Config.

• Click on

to refresh the interface status.

• Click on [ + ] to expand the interface details.

• Click on [ - ] to hide the interface details.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 90 of 108

PARKING LOT

The UCM6102/UCM6104/UCM6108/UCM6116 supports call park using feature code. When there is call being parked, this section will display the parking lot status.

Figure 39: Parking Lot Status

Table 32: Parking Lot Status

Caller ID

Channel

Extension

Displays the caller ID who parks the call.

Displays channel for the call park.

Displays the parking lot number where the call is parked/retrieved.

Timeout

Displays timeout (in seconds) for the parked call. The status page will dynamically update this timer from 120 seconds (default) to 0. When the timer reaches 0, the caller who parked the call will be called back.

Other operations are also available in parking lot status section:

• Click on "Parking Lot", the web page will redirect to feature codes page which can also be accessed via web GUI->PBX->Internal Options->Feature Codes.

• Click on

to refresh the parking lot status.

• Click on [ + ] to expand the parking lot details.

• Click on [ - ] to hide the parking details.

SYSTEM STATUS

The UCM6102/UCM6104/UCM6108/UCM6116 system status can be accessed via Web

GUI->Status->System Status, which displays the following system information.

General

Network

Storage Usage

Resource Usage

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 91 of 108

GENERAL

Under Web GUI->Status->System Status->General, users could check the hardware and software information for the UCM6102/UCM6104/UCM6108/UCM6116. Please see details in the following table.

Table 33: System Status->General

Status ->System Status -> General

Model Product model.

Part Number

System Time

Product part number.

Current system time.

Up Time

Idle Time

Boot

Core

Base

Program

Recovery

System up time since the last reboot.

System idle time since the last reboot.

Boot version.

Core version.

Base version.

Program version. This is the main software release version.

Recovery version.

NETWORK

Under Web GUI->Status->System Status->Network, users could check the network information for the

UCM6102/UCM6104/UCM6108/UCM6116. Please see details in the following table.

Table 34: System Status->Network

Status -> System Status -> Network

MAC Address Global unique ID of device, in HEX format. The MAC address can be found on the label coming with original box and on the label located on the bottom of the device.

IP Address

Gateway

IP address.

Default gateway address.

Subnet Mask

DNS

Subnet mask address.

DNS Server address.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 92 of 108

STORAGE USAGE

Users could access the storage usage information from Web GUI->Status->System Status->Storage

Usage. It shows the available and used space for the following partitions.

• Configuration partition

Asterisk server configuration files and service configuration files.

• Data partition

Voicemail, recording files, IVR file, music on hold files and etc.

• USB disk

USB disk will display if connected.

• SD Card

SD Card will display if connected.

Figure 40: System Status->Storage Usage

RESOURCE USAGE

When configuring and managing the UCM6102/UCM6104/UCM6108/UCM6116, users could access resource usage information to estimate the current usage and allocate the resources accordingly. Under

Web GUI->Status->System Status->Resource Usage, the current CPU usage and Memory usage are shown in the pie chart.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 93 of 108

Figure 41: System Status->Resource Usage

CDR (Call Detail Report)

A Call Detail Record (CDR) is a data record produced by telephone exchange activities or other telecommunications equipment documenting the details of a phone call that passed through the PBX. The

CDR is composed of the following data fields on the UCM6102/UCM6104/UCM6108/UCM6116.

Start Time. Format: 2013-03-27 16:47:03.

Duration. Format: 0:00:10.

Source. Format: 6012.

Destination. Format: 6005.

Caller ID. Format: "John Doe"<6012>.

Disposition. Format: NO ANSWER, BUSY, ANSWERED, or FAILED.

Users could filter the call report by specifying the date range and criteria, depending on how the users would like to include the logs to the report. Then click on the "View Report" button to display the generated report.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 94 of 108

Figure 42: CDR Filter

Table 35: CDR Filter Criteria

Inbound calls

Outbound calls

Internal calls

External calls

Inbound calls are calls originated from a non-internal source (like a VoIP trunk) and sent to an internal extension.

Outbound calls are calls sent to a non-internal source (like a VoIP trunk) from an internal extension.

Internal calls are calls from one internal extension to another extension, which are not sent over a trunk.

External calls are calls sent from one trunk to another trunk, which are not sent to any internal extension.

The call report will display as the following figure shows.

Figure 43: Call Report

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 95 of 108

Users could perform the following operations on the call report.

Sort

Click on the header of the column to sort by this category. For example, clicking on "Start Time" one time to sort the report according to start time. Clicking on "Start Time" again to reverse the order.

Download Records

On the bottom of the page, click on "Download Records" button to export the report in .csv format.

Delete All

On the bottom of the page, click on "Delete All" button to remove all the call report information.

Play/Download/Delete Recording File (per entry)

If the entry has audio recording file for the call, the three icons on the most right column will be activated for users to select. In the following picture, the first row has audio recording file for the call.

Figure 44: Call Report Entry With Audio Recording File

Click on to play the recording file; click on to download the recording file in .wav format; click on to delete the recording file (the call record entry will not be deleted).

CDR Statistics is an additional feature on the UCM6102/UCM6104/UCM6108/UCM6116 which provides users a visual overview of the call report across the time frame. Users can filter with different criteria to generate the statistics chart.

Figure 45: CDR Statistics

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 96 of 108

Trunk Type

Call Type

Time Range

Table 36: CDR Statistics Filter Criteria

Select one of the following trunk type.

• All

• SIP Calls

• PSTN Calls

Select one or more in the following checkboxes.

• Inbound calls

• Outbound calls

• Internal calls

• External calls

• All calls

• By month (of the selected year).

• By week (of the selected year).

• By day (of the specified month for the year).

• By hour (of the specified date).

• By range. For example, 2013-01 To 2013-03.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 97 of 108

UPGRADING AND MAINTENANCE

UPGRADING

UPGRADING VIA NETWORK

The UCM6102/UCM6104/UCM6108/UCM6116 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP, HTTP or HTTPS; the server name can be FQDN or IP address.

Examples of valid URLs:

firmware.grandstream.com

The upgrading configuration can be accessed via Web GUI->Maintenance->Upgrade.

Figure 46: Network Upgrade

Upgrade Via

Firmware Server Path

Table 37: Network Upgrade Configuration

Allow users to choose the firmware upgrade method: TFTP, HTTP or

HTTPS.

Define the server path for the firmware server.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 98 of 108

Firmware File Prefix

Firmware File Suffix

If configured, only the firmware with the matching encrypted prefix will be downloaded and flashed into the UCM6102/UCM6104/UCM6108/

UCM6116.

If configured, only the firmware with the matching encrypted postfix will be downloaded and flashed into the UCM6102/UCM6104/UCM6108/

UCM6116.

HTTP/HTTPS User Name

HTTP/HTTPS Password

The user name for the HTTP/HTTPS server.

The password for the HTTP/HTTPS server.

Click on "Save" and "Apply Changes". Then reboot the device to start the upgrading process.

UPGRADING VIA LOCAL UPLOAD

If there is no HTTP/TFTP server, users could also upload the firmware to the

UCM6102/UCM6104/UCM6108/UCM6116 directly via Web GUI. Please follow the steps below to upload firmware locally.

• Download the latest UCM6102/UCM6104/UCM6108/UCM6116 firmware file from the following link and save it in your PC. http://www.grandstream.com/support/firmware

• Log in the Web GUI as administrator in the PC.

• Go to Web GUI->Maintenance->Upgrade, upload the firmware file by clicking on the firmware file from your PC.

and select

• Click on

to start upgrading.

Figure 47: Local Upgrade

• Wait until the upgrading process is successful and a window will be popped up. Click on "OK" to reboot the UCM6102/UCM6104/UCM6108/UCM6116 and check the firmware version when it boots up.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 99 of 108

Note:

Please do not interrupt or power cycle the UCM6102/UCM6104/UCM6108/UCM6116 when the upgrading process is on.

NO LOCAL FIRMWARE SERVERS

For users that would like to use remote upgrading without a local TFTP server, Grandstream offers a

NAT-friendly HTTP server. This enables users to download the latest software upgrades for their devices via this server. Please refer to the webpage: http://www.grandstream.com/support/firmware .

Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A free windows version TFTP server is available for download from : http://support.solarwinds.net/updates/New-customerFree.cfm http://tftpd32.jounin.net/ .

Instructions for local firmware upgrade via TFTP:

1. Unzip the firmware files and put all of them in the root directory of the TFTP server;

2. Connect the PC running the TFTP server and the UCM6102/UCM6104/UCM6108/UCM6116 device to the same LAN segment;

3. Launch the TFTP server and go to the File menu->Configure->Security to change the TFTP server's default setting from "Receive Only" to "Transmit Only" for the firmware upgrade;

4. Start the TFTP server and configure the TFTP server in the

UCM6102/UCM6104/UCM6108/UCM6116’s web configuration interface;

5. Configure the Firmware Server Path to the IP address of the PC;

6. Update the changes and reboot the UCM6102/UCM6104/UCM6108/UCM6116.

End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use

Microsoft IIS web server.

BACKUP

LOCAL BACKUP

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 100 of 108

Users could backup the configurations for restore purpose under Web

GUI->Maintenance->Backup->Local Backup. Before creating new backup file, select the backup option first.

• If the Config-File is selected only, the backup file will be saved in the flash of the device.

• If Voice-File, Voicemail-File, Voice-Records or CDR is selected, external storage devices (USB Flash drive or SD Card) will be required because the backup file might be too large.

Once backup is done, the list of the backups will be displayed with date and time. Users then can download, restore or delete it from the UCM6102/UCM6104/UCM6108/UCM6116 or the external device.

Figure 48: Local Backup

NETWORK BACKUP

Users could backup the voice records/voice mails/CDR/FAX in a daily basis via SFTP protocol automatically under Web GUI->Maintenance->Backup->Network Backup.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 101 of 108

Figure 49: Network Backup

Table 38: Network Backup Configuration

Enable Backup

Account

Password

Enable the auto backup function.

Enter the Account name on the SFTP backup server.

Enter the Password associate with the Account on the SFTP backup server.

Server Address

Backup Time

Enter the SFTP server address.

Enter 0-23 to specify the backup hour of the day.

All the backup logs will be listed on the bottom of the page.

CLEANER

Users could configure to clean the Call Detail Report/Voice Records/Voice Mails/FAX automatically under

Web GUI->Maintenance->Cleaner.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 102 of 108

Figure 50: Cleaner

Table 39: Cleaner Configuration

Enable CDR Cleaner

CDR Clean Time

Clean Interval

Enable VR Cleaner

Enable the CDR Cleaner function.

Enter 0-23 to specify the hour of the day to clean up CDR.

Enter 1-30 to specify the day of the month to clean up CDR.

Enter the Voice Records Cleaner function.

VR Clean Threshold Specify the Voice Records threshold from 0 to 99 by using local storage status in percentage.

Enter 0-23 to specify the hour of the day to clean up Voice Records. VR Clean Time

Clean Interval Enter 1-30 to specify the day of the month to clean up Voice Records.

All the cleaner logs will be listed on the bottom of the page.

RESET AND REBOOT

Users could perform reset and reboot under Web GUI->Maintenance->Reset and Reboot.

To factory reset the device, select the mode type first. There are three different types for reset.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 103 of 108

• User Configuration: All the Extensions, Trunks and Routing configurations, as well as the local settings

(network settings, upgrading setting and etc) will be cleared.

• User Data: All the data including voicemail, recordings, IVR Prompt, Music on Hold, CDR and backup files will be cleared.

• All: All the configurations and data will be reset to factory default.

Figure 51: Reset and Reboot

SYSLOG

On the UCM6102/UCM6104/UCM6108/UCM6116, users could dump to syslog information to a remote server under Web GUI->Maintenance->Syslog. Enter the syslog server hostname or IP address and select the module/level for the syslog information.

TROUBLESHOOTING

On the UCM6102/UCM6104/UCM6108/UCM6116, users could capture traces, ping remote host and traceroute remote host for troubleshooting purpose under Web GUI->Maintenance->Troubleshooting.

ETHERNET CAPTURE

The captured trace can be downloaded for analysis. Also the instructions or result will be displayed in the web GUI output result.

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 104 of 108

Figure 52: Ethernet Capture

The output result is in .pcap format. Therefore, users could specify the capture filter as used in general network traffic capture tool (host, src, dst, net, protocol, port, port range) before starting capturing the trace.

PING

Enter the target host in host name or IP address. Then press "Start" button. The output result will dynamically display in the window below.

Figure 53: PING

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 105 of 108

TRACEROUTE

Enter the target host in host name or IP address. Then press "Start" button. The output result will dynamically display in the window below.

Figure 54: Traceroute

Firmware Version 1.0.0.32 UCM6102/6104/6108/6116 USER MANUAL Page 106 of 108

EXPERIENCING THE UCM6102/UCM6104/UCM6108/UCM6116

Please visit our website: http://www.grandstream.com

to receive the most up- to-date updates on firmware releases, additional features, FAQs, documentation and news on new products.

We encourage you to browse our product related documentation , FAQs and User and Developer Forum for answers to your general questions. If you have purchased our products through a Grandstream

Certified Partner or Reseller, please contact them directly for immediate support.

Our technical support staff is trained and ready to answer all of your questions. Contact a technical support member or submit a trouble ticket online to receive in-depth support.

Thank you again for purchasing Grandstream UCM6102/UCM6104/UCM6108/UCM6116, it will be sure to bring convenience and color to both your business and personal life.
