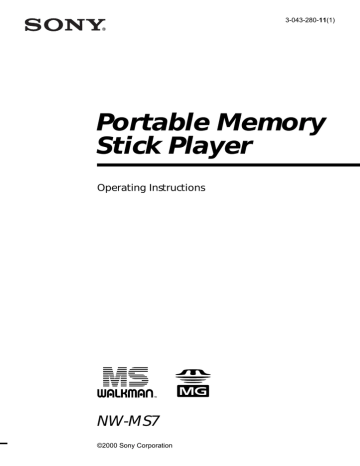

3-043-280-11(1)
Portable Memory
Stick Player
Operating Instructions
NW-MS7
©2000 Sony Corporation
For the customers
in the United
States
Owner’s Record
The model and serial numbers are located at the
bottom of the player. Record the serial number in
the space provided below. Refer to them whenever
you call your Sony dealer regarding this product.
Model No. NW-MS7
Serial No.
INFORMATION:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio
communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference using
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
Telephone No.:
SONY
NW-MS7
Sony Electronics Inc.
1 Sony Drive,
Park Ridge, NJ.07656 USA
201-930-6970
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
2
Notice for users
On the supplied software
• Copyright laws prohibit reproducing the software
or the manual accompanying it in whole or in
part, or renting the software without the
permission of the copyright holder.
• In no event will SONY be liable for any financial
damage, or loss of profits, including claims made
by third parties, arising out of the use of the
software supplied with this player.
• In the event a problem occurs with this software
as a result of defective manufacturing, SONY will
replace it.
However, SONY bears no other responsibility.
• The software provided with this player cannot be
used with equipment other than that which is so
designated.
• Please note that, due to continued efforts to
improve quality, the software specifications may
be changed without notice.
• Operation of this player with software other than
that provided is not covered by the warranty.
Program©1999 Sony Corporation
Documentation©2000 Sony Corporation
NOTES:
• The recorded music is limited to private use
only. Use of the music beyond this limit
requires permission of hte copyright holders.
• Sony is not responsible for music files that are
not saved on your computer due to
unsuccessful recording from CD or music
downloading.
• The OpenMG Jukebox software encrypts data
in order to protect the copyright of music files.
This software is not equipped with a Back-Up/
Restore function. Music files may be deleted
from your computer in the event of a system
crash or while attempting to restore your
computer’s hard drive using recovery CDs. A
future Back-Up/Restore function is currently
being considered.
• If your PC has optical output, the music played
back on OpenMG Jukebox will not send digital
data through that optical output.
Table of Contents
Overview .......................................... 4
What you can do with “Memory
Stick Walkman” ..................... 4
On copyright protection .............. 5
On “MagicGate Memory Stick”
.................................................. 6
Other features ............................... 7
System requirements ................... 7
About this manual ........................... 8
To use the Help files .................... 8
Getting Started
Step 1: Unpacking ........................... 9
Step 2: Charging the battery ........ 10
Step 3: Installing the OpenMG
Jukebox software ...................... 11
Basic Operations
Transferring music data from
the computer to
Memory Stick Walkman .........
Listening to music with
Memory Stick Walkman .........
On other operations ...................
On the display ............................
13
16
17
17
Advanced Operations
(Memory Stick Walkman)
Playing in various modes .............
Emphasizing the bass sound
(BASS) ....................................
Playing tracks repeatedly
(REPEAT) ..............................
Protecting your hearing
(AVLS) ...................................
Changing the display mode .........
Locking the controls (Hold) .........
18
18
19
20
20
21
Changing the settings of
Memory Stick Walkman ......... 21
To turn off the beep sound
(BEEP) .................................... 21
To change the display backlight
setting (LIGHT) .................... 22
To adjust the LCD contrast
(CONTRAST) ....................... 22
To format the “Memory Stick”
(FORMAT) ............................ 23
To set the date and time
(DATE & TIME) ................... 24
Menu ................................................ 25
Advanced Operations
(OpenMG Jukebox)
Names and functions of the
OpenMG Jukebox window .... 26
Transferring data from the
“Memory Stick” to the
computer (Check-In) ............... 28
On the Windows Explorer ............ 28
Uninstalling the OpenMG Jukebox .. 29
Other Information
Precautions .....................................
Notes ............................................
On cleaning .................................
Troubleshooting .............................
To reset the player ......................
What happened ? .......................
Error messages ...........................
Specifications ..................................
Glossary ..........................................
Restrictions on copyright
protection by OpenMG ...........
Looking at the controls .................
Index ................................................
30
30
31
32
32
32
34
36
37
39
40
41
Notes
• The illustrations in this manual may differ
from the actual software.
• Explanations in this manual assume that you
are familiar with basic operations of Windows
98. For how to use your computer and
operating system, please refer to the
respective manuals.
3
Overview
What you can do with “Memory Stick Walkman”
Memory Stick Walkman is a portable “Memory Stick” player. You can easily transfer digital
sound data from your computer to Memory Stick Walkman.
Two copyright protection technologies* “OpenMG” and “MagicGate” allow you to enjoy digital
music, while maintaining the copyrights of its holders.
The OpenMG compliant software “OpenMG Jukebox,” which is supplied with your Memory
Stick Walkman enables you to store digital music data on your computer’s hard drive, transfer it
to the Memory Stick Walkman and record it on “MagicGate Memory Stick.”
EMD Services
Audio CDs
WAV3,
MP3 files
Memory Stick
Walkman
USB connection
Hard drive of
your computer
(OpenMG Jukebox)
The supplied OpenMG Jukebox software allows you to import digital sound data to the hard
drive of your computer as follows:
– downloads sound data provided by Electronic Music Distribution (EMD) services over digital
networks such as the Internet
– records audio CDs onto the hard drive of your computer (the imported tracks are compressed
and encoded in ATRAC3 format)
– encodes the existing MP3 and WAV format audio files to ATRAC3 and encrypts them in
OpenMG format.
The OpenMG Jukebox encrypts sound data in OpenMG format and stores it on the hard drive of
your computer to prevent unauthorized distribution.
* The copyright protection technology of Memory Stick Walkman conforms to the SDMI (Secure Digital Music
Initiative) specifications.
4
On copyright protection
Memory Stick Walkman has some restrictions on recording and playback to protect copyrights.
For details, see “Restrictions on the copyright protection by OpenMG” on page 39.
Transfer of sound data from your computer to Memory Stick Walkman
(Check-In/Out)
The supplied application software (OpenMG Jukebox) enables you to transfer the sound data
stored on your computer’s hard drive to Memory Stick Walkman (Check-Out) and transfer it
from Memory Stick Walkman to your computer (Check-In).
Check Out
Check In
Check-In/Out has restrictions as follows:
– You cannot Check-Out the same song more than three times (excluding certain audio
contents). However, if you transfer a Checked-Out song back to your computer (Check-In),
you can then Check-Out the track again.
– You cannot Check-In songs Checked-Out to Memory Stick Walkman to any computer
other than the computer used for the Check-Out.
For details, see “Glossary” on page 38.
Restrictions on sound data
Some sound data is distributed with restrictions on recording or playback of the data to maintain
the copyrights of its holders.
Memory Stick Walkman employs copyright protection technology that enables you to record or
play music within the limits determined by the copyright holders. For example, songs which
have playback period restrictions can be played back only within the given period of time.
5
On “MagicGate Memory Stick”
What is a “Memory Stick”?
“Memory Stick” is a new compact, portable and versatile Integrated Circuit recording medium
with a data capacity that exceeds a floppy disk. “Memory Stick” is specially designed for
exchanging and sharing digital data among “Memory Stick” compatible products. Because it is
removable, the “Memory Stick” can also be used for external data storage.
Types of “Memory Stick”
There are two types of “Memory Stick”:
- “MagicGate Memory Stick” that is equipped with “MagicGate” copyright protection
technology.
- “Memory Stick” that is not equipped with “MagicGate” copyright protection technology.
(See “Glossary” on page 37 for details.)
Use a “MagicGate Memory Stick” with this player.
A 64-MB “MagicGate Memory Stick” is supplied with this product.
When you purchase a spare “Memory Stick” for your Memory Stick Walkman, be sure to ask for
a “MagicGate Memory Stick,” which is distinguished by the
logo.
Can be used
Cannot be used
What is “MagicGate”?
“MagicGate” is a copyright protection technology for “MagicGate Memory Stick” and compliant
products, such as Memory Stick Walkman. Authentication ensures that protected content is
transferred only between compliant devices and “MagicGate Memory Stick,” and that protected
content is recorded and transferred in an encrypted format to prevent unauthorized copying or
playback.
Notes on use
To avoid damaging data, do not
– release the “Memory Stick” or unplug the AC power adaptor during reading or writing of data.
– use the “Memory Stick” in a location subject to static electricity or electric noise.
On formatting the “Memory Stick”
The “Memory Stick” is shipped with a FAT format as the standard format.
To format the “Memory Stick,” please use devices conformable with the “Memory Stick.” When
using Memory Stick Walkman, please follow the instructions in “To format the Memory Stick” on
page 23 to format the “Memory Stick.”
Note
If you format the “Memory Stick” using the computer, further operations with this player is not guaranteed.
6
Other features
• Compact size, light weight
• Anti-skip function: you can enjoy uninterrupted enjoyment of music during physical activities
such as jogging or commuting.
• Recordable time: up to 60 min., 80 min., 120 min.*, on the supplied 64MB “MagicGate Memory
Stick.”
• Full-dot LCD screen: album titles and track names can be displayed for up to three lines.
• Jog lever: easy to operate, with a simple ejection mechanism for “MagicGate Memory Stick.”
• High speed data transfer using the supplied USB cable.
• OpenMG Jukebox software enables you to record compact discs using the ATRAC3 format
(high sound quality, high compression) to the hard drive.
* Differs according to the bit rate when recording. In this case, the figures for the recordable time are when
recording on a 64MB “MagicGate Memory Stick” at 132kbps, 105kbps, and 66kbps.
System requirements
• IBM PC/AT or Compatible
CPU: MMX™ Pentium® 233MHz or higher
Hard disk drive space: 15MB or more
RAM: 64MB or higher
CD-ROM drive
Sound Board
USB port
• Operating System: Windows 98®
• Display: High (16bit) Color or more (800 x 480 dot or more)
• Internet access: for Web registration and EMD services
“MagicGate Memory Stick,”
, “Memory Stick,”
, Memory Stick Walkman, and
are
trademarks of Sony Corporation.
OpenMG and its logo are trademarks of Sony Corporation.
“MagicGate” and
are trademarks of Sony Corporation.
WALKMAN is a registered trademark of Sony Corporation.
IBM and PC/AT are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are trademarks of Microsoft Corporation, registered in the U.S.A. and other countries.
Copyright ©1995 Microsoft Corporation. All Rights Reserved.
Portion Copyright ©1995 Microsoft Corporation
MMX and Pentium are registered trademarks of Intel Corporation.
All other trademarks and registered trademarks are trademarks or registered trademarks of their respective
holders.
7
About this manual
This manual explains how to operate Memory Stick Walkman. For details on how to use the
supplied software (OpenMG Jukebox), refer to the OpenMG Jukebox Help files.
To use the Help files
Displaying the Help files
The supplied software includes two types of Help files:
– OpenMG Jukebox Help: Help files on how to use the OpenMG Jukebox software.
– Memory Stick Walkman Help: Help files on how to use Memory Stick Walkman when
connected to a computer.
You can display the Help files by either of the following ways:
– Click [Start]-[Programs]-[OpenMG Jukebox]-[OpenMG Jukebox Help] or [Memory Stick
Walkman Help].
– Start the OpenMG Jukebox software, then click [Help]-[OpenMG Jukebox Help] or [Memory
Stick Walkman Help].
Selecting a topic from the contents
• Double click to display the items included in the title.
• Double click
to display the contents of the item.
• Click the underlined item to display reference page on the item.
Searching using a keyword
1
Select the [Index] tab from the Help dialog box.
The Keyword list appears.
2
3
Enter the keyword you want to apply, or scroll through the keyword list.
Select a topic, then click [Display].
Topics related to the keyword appear.
8
Getting Started
Step 1: Unpacking
Your Memory Stick Player comes with the following items.
• Memory Stick Player (1)
• Headphones extension cord (1)
• “MagicGate Memory Stick” (1)
• USB cable (1)
• AC power adaptor (1)
• Strap (for U.S.A. model only) (1)
• CD-ROM
(OpenMG Jukebox installation disc) (1)
• Operating Instructions (1)
Note
Be sure to keep the CD-ROM and CD key in a
secure place.
Getting Started
• DC/USB adaptor (1)
• Headphones (1)
9
Step 2: Charging the battery
Please charge the battery before using the player.
To use power from an AC wall outlet, connect the AC power adaptor to Memory Stick Walkman
as shown below.
You can use the player while charging the battery also.
1
Connect the DC/USB adaptor to Memory Stick Walkman.
DC/USB
adaptor
DC/USB adaptor plug
2
Connect the AC power adaptor to the DC IN 5.5V jack of the DC/USB adaptor
and to the wall outlet.
BATTERY CHARGE
lamp
to wall outlet
to DC IN 5.5V
Charging begins and the BATTERY
CHARGE lamp lights up.
The BATTERY CHARGE lamp goes off
when charging is complete. This takes
about 3 hours maximum.
If “LOW BATT” is displayed in the display,
you need to recharge the battery.
LOWBATT
Note
Please charge the battery where temperature is
0˚C to 35˚C.
Battery duration
To release the DC/USB adaptor
About 4 hours.
Push the Release button gently to pull the DC/
USB adaptor as shown below.
On the remaining battery
indication
The battery icon in the display changes as
shown below.
Release button
low battery
10
please charge
the battery
Do not pull the DC/USB
adaptor forcefully.
Step 3: Installing the OpenMG Jukebox
software
This section describes how to install the OpenMG Jukebox software to your computer. Before
installation, turn on your computer, and start Windows 98.
Note
Be sure to install the software before connecting with the supplied USB cable. Do not install the software while
connecting the USB cable. Connect the USB cable only after you have restarted the computer after installation.
1
Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The Setup program automatically starts and the following window appears. If the program
does not start, double-click [setup.exe].
2
Follow the instructions in the Installer window to complete the installation.
When the Input window for the CD key appears, input the CD key written on the CD-ROM
case label .
When the installation is finished, the following dialog box appears in the display.
Click Finish to restart the computer.
Note
Do not delete, move or modify the installed folder.
About the “OpenMG Registration” icon on the desktop
When you restart the computer after installing the software, the “OpenMG(NW-MS7)
Registration” icon will appear on the desktop. Make sure that you can connect to Internet, then
double-click this icon to start customer registration for this product (Memory Stick Walkman)
and for the EMD services.
For details on registration, refer to the supplied leaflet.
continued
11
Step 3: Installing the OpenMG Jukebox software (continued)
Notes on EMD (Electronic Music Distribution) services
To use OpenMG-enabled EMD services on the Internet, the following conditions are required.
• You need Internet access from your computer. (Sign up an Internet service provider.)
• You need to download several programs (e.g., EMD key installer).
To download these programs, double-click the “OpenMG Registration” icon, then follow the
displayed instructions.
• You need to register yourself with the EMD service provider you are going to use. Consult the
provider for details.
12
Basic Operations
Transferring music data from the
computer to Memory Stick Walkman
This section describes how to record the contents of a compact disc onto the hard drive of your
computer, and then how to transfer it to Memory Stick Walkman (Check-Out).
You can also download by using EMD Services, or convert MP3 files and WAV format audio
files. Please refer to the online help for more information.
1
Connect Memory Stick Walkman to your computer.
1 Insert “MagicGate Memory Stick.”
“MagicGate
Memory
Stick“
Notes
Memory Stick slot
3 Connect Memory Stick Walkman to your
computer.
Connect the small connector of the supplied
USB cable into the USB jack on the left side
of the DC/USB adaptor, then the large
connector to the USB jack of your computer.
“PC CONNECT” appears in the display.
Basic Operations
2 Connect the AC power adaptor.
Connect the supplied AC power adaptor to
an AC wall outlet, then into the DC IN 5.5V
jack on the right side of the DC/USB
adaptor.
• When connecting Memory Stick Walkman
to your computer, make sure the erasure
prevention switch of the “Memory Stick”
(page 30) is OFF .
• Do not start your computer while Memory
Stick Walkman is connected.
to
to DC IN 5.5V
USB cable
(supplied)
to AC
wall outlet
to
DC/USB
adaptor
Note
AC power adaptor
(supplied)
• Do not connect more than two USB devices to your computer. Normal operation will not be guaranteed.
• Use of this player with a USB hub or a USB extension cable is not guaranteed.
• A malfunction may occur depending on the USB devices connected at any one time.
• Be sure to connect the player to an AC wall outlet when connecting it to your computer.
• When connecting Memory Stick Walkman to your computer for the first time, the USB driver Installer
window appears. Please follow the instructions in the Installer window.
continued
13
Transferring music data from the computer to
Memory Stick Walkman (continued)
2
Start the OpenMG Jukebox software.
Double click the OpenMG Jukebox icon on the desktop or click [Start]–[Programs]–
[OpenMG Jukebox]–[OpenMG Jukebox]
The OpenMG Jukebox window appears.
Portable Player window
(the music files inside the
“Memory Stick” appear)
zIf the Start-Up function is ON
The OpenMG Jukebox software automatically starts when Memory Stick Walkman is connected to your
computer. (Please refer to the online help for more information.)
3
Start recording.
You can record music from a compact disc onto the hard drive of your computer, using the
OpenMG CD Recorder software.
1 Insert the compact disc you want to record into the CD-ROM drive of your computer. If
the OpenMG CD Recorder automatically starts, go to 3.
2 Click the [Recorder] button in the OpenMG Jukebox window.
The OpenMG CD Recorder window appears showing the contents of the compact disc.
If the message “Do you want to check your CD Drive to optimize for
recording ?” appears in the display
This message appears when you use the OpenMG CD Recorder for the first time. We recommend you
to choose “Yes.” You can optimize the CD drive later, too. Please refer to the online help for more
information. (It may take maximum 20 minutes to optimize the CD drive.)
3 Click z.
bit rate
z button
The recording begins. When recording is finished, the recorded music will appear in the
OpenMG Jukebox window as a new album.
14
To stop the recording
Click x. The recording will be interrupted.
Click z again to continue the recording.
zTo select only certain items
Click the check box of the contents you do not want to record to remove the check, then click z.
zOn the bit rate
You can choose the bit rate among 132kbps, 105kbps, 66kbps. If you choose a higher bit rate, recording
will have better sound quality, however the recordable time will be shorter. If you choose a lower bit
rate, you can record longer, however the sound will not be as good. See below for the recording time
according to the bit rate when using the supplied 64MB “Memory Stick.”
• 132kbps: maximum 60 min.
• 105kbps: maximum 80 min.
• 66kbps: maximum 120 min.
(The recording time differs according to the number of songs you are recording.)
To choose the bit rate, click [Control]-[Settings]. The Settings window appears. Click the Recording
Setup tab and choose from the ATARC3 Bit rate list. Please refer to the online help for more
information.
zTo name a new album or song
You can enter the name using the keyboard or bring the name from the Internet database.
Please refer to the online help for more information.
Transfer the music file to the “Memory Stick” (Check-Out).
1 Check that the Portable Player window (page 14) is displayed on the right side of the
OpenMG Jukebox window.
2 Click the album which contains the songs you want to Check-Out.
The contents of the album appear.
3 Click the music item you want to Check-Out.
Click the music item while pressing the Ctrl key to choose more than one music item.
4 Click the
button.
The desired music item appears in the Portable Player window as Check-Out candidate.
Basic Operations
4
Click here
To cancel the song added as Check-Out candidate, click the respective song in the
button.
Portable Player window, then click the
5 Click the START button.
The desired music item is Checked-Out to Memory Stick Walkman.
During Check-Out the STOP button flashes. When Check-Out is finished, the
indication changes to .
To quit Check-Out
Click the STOP button.
To Check-In
See page 28.
15
Listening to music with Memory Stick
Walkman
Please charge the battery before use (see page 10).
Note
When using Memory Stick Walkman, be sure to disonnect it from the computer.
1
Insert a recorded “MagicGate Memory Stick” into Memory Stick Walkman.
“MagicGate
Memory
Stick“
Memory Stick
slot
2
Connect the headphones.
To use the headphones extension cord
to i jack
Headphones
extension
cord
to i jack
3
Start playback.
2Press the VOLUME
+/- button up or
down to adjust the
volume.
1Press the Jog lever.
Playback stops automatically when the music
reaches the end (only when REPEAT OFF is
selected).
If playback does not start
The HOLD switch may be switched down. Please
release it up (page 21).
x button
To stop playback
Press the x button.
Tip
HOLD switch
16
If you do not operate the player for 10 seconds while
in stop mode, the display automatically turns off.
On other operations
To take out the “Memory Stick”
Slide the EJECT lever in the direction of the arrow as
shown below.
Jog lever
Press
upwards
EJECT lever
l
Press
Press
downwards
On the display
To
Operation of
the Jog lever
Pause 1)
Press while in playback
mode.
Go to the beginning
of the actual track
Press upwards once.
Go to previous
tracks
Press upwards
continuously.
Track
number
Go to the beginning
of the next track
Press downwards once.
Song
title*
Go to the beginning
of the succeding
tracks
Press downwards
continuously.
Go backward 2)
While playback, press up
and hold still.
Go forward 2)
While playback, press
down and hold still.
If you do not operate the player for 10 seconds
while in pause mode, the player automatically
switches to stop mode.
2)
To go backward or forward without listening to
the sound, press upwards or downwards and hold
while in pause mode.
MY FAVOU RITE
001 002:01
HAP P Y B I RT
Album
title*
Elapsed
time
Bit rate
: songs recorded
at 132kbps
: songs recorded
at 105kbps
: songs recorded
at 66kbps
Basic Operations
1)
Press the DISPLAY button to change the
display mode. See “Changing the display
mode” (page 20) for more information.
* Song title and album title are displayed when
information is recorded on the “Memory Stick.”
To select by track name
While in stop mode, press the Jog lever up or down
and hold it still. Three track names are displayed.
Press the Jog lever upwards or downwards to select
the track, then press the Jog lever to playback.
3
CCC
1 TRACKAAA
2
BBB
17
Advanced Operations
(Memory Stick Walkman)
Playing in various
modes
Jog lever
3
Select ON-1 or ON-2 using the Jog
lever.
4
Press the Jog lever.
5
Press the MENU button.
The display returns to normal.
MENU
button
Note
If the sound becomes distorted when emphasizing
the bass, turn down the volume.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To cancel the MEGA BASS effect
Select OFF in step 3.
Emphasizing the bass
sound (BASS)
Mega Bass function intensifies low frequency
sound for richer quality audio reproduction.
Menu
Sound quality
Display indication
OFF
normal play
none
ON-1
Mega Bass
(moderate effect)
BASS
ON-2
Mega Bass
(strong effect)
BASS
1
Press the MENU button.
The menu is displayed.
Check that “BASS” is selected.
[RETURN]
BASS OFF
REPEAT OFF
2
Press the Jog lever.
Display
indication
BASS
18
OFF
O N -1
ON - 2
Playing tracks repeatedly
(REPEAT)
6
Press the MENU button.
The display returns to normal.
You can play tracks repeatedly in three waysall repeat, single repeat and shuffle repeat.
To exit from the Menu mode
Menu
Playback mode
Display indication*
OFF
normal
none
Select [RETURN] in the menu or press the MENU
button.
ALL
all tracks
repeatedly
F
To cancel the REPEAT mode
1
current track
repeatedly
F1
Note
SHUF
all tracks
repeatedly in
random order
F SHUF
If there is no “Memory Stick” inserted, “REPEAT
----” appears in the display, and repeat mode cannot
be selected.
Select OFF in step 4.
1
Advanced Operations (Memory Stick Walkman)
* The display indication appears after step 5.
Press the MENU button.
The menu is displayed.
2
Select “REPEAT” using the Jog
lever.
BASS OFF
REPEAT OFF
AVLS NORM
3
Press the Jog lever.
4
Select “ALL,” “1” or “SHUF” using
the Jog lever.
OFF
REPEAT A LL
1
5
Press the Jog lever.
The selected playback mode is
displayed.
Display indication
BASS OFF
REPEAT ALL
A V LS N O RM
continued
19
Playing in various modes
(continued)
Protecting your hearing
(AVLS)
The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your ears.
1
Changing the
display mode
You can change the display mode and display
the track number, the remaining time, etc.
while in playback or stop mode.
Press the MENU button.
The menu is displayed.
2
Select “AVLS” using the Jog lever.
DISPLAY
button
REPEAT OFF
AVLS NORM
BEEP OFF
3
Press the Jog lever.
Press the DISPLAY button.
4
Select “LIMIT” using the Jog lever.
Each time you press the DISPLAY button, the
display changes as shown below.
NORM
AVLS LIMIT
5
Track
number
Song
title
Album
title
Elapsed
time
Bit rate
MY FAVOU RITE
001- 004:18
R EM AIN
Remaining
time of the
current
track
MY FAVOU RITE
- 008 - 054:11
ALL REM A IN
Total time
remaining *
HAPP Y B I RT HD
Song title*
(only while
in play /
pause mode)
Press the Jog lever.
The AVLS indication is displayed.
AVLS indication
REPEAT OFF
AVLS LIMIT
BEEP OFF
The volume is kept to a moderate level.
6
MY FAVOU RITE
001 002:01
HAP P Y B I RT
Number
of
remaining
tracks*
Press the MENU button.
The display returns to normal.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To cancel AVLS
Select NORM in step 4.
20
When playing in repeat mode, “-----” appears
instead of the number of remaining tracks and the
total time remaining.
Locking the
controls (Hold)
To prevent the controls from being
accidentally operated when you carry the
player, use this function.
Changing the settings
of Memory Stick
Walkman
Jog lever
MENU
button
L
HOLD switch
To turn off the beep
sound (BEEP)
Slide the HOLD switch in the direction
of the arrow.
No controls will be able to operate. (except
the EJECT lever)
If you press buttons other than the Jog lever
or the EJECT lever while the HOLD switch is
ON, HOLD appears in the display.
The current time appears in the display when
you press the Jog lever while the HOLD
switch is ON. (See page 24)
BEEP ON: a beep will sound to indicate that
operation has been accepted.
BEEP OFF: no beep sound will be heard.
1
The menu is displayed.
2
Select “BEEP” using the Jog lever.
AVLS NORM
BEEP ON
LIGHT OFF
To release the Hold function
Slide the HOLD switch in the opposite direction of
the arrow.
Press the MENU button.
3
4
Press the Jog lever.
Select “OFF” using the Jog lever.
BEEP
5
6
OFF
ON
Press the Jog lever.
Press the MENU button.
The display returns to normal.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To cancel the Beep function
Select ON in step 4.
continued
21
Changing the settings of Memory Stick
Walkman (continued)
To change the display
backlight setting (LIGHT)
You can select from the following 3 settings.
Menu
Backlight mode
OFF
always off
ON
turns on during operation*
OPR
turns on for three seconds after each
operation
To adjust the LCD
contrast (CONTRAST)
1
2
* The battery life is shorter if ON is selected.
1
2
Select “LIGHT” using the Jog lever.
3
Press the Jog lever.
4
Select the contrast using the Jog
lever.
You can adjust between -5 and +5
BEEP OFF
LIGHT OFF
CONTRAST
CONTRAST
+1
3
Press the Jog lever.
4
Select a backlight mode using the
Jog lever.
OFF
LIGHT ON
OPR
5
Press the Jog lever.
6
Press the MENU button.
The display returns to normal.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
22
Select “CONTRAST” using the Jog
lever.
LIGHT OFF
CONTRAST
TITLE JPN
Press the MENU button.
The menu is displayed.
Press the MENU button.
The menu is displayed.
5
Press the Jog lever.
6
Press the MENU button.
The display returns to normal.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To format the “Memory
Stick” (FORMAT)
6
Press the Jog lever.
“FORMATTING” appears in the display,
and the formatting of the “Memory
Stick” begins.
If you need to format the “Memory Stick,”
use this player.
If formatted, all data previously recorded on
the “Memory Stick” will be erased. Be sure to
check the data of the “Memory Stick” before
formatting (data recorded using other devices
will also be erased).
FORMAT TI NG
When formatting is finished,
“COMPLETE” appears in the display,
and returns to the menu in step 2.
A commercially available “Memory Stick” is
already formatted at the factory.
The supplied “Memory Stick” is also
formatted.
Notes
• Be sure to connect the player to a power source
with the AC power adaptor.
• You cannot use a “Memory Stick” that has been
formatted using the computer.
1
Press the MENU button.
The menu is displayed.
2
Select “FORMAT” using the Jog
lever.
TITLE JPN
FORMAT
DATE&TIME
3
Press the Jog lever.
4
Select “YES” using the Jog lever.
7
Press the MENU button.
The display returns to normal.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To cancel the formatting
Select NO in step 4 or press any button other than
the Jog lever in step 5.
Notes
• You cannot format while playback or in pause
(“FORMAT” will not be displayed).
• If the erasure prevention switch of the “Memory
Stick” is ON, “LOCKED” appears in the display,
and you cannot format the “Memory Stick.”
• Do not take out the “Memory Stick” or unplug the
AC power adaptor when “FORMATTING” is
displayed.
NO
FORMAT YE S
5
Press the Jog lever.
“FORMAT OK?” appears in the display.
FORMAT OK ?
continued
23
Changing the settings of Memory Stick
Walkman (continued)
To set the date and time
(DATE & TIME)
You can set the current date and time and
display it. To play a music item with a
playback period restriction (page 5), you need
to set the date and time.
1
Press the MENU button.
The menu is displayed.
2
Select “DATE&TIME” using the Jog
lever.
FORMAT
DATE&TIME
3
Press the Jog lever.
A cursor appears under the year.
DATE&TIME
2000 Y 1 M 1 D
0:00
4
Set the year using the Jog lever.
5
Press the Jog lever.
The cursor moves to the month.
DATE&TIME
20 00 Y 1 M 1 D
0:00
6
Do the same to set the month, day,
hour and minutes, and then press
the Jog lever.
7
Press the MENU button.
The display returns to normal.
24
To switch between 24 hour display and
12 hour display
Press the DISPLAY button during the setting.
To exit from the Menu mode
Select [RETURN] in the menu or press the MENU
button.
To display the current time
You can display the current time by any of the
following ways.
• Press the Jog lever while the display is OFF and
the HOLD switch is ON.
t The current time is displayed for 3 seconds
while the Jog lever is being pressed.
• Press the Jog lever while the display is ON and the
HOLD switch is ON.
t The current time is displayed while the Jog
lever is being pressed.
• Press the DISPLAY button for a while when the
HOLD switch is OFF.
t The current time is displayed while the
DISPLAY button is being pressed.
Menu
Press the Jog lever
to go to the next step.
Press the MENU button to display the menu.
v
Press the Jog lever
upwards or downwards
to select an item.
[RETURN]*
BASS
(page 18)
REPEAT
(page 19)
AVLS
(page 20)
BEEP
(page 21)
LIGHT
(page 22)
CONTRAST
(page 22)
OFF
ON-1
ON-2
OFF
ALL
1
SHUF
NORM
LIMIT
OFF
ON
OFF
ON
OPR
-5 to +5
* Select [RETURN], then press the
Jog lever to exit from the menu.
TITLE
** If you cannot format (while in
play/pause mode, or there is no
“Memory Stick” inserted),
“FORMAT” does not appear in
the display.
ENG
(see below)
JPN
FORMAT**
DATE&TIME
NO
YES
(page 23)
(page 24)
Y
FORMAT OK?
M
D
H
M
On the TITLE menu
You can choose between “ENG” (English) and“JPN” (Japanese). This function will be available in
the future when the OpenMG Jukebox software is upgraded and you can use both English and
Japanese for album and song titles.
25
Advanced Operations
(OpenMG Jukebox)
Names and functions of the OpenMG
Jukebox window
1 2
3
4
5
6
7
0
9
1 Recorder: opens the OpenMG CD
Recorder window
2 Internet: for using EMD services
3 Playback mode buttons: you can set the
shuffle mode, repeat mode, etc.
4 Operation buttons: you can play or adjust
the volume, etc.
5 Close button: quits the OpenMG Jukebox
software. (You can also quit by clicking
[File]–[Quit])
6 Portable Player: opens the Portable Player
window (page 27)
26
8
7 Edit My Select: opens the My Select
window.
8 Song title list: displays the song titles
listed in the selected album/Filter
9 Album title list: displays the album/Filter
titles in the OpenMG Jukebox
0 You can choose to display the album list,
the Filter, etc.
Portable Player window
When you connect Memory Stick Walkman to the computer, the Portable Player window appears
in the display on the right side of the OpenMG Jukebox.
qa
qs
qd qf qg
qh
qk
qa You can use these buttons to operate the
OpenMG Jukebox software (see page 26
for more information).
qs CHECK IN/OUT START (STOP) button:
starts or stops the Check-In/Out
qd Name of the connected portable player
(such as Memory Stick Walkman)
qf Memory space on the “Memory Stick” or
memory used for audio files, and total
memory capacity*
qg RETURN button: closes the Portable
Player window
qh Album title of the “Memory Stick”
qj Displays the song titles recorded on the
“Memory Stick”
qk Check-In/Out buttons (to start Check-In/
Out, click the START button next)
* When using a 64MB “Memory Stick,” “61.8MB”
appears in the display as the total memory
capacity. This number is a result of subtracting
memory for the system operation of Memory Stick
Walkman.
Advanced Operations (OpenMG Jukebox)
qj
27
Transferring data
from the “Memory
Stick” to the
computer (Check-In)
You can return the tracks recorded on a
“Memory Stick” back to the hard drive of
your computer (Check-In). You can return
them only to the same computer from which
the tracks have been Checked-Out.
1
Connect Memory Stick Walkman to
your computer and start the
OpenMG Jukebox software.
The Portable Player window appears.
See pages 13 and 14 for details.
2
Click the track you want to CheckIn in the Portable Player window,
button.
then click the
Click the track while pressing the Ctrl
key to choose more than one track.
To Check-In all the tracks, click the
button.
3
Click the START button.
The desired tracks are Checked-In.
During Check-In, the STOP button
flashes. When Check-In is finished, the
song titles disappear from the Portable
player window.
To cancel Check-In
Click the STOP button.
On the Windows
Explorer
When you connect Memory Stick Walkman to
your computer with the supplied USB cable,
you can display the data recorded on a
“Memory Stick” as an external drive (for
example, as the D drive) using the Windows
Explorer.
Data is stored in a folder called Hifi Folder.
Do not edit data that is stored in the Hifi
Folder. You cannot playback data that has
been copied or edited using the Windows
Explorer.
On data that is not stored in the
Hifi Folder
You can display data that has been recorded
on other “Memory Stick” compatible devices
(JPEG data, MPEG data, etc.). However, if
you transfer or copy data that has been
displayed on the Windows Explorer, further
normal operation will not be guaranteed. To
edit data on your computer, do not use
Memory Stick Walkman. Please use the
Memory Stick slot or a Memory Stick
adaptor.
For information on how to handle data that is
not stored in the Hifi Folder, please refer to
the instruction manual that comes with the
equipment with which the recording has been
done.
Note
Even if you display data on the Windows Explorer
without using the OpenMG Jukebox, the use of the
AC power adaptor is recommended. (If you use
only the battery, data may be broken when the
battery is exhausted)
Note on formatting
When formatting the “Memory Stick,” do not
use the format function on the Windows
Explorer. “FORMAT ERROR” (page 34) is
displayed and you cannot playback using
Memory Stick Walkman. Please follow the
instructions on how to format a “Memory
Stick” on page 23.
28
Uninstalling the
OpenMG Jukebox
Follow the instructions below on how to
uninstall the OpenMG Jukebox.
1
Click [Start]–[Settings]–[Control
Panel] to display the Control Panel.
2
Double-click [Add/Remove
programs].
The Add/Remove programs Property
window appears.
3
4
Click “OpenMG Jukebox” from the
list.
Click Add/Remove.
The OpenMG Jukebox software is
uninstalled.
Note
After installation, the compact disc may not start
playing automatically when inserted into the CDROM drive. In this case, refer to the instruction
manual or online help of the player software you are
using to set to start automatically.
29
Other Information
Precautions
Notes
On safety
Do not put any foreign objects in the DC IN
5.5V jack.
On installation
• Never use the player where it will be
subjected to extremes of light, temperature,
moisture or vibration.
• Never wrap the player in anything when it
is being used with the AC power adaptor.
Heat build-up in the player may cause
malfunction or damage.
On power sources
On heat build-up
• Use the AC power adaptor supplied with
this player. Do not use any other AC power
adaptor since this may cause the player to
malfunction.
Heat may build up in the player while
charging if it is used for an extended period
of time.
On handling the “Memory Stick”
A B
• The player is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
player itself has been turned off.
• If you are not going to use this player for a
long time, be sure to disconnect the power
supply. To remove the AC power adaptor
from the wall outlet, grasp the adaptor plug
itself; never pull the cord.
LOCK
C
D
On charging
• Be sure to use the supplied AC power
adaptor for charging.
• The charging time may vary depending on
the battery condition.
• When a rechargeable battery is charged for
the first time or charged after a long period
of disuse, battery life may be shorter than
usual. Repeat discharging and recharging a
few times. The battery life should return to
normal.
• When the battery life of a fully charged
rechargeable battery becomes about half the
normal life, you may need to replace the
battery. Please contact your nearest Sony
dealer.
30
• When the “Memory Stick” erasure
prevention switch is set to “LOCK,” data
cannot be recorded, erased or edited.(B)
• The tactile protrusion on the rear surface of
“MagicGate Memory Stick” distinguishes it
from a general “Memory Stick.”(C)
• Do not attach any other material than the
supplied label on the label space.(D)
• Attach the label so that it does not stick out
from the proper attachment location.
• Do not touch the “Memory Stick” connector
with your finger or metallic objects.(A)
• Do not bend, drop or apply strong shock to
the “Memory Stick.”
• Do not disassemble or modify the “Memory
Stick.”
• Do not allow the “Memory Stick” to get
wet.
• Do not use or store the “Memory Stick” in a
location that is subject to:
- Extremely high temperature, such as in a
car parked in the sun
- Direct sunlight
- High humidity or places with corrosive
substances
• To prolong the life of the “Memory Stick,”
use the supplied storage case.
On the headphones
Preventing hearing damage
Avoid using headphones at high volume.
Hearing experts advise against continuous,
loud and extended play. If you experience a
ringing in your ears, reduce the volume or
discontinue use.
• Clean the player casing with a soft cloth
slightly moistened with water or a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder or solvent
such as alcohol or benzene as it may mar the
finish of the casing.
• Clean the headphones plug and extension
cord plug periodically.
If you have any questions or problems
concerning your Memory Stick Walkman,
please consult your nearest Sony dealer. (If
trouble occurred when the “Memory Stick”
was in the player, we recommend that the
“Memory Stick” be left in the player when
you consult your Sony dealer so that the
cause of trouble may be better understood.)
Other Information
Road Safety
Do not use headphones while driving,
cycling, or operating any motorized vehicle.
It may create a traffic hazard and is illegal in
many areas. It can also be potentially
dangerous to play your player at high
volume while walking, especially at
pedestrian crossings. You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
On cleaning
Caring for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate of the people around you.
31
Troubleshooting
If you experience any of the following difficulties while using Memory Stick Walkman, use this
troubleshooting guide to help you remedy the problem. Should any problem persist, consult your
nearest Sony dealer. For trouble concerning operations while connecting with your computer,
please refer to the supplied software‘s online help “Troubleshooting” contents, too.
To reset the player
RESET button
If Memory Stick Walkman does not operate
normally even after checking the troubleshooting
guide below, press the RESET button on the rear of
Memory Stick Walkman with a thin object and
hold it there for more than one second.
What happened ?
On playback
Symptom
Cause/Remedy
There is no sound.
c Adjust the volume. (page 16)
The volume does not increase.
c Set the AVLS function to “NORM”. (page 20)
Sound is distorted.
c Record with a higher bps value. (page 15)
There is no sound from the right
channel of the headphones.
c Make sure that the headphones plug is connected securely.
The same track is repeated while in
Shuffle mode.
c If you stop playback, the player reshuffles the tracks and the
track played before stopping may play again as the first
selected track.
Playback has stopped suddenly.
c The battery is exhausted. You need to charge it. (page 10)
c Release and reinsert the “Memory Stick” a few times to clean
the terminals.
Cannot playback audio data with
date limits.
c You must set the date in the menu. (page 24)
c The date has expired.
c The erasure prevention switch is on LOCK.
The sound is not normal after I
reset the player.
c You must press the RESET button longer. Press the RESET
button with a thin object for more than one second. (page 32)
On the display window
32
Symptom
Cause/Remedy
The backlight is off.
c Set the LIGHT setting to OPR (three seconds after each
operation) or ON (during operation) in the menu. (page 22)
The LCD is light/dark.
c Set the CONTRAST setting in the menu. (page 22)
“s” appears instead of the album
title.
c Use the OpenMG Jukebox to rename the title with characters
which can be displayed on the player.
On charging
Symptom
Cause/Remedy
The battery does not last even
when recharged.
c If you use the player where the temperature is below 0°C
(32°F), the battery does not function.
c You need to replace the battery. Please contact your nearest
Sony dealer.
The battery is quickly exhausted.
c When you connect the player to your computer, use the
supplied AC power adaptor, otherwise the battery is quickly
exhausted. (page 13)
Charging stops just after
connecting the supplied AC power
adaptor.
c The battery is full. (If the charging stops even when the battery
is low, this may be due to a problem with the battery life. Please
contact your nearest Sony dealer.)
On the connection with the computer
Symptom
Cause/Remedy
“PC CONNECT” does not appear
in the display window when
connecting to the computer with
the supplied UCB cable.
c Please wait for the authentication of the OpenMG Jukebox
(page 37) to be finished.
c If another software is active on your computer, wait for a
while, then reconnect the USB cable. If the problem persists,
disconnect the USB cable, restart your computer, then connect
the USB cable to your computer again.
c Make sure the USB cable is correctly connected.
The player is suddenly
disconnected and “PC CONNECT”
disappears from the LCD.
c The supplied AC power adaptor was not connected and the
battery is exhausted. You need to connect the supplied AC
power adaptor to the player.
The computer does not identify the
player when it is connected to the
computer.
c Make sure the USB cable is correctly connected. (page 13)
There are only a few songs I can
Check-Out. (The recordable time
is short.)
c If there is data other than audio files in the “Memory Stick,”
copy them to your computer to free memory on the “Memory
Stick.”
After connecting to the computer,
the drive appears but there is
nothing inside.
c Make sure the “Memory Stick” is inserted and reconnect the
player to your computer.
The computer/player do not
operate normally when connected.
c If you are connecting both devices with a USB hub or a USB
extension cable, normal operation is not guaranteed. Please use
only the supplied USB cable.
“Failed to authenticate the portable
c You cannot use this player anymore. Please contact your
nearest Sony dealer.
player” appears on the display when
the player is connected to the computer.
Other
Symptom
Cause/Remedy
The buttons do not operate.
c Make sure the HOLD switch is OFF. (page 21)
c You must recharge the battery. (page 10)
There is no beep sound to indicate
that operation has been accepted.
c Set the BEEP setting to ON in the menu. (page 21)
The EJECT lever does not work.
c You must release the DC/USB adaptor. (page 10)
Cannot connect the DC/USB
adaptor.
c Make sure the DC/USB adaptor is correctly connected with the
SONY logo on the upper side. (page 10)
c Remove and reinsert the “Memory Stick.”
Cannot release the DC/USB
adaptor.
c Press the Release button gently and then pull the DC/USB
adaptor. (page 10)
continued
33
Troubleshooting (continued)
Symptom
Cause/Remedy
Cannot insert the “Memory Stick.”
c Make sure the “Memory Stick” is correctly inserted as shown
on Memory Stick Walkman. (page 13)
The current time is reset.
c If you have reset the player by pressing the RESET button, the
current time is reset. (page 32)
c The battery is low and needs to be charged.
The player gets warm.
c The player gets warm during charging and playback.
Cannot use a “Memory Stick” used
on other devices.
c Only “MagicGate Memory Stick” can be used with this player.
c If the “Memory Stick” has been formatted using a computer,
backup the files of the“Memory Stick” on your computer if
necessary, and reformat the “Memory Stick” using this player.
(page 23)
Error messages
Follow the instructions below if an error message appears in the display.
Message
Meaning
Remedy
ACCESS
Accessing the “Memory Stick.”
This is not an error. Please wait for
access to be finished. Do not take out the
“Memory Stick” or unplug the AC
power adaptor.
CANNOT PLAY
• The player cannot playback certain
contents of this “Memory Stick” due
to a difference in format.
• The data‘s playback date has expired.
• The current date has not been set to
playback data with date limits.
• Check-Out has been interrupted
forcefully.
• Cannot read the data.
• The data is not normal.
• You need to set the current date to
playback data with date limits.
• If there is data in a different format,
you must delete that data from the
“Memory Stick.” See “To delete
abnormal data from the Memory
Stick,” on page 35.
FORMAT ERROR
The inserted “Memory Stick” contains
a data format which is not supported
by Memory Stick Walkman. (For
example, if you format the “Memory
Stick” using the computer.)
You must format the “Memory Stick”
following the instructions on page 23.
(You must format the “Memory Stick”
using this player. If you format the
“Memory Stick” using the computer,
you may Check-In/Out, but you cannot
playback using this player.)
HI DC IN
The DC IN voltage is too high. (You
are not using the supplied AC power
adaptor.)
You must use the supplied AC power
adaptor.
HOLD
This is not an error. Switch the HOLD
The HOLD switch is ON, and no
operating buttons are available (except switch to OFF before operating the
buttons.
the EJECT lever).
Slide the erasure prevention switch on
The erasure prevention switch on the
the “Memory Stick” to OFF.
“Memory Stick” is on LOCK while
trying to playback data with date
limits.
FILE ERROR
LEGAL LOCK
34
You need to Check-In data you are able
to Check-In into your computer, then
format the “Memory Stick” using this
player. (See “To delete abnormal data
from the Memory Stick” on page 35.)
Message
Meaning
Remedy
LOCKED
The erasure prevention switch of the
“Memory Stick” is on LOCK.
Switch the erasure prevention switch to
OFF when connecting to your computer
or formatting a “Memory Stick.”
LOW BATT
The battery is low, and needs to be
charged.
You must charge the battery.
LOW DC IN
The DC IN voltage is too low. (You
are not using the supplied AC power
adaptor. The AC power adaptor or
DC/USB adaptor are not connected
correctly.)
You must use the supplied AC power
adaptor. Make sure it is correctly
connected.
NO AUDIO
• There is no music data in
“MagicGate Memory Stick.”
• The “Memory Stick” is not
“MagicGate Memory Stick.”
Check that “MagicGate Memory Stick” is
inserted. If there is no music data in
“MagicGate Memory Stick,” use the
OpenMG Jukebox to Check-Out music
items.
NO DATA
There are no tracks inside
“MagicGate Memory Stick.”
Use the OpenMG Jukebox to Check-Out
music items.
NO STICK
There is no “Memory Stick” inserted.
Insert a “Memory Stick.”
PC CONNECT
The player is connected to the
computer.
This is not an error. You can operate
using the OpenMG Jukebox software, but
you cannot operate the controls on the
player.
STICK ERROR
You cannot access the “Memory
Stick,” or the data inside the
“Memory Stick” or the player itself
is not normal.
Eject and reinsert the “Memory Stick” a
few times. If this does not solve the
problem, Check-In data items into the
computer, and then format the “Memory
Stick” using this player. (See below “To
delete abnormal data from the Memory
Stick.”)
If the problem persists, bring both the
player and the “Memory Stick” to your
nearest Sony dealer.
To delete abnormal data from the “Memory Stick”
If “CANNOT PLAY,” “FILE ERROR,” “STICK ERROR” appears in the display window, there is
abnormal data in the “Memory Stick.”
Please follow the instructions below to delete abnormal data (data you cannot playback).
1 Connect Memory Stick Walkman to your computer and open the Portable Player window.
(page 28)
2 If the cause of the abnormal data is clear (data of which the playback date limits have expired,
etc.), delete the data from the Portable Player window.
3 If the problem persists, click the
button on the OpenMG Jukebox to Check-In all data you
are able to Check-In.
4 Disconnect the player from the computer and then format the “Memory Stick” using the menu.
(page 23)
Note
If you format the “Memory Stick,” data that has been recorded using other devices will be deleted, too. If there
are other data in the “Memory Stick,” check the data contents using a compatible equipment before formatting
the “Memory Stick.”
35
Specifications
Recording time (when using the
supplied 64MB “MagicGate Memory
Stick”
Approx. 60 min. (132kbps)
Approx. 80 min. (105kbps)
Approx. 120 min. (66kbps)
Supplied accessories
64MB “MagicGate Memory Stick”
AC power adaptor
DC/USB adaptor
Headphones
Headphones extension cord
USB cable
CD-ROM
Strap
Operating Instructions
Optional accessories
Sampling frequency response
44.1kHz
Recording format
ATRAC3
Frequency response
20 to 20.000 Hz (single signal measurement)
Output
Headphone: stereo mini-jack
Signal-to-noise ratio (S/N)
More than 80dB (excluding 66 kbps)
Dynamic range
More than 85dB (excluding 66 kbps)
Operating temperature
5˚C to 35˚C (-41˚F to 95˚F)
Power source
• DC IN 3.7V (internal Lithium-ion battery)
• DC IN 5.5V (supplied AC power adaptor)
Battery life
Approx. 4 hours
Dimensions (approx.)
37 x 96.3 x 19.2 mm (1 1/2 x 3 7/8 x 25/32 inches)
(w/h/d, projecting parts not included)
Mass (approx.)
70g (2.5 oz) (internal battery and a “Memory Stick”
included)
36
“MagicGate Memory Stick” MSG-32A (32MB)
MSG-64A (64MB)
Design and specifications are subject to change
without notice.
Note on the supplied “Magic Gate
Memory Stick”
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Glossary
MagicGate
Copyright protection technology that consists of authentication and encryption technology.
Authentication ensures that protected content is transferred only between compliant devices and
media, and that protected content is recorded and transferred in an encrypted format to prevent
unauthorized copying or playback.
Note
is terminology denoting the copyright protection system developed by Sony. It does not
guarantee conversion among other media.
“MagicGate Memory Stick”
A compact Integrated Circuit recording medium “Memory Stick” equipped with “MagicGate”
copyright protection technology.
“Memory Stick”
“Memory Stick” is a portable and compact Integrated Circuit recording medium. There are two
types of “Memory Stick”: “MagicGate Memory Stick” equipped with “MagicGate” copyright
protection technology and a normal “Memory Stick” not equipped with the copyright protection
technology. You can record image files, audio files, and sound files using “Memory Stick”
compatible audio visual devices, or record data from the computer. Data with different formats
can be stored in the same “Memory Stick.” (Please refer to the instruction manuals that come with
the devices to check which format the equipment is able to read.)
For example, you can store image files in the space available on “MagicGate Memory Stick” using
the respective equipment even if there are already audio files in “MagicGate Memory Stick.”
OpenMG
Copyright protection technology that securely manages music content from the EMD/Audio CD
on a personal computer. Application software that is installed on the computer encrypts the
digital music content when recording on the hard drive. This allows you to enjoy music content
on the computer, but prevents unauthorized transmission of this content across a network (or
elsewhere). This PC copyright protection complies with “MagicGate,” and allows you to transfer
digital music content from a PC’s hard drive to a compliant device.
ATRAC3 (Adaptive Transform Acoustic Coding 3)
ATRAC3 is a sound compression technology based on “ATRAC3,” a sound compression
technology used for the Mini Disc, with the addition of a new technology to increase the
compression rate (by approximately 1/10).
SDMI (Secure Digital Music Initiative)
A forum that consists of over 130 companies in the fields of recorded audio content, computers
and consumer electronics, for the purpose of developing an integrated method of copyright
protection technology that can be used worldwide.
SDMI is working to create a framework for preventing improper usage of audio files and to
promote legal music distribution services. The copyright protection technologies “OpenMG” and
“Magic Gate” are based upon the SDMI standard.
continued
37
Glossary (continued)
Check-In / Check-Out
Check-Out is to transfer music files managed on a personal computer by an OpenMG-compliant
software to a portable player (such as Memory Stick Walkman). Returning the Checked-Out
music files back to that computer is to Check-In. (You cannot move a Checked-Out audio data to
another computer.)
You can also Check-Out a music file, Check it back In, and then Check it Out again.
The SDMI rules provide that up to four copies of a music file can be created unless a special
condition for usage is set. Thus, unless a special restriction exists while one copy is saved in the
computer, the other three can be Checked-Out to the Portable Players.
MP3
Abbreviation for MPEG-1 Audio Layer3. A standard for audio data compression determined by
the Motion Picture Experts Group, which is an ISO (International Organization for
Standardization) working group.
It enables compression of audio data to about 1/10 of the data size of a standard compact disc.
Since the MP3 encoding algorithm is disclosed, there are various encoders/decoders compliant
with this standard, including freeware that is available for no charge. Thus, the MP3 standard is
widely used in the computer field.
Bit rate
Quantity, per second, of information. The unit is bps (bit per second). You can choose from
132kbps/105kbps/66kbps when recording a compact disc or converting an MP3/WAV file to an
ATRAC3 file. For example, 105kbps means there are 105000 bits of information per second being
transferred. Bigger the number, larger is the information. When comparing audio files of the
same format, you can enjoy a better sound quality when recorded at 132kbps than at 105kbps,
also better at 103kbps than at 66kbps. (Audio files cannot be compared if of different format)
38
Restrictions on copyright protection by
OpenMG
This product (NW-MS7) features OpenMG, a copyright protection technology developed by Sony
to protect music copyrights.
OpenMG uses a high-level cryptographic technology to protect music contents with computers.
Users should be notified of the restrictions mentioned below.
1. This product can only be used with a computer on which the supplied OpenMG Jukebox software has been
installed.
2. Music recorded on the hard disk using the OpenMG Jukebox software cannot be played if copied onto other
computers.
3. Music contents Checked-Out from a computer cannot be played if copied onto other computers.
4. Music contents Checked-Out from a computer must be Checked-In to the same computer. You cannot CheckIn to other computers.
5. Installation of the same OpenMG Jukebox software onto other computers is not permitted.
6. Usage Rules for using music
If a Usage Rule is included in the music by way of the copyright holder or the distributor, operation will be
restricted to use permitted by the Usage Rule. For music, such as compact discs, that does not contain a Usage
Rule, the Default Usage Rule of SDMI will be followed. This Default Usage Rule states that one file can be
Checked-Out up to three times only.
7. On music contents that are not compatible with the OpenMG Jukebox software
• Under the supervision of SDMI, this software prohibits recording of music with a copy prohibition signal.
• Some music recorded with DVD players may detect copy prohibition signals when handled with the
OpenMG Jukebox. The user may be notified of such prohibitions.
8. Upgrading the supplied OpenMG Jukebox
This software was developed in accordance with the current arrangement between Sony and SDMI. If this
arrangement is modified in the future, some of the software functions may become unavailable. Sony may offer
an upgrade kit in this case at additional user expense.
39
Looking at the
controls
(rear)
7
Memory Stick Walkman
(front)
7 Strap hole for attaching the strap
(supplied with U.S.A. model only)
8 RESET button (page 32)
9 MENU button (page 18 - 25)
0 DISPLAY button (page 20)
qa EJECT lever (page 17)
qs DC/USB adaptor plug (page 10)
qd Memory Stick slot (page 13, 16)
1 i (Headphones) jack (page 16)
2 Display (page 17, 20)
3 VOLUME +/- button (page 16)
Display
4 Jog lever (page 16 - 25)
5 x (stop) button (page 16)
6 HOLD switch (page 21)
1 Mega-bass (page 18)
2 AVLS (page 20)
3 Playback mode (page 19)
4 Battery remain indication (page 10)
5 Information
Track name, track number, counter, menu
items, error messages, etc., are displayed.
(page 17, 20)
40
DC/USB adaptor
Index
(front)
A
AC power adaptor
album title
ATRAC3
AVLS
9, 10, 13, 28, 30, 33
15, 17, 20, 26, 27
37
20
B
1 BATTERY CHARGE lamp (page 10)
2 Connector (page 10)
3 DC IN 5.5 V jack (page 10, 13)
(rear)
Backlight
22, 32
BASS
18
Battery
10, 30, 33
BATTERY CHARGE lamp
10, 41
BEEP
21
beginning of the track 17
Bit rate
15, 38
C
4 Release button (page 10)
5 USB jack (for the supplied USB cable)
(page 13)
CD (compact disc)
14
CD drive
14
CD Recorder
14
CD-ROM
11
charging
10, 30, 33
Check-In
5, 28, 38
Check-Out
5, 15, 35, 38
computer
4, 11, 13, 28, 33
CONTRAST
22
copyright protection technology
5, 37
D
DATE&TIME
DC/USB adaptor
display
DISPLAY button
display mode
download
driver (USB)
24
9, 10, 13, 33, 41
17, 20
20
20
4, 12
13
continued
41
Index (continued)
E
M
EMD services
12
erasure prevention switch
13, 23, 30, 32
Explorer
28
F
FORMAT
formatting
23, 28
23, 28, 34
17
17
H
hard drive
headphones
extension cord
HOLD
Hold switch
O
online help
8
OpenMG
4, 37
OpenMG Jukebox software
4, 11, 14, 26
OpenMG CD Recorder
14
optimizing the CD drive
14
G
go backward
go forward
MagicGate
4, 6, 37
“MagicGate Memory Stick”
4, 9, 13, 16, 37
“Memory Stick”
6, 13, 16, 37
insert
13, 16
Menu
25
MP3
38
4, 13, 28
9, 16
9, 16
16, 21
16, 21
P
pause
17
playback
16
Portable Player window
27
previous tracks
17
I
install
11
Internet (EMD services) 12
Q
J
Jog lever
quit (software)
26
16, 18, 21, 25
R
L
LCD
backlight
contrast
LIGHT
listen to music
22
22
22
22
16
record
REPEAT
RESET button
restrictions
RETURN
14
19
32, 40
39
25
S
SDMI
set the current time
song title
start (software)
succeding tracks
supplied accessories
42
4, 37
24
17, 20, 25, 26
14
17
9
T
TITLE
25
transferring
13, 28
to your computer
to the “Memory Stick”
troubleshooting
32
28
13
U
upgrading
uninstalling
Usage Rule
USB cable
USB driver
39
29
39
9, 13, 33
13
V
volume
16
W
WAV format
window
Windows Explorer
4
26
28
43
Sony Corporation
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
