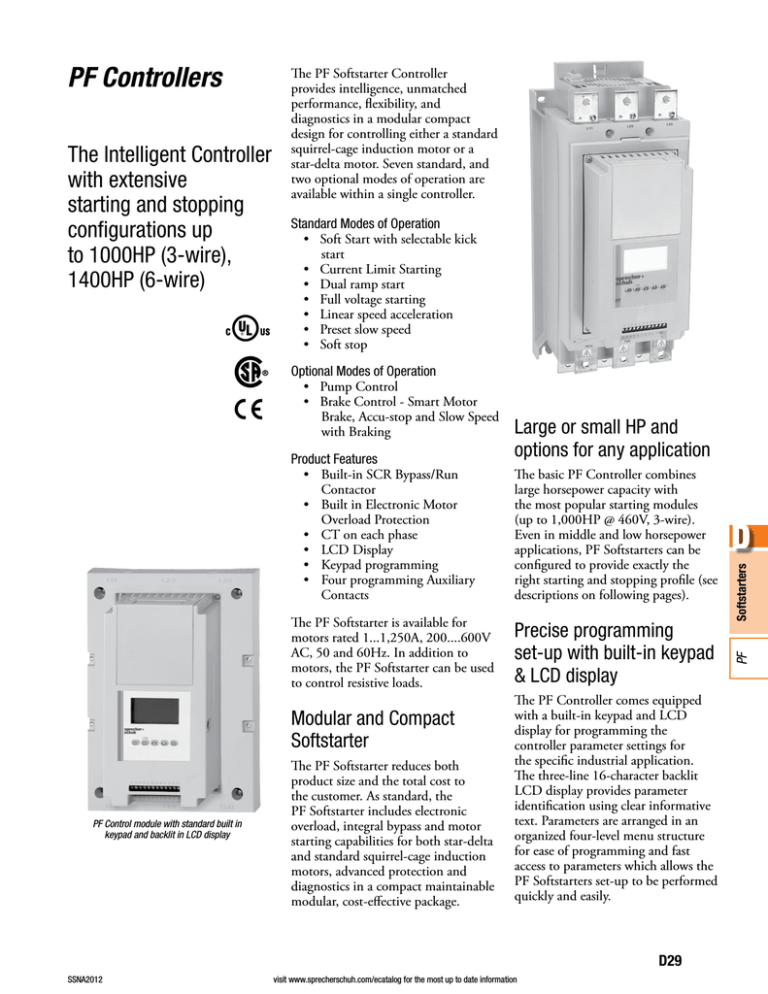

PF Controllers

The Intelligent Controller with extensive starting and stopping configurations up to 1000HP (3-wire),

1400HP (6-wire)

PF Control module with standard built in keypad and backlit in LCD display

®

The PF Softstarter Controller provides intelligence, unmatched performance, flexibility, and diagnostics in a modular compact design for controlling either a standard squirrel-cage induction motor or a star-delta motor. Seven standard, and two optional modes of operation are available within a single controller.

Standard Modes of Operation

• Soft Start with selectable kick start

• Current Limit Starting

• Dual ramp start

• Full voltage starting

• Linear speed acceleration

• Preset slow speed

• Soft stop

Optional Modes of Operation

• Pump Control

• Brake Control - Smart Motor

Brake, Accu-stop and Slow Speed with Braking

Product Features

• Built-in SCR Bypass/Run

Contactor

• Built in Electronic Motor

Overload Protection

• CT on each phase

• LCD Display

• Keypad programming

• Four programming Auxiliary

Contacts

The PF Softstarter is available for motors rated 1...1,250A, 200....600V

AC, 50 and 60Hz. In addition to motors, the PF Softstarter can be used to control resistive loads.

Modular and Compact

Softstarter

The PF Softstarter reduces both product size and the total cost to the customer. As standard, the

PF Softstarter includes electronic overload, integral bypass and motor starting capabilities for both star-delta and standard squirrel-cage induction motors, advanced protection and diagnostics in a compact maintainable modular, cost-effective package.

Large or small HP and options for any application

The basic PF Controller combines large horsepower capacity with the most popular starting modules

(up to 1,000HP @ 460V, 3-wire).

Even in middle and low horsepower applications, PF Softstarters can be configured to provide exactly the right starting and stopping profile (see descriptions on following pages).

Precise programming set-up with built-in keypad

& LCD display

The PF Controller comes equipped with a built-in keypad and LCD display for programming the controller parameter settings for the specific industrial application.

The three-line 16-character backlit

LCD display provides parameter identification using clear informative text. Parameters are arranged in an organized four-level menu structure for ease of programming and fast access to parameters which allows the

PF Softstarters set-up to be performed quickly and easily.

D

D29
