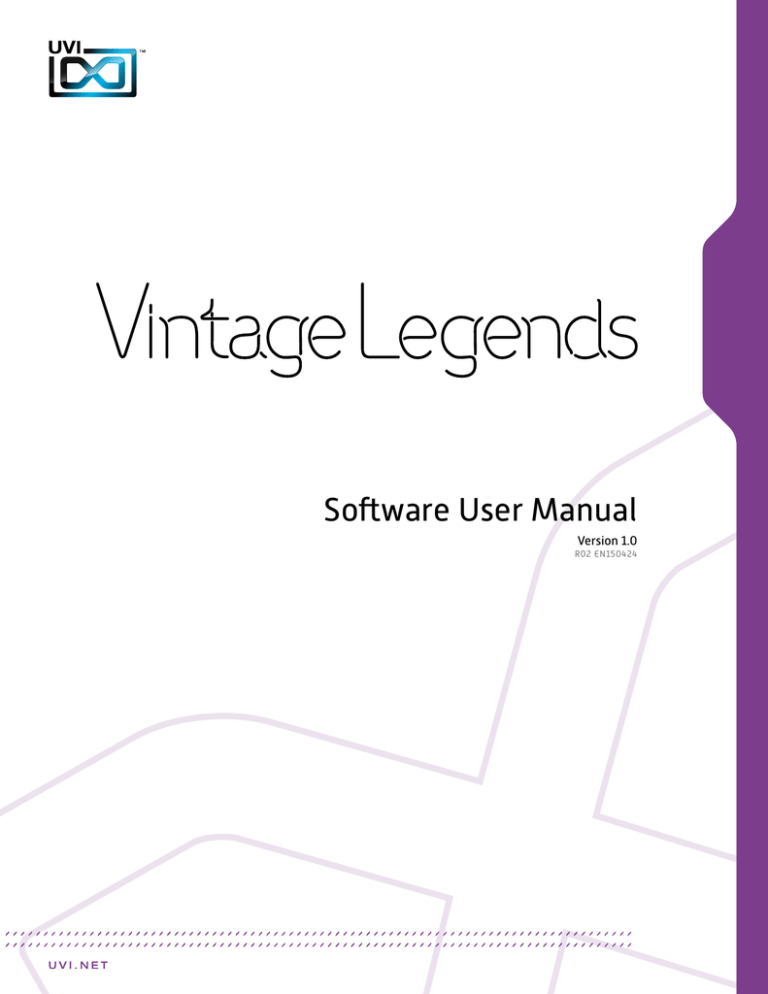

UVI Vintage Legends - User Manual

UVI Vintage Legends - User Manual

Software User Manual

Version 1.0

R02 EN150424

End User License Agreement (EULA)

Do not use this product until the following license agreement is understood and accepted.

By using this product, or allowing anyone else to do so, you are accepting this agreement.

Vintage Legends (henceforth ‘the Product’) is licensed to you as the end user. Please read this Agreement carefully.

You cannot transfer ownership of these Sounds and Software they contain. You cannot re-sell or copy the Product.

LICENSE AND PROTECTION

1. License Grant

UVI grants to you, subject to the following terms and conditions, a non-exclusive, non-transferable right to use each authorized copy of the Product.

The product is the property of UVI and is licensed to you only for use as part of a musical performance, live or recorded. This license expressly forbids resale or other distribution of the sounds and software included in the Product or their derivatives, either as they exist on disc, reformatted for use in another digital sampler, or mixed, combined, filtered, resynthesized or otherwise edited, for use as sounds, multi-sounds, samples, multi-samples, wavetables, programs or patches in a sampler, microchip or any hardware or software sample playback device.

You cannot sell the Product content or give it away for use by others in their sampling or sample playback devices. In the event UVI terminates this agreement due to your breach, you agree to return the original and all other copies of the software and documentation to UVI.

UVI reserves all rights not expressly granted to herein.

2. Protection of Software

You agree to take all reasonable steps to protect the product and any accompanying documentation from unauthorized copying or use. You agree not to modify the product to circumvent any method or means adopted or implemented by UVI to protect against or discourage the unlicensed use of copying of the Product.

3. Ownership

As between you and UVI, ownership of, and title to, the enclosed digitally recorded sounds (including any copies) are held by UVI.

Copies are provided to you only to enable you to exercise your rights under the license.

4. Term

This agreement is effective from the date you open this package, and will remain in full force until termination. This agreement will terminate if you break any of the terms or conditions of this agreement. Upon termination you agree to destroy and return to UVI all copies of this product and accompanying documentation.

5. Restrictions

Except as expressly authorized in this agreement, you may not rent, sell, lease, sub-license, distribute, transfer, copy, reproduce, display, modify or time share the enclosed product or documentation.

6. Hardware

The accompanying USB flash media is only guaranteed in it’s original state, as an installation medium for the Product. Any variance from this use including but not limited to deleting, altering or adding data, reformatting the media or any physical alteration of the device will void its warranty. If the media is found to have a physical or manufacturing defect please contact our support department (http:// www.uvi.net/contact-support).

©2015 UVI. All rights reserved.

All trademarks are the property of their respective owners.

2

Table of Contents

Introduction

..............................................................................................................................................................

4

System Requirements

.........................................................................................................................................

5

Installation

Step 1: Register Your Serial Number

....................................................................................................

6

Step 2: Activate Your License

..................................................................................................................

7

Step 3: Install Your Instrument

................................................................................................................

8

Step 4: Load Your Instrument

..................................................................................................................

9

Synthox

Edit Page

.............................................................................................................................................................

10

Mod Page

...........................................................................................................................................................

12

Arp Page

..............................................................................................................................................................

13

Preset List

...........................................................................................................................................................

14

CSM

Edit Page

.............................................................................................................................................................

15

Mod Page

...........................................................................................................................................................

17

Arp Page

..............................................................................................................................................................

18

Preset List

...........................................................................................................................................................

19

Energy

Edit Page

.............................................................................................................................................................

20

Mod Page

...........................................................................................................................................................

22

Preset List

...........................................................................................................................................................

23

Kroma

Edit Page

.............................................................................................................................................................

24

Mod Page

...........................................................................................................................................................

26

Preset List

...........................................................................................................................................................

27

FMX1

Edit Page

.............................................................................................................................................................

28

Mod Page

...........................................................................................................................................................

30

Preset List

...........................................................................................................................................................

31

U1250

Edit Page

.............................................................................................................................................................

32

Preset List

...........................................................................................................................................................

33

UVI Workstation: Tips and Tricks

...................................................................................................................

34

Links

.............................................................................................................................................................................

35

Credits and Thanks

...............................................................................................................................................

36

3

Introduction

Vintage Legends

Instantly feel the inspiration of the Yamaha CS-70M,

CS-40M and CS-20M, the crazy Italian Elka Synthex, the Rhodes Chroma, the king of FM - the Yamaha

DX1, the rare DK Synergy, and the classic K250.

With decades of sound production and software design experience, UVI’s sample-based instruments set a new standard for virtual instruments. Vintage

Legends boasts the authentic character and distinct sound of 8 renowned vintage hardware synths.

UVI hybrid instruments provide the best of both worlds, providing the real sound of hardware with all of the conveniences and flexiblity of a modern software instrument.

Vintage Legends integrates over 30,000 samples from these classic synths into the acclaimed

UVI Engine. Experience massive unison spreads, abundant polyphony, thick-modeled filters, drive, reverbs, modulation, FX and much more.

From pop to dance, electro, hip-hop, experimental and more, Vintage Legends is a deep and versatile sonic resource suited for any task and designed to inspire musicians.

4

System Requirements

Compatibility

Audio Units, VST, MAS, RTAS, AAX or standalone

UVI Workstation 2.5.12 or higher

Minimum System Requirements

Intel CPU

4 GB of RAM (8 GB+ recommended)

10.5 GB of disk space

Mac OS X 10.7 or higher

iLok account (free, dongle not required)

Compatibility

VST, RTAS, AAX or standalone

UVI Workstation 2.5.12 or higher

Minimum System Requirements

Core Duo or faster

4 GB of RAM (8 GB+ recommended)

10.5 GB of disk space

Windows 7 or higher

iLok account (free, dongle not required)

Authorize the Way You Want

Your license allows 3 concurrent authorizations on any combination of computers and iLok dongles.

License management is a simple drag-and-drop process done through iLok License Manager.

Visi t ilok.com/ to download iLok License Manager and create your free account.

5

Step

1

Register Your Serial Number

1 2 3 4

You must have an account on uvi.net/ and ilok.com/ prior to registration

If you purchased a physical version of this product, your serial number is located on the inside of the box

If you purchased an electronic version of this product, your serial number will be included in a confirmation email

You can see a list of the products you’ve registered and their serial numbers anytime at uvi.net/my-products

1. Login to your account on uvi.net/

2. Navigate to the ‘Product Registration’ page

3. Enter your details and click ‘Register’

Upon completion a new license will be deposited in your iLok account

6

Step

2

Activate Your License

iLok License Manager is required for activation, download the newest version at ilok.com/ilm.html

Your license allows up to 3 concurrent activations on any combination of iLok dongles and computers

Activations can be moved between devices at anytime

1 2 3 4

1. Launch iLok License Manager

2. Login to your account

3. Click the ‘Available’ tab

4. Drag the license to your computer or an iLok dongle

5. Click ‘Ok’ to confirm the activation

The process is complete, your device is now authorized

»

To see how many authorizations you have left simply select the license and click ‘Show Details’

»

To deactivate your license, right-click it and select ‘Deactivate’ — doing so will return your license to the ‘Available’ tab

7

Step

3

Install Your Instrument

UVI Instruments can be stored anywhere on your system

Storing your instruments on a fast drive will improve performance

Your instruments can be downloaded at any time from uvi.net/my-products

1. Create a folder on your computer and place your UVI Instruments in it

Once this is done we need to tell UVI Workstation where to find your instruments.

We do this by creating a watch folder, follow the steps below to create your own:

2. Open UVI Workstation

3. Click the Settings page

4. Click the ‘Sound Banks’ tab

5. Click the ‘...’ button and select the folder where you’ve placed your instruments

6. Restart UVI Workstation and open the Browser

Your instruments will be available under the ‘Soundbanks’ tab

1 2 3 4

8

Step

4

Load Your Instrument

UVI Workstation is required to run UVI Instruments

The newest version of UVI Workstation can be downloaded free at uvi.net/downloads

UVI Workstation can be run as a standalone program or as a virtual instrument from within your DAW of choice

1 2 3 4

1. Open UVI Workstation

2. Click the Browser icon

3. Open the Sound Banks tab

4. Select a product, in this example we’ll choose Vector Pro, then select an instrument and patch

Double-click the patch to load it

5. The UI appears and you’re ready to jam!

9

Synthox - Edit Page

7

Amplitude (ADSR)

Layer Edit

5

Pitch

6

7

Amplitude (...)

8

Drive

Layer Globals

3

Pages

2

1

Presets

4

Master Gain

The UI is divided into three pages; [Edit] , [Mod] and [Arp] . Primary controls such as amp, filter, stereo, pitch and effects are available on the [Edit] page.

Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator. The final [Arp] page presents an independent arpeggiator for each layer.

Main

1 Presets

Select a global preset from the pulldown menu or browse them with the

Prev/Next arrows

2 Pages

Change the current page by selecting one of the 3 options; Edit, Mod or Arp

3 Layer Globals

» On/Off Toggle

» Volume

» Pan

» Octave [+1, 0, -1]

4 Master Gain

Set the Output Gain for the instrument

Basic Controls

5 Layer Edit

» Edit 1 | Edit 2 | Edit All

Choose to edit layers 1 or 2 seperately or simultaneously

» Wave Menu

Choose the wave category in the first row and the wave in the second

6 Pitch

» Mono

Toggle between Mono and Poly voicing

» Tune

Adjust the pitch in Semitones/Cents

» Depth

Adjust the Portamento depth

» Time

Set the Glide time

7 Amplitude

» ADSR

Attack / Decay / Sustain / Release envelope for the Amplitude section

» No Velocity

Sets all incoming notes to max velocity

» Velocity > Attack

Modulates attack amount based on incoming note velocity. Low velocities result in long attacks; high velocities result in short attacks.

8 Drive

» Amount

Sets the amount of drive

10

Synthox - Edit Page

[continued]

Filter

10

Stereo

9

Modwheel

12

10

Filter (ADSR)

11

Effects

Basic Controls (continued)

9 Stereo

» Mode

Off / Alternate Pan / Unison

» Color

Shifts color based on adjacent samples

» Spread

Change the stereo width

» Detune

UNI Mode Only: setunes layers

10 Filter

» ADSR

Attack / Decay / Sustain / Release envelope for the Filter section

» Frequency

Filter cutoff frequency

» Envelope

Modifies the amount of ADSR envelope to be applied to the Filter

» Resonance

Adjust the resonance (Q) of the Filter

» Vel > Filter

Adjust the Velocity > Filter sensistivity

» Filter Modes

Choose Filter mode; High Pass, Band

Pass, Low Pass or OFF

11 Effects

» Power/Amount

Choose from Phaser, Delay, and Reverb

(additional controls available in the

Effects page of UVIWS and MF)

12 Modwheel

» Power/Amount

Easily route your controllers Modwheel to control common parameters such as

Vibrato, Tremolo and Filter Depth

11

Synthox - Mod Page

Sync

1

Waveforms

2

LFO Controls

3

Seq Params

6

Step Sequencer

5

4

LFO Mod Routing

7

Seq Mod Routing

LFO

1 Sync

Enable/Disable LFO sync to Host Tempo

2 Waveforms

Choose LFO waveform; Sine, Triangle,

Square or Sample & Hold

3 LFO Controls

» Speed

Change the LFO Speed

» EG Depth

Adjusts the amount of Attack and Decay to be applied to the LFO

» Attack

Attack time for the Speed envelope

» Decay

Decay time for the Speed envelope

4 Mod Routing

Control the amounts of LFO modulation to be applied to various parameters including; Pitch, Drive, Volume and Filter

Step Modulator

5 Step Sequencer

Interactive editor for programming sequenced modulations; bar height equals mod amount

6 Seq Params

» Delay

Delay time to activate first step

» Rise

Time to activate step with a smooth transition

» Smooth

Interpolates values between adjacent steps to smooth parameter modulation for a custom LFO effect

» Res

Change the sequencers step length

» Steps

Change the amount of steps for the sequencer to play

7 Mod Routing

Control the amounts of modulation to be applied to various parameters including;

Volume and Filter

12

Synthox - Arp Page

Step Indicator

1

Step Editor

2

Tie

3

Layer 1 > Layer 2

4

Arp On/Off

5

Arp Mode

Grid

7

6

9

Steps

8

Gate

10

Octave

1 Step Indicator

LED lights up when step is triggered

2 Step Editor

16-step sequencer; affects Velocity

3 Tie

When active, step inherets Velocity from the previous step

4 Layer 1 > Layer 2

When active, Arpeggiator 1 affects both layer 1 and layer 2 (whereas when disabled each Arp modifies its corresponding layer only)

5 Arp On/Off

Toggle the Arpeggiator On/Off

6 Grid

Change the step length

7 Arp Mode

Select Up, Down, or Up and Down

8 Gate

Change the step length (knob value ranges from zero to the tracks

Resolution setting)

9 Steps

Sets the Arpeggiators step length

10 Octave

Set the pitch range of the Arpeggiator in Octaves

13

Synthox - Preset List

00-Init

Arpeggios

AR-Analog Heart

AR-Back in Time

AR-FM A Sonic

AR-FM Busy Pad

AR-FM G Stars

AR-FM Jarre

AR-FM Minimal Beat

AR-FM Mix Down

AR-FM Multi Arp

AR-FM Paradise

AR-Hybrid Cinematic

AR-JMJ Double Arp

AR-Pop Cornox

AR-Rythm and Arp

AR-Space Caroussel

AR-Synthoxerone

AR-Universe Sound

AR-Wonderland

AR-Z Plane Airlines

AR-Zamundsens Axel

Bells

BL-BellKa

BL-Brush Bells

BL-FM Bell Template

BL-FM Mixed Bells

BL-FM Tremobe

BL-FM Tubular

BL-Happy New Year

BL-Hybrid Bells 1

BL-Hybrid Bells 2

BL-Hybrid Exil

BL-Hybrid Express

BL-Hybrid Polybells

BL-Little Porta

BL-Paper Bell

Brass

BR-B11 Wah brass

BR-B17 Brass I

BR-B18 Brass II

BR-B19 Brass III

BR-Brasspeggios

BR-FM Brass Template

BR-FM Duosonix

BR-FM Kingdom

BR-FM Soft Large

BR-FM Transonic

BR-Grace Brass

BR-Hybrid Brass

BR-Velvet Aurora

wBass

BS-Bottom B

BS-FM Bass Template

BS-FM Basstress

BS-FM Creative Wheel

BS-Funky Sub

BS-Kev Bassic

BS-One Finger Analog

BS-Ring Modus

BS-Skream Lexx

BS-Synthoxico

BS-TB Inspiration

BS-Ultra Funk

BS-Weird One

BS-Wheel Control

BS-Wheelex

BS-Whistle Sub

BS-ZanziBass

Chords

CH-Chain Lightning

CH-Circuit Jumper

CH-Determination

CH-FM Cap Andy

CH-FM Invaders

CH-FM Polysone

CH-FM Puck Monster

CH-FM Rose Valey

CH-FM Silex

CH-FM Step Pad

CH-FM Stepvolution

CH-FM The Palace

CH-FM Triade

CH-FM Wheel Me

CH-Hybrid Moving

CH-Jack Sail Air

CH-Lunar Scarab

CH-Omni Step

CH-Union Jacking

CH-Use your Wheel

CH-Variator

CH-Vulcan Trampoline

FX

FX-FM Coach O New

FX-Framheim Wind

FX-Park Six More

FX-Terra Novox

FX-The Bomb

Keyboards

KB-B15 Tremolo piano

KB-B23 Church organ

KB-B24 Reed organ

KB-B25 Electric organ

KB-B30 Metallic piano

KB-B31 Pianet

KB-B32 Funky Clav

KB-B33 Clavichord I

KB-B34 Clavichord II

KB-B35 Clavinet

KB-B36 Electric Piano I

KB-B37 Electric Piano 2

KB-B38 Chimes

KB-B39 Vibes

KB-Dream Hes Beck

KB-Dulce Organ

KB-FM Cosmopolis

KB-FM Orphing Wheel

KB-FM Piano Template

KB-FM Power Keys

KB-FM Pure Clav

KB-FM Ultra Soft

KB-Hybrid Dirty

KB-Hybrid Keythox

KB-Hyrbid Carrousel

KB-Keys and Sweep

KB-Organisation

KB-PhonKB

KB-PianoOSc

KB-Road Cruiser

Lead

LD-B12 Fat Sound

LD-B13 Metallic

LD-B14 Pan flutes

LD-B41 Sweep 2

LD-B43 Landing

LD-B46 Ring mod

LD-B49 Whistle

LD-Chorusolo

LD-Dstep Polead

LD-FM Cop Torn

LD-FM Funkytar

LD-FM Fusion

LD-FM Lead Template

LD-FM Little Tromb

LD-Hybrid Clinton

LD-Hybrid Subtle Sine

LD-Pure Sawtooth

LD-The Court Jet

LD-Therem Whistle

LD-Ultra Solo

LD-Water Drop Lead

Pads

PD-Air Dream Keys

PD-AL Jarre High

PD-B16 Chorale

PD-B26 High pass sweep

PD-BarbapaPad

PD-Deep Orbit

PD-Evolugate Wonder

PD-FM Editation

PD-FM Ethereal

PD-FM Ominous

PD-FM Pad Template

PD-FM Spectralis

PD-Glacier Veins

PD-Glycosidic Bond

PD-Hybrid Oxygene

PD-Lost Music Box

PD-Porta Sweep on Wheel

PD-Robotic Love

PD-Smooth One

PD-StePad Plaza

PD-Sweet Place

PD-Teal Voices

PD-Tender Threads

PD-Zen and Beauty

Polysynth

PL-B10 Chunky synth

PL-B40 Sweep 1

PL-B44 Wash of sound

PL-B45 Fast decay

PL-B46 Ring mod Harp

PL-B47 Phased sweep

PL-B48 Bass pluck

PL-Complextro Figures

PL-FM Poly Cruise

PL-FM Polysynth Template

PL-Grain Poly

PL-Hybrid Stack

PL-Onyx Wheel Me

PL-Synthoxic

PL-Trance Evolwheel

PL-Tri Repeater

Strings

ST-B20 Double basses

ST-B21 Cellos

ST-B22 Violins

ST-B28 Filtered chorus

ST-B29 Filtered strings

ST-Dual Layer Strings

ST-FM Harpsichestra

ST-FM Hypnotic

ST-FM String Machine

ST-FM Strings Template

ST-Hybrid Big Sol

ST-Space O Tron

Sweeps

SW-B42 Take-off

SW-FM Sweep Template

SW-Hybrid Gold Wheel

SW-Moelleux

SW-Quality Sweep

SW-Sun Glasses

SW-Ultra Sweep

14

CS-M - Edit Page

Pages

2

Layer Globals

3

Layer Edit

5

Pitch

6

1

Presets

4

Master Gain

8

Drive

7

Amplitude

The UI is divided into three pages; [Edit] , [Mod] and [Arp] . Primary controls such as amp, filter, stereo, pitch and effects are available on the [Edit] page.

Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator. The final [Arp] page presents an independent arpeggiator for each layer.

Main

1 Presets

Select a global preset from the pulldown menu or browse them with the

Prev/Next arrows

2 Pages

Change the current page by selecting one of the 3 options; Edit, Mod or Arp

3 Layer Globals

» On/Off Toggle

» Volume

» Pan

» Octave [+1, 0, -1]

4 Master Gain

Set the Output Gain for the instrument

Basic Controls

5 Layer Edit

» Edit A | Edit B | Edit All

Choose to edit layers A or B seperately or simultaneously

» Wave Menu

Choose the wave category in the first row and the wave in the second

6 Pitch

» Tune

Adjust the pitch in Semitones/Cents

» Depth

Adjust the Portamento depth

» Mode

Toggle between Mono and Poly voicing

» Time

Set the Glide time

7 Amplitude

» No Velocity

Sets all incoming notes to max velocity

» Velocity > Attack

Modulates attack amount based on incoming note velocity. Low velocities result in long attacks; high velocities result in short attacks

» ADSR

Attack / Decay / Sustain / Release envelope for the Amplitude section

8 Drive

» Amount

Sets the amount of drive

15

CS-M - Edit Page

[continued]

10

Filter (ADSR)

Filter

10

Stereo

9

Modwheel

12

11

Effects

Basic Controls (continued)

9 Stereo

» Mode

Off / Alternate Pan / Unison

» Color

Shifts color based on adjacent samples

» Spread

Change the stereo width

» Detune

UNI Mode Only: setunes layers

10 Filter

» Filter Modes

Choose Filter mode; High Pass, Band

Pass, Low Pass or OFF

» Cutoff Freq

Filter cutoff frequency

» Resonance

Adjust the resonance (Q) of the Filter

» EG Depth

Modifies the amount of ADSR envelope to be applied to the Filter

» Velocity

Adjust the Velocity > Filter sensistivity

» ADSR

Attack / Decay / Sustain / Release envelope for the Filter section

11 Effects

» Power/Amount

Choose from Phaser, Delay, and Reverb

(additional controls available in the

Effects page of UVIWS and MF)

12 Modwheel

» Power/Amount

Easily route your controllers Modwheel to control common parameters such as

Vibrato, Tremolo and Filter Depth

16

CS-M - Mod Page

Waveforms

2

Sync

1

LFO Controls

3

Seq Params

6

Step Sequencer

5

4

LFO Mod Routing

7

Seq Mod Routing

LFO

1 Sync

Enable/Disable LFO sync to Host Tempo

2 Waveforms

Choose LFO waveform; Sine, Triangle,

Square or Sample & Hold

3 LFO Controls

» Speed

Change the LFO Speed

» EG Depth

Adjusts the amount of Attack and Decay to be applied to the LFO

» Attack

Attack time for the Speed envelope

» Decay

Decay time for the Speed envelope

4 Mod Routing

Control the amounts of LFO modulation to be applied to various parameters including; Pitch, Drive, Volume and Filter

Step Modulator

5 Step Sequencer

Interactive editor for programming sequenced modulations; bar height equals mod amount

6 Seq Params

» Res

Change the sequencers step length

» Steps

Change the amount of steps for the sequencer to play

» Delay

Delay time to activate first step

» Rise

Time to activate step with a smooth transition

» Smooth

Interpolates values between adjacent steps to smooth parameter modulation for a custom LFO effect

7 Mod Routing

Control the amounts of modulation to be applied to various parameters including;

Volume and Filter

17

CS-M - Arp Page

Mode

4

Step Indicator

1

Step Editor

2

Tie

3

Arp On/Off

5

Arp Mode

Grid

7

6

9

Steps

8

Gate

10

Octave

1 Step Indicator

LED lights up when step is triggered

2 Step Editor

16-step sequencer; affects Velocity

3 Tie

When active, step inherets Velocity from the previous step

4 Mode

Mono mode = Arpeggiator 1 affects both layer 1 and layer 2

Stereo mode = each Arp modifies its corresponding layer (A=1, B=2)

5 Arp On/Off

Toggle the Arpeggiator On/Off

6 Grid

Change the step length

7 Arp Mode

Select Up, Down, or Up and Down

8 Gate

Change the step length (knob value ranges from zero to the tracks

Resolution setting)

9 Steps

Sets the Arpeggiators step length

10 Octave

Set the pitch range of the Arpeggiator in Octaves

18

CS-M - Preset List

Brassy

BR-Dirty Crazy

BR-Eve Angelis

BR-French Horn Like

BR-GuiBRastar

BR-K Brass Orch

BR-Lazer Brass

BR-Majestic OBrass

BR-Power Brass

BR-Sea Fluid

Bass

BS-Alley Shakedown

BS-Baxtandal

BS-Burnt Popcorn

BS-Chinese Fretless

BS-Crate Duster

BS-Grain Bass Lead

BS-Greem B

BS-Intoxic

BS-Jo B Jo Bass

Arpeggios

AR-Art Peggios

AR-Barbarian

AR-Cool Session

AR-CS One Again

AR-Diode Power

AR-Gumball Acrobatics

AR-Kieseritzky G

AR-Kitch Pop Corn

AR-Perfect G

AR-Play 3 Notes

AR-Primitive

AR-Spatial Story

AR-Tangerinoise

AR-Tanjarre Dream

AR-Tease Analog

AR-Xanalog Beat

AR-Xperimental Valley

Bells

BL-A Very Small One

BL-Baby Bell

BL-Bella Noisa

BL-Ego Bells

BL-Ensembells

BL-Genesis

BL-Guiz Mode

BL-Harpsybell

BL-Hi PWM

BL-James Bells

BL-One CS Bell

BL-Passage

BL-Satin

BL-Tremolos

BL-Very Analog

KB-Fantasiatic

KB-HarpsYanalog

KB-Key Tooma

KB-King Court

KB-Majestic Keys

KB-Majestic Organ

KB-Molecular

KB-Nick Wheel Organ

KB-Oldganic

KB-Orgalogic

KB-Organ 20M

KB-Pluck Road

KB-PMW Keys

KB-Prophet Tines

KB-Seq Clavistan

KB-Short Piano

KB-Soft Pluck

KB-Space Caroussel

KB-Synth Piano

KB-Troshrgan

KB-Vox Populi

Lead

LD-Cajolead

LD-Creamy Synth

LD-CS One Two

LD-CSolo 70M

LD-CSweep Lead

LD-FeedbacKing

LD-First Lead

LD-Funky Cucumber

LD-Fusion Lead

LD-Green Show New

LD-Guitar Air HO

LD-Hernani

LD-Mono AL

LD-NoiSolo

LD-Screamer

LD-Seventh Dimension

LD-Short Cop X

LD-Slow Solo

LD-Strange LFO

LD-Very Short One

LD-Vocal Theremin

LD-Wha Wheel Solo

LD-Xtatic Motion

Noisy

NS-ColdnQuiet

NS-Guiznoiso

NS-Noise Melody

NS-Noisonic Pad

NS-Ominousea

Pads

PD-86 Skies Full Wheel

PD-Analog Pure

FX / Drone

FX-Cochon in Space

FX-Dayvan Indian

FX-Droning

FX-Glissandi

FX-Haunted Flat

FX-Interstellar

FX-Kaufman Synchronus

FX-LoFi CoalRider

FX-Move Away

FX-Neptoms

FX-Noise Dunes

FX-Quasi Quasar

FX-Rue of Terra

FX-Sub Liminal

FX-Sweep Machine

FX-Talking Tex

FX-Tube Thanks

Keyboards

KB-CS Analog Piano 1

KB-CS Analog Piano 2

KB-CS Analog Piano 3

KB-Dirty Organ

KB-Dynogital

BS-L0c0m0t1v8r

BS-Magus Electrus

BS-Multi Polarity

BS-Music and Nights

BS-Obese

BS-One Note Line

BS-TB Progress

BS-TrenZ Diana

BS-Underground

BS-Way Sub

BS-Yeti Bass

BS-You and Bass

BS-Your Freek

BS-Zapp Nostalgia

Play Chords

CH-8bit Stew Fly

CH-Accelerator

CH-Analog Crunch

CH-Decade Inversion

CH-Evolu Chord Wheel

CH-Little Monster

CH-Mahyem Ragga

CH-Move On

CH-Nate FF1087

CH-Parallel Predators

CH-Relaxing Wheel

CH-Starlight

CH-Talking One

CH-U Di Paris

CH-Windax Boxer

PD-ARP Ominous

PD-Beautypad

PD-Creamy Flutter

PD-Creative Wheel

PD-Dark Volute

PD-Du ALmosphere

PD-Geologic

PD-Granular Soft

PD-Hall of Grain

PD-Hornalog Pad

PD-Hybrid Choir

PD-Joy Arp

PD-Little Planet

PD-Morpho

PD-Network Reso

PD-Orchestranalog

PD-PortArpmento

PD-Step Walking

PD-Urban Bed

Polysynth

PL-Big Power One

PL-Busy Times

PL-CS One Saw Fee

PL-Full Ens Synth

PL-Laughing Factory

PL-Numericharp

PL-Poly Game

PL-PolyGrain

PL-Portamanteau

PL-Raining Pluck

PL-Stab Island

PL-Submarine Scream

PL-Tekno Idea

Strings

ST-Bi Spectral Strings

ST-Ensemble Machine

ST-In a Box

ST-Lina Star

ST-Mutronic Strings

ST-My Eminent

ST-Noisycato

ST-Pizzanalog

ST-Soloist

Sweep

SW-Classic Jarr

SW-CreaSweep

SW-Fidel

SW-Inverted

SW-Majestueux

SW-Moment of Clarity

SW-Monowheelist

SW-Mosquito

SW-Original Sweep

Raw Solo

Bass Lead

CSolo 70M

Double Seq

Laser

Pluck

Power Grain

Seq Clav

Solo Soft

Unison

Bass Lead 1

Bass Lead 2

Dirty Organ

Orchestral Brass

Polyson

Power Uni

Resophonic

Soft Pad

Thing Long

Ensemble

CSweep 70M

Full Ensemble

Lina Strings 1

Lina Strings 2

Machine String

Softy Brassy

Raw Poly

Bright Pad

Elec Piano

French Hornalog

Grain Soft 1

Grain Soft 2

OBrass

Power Wave

Short Piano

Waves

Saw

Sine

Sine-Saw

Square PWM 1

Square PWM 2

Square PWM 3

Square-Saw PWM 1

Square-Saw PWM 2

Square-Saw-Sine PWM 1

Square-Saw-Sine PWM 2

Waves Noises

Noise BP Raw

Noise BP Reso

Noise Flat Raw

Noise Flat Reso 1

Noise Flat Reso 2

Noise HP Raw

Noise HP Reso

Noise Unison Raw

Noise Unison Reso 1

Noise Unison Reso 2

Sub Noise Unison

Waves Unison

Sine-Saw Uni

Sine-Square Uni

Square-Saw Uni

Square-Saw-Sine Uni

20M Sounds

Big One

Big Two

Fifth Avenue

Funky Bass

Gizmono

Lazer

Noisonic

Organic

Pianoise

PortHardmento

SeqOrgan

Technoid

20M Waves

Noise

Saw

Sine

Square PWM 0

Square PWM 2

Square PWM 4

Square PWM 6

Square PWM 8

Triangle

CS01 Waves

PWM 1

PWM 3

PWM 5

PWM 7

PWM 9

Saw

Square 1

Square 2

Triangle

WhiteNoise

19

Energy - Edit Page

Globals

1

Filter

3

Amplitude

2

6

Energizer

7

Modwheel

5

Effects

4

Pitch

The UI is divided into two pages; [Edit] and [Mod] . Primary controls such as amp, filter, and stereo, and are available on the [Edit] page. Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator.

1 Globals

» Edit Page

Sets the UI to the Edit page

» Mod Page

Sets the UI to the Mod page

» Arp on/off

Toggle built-in arpeggiator on/off

2 Amplitude

» ADSR

Typical envelope controls for the amp

» Vel Sens

Adjust the amp velocity sensistivity

» Vel > Atk

Remaps Attack to Note Velocity

3 Filter

» ADSR

Typical envelope controls for the filter

» Vel Sens

Adjust the filter velocity sensitivity

» Depth

Depth of the filters EG

» Cutoff Freq

Filter cutoff frequency

» Resonance

Filter resonance amount

» Filter Type

Multimode filter can be set to low-pass

(LP), band-pass (BP), or high-pass [HP]

4 Pitch

» Mode

Select Mono or Poly voicing

» Pitch Depth

Set the protamento depth

» Pitch Time

Set the glide time

» Sub Osc Volume

Adjust the mix amount of the sub osc

» Sub Osc Mode

Select from clean or dirty OSC modes

5 Effects

» Drive

Adjust drive value

» Phaser

Adjust effect mix amount

» Delay

Adjust effect mix amount

» Reverb

Adjust effect mix amount

6 Energizer

» On/off

» Amount

Adjust grit and power amount

7 Modwheel

This section provides a quick way to map common controls to your MIDI keyboards modwheel

20

Energy - Edit Page

[continued]

Pitch

9

8 Stereo

» Color

Utilizes neighboring samples from the library to a unique effect

» Spread

Sets the stereo width

(in ALT and UNI modes only)

» Detune

Detunes the unison layers

(UNI mode only)

» Mode - Off

Sets the stereo mode to OFF (mono)

» Mode - Alt

Sets the stereo mode to ALT; stereo position alternates L/R every note, width controlled by [SPREAD]

» Mode - Uni

Sets the stereo mode to UNI; layers multiple samples and augments them for increased stereo presence, modify with

[COLOR] and [DETUNE]

21

Energy - Mod Page

LFO

1

Step Modulator

2

1 LFO

» Sync

Toggle LFO sync to host tempo

» Shape

Select the LFO waveform: Sine, Square,

Triangle or Sample & Hold (random)

» Speed

Adjust the LFO speed

» EG Depth

Depth of the LFO envelope

» Attack

LFO envelope attack time

» Decay

LFO envelope decay time

» > Pitch

Pitch modulation amount

» > Drive

Drive modulation amount

» > Volume

Volume modulation amount

» > Filter

Filter modulation amount

2 Step Modulator

» Res

Set the step speed/resolution

» Steps

Set the number of steps to playback

» Delay

Set the initial delay time

» Rise

Set the time to activate smooth

» Smooth

Interpolates sub-step values for a smooth modulation

» > Volume

Volume modulation amount

» > Filter

Filter modulation amount

» Modulation Sequencer

Set the modulation value (draw with mouse, double-click to enter explicit values)

22

Energy - Preset List

Arpeggios

Balladisiac

Clarpsic Analog

Columbo

Crazy Arp Wheel

Noisy Eighty

Seventy Nine Chords

Slow Motion

Speed Motion

Square Mode

Bass

BasSolid

Dark Side Bass

Dirt Clav

Distronic

Harsh Square

Nu Motor Bass

Powering

Spectro Bass

Zapp Land

Bells

Anabell

Delicanalog Bell

DK Bells

Organic Bells

Pizzi Bells

Space Music Box

Strange Bell

Superbe LL

Synth Balafon

Xylosonic

FX

Big Temple

Crazy Take Off

Drunk Robot

EneR2D2

FX Tchkok

Tension

Keys

Acoustic Like

Basikeys

Broken Piano

Church Engine

Clavinergy

Decarpsychord

DK Roussel

Dramatic Org

Electric DK Piano

Ham Organic

Hybrid Harp

Innocent Keys

Road me Softy

Speaker Road

Suitcasing

Vinyl Pluck

Wurlynergy

Leads

Art Monica

Beauty Lead

BP Solead

Dubstep Lead

Polead Brassy

Short Seq Lead

Skrillergy

Square Me

Misc

Brass 5th Wheel

Cheap Orchestra

Dream Pluck

Hybrid Power Brass

Kingston Vibes

Orgestra

Poly Dirty

Poly Stepped

Stack Fifth

Stepped Stack

Tangerine Brass

Top Corn

Pads

Acoustic Pad

DK Fantasy

Gospel Stack

Ominous Syn

Reflexions

Simply Beauty

Sweep Energy

Thin Brass Pad

Typical DK Pad

23

Kroma - Edit Page

Filter

3

Amplitude

2

Pitch

4

Modwheel

8

1

Globals

5

Mode

6

Noise

7

Effects

The UI is divided into two pages; [Edit] and [Mod] . Primary controls such as amp, filter, and stereo, and are available on the [Edit] page. Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator.

1 Globals

» Edit Page

Sets the UI to the Edit page

» Mod Page

Sets the UI to the Mod page

» Arp on/off

Toggle built-in arpeggiator on/off

2 Amplitude

» ADSR

Typical envelope controls for the amp

» Vel Sens

Adjust the amp velocity sensistivity

» Vel > Atk

Remaps Attack to Note Velocity

3 Filter

» ADSR

Typical envelope controls for the filter

» Vel Sens

Adjust the filter velocity sensitivity

» Depth

Depth of the filters EG

» Cutoff Freq

Filter cutoff frequency

» Resonance

Filter resonance amount

» Filter Type

Multimode filter can be set to low-pass

(LP), band-pass (BP), or high-pass [HP]

4 Pitch

» Depth

Sets the portamento depth

» Time

Sets the glide time

5 Mode

Mono / polyphony toggle

6 Noise

» Amount

Adjust noise mix amount

» Type

Select white or pink noise types

7 Effects

» Drive

Adjust drive value

» Phaser

Adjust effect mix amount

» Delay

Adjust effect mix amount

» Reverb

Adjust effect mix amount

8 Modwheel

This section provides a quick way to map common controls to your MIDI keyboards modwheel

» Vibrato

Speed of the vibrato (free)

» Tremolo

Speed of the tremolo (sync)

» Filter

Cutoff frequency of the Filter

24

Kroma - Edit Page

[continued]

Stereo

9

9 Stereo

» Color

Utilizes neighboring samples from the library to a unique effect

» Spread

Sets the stereo width

(in ALT and UNI modes only)

» Detune

Detunes the unison layers

(UNI mode only)

» Mode - Off

Sets the stereo mode to OFF (mono)

» Mode - Alt

Sets the stereo mode to ALT; stereo position alternates L/R every note, width controlled by [SPREAD]

» Mode - Uni

Sets the stereo mode to UNI; layers multiple samples and augments them for increased stereo presence, modify with

[COLOR] and [DETUNE]

25

Kroma - Mod Page

LFO

1

Step Modulator

2

1 LFO

» Sync

Toggle LFO sync to host tempo

» Shape

Select the LFO waveform: Sine, Square,

Triangle or Sample & Hold (random)

» Speed

Adjust the LFO speed

» EG Depth

Depth of the LFO envelope

» Attack

LFO envelope attack time

» Decay

LFO envelope decay time

» > Pitch

Pitch modulation amount

» > Drive

Drive modulation amount

» > Volume

Volume modulation amount

» > Filter

Filter modulation amount

2 Step Modulator

» Res

Set the step speed/resolution

» Steps

Set the number of steps to playback

» Delay

Set the initial delay time

» Rise

Set the time to activate smooth

» Smooth

Interpolates step values for a smooth,

LFO-like modulation

» > Volume

Volume modulation amount

» > Filter

Filter modulation amount

» Modulation Sequencer

Set the modulation value (draw with mouse, double-click to enter explicit values)

26

Kroma - Preset List

Arpeggios

Bronski Bass

Chord Wheel Me

FX Sequence

Instant Reggae

Jacky Nalog

Korda Chrome

Kromarpeggio 1

Saw Sage

Sequence Man

Technauto

Trashpegiator

Bass

Bassmati

Crytpon B

Daft Funky

Jam on It

Lazer Harp Wheel

Lead Bass

Mr Basso

Obassma

Squaring

Standard

Bells

Bell My Doo

Christmas Bells

Cristanalog Clear

Harp Bell

Jingle Bell

Metabellic

Noisy Bell

Soft Palace

Wendy Dark Tube

Wonder Bell

Brassy

Brassizer

Chroma Poly Brass

Cool Brass

Crawling

Hybrid Trumpets

LyncHorn

Majestic Horns

Mayhem of Brass

Mercury Brass

Stabnalogic

Toto Feel

Vangelo

Warm Soft Brass

FX

Beast Who Fly

KromaX FX Menu 1

KromaX FX Menu 2

Mini THX

Plan Nine

Snakes Talking

Stress Lodge

Keyboards

AKromardion

Analog Toy Piano

Baby Organ

Caroussel Organ

Clavinex

Electric Piano

FunKroma Clav

Harpsynalog

Jazzy KrOrgan

Soft Church

Space Piano

SweePiano

Synth Clavecin

Synth Harp

Too Filtered Piano

Very Soft Keys

Wursynthzer

Analog Beauty

Analog Choir 1

Arctic Pad

Brass me Tender

Changosphere

Chrominous Pad

Dreamy One

Evolupad

Ionized

Padamento

Philadelphia

Pure Pad

Roady Pad

Silencio

Superbe

Tiny Voice

Leads

Chromatic Solo

Fifth Solo

Funky Man

Guitar Sync

HP Wave

Nasty Lead

Noisy Brassy Lead

Scarlead

Scream Solo

Slowlo Synth

Solid Saw Lead

Tube Solo

Pads

Polysynth

Cindy Soft

Eighties Stab

EmoPolytional

Hybrid Poly

Massive Polysynth

Organopolis

Poly Culture

Polysound

Sweeps

Fest du Sweep

Fifth Floor

Galactica

Inverted

Multi Sweep

Road Sweep

Sweeper

Windy Carlos

Waves

Saw PWM 00

Saw PWM 03

Saw PWM 05

Saw PWM 08

Saw PWM 10

Square PWM 01

Square PWM 03

Square PWM 05

Square PWM 08

Square PWM 10

PortaGrainto

Prophet Fifth

Radom Filter

Short Stab

Wheel Me

Strings

Analog Orchestra

BrasStrings

Eminent Like

Equinox

HP Strings

Imaginary Stacc

Just Soline

27

FMX1 - Edit Page

Amplitude

2

FMIZER

6

Effects

5

Globals

1

Pitch

4

3

Filter

7

Modwheel

The UI is divided into two pages; [Edit] and [Mod] . Primary controls such as amp, filter, and stereo, and are available on the [Edit] page. Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator.

1 Globals

» Pages

Switch between Edit and Mod page

» Arp on/off

Toggle built-in arpeggiator on/off

2 Amplitude

» ADSR

Typical envelope controls for the amp

» Vel Sens

Adjust the amp velocity sensistivity

3 Filter

» ADSR

Typical envelope controls for the filter

» Vel Sens

Adjust the filter velocity sensitivity

» Filter Type

Multimode filter can be set to low-pass

(LP), band-pass (BP), or high-pass [HP]

» Depth

Depth of the filters EG

» Cutoff Freq

Filter cutoff frequency

» Resonance

Filter resonance amount

4 Pitch

» Depth

Sets the portamento depth

» Time

Sets the glide time

» Mono

Set FMX1 to monophonic mode

5 Effects

» Drive

Adjust drive value

» Crusher

Adjust effect mix amount

» Phaser

Adjust effect mix amount

» Delay

Adjust effect mix amount

» Reverb

Adjust effect mix amount

6 FMIZER

Note: FMIZER is playable via your controllers modwheel

» ‘+’ or ‘-’

Adjust FM modulation

» Level

FM level amount

» Pitch

Transpose FMIZER by semi-tone

» Velocity

FMIZER velocity sensitivity

7 Modwheel

This section provides a quick way to map common controls to your MIDI keyboards modwheel

» Vibrato

Speed of the vibrato (free)

» Tremolo

Speed of the tremolo (sync)

» Filter

Cutoff frequency of the Filter

28

FMX1 - Edit Page

[continued]

8

Stereo

8 Stereo

» Color

Utilizes neighboring samples from the library to a unique effect

» Width

Sets the stereo width

(in ALT and UNI modes only)

» Tune

Detunes the unison layers

(UNI mode only)

» Mode - Off

Sets the stereo mode to OFF (mono)

» Mode - Alt

Sets the stereo mode to ALT; stereo position alternates L/R every note, width controlled by [SPREAD]

» Mode - Uni

Sets the stereo mode to UNI; layers multiple samples and augments them for increased stereo presence, modify with

[COLOR] and [DETUNE]

29

FMX1 - Mod Page

Step Modulator

1

LFO

2

1 Step Modulator

» Res

Set the step speed/resolution

» Steps

Set the number of steps to playback

» Delay

Set the initial delay time

» Rise

Set the time to activate smooth

» Smooth

Interpolates step values for a smooth,

LFO-like modulation

» > Filter

Filter modulation amount

» > Volume

Volume modulation amount

» Modulation Sequencer

Set the modulation value (draw with mouse, double-click to enter explicit values)

2 LFO

» Sync

Toggle LFO sync to host tempo

» Shape

Select the LFO waveform: Sine, Square,

Triangle or Sample & Hold (random)

» Speed

Adjust the LFO speed

» EG Depth

Depth of the LFO envelope

» Attack

LFO envelope attack time

» Decay

LFO envelope decay time

» > Volume

Volume modulation amount

» > Pitch

Pitch modulation amount

» > Filter

Filter modulation amount

» > Drive

Drive modulation amount

30

FMX1 - Preset List

New Wave Tube

Organic FM Bells

Tubulars

Fretted

Classic FM Fret

Digital Guitar

Edgital Guitar

FM Strat Soft

GuitaBrass

Hybrid Fretted

Nylon Stage

Plastic Harp

Square Harp

Stringed BX

FX

Amber Consequence

Burning Up

Electromagnetic

Drone

Lazer Cave

LynXience

Off The Wall

SFX Scream

Shoot In Space

Space F Two

Thunder Pad

UFmO

VCS Madness

WOPR Jam

Xcape from Hell

Keys

Clavinet A

DX1 Clavinet Full

DX1 Full Tines

Electric Organ

Electric Piano 1

Electric Piano 2

EP Metal Bell

FunkHybrid

Gospel FM

Hybrid Tines

Arpeggios

A Muse Eye

Chord Actuator

Chord Last Word

Chord Power G

Chord Proximity

Array

Ethno Synth

FM Game

Inter Nate Arp

Linear Processes

Magical Toys

Metal Zag

Mysterious Mallet

Plastecine Vein

Pure FM Arp

The Crush

Two Balaphonic

World Is Wheel

Bass

Bassploitation Wheel

Classic DX Bass

FM Sub

FMized Bass

Funky Bossy

Harsh Bass

Hybrid F Crunch

Imagibassion

Jaco Fretless

Round Bass

X-Funky Trash

Bells

Bellet

ChristFMas

Flexi Bell

Glassolo

Glocken Dream

Heaven Gosp

Little Bell

Multi Bells

Music Crusher Box

Music Vox

Mallet

Acoustic Mallet

DX1 Vibes

Ethnic Flavour

FMarimba

Noisy Blocks

Syn Mallet Vox

Tubuvibes

Tune Percs

Vibe Vibes

Misc.

Almost Seventies

Brasspsichord

Lead

80s Brass Lead

Hybrid CS80 Solo

Liquid Mosquitos

Mono LFO

Organizer FM

Pure FM Solo

So Sexy Brassy

Solomono

Sweepy Leader

Truncated

Transmission

Uneven Surfaces

Z Bastion Lead

Medium Tines

Mellow Electric

Multi Keys

Old Upright

Pipe Organ Bright

Pipe Organ Dark

Reggae FM

Rockin Organ

Supertramp

Tines Dark

Toy Piano

Wurly Tines

Xborgan Bubbles

Zombi Dancer EP

Xtra 4OP

Analog Bass

BellissimaX

Celeste

Clavi Four

Dyno My FM

Eighty One Bells

EML Impression

Ethno Choo

Fat Analog Bass

FM CPiano

FM4 Piano

Full OrPgan

Fuzz Mania

Gost Sine

Hand Drums

Heavy Bass

Lead Synthox

Metal Pad

Nitro Bells

Noisy Beauty

Pad Chemist

Perc Organ

Pianotic

Space Cathedral

Hybrid Pad

Interference

Mohair Pad

Natiproton

Decelerator

Ominous Section

Pictures

Portatmosphere

ProFet Marvel

Quasi Gomo

Saint El DX1

Slow Attack

Solar Fields

Sun Rise

Sweep Saxtone

Turning Dust to

Vipers

Vox Purity

Digital X

Dream Poly Short

Dstep Power Syn

FM Typical Synth

Keys Rockin

Pop Corn Wheel BPF

Powanaloger

Raw Short Synth

Scritti Chyme

Sonic One O One

Space Edit

THE Gomono

Orchestral

Analog Strings

Bright Strings

Dirty Brass

DX1 Pure Brass

FM Section

FrenchM Horns

Harpsichord

High FM Strings

Horn Section 2 way

Iconic Brass

Majestic CS80 Brass

Mid Strings B

Motional Strings

Noisy Brass

Plastic Brass

Pure FM Brass

Subtle 5th Brass

Syn Brass

That 80s Brass

Wha Wheel Brass

Pads

Bad Ass Pad

Blue Big Bang

Dream Pad

Fifth Dimension

FM Analog Synth

FoMinous

Grand Openning

Hemispherical Gates

Sweep Fiesta

Synth Aero

That Clavinet

Ultra Cheap Organ

V Church

Wave 2 Lead

Wave 4 Lead

Wave 5 Bass

X4 Analogic

Z Voices

31

U1250 - Edit Page

Amplitude

2

Filter

3

5

Stereo

8

Effects

7

Bit Crusher

9

Modwheel

Voicing

1

Pitch

4

Drive

6

1 Voicing

Switch between mono and poly modes

2 Amplitude

» ADSR

Typical envelope controls for the amp

» Velocity

Adjust the amp velocity sensistivity

» Vel > Atk

Remaps Attack to Note Velocity

3 Filter

» Filter Type

Multimode filter can be set to low-pass

(LP), band-pass (BP), or high-pass [HP]

» ADSR

Typical envelope controls for the filter

» ENV

Depth of the filter envelope

» VEL

Adjust the filter velocity sensitivity

» CUT

Filter cutoff frequency

» RES

Filters resonance amount

4 Pitch

» Depth

Sets the depth of portamento

» Time

Sets the glide time

5 Stereo

» Mode - Off (mono)

» Mode - Alt

Stereo position alternates L/R every note, width controlled by [SPREAD]

» Mode - Uni

Layers multiple samples and augments them for increased stereo presence

» Color

Utilizes neighboring samples from the library to a unique effect

» Width

Sets the stereo spread

» Tune

Detunes the unison layers (UNI mode)

6 Drive

» On/Off Switch

» Amount

Sets the overdrive amount

7 Bit Crusher

» Bit Crusher On/Off

Enable/Disable the Bit Crusher effect

» Bit

Set the bit reduction

» Frequency

Set the Bit Crusher sample rate

» Drive

Adjust the overdrive amount of the

Bit Crusher effect

8 Effects

» Phaser

Adjust effect mix amount

» Delay

Adjust effect mix amount

» Reverb

Adjust effect mix amount

9 Modwheel

» Power/Amount

Easily route your controllers Modwheel to control common parameters such as

Vibrato, Tremolo and Filter Depth

32

Acoustic &

Electric Pianos

Classic Electric

Classic EP Phased

Concert Piano

Dyno Tines

Electric Dream

HarPiano Ballad

Honky Tonk

Hybrid Tines

K Tines Full

K Tines Hard

K Tines Mellow

K Tines Soft

Large Piano

Liquid EPiano

New Age Grand 1

New Age Grand 2

Piano and Strings

Power Grand

Rock 250 Piano

Synth Cheap Piano

Two Fifty Grand

WurlEPiano`

Bell & Mallet

Caribean Steel Drums

Chill Out Marimbas

Columbells

Delay Bells

Dirty One

Dream Bell

Jezza Bell

K-alimba

Kristmas Bells

Marimbell

Metal Chimes

Road Bells 1

U1250 - Preset List

Guitar-Bass

Acoustic Guitar Simple

Acoustic Guitar Stereo

Aqua Bass

Crunch Mutes

Dist Lead Guitar

Electric Bass

Huge Stack Guitar

Hybrid Synth Guitar

Jazz Acoustic Bass

K12 Strings Guitar

Obassession

Obese Guitar Wall

Slapped Bass

Y Bass Guitar

Keyboards

Alien Keys

Barbarie Flute

Chinese Keys

Road Bells 2

So Pure

Suspense Chord

Vibes

Voices and Bells

Zigomatic Mallet

Drums-Percs

Big Rock Drums

Collins Gated Kit

Factory Metal

Granular Impact

Jedi Atam Air

Metal C Works

Mix Drum Perc Kit

Orchesral Timpani

Standard Kit

Tribal Mood

Claroussel

DulciMother

Electric Church

Electric Organ A

Electric Organ B

Full DrawBar Leslie

Full DrawBar Stop

Harpsichord

Jaguar Organ

Jazz Organ

Klavinetology

Sine Keys

Smart Polysynth

Smoothy Organ

Street Organ

Ultra Klav

Orchestra

Action Strings

Dimension Orchestra

Emotional Strings

Fast Strings Ensemble

Flarimbas

Glass Strings

Glassic Choirs

Harp Classical

Harp Glissando

Harp GlissandUp

Harp New Age

Hybrid Harp

Large Strings Ensemble

Little Orchestra

Mallet Orchestra

New K Choir 1

New K Choir 2

Old K Choir 1

Old K Choir 2

Pianovoxchestack

Synths

Amanda Lead

Analog Strings

FX Falling Synth

K Sawlo

Lets Get Funky

Mallet Brass Synth

One Two Lead

Organic Synth

Oscillator Mayhem

PolySaw

Power K Synth

Sinus Porta Pad

Space Keys

Starship Drone

Techno Synth Sax

That 90s Synth

TOP Forty 80s

Voice OLo

PizzOrchestal

Soft Strings Orchestra

The K Brass

Tristesse Strings

Pads

Bowed PiADno

Cloud Voices

Ess K Pad

Fat Analog Pad

Filter Wheel

Flutty Pad

Ghostmosphere

Lauper Synth

Ominous Full

Ominous K Dark

Slow Distorsion

Smart Pad

Wave Lead

Wind & Brass

Bar Horn Section

Brass Band

Classical Flute

Full Brass

Full Horn Solo

Horn Ensemble

Klarinet

Little Room Band

Reed Ensemble

Sexy Sax

Tower Brass

Trombone

Trumpet High

Trumpet

Uboe

World Flute

Yon Soft Horns

33

UVI Workstation: Tips + Tricks

MIDI Learn Arpeggiator

Most UVI Workstation parameters can be automated via. a convenient

MIDI Learn. MIDI Learn allows you to bind a physical MIDI controller to specific parameters within UVI Workstation.

Any FX tab parameter, Macro Knob or Slider in UVI instruments can use the MIDI Learn feature

The MIDI controller type and the MIDI Channel assignment will be saved with the multi or with your song in the host sequencer

Automation is assigned per-part

To use MIDI Learn:

1. Right-click the parameter in UVI Workstation that you want to automate

2. After the MIDI Learn dialog appears, Trigger the desired MIDI input controller (knob, fader etc.)

To remove a MIDI controller assignment:

Right-click the desired parameter and press “Delete”

Unlimited FX

UVI Workstation comes equipped with a robust arpeggiator. To insert an arpeggiator in a part, you need to display the Single view in the

UVI Workstation, then click on the note icon. The arpeggiator can be employed as a pattern gate, arpeggiator, or even an advanced rhythmic processor for your live MIDI performance or sequenced MIDI tracks. Arpeggiators can be inserted in an unlimited number of parts.

Preset Stacking

Thanks to the simplicity of the UVI Workstation you can stack as many presets as you want by simply assigning multiple parts on the same MIDI channel.

Split, Velocity & Key Switch

UVI Workstation offers a wide variety of FX, or effect processors, to cover all your audio processing needs. The FX implementation is robust and includes the ability to insert unlimited FX slots in several stages of the signal flow.

Click the “FX” tab to open the FX page on the Single view

In Multi view the FX section is always displayed

The Keyswitch settings allow you to load multiple presets into two or more parts and dynamically play and mute them from your MIDI controller using key switching, note range, velocity range or any combination of the three parameters. This powerful feature gives you a great deal of real-time control.

Scroll Wheel

All knobs can be adjusted with the scroll wheel on your mouse.

When you double-click on any knob or slider, you can manually enter or type in the desired value.

34

Links

UVI

Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/

Download UVI Workstation and User Manuals . . . . . . . . . . . . . . . . . . uvi.net/downloads

Your Registered Product Serial Numbers and Download Links. . . . . . . . . uvi.net/my-products

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/faq

Tutorial and Demo Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . youtube.com/

Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/contact-support

iLok

Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/ iLok License Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/ilm.html

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/supportfaq

35

Credits and Thanks

Produced by UVI

Recording / Editing / Sound Design

Damien Vallet

Emmanuel Usai

Kevin Guilhaumou

Alain J Etchart

Nathaniel Reeves

Software + Scripting

Olivier Tristan

Remy Muller

GUI + Design

Nathaniel Reeves

Special Thanks

Jean-Bernard Emond

Eric Inglebert

Christian Braut

Christophe Martin

Manu @ Masterwave

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
