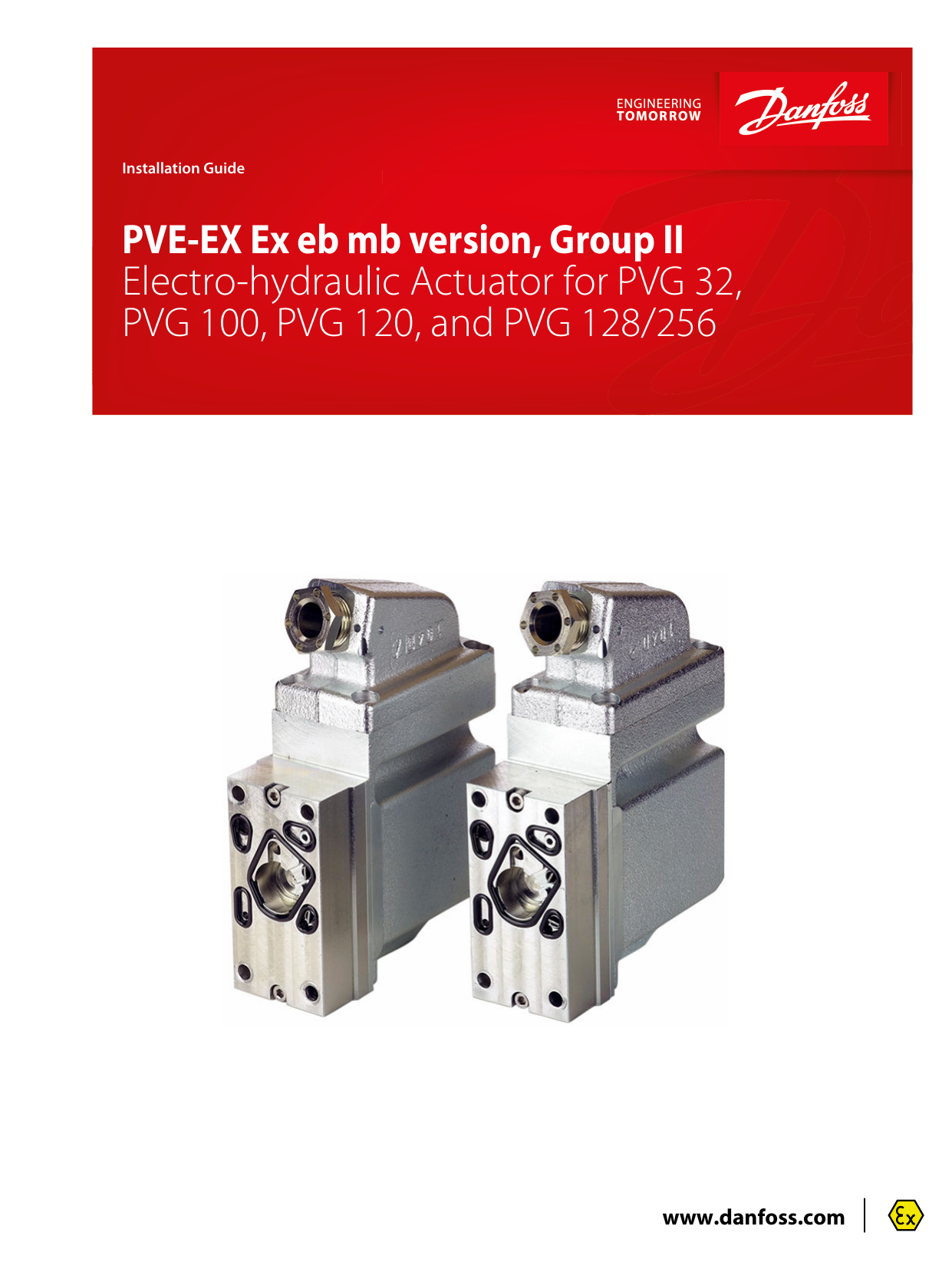

Danfoss PVG 120 PVE EX electrohydraulic actuators - eb, mb version EH Actuators_Installation Installation Guide

Installation Guide
PVE-EX Ex eb mb version, Group II
Electro-hydraulic Actuator for PVG 32,
PVG 100, PVG 120, and PVG 128/256
www.danfoss.com
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Revision history
2 | © Danfoss | October 2022
Table of revisions
Date
Changed
Rev
October 2022
Updated certificates and cable gland thread specification warning
0501
November 2020
Various technical changes, updated certificates
0404
June 2020
Updated Fault Monitoring section
0403
Changed document number from 'AN00000349' to 'AN212686484914'
XX
June 2019
Major Update: Text, Drawings, Certificates.
0301
July 2017
Updated EU-Type and IECEx Certificates
0201
April 2017
First edition
0101
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Contents
General information
Installation
Specifications
Earth connection
Fault monitoring
Technical data
Literature reference......................................................................................................................................................................... 4
PVE-EX introduction........................................................................................................................................................................ 4
Product certification........................................................................................................................................................................4
Protection............................................................................................................................................................................................4
Specific conditions for safe use................................................................................................................................................... 4
Warnings..............................................................................................................................................................................................4
Oil flow direction for standard assembled groups...............................................................................................................5
Nameplate description (eb mb version).................................................................................................................................. 6
Description of the EX code, eb mb versions........................................................................................................................... 7
EPL / Equipment Category............................................................................................................................................................ 7
PVE-EX dimensions ......................................................................................................................................................................... 8
Mounting of PVE-EX........................................................................................................................................................................ 8
Mounting of cable............................................................................................................................................................................9
Cable gland.........................................................................................................................................................................................9
Supplied built-in cable gland..................................................................................................................................................9
PVE-EX eb mb pre-certified cable gland.......................................................................................................................... 10
Mounting of PVG............................................................................................................................................................................11
Mounting options and guidelines......................................................................................................................................11
Direction of cable exit............................................................................................................................................................. 12
4-Pin layout...................................................................................................................................................................................... 13
Radiometric control signal..........................................................................................................................................................13
Ratiometric fixed control signal (0-10 V)............................................................................................................................... 13
Adjustment/calibration............................................................................................................................................................... 14
Internal earth connection........................................................................................................................................................... 15
External earth connection...........................................................................................................................................................15
PVE-EX fault monitoring.............................................................................................................................................................. 16
Fluid specification..........................................................................................................................................................................17
PVE-EX electrical data................................................................................................................................................................... 17
Reaction times.................................................................................................................................................................................18
Maintenance, service and troubleshooting
PVE-EX installation, start-up and operation ........................................................................................................................ 19
Safety guidelines............................................................................................................................................................................ 19
Warnings
Certificates
© Danfoss | October 2022
PVE-EX warnings.............................................................................................................................................................................20
EU Declaration of Conformity....................................................................................................................................................21
EU-Type Examination Certificate..............................................................................................................................................23
IECEx Certificate of Conformity.................................................................................................................................................26
China Compulsory Product Certificate...................................................................................................................................30
AN212686484914en-000501 | 3
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
General information
Literature reference
Literature reference for PVG and PVE products
Title
Type
Order number
PVG 32 Proportional Valve Group
Service Manual
AX152886481209
PVG 100 Proportional Valve Group
Service Manual
AX152886481171
PVG 32 Proportional Valve Group
Technical Information
BC152886483664
PVG 100 Proportional Valve Group
Technical Information
BC152886483475
PVG 120 Proportional Valve Group
Technical Information
BC152886483344
PVG 32 Metric ports
Technical Information
BC152886484163
PVG 128/256 Proportional Valve Group
Technical Information
BC220686485279
PVG Ex 32/128/256
Technical Information
PVE-EX introduction
The Danfoss PVE-EX is an actuator for PVG 32/128/256, PVG 100, and PVG 120.
The PVE-EX is an explosion proof PVE designed to be used in potentially explosive atmospheres like
mining and oil and gas industries.
The PVE-EX has been certified by DNV GL Presafe.
Product certification
The PVE-EX eb mb version is developed according to and in compliance with:
•
•
•
•
EN ISO 4413:2010 Hydraulic fluid power - General rules and safety requirements for systems and their
components
EN 60079-0:2018 / IEC 60079-0:2017 Explosive atmospheres - Part 0: Equipment - General
requirements
IEC 60079-7: 2015 / EN 60079-7: 2015 Part 7: Equipment protection by increased safety "e"
IEC 60079-18: 2014 / EN 60079-18: 2015 Part 18: Equipment protection by encapsulation "m"
Protection
All PVE-EX actuators comply with protection class IP67 and IP69k according to EN60529. However, in
particularly exposed applications, protection in the form of shielding is recommended.
Specific conditions for safe use
X Originally supplied "Danfoss cable gland" may not provide sufficient clamping. User shall provide
additional clamping of the cable to ensure that pulling and twisting is not transmitted to the
terminations.
Warnings
Before implementing actuators in any application, read all warnings. Warnings are listed next to the most
relevant section and repeated in the chapter PVE-EX warnings on page 20.
Do not regard the warnings as a full list of potential risks. Depending on the application and use, other
potential risks can occur.
4 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
General information
W
Warning
All brands and all types of directional control or proportional valves, which are used in many different
operation conditions and applications, can fail and cause serious damage.
You must perform a risk assessment. The machine builder/system integrator alone is responsible for
making the final selection of the products and assuring that all performance, safety and warning
requirements of the application are met.
The process for choosing the control system and safety levels is governed by the Machinery Directive
2006/42/EC and EU harmonized standard EN 13849 (Safety related requirements for control systems).
Oil flow direction for standard assembled groups
Oil Flow Direction for Standard Assembled Groups
PVS
B
A
PVE-EX
PVP
P→A
PVB
6 ± 1 N•m
[53 ± 9 lbf•in]
Q max: P→B
PVM
© Danfoss | October 2022
Q max: P→A
AN212686484914en-000501 | 5
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
General information
Nameplate description (eb mb version)
The PVE-EX actuator is mounted with a unique nameplate.
Nameplate for PVE-EX Ex eb mb version
Nameplate Legend:
1. PVE-EX type, see the table below.
2. Part number (111xxxxx)
3. Production date and serial number
Danfoss
6430 Nordborg, Denmark
2
4
Type PVEx-yy-ZZ
111xxxxx
wwyyd47xxxx
Ta -40° to + 60°C
xx-yyVDC
I nom:0,33A
Ex eb mb IIB T4 Gb
7
10
0470
Presafe 16ATEX8699X
IECEx PRE16.0060X
Ԑx II 2G
Thread:
"M20"
1
3
5
6
8
9
11
4.
5.
6.
7.
8.
Example: 20 18 c xxxxx (Week: 20 Year: 2018
Day: Wednesday (A= Monday) xxxxx=serial
number)
Ambient temperature range
Supply voltage
Nominal Current draw
Notified body Example: NEMKO/Presafe
IECEx Equipment Group and protection category
X-marking
9. ATEX Equipment Group and protection category
X-marking
10. Ex Certificate Number
Specific conditions for safe use (“X”-mark)
Originally supplied “SD cable glands” may not
provide sufficient clamping. User shall provide
additional clamping of the cable to ensure that
pulling and twisting is not transmitted to the
terminations.
11. Cable entry thread (M20 x 1.5) and temp. specification
Determined temperature at entry point is +76º
C, use appropriate cables and cable gland
PVE-EX Ex eb mb Group IIB part numbers
6 | © Danfoss | October 2022
Type
Part No.
PVEO-EX-24V
11123166
PVEH-EX
11156608
PVES-EX
11156609
PVEH-U-EX
11156610
PVES-U-EX
11156569
PVES120-U-EX
11156613
PVEO120-EX-24V
11156571
PVES120-EX
11156612
PVEH120-EX
11161001
PVEO256-EX-24V
11241525
PVES256-U-EX
11241590
PVES256-EX
11241519
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
General information
Description of the EX code, eb mb versions
IEC marking of the EX code, eb mb versions
Description
IEC Marking
Ex
Explosion protection marking
eb mb
Protection type
IIb
Equipment Group
T-class
T4
Equipment Protection Level (EPL)
Gb
EU marking of the EX code, eb mb versions
Description
EU Marking
CE
CE conformity marking
0470
Identification number of notified body involved in production control stage
Explosion protection marking
II
Equipment Group
2G
Equipment Category
EPL / Equipment Category
EPL/Equipment Category
Definition
Mines
Typical zone of
application
EPL
very high
N/A
Ma
high
very high
Gas atmospheres
© Danfoss | October 2022
IEC
Level of
protection
Mb
0
Group
I
Ga
high
1
Gb
enhanced
2
Gc
EU
Category
M1
M2
Group
I
1G
II
2G
II
3G
AN212686484914en-000501 | 7
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Installation
PVE-EX dimensions
47.0 [1.85]
158.0 [6.18]
106.0 [4.17]
88.0 [3.35]
PVE-EX dimensions, mm [in]
85.0 [3.35]
115.0 [3.35]
P006 084
Mounting of PVE-EX
1. Protect the LVDT pin. (PVEH-EX and PVES-EX actuators)
2. Ensure all O-rings are mounted and properly aligned in the grooves before mounting the PVE-EX to
the PVG valve.
3. Only use the four screws (M6 x 40 mm) A2, Tensile strength min. 600 N/mm2, 0,2% Proof stress min.
450 N/mm2
4
9 ± 2 Nm
P109089
W
Warning
The installation must be performed as intended in order to have a safe system and a proper functional
application. In a case of damage to enclosure, plug or cable, the PVE-EX actuator must be replaced. Please
refer to the information in this manual for assistance, or consult with a professional.
8 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Installation
Mounting of cable
The PVE-EX is equipped with a top part that holds the cable gland for cable installation.
1. Remove the insulation of an appropriate length to expose the wires.
If wire shall be connected to the earth terminal, make sure to have insulation enough to crimp into
the cable shoe and attach properly to the chassis.
Cable material must be according to the specification.
2. Strip the wires so that a suitable length of cooper is exposed.
3. Insert wires and cable through the gland and grommet.
4. Insert wires into screw terminals and tighten the screws.
5. Pull the cable back to the position where the cable insulation is still going through the grommet.
6. Immerse the terminal compartment and mate the male and female connector.
7. Ensure that the O-ring is properly seated in its groove and that excess wires are not trapped between
the two elements.
8. Tighten the screws (M6 x 12 mm) to the specified torque 6 ± 1 N•m.
9. Tighten the gland to the specified torque in which the cable is locked correctly, then fix the safety
wire (not included).
Use screws made from stainless steel grade A4 or stronger (enclosed).
Cable gland
The PVE-EX is required to be installed with a cable specified to the surrounding conditions and to the
given diameter of the cable gland. There are two options available for cable glands:
• Supplied built-in cable gland (certified with the product)
• Pre-certified standard cable gland (M20 x 1.5 mm threaded entry and 20 x 1.5 mm O-ring).
Supplied built-in cable gland
The PVE-EX has a built in cable gland for cable installation. The cable gland and grommet ensures that
the internal components are not exposed to the outside. Furthermore, the cable gland arrangement has
to retain any flame and pressure that can occur inside the PVE-EX.
1. Choose the grommets delivered with PVE-EX for different cable diameters. (see the table below)
The cable gland needs to meet the diameter of the cable and to the PVE-EX.
Grommet (inner dia)
8.9 mm [0.356 in]
10.5 mm [0.42 in]
Cable diameter span
7.9 to 8.9 mm
[0.316 to 0.356 in]
9.9 to 10.5 mm
[0.4 to 0.42 in]
Thread type, size
M20, 1.5 mm [0.06 in]
Temperature span
-40 °C to +76 °C [-40 °F to +168.8 °F]
Tightening torque
20 N•m
2. Screw the cable gland at least 5 full threads.
3. Tighten the cable gland to the specified torque.
© Danfoss | October 2022
AN212686484914en-000501 | 9
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Installation
4. Install the safety wire (not included) between the cable gland and the top gland.
kwa1464202599582
PVE-EX eb mb pre-certified cable gland
For cable diameter specification, refer to the relevant instruction from the supplier of the pre-certified
cable gland. In order to comply with the product certification the pre-certified cable gland must be
marked with the following markings:
Marking
EU
IEC
Group II
II 2G
Ex d IIB Gb (-40° C ≤ ta ≤ +80° C) [-40° F to +176° F]
W
Warning
Pre-certified cable gland must have thread: M20 x 1.5 mm 6g/6H and must be sealed with O-ring ø20 x
1.5 mm at the spotface of the threaded entry. Allowed surface roughness of the spotface is max. Ra 6.3.
20 × 1.5 mm
M20 × 1.5 mm
10 | © Danfoss | October 2022
kwa1464203083245
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Installation
Mounting of PVG
For mounting information regarding PVG products, see Literature reference.
Mounting options and guidelines
The PVE-EX can be installed as either standard or optional assembly.
Standard assembly
PVS
B
A
PVE-EX
P →A
PVP
PVB
6 ±1 N•m
[53 ±9 lbf•in]
PVM
© Danfoss | October 2022
Q max: P→B
Q max: P→A
AN212686484914en-000501 | 11
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Installation
Optional assembly
PVS
B
P →A
6 ±1 N•m
[53 ±9 lbf•in]
A
Q max: P → B
Q max: P → A
PVM
PVP
PVB
PVE-EX
Direction of cable exit
The design of the PVE-EX enables the customer to choose if the cable will exit towards or away from the
PVG group.
Cable exits towards PVG (left); Cable exits away from PVG (right)
kwa1464295111132
12 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Specifications
4-Pin layout
4-Pin connector, Group II
1
2 3
4
Minimum wire size
0.75 mm2/AWG18
Maximum wire size
2.5 mm2/AWG14
Versions
Pin 1
Pin 2
Pin 3
Pin 4
PVEO-EX-24V, PVEO120-EX-24V
UDC-A
UDC-B
GND
—
PVEH/-EX/-U-EX, PVES/-EX/-U-EX, PVES120/-EX/-U-EX, PVEH120-EX
Us
Vbat
GND
Error
Radiometric control signal
Radiometric control signal for PVEH/PVES
PIN
Function
Versions
1
US
Demand signal
2
Vbat2
Supply voltage to solenoid valves (can be switched off separately)
3
GND
Ground
4
Error
Error pin (See PVE-EX fault monitoring on page 16)
PVES-EX
PVEH-EX
PVES120-EX
PVEH120-EX
PVEH-DI-EX
PVEH120-DI-EX
PVEH-EX 128/256
PVEH256-Ex
PVES256-Ex
PVES256-DI-Ex
PVEH256-DI-Ex
Control signal (US)
Neutral
Q: P → A
Q: P → B
US = 0.5 • UDC
US = (0.5 → 0.25) • UDC
US = (0.5 → 0.75) • UDC
Ratiometric fixed control signal (0-10 V)
Pin
Function
Versions
1
US
Demand signal
2*
Vbat
Supply Voltage
3
GND
Ground
4
Error
Error pin (See PVE-EX fault monitoring on page 16)
PVEH-U
PVES-U-EX
PVES120-U-EX
PVEH-U EX 128/256
PVEH256-U-Ex
PVES256-U-Ex
* Pin 2 and 7 shall be connected together for PVE modules without the DI function
Control signal (US)
© Danfoss | October 2022
Neutral
Q: P → A
Q: P → B
US = 5 V
US = 5 V → 2.5 V
US = 5 V → 7.5 V
AN212686484914en-000501 | 13
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Specifications
Adjustment/calibration
The PVE-EX is pre-calibrated from the factory to be inside the dead band of the proportional valve. The
position sensor built into the PVE-EX cannot be adjusted by user. Any biasing of the position has to be
incorporated in the demand signal.
14 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Earth connection
Connector terminal
1. Internal earth terminals
2. External earth terminals
1
2
Internal earth connection
Internal earth terminal enables an earth wire to be connected to chassis.
1. Remove the insulation from the earth wire at a length that allows mounting the cable shoe to the
threaded hole next to the connector.
2. Crimp or solder the earth wire to the cable shoe.
3. Attach the cable shoe to the chassis via the M4 screw, washer and spring washer.
4. Tighten the screws to the specified torque 2.5 ± 0.5 N•m. (M4 x 8 mm, Property class 70)
External earth connection
External earth terminal enables an earth wire to be connected to the PVE-EX.
1. Crimp or solder the earth wire to the cable shoe.
2. Attach the cable shoe to the chassis via the M4 screw, washer and spring washer.
3. Tighten the screws to the specified torque 2.5 ± 0.5 N•m. (M4 x 8 mm, Property class 70)
© Danfoss | October 2022
AN212686484914en-000501 | 15
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Fault monitoring
PVE-EX fault monitoring
Fault monitoring overview
PVE type
PVEH
PVEH-U
PVES
PVES-U
PVEO
Fault monitoring
Passive
Active
Passive
Active
No
Delay before error out
250 ms
500 ms
250 ms
500 ms
—
Fault monitoring memory (reset needed)
No
Yes
No
Yes
—
No fault
Error mode
C
Input signal fault
Transducer (LVDT)
Close loop fault
Error output status – Low
Fault output on PVE: < 2 V
—
Error output status – High
Fault output on PVE: UDC
—
Caution
The installation must be performed as intended in order to have a safe system.
Please refer to the information in this manual for an assistance, or consult with a professional.
16 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Technical data
Fluid specification
The following data is from typical test results. Mineral based hydraulic oil with a viscosity of 21 mm2/s
[102 SUS] and a temperature of 50 °C [122 °F] was used for the hydraulic system testing.
W
Warning
The PVE is designed for use with pilot oil supply. Use without oil supply can damage the system.
Intermission is no longer than 5 seconds and not more than once per minute.
Oil consumption
Supply voltage
Pilot oil flow function
PVEO/PVEH
PVES
Without
Neutral
0 l/min
0 l/min
With
Locked
0.1 l/min
0.1 l/min
Actuating
0.7 l/min
0.8 l/min
Oil viscosity, Oil temperature and Pilot pressure
Parameter
Minimum
Maximum
Range
Oil viscosity
4 mm2/s
[39 SUS]
460 mm2/s
[2128 SUS]
12 - 75 mm2/s
[65 - 347 SUS]
Oil temperature
-30 ˚C
[-22 ˚F]
90 ˚C
[194 ˚F]
30 to 60 ˚C
[86 to140 ˚F]
Pilot pressure (relative to T pressure)
10 bar
[145 psi]
15 bar
[217 psi]
Nominal 13.5 bar
[196 psi]
Intermittent pressure peaks up to
–
50 bar [725 psi]
–
Filtering in the hydraulic system
Required operating cleanliness level (ISO 4406, 2017 version)
18/16/13
PVE-EX electrical data
Specification
PVEO
Grade of enclosure EN 60529
Ambient temperature
Minimum
-40 °C [-40 °F]
Maximum
60 °C [140 °F]
Maximum (submitting) surface temperature, T4
Supply voltage
PVEH and PVES
IP 66 and IP 69k
135 °C [275 °F]
Rated
12 / 24 VDC
11 – 30 VDC
Range PVEx-EX-12V
11 – 16 VDC
N/A
Range PVEx-EX-24V
22 – 30 VDC
N/A
Maximum ripple
5%
5%
Typical
0.74 / 0.37 A
0.57 / 0.33 A
Minimum
0.55 / 0.29 A
N/A
Maximum
0.82 / 0.42 A
N/A
Power consumption at rated voltage
9W
7W
Input impedance in relation 0.5 x UDC
N/A
12 kΩ
Fault monitoring
Maximum load
N/A
60 mA
Reaction time at fault
N/A
500 ms
Current consumption at
rated voltage (12/24 VDC)
For more information about PVEO, PVES and PVEH versions please refer to Nameplate description.
© Danfoss | October 2022
AN212686484914en-000501 | 17
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Technical data
Reaction times
Reaction time for PVES/PVEH versions
Supply voltage
Function
Disconnected by means of neutral switch
Constant voltage
Minimum
Rated
Maximum
From neutral position to max. spool travel 120 ms
150 ms
230 ms
From max. spool travel to neutral position 65 ms
90 ms
175 ms
From neutral position to max. spool travel 50 ms
120 ms
200 ms
From max. spool travel to neutral position 65 ms
90 ms
100 ms
Function
Minimum
Rated
Maximum
120 ms
180 ms
235 ms
Reaction time for PVEO versions
Supply voltage
Power on
From neutral position to max. spool travel
Power off
From max. spool travel to neutral position
18 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Maintenance, service and troubleshooting
PVE-EX installation, start-up and operation
The inspection intervals and definitions are to be seen in the standard EN/IEC 60079-17 and the
corresponding Inspection schedules-table. Operators must under no circumstance try to repair or open a
PVE-EX. A failing or damaged PVE-EX is to be replaced.
The PVE-EX module has a built- in thermal fuse. If the temperature rises above 102°C ±3°C, the thermal
fuse will disconnect the power to the PVE-EX. It is not possible to change the thermal fuse. The PVE-EX
actuator needs to be replaced.
W
Warning
The installation must be performed as intended in order to have a safe system and a proper functional
application. In a case of damage to enclosure, plug or cable, the PVE-EX actuator must be replaced. Please
refer to the information in this manual for assistance, or consult with a professional.
W
Warning
All national safety regulations must be fulfilled in connection with installation, start-up and operation of
Danfoss PVE-EX electrical actuation's. Furthermore, the requirements of the Declaration of Conformity
and national regulations for installations in potentially explosive atmospheres applies as well.
Disregarding such regulations involves a risk of serious personal injury or extensive material damage.
W
Warning
Work in connection with the electrical actuations must be performed only by professionals and qualified
persons.
Safety guidelines
•
•
•
•
•
•
•
•
•
•
•
© Danfoss | October 2022
If failure, damage or defect occurs, the PVE-EX has to be replaced.
A failing PVE-EX must under no circumstance be repaired.
No modifications, which could damage the explosion-safety and protection, are allowed to the PVEEX, the cable gland, or on the cable.
Demounting a PVE-EX must be done in an atmosphere with no potential for explosions.
The machine and system approval has to be issued before using the PVE-EX in potentially explosive
atmosphere.
The manufacturer has the application responsibility and is solely responsible for the safety of the
system.
Deviations from recommended torque when mounting parts can harm performance and the PVE-EX.
Do not adjust, bend or damage the position transducer (LVDT) as this will influence the safety and
performance.
If replacing the PVE-EX, the electrical and the hydraulic systems must be turned off and the oil
pressure released.
Hydraulic oil can cause both environmental damage and personal injuries.
Actuator replacement can introduce contamination and errors to the system. It is important to keep
the work area clean and components should be handled with care.
AN212686484914en-000501 | 19
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Warnings
PVE-EX warnings
W
Warning
All brands and all types of directional control or proportional valves, which are used in many different
operation conditions and applications, can fail and cause serious damage.
You must perform a risk assessment. The machine builder/system integrator alone is responsible for
making the final selection of the products and assuring that all performance, safety and warning
requirements of the application are met.
The process for choosing the control system and safety levels is governed by the Machinery Directive
2006/42/EC and EU harmonized standard EN 13849 (Safety related requirements for control systems).
W
Warning
The installation must be performed as intended in order to have a safe system and a proper functional
application. In a case of damage to enclosure, plug or cable, the PVE-EX actuator must be replaced. Please
refer to the information in this manual for assistance, or consult with a professional.
W
•
•
•
•
•
•
•
•
•
•
•
•
20 | © Danfoss | October 2022
Warning
Not applying to the Operational Conditions can compromise safety.
A PVG with PVE-EX can only perform according to specification if conditions in this Installation Guide
are met.
In particularly exposed applications, protection in the form of a shield is recommended.
If the PVE-EX is in fault mode the quality of performance and validity of feedback is limited depending
on the fault type.
Error signals from more PVE-EX’s must not be connected together. Inactive error pins are connected
to ground and will disable any active signal. Error pins are signal pins and can only supply very limited
power consumption.
After replacement of actuators or cables wiring quality must be verified by a performance test.
By actuation outside specified supply voltage range PVG will have reduced performance.
The PVE-EX is not designed for use with supply voltage outside nominal.
Obstacles for the Pilot oil can have direct influence on spool control.
Reduced pilot oil pressure will limit spool control.
Pilot oil pressure outside specification can damage the PVE-EX.
The PVE-EX must be installed so that the flanged joints are not within 0.5 mm of a solid object that is
not part of the PVG.
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
EU Declaration of Conformity
© Danfoss | October 2022
AN212686484914en-000501 | 21
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
22 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
EU-Type Examination Certificate
© Danfoss | October 2022
AN212686484914en-000501 | 23
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
24 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
© Danfoss | October 2022
AN212686484914en-000501 | 25
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
IECEx Certificate of Conformity
26 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
© Danfoss | October 2022
AN212686484914en-000501 | 27
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
28 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
© Danfoss | October 2022
AN212686484914en-000501 | 29
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
China Compulsory Product Certificate
30 | © Danfoss | October 2022
AN212686484914en-000501
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
© Danfoss | October 2022
AN212686484914en-000501 | 31
Installation Guide
PVE-EX Ex eb mb version Group II Electro-hydraulic Actuator for PVG 32/100/120/128/256
Certificates
32 | © Danfoss | October 2022
AN212686484914en-000501
Products we offer:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Cartridge valves
DCV directional control
valves
Electric converters
Electric machines
Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and
electric components. We specialize in providing state-of-the-art technology and solutions
that excel in the harsh operating conditions of the mobile off-highway market as well as the
marine sector. Building on our extensive applications expertise, we work closely with you to
ensure exceptional performance for a broad range of applications. We help you and other
customers around the world speed up system development, reduce costs and bring vehicles
and vessels to market faster.
Gear motors
Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile
electrification.
Gear pumps
Go to www.danfoss.com for further product information.
Hydraulic integrated
circuits (HICs)
Hydrostatic motors
We offer you expert worldwide support for ensuring the best possible solutions for
outstanding performance. And with an extensive network of Global Service Partners, we also
provide you with comprehensive global service for all of our components.
Electric motors
Hydrostatic pumps
Orbital motors
PLUS+1® controllers
PLUS+1® displays
PLUS+1® joysticks and
pedals
PLUS+1® operator
interfaces
PLUS+1® sensors
PLUS+1® software
PLUS+1® software services,
support and training
Position controls and
sensors
PVG proportional valves
Steering components and
systems
Telematics
Local address:
Hydro-Gear
www.hydro-gear.com
Daikin-Sauer-Danfoss
www.daikin-sauer-danfoss.com
Danfoss
Power Solutions (US) Company
2800 East 13th Street
Ames, IA 50010, USA
Phone: +1 515 239 6000
Danfoss
Power Solutions GmbH & Co. OHG
Krokamp 35
D-24539 Neumünster, Germany
Phone: +49 4321 871 0
Danfoss
Power Solutions ApS
Nordborgvej 81
DK-6430 Nordborg, Denmark
Phone: +45 7488 2222
Danfoss
Power Solutions Trading
(Shanghai) Co., Ltd.
Building #22, No. 1000 Jin Hai Rd
Jin Qiao, Pudong New District
Shanghai, China 201206
Phone: +86 21 2080 6201
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
© Danfoss | October 2022
AN212686484914en-000501

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
