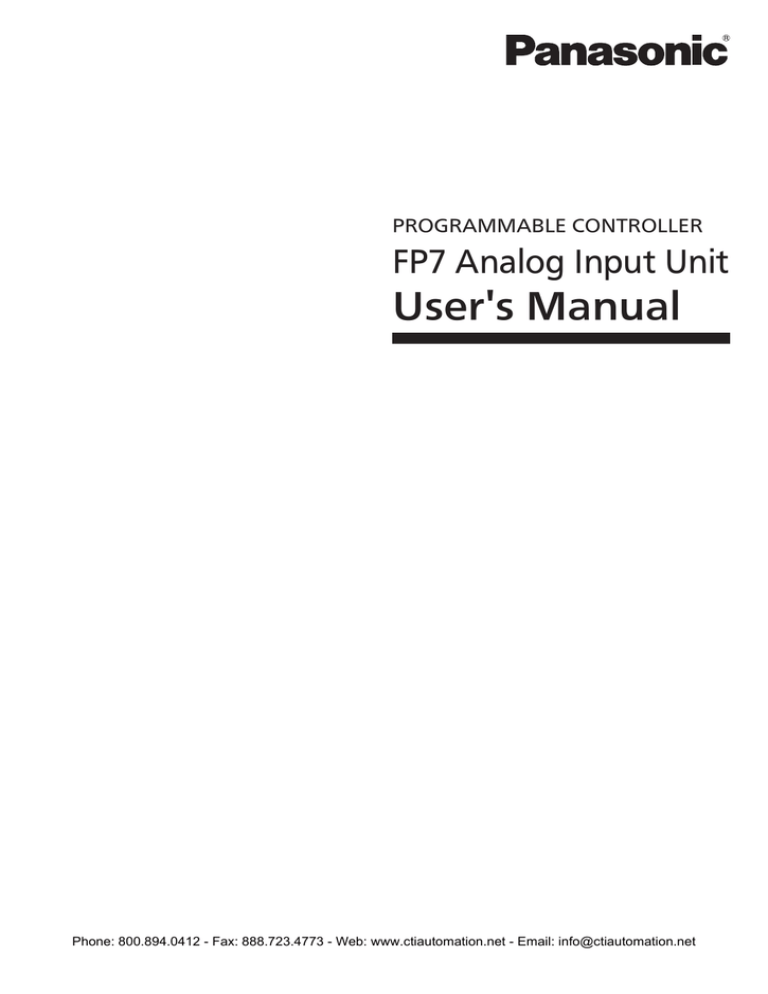

PROGRAMMABLE CONTROLLER

FP7 Analog Input Unit

User's Manual

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Safety Precautions

Observe the following notices to ensure personal safety or to prevent accidents.

To ensure that you use this product correctly, read this User’s Manual thoroughly before use.

Make sure that you fully understand the product and information on safety.

This manual uses two safety flags to indicate different levels of danger.

WARNING

If critical situations that could lead to user’s death or serious injury is assumed by

mishandling of the product.

-

Always take precautions to ensure the overall safety of your system, so that the whole system remains safe in the event of failure of this product or other external factor.

-Do not use this product in areas with inflammable gas. It could lead to an explosion.

-Exposing this product to excessive heat or open flames could cause damage to the lithium battery or other electronic parts.

CAUTION

If critical situations that could lead to user’s injury or only property damage is

assumed by mishandling of the product.

-To prevent excessive exothermic heat or smoke generation, use this product at the values less than the maximum of the characteristics and performance that are assured in these specifications.

-Do not dismantle or remodel the product. It could cause excessive exothermic heat or smoke generation.

-Do not touch the terminal while turning on electricity. It could lead to an electric shock.

-Use the external devices to function the emergency stop and interlock circuit.

-Connect the wires or connectors securely.

The loose connection could cause excessive exothermic heat or smoke generation.

-Do not allow foreign matters such as liquid, flammable materials, metals to go into the inside of the product. It could cause excessive exothermic heat or smoke generation.

-Do not undertake construction (such as connection and disconnection) while the power supply is on. It could lead to an electric shock.

Copyright / Trademarks

-This manual and its contents are copyrighted.

-You may not copy this manual, in whole or part, without written consent of

Panasonic

Industrial Devices SUNX Co., Ltd.

-Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

-All other company names and product names are trademarks or registered trademarks of their respective owners.

PLC_ORG

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Introduction

Thank you for buying a Panasonic product. Before you use the product, please carefully read the installation instructions and the users manual, and understand their contents in detail to use the product properly.

Types of Manual

• There are different types of users manual for the FP7 series, as listed below. Please refer to a relevant manual for the unit and purpose of your use.

• The manuals can be downloaded on our website.

Unit name or purpose of use

FP7 Power Supply Unit

FP7 CPU Unit

Instructions for Built-in

COM Port

FP7 Extension

(Communication)

Cassette

Instructions for Built-in

LAN Port

FP7 Digital Input/Output Unit

FP7 Analog Input Unit

FP7 Analog Output Unit

FP7 Positioning Unit

PHLS System

Programming Software

FPWIN GR7

Manual name

FP7 CPU Unit Users Manual

(Hardware)

FP7 CPU Unit Users Manual

(COM Port Communication)

FP7 CPU Unit Users Manual

(LAN Port Communication)

FP7 Digital Input/Output Unit Users Manual

FP7 Analog Input Unit Users Manual

FP7 Analog Output Unit Users Manual

FP7 Positioning Unit Users Manual

PHLS System Users Manual

FPWIN GR7 Introduction Guidance

Manual code

WUME-FP7CPUH

WUME- FP7COM

WUME-FP7LAN

WUME-FP7DIO

WUME-FP7AIH

WUME-FP7AOH

WUME-FP7POSP

WUME-PHLS

WUME-FPWINGR7

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Table of Contents

Table of Contents

1.

Unit Functions and Restrictions........................................ 1-1

1.1

Unit Functions and Operation................................................................. 1-2

1.2

Basic Operation of Analog Input Processing.......................................... 1-3

1.3

Restrictions on Units Combination ......................................................... 1-4

1.3.1

Restriction by Power Consumption .........................................................1-4

2.

Names and Functions of Parts .......................................... 2-1

2.1

Analog Input Unit.................................................................................... 2-2

3.

Wiring ................................................................................... 3-1

3.1

Wiring of Terminal Block ........................................................................ 3-2

3.2

Connecting Analog Input ........................................................................ 3-3

3.2.1

Voltage Input (-10 to +10, 0 to +10, 0 to +5, and +1 to +5 V) ................3-3

3.2.2

Current Input (0 to +20, +4 to +20 mA) ...................................................3-4

3.3

Connecting Trigger Input Terminal TRIG ............................................... 3-5

4.

Unit Settings and data Reading ......................................... 4-1

4.1

Confirming the I/O Number Allocations and First Word Number............ 4-2

4.1.1

Occupied I/O Area and I/O Allocations ...................................................4-2

4.1.2

Confirming the I/O Number Allocations...................................................4-4

4.2

Option settings ....................................................................................... 4-5

4.2.1

Configuration of Analog Input unit...........................................................4-5

ii

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Table of Contents

4.2.2

Unit Setting and Conversion Processing Time .......................................4-7

4.3

Reading Analog Input Data..................................................................... 4-8

4.3.1

Reading Analog Input Data.....................................................................4-8

4.4

Data Acquisition Timing .......................................................................... 4-9

5.

Conversion Characteristics of Analog Input Unit ............5-1

5.1

Voltage Range ........................................................................................ 5-2

5.1.1

Voltage Input Range: -10 to +10 V (0.32 mV, 1/62,500).........................5-2

5.1.2

Voltage Input Range: 0 to +10 V (0.32 mV, 1/31,250)............................5-3

5.1.3

Voltage Input Range: 0 to +5 V (0.16 mV, 1/31,250)..............................5-3

5.1.4

Voltage input range: 1 to 5 V (0.16 mV, 1/25,000)..................................5-4

5.2

Current Range ........................................................................................ 5-5

5.2.1

Current Input Range: 0 to +20 mA (0.64μA, 1/31,250)...........................5-5

5.2.2

Current Input Range: +4 to +20 mA (0.64μA, 1/25,000).........................5-5

6.

Optional Settings for Analog Input ....................................6-1

6.1

Average Processing Settings.................................................................. 6-2

6.1.1

Number of Averaging Times ...................................................................6-2

6.1.2

Time Average..........................................................................................6-3

6.1.3

Moving Average ......................................................................................6-4

6.2

Offset/Gain processing ........................................................................... 6-5

6.3

Scale Conversion.................................................................................... 6-7

6.4

Comparison for Upper and Lower Limits ................................................ 6-8

6.5

Holding Max./Min. Values ..................................................................... 6-11

6.6

Disconnection detection........................................................................ 6-14

6.7

Buffer Settings ...................................................................................... 6-16

6.7.1

Overview of Buffer Function..................................................................6-16

6.7.2

Buffering by Trigger Output Relay.........................................................6-18

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

iii

Table of Contents

6.7.3

Buffering by External Input Trigger .......................................................6-20

6.7.4

Buffering Triggered by Value Change in Analog Input..........................6-22

6.8

Configuration by Programming............................................................. 6-24

7.

What to Do If an Error Occurs............................................ 7-1

7.1

What to Do If an Error Occurs (Analog Input) ........................................ 7-2

7.1.1

Failure in Reading Analog Input Data .....................................................7-2

7.1.2

Unstable Analog Input Conversion Value ...............................................7-2

7.1.3

No Proper Conversion Values Obtained with Current Input ...................7-2

8.

Specifications...................................................................... 8-1

8.1

Specifications ......................................................................................... 8-2

8.2

I/O Allocation .......................................................................................... 8-4

8.3

List of Unit Memories.............................................................................. 8-6

8.3.1

List of Unit Memory Number....................................................................8-6

8.4

List of Detailed Specifications of Unit Memories .................................... 8-7

8.5

Dimensions........................................................................................... 8-11

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

iv

1

Unit Functions and

Restrictions

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Unit Functions and Restrictions

1.1 Unit Functions and Operation

„ Features of analog input unit

The analog input unit receives various analog values (i.e., voltage, current, and temperature values) from laser analog sensors and pressure sensors and converts them internally into digital values.

• The analog input unit can receive input through a number of channels.

Analog input units: 4 channels

Six types of input ranges can be selected to support a variety of connecting equipment.

• The speed of conversion, such as voltage/current range conversion, is as high as 25

μs/channel (non-isolated).

• Converts input analog values into digital data with up to 16 bits in a resolution range of

1/25,000 to 1/62,500.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

1-2

1.2 Basic Operation of Analog Input Processing

1.2 Basic Operation of Analog Input Processing

Analog input is processed as explained below.

„ Operation of analog input unit

(1) Receiving analog input

The analog input unit receives analog input data from analog devices, such as laser analog sensors and pressure sensors.

(2) Digital conversion processing

Analog input data received by the unit is converted into digital values in sequence automatically.

(3) Storage of digital values

A user program is used to read converted digital values as data in the input relay area (WX).

(3)

(2)

(1)

V or I t

„ Option setting

The following option setting functions are provided for analog input processing. Any of the option setting functions can be set by writing the function to the unit memory (UM) by using the configuration menu of the FPWIN GR7 or a user program.

• Average processing (number of times, time average, and moving average)

• Scale conversion

• Offset/Gain processing

• Holding Max./Min.

• Comparison for upper and lower limits

• Disconnection detection

• Buffering

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

1-3

Unit Functions and Restrictions

1.3 Restrictions on Units Combination

1.3.1 Restriction by Power Consumption

The unit has the following internal current consumption. Make sure that the total current consumption is within the capacity of the power supply with consideration of all other units used in combination with the analog input unit.

Name

FP7 analog input unit

Product no.

AFP7AD4H

Current consumption

100 mA or less

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

1-4

2

Names and Functions of

Parts

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Names and Functions of Parts

2.1 Analog Input Unit

„ Names and functions of parts

(1) Operation monitor LEDs

LED name LED color

- Blue

Contents

Lit when the CPU unit is turned ON.

ALARM Red Lit if the hardware has an error.

(2) Terminal block release lever

To remove the analog input terminal block, push the release lever downward.

(3) DIN rail attachment lever

This lever is used to fix the unit to the DIN rail.

(4) Unit Connector

Connects to other I/O units and high-function units.

(5) Analog input terminal block

The terminal block is removable. Remove the terminal block before wiring.

Solderless terminals for M3 can be used.

(8) Fixing hook

Used to secure the unit with another unit.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

2-2

3

Wiring

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Wiring

3.1 Wiring of Terminal Block

„ Suitable solderless terminals/wires

M3 terminal screws are used for the terminal. The following suitable solderless terminals are recommended for the wiring to the terminals

• Suitable solderless terminals

Manufacturer

J.S.T. Mfg Co., Ltd.

Shape

Round type

Fork type

Round type

Fork type

• Suitable wires

Suitable wires

AWG22 to 14 (0.3 mm

2

to 2.0 mm

2

)

Part no.

1.25-MS3

1.25-B3A

2-MS3

2-N3A

Tightening torque

0.5 to 0.6N ·m

Suitable wires

0.25 to 1.65 mm

2

1.04 to 2.63 mm

2

„ Connection to the terminal block

Remove the terminal block before beginning the wiring operations.

To remove the terminal block, push the release lever located at the top of the terminal block downward.

<Bottom of unit>

Lock button

NOTE

Install the terminal block by inserting it all the way to its original position and pressing the lock button on the bottom of the unit. Then confirm that the terminal block is securely attached and cannot be removed.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

3-2

3.2 Connecting Analog Input

3.2 Connecting Analog Input

3.2.1 Voltage Input (-10 to +10, 0 to +10, 0 to +5, and +1 to +5 V)

„ Wiring diagram and internal circuit diagram

„ Terminal layout

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

3-3

Wiring

3.2.2 Current Input (0 to +20, +4 to +20 mA)

„ Wiring diagram and internal circuit diagram

In the case of current input, connect the Vn and In terminals.

„ Terminal layout

NOTES

Use double-core twisted-pair shielded wires. It is recommended to ground

them. However, depending on the conditions of the external noise, it may be better not to ground the shielding.

Do not place the analog input wiring close to AC lines, high-tension lines, or

load lines other than PLC wires or bundle the analog input and other wires together.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

3-4

3.3 Connecting Trigger Input Terminal TRIG

3.3 Connecting Trigger Input Terminal TRIG

The trigger input terminal is used when the buffer function is used with an external input signal as a trigger signal. This terminal needs not be connected if these functions are not used.

„ Description

Items

Insulation system

Rated input voltage

Rated input current

Input impedance

Operating voltage range

Min. ON voltage/Min. ON current

Max. OFF voltage/Max. OFF current

Response time OFF

→ON

ON

→OFF

Input points per common

External connection method

„ Internal circuit diagram

Description

Optical coupler

24 V DC

Approx. 4.5 mA (at 24 V)

Approx. 5.1k

21.6 to 26.4 V DC

19.2 V/3.5 mA

5 V/1.5 mA

0.2 ms or less

0.2 ms or less

2 point/1 common

Terminal block connections (M3 terminal screws)

„ Terminal layout

TRIG terminal

24 V DC 910

T-COM terminal

5.1 k

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

3-5

Wiring

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

3-6

4

Unit Settings and data

Reading

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Unit Settings and data Reading

4.1 Confirming the I/O Number Allocations and First Word Number

4.1.1 Occupied I/O Area and I/O Allocations

In the FP7, analog input data is allocated to the external input relay area and processed.

An analog input signal into a single channel is handled by 16 X-contact points.

The following table shows the I/O allocation of analog input data.

„ Input contact

I/O number

CH0 CH1 CH2 CH3

Name Description

X0 to

XF

X20 to

X2F

X40 to

X4F

X10 X30 X50

X11 X31 X51

X12 X32 X52

X60 to

X6F

X70

A/D conversion data

(16 bits)

Disconnection detection flag

Digital converted values corresponding to the analog input is stored.

<Voltage range>

-10 to +10 V: -31,250 to +31,250

0 to +10 V or 0 to +5 V: 0 to +31,250

+1 to +5 V: 0 to +25,000

<Current range>

0 to +20 mA: 0 to +31,250

+4 to +20 mA: 0 to +25,000

* A/D conversion data within the set scale applies if scale conversion is set.

ON with disconnection detected and OFF with disconnection restored

(valid for 1 to 5 V and 4 to 20 mA ranges only)

Turns ON when the value exceeds the set upper limit.

Turns ON when the value drops below the set lower limit.

X13 X33 X53

X14 X34 X54

X15 X35 X55

X16 X36 X56

X17 X37 X57

X18

- -

X19

X1A

X1B

X71

X72

X73

Upper limit comparison relay

Lower limit comparison relay

Upper limit/Lower limit comparison execution flag

X74 Not used

X75

Max./Min. hold execution flag

X76

X77

Not used

Buffer function execution flag

Buffering completion flag

Data before triggering enable flag

ON when the upper limit/lower limit comparison function is executed.

Do not use.

ON when the max./min. hold function is executed.

Do not use.

ON when the buffer function is executed.

ON when buffering starts after the trigger is accepted.

OFF when the number of buffer data items is reached.

ON when the shared memory has become accessible after completion of buffering

OFF on completion of buffer data reading.

ON when the number of buffer data items before triggering has reached the set value.

OFF on completion of buffer data reading.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-2

4.1 Confirming the I/O Number Allocations and First Word Number

X1C to

X1E

X3C to

X3E

X1F X3F

X5C to

X5E

X5F

X7C to

X7E

Not used Do not use.

Turns ON if an error occurs.

(Note 1) The I/O numbers in the tables above show offset addresses. I/O numbers actually allocated are based on the first word number allocated to the unit. (Example) If the first word number is 10, the D/A conversion data on

CH0 and the error flag will be WX10 and X11F, respectively.

(Note 2): The conditions of the buffer function (i.e., the buffer function execution flag, buffering flag, buffering completion flag, and data enable flag before triggering) are allocated to the input contacts for CH0.

„ Output contact

I/O number

CH0 CH1 CH2

Name Description

CH3

Y0 Y10 Y20

Disconnection relay

ON to execute the disconnection detection function.

OFF to turn OFF the disconnection detection flag (Xn0).

(valid for 1 to 5 V and 4 to 20 mA ranges only)

Y1 Y11

Y2 Y12

Y21

Y22

Y31

Not used

Y32

Do not use.

Y3 Y13

Y4 Y14

Y5 Y15

Y23

Y24

Y25

Upper limit/Lower limit relay

ON to execute the function to compare the upper and lower limits.

OFF to turn OFF the upper limit comparison relay (Xn1) and lower limit comparison relay (Xn2).

Do not use.

ON when the max./min. hold function is executed.

Y6 Y16

Y7 Y17

Y26

Y27

Y36

Not used

Y37

Do not use.

Y8

Y9

YA

Buffer execution relay

Buffer trigger relay

Buffer data

Read completion relay

When the buffer function is enabled, trigger acceptance will be permitted with the buffer execution relay turned ON.

The internal state transition will be initialized with the buffer execution relay turned OFF.

If “Trigger relay” is set in trigger setting, triggering will start with the trigger relay turned ON.

ON upon completion of reading buffer data from the shared memory.

Goes to the state of trigger acceptance permitted after clearing the buffer memory.

YB to

YE

Y1B to

Y1E

Y2B to

Y2E

Y3B to

Y3E

Not used Do not use.

YF Y1F Y2F Y3F

Error flag reset relay

Reset the error flag.

(Note 1) The I/O numbers in the tables above show offset addresses. I/O numbers actually allocated are based on the first word number allocated to the unit. (Example) If the first word number is 10, the disconnection detection execution relay on CH0 and the error flag reset relay will be Y100 and X10F, respectively.

(Note 2) The operation of the buffer function (consisting of the buffer execution relay, buffer trigger relay, and buffer data read completion relay) is specified by the output contacts for CH0.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-3

Unit Settings and data Reading

4.1.2 Confirming the I/O Number Allocations

• I/O numbers and base word numbers are always necessary when writing programs. Always check to see if the numbers match the design.

• I/O numbers allocated to the analog input unit are determined by the first word number.

„ Allocations to unit

Take the following procedure to set the first word number.

PROCEDURE

2. Select “I/O Map” from the field.

3. Double-click the target slot where the operating unit is to be inserted.

4. Select “Analog I/O” and “Input Unit” in the unit selection field.

5. Press the [OK] button.

The first word number specified is set.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-4

4.2 Option settings

4.2 Option settings

4.2.1 Configuration of Analog Input unit

Use the FPWIN GR7 configuration menu to make analog input unit settings, such as input range and isolation/non-isolation settings.

„ Setting method

The following steps are described on the condition that the analog input unit has been already allocated on the I/O map.

PROCEDURE

1. Select “Options”

→ “FP7 Configuration” from the menu bar.

2. Select “I/O Map” from the field

3. Select the slot where the analog input unit is registered and press the

[Advanced] button.

The “Analog unit settings” dialog box is displayed.

4. Select the isolation, conversion process skip, and input range settings.

Select option setting as required.

5. Press the [OK] button.

The set value will become effective when the set value is downloaded together with a corresponding program as a project.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-5

Unit Settings and data Reading

„ Settings

Group

Trigger type

Basic setting items

(common to all channels)

External input trigger

Input level trigger CH

No. of buffer data items

No. of data items before triggering

Trigger cycle

Analog input trigger level

Conversion processing

Option setting items

(per channel)

Setting item

Isolation between channels

Buffer function

Basic setting items

(per channel)

Range setting

Settings Default

Non-isolated/Isolated Non-isolated

Not use/Use Not use

Trigger input relay/rise of external input trigger/fall of external input trigger/rising time of analog input level/falling time of analog input level

Trigger input relay

Unused/TRIG0/TRIG1/TRIG2/TRIG3

Unused/CH0/CH1/CH2/CH3

1 to 10,000

Not used

Not used

1000

0 to 9,999

1 to 30,000

-31,250 to +31,250

Execute/Not execute

-10 to +10 V

0 to +10 V

0 to +5 V

+1 to +5 V

0 to +20 mA

+4 to +20 mA

Not execute/No. of averaging times/time average/moving average

Not execute/Execute

0

1

0

Execute

-10 to +10 V

Not execute

Not execute

Average processing settings

Offset/Gain processing

Scale conversion

Comparison settings for upper and lower limits

Max./Min.

Disconnection detection settings

Disconnection detection reset

Not execute/Execute

Not execute/Execute

Not execute/Execute

Not execute

Not execute

Not execute

Averaging constant

Offset value

Gain value

Scale conversion max. value

Scale conversion min. value

Upper limit comparison ON level

Upper limit comparison

OFF level

Lower limit comparison ON level

Lower limit comparison

OFF level

Auto/Manual Auto

Times: 2 to 60,000 [times]

Time (non-isolated): 1 to 1,500 [ms]

Time (isolated): 200 to 60,000 [ms]

Moviing average: 2 to 2,000 [times]

-3,000 to +3,000

+9,000 to +11,000

-30,000 to +30,000

-30,000 to +30,000

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

200

0

+10,000

10,000

0

0

0

0

0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-6

4.2 Option settings

4.2.2 Unit Setting and Conversion Processing Time

Conversion time varies with the configuration setting conditions.

„ Isolation setting and conversion processing time

• Isolated: 5 ms/ch • Non-isolated: 25

μs/ch

• The speed of A/D conversion processing will become faster if non-isolation is set. Each channel is isolated by switching the respective photo-MOS relays of the channels at the time of conversion. The photo-MOS relays are always turned ON at the time of non-isolation and the commons will be shared.

„ Conversion processing execution/non-execution setting and conversion processing time

Select the execution or non-execution of the conversion processing of analog input on a channel-by-channel basis. This can save the conversion time for channels that do not execute conversion processing.

Example) Conversion time for four channels

Converted in the order of ch0

→ch1→ch2→ch3→ch0→ch1→ch2→ch3→.... (1 cycle = 100 μs at the time of non-isolation)

Example) Conversion time for two channels (with CH2 and CH3 excluded).

Conversion is executed in the order of ch0

→ch1→ch0→ch1→ch0→ch1→ch0→ch1→... and the conversion time for CH2 and CH3, which are excluded, is saved. (1 cycle = 50

μs at the time of non-isolation)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-7

Unit Settings and data Reading

4.3 Reading Analog Input Data

4.3.1 Reading Analog Input Data

„ Basic Operation of Analog Input Processing

(1) Receiving analog input

The analog input unit receives analog input data from devices, such as laser analog sensors and pressure sensors.

(2) Digital conversion processing

Analog input data received by the unit is converted into digital values in sequence automatically in the unit. The converted digital value varies with the setting of the range.

(3) Storage of digital values

A user program is used to read converted digital values as data in the input relay area (WX).

The specified area number varies depending on the installation position of the unit.

(3)

(2)

(1)

V or I t

„ Program to Acquire Converted Digital Values

Reading the values in digital conversion value storage areas WX10, WX12, WX14, and WX16 to any a reas of data registers ranging from DT100 to DT103.

R0

MV.SS

WX10

CH0 input

DT100

MV.SS

MV.SS

WX12

CH1 input

WX14

CH2 input

DT101

DT102

Transferring the digital data in analog input areas WX10, WX12,

WX14, and WX16 to data registers ranging from DT100 to DT103.

MV.SS

WX16

CH3 input

DT103

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-8

4.4 Data Acquisition Timing

4.4 Data Acquisition Timing

„ Input conversion processing time of analog input unit

Conversion processing time varies with the range and the number of channels in use. The conversion execution/non-execution channel function can save the conversion time for channels that do not execute conversion processing. z Example of 2-channel conversion

Converted in the order of ch0

→ch1→ch0→ch1→....

„ Data acquisition timing of CPU unit

• Digital values converted by the analog input unit are input into the CPU unit at the I/O refreshing timing of the CPU unit.

• The conversion processing of the analog input unit is not synchronized with the I/O refreshing timing of the CPU unit. Therefore, the latest data is input into the operation memory of the CPU unit when the CPU unit implements I/O refreshing.

• Example of 4-channel conversion b c a d e

Analog signal of ch0

Converts in the order of ch0

→ch1→ch2→ch3

Processing in the analog input part

0 1 2 3 0 1 2 3 0 1 2 3 0 1 2 3 0

I/O refresh

Processing in the CPU unit

Data of ch0 to be read in the CPU unit a b c d

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-9

Unit Settings and data Reading

• Example of 1-channel conversion g c d e f b a

Analog signal of ch0 h i j k l m n o p q r

Processing in the analog input part

Processing in the CPU unit

Data of ch0 to be read in the CPU unit a c e g j l n p

Converts ch0 repeatedly

I/O refresh

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

4-10

5

of Analog Input Unit

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Conversion Characteristics of Analog Input Unit

5.1 Voltage Range

5.1.1 Voltage Input Range: -10 to +10 V (0.32 mV, 1/62,500)

Input range: -10 to +10 V

Analog input value

(V)

Digital conveted value

(K)

+10 +31,250

+8 +25,000

+6 +18,750

+4 +12,500

+2 +6,250

0 0

-2 -6,250

-4 -12,500

-6 -18,750

-8 -25,000

-10 -31,250

When exceeding the rated range

Analog input value

Converted value

+10 V or more

-10V or less

+31,250

-31,250

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

5-2

5.1 Voltage Range

5.1.2 Voltage Input Range: 0 to +10 V (0.32 mV, 1/31,250)

Input range: 0 to +10 V

Analog input value

(V)

Digital conveted value

(K)

+10 +31,250

+8 +25,000

+6 +18,750

+4 +12,500

+2 +6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+10 V or more

0 V or less

+31,250

0

5.1.3 Voltage Input Range: 0 to +5 V (0.16 mV, 1/31,250)

Input range: 0 to +5 V

Analog input value

(V)

Digital conveted value

(K)

+5 +31,250

+4 +25,000

+3 +18,750

+2 +12,500

+1 +6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+5 V or more

0 V or less

+31,250

0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

5-3

Conversion Characteristics of Analog Input Unit

5.1.4 Voltage input range: 1 to 5 V (0.16 mV, 1/25,000)

Input range: 1 to 5 V

Analog input value

(V)

Digital conveted value

(K)

5 25,000

4 18,750

3 12,500

2 6,250

1 0

When exceeding the rated range

Analog input value

Converted value

5 V or more

1 V or less

25,000

0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

5-4

5.2 Current Range

5.2 Current Range

5.2.1 Current Input Range: 0 to +20 mA (0.64

μA, 1/31,250)

Input range: 0 to +20 mA

Analog input value

(mA)

Digital conveted value

(K)

+20 +31,250

+16 +25,000

+12 +18,750

+8 +12,500

+4 +6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+20 mA or more

0 mA or less

+31,250

0

5.2.2 Current Input Range: +4 to +20 mA (0.64

μA, 1/25,000)

Input range: +4 to +20 mA

Analog input value

(mA)

Digital conveted value

(K)

+20 +25,000

+16 +18,750

+12 +12,500

+8 +6,250

+4 0

When exceeding the rated range

Analog input value

Converted value

+20 mA or more

+4 mA or less

+25,000

0

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

5-5

Conversion Characteristics of Analog Input Unit

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

5-6

6

Optional Settings for Analog

Input

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Optional Settings for Analog Input

6.1 Average Processing Settings

6.1.1 Number of Averaging Times

„ Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If the number of averaging times is set, analog input data items acquired will be stored as digital values when the number of analog input data items reaches the set number of averaging times.

• If the number of data items acquired is less than the number of averaging times, the acquired data will be stored in the I/O area.

• Obtain the number of averaging times to be processed from the following input.

Input: The sum of analog input data items for the number of averaging times

Output: Number of averaging times value

„ Processing during the number of averaging times

Averaging setting example: The number of averaging times is set to 5.

Analog signal a b c d e f g h i j k l m n o p q r

Analog input processing

Average of a to e

Analog input data

„ Configuration

Name

Function setting

Average processing settings

Averaging constant

Default

Not execute

K200

Average of f to j

Average of k to o

Setting range and description

Select “the number of averaging times.”

Number: 2 to 60,000 [times]

(specified with an unsigned integer)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-2

6.1 Average Processing Settings

6.1.2 Time Average

„ Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If time average is set, analog input data items acquired will be stored as digital values when the acquisition period of the analog input data items reaches the set averaging time.

• Obtain the time average to be processed from the following input.

Input: The sum of analog input data items for the number of averaging time

Output: Time average value

„ Processing during time average

Average setting example: Example of an averaging time of 5 ms

Analog signal

A0

A1

A2

Elapse of 5 ms

An

B0

B1

B2

Elapse of 5 ms

Bn

C0

C1

C2

・・・・・ ・・・・・

・・・・・

Analog input processing

・・・・・

・・・・・

Average of

A0 to An

・・・・・

Average of

B0 to Bn

Analog input data

„ Configuration

Name

Function setting

Average processing settings

Averaging constant

Default

Not execute

K200

Setting range and description

Select “time average.”

Time (non-isolated): 1 to 1,500 [ms]

Time (isolated): 200 to 60,000 [ms]

(Specified with an unsigned integer)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-3

Optional Settings for Analog Input

6.1.3 Moving Average

„ Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If moving average is set, analog input data items acquired will be stored as digital values when the number of analog input data items reaches the set number of moving average times.

• Obtain the number of averaging times to be processed from the following input.

Input: The number of average times, analog input data for the number of average times, the latest analog input data, and old analog input data

Output: Moving average value

„ Processing during moving average

Averaging setting example: The number of averaging times is set to 15. c d e f g o p q h n r b i m a j k l

Analog signal

・・・

Analog input processing

Average of a to o

Average of b to p

Average of c to q

・・・

Analog input data

・・・

„ Configuration

Name

Function setting

Average processing settings

Averaging constant

Default

Not execute

K200

Setting range and description

Select “moving average.”

Number: 2 to 2,000 [times] (specified with an unsigned integer)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-4

6.2 Offset/Gain processing

6.2 Offset/Gain processing

„ Overview of Functions

• Offset value (added correction) and gain value (magnification correction) adjustments are made to store processed data in the I/O area.

Analog input data

Offset processing Gain processing

Analog postprocessing data

• Offset value settings are used as a function (zero-point adjustment) to make offset error adjustments between load devices. If the analog conversion value is K50 when the analog input value is 0 V, the analog conversion data is corrected to 0 V based on K-50 as an offset value.

(K) (K)

50

(V)

Offset processing

(V)

• Gain value settings are used as a function to adjust delicate scale errors between load devices. The gain value slope can be changed in a range of x0.9 to x1.1.

(K) (K)

Gain x 1.1

Gain x 0.9

(V) (V)

Gain processing

• Offset/Gain processing is executed on a channel-by-channel basis.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-5

Optional Settings for Analog Input

„ Configuration

Name

Function setting

Offset value

Offset/Gain processing

Gain value

Default

Not execute

K0

K10,000

Setting range and description

Select “Execute.”

Set an offset value at the time of using the offset processing function.

Setting range: -3,000 to +3,000 (specified with a signed integer)

Set an gain value at the time of using the gain processing function.

Setting range: +9,000 to 1+1,000 (0.9x to 1.1x: Specified with a signed integer)

NOTE

The offset value is corrected to a value corresponding to the resolution of the input range of the original value regardless of whether scale conversion is set or not.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-6

6.3 Scale Conversion

6.3 Scale Conversion

„ Overview of functions

• This function makes it possible to set an easy-to-use analog output range. Analog input data acquired in a range between preset minimum and maximum values is scale converted and stored in the I/O area. This function is convenient if used for scale unit conversion.

• Scale conversion is executed on a channel-by-channel basis.

• Conversion values read from the analog input unit include fractions. Therefore, convert the values to easy-to-handle figures if needed.

(K)

25000

(K)

10000

12500

Scale conversion

5000

1 3 5

(V)

1 3 5

(V)

„ Configuration

Name

Function setting

Scale conversion

Minimum value of scale conversion

Default

Not execute

K0

Setting range and description

Select “Execute.”

Set the minimum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Maximum value of scale conversion

K10,000 Set the maximum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

* If data outside the minimum or maximum scale is input, scale conversion will be disabled and the minimum or maximum scale value will be stored as a conversion value.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-7

Optional Settings for Analog Input

6.4 Comparison for Upper and Lower Limits

„ Overview of Functions

This function compares acquired data with the upper limit and lower limit and turns ON the upper limit relay or lower limit relay if the acquired data exceeds the upper limit value or lower limit value.

• Comparison for upper and lower limits is executed on a channel-by-channel basis.

• The upper limit relay will turn ON if the digital conversion value is larger than the upper limit.

• The lower limit relay will turn ON if the digital conversion value is smaller than the lower limit.

• The function will be disabled with the comparison execution relay (Y) turned ON if the configuration-upper/lower limit comparison setting is not executed.

(K)

Upper limit comparison ON level

(2)

(3)

Upper limit comparison OFF level

Lower limit comparison OFF level

Digital converted value

Lower limit comparison ON level

(4)

(Flag)

Comparison execution relay

(*1)

Upper limit comparison relay

(*1)

Lower limit comparison relay

(*3)

Comparison execution flag

(*4 )

(1) (5)

(t)

(1) The upper/lower limit comparison function will be executed when the user program turns

ON the comparison execution relay.

(2) The upper limit comparison relay will turn ON if the upper limit comparison ON level or an upper level is detected

(3) The upper limit comparison relay will turn OFF if the upper limit comparison OFF level or a lower level is detected.

(4) The lower limit comparison relay will turn ON if the lower limit comparison ON level or a lower level is detected.

(5) The upper/lower limit comparison relay and comparison execution flag will be forcibly turned OFF if the comparison execution relay is turned OFF.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-8

6.4 Comparison for Upper and Lower Limits

„ I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

*1 Comparison execution relay

*2 Upper limit comparison relay

*3 Lower limit comparison relay

*4 Comparison execution flag

CH0

Y103

X111

X112

X113

CH1

Y113

X131

X132

X133

CH2

Y123

X151

X152

X153

CH3

Y133

X171

X172

X173

„ Configuration

Name Default Setting range and description

Function setting level

Upper limit /

Lower limit comparison

Upper/Lower limit comparison

Upper limit comparison ON

Not execute

Select the desired function to be used.

Upper/Lower limit comparison

Upper limit comparison OFF level

Upper/Lower limit comparison

Lower limit comparison OFF level

K0

K0

K0

Set the upper limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the upper limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Upper/Lower limit comparison

Lower limit comparison ON level

K0 Set the lower limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) Make the following level settings for upper/lower limit comparison.

Lower limit comparison ON level

≤ Lower limit comparison OFF level < Upper limit comparison OFF level ≤ Upper limit comparison ON level

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-9

Optional Settings for Analog Input

„ Sample Program

The digital conversion value on ch0 of the analog input unit is read to detect the upper limit and lower limit, and the desired output is turned ON with the upper or lower limit detected.

R0

(

DF

)

R1

(

DF

)

X113 X111

Comparison execution flag

X113

Upper limit comparison relay

X112

Comparison execution flag

Lower limit comparison relay

Y103

< SET >

(CH0): Upper/Lower limit comparison execution relay

Y103

< RST >

(CH0): Upper/Lower limit comparison execution relay

Y200

(CH0): Controls upper and lower limit comparison function

R0 ON:

Comparison execution

R1 ON:

Turns OFF comparison execution relay.

(CH0): Turns ON Y200 when the value exceeds the upper limit.

Y201

(CH0): Turns ON Y201 when the value drops below the lower limit.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-10

6.5 Holding Max./Min. Values

6.5 Holding Max./Min. Values

„ Overview of Functions

This function maintains the maximum and minimum values of acquired data. When the maximum and minimum value hold settings are valid, the maximum and minimum digital conversion values will be maintained and stored in the following unit memories.

• If the function has not been enabled with the configuration settings, the function will not work with the hold execution relay turned ON.

• When the hold execution relay is turned ON, the values at that time will be preset as maximum and minimum values in the unit memories.

• The maximum and minimum values will be stored in the unit memories even if the hold execution relay is turned OFF or the unit is set into PROG. mode.

• The maximum and minimum values are held on a channel-by-channel basis.

(K)

Holds min. value in unit memory

Digital conversion value

Holds max. value in unit memory

(Flag)

Hold execution relay (*1)

Hold execution flag (*2)

Unit memory Refreshes max. value

Refreshes min. value

Refreshes min. value

(t)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-11

Optional Settings for Analog Input

„ Hold data storage area

Unit memory number

(Hex)

Name Default Setting range and description

UM 00180

UM 00181

UM 00182

UM 00183

Holding max. value K0

The acquired maximum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to 31,250 (specified with a signed integer)

UM 00188

UM 00189

UM 0018A

UM 0018B

Holding min. value K0

The acquired minimum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to 31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0, CH1, CH2, and CH3 in numerical order.

„ I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

*1 Hold execution relay

*2 Hold execution flag

CH0

Y105

X115

CH1

Y115

X135

CH2

Y125

X155

CH3

Y135

X175

„ Configuration

Name

Function setting

Holding max./min. values

Holding min. value

Holding max. value

Default

Not execute

K0

K0

Setting range and description

Select “Execute.”

Holding min. value (-31,250 to +31,250)

Holding max. value (-31,250 to +31,250)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-12

6.5 Holding Max./Min. Values

„ Sample Program

The analog data on ch0 of the analog input unit is read, and the data holding the maximum and minimum values will be read at the desired data register.

R0

R1

(

DF

)

(

DF

)

X115

Max./Min. value hold execution flag

<

Y105

SET >

Max./Min. value hold execution relay

Y105

< RST >

Max./Min. value hold execution relay

MV.SS

S1: UM00180

Unit memory specified for slot 1

DT0

(CH0): Controls upper and lower limit comparison function.

ON: Execute

OFF: Don't execute

(CH0): Copies max. value to DT0

MV.SS

S1: UM00188

Unit memory specified for slot 1

DT1

(CH0): Copies min. value to DT1

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-13

Optional Settings for Analog Input

6.6 Disconnection detection

„ Overview of Functions

The disconnection detection flag is turned ON and the error indicator will be lit if the result of input does not reach a certain value while a voltage input range of +1 to +5 V or input current range of +4 to +20 mA is set.

Voltage input range of +1 to +5 V set: 0.7 V or less; Current input range of +4 to +20 mA set:

2.8 mA max.

• If the input exceeds the above value while the disconnection detection execution relay is turned ON, the disconnection detection flag will be turned OFF automatically, provided that the auto setting has been made.

• If the manual reset setting is made, the disconnection detection flag will be turned OFF by using a user program and turning OFF the disconnection detection execution relay.

• If the configuration-disconnection detection setting has not been made, the function will be disabled with the disconnection detection execution relay turned ON.

„ Action with the detection disconnection reset setting set to auto

(V)

Analog input value

Disconnection threshold

0.7 V or 2.8 mA

(Flag)

Disconnection detection execution relay

(*1)

Disconnection detection flag

(*2)

(t)

„ Action with the detection disconnection reset setting set to manual

(V)

Analog input value

While in manual mode, the disconnection detection flag (X) will not automatically turn OFF when the voltage is recovered.

Disconnection threshold

0.7 V or 2.8 mA

(Flag)

Disconnection detection execution relay

(*1)

Disconnection detection flag

(*2)

The disconnection detection flag (X) is turned OFF with the disconnection detection execution relay turned OFF.

(t)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-14

6.6 Disconnection detection

„ I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

CH0 CH1 CH2 CH3

X110 X130 X150 X170

„ Configuration

Name

Function setting

Disconnection detection

Disconnection detection reset

„ Sample Program

Default

Not execute

R0

(

DF

)

R1

(

DF

)

Setting range and description

Select “Execute.”

Y100

< SET >

Disconnection detection execution relay

Y100

< RST >

(CH0): Controls disconnection detection execution function.

ON: Execute

OFF: Turns OFF disconnection detection flag.

X110

Disconnection detection flag

Y200

(CH0): Turns Y200 ON at the time of disconnection detection.

NOTE

Not executed unless a voltage input range of +1 to +5 V or current input range of +4 to +20 mA is set.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-15

Optional Settings for Analog Input

6.7 Buffer Settings

6.7.1 Overview of Buffer Function

This function stores digital conversion values acquired at a preset cycle into a unit memory. If a trigger is input while the buffer function is executed (with the buffer execution relay turned

ON), digital conversion values for a specified number of data items will be stored in the buffer memory (unit memory) at a specified cycle.

Buffer function configuration

Specify execution conditions (trigger settings, the number of buffer data items, and cycle)

Buffer function ON

Starts execution

Starts the buffering of pre-trigger digital conversion values at the specified cycle

Trigger ON

Starts the buffering of digital conversion values at the specified cycle

Buffering

Buffering completion

Buffer data read

Reads buffer data from the CPU unit

Executes buffering Buffer trigger Completion of acquisition

Digital conversion value

Analog input processing

・・・・・

・・・・・

Pre-trigger data buffering Post-trigger data buffering

Aligns and stores the contents in the shared memory on completion of acquisition

CH0 CH1 CH2 CH3

Buffer

(Unit memory)

CH0 buffer areas UM 00800 to UM 02F0F

(10,000 words)

CH1 buffer areas UM 03000 to UM 0570F

(10,000 words)

CH2 buffer areas UM 05800 to UM 07F0F

(10,000 words)

CH3 buffer areas UM 08000 to UM 0A70F

(10,000 words)

• If the configuration-disconnection detection setting has not been set to “not execute”, the function will be disabled even if the buffer execution relay is turned ON.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-16

6.7 Buffer Settings

„ Configuration

Name Default

Buffer function

Execution/Nonexecution settings

Trigger setting

Not use

H0

Setting range and description

Select "Use" for the buffer function.

No. of buffer data items

No. of data items before triggering

Trigger cycle

Input level trigger

K1,000

K0

K1

K0

Select a trigger signal to start buffering when the buffer function is used.

Set the number of data items (words) to be stored in the buffer.

Setting range: 1 to +10,000

* The number of buffer data items is the total sum of data items including the number of data items before triggering

Set the number of data items (words) before triggering.

Setting range: 0 to +9,999

* Set the number of data items before triggering to a value smaller than the number of buffer data items.

Set the cycle enabling trigger input. The trigger period is obtained from the following formula.

At the time of isolation: Set value x Enabled number of channels x 5 [ms]

At the time of non-isolation: Set value x Enabled number of channels x

0.025 [ms]

If “Input level” is selected for the trigger type, set an input level to enable triggering.

Setting range: -31,250 to +31,250

„ Sample program

Select the trigger input relay for the trigger setting, set the trigger cycle to 1, the number of data items before triggering to 1,000, and the number of buffer data items to 10,000. After completion of buffering, acquire analog data in the desired data area.

R0

(

DF

)

Buffer function execution condition

R1

(

DF

Buffer trigger condition

)

X11A

(

Buffer completion flag

DF

)

BKMV.SS

Y108

Buffer execution relay

Y109

MV.UL

U9999

S1: UM00800 S1: I0UM00800

Buffer rigger relay

IO

Reads 10,000 words from buffer storage area

UM00800 of the unit memory for slot 1 and stores the words beginning with D0.

DT0

X11A

(

Buffer completion flag

DF

)

Y10A

Read completion relay

Resets buffer function

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-17

Optional Settings for Analog Input

6.7.2 Buffering by Trigger Output Relay

„ Buffering by trigger output relay (YXXX)

The following sequence shows the operation of starting buffer processing with the trigger relay

(YXXX) turned ON by a user program.

(K)

Digital converted value CH0 to CH3

(Flag/Data)

Buffer execution relay

(*1)

(1)

Starts buffering at specified cycle.

Buffer

(Unit memory)

Pre-trigger buffering Buffering

(4)

(6)

Pre-trigger

Trigger relay

(*2)

Pre-trigger data enabled (*3)

Buffering flag

(*4)

Buffering completion flag

(*5)

Read completion relay (*6)

(2)

(3)(

3)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Buffering starts with the trigger relay turned ON. The user program turns ON the trigger relay. Buffering will continue until the set number of buffer data items is reached after the trigger relay is turned ON.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-18

6.7 Buffer Settings

„ I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH3 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Trigger relay

*3 Pre-trigger data enabled

*4 Buffering flag

*5 Buffering completion flag

*6 Read completion relay

CH0 to CH3

Y108

Y109

X11B

X119

X11A

Y10A

NOTES

Trigger input will be prohibited with the buffer execution relay turned ON

after trigger input. Input, if any, will be ignored.

It is possible to start buffering with the trigger input even if the number of

pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-19

Optional Settings for Analog Input

6.7.3 Buffering by External Input Trigger

„ Using external input as trigger

The following sequence shows the operation of buffer processing with input into the external trigger input terminal of the unit.

(K)

Digital converted value CH0 to CH3

(Flag/Data)

Buffer execution relay

(*1)

(1)

Buffer

(Unit memory)

Starts buffering at specified cycle.

Pre-trigger buffering Buffering

(4)

(6)

Pre-trigger

(3)

TRIG0

Pre-trigger data enabled (*2)

(2)

Buffering flag

(*3)

Buffering completion flag

(*4)

Read completion relay (*5)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Starts buffering with the rising of TRIG0. Buffering will continue until the preset number of buffer data items is reached from the rising of TRIG0.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-20

6.7 Buffer Settings

„ I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH3 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Pre-trigger data enabled

*3 Buffering flag

*4 Buffering completion flag

*5 Read completion relay

CH0 to CH3

Y108

X11B

X119

X11A

Y10A

NOTES

Trigger input will be prohibited with the buffer execution relay turned ON

after trigger input. Input, if any, will be ignored.

It is possible to start buffering with the trigger input even if the number of

pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

TRIG0 to TRIG3 for external input trigger selection show input terminals.

Keep in mind that none of them supports CH0 to CH3.

The buffer function will not be executed if “Not use” is selected with the

external input trigger even if “External input trigger” is selected as “Trigger type” in the configuration menu of the FPWIN GR7.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-21

Optional Settings for Analog Input

6.7.4 Buffering Triggered by Value Change in Analog Input

„ Buffering by change in trigger input

The following sequence shows the operation of starting buffer processing with the detection of a rise or fall of the digital converted value on a specified analog input channel. The example below shows a case where the level of analog input CH0 rises.

(K)

Digital converted value CH0 to CH3

Analog input trigger level (3)

Digital converted value CH0

(Flag/Data)

Buffer execution relay (*1)

Buffer

(Unit memory)

(1)

Starts buffering at specified cycle.

Pre-trigger buffering Buffering

(4) (6)

Pre-trigger

Pre-trigger data enabled (*2)

Buffering flag (*3)

Buffering completion flag

(*4)

Read completion relay (*5)

(2)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Buffering will start because the preset digital conversion value on CH0 has risen above the trigger level. Buffering will continue until the set number of buffer data items is reached after the rise of the trigger level.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-22

6.7 Buffer Settings

„ I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH3 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Pre-trigger data enabled

*3 Buffering flag

*4 Buffering completion flag

*5 Read completion relay

CH0 to CH3

Y108

X11B

X119

X11A

Y10A

NOTES

Trigger input will be prohibited with the buffer execution relay turned ON

after trigger input. Input, if any, will be ignored.

If analog input is selected, buffering will start at the rise (or fall) timing of

the digital conversion value on the corresponding channel from a specified value if analog input is selected. If the value exceeds a threshold value from the beginning, buffering will start at the moment the value exceeds the threshold value again after the value once falls below (or rises above) the set value.

Keep in mind that the analog input trigger will generate timing that disables

trigger detection depending on the buffer cycle setting.

It is possible to start buffering with the trigger input even if the number of

pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

The buffer function will not be executed if “Not use” is selected for the

selection of an external input trigger or the selection of input level trigger channel.

The buffer function will not be executed if “Not use” is selected for the input

trigger channel even if “Analog input level” is selected as “Trigger type” in the configuration menu of the FPWIN GR7.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-23

Optional Settings for Analog Input

6.8 Configuration by Programming

„ Overview of functions

• The FP7 analog input unit makes it possible to overwrite configuration information by programming.

• The configuration information is refreshed by writing “55AA” to unit memory UM 00028 after the value is stored in the unit memory where a desired parameter is set.

• The value of unit memory UM 00028 will be set to 0 when the configuration information is refreshed.

„ Sample program

Between channels: Isolated; Input range: 4 to 20 mA with CH0 and CH1 set as execution channels and CH2 and CH3 set as non-execution channels.

R0

(

DF

)

MV.US

MV.US

H0001 S1:UM00081

Unit memory specified for slot 1

H0020 S1:UM00091

Between channels:

Isolated

Input range: Set CH0 to

CH1 to +4 to +20 mA

MV.US

H0020

S1:UM000A1

MV.US

H0000 S1:UM000B0

MV.US

H0000 S1:UM000C0

Setting CH2 and CH3 to non-execute

R0

(

DF

)

R1

R2

MV.US

H55AA S1:UM00028

R1

Setting update

Setting updating in progress

R1 R2

S1:UM00028 =.US

H0 Setting updated

R2

(

DF

)

R3

<

R3

SET >

MV.SS

WX10 DT100

Reading analog input data

MV.SS

WX11 DT101

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

6-24

7

What to Do If an Error Occurs

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

What to Do If an Error Occurs

7.1 What to Do If an Error Occurs (Analog Input)

7.1.1 Failure in Reading Analog Input Data

• Check again that I/O allocations are correct.

• Check again the connections of the terminal block.

• Check again the configuration settings.

7.1.2 Unstable Analog Input Conversion Value

• Used a twisted pair shield wire and check that the wire is properly shielded.

• Check that the analog input wiring is not placed close to AC lines or high-tension lines or bundled with the lines.

• Check that there are no power lines, high-tension lines, high-capacity relays, or noisegenerating equipment, such as inverters, close to the analog input unit.

7.1.3 No Proper Conversion Values Obtained with Current Input

• Check again the connections of the terminal block.

• Check again the connections of the output equipment.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

7-2

8

Specifications

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Specifications

8.1 Specifications

„ General Specifications

Items Description

Operating ambient temperature

Storage ambient temperature

Operating ambient humidity

Storage ambient humidity

0°C to 55°C

-40°C to 70°C

10% to 95% (RH) with no condensation (at 25°C)

10% to 95% (RH) with no condensation (at 25°C)

Breakdown voltage (Note)

Insulation resistance

Vibration resistance

Shock resistance

Noise resistance

Between I/O terminals and power supply terminals of CPU unit/function earth

Between analog input terminal channels

500 V AC for 1 minute

Between I/O terminals and power supply terminals of CPU unit/function earth

200 V AC for 1 minute

100 M

(Test voltage: 500 V

DC)

Conforming to JIS B 3502 and IEC 61131-2

5 to 8.4 Hz, 3.5-mm-wide single amplitude

8.4 to 150 Hz, acceleration 9.8 m/s

2

10-time sweeping in X, Y, and Z directions (1 octave/min.)

Conforming to JIS B 3502 and IEC 61131-2

147 m/s

2

or more., 3 times each in X, Y, and Z directions

1,000 V DC (p-p) with pulse width of 50 ns/1

μs

(by using a noise simulator) (Applied to the power supply of the CPU unit)

Environment

EU Directive applicable standard

Overvoltage category

Free from corrosive gases and excessive dust.

EMC Directive: EN61131-2

Category II or lower

Pollution degree Pollution degree 2 or lower

(Note) Cutoff current: 5 mA (Factory default setting)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-2

8.1 Specifications

„ Performance Specifications

Input range

(resolution)

Items

No. of input points

Voltage

Current

Conversion speed

Description

4 channels

-10 to +10 V DC (Resolution: 1/62,500)

0 to +10 V DC (Resolution: 1/31,250)

0 to +5 V DC (Resolution: 1/31,250)

+1 to +5 V DC (Resolution: 1/25,000) (see note 3)

0 to +20 mA (Resolution: 1/31,250)

+4 to +20 mA (Resolution: 1/25,000) (see note 3)

25

μs/Ch (non-isolation); 5 ms/Ch (isolation)

Total accuracy ±0.05% F.S. max. (at +25°C) and ±0.1% F.S. max. (at 0°C to +55°C)

Input impedance

Absolute max. input

Insulation system

Voltage input: Approximately 1M

Ω; current input: Approximately 250Ω

Voltage input: -15 to +15 V; current input: -30 to +30 mA

Between input terminals and internal circuit: Photocoupler and isolated

DC/DC converter

Between channels: Photo-MOS relay

Execution/Non-execution channel settings

Input range selection

Number of averaging times

Average processing settings

Time average

Possible to make non-converted channel settings.

Possible to make settings on a channel-by-channel basis

Setting range of 2 to 60,000 times

Moving average

Offset/Gain processing

Scale conversion settings

Time setting range of 1 to 1,500 ms (non-isolated) and 200 to 60,000 ms

(isolated)

Setting range of 2 to 2,000 times

A desired value within the digital output range can be set for the offset value.

Setting range: -3,000 to +3,000

A desired value within the digital output range can be set for the offset value.

Setting range: 9,000 to +11,000 (90% to 110%)

A desired value within the digital input range can be set for the offset value.

Setting range: -30,000 to +30,000

Comparison settings for upper and lower limits

Holding max./min. values

Output if the value is outside the preset upper and lower limits

Disconnection detection

Buffer function

Holding max./min. values sampled

Disconnection detection is possible at the time of setting ranges of +1 to +5 V and +4 to +20 mA Possible to select auto or manual resetting.

The buffering of up to 10,000 words is possible on each channel. Sampling is performed with a change in desired input, external input, or analog input as a trigger.

(Note 1) Set any of the following functions in the configuration menu of the tool software or a user program: Input range, selection of isolation and non-isolation, conversion execution/non-execution channel, averaging processing, offset/gain, scaling processing, upper/lower limit comparison, holding max./min. value, and disconnection detection.

(Note 2) If not all channels are used, the conversion speed can be saved by setting non-execution channels with the function of setting the conversion execution/non-execution channels used.

(Note 3) The full scale (F.S.) on the accuracy of an analog voltage input range from +1 to +5 V and that of an analog current input range from +4 to +20 mA are 0 to +5 V and 0 to +20 mA, respectively.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-3

Specifications

8.2 I/O Allocation

„ Input contact

I/O number

CH0 CH1 CH2

Name Description

CH3

X0 to

XF

X20 to

X2F

X40 to

X4F

X10 X30 X50

X60 to

X6F

X70

A/D conversion data

(16 bits)

Disconnection detection flag

Digital convertedvalues corresponding to the analog input is stored.

<Voltage range>

-10 to +10 V: -31,250 to +31,250

0 to +10 V or 0 to 5 V: 0 to +31,250

+1 to +5 V: 0 to +25,000

<Current range>

0 to +20 mA: 0 to +31,250

+4 to +20 mA: 0 to +25,000

ON with disconnection detected and OFF with disconnection restored

(valid for 1 to 5 V and 4 to 20 mA ranges only)

Turns ON when the value exceeds the set upper limit.

Turns ON when the value drops below the set lower limit.

X11 X31 X51

X12 X32 X52

X13 X33 X53

X14 X34 X54

X15 X35 X55

X16 X36 X56

X17 X37 X57

X71

X72

X73

Upper limit comparison relay

Lower limit comparison relay

Upper limit/Lower limit comparison execution flag

X74 Not used

X75

Max./Min. hold execution flag

X76

X77

Not used

ON when the function for comparing upper and lower limits is executed.

Do not use.

ON when the max./min. hold function is executed.

Do not use.

ON when the buffer function is executed.

ON when buffering starts after the trigger is accepted.

OFF when the number of buffer data items is reached.

ON when the shared memory has become accessible after completion of buffering

OFF on completion of buffer data reading.

Data before ON when the number of buffer data items before triggering has reached the set value.

OFF on completion of buffer data reading.

X1C to

X1E

X1F

X3C to

X3E

X3F

X5C to

X5E

X5F enable flag

X7C to

X7E

Not used

X7F

Error flag

Do not use.

Turns on if an error occurs.

(Note 1) The I/O numbers in the tables above show offset addresses. Actual I/O numbers allocated to the analog input unit are determined by the first word number. (Example) If the first word number is 10, the A/D conversion data on CH0 and the error flag will be WX10 and X11F, respectively.

(Note 2): The conditions of the buffer function (i.e., the buffer function execution flag, buffering flag, buffering completion flag, and data enable flag before triggering) are allocated to the input contacts for CH0.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-4

8.2 I/O Allocation

„ Output contact

I/O number

CH0 CH1 CH2

Y0 Y10 Y20

Y1 Y11 Y21

Y2 Y12 Y22

Y3 Y13 Y23

Y4 Y14 Y24

Y5 Y15 Y25

Y6 Y16 Y26

Y7 Y17 Y27

Name Description

CH3

Disconnection relay

ON to execute the disconnection detection function.

OFF to turn OFF the disconnection detection flag (Xn0).

(valid for 1 to 5 V and 4 to 20 mA ranges only)

Y31

Not used

Y32

Do not use.

Upper limit/Lower limit relay

ON to execute the function to compare the upper and lower limits.

OFF to turn OFF the upper limit comparison relay (Xn1) and lower limit comparison relay (Xn2).

Do not use.

ON when the max./min. hold function is executed.

Y36

Not used

Y37

Do not use.

When the buffer function is enabled, trigger acceptance will be permitted with execution the buffer execution relay turned ON.

The internal state transition will be initialized with the buffer execution relay turned OFF.

If “Trigger relay” is set, triggering will start with the trigger relay turned ON.

ON upon completion of reading buffer data from the shared memory.

Goes to the state of trigger acceptance permitted after clearing the buffer memory.

YB to

YE

Y1B to

Y1E

Y2B to

Y2E

Y3B to

Y3E

Not used Do not use.

YF Y1F Y2F Y3F

Error flag reset relay

Reset the error flag.

(Note 1) The I/O numbers in the tables above show offset addresses. Actual I/O numbers allocated to the analog input unit are determined by the first word number. (Example) If the first word number is 10, the disconnection detection execution relay on CH0 and the error flag reset relay will be Y100 and X10F, respectively.

(Note 2) The operation of the buffer function (consisting of the buffer execution relay, buffer trigger relay, and buffer data read completion relay) is specified by the output contacts for CH0.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-5

Specifications

8.3 List of Unit Memories

8.3.1 List of Unit Memory Number

There is no need to set unit memory values, because unit memory values will be written automatically if they are set in the configuration menu of the FPWIN GR7 tool software. In the case of making program settings, specify the desired unit memory numbers and write the corresponding values.

„ Setting monitoring items and allocation of unit memory numbers

Setting monitoring item Unit memory no.

CH1 CH2

Isolation between channels

Execution/Non-execution settings

CH0

UM 00081

UM 00088

Buffer function

Trigger type UM 00089

No. of buffer data items UM 0008A

No. of data items before triggering UM 0008B

Trigger cycle

Analog input trigger level

Conversion processing

Range setting

UM 0008C

UM 0008D

UM 00090

UM 00091

Function setting 1

Function setting 2

Average processing settings

Offset/Gain processing

Scale conversion

Comparison of upper and lower limits

Holding max./min. values

Disconnection detection

Disconnection detection reset

UM 00092

UM 00093

Averaging constant

Offset value

Gain value

Scale conversion

Max. value

Min. Value

Upper limit comparison ON level

Upper limit /

Lower limit comparison

Upper limit comparison OFF level

Lower limit comparison OFF level

Lower limit comparison ON level

Max./Min. value hold monitor area

Holding max. value

Holding min. value

UM 00094

UM 00095

UM 00096

UM 00097

UM 00098

UM 00099

UM 0009A

UM 0009B

UM 0009C

UM 00180

UM 00188

Buffer function

Hold data storage area

UM 00800 to

UM 02F0F

UM 000A0

UM 000A1

UM 000A2

UM 000A3

UM 000A4

UM 000A5

UM 000A6

UM 000A7

UM 000A8

UM 000A9

UM 000AA

UM 000AB

UM 000AC

UM 00181

UM 00189

UM 03000 to

UM 0570F

UM 000B0

UM 000B1

UM 000B2

UM 000B3

UM 05800 to

UM 07F0F

CH3

UM 000C0

UM 000C1

UM 000C2

UM 000C3

UM 000B4

UM 000B5

UM 000B6

UM 000B7

UM 000C4

UM 000C5

UM 000C6

UM 000C7

UM 000B8

UM 000B9

UM 000C8

UM 000C9

UM 000BA UM 000CA

UM 000BB UM 000CB

UM 000BC UM 000CC

UM 00182

UM 0018A

UM 00183

UM 0018B

UM 08000 to

UM 0A70F

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-6

8.4 List of Detailed Specifications of Unit Memories

8.4 List of Detailed Specifications of Unit Memories

„ Common to All Channels

Unit memory number

(Hex)

Name Default

UM 00081

UM 00088

Isolation between channels

Buffer function

Execution/Nonexecution settings

H0

H0

UM 00089

UM 0008A

UM 0008B

Buffer function

Trigger settings

H0

Buffer function

No. of buffer data items

K1,000

Buffer function

No. of pre-trigger data items

K0

Setting range and description

Select the insulation or non-insulation between analog input channels.

H0: Non-isolated

H1: Isolated

Select the use of the buffer function.

H0: Not use

H1: Use

Select a trigger signal to start buffering when the buffer function is used.

Bit Name Description

3-0 Trigger type

H0

H1

H2

H4

H8

Trigger input relay

Rise of external input trigger

Fall of external input trigger input

Rising time of analog input level

Falling time of analog input level

7-4 External input trigger

H0

H1

H2

H4

H8

Unused

TRG0

TRG1

TRG2

TRG3 trigger CH

H0

H1

H2

H4

H8

Unused

CH0

CH1

CH2

CH3

15-

10

Not used

Set the number of data items (words) to be stored in the buffer.

Setting range: +1 to +10,000

UM 0008C

Buffer function

Trigger cycle

UM 0008D

Buffer function

Analog input

Trigger level

K1

K0

Set the number of data items (words) out of the number of buffer data items before triggering.

Setting range: 0 to +9,999

Set the cycle enabling trigger input. The trigger cycle is obtained from the following formula.

Isolated: Set value × No. of enabled channels × 5 [ms]

Non-isolated: Set value × No. of enabled channels × 0.025 [ms]

If “Analog input level” is selected for the trigger type, set an input level to enable triggering.

Setting range: -31,250 to +31,250

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-7

Specifications

„ Individual setting area per channel

Unit memory number

(Hex)

Name Default Setting range and description

UM 00090

UM 000A0

UM 000B0

UM 000C0

Conversion processing

Execution/Nonexecution

H1

Select the conversion function to be used.

H0: Not execute

H1: Execute

UM 00091

UM 000A1

UM 000B1

UM 000C1

Range setting H1

Select the input range.

H1: Voltage input -10 to +10 V

H2: Voltage input 0 to +10 V

H4: Voltage input 0 to +5 V

H8: Voltage input +1 to+ 5 V

H10: Current input 0 to +20 mA

H20: Current input +4 to +20 mA

Select the desired function to be used.

Bit Name Settings

UM 00092

UM 000A2

UM 000B2

UM 000C2

Function setting 1

Average processing settings

Offset processing/

Gain processing

Scale conversion

3-0 Average processing

H0

H1

H2

H4

Not execute

No. of averaging times

Time average

Moving average

H0

7-4 Offset/Gain processing

11-8 Scale conversion

H0

H1

H0

H1

Not execute

Execute

Not execute

Execute

15-

10

Not used

Select the desired function to be used.

Function setting 2

Bit Name Settings

UM 00093

Comparison of upper and lower limits

3-0 Upper limit /

Lower limit comparison

H0

H1

Not execute

Execute

UM 000A3

UM 000B3

Holding max./min. values

H0

7-4 Max./Min. values hold

H0

H1

Not execute

Execute

UM 000C3

Disconnection detection

11-8 Disconnection detection

H0

H1

Not execute

Execute

Disconnection detection reset

15-

10

Disconnection detection reset

H0 Auto (Auto reset for reconnection)

H1 Manual

(Note) The unit memory numbers in the above table are listed for CH0, CH1, CH2, and CH3 in numerical order.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-8

8.4 List of Detailed Specifications of Unit Memories

„ Individual setting area per channel

Unit memory number

(Hex)

Name Default Setting range and description

Set constants for average processing.

Function used Settings

UM 00094

UM 000A4

UM 000B4

UM 000C4

Averaging constant

K200

Number of averaging times

Average time

Moving average

No. of averaging times

Non-isolated

Isolated

No. of moving average

2 to 60,000 [times]

1 to 1,500 [ms]

200 to 60,000 [ms]

2 to 2,000 [times]

UM 00095

UM 000A5

UM 000B5

UM 000C5

UM 00096

UM 000A6

UM 000B6

UM 000C6

UM 00097

UM 000A7

UM 000B7

UM 000C7

UM 00098

UM 000A8

UM 000B8

UM 000C8

UM 00099

UM 000A9

UM 000B9

UM 000C9

UM 0009A

UM 000AA

UM 000BA

UM 000CA

UM 0009B

UM 000AB

UM 000BB

UM 000CB

UM 0009C

UM 000AC

UM 000BC

UM 000CC

Offset value

Gain value

Scale conversion

Max. value

Scale conversion

Min. value

Upper limit comparison

ON level

Upper limit comparison

OFF level

Lower limit comparison

OFF level

Lower limit comparison

ON level

K0

K10,000

K10,000

K0

K0

K0

K0

K0

Set an offset value at the time of using the offset processing function.

Setting range: -3,000 to +3,000 (specified with a signed integer)

Set an offset value at the time of using the offset processing function.

Setting range: +9,000 to +11,000 (0.9x to 1.1x: Specified with a signed integer)

Set the maximum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Set the minimum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Set the upper limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the upper limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0, CH1, CH2, and CH3 in numerical order.

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-9

Specifications

„ Individual monitor area per channel

Unit memory number (Hex)

Name Default Setting range and description

UM 00180

UM 00181

UM 00182

UM 00183

UM 00188

UM 00189

UM 0018A

UM 0018B

Holding max. value

Holding min. value

K0

K0

The acquired maximum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to +31,250 (specified with a signed integer)

The acquired minimum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0, CH1, CH2, and CH3 in numerical order.

„ Buffer data storage area per channel

Unit memory number (Hex)

Name Default

UM 00800 to UM 02F0F

UM 03000 to UM 0570F

UM 05800 to UM 02F0F

UM 08000 to UM 0A70F

CH0

Buffer area

CH1

Buffer area

CH2

Buffer area

CH3

Buffer area

K0

K0

K0

K0

Setting range and description

Stores buffer data when the buffer function is used.

10,000 words per channel

Setting range: -31,250 to +31,250 (specified with a signed integer)

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-10

8.5 Dimensions

28

(18)

80

8.5 Dimensions

4

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-11

Specifications

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

8-12

Record of changes

Manual No. Date

WUME-FP7AIH-01 Mar.2013

Record of Changes

First Edition

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: [email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
