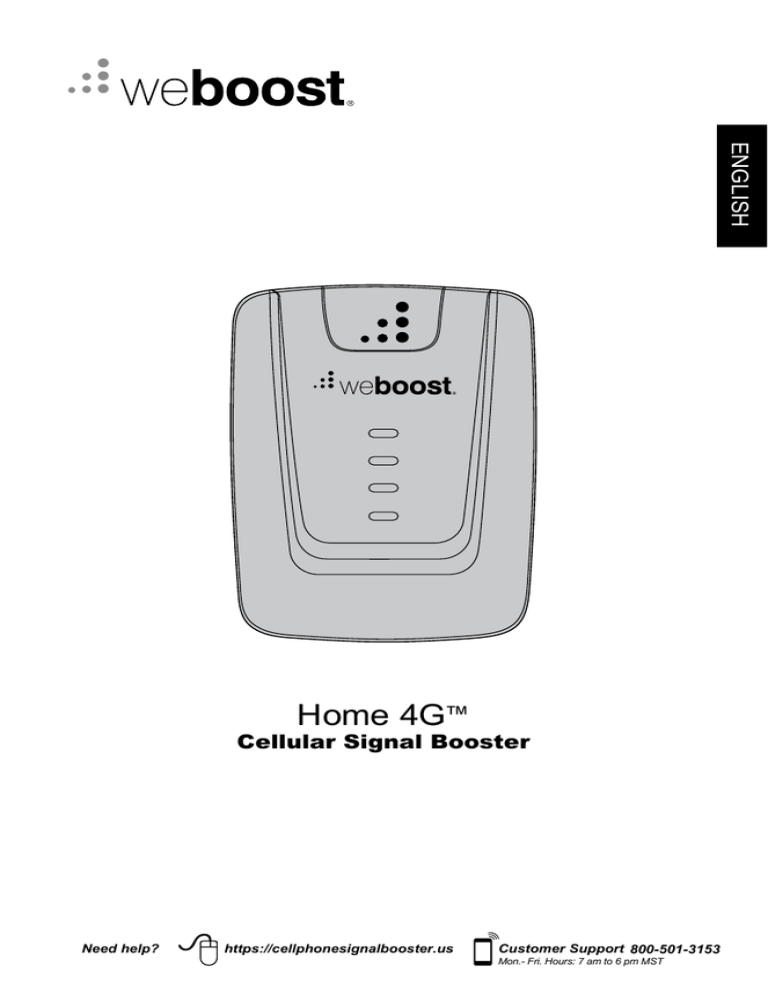

weBoost Home 4G 470101 User Manual

Home 4G

Cellular Signal Booster

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

!

IT IS VERY IMPORTANT

TO POWER YOUR SIGNAL

BOOSTER USING A SURGE

PROTECTED AC POWER

STRIP WITH AT LEAST A

1000 JOULE RATING.

FAILURE TO DO THIS WILL VOID YOUR WARRANTY

IN THE EVENT OF A POWER SURGE OR LIGHTNING

STRIKE.

!

THE SIGNAL BOOSTER UNIT IS DESIGNED

FOR USE IN AN INDOOR, TEMPERATURE-

CONTROLLED ENVIRONMENT (LESS

THAN 150 DEGREES FAHRENHEIT). IT IS

NOT INTENDED FOR USE IN ATTICS OR SIMILAR

LOCATIONS SUBJECT TO TEMPERATURES IN

EXCESS OF 150°F.

Installation Instructions for the Following weBoost Signal Booster:

Home 4G 700 MHz Band 13 & 17, 800 / 1900 (Ext. PCS) AWS (1700 / 2100)

SmartTech Signal Booster

Model # 470001 FCC ID: PWO460001 IC: 4726A-460001

Contents

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Find the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Quick Install - Inside Window Mount Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Outside Pole Mount (Best Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Outside Wall Mount Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Rafter Mount Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Additional Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Home 4G™ and Desktop Antenna Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Troubleshooting & Understanding Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Safety Guidelines & Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

2

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

Package Contents

Home 4G

Desktop Antenna

(5’ RG-174 comes attached)

(301211)

Outside Panel Antenna Kit

Outside Panel Antenna

30’ RG6 coax cables

(314473-0630)

30’ RG6

Coax Cable

(950630)

Appearance of device and accessories may vary.

AC Power Supply

5V / 2.5A

(Not included with some models)

(859948)

Cable

Connector

(971129)

Mounting Option Accessories

A B

(Included)

C

Home 4G Inside Panel

Antenna Upgrade

(311155-0630)

Panel Antenna w/F-Female Connectors

RG6 30’ Coax Cable w/F-Male Connectors

Required F-Female to SMA

Male adapter

Tools Required for Installation:

(depending on your particular installation, you will need the following tools)

1. Pole mount - 10 mm open-end wrench or adjustable wrench

2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver

Before Getting Started

Before you install your Home 4G and start enjoying improved cellular reception in your

1. Read through all the installation steps.

This will help you know what to expect

2. Watch the YouTube video demonstrating the Home 4G Signal

Boost installation at: https://cellphone signalbooster.us

3. Determine the best installation option for your needs.

– Outside Pole Mount Option - pg.6

(Best Option)

– Outside Wall Mount Option - pg.7

– Rafter Mount Option - pg.8

– Inside Window Mount Option - pg.5

4. Familiarize yourself with all materials in your product package. This will allow you to know which pieces are referenced in the instructions.

5. Identify the location of your best available cellular signal. See page 4.

6. Plan where to mount your antenna.

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

3

Find the Strongest Cellular Signal

Before you install your Home 4G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance strongest signal outside your building, typically at the highest point available, using any of the following methods:

1. Best method:

Connect the Outside Antenna to the

Home 4G signal booster, and the Home

4G to the Desktop Antenna. Have one person outside (on the roof for best results) rotate the Outside Antenna with a second person inside the building near the Desktop Antenna watching the signal strength on a phone. This allows you to read the signal strength from nearby cell towers. a. The person inside should have the phone in test mode so the numerical signal strength can be read. This is more accurate than the bar indicator. Go to https://cellphone signalbooster.us help in finding the test mode for your phone. b.

The person on the roof should turn the Outside Antenna 45 degrees at a time. Allow 30 seconds for the phone to register with each turn.

Rotate in 45° increments

Rotate in 45° increments d. Once you have determined which direction provides the strongest outside signal, you can install the

Outside Antenna in that general direction.

2.

Good methods:

a. Place calls from several locations outside your building. As you move to different locations, note where you get the best reception.

b. If you have a smart phone, you can download apps that help you identify locations of cell phone towers or the strongest signal. Go to the App Store and search for “cell your device.

3. Acceptable method: Check the bar indicator on your cell phone display and note where the signal appears the strongest. (Note: cell phone bars are only an approximation of signal strength and vary from phone to phone.) Phones can take up to 30 seconds to reset to a new reading. Be patient and repeat your signal check several times.

c. The person inside should note the readings on the phone with each turn.

Signal readings usually appear as a negative number. The closer the number gets to zero, the stronger the signal (for example, -86 dB would be a moderately good reading while -55 dB would be an excellent reading, and -110 dB would be a weak, or unusable signal).

WAIT 30

SECONDS

the strongest cellular signal, watch the installation video at: https://cellphone signalbooster.us

4

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

Quick Install - Inside Window

Mount Option

Additional installation options on pg. 6-8

Find the Strongest Cellular Signal

(See page 4 for suggested methods.)

Ready to Install Inside Window Mount

1. Select a location on the inside of a window as high as possible and at least 20 feet from where the Home 4G will be located. Note that this distance typically requires the window mount to be in a different room from where you will locate the Home 4G and

Desktop Antenna. The window should face roughly in the direction of the strongest cellular signal (see section headed “Find the Strongest Cellular

Signal” on page 4).

4. Insert the Outside Antenna into the cradle.

Window faces general direction of cell tower

5. Connect the supplied coax cable to the antenna lead cable on the Outside

Antenna.

Window faces general direction of cell tower

6. Route the cable as desired to the location of the Home 4G. If you need to connect both coax cables, use the

Cable Connector provided.

2. Clean the area on the glass with the alcohol prep pad included in Packet C.

3. Insert the suction cups included in

Packet C into the holes on the Outside

Antenna cradle using a twisting motion.

Press the suction cups onto the window in the desired location.

7. Connect the coax cable to the Home 4G.

Connect the Desktop Antenna to the

Home 4G. For instructions on install and

Desktop Antenna placement refer to page 9.

twist th rough twist th rough

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

5

8. Connect the Home 4G to a surge protected AC power strip with at least a

1000 Joule rating. If your Home 4G is working correctly, the lights will be green.

Installation Options

Outside Pole Mount Option

(Best Option)

1. Select a location on the roof where the

Outside Antenna can be mounted on a pole maintaining at least 20 feet of vertical or horizontal separation from the inside

Desktop Antenna.

If the lights are orange or red, see the

“Troubleshooting” section on page 10.

NOTE: windows with coatings will weaken the cellular signals as they pass through because of a metal oxide

If you have dual-pane windows with

ommend one of the other mounting options if your performance is not to your satisfaction.

Place the desktop signal antenna directly beneath the placement of the Outside

Antenna location or horizontal separation is needed

2. Find an existing pole or obtain a pole of 1 to 2 inches in diameter.

Mounting hardware to attach the pole to the roof can be purchased from a hardware store or you can purchase a weBoost’s pole mount accessory kit, part #901117. Install the pole in the desired location.

3. Using the hardware in Packet A, slide both brackets onto U-bolt. Tighten nut

& washers set onto U-bolt.

6

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

4. Fit the assembly onto the pole in your desired location by sliding the second half of the bracket onto the U-bolt and securing it with the lock washers and nuts provided. Be sure the cradle is at the desired height and rotated toward the strongest cellular signal before tightening the nuts.

Do not over tighten.

3. Drill four holes where you marked, using a 3/16-inch bit. Insert the plastic screw anchors provided in Packet B.

5. Connect the supplied coax cable to the antenna lead cable on the Outside

Antenna.

Antenna bracket

6. Route the cable as desired to the location of the Home 4G. If you need to connect both coax cables, use the Cable

Connector provided. Secure the cable with ties as needed (ties not provided).

4. Line up the Outside Antenna bracket with the screw anchors. Mount the cradle antenna bracket to the wall using the four screws and four washers provided in Packet B.

wall

side view

anchors

Outside Wall Mount Option

1. Select a location on an outside wall as high as possible and at least 20 feet from where the Home 4G will be located. The wall should face in roughly the same direction as the strongest cellular signal.

anchors antenna bracket

5. Connect the supplied coax cable to the antenna lead cable on the Outside

Antenna.

Face in roughly the same cellular signal

2. Position the Outside Antenna bracket, from Packet B, on the wall as a template and mark the screw holes with a pencil.

Need help?

https://cellphonesignalbooster.us

6. Route the cable as desired to the location of the Home 4G. If you need to connect both coax cables, use the

Cable Connector provided.

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

7

Rafter Mount Option

1. Select a location in the building’s rafters where the Outside Antenna can be mounted directly above the Desktop

Antenna with at least 20 feet vertical or horizontal separation. The location should allow you to mount the Outside

Antenna roughly in the direction of the strongest cellular signal.

Mount in the general direction of the strongest cellular signal

Additional Considerations

Whichever installation you choose, keep the following guidelines in mind to maximize your signal strength:

1. Always turn the Outside Antenna so the weBoost logo is toward the strongest cellular signal. The strength of the signal at the Desktop Antenna (and therefore, how far it will transmit a signal) is dependent upon the signal strength at the Outside Antenna. Be sure to maximize the strength at the Outside

Antenna.

Rotate in small increments

Mount at least

20 feet apart

2. Mount the Outside Antenna bracket to the rafter using the four screws and four washers provided in Packet B

(pre-drill if necessary).

2. Maintain a distance of at least 20 feet from the Outside Antenna to the Home

4G unit.

3. Connect the supplied coax cable to the antenna lead cable on the Outside

Antenna.

Minimum separation of 20 feet

If possible, place the Desktop

Signal Antenna directly beneath the placement of the Outside Antenna location. This creates a maximized signal zone within the room where the

Desktop Antenna remains.

4. Route the cable as desired to the location of the Home 4G. If you need to connect both coax cables, use the

Cable Connector provided.

8

Need help?

antenna directly beneath the

Antenna location

At least 20 feet of vertical or horizontal separation from the desktop antenna is needed

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

3. Keep the Home 4G and the Desktop

Antenna at least 18 inches away from each other with the weBoost logo on the Desktop Antenna facing away from the Home 4G.

Minimum separation of 18 inches

4. Do not face the Outside Antenna and the Desktop Antenna toward each other. This can cause the Home 4G to show red lights and shut down, preventing oscillation or feedback

(see troubleshooting on pg. 10). In other words, the weBoost logos on the Outside Antenna and the

Desktop Antenna should always be facing away from each other.

Home 4G and Desktop Antenna

Placement

1. Select a location for the Home 4G that is away from excessive heat, direct sunlight, and moisture and has proper ventilation. Recommended locations include on a shelf, in a closet, on a desk or behind it. Be sure the location is near a power outlet. To ensure proper ventilation, keep other objects at least six (6) inches away.

2. Place the Home 4G on a desk, table or other solid surface where you have routed the cable from the Outside

Antenna.

DO NOT face the Outside Antenna and each other

5. If you do not know how to mount hardware or run coax cable through at https://cellphonesignalbooster.us

electrician. You can also try the Inside

Window Mount option (pg.5), which

Recommended: Lightning Surge

Protector (Sold Separately, part #859992)

We recommend you install the Lightning

Surge Protector (LSP) close to the Home

4G. Attach the cable from the Outside

Antenna to the surge protector and ground the surge protector.

The LSP is sold separately.

Ground

Wire

3. Attach the coax cable from the

Outside Antenna to the Home 4G at the connector labeled “Outside

Antenna.”

4. Attach the Inside Antenna to the connector labeled “Inside Antenna.”

5. Ensure the Inside Antenna is facing away from both the Home 4G and the

Outside Antenna.

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

9

Note away from Home 4G and Outside Antenna

6. Plug in the power supply to the Home

4G at the input marked “Power” (next to the “Outside Antenna” connector).

Plug the power supply into a surge protected AC power strip with at least a 1000 Joule rating.

Important notice: Connect your

Home 4G AC Power Supply to a surge protected AC power strip with at least a 1000 Joule rating. Failure to do this will void your warranty in the event of a power surge or lightning strike.

!

7.

Check the lights on top of the Home

4G. 4 green lights mean you have good signal. If you do not have green lights, see the following Troubleshooting Tips.

Troubleshooting &

Understanding Lights

The Home 4G includes four indicator lights, one for each band (see FAQ for explanation of MHz bands). Each indicator light will either be green, orange or red.

Band 4

Band 25/2

Band 5

Band 12/13/17

Green indicates that the booster is powered and operating at maximum gain.

Solid Red indicates that the booster has shut off on the associated frequencies to prevent oscillation

(feedback).

Solid Orange indicates that the booster has shut off on the associated frequencies due to close proximity of a cell tower.

Green/Orange Blinking indicates that the booster is operating at a reduced gain due to close proximity of a cell tower.

Green/Red Blinking indicates that the booster is operating at a reduced gain to prevent oscillation (feedback).

Note: All red light issues must be resolved before orange light issues.

Fixing Red Light Issues

If one or more lights on the Signal Boost are red:

1. Make sure all connections are tight.

2. Increase the distance between the outside antenna and the inside antenna, by moving them horizontally and/or vertically farther apart until the light(s) change to green.

10

Need help?

https://cellphonesignalbooster.us

and/or vertical distance

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

3. Follow the same steps for a green/red blinking light until the light goes solid green.

4. If more separation is not possible and the coverage of the booster is too small with a green/red blinking light indicating reduced gain, contact the weBoost Customer Support Team for assistance: 800-501-3153.

Fixing Orange Light Issues

If one or more lights on the Signal Booster are orange:

1. Move the Outside Antenna away from the strongest cellular signal in small increments until the light turns green or green/orange blinking.

2. If the light remains orange, or if the green/orange blinking light indicating reduced gain is not providing enough coverage area, contact the weBoost

Customer Support Team for assistance:

800-501-3153.

Lights Off

If one or more of the lights on the Signal

Booster are off verify power to your surge protected power strip.

What’s the difference between the 800 MHz and the 1900 MHz bands? How do I know which MHz band my cell phone uses?

The Home 4G works with all major North

American cellular providers on the 800 & 1900

MHz frequencies. Traditionally, 800/1900MHz are associated with voice and 3G data; while 700MHz and 1700/2100MHz are associated with 4G data.

Why do I need to maintain at least 20 feet of separation, but no more than 50 feet? OR Why do I need to create so much distance between the antennas?

Antennas connected to a booster create a sphere of signal. When these sphere’s overlap, a condition called oscillation occurs. This oscillation can be thought of as noise, which causes the booster to shut down to prevent damage from occurring. The best way to keep these spheres of signal from creating noise is to maintain separation between your inside and Outside Antennas.

However – as any cable has loss, we recommend that you try to minimize the total separation to keep within the range of 20-50 feet.

Carrier Frequency Use

We recommend visiting https://cellphonesingal booster.us

for information regarding the frequency band used by your cell service provider in a specific geographical location.

NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply.

For additional descriptions on troubleshooting, see the install video at https://cellphonesignalbooster.us

Additional FAQ:

What hours can I contact customer support?

Customer Support can be reached from 7:00am to 6:00pm MST, by calling (800-501-3153), or by email, at [email protected]

How does weather affect the performance of my Outside Antenna?

Water vapor (e.g. rain, fog, snow or other signal. In times of heavy precipitation, you may see less performance.

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

11

Inside Antenna Expansion Kit

Kit 309900-50N

• 2 - Wall Panel antennas

• 1 - 50 ohm 3-Way Splitter

Kit 309905-50N

• 3 - Wall Panel Antennas

• 3 - 2-Way 50 Ohm Splitters

Kit 309902-75F

• 2 - Wall Panel Antennas

• 1 - 3-Way 75Ohm Splitter

Kit 309903-75F

• 3 - Wall Panel Antennas

• 3 - 2-Way 75Ohm Splitters

Kit 309904-75F

• 1 - Wall Panel Antenna

• 1 - 2-Way 75 Ohm Splitter

Inside Antenna Kits

Kit 301121-40010

• 50 Ohm Dome Antenna

• 10’ LMR400

Kit 311135-40060

• 50 Ohm Wall Panel Antenna

• 60’ LMR400

Kit 301151-0610

• 75 Ohm Dome Antenna

• 10’ RG6 Cable

Kit 311135-5820

• 50 Ohm Wall mount Panel Antenna

• 20’ RG58 Cable

Kit 301151-1110

• 75 Ohm Dome Antenna

• 10’ RG11 cable

Kit 311155-1150

• 75 Ohm Wall mount Panel Antenna

• 50’ RG11 Cable

Kit 301211

• Desktop Antenna w/ 5’ RG174

50 Ohm Outside Antenna Kits

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 311129-5840

• 8000 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311203-5820

• Omni-Directional antenna

• 20’ RG58 Cable

Kit 311124-5830

• 1900 MHz Yagi Antenna

• 30’ RG58 Cable

Kit 311203-40020

• Omni-Directional antenna

• 20’ LMR400 Cable

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311124-400100

• 1900 MHz Yagi Directional

• 100’ LMR400 Cable

12

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional Antenna

• 75’ LMR400 Cable

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

Mini-Mag 301126 w/12.5 RG174 cable-SMA

75 Ohm Outside Antenna Kits

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 311201-0620

• Omni Antenna w/ F-Female

• 20’ RG6 Cable

Kit 311129-0660

• 800 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

Kit 311129-0650

• 1900 MHz Yagi Directional

• 50’ RG6 Cable

• N-Male to F-Female adapter

Kit 314473-0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 311141-0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 301111-11140

• Yagi Directional Antenna

• 140’ RG11 Cable

• N-Male to F-Female adapter

Kit 311201-1120

• Omni Directional w/ F-Female

• 20’ RG11 Cable

Kit 311129-11110

• 800 MHz Yagi Directional

• 110’ RG11 Cable

• N-Male to F-Female adapter

Kit 311124-1180

• 1900 MHz Yagi Directional

• 80’ RG11 Cable

• N-Male to F-Female adapter

Kit 314473-1175

• 75 Ohm Pole Mount Panel Antenna

• 75’ RG11 Cable

Kit 314475-0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 314475-1175

• 75 Ohm Wide Band Directional

• 75’ RG11 Cable

Kit 311141-1120

• 75 Ohm Grey Brick Antenna

• 20’ RG11 Cable

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

13

Safety Guidelines

WARNING: To uphold compliance with network protection standards, all active cellular devices must maintain at least 6 feet of separation distance from Panel and Dome antennas and 4 feet of separation distance from Desktop antennas.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range.

WARNING:

The Outside Antenna must be installed no higher than 10 meters (32’9”) above ground.

WARNING: Take care to ensure that neither you nor the pole comes near any power lines during installation.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas

MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.

!

Lightning

Surge Protector

(sold separately)

RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR

(SOLD SEPARATELY)

INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL

BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE

SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.

#859992-75 OHM MAY BE PURCHASED AT HTTPS://CELLPHONESIGNAL

BOOSTER.US OR BY CALLING 800-501-3153.

To Signal Booster

14

Need help?

https://cellphonesignalbooster.us

Customer Support 800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

Signal Booster Specifications

Model Number

Connectors

Antenna Impedance

Frequency

Passband Gain (nominal)

20 dB Bandwidth (MHz)

Typical

Maximum

Power output for single cell phone (Uplink) dBm

Power output for single cell phone (Downlink) dBm

Home 4G

470001

SMA-Female on the Inside Antenna / F-Female on the Outside Antenna

75 Ohms / 50 Ohms

704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

700 MHz

Band17

57.3

700 MHz

Band13

55.0

800 MHz

Band 5

57.2

1700/2100 MHz

Band 4

60.5

1900 MHz

Band 25/2

57.0

700 MHz

Band17

26.2

29.8

700 MHz Band17

Band17

23.7

700 MHz Band17

Band17

700 MHz

Band13

26.7

29.8

700 MHz Band13

Band13

23.6

700 MHz Band13

Band13

800 MHz

Band 5

38.3

39.5

800 MHz

Band 5

24.6

800 MHz

Band 5

1700/2100 MHz

Band 4

73.5

73.8

1700 MHz

Band 4

24.9

2100 MHz

Band 4

1900 MHz

Band 25/2

78.4

80.1

1900 MHz

Band 25/2

23.3

1900 MHz

Band 25/2

0.9

-1.0

2.1

5.8

6.1

Power output for multiple received channels (Uplink) dBm

No. Tones

2

3

4

5

6

Power output for multiple received channels

(Downlinklink) dBm

700 MHz Band17

Band17

21.3

17.7

15.2

13.3

11.7

700 MHz Band13

Band13

20.7

17.2

14.7

12.8

11.2

Maximum Power

800 MHz

Band 5

23.0

19.4

16.9

15.0

13.4

Maximum Power

1700 MHz

Band 4

19.9

16.4

13.9

11.9

10.4

1900 MHz

Band 25/2

18.1

14.6

12.1

10.2

8.6

No. Tones

2

3

4

5

6

700 MHz

Band17

-2.0

-5.6

-8.1

-10.0

-11.6

700 MHz

Band13

-3.2

-6.7

-9.2

-11.2

-12.8

800 MHz

Band 5

1.8

-1.7

-4.2

-6.1

-7.7

7 dB nominal

> 110 dB

AC / DC 5V, 2.5A, w/2.5x5.5mm Jack

2100 MHz

Band 4

-0.5

-4.1

-6.6

-8.5

-10.1

1900 MHz

Band 25/2

-2.2

-5.8

-8.3

-10.2

-11.8

Noise Figure

Isolation

Power Requirements

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.

If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.

The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.

Need help?

https://cellphonesignalbooster.us

Customer Support

800-501-3153

Mon.- Fri. Hours: 7 am to 6 pm MST

15

2-Year Warranty

weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.

Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weboost. weBoost shall, at its option, either repair or replace the product.

This warranty does not apply to any Signal Boosters determined by weBoost to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Customer Support at 1-800-501-3153.

Disclaimer:

The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

Copyright © 2014 weBoost. All rights reserved.

weBoost products covered by U.S. patent(s) and pending application(s)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
