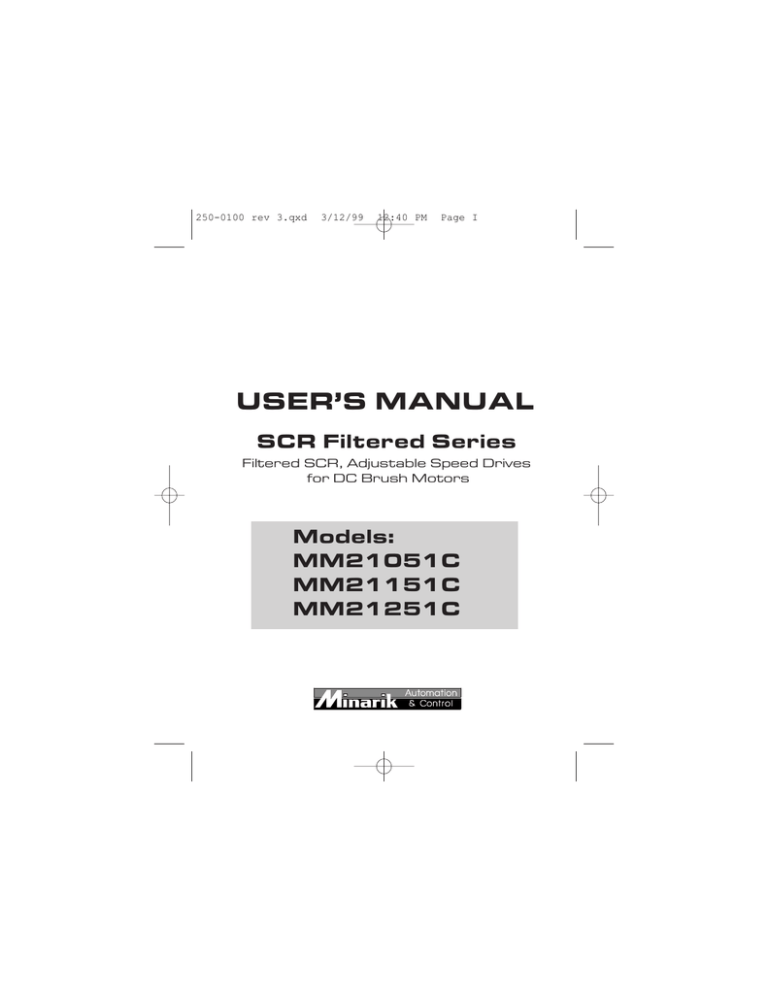

USER’S MANUAL

SCR Filtered Series

Filtered SCR, Adjustable Speed Drives for DC Brush Motors

Models:

MM21051C

MM21151C

MM21251C

250-0100 rev 3.qxd 3/12/99 12:40 PM Page II

Copyright

1998 by

Minarik Corporation

All rights reserved. No part of this manual may be reproduced or transmitted in any form without written permission from Minarik Corporation. The information and technical data in this manual are subject to change without notice. Minarik

Corporation and its Divisions make no warranty of any kind with respect to this material, including, but not limited to, the implied warranties of its merchantability and fitness for a given purpose. Minarik Corporation and its Divisions assume no responsibility for any errors that may appear in this manual and make no commitment to update or to keep current the information in this manual.

Printed in the United States of America.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page i

Safety Warnings

This symbol m denotes an important safety tip or warning.

Please read these sections carefully prior to performing any of the instructions contained in that section.

Have a qualified electrical maintenance technician install, adjust and service this equipment. Follow the National

Electrical Code and all other applicable electrical and safety codes, including the provisions of the Occupational Safety and Health Act (OSHA), when installing equipment.

Reduce the chance of an electrical fire, shock, or explosion by proper grounding, over-current protection, thermal protection, and enclosure. Follow sound maintenance procedures.

It is possible for a drive to run at full speed as a result of a

component failure. Please ensure that a master switch has been placed in the AC line to stop the drive in an emergency.

This drive is isolated from earth ground. Circuit potentials are at 115 VAC or 230 VAC above earth ground. Avoid direct contact with the printed circuit board or with circuit elements to prevent the risk of serious injury or fatality. Use a nonmetallic screwdriver for adjusting the calibration trimpots.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page ii ii

Contents

Specifications

Dimensions

Installation 5

Mounting chassis drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Mounting cased drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Heat sinking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Line fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Field output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

AC line and motor connection (MM21051C) . . . . . . . . . . . . . . . . . . . . . . .11

AC line and motor connection (MM21151C/MM21251C) . . . . . . . . . . . . . .11

Screw terminal block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Speed adjust potentiometer installation . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Voltage follower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1

2

Operation 16

Before applying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

MM21051C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

MM21151C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

MM21251C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Line starting and line stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Automatic restart upon power restoration . . . . . . . . . . . . . . . . . . . . . . . . .18

Inhibit circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Inhibit terminal accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Decelerating to minimum speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

250-0100 rev 3.qxd 3/12/99 12:40 PM Page iii

Contents iii

Dynamic braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

250-0100 rev 3.qxd 3/12/99 12:40 PM Page iv iv

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 1

Specifications

Model

MM21X51C

Maximum

Armature

Current

(Amps DC)

2.7

HP Range

1/20–1/4

AC Line

Voltage

Single Phase

50/60 Hz

115VAC (–5%,+10%)

Armature Voltage (115 VAC Input)

Form Factor

Field Voltage

Max. Field Current

0–130VDC

1.05 at base speed

50 VDC (F1 to L1); 100 VDC (F1 to F2)

1 ADC

Accel. Time Range (0–130 VDC Armature Voltage)

Decel. Time Range (0–130VDC Armature Voltage)

0.5 – 7 seconds

0.5 – 7 seconds

Analog Input Voltage Range (0–130VDC Armature Voltage)*

Input Impedance (S1 to S2)

Load Regulation

0 – 5.7 VDC

45K

3% of base speed or better

Ambient Temp. Range

MM21051C

MM21151C, MM21251C

Vibration

10°C–55°C

10°C–40°C

0.5 G max. (20 – 50 Hz)

0.1 G max. (>50 Hz)

Weight

MM21051C

MM21151C, MM21251C

Style

MM21051C

MM21151C, MM21251C

* Isolated terminals S1 to S2

2.1 lb (953 g)

3.3 lb (1.5 kg) chassis

NEMA 1

1

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 2

2

Dimensions

All dimensions in inches [mm]

Figure 1. MM21051C Dimensions

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 3

Dimensions 3

All dimensions in inches [mm]

Figure 2. MM21151C Dimensions

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 4

4 Dimensions

All dimensions in inches [mm]

Figure 3. MM21251C Dimensions

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 5

Installation

Drive mounting (General)

•Drive components are sensitive to electrostatic fields. Avoid direct contact with the circuit board. Hold the drive by the chassis only.

•Protect the drive from dirt, moisture, and accidental contact.

Provide sufficient room for access to the terminal block and calibration trimpots.

•Mount the drive away from heat sources. Operate the drive within the specified ambient operating temperature range.

•Prevent loose connections by avoiding excessive vibration of the drive.

Drive mounting (Chassis drives)

•Mount the drive with its board in either a horizontal or vertical plane. Eight 0.188 inch (4.8 mm) wide slots in the chassis accept

#8 pan head screws. Fasten either the large base or the narrow flange of the chassis to the subplate.

•The drive must be earth grounded for noise suppression. Connect earth ground to the earth ground terminal on the drive’s bottom board (see Connections).

5

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 6

6 Installation

Drive mounting (Cased drives)

Cased drives come with 0.88 inch (22 mm) conduit holes at the bottom of the case. The units may be vertically wall mounted or horizontally bench mounted using the three keyholes on the back of the case. See Figure 5 for mounting hole locations.

1. For access to the keyholes and the terminal strip, remove the two screws from the front of the case by turning them counterclockwise. Grasp the front cover and lift it straight out.

2. Install the mounting screws in the three keyholes.

3. Install conduit hardware through the conduit holes at the bottom of the case. Connect external wiring to the terminal block.

4. Reinstall the front cover. Avoid pinching any wires between the front cover and the case.

5. Replace the two screws to the front cover. Turn the screws clockwise to tighten.

6. Set the POWER switch to the OFF position before applying

AC line voltage.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 7

Installation 7

Figure 4. MM21151C and MM21251C Back View

Cased Mounting Keyhole Locations

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 8

8 Installation

Wiring

• Use 18 AWG wire for speed adjust potentiometer wiring. Use

16 AWG wire for AC line (L1, L2) and motor (A1, A2) wiring.

Shielding guidelines

As a general rule, Minarik recommends shielding of all conductors if:

1) wire lengths exceed 18 inches, with separation of power and logic leads;

2) wire lengths exceed 4 inches and power and logic leads must be bundled together*;

3) radiated and/or conducted noise must be minimized due to concerns about immunity or general compliance (CE, FCC, etc.)

*Minarik considers this an unfavorable condition and does not recommend bundling of power and logic leads for any length.

m

If it is not practical to shield power conductors, Minarik recommends shielding all logic-level leads. If shielding is not practical, the user should twist all logic leads with themselves to minimize induced noise. m (

Under no circumstances should power and logic leads

be bundled together. Induced voltage can cause unpredicatable behavior any electronic device, including motor controls.

It may be necessary to earth ground the shielded cable. If noise is produced by devices other than the drive, ground the shield at the

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 9

Installation drive end. If noise is generated by a device on the drive, ground the shield at the end away from the drive. Do not ground both

ends of the shield.

If the drive continues to pick up noise after grounding the shield, it may be necessary to add AC line filtering devices, or to mount the drive in a less noisy environment.

m

Do not disconnect any of the motor leads from the drive

unless power is removed or the drive is disabled. Opening any one motor lead may destroy the drive.

Heat sinking

All MM21X51C drives have sufficient heat sinking in their basic configurations. No additional heat sinking is required.

Line fuses

All drives have line fuses installed (see Replacement Parts section for installed line fuse size). Line fuses are rated for maximum rated horsepower. Fuse L1 when using 115 VAC line voltage.

Table 2. Recommended Line Fuse Sizes

9

FUSE SIZE (AMPS)

MOTOR HP @115VAC INPUT

1/20

1/8

1/4

5

8

8

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 10

10 Installation

Field output

The field output is for shunt wound motors only. Do not

make any connections to F1 and F2 when using a permanent magnet motor.

Use 16 AWG wire to connect the field output to a shunt wound motor. Table 1 lists the field output connections.

Table 1. Field Output Connections

Approximate

Field Voltage (VDC)

50

100

Connect Motor

Field To

F1 and L1

F1 and F2

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 11

Installation

Connections (MM21051C)

ASSUMPTIONS: Minarik drives supply motor voltage from

A1 and A2 terminals. It is assumed throughout this manual that, when A1 is positive with respect to A2, the motor will rotate clockwise (CW) while looking at the output shaft protruding from the front of the motor. If this is opposite of the desired rotation, simply reverse the wiring of A1 and A2 with each other.

11

NOTE: DO NOT

CONNECT FIELD

COILS IF USING

PERMANENT-

MAGNET MOTOR

Figure 5. MM21051C Drive Connections

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 12

12 Installation

Connections (MM21151C and MM21251C)

ASSUMPTIONS: Minarik drives supply motor voltage from

A1 and A2 terminals. It is assumed throughout this manual that, when A1 is positive with respect to A2, the motor will rotate clockwise (CW) while looking at the output shaft protruding from the front of the motor. If this is opposite of the desired rotation, simply reverse the wiring of A1 and A2 with each other.

NOTE: DO NOT

CONNECT FIELD

COILS IF USING

PERMANENT-

MAGNET MOTOR

Figure 6. MM21151C and MM21251C Connections

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 13

Installation 13

Screw terminal block

Connections to these drives are made to a screw terminal block (Figure 7). The chassis model (MM21051C) has 9 screws on the terminal block. The cased models (MM21151C, and MM21251C) have 7 screws on the terminal block. Using a screwdriver, turn the terminal block screw counter-clockwise to open the wire clamp. Insert stripped wire into the wire clamp. Turn the terminal block screw clockwise to clamp the wire.

Terminal Block Screw

Wire Clamp

Figure 7. Screw Terminal Block

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 14

14 Installation

Speed adjust potentiometer installation

Speed adjust potentiometers are pre-installed on all cased drives. On chassis drives, install the circular insulating disk between the panel and the 10K

Ω speed adjust potentiometer.

Mount the speed adjust potentiometer through a 0.38 inch

(0.96 cm) hole with the hardware provided (see Figure 8).

Twist the speed adjust potentiometer wires to avoid picking up unwanted electrical noise. If potentiometer leads are longer than 18 inches (46 cm), use shielded cable. Do not bundle potentiometer wires with AC power leads.

m Warning Be sure that the potentiometer tabs do not make contact with the panel. Grounding the input will cause damage to the drive.

Figure 8. Speed Adjust Potentiometer

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 15

Installation 15

Voltage follower

Instead of using a speed adjust potentiometer, the drive may be wired to follow an analog input voltage signal that is isolated from earth ground (Figure 9). Connect the signal input (+) to S2. Connect the signal common (–) to S1. Make no connection to S3. A potentiometer can be used to scale the analog input voltage. To achieve isolation, use an interface device such as Minarik

® model PCM4 to scale the analog input voltage.

Figure 9. Voltage Follower Connections

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 16

16

Operation

Before applying power

1. Check connections before applying AC line voltage to the drive.

2. Check that no conductive material is present on the printed circuit board.

Startup

MM21051C

1. Turn the speed adjust potentiometer full counterclockwise

(CCW).

2. Apply AC line voltage.

3. Slowly advance the speed adjust potentiometer clockwise

(CW). The motor slowly accelerates as the potentiometer is turned CW. Continue until the desired speed is reached.

4. Remove AC line voltage from the drive to coast the motor to a stop.

MM21151C

1. Turn the speed adjust potentiometer full counterclockwise

(CCW).

2. Apply AC line voltage

3. Set the POWER switch to the ON position.

4. Slowly advance the speed adjust potentiometer clockwise

(CW). The motor slowly accelerates as the potentiometer is turned CW. Continue until the desired speed is reached.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 17

Operation 17

5. Set the POWER switch to the OFF position to coast the motor to a stop.

MM21251C

1. Set the RUN/STOP switch to the STOP position.

2. Turn the speed adjust potentiometer full counterclockwise

(CCW).

3. Apply AC line voltage.

4. Set the POWER switch to the ON position.

5. Set the FWD/REV switch to the desired direction of rotation.

6. Set the RUN/STOP switch to the RUN position.

7. Slowly advance the speed adjust potentiometer clockwise

(CW). The motor slowly accelerates as the potentiometer is turned CW. Continue until the desired speed is reached.

8. To stop the motor set the RUN/STOP switch to the STOP position.

9. To reverse direction: a. Set the RUN/STOP switch to the STOP position.

b. Set the FWD/REV switch to the desired direction of rotation.

c. Set the RUN/STOP switch to the RUN position.

m Warning Do not change the FWD/REV switch while the motor is running. The motor must come to a complete stop before reversing. Changing motor direction before allowing the motor to completely stop will cause excessively high current to flow in the armature circuit, and will damage the drive and/or motor.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 18

18 Operation

Line starting and line stopping

Line starting and line stopping (applying and removing

AC line voltage) is recommended for infrequent starting and stopping of a drive only. When AC line voltage is applied to the drive, the motor accelerates to the speed set by the speed adjust potentiometer. When AC line voltage is removed, the motor coasts to a stop.

Automatic restart upon power restoration

All drives automatically run to set speed when power is applied. Wiring a latching relay into the AC line is one way to prevent automatic restarting following a power outage.

Inhibit circuit (MM21051C ONLY)

Maintaining a connection between the inhibit pins causes the motor to coast to zero speed. Removing the connection between the inhibit pins allows the motor to accelerate to the speed set by the speed adjust potentiometer (Figure 10).

m Warning The inhibit circuit is used for frequent starts and stops. It must never be used as an emergency stop. It may not stop a drive that is malfunctioning. Removing AC line power

(both L1 and L2) is the only acceptable method for emergency stopping. Minarik strongly recommends the installation of a STOP/START switch for emergency stopping.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 19

Operation

Inhibit terminal accesories

Minarik Corporation offers two accessory plug harnesses for the INHIBIT terminals:

Table 3. Inhibit plug part numbers

Minarik

®

Part Number

201-0024

201-0079

Description

Inhibit plug with 18 in. (46 cm) wires

Inhibit plug with 36 in. (91 cm) wires

Twist inhibit wires and separate them from other powercarrying wires or sources of electrical noise. Use shielded cable if the inhibit wires are longer than 18 in. (46 cm). If shielded cable is used, ground only one end of the shield to earth ground. Do not ground both ends of the shield.

19

Fig. 10 Inhibit Circuit Connections (MM21051C only)

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 20

20 Operation

Decelerating to minimum speed

The circuit shown in Figure 11 may be used to decelerate a motor to a minimum speed. Closing the switch between S1 and S2 decelerates the motor from set speed to a minimum speed determined by the MIN SPD trimpot setting. If the MIN

SPD trimpot is set full CCW, the motor decelerates to zero speed when the switch between S1 and S2 is closed. The

DECEL trimpot setting determines the rate at which the drive decelerates. By opening the switch the motor accelerates to set speed at a rate determined by the ACCEL trimpot setting.

Figure 11. Run/Decelerate to Minimum Speed Switch

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 21

Operation 21

Dynamic braking

Dynamic braking may be used to rapidly stop a motor

(Figure 12). For the RUN/BRAKE switch, use a three pole, two position switch rated for at least 125 VDC, 6 Amps. The dynamic braking resistor should be ceramic encased, and a minimum of 25

, 10 watts. The motor stops less rapidly with higher brake resistor values.

m

Warning

Wait for the motor to completely stop before switching back to RUN. This will prevent high armature currents from damaging the motor or drive.

Certain Minarik

® drives coast to minimum speed when the inhibit terminals are shorted to each other. IR COMP and

TORQUE are still active while the drive is in the inhibit mode.

For frequent starts and stops, use coasting to a stop

(shorting inhibit terminal to each other – MM21051C only), decelerating to minimum speed (shorting S2 and S1 to each other), or dynamic braking. Do not use any of these methods for emergency stopping. They may not stop a drive that is malfunctioning. Removing AC line power (both L1 and L2)

is the only acceptable method for emergency stopping.

NOTE: Model MM21251C is equipped with dynamic braking.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 22

22 Operation

Figure 12. Dynamic Braking Circuit Connection

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 23

23

Calibration

Each drive is factory calibrated to its maximum horsepower rating. Readjust the calibration trimpot settings to accommodate lower horsepower motors.

All adjustments increase with CW rotation, and decrease with

CCW rotation. Use a non-metallic screwdriver for calibration.

Each trimpot is identified on the printed circuit board.

MM21051C

MM21151C/MM21251C

Figure 13. Calibration Trimpot Layout

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 24

24 Calibration

MIN SPD

The MIN SPD setting determines the minimum speed when the speed adjust potentiometer is turned full CCW. It is factory set to zero speed.

To calibrate, set the speed adjust potentiometer full CCW.

Adjust the MIN SPD trimpot until the motor has stopped, or is running at the desired minimum speed.

MAX SPD

MAX SPD setting determines the maximum motor speed when the speed adjust potentiometer is turned full CW. It is factory set for maximum rated motor speed.

To calibrate, set the MAX SPD trimpot full CCW. Turn the speed adjust potentiometer full CW. Adjust the MAX SPD trimpot until the desired maximum motor speed is reached.

ACCEL

The ACCEL setting determines the time the motor takes to ramp to a higher speed, within the limits of available torque.

The ACCEL setting is factory set for its fastest acceleration time.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 25

Calibration 25

Turn the ACCEL trimpot CW to increase the acceleration time, and CCW to decrease the acceleration time.

DECEL

The DECEL setting determines the time the motor takes to ramp to lower speed, within the limits of available torque. The

DECEL setting is factory set for its fastest deceleration time.

Turn the DECEL trimpot CW to increase the deceleration time, and CCW to decrease the deceleration time.

IR COMP

The IR COMP setting determines the degree to which motor speed is held constant as the motor load changes. It is factory set for optimum motor regulation.

Recalibrate the IR COMP setting when using a lower horsepower motor. Refer to the recommend IR COMP settings below, or recalibrate using the following procedure:

If the motor does not maintain set speed as the load changes, gradually rotate the IR COMP trimpot CW. If the motor speed oscillates (overcompensation), the IR COMP trimpot may be set too high (CW). Turn the IR COMP trimpot CCW until the motor speed stabilizes.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 26

26 Calibration

TORQUE

The TORQUE setting determines the maximum armature current output of the drive. It is factory set at 120% of rated motor current.

Recalibrate the TORQUE setting when using a lower horsepower motor. Refer to the recommended TORQUE settings below, or recalibrate using the following procedure:

1. With the power disconnected from the drive, connect a DC ammeter (0-15 A minimum scale) in series with the armature.

2. Set the TORQUE trimpot to minimum (full CCW).

3. Connect power to the drive. The motor should remain stopped.

4. Lock the motor armature. Be sure that the motor is firmly mounted.

5. Set the speed adjust potentiometer to maximum (full CW).

6. Adjust the TORQUE trimpot CW slowly until the armature current is 120% of motor rated armature current.

7. Set the speed adjust potentiometer to minimum and remove the stall from the motor.

m WARNING Although the TORQUE can be set to exceed the motor’s maximum armature current rating, we recommend you do not run the motor continuously beyond that rating.

Continuous operation beyond the maximum armature current rating may cause thermal degradation of the motor and drive.

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 27

Calibration 27

Figure 14 Typical TORQUE and IR COMP Settings

(actual settings may vary with each application)

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 28

28

Application Notes

Multiple fixed speeds

Replace the speed adjust potentiometer with series resistors with a total series resistance of 10K ohms (Figure 15). Add a single pole, multi-position switch with the correct number of positions for the desired number of fixed speeds.

Figure 15. Multiple Fixed Speeds

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 29

Application Notes

Adjustable speeds using potentiometers in series

Replace the speed adjust potentiometer with a single pole, multi-position switch, and two or more potentiometers in series, with a total series resistance of 10K ohms. Figure 16 shows a connection for fixed high and low speed adjust potentiometers

29

Figure 16. Adjustable Fixed Speeds Using

Potentiometers in Series

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 30

30 Application Notes

Independent adjustable speeds

Replace the speed adjust potentiometer with a single pole, multi-position switch, and two or more potentiometers in parallel, with a total parallel resistance of 10K ohms.

Figure 17 shows the connection of two independent speed adjust potentiometers that can be mounted at two separate operating stations.

Figure 17. Independent Adjustable Speeds

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 31

Application Notes 31

RUN/JOG switch

Using a RUN/JOG switch is recommended in applications where quick stopping is not needed and frequent jogging is required. Use a single pole, two position switch for the

RUN/JOG switch and a single pole, normally closed, momentary operated pushbutton for the JOG pushbutton.

In the first wiring option, connect the RUN/JOG switch and

JOG pushbutton to the inhibit plug as shown in Figure 18. The motor coasts to a stop when the RUN/JOG switch is set to

JOG. Press the JOG pushbutton to jog the motor. Return the

RUN/JOG switch to RUN for normal operation.

Figure 18. RUN/JOG Switch Connection to Inhibit Plug

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 32

32 Application Notes

In the second wiring option, connect the RUN/JOG switch and the JOG pushbutton as shown is Figure 19. When the

RUN/JOG switch is set to JOG, the motor decelerates to minimum speed (minimum speed is determined by the MIN

SPD trimpot setting). Press the JOG pushbutton to jog the motor. Return the RUN/JOG switch to RUN for normal operation.

Figure 19. RUN/JOG Switch Connection to Speed Adjust

Potentiometer

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 33

Application Notes

Reversing

A dynamic brake may be used when reversing the motor direction (Figure 20). For the RUN/BRAKE switch, use a four pole, three position switch rated for at least 125 VDC,

6 Amps. The dynamic braking resistor should be ceramic encased, and a minimum of 25

, 10 watts. The motor stops less rapidly with higher brake resistor values. Wait for the motor to stop completely before switching it to either the forward or reverse direction.

33

Figure 20. Reversing Diagram

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 34

34 Application Notes

Leader-Follower application

In this application, use a PCM4 to monitor the speed of the leader motor (Figure 21). The PCM4 isolates the leader motor from the follower drive, and outputs a voltage proportional to the leader motor armature voltage. The follower drive uses this voltage reference to set the speed of the follower motor.

An optional ratio potentiometer may be used to scale the

PCM4 output voltage.

Figure 21. Leader Follower Application

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 35

Application Notes 35

Single speed potentiometer control of multiple drives

Multiple drives can be controlled with a single speed adjust potentiometer using a PCM4 at the input of each drive to provide isolation (Figure 22). Optional ratio potentiometers can be used to scale the PCM4 output voltage, allowing independent control of each drive.

Figure 22. Single Speed Potentiometer Control of Multiple Drives

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 36

36

Functional Diagrams

250-0100 rev 3.qxd 3/12/99 12:40 PM Page 37

Functional Diagrams 37

S1

S3

Figure 24. MM21151C switching circuit connections

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 38

38 Functional Diagrams

Figure 25. MM21251C switching circuit connections

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 39

Troubleshooting

m

Warning

Dangerous voltages exist on the drive when it is powered. When possible, disconnect the drive while troubleshooting. Be alert.

High voltages can cause serious or fatal injury.

Check the following steps before proceeding:

1. The AC line voltage must match the voltage on the drive nameplate and be balanced.

2. The motor must be rated for the drive’s rated armature (all motors) and field outputs (shunt wound motors only).

3. Do not make any connections to F1 and F2 when using a permanent magnet motor.

4. Terminal block connections should be consistent with the connections shown in this manual.

5. Check that the line fuse is properly sized and not blown.

39

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 40

40 Troubleshooting

Problem

Line fuse blows.

Possible

Causes

Suggested

Solutions

1. Line fuse is the wrong size.

1. Check that the line fuse is correct for the motor size (page 14).

2. Motor cable or armature is shorted to ground.

2. Check motor cable and armature for shorts.

Motor runs too fast at maximum speed setting.

1. MIN SPD and MAX

SPD settings are too high.

2. Motor field connections are loose

(shunt wound motors only).

1. Recalibrate MIN SPD and MAX SPD.

2. Check motor field connections and armature output voltage.

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 41

Problem

Line fuse does not blow, but the motor does not run.

Troubleshooting

Possible

Causes

Suggested

Solutions

1. Speed adjust potentiometer or voltage input signal set to zero speed.

1. Increase the speed adjust potentiometer or voltage setting.

2. Speed adjust potentiometer or voltage input signal not connected to drive input properly; connections are open.

2. Check connections to input. Verify that connections are not open.

3. S2 is shorted to S1.

3. Remove short.

4. Drive is in current limit.

4. Verify that motor is not jammed. Increase

TORQUE setting, they are set too low.

5. Drive is not receiving

AC line voltage.

5. Apply AC line voltage to L1 and L2.

6. Motor is not connected.

6. Connect motor to A1 and A2.

41

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 42

42 Troubleshooting

Problem

Possible

Causes

Suggested

Solutions

Motor runs too slow or too fast.

1. MIN SPD and MAX

SPD not calibrated.

Motor will not reach the desired speed.

2. Field not operating properly.

1.MAX SPD setting is too low.

2. IR COMP setting is too low.

3. Motor is overloaded.

Motor pulsates or surges under load.

1.IR COMP is set too high.

2. Motor bouncing in and out of TORQUE limit.

1. Calibrate MIN SPD and MAX SPD.

2. Check motor field connections and voltage.

1. Increase MAX SPD setting.

2. Increase IR COMP setting.

3. Check motor load.

Resize the motor if necessary.

1. Adjust the IR COMP setting slightly CCW until the motor speed stabilizes.

2. Make sure motor is not undersized for load; adjust TORQUE pot

CW.

For further assistance, contact your Minarik distributor or the factory direct: telephone (702) 823-9475 or fax: (702) 823-9495

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 43

43

Certificate of Compliance -

Minarik Corporation hereby certifies that its MM21151C and

MM21251C drives have been approved to bear the CE mark, provided the conditions of approval (listed on page 34 and 35) have been met by the end user.

The MM21151C and MM21251C have been tested to the following test specifications:

EN55011:1991 (emissions), and

EN50082-1:1992 (immunity)

Compliance allows Minarik’s MM21151C and MM21251C series to bear the CE mark.

The end user, as described herein, falls into one of two categories:

1. The Consumer will deploy a stand-alone unit as an integral, yet external, portion of the machine he/she is operating.

2. The Original Equipment Manufacturer (OEM) will implement the product as a component of the machine being manufactured.

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 44

44 Certificate of Compliance - CE Mark

Conditions of CE approval

In addition to EMI/RFI safeguards inherent in the MM21151C and MM21251C designs, external filtering is required.

Minarik requires the Corcom ® filters listed in Table 4. If the exact filter is not available, the specifications are as follows:

L = (1.73 + 0.03) milliHenries.

C = (0.27 + 0.54) microFarads (X); 0.0055 microFarads (Y).

R = 330 Kohms

Rated current: 1.4 times maximum DC motor current.

Filter type: Balanced 2-section

Table 4. Corcom

®

Filters

Nameplate Current of

Motor Wired to the Drive

0 to 4 amps

4.1 to 13 amps

Corcom

®

Part Number

6VV1

20VV1

The filters in Table 4 should be wired to the AC line within 0.25 meters of the drive. The ground connection from the filter must be wired to solid earth ground (resistance less than 500 ohms);

not machine ground. This is very important!

If the end-user is using a CE approved motor, the correct filter from Table 4 is all that is necessary to meet the EMC directives listed herein.

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 45

Certificate of Compliance - CE Mark 45

If the end-user is not using a CE-approved motor, a second filter on the output must be deployed. It is Minarik’s

CEXXMM. XX = the rated current of the filter.

The CE20MM is a Real-Pole Balanced-Pi 3-pole filter. If the exact filter is not available, the specifications are as follows:

L & L1 = 2 * (0.8) milliHenries.

C & C1 = 2 * (0.1) microFarads @ 400W VDC.

Rin = 0.1 ohm; Rout = 1.2 ohm

Table 5. Minarik

®

Filters

Nameplate Current of

Motor Wired to the Drive

0 to 4 amps

4.1 to 13 amps

Minarik

®

Part Number

CE4MM

CE20MM

The filters in Table 2 must be wired to the DC output of the drive, as close to the drive as possible. The ground connection from the filter must be wired to solid earth ground (resistance less than 500 ohms); not machine ground. This is very important!

The end user must use the filtration listed in this section to comply with CE. The OEM may choose to provide alternative filtering that encompasses the Minarik drive and other electronics within the same panel.

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 46

46 Certificate of Compliance - CE Mark

The OEM has this liberty because CE is a machinery directive. Whether or not every component in the OEM’s machinery meets CE, the OEM must still submit his machine for CE approval.

Thus, no component must necessarily meet CE within the machine, as long as the OEM takes the necessary steps to guarantee the machine does meet CE. By the same token, even if every component in the OEM’s machine does meet CE, the unit may not necessarily meet CE as a machine.

Using CE approved wiring practices (like proper shielding) and the filters listed in this section guarantee the drive will meet EN55011 (1991 emissions standard) and EN50082-1

(1992 immunity standard).

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 47

Replacement Parts

Replacement parts are available form Minarik Corporation and its distributors for this drive series.

Table 5. Replacement Parts

Model No.

MM21051C

Symbol

C7

D1-D3

Fuse

MOV

R1

SCR1, SCR2

T1

X

Description Minarik

®

P/N

525mF, 250VDC filter cap

600 V, 20 A power diode

8A 3AB

130V, 10A surge suppressor

011-0031

071-0029

050-0023

075-0002

0.2 ohm, 5W feedback resistor 032-0015

600V, 20A SCR 072-0017

3FS-324-001 transformer

Choke

10K ohm potentiometer kit

230-0084

240-0006

202-0003

MM21151C

MM21251C

Same parts as MM21051C except :

C7-C9 220mF, 200V capacitor

Il1

P7

SW1

Pilot Lamp

Speed adjust potentiometer

DPDT toggle switch

Potentiometer Knob

Same as MM21151C except:

SW1-SW3 DPDT toggle switch

011-0069

040-0035

120-0031

080-0009

140-0013

080-0009

47

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 48

48

Notes

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 49

Limited Warranty

A. Warranty - Minarik Corporation (referred to as “the Corporation”) warrants that this product will be free from defects in workmanship and material for one (1) year or 3,000 hours, whichever comes first, from date of shipment thereof. Within this warranty period, the Corporation will repair or replace such products that are: (1) returned to Minarik Corporation, 901 East Thompson

Avenue, Glendale, CA 91201-2011 USA; and, (2) determined by the Corporation to be defective.

This warranty shall not apply to any product that has been subject to misuse, negligence, or accident; or misapplied; or repaired by unauthorized persons; or improperly installed. The

Corporation is not responsible for removal, installation, or any other incidental expenses incurred in shipping the product to and from the repair point.

B. Disclaimer - The provisions of Paragraph A are the Corporation’s sole obligation and exclude all other warranties of merchantability for use, express or implied. The Corporation further disclaims any responsibility whatsoever to the customer or to any other person for injury to the person or damage or loss of property of value caused by any product that has been subject to misuse, negligence, or accident, or misapplied or modified by unauthorized persons or improperly installed.

C. Limitations of Liability - In the event of any claim for breech of any of the Corporation’s obligations, whether express or implied, and particularly of any other claim or breech of warranty contained in Paragraph A, or of any other warranties, express or implied, or claim of liability that might, despite Paragraph B, be decided against the Corporation by lawful authority, the

Corporation shall under no circumstances be liable for any consequential damages, losses, or expense arising in connection with the use of, or inability to use, the Corporation’s product for any purpose whatsoever.

An adjustment made under warranty does not void the warranty, nor does it imply an extension of the original one (1) year or 3,000 hour warranty period. Products serviced and/or parts replaced on a no-charge basis during the warranty period carry the unexpired portion of the original warranty only.

If for any reason any of the foregoing provisions shall be ineffective, the Corporation’s liability for damages arising out of its manufacture or sale of equipment, or use thereof, whether such liability is based on warranty, contract, negligence, strict liability in tort, or otherwise, shall not in any event exceed the full purchase price of such equipment.

Any action against the Corporation based upon any liability or obligation arising hereunder or under any law applicable to the sale of equipment or the use thereof, must be commenced within one year after the cause of such action arises.

250-0100 rev 3.qxd 3/12/99 12:41 PM Page 50

901 East Thompson Avenue

Glendale, California 91201-2011

Tel: (702) 823-9475

Fax: (702) 823-9495 www.minarikcorp.com

Document number 250–0100, Revision 3

Printed in the U.S.A – 12/98

North America $10.00, Outside North America $13.00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
