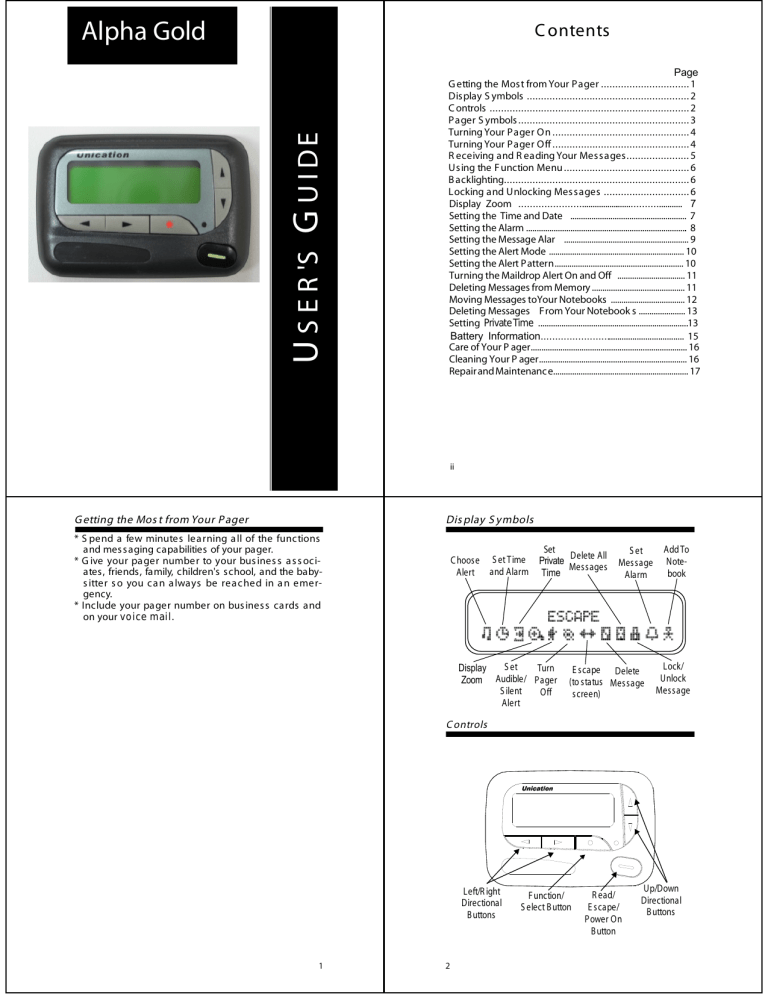

Alpha Gold
U S E R 'S G U I D E
C ontents
Page
G etting the Most from Your Pager ............................... 1
Display S ymbols ......................................................... 2
C ontrols ...................................................................... 2
Pager S ymbols ............................................................ 3
Turning Your Pager On ................................................ 4
Turning Your Pager Off ................................................ 4
R eceiving and R eading Your Messages...................... 5
Using the F unction Menu ............................................ 6
B acklighting................................................................. 6
Locking and Unlocking Messages .............................. 6
Display Zoom ................................................................... 7
Setting the Time and Date ....................................................... 7
.
Setting the Alarm ............................................................................. 8
Setting the Message Alar ........................................................... 9
Setting the Alert Mode ................................................................ 10
Setting the Alert Pattern............................................................. 10
Turning the Maildrop Alert On and Off ................................ 11
Deleting Messages from Memory ............................................ 11
Moving Messages toYour Notebooks ................................... 12
Deleting Messages From Your Notebook s ...................... 13
Setting Private Time .......................................................................13
Battery Information........................................................... 15
Care of Your P ager .......................................................................... 16
Cleaning Your P ager ...................................................................... 16
Repair and Maintenanc e................................................................ 17
ii
Dis play S ymbols
G etting the Mos t from Your P ager
* S pend a few minutes lea rning a ll of the functions
and mes s aging capabilities of your pager.
* G ive your pager number to your bus ines s a s s ociates, friends, family, children's s chool, and the babys itter s o you ca n a lways be rea ched in a n emergency.
* Include your pager number on bus ines s cards and
on your voice mail.
C hoose S et Time
Alert and Alarm
Set
Delete All
Private
Messages
Time
S et
Display
Turn
Zoom Audible/ Pager
S ilent
Off
Alert
S et
Message
Alarm
E scape Delete
(to status Message
screen)
Add To
Notebook
Lock/
Unlock
Message
C ontrols
Left/R ight
Directional
B uttons
1
2
F unction/
S elect B utton
R ead/
E scape/
Power On
B utton
Up/Down
Directional
B uttons
INTRODU
INTR
Pager Symbols
Pager Status Symbols: (Left column)
ë
Í
Ö
Power On
Audible Alert Mode
Private Time
Alarm
Message Status Symbols: (Top two rows of display)
í
Õ
V
ü
é
Ö
Ñ
å
É
Ç
ó
ò
ï
ñ
í
ì
Õ
Ì
Ö
¶
å
õ
ô
Ã
c
Ç
Õ
(
,
Choose Alert
Set Time and Alarm
Set Private Time
Set Audible Alert
Set Silent Alert
Turn Pager Off
Escape (to status screen)
Delete Message
Delete All Messages
Lock Message
Unlock Message
Maildrop Indicator (Alert Enabled)
Maildrop Indicator (Alert Disabled)
Set Message Alarm
Add to Notebook
Display Zoom On
Display Zoom Off
Other Symbols:
AM
PM
Locked Message
Maildrop Indicator (Alert Enabled)
Maildrop Indicator (Alert Disabled)
Message In Memory Indicator
Memory Full Indicator
Alarmed Message
Function Menu Symbols: (Bottom row of display)
È
1
4
ú
Ü
Enter Private Time Menu and Private Time
Enabled
Private Time Disabled
24 Hour Time
AM Time
PM Time
Disable Alarm
Enable Alarm
No Message Alert (On Choose Alert Menu)
Chirping Alert (On Choose Alert Menu)
Full Battery Gauge
Low Battery Gauge
Errored Data Indicator
Message Continuation
Truncated Message
Turning Your Pager On
Press Ë.
Your pager alerts and shows ë in the left column of
the display. The time and date are shown at the bottom
of the display.
Turning Your Pager Off
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to ó.
➌ Press Á twice to turn the pager off.
3
4
Receiving and Reading Your Messages
Using the Function Menu
When a message is received, your pager alerts and
displays a flashing ü symbol.
➊ Press any button to stop the alert.
➋ Press Ë to display your message.
The pager automatically stores the message and the
time and date it is received.
A flashing arrow Ü at the bottom right corner of the
screen indicates the message you are reading continues beyond the four lines of the display.
Press Ë to advance to the next screen of the message.
Press
to read your message line by line.
Press and hold Ë to rapidly scroll through your message, screen by screen.
If more than one message exists, press ä or ã to
select the message you want to read. The symbol Ó
indicates the location of the message. Press Ë to
display your message. While reading your messages,
you can press H or I to view the previous or next
message.
A flashing ësymbol indicates you have a message
that has not been read. The pager alerts at predetermined intervals to remind you of any unread messages.
Alpha Gold pagers store up to 19 personal messages
in memory.
Press Á to display the function menu.
The function menu gives you access to the many features
of your pager through a series of symbols and prompts.
For example, when the function menu screen is first displayed, the ò symbol flashes, indicating the present
position of the cursor. You can now press ä or ã to
move the cursor within the function menu.
5
NOTE: To exit from any menu without making changes,
press Ë.
Backlighting
The pager’s backlight illuminates in low-light conditions when any button is pressed. You can manually
activate or deactivate the backlight at any time by
pressing and holding Á for two seconds. If no other
buttons are pressed, the backlight automatically turns
off when the pager returns to the standby mode.
Locking and Unlocking Messages
Up to 10 messages can be locked in memory, preventing
them from being replaced when memory is full (indicated
by the é symbol).
➊ Press Ë.
➋ Press ä or ã to select the message to lock.
➌ Press Á to display the function menu.
➍ Press ã to move the cursor to lock (í) or unlock
(ì).
➎ Press Á to lock or unlock the message.
➏ The symbol í or ì is displayed, indicating the status
of the message in memory.
6
Setting the Time and Date
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to Ñ.
➌ Press Á to display the set-time screen.
➍ Press ã to move the cursor to the hour digit.
➎ Press
or
to adjust the hour.
➏ Press ã to move the cursor to the minute digit.
➐ Press
or
to adjust the minute.
➑ Repeat the process for each set of digits: AM/PM/
24 hr., month/day/year.
➒ Press Á to activate the time and date change.
➋ Press K Display zoom is now active.
All new and stored messages including notebook
messages are displayed in a 2-line format. Pager
prompts are not enlarged in the zoom mode.
Setting the Alarm
The alarm on your pager can be set for a specific time
and date, or it can be used as a daily alarm.
To set the alarm for a specific time and date:
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to Ñ.
➌ Press Á to display the set-time-and-alarm screen.
➍ Press
to move the cursor to Ö.
●Ñ22:23ô05/06/96●
Ã0:00ô--/--/-SET TIME
Ñ22:23ô05/06/96
●Ã0:00ô--/--/--●
SET ALARM
NOTE: To exit from any menu without making changes,
press Ë .
Display Zoom
When this feature is enabled, the standard 4-line display
is converted to a 2-line display. The characters are
enlarged vertically, increasing message readability.
To Enable Display Zoom:
➊ From the Function menu, press
cursor to 1.
H
to move the
7
NOTE: If the alarm expires without being acknowledged, the Ö symbol flashes until any button is
pressed.
NOTE: To exit from any menu without making changes,
press Ë.
Setting the Message Alarm
This feature allows you to set a one-time or a daily
alarm for a particular personal message. You can set
an alarm for up to five personal messages.
To set a one-time message alarm:
➊ Press Ë.
➋ Press ä or ã to select the message you want to
alarm.
➌ Press Á to display the function menu.
➍ Press ã to move the cursor to Ö.
➎ Press Á to display the set-message-alarm screen.
When the screen is first displayed, the cursor is at the
far left position.
This symbol defines the alarm status—either alarm
enabled (c) or alarm disabled (Ã).
➏ From the set-message-alarm screen, follow the
same steps described in Setting the Alarm.
To set a daily message alarm:
Follow the instructions above to set the alarm time,
then follow the instructions in “To set the alarm to alert
daily” under Setting the Alarm.
The b symbol replaces the m symbol when the message alarm is set.
At the selected time, your pager vibrates or emits a 12second alert, depending on the current alert mode.
Press J to display the message for which the alarm is
set.
9
8
GETTING STARTED
The alarm symbol defines the alarm status—either
alarm enabled (c) or alarm disabled (Ã).
➎ Press ã to move the cursor to Ö.
➏ Press
or
to enable or disable the alarm.
➐ Press ã to move the cursor to the hour digit.
➑ Repeat the process for each entry (minute, AM/PM,
and date).
➒ Press Á to activate your selection. The Ö symbol
is shown on the display.
At the selected time, your pager emits a 12-second
audible alert even if the pager is in the silent mode.
To set the alarm to alert daily:
Follow the steps previously described, except when
setting the date, press
for the date entries until you
see a blank month, day, and year (--/--/--). The alarm is
now set to alert every day at this specified time.
GETTING STARTED
Example of Set-Time-and-Alarm Screen
If you move the cursor past the last symbol in the row
(far right), it automatically wraps around and displays
at the first symbol in the beginning of the same row (far
left).
GETTING
STARTED
GETTING
STARTED
GETTING
STARTED
GETTING
STARTED
GETTING
STARTED
Example of Set-Time Screen
The m symbol replaces the b symbol after the alarm
has sounded unless the alarm is set to alert daily .
NOTE: If the alarm expires without being acknowledged, the Ö flashes until the message is read.
Setting the Alert Mode
The alert can be set as either audible or silent.
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to É or Œ.
The É symbol is displayed if the pager is in the silent alert
mode (prompting you to enter the audible mode, if
desired). The Œsymbol is displayed if the pager is in the
audible alert mode (prompting you to enter the silent
mode, if desired).
9
➌ Press Á to select the desired alert mode.
If the selected mode is audible (É), your pager emits a
short chirp. If the selected mode is silent (Œ) and your
pager is equipped with a vibrator, your pager vibrates.
Setting the Alert Pattern
NOTE: The pager must be in the audible alert mode to
select the alert pattern.
Your pager has a standard alert (1), seven different pleasing alerts (2 through 8), and a chirping alert (Õ), allowing
you to select and change the alert. You can also select no
alert (Œ).
To change your alert:
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to È, then press Á.
➌ Press ä or ã to move the cursor to the desired alert.
The pager gives a sample of each alert when scrolling
through the selections.
➍ Press Á to activate the alert.
10
10
To delete all unlocked, un-alarmed and read
messages from memory:
➊ Press Á to display the function menu.
➋ Press ã to move the cursor to ñ.
➌ Press Á twice.
All unlocked, un-alarmed and read messages are now
deleted.
1 2 3 4 5 6 7 8 j r
PLEASING ALERT
Example of the Alert Pattern Screen
Turning the Maildrop Alert On and Off
You can set your pager to alert when a maildrop (also
known as information service) message is received.
➊ Press Ë.
➋ Press
to move the cursor to Õ.
➌ Press Á to display the function menu.
➍ Press ã to move the cursor to the alert on (Õ) or
alert off (Ì) symbol.
The symbol Õ is displayed if the maildrop alert is on
(prompting you to turn it off, if desired).
The symbol Ì is displayed if the maildrop alert is off
(prompting you to turn it on, if desired).
➎ Press Á to select the desired maildrop alert mode.
Deleting Messages from Memory
You can delete an unlocked and un-alarmed message
from memory while you are viewing the message or
through the function menu.
To delete messages using the function menu:
➊ Press ä or ã to select the message you want to
delete from memory.
➋ Press Á to display the function menu.
➌ Press ã to move the cursor to ï.
➍ Press Á to receive confirmation of the request.
➎ Press Á to delete the message.
11
NOTE: Personal and maildrop notebooks are not
deleted with this feature.
Moving Messages to Your Notebooks
Your pager has two notebook areas: a personal notebook for storing personal messages, and a maildrop
notebook for storing information service messages.
To store a message in your personal notebook:
➊ Press Ë .
➋ Press ä or ã to move the cursor to select the message you desire to move into your personal notebook.
➌ Press Á to display the function menu.
➍ Press ã to move the cursor to ¶ .
➎ Press Á to move the message into your personal
notebook.
The ¶ symbol is shown in the top right-hand corner of
the display.
To store a message in the maildrop (information
service) notebook:
Follow the same steps as described for storing personal notebook messages.
The ¶ symbol is shown in the second row, right-hand
corner of the display.
12
Deleting Messages from Your Notebooks
➊ Press ã to move the cursor to ¶ .
➋ Press Ë to display a list of notebook messages.
➌ Press F or G to scroll through the list until K is displayed at the notebook message you want to delete.
➍ Press Á to display the function menu.
➎ Press ã to move the cursor to ï.
➏ Press Á to confirm the delete request.
➐ Press Á to delete the message. Repeat these
steps to delete each message.
Setting Private Time
To set your pager’s Private Time feature, proceed as follows:
You can select a time period during which your pager is completely
silent .Your pager still receives messages but is does not alert. The
pager alerts only if an alarm expires or a priority message is received.
➊ Press Á to display the function menu.
➋ Press ä to move the cursor to å.
➌ Press Á to display the Private Time screen.
When the screen is first displayed, the cursor is at the
farthest left position. The enabled (å) or disabled (õ)
symbol indicates the current status.
ON
õ
OFF
➍ Press
or
to select å or õ.
➎ Press ã to move the cursor to the hour digit. The
Private On time is displayed on the left and the
Private Off time is displayed on the right.
➏ Press
or
to adjust the hour.
➐ Repeat the process for each set of digits for both the
on time and the off time (hour, minute, AM/PM if
your pager is set to display time in the 12 hour
mode).
➑ Press Á to activate Private Time.
The å symbol is displayed if the Private Time function
is enabled. If the on time is equal to the off time,
the pager does not enable the Private Time function.
Other Features
Battery Gauge: The battery gauge indicator is located
on the status screen and keeps you informed of the
battery energy level. The five indicators range from full
to low: ( (full), ) (3/4), * (1/2), + (1/4),
and , (low).
Key Click: When this feature is enabled, and the
pager is in the audible mode, a “click” is emitted whenever a button is pressed. The click is not heard when
the pager is in the silent mode.
Errored Data Indicator: The ú symbol displays when
potentially corrupt data is received. The indicator alternates with the corrupted character.
0:00ô 0:00ô
Example of Private Time Screen
13
14
Maildrop History: When this option is enabled, the
pager stores up to five history files per maildrop (information services) slot selected. When a new maildrop
message is received on a specific slot, the existing
message is “pushed” into the history area and the new
message is stored in the maildrop slot. When a sixth
history file is received, the oldest history file is deleted.
Battery Information
Your pager is designed to operate with a single AA-size
alkaline battery (carbon zinc batteries are not recommended). See the diagram on the following page for the
battery door location.
To install or replace the battery, place the pager face
down and proceed as follows:
➊ Unlock the battery door by sliding the door latch
away from the battery door.
➋ Slide the battery door in the direction of the arrow
(toward the outer edge).
➌ Lift the battery door away from the housing to
remove it. Lift the battery out of the battery compartment, taking note of the positive (+) and negative (-)
markings on the battery and the pager housing.
Alpha Gold Pager Battery
Replacement (rear view)
To install a new battery, reverse this procedure, taking
note of the positive (+) and negative (-) markings.
CAUTION: Do not insert the battery backwards or the
messages stored or locked in memory will be erased.
Care of Your Pager
To maintain the fine optical quality of the display in the
pager, do not subject it to extreme temperatures and
moisture.
Cleaning Your Pager
To clean smudges and grime from the exterior of the
housing, use a soft, nonabrasive cloth moistened in a mild
soap and water solution. Rinse the surface using a second cloth moistened in clean water. Do not immerse the
pager in water. Do not use any other cleaning solutions.
15
16
R epair and Maintenanc e
Your pa ge r, prope rly ha ndle d, is c a pa ble of ma ny
years of trouble-free s ervice.
However, If your pager ever requires service, please
call Unication customer care at 886-2-22999678.
Anyone intending to use a radio in a location
where hazardous concentrations of flammable materials exist (hazardous atmosphere) is advised to
become familiar with the subject of intrinsic safety
and with the National Electric Code NFPA 70
(National Fire Protection Association) Article 500
(hazardous [classified] locations).
UL Approval labels are attached to the Alpha Gold
Pager to identify the unit as being UL Approved for
specified hazardous atmospheres. This label specifies the hazardous Class/Division/Group which will
appear as follows:
RAD DEV FOR HAZ LOC
DIV2, I, A,B,C,D II F.G
Substitution of Components may impair Intrinsic
safety.
The following is the Approved battery listing
to be used for the UL Approved Alpha Gold
1.5AA ALK, Duracell MN2400 or Energizer E92
!
WARNING
• Do not operate equipment in a hazardous
atmosphere unless it is a type especially
qualified (for example, UL Approved) for such
use. An explosion or fire may result.
• Do not operate a UL Approved Product in a
hazardous atmosphere if it has been physically damaged (for example, cracked housing). An explosion or fire may result.
• Do not replace or charge batteries in a hazardous atmosphere. Contact sparking may
occur while installing or removing batteries
and cause an explosion or fire.
17
18
• Do not replace or change accessories in a
hazardous atmosphere. Contact sparking
may occur while installing or removing accessories and cause an explosion or fire.
• Turn a radio off before removing or installing
a battery or accessory.
• Do not disassemble a UL Approved Product
unit in any way that exposes the internal
electrical circuits of the unit.
• Do not substitute components. This could
void the intrinsic safety rating.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
Regulatory Agency Compliance
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
19
20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
