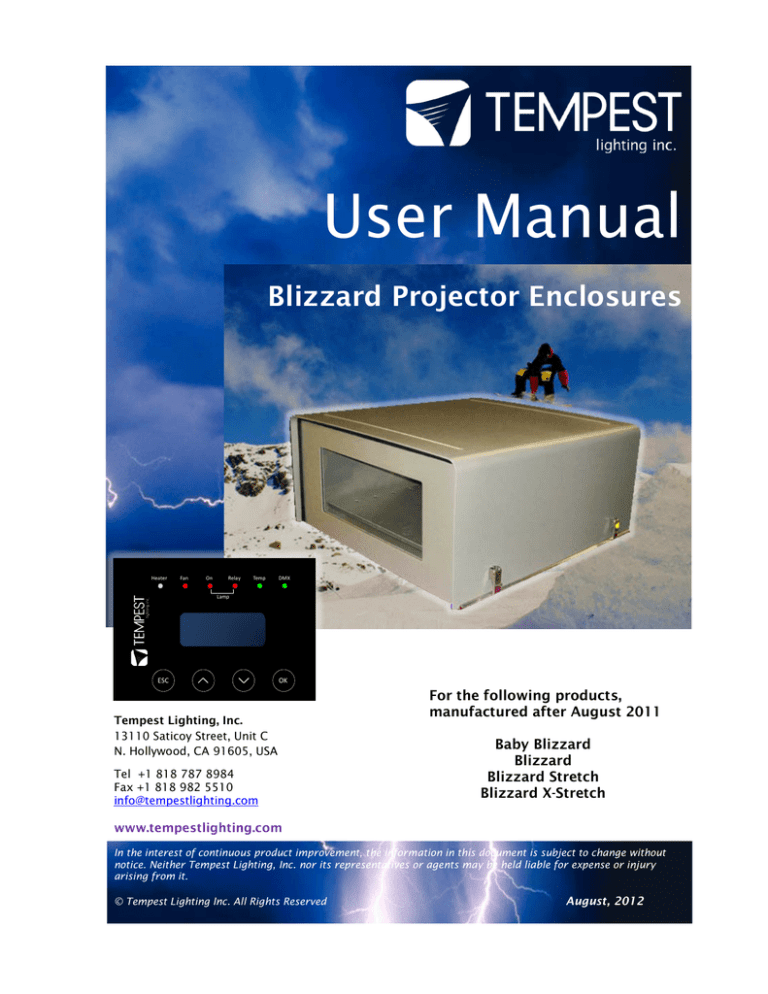

User Manual
User Manual and Installation Guide
Tornado Moving
LightProjector
Enclosures
Blizzard
Enclosures
Heater
Fan
On
Relay
Temp
DMX
Lamp
ESC
OK
Tempest Lighting, Inc.
13110 Saticoy Street, Unit C
N. Hollywood, CA 91605, USA
Tel +1 818 787 8984
Fax +1 818 982 5510
[email protected]
For the following products,
manufactured after August 2011
Baby Blizzard
Blizzard
Blizzard Stretch
Blizzard X-Stretch
www.tempestlighting.com
In the interest of continuous product improvement, the information in this document is subject to change without
notice. Neither Tempest Lighting, Inc. nor its representatives or agents may be held liable for expense or injury
arising from it.
© Tempest Lighting Inc. All Rights Reserved
Tornado Enclosure User Manual
August, 2012
page 1
Table of Contents
1
Introduction ............................................................................................................................. 5
Dimensions ....................................................................................................................... 6
2
Installation ............................................................................................................................... 8
Planning ............................................................................................................................ 9
Mounting .......................................................................................................................... 9
Mounting the Projector in the Blizzard Enclosure .......................................................... 13
3
Wiring..................................................................................................................................... 16
One or Two Power Circuits? ........................................................................................... 17
Indoor Enclosures and HUSH Boxes with MiniDEC
TM
Control......................................... 18
MiniDEC Operation ......................................................................................................... 19
4
Outdoor Enclosures: Digital Enclosure Control ...................................................................... 20
DEC3.2 Schematic ........................................................................................................... 21
DEC3.2 Main Functions ................................................................................................... 22
Factory Settings – Basic Mode ........................................................................................ 22
Operating Modes ............................................................................................................ 23
DEC3.2 Control Parameters ............................................................................................ 24
DMX Connections ........................................................................................................... 25
DMX Terminations .......................................................................................................... 25
Remote Device Management (RDM) .............................................................................. 26
Power Connections ......................................................................................................... 27
Common Feed operation (factory default) ..................................................................... 28
Split Feed Operation ....................................................................................................... 29
Control Interface ............................................................................................................ 30
RDM Monitoring and Configuration ............................................................................... 33
Firmware Upgrade over RDM ......................................................................................... 34
5
Closing up the Enclosure ........................................................................................................ 35
6
Operation ............................................................................................................................... 36
7
Routine Maintenance............................................................................................................. 37
8
Troubleshooting ..................................................................................................................... 39
9
Limited Warranty ................................................................................................................... 40
Tempest Product Support............................................................................................... 41
Tornado Enclosure User Manual
page 2
Declaration of Conformity
This is to certify that the following products
6500.IN*
Baby Blizzard, force cooled, 230V
6505.IN*
Baby Blizzard, force cooled, 230V
6510.IN*
Baby Blizzard, DEC3 Enclosure Control, 230V
6515.IN*
Baby Blizzard, DEC3 Enclosure Control, 230V
6550.IN*
Blizzard, DEC3 Enclosure Control, 230V
6555.IN*
Blizzard Stretch, DEC3 Enclosure Control, 230V
6556.IN*
Blizzard X-Stretch, DEC3 Enclosure Control, 230V
6560.IN*
Blizzard, Force-cooled, 230V
6565.IN*
Blizzard Stretch, Force-cooled, 230V
6566.IN*
Blizzard X-Stretch, Force-cooled, 230V
* Part number may be followed by suffix H, I, or O
are in Compliance with the following standards or specifications according to the EMC Directive
89/336/EEC.
EN55015, EN61000-3-4, EN61000-3-5, EN61000-4-2, EN61000-4-3, EN61000-4-4, pr EN610004-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
and are in compliance with the following standards or specifications according to the Low
Voltage Directive 73/23/EEC.
EN60598-1
This declaration is made by the manufacturer
Tempest Lighting, Inc.
13110 Saticoy Street, Unit C
North Hollywood, CA 91605, USA
This declaration is based on tests that were conducted on the submitted samples of the above
mentioned products. Detailed results can be referred to test reports CET.TE200909 and
LVT.Te200909.
Dated: October 26th, 2009
Signature . . . . . . . . . . . . . .
Tempest Lighting Inc
Tornado Enclosure User Manual
page 3
This is to certify that the following products
6500.US Baby Blizzard, force cooled, 230V
6505.US Baby Blizzard, force cooled, 230V
6510.US Baby Blizzard, DEC3 Enclosure Control, 230V
6515.US Baby Blizzard, DEC3 Enclosure Control, 230V
6550.US
Blizzard, DEC3 Enclosure Control, 230V
6555.US
Blizzard Stretch, DEC3 Enclosure Control, 230V
6556.US
Blizzard X-Stretch, DEC3 Enclosure Control, 230V
6560.US
Blizzard, Force-cooled, 230V
6565.US
Blizzard Stretch, Force-cooled, 230V
6566.US
Blizzard X-Stretch, Force-cooled, 230V
Have been tested and approved to standards UL 508 (electrical) and UL 50 (environmental), as
NEMA 3R enclosures, for use in the United States and Canada.
This declaration is made by the manufacturer
Tempest Lighting, Inc.
13110 Saticoy Street, Unit C
North Hollywood, CA 91605, USA
This declaration is based on tests that were conducted on the submitted samples of the above
mentioned products.
Listing Report No. 3198609LAX-001a refers.
Dated: December 12th, 2010
Signature . . . . . . . . . . . . . .
Tempest Lighting Inc
Tempest Lighting, Inc.,
13110 Saticoy Street, North Hollywood, CA 91605, USA
www.tempestlighting.com [email protected]
t: +1 818 787 8984
f: +1 818 982 5582
Tornado Enclosure User Manual
page 4
1 Introduction
Products Covered by this Manual
6500
Baby Blizzard, Force-cooled
6505
Baby Blizzard, Force-cooled, Low noise
6510
Baby Blizzard, DEC 3.2
6515
Baby Blizzard, DEC3.2, Low noise
6550
Blizzard, DEC3.2 Enclosure Control
6555
Blizzard Stretch, DEC3.2 Enclosure Control *
6556
Blizzard X-Stretch, DEC3 Enclosure Control *
6560
Blizzard, Force-cooled
6565
Blizzard Stretch, Force-cooled*
6566
Blizzard X-Stretch, Force-cooled*
6590.BK
Blizzard Remote Fan/Soundproofing Kit
6590.BK2
Stretch Blizzard Remote Fan/Soundproofing Kit
Notes: Part # suffix .US for North American electrical systems
Part # suffix .IN for European 230V electrical systems
* North American versions are 208VAV as standard. 120VAC available to order
Using This Manual
Please read this manual in its entirety before starting work. All the information contained is
important, and should be read carefully before proceeding. Heed all warnings and advisories.
Icon Key:
 Valuable information
 Electrical Warning
 Safety Information
Tornado Enclosure User Manual
page 5
Dimensions
9” (23cm)
9” (23cm)
Baby Blizzard
Do not mount in
areas shaded gray.
”
12” (30.5cm)
15” (38.1cm)
22” (55.9cm)
26” (66cm)
Enclosure Weight: 29lb (13kg)
7” (18cm)
1.2 Maximum Projector Dimensions and Power
17” (43cm)
Maximum Projector Power:
Tornado Enclosure User Manual
17” (43cm)
Standard Versions:
700W
Low-Noise Versions:
350W
page 6
Blizzard and Stretch Blizzard
Maximum Projector Dimensions
Model #
Description
6550.US
Blizzard, DEC3 Enc losure Control, 120V
6550.IN
Blizzard, DEC3 Enc losure Control, 230V
6555.US
Blizzard S tretc h, DEC3 Enc losure Control, 120V
A
B
C
D
E
F
Weight
31"/79c m
33"/84c m
14"/36c m
10"/25c m
24"/61c m
26"/66c m
77lb/35kg
31"/79c m
33"/84c m
14"/36c m
10"/25c m
24"/61c m
26"/66c m
77lb/35kg
41"/104c m
45"/114c m
16"/41c m
12"/30c m
35"/89c m
26"/66c m
97lb/44kg
6555.IN
Blizzard S tretc h, DEC3 Enc losure Control, 230V
41"/104c m
45"/114c m
16"/41c m
12"/30c m
35"/89c m
26"/66c m
97lb/44kg
6556.US
Blizzard X-S tretc h, DEC3 Enc losure Control, 120V
49"/124c m
51"/130c m
16"/41c m
12"/30c m
42"/107c m
26"/66c m
106lb/48kg
106lb/48kg
6556.IN
Blizzard X-S tretc h, DEC3 Enc losure Control, 230V
49"/124c m
51"/130c m
16"/41c m
12"/30c m
42"/107c m
26"/66c m
6560.US
Blizzard, Forc e-c ooled, 120V
31"/79c m
33"/84c m
14"/36c m
10"/25c m
24"/61c m
26"/66c m
67lb/30kg
6560.IN
Blizzard, Forc e-c ooled, 230V
31"/79c m
33"/84c m
14"/36c m
10"/25c m
24"/61c m
26"/66c m
67lb/30kg
6565.US
Blizzard S tretc h, Forc e-c ooled, 120V
41"/104c m
45"/114c m
16"/41c m
12"/30c m
35"/89c m
26"/66c m
87lb/40kg
6565.IN
Blizzard S tretc h, Forc e-c ooled, 230V
41"/104c m
45"/114c m
16"/41c m
12"/30c m
35"/89c m
26"/66c m
87lb/40kg
6566.US
Blizzard X-S tretc h, Forc e-c ooled, 120V
49"/124c m
51"/130c m
16"/41c m
12"/30c m
42"/107c m
26"/66c m
96lb/47kg
6566.IN
Blizzard X-S tretc h, Forc e-c ooled, 230V
49"/124c m
51"/130c m
16"/41c m
12"/30c m
42"/107c m
26"/66c m
96lb/47kg
Maximum Projector Lamp Power – 1,300 Watts
Note – Draw Latch Clearance
Allow adequate clearance for all latches.
3”/75mm
Tornado Enclosure User Manual
page 7
2 Installation
Safety and Warnings
These warnings are for your protection. Failure to comply may result in serious injury or death.
Tempest Lighting, Inc. assumes no responsibility for damages or injury incurred by misuse or
mishandling of product.

Do not attempt to install or operate the enclosure before fully reading and understanding this
manual

Never allow anyone who has not read this manual to open the enclosure or perform
maintenance on the projector within.

Never leave the enclosure unattended when open.

Always make sure all bolts and latches are tight and safety locks are in place after performing
any form of maintenance on the unit.

Do not open any electrical boxes until power has been shut off to all supply lines to the
enclosure (including the one powering the projector).

Do not open the enclosure in wet weather.
Tornado Enclosure User Manual
page 8
Planning

Snow clearance:
MINIMUM
24”/60cm

Allow at least 24”/60cm clearance behind enclosure for access and ventilation.
24”/60cm

Enclosures with Digital Enclosure Control MUST be powered 24/7/365.

Warning: In most cases this installation cannot be safely completed by 1 person.
Mounting
The Blizzard enclosure is provided with a pair of Unistrut channels on the enclosure base, for
mounting to your structure. You may use standard Unistrut accessories, or purchase mounting kits
from Tempest Lighting – four kits are required per enclosure.

Each Enclosure must be mounted with FOUR points.

All mountings must be made using the two Unistrut channels on the base of the enclosure.

Tempest Lighting recommends the use of stainless steel mounting hardware.

IMPORTANT SAFETY NOTICE:
Installer must ensure that all mounting points are secure and conform to local safety
regulations. Tempest Lighting Inc. accepts no responsibility for damage or injury arising
from inappropriate or unsafe installation.
Tornado Enclosure User Manual
page 9
4900.MB Stainless Steel Unistrut channel nut, bolt and
washer. Four required per enclosure.
4900.MC Stainless Steel Unistrut channel nut, bolt and
pipe clamp, for pipes 1.5” (38mm) to 2” (50mm) OD.
Four required per enclosure.
4925.MC Stainless Steel Unistrut channel
nut, bolt and pipe clamp, for pipes 2”
(50mm) to 2.5” (64mm) OD. Four required
per enclosure.
Blizzard and Stretch Blizzard
Baby Blizzard
Suggested layout for mounting plate, using four
4900.MB kits.
Suggested layout for mounting plate, using four
4900.MB kits.
Side
15.0”/381mm
Front/Back
Mounting holes
0.532”/13mm, 4
places
Mounting holes
0.532”/13mm, 4
places
12.0”/305mm
10.0”/254mm
10.0”/254mm
Front/Back
Side
Mounting plate Guidelines
Use ¼” (6mm) or greater aluminum or stainless steel plate.
Do not obstruct wiring access.
Tornado Enclosure User Manual
page 10
2.4 Mounting Base-down and Base-up
All Blizzard enclosures are designed to be mounted base-down, on a solid structure, using Unistrut
mounting hardware. They may also be suspended from an overhang, ceiling or truss, using the same
hardware. Note that in this event it will be necessary to flip the projector image, since the projector
itself will be hanging upside-down. It’s important to be sure that the projector to be used supports this
feature (usually referred to as Ceiling Mount mode) before commencing installation.
Air vents for Base-up operation
When the Blizzard is used base-up, remove all air
vents, invert, and replace, to prevent rainwater
ingress.
Air vent, inverted for
base-up operation.
Tornado Enclosure User Manual
page 11
Drainage – Outdoor Enclosures Only
Drainage holes are provided in the top and bottom of the Blizzard enclosure. The holes in the cover
(top) are plugged with 10-32 screws and sealing washers.
Important – Drainage in base-up installations:




1
Remove the drainage plug screws from the cover
2
Replace in the corresponding holes in the base
Tornado Enclosure User Manual
page 12
Mounting the Projector in the Blizzard Enclosure

1.

If the Blizzard enclosure is
suspended from a ceiling or
overhang, this MUST be done by at
least two people.
Find the best location for the projector clamp(s), avoiding contact with access doors, vents and
control on the projector top.
2.
Make sure that all four Projector clamp threaded rods are screwed into the projector tray, and
locked in place with the locknut provided.
3.
Remove the projector clamp bars.
4.
Place the projector on the projector tray. If hanging the projector upside-down, one person
must hold the projector in position, while another person secures the projector clamp bars in
place.
5.
Replace the projector clamp bars and tighen the nuts above and below each end of each
projector clamp. DO NOT OVERTIGHTEN.
6.
Ensure that the projector is securely held before proceeding further.
Note: You can still adjust the projector pan and tilt by loosening the projector clamp, adjusting the
projector feet, then re-tightening the projector clamp to hold the projector firmly in place.
Note: BABY BLIZZARD is equipped with a load strap to secure the projector in place.
Projector
Clamp
Rubber
Pad
Threaded
Rod
Lock Nut
Projector
Tray
7.
Connect the projector power cable to the projector, and plug into the receptacle provided
inside the enclosure:
Note: International Versions (.IN part # suffix) are equipped with CE17 16amp outlets.
US Versions (.US part # suffix) have NEMA L6-20 outlets. Baby Blizzard has an IEC outlet.
8.
Connect projector signal cables
9.
Tie down any cables away from the exhaust fan
10. Power up the projector, check functions and adjust focus
11. Replace the enclosure cover
Tornado Enclosure User Manual
page 13
12. Make sure that all latches are securely fastened. The latches are adjustable, and should be
checked periodically, since the rubber seal may compress slightly over time.
13. For additional security, use a bolt or padlock to lock one or more of the latches, using the
security ring provided.
The latch tension is
adjusted by turning the
screw – clockwise to
tension, anti-clockwise to
loosen.
Tornado Enclosure User Manual

Insert a padlock in
one or more
security rings for
additional security.
page 14
Blizzard HUSH - Installing the Remote Fan Kit
Blizzard HUSH enclosures feature a remote fan that needs to be installed separately.
Blizzard HUSH enclosures are equipped with sound insulation inside the enclosure, plus a remote
fan kit.
1.
Attach a Hose adapter plate to the exhaust air location on the right side of the rear panel,
using the four 8-32 screws provided
2.
Thread the fan cable through the padded hose provided, using a fish tape
3.
Pass the fan cable through the hose adapter, and connect to the FAN terminals inside the
enclosure, passing the fan cable through the rubber grommet in the side of the electrical
cover.
4.
Attach one end of the hose to the hose adapter plate, using one of the clamps provided.
5.
Attach the other end to the Fan assembly in the same way, taking care not to crimp the fan
cable.
6.
Feed the hose through the wall or ceiling to a suitable location and screw in place. This will
normally be either in a large ceiling void, or in a remote location with access to outside air.
7.
DO NOT EXTEND the hose beyond its 25’/7.6m length. It has been tested at this length, and
extending it further may reduce cooling efficacy inside the enclosure.
Tornado Enclosure User Manual
page 15
3 Wiring

All electrical work must be carried out by a properly licensed electrician, in compliance
with local electrical standards. Failure to observe this point will void the factory
warranty for the Tempest Enclosure.
1
Switch off power to the branch circuit, carefully following lockout and tag-out procedures.
Failure to do so could cause serious injury or death.
2
You will need two electrical junction boxes, located within a short distance from the
enclosure, one for power, one for signal (usually CAT5). Use outdoor-rated flexible conduit
between the box and the enclosure.
3
AC and signal circuits must be wired in separate conduits.
120VAC,
or
208VAC
or
230VAC
Source
Heater
Fan
On
Relay
Temp
DMX
Lamp
ESC
OK
AC
Power
Signal
Flexible Conduit
The conduit entry holes accept US ½” conduit fittings, and
international 20-22mm (OD) conduit fittings.
Ø 0.875”
22.2mm
Tornado Enclosure User Manual
page 16
One or Two Power Circuits?
1
1 2
Single Feed
Split Feed
Tempest enclosures may be wired on single or double line supplies. On a single feed, both
enclosure and projector are permanently on. With a double-line supply, you can switch off the
projector when not in use, while the enclosure continues to protect it 24/7.
Indoor Enclosures & Hush Boxes – Single Feed
Enclosure and Projector must be rated for the same voltage.
Supply must be rated for projector current plus 10 watts.
Supply may be switched off when projector is not in use.
Indoor Enclosures & Hush Boxes – Split Feed
Enclosure power must be on when projector is on.
Projector power may be switched independently.
Enclosure (fan) power must be rated for 10 watts.
Projector power must be rated for the projector (see projector manual).
Projector and enclosure power must be same voltage.
Outdoor Enclosures - Single Feed
Enclosure and projector are permanently on.
Enclosure and Projector must be rated for the same voltage.
Supply must be rated for projector current plus 150 watts.
Supply must be permanently ON.
Outdoor Enclosures - Split feed
Enclosure power must be permanently on.
Projector power may be switched off.
Enclosure power must be rated for 1150 watts.
Projector power must be rated for the projector (see projector manual).
Projector and enclosure power must be same voltage.
Tornado Enclosure User Manual
page 17
Indoor Enclosures and HUSH Boxes with MiniDECTM Control
Remove the DEC cover inside the back of the enclosure.
Connect AC Wiring to MiniDEC Controller
Single Feed Operation
Split Feed Operation
NEUTRAL
GROUND
CUT LINK 2
PLACES FOR
SPLIT FEED
OPERATION
LIVE (Projector and Fan)
NEUTRAL
GROUND
LIVE (Fan)
LIVE (Projector)
Single Feed Wiring
Feed the controller with a single maintained supply. The enclosure should be powered 24/7. The projector must be
switched off when needed using the projector’s control system.
Twister ships configured for single feed wiring operation.
Split Feed Wiring
You may switch off the supply to the projector without interfering with the cooling fan operation. Connect feeder
wires as shown, AND CUT THE COPPER LINK ON THE MiniDEC BOARD IN TWO PLACES, AS SHOWN. Fan circuit
should be maintained 24/7.
Fan Wire (HUSH versions)
Connect the remote fan wire to the terminal marked FAN on the MiniDEC board.
Replace MiniDEC Cover
Tornado Enclosure User Manual
page 18
MiniDEC Operation
The MiniDEC controller monitors current going to the projector inside the Blizzard enclosure, and also heat inside
the enclosure. When it detects that the projector is on and/or the internal temperature is getting warm, MiniDEC
runs the enclosure fan.
MiniDEC Operation is completely automatic.
Summary:
MiniDEC detects current to projector >1.5amps
Fan on
MiniDEC detects current to projector drop below 1amp 5-minute fan cool-down, then fan off
MiniDEC detects temperature 25-35°C (77-95°F)
Pulse fan to change air every minute
MiniDEC detects temperature >35°C (95°F)
Switch Fan on
MiniDEC LED Indicator
For information and faultfinding there is an LED indicator on the MiniDEC control board. Function as follows:
LED OFF: MiniDEC is not powered, or power supply has failed.
LED ON: MiniDEC is functioning normally and projector power is < 1amp
LED blinking slowly: Projector Power > 1 amp, fan on
LED blinking rapidly: Projector power has dropped below 1amp. Fan is running for five minutes
for five-minute cool-down
Tornado Enclosure User Manual
page 19
4 Outdoor Enclosures: Digital Enclosure Control
Heater
Fan
On
Relay
Temp
DMX
Lamp
ESC
OK
DEC3.2TM – that’s Digital Enclosure Control, third Generation, revision 2 – is the brain of your
Tempest enclosure. It will maintain the internal environment in a comfortable temperature and
humidity range, and prevent condensation – the real killer of outdoor equipment. DEC3.2
monitors internal temperature, humidity and lamp current at all times, and uses this information
to control the enclosure’s lamp relay, fan(s) and heater(s). It can report back over the DMX cable,
using the RDM protocol (Remote Device Management) if desired.
Tornado Enclosure User Manual
page 20
DEC3.2 Schematic
Enclosure Feed
(always ON)
Split Feed
(optional)
Cut links for
split feed

X
SENSOR
X
AC HEATER(S)
AC FAN(S)
IN
OUT
IN
OUT
DMX/RDM – RS485
(OPTIONAL)
Tornado Enclosure User Manual
page 21
DEC3.2 Main Functions
1
Sense current to projector (lamp on/off)
2
Record lamp hours
3
Monitor temperature and humidity inside Enclosure
4
Maintain temperature at safe operating level
5
Prevent condensation
6
Isolate projector in case of unsafe temperature
7
Report status over RDM
8
(Optional) remote projector relay control over DMX
DEC3.2’s function depends on whether the projector lamp is on or off:
Lamp ON
•
Fans on
•
Heater off
•
Monitor temperature and humidity
•
Isolate projector power if temperature exceeds max limit
•
Record lamp hours
Lamp OFF
•
Monitor temperature and humidity
o
If temp below bottom setting, run heater
o
If temp above top setting, run fans
o
If temp in normal range, run anti-condensation routine
Factory Settings – Basic Mode
In most applications, DEC3.2 will operate correctly with its factory default settings, in Basic
operating mode.
You do not need to do anything. Please skip to the Power Connections section below.
If your needs are more complex, read on.
Tornado Enclosure User Manual
page 22
Operating Modes
DEC3.2 may operate in one of four modes, set using either the Front Panel or by RDM control. In
all configurations, the projector inside the enclosure may also be an RDM enabled device.
Basic Mode (factory setting)
•
Standard temperature settings
•
DMX and RDM disabled
•
Best for standalone operation
Monitor Mode
•
As Basic mode, plus:
•
RDM status reporting
•
RDM configuration – settings may be changed remotely or at the enclosure control
panel
•
DEC3.2 does not require a DMX signal to operate
Control Mode
•
As Basic mode, plus:
•
Enclosure functions as a 1-channel DMX device, with remote control of the lamp relay
o
DMX level > 75% enables normal relay operation (normally ON)
o
DMX level < 25% disables normal relay operation (relay turns OFF)
o
This allows you to force a hard reset of the lamp relay in the event of a
projector malfunction
•
Control mode is recommended for show control applications, but can be risky in live
show operation.
Service Mode
•
For trained service personnel only
•
Normal operation is suspended and the enclosure functions as a 3-channel DMX
device:
•
o
Lamp Relay
o
Fans
o
Heater
Service mode is ONLY for troubleshooting – DO NOT use Service mode for normal
operation.
Tornado Enclosure User Manual
page 23
DEC3.2 Control Parameters
Temperature Settings:
Lamp relay open – Lamp OFF
Cutoff Temp
Range 0-15°C, Default = 15°C
Over-temperature Warning, Fans on
Top Set
Range 35-45°C, Default = 40°C
Normal operation
Bottom Set
Range 0-10°C, Default = 10°C
Under-temperature Warning, Heater on, Fans off
Notes:
1
The Cutoff Temperature is an incremental temperature range above the Top
Set temperature. So the default 15°C cutoff and 40°C Top Set means that the
lamp relay will open when a temperature of 55°C is reached.
2
In moving light enclosures the temperature sensor is located in the exhaust
airflow. Temperatures shown may be higher than those around the projector.
3
We recommend using the factory default settings for several weeks or
months before making any changes. In most cases they will not be necessary.
Humidity
Range 50-90%, Default 80%
The threshold at which incoming air is more aggressively heated to remove
moisture.
DMX Address
Range 001-510, Default 001
Sets the DMX address for the lamp relay control.
Fan Overrun
Range 1-15 minutes, Default 5 minutes
Time that the enclosure fan(s) will run after the projector/projector lamp is turned
off.
Temp C/F
Display Degrees Celsius or Fahrenheit. Default Celsius
Note that temperature settings must always be Celsius.
Lamp Hours
Default 0000
Counts lamp hours – you must reset to zero when changing lamps.
Tornado Enclosure User Manual
page 24
DMX Connections
DMX refers to USITT DMX512, a commonly used control protocol in the entertainment industry,
running over RS485. Consult USITT DMX installation guidelines when laying out a system, or
employ a qualified DMX system integrator.
A DMX network will be required if:
a)
The projector inside the enclosure requires a DMX control signal
b)
You wish to monitor the enclosure using RDM
c)
You wish to control the enclosure lamp relay over DMX
DMX Terminations
Note: DMX will not normally be used in projector installations.
Pinout: (1) Ground, (2) Data -, (3) Data +.
DMX Connectors:
❹
❸ ❷
❶
1
DMX IN from network
2
DMX OUT to projector (or to network
if not controlling projector)
DMX OUT to
next DMX device
DMX IN from
outside world
3
DMX IN from projector
4
DMX OUT to network
If the enclosed projector does not use
DMX, then connector (2) on the controller
is DMX OUT for the enclosure.
DMX Line Terminations
DMX cable runs must be terminated at
the far end of the cable run with a
termination resistor as detailed in the
DMX512 standard.
DMX terminal Pinout Detail
The individual projectors installed inside the
Tempest enclosures must NOT be terminated.
+ ‒ G
DMX OUT
+ ‒ G
DMX IN
LIGHT
+ ‒ G
DMX OUT
LIGHT
Tornado Enclosure User Manual
+ ‒ G
DMX IN
It is recommended that any line termination is
done using the 3-pin terminal connector fitted
to the DEC3.2 control circuit board.
page 25
Remote Device Management (RDM)
RDM refers to ANSI E1.20, a control protocol in the entertainment industry used for device
configuration and monitoring, and essentially an “extension” of DMX512. The use of RDM is
optional, and uses the same RS485 cable connection as DMX512, so no additional wiring is
required. The user must ensure that any DMX splitters or other routing devices used are rated for
RDM as well as DMX use. Tempest strongly recommends working with a qualified RDM system
integrator when designing an RDM network. Go to www.tempestlighting.com for contact
information.
RDM and RDM Integration
DEC3.2’s RDM implementation allows system integrators to set up remote control and status
monitoring of all attributes and sensors, including:
•
Relative Humidity
•
Air Temperature
•
PCB Temperature
•
Lamp Current
•
Elapsed Lamp Hours
•
Lamp Relay Status
•
Fan Relay Status
•
Heater Relay Status
•
DMX Status
•
DMX Start Address
•
DMX Personality (RDM Mode)
•
Device Type
•
Device Label
•
Software Version
RDM is an effective and powerful tool for commissioning and monitoring an
installation, particularly in large systems. For further guidance, please
consult a qualified RDM system integrator. Tempest Lighting warrants
DEC3.2 to be compliant with the RDM standard, but is not an RDM systems integrator, and can
offer only basic guidance on RDM utilization.
Tornado Enclosure User Manual
page 26
Power Connections
IMPORTANT
Tempest enclosures are supplied for either 120VAC 50/60Hz, or 208-240VAC,
50/60Hz operation. Tempest Lighting is not liable for damage or failure to
operate correctly due to connection to an inappropriate electrical supply.
ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A QUALIFIED
ELECTRICIAN, IN COMPLIANCE WITH LOCAL NORMS AND STANDARDS.
Cut here for split
supply operation
Fan 1
Projector
receptacle
Fan 2
Heater(s)
Projector Supply
(split mode)
Enclosure Supply
(100-250VAC 50/60Hz)
Note: wire colors may differ depending on applicable electrical standards. European wire colors are shown here.
IMPORTANT: MAKE SURE THAT TERMINAL SCREWS ARE FULLY BACKED OUT BEFORE INSERTING WIRES.
Tornado Enclosure User Manual
page 27
Common Feed operation (factory default)
1
Enclosure and projector share the same electrical circuit.
Circuit must be powered ON 24/7.
Connect incoming power to the terminals labeled MAINS:
(E) Earth/Ground
(L) Live
(N) Neutral
E L N
Tornado Enclosure User Manual
page 28
Split Feed Operation
Enclosure and projector have separate electrical feeds.
The enclosure circuit must be powered ON 24/7.
When splitting the feeders, both circuits should be on the same phase and at the same supply
voltage.
1
Use a wire cutter to cut the copper links on the
DEC3.2 board in four places.
2
Connect incoming ENCLOSURE power to the
terminals labeled MAINS. This supply MUST be
maintained 24/7.
(E) Earth/Ground
3
E L N
Projector
Power
E L N
Enclosure
Power
Tornado Enclosure User Manual
(L) Live
(N) Neutral
Connect incoming PROJECTOR power to the
terminals labeled SPLIT:
(E) Earth/Ground
(L) Live
(N) Neutral
page 29
Control Interface
LED Indicators
Heater
SHORT PULSES
Lamp is off
(green)
Temperature is normal
Heater is pulsing to prevent condensation
ON (Green)
Temperature is LOW
Heater is ON
OFF
Lamp is on
Temperature is normal
Fan
PULSES
Lamp is off
(green)
Temperature is normal
Fan is moving small amount of air to prevent
condensation
ON (Green)
Lamp is ON, or
Temperature is HIGH
Fan is cooling enclosure
Lamp On
ON (Green)
Current sensing shows lamp is ON
Lamp hour counter is running
OFF
Current sensing shows lamp is OFF
Lamp hour counter is not running
Lamp Relay
ON (Green)
Lamp relay is closed (normal)
Projector power receptacle is energized
OFF
Lamp relay open (due to overtemp or DMX
control). Projector is electrically isolated
Temp
ON (Green)
Temperature is in normal range
ON (Red)
Temperature is above Top setting, or below
bottom setting
FLASHING (Red)
Temperature is above Cutoff level
Projector power is isolated
DMX
OFF
DEC3.2 is in BASIC Mode – DMX not used
ON (GREEN)
Good DMX or RDM data packet received.
ON (RED)
Control Mode: DMX Fail
Monitor Mode: No RDM information being
received (this is normal)
Tornado Enclosure User Manual
page 30
Control Interface Operation
The Control Interface is normally LOCKED.
To UNLOCK, hold ESC and OK together for 5 seconds.
You are now in the CONTROL MENU
Use   to scroll up and down the menu.
Press OK to enter a menu item
Use   to set the item parameter, or to scroll to the next menu level.
Use ESC to go BACK, and OK to confirm settings ( 
).
To LOCK, hold ESC for 5 seconds.
Menu will time out after ten minutes.
Control Menu
SET DMX ADDRESS (in Monitor, DMX or Service modes)
Select a DMX starting address in the range 001 to 510
1 – Lamp Relay
In Service Mode an addition two slots are available
2 – Fan Relay
3 – Heater Relay
Note that the DMX control is designed using a SAFETY pile-on Logic. So the DMX input can
only override automatic settings in a safe manner.
SET DMX MODE
From the Front Panel, this menu item allows the user to check (and if necessary change)
the RDM mode.
BASIC
Standalone operation, no DMX/RDM (factory default)
MONITOR
Standalone, plus support for RDM remote configuration and monitoring
CONTROL
Monitor, plus use of a single DMX address to control Lamp relay
SERVICE
Monitor, plus use of three DMX slots to control Lamp, heater and fan
Important: Please ensure that the DEC3.2 is NOT left in Service Mode.
Tornado Enclosure User Manual
page 31
STATUS DISPLAY
View current status information, using the arrow keys to scroll through:
a)
Humidity – relative humidity in %
b)
Firmware version
c)
Lamp Hours elapsed
d)
Current being drawn by projector/light projector, in amps
e)
PCB temperature
f)
Air temperature, in degrees C or F
RESET LAMP HOURS
Reset each time you change the lamp in the projector/projector.
Make this a part of your maintenance instructions.
HUMIDITY SET
The humidity level above which the heater kicks in to remove humidity from incoming air
(default 80%, permissible range 50-90%).
SET FAN OVERRUN
Fan will keep running after projector lamp is sensed to change from ON to OFF, to allow
the lamp to cool safely.
Default is 5 minutes, permissible range 0-15 minutes.
SET TEMP RANGES
Set three temperature trigger points for Bottom, Top and Cutoff temperatures, in °C.
TEMP BOTTOM
(default 10°C, permissible range 0-10°C).
TEMP TOP
(default 40°C, permissible range 35-45°C).
TEMP CUTOFF
(default 15°C, permissible range 0-15°C).
SET TEMP C OR F
Choose to display temperature values in Celsius or Fahrenheit (default Celsius)
Note that temperature settings must be entered in Celsius.
Tornado Enclosure User Manual
page 32
RDM Monitoring and Configuration
All the features accessible over the DEC3.2 control panel are also available over RDM. Just how
this information is displayed will depend on the RDM interface used. These screen shots were
taken running the GetSet program in Windows 7, and connecting to a DEC3.2 controller using a
RDM TRI MK1 interface, both from JESE Ltd (www.jese.co.uk).
This view shows a single
DEC3.2 test unit that has been
correctly discovered and
labeled by the GetSet software
suite, and a log of RDM
messages.
This RDM interface provides a
graphic view of the various
sensor functions supported by
DEC3.2
Important:
Check that your RDM interface
vendor has tested his interface
with Tempest enclosures and
all other RDM devices you plan
to use on the same network.
Tornado Enclosure User Manual
page 33
Firmware Upgrade over RDM
DEC3.2 firmware
is fieldupgradeable,
using RDM. A field
upgrade requires a
JESE RDM TRI MK1
interface to be
connected to the
DMX network on
which the DEC3.2
is located, and the
use of JESE GetSet
software.
Tornado Enclosure User Manual
page 34
5 Closing up the Enclosure
1
Check all electrical connections
2
Clear the enclosure and projector of all dust
and debris.
3
Check that the power switch on the projector
is in the ON position.
4
Complete all signal connections, following
projector manufacturer’s instructions.

5
Test projector
6
Tie down cables so that they will not touch
heaters or fans.
7
Replace the cover on the Blizzard base. This
may require two people.

Congratulations! Your system is now ready for use.
Tornado Enclosure User Manual
page 35
6 Operation

Enclosure must receive power at all times. It is an active, climate-controlled enclosure, and will
not provide proper protection for the projector inside if it is not connected to AC power.

Unless the enclosure or projector is undergoing routine maintenance, the globe should be in
place and locked down at all times.

Only authorized personnel should open the enclosure (see maintenance warnings in the next
section).

If the ambient temperature is high enough, the over-temperature shutdown feature may engage
and temporarily cut off power to the projector. Once the temperature reaches acceptable levels,
power will be automatically restored.
Tornado Enclosure User Manual
page 36
7 Routine Maintenance
It is very important to perform routine maintenance on both the enclosure and the projector
within. Failure to do so may reduce lifetime for both the enclosure and the projector.
Note
Maintenance schedules depend on location and environment. The times given here are general
guidelines for you to use. It is up to you to judge whether maintenance should be done more
often. We do advise doing these tasks no less often than mentioned here.
Safety

Although maintenance can be performed while the enclosure is powered, it is safer to carry it out
with the power disconnected with proper lockout and tag out procedures followed.

Be aware that once the enclosure has had power applied to it, the heater will get hot and the fans
will start to turn. Make sure that your hands are clear of these areas before applying power to
the enclosure.

Only authorized personnel should perform maintenance on the enclosure or projector

Do not service the unit in the rain or other adverse weather conditions (snow, sleet, high winds,
etc.).

Be aware that the cover is a large object that can be awkward to handle, especially when standing
on a ladder or scaffolding.
Inspection Checklist: - Every Three (3) Months

All weep (drain) holes should be clear

All vents should be free of debris

Enclosure should be free of debris both inside and out

Bolts should be tight

Lid seal should be in good condition, Check seal inside and out for gaps.

Window should not be cracked

Fans should be moving (it will be necessary to have the power on to check this), with
corresponding indicator status
Except for the last two items (concerning globe and fan), problems with any of these things can
be easily remedied. Contact technical support for problems with the last two items.
Tornado Enclosure User Manual
page 37
Air Filters - Every Three (3) Months
The air filters should be removed and cleaned on a regular basis. To remove filters, pull them
directly out of the cowls. The filters can be cleaned by running water from a hose and do not
require any special solution.
To reinstall, push filter back into place.
Projector
Review the manufacturer's instructions for proper maintenance of your projector. Remember, the
enclosure simply protects the projector and is not a substitute for regular maintenance.
Tornado Enclosure User Manual
page 38
8 Troubleshooting
This is a guide to the general symptoms, problems, and solutions that may occur during the
lifetime of your enclosure. However, it is important to remember that problems may occur within
the projector itself and these must also be considered.
Projector does not have power.
Check power switch of projector. (Note: the following actions should be performed by a licensed
electrician) If power is on, check wiring (including metering supply voltages, enclosure must
receive 200-240VAC to operate properly). If LEDs on the DEC3 control panel controller are lit,
check the Lamp Relay LED. If it is on, meter power in receptacle. If no power is present at the
receptacle, contact technical support.
In case of over-temperature, the power disconnection is an intended function of the enclosure
and is for the protection of the projector, which is not meant to operate in extreme conditions. In
this case, the problem will only continue until temperature drops to acceptable levels. It is
possible that the air intake or exhaust has become clogged, leading to higher temperatures
inside the enclosure. Make sure that these areas are clear, the filters are clean, and the fans are
working properly.
Projector turns on and off repeatedly
Check that vent areas and airways are clear. If so, ambient temperature may be too high (see
over-temperature note above) or projector may have internal problem.
Fans are not spinning.
Fan cords may have become disconnected. Check connections between fan and cord.
Fans may be obstructed. Shut off power to enclosure and check for obstructions. Turn power
back on to see if fans will start spinning. If fans do not turn and display on temperature
controller is lit, contact technical support. If fans do not turn display is not lit, then enclosure is
not receiving power. Turn off all power and check wiring. If the wiring is correct, contact
technical support.
Excessive debris in unit.
Filter may not be fully pushed into cowl. Check for gaps.
Excessive water in enclosure.
Weep (drain) holes may be clogged. Clear them.
Latches do not latch properly.
Check for obstructions.
Tornado Enclosure User Manual
page 39
9 Limited Warranty
INSPECTION/WARRANTY/RETURNS.
A. Customer, at its sole expense, shall inspect all Goods promptly upon receipt and accept all Goods that
conform to the specifications or catalog. All claims for any alleged defect in or failure of the Goods or Seller's
performance to conform to the Contract, capable of discovery upon reasonable inspection, must be set forth
in a written rejection notice detailing the alleged non-conformity, and be received by Seller within thirty (30)
calendar days of Customer's receipt of the Goods. Failure by Customer to notify Seller of the alleged nonconformity within thirty (30) days will be conclusive proof that the Goods have been received by Customer
without defects or damage, and in the quantities specified on the bill of lading and shall constitute an
irrevocable acceptance of the Goods and a waiver of any such claim in connection with the Goods.
B. Seller warrants to Customer only that the Goods will be free from defects in material and workmanship at
the time of delivery and, subject to the exceptions and conditions set forth below, for the following period
(the "Warranty Period"): twelve (12) months from the date of shipment by Seller. Seller may provide additional
years of warranty coverage beyond 12 month, at the rate of 2.5% of the net sale price per year, up to a total
of four additional years’ coverage beyond the standard 12 month warranty period. Seller will remedy a defect
as set forth in paragraph 7 D, below, (the "Warranty"). The Warranty is subject to each of the following
exceptions and conditions:
1. Customer must promptly (and in all events within the Warranty Period) notify Seller of any alleged defect in
a written notice (the "Notice") which shall set forth the quantity, catalog number, finish, original purchase
order number, Seller's invoice number on which Goods were originally billed and a statement of the alleged
defect, along with digital photographs showing such defects where feasible.
2. The Warranty shall not apply: (i) to any claimed defect that was capable of discovery upon reasonable
inspection and deemed to be waived under paragraph A, above; (ii) to any Goods that have been subject to
misuse, abnormal service or handling, or altered or modified in design or construction; (iii) to any Goods
repaired or serviced by any person other than Seller's authorized service personnel or to Goods installed
other than according to installation instructions, or (iv) with respect to normal wear and tear.
3. Seller makes no Warranty with respect to parts or components that are not the product of Seller, and
specifically makes no warranty whatsoever for equipment housed inside enclosure products manufactured by
Seller.
4. The Warranty is Seller's exclusive warranty with respect to the Goods. Seller makes no warranties,
guarantees or representations, express or implied, to Customer except as set forth in this section. ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR OF FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE HEREBY EXCLUDED AND
DISCLAIMED.
C. Seller will accept the return of Goods properly rejected under paragraph A, above, or as to which Notice of
an alleged breach of Warranty has been timely given and such Goods may be returned to Seller, freight
prepaid, but only upon Customer's receipt of Seller's written return material authorization ("RMA") and
shipping instructions. The RMA shall be void if the Goods are not received within 45 days after issuance of
the RMA. No deduction or credit in respect of any rejected or returned Goods shall be taken until Customer
has received Seller's further written deduction or credit/authorization following Seller's inspection to confirm
nonconformity or defect. Seller will charge to Customer any and all costs incurred by Seller in connection
with the handling, shipping, inspection and disposition of any returned Goods that are determined by Seller
not to have been nonconforming upon Delivery or as to which the warranty hereunder is not applicable.
D. UPON ANY PROPER RETURN PURSUANT TO PARAGRAPH C, ABOVE, WHETHER IN CONNECTION WITH A
REJECTION OF GOODS OR AN ALLEGED BREACH OF WARRANTY AND BASED UPON THE CONDITIONS SET
FORTH IN THIS PARAGRAPH 7, SELLER AGREES THAT IT WILL, AS THE SOLE AND EXCLUSIVE REMEDY UNDER
THE CONTRACT OR OTHERWISE, FOR ANY NONCONFORMITY OR BREACH OF WARRANTY, AND AT SELLER'S
SOLE ELECTION: (i) REPAIR SUCH GOODS; OR (ii) REPLACE SUCH GOODS.
Tornado Enclosure User Manual
page 40
Tempest Product Support
Step 1:
First contact your local Dealer for support. Your dealer is best placed to respond
quickly to your needs.
Step 2:
If your dealer is unable to answer your questions please contact
Tempest Lighting
13110 Saticoy Street
North Hollywood, CA 91605, USA
Tel
+1 818 787 8984
Fax
+1 818 982 5582
[email protected]
Visit our web site for current information and specifications:
www.tempestlighting.com
Tornado Enclosure User Manual
page 41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
