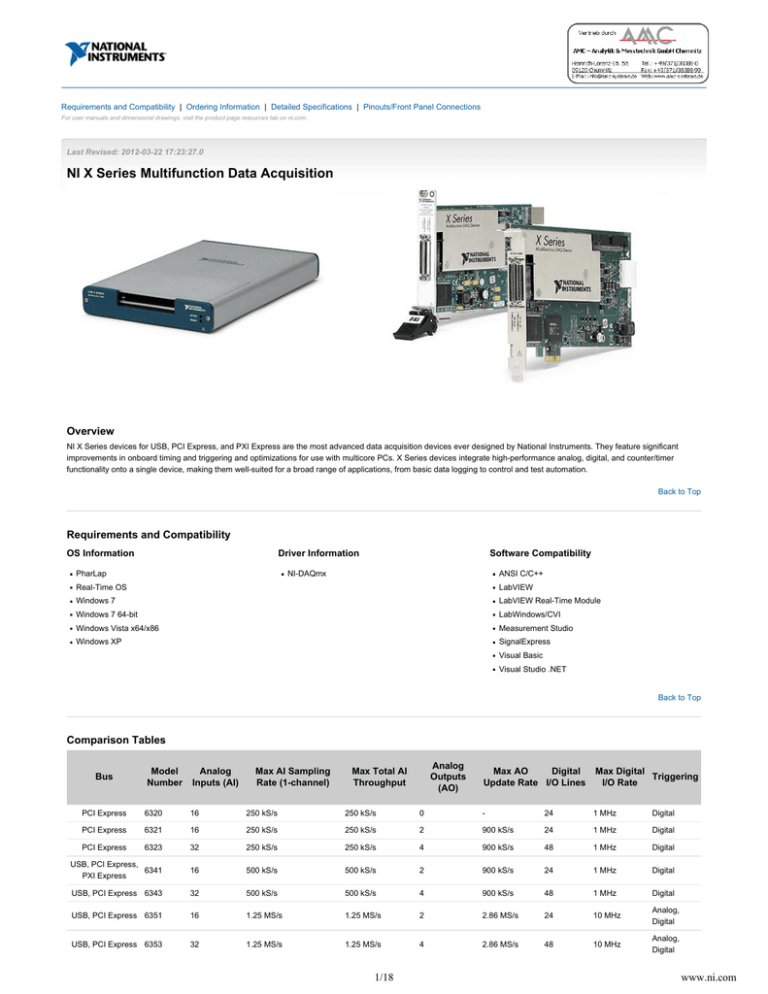

NI X Series Multifunction Data Acquisition

Technical Sales

(866) 531-6285 [email protected]

Overview

NI X Series devices for USB, PCI Express, and PXI Express are the most advanced data acquisition devices ever designed by National Instruments. They feature significant improvements in onboard timing and triggering and optimizations for use with multicore PCs. X Series devices integrate high-performance analog, digital, and counter/timer functionality onto a single device, making them well-suited for a broad range of applications, from basic data logging to control and test automation.

Back to Top

Requirements and Compatibility

OS Information

PharLap

Real-Time OS

Windows 7

Windows 7 64-bit

Windows Vista x64/x86

Windows XP

Driver Information

NI-DAQmx

Software Compatibility

ANSI C/C++

LabVIEW

LabVIEW Real-Time Module

LabWindows/CVI

Measurement Studio

SignalExpress

Visual Basic

Visual Studio .NET

Back to Top

Comparison Tables

Bus

Model

Number

Analog

Inputs (AI)

Max AI Sampling

Rate (1-channel)

PCI Express

PCI Express

6320

6321

PCI Express 6323

USB, PCI Express,

PXI Express

6341

USB, PCI Express 6343

USB, PCI Express 6351

USB, PCI Express 6353

16

16

32

16

32

16

32

250 kS/s

250 kS/s

250 kS/s

500 kS/s

500 kS/s

1.25 MS/s

1.25 MS/s

Max Total AI

Throughput

250 kS/s

250 kS/s

250 kS/s

500 kS/s

500 kS/s

1.25 MS/s

1.25 MS/s

2

4

0

2

4

2

4

Analog

Outputs

(AO)

Max AO

Update Rate

Digital

I/O Lines

Max Digital

I/O Rate

Triggering

-

900 kS/s

900 kS/s

900 kS/s

900 kS/s

2.86 MS/s

2.86 MS/s

24

24

48

24

48

24

48

1 MHz

1 MHz

1 MHz

1 MHz

1 MHz

10 MHz

10 MHz

Digital

Digital

Digital

Digital

Digital

Analog,

Digital

Analog,

Digital

1/18 www.ni.com

Bus

USB, PCI Express,

PXI Express

6361

USB, PCI Express,

PXI Express

6363

USB, PXI Express 6356

PXI Express

Model

Number

Analog

Inputs (AI)

Max AI Sampling

Rate (1-channel)

6358

USB, PXI Express 6366

PXI Express 6368

16 2 MS/s

32 2 MS/s

8 simultaneous

1.25 MS/s/channel

16 simultaneous

1.25 MS/s/channel

8 simultaneous

2 MS/s/channel

16 simultaneous

2 MS/s/channel

Max Total AI

Throughput

2 MS/s

2 MS/s

10 MS/s

20 MS/s

16 MS/s

32 MS/s

2

4

2

4

2

4

Analog

Outputs

(AO)

Max AO

Update Rate

Digital

I/O Lines

Max Digital

I/O Rate

Triggering

2.86 MS/s

2.86 MS/s

3.33 MS/s

3.33 MS/s

3.33 MS/s

3.33 MS/s

24

48

24

48

24

48

10 MHz

10 MHz

10 MHz

10 MHz

10 MHz

10 MHz

Analog,

Digital

Analog,

Digital

Analog,

Digital

Analog,

Digital

Analog,

Digital

Analog,

Digital

Back to Top

Application and Technology

NI-STC3 Timing and Synchronization Technology

NI X Series multifunction DAQ devices include the NI-STC3, an ASIC designed by NI for advanced timing, triggering, and synchronization. This technology includes the following:

Four counter/timers with more functionality than ever before, such as the ability to create a finite pulse train with a single counter

A 100 MHz timebase for faster triggering response and more precise generation of analog and digital sample clocks

Independent analog and digital timing engines

Retriggerable measurement tasks for analog I/O, digital I/O, and counter/timers

Native PCI Express Interface

In contrast to a PCI-to-PCI Express bridge chip, which limits the bandwidth of the device to that of the PCI bus and introduces latency, PCI Express and PXI Express X Series devices use a native x1 PCI Express interface that provides up to 250 MB/s in each direction. National Instruments has also optimized this interface for low latency in single-point control applications. You can use X Series PCI Express boards in any PCI Express slot from x1 up to x16.

NI Signal Streaming

USB X Series devices include patented NI Signal Streaming, a technology that uses message-based instructions and device-side intelligence to ensure high-speed, bidirectional data transfer over USB. With USB X Series, you can concurrently transfer analog, digital, and counter data in both directions. The total device throughput over USB is

PC-dependent; on some systems, up to 32 MB/s sustained transfers are possible.

Improved Mechanical Enclosure

USB X Series devices introduce a redesigned, extruded aluminum enclosure with an easy-access magnetic lid. This lid keeps signal wiring secured and shielded and can be opened easily when needed. The underside of the lid has a device-specific pinout label so that you can quickly determine the corresponding screw terminals for a given channel.

The enclosure also includes a lockable USB port to prevent accidental removal during operation and a security slot that can be used with ordinary laptop locks to secure the device to a desk or workstation.

Board-Only Form Factor for OEM Applications

USB X Series devices are also available in a board-only form factor for high-volume OEM applications. These devices include standard 34-pin and 50-pin IDC connectors for easy mating to a daughter board, which can contain custom signal conditioning and connectivity.

Software Enhancements

2/18 www.ni.com

PCI Express and PXI Express X Series devices are compatible with NI-DAQmx Version 9.0 or later driver software. USB X Series devices require NI-DAQmx Version 9.2 or later.

More than a basic driver, NI-DAQmx includes the NI Measurement & Automation Explorer (MAX) configuration utility, the DAQ Assistant for rapid development of basic applications, and hundreds of example programs for NI LabVIEW and text-based languages. NI-DAQmx also includes LabVIEW SignalExpress LE basic data-logging software.

NI-DAQmx 9.0 introduces the ability to synchronize multiple PCI Express or PXI Express X Series devices with a single NI-DAQmx task, which previously took several tasks and manual routing of clocks and triggers. This version also introduces the fastest, easiest way to acquire measurement data to disk in the Technical Data Management Streaming

(TDMS) format with the new Configure Logging VI. NI-DAQmx 9.2 introduces the ability to log acquired data to TDMS files within the DAQ Assistant Express VI.

With NI-DAQmx and intuitive LabVIEW graphical programming, you can easily develop applications that take advantage of today's multicore systems so you can perform acquisition, signal processing, and data logging on different CPU cores.

Simultaneous Sampling X Series

Some X Series devices for USB and PXI Express offer simultaneous sampling, with the same channel counts and connectivity as multiplexed devices.

Unlike multiplexed devices that reduce sampling rates as you add more channels, you can use simultaneous sampling devices to maintain sampling rates as you expand the number of channels. Simultaneous sampling X Series devices are available with up to 16 differential channels per device, and with PXI Express, you can sample more than 200 channels simultaneously.

Simultaneous X Series devices for USB include 32 or 64 MS onboard memory to ensure the transfer of finite acquisitions, even in the presence of heavy USB traffic.

Applications

Acquisition and Visualization

X Series devices include analog, digital, and counter circuitry for the most common types of static and waveform measurements. With LabVIEW, you can easily acquire the data and view it on a variety of graphs and displays. You can use configuration-based wizards called Express VIs to take measurements and perform signal processing with minimal programming.

Data Logging

Whether you are validating a new hardware design, monitoring conditions on a factory floor, or recording temperature changes during a scientific experiment, you need to take measurements, visualize your data, and often log it to disk. With X Series multifunction DAQ, you can develop a user-defined measurement system by using intuitive graphical programming software and incorporating the exact visualization, analysis, and data-logging capabilities your application requires.

Control Systems

If you need to control the temperature of a room, the speed of a motor, or the pressure of hydraulic fluids, you can use X Series DAQ hardware to connect sensors and actuators to your computer and build the control system that meets your exact application needs. The low-latency PCI Express bus improves single-point I/O performance, and with

LabVIEW software and NI-DAQmx driver software, you can easily take sensor measurements, compare values to a setpoint, and update output signals. X Series devices also have four counter/timers for performing quadrature encoder measurements, pulse-width modulation, pulse train generation, frequency measurements, and much more, making them ideal for basic motor control.

Due to the inherent higher latency of USB as compared to PCI Express, National Instruments recommends that you use PCI Express or PXI Express X Series devices for applications that require single-point control or deterministic operation.

Test Automation

X Series DAQ hardware provides analog inputs, analog outputs, hardware-timed digital I/O, and four counter/timers on a single device, making it a cost-effective option for basic device under test characterization and test automation. With NI-DAQmx software, you can easily synchronize acquisition or generation on multiple subsystems, such as an analog input and analog output channel. In addition, you can easily synchronize two or more X Series devices for further expansion by using a RTSI cable for PCI Express devices or over the PXI Express backplane for PXI Express modules. It is possible to synchronize two or more USB X Series devices by exporting sample or reference clocks from the master device to the slave device, and using external wiring.

Compatible Accessories

PCI Express and PXI Express X Series devices use either a single or dual-stack 68-pin VHDCI female connector, depending on the number of analog and digital channels on the device. National Instruments offers several options for cables, from 0.5 m to 10 m and from low-cost to high-performance with shielding. Connector blocks are available with screw terminal, BNC, or custom connector types.

For measurements requiring signal conditioning, you can use X Series with SCXI signal conditioning modules.

You can purchase DIN-rail or panel mount kits for USB X Series devices as well as replacement power supplies and latching USB cables. See the model page for ordering information.

Upgrading

Because X Series DAQ devices use the same NI-DAQmx driver software as NI M Series DAQ devices, upgrading is easy. In addition, PCI Express and PXI Express X Series devices use the same VHDCI connector as PCI and PXI M Series. You can reuse your code and preserve your investment in accessories. The pinouts for X Series devices are backward-compatible with M Series devices.

Back to Top

Ordering Information

For a complete list of accessories, visit the product page on ni.com.

Part Number Products

NI PCIe-6341

NI PCIe-6341

Requires: 1 Cables , 1 Connector Blocks ;

781046-01

Recommended Accessories

Cables: Shielded - SHC68-68-EPM Cable (2m)

**Also Available: [Unshielded]

Connector Blocks: Spring-Screw_Terminals - SCB-68A

**Also Available: [BNC_Terminals]

NI PXIe-6341

3/18

Part Number

192061-02

782536-01

www.ni.com

NI PXIe-6341

Requires: 1 Cable , 1 Connector Block ;

781052-01 Cable: Shielded - SHC68-68-EPM Cable (2m)

**Also Available: [Unshielded]

Connector Block: Spring-Screw_Terminals - SCB-68A

**Also Available: [BNC_Terminals, Custom]

192061-02

782536-01

Back to Top

Software Recommendations

LabVIEW Professional

Development System for

Windows

Advanced software tools for large project development

Automatic code generation using DAQ

Assistant and Instrument I/O Assistant

Tight integration with a wide range of hardware

Advanced measurement analysis and digital signal processing

Open connectivity with DLLs, ActiveX, and

.NET objects

Capability to build DLLs, executables, and

MSI installers

SignalExpress for Windows

Quickly configure projects without programming

Control over 400 PC-based and stand-alone instruments

Log data from more than 250 data acquisition devices

Perform basic signal processing, analysis, and file I/O

Scale your application with automatic

LabVIEW code generation

Create custom reports or easily export data to LabVIEW, DIAdem or Microsoft Excel

NI LabWindows™/CVI for

Windows

Real-time advanced 2D graphs and charts

Complete hardware compatibility with IVI,

VISA, DAQ, GPIB, and serial

Analysis tools for array manipulation, signal processing statistics, and curve fitting

Simplified cross-platform communication with network variables

Measurement Studio .NET tools (included in

LabWindows/CVI Full only)

The mark LabWindows is used under a license from Microsoft Corporation.

NI Measurement Studio

Professional Edition

Customizable graphs and charts for WPF,

Windows Forms, and ASP.NET Web Forms

UI design

Analysis libraries for array operations, signal generation, windowing, filters, signal processing

Hardware integration support with native

.NET data acquisition and instrument control libraries

Automatic code generation for all NI-DAQmx data acquisition hardware

Intelligent and efficient data-logging libraries for streaming measurement data to disk

Support for Microsoft Visual Studio .NET

2012/2010/2008

Back to Top

Support and Services

System Assurance Programs

NI system assurance programs are designed to make it even easier for you to own an NI system. These programs include configuration and deployment services for your NI PXI,

CompactRIO, or Compact FieldPoint system. The NI Basic System Assurance Program provides a simple integration test and ensures that your system is delivered completely assembled in one box. When you configure your system with the NI Standard System Assurance Program, you can select from available NI system driver sets and application development environments to create customized, reorderable software configurations. Your system arrives fully assembled and tested in one box with your software preinstalled.

When you order your system with the standard program, you also receive system-specific documentation including a bill of materials, an integration test report, a recommended maintenance plan, and frequently asked question documents. Finally, the standard program reduces the total cost of owning an NI system by providing three years of warranty coverage and calibration service. Use the online product advisors at ni.com/advisor to find a system assurance program to meet your needs.

Calibration

NI measurement hardware is calibrated to ensure measurement accuracy and verify that the device meets its published specifications. To ensure the ongoing accuracy of your measurement hardware, NI offers basic or detailed recalibration service that provides ongoing ISO 9001 audit compliance and confidence in your measurements. To learn more about NI calibration services or to locate a qualified service center near you, contact your local sales office or visit ni.com/calibration.

Technical Support

Get answers to your technical questions using the following National Instruments resources.

Support - Visit ni.com/support to access the NI KnowledgeBase, example programs, and tutorials or to contact our applications engineers who are located in NI sales offices around the world and speak the local language.

Discussion Forums - Visit forums.ni.com for a diverse set of discussion boards on topics you care about.

Online Community - Visit community.ni.com to find, contribute, or collaborate on customer-contributed technical content with users like you.

Repair

While you may never need your hardware repaired, NI understands that unexpected events may lead to necessary repairs. NI offers repair services performed by highly trained technicians who quickly return your device with the guarantee that it will perform to factory specifications. For more information, visit ni.com/repair.

Training and Certifications

4/18 www.ni.com

Training and Certifications

The NI training and certification program delivers the fastest, most certain route to increased proficiency and productivity using NI software and hardware. Training builds the skills to more efficiently develop robust, maintainable applications, while certification validates your knowledge and ability.

Classroom training in cities worldwide - the most comprehensive hands-on training taught by engineers.

On-site training at your facility - an excellent option to train multiple employees at the same time.

Online instructor-led training - lower-cost, remote training if classroom or on-site courses are not possible.

Course kits - lowest-cost, self-paced training that you can use as reference guides.

Training memberships and training credits - to buy now and schedule training later.

Visit ni.com/training for more information.

Extended Warranty

NI offers options for extending the standard product warranty to meet the life-cycle requirements of your project. In addition, because NI understands that your requirements may change, the extended warranty is flexible in length and easily renewed. For more information, visit ni.com/warranty.

OEM

NI offers design-in consulting and product integration assistance if you need NI products for OEM applications. For information about special pricing and services for OEM customers, visit ni.com/oem.

Alliance

Our Professional Services Team is comprised of NI applications engineers, NI Consulting Services, and a worldwide National Instruments Alliance Partner program of more than

700 independent consultants and integrators. Services range from start-up assistance to turnkey system integration. Visit ni.com/alliance.

Back to Top

Detailed Specifications

Specifications listed below are typical at 25 °C unless otherwise noted. Refer to the

X Series User Manual

for more information about NI PCIe-6341/6343, NI PXIe-6341, and NI

USB-6341/6343 devices.

Analog Input

Number of channels

NI 6341

NI 6343

ADC resolution

DNL

INL

Sampling rate

Maximum

Minimum

Timing accuracy

Timing resolution

Input coupling

Input range

Maximum working voltage for analog inputs (signal + common mode)

CMRR (DC to 60 Hz)

Input impedance

Device on

AI+ to AI GND

AI– to AI GND

Device off

AI+ to AI GND

AI– to AI GND

8 differential or 16 single ended

16 differential or 32 single ended

16 bits

No missing codes guaranteed

Refer to the AI Absolute Accuracy Table

500 kS/s single channel, 500 kS/s multi-channel (aggregate)

No minimum

50 ppm of sample rate

10 ns

DC

±10 V, ±5 V, ±1 V, ±0.2 V

±11 V of AI GND

100 dB

>10 GΩ in parallel with 100 pF

>10 GΩ in parallel with 100 pF

1200 Ω

1200 Ω

5/18 www.ni.com

Analog Output

Number of channels

NI 6341

NI 6343

DAC resolution

DNL

Monotonicity

Maximum update rate

1 channel

2 channels

3 channels

4 channels

Input bias current

Crosstalk (at 100 kHz)

Adjacent channels

Non-adjacent channels

Small signal bandwidth (–3 dB)

Input FIFO size

Scan list memory

Data transfers

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

Overvoltage protection (AI <0..31>, AI SENSE, AI SENSE 2)

Device on

Device off

Input current during overvoltage condition

Settling Time for Multichannel Measurements

Accuracy, full scale step, all ranges

±90 ppm of step (±6 LSB)

±30 ppm of step (±2 LSB)

±15 ppm of step (±1 LSB)

Analog triggers

Typical Performance Graph

±100 pA

–75 dB

–90 dB

1.2 MHz

4,095 samples

4,095 entries

DMA (scatter-gather), programmed I/O

USB Signal Stream, programmed I/O

±25 V for up to two AI pins

±15 V for up to two AI pins

±20 mA max/AI pin

2 μs convert interval

3 μs convert interval

5 μs convert interval

None

6/18

2

4

16 bits

±1 LSB

16 bit guaranteed

900 kS/s

840 kS/s per channel

775 kS/s per channel

719 kS/s per channel

www.ni.com

Timing accuracy

Timing resolution

Output range

Output coupling

Output impedance

Output current drive

Overdrive protection

Overdrive current

Power-on state

Power-on/off glitch

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

Output FIFO size

Data transfers

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

AO waveform modes:

Non-periodic waveform

Periodic waveform regeneration mode from onboard FIFO

Periodic waveform regeneration from host buffer including dynamic update

Settling time, full scale step 15 ppm (1 LSB)

Slew rate

Glitch energy

Magnitude

Duration

Calibration (AI and AO)

Recommended warm-up time

Calibration interval

50 ppm of sample rate

10 ns

±10 V

DC

0.2 Ω

±5 mA

±15 V

15 mA

±20 mV

2 V for 500 ms

1.5 V for 1.2 s

1

8,191 samples shared among channels used

DMA (scatter-gather), programmed I/O

USB Signal Stream, programmed I/O

6 μs

15 V/μs

100 mV

2.6 μs

15 minutes

1 year

AI Absolute Accuracy Table

5

1

0.2

Nominal Range

Positive

Full

Scale

Negative

Full

Scale

Residual Gain Error

(ppm of Reading)

10 –10 65 7.3

Gain

Tempco

(ppm/°C)

–5

–1

– 0.2

72

78

105

7.3

7.3

7.3

5

5

5

5

Reference

Tempco

(ppm/°C)

13

13

17

27

Residual Offset

Error (ppm of

Range)

23

23

26

39

Offset Tempco

(ppm of

Range/°C)

60

60

60

60

INL Error

(ppm of

Range)

Random

Noise, σ (μV rms

)

Absolute Accuracy

270

135

28

9

2260

1170

250

60

Absolute Accuracy Formulas

AbsoluteAccuracy = Reading · (GainError) + Range · (OffsetError) + NoiseUncertainty

GainError = ResidualGainError + GainTempco · (TempChangeFromLastInternalCal) + ReferenceTempco · (TempChangeFromLastExternalCal)

OffsetError = ResidualOffsetError + OffsetTempco · (TempChangeFromLastInternalCal) + INL_Error

NoiseUncertainty = (RandomNoise · 3) / √ 10,000, for a coverage factor of 3 σ and averaging 10,000 points.

*

Absolute accuracy at full scale on the analog input channels is determined using the following assumptions:

TempChangeFromLastExternalCal = 10 °C

TempChangeFromLastInternalCal = 1 °C

7/18 www.ni.com

number_of_readings = 10,000

CoverageFactor = 3 σ

For example, on the 10 V range, the absolute accuracy at full scale is as follows:

GainError = 65 ppm + 7.3 ppm · 1 + 5 ppm · 10

GainError = 122 ppm

OffsetError = 13 ppm + 23 ppm · 1 + 60 ppm

OffsetError = 96 ppm

NoiseUncertainty = (270 μV · 3) / √ 10,000

NoiseUncertainty = 8.1 μV

AbsoluteAccuracy = 10 V · (GainError) + 10 V · (OffsetError) + NoiseUncertainty

AbsoluteAccuracy = 2,190 μV

Accuracies listed are valid for up to one year from the device external calibration.

AO Absolute Accuracy Table

Nominal Range

Positive

Full Scale

Negative

Full Scale

10 –10 80

Residual Gain Error

(ppm of Reading)

11.3

Gain

Tempco

(ppm/°C)

5

Reference

Tempco

(ppm/°C)

Residual Offset Error

(ppm of Range)

Offset Tempco

(ppm of Range/°C)

53 4.8

INL Error

(ppm of

Range)

128

Absolute Accuracy at

3,271

*

Absolute Accuracy at full scale numbers is valid immediately following internal calibration and assumes the device is operating within 10 °C of the last external calibration.

Accuracies listed are valid for up to one year from the device external calibration.

AbsoluteAccuracy = OutputValue · (GainError) + Range · (OffsetError)

GainError = ResidualGainError + GainTempco · (TempChangeFromLastInternalCal) + ReferenceTempco · (TempChangeFromLastExternalCal)

OffsetError = ResidualOffsetError + OffsetTempco · (TempChangeFromLastInternalCal) + INL_Error

Digital I/O/PFI

Static Characteristics

Number of channels

NI 6341

NI 6343

Ground reference

Direction control

Pull-down resistor

24 total,

8 (P0.<0..7>)

16 (PFI <0..7>/P1,

PFI <8..15>/P2)

48 total,

32 (P0.<0..31>)

16 (PFI <0..7>/P1,

PFI <8..15>/P2)

D GND

Each terminal individually programmable as input or output

50 kΩ typical,

20 kΩ minimum

±20 V on up to two pins

Input voltage protection

2

Waveform Characteristics (Port 0 Only)

Terminals used

NI 6341

NI 6343

Port/sample size

NI 6341

NI 6343

Waveform generation (DO) FIFO

Waveform acquisition (DI) FIFO

Port 0 (P0.<0..7>)

Port 0 (P0.<0..31>)

Up to 8 bits

Up to 32 bits

2,047 samples

255 samples

8/18 www.ni.com

DO or DI Sample Clock frequency

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

Data transfers

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

Digital line filter settings

PFI/Port 1/Port 2 Functionality

Functionality

Timing output sources

Debounce filter settings

Recommended Operation Conditions

Electrical Characteristics

0 to 1 MHz, system and bus activity dependent

0 to 1 MHz, system and bus activity dependent

DMA (scatter-gather), programmed I/O

USB Signal Stream, programmed I/O

160 ns, 10.24 μs, 5.12 ms, disable

Static digital input, static digital output, timing input, timing output

Many AI, AO, counter, DI, DO timing signals

90 ns, 5.12 μs, 2.56 ms, custom interval, disable; programmable high and low transitions; selectable per input

Level Min Max

2.2 V 5.25 V

0 V 0.8 V

Output high current (I

OH

)

P0.<0..31>

PFI <0..15>/P1/P2

Output low current (I

OL

)

P0.<0..31>

PFI <0..15>/P1/P2

–24 mA

–16 mA

24 mA

16 mA

Level Min Max

Positive-going threshold (VT+)

Negative-going threshold (VT–)

— 2.2 V

0.8 V —

Delta VT hysteresis (VT+ – VT–) 0.2 V —

–10 μA

250 μA

Digital I/O Characteristics

9/18 www.ni.com

General-Purpose Counter/Timers

Number of counter/timers

Resolution

Counter measurements

Position measurements

Output applications

Internal base clocks

External base clock frequency

NI PCIe/USB-6341/6343

NI PXIe-6341

Base clock accuracy

Inputs

Routing options for inputs

NI PCIe-6341/6343

NI PXIe-6341

NI USB-6341/6343

FIFO

Data transfers

NI PCIe/PXIe-6341/6343

NI USB-6341/6343

Frequency Generator

Number of channels

Base clocks

Divisors

Base clock accuracy

Output can be available on any PFI or RTSI terminal.

Phase-Locked Loop (PLL)

Number of PLLs

Reference clock locking frequencies

10/18

4

32 bits

Edge counting, pulse, pulse width, semi-period, period, two-edge separation

X1, X2, X4 quadrature encoding with Channel Z reloading; two-pulse encoding

Pulse, pulse train with dynamic updates, frequency division, equivalent time sampling

100 MHz, 20 MHz, 100 kHz

0 MHz to 25 MHz

0 MHz to 25 MHz; 0 MHz to 100 MHz on PXIe-DSTAR<A, B>

50 ppm

Gate, Source, HW_Arm, Aux, A, B, Z, Up_Down, Sample Clock

Any PFI, RTSI, many internal signals

Any PFI, PXIe-DSTAR<A, B>, PXI_TRIG, PXI_STAR, many internal signals

Any PFI, many internal signals

127 samples per counter

Dedicated scatter-gather DMA controller for each counter/timer, programmed I/O

USB Signal Stream, programmed I/O

1

20 MHz, 10 MHz, 100 kHz

1 to 16

50 ppm

1

www.ni.com

Output of PLL

External Digital Triggers

Source

NI PCIe-6341/6343

NI PXIe-6341

NI USB-6341/6343

Polarity

Analog input function

Analog output function

Counter/timer functions

Digital waveform generation (DO) function

Digital waveform acquisition (DI) function

Device-To-Device Trigger Bus

Input source

NI PCIe-6341/6343

NI PXIe-6341

NI USB-6341/6343

Output destination

NI PCIe-6341/6343

NI PXIe-6341

NI USB-6341/6343

Output selections

Debounce filter settings

Bus Interface

NI PCIe-6341/6343

Form factor

Slot compatibility

DMA channels

NI PXIe-6341

Form factor

Slot compatibility

DMA channels

Reference Signal Locking Input Frequency (MHz)

PCIe PXIe USB

PXIe_DSTAR<A, B> —

PXI_STAR

PXIe_CLK100

PXI_TRIG <0..7>

RTSI <0..7>

PFI <0..15>

10, 20

10, 20

10, 20, 100

10, 20

100

10, 20

10, 20

10

100 MHz Timebase; other signals derived from 100 MHz Timebase including 20 MHz and 100 kHz Timebases

Any PFI, RTSI

Any PFI, PXIe-DSTAR<A, B>, PXI_TRIG, PXI_STAR

Any PFI

Software-selectable for most signals

Start Trigger, Reference Trigger, Pause Trigger, Sample Clock, Convert

Clock, Sample Clock Timebase

Start Trigger, Pause Trigger, Sample Clock, Sample Clock Timebase

Gate, Source, HW_Arm, Aux, A, B, Z, Up_Down, Sample Clock

Start Trigger, Pause Trigger, Sample Clock, Sample Clock Timebase

Start Trigger, Reference Trigger, Pause Trigger, Sample Clock, Sample

Clock Timebase

RTSI <0..7>

3

PXI_TRIG <0..7>, PXI_STAR, PXIe-DSTAR<A, B>

None

RTSI <0..7>

3

PXI_TRIG <0..7>, PXIe-DSTARC

None

10 MHz Clock, frequency generator output, many internal signals

90 ns, 5.12 μs, 2.56 ms, custom interval, disable; programmable high and low transitions; selectable per input

11/18

x1 PCI Express, specification v1.1 compliant x1, x4, x8, and x16 PCI Express slots

4

8, analog input, analog output, digital input, digital output, counter/timer 0, counter/timer 1, counter/timer 2, counter/timer 3 x1 PXI Express peripheral module, specification rev 1.0 compliant x1 and x4 PXI Express or PXI Express hybrid slots

8, analog input, analog output, digital input, digital output, counter/timer 0, counter/timer 1, counter/timer 2, counter/timer 3

www.ni.com

All NI PXIe-6341 devices may be installed in PXI Express slots or PXI Express hybrid slots.

NI USB-6341/6343

USB compatibility

USB Signal Stream

USB 2.0 Hi-Speed or full-speed

5

8, can be used for analog input, analog output, digital input, digital output, counter/timer 0, counter/timer 1, counter/timer 2, counter/timer 3

Power Requirements

NI PCIe-6341/6343

Without disk drive power connector installed

+3.3 V

+12 V

1.4 W

8.6 W

With disk drive power connector installed

+3.3 V

+12 V

+5 V

1.4 W

3 W

15 W

NI PXIe-6341

+3.3 V

Power supply requirements

Power input mating connector

1.6 W

+12 V

19.8 W

Caution NI USB-6341/6343 devices

must

be powered with NI offered AC adapter or a National Electric Code (NEC) Class 2 DC source that meets the power requirements for the device and has appropriate safety certification marks for country of use.

NI USB-6341/6343

11 to 30 VDC, 30 W, 2 positions 3.5mm pitch pluggable screw terminal with screw locks similar to Phoenix Contact MC 1,5/2-STF-3,5 BK

Phoenix Contact MC 1,5/2-GF-3,5 BK or equivalent

Current Limits

Caution Exceeding the current limits may cause unpredictable behavior by the device and/or PC/chassis.

NI PCIe-6341/6343

Without disk drive power connector installed

P0/PFI/P1/P2 and +5 V terminals combined

1 A max

With disk drive power connector installed

+5 V terminal (connector 0)

+5 V terminal (connector 1)

P0/PFI/P1/P2 combined

1 A max

1 A max

1 A max

6

6

NI PXIe-6341

+5 V terminal (connector 0)

+5 V terminal (connector 1)

P0/PFI/P1/P2 and +5 V terminals combined

NI USB-6341/6343

+5 V terminal

P0/PFI/P1/P2 and +5 V terminals combined

1 A max

1 A max

2 A max

1 A max

2 A max

6

6

6

Physical Requirements

Printed circuit board dimensions

12/18 www.ni.com

NI PCIe-6341/6343

NI PXIe-6341

Enclosure dimensions (includes connectors)

NI USB-6341/6343

Enclosure dimensions (without connectors)

NI USB-6341/6343 OEM

Weight

NI PCIe-6341

NI PCIe-6343

NI PXIe-6341

NI USB-6341/6343

NI USB-6341 OEM

NI USB-6343 OEM

I/O connector

NI PCIe/PXIe-6341

NI PCIe/PXIe-6343

NI USB-6341

NI USB-6343

NI PCIe/PXIe-6341/6343 mating connectors:

68-Pos Right Angle Single Stack PCB-Mount VHDCI (Receptacle), MOLEX 71430-0011

68-Pos Right Angle Dual Stack PCB-Mount VHDCI (Receptacle), MOLEX 74337-0016

68-Pos Offset IDC Cable Connector (Plug) (SHC68-*), MOLEX 71425-3001

NI PCIe-6341/6343 disk drive power connector

NI USB-6341/6343 screw terminal wiring

Maximum Working Voltage

7

Channel to earth

Caution Do

not

use for measurements within Categories II, III, or IV.

Environmental

Operating temperature

NI PCIe-6341/6343

NI PXIe-6341

NI USB-6341/6343

Storage temperature

Humidity

Maximum altitude

Pollution Degree (indoor use only)

Shock and Vibration (NI PXIe-6341 Only)

Operational shock

Random vibration

Operating

9.9 × 16.8 cm (3.9 × 6.6 in.) (half-length)

Standard 3U PXI

26.4 × 17.3 × 3.6 cm (10.4 × 6.8 × 1.4 in.)

175.3 x 162.6 mm (6.9 x 6.4 in.)

104 g (3.6 oz)

114 g (4.0 oz)

157 g (5.5 oz)

1.42 kg (3 lb 2 oz)

156 g (5.4 oz)

167 g (5.8 oz)

1 68-pin VHDCI

2 68-pin VHDCI

64 screw terminals

128 screw terminals

Standard ATX peripheral connector (not serial ATA)

16–24 AWG

11 V, Measurement Category I

13/18

0 to 50 °C

0 to 55 °C

0 to 45 °C

–40 to 70 °C

10 to 90% RH, noncondensing

2,000 m

2

30 g peak, half-sine, 11 ms pulse (Tested in accordance with

IEC-60068-2-27. Test profile developed in accordance with

MIL-PRF-28800F.)

5 to 500 Hz, 0.3 g rms

5 to 500 Hz, 2.4 g rms

(Tested in accordance with IEC-60068-2-64.

www.ni.com

Nonoperating Nonoperating test profile exceeds the requirements of MIL-PRF-28800F,

Class 3.)

Safety Standards

This product is designed to meet the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use:

IEC 61010-1, EN 61010-1

UL 61010-1, CSA 61010-1

Note For UL and other safety certifications, refer to the product label or the

Online Product Certification

section.

Electromagnetic Compatibility

This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use:

EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity

EN 55011 (CISPR 11): Group 1, Class A emissions

AS/NZS CISPR 11: Group 1, Class A emissions

FCC 47 CFR Part 15B: Class A emissions

ICES-001: Class A emissions

Note For EMC declarations and certifications, refer to the

Online Product Certification

section.

Caution When operating this product, use shielded cables and accessories.

CE Compliance

This product meets the essential requirements of applicable European Directives, as amended for CE marking, as follows:

2006/95/EC; Low-Voltage Directive (safety)

2004/108/EC; Electromagnetic Compatibility Directive (EMC)

Online Product Certification

To obtain product certifications and the DoC for this product, visit

ni.com/certification

, search by module number or product line, and click the appropriate link in the Certification column.

Environmental Management

NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers.

For additional environmental information, refer to the

NI and the Environment

Web page at

ni.com/environment

. This page contains the environmental regulations and directives with which NI complies, as well as other environmental information not included in this document.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers At the end of the product life cycle, all products

must

be sent to a WEEE recycling center. For more information about WEEE recycling centers, National

Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste Electrical and Electronic Equipment, visit

ni.com/environment/weee.htm

.

1

Typical behavior. Time period may be longer due to host system USB performance. Time period will be longer during firmware updates.

2

Stresses beyond those listed under

Input voltage protection

may cause permanent damage to the device.

3

In other sections of this document,

RTSI

refers to <0..7> for NI PCIe-6341/6343 or PXI_TRIG <0..7> for NI PXIe-6341.

4

Some motherboards reserve the x16 slot for graphics use. For PCI Express guidelines, refer to

ni.com/pciexpress

.

5

Operating on a full-speed bus will result in lower performance and you might not be able to achieve maximum sampling/update rates.

6

Has a self-resetting fuse that opens when current exceeds this specification.

7

Maximum working voltage

refers to the signal voltage plus the common-mode voltage.

Back to Top

14/18 www.ni.com

Pinouts/Front Panel Connections

NI PCIe/PXIe-6341 Pinout

15/18 www.ni.com

NI USB-6341 Pinout

16/18 www.ni.com

NI PCIe-6343 Pinout

17/18 www.ni.com

NI USB-6343 Pinout

Back to Top

©2012 National Instruments. All rights reserved. CompactRIO, CVI, FieldPoint, LabVIEW, Measurement Studio, National Instruments, NI, ni.com, NI-DAQ, RTSI, SCXI, and SignalExpress are trademarks of

National Instruments. The mark LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other product and company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership, or joint-venture relationship with National Instruments.

| | | | © 2012 National Instruments Corporation. All rights reserved.

18/18 www.ni.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
