phyCORE-Vybrid Hardware Manual

phyCORE-Vybrid Hardware Manual

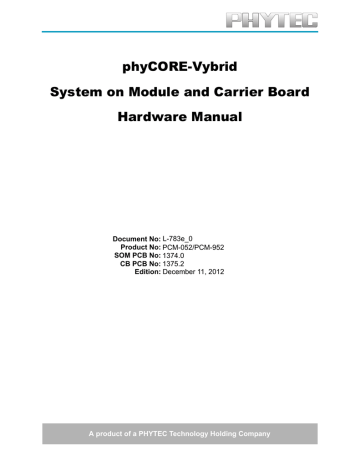

phyCORE-Vybrid

System on Module and Carrier Board

Hardware Manual

Document No:

Product No:

SOM PCB No:

L-783e_0

PCM-052/PCM-952

1374.0

CB PCB No:

1375.2

Edition: December 11, 2012

A product of a PHYTEC Technology Holding Company

phyCORE-Vybrid L-783e_0

In this manual are descriptions for copyrighted products that are not explicitly indicated as such. The absence of the trademark (™) and copyright (©) symbols does not imply that a product is not protected.

Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable.

However, PHYTEC America LLC assumes no responsibility for any inaccuracies. PHYTEC America LLC neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC America LLC reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC America LLC offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC America LLC further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2011 PHYTEC America LLC, Bainbridge Island, WA.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without the express written consent from PHYTEC America LLC.

EUROPE

Address:

PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

D-55129 Mainz

GERMANY

Ordering Information:

+49 (800) 0749832 [email protected]

Technical Support:

+49 (6131) 9221-31 [email protected]

Fax:

+49 (6131) 9221-33

Website:

http://www.phytec.eu

http://www.phytec.de

NORTH AMERICA

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

USA

1 (800) 278-9913 [email protected]

1 (800) 278-9913 [email protected]

1 (206) 780-9135 http://www.phytec.com

© PHYTEC America LLC 2012 L-783e_0

Table of Contents L-783e_0

Table of Contents

List of Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Conventions, Abbreviations, and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Part I: PCM-052/phyCORE-Vybrid System on Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 phyCORE-Vybrid Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Minimum Requirements to Operate the phyCORE-Vybrid . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 View of the phyCORE-Vybrid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Jumpers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.1 Jumper Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1 Primary System Power (VDD_3V3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2 DDR3 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3 Vybrid Processor Core Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4 Backup Power (VBAT). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5 External RTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6 System Configuration and Booting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7 System Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.1 DDR3 SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.2 NAND Flash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.3 QSPI NOR Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.4 I²C EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.4.1 Setting the EEPROM Lower Address Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.4.2 EEPROM Write Protection Control (J6). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.5 Memory Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8 Serial Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8.1 SCI / RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8.2 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8.3 FlexCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

9 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

10 Integrating and Handling the phyCORE-Vybrid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

10.1 Integrating the phyCORE-Vybrid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

10.2 Handling the phyCORE-Vybrid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Part II: PCM-952/phyCORE-Vybrid Carrier Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

11 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

12 Overview of Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

12.1 Connectors and Pin Headers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

12.2 Buttons and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12.2.1 System Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12.2.2 User Programmable Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

12.2.3 Boot Configuration Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

12.2.4 SPI Flash Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

12.3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

12.3.1 User Programmable LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

13 Jumpers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

© PHYTEC America LLC 2012 i

Table of Contents L-783e_0

14 phyCORE-Vybrid SOM Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

15 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

15.1 Wall Adapter Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

15.2 VBAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

15.3 Current Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

16 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

17 RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

18 CAN (Controller Area Network) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

18.1 VCC_CAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

19 USB Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

19.1 VCC_USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

20 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

20.1 Display Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

20.2 TFT Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

20.3 PHYTEC Display Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

20.4 Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

20.5 Light Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

21 SD/MMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

22 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

23 JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

24 Trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

25 K20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

26 Tamper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Part III: PCM-957/GPIO Expansion Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

27 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

28 Analog Signal Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

29 Control Signal Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

30 Processor Signal Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

31 Power Signal Mapping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

© PHYTEC America LLC 2012 ii

List of Tables L-783e_0

List of Tables

Conventions, Abbreviations, and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Table 1-1. Abbreviations and Acronyms Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Table 1-2. Types of Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Part I: PCM-052/phyCORE-Vybrid System on Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2-1. Pinout of the phyCORE-Connector X1, Row A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 2-2. Pinout of the phyCORE-Connector X1, Row B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 2-3. Pinout of the phyCORE-Connector X1, Row C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 2-4. Pinout of the phyCORE-Connector X1, Row D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 3-1. SOM Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 6-1. Boot Device Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 7-1. U6 EEPROM I²C Address via J1 and J2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 7-2. EEPROM Write-Protection States Via J6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 8-1. SCI RS-232 Signal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 9-1. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 9-2. Part information for phyCORE Connectors (X1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Part II: PCM-952/phyCORE-Vybrid Carrier Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 12-1. phyCORE-Vybrid Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 12-2. Button Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 12-3. Switch Settings (S5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 12-4. Boot Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 12-5. LED Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 13-1. Jumper Settings and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 15-1. Voltage Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 15-2. Power LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 17-1. X10 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 17-2. X31 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 18-1. CAN0 Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 18-2. VCC_CAN Supply Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 20-1. TTL Display Pin Header (X24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 20-2. TTL Display Connector (X29) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 20-3. PDI Connector (X30A) Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 20-4. PDI Connector (X30B) Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 22-1. Audio Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Table 23-1. JTAG Connector X16 Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Table 23-2. JTAG Connector X19 Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Table 24-1. Trace Connector X22 Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Table 25-1. K20 Jumper Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Table 26-1. Tamper Signals at Connector X21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Part III: PCM-957/GPIO Expansion Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Table 28-1. Analog Signal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Table 29-1. Control Signal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Table 30-1. Processor Signal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Table 31-1. Power Signal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Table 32-1. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

© PHYTEC America LLC 2012 iii

List of Figures L-783e_0

List of Figures

Part I: PCM-052/phyCORE-Vybrid System on Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Fig. 1-1. phyCORE-Vybrid Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Fig. 1-2. Top View of the phyCORE-Vybrid (Controller Side). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Fig. 1-3. Bottom View of the phyCORE-Vybrid (Connector Side) . . . . . . . . . . . . . . . . . . . . . . . . . 6

Fig. 2-1. Pin-out of the phyCORE-Connector (Top View, with Cross Section Insert) . . . . . . . . . . . 8

Fig. 3-1. Jumper Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Fig. 3-2. Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Fig. 4-1. phyCORE-Vybrid Power Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Fig. 9-1. phyCORE-Vybrid Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Fig. 10-1. phyCORE-Vybrid Footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Part II: PCM-952/phyCORE-Vybrid Carrier Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Fig. 11-1. phyCORE-Vybrid Carrier Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Fig. 12-1. Overview of Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Fig. 12-2. phyCORE-Vybrid Connectors (Top) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Fig. 12-3. phyCORE-Vybrid Connectors (Bottom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Fig. 12-4. Buttons and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Fig. 12-5. LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Fig. 13-1. Jumper Locations and Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Fig. 13-2. Jumper Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Fig. 14-1. phyCORE-Vybrid SOM Connectivity to the Carrier Board . . . . . . . . . . . . . . . . . . . . . . 44

Fig. 15-1. Powering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Fig. 16-1. Ethernet Interface Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Fig. 17-1. RS-232 Interface Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Fig. 17-2. DB-9 RS-232 Connectors P1A and P1B Pin Numbering . . . . . . . . . . . . . . . . . . . . . . . 48

Fig. 18-1. CAN Interface Connectors and Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Fig. 19-1. USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Fig. 20-1. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Fig. 21-1. SD/MMC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Fig. 22-1. Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Fig. 23-1. JTAG Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Fig. 24-1. Trace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Fig. 25-1. K20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Fig. 26-1. Tamper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Part III: PCM-957/GPIO Expansion Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Fig. 27-1. PCM-957/GPIO Expansion Board and Patch Field . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

© PHYTEC America LLC 2012 iv

L-783e_0

Conventions, Abbreviations, and Acronyms

Conventions

The conventions used in this manual are as follows:

• Signals that are preceded by a “/” character are designated as active low signals. Their active state is when they are driven low, or are driving low; for example: /RESET.

• Tables show the default setting or jumper position in

bold, teal text.

• Text in blue indicates a hyperlink, either internal or external to the document. Click these links to quickly jump to the applicable URL, part, chapter, table, or figure.

• References made to the phyCORE-Connector always refer to the high density Samtec connectors on the underside of the phyCORE-Vybrid System on Module.

Abbreviations and Acronyms

Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar terms used in this document.

CB

DFF

EMB

EMI

GPI

GPIO

GPO

IRAM

J

PEB

PMIC

PoE

PoP

PoR

RTC

SMT

SOM

Table 1-1. Abbreviations and Acronyms Used in This Manual

Abbreviation

BSP

JP

PCB

PDI

Definition

Board Support Package (Software delivered with the Development Kit including an operating system (Windows or Linux) preinstalled on the module and Development

Tools).

Carrier Board; used in reference to the PCM-952/phyCORE-Vybrid Carrier Board

D flip-flop

External memory bus

Electromagnetic Interference

General purpose input

General purpose input and output

General purpose output

Internal RAM; the internal static RAM on the Freescale VFx00 processor

Solder jumper; these types of jumpers require solder equipment to remove and place

Solderless jumper; these types of jumpers can be removed and placed by hand with no special tools

Printed circuit board

PHYTEC Display Interface; defined to connect PHYTEC display adapter boards or custom adapters

PHYTEC Extension Board

Power Management Integrated Circuit

Power over Ethernet

Package on Package

Power-on reset

Real-time clock

Surface mount technology

System on Module; used in reference to the PCM-052/phyCORE-Vybrid System on

Module

© PHYTEC America LLC 2012 v

L-783e_0

Table 1-1. Abbreviations and Acronyms Used in This Manual

Abbreviation

Sx

Sx_y

TRM

VBAT

Definition

User button Sx (S1, S2, etc.) used in reference to the available user buttons, or DIP switches on the Carrier Board

Switch y of DIP switch Sx; used in reference to the DIP switch on the Carrier Board

Technical Reference Manual

SOM battery supply input

Different types of signals are brought out at the phyCORE-Connector. The following table lists the abbreviations used to specify the type of a signal.

Table 1-2. Types of Signals

Type of Signal Description

Power

Ref-Voltage

USB-Power

Input

Supply voltage

Reference voltage

USB voltage

Digital input

Output

Input with pull-up

Digital output

Input with pull-up (jumper or open-collector output)

Input/output Bidirectional input/output

5V Input with pull-down 5V tolerant input with pull-down

LVDS

Differential 90 Ohm

Differential 100 Ohm

Analog

Differential line pairs 100 Ohm LVDS Pegel

Differential line pairs 90 Ohm

Differential line pairs 100 Ohm

Analog input or output

Abbreviation

PWR

REF

USB

IN

OUT

IPU

IO

5V_PD

LVDS

DIFF90

DIFF100

Analog

© PHYTEC America LLC 2012 vi

L-783e_0

Preface

This phyCORE-Vybrid Hardware Manual describes the System on Module's design and functions. Precise specifications for the Freescale VFx00 processor can be found in the processor datasheet and/or user's manual.

In this hardware manual and in the schematics, active low signals are denoted by a "/" preceding the signal name, for example: /RD. A "0" represents a logic-zero or low-level signal, while a "1" represents a logicone or high-level signal.

Declaration of Electro Magnetic Conformity of the PHYTEC phyCORE-Vybrid

PHYTEC System on Modules (SOMs) are designed for installation in electrical appliances or, combined with the PHYTEC Carrier Board, can be used as dedicated Evaluation Boards (for use as a test and prototype platform for hardware/software development) in laboratory environments.

CAUTION:

PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be unpacked, handled or operated in environments in which sufficient precautionary measures have been taken in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians, technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be operated without protection circuitry if connections to the product's pin header rows are longer than 3 m.

PHYTEC products fulfill the norms of the European Union's Directive for Electro Magnetic Conformity only in accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to the pin header row connectors, power connector and serial interface to a host-PC).

Implementation of PHYTEC products into target devices, as well as user modifications and extensions of

PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro

Magnetic Directives. Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.

The phyCORE-Vybrid is one of a series of PHYTEC System on Modules that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a variety of

8-/16- and 32-bit controllers in two ways:

1.

As the basis for Rapid Development Kits which serve as a reference and evaluation platform.

2.

As insert-ready, fully functional phyCORE OEM modules, which can be embedded directly into the user's peripheral hardware design.

Implementation of an OEM-able SOM subassembly as the "core" of your embedded design allows you to focus on hardware peripherals and firmware without expending resources to "re-invent" microcontroller circuitry. Furthermore, much of the value of the phyCORE module lies in its layout and test.

Production-ready Board Support Packages (BSPs) and Design Services for our hardware further reduce development time and expenses. Take advantage of PHYTEC products to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks. For more information go to: http://www.phytec.com/services/design-services/index.html

© PHYTEC America LLC 2012 vii

L-783e_0

Product Change Management

In addition to our HW and SW offerings, the buyer will receive a free obsolescence maintenance service for the HW provided when purchasing a PHYTEC SOM.

Our Product Change Management Team of developers is continuously processing all incoming PCN's

(Product Change Notifications) from vendors and distributors concerning parts which are being used in our products. Possible impacts to the functionality of our products, due to changes of functionality or obsolesce of a certain part, are evaluated in order to take the right measures in purchasing or within our HW/SW design.

Our general philosophy here is: We never discontinue a product as long as there is demand for it.

Therefore a set of methods has been established to fulfill our philosophy:

Avoidance strategies

• Avoid changes by evaluating longevity of a parts during design-in phase.

• Ensure availability of equivalent second source parts.

• Maintain close contact with part vendors for awareness of roadmap strategies.

Change management in case of functional changes

• Avoid impacts on Product functionality by choosing equivalent replacement parts.

• Avoid impacts on Product functionality by compensating changes through HW redesign or backward compatibility

SW maintenance

• Provide early change notifications concerning functional relevant changes of our Products.

Change management in rare event of an obsolete and non replaceable part

• Ensure long term availability by stocking parts through last time buy management, according to product forecasts.

• Offer long term frame contract to customers.

We refrain from providing detailed, part-specific information within this manual, which is subject to changes, due to ongoing part maintenance for our products.

© PHYTEC America LLC 2012 viii

PCM-052/phyCORE-Vybrid System on Module L-783e_0

Part I: PCM-052/phyCORE-Vybrid System on

Module

Part 1 of this three part manual provides detailed information on the phyCORE-Vybrid System on Module

(SOM) designed for custom integration into customer applications.

The information in the following chapters is applicable to the 1374.0 PCB revision of the phyCORE-Vybrid

SOM.

© PHYTEC America LLC 2012 1

Part I, Chapter 1: Introduction L-783e_0

1 Introduction

The phyCORE-Vybrid belongs to PHYTEC’s phyCORE System on Module (SOM) family. The phyCORE SOMs represent the continuous development of PHYTEC SOM technology. Like its mini-, micro-, and nanoMODUL predecessors, the phyCORE boards integrate all core elements of a microcontroller system on a subminiature board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware developments.

As independent research indicates that approximately 70% of all EMI (Electro Magnetic Interference) problems stem from insufficient supply voltage grounding of electronic components in high frequency environments, the phyCORE board design features an increased pin package. The increased pin package allows dedication of approximately 20% of all connector pins on the phyCORE boards to ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCORE boards even in high noise environments.

phyCORE boards achieve their small size through modern SMD technology and multi-layer design. In accordance with the complexity of the module, 0402-packaged SMD components and laser-drilled

Microvias are used on the boards, providing phyCORE users with access to this cutting edge miniaturization technology for integration into their own design.

The phyCORE-Vybrid is a sub-miniature (41 x 51 mm) insert-ready SOM populated with Freescale FVx00 processor. Its universal design enables its insertion into a wide range of embedded applications. All processor signals and ports extend from the processor to high-density pitch (0.5 mm) connectors aligning two sides of the board. This allows the SOM to be plugged like a "big chip" into a target application.

Precise specifications for the processor populating the board can be found in the applicable processor user's manual and datasheet. The descriptions in this manual are based on the Freescale FVx00 processor. No description of compatible processor derivative functions is included, as such functions are not relevant for the basic functioning of the phyCORE-Vybrid.

1.1 phyCORE-Vybrid Features

• Insert-ready, sub-miniature (41 mm x 51 mm) System on Module (SOM) subassembly in low EMI design, achieved through advanced SMD technology

• Populated with the Freescale FVx00 Single (Cortex-A5) or heterogenous Dual Core (Cortex-A5 and Cortex-M4) processor

• Max. 500 MHz core clock frequency for the Cortex-A5, 167 MHz for the Cortex-M4

• Boot from NAND Flash or SPI Flash

• Controller signals and ports extend to two high-density (0.5 mm) Samtec connectors aligning two sides of the board, enabling it to be plugged like a "big chip" into target application

• Single supply voltage of 3.3 V (max.1 A)

• All controller required supplies generated on board

• Improved interference safety achieved through multi-layer PCB technology and dedicated ground pins

• 256 MB (up to 2 GB) on-board NAND Flash

1

128/256/512 MB DDR3 SDRAM

1

• 4 kB (up to 32 kB) I2C EEPROM

1

• 32 MB (up to 128 MB) SPI Flash

• Two RS-232 two-signal (Tx/Rx) serial interfaces, or one RS-232 interface with hardware flow control, configured through software

• Dual USB OTG 2.0 High-Speed Controller with PHY

1. The maximum memory size listed is as of the printing of this manual. Please contact PHYTEC for more information about additional, or new module configurations available.

© PHYTEC America LLC 2012 2

Part I, Chapter 1: Introduction L-783e_0

• Two 10/100 MBit Ethernet interfaces with internal L2-Switch and IEEE1588 PTP for Realtime

Ethernet (available as RMII TTL signals or 10/100 differential pairs)

• One I

2

C interface with SMBUS support

• Four Serial Peripheral Interfaces (SPI)

• Two Quad SPI (QSPI) supporting XIP

• Two FlexCAN interfaces with transceivers

• Display interface with 24 data bits

• I

2

S audio

• Two 12-bit digital to analog converter (DAC) outputs

• Two 10-channel, 12-bit analog to digital (ADC) inputs

• JTAG

• 16-bit Trace port

• Two active and two passive tamper security signals

• 4-bit Secure Digital Host interface (SD/MMC)

• Real-Time Clock

• -40 to 85 C operating temperature range

1.2 Minimum Requirements to Operate the phyCORE-Vybrid

Basic operation of the phyCORE-Vybrid requires a 3.3V +-5% supply voltage with at least 1.0A current capacity. Connect power and ground to the following pins on connector X1 to power the SOM:

3.3V: X1-1C, 2C, 1D, 2D

GND: X1-3C, 3D, 7C, 7D

Please refer to

Chapter 2

for information on additional GND pins located at the phyCORE-Connector X1.

CAUTION:

We recommend connecting all available 3.3V input pins to the power supply system on a custom carrier board housing the phyCORE-Vybrid and at least the matching number of GND pins neighboring the 3.3V

pins. In addition, proper implementation of the phyCORE-Vybrid module into a target application also requires connecting all GND pins neighboring signals that are being used in the application circuitry.

Please refer to

Chapter 4 for more information.

© PHYTEC America LLC 2012 3

Part I, Chapter 1: Introduction

1.3 Block Diagram

L-783e_0

Fig. 1-1. phyCORE-Vybrid Block Diagram

© PHYTEC America LLC 2012 4

Part I, Chapter 1: Introduction

1.4 View of the phyCORE-Vybrid

L-783e_0

Fig. 1-2. Top View of the phyCORE-Vybrid (Controller Side)

© PHYTEC America LLC 2012 5

Part I, Chapter 1: Introduction L-783e_0

Fig. 1-3. Bottom View of the phyCORE-Vybrid (Connector Side)

© PHYTEC America LLC 2012 6

Part I, Chapter 2: Pin Description L-783e_0

2 Pin Description

Please note that all module connections are not to exceed their expressed maximum voltage or current.

Maximum signal input values are indicated in the corresponding controller manuals/datasheets. As damage from improper connections varies according to use and application, it is the user's responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

All controller signals extend to surface mount technology (SMT) connectors (0.5 mm) lining two sides of the module (referred to as the phyCORE-Connector). This allows the phyCORE-Vybrid to be plugged into any target application like a "big chip."

The numbering scheme for the phyCORE-Connector is based on a two dimensional matrix in which column positions are identified by a letter and row position by a number. Pin 1A, for example, is always located in the upper left hand corner of the matrix. The pin numbering values increase moving down on the board. Lettering of the pin connector rows progresses alphabetically from left to right (refer to

Figure 2-1

).

The numbered matrix can be aligned with the phyCORE-Vybrid (viewed from above; phyCORE-Connector pointing down) or with the socket of the corresponding phyCORE Carrier Board/user target circuitry. The upper left-hand corner of the numbered matrix (pin 1A) is thus covered with the corner of the phyCORE-

Vybrid marked with a number 1. The numbering scheme is always in relation to the PCB as viewed from above, even if all connector contacts extend to the bottom of the module.

The numbering scheme is thus consistent for both the module’s phyCORE-Connector as well as mating connectors on the phyCORE Carrier Board or target hardware, thereby considerably reducing the risk of pin identification errors.

Since the pins are exactly defined according to the numbered matrix previously described, the phyCORE-

Connector is usually assigned a single designator for its position (X2 for example). In this manner the phyCORE-Connector comprises a single, logical unit regardless of the fact that it could consist of more than one physical socketed connector. The location of row 1 on the board is marked by a number 1 on the

PCB to allow easy identification.

Figure 2-1

illustrates the numbered matrix system. It shows a phyCORE-Vybrid with SMT phyCORE-

Connectors on its underside (defined as dotted lines) mounted on a Carrier Board. In order to facilitate understanding of the pin assignment scheme, the diagram presents a cross-view of the phyCORE module showing these phyCORE-Connectors mounted on the underside of the module’s PCB.

© PHYTEC America LLC 2012 7

Part I, Chapter 2: Pin Description L-783e_0

Fig. 2-1. Pin-out of the phyCORE-Connector

(Top View, with Cross Section Insert)

The following tables provide an overview of the pinouts of the phyCORE-Connector with signal names and descriptions specific to the phyCORE-Vybrid. It also provides the appropriate signal level interface voltages listed in the SL (Signal Level) column and the signal direction.

CAUTION:

Most of the controller pins have multiple functions. Because most of these pins are connected directly to the phyCORE-Connector the functions are also available there. Signal names and descriptions below are in regard to the specification of the phyCORE-Vybrid and the functions defined therein. Please refer to the VFx00 datasheet or TRM for more information about alternative functions. In order to utilize a specific pin's alternative function the corresponding registers must be configured within the appropriate driver of the BSP. To support all features of the phyCORE-Vybrid Carrier Board a few changes have been made in the BSP delivered with the module.

Table 2-1. Pinout of the phyCORE-Connector X1, Row A

Pin# Signal

1A

2A

3A

4A

5A

MCU_PTB0

GND

MCU_PTB4

MCU_PTB5

MCU_PTB6

6A

7A

8A

9A

MCU_PTB7

GND

MCU_PTB12

MCU_PTB13

Type

IO

-

IO

IO

IO

IO

-

IO

IO

SL

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

Description

Display brightness control

Ground 0 V

SCI1_TX serial transmit signal

SCI1_RX serial receive signal

SCI22_TX serial transmit signal, or SCI1_RTS request to send

SCI2_RX serial receive signal, or SCI1_CTS clear to send

Ground 0 V

Display Up/Down control

Trace control

© PHYTEC America LLC 2012 8

Part I, Chapter 2: Pin Description L-783e_0

Table 2-1. Pinout of the phyCORE-Connector X1, Row A (Continued)

Pin# Signal

10A CAN_EN

11A RTC_INTn

12A GND

13A MCU_PTB21

14A MCU_PTB22

15A MCU_PTB23

16A MCU_PTB24

17A GND

18A MCU_PTD16

19A MCU_PTD17

20A MCU_PTD18

21A MCU_PTD19

22A GND

23A MCU_PTD24

24A MCU_PTD25

25A MCU_PTD26

26A MCU_PTD27

27A GND

28A MCU_PTC26

29A MCU_PTC27

30A MCU_PTC28

31A MCU_PTC29

32A GND

33A MCU_PTC30

34A MCU_PTD0

35A MCU_PTD1

36A MCU_PTD2

37A GND

38A MCU_PTD3

39A MCU_PTD4

40A MCU_PTD5

41A MCU_PTD6

42A GND

43A MCU_PTC4

44A MCU_PTC5

45A MCU_PTC6

46A MCU_PTC7

47A GND

Type

IPU

IO

IO

IO

-

IO

IO

-

IO

IO

IO

IO

IO

-

-

IO

IO

IO

-

-

IO

OUT

IO

IO

IO

IO

IO

IO

IO

-

IO

IO

-

IO

OUT

-

IO

IO

SL

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

Description

Drive low to disable the CAN transceivers on the

SOM.

External Real Time Clock interrupt/alarm

Ground 0 V

SPI0 Master-In-Slave-Out (MISO)

SPI0 clock

GPIO

NAND Flash write enable

Ground 0 V

NAND Flash IO0

NAND Flash IO1

NAND Flash IO2

NAND Flash IO3

Ground 0 V

NAND Flash IO8

NAND Flash IO9

NAND Flash IO10

NAND Flash IO11

Ground 0 V

NAND Flash Ready / Busy

NAND Flash address latch enable

NAND Flash command latch enable

GPIO

Ground 0 V

GPIO

QSPI0_A clock

QSPI0_A chip select

QSPI0_A hold

Ground 0 V

QSPI0_A write-protect

QSPI0_A data 1

QSPI0_A data 0

SD Card Detect (SDCD)

Ground 0 V

RMII0 Receive Data 0

RMII0 Receive Error

RMII0 Transmit Data 1

RMII0 Transmit Data 0

Ground 0 V

© PHYTEC America LLC 2012 9

Part I, Chapter 2: Pin Description

Table 2-1. Pinout of the phyCORE-Connector X1, Row A (Continued)

Pin# Signal

48A MCU_PTC13

49A MCU_PTC14

50A MCU_PTC15

51A MCU_PTC16

52A GND

53A VADCSE0

54A VADCSE1

55A VADCSE2

56A VADCSE3

57A GND

58A DACO0

59A DACO1

60A VREFH_ADC

Type SL

IO

IO

IO

IO

VDD_3V3

VDD_3V3

VDD_3V3

-

Analog VDD_3V3

Analog VDD_3V3

Analog VDD_3V3

Analog VDD_3V3

-

Analog VDD_3V3

Analog VDD_3V3

REF VDD_3V3

Description

RMII1 Receive Data 0

RMII1 Receive Error

RMII1 Transmit Data 1

RMII1 Transmit Data 0

Ground 0 V

Analog signal

Analog signal

Analog signal

Analog signal

Ground 0 V

Analog signal

Analog signal

Analog reference voltage

L-783e_0

Table 2-2. Pinout of the phyCORE-Connector X1, Row B

Pin#

1B

2B

3B

4B

5B

6B

7B

8B

9B

10B

11B

12B

13B

14B

15B

16B

17B

18B

19B

20B

Signal

MCU_PTB1

MCU_PTB2

MCU_PTB3

GND

MCU_PTB8

MCU_PTB9

MCU_PTB10

MCU_PTB11

GND

NF_WPn

MCU_PTB18

MCU_PTB19

MCU_PTB20

GND

MCU_PTB25

MCU_PTB26

MCU_PTB27

MCU_PTB28

GND

MCU_PTD20

Type

IO

IO

IO

-

IO

IO

IO

IO

-

IPU

IO

IO

-

-

IO

IO

IO

IO

-

IO

SL

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

-

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

Description

Audio I

2

S_DOUT

GPIO and RCON31 boot signal, must be low during system reset

Display enable control signal

Ground 0 V

GPIO

GPIO

GPIO

Audio codec master clock

Ground 0 V

NAND Flash write-protect

GPIO

GPIO

SPI0 Master-Out-Slave-In (MOSI)

Ground 0 V

NAND Flash chip enable

GPIO

NAND Flash read enable

GPIO

Ground 0 V

NAND Flash IO4

© PHYTEC America LLC 2012 10

Part I, Chapter 2: Pin Description L-783e_0

Table 2-2. Pinout of the phyCORE-Connector X1, Row B (Continued)

Pin# Signal

21B MCU_PTD21

22B MCU_PTD22

23B MCU_PTD23

24B GND

25B MCU_PTD28

26B MCU_PTD29

27B MCU_PTD30

28B MCU_PTD31

29B GND

30B MCU_PTC31

31B MCU_PTD7

32B MCU_PTD8

33B MCU_PTD9

34B GND

35B MCU_PTD10

36B MCU_PTD11

37B MCU_PTD12

38B MCU_PTD13

39B GND

40B MCU_PTC0

41B MCU_PTC1

42B MCU_PTC2

43B MCU_PTC3

44B GND

45B MCU_PTC8

46B MCU_PTC9

47B MCU_PTC10

48B MCU_PTC11

49B GND

50B MCU_PTC12

51B MCU_PTC17

52B MCU_PTA6

53B MCU_PTA7

54B GND

55B ADC0SE8

56B ADC0SE9

57B ADC1SE8

Type

IO

-

IO

IO

-

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

-

SL

-

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

-

IO

IO

-

IO

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

IO

-

VDD_3V3

-

Analog VDD_3V3

Analog VDD_3V3

Analog VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

Description

NAND Flash IO5

NAND Flash IO6

NAND Flash IO7

Ground 0 V

NAND Flash IO12

NAND Flash IO13

NAND Flash IO14

NAND Flash IO15

Ground 0 V

GPIO

QSPI0_B clock

QSPI0_B chip select

QSPI0_B data 3

Ground 0 V

QSPI0_B data 2

QSPI0_B data 1

QSPI0_B data 0

GPIO

Ground 0 V

RMII0 Management Data Clock (MDC)

RMII0 Management Data Input/Output (MDIO)

RMII0 Carrier Sense (CRS)

RMII0 Receive Data 1

Ground 0 V

RMII0 Transmit Enable

RMII1 Management Data Clock (MDC)

RMII1 Management Data Input/Output (MDIO)

RMII1 Carrier Sense (CRS)

Ground 0 V

RMII1 Receive Data 1

RMII1 Transmit Enable

RMII1 clock

SD write-protect

Ground 0 V

Analog signal

Analog signal

Analog signal

© PHYTEC America LLC 2012 11

Part I, Chapter 2: Pin Description L-783e_0

Table 2-2. Pinout of the phyCORE-Connector X1, Row B (Continued)

Pin# Signal

58B ADC1SE9

59B GND

60B VREFL_ADC

Type

REF

SL

Analog VDD_3V3

-

VDD_3V3

Description

Analog signal

Ground 0 V

Analog reference voltage

Table 2-3. Pinout of the phyCORE-Connector X1, Row C

Pin# Signal Type SL Description

C5

C6

C7

C8

C1

C2

C3

C4

C9

C10

C11

C12

C13

C14

C15

C16

VDD_3V3

VDD_3V3

GND

VBAT

RESETn

VDD_1V5_EN

GND

SCI1_TX_RS232

SCI1_RX_RS232

SCI2_TX_RS232

SCI2_RX_RS232

GND

CAN0_HI

CAN0_LO

CAN1_HI

CAN1_LO

PWR

PWR

-

PWR

IO

IN

-

OUT

IN

OUT

IN

-

IO

IO

IO

IO

VDD_3V3

VDD_3V3

-

VBAT

VDD_3V3

VDD_3V3

-

VDD_3V3 or

RS232

VDD_3V3 or

RS232

VDD_3V3 or

RS232

VDD_3V3 or

RS232

-

VDD_3V3 or

CAN

VDD_3V3 or

CAN

VDD_3V3 or

CAN

VDD_3V3 or

CAN

3.3 V supply voltage

3.3 V supply voltage

Ground 0 V

3.0 V backup voltage for the Real-Time Clock

System reset

RESERVED

Ground 0 V

MCU_PTB4 or RS232_1 Tx from transceiver

U15 depending on SOM configuration.

MCU_PTB5 or RS232_1 Rx from transceiver

U15 depending on SOM configuration.

MCU_PTB6 or RS232_2 Tx from transceiver

U15 depending on SOM configuration.

MCU_PTB7 or RS232_2 Rx from transceiver

U15 depending on SOM configuration.

Ground 0 V

MCU_PTB15 or CAN0 HI from transceiver

U13 depending on SOM configuration.

MCU_PTB14 or CAN0 LO from transceiver

U13 depending on SOM configuration.

MCU_PTB17 or CAN1 HI from transceiver

U14 depending on SOM configuration.

MCU_PTB16 or CAN1 LO from transceiver

U14 depending on SOM configuration.

C17 GND

C18 VBUS_USB0

-

USB

Ground 0 V

VBUS_USB0 5.0 V USB0 VBUS supply

C19 USB0_VBUS_DETECT IN

C20 USB0_DP DIFF90

5V_PD

VDD_3V3

Detect signal for the USB0 VBUS supply

USB0 data plus

C21 USB0_DM

C22 GND

C23 ETH0_RXM

C24 ETH0_RXP

C25 ETH0_TXM

C26 ETH0_TXP

DIFF90 VDD_3V3

-

LVDS

LVDS

LVDS

LVDS

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

USB0 data minus

Ground 0 V

Ethernet0 receive data minus

Ethernet0 receive data plus

Ethernet0 transmit data minus

Ethernet0 transmit data plus

© PHYTEC America LLC 2012 12

Part I, Chapter 2: Pin Description

Table 2-3. Pinout of the phyCORE-Connector X1, Row C (Continued)

Pin# Signal

C27 GND

C28 MCU_PTA8

C29 MCU_PTA9

C30 MCU_PTA10

C31 MCU_PTA11

C32 GND

C33 MCU_PTA17

C34 MCU_PTA18

C35 MCU_PTA19

C36 MCU_PTA20

C37 GND

C38 MCU_PTA25

C39 MCU_PTA26

C40 MCU_PTA27

C41 MCU_PTA28

C42 GND

C43 MCU_PTE1

C44 MCU_PTE2

C45 MCU_PTE3

C46 MCU_PTE4

C47 GND

C48 MCU_PTE9

C49 MCU_PTE10

C50 MCU_PTE11

C51 MCU_PTE12

C52 GND

C53 MCU_PTE17

C54 MCU_PTE18

C55 MCU_PTE19

C56 MCU_PTE20

C57 GND

C58 MCU_PTE25

C59 MCU_PTE26

C60 MCU_PTE27

Type

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

OUT

-

OUT

OUT

OUT

OUT

-

OUT

OUT

OUT

OUT

OUT

IO

OUT

-

OUT

OUT

OUT

IO

IO

IO

-

IO

IO

-

IO

IO

-

IO

IO

-

IO

IO

IO

SL Description

Ground 0 V

JTAG Chain TCLK

JTAG Chain TDI

JTAG Chain TDO

JTAG Chain TMS

Ground 0 V

Trace data 1

Trace data 2

Trace data 3

Trace data 4

Ground 0 V

Trace data 9

Trace data 10

Trace data 11

Trace data 12

Ground 0 V

Display vertical sync

Display clock

GPIO

Display enable

Ground 0 V

Display red 4

Display red 5

Display red 6

Display red 7

Ground 0 V

Display green 4

Display green 5

Display green 6

Display green 7

Ground 0 V

Display blue 4

Display blue 5

Display blue 6

L-783e_0

© PHYTEC America LLC 2012 13

Part I, Chapter 2: Pin Description L-783e_0

Table 2-4. Pinout of the phyCORE-Connector X1, Row D

Pin# Signal Type SL Description

D5

D6

D7

D8

D1

D2

D3

D4

VDD_3V3

VDD_3V3

GND

BOOTMOD0

BOOTMOD1

RCON5

RCON6

RCON7

D9 GND -

D10 EXT_TAMPER0 IN

D11 EXT_TAMPER1 IN

D12 EXT_TAMPER2 IO

D13 EXT_TAMPER3 IO

D14 GND -

D15 VBUS_USB1

D16 USB1_VBUS_D

ETECT

USB

IN

IN

IN

IN

IN

PWR

PWR

-

IN

D17 USB1_DP

D18 USB1_DM

D19 GND

D20 I2C_SCL

D21 I2C_SDA

D22 ETH0_LED0

D23 ETH0_LED1

D24 GND

D25 ETH1_RXM

D26 ETH1_RXP

D27 ETH1_TXM

D28 ETH1_TXP

D29 GND

D30 ETH1_LED0

D31 ETH1_LED1

D32 MCU_PTA12

D33 MCU_PTA16

D34 GND

D35 MCU_PTA21

D36 MCU_PTA22

IO

-

IO

IO

LVDS

LVDS

LVDS

LVDS

-

OUT

OUT

IO

DIFF90 VDD_3V3

DIFF90 VDD_3V3

-

OUT

-

VDD_3V3

IO

OUT

OUT

-

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

3.3 V power input

3.3 V power input

Ground 0 V

Boot configuration input

Boot configuration input

Boot configuration input

Boot configuration input

Boot configuration input

-

VDD_3V3

VDD_3V3

VDD_3V3

Ground 0 V

Vybrid physical security tamper detection

Vybrid physical security tamper detection

Vybrid physical security tamper detection

VDD_3V3

-

Vybrid physical security tamper detection

Ground 0 V

VBUS_USB1 5.0 V USB1 VBUS supply

5V_PD Detect signal for USB1 VBUS supply

USB1 data plus

USB1 data mins

Ground 0 V

I2C2 clock

I2C2 data

Ethernet0 LED 0 control

Ethernet0 LED 1 control

Ground 0 V

Ethernet1 receive data minus

Ethernet1 receive data plus

Ethernet1 transmit data minus

Ethernet1 transmit data plus

Ground 0 V

Ethernet1 LED 0

Ethernet1 LED 1

Trace clock

Trace Data 0

Ground 0 V

Trace data 5

Trace data 6

© PHYTEC America LLC 2012 14

Part I, Chapter 2: Pin Description

Table 2-4. Pinout of the phyCORE-Connector X1, Row D (Continued)

Pin# Signal

D37 MCU_PTA23

D38 MCU_PTA24

D39 GND

D40 MCU_PTA29

D41 MCU_PTA30

D42 MCU_PTA31

D43 MCU_PTE0

D44 GND

D45 MCU_PTE5

D46 MCU_PTE6

D47 MCU_PTE7

D48 MCU_PTE8

D49 GND

D50 MCU_PTE13

D51 MCU_PTE14

D52 MCU_PTE15

D53 MCU_PTE16

D54 GND

D55 MCU_PTE21

D56 MCU_PTE22

D57 MCU_PTE23

D58 MCU_PTE24

D59 GND

D60 MCU_PTE28

Type

OUT

OUT

OUT

OUT

-

OUT

OUT

OUT

IO

IO

-

IO

IO

IO

OUT

-

OUT

-

OUT

OUT

OUT

OUT

-

OUT

SL

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

VDD_3V3

VDD_3V3

VDD_3V3

-

VDD_3V3

Description

Trace data 7

Trace data 8

Ground 0 V

Trace data 13

Trace data 14

Trace data 15

Display horizontal sync

Ground 0 V

Display red 0

Display red 1

Display red 2

Display red 3

Ground 0 V

Display green 0

Display green 1

Display green 2

Display green 3

Ground 0 V

Display blue 0

Display blue 1

Display blue 2

Display blue 3

Ground 0 V

Display blue 7

L-783e_0

© PHYTEC America LLC 2012 15

Part I, Chapter 3: Jumpers L-783e_0

3 Jumpers

For configuration purposes the phyCORE-Vybrid has three solder jumpers which have been installed prior to delivery.

Figure 3-1 illustrates the jumper pad numbering scheme for reference when altering jumper

settings on the board. Three and four position jumpers have pin 1 marked with a GREEN pad. The beveled edge in the silk-screen around the jumper indicates the location of pin 1.

Figure 3-2

shows the location of the jumpers.

Fig. 3-1. Jumper Numbering

© PHYTEC America LLC 2012 16

Part I, Chapter 3: Jumpers

3.1 Jumper Settings

L-783e_0

Fig. 3-2. Jumper Locations

Table 3-1

provides a functional summary of solder jumpers that can be changed to adapt the phyCORE-

Vybrid for specific needs. It shows default positions, possible alternative positions, and functions. A detailed description of each solder jumper can be found in the applicable chapter listed in the table.

Some jumpers designed into the schematic are not listed in this manual. These jumpers should not be modified as they are for special purposes outside of normal functional configuration.

If manual jumper modification is required, pay special attention to the "TYPE" column in Table 3-1 ensuring

the use of the correct jumper type (0 Ohms, 10k Ohms, etc.). All jumpers are 0805 package or 0402 package with a 1/8W or better power rating.

A detailed description of each solder jumper can be found in the applicable chapter listed in the table.

© PHYTEC America LLC 2012 17

Part I, Chapter 3: Jumpers

Table 3-1. SOM Jumper Settings

Jumper Setting Description

J1

J2

J6

1+2

2+3

1+2

2+3

1+2

OPEN

Sets EEPROM lower address bit A1 = 1

Sets EEPROM lower address bit A1 = 0

Sets EEPROM lower address bit A2 = 1

Sets EEPROM lower address bit A2 = 0

The EEPROM is writeable

The EEPROM is write-protected

L-783e_0

Type Chapter

0R (0402)

7.4.1

0R (0402)

7.4.1

0R (0402)

7.4.2

© PHYTEC America LLC 2012 18

Part I, Chapter 4: Power L-783e_0

4 Power

The phyCORE-Vybrid operates off of a single 3.3V system power supply. An overview of the power design is shown in the figure below.

Fig. 4-1. phyCORE-Vybrid Power Design

The following sections of this chapter describe each component of the power design of the phyCORE-

Vybrid.

CAUTION:

As a general design rule we recommend connecting all GND pins neighboring signals which are being used in the application circuitry. For maximum EMI performance all GND pins should be connected to a solid ground plane.

4.1 Primary System Power (VDD_3V3)

The phyCORE-Vybrid operates off of a primary voltage supply with a nominal value of 3.3V. An on-board switching regulator at U5 generates the 1.5V voltage supply required by the DDR3 memory (U6). Voltage regulators integrated in the Vybrid processor generate the 1.1V and 1.2V supplies needed by the Vybrid processor core.

© PHYTEC America LLC 2012 19

Part I, Chapter 4: Power L-783e_0

An optional 3V backup battery voltage VBAT can be supplied for the external Real-Time Clock (U16) and the Real-Time Clock which is integrated in the VFx00. All of the on-board components except for the DDR3 memory interface and the RTCs are powered directly from the primary 3.3V supplied to the SOM.

The phyCORE-Vybrid includes a voltage supervisor at U1 which asserts the system reset when the voltage of the primary system power is below 3V. For proper operation the phyCORE-Vybrid must be supplied with a voltage source of 3.3V ± 5% with at least 1.0 A capacity at the VDD_3V3 pins on the phyCORE-

Connector X1. A matching number of GND pins should also be used. Connect power and ground to the following pins on connector X1 to power the SOM:

3.3V: X1-1C, 2C, 1D, 2D

GND: X1-3C, 3D, 7C, 7D

Please refer to

Table 2-3

for the location of additional GND pins located on the phyCORE-Connector X1.

4.2 DDR3 Power

The 3.3V primary system power supplies a 1.5V regulator at U5 for the DDR3 memory at U6.

4.3 Vybrid Processor Core Power

The 1.1V and 1.2V power supplies needed by the Vybrid processor core are generated by regulators internal to the Vybrid processor from the main system 3.3V supply.

4.4 Backup Power (VBAT)

To backup the RTC on the module, a secondary voltage source VBAT, can be attached to the phyCORE-

Vybrid at pin X1-C4. This voltage source supplies the backup voltage domain VBAT to the external RTC

(U16) and to the VFx00 to supply its internal RTC and some critical registers when the primary system power, VDD_3V3, is removed.

The voltage range for VBAT for the VFx00 RTC is 3.0 - 3.6V. The range for the external RTC is 2.0V - 5.0V.

Applications not requiring a backup mode should connect the VBAT pin to the primary system power supply, VDD_3V3.

© PHYTEC America LLC 2012 20

Part I, Chapter 5: External RTC L-783e_0

5 External RTC

An external RTC at U16 has been provided in addition to the VFx00 on-chip RTC. This additional RTC provides a secondary time keeping source along with a secondary alarm mechanism to the processor via its interrupt signal.

The RTC is interfaced to the processor via the I2C2 port. The I

2

C address of the device is binary

1101000x, where the 'x' bit is the read/write operation bit. The interrupt from the RTC routes to the phyCORE connector pin X1-A11, providing the Carrier Board the opportunity to use it for system wake circuitry or to connect it to a processor signal as an alarm interrupt.

The RTC is powered via the primary system 3.3V supply during normal operation and via the VBAT power

input, if it is present, during power-off. See Chapter 4.4

for detailed information on providing backup power

to the RTC via the VBAT power input.

© PHYTEC America LLC 2012 21

Part I, Chapter 6: System Configuration and Booting L-783e_0

6 System Configuration and Booting

Although most features of the VFx00 microcontroller are configured or programmed during software initialization, other features which impact program execution must be configured prior to initialization via pin termination.

The system start-up configuration includes:

• Clock configuration

• Boot device configuration

The processor boot mode is configured by latching the state of 24 boot mode configuration pins during a power-on reset event. The SOM includes a circuit which sets 23 of these.

CAUTION:

The Carrier Board must set the signal MCU_PTB2 low during reset. Please see the Vybrid Carrier Board design for a reference circuit.

The only default boot mode setting that should be changed by the user is the selection of the boot device.

The boot device is selected with five of the Vybrid configuration signals, as shown in Table 6-1

. The default configuration is to boot from UART or USB0.

The user can select an alternate boot device either by changing the resistor stuffing on the SOM for these

signals, or by overriding these signals from the Carrier Board. Chapter 12.2.3

describes the switch on the

Vybrid Carrier Board which can override the SOM default boot device configuration.

Table 6-1. Boot Device Selection

Boot Device

SPI

SD-Card

NAND 1

UART / USB0 0

Fuses

1

1

0

BOOTMOD1 /

MCU_PTE0

BOOTMOD0 /

MCU_PTE1

RCON7 /

MCU_PTE16

0

1

0

0

0

0

0

0

1

X

RCON6 /

MCU_PTE15

0

1

0

0

X

RCON5 /

MCU_PTE12

0

0

1

0

X

The internal ROM code is the first code executed during the initialization process of the VFx00 after poweron reset. The ROM code detects the selected boot device by examining the latched state of the boot mode configuration pins.

For peripheral boot devices, the ROM code polls the communication interface selected, initiates the download of the code into the internal RAM, and triggers its execution from there. Peripheral booting is normally not applicable only after a warm reset.

Like most pins on the processor, the boot mode configuration pins are multiplexed with other peripheral functions. After the reset cycle completes these pins may be used for other purposes. When using these pins for other purposes, make sure their secondary functions are tri-stated, or disabled during the reset cycle to avoid interfering with the latched boot mode.

© PHYTEC America LLC 2012 22

Part I, Chapter 7: System Memory L-783e_0

7 System Memory

The phyCORE-Vybrid provides four types of on-board memory

1

:

1.

DDR3 SDRAM:

2.

NAND Flash:

3.

SPI NOR Flash:

4.

I

2

C-EEPROM:

128MB to 512MB

256MB to 2GB

16 MB to 128MB

4KB to 32KB

The following sections of this chapter detail each memory type used on the phyCORE-Vybrid SOM.

7.1 DDR3 SDRAM

The RAM memory of the phyCORE-Vybrid is comprised of one 16-bit wide DDR3 SDRAM chip at U6. The chip is connected to the dedicated DDR interface of the VFx00 processor.

Typically the DDR3 SDRAM initialization is performed by a boot loader or operating system following a power-on reset and must not be changed at a later point by any application code. When writing custom code independent of an operating system or boot loader, SDRAM must be initialized through the appropriate SDRAM configuration registers on the VFx00 controller. Refer to the VFx00 TRM about accessing and configuring these registers.

7.2 NAND Flash

The use of NAND flash as non-volatile memory on the phyCORE-Vybrid provides an easily reprogrammable means of code storage. The NAND Flash memory is connected to the VFx00 GPMC interface with a bus-width of 16-bits. The Flash device is programmable with 3.3V. No dedicated programming voltage is required.

As of the printing of this manual NAND Flash devices generally have a life expectancy of at least 100,000 erase/program cycles and a data retention rate of 10 years.

7.3 QSPI NOR Flash

The phyCORE-Vybrid can be populated with one or two QSPI NOR Flash memories as an ordering option.

The flash devices connect to QSPI0_A port and QSPI0_B port.

QSPI Flash is substantially faster than traditional SPI flash devices due to four I/O pins for data transfers, as opposed to only one. In addition, QSPI is XIP compatible, allowing the processor to boot directly from it.

The use of QSPI NOR Flash is suitable for systems which require a small code footprint, or lack the software drivers required for bad block management in NAND Flash. It can also potentially reduce BOM costs and free up NAND signals for other devices/uses on the VFx00 Flexbus interface.

7.4 I²C EEPROM

The phyCORE-Vybrid can be populated with a non-volatile I

2

C EEPROM as an ordering option. This memory can be used to store configuration data or other general purpose data. This device is accessed through I²C port 2 on the VFx00.

Solder jumpers J1 and J2 are provided to set two of the lower address bits. Refer to

Chapter 7.4.1

for

details on using these jumpers to set the EEPROM's address.

1. The maximum memory size listed is as of the printing of this manual. Please contact PHYTEC for more information about additional, or new module configurations available.

© PHYTEC America LLC 2012 23

Part I, Chapter 7: System Memory L-783e_0

Write-protection to the device is accomplished via jumper J6. Refer to

Chapter 7.4.2

for details on using the write-protect feature.

7.4.1 Setting the EEPROM Lower Address Bits

The four upper address bits of the I

2

C EEPROM's 7-bit address are fixed at ‘1010.’ Lower address bit A0 is wired to GND. The phyCORE-Vybrid SOM allows the user to configure the lower address bits A1 and A2 with jumpers J1 and J2 respectively.

Table 7-1

below shows the resulting seven bit I²C device address for the four possible jumper configurations.

Table 7-1.

U6 EEPROM I²C Address via J1 and J2

U9 I²C Device Address

1010 000x

1010 010x

1010 100x

1010 110x

J1

2 + 3

1 + 2

2 + 3

1 + 2

J2

2 + 3

2 + 3

1 + 2

1 + 2

7.4.2 EEPROM Write Protection Control (J6)

Jumper J6 controls write access to the EEPROM (U9) device. Closing this jumper allows write access to the device, while removing this jumper will cause the EEPROM to enter write-protect mode, thereby disabling write access to the device.

The following configurations are possible:

Table 7-2. EEPROM Write-Protection States Via J6

EEPROM Write Protection State

Write access allowed

Write-protected

J6

closed

open

7.5 Memory Model

There is no special address decoding device on the phyCORE-Vybrid, which means that the memory model is given according to the memory mapping of the Vybrid processor. Please refer to the VFx00 TRM for the memory map.

© PHYTEC America LLC 2012 24

Part I, Chapter 8: Serial Interfaces L-783e_0

8 Serial Interfaces

The phyCORE-Vybrid provides on-board transceivers for three different serial interfaces:

1.

One RS-232 transceiver supporting two RX/TX channels

2.

Two 10/100 Ethernet PHYs

3.

Two CAN transceivers

The following sections of this chapter detail each of these serial interfaces and any applicable configuration jumpers.

8.1 SCI / RS-232

The phyCORE-Vybrid provides an on-board RS-232 transceiver at U15. This device provides RS-232 voltage level translation for either the SCI1 interface data signals with its RTS/CTS hardware flow control signals, or for both of the SCI1 and SCI2 interface data signals. These SCI and RS-232 signals are available at the phyCORE connector. Their locations are shown in

Table 8-1

.

Table 8-1. SCI RS-232 Signal Locations

Pin # Signal

3A

4A

5A

6A

8C

10C

9C

11C

Type

MCU_PTB4

MCU_PTB5

MCU_PTB6

MCU_PTB7

SCI1_TX_RS232 IO

SCI2_TX_RS232 IO

SCI1_RX_RS232 IO

SCI2_RX_RS232 IO

IO

IO

IO

IO

SL Description

VDD_3V3 SCI1 Tx

VDD_3V3 SCI1 Rx

VDD_3V3 SCI1 RTS or SCI2 Tx

VDD_3V3 SCI1 CTS or SCI2 Rx

VDD_3V3 SCI1 Tx at RS232 voltage

VDD_3V3 SCI1 RTS or SCI2 Tx at RS232 voltage

VDD_3V3 SCI1 Rx at RS232 voltage

VDD_3V3 SCI1 CTS or SCI2 Rx at RS232 voltage

8.2 Ethernet

The phyCORE-Vybrid comes populated with two Micrel Ethernet PHYs at U2 and U3 supporting 10/100 Mbps Ethernet connectivity. These PHYs connect over RMII to the Dual Ethernet MAC integrated in the VFx00.

The Ethernet PHYs support the HP Auto-MDIX function, eliminating the need for consideration of a direct connect LAN cable or a cross-over patch cable. The PHYs detects the TX and RX pins of the connected device and automatically configures its own TX and RX pins accordingly.

Interfacing the Ethernet ports involves adding RJ45 connectors and appropriate magnetic devices in your design. Please consult the phyCORE-Vybrid Carrier Board schematics as a reference.

If the Ethernet ports will not be used, the transceivers on the SOM can be disabled, allowing these signals to be designated for other uses.

© PHYTEC America LLC 2012 25

Part I, Chapter 8: Serial Interfaces L-783e_0

8.3 FlexCAN

The Controller Area Network (CAN) is a serial communications protocol which efficiently supports distributed real time control with a high level of security.

The VFx00 includes two CAN interfaces. These support bitrates up to 1 MBit/s and are compliant to the

FlexCAN3 protocol specification.

The phyCORE-Vybrid provides two CAN transceivers at U13 and U14. These transceivers can be used to translate the signal voltages out of the VFx00 to CAN levels and ISO 11898 requirements.

For configurations which do not require CAN level translation, or which require full DC-DC isolation on the

CAN interfaces, the CAN transceivers can be removed and 0 Ohm resistors can be installed to bypass them. In this configuration there is a direct connection between the TTL level signals and the CAN level signals, leaving the CAN level signals operating at TTL levels.

If full DC isolation is required, isolating transceivers can be designed into a Carrier Board. Please see the phyCORE-Vybrid Carrier Board schematic for a reference implementation.

© PHYTEC America LLC 2012 26

Part I, Chapter 9: Technical Specifications L-783e_0

9 Technical Specifications

The physical dimensions of the phyCORE-Vybrid are presented in

Figure 9-1

. The module's profile is max.

5.5 mm thick, with a maximum component height of 2.0 mm on the bottom (connector) side of the PCB and approximately 2.5 mm on the top (microcontroller) side. The board itself is approximately 1.0 mm thick.

Fig. 9-1. phyCORE-Vybrid Physical Dimensions

© PHYTEC America LLC 2012 27

Part I, Chapter 9: Technical Specifications L-783e_0

Table 9-1. Technical Specifications

a

Dimensions 41 mm x 51 mm

Weight Approximately 10 g with all optional components mounted on the circuit board

Storage Temperature -40 °C to +125 °C

Operating Temperature 0 °C to +70 °C (commercial)

-40°C to +85°C (industrial) b

Humidity 95% r.F. not condensed

Operating Voltage VCC 3.3V +/- 5%

VBAT 3.0 - 3.6V

Power Consumption Typical: VCC 3.3V / 0.6A / 1.98 Watts

Maximum: VCC 3.3V / 1.0A / 3.3 Watts

Operating Conditions:

VF600, 256 MB DDR3-SDRAM, 512 MB NAND Flash,

Flash, Ethernet, 450 MHz CPU frequency, 20 °C

a. These specifications describe the standard configuration of the phyCORE-Vybrid as of the printing of this manual.

b. In order to guarantee reliable functioning of the SOM up to the maximum temperature appropriate cooling measures must be provided. Use of the SOM at high temperature impacts the SOM's life span.

Table 9-2. Part information for phyCORE Connectors (X1)

Manufacturer Samtec

Part Number (lead free) BSH-060-01-L-D-A (receptacle)

Mating Connector BTH-060-01-L-D-A (header)

Mated Height 5 mm

Number of Pins Per Contact Rows 120 (2 Rows of 60 pins each)

Different heights are offered for the receptacle sockets that correspond to the connectors populating the underside of the phyCORE-Vybrid. The given connector height indicates the distance between the two connected PCBs when the module is mounted on the corresponding Carrier Board. In order to get the exact spacing, the maximum component height (2.0 mm) on the bottom side of the phyCORE must be subtracted.

Please refer to the corresponding datasheets and mechanical specifications provided by Samtec www.samtec.com

.

© PHYTEC America LLC 2012 28

Part I, Chapter 10: Integrating and Handling the phyCORE-Vybrid L-783e_0

10 Integrating and Handling the phyCORE-Vybrid

10.1 Integrating the phyCORE-Vybrid

Successful integration of the phyCORE-Vybrid into a custom carrier board requires adherence to the layout design rules for the GND connections of the phyCORE module. As a general design rule we recommend connecting all GND pins neighboring signals which are being used in the application circuitry.

At minimum four GND pins should be connected in addition to the four VDD pins used for SOM power (see

Chapter 1.2

for details). For maximum EMI performance all GND pins should be connected to a solid ground plane.

To facilitate the integration of the phyCORE-Vybrid into your design, the footprint of the phyCORE-Vybrid is

shown in Figure 10-1

.

Fig. 10-1. phyCORE-Vybrid Footprint

© PHYTEC America LLC 2012 29

Part I, Chapter 10: Integrating and Handling the phyCORE-Vybrid L-783e_0

Besides this hardware manual, other information is available to facilitate the integration of the phyCORE-

Vybrid into customer applications:

• The design of the phyCORE-Vybrid Carrier Board can be used as a reference for any customer application. Reference schematics are available upon request.

• Answers to many common questions can be found at www.phytec.de/de/support/faq/faq-phycore-

Vybrid.html

, or www.phytec.eu/europe/support/faq/faq-phycore-Vybrid.html

.

• Different support packages are available to support you in all stages of your embedded development. For North America please visit http://www.phytec.com/support/contract.html. For

Europe and Asia please visit www.phytec.de/de/support/support-pakete.html

, www.phytec.eu/ europe/support/supportpackages.html

, or contact our sales team for more details.

10.2 Handling the phyCORE-Vybrid

Removal of various components, such as the microcontroller and the standard quartz, is not advisable given the compact nature of the module. Should this nonetheless be necessary, please ensure that the board as well as surrounding components and sockets remain undamaged while de-soldering.

Overheating the board can cause the solder pads to loosen, rendering the module inoperable. Carefully heat neighboring connections in pairs. After a few alternations, components can be removed with the solder-iron tip. Alternatively, a hot air gun can be used to heat and loosen the bonds.

CAUTION:

If any modifications to the module are performed, regardless of their nature, the manufacturer warranty is voided.

© PHYTEC America LLC 2012 30

PCM-952/phyCORE-Vybrid Carrier Board L-783e_0

Part II: PCM-952/phyCORE-Vybrid Carrier Board

Part 2 of this three part manual provides detailed information on the phyCORE-Vybrid Carrier Board and its usage with the phyCORE-Vybrid SOM. The information and all board images in the following chapters are applicable to the 1375.2 PCB revision of the phyCORE-Vybrid Carrier Board.

The Carrier Board can also serve as a reference design for development of custom target hardware in which the phyCORE SOM is deployed. Carrier Board schematics with BoM are available under a Non

Disclosure Agreement (NDA). Re-use of Carrier Board circuitry likewise enables users of PHYTEC SOMs to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks.

© PHYTEC America LLC 2012 31

Part II, Chapter 11: Introduction

11 Introduction

L-783e_0

Fig. 11-1. phyCORE-Vybrid Carrier Board

The phyCORE-Vybrid Carrier Board provides a flexible development platform enabling quick and easy start-up and subsequent programming of the phyCORE-Vybrid System on Module. The Carrier Board design allows easy connection of additional expansion boards featuring various functions that support fast and convenient prototyping and software evaluation.

The phyCORE-Vybrid Carrier Board is designed for evaluation, testing, and prototyping of PHYTEC SOMs in laboratory environments prior to their use in customer designed applications.

This modular development platform concept includes the following components:

• The phyCORE-Vybrid System on Module populated with the VFx00 processor and all applicable

SOM circuitry such as DDR3 SDRAM, Flash, and Ethernet transceivers, to name a few.

• The phyCORE-Vybrid Carrier Board offers all essential components and connectors for start-up, including a power socket enabling connection to an external power adapter and interface connectors such as RS-232, USB, CAN, Ethernet, allowing for use of the SOM's interfaces with standard cables.

The phyCORE-Vybrid Carrier Board has the following features for supporting the phyCORE-Vybrid SOM:

• Power supply circuits to supply the phyCORE-Vybrid and the peripheral devices of the Carrier

Board

• Two RS-232 interfaces brought out to a RS-232 connector and to a pin-header

• Two USB interfaces brought out to a dual USB Standard-A connector

• Two 10/100 Mbps Ethernet interfaces with RJ45 jacks

• Two CAN interfaces: one available at a male DB9 connector with optional optical isolation, and another available at the GPIO Expansion Connector

• Audio codec and connectors supporting MIC in, stereo headphone out, stereo line out, and stereo line in

© PHYTEC America LLC 2012 32

Part II, Chapter 11: Introduction L-783e_0

• PHYTEC Display Interface connector with touch screen and light sensor support

• TTL display connector supporting a low cost display panel made by HTDisplay Electronics Co. Ltd.

• Display pin header enabling connection of custom display interfaces and easy access to display signals

• Secure Digital Memory Card / MultiMedia Card Interface (SD / MMC)

• K20 processor supporting openSDA protocol and CMSIS-DAP for multicore debugging with the

ARM Development Studio 5 tool suite

• JTAG connector for the VFx00 processor on the SOM

• Access to phyCORE-Vybrid's TAMPER security signals

• Expansion board connectors for easy access to most processor signals

• Dip switch to configure processor boot source

• Backup battery to power the Real-Time Clock

• Reset, power, and user buttons and LEDs

The following sections contain information specific to the operation of the phyCORE-Vybrid SOM mounted on the phyCORE-Vybrid Carrier Board.

© PHYTEC America LLC 2012 33

Part II, Chapter 12: Overview of Peripherals

12 Overview of Peripherals

L-783e_0

Fig. 12-1. Overview of Peripherals

The phyCORE-Vybrid Carrier Board is depicted in

Figure 11-1 . It is equipped with the components and

peripherals listed in the tables below. For a more detailed description of each peripheral, refer to the appropriate chapter listed in the applicable table.

Figure 12-1 highlights the location of each peripheral for

easy identification.

© PHYTEC America LLC 2012 34

Part II, Chapter 12: Overview of Peripherals

12.1 Connectors and Pin Headers

L-783e_0

Fig. 12-2. phyCORE-Vybrid Connectors (Top)

Fig. 12-3. phyCORE-Vybrid Connectors (Bottom)

© PHYTEC America LLC 2012 35

Part II, Chapter 12: Overview of Peripherals

The table below lists the connectors on the phyCORE-Vybrid Carrier Board.

X12

X13

X16

X19

X20

X21

X22

X24

X25

X26

X27

X28

X29

X30A & X30B

X31

Table 12-1. phyCORE-Vybrid Connectors

Reference

Designator

X1

X2

X7

X8

X9

X10

X11

Description phyCORE-Connectors for SOM connectivity

+5 V power input (primary power input, 3 A capacity)

Ethernet0 RJ45 connector

USB 2.0 Dual Standard-A

Secure Digital Memory / MultiMedia Card slot

RS-232 Dual DB9-Female

Ethernet1

Chapter

RJ45

CAN Dual DB9-Male

USB Mini-AB for K20 Debug Circuit

VFx00 1.27mm JTAG + Reduced Trace pin header

VFx00 2.54mm JTAG pin header

Line-in 3.5 mm audio jack

Expansion connectors

VFx00 JTAG + Full Trace Mictor connector

Display (pin header)

Microphone 3.5 mm audio jack

+5 V power input (alternate connector, 16 A capacity)

Line-out 3.5 mm audio jack

Headphone 3.5 mm audio jack

Display (connector for the TTL display)

18

24

24

24

22

27

24

20

22

15

22

22

20

Display (PHYTEC Display Interface data and power connectors)

20

RS-232 pin header

17

21

17

16

2

15

16

19

L-783e_0

CAUTION:

Ensure that all module connections are not to exceed their expressed maximum voltage or current.

Maximum signal input values are indicated in the corresponding controller User's Manual/Data Sheets.

As damage from improper connections varies according to use and application, it is the user‘s responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals.

© PHYTEC America LLC 2012 36

Part II, Chapter 12: Overview of Peripherals

12.2 Buttons and Switches

L-783e_0

Fig. 12-4. Buttons and Switches

The phyCORE-Vybrid Carrier Board is populated with four push-button switches and an 8-position DIPswitch. These are essential for the operation of the phyCORE-Vybrid module on the Carrier Board.

Figure

12-4

shows their locations, while their functions are described in the tables below.

Table 12-2. Button Descriptions

Button Description Chapter

S2 (Reset) System Reset Button – issues a system warm reset

S3 (User button 1) User button BTN1 - Toggles the MCU_PTB8 signal if jumper JP20 is installed on the Carrier Board.

S4 (User button 2) User button BTN2 - Toggles the MCU_PTB9 signal if jumper JP21 is installed on the Carrier Board.

S7 (SPI Flash) System reset if jumper X15=1+2. This is for programming the SPI

Flash devices on the SOM through the K20 processor.

6

12.2.2

12.2.2

25

12.2.1 System Reset Button

The phyCORE Carrier Board is equipped with a system reset button at S2. Pressing the button will not only reset the phyCORE mounted on the phyCORE-Vybrid Carrier Board, but also the peripheral devices, such as the display. The red LED at D21 will light while system reset is asserted.

© PHYTEC America LLC 2012 37

Part II, Chapter 12: Overview of Peripherals L-783e_0

12.2.2 User Programmable Push Buttons

Two user programmable push buttons are located at S3 and S4. Each of these can connect through a jumper to a Vybrid GPIO signal to facilitate software development. The jumpers can be removed to make the Vybrid GPIO signals available for other uses.

JP20

JP21

Connects S3 to Vybrid signal MCU_PTB8

Connects S4 to Vybrid signal MCU_PTB9

12.2.3 Boot Configuration Switch

The 8-position DIP switch at S5 provides a way to override the default boot option of the VFx00, which is

defined by resistors on the phyCORE-Vybrid SOM. (please refer to Chapter 6 for more information).

Table 12-3 below shows the state of each boot mode signal when the corresponding switch position is turned ON. Table 12-4

shows the required switch positions to configure the desired boot device.

Table 12-3. Switch Settings (S5)

S5

3

4

1

2

5

6-8

Setting Description

ON to pull BOOTMOD0 low

ON to pull BOOTMOD1 high

ON to pull RCON5 high

ON to pull RCON6 high

ON to pull RCON7 high

Not used

Table 12-4. Boot Configuration Settings

S5 [1...5] on, on, on, on, off on, on, off, off, on on, on, off, off, off

off, off, off, off, off

Boot Device

SD Card

NAND

QSPI

UART/USB0

12.2.4 SPI Flash Button

Button S7 is part of the K20 debug circuit. It is for programming the SPI Flash devices on the SOM through the K20 processor. It can be used as a system reset if jumper X15=1+2.

For a detailed description of this button and associated uses, please see

Chapter 25

© PHYTEC America LLC 2012 38

Part II, Chapter 12: Overview of Peripherals

12.3 LEDs

L-783e_0

Fig. 12-5. LEDs

The phyCORE-Vybrid Carrier Board is populated with numerous LEDs to indicate the status of various interfaces as well as the input power supply.

Figure 12-5 shows the location of the LEDs. Their functions

are listed in the table below.

Table 12-5. LED Descriptions

LED

D3

D7

D12

D14

D15

D16

D17

D20

D21

Label

5 V

LED3

K20

3V3

VBUS1

VBUS0

CAN

LED1

RESET

Color red green green green red red green green red

Description

5 V input power

User LED 3, Vybrid analog control

K20 Debug

3.3 V power

USB1 VBUS

USB0 VBUS

5 V power to the CAN connector

User LED 1, Vybrid on/off control

System reset

Chapter

15

12.3

12.3

15

19

19

18

12.3.1

12.2.1

© PHYTEC America LLC 2012 39

Part II, Chapter 12: Overview of Peripherals L-783e_0

12.3.1 User Programmable LEDs

The phyCORE Carrier Board is equipped with two user programmable LEDs (D7, D20) to facilitate software development. Each LED can be disconnected from its processor signal to make the signal available for other uses.

D7

D20

Is controlled by the Vybrid processor on the SOM. The brightness can be set in 4096 steps from off to fully bright with the analog Vybrid DAC1 signal when jumper JP23 is installed.

Is controlled by the Vybrid processor on the SOM and can be turned on and off by the Vybrid

GPIO signal MCU_PTB10 when resistor R138 is installed.

© PHYTEC America LLC 2012 40

Part II, Chapter 13: Jumpers

13 Jumpers

L-783e_0

Fig. 13-1. Jumper Locations and Default Settings

The phyCORE Carrier Board comes pre-configured with 22 removable jumpers and 4 solder jumpers.

Figure 13-1

provides a detailed view of the phyCORE-Vybrid Carrier Board jumpers and their default settings.

The jumpers allow the user flexibility of configuring a limited number of features for development purposes.

Figure 13-2 depicts the jumper pad numbering scheme for reference when altering jumper settings on the

development board; a beveled edge indicates the location of pin 1.

Fig. 13-2. Jumper Numbering Scheme

Before making connections to peripheral connectors, consult the applicable sections in this manual for setting the associated jumpers.

Table 13-1

is a list of all Carrier Board jumpers, their default positions, and their functions in each position.

The table only provides a concise summary of jumper descriptions. For a detailed descriptions see the applicable chapter listing in the right hand column of the table.

© PHYTEC America LLC 2012 41

Part II, Chapter 13: Jumpers L-783e_0

The following conventions were used in naming jumpers on the Carrier Board:

• J = solder jumper

• JP = removable jumper

Table 13-1. Jumper Settings and Descriptions

Jumper Setting Description

JP1

JP4

JP5

JP7

JP6

JP9

JP14

JP15

JP16

JP17

JP18

JP19

JP20

JP21

CLOSED The SOM's VBAT supply connects to the battery

OPEN

1+2

2+3

The SOM's VBAT supply is disconnected

CLOSED The LVDS transmitter is disabled

OPEN The LVDS transmitter is enabled

The external crystal oscillator provides the audio codec master clock. J2 must be installed at 1+2 to enable the oscillator.

The Vybrid MCU_PTB11 signal provides the audio codec master clock.

CLOSED The CAN0 termination is connected

OPEN The CAN0 termination is not connected

1+2

2+3

The CAN signals route through the transceivers on the Carrier

Board

The CAN signals bypass the transceivers on the Carrier

Board

CLOSED RTC_INTn connects to the Vybrid signal MCU_PTB23

OPEN RTC_INTn does not connect to any Vybrid signals. MCU_PTB23 is available on the Expansion Connector.

1+2

3+4

Connects isolated 5 V power to the CAN connectors.

Connects isolated 5 V power to the CAN transceivers.

OPEN

1+2

The CAN circuits are not connected to isolated 5 V power

Connects system 5 V power to the CAN connectors. (5+6) must also be installed.

3+4

5+6

OPEN

Connects system 5 V power to the CAN trance i vers. (5+6) must also be installed.

Connects system GND to CAN_GND.

The CAN circuits are not connected to system 5 V power or GND

CLOSED Tamper2 and Tamper3 signals are connected. This allows testing of normal physical security operating condition.

OPEN Tamper2 and Tamper3 signals are disconnected. This allow testing of a physical security fault condition, such as of a panel being opened.

CLOSED User Button 1 is connected to the signal MCU_PTB8

OPEN User Button 1 is not connected to the signal MCU_PTB8

CLOSED User Button 2 is connected to the signal MCU_PTB9

OPEN User Button 2 is not connected to the signal MCU_PTB9

Chapter

15.2

20

22

18

18

5

18

18

26

12.2

12.2

© PHYTEC America LLC 2012 42

Part II, Chapter 13: Jumpers L-783e_0

Table 13-1. Jumper Settings and Descriptions (Continued)

Jumper Setting Description

JP22

JP23

JP24

JP26

JP27

JP28

JP30

X15

J1

J2

J3, J4

CLOSED Normal system use

OPEN Calculate the current to the SOM by measuring the voltage across the JP22 pins. The resistance across this path is set by resistor R153, default value 0.070 Ohms +/- 1%. Current = voltage / resistance.

CLOSED The DACO1 signals can control User LED 3

OPEN The DACO1 signal does not connect to User LED 3. DACO1 is available at the Expansion Connector X21 for custom uses.

CLOSED The CAN isolated power converter is enabled

OPEN The CAN isolated power converter is dis abed

CLOSED The K20's UART is connected to the Vybrid's UART1

OPEN The K20's UART is not connected to the Vybrid

1+2

2+3

The K20 SPI interface connects to the SOM's SPI_A Flash U7

The K20 SPI interface connects to the SOM's SPI_B Flash U8

OPEN The K20 SPI interface does not connect to the SOM's SPI

Flash devices

CLOSED U28 is disabled; the TTL display connector does not have power.

OPEN

1+2

3+4

5+6

7+8

OPEN

1+2

2+3

U28 supplies power for the TTL display connector.

Reset the Vybrid with the SPI Flash Button

Reset the Vybrid with the K20_SPI0_CS signal

Reset the Vybrid with the K20_GPIO_PTD6 signal

Reset the Vybrid while this jumper is installed

Normal system use

VCC_10V4 is supplied by U6

VCC_10V4 is supplied by Q1

CLOSED The audio codec external oscillator OZ1 is enabled

2+3 The audio codec external oscillator OZ1 is disabled

1+2

2+3

USB1 routes to the PHYTEC Display Connector X30

USB1 routes to the USB1 connector X8

Chapter

15

12.3

& 11

18

24

24

20

24

20.2

22

19

© PHYTEC America LLC 2012 43

Part II, Chapter 14: phyCORE-Vybrid SOM Connectivity

14 phyCORE-Vybrid SOM Connectivity

L-783e_0

Fig. 14-1. phyCORE-Vybrid SOM Connectivity to the Carrier Board

Connectors X1 on the Carrier Board provide connectivity to the phyCORE SOM and are keyed for proper insertion.

Figure 14-1

shows the location of these connectors. Pin numbering scheme is shown in Figure 2-

1

Please refer to

Chapter 9 ,

Table 9-2

for more information about the phyCORE connectors including manufacturer, part number, and ordering.

© PHYTEC America LLC 2012 44

Part II, Chapter 15: Power

15 Power

L-783e_0

Fig. 15-1. Powering Scheme

The primary input power of the phyCORE-Vybrid Carrier Board is supplied from the wall adapter jack at X2

(5V with 3A capacity). An alternate 5V input connector at X26 is an optional feature with a 16A capacity.

This option is provided for using high powered PHYTEC Displays that exceed the 5V/3A provided by X2.

The input connector at X26 does not come standard on the phyCORE-Vybrid Carrier Board; it must be

special ordered. Use only one of these two connectors.

A switching regulator generates 3.3V to supply the SOM and components on the Carrier Board. The following table lists the voltage domains and their uses.

Table 15-1. Voltage Domains

Voltage

Domain

VCC_5V0

Description

VCC_3V3

VBAT

Main supply voltage from wall adapter input at X2 or X26. VCC_5V0 powers the other supplies on the Carrier Board.

VCC_3V3 powers the SOM and various components on the Carrier Board.

The VBAT 3 V backup battery powers the RTC on the SOM if jumper JP1 is installed.

Power LEDs on the phyCORE-Vybrid Carrier Board are shown in the following table.

Table 15-2. Power LEDs

LED

D3

D14

Color red green

Description

VCC_5V0 supply voltage

VCC_3V3 supply voltage

© PHYTEC America LLC 2012 45

Part II, Chapter 15: Power L-783e_0

15.1 Wall Adapter Input

Permissible input voltage at X2 or X26: +5 V DC +/- 10%.

CAUTION:

Do not use a laboratory adapter to supply power to the Carrier Board! Power spikes during power-on could destroy the phyCORE module mounted on the Carrier Board. Do not change modules or jumper settings while the Carrier Board is supplied with power.

The required current load capacity of the power supply depends on the specific configuration of the phyCORE mounted on the Carrier Board, the particular interfaces enabled while executing software, and any optional expansion board connected to the Carrier Board. An adapter with a minimum supply of 1.5A is recommended.

To power up the phyCORE, plug in the power supply connector; the red 5V LED and the green 3.3V LED should light up.

15.2 VBAT

To backup the RTC on the SOM, a secondary voltage source of 3V can be attached to the phyCORE-

Vybrid at pin X1-C4. This voltage source supplies the backup voltage domain VBAT of the VFx00 which supplies the RTC and some critical registers when the primary system power, VCC_3V3, is removed.

Install jumper JP1=1+2 to connect the VBAT supply to the phyCORE-Vybrid.

15.3 Current Measurement

To facilitate current measurement, jumper JP22 is provided as a current measurement access point. When

JP22 is removed, the voltage across its pins reflects the current supplied to the SOM through resistor

R153. By default, the value of R153 is 0.07 Ohm +/- 1%.

© PHYTEC America LLC 2012 46

Part II, Chapter 16: Ethernet

16 Ethernet

L-783e_0

Fig. 16-1. Ethernet Interface Connectors

The 10/100 Ethernet interfaces on the SOM are accessible at RJ-45 connectors X7 and X11. Ethernet0 routes to connector X7 and Ethernet1 routes to X11. The LEDs for LINK (green) and SPEED (yellow) indication are integrated in the connectors.

This Ethernet PHYs on the SOM support the HP Auto-MDIX function, eliminating the need for considerations of a direct connect LAN cable or a cross-over patch cable. The transceivers detect the TX and RX signals of the connected devices and automatically configure their TX and RX pins accordingly.

© PHYTEC America LLC 2012 47

Part II, Chapter 17: RS-232

17 RS-232

L-783e_0

Fig. 17-1. RS-232 Interface Connectors

The DB-9 connector X10 provides the SCI1 signals of the VFx00 at RS-232 level; it is the default

communication port. The X31 pin header provides the SCI2 signals at RS-232 level. Table 17-2 and Table

17-1

show the signal locations and descriptions for these connectors.

Fig. 17-2. DB-9 RS-232 Connectors P1A and P1B Pin Numbering

© PHYTEC America LLC 2012 48

Part II, Chapter 17: RS-232

Table 17-1. X10 Pin Descriptions

Pin

7

8

5

6

9

3

4

1

2

Signal

N/C

SCI1_TX_RS232

SCI1_RX_RS232

N/C

GND

N/C

N/C

N/C

N/C

Type SL

-

-

-

-

-

-

OUT

IN

-

Description

Not connected

RS-232 UART1 transmit signal at RS232 level

RS-232 UART1 receive signal at RS232 level

Not connected

Ground

Not connected

Not connected

Not connected

Not connected

Table 17-2. X31 Pin Descriptions

Pin

1

2

3

Signal

MCU_PTB6

GND

MCU_PTB7

Type SL

OUT

-

IN

RS-232

-

RS-232

Description

SCI2_TX at RS-232 level

Ground 0 V

SCI2_RX at RS-232 level

L-783e_0

© PHYTEC America LLC 2012 49

Part II, Chapter 18: CAN (Controller Area Network)

18 CAN (Controller Area Network)

L-783e_0

Fig. 18-1. CAN Interface Connectors and Jumpers

The CAN interfaces are configurable on both the SOM and the Carrier Board.

On the SOM:

1.

Default: the signals route through CAN transceivers. The CAN transceivers on the SOM are compatible with ISO 11898. They do not support full DC-isolation.

2.

Alternate configuration: the signals route directly from the Vybrid processor to their phyCORE connector pins. To use this configuration, the transceivers must be physically removed from the

SOM. Please contact PHYTEC for more information about this configuration option.

On the Carrier Board:

1.

Default: CAN0 signals route directly to DB9 connector X12.

2.

Alternate configuration: CAN0 signals from the SOM route through a CAN transceiver before routing to X12. The transceiver on the Carrier Board meets or exceeds ISO 11898 specifications and it supports full DC-isolation. To use the transceiver on the Carrier Board, the SOM must be configured to route the CAN0 signals directly to the phyCORE, with the CAN0 transceiver physically removed from the SOM.

Although many configurations are possible, generally the CAN0 interface will be run in one of three configurations:

1.

SOM Mode: non-isolated mode using the CAN0 transceiver on the SOM. This is the default configuration.

2.

CB Isolated Mode: Isolated mode using the CAN0 transceiver on the Carrier Board. Both data and power are isolated.

3.

CB Non-Isolated Mode: non-isolated mode using the CAN0 transceiver on the Carrier Board.

© PHYTEC America LLC 2012 50

Part II, Chapter 18: CAN (Controller Area Network) L-783e_0

Note that for both CB operating modes the CAN0 transceiver must be removed from the SOM. Please contact PHYTEC for assistance in removing CAN transceviers on the SOM.

A summary of the jumper settings for each operating mode is presented in

Table 18-1 .

Table 18-1. CAN0 Jumper Settings

Jumper

JP6

JP9

JP14

JP15

JP17

JP18

JP24

SOM Mode

2+3

2+3

2+3

2+3

OPEN

5+6

OPEN

CB Non-Isolated Mode

1+2

1+2

1+2

1+2

OPEN

3+4, 5+6

OPEN

CB Isolated Mode

1+2

1+2

1+2

1+2

3+4

OPEN

CLOSED

On the Carrier Board, the CAN1 signals from the phyCORE route directly to the Expansion Connector X21.

See

Table 30-1 (Processor Signal Map) in Chapter 30 for the CAN1 signal locations.

JP7 When closed, connects a 120 Ohm termination across the CAN0_H/L signal pair. This termination should be connected when the CAN0 signals connect at the physical end of a line with a cable that does not provide integrated termination.

18.1 VCC_CAN

In general, the configuration of VCC_CAN jumpers should be adjusted according to the operating modes listed in

Table 18-1

. However, a more detailed description of the VCC_CAN configuration is also presented here for reference.

In the default configuration, the CAN signals route through a transceiver on the SOM. Alternately, these signals route instead through a transceiver on the Carrier Board.

The Carrier Board transceiver can operate on either system power or DC-isolated power. The jumper settings for each of these configurations are shown in the table below.

D17 indicates if 5V system power is provided to the CAN connector, which can be connected with

JP18=1+2.

Table 18-2. VCC_CAN Supply Configuration

Configuration

CAN transceiver on SOM

CAN transceiver on CB, use system power

CAN transceiver on CB, use DC-isolated power

JP17

OPEN

OPEN

3+4

JP18

5+6

3+4, 5+6

OPEN

JP24

OPEN

OPEN

CLOSED

© PHYTEC America LLC 2012 51

Part II, Chapter 19: USB

19 USB

L-783e_0

Fig. 19-1. USB Interface

The USB0 and USB1 interfaces route to connector X8 (USB Dual Standard-A). Although both of these interfaces are USB OTG ports, they are limited to host operation due to the USB-A style connectors. USB0 is accessible at the bottom connector while USB1 is at the top connector.

19.1 VCC_USB

Each of the USB interfaces has its own voltage supply. LED D16 indicates when VCC_USB0 is powered, and LED D15 indicates when VCC_USB1 is powered. If either of these supplies goes into an over-current condition, the Vybrid will disable both.

© PHYTEC America LLC 2012 52

Part II, Chapter 20: Display

20 Display

L-783e_0

Fig. 20-1. Display

Three separate display interface connections are provided on the Carrier Board. Only one may be used at any given time. All three connection interfaces are sourced from the same display interface on the Vybrid processor.

Locations for X24 and X30 are found in

Figure 20-1

; the location of X29 is found in

Figure 12-3 (the only

connector on the underside of the board). Descriptions for the three connection interfaces are:

X24

X29

X30A,

X30B

This connector provides the 3.3V TTL level display signals, power (3.3V), and GND on a

2.54mm pin header for easy access.

This connector connects to a low cost display provided by PHYTEC. The display is a 7" TFT panel with a resolution of 800x480 @ 24bpp manufactured by the HTDISPLAY ELECTRON-

ICS CO., LTD. This display has no touch interface.

These connectors comply with the PHYTEC Display Interface (PDI) for connection to a range of LCD display boards provided by PHYTEC. X30A provides data and control signals, while X30B provides power and auxiliary control.

© PHYTEC America LLC 2012 53

Part II, Chapter 20: Display L-783e_0

20.1 Display Signals

Connector X24 has been provided to give easy access to the Vybrid processor's display interface. When using the following signals for display, signal type will change to OUT.

The pin-out for connector X24 is provided below.

Table 20-1. TTL Display Pin Header (X24)

Pin #

25

26

27

28

29

30

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

Signal

MCU_PTE17

MCU_PTE21

MCU_PTE18

MCU_PTE22

MCU_PTE19

MCU_PTE0

MCU_PTE20

MCU_PTE1

MCU_PTE23

MCU_PTE4

MCU_PTE24

MCU_PTE2

GND

VCC_3V3

MCU_PTE7

MCU_PTE25

MCU_PTE8

MCU_PTE26

MCU_PTE9

MCU_PTE27

MCU_PTE10

MCU_PTE28

MCU_PTE11

MCU_PTE5

MCU_PTE12

MCU_PTE6

MCU_PTE15

MCU_PTE13

MCU_PTE16

MCU_PTE14

Type

I/O

I/O

I/O

I/O

GND

PWR

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

SL

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

Ground

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

Description

Display red 2

Display blue 4

Display red 3

Display blue 5

Display red 4

Display blue 6

Display red 5

Display blue 7

Display red 6

Display red 0

Display red 7

Display red 1

Display green 2

Display green 0

Display green 3

Display green 1

Display green 4

Display blue 0

Display green 5

Display blue 1

Display green 6

Display horizontal sync

Display green 7

Display vertical sync

Display blue 2

Display enable

Display blue 3

Display clock

Ground

Power

© PHYTEC America LLC 2012 54

Part II, Chapter 20: Display L-783e_0

20.2 TFT Display

The FPC connector X29 connects to a 7" TFT panel with a resolution of 800x480 @ 24bpp manufactured by the HTDISPLAY ELECTRONICS CO., LTD. Connector X29 is located on the bottom side of the board.

This display has no touch screen interface.

J1

JP30

Selects the source for the VCC_10V4 voltage to this display. The J1 jumper setting should not be changed.

Installing JP30 enables the TTL display power VCC_16V. Removing the jumper disables it. By default this jumper is installed and generally should not be removed.

Signal

VCC_9V6

GND

VDD_3V7

VCC_3V3

DISP2_MODE

MCU_PTE4

MCU_PTE1

MCU_PTE0

MCU_PTE28

MCU_PTE27

MCU_PTE26

MCU_PTE25

MCU_PTE24

MCU_PTE23

MCU_PTE22

MCU_PTE21

MCU_PTE20

MCU_PTE19

MCU_PTE18

MCU_PTE17

MCU_PTE16

MCU_PTE15

MCU_PTE14

MCU_PTE13

MCU_PTE12

MCU_PTE11

MCU_PTE10

MCU_PTE9

Table 20-2. TTL Display Connector (X29)

Pin #

24

25

26

27

20

21

22

23

28

29

30

31

16

17

18

19

12

13

14

15

8

9

10

11

6

7

1, 2

3, 4, 5

Type

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

OUT

PWR

GND

REF

PWR

OUT

OUT

OUT

OUT

SL

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_9V6

-

VDD_3V7

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

© PHYTEC America LLC 2012

Description

Green 7

Green 6

Green 5

Green 4

Green 3

Green 2

Green 1

Green 0

Red 7

Red 6

Red 5

Red 4

Blue 7

Blue 6

Blue 5

Blue 4

Blue 3

Blue 2

Blue 1

Blue 0

9.6 V supply voltage

Ground

3.7 V reference voltage

3.3 V supply voltage

Display mode

Display Enable

Vertical Sync

Horizontal Sync

55

Part II, Chapter 20: Display L-783e_0

Table 20-2. TTL Display Connector (X29) (Continued)

Pin #

44

45

46

47

40

41

42

43

48

49, 50

36

37

38

39

32

33

34

35

Signal

MCU_PTE8

MCU_PTE7

MCU_PTE6

MCU_PTE5

GND

MCU_PTE2

GND

MCU_PTB9

MCU_PTB12

VCC_16V

VCC_-7V

VCC_10V4

RESETn no-connect

VDD_3V7

MCU_PTB8

GND no-connect

Type

OUT

REF

REF

PWR

OUT

-

REF

OUT

GND

-

OUT

OUT

OUT

OUT

-

OUT

-

OUT

SL

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

-

VCC_3V3

-

VCC_3V3

-

-

VCC_3V3

VCC_16V

VCC_-7V

VCC_10V4

VCC_3V3

-

VDD_3V7

VCC_3V3

Description

Red 3

Red 2

Red 1

Red 0

Ground

Clock

Ground

Left / right

Up / down

16 V reference voltage

-7 V reference voltage

10.4 V supply voltage

System reset

3.7 V reference voltage

Dither

Ground

20.3 PHYTEC Display Interface

The PHYTEC Display Interface (PDI) is a standardized connection interface for connecting to various

PHYTEC provided displays. One connector provides data and control (X30A), while the other provides power and auxiliary control (X30B). The PDI uses LVDS for the display data signaling; and SPI, I

2

C, and

USB as potential control sources.

The Carrier Board provides an LVDS transmitter IC to convert the TTL level signals provided by the Vybrid processor into the LVDS level signals required by the PHYTEC Display Interface.

JP4 Enables the LVDS transmitter U3 for the PHYTEC Display Interface at X30. To enable the interface, jumper JP4 must be removed.

Table 20-3

and Table 20-4

below give detailed descriptions of the signals on connectors X30A and X30B.

Table 20-3. PDI Connector (X30A) Signal Descriptions

Pin #

3

4

1

2

Signal

GND

VCC_3V3

GND

VCC_5V0

Type

-

PWR

-

PWR

SL

-

VCC_3V3

-

VCC_5V0

Description

Ground 0 V

3.3 V supply voltage

Ground 0 V

5.0 V supply voltage

© PHYTEC America LLC 2012 56

Part II, Chapter 20: Display

Table 20-3. PDI Connector (X30A) Signal Descriptions (Continued)

Pin #

9

10

11

12

7

8

5

6

Signal

GND

VCC_5V0

GND

VCC_5V0

GND

MCU_PTB0 no-connect no-connect

Type

-

-

-

IO

-

PWR

-

PWR

SL

-

VCC_5V0

-

VCC_5V0

-

-

-

VCC_3V3

Description

Ground 0 V

5.0 V supply voltage

Ground 0 V

5.0 V supply voltage

Ground 0 V

Ground 0 V not connected not connected

L-783e_0

Signal

MCU_PTB22

MCU_PTB21

MCU_PTB20

MCU_PTB19 no-connect

VCC_3V3

I2C_SCL

I2C_SDA

GND

MCU_PTB0

VCC_3V3 no-connect

MCU_PTB3 no-connect

GND

USB1_DP

USB1_DM

GND

DISP_LVDS_0-

DISP_LVDS_0+

GND

DISP_LVDS_1-

DISP_LVDS_1+

GND

DISP_LVDS_2-

DISP_LVDS_2+

Table 20-4. PDI Connector (X30B) Signal Descriptions

Pin #

24

25

26

20

21

22

23

16

17

18

19

12

13

14

15

7

8

9

10

11

3

4

1

2

5

6

Type

OUT

IN

OUT

OUT

PWR

OUT

IO

-

OUT

PWR

-

-

-

OUT

IO

IO

-

LVDS

LVDS

-

LVDS

LVDS

-

LVDS

LVDS

SL

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

-

-

-

VCC_3V3

-

-

-

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

Description

SPI 0 clock

SPI 0 master data in; slave data out

SPI 0 master data out; slave data in

SPI 0 chip select display adapter not connected

Logic supply voltage a

I2C clock signal

I2C data signal

Ground

PWM brightness control

Logic supply voltage a not connected

Display enable signal not connected

Ground

USB Data plus

USB Data minus

Ground

LVDS data channel 0 negative output

LVDS data channel 0 positive output

Ground

LVDS data channel 1 negative output

LVDS data channel 1 positive output

Ground

LVDS data channel 2 negative output

LVDS data channel 2 positive output

© PHYTEC America LLC 2012 57

Part II, Chapter 20: Display L-783e_0

Table 20-4. PDI Connector (X30B) Signal Descriptions (Continued)

Pin #

35

36

37

38

39

40

31

32

33

34

27

28

29

30

Signal Type

GND

DISP_LVDS_3-

DISP_LVDS_3+

GND

-

LVDS

LVDS

-

LVDS_CLKOUTM LVDS

LVDS_CLKOUTP LVDS

GND

TS_X+

-

Analog

TS_X-

TS_Y+

TS_Y-

TS_WP

GND

LS_ANA

Analog

Analog

Analog

OUT

-

Analog

SL a. Provided to supply any logic on the display adapter.

-

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

-

VCC_3V3

-

-

VCC_3V3

VCC_3V3

VCC_3V3

-

Description

Ground

LVDS data channel 3 negative output

LVDS data channel 3 positive output

Ground

LVDS clock channel negative output

LVDS clock channel positive output

Ground

Touch X+

Touch X-

Touch Y+

Touch Y-

Touch write-protect

Ground

Light sensor output

20.4 Touch Screen

A touch screen controller at U14 on the Carrier Board provides a 4-wire resistive touch interface for displays connected to the PHYTEC Display Interface. Note that this touch screen controller does not provide touch screen capabilities to the TFT LCD display that connects at X29.

The touch screen controller connects to the Vybrid via I2C2 at address 0x41 (7 MSB).

20.5 Light Sensor

An 8-bit ADC at U21 on the Carrier Board provides the analog input required for reading a light sensor located on one of the PDI compatible PHYTEC displays. The ADC connects to the Vybrid via I2C2 at address 0x64 (MSB).

© PHYTEC America LLC 2012 58

Part II, Chapter 21: SD/MMC

21 SD/MMC

L-783e_0

Fig. 21-1. SD/MMC Interface

The phyCORE-Vybrid Carrier Board provides a standard Secure Digital Memory SDHC card slot at X9 for connection to SD / MMC cards. Power to the SD interface is supplied by inserting the appropriate card into the SD / MMC connector.

© PHYTEC America LLC 2012 59

Part II, Chapter 22: Audio

22 Audio

L-783e_0

Fig. 22-1. Audio Interface

The audio interface provides a method of exploring the VFx00's audio capabilities. The phyCORE-Vybrid

Carrier Board is populated with a Freescale Semiconductors SGTL5000 audio codec at U12. The

SGTL5000 is connected to the VFx00's audio interface to support mono microphone input, stereo headphone output, stereo line out, and stereo line in. The phyCORE-Vybrid accesses the SGTL5000 registers via the I2C2 interface at address 0x0A (7-bit MSB addressing).

The Carrier Board's audio interface includes two hardware configuration jumpers J2 and JP5. These are described in detail below.

J2

JP5

Enables the crystal oscillator which can be selected for the audio master clock by JP5. The default configuration J2=2+3 disables this oscillator.

Selects the audio codec's master clock source (MCLK). The audio codec's master clock input accepts frequencies from 12.288 MHz to 50 MHz. In the default position JP5=2+3 the codec is clocked from the module's MCU_PTA11 audio clock signal. The MCU_PTA11 signal is also used for the K20 debug interface. To use the K20 and audio functions at the same time, the audio codec can instead be clocked by the crystal oscillator by setting JP5=1+2.

© PHYTEC America LLC 2012 60

Part II, Chapter 22: Audio L-783e_0

Audio devices can be connected at X20, X25, X27 and X28. The audio connectors descriptions are listed in

Table 22-1 .

Table 22-1. Audio Connectors

Connector

X20

X25

X27

X28

Description

Stereo line in

Mono microphone in

Stereo line out

Stereo headphone out

© PHYTEC America LLC 2012 61

Part II, Chapter 23: JTAG

23 JTAG

L-783e_0

Fig. 23-1. JTAG Connectivity

The JTAG interface of the phyCORE-Vybrid is accessible at connectors X16 and X19 on the Carrier Board.

This interface is compliant with JTAG specification IEEE 1149.1 and IEEE 1149.7.

X16

X19

Provides JTAG signal access with a limited number of trace signals on a 1.27mm header.

Provides JTAG signal access on a standard 2.54mm ARM-JTAG header

The signal connections for each of these connectors are described in the tables below. When referencing contact numbers, note that pin 1 is located at the beveled corner.

Table 23-1. JTAG Connector X16 Signals

Pin # Signal

5

6

7

8

1

2

3

4

Type

VCC_3V3 PWR

MCU_PTA11 IN

GND

MCU_PTA8

-

IN

GND -

MCU_PTA10 OUT no-pin -

MCU_PTA9 IN

SL

VCC_3V3

VCC_3V3

-

VCC_3V3

-

VCC_3V3

-

VCC_3V3

Description

3.3 V Power

JTAG Chain Test Mode Select signal

Ground

JTAG Chain Test Clock signal

Ground

JTAG Chain Test Data Output

Should be removed from the connector

JTAG Chain Test Data Input

© PHYTEC America LLC 2012 62

Part II, Chapter 23: JTAG

Table 23-1. JTAG Connector X16 Signals (Continued)

16

18

20

9

10

11

12

13

14

15, 17,

19

Pin # Signal Type no-connect

RESETn

-

IO

5 V Supply PWR

MCU_PTA12 IN

5 V Supply PWR

MCU_PTA16 IO

GND -

MCU_PTA17

MCU_PTA18

MCU_PTA19

IO

IO

IO

SL

-

VCC_3V3

VCC_5V0

VCC_3V3

VCC_5V0

VCC_3V3

-

VCC_3V3

VCC_3V3

VCC_3V3

Description

System Reset

5 V Supply

Trace clock

5 V Supply.

Trace Data 0

Ground

Trace D1

Trace D2

Trace D3

Table 23-2. JTAG Connector X19 Signals

Pin # Signal

1, 2

3

5

7

9

11

4, 6, 8,

10, 12,

14, 18,

20

13

15

VCC_3V3

TRSTn

GND

MCU_PTA9

MCU_PTA11

MCU_PTA8 no-connect

Type

REF

IN

-

IN

IN

IN

-

MCU_PTA10 OUT

SRST OUT

SL

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

VCC_3V3

-

VCC_3V3

VCC_3V3

Description

JTAG Chain Reference Voltage

JTAG Chain Test Reset

Ground

JTAG Chain Test Data Input

JTAG Chain Test Mode Select signal

JTAG Chain Test Clock signal

JTAG Chain Return Test Clock signal

JTAG Chain Test Data Output

System Reset

L-783e_0

© PHYTEC America LLC 2012 63

Part II, Chapter 24: Trace

24 Trace

L-783e_0

Fig. 24-1. Trace

MICTOR Connector X22 is an optional feature which provides direct connectivity to the phyCORE-Vybrid processor Trace interface. This connector does not come standard; it must be special ordered.

Table 24-1

shows the signal locations and descriptions on connector X22.

Table 24-1. Trace Connector X22 Pins

Pin #

13

14

15

10

11

12

1-4

5

6

7-8

9

16

17

18

19

Signal Type no-connect

GND

-

-

MCU_PTA12 IO no-connect

RESETn

-

OUT no-connect -

MCU_PTA10 OUT

VCC_3V3 PWR

RTCK_X22

VCC_3V3

MCU_PTA8

OUT

PWR

IN

MCU_PTA23 IO

MCU_PTA11 IN

MCU_PTA22 IO

MCU_PTA9 IN

SL

-

-

VCC_3V3

-

VCC_3V3

-

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

Description

Ground

Trace clock

System reset

JTAG Chain Test Data Output

3.3 V Supply

JTAG Chain Return Clock

3.3 V Supply

JTAG Chain Test Clock signal

Trace Data 7

JTAG Chain Test Mode Select signal

Trace Data 6

JTAG Chain Test Data Input signal

© PHYTEC America LLC 2012 64

Part II, Chapter 24: Trace

Table 24-1. Trace Connector X22 Pins (Continued)

Pin #

32

33

34

35

28

29

30

31

24

25

26

27

20

21

22

23

36

37

38

39 - 43

Signal Type

MCU_PTA21 IO

TRSTn_X22 IN

MCU_PTA20 IO

MCU_PTA31 IO

MCU_PTA19 IO

MCU_PTA30 IO

MCU_PTA18 IO

MCU_PTA29 IO

MCU_PTA17 IO

MCU_PTA28 IO no-connect -

MCU_PTA27 IO no-connect -

MCU_PTA26 IO no-connect -

MCU_PTA25 IO

MCU_PTB13 IO

MCU_PTA24 IO

MCU_PTA16 IO

GND -

SL

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

-

VCC_3V3

-

VCC_3V3

-

VCC_3V3

VCC_3V3

VCC_3V3

VCC_3V3

-

L-783e_0

Description

Trace Data 5

JTAG Chain Target Reset signal

Trace Data 4

Trace Data 15

Trace Data 3

Trace Data 14

Trace Data 2

Trace Data 13

Trace Data 1

Trace Data 12

Trace Data 11

Trace Data 10

Trace Data 9

Trace Control

Trace Data 8

Trace Data 0

Ground

© PHYTEC America LLC 2012 65

Part II, Chapter 25: K20

25 K20

L-783e_0

Fig. 25-1. K20

USB Mini-AB connector X13 provides OpenSDA and CMSIS-DAP access to the Vybrid processor for debugging purposes.

OpenSDA and CMSIS-DAP debugging are implemented through a Freescale K20 processor (U13) on the

Carrier Board. When connector X13 is not connected to a USB host, the K20 processor is held in reset.

Jumpers JP26 and JP27 can be installed to connect the K20 to the Vybrid's SCI1 interface. In order to avoid signal conflicts with the Vybrid's default serial communication, these are not normally installed. In addition, to save time, the K20 processor can be used to program the SPI Flash EEPROMs on the phyCORE-Vybrid quickly.

To program the SPI Flash devices on the SOM through the K20, the system must be held in reset and jumper JP28 must be configured to select one of the two Flash devices as the programming target. As of the writing of this manual, software support for programming the SPI Flashes through the K20 circuit is not available.

The system can be reset directly with the K20's GPIO signal PTB1, or there are options for putting the system in reset with a jumper across X15 pins.

Table 25-1

shows options to put the system in reset with

X15 and the JP28 jumper settings to select the target device.

© PHYTEC America LLC 2012 66

Part II, Chapter 25: K20 L-783e_0

Table 25-1. K20 Jumper Configurations

Jumper Setting Description

X15

JP28

1+2

3+4

5+6

7+8

1+2

2+3

The system is reset while the SPI Flash Button S7 is pressed

The system is reset with the K20 SPI0 chip select signal

K20_SPI0_CS.

The system is reset with the K20 GPIO signal K20_GPIO_PTD6

The system is reset while this jumper is installed

Select SPI Flash A

Select SPI Flash B

Chapter

25

25

© PHYTEC America LLC 2012 67

Part II, Chapter 26: Tamper

26 Tamper

L-783e_0

Fig. 26-1. Tamper

The phyCORE-Vybrid provides access to two passive (TAMPER[1:0]) and two active (TAMPER[3:2]) tamper detection signals from the VFx00. Security violations from the VFx00 tamper detection mechanism can be enabled to be a source of reset.

In addition to routing all four of these signals to the GPIO Expansion Connector, the phyCORE-Vybrid

Carrier Board provides test pads TP3 and TP4 on the TAMPER[1:0] signals and jumper JP19 across the

TAMPER[3:2] signals.

JP19 allows testing of the Vybrid's Tamper2/Tamper3 active physical tamper security circuit.

Table 26-1. Tamper Signals at Connector X21

Pin#

D10

D11

D12

D13

Signal

EXT_TAMPER0

EXT_TAMPER1

EXT_TAMPER2

EXT_TAMPER3

Type

IN

IN

IO

IO

SL

3.3 V

3.3 V

3.3 V

3.3 V

Connects to

Test-point TP3

Test-point TP4

Jumper JP19.1

Jumper JP19.2

© PHYTEC America LLC 2012 68

PCM-957/GPIO Expansion Board L-783e_0

Part III: PCM-957/GPIO Expansion Board

Part 3 of this three part manual provides detailed information on the GPIO Expansion Board and how it enables easy access to most phyCORE-Vybrid SOM signals.

The information in the following chapters is applicable to the 1351.0 PCB revision of the GPIO Expansion

Board.

© PHYTEC America LLC 2012 69

Part III, Chapter 27: Introduction

27 Introduction

L-714e_1

Fig. 27-1. PCM-957/GPIO Expansion Board and Patch Field

The GPIO Expansion Connectors at X21 on the Carrier Board provide access to many of the phyCORE-

Vybrid signals. Although a large majority of the SOM signals are made available at X21, not all processor signals are routed to X21. In addition, X21 may contain some signals which are not connected to the processor at all, but instead to circuits only on the Carrier Board.

As an accessory, a GPIO Expansion Board (PCM-957) is made available through PHYTEC to connect to the GPIO Expansion Connectors. This Expansion Board provides a patch field for easy access to signals and additional board space for testing and prototyping.

Tables detailing signal mapping between the phyCORE connectors and the patch field on the GPIO

Expansion Board are provided in the following chapters.

© PHYTEC America LLC 2012 70

Part III, Chapter 28: Analog Signal Mapping L-783e_0

28 Analog Signal Mapping

The processor’s analog signals on the GPIO Expansion Board are shown below.

Table 28-1. Analog Signal Map

Signal SOM Pin GPIO EB Pin Type SL

VADCSE0

VADCSE1

VADCSE2

VADCSE3

DACO0

DACO1

ADC0SE8

ADC0SE9

ADC1SE8

ADC1SE9

57B

58B

VREFL_ADC 60B

VREFH_ADC 60A

53A

54A

55A

56A

58A

59A

55B

56B

53A

54A

55A

56A

58A

59A

55B

56B

57B

58B

60B

60A

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

REF

REF

Description

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 analog IO

VCC_3V3 Analog reference voltage high

VCC_3V3 Analog reference voltage low

© PHYTEC America LLC 2012 71

Part III, Chapter 29: Control Signal Mapping L-783e_0

29 Control Signal Mapping

Various control signals and other Carrier Board circuitry made available on the GPIO Expansion Board are shown below.

Table 29-1. Control Signal Map

Signal

RESETn

VDD_1V5_EN

PHYWIRE

SOM

Pin

5C

6C

-

GPIO EB

Pin

5C

6C

16C

Type

IPU

IPU

IO

TS_WP

NF_WPn

CAN_EN

EXT_TAMPER0

EXT_TAMPER1

EXT_TAMPER2

EXT_TAMPER3

-

10B

10A

10D

11D

12D

13D

17C

10B

10A

10D

11D

12D

13D

IN

IPU

IPU

IO

IO

IO

IO

SL Description

VCC_3V3 System reset

VCC_3V3 RESERVED

VCC_3V3 PHYWIRE to the PHYTEC Display

Interface

VCC_3V3 Touch screen wiper contact (5-wire only) for PHYTEC Display Interface

VCC_3V3 Write-protect for NAND Flash on SOM

VCC_3V3 Enable for CAN transceivers on SOM

VCC_3V3 Vybrid Tamper0 security signal

VCC_3V3 Vybrid Tamper1 security signal

VCC_3V3 Vybrid Tamper2 security signal

VCC_3V3 Vybrid Tamper3 security signal

© PHYTEC America LLC 2012 72

Part III, Chapter 30: Processor Signal Mapping L-783e_0

30 Processor Signal Mapping

Processor signals on the GPIO Expansion Board are shown below.

Table 30-1. Processor Signal Map

Signal

SOM

Pin

MCU_PTA6 52B

MCU_PTB1 1B

MCU_PTB2 2B

GPIO

EB Pin

52B

1B

2B

Type SL

IO

IO

IO

MCU_PTB3

MCU_PTB6

MCU_PTB7

MCU_PTB10

MCU_PTB18

MCU_PTB19

MCU_PTB20

MCU_PTB21

MCU_PTB22

MCU_PTB23

MCU_PTB24 16A

MCU_PTB25 15B

MCU_PTB26 16B

MCU_PTB27 17B

MCU_PTB28 18B

MCU_PTC0 40B

MCU_PTC1 41B

MCU_PTC2 42B

MCU_PTC3 43B

MCU_PTC4 43A

MCU_PTC5 44A

MCU_PTC6 45A

MCU_PTC7 46A

MCU_PTC9 46B

MCU_PTC10 47B

MCU_PTC11 48B

MCU_PTC12

MCU_PTC13

MCU_PTC14

3B

5A

6A

7B

11B

12B

13B

13A

14A

15A

50B

48A

49A

3B

5A

6A

7B

11B

14C

13C

18B

11C

15A

16A

15B

16B

17B

18B

40B

41B

42B

43B

43A

44A

45A

46A

46B

47B

48B

50B

48A

49A

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

Description

VCC_3V3 RMII Clock

VCC_3V3 Audio Data Out

VCC_3V3 Vybrid configuration signal. This signal must be low during system reset

VCC_3V3 Display Enable for PHYTEC Display Interface

VCC_3V3 SCI2_Tx

VCC_3V3 SCI2_Rx

VCC_3V3 Interrupt in from the touch-screen controller or control signal out to User LED1. Resistor R138 must be installed to connect this signal to LED1.

VCC_3V3 GPIO

VCC_3V3 SPI_CS to the PHYTEC Display Interface

VCC_3V3 SPI_MOSI to the PHYTEC Display Interface

VCC_3V3 SPI_MISO to the PHYTEC Display Interface

VCC_3V3 SPI_SCK to the PHYTEC Display Interface

VCC_3V3 Can connect the RTC interrupt from the SOM back to the Vybrid

VCC_3V3 NAND Flash write enable

VCC_3V3 NAND Flash chip enable

VCC_3V3 GPIO

VCC_3V3 NAND Flash read enable

VCC_3V3 GPIO

VCC_3V3 RMII0_MDC

VCC_3V3 RMII1_MDIO

VCC_3V3 RMII0_CRS

VCC_3V3 RMII0_RXD1

VCC_3V3 RMII0_RXD0

VCC_3V3 RMII0_RXER

VCC_3V3 RMII0_TXD1

VCC_3V3 RMII0_TXD0

VCC_3V3 RMII1_MDC

VCC_3V3 RMII1_MDIO

VCC_3V3 RMII1_CRS

VCC_3V3 RMII1_RXD1

VCC_3V3 RMII1_RXD0

VCC_3V3 RMII1_RXER

© PHYTEC America LLC 2012 73

Part III, Chapter 30: Processor Signal Mapping L-783e_0

Table 30-1. Processor Signal Map (Continued)

GPIO

EB Pin

23A

24A

25A

26A

25B

26B

27B

28B

18A

19A

20A

21A

20B

21B

22B

23B

8C

19C

20C

30B

31B

32B

33B

35B

36B

37B

38B

50A

51A

51B

28A

29A

30A

31A

33A

Signal

SOM

Pin

MCU_PTC15 50A

MCU_PTC16 51A

MCU_PTC17 51B

MCU_PTC26 28A

MCU_PTC27 29A

MCU_PTC28 30A

MCU_PTC29 31A

MCU_PTC30 33A

MCU_PTC31 30B

MCU_PTD7 31B

MCU_PTD8 32B

MCU_PTD9 33B

MCU_PTD10 35B

MCU_PTD11 36B

MCU_PTD12 37B

MCU_PTD13 38B

MCU_PTD16 18A

MCU_PTD17 19A

MCU_PTD18 20A

MCU_PTD19 21A

MCU_PTD20 20B

MCU_PTD21 21B

MCU_PTD22 22B

MCU_PTD23 23B

MCU_PTD24 23A

MCU_PTD25 24A

MCU_PTD26 25A

MCU_PTD27 26A

MCU_PTD28 25B

MCU_PTD29 26B

MCU_PTD30 27B

MCU_PTD31 28B

MCU_PTE3 45C

CANL1 16C

CANH1 15C

Type SL

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

IO

Description

VCC_3V3 RMII1_TXD1

VCC_3V3 RMII1_TXD0

VCC_3V3 RMII1_TXEN

VCC_3V3 NAND Flash Ready / Busy

VCC_3V3 NAND Flash Address Latch Enable

VCC_3V3 NAND Flash Command Latch Enable

VCC_3V3 GPIO

VCC_3V3 GPIO

VCC_3V3 GPIO

VCC_3V3 QSPI0_B_CLK

VCC_3V3 QSPI0_B_CS

VCC_3V3 QSPI0_B_D3

VCC_3V3 QSPI0_B_D2

VCC_3V3 QSPI0_B_D1

VCC_3V3 QSPI0_B_D0

VCC_3V3 GPIO

VCC_3V3 NAND Flash IO0

VCC_3V3 NAND Flash IO1

VCC_3V3 NAND Flash IO2

VCC_3V3 NAND Flash IO3

VCC_3V3 NAND Flash IO4

VCC_3V3 NAND Flash IO5

VCC_3V3 NAND Flash IO6

VCC_3V3 NAND Flash IO7

VCC_3V3 NAND Flash IO8

VCC_3V3 NAND Flash IO9

VCC_3V3 NAND Flash IO10

VCC_3V3 NAND Flash IO11

VCC_3V3 NAND Flash IO12

VCC_3V3 NAND Flash IO13

VCC_3V3 NAND Flash IO14

VCC_3V3 NAND Flash IO15

VCC_3V3 GPIO

VCC_3V3 MCU_PTB16 through CAN transceiver on SOM

VCC_3V3 MCU_PTB17 through CAN transceiver on SOM

© PHYTEC America LLC 2012 74

Part III, Chapter 31: Power Signal Mapping

31 Power Signal Mapping

The power signals on the GPIO Expansion Board are shown below.

Table 31-1. Power Signal Map

Carrier Board Signal

GND

VCC_3V3

GND

VCC_5V0

GPIO EB Pin

49C, 50C, 51C, 49D, 50D, 51D

52C, 53C, 54C, 52C, 53D, 54D

55C, 56C, 57C, 55D, 56D, 57D

58C, 59C, 60C, 58D, 59D, 60D

L-783e_0

GPIO EB Signal

VCC4

VCC3

VCC2

VCC1

© PHYTEC America LLC 2012 75

Revision History

Table 32-1. Revision History

Date

12/11/12

Version Number Changes in this Manual

L-783e_0 Preliminary release

L-783e_0

© PHYTEC America LLC 2012 76

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
