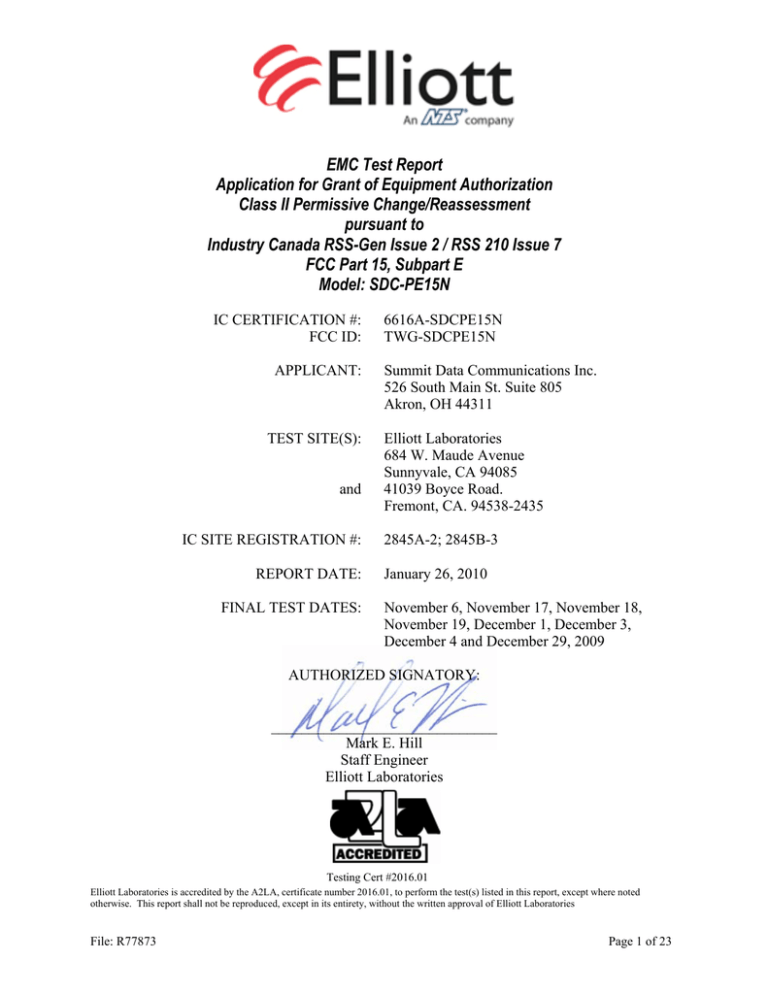

EMC Test Report

Application for Grant of Equipment Authorization

Class II Permissive Change/Reassessment pursuant to

Industry Canada RSS-Gen Issue 2 / RSS 210 Issue 7

FCC Part 15, Subpart E

Model: SDC-PE15N

IC CERTIFICATION #: 6616A-SDCPE15N

FCC

APPLICANT: Summit Data Communications Inc.

526 South Main St. Suite 805

Akron, OH 44311

TEST SITE(S): Elliott Laboratories

684 W. Maude Avenue

Sunnyvale, CA 94085 and 41039 Boyce Road.

Fremont, CA. 94538-2435

IC SITE REGISTRATION #: 2845A-2; 2845B-3

REPORT DATE: January 26, 2010

FINAL TEST DATES: November 6, November 17, November 18,

November 19, December 1, December 3,

December 4 and December 29, 2009

AUTHORIZED SIGNATORY:

______________________________

Mark E. Hill

Staff Engineer

Elliott Laboratories

Testing Cert #2016.01

Elliott Laboratories is accredited by the A2LA, certificate number 2016.01, to perform the test(s) listed in this report, except where noted otherwise. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories

File: R77873 Page 1 of 23

Elliott Laboratories -- EMC Department

REVISION HISTORY

Rev# Date

- January 26, 2010 First release

Comments

Test Report

Report Date: January 26, 2010

File: R77873 Page 2 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

TABLE OF CONTENTS

COVER PAGE.............................................................................................................................................................1

REVISION HISTORY ................................................................................................................................................2

TABLE OF CONTENTS ............................................................................................................................................3

SCOPE..........................................................................................................................................................................4

OBJECTIVE ................................................................................................................................................................5

STATEMENT OF COMPLIANCE...........................................................................................................................5

DEVIATIONS FROM THE STANDARDS..............................................................................................................5

TEST RESULTS SUMMARY ...................................................................................................................................6

UNII / LELAN DEVICES ........................................................................................................................................6

GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS..........................................................................8

MEASUREMENT UNCERTAINTIES....................................................................................................................9

EQUIPMENT UNDER TEST (EUT) DETAILS....................................................................................................10

GENERAL..............................................................................................................................................................10

ANTENNA SYSTEM ............................................................................................................................................10

ENCLOSURE.........................................................................................................................................................10

MODIFICATIONS.................................................................................................................................................10

SUPPORT EQUIPMENT.......................................................................................................................................10

EUT INTERFACE PORTS ....................................................................................................................................11

EUT OPERATION .................................................................................................................................................11

TEST SITE.................................................................................................................................................................12

GENERAL INFORMATION.................................................................................................................................12

RADIATED EMISSIONS CONSIDERATIONS ..................................................................................................12

MEASUREMENT INSTRUMENTATION ............................................................................................................13

RECEIVER SYSTEM ............................................................................................................................................13

INSTRUMENT CONTROL COMPUTER ............................................................................................................13

FILTERS/ATTENUATORS ..................................................................................................................................14

ANTENNAS...........................................................................................................................................................14

ANTENNA MAST AND EQUIPMENT TURNTABLE .......................................................................................14

INSTRUMENT CALIBRATION...........................................................................................................................14

TEST PROCEDURES ..............................................................................................................................................15

EUT AND CABLE PLACEMENT ........................................................................................................................15

RADIATED EMISSIONS......................................................................................................................................15

SPECIFICATION LIMITS AND SAMPLE CALCULATIONS ...........................................................................19

GENERAL TRANSMITTER RADIATED EMISSIONS SPECIFICATION LIMITS .........................................20

FCC 15.407

(

A

) OUTPUT POWER LIMITS .........................................................................................................20

OUTPUT POWER LIMITS –LELAN DEVICES..................................................................................................21

OUTPUT POWER AND SPURIOUS LIMITS –UNII

AND

LELAN DEVICES ..................................................21

SAMPLE CALCULATIONS RADIATED EMISSIONS....................................................................................22

SAMPLE CALCULATIONS FIELD STRENGTH TO EIRP CONVERSION...................................................23

APPENDIX A TEST EQUIPMENT CALIBRATION DATA ................................................................................1

APPENDIX B TEST DATA .......................................................................................................................................3

APPENDIX C PHOTOGRAPHS OF TEST CONFIGURATIONS .......................................................................4

APPENDIX D OPERATOR'S MANUAL.................................................................................................................5

APPENDIX E RF EXPOSURE INFORMATION ...................................................................................................6

File: R77873 Page 3 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

SCOPE

An electromagnetic emissions test has been performed on the Summit Data

Communications Inc. model SDC-PE15N, pursuant to the following rules:

Industry Canada RSS-Gen Issue 2

RSS 210 Issue 7 “Low-power Licence-exempt Radiocommunication Devices (All

Frequency Bands): Category I Equipment”

FCC Part 15, Subpart E requirements for UNII Devices (using FCC DA 02-2138,

August 30, 2002)

Conducted and radiated emissions data has been collected, reduced, and analyzed within this report in accordance with measurement guidelines set forth in the following reference standards and as outlined in Elliott Laboratories test procedures:

ANSI C63.4:2003

FCC UNII test procedure 2002-08 DA-02-2138, August 2002

The intentional radiator above has been tested in a simulated typical installation to demonstrate compliance with the relevant Industry Canada performance and procedural standards.

Final system data was gathered in a mode that tended to maximize emissions by varying orientation of EUT, orientation of power and I/O cabling, antenna search height, and antenna polarization.

Every practical effort was made to perform an impartial test using appropriate test equipment of known calibration. All pertinent factors have been applied to reach the determination of compliance.

File: R77873 Page 4 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

OBJECTIVE

The primary objective of the manufacturer is compliance with the regulations outlined in the previous section.

Prior to marketing in the USA, all unlicensed transmitters and transceivers require certification. Receive-only devices operating between 30 MHz and 960 MHz are subject to either certification or a manufacturer’s declaration of conformity, with all other receive-only devices exempt from the technical requirements.

Prior to marketing in Canada, Class I transmitters, receivers and transceivers require certification. Class II devices are required to meet the appropriate technical requirements but are exempt from certification requirements.

Certification is a procedure where the manufacturer submits test data and technical information to a certification body and receives a certificate or grant of equipment authorization upon successful completion of the certification body’s review of the submitted documents. Once the equipment authorization has been obtained, the label indicating compliance must be attached to all identical units, which are subsequently manufactured.

Maintenance of compliance is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.).

STATEMENT OF COMPLIANCE

The tested sample of Summit Data Communications Inc. model SDC-PE15N complied with the requirements of the following regulations:

RSS 210 Issue 7 “Low-power Licence-exempt Radiocommunication Devices (All

Frequency Bands): Category I Equipment”

FCC Part 15, Subpart E requirements for UNII Devices

Maintenance of compliance is the responsibility of the manufacturer. Any modifications to the product should be assessed to determine their potential impact on the compliance status of the device with respect to the standards detailed in this test report.

The test results recorded herein are based on a single type test of Summit Data

Communications Inc. model SDC-PE15N and therefore apply only to the tested sample.

The sample was selected and prepared by Ron Seide of Summit Data Communications

Inc..

DEVIATIONS FROM THE STANDARDS

No deviations were made from the published requirements listed in the scope of this report.

File: R77873 Page 5 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

TEST RESULTS SUMMARY

UNII / LELAN DEVICES

Operation in the 5.15 – 5.25 GHz Band

FCC

Rule Part

15.407(e)

15.407(a)

(1)

15.407 (a)

(1)

15.407 (a)

(1)

RSS

Rule Part

A9.2(1)

Description

Indoor operation only

26dB Bandwidth

Output Power

Power Spectral

Density

Measured Value /

Comments

-

-

-

-

Limit / Requirement Result

- Note 1

Note 1

- Note 2

15.407(b)

(5) / 15.209

15.407(b)

(2)

15.407(a)(6)

A9.3

A9.3

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

Peak Excursion Ratio

50.9dBµV/m @

5149.8MHz (-3.1dB)

Refer to Standard Complies

- - - Note 1

Note 1: Not included in this permissive change. Addition of new antennas would not change previous results.

Note 2: Prior to testing, the output power on the EUT was measured and compared to the original filing. Summit limits the power via their client utility to a level below that listed in the original certification.

Operation in the 5.25 – 5.35 GHz Band

FCC

Rule Part

15.407(a)

(2)

15.407(a)

(2)

15.407(a)

(2))

RSS

Rule Part

A9.2(2)

-

Description

26dB Bandwidth

Output Power

Power Spectral Density

-

-

15.407(b)

(5) / 15.209

15.407(b)

(2)

15.407(a)(6)

A9.2(2) /

A9.5 (2)

A9.3

-

Power Spectral Density

A9.5 (2) Peak Spectral Density

A9.3

Spurious Emissions below 1GHz

Spurious Emissions above 1GHz

Peak Excursion Ratio

Measured Value /

Comments

-

-

-

-

53.1dBµV/m @

5350.0MHz (-0.9dB)

Limit / Requirement

-

-

-

-

Result

(margin)

Note 1

Note 2

Note 1

Note 1

Refer to Standard Complies

- - Note 1

Note 1: Not included in this permissive change. Addition of new antennas would not change previous results.

Note 2: Prior to testing, the output power on the EUT was measured and compared to the original filing. Summit limits the power via their client utility to a level below that listed in the original certification.

File: R77873 Page 6 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

Operation in the 5.47 – 5.725 GHz Band

FCC

Rule Part

15.407(a)

(2)

15.407(a)

(2)

15.407(a)

(2))

RSS

Rule Part

A9.2(2)

Description

26dB Bandwidth

Output Power

Power Spectral Density

A9.2(2) /

A9.5 (2)

A9.3

Power Spectral Density

Non-operation in

N/A A9 band

15.407(b)

(5) / 15.209

Spurious Emissions below 1GHz

Measured Value /

Comments

-

-

-

Limit / Requirement

-

-

Device is a client device with no ad-hoc capability

Result

(margin)

Note 1

Note 2

Note 1

Note 1

15.407(b)

(2)

15.407(a)(6)

A9.3

-

Spurious Emissions above 1GHz

Peak Excursion Ratio

50.6dBµV/m @

5459.0MHz (-3.4dB)

-

Refer to Standard Complies

- Note 1

Note 1: Not included in this permissive change. Addition of new antennas would not change previous results.

Note 2: Prior to testing, the output power on the EUT was measured and compared to the original filing. Summit limits the power via their client utility to a level below that listed in the original certification.

File: R77873 Page 7 of 23

Elliott Laboratories -- EMC Department

Requirements for all U-NII/LELAN bands

FCC

Rule Part

RSS

Rule Part

Description

Channel Selection

15

15.407 (c)

15.407 (g)

15.407 (h1)

15.407 (h2)

A9.5(4)

Operation in the absence of information to transmit

A9.5 (5) Frequency Stability

A9.4

A9.4

Transmit Power

Control

Dynamic frequency

Selection (device without radar detection)

Test Report

Report Date: January 26, 2010

Measured Value /

Comments

-

Spurious emissions tested at outermost channels in each band

Measurements on three channels in each band

Limit / Requirement

-

Result

Note

Device was tested on the top, bottom and center channels in each band

Complies

Complies

- - Note 1

Note 1: Not included in this permissive change. Addition of new antennas would not change previous results.

GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS

FCC Rule

Part

15.203

15.109

15.207

RSS

Rule part

-

RSS GEN

7.2.3

Table 1

RSS GEN

Table 2

Description

RF Connector

Receiver spurious emissions

AC Conducted

Emissions

Measured Value /

Comments

-

No Receiver Spurious

Emissions Detected

Limit / Requirement

-

Result

(margin)

Note 1

- Complies

15.247 (b)

(5)

15.407 (f)

RSS 102

RF Exposure

Requirements

Refer to MPE calculations in

Exhibit 11, RSS 102 declaration and User

Manual statements.

Refer to OET 65,

FCC Part 1 and RSS

102

Complies

-

-

-

RSP 100

RSS GEN

7.1.5

RSP 100

RSS GEN

7.1.5

RSP 100

RSS GEN

4.4.1

User Manual

User Manual

99% Bandwidth

-

-

-

-

-

-

Note 1

Note 1

Note 1

Note 1: Not included in this permissive change. Addition of new antennas would not change previous results.

File: R77873 Page 8 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

MEASUREMENT UNCERTAINTIES

ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level and were calculated in accordance with

UKAS document LAB 34.

Measurement Type Frequency Range Calculated Uncertainty

(MHz) (dB)

______________________________________________________________

Conducted Emissions 0.15 to 30 ± 2.4

Radiated Emissions

Radiated Emissions

Radiated Emissions

0.015 to 30

30 to 1000

1000 to 40000

± 3.0

± 3.6

± 6.0

File: R77873 Page 9 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

EQUIPMENT UNDER TEST (EUT) DETAILS

GENERAL

The Summit Data Communications Inc. model SDC-PE15N is a 802.11abgn PCI-E module that is designed to provide wireless network connectivity in the 2.4 and 5GHz bands. Since the EUT would be placed on a table top during operation, the EUT was treated as table-top equipment during testing to simulate the end-user environment. The

EUT is powered from the host device.

The sample was received on November 6, 2009 and tested on November 6, November 17,

November 18, November 19, December 1, December 3, December 4 and December 29,

2009. The EUT consisted of the following component(s):

Company

Summit Data

Communications

ANTENNA SYSTEM

Model Description

PCI-

E module

Serial Number

PE15N09082400

01FS

FCC ID

TWG-

SDCPE15N

The antenna connects to the EUT via a non-standard u.FL antenna connector, thereby meeting the requirements of FCC 15.203.

Antennas to be included in this permissive change:

Monopole Antenna - 2.4 and 5GHz bands, Huber+Suhner, SOA 2459/360/5/0/V_C, 3dBi

(2.4GHz), 6.5dBi (5GHz)

Dipole Antenna #1 - 2.4 GHz only - Summit SDC-CF22G - 0dBi (2.4GHz)

Dipole Antenna #2 - 2.4 and 5GHz bands - Larsen, R380.500.314, 1.6dBi (2.4GHz), 5dBi

(5GHz)

Dipole Antenna #3 - 2.4 GHz only - Cisco Air-Ant 4941 2.2dBi(2.4GHz)

ENCLOSURE

The EUT does not have an enclosure as it is designed to be installed within the enclosure of a host computer or system.

MODIFICATIONS

No modifications were made to the EUT during the time the product was at Elliott.

SUPPORT EQUIPMENT

The following equipment was used as support equipment for testing:

Company Model Description Serial Number FCC ID

Lenovo PA-1650-52LC AC

No remote support equipment was used during testing.

- N/A

File: R77873 Page 10 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

EUT INTERFACE PORTS

The I/O cabling configuration during testing was as follows:

Port

Connected

To

Extender

Board

AC Power

Adapter

AC Mains

Description Shielded or Unshielded Length(m)

N/A - Direct

Connection

3Wire

AC Adapter Multiconductor

Cable(s)

- -

Unshielded

Shielded

1.5

1.5 DC Power

Laptop

EUT OPERATION

During emissions testing the EUT was configured to transmit on a selected channel at the desired output power. Unless otherwise noted, the EUT was configured to transmit at

1Mbs for 802.11b mode testing, 6 Mbs for 802.11g and a mode testing, and HT0 for

HT20 and HT40 testing.

File: R77873 Page 11 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

TEST SITE

GENERAL INFORMATION

Final test measurements were taken on December 11, December 14, December 21,

December 23, December 28, December 29 and December 30, 2009 at the test sites listed below. Pursuant to section 2.948 of the FCC’s Rules and section 3.3 of RSP-100, construction, calibration, and equipment data has been filed with the Commission and with industry Canada.

Site

SVOATS #2

Chamber 3

Registration Numbers Location

FCC Canada

90593

769238

2845A-2

2845B-3

684 West Maude Ave,

Sunnyvale

CA 94085-3518

41039 Boyce Road

Fremont,

CA 94538-2435

ANSI C63.4:2003 recommends that ambient noise at the test site be at least 6 dB below the allowable limits. Ambient levels are below this requirement with the exception, on

OATS sites, of predictable local TV, radio, and mobile communications traffic. The test site(s) contain separate areas for radiated and conducted emissions testing. Considerable engineering effort has been expended to ensure that the facilities conform to all pertinent requirements of ANSI C63.4:2003.

RADIATED EMISSIONS CONSIDERATIONS

The FCC has determined that radiation measurements made in a shielded enclosure are not suitable for determining levels of radiated emissions. Radiated measurements are performed in an open field environment or in a semi-anechoic chamber. The test sites are maintained free of conductive objects within the CISPR defined elliptical area incorporated in ANSI C63.4:2003 guidelines and meet the Normalized Site Attenuation

(NSA) requirements of ANSI C63.4:2003.

File: R77873 Page 12 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

MEASUREMENT INSTRUMENTATION

RECEIVER SYSTEM

An EMI receiver as specified in CISPR 16-1-1 is used for emissions measurements. The receivers used can measure over the frequency range of 9 kHz up to 2000 MHz. These receivers allow both ease of measurement and high accuracy to be achieved. The receivers have Peak, Average, and CISPR (Quasi-peak) detectors built into their design so no external adapters are necessary. The receiver automatically sets the required bandwidth for the CISPR detector used during measurements. If the repetition frequency of the signal being measured is below 20Hz, peak measurements are made in lieu of

Quasi-Peak measurements.

For measurements above the frequency range of the receivers, a spectrum analyzer is utilized because it provides visibility of the entire spectrum along with the precision and versatility required to support engineering analysis. Average measurements above

1000MHz are performed on the spectrum analyzer using the linear-average method with a resolution bandwidth of 1 MHz and a video bandwidth of 10 Hz, unless the signal is pulsed in which case the average (or video) bandwidth of the measuring instrument is reduced to onset of pulse desensitization and then increased.

INSTRUMENT CONTROL COMPUTER

The receivers utilize either a Rohde & Schwarz EZM Spectrum Monitor/Controller or contain an internal Spectrum Monitor/Controller to view and convert the receiver measurements to the field strength at an antenna or voltage developed at the LISN measurement port, which is then compared directly with the appropriate specification limit. This provides faster, more accurate readings by performing the conversions described under Sample Calculations within the Test Procedures section of this report.

Results are printed in a graphic and/or tabular format, as appropriate. A personal computer is used to record all measurements made with the receivers.

The Spectrum Monitor provides a visual display of the signal being measured. In addition, the controller or a personal computer run automated data collection programs which control the receivers. This provides added accuracy since all site correction factors, such as cable loss and antenna factors are added automatically.

File: R77873 Page 13 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

FILTERS/ATTENUATORS

External filters and precision attenuators are often connected between the receiving antenna or LISN and the receiver. This eliminates saturation effects and non-linear operation due to high amplitude transient events.

ANTENNAS

A loop antenna is used below 30 MHz. For the measurement range 30 MHz to 1000

MHz either a combination of a biconical antenna and a log periodic or a bi-log antenna is used. Above 1000 MHz, horn antennas are used. The antenna calibration factors to convert the received voltage to an electric field strength are included with appropriate cable loss and amplifier gain factors to determine an overall site factor, which is then programmed into the test receivers or incorporated into the test software.

ANTENNA MAST AND EQUIPMENT TURNTABLE

The antennas used to measure the radiated electric field strength are mounted on a nonconductive antenna mast equipped with a motor-drive to vary the antenna height.

Measurements below 30 MHz are made with the loop antenna at a fixed height of 1m above the ground plane.

ANSI C63.4:2003 specifies that the test height above ground for table mounted devices shall be 80 centimeters. Floor mounted equipment shall be placed on the ground plane if the device is normally used on a conductive floor or separated from the ground plane by insulating material from 3 to 12 mm if the device is normally used on a non-conductive floor. During radiated measurements, the EUT is positioned on a motorized turntable in conformance with this requirement.

INSTRUMENT CALIBRATION

All test equipment is regularly checked to ensure that performance is maintained in accordance with the manufacturer's specifications. All antennas are calibrated at regular intervals with respect to tuned half-wave dipoles. An exhibit of this report contains the list of test equipment used and calibration information.

File: R77873 Page 14 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

TEST PROCEDURES

EUT AND CABLE PLACEMENT

The regulations require that interconnecting cables be connected to the available ports of the unit and that the placement of the unit and the attached cables simulate the worst case orientation that can be expected from a typical installation, so far as practicable. To this end, the position of the unit and associated cabling is varied within the guidelines of

ANSI C63.4:2003, and the worst-case orientation is used for final measurements.

RADIATED EMISSIONS

A preliminary scan of the radiated emissions is performed in which all significant EUT frequencies are identified with the system in a nominal configuration. At least two scans are performed, one scan for each antenna polarization (horizontal and vertical; loop parallel and perpendicular to the EUT). During the preliminary scans, the EUT is rotated through 360˚, the antenna height is varied (for measurements above 30 MHz) and cable positions are varied to determine the highest emission relative to the limit. Preliminary scans may be performed in a fully anechoic chamber for the purposes of identifying the frequencies of the highest emissions from the EUT.

A speaker is provided in the receiver to aid in discriminating between EUT and ambient emissions. Other methods used during the preliminary scan for EUT emissions involve scanning with near field magnetic loops, monitoring I/O cables with RF current clamps, and cycling power to the EUT.

Final maximization is a phase in which the highest amplitude emissions identified in the spectral search are viewed while the EUT azimuth angle is varied from 0 to 360 degrees relative to the receiving antenna. The azimuth, which results in the highest emission is then maintained while varying the antenna height from one to four meters (for measurements above 30 MHz, measurements below 30 MHz are made with the loop antenna at a fixed height of 1m). The result is the identification of the highest amplitude for each of the highest peaks. Each recorded level is corrected in the receiver using appropriate factors for cables, connectors, antennas, and preamplifier gain.

When testing above 18 GHz, the receive antenna is located at 1meter from the EUT and the antenna height is restricted to a maximum of 2.5 meters.

File: R77873 Page 15 of 23

Elliott Laboratories -- EMC Department

REAR VIEW

AC Outlets (flush-mounted)

0.4m

Test Report

Report Date: January 26, 2010

0.8m

SIDE VIEW

Typical Test Configuration for Radiated Field Strength Measurements

File: R77873 Page 16 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

EUT d

Antenna

The ground plane extends beyond the ellipse defined in CISPR 16 / CISPR 22 / ANSI C63.4 and is large enough to accommodate test distances (d) of 3m and 10m. Refer to the test data tables for the actual measurement distance. d

Antenna height range

1 to 4 m

EUT

0.8m

Test Configuration for Radiated Field Strength Measurements

OATS- Plan and Side Views

File: R77873 Page 17 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

EUT d

Antenna

The anechoic materials on the walls and ceiling ensure compliance with the normalized site attenuation requirements of CISPR 16 / CISPR 22 / ANSI C63.4 for an alternate test site at the measurement distances used.

Floor-standing equipment is placed on the floor with insulating supports between the unit and the ground plane. d

Antenna height range

1 to 4 m

EUT

0.8m

Test Configuration for Radiated Field Strength Measurements

Semi-Anechoic Chamber, Plan and Side Views

File: R77873 Page 18 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

SPECIFICATION LIMITS AND SAMPLE CALCULATIONS

The limits for conducted emissions are given in units of microvolts, and the limits for radiated emissions are given in units of microvolts per meter at a specified test distance.

Data is measured in the logarithmic form of decibels relative to one microvolt, or dB microvolts (dBuV). For radiated emissions, the measured data is converted to the field strength at the antenna in dB microvolts per meter (dBuV/m). The results are then converted to the linear forms of uV and uV/m for comparison to published specifications.

For reference, converting the specification limits from linear to decibel form is accomplished by taking the base ten logarithm, then multiplying by 20. These limits in both linear and logarithmic form are as follows:

File: R77873 Page 19 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

GENERAL TRANSMITTER RADIATED EMISSIONS SPECIFICATION LIMITS

The table below shows the limits for the spurious emissions from transmitters that fall in restricted bands

1

(with the exception of transmitters operating under FCC Part 15 Subpart

D and RSS 210 Annex 9), the limits for all emissions from a low power device operating under the general rules of RSS 310 (tables 3 and 4), RSS 210 (table 2) and FCC Part 15

Subpart C section 15.209.

Frequency

Range

(MHz)

Limit

(uV/m)

Limit

(dBuV/m @ 3m)

0.009-0.490 2400/F

KHz

@ 300m 67.6-20*log10(F

KHz

) @ 300m

0.490-1.705 24000/F

KHz

@ 30m 87.6-20*log10(F

KHz

) @ 30m

1.705 to 30

30 to 88

88 to 216

30 @ 30m

100 @ 3m

150 @ 3m

29.5 @ 30m

40 @ 3m

43.5 @ 3m

216 to 960

Above 960

200 @ 3m

500 @ 3m

46.0 @ 3m

54.0 @ 3m

FCC 15.407 (a) OUTPUT POWER LIMITS

The table below shows the limits for output power and output power density. Where the signal bandwidth is less than 20 MHz the maximum output power is reduced to the power spectral density limit plus 10 times the log of the bandwidth (in MHz).

Operating Frequency

(MHz)

5150 - 5250

5250 - 5350

5725 – 5825

Output Power

50mW (17 dBm)

250 mW (24 dBm)

1 Watts (30 dBm)

Power Spectral

Density

4 dBm/MHz

11 dBm/MHz

17 dBm/MHz

For system using antennas with gains exceeding 6dBi, the output power and power spectral density limits are reduced by 1dB for every dB the antenna gain exceeds 6dBi.

Fixed point-to-point applications using the 5725 – 5825 MHz band may use antennas with gains of up to 23dBi without this limitation. If the gain exceeds 23dBi then the output power limit of 1 Watt is reduced by 1dB for every dB the gain exceeds 23dBi.

The peak excursion envelope is limited to 13dB.

1

The restricted bands are detailed in FCC 15.203, RSS 210 Table 1 and RSS 310 Table 2

File: R77873 Page 20 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

OUTPUT POWER LIMITS –LELAN DEVICES

The table below shows the limits for output power and output power density defined by

RSS 210. Where the signal bandwidth is less than 20 MHz the maximum output power is reduced to the power spectral density limit plus 10 times the log of the bandwidth (in

MHz).

Operating Frequency

(MHz)

5150 - 5250

Output Power Power Spectral

Density

5250 - 5350

5470 - 5725

200mW (23 dBm) eirp 10 dBm/MHz eirp

250 mW (24 dBm)

2

11 dBm/MHz

1W (30dBm) eirp

250 mW (24 dBm)

3

1W (30dBm) eirp

11 dBm/MHz

5725 – 5825

1 Watts (30 dBm)

4W eirp

17 dBm/MHz

In addition, the power spectral density limit shall be reduced by 1dB for every dB the highest power spectral density exceeds the “average” power spectral density ) by more than 3dB. The “average” power spectral density is determined by dividing the output power by 10log(EBW) where EBW is the 99% power bandwidth.

Fixed point-to-point applications using the 5725 – 5825 MHz band may use antennas with gains of up to 23dBi without this limitation. If the gain exceeds 23dBi then the output power limit of 1 Watt is reduced by 1dB for every dB the gain exceeds 23dBi.

OUTPUT POWER AND SPURIOUS LIMITS –UNII and LELAN DEVICES

The spurious emissions limits for signals below 1GHz are the FCC/RSS-GEN general limits. For emissions above 1GHz, signals in restricted bands are subject to the FCC/RSS

GEN general limits. All other signals have a limit of –27dBm/MHz, which is a field strength of 68.3dBuV/m/MHz at a distance of 3m. This is an average limit so the peak value of the emission may not exceed –7dBm/MHz (68.3dBuV/m/MHz at a distance of

3m). For devices operating in the 5725-5850Mhz bands under the LELAN/UNII rules, the limit within 10Mhz of the allocated band is increased to –17dBm/MHz.

2

If EIRP exceeds 500mW the device must employ TPC

3

If EIRP exceeds 500mW the device must employ TPC

File: R77873 Page 21 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

SAMPLE CALCULATIONS - RADIATED EMISSIONS

Receiver readings are compared directly to the specification limit (decibel form). The receiver internally corrects for cable loss, preamplifier gain, and antenna factor. The calculations are in the reverse direction of the actual signal flow, thus cable loss is added and the amplifier gain is subtracted. The Antenna Factor converts the voltage at the antenna coaxial connector to the field strength at the antenna elements.

A distance factor, when used for electric field measurements above 30MHz, is calculated by using the following formula:

Fd = 20*LOG10 (Dm/Ds)

where:

Fd = Distance Factor in dB

Dm = Measurement Distance in meters

Ds = Specification Distance in meters

For electric field measurements below 30MHz the extrapolation factor is either determined by making measurements at multiple distances or a theoretical value is calculated using the formula:

Fd = 40*LOG10 (Dm/Ds)

Measurement Distance is the distance at which the measurements were taken and

Specification Distance is the distance at which the specification limits are based. The antenna factor converts the voltage at the antenna coaxial connector to the field strength at the antenna elements.

File: R77873 Page 22 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

The margin of a given emission peak relative to the limit is calculated as follows:

Rc = Rr + Fd

and

where:

Rr = Receiver Reading in dBuV/m

Fd = Distance Factor in dB

Rc = Corrected Reading in dBuV/m

Ls = Specification Limit in dBuV/m

M = Margin in dB Relative to Spec

SAMPLE CALCULATIONS - FIELD STRENGTH TO EIRP CONVERSION

Where the radiated electric field strength is expressed in terms of the equivalent isotropic radiated power (eirp), or where a field strength measurement of output power is made in lieu of a direct measurement, the following formula is used to convert between eirp and field strength at a distance of 3m from the equipment under test:

E = 1000000 √ 30 P microvolts per meter

3 where P is the eirp (Watts)

File: R77873 Page 23 of 23

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

Appendix A Test Equipment Calibration Data

Radio Antenna Port (Power), 16-Oct-09

Engineer: John

Caizzi

Agilent

PSA, Spectrum Analyzer,

(installed options, 111,

115, 123, 1DS, B7J, HYX,

Radio Antenna Port (Power), 22-Oct-09

Engineer: Mehran Birgani

Agilent

PSA, Spectrum Analyzer,

(installed options, 111,

115, 123, 1DS, B7J, HYX,

Radiated Emissions, 30 - 40,000 MHz, 06-Nov-09

Engineer: Mehran Birgani

487 15-Jul-10 EMCO

Hewlett Packard

Hewlett Packard

Antenna, Horn, 1-18 GHz 3115

Microwave Preamplifier, 1-

26.5GHz

SpecAn 30 Hz -40 GHz,

SV (SA40) Red

8564E (84125C)

Radio Antenna Spurious Emissions, 18-Nov-09

Engineer: Suhaila Khushzad

EMCO

Hewlett Packard

Hewlett Packard

Hewlett Packard

Antenna, Horn, 1-18 GHz 3115

Microwave Preamplifier, 1-

26.5GHz

SpecAn 30 Hz -40 GHz,

SV (SA40) Red

High Pass filter, 8.2 GHz

(Red System)

8564E (84125C)

P/N 84300-80039

(84125C)

Radiated Emissions, 30 - 40,000 MHz, 19-Nov-09

Engineer: Mehran Birgani

EMCO

Hewlett Packard

Hewlett Packard

Antenna, Horn, 1-18 GHz 3115

Microwave Preamplifier, 1-

26.5GHz

SpecAn 30 Hz -40 GHz,

SV (SA40) Red

8564E (84125C)

Radio Antenna Port (Power and Spurious Emissions), 04-Dec-09

Engineer: Mehran Birgani

Agilent

PSA, Spectrum Analyzer,

(installed options, 111,

115, 123, 1DS, B7J, HYX,

File: R77873

1148

487

12-Mar-10

15-Jul-10

1148 12-Mar-10

1152 28-Sep-10

487

1148

15-Jul-10

12-Mar-10

Appendix Page 1 of 6

Elliott Laboratories -- EMC Department

Radiated Emissions, 30 - 26,500 MHz, 29-Dec-09

Engineer: Rafael Varelas

EMCO

Hewlett Packard

Hewlett Packard

Micro-Tronics

Hewlett Packard

A.H. Systems

Antenna, Horn, 1-18 GHz

(SA40-Blu)

SpecAn 9 kHz - 40 GHz,

FT (SA40) Blue

Head (Inc W1-W4, 1742 ,

1743) Blue

Band Reject Filter, 5725-

5875 MHz

Microwave Preamplifier, 1-

26.5GHz

Blue System Horn, 18-

40GHz

Radiated Emissions, 1000 - 18,000 MHz, 20-Jan-10

Engineer: Rafael Varelas

8564E (84125C)

SAS-574, p/n: 2581

Test Report

Report Date: January 26, 2010

1393

2159

10-Apr-10

17-Mar-10

EMCO

Hewlett Packard

Hewlett Packard

Antenna, Horn, 1-18 GHz 3115

Microwave Preamplifier, 1-

26.5GHz

SpecAn 30 Hz -40 GHz,

SV (SA40) Red

8564E (84125C)

487

1148

15-Jul-10

12-Mar-10

File: R77873 Appendix Page 2 of 6

Elliott Laboratories -- EMC Department

Appendix B Test Data

T76863 43 Pages

Test Report

Report Date: January 26, 2010

File: R77873 Appendix Page 3 of 6

Client: Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Emissions Standard(s): FCC 15.407, RSS-210

Immunity Standard(s): -

EMC Test Data

For The

Summit Data Communications

Model

802.11abgn Module

Date of Last Test: 1/20/2010

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

-

Class: -

Environment: -

T76863_FCC_UNII Cover Page 1 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated spurious emissions testing.

For radiated emissions testing the measurement antenna was located 3 meters from the EUT.

Ambient Conditions:

Temperature:

Rel. Humidity:

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

15-20 °C

40-60 %

T76863_FCC_UNII UNII Bandedge - Monopole Page 2 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Summary of Results

Run #

1

2

3

Mode

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11

HT20

802.11

HT20

802.11

HT20

802.11

HT40

802.11

HT40

802.11

HT40

Channel

5150-5250

Low

5250-5350

High

5470-5725

Low

5150-5250

Low

5250-5350

High

5470-5725

Low

5150-5250

Low

5250-5350

High

5470-5725

Low

Power

Setting

Max

Max

Max

Max

Max

Max

Max

Max

Max

Antenna

Test Performed

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

15.209

15.209

15.209

15.209

15.209

Limit

15.209

15.209

15.209

15.209

Result / Margin

43.6dBµV/m @

5147.3MHz (-10.4dB)

45.5dBµV/m @

5356.1MHz (-8.5dB)

45.5dBµV/m @

5457.0MHz (-8.5dB)

43.3dBµV/m @

5142.5MHz (-10.7dB)

47.8dBµV/m @

5351.8MHz (-6.2dB)

46.4dBµV/m @

5457.8MHz (-7.6dB)

47.9dBµV/m @

5149.9MHz (-6.1dB)

50.7dBµV/m @

5350.0MHz (-3.3dB)

47.4dBµV/m @

5460.0MHz (-6.6dB)

T76863_FCC_UNII UNII Bandedge - Monopole Page 3 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Band Edge, 802.11a

Date: 11/6/2009 Engineer: Mehran Birgani Location: OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #1a: Low Channel (5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol

FCC 15.209

MHz

5145.130

dB

μV/m

43.6

v/h

H

Limit

54.0

Margin

-10.4

Detector Azimuth

Pk/QP/Avg degrees

AVG 144

5147.300

5137.070

5147.270

43.6

53.6

55.3

V

H

V

54.0

74.0

74.0

-10.4

-20.4

-18.7

AVG

PK

PK

109

144

109

Height meters

1.6

1.6

1.6

1.6

Comments

T76863_FCC_UNII UNII Bandedge - Monopole Page 4 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #1b: High Channel (5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5353.230

dB

μV/m

45.3

v/h

H

Limit

54.0

Margin

-8.7

Detector Azimuth

Pk/QP/Avg degrees

AVG 143

5356.070

5351.200

5355.400

45.5

56.2

56.9

V

V

H

54.0

74.0

74.0

-8.5

-17.8

-17.1

AVG

PK

PK

108

108

143

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.7

1.7

1.7

1.7

T76863_FCC_UNII UNII Bandedge - Monopole Page 5 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #1c: Low Channel (5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5455.630

dB

μV/m

45.2

v/h

V

Limit

54.0

Margin

-8.8

Detector Azimuth

Pk/QP/Avg degrees

AVG 148

5457.000

5452.800

5456.230

45.5

56.7

56.2

H

V

H

54.0

74.0

74.0

-8.5

-17.3

-17.8

AVG

PK

PK

148

148

148

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.9

1.7

1.9

1.7

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to

-27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Bandedge - Monopole Page 6 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Band Edge, 802.11 HT20

Date: 11/6/2009 Engineer: Mehran Birgani Location:

OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #2a: Low Channel (5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

5142.430

Level dB

μV/m

42.6

Pol v/h

H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

-11.4

AVG 147

5142.470

5136.670

5144.730

43.3

54.9

54.4

V

V

H

54.0

74.0

74.0

-10.7

-19.1

-19.6

AVG

PK

PK

106

106

147

Height meters

1.7

1.5

1.5

1.7

Comments

T76863_FCC_UNII UNII Bandedge - Monopole Page 7 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #2b: High Channel (5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5351.830

dB

μV/m

47.8

v/h

V

Limit

54.0

Margin

-6.2

Detector Azimuth

Pk/QP/Avg degrees

AVG 109

5352.030

5350.800

5354.370

47.1

58.9

60.5

H

H

V

54.0

74.0

74.0

-6.9

-15.1

-13.5

AVG

PK

PK

149

149

109

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.7

1.9

1.9

1.7

T76863_FCC_UNII UNII Bandedge - Monopole Page 8 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #2c: Low Channel (5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5457.830

dB

μV/m

46.4

v/h

H

Limit

54.0

Margin

-7.6

Detector Azimuth

Pk/QP/Avg degrees

AVG 146

5458.330

5456.030

5458.670

45.5

56.8

59.0

V

V

H

54.0

74.0

74.0

-8.5

-17.2

-15.0

AVG

PK

PK

147

147

146

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.8

1.6

1.6

1.8

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to

-27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Bandedge - Monopole Page 9 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Band Edge, 802.11 HT40

Date: 11/6/2009 Engineer: Mehran Birgani Location: OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #3a: Low Channel (5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol

FCC 15.209

MHz

5149.870

dB

μV/m

47.9

v/h

V

Limit

54.0

Margin

-6.1

Detector Azimuth

Pk/QP/Avg degrees

AVG 103

5150.000

5146.030

5148.600

46.6

62.2

59.5

H

V

H

54.0

74.0

74.0

-7.4

-11.8

-14.5

AVG

PK

PK

153

103

153

Height meters

1.4

1.7

1.4

1.7

Comments

T76863_FCC_UNII UNII Bandedge - Monopole Page 10 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #3b: High Channel (5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Frequency Level Pol FCC 15.209

MHz

5350.000

dB

μV/m

50.7

v/h

H

Limit

54.0

Margin

-3.3

Detector Azimuth

Pk/QP/Avg degrees

AVG 145

5350.000

5350.470

5353.800

49.9

62.6

62.5

V

V

H

54.0

74.0

74.0

-4.1

-11.4

-11.5

AVG

PK

PK

134

134

145

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.7

1.7

1.7

1.7

T76863_FCC_UNII UNII Bandedge - Monopole Page 11 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Run #3c: Low Channel (5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol v/h

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5459.730

5459.970

45.7

47.4

V

H

54.0

54.0

-8.3

-6.6

AVG

AVG

147

147

5459.570

5459.730

59.0

61.3

V

H

74.0

74.0

-15.0

-12.7

PK

PK

147

147

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Height Comments meters

1.6

1.7

1.6

1.7

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Bandedge - Monopole Page 12 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

Ambient Conditions:

Temperature:

Rel. Humidity:

15-20 °C

40-60 %

Summary of Results

Run #

1

2

3

Mode

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

Channel

5150-5250

Low

5150-5250

Center

5150-5250

High

5250-5350

Low

5250-5350

Center

5250-5350

High

5470-5725

Low

5470-5725

Center

5470-5725

High

Power

Setting

Max

Max

Max

Max

Max

Max

Max

Max

Max

Antenna

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

H&S

Monopole

Test Performed

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

Limit

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

Result / Margin

39.7dBµV/m @

15538.5MHz (-14.3dB)

39.9dBµV/m @

15598.5MHz (-14.1dB)

40.2dBµV/m @

15718.5MHz (-13.8dB)

82.5dBµV/m @

10519.4MHz (-5.8dB)

43.1dBµV/m @

15898.5MHz (-10.9dB)

41.3dBµV/m @

15958.5MHz (-12.7dB)

40.2dBµV/m @

11000.1MHz (-13.8dB)

40.2dBµV/m @

11161.3MHz (-13.8dB)

39.2dBµV/m @

11400.2MHz (-14.8dB)

T76863_FCC_UNII UNII Spurious - Monopole Page 13 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5150-5250 MHz Band, 802.11a Mode

Date: 11/6/2009 Engineer: Peter Sales Location: OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #1a: Low Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10359.230

dB

μV/m

39.6

v/h

V

10359.960

10360.270

10361.080

15538.500

15538.620

15539.530

15541.250

Note 1:

51.6

51.7

39.9

39.7

39.5

51.4

51.0

V

H

V

H

H

H

V

15.209 / 15E

Limit

68.3

Detector Azimuth

Margin Pk/QP/Avg degrees

-28.7

AVG 295

88.3

88.3

68.3

54.0

-36.7

-36.6

-28.4

-14.3

PK

PK

AVG

AVG

240

295

240

63

54.0

74.0

74.0

-14.5

-22.6

-23.0

AVG

PK

PK

145

63

145

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

Run #1b: Center Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10390.930

dB

μV/m

40.0

v/h

V

10399.580

10400.970

10413.870

15598.500

15598.540

15598.580

15599.040

Note 1:

52.3

40.2

51.6

39.6

39.9

51.3

51.4

V

H

H

V

H

H

V

15.209 / 15E

Limit

68.3

Margin

-28.3

Detector Azimuth

Pk/QP/Avg degrees

AVG 359

88.3

68.3

88.3

-36.0

-28.1

-36.7

PK

AVG

PK

161

161

359

54.0

54.0

74.0

74.0

-14.4

-14.1

-22.7

-22.6

AVG

AVG

PK

PK

145

134

134

145

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 14 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1c: High Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10479.800

dB

μV/m

39.2

v/h

V

10479.930

10480.090

10480.200

15718.500

15720.870

15718.500

15719.140

Note 1:

50.7

39.3

53.2

39.5

50.6

40.2

51.2

V

V

H

H

V

H

H

15.209 / 15E

Limit

68.3

Margin

-29.1

Detector Azimuth

Pk/QP/Avg degrees

AVG 20

88.3

68.3

88.3

-37.6

-29.0

-35.1

PK

AVG

PK

20

20

20

54.0

74.0

54.0

74.0

-14.5

-23.4

-13.8

-22.8

AVG

PK

AVG

PK

6

6

84

84

Height Comments meters

1.0

1.0

1.0

1.0

1.9

1.9

1.0

1.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 15 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5250-5350 MHz Band, 802.11a Mode

Date: 11/6/2009 Engineer: Peter Sales Location: OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #2a: Low Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10519.410

dB

μV/m

82.5

v/h

H

10520.010

10520.100

10520.340

15778.500

15778.500

15778.850

15779.920

Note 1:

71.0

41.4

43.2

42.4

40.2

51.4

54.0

H

H

V

H

V

V

V

15.209 / 15E

Limit

88.3

Detector Azimuth

Margin Pk/QP/Avg degrees

-5.8

PK 261

88.3

68.3

68.3

54.0

-17.3

-26.9

-25.1

-11.6

PK

AVG

AVG

AVG

17

17

261

85

54.0

74.0

74.0

-13.8

-22.6

-20.0

AVG

PK

PK

101

101

85

Height Comments meters

1.0

1.0

1.0

1.0

1.2

1.0

1.0

1.2

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

Run #2b: Center Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10598.500

dB

μV/m

38.6

v/h

H

10599.620

10599.760

10599.830

15898.500

15898.500

15899.360

15899.380

Note 1:

51.2

50.8

39.5

40.9

43.1

52.2

55.2

H

V

H

V

V

H

V

15.209 / 15E

Limit

68.3

Margin

-29.7

Detector Azimuth

Pk/QP/Avg degrees

AVG 148

88.3

88.3

68.3

-37.1

-37.5

-28.8

PK

PK

AVG

97

148

97

54.0

54.0

74.0

74.0

-13.1

-10.9

-21.8

-18.8

AVG

AVG

PK

PK

123

86

123

86

Height Comments meters

1.0

1.8

1.0

1.8

1.0

1.2

1.0

1.2

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 16 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2c: High Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10638.500

dB

μV/m

38.4

v/h

V

10638.500

10639.440

10640.660

15958.500

15958.500

15960.870

15961.490

Note 1:

38.4

49.6

49.9

41.3

40.7

52.4

53.0

H

V

V

H

H

V

H

15.209 / 15E

Limit

54.0

Margin

-15.6

Detector Azimuth

Pk/QP/Avg degrees

AVG 157

54.0

74.0

74.0

-15.6

-24.4

-24.1

AVG

PK

PK

237

157

237

54.0

54.0

74.0

74.0

-12.7

-13.3

-21.6

-21.0

AVG

AVG

PK

PK

89

102

102

89

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 17 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5470-5725 MHz Band

Date: 11/6/2009 Engineer: Peter Sales Location: OATS #2

Antenna:

MAC:

Monopole #2 - Huber+Suhner, SOA 2459/360/5/0/V_C, 6.5dBi (5GHz), Asst # 2009-1632 & 1633

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #3a: Low Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10998.830

dB

μV/m

51.9

v/h

V

10999.460

11000.130

11000.680

16498.500

16498.500

16499.510

16501.380

Note 1:

51.7

40.2

40.1

40.4

40.9

53.1

52.9

V

V

H

V

H

H

H

15.209 / 15E

Limit

74.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-22.1

PK 164

74.0

54.0

54.0

68.3

-22.3

-13.8

-13.9

-27.9

PK

AVG

AVG

AVG

164

164

164

164

68.3

88.3

88.3

-27.4

-35.2

-35.4

AVG

PK

PK

138

138

164

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

Run #3b: Center Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

11160.410

dB

μV/m

51.9

v/h

H

11161.160

11161.280

11161.330

16738.500

16738.760

16739.790

16739.950

Note 1:

40.1

40.2

51.4

42.9

42.3

55.2

53.6

V

H

V

H

V

H

V

15.209 / 15E

Limit

74.0

Margin

-22.1

Detector Azimuth

Pk/QP/Avg degrees

PK 263

54.0

54.0

74.0

-13.9

-13.8

-22.6

AVG

AVG

PK

247

263

247

68.3

68.3

88.3

88.3

-25.4

-26.0

-33.1

-34.7

AVG

AVG

PK

PK

238

223

238

223

Height meters

1.3

1.0

1.3

1.0

1.0

1.0

1.0

1.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 18 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3c: High Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

11398.720

dB

μV/m

51.2

v/h

H

11399.080

11399.540

11400.200

17098.500

17098.510

17098.850

17099.570

Note 1:

51.1

39.1

39.2

43.2

44.3

55.6

57.4

H

V

H

V

V

H

V

15.209 / 15E

Limit

74.0

Margin

-22.8

Detector Azimuth

Pk/QP/Avg degrees

PK 311

74.0

54.0

54.0

-22.9

-14.9

-14.8

PK

AVG

AVG

192

311

192

68.3

68.3

88.3

88.3

-25.1

-24.0

-32.7

-30.9

AVG

AVG

PK

PK

192

240

192

240

Height meters

1.0

1.0

1.0

1.0

1.0

2.0

1.0

2.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Monopole Page 19 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated spurious emissions testing.

For radiated emissions testing the measurement antenna was located 3 meters from the EUT.

Ambient Conditions:

Temperature:

Rel. Humidity:

15-20 °C

40-50 %

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 20 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Summary of Results

Run #

1

2

3

Mode

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11

HT20

802.11

HT20

802.11

HT20

802.11

HT40

802.11

HT40

802.11

HT40

Channel

5150-5250

Low(5180M)

5250-5350

High(5320M)

5470-5725

Low(5500M)

5150-5250

Low(5180M)

5250-5350

High(5320M)

5470-5725

Low(5500M)

5150-5250

Low(5190M)

5250-5350

High(5310M)

5470-5725

Low

Power

Setting

100%

100%

100%

100%

100%

100%

100%

100%

100%

Antenna

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Test Performed

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

Restricted Band Edge at

5150 MHz

Restricted Band Edge at

5350 MHz

Restricted Band Edge at

5460 MHz

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

15.209

15.209

15.209

15.209

15.209

Limit

15.209

15.209

15.209

15.209

Result / Margin

49.5dBµV/m @

5147.0MHz (-4.5dB)

49.3dBµV/m @

5352.6MHz (-4.7dB)

49.7dBµV/m @

5457.1MHz (-4.3dB)

49.3dBµV/m @

5147.2MHz (-4.7dB)

51.9dBµV/m @

5351.8MHz (-2.1dB)

49.9dBµV/m @

5457.3MHz (-4.1dB)

50.9dBµV/m @

5149.8MHz (-3.1dB)

53.1dBµV/m @

5350.0MHz (-0.9dB)

50.6dBµV/m @

5459.0MHz (-3.4dB)

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 21 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Band Edge, 802.11a

Run #1a: Low Channel @ 5180 MHz(5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Chamber #3

SCU: V2.03.14

Frequency Level

MHz

5147.000

5147.370

5147.210

5147.210

dB

μV/m

49.5

61.9

48.0

60.8

Pol

V/H

V

V

H

H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

74.0

-4.5

-12.1

Avg

PK

327

327

54.0

74.0

-6.0

-13.2

Avg

PK

165

165

Height Comments meters

1.0

1.0

1.7

1.7

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 22 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1b: High Channel 5320(5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Chamber #3

SCU: V2.03.14

Frequency Level

MHz dB

μV/m

5352.610

5352.190

5351.890

5352.710

49.3

61.8

48.2

61.3

Pol

V/H

V

V

H

H

FCC 15.209

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-4.7

Avg 142

74.0

54.0

74.0

-12.2

-5.8

-12.7

PK

Avg

PK

142

164

164

Height Comments meters

1.0

1.0

1.5

1.5

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 23 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1c: Low Channel @ 5500 MHz (5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Chamber #3

SCU: V2.03.14

Frequency Level

MHz dB

μV/m

5457.060

5459.420

5457.040

5459.580

49.7

61.4

48.3

61.1

Pol

V/H

V

V

H

H

FCC 15.209

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-4.3

Avg 144

74.0

54.0

74.0

-12.6

-5.7

-12.9

PK

Avg

PK

144

167

167

Height Comments meters

1.0

1.0

1.5

1.5

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 24 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Band Edge, 802.11 HT20

Run #2a: Low Channel @ 5180 MHz(5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Cchamber #3

SCU: V2.03.14

Frequency Level

MHz dB

μV/m

5147.210

5147.940

5147.500

5149.460

49.3

61.9

48.1

62.0

Pol

V/H

V

V

H

H

FCC 15.209

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-4.7

Avg 324

74.0

54.0

74.0

-12.1

-5.9

-12.0

PK

Avg

PK

324

168

168

Height Comments meters

1.0

1.0

2.0

2.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 25 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2b: High Channel @ 5320 MHz (5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Cchamber #3

SCU: V2.03.14

5350 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5351.820

5352.110

51.9

66.3

V

V

54.0

74.0

-2.1

-7.7

Avg

PK

142

142

5351.460

5352.790

48.9

61.8

H

H

54.0

74.0

-5.1

-12.2

Avg

PK

169

169

Height Comments meters

1.0

1.0

1.6

1.6

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 26 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2c: Low Channel @ 5500 MHz(5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Date:

Antenna:

12/29/2009

MAC:

00172309A9FB

Engineer:

DRIVER:

Rafael Varelas

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

V2.03.14

FT Cchamber #3

SCU: V2.03.14

Frequency Level

MHz dB

μV/m

5457.290

5458.190

5457.470

5459.650

49.9

62.5

48.7

61.4

Pol

V/H

V

V

H

H

FCC 15.209

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-4.1

Avg 146

74.0

54.0

74.0

-11.5

-5.3

-12.6

PK

Avg

PK

146

163

163

Height Comments meters

1.0

1.0

1.6

1.6

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 27 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Band Edge, 802.11 HT40

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Cchamber #3

SCU: V2.03.14

Run #3a: Low Channel @ 5190 MHz(5150-5250 MHz)

5150 MHz Band Edge Signal Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5149.830

5148.000

50.9

66.2

V

V

54.0

74.0

-3.1

-7.8

Avg

PK

155

155

5149.830

5147.580

48.5

61.4

H

H

54.0

74.0

-5.5

-12.6

Avg

PK

168

168

Height Comments meters

1.0

1.0

1.7

1.7

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 28 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3b: High Channel @ 5310 MHz(5250-5350 MHz)

5350 MHz Band Edge Signal Radiated Field Strength

Date:

Antenna:

12/29/2009 Rafael Varelas

V2.03.14

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

MAC:

00172309A9FB

Engineer:

DRIVER:

FT Cchamber #3

SCU: V2.03.14

Frequency Level

MHz dB

μV/m

5350.030

5351.270

5350.000

5350.330

53.1

66.7

49.3

62.0

Pol

V/H

V

V

H

H

FCC 15.209

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-0.9

Avg 137

74.0

54.0

74.0

-7.3

-4.7

-12.0

PK

Avg

PK

137

166

166

Height Comments meters

1.0

1.0

1.6

1.6

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 29 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3c: Low Channel @ 5510 MHz (5470-5725 MHz)

5460 MHz Band Edge Radiated Field Strength

Date:

Antenna:

12/29/2009

MAC:

00172309A9FB

Engineer:

DRIVER:

Rafael Varelas

Location:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1628 & 1629

V2.03.14

FT Cchamber #3

SCU: V2.03.14

5460 MHz Band Edge Radiated Field Strength

Frequency

MHz

Level dB

μV/m

Pol

V/H

FCC 15.209

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

5458.980

5459.310

50.6

65.5

V

V

54.0

74.0

-3.4

-8.5

Avg

PK

140

140

5459.740

5458.650

48.7

61.5

H

H

54.0

74.0

-5.3

-12.5

Avg

PK

178

178

Note 1:

Height Comments meters

1.0

1.0

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

1.6

1.6

RB 1 MHz; VB: 10 Hz

RB 1 MHz; VB: 1 MHz

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII BE Dipole V2.03.14

Page 30 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact:

Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

RSS 210 and FCC 15.407 (UNII) Radiated Spurious Emissions

Test Specific Details

Objective:

The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

Date of Test: See Below

Test Engineer: See Below

Test Location: See Below

Config. Used: 1

Config Change: None

EUT Voltage: 120V/ 60Hz

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated spurious emissions testing.

For radiated emissions testing the measurement antenna was located 3 meters from the EUT.

Ambient Conditions:

Summary of Results

Run #

1

2

3

Mode

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

802.11a

Chain A

Channel

5150-5250

Low

5150-5250

Center

5150-5250

High

5250-5350

Low

5250-5350

Center

5250-5350

High

5470-5725

Low

5470-5725

Center

5470-5725

High

Power

Setting

100%

100%

100%

100%

100%

100%

100%

100%

100%

Temperature:

Rel. Humidity:

Antenna

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

Larsen

Dipole

11 °C

94 %

Test Performed

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Radiated Emissions,

1 - 40 GHz

Limit

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

FCC 15.209 / 15 E

Result / Margin

39.8dBµV/m @

15540.5MHz (-14.2dB)

40.0dBµV/m @

15599.5MHz (-14.0dB)

40.4dBµV/m @

15718.5MHz (-13.6dB)

40.9dBµV/m @

15537.8MHz (-13.1dB)

43.7dBµV/m @

15897.9MHz (-10.3dB)

42.4dBµV/m @

15958.6MHz (-11.6dB)

41.6dBµV/m @

11010.1MHz (-12.4dB)

43.5dBµV/m @

16740.1MHz (-10.5dB)

45.0dBµV/m @

17101.1MHz (-9.0dB)

T76863_FCC_UNII UNII Spurious - Dipole Page 31 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5150-5250 MHz Band, 802.11a Mode

Date of Test: 11/17/2009

Test Engineer: Rafael Varelas

Test Location: OATS # 2

Antenna: Elliott Asset Number: 2009-1628 (AIR-ANT4941)

MAC S/N:

00172309A9FB

Driver: V2.03.07

SCU: V3.00.37

Run #1a: Low Channel

Spurious Radiated Emissions:

Frequency Level

MHz dB

μV/m

10361.070

10361.180

39.6

39.7

15539.580

15540.520

10359.850

10360.920

15538.760

15541.360

Note 1:

39.7

39.8

50.8

51.0

50.9

51.0

H

V

H

V

Pol v/h

V

H

V

H

15.209 / 15E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

-14.4

-14.3

AVG

AVG

289

330

54.0

54.0

74.0

74.0

74.0

74.0

-14.3

-14.2

-23.2

-23.0

-23.1

-23.0

AVG

AVG

PK

PK

PK

PK

345

291

330

289

291

345

Height meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 32 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1b: Center Channel

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10401.320

dB

μV/m

39.9

v/h

V

10401.430

15599.500

15599.750

10398.600

10400.950

15598.530

15599.700

Note 1:

39.7

40.0

39.6

51.0

51.4

51.6

51.2

V

H

V

H

H

V

H

15.209 / 15E

Limit

54.0

Margin

-14.1

Detector Azimuth

Pk/QP/Avg degrees

AVG 265

54.0

54.0

54.0

-14.3

-14.0

-14.4

AVG

AVG

AVG

231

285

255

74.0

74.0

74.0

74.0

-23.0

-22.6

-22.4

-22.8

PK

PK

PK

PK

265

231

285

255

Height meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

Run #1c: High Channel

Spurious Radiated Emissions:

Frequency

MHz

10481.400

Level dB

μV/m

38.8

Pol v/h

V

10481.430

15718.500

15718.500

10480.710

39.0

40.4

40.3

53.2

H

H

H

V

10481.440

15719.260

15719.460

50.2

51.5

51.9

V

V

H

Note 1:

15.209 / 15E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

54.0

54.0

54.0

74.0

74.0

74.0

74.0

-15.2

-15.0

-13.6

-13.7

-20.8

-23.8

-22.5

-22.1

AVG

AVG

AVG

AVG

PK

PK

PK

PK

233

0

305

15

0

233

305

15

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 33 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5250-5350 MHz Band, 802.11a Mode

Date of Test: 11/18/2009

Test Engineer: Suhaila Khushzad

Test Location: OATS#2

Antenna: Larsen Dipole

Run #2a: Low Channel @ 5180 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10351.530

dB

μV/m

40.9

v/h

H

10360.730

15520.530

15537.800

10357.600

10372.930

15522.470

15544.000

Note 1:

41.3

40.7

40.9

52.7

52.1

52.5

51.9

V

H

V

V

H

V

H

15.209 / 15E

Limit

68.3

Detector Azimuth

Margin Pk/QP/Avg degrees

-27.4

AVG 228

68.3

54.0

54.0

88.3

-27.0

-13.3

-13.1

-35.6

AVG

AVG

AVG

PK

44

142

0

44

88.3

74.0

74.0

-36.2

-21.5

-22.1

PK

PK

PK

228

0

142

Height meters

1.1

1.0

1.0

1.0

1.0

1.1

1.0

1.0

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

Run #2b: Center Channel @ 5300 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10592.270

dB

μV/m

40.1

v/h

H

10600.000

15897.530

15897.870

10589.330

10616.400

15898.670

15909.130

Note 1:

41.2

42.3

43.7

50.8

58.0

54.7

53.3

V

H

V

H

V

V

H

15.209 / 15E

Limit

68.3

Margin

-28.2

Detector Azimuth

Pk/QP/Avg degrees

AVG 3

68.3

54.0

54.0

88.3

74.0

74.0

74.0

-27.1

-11.7

-10.3

-37.5

-16.0

-19.3

-20.7

AVG

AVG

AVG

PK

PK

PK

PK

271

360

360

3

271

360

360

Height Comments meters

1.6

1.9

1.5

1.2

1.6

1.9

1.2

1.5

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 34 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #2c: High Channel @ 5320 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

10620.000

dB

μV/m

39.8

v/h

H

10620.070

15947.800

15958.600

10625.930

10649.330

15949.070

15960.930

Note 1:

39.9

41.8

42.4

50.8

51.9

52.9

53.4

V

H

V

H

V

H

V

15.209 / 15E

Limit

54.0

Margin

-14.2

Detector Azimuth

Pk/QP/Avg degrees

AVG 246

54.0

54.0

54.0

-14.1

-12.2

-11.6

AVG

AVG

AVG

104

109

143

74.0

74.0

74.0

74.0

-23.2

-22.1

-21.1

-20.6

PK

PK

PK

PK

246

104

109

143

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 35 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3, Radiated Spurious Emissions, 30 - 40,000 MH. Operation in the 5470-5725 MHz Band

Date: 11/19/2009 Engineer: Mehran Birgani Location: OATS #2

Antenna:

Larsen Dipole, R380.500.314, 5.0dBi (5GHz), Asst # 2009-1629

MAC:

00172309A9FB

DRIVER:

V2.03.07

SCU: V3.00.37

Run #3a: Low Channel @ 5500 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

11005.800

dB

μV/m

41.5

V/H

V

11010.070

16497.870

16511.200

11005.530

11013.530

16499.530

16515.930

Note 1:

41.6

44.3

41.7

53.2

53.1

57.1

52.9

H

V

H

V

H

V

H

15.209 / 15E

Limit

54.0

Detector Azimuth

Margin Pk/QP/Avg degrees

-12.5

AVG 34

54.0

68.3

68.3

74.0

-12.4

-24.0

-26.6

-20.8

AVG

AVG

AVG

PK

46

151

198

34

74.0

88.3

88.3

-20.9

-31.2

-35.4

PK

PK

PK

46

151

198

Height meters

1.0

1.0

1.0

2.1

1.0

1.0

1.0

2.1

Comments

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to -

27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 36 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #3b: Center Channel @ 5580 MHz

Spurious Radiated Emissions:

Frequency Level Pol

MHz

11155.050

dB

μV/m

39.5

V/H

H

15.209 / 15E

Limit

54.0

Margin

-14.5

Detector Azimuth

Pk/QP/Avg degrees

AVG 224

11162.420

16739.920

16740.100

11155.420

11157.880

16736.220

16742.050

39.9

43.2

43.5

51.2

51.3

54.4

54.0

V

H

V

H

V

V

H

54.0

54.0

54.0

74.0

74.0

74.0

74.0

-14.1

-10.8

-10.5

-22.8

-22.7

-19.6

-20.0

AVG

AVG

AVG

PK

PK

PK

PK

51

0

6

224

51

6

0

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to

-27dBm/MHz (~68dBuV/m).

Run #3c: High Channel @ 5700 MHz

Spurious Radiated Emissions:

Frequency

MHz

11397.550

Level dB

μV/m

41.5

Pol

V/H

H

11403.570

17101.070

17103.530

11395.980

41.3

45.0

45.0

52.4

V

H

V

V

11397.170

17098.780

17101.730

53.0

56.1

56.4

H

V

H

15.209 / 15E

Limit

Detector Azimuth

Margin Pk/QP/Avg degrees

54.0

-12.5

AVG 52

54.0

54.0

54.0

74.0

-12.7

-9.0

-9.0

-21.6

AVG

AVG

AVG

PK

200

100

360

200

74.0

74.0

74.0

-21.0

-17.9

-17.6

PK

PK

PK

52

360

100

Height Comments meters

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Note 1:

For emissions in restricted bands, the limit of 15.209 was used. For all other emissions, the average limit was set to

-27dBm/MHz (~68dBuV/m).

T76863_FCC_UNII UNII Spurious - Dipole Page 37 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

RSS-210 (LELAN) and FCC 15.407(UNII)

Antenna Port Measurements (

Power)

Test Specific Details

Objective: Determine the power settings to match the original filing

Date of Test: 12/4/2009

Test Engineer: Mehran Birgani

Test Location: Environmental Lab

Config. Used: -

Config Change: -

Host EUT Voltage: 120V/ 60Hz

General Test Configuration

When measuring the conducted emissions from the EUT's antenna port, the antenna port of the EUT was connected to the spectrum analyzer or power meter via a suitable attenuator to prevent overloading the measurement system. All measurements are corrected to allow for the external attenuators and cables used.

Ambient Conditions:

Temperature:

Rel. Humidity:

18-20 °C

40-45 %

T76863_FCC_UNII Power - UNII FW V2.03.13

Page 38 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact: Ron Seide

Standard:

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: N/A

Run #1: Bandwidth, Output Power and Power spectral Density

MAC:

00172309A9FB

DRIVER:

V2.03.13

SCU: V2.03.09

Antenna Gain (dBi):

Chain 1 Chain 2 Chain 3 Coherent Effective

5

4.3

Yes 4.3

Notes - Test using the CCS methods and determine the output power settings that match the final report. These will be used for the radiated measurements. Power needs to be within 0.5dB of the original measurements

Frequency

Software

(MHz)

802.11a mode

Setting

5180

5320 ch 36 ch 64

5500 ch 100

802.11 HT20 mode

5180

5320 ch 36 ch 64

5500 ch 100

802.11 HT40 mode

5190

5310

5510 ch 36 ch 60 ch 100

26dB BW

(MHz)

Measured Output Power

Chain 1

6.4

8.5

10.4

5.4

9.6

9.7

4.6

8.6

7.6

Chain 2

4.4

9.6

8.7

3.2

7.8

6.1

1 dBm

Chain 3 mW

4.4

7.1

11.0

6.3

18.2

16.7

5.0

13.3

9.9

Total dBm

6.4

8.5

10.4

8.0

12.6

12.2

7.0

11.2

9.9

Test Method

PSA, channel power, sample det, 100 sweep average

PSA, channel power, sample det, 100 sweep average

PSA, channel power, sample det, 100 sweep average

Total from

CCS

14.33

15.53

17.26

13.18

17.38

19.62

15.20

15.63

18.62

T76863_FCC_UNII Power - UNII FW V2.03.13

Page 39 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact:

Standard:

Ron Seide

FCC 15.407, RSS-210

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: -

Radiated Emissions - RSS-210

Test Specific Details

Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above.

Date of Test: 1/20/2010 17:58

Test Engineer: Rafael Varelas

Test Location: Chamber #2

Config. Used: 1

Config Change: None

EUT Voltage: 120V/60Hz

General Test Configuration

The EUT and all local support equipment were located on the turntable for radiated emissions testing.

The test distance and extrapolation factor (if applicable) are detailed under each run description.

Note, preliminary testing indicates that the emissions were maximized by orientation of the EUT and elevation of the measurement antenna. Maximized testing indicated that the emissions were maximized by orientation of the EUT, elevation of the measurement antenna, and manipulation of the EUT's interface cables.

Ambient Conditions:

Temperature:

Rel. Humidity:

19.4 °C

38 %

Summary of Results

Run #

1-3

Test Performed

RE, 1000 - 18,000 MHz,

Maximized Emissions

Modifications Made During Testing

No modifications were made to the EUT during testing

Deviations From The Standard

No deviations were made from the requirements of the standard.

Limit

RSS-210

Result

Pass

Margin

44.5dBµV/m @

4997.6MHz (-9.5dB)

NOTE - This preliminary data shows no emissions related to the receive mode. No formal measurements performed.

T76863_FCC_UNII RE (RSS-210) Page 40 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact:

Standard:

Ron Seide

FCC 15.407, RSS-210

Run #1: Maximized readings, 1000 - 18,000 MHz. Rx Mode

Center Channel @ 5200 MHz

Antenna: Elliott Asset Number: 2009-1632 (H&S Monopole Antenna)

Antenna: Elliott Asset Number: 2009-1633 (H&S Monopole Antenna)

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: -

Frequency Range

1000 - 18,000 MHz

Frequency Level

MHz dB

μV/m

1499.600

39.6

1760.210

4995.600

42.6

42.2

Note 1:

Pol v/h

V

V

V

Test Distance

1

Limit Distance

Limit

54.0

RSS-210 Detector Azimuth

Margin Pk/QP/Avg degrees

-14.4

Peak 169

54.0

54.0

-11.4

-11.8

Peak

Peak

269

157

3

Extrapolation Factor

-9.5

Height Comments meters

1.7

Pk Reading vs. avg limit

1.7

1.7

Pk Reading vs. avg limit

Pk Reading vs. avg limit

T76863_FCC_UNII RE (RSS-210) Page 41 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact:

Standard:

Ron Seide

FCC 15.407, RSS-210

Run #2: Maximized readings, 1000 - 18,000 MHz. Rx Mode

Center Channel @ 5300 MHz

Antenna: Elliott Asset Number: 2009-1632 (H&S Monopole Antenna)

Antenna: Elliott Asset Number: 2009-1633 (H&S Monopole Antenna)

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: -

Frequency Range

1000 - 18,000 MHz

Frequency Level

MHz dB

μV/m

4997.640

44.5

1498.750

1760.210

39.7

43.4

Note 1:

Pol v/h

V

V

V

Test Distance

1

Limit Distance

Limit

54.0

RSS-210 Detector Azimuth

Margin Pk/QP/Avg degrees

-9.5

Peak 136

54.0

54.0

-14.3

-10.6

Peak

Peak

162

73

3

Extrapolation Factor

-9.5

Height Comments meters

1.7

Pk Reading vs. avg limit

1.7

1.7

Pk Reading vs. avg limit

Pk Reading vs. avg limit

T76863_FCC_UNII RE (RSS-210) Page 42 of 43

Client:

Summit Data Communications

Model: 802.11abgn Module

Contact:

Standard:

Ron Seide

FCC 15.407, RSS-210

Run #3: Maximized readings, 1000 - 18,000 MHz. Rx Mode

Center Channel @ 5580 MHz

Antenna: Elliott Asset Number: 2009-1632 (H&S Monopole Antenna)

Antenna: Elliott Asset Number: 2009-1633 (H&S Monopole Antenna)

EMC Test Data

Job Number: J76855

T-Log Number: T76863

Account Manager: Christine Krebill

Class: -

Frequency Range

1000 - 18,000 MHz

Frequency Level

MHz dB

μV/m

4995.930

42.7

1499.160

1760.320

39.9

39.2

Note 1:

Pol v/h

V

V

V

Test Distance

1

Limit Distance

Limit

54.0

RSS-210 Detector Azimuth

Margin Pk/QP/Avg degrees

-11.3

Peak 177

54.0

54.0

-14.1

-14.8

Peak

Peak

0

247

3

Extrapolation Factor

-9.5

Height Comments meters

1.7

Pk Reading vs. avg limit

1.7

1.7

Pk Reading vs. avg limit

Pk Reading vs. avg limit

T76863_FCC_UNII RE (RSS-210) Page 43 of 43

Elliott Laboratories -- EMC Department Test Report

Report Date: January 26, 2010

Appendix C Photographs of Test Configurations

Uploaded as a separate exhibit

File: R77873 Appendix Page 4 of 6

Elliott Laboratories -- EMC Department

Appendix D Operator's Manual

Uploaded as a separate exhibit

Test Report

Report Date: January 26, 2010

File: R77873 Appendix Page 5 of 6

Elliott Laboratories -- EMC Department

Appendix E RF Exposure Information

Uploaded as a separate exhibit

Test Report

Report Date: January 26, 2010

File: R77873 Appendix Page 6 of 6

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
