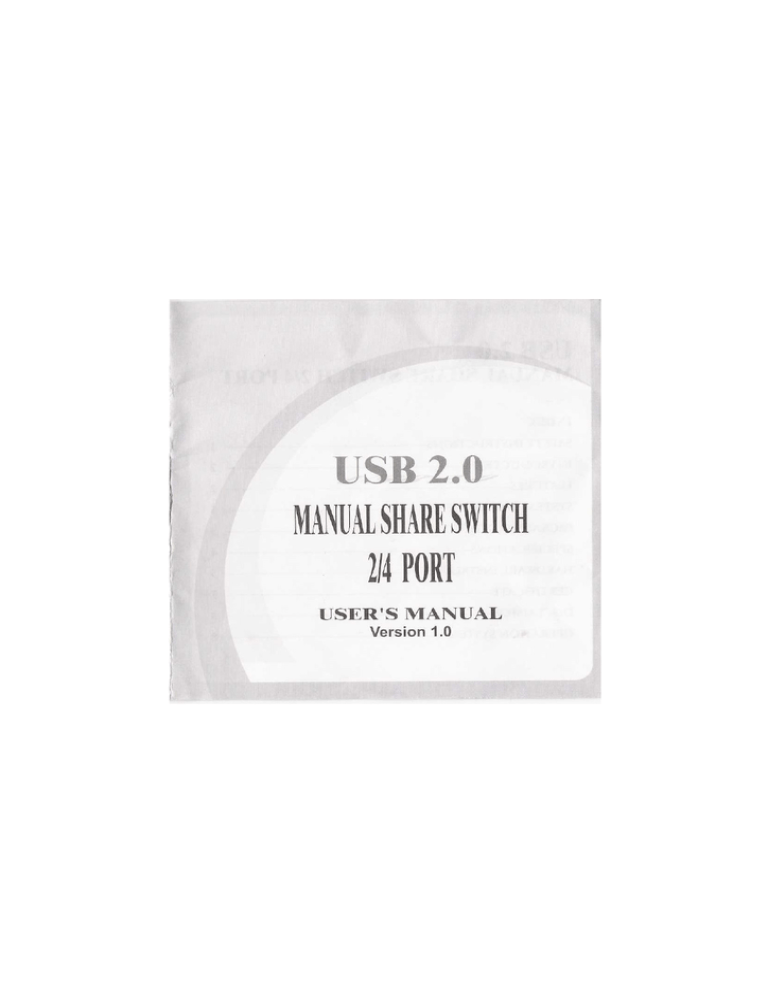

USB 2.0
MANUAL SHARE SWITCH 2/4 PORT
INDEX
SAFETY INSTRUCTIONS
INTRODUCTION-—-—
FEATURES--
SYSTEM REQUIREMENTS
PACKAGE CONTENTS------
SPECIFICATIONS
HARDWARE INSTALLATION--
CERTIFICATE-
DISCLAIMER---
OPERATION SYSTEM---
—
SAFETY INSTRUCTIONS
1. Always read the safety instructions carefully
2. Keep this User's Manual for future reference
3. Keep this equipment away from humidity
4. Lay this equipment on a reliable flat surface before setting it up
5. If any of the following situation arises, get the equipment checked by
a service technician:
® The equipment has been exposed to moisture
@ The equipment has been dropped and damaged
e The equipment has obvious sign of breakage
e The equipment 1s not working properly or you cannot get it to work
according to Users Manual
INTRODUCTION
USB manual share switch 2/4 port is a multi-function product. Enables
you to have two/four computers to share a USB device or multiple
devices. Quickly switch between computers with a push of the port
Selector Button on the front of the switch. The installation is easy with
Plug and Play convenience. |
FEATURES
e Compliant with USB 2.0 specification
e USB 2/4-channel switch
( 2/4 USB TYPE-B connecter, 1 USB TYPE-A connecter)
e Supports 2/4 computer sharing with 1 device
e Switch between computers by using the Port Select Button
e Provides Bus-power of 500mA per port
e Two/Four LED (green) port status indicator
e IBM — Compatible PC & MAC
e MS Windows 98SE, ME, 2000, XP, Mac OS 9.0 or higher.
e Available USB Port
e 64 MB RAM or above
e Pentium 233 MHz or higher
e USB2.0 Manual Share Switch 2/4 port
e User's Manual
SPECIFICATIONS
Type 2 Port USB 2.0 4 Port USB 2.0
Manual Share Switch | Manual Share Switch
Ports 2 USB B 4 USB B
(to computer) (to computer)
1 USB A 1 USB A
(to device or hub) (to device or hub)
Compliance FCC regulations for home or office use CE
emissions and immunity standard C-Tick
Power Bus-powered 500 mA per port
Push Button Port Selector
Status Lights 2 Port-indicator LEDs | 4 Port-indicator LEDs
Storage Temperature -10-85°С
Working Temperature 0-70°C
THRs LLE
lt LR § A
-- A E |
HARDWARE INSTALLATION
\\, i 1...
‚| Two computers sharing one device:
Pci PC2
Two computers sharing multiple devices:
от ое ато EE EE | воевать Re ЙЕ,
MAT CIA FREE LLP LAIT
STONE
— ————
Four computers sharing one device:
—
a JE
"sa EE
_ rE——] o сны —— mil ds
re
USB device
9000
PC1 PC2 PC3 РСА
Four computers sharing multiple devices:
os — —
— |)
(=) PC1
— J
@ PC2
— O res
— (a: PC4
CERTIFICATE
FCC
This equipment has been tested and found to comply with Part 15
of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
CE — Certificate
This equipment is in compliance with the requirements
of the following regulations:
EN 55022: CLASS B
DISCLAIMER
Information in this document is subject to change without notice.
The manufacturer does not make any representations or warranties
(implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any
commercial damage, including but not limited to special, incidental,
consequential, or other damage.
No part of this document may be reproduced or transmitted in any form
by any means, electronic or mechanical, including photocopying,
recording or information recording and retrieval systems without the
express written permission of the manufacturer.
OPERATION SYSTEM
(FA WIN 98sE Ca WIN ME Cra wn 200 Fr WINXP Mac MAC
À suProrTen Pad SUPPORTED [Z| SUPPORTED “SUPPORTED Mal SUPPORTED
FE CE ES O ET
“All brand names and product names used in this document are trademarks,
or registered trademarks of their respective holders.
Made in China
