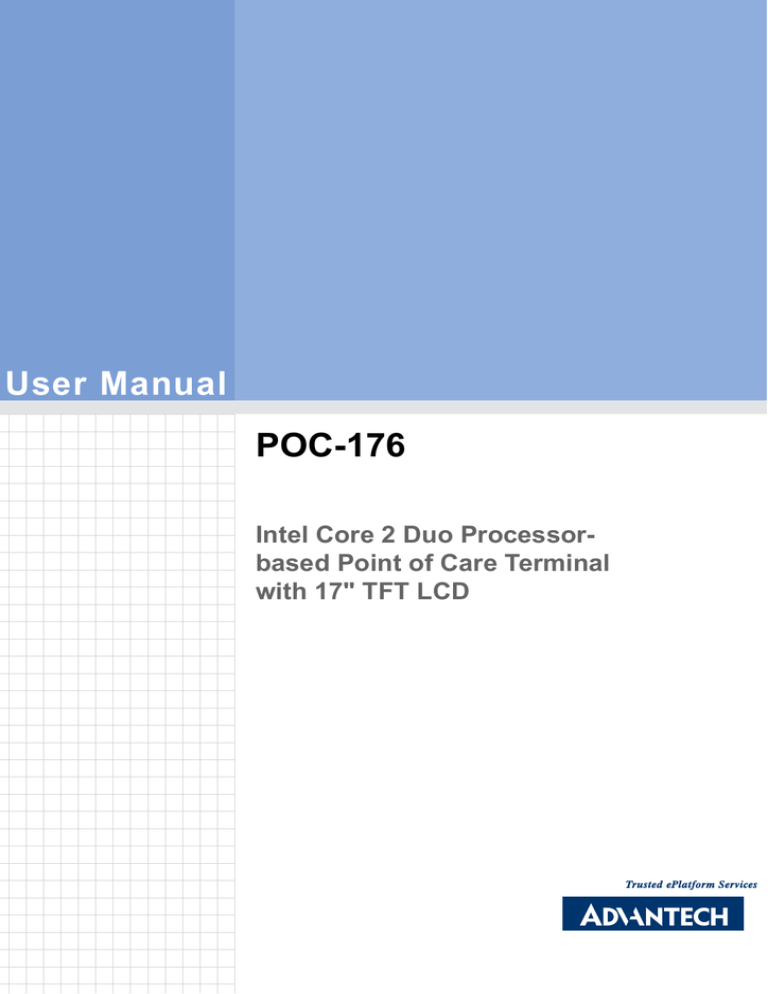

User Manual POC-176
User Manual
POC-176
Intel Core 2 Duo Processorbased Point of Care Terminal
with 17" TFT LCD
Instructions for the User
The document combines text and illustrations, providing a comprehensive overview
of the system. The information is presented as sequential steps of action, allowing
the user to learn directly how to use the device.
The text provides explanations and instructs the user step-by-step in the practical
use of the product, with short, clear instructions in easy-to-follow sequence.
Definitions
Warning! A WARNING statement provides important information about a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
Caution! A CAUTION statement provides important information about a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury to the user or patient or in damage to the equipment or
other property.
Note!
A NOTE provides additional information intended to avoid inconveniences during operation.
POC-176 User Manual
Part No. 2008017610
Edition 1
Printed in Taiwan
April 2009
ii
Safety Instructions
Strictly follow these Instructions for Use, please read these safety instructions carefully.
You are reminded to keep this User's Manual for later reference, and any use of the
product requires full understanding and strict observation of all portions of these
instructions. Observe all WARNINGS and CAUTIONS as rendered throughout this
manual and on labels on the equipment.
Repair of the device may only be carried out by trained service personnel. Advantech
recommends that a service contract be obtained with Advantech Service and that all
repairs also be carried out by them. Otherwise the correct functioning of the device
may be compromised.
Warning! Because of the danger of electric shock, never remove the cover of a
device while it is in operation or connected to a power outlet.
If one of the following situations arises, have the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the
user's manual.
e. The equipment has been dropped and damaged.
f.
The equipment has obvious signs of breakage.
Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do
not use liquid or spray detergents for cleaning and keep this equipment away from
humidity.
Caution! To avoid short-circuits and otherwise damaging the device, do not allow
fluids to come in contact with the device. If fluids are accidentally spilled
on the equipment, remove the affected unit from service as soon as possible and contact service personnel to verify that patient safety is not
compromised.
Put this equipment on a reliable surface during installation. Dropping it or letting it fall
may cause damage. For plug-in equipment, the power outlet socket must be located
near the equipment and must be easily accessible.
Caution! To prevent overheating, it is recommended to install the unit in an
upright position. Do not lie it flat on a table and do not cover the openings or place the device in direct sunlight or near radiant heaters.
Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Position the power cord so that people cannot step on it. Do
not place anything over the power cord. If the equipment is not used for a long time,
disconnect it from the power source to avoid damage by transient over voltage.
iii
POC-176 User Manual
Caution! Do not leave this equipment in an uncontrolled environment where the
storage temperature is below -20°C (-4°F) or above 60°C (140°F). This
may damage the equipment.
If your computer clock is unable to keep accurate time or the BIOS configuration
resets to default, please check the battery.
Caution! Do not replace the battery yourself. Please contact a qualified technician
or your retailer.
The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
Improper installation of VESA mounting can result in serious personal injury! VESA
mount installation should be completed by a professional technician, please contact
the service technician or your retailer if you need this service. The detailed installation procedure is specified in Appendix A.
CLASSIFICATION:
! Supply Class I adapter
! No applied parts
! IPX1
! Continuous operation
! Not AP or APG category
Warning! This device is not suitable for use in the presence of flammable anesthetic mixtures with air, oxygen, nitrous oxide, or as a life support system.
Maintenance: To properly maintain and clean the surfaces, use only the approved
products or clean with a dry applicator.
Caution! When servicing the device, always use replacement parts that meet
Advantech standards. Advantech Medical cannot warrant or endorse
the safe performance of third-party replacement parts for use with our
medical device.
Make sure users do not come in contact with SIP/SOPs and the patient at the same
time.
POC-176 User Manual
iv
When connecting electrical devices, the operator is responsible for ensuring that the
resulting system meets the requirements set forth by the following standards:
EN 60601-1 (IEC 60601-1)
Medical electrical equipment
Part 1: General requirements for safety
EN 60601-1-1 (IEC 60601-1-1)
Medical electrical equipment
Part 1-1: General requirements for safety
Collateral standard: Safety requirements for Medical electrical systems
EN 60601-1-2 (IEC 60601-1-2)
Medical electrical equipment
Part 1-2: General requirements for safety
Collateral standard: Electromagnetic compatibility; Requirements and tests
Accessory equipment connected to the analog and digital interfaces must be in compliance with the respective nationally harmonized IEC standards (i.e. IEC 60950 for
data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment). Furthermore all configuration should comply with the system standard IEC 60601-1-1. Anyone who connects
additional equipment to the signal input or signal output is configuring a medical system, and is therefore responsible that the system complies with the requirements set
forth in standard IEC 60601-1-1. The unit is for exclusive interconnection with IEC
60601-1 certified equipment in the patient environment and IEC 60XXX certified
equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative.
v
POC-176 User Manual
FCC Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment
generates, uses, and can radiate radio frequency energy. If not installed and used in
accordance with this user's manual, it may cause harmful interference to radio communications.
Note that even when this equipment is installed and used in accordance with this
user's manual, there is still no guarantee that interference will not occur. If this equipment is believed to be causing harmful interference to radio or television reception,
this can be determined by turning the equipment on and off. If interference is occurring, the user is encouraged to try to correct the interference by one or more of the
following measures:
! Reorient or relocate the receiving antenna.
! Increase the separation between the equipment and the receiver.
! Connect the equipment to a power outlet on a circuit different from that to which
the receiver is connected.
! Consult the dealer or an experienced radio/TV technician for help.
Warning! Any changes or modifications made to the equipment which are not
expressly approved by the relevant standards authority could void your
authority to operate the equipment.
List of Accessories
Before installing your Point-of-Care Terminal, ensure that the following materials
have been received:
! POC-176 series Point-of-Care Terminal
! Accessories for POC-176
– CD-ROM disc-"Drivers, User's manual and Utilities"
– Mounting kits and packet of screws
– VESA mounting note x1
– China RoHs note x1
Warning! No user serviceable parts inside, refer servicing to qualified personnel.
Only the accessories indicated on the list of accessories above have
been tested and approved to be used with the device. It is strongly recommended that only these accessories be used in conjunction with the
specific device. Otherwise the correct functioning of the device may be
compromised.
POC-176 User Manual
vi
Additional Information and Assistance
Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following
information ready before you call:
! Product name and serial number
! Description of your peripheral attachments
! Description of your software (operating system, version, application software,
etc.)
! A complete description of the problem
! The exact wording of any error messages
! This equipment is a source of electromagnetic waves. Before use please make
sure that there are not EMI sensitive devices in its surrounding which may otherwise malfunction.
Manufacturer
Advantech Co., Ltd.
No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei,
Taiwan 11481, R.O.C.
TEL: (02) 2792-7818
Distributed in Europe by:
Advantech Europe GmbH Kolberger Straße 7
D-40599 Düsseldorf, Germany
Tel: 49-211-97477350
Fax: 49-211-97477300
Visit the Advantech websites at www.advantech.com or www.advantech.com.tw if
you need more information.
vii
POC-176 User Manual
POC-176 User Manual
viii
Contents
Chapter
Chapter
1
General Information ............................1
1.1
1.2
1.3
Introduction ............................................................................................... 2
Specifications ............................................................................................ 2
Dimensions ............................................................................................... 5
Figure 1.1 Dimensions of the POC-176....................................... 5
2
System Setup .......................................7
2.1
A Quick Tour of the POC-176 ................................................................... 8
Figure 2.1 Front View of the Point-of-care Terminal.................... 8
Figure 2.2 Rear View of the Point of Care Terminal .................... 8
Figure 2.3 Rear View: Point of Care Terminal with I/O ports....... 9
Figure 2.4 Side View: Point of Care Terminal with I/O Ports ....... 9
Installation Procedures............................................................................ 10
2.2.1 Connecting the Power Cord........................................................ 10
Figure 2.5 Connecting the Power Cord ..................................... 10
2.2.2 Switch on the Power ................................................................... 10
Figure 2.6 Press the Power Button to Boot System ................. 10
Running the BIOS Setup Program .......................................................... 11
Installing System Software...................................................................... 11
Installing the Drivers................................................................................ 12
Figure 2.7 CD-ROM File Directory: "Drivers and Utilities" ......... 12
2.2
2.3
2.4
2.5
Chapter
3
Chipset and Graphics Setup ............13
3.1
Introduction ............................................................................................. 14
3.1.1 Chipset........................................................................................ 14
3.1.2 Display Memory .......................................................................... 14
3.1.3 DVI Transmitter........................................................................... 14
3.1.4 Display Types ............................................................................. 14
Installation of Chipset Driver ................................................................... 15
3.2.1 Installation for Windows XP ........................................................ 16
3.2
Chapter
Chapter
Chapter
4
Audio Interface ..................................23
4.1
4.2
4.3
Introduction ............................................................................................. 24
Installation of Audio Driver ...................................................................... 24
4.2.1 Installation for Windows 2000/XP ............................................... 25
Further Information.................................................................................. 26
5
PCI Express Ethernet Interface ........27
5.1
5.2
5.3
Introduction ............................................................................................. 28
Installation of the Ethernet Driver............................................................ 28
5.2.1 Installation for Windows XP ........................................................ 28
Further Information.................................................................................. 30
6
Touch Panel Interface .......................31
6.1
Introduction ............................................................................................. 32
ix
POC-176 User Manual
6.2
Chapter
Chapter
Chapter
6.3
Installation of Touch Panel Driver ........................................................... 32
6.2.1 Installation for Windows XP ........................................................ 32
Further Information ................................................................................. 37
7
1394b Interface.................................. 39
7.1
7.2
7.3
Introduction ............................................................................................. 40
Driver Installation .................................................................................... 40
Further Information ................................................................................. 44
8
Smart Card Reader Interface ........... 45
8.1
8.2
Introduction ............................................................................................. 46
Driver Installation .................................................................................... 46
9
Utilities and Hot Fix .......................... 49
9.1
9.2
Introduction ............................................................................................. 50
Wake up by External USB Device at S3 Resume (Wake up) ................. 50
9.2.1 Installation for Windows XP ........................................................ 50
Window Audio Volume Application ......................................................... 50
9.3.1 Installation for Windows XP ........................................................ 50
9.3
Chapter 10
Operational Information ................... 51
10.1
10.2
10.3
10.4
Plug in the Power Adapter ...................................................................... 52
Thermal................................................................................................... 52
Disconnect the Power ............................................................................. 52
General Safety Guide ............................................................................. 53
Appendix A
Description of MB Connectors ........ 55
A.1
Description of MB Connectors ................................................................ 56
Figure A.1 Top View of POC-176 Motherboard with Local Connectors ........................................................................... 56
Appendix B
Windows Display Hot Key Function 59
B.1
Windows Display Hot Key Function ........................................................ 60
Appendix C
PCM-8702 Jumper settings .............. 61
C.1
Jumper Locations.................................................................................... 62
Figure C.1 Jumper Locations ..................................................... 62
Table C.1: CN33 COM1 Pin 9 Output Configuration ................. 62
Table C.2: CN39 COM2 Pin 9 Output Configuration ................. 63
Table C.3: CN41 COM3 Pin 9 Output Configuration ................. 63
Table C.4: CN35 COM1 RS232/422/485 Output Type Settings 63
Table C.5: CN50 Internal USB Port 5 and Port 6....................... 64
POC-176 User Manual
x
Chapter
1
1
General Information
Sections include:
! Introduction
! Specifications
! Dimensions
1.1 Introduction
The POC-176 is a multimedia Intel Core 2 Duo Mobility processor-based computer
that is designed to serve as a Point of Care terminal (POC.) It is a PC-based system
with 17" color TFT LCD display, single DVI-I port, dual on-board 10/100/1000 PCI-E
Ethernet controller, quad COM ports, quad USB 2.0 ports and a 24-bit stereo audio
controller. With an optional 2.5" SATA HDD drive, the POC-176 is an user-friendly
computer. For system integrators, this highly integrated multimedia system lets you
easily build a Point of Care terminal into your applications. The POC-176 makes it an
ideal and safe point of care solution for patients and hospital practitioners.
The POC-176 is specially designed to resist spills and water damage, and ensures
dust resistance with its protected LCD, and sealed ports. The high contrast ratio
(800:1) of POC-176 makes it a perfect image terminal for PACS and DICOM applications. The POC-176 is a reliable solution to your application's processing requirements.
1.2 Specifications
Chipset
945GME/ ICH7M Chipset
CPU
Intel® Core 2 Duo Processor T7400
(2.16 GHz 667 MHz 4 MB Unified 34 watts 1.1625
V-1.3 V 100°C 478μFC-PGA)
Front Side Bus
533/667 MHz
Memory
DDR2 533/667 Unbuffered Non ECC SODIMM
sockets x 2 (max. 4 GB)
* Due to standard PC architecture, a certain
amount of memory is reserved for system usage
and therefore the actual memory size is less than
the stated amount.
Controller
Intel GMA 950 Graphics technology
Up to 224 MB of DVMT for graphics memory
Mini PCIe
1 x Mini PCI slot, supports type IIIA Mini PCI
PCI 2.2
1 x PCI 2.2, accept low profile PCI Card
Storage
HDD
1 x 2.5” SATA
Ethernet
Interface
2 x Gigabit Ethernet (isolated) interface (RJ-45)
Computing System
Graphics
Expansion Slot
Identification
1 x Smart card reader
I/O Ports
2 x RS-232(isolated), 1x RS-232 and 1x RS232/
422/485(isolated) serial port;
4 x USB 2.0 ports;
1 x IEEE 1394b ports
1 x PS/2 mouse and K/B;
1 x DVI-I VGA port;
Speakers
2 x 1 W speakers; 1 x MIC-in and Speaker-out
POC-176 User Manual
2
Max. Resolution
1280 x 1024
Max. Colors
16.7M colors (RGB 6-bits + FRC data)
Dot size (mm)
0.264 (per triad) x 0.264
Viewing angle
160°/160°
Luminance
300 cd/m2
Contrast ratio
800 : 1
LCD MTBF
50,000 hours
Backlight lifetime
50,000 hours at 6.5 mA
AC Model
Internal ATX power supply
Input voltage
100 ~ 240 VAC , 5/3 A max. @ 50 ~ 60 Hz
Output voltage
+3.3 V @ 16 A, +5 V @ 18 A, +12 V1 @ 16 A,
+12 V2 @ 16 A, +5 Vsb @ 2.5 A, -12 [email protected] 0.5 A,
-5 V @ 0.2 A(300W)
Type
Analog Resistive
Resolution
Continuous
Power Supply
Optional Touchscreen
Light transmission 75%
Controller
RS-232 interface (use COM5)
Durability
30 million touches
CE,FCC approved
Certification
Environment
Physical
Characteristics
UL60601-1,EN60601-1 approved
Temperature
0 ~ 40° C (32 ~ 104° F) (Operating)
Humidity
10 ~ 95% @ 40°C (non-condensing)
Shock Resistance 30G peak acceleration (11ms duration)
Power MTBF
100,000hrs
Water/dust
Resistance
IPX1 compliant
Dimensions
(W x H x D)
437 x 377 x 132 mm (17.20” x 14.84” x 5.20”)
Weight
10 kg
3
POC-176 User Manual
General Information
17" TFT LCD.
Chapter 1
Display
Display type
Cleaning/Disinfecting
During normal use of the Tablet PC, it may become soiled and should, therefore, be
cleaned regularly. Agents: Green tinctured soap and Enzymatic detergents
Steps:
1. Wipe the Tablet PC with a clean cloth that has been moistened in the cleaning
solution.
2. Prepare agent per manufacturer's instructions or hospital protocol.
3. Wipe thoroughly with a clean cloth
Caution! Do not immerse or rinse the POC-176 and its peripherals. If you accidentally spill liquid on the device, disconnect the unit from the power
source. Contact your Biomed unit regarding the continued safety of the
unit before placing it back in operation.
Do not spray cleaning agents on the chassis.
Do not use disinfectants that contain phenol. Do not autoclave or clean
the POC-176 or its peripherals with strong aromatic, chlorinated, ketone,
ether, or Esther solvents, sharp tools or abrasives. Never immerse electrical connectors in water or other liquids.
Note!
The Point-of-Care Terminal with the optionally installed touchscreen will
share COM5. Once the touchscreen is installed, COM5 cannot be used
for other purposes.
Optional Modules
! Memory: 1GB, 2GB DDR2 533/667MHz DRAM
! HDD: 2.5" SATA HDD
! Touchscreen: Analog resistive
POC-176 User Manual
4
Chapter 1
1.3 Dimensions
General Information
Figure 1.1 Dimensions of the POC-176
5
POC-176 User Manual
POC-176 User Manual
6
Chapter
2
2
System Setup
Sections include:
! A Quick Tour of the POC-176
! Installation Procedures
! Running the BIOS Setup Program
! Installing System Software
! Installing the Drivers
2.1 A Quick Tour of the POC-176
Before you start to set up the POC-176, take a moment to become familiar with the
locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below.
When you place the POC-176 upright on the desktop, its front panel appears as
shown in Figure 2.1.
Figure 2.1 Front View of the Point-of-care Terminal
When you turn the Point of Care Terminal around and look at its rear cover, the
sunken I/O section is at the bottom of the panel PC, as shown in Figure 2.2. (The I/O
section includes various I/O ports, including serial ports, DVI port, the Ethernet port,
USB ports, the DC power adapter jack, and so on.)
75mm 100mm
Figure 2.2 Rear View of the Point of Care Terminal
POC-176 User Manual
8
When you turn the Point of Care Terminal around and look at its left side and remove
the side cover, the sunken I/O section is at the left of the panel PC, as shown in Figure 2.3.
The I/O section includes various I/O ports, including a 1394b port, USB port, Smart
card reader and optical device.
Figure 2.4 Side View: Point of Care Terminal with I/O Ports
9
POC-176 User Manual
System Setup
Figure 2.3 Rear View: Point of Care Terminal with I/O ports
Chapter 2
The I/O section includes various I/O ports, including serial ports, DVI port, the Ethernet ports, USB ports and so on. Ethernet & RS-232 I/O Connectivity with special port
isolation design.
2.2 Installation Procedures
2.2.1 Connecting the Power Cord
The POC-176 is powered only by an AC power cord. Always handle the power cords
by the plug ends only.
Follow these procedures in order:
1. Connect the female end of the power cord to the AC Power inlet of the POC176.
2. Connect the 3-pin male plug of the power cord to an electrical outlet. (See Figure 2.5)
Separate Purchase
Figure 2.5 Connecting the Power Cord
2.2.2 Switch on the Power
Switch on the reset switch on the front cover. (See Figure 2.6.)
Figure 2.6 Press the Power Button to Boot System
POC-176 User Manual
10
2.4 Installing System Software
Recent releases of operating systems from major vendors include setup programs
which load automatically and guide you through hard disk preparation and operating
system installation. The guidelines below will help you determine the steps necessary
to install your operating system on the panel PC hard drive.
Note!
Some distributors and system integrators may have already preinstalled system software prior to shipment of your panel PC.
If required, insert your operating system's installation or setup diskette into the external diskette drive until the release button pops up.
The BIOS supports system boots up directly from the CD-ROM drive. You may also
insert your system installation CD-ROM disk into your external CD-ROM drive.
Power on or reset the system by pressing the "Ctrl+Alt+Del" keys simultaneously.
The Point of Care terminal will automatically load the operating system from the diskette or CD-ROM.
If you are presented with the opening screen of a setup or installation program, follow
the instructions on screen. The setup program will guide you through preparation of
your hard drive, and installation of the operating system.
11
POC-176 User Manual
System Setup
Your POC-176 has been set up and configured by your dealer prior to delivery. You
may still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time
or your type of hard drive. The setup program is stored in read-only memory. It can
be accessed either when you turn on or reset the panel PC, by pressing the "
Crtl+Alt+Del " key on your keyboard immediately after powering on the computer.
The settings you specify with the setup program are recorded in a special area of
memory called CMOS RAM. This memory is backed up by a battery so that it will not
be erased when you turn off or reset the system. Whenever you turn on the power,
the system reads the settings stored in CMOS RAM and compares them to the
equipment check conducted during the power on self-test (POST). If an error occurs,
an error message will be displayed on screen, and you will be prompted to run the
setup program.
Chapter 2
2.3 Running the BIOS Setup Program
2.5 Installing the Drivers
After installing your system software, you will be able to set up the chipset, graphics,
Ethernet, audio and touchscreen functions from your own external CD-ROM drive. All
the drivers except the CD-ROM driver are stored on a CD-ROM disc entitled "Drivers
and Utilities."
The standard procedures for installing the chipset, graphics, audio and Ethernet drivers are described in Chapters 3, 4, 5, and 6 respectively.
The various drivers and utilities in the CD-ROM disc have their own text files which
help users install the drivers and understand their functions. These files are a very
useful supplement to the information in this manual.
For your reference, the directory of drivers on the "Drivers and Utilities" CD-ROM is:
Figure 2.7 CD-ROM File Directory: "Drivers and Utilities"
Note!
The drivers and utilities used for the POC-176 panel PCs are subject to
change without notice. If in doubt, check Advantech's website or contact
our application engineers for the latest information regarding drivers and
utilities.
POC-176 User Manual
12
Chapter
3
3
Chipset and Graphics
Setup
Sections include:
! Introduction
! Installation of Chipset Driver
3.1 Introduction
The POC-176 has an onboard display interface. The specifications and features are
described in the following section:
3.1.1 Chipset
The POC-176 uses a Mobile Intel® 945GME Express chipset for its graphic controller. It supports an SDVO device, and CRT monitors. The Mobile Intel® 945GM
Express Chipsets are designed for use with Intel’s next generation mobile platform:
Intel® Centrino® Duo processor technology.
The Mobile Intel 945 Express Chipset Family come with the Generation 3.5 Intel Integrated Graphics Engine, and the Intel® Graphics Media Accelerator 950 (Intel® GMA
950), providing enhanced graphics support over the previous generation Graphics
and Memory Controller Hubs (GMCH’s).
3.1.2 Display Memory
Dynamic Video Memory Technology (DVMT) 3.0 dynamically allocates up to 128 MB
of system memory for graphics usage.
3.1.3 DVI Transmitter
The POC-176 uses Chrontel CH7307C for driving its DVI Ports. The CH7307C is a
Display Controller device, which accepts a digital graphics input signal, encodes and
transmits data through a DVI link (DFP is also supported). The device accepts one
channel of RGB data over three pairs of serial data ports.
The DVI processor includes a low jitter PLL for generation of the high frequency serialized clock, and all circuitry required to encode, serialize and transmit the data. The
CH7307C is able to drive a DVI display at a pixel rate of up to 165 MHz, supporting
UXGA (1600 x 1200) resolution displays.
3.1.4 Display Types
POC-176 supports a single DVI-I jack for a single monitor.
The DVI-I jack supports both a DVI Digital I/F and CRT RGB signal.
An analog CRT DAC interface supports a max DAC frequency up to 400 MHz, 24-bit
RAMDAC, is DDC2B compliant, and a resolution up to QXGA 2048 x 1536.
POC-176 User Manual
14
Complete the following steps to install the chipset driver. Follow the procedures in the
flow chart that apply to the operating system that you are using within your POC-176.
Important! The following Windows illustrations are examples only. You must follow
the flow chart instructions and pay attention to the instructions which
appear on your screen.
The CD-ROM drive is designated as “D” throughout this chapter.
Note!
<Enter> means pressing the “Enter” key on the keyboard.
Note!
Before you install the graphics driver for the POC-176, please ensure
you have installed the “Intel Chipset Software Installation Utility”. You
can find this driver on the Utility CD-ROM.
Note!
The resolution of the Window’s display will be fixed at 640 x 480 before
you install the graphics driver. Depending on your monitor’s native resolution, the black area might be different.
15
POC-176 User Manual
Chipset and Graphics Setup
Note!
Chapter 3
3.2 Installation of Chipset Driver
3.2.1 Installation for Windows XP
Step 1-1: Double Click “setup.exe” in D:\Chipset folder. The install dialog will appear.
Step 1-2: Click 'Next' to continue.
POC-176 User Manual
16
17
POC-176 User Manual
Chipset and Graphics Setup
Step 1-4: Read the file information screen and click “Next” to proceed.
Chapter 3
Step 1-3: Read the License Agreement and click “Yes” to proceed.
Step 1-5: When the 'Setup COMPLETE' message appears click 'Finish' to restart
your computer.
POC-176 User Manual
18
Chapter 3
Step 2-1: Double Click “setup.exe” in D:\Driver\GRAPHICS folder. The Install dialog
will appear.
Step 2-2. Click 'Next' to continue.
Chipset and Graphics Setup
19
POC-176 User Manual
Step 2-3. Read the License Agreement and click “Yes” to proceed.
Step 2-4. Read the file information screen and click “Next” to proceed.
POC-176 User Manual
20
Chapter 3
21
POC-176 User Manual
Chipset and Graphics Setup
Step 2-5. When the 'Click Next to continue' message appears click 'Next' to proceed.
Step 2-6. When the 'Setup Is Complete' message appears click 'Finish' to restart
your computer.
POC-176 User Manual
22
Chapter
4
4
Audio Interface
Sections include:
! Introduction
! Installation of Audio Driver
! Further Information
4.1 Introduction
The POC-176's onboard audio interface provides high-quality stereo sound by using
the ALC888 audio controller from Realtek. The ALC888 series are high performance
7.1+2 channel high definition audio codecs providing ten DAC channels that simultaneously support 7.1 sound playback, plus 2 channels of independent stereo sound
output (multiple streaming) through the front panel stereo outputs.
All analog jacks are input and output capable, and headphone amplifiers are also
integrated at each analog output. All analog I/Os can be re-tasked according to
user’s definitions, or automatically switched depending on the connected device
type.
4.2 Installation of Audio Driver
Before installing the audio driver, please take note of the procedures detailed below.
You must know which operating system you are using on your POC-176, and then
refer to the corresponding installation flow chart, following the steps. You can quickly
and successfully complete the installation, even if you are not familiar with instructions for Windows.
This setup program will install the audio driver and Realtek utility on your system.
Important! The following Windows illustrations are examples only. You must follow
the flow chart instructions and pay attention to the instructions which
appear on your screen.
Note!
The CD-ROM drive is designated as “D” throughout this chapter.
Note!
<Enter> means pressing the “Enter” key on the keyboard.
POC-176 User Manual
24
1.
2.
Double Click “setup.exe” in D:\AUDIO folder. The Install dialog will appear.
Click “Next” to continue.
The install program will install the driver and utility. It will spend a period of time
processing.
Chapter 4
4.2.1 Installation for Windows 2000/XP
Audio Interface
25
POC-176 User Manual
3.
When the 'InstallShield Wizard Complete' message appears click 'Finish' to
restart your computer.
4.3 Further Information
For further information about the audio interface installation on your POC-176,
including Driver updates, troubleshooting guides and FAQ lists, please visit the following web resources:
Realtek website: www.realtek.com.tw
Advantech websites:www.advantech.com
www.advantech.com.tw
POC-176 User Manual
26
Chapter
5
5
PCI Express Ethernet
Interface
Sections include:
! Introduction
! Installation of Ethernet Driver
! Further Information
5.1 Introduction
The POC-176 is equipped with the high performance PCIe Ethernet chipset Realtek
RTL8111B which is fully compliant with IEEE 802.3 10/100/1000 Mbps standards.
The Ethernet port provides a standard RJ-45 jack.
5.2 Installation of the Ethernet Driver
5.2.1 Installation for Windows XP
1.
2.
Double Click “Setup.exe” in D:\LAN folder. The Install dialog will appear.
Click “Next” to continue.
POC-176 User Manual
28
4.
When the ‘InstallShield Wizard Complete’ message appears click “Finish” to
complete the install program.
29
POC-176 User Manual
PCI Express Ethernet Interface
Click “Install” to continue.
The install program will install the driver. It will spend a period of time processing.
Chapter 5
3.
5.3 Further Information
For further information about the installation in your POC-176, including driver
updates, troubleshooting guides and FAQ lists, please visit the following web
resources:
Realtek website: www.realtek.com.tw
Advantech websites:www.advantech.com
www.advantech.com.tw
POC-176 User Manual
30
Chapter
6
6
Touch Panel Interface
Sections include:
! Introduction
! Installation of Touch Panel
Driver
! Further Information
6.1 Introduction
The POC-176 is supported with a system integrated touch panel. The touch panel
controller is controlled by the system COM5 interface.
6.2 Installation of Touch Panel Driver
6.2.1 Installation for Windows XP
1.
2.
Double Click “setup.exe” in D:\TOUCH folder. The Install dialog will appear.
Click “Next” to continue.
POC-176 User Manual
32
Click “Next” to continue.
Because POC-176’s touch controller is controlled by COM5, please do not
select the “Install PS/2 interface driver” checkbox.
Chapter 6
3.
Touch Panel Interface
33
POC-176 User Manual
4.
Click “Next” to continue.
Please select “None” for “Do 4 point calibration”. The driver install program will
do this 4 point calibration when the install completes.
5.
Click “Next” to continue. Please select “Support Multi-Monitor System”.
POC-176 User Manual
34
7.
Click “Next” to continue.
Touch Panel Interface
Click “Next” to continue.
If you want to change the driver destination folder, you can click the “Browse”
button to change the folder.
Chapter 6
6.
35
POC-176 User Manual
8.
Click “Yes” to continue.
The install program will search the touchscreen controller, and find it on COM5.
9.
Click “Yes” to continue.
Please do 4 point calibration to calibrate the touchscreen.
POC-176 User Manual
36
Chapter 6
10. Touch 'X' once at each of the 4 corners on the panel.
Please touch each “X” icon at the corners until the icon stops blinking.
Touch Panel Interface
6.3 Further Information
For further information about the installation in your POC-176, including Driver
updates, troubleshooting guides and FAQ lists, please visit the following web
resources:
Advantech websites:www.advantech.com
www.advantech.com.tw
37
POC-176 User Manual
POC-176 User Manual
38
Chapter
7
1394b Interface
Sections include:
! Introduction
! Driver installation
! Further Information
7
7.1 Introduction
The POC-176 is supported with a system integrated high speed 1394b interface. The
1394b controller is controlled by the system PCI Express interface.
7.2 Driver Installation
1.
2.
Double Click "ubCore32_080808.exe" in the D:\ 1394B Controller folder. The
Install dialog will appear.
Click 'Next' to continue.
POC-176 User Manual
40
Click 'Yes' to continue.
4.
Please enter "User Name" and "Company Name" then click 'Next' to continue.
(eg: "abc" and "Advantech")
Chapter 7
3.
1394b Interface
41
POC-176 User Manual
5.
Select "Complete" then click 'Next' to continue.
6.
Click 'Next' to continue.
POC-176 User Manual
42
8.
Click 'Finish' to continue.
1394b Interface
Click 'Next' to continue.
Chapter 7
7.
43
POC-176 User Manual
9.
Select "Yes" then click 'Finish' to restart system.
7.3 Further Information
For further information about the installation of your POC-176, including driver
updates, troubleshooting guides and FAQ lists, please visit the following web
resources.
Advantech websites: www.advantech.com
www.advantech.com.tw
POC-176 User Manual
44
Chapter
8
8
Smart Card Reader
Interface
Sections include:
! Introduction
! Driver Installation
8.1 Introduction
The POC-176 is supported with a system integrated smart card reader interface. The
Smart Card reader has built-in help to verify clinician’s identification. The Smart Card
reader controller is controlled by the system USB interface.
8.2 Driver Installation
1.
Double Click
"SmartCardReader_Driver_Generic_AU9520_4OSVista(x86x64)_Setup_v1.2.4
.16.exe" in the D:\Smart Card Reader folder. The Install dialog will appear.
POC-176 User Manual
46
System will automatically install driver.
3.
The dialog will show InstallShield Wizard Complete; click "Finish".
POC-176 User Manual
Smart Card Reader Interface
47
Chapter 8
2.
POC-176 User Manual
48
Chapter
9
9
Utilities and Hot Fix
Sections include:
! Introduction
! Wake up by External USB
Device at S3 Resume (Wake up)
! Windows Audio Volume Application
9.1 Introduction
The POC-176 system needs a specific utility or hot fix to support special functions.
9.2 Wake up by External USB Device at S3 Resume
(Wake up)
POC-176 supports three different sleep (suspend) modes. They are:
1. S1: Power On Suspend: System will stop the clock, turn off the LCD backlight,
but keep all power on. The user can press any key (mouse or keyboard) to wake
up the system.
2. S3: Suspend to RAM: System will stop the clock, turn off most power, not including memory power. All necessary information will be saved in memory. In this
sleep mode, the system needs a hot fix be woken up by USB mouse or keyboard.
3. S4: Suspend to Disk (Hibernation): System will stop the clock, turn off most
power, include the memory power. All necessary information will be saved to
hard disk. In this sleep mode, the user needs to press the power button to wake
up the system.
9.2.1 Installation for Windows XP
1.
2.
3.
Double click “USBRG.REG” in the D:\Driver\USB folder.
Click “Yes” to install this registry information.
Click “OK” to close the successful installation information window.
9.3 Window Audio Volume Application
On the front panel of the POC-176 system, there are two buttons to control the
speaker volume.
This speaker volume is adjustable by pressing the button; it does not need any software utilities.
However, this speaker volume button cannot modify the windows volume control if
user did not install the Advantech Audio Volume application.
9.3.1 Installation for Windows XP
1.
2.
3.
4.
Double click "SETUP.EXE" in the D:\Utility\Volume Control folder.
Click "Next".
Click "I accept the terms of the license agreement" and click "Next".
Click "Finish" to close the installation complete window.
POC-176 User Manual
50
Chapter
10
10
Operational
Information
Sections include:
! Plug in the Power Adapter
! Thermal
! Disconnect the Power
! General Safety Guide
10.1 Plug in the Power Adapter
Always leave space around your power adapter. Do not use this equipment in a location where airflow around the power adapter or computer is confined. Always disconnect the power adapter before opening the computer to perform procedures such as
installing memory or removing the hard disk.
Warning! Use only the power adapter that came with your POC-176 system.
Adapters for other electronic devices may look similar, but they may
damage your computer.
10.2 Thermal
When using your POC-176 system, it is normal for the rear metal heatsink to get
warm. The rear metal heatsink of the POC-176 case functions as a cooling surface
that transfers heat from inside the computer to the cooler air outside. Do not block
this heatsink by any soft material.
Warning! Do not place your POC-176 system on a pillow or other soft material
when it is on, as the material may block the airflow and cause the computer to overheat. Never place anything on the system case before turning off the computer.
Never turn on your computer unless all of its internal and external parts
are in place. Operating the computer when it is open or missing parts
can be dangerous and can damage your computer.
10.3 Disconnect the Power
The only way to disconnect power completely is to unplug the power cord. Make sure
at least one end of the power cord is within easy reach so that you can unplug the
computer when you need to.
Warning! Your AC cord is equipped with a three-wire grounding plug (a plug that
has a third grounding pin). This plug will fit only a grounded AC outlet. If
you are unable to insert the plug into an outlet because the outlet is not
grounded, contact a licensed electrician to replace the outlet with a
properly grounded outlet. Do not defeat the purpose of the grounding
plug.
Warning! Never push objects of any kind into this product through the openings in
the case. Doing so may be dangerous and result in fire or a dangerous
electric shock.
POC-176 User Manual
52
For your own safety and that of your equipment, always take the following precautions.
Disconnect the power plug (by pulling the plug, not the cord) if any of the following
conditions exists:
! You want to remove any parts
! The power cord or plug becomes frayed or otherwise damaged
! You spill something into the case
! Your computer has been dropped or the case has been otherwise damaged
! You suspect that your computer needs service or repair
! You want to clean the case
53
POC-176 User Manual
Chapter 10 Operational Information
10.4 General Safety Guide
POC-176 User Manual
54
Appendix
A
A
Description of MB
Connectors
A.1 Description of MB Connectors
Figure A.1 Top View of POC-176 Motherboard with Local Connectors
POC-176 User Manual
56
Description
No.
Description
1
ATX Power for CPU Connector
20
COM4 Jack
2
ATX Power 20 Pin Connector
21
3
Inverter Connector
22
4
Clear CMOS Button
23
5
RTC Battery Socket
24
6
PCI Socket
25
7
DDR2 SODIMM Socket Connector x 2
26
8
RJ45 JackLAN 1
27
9
RJ45 JackLAN 2
28
10
Touch Enable Volume Up / Down Switch
Connector
29
Mini PCI-E Socket
11
DVI Connector
30
Sideboard Connector
12
USB Connector
31
Touch Screen I / F Connector
13
USB Connector
32
SATA Connector 0
14
USB Connector
33
Heatsink Fan Power Connector
15
Keyboard / Mouse Connector
34
SATA Power Connector 0
16
CD-ROM Connector
35
SATA Power Connector 1
17
COM1 Jack
36
SATA Connector 1
18
COM2 Jack
37
LVDS Connector
19
COM3 Jack
57
Power Button Switch Connector
POC-176 User Manual
Appendix A Description of MB Connectors
No.
POC-176 User Manual
58
Appendix
B
B
Windows Display Hot
Key Function
B.1 Windows Display Hot Key Function
If a user wants to switch the display content to a different display device, such as:
1) Internal LCD Panel (Notebook)
2) External CRT Monitor (Monitor)
3) External DVI Monitor (Digital Display)
The user can press the hot keys below to switch the display device::
Hot Key
Display Device
Ctrl+Alt+F1
External CRT Monitor
Ctrl+Alt+F3
Internal LCD Panel
Ctrl+Alt+F4
External DVI Monitor
Windows will switch the display content to a dedicated display device.
POC-176 User Manual
60
Appendix
C
C
PCM-8702 Jumper
settings
C.1 Jumper Locations
Figure C.1 Jumper Locations
Table C.1: CN33 COM1 Pin 9 Output Configuration
Description
For COM1 Pin 9 output configuration
Setting
Voltage
(1-3)
5 V*
(2-4)
Floating
POC-176 User Manual
62
Appendix C PCM-8702 Jumper settings
Table C.2: CN39 COM2 Pin 9 Output Configuration
Description
For COM2 Pin 9 output configuration
Setting
Voltage
(1-3)
5 V*
(2-4)
Floating
Table C.3: CN41 COM3 Pin 9 Output Configuration
Description
For COM3 Pin 9 output configuration
Setting
Voltage
(1-3)
5 V*
(2-4)
Floating
Table C.4: CN35 COM1 RS232/422/485 Output Type Settings
Description
COM1 RS232/422/485 output type setting
Setting
Function
(5-6), (7-9), (8-10), (13- RS232
15), (14-16)
(3-4), (9-11)(10-12),
(15-17)(16-18)
RS422
(1-2), (9-11)(10-12),
(15-17)(16-18)
RS485
63
POC-176 User Manual
Table C.5: CN50 Internal USB Port 5 and Port 6
Part Number
1653005209
Footprint
JH5X2V-P9
Description
PIN HEADER 5*2P 180D(M) 2.54mm DIP NO.9P
Pin
Pin Name
1
+5V
2
+5V
3
USB Port5 D-
4
USB Port6 D-
5
USB Port5 D+
6
USB Port6 D+
7
GND
8
GND
9
10
POC-176 User Manual
NC
64
Appendix C PCM-8702 Jumper settings
POC-176 User Manual
65
www.advantech.com
Please verify specifications before quoting. This guide is intended for reference
purposes only.
All product specifications are subject to change without notice.
No part of this publication may be reproduced in any form or by any means,
electronic, photocopying, recording or otherwise, without prior written permission of the publisher.
All brand and product names are trademarks or registered trademarks of their
respective companies.
© Advantech Co., Ltd. 2009
