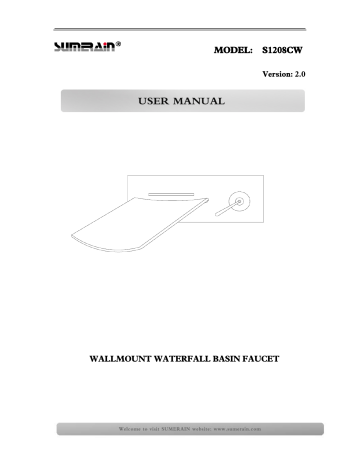

MODEL: S1208CW - Save on faucets and sinks
WALLMOUNT WATERFALL BASIN FAUCET
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. We welcome any questions or comments you may have and look forward to assisting you in the future.
SUMERAIN customer service department
Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product in its original box until you ready to install it.
Shut off the water supply if replacing a previously-installed faucet.
Observe all plumbing and building codes in your area.
It is recommended that installation of the product be done by a professional plumber.
Tools you may need when installing the faucet
Number of Handles
Faucet Total Height
Faucet Body Material
Faucet Spout Material
Working water press
Packing box size
Bathroom Sink Faucets
Waterfall, Wall mount
180mm [7.1 Inch]
130mm [5.1 Inch]
0.2 ~0.8 Mpa
305mm x 220mm x 155mm
CODE ITEM NAME QTY
A Faucet Body with panel 1 PCS
C Thermostatic valve
H Plastic Expansion Nails 1 PCS
J Rubber gasket 2 PCS
L White rubber ring 1 PCS
CODE ITEM NAME
Draw the straight line of position where need to install the faucet according to below dimension
Image 1: Front view
Dig hole “A” , hole “B” and hole “C” according to below dimension.
Image 2: Front view of digging hole
Beat the Plastic Expansion Nails into the hole “C” of wall
Rollback the Escutcheon and dismounting the Thermostatic valve “C” from assembled front panel.
Insert the glass spout slowly into the front panel’s arc hole which has the white rubber ring, till the mounting hole of glass spout reach the right place, right underneath of mounting hole of panel’ s backside
Mounting the glass spout with front panel by screw and nut, In order to avoid broken the glass, please don’t forget to add the two black rubber rings between glass’s two sides.
Put the rubber ring into the handle hole of front panel and make it close with the panel.
Put the spout with front panel into digged hole of wall exactly and fasten it by screw.
Through the Thermostatic valve in the hole of wall and clockwise rotation into the rubber ring, adjust the escutcheon and nut to fasten the Thermostatic valve body with panel and wall.
Connect spout water inlet connector with Thermostatic valve’s water outlet connector as below:
Inspect hot and cool water tube, please clean it at first if necessary.
Connect your house hot water supply tube and cool water supply tube with Thermostatic valve body’s hot water inlet connector and cold water inlet connector separately.
Clean the faucets and showers as and when required. Regular cleaning can prevent calcification.
Never use cleaning materials contain hydrochloric, formic, phosphoric or acetic acid, which may cause considerable damage.
Never use cleaning materials or ap pliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or micro fiber cloths.
After cleaning, rinse thoroughly the faucet with clean water to remove any cleaner residue.
Unscrew and clean the aerator regularly.
A. Tighten the packing nut
Faucet leaks from the handle
B. Replace the "O" ring or packing pressure is too low
B. Clean or replace the aerator
C. Check plumbing system for water pressure problems
The spout sprays water all over
Clean or replace the aerator
Replace the aerator washer
Water is leaking A.
Check the water supply connections to the faucet from the faucet B.
Inspect the water supply lines or hoses for leaks under the sink
Handle is loose
Remove the cap and tighten the screw
Locate and tighten the hex set screw
Remove the handle and check for stripped teeth on the stem.
LED does not Increase the water press illuminate B.
Clean the strainer of hot and cold water inlet
HONGKONG SUMERAIN SANITARY INDUSTRY CO..LIMITED
Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL
Factory Address: Shuikou Industrial Park, Kaiping City, Guangdong Province,
Toll Free: 400-0999-075 (China mainland)
SUMERAIN INTERNATIONAL GROUP – AMERICA Branch
Address: 13455 Harper Dr.
Saratoga, CA 95070
