Do-more H2 Series PLC Overview

Do-more H2 Series PLC Overview
Get a big bang for your buck
We squeezed the features of our popular TFT 6-inch C-more
Micro into a 4-inch package for even more value! Take
advantage of the clear and colorful graphics on the TFT
color touch screen to create a vibrant and intuitive operator
interface. Five programmable function keys give you lots
of flexibility. FREE programming software offers the
choice of using many built-in objects, such as buttons, bar
graphs and data entry keypads.
• Mounts in standard 1/4 DIN cutout
• 32k Color TFT touch screen display
• LED backlight
• 320 x 240 resolution
• 3.2 MB memory
• Mounting variations for key orientation
• Five durable function keys with LED indicators
• Standard Type B USB programming port
• 15-pin serial communications port
• Enhanced objects and graphics
• Up to 999 screens (dependent on complexity)
• Recipes
• Built-in project simulator
• UL, cUL, CE, NEMA4 and 4X indoor ratings
Or import your own custom graphics, and save to libraries for
use in multiple projects. Alarm control, recipes and a built-in
project simulator are time-saving tools for more complex
applications. All these features at a competitive price, in a
rugged and reliable package, give you a sweet HMI for even
the smallest control system.
* The programming software is free when downloaded from the
AutomationDirect Web site, or the CD-ROM package can be purchased for
$25 (part # EA-MG-PGMSW).
Also Available
Popular protocols/devices supported
* All AutomationDirect programmable controllers
* Modbus® RTU
* Allen-Bradley® DF1 half/full duplex, PLC-5®
DF1 and DH485
* Siemens PPI
* GE Fanuc 90™ -70 and 90-30 SNPX
* Omron Host Link and FINS serial
* Mitsubishi MELSEC®
6-inch STN and TFT
touch panels
3-inch touch and
non-touch panels
Go online for complete list
Our shipping policies make it easier than ever to order direct from the U.S.!
Free standard shipping is available for orders totaling over $300 U.S. (except for orders which require LTL shipping,
see Web site for details). Also, save on brokerage fees when shipping standard ground to Canada - you can choose
to allow AutomationDirect to nominate a broker for your shipment for parts shipping via standard ground. This
can save you big on brokerage fees. See Web site for details and restrictions -
www.automationdirect.com/canada
Optional plug-and-play keypad bezels
for 3- and 6-inch models
www.automationdirect.com/c-more-micro or
www.c-moremicro.com
www.automationdirect.com
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Edited by Foxit PDF Editor
Copyright (c) by Foxit Software Company, 2004
Summer 2011 Issue Twenty For Evaluation Only.

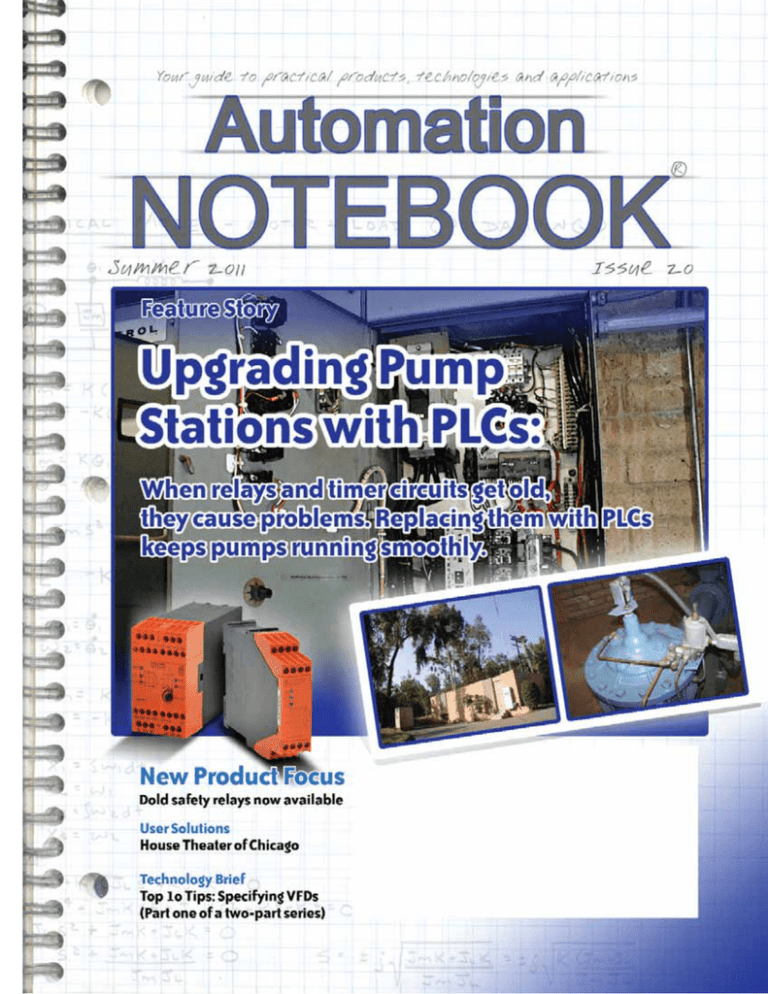

Automation Notebook
Your guide to practical products, technologies and applications
Editor’s Note
Contributors
Publisher
Tina Gable
Managing Editor
Joan Welty
Coordinating Editor
Design Manager
TJ Johns
Justin Stegall
Contributing Writers
Tim Hanes
Joe Kimbrell
Henry Palechek
Ryan Poethke
Chip McDaniel
Tim Roberts
CONTACTS
Automationdirect.com Inc.
3505 Hutchinson Road
Cumming, GA 30040
Phone . . . . . . . . . . 1-800-633-0405
or 1-770-889-2858
Fax . . . . . . . . . . . . . 1-770-889-7876
Monday - Friday
9 a.m. to 6:00 p.m. EST
www.automationdirect.com
Copyright 2011, Automationdirect.com Incorporated/All
Rights Reserved. No part of this publication shall be
copied, reproduced, or transmitted in any way without
the prior, written consent of Automationdirect.com
Incorporated. Automationdirect retains the exclusive
rights to all information included in this document.
If you are a non-subscriber and
would like to be included in the
next mailing of AutomationNotebook,
please visit:
http://www.automationnotebook.com/
freestuff.html on the Automation
Notebook Web site, and complete the
details. You can also request FREE stuff,
including our catalog and our CD-ROM
featuring the entire catalog and demo
software. If you provide your email
address, we will send news and product
information from time to time as well.
For those who prefer to speak with
us in person, please call 1-800-633-0405
x1845. Thanks for your interest, and we
look forward to hearing from you.
We hear in the news every day
about skyrocketing gasoline prices. As
fuel prices continue to soar, we also hear
of new ways people are conserving.
More people are telecommuting more
often to save money. Others are finding
more fuel efficient modes of transportation. They take the bus or train more
often. Others choose to carpool. Many
are buying alternative fuel vehicles.
Whether it’s biodiesel or electric energy,
if it reduces the amount of gasoline
being used, we’re all becoming more
open to the idea of not only saving
money but also saving our energy
resources. In what ways are you conserving?
Do any of your energy-saving
applications use AutomationDirect
products? We’d love to hear about
them. Drop us a line explaining your
industrial processes. You never know,
your story just might find its way onto
the pages of a future issue of
Automation NOTEBOOK.
This issue of NOTEBOOK is
filled with interesting articles and bits
of information that just might inspire
you to try something differently. We
have lots of information regarding our
newest products. An informative application story shows us how a theater
group in Chicago used pneumatic
cylinders to tell their story. Our Student
Spotlight section provides details about
a group of kids using our products to
help capture energy from the sun.
There’s a lot more, including the
ever-popular Breakroom. Test your wits
to see if you can solve the mind teasers.
But, most of all sit back, relax, and turn
the page…
Table of Contents
New Product Focus
4
Dold safety relays now available
Product Snapshots
6
AutomationDirect Renews Partnership
with Kepware for Communications,
Encapsulated transformers line
expanded, Inductive DC proximity
sensors, Compact fusible switches
available, Current sensing line expands
with ground fault sensors and DC
current transducers and switches,
Photoelectric sensor line expanded,
65mm mushroom head metal
pushbuttons now available
Feature Story
10
Upgrading Pump Stations with
PLCs: When relays and timer
circuits get old, they cause
problems. Replacing them
with PLCs keeps pumps
running smoothly.
System Integrator
Corner
15
UL 508A Certified Panel Shops
User Solutions
16
House Theater of Chicago
Tech Thread
18
PLC-Based Temperature Control:
PLC works where single loop
temperature controllers fell short
Business Notes
22
Goings-on in the industry
Tech Brief
24
Top 10 Tips: Specifying VFDs
(Part one of a two-part series)
Student Spotlight
27
Break Room
31
Multi-mirror solar array
TJ Johns
Coordinating Editor
[email protected]
www.automationnotebook.com
BrainTeasers
3
New Product Focus
What’s New
Dold safety relays now
available
A
utomationDirect’s
safety
product line now includes
Dold safety relay devices for
use in industrial applications. Used in
conjunction
with
our
light
curtains and safety limit switches, these
relays offer reliable control for machine
safety applications.
LG5924 Series relays are singlechannel E-stop relays designed to
protect people and machines in applications with emergency stop buttons.
Available with 24 VDC, 110 VAC, and
230 VAC coil voltages, the Category
2-rated relays are equipped with internal
positive temperature coefficient resistor
short circuit protection. Output
configuration options include either two
normally-open contacts, or three
normally-open and one normally-closed
contact. The normally-open contacts are
safety contacts. Prices for LG5924 series
safety relays start at $88.
LG5925 Series relays are dualchannel E-stop/safety gate relays
designed for applications with
emergency stop buttons and safety
gates. Available with 24 VAC/DC, 110
VAC, and 230 VAC coil voltages, the
Category 4-rated relays are equipped
with internal positive temperature
coefficient resistor short circuit and
voltage-dependent resistor overvoltage
protection. Designed with three
normally-open positive guided safety
contacts and one normally-closed
monitoring contact, LG5925 relays
provide a feedback circuit to monitor
external contactors used for reinforcement of contacts, and feature monitored
manual restart. Prices for LG5925 series
safety relays start at $115.
4
The BH5928 Series relays are also
designed for applications with
emergency stops and safety gates. This
dual-channel series provides one or two
channels which can be monitored with
the time delay function. Output
configuration options include either
three normally-open time delay positive
guided safety contacts, or two
instantaneous positive guided safety
contacts and one normally-closed
instantaneous monitoring contact.
Three time delay options with
potentiometer adjustment are available
(depending on model) ranging from 0.1
to 30 seconds. The 24 VDC Category 4
relays are equipped with internal
positive temperature coefficient resistor
short circuit and voltage-dependent
resistor overvoltage protection, and can
be wired with or without cross-fail monitoring in the E-stop loop. Prices for the
BH5928 series safety relays start at
$198.
The BG5933 and BH5933 Series
relays offer protection for applications
with two-hand buttons or production
machinery with dangerous closing
movements. Available with 24
VAC/DC, 110 VAC, and 230 VAC coil
voltages, the Category 4-rated relays are
equipped with internal positive temperature coefficient resistor short circuit
and
voltage-dependent
resistor
overvoltage protection. These safety
relays provide inputs for two
pushbuttons, each with one normallyopen and one normally-closed positive
guided contact. Output configuration
options include either two normallyopen positive guided safety contacts and
one
normally-closed
monitoring
contact, or three normally-open positive
guided safety contacts and one
normally-closed monitoring contact.
Prices for BG5933 and BH5933 series
safety relays start at $139.
Category-4 rated light curtain
controllers have also been added.
Designed for light curtains with
symmetric or asymmetric outputs, the
LG5925 24 VDC light curtain
controller features three normally-open
positive guided safety contacts and one
normally-closed monitoring contact and
provides single or two-channel operation. The LG5925 light curtain
controller is priced at $115. A multifunction features two normally-open
positive guided safety contacts and one
normally-closed monitoring contact;
the controller can connect up to three
light curtains, and offers protection,
muting, and stepping modes. The
multi-function light curtain controller is
priced at $339.
The LG5929 extension module
provides additional contacts for
emergency-stop modules and safety gate
monitors. Designed for one-channel or
two-channel connection, the Category4 rated extension module features five
normally-open positive guided safety
contacts and one normally-closed
monitoring contact. The LG5929
extension module is priced at $95.
See the full line of Dold safety relay
products at:
www.automationdirect.com/
safety-relays
Don’t let price stand in the way of making
a machine or process as safe as possible
It could cost you a lot more in the long run. But you don’t need to overpay to get reliable, high-performance safety
devices that conform to all the latest standards. Our prices on safety relays, switches and light curtains mean you can do
even more to protect what’s important.
Safety relays protect people and machines.
• Single and dual channel safety relays for E-stop and safety
gate applications
• Two-hand Control units for positive protection
• Light curtain controller modules are used in conjunction with
light curtains for monitoring/control
JUST A FEW PRICES ON SAFETY DEVICES
Product Description
Safety light curtain with 30mm resolution 24VDC, sender and receiver pair
(sold separately) 0.25 to 12 meter operating
distance, 279mm protective height,
safety category 4
AutomationDirect
Price/Part Number
$250.00
YBB-30S4-0250-G012 (sender)
$275.00
YBB-30R4-0250-G012 (receiver)
Safety switches with key or hinge interlocks, limit
switches and cable pull switches give precise,
quick action.
• Visible operation
• Immunity to electromagnetic disturbances
• Electrically separated contacts with positive opening
operation on N.C. contacts
• Actuation speeds of 0.5 m/s (max) to 0.01 m/s (minimum)
• IEC 947-5-1, EN 60947-5-1, UL 508, CSA C22.2 No 14 approvals
Safety light curtains in finger (14mm) or
hand (30mm) protection resolutions
Safety limit switch, pull-reset action, plunger
actuator, 30mm plastic body, 1/2 NPT
Safety relay module, single channel, for
E-stop circuits, 24 VDC, 2 N.O. contacts
$12.75
AP2R11X11
$88.00
LG5924-02-61-24
AutomationDirect prices are U.S. published prices as of March 2011.
Prices subject to change without notice.
www.automationdirect.com/safety
Our shipping policies make it easier than ever to order direct from the U.S.!
• Protective height:
Free standard shipping is available for orders totaling over $300 U.S. (except for orders which require LTL shipping,
see Web site for details). Also, save on brokerage fees when shipping standard ground to Canada - you can choose
to allow AutomationDirect to nominate a broker for your shipment for parts shipping via standard ground. This
can save you big on brokerage fees. See Web site for details and restrictions -
•
www.automationdirect.com/canada
•
•
•
14mm resolution - 142 to 1045mm
30mm resolution - 279 to 1827mm
Operating distance: 14mm resolution - up to 3.5 mches
30mm resolution - up to 12 mches
Double PNP outputs
M12 quick-disconnect models (order cable separately)
IP65 rated; Type 4 and Category 4 PL e
www.automationdirect.com
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Product Snapshots
Press Releases
AutomationDirect renews
partnership with Kepware
for communications
Kepware Technologies, the leader
in Communications for Automation,
has renewed its contract as
AutomationDirect's communications
supplier. AutomationDirect will deliver
a single branded version of
KEPServerEX called "KEPDirect OPC
Server" for use with AutomationDirect
controllers and remote I/O.
KEPDirect OPC Server connects
your preferred Windows client software
by providing a flexible and scalable communications and OPC server solution
for connecting, managing, monitoring,
and controlling AutomationDirect
Ethernet remote I/O, DirectLOGIC
PLCs, and Productivity3000 PACs.
Communications is managed through a
robust platform that supports an array
of open standards, proprietary communication protocols, API’s, and various
automation
system
interfaces.
KEPDirect OPC Server ($399) enables
improved operations and decision making throughout all levels of an organization.
As a "Connected with Kepware"
company, AutomationDirect will work
with Kepware to ensure that the best
communication support is developed
for
AutomationDirect
products.
“AutomationDirect has been an excep-
6
tional partner of Kepware for many
years," said Tony Paine, President of
Kepware Technologies. "We are not only
extremely excited to renew our partnership, but also to expand on it by delivering additional connectivity to their new
Productivity3000 PAC.”
The companies will work together
to support their joint customers through
the partnership. Kepware will develop
drivers for use on Windows™ desktop
operating systems (Workstation and
Server). The KEPDirect OPC Server
will
be
available
through
AutomationDirect’s website and their
channel partners.
"The Kepware relationship is very
important for us, as factory floor to
boardroom data flow has become an
integral part of manufacturing systems,"
said Jeff Payne, Product Manager for
PLC, I/O, and PC Control of
AutomationDirect. "The support for
our Productivity3000 PAC is key for
applications that can take advantage of
its robust communications platform.”
About Kepware Technologies
Kepware Technologies develops a
wide range of communication and interoperability software solutions for the
Automation industry. Our solutions
allow you to connect disparate software
and hardware systems, providing applications with quality, ease of use, and
high performance. Furthermore, our indepth experience with software design,
development, support, and maintenance
allows us to provide high-performance
communications software without sacrificing quality and ease of use.
Learn more about KEPDirect OPC
Server at:
www.automationdirect.com/kepdirect
Encapsulated transformers
line expanded
The Hammond line of HPS
Fortress commercial encapsulated single
phase power transformers has been
expanded to offer two new input voltage
groups and to increase our existing
voltage group up to 25kVA. The new
voltage
input
groups
include
277/240/208/120
VAC
and
220/208/200/190x440/416/400/380
VAC. These new models allow for a
broader range of input voltages and still
maintain the 120x240 VAC output. All
units are encapsulated with electrical
grade silica sand and resin compounds
to protect the core and coils, sealing out
moisture and airborne contaminants
and eliminating corrosion and deterioration. The NEMA 3R enclosures meet
or exceed NEMA and ANSI standards
for indoor and outdoor applications,
and are UL and CSA listed as well as CE
approved. The Fortress series encapsulated power transformers are backed
with a 10-year limited warranty. Prices
start at $77.
To see the full line of HPS Fortress commercial encapsulated power transformers, visit:
http://www.automationdirect.com/
power-transformers
Inductive DC
proximity sensors
The PEW series of stainless steel
DC proximity sensors are flush-mountable shielded 8mm sensors with a 2mm
sensing range. Available with either M8
or M12 quick disconnects, they are
equipped with LED status indicators
visible at wide angles, and have PNP
outputs. PEW series inductive proximity sensors are priced at $45.
Also added are the LF40 series rectangular inductive DC proximity sensors.
Two shielded and two unshielded models are available with 20mm or 35mm
sensing ranges. The rectangular plastic
Automation Notebook
Summer 2011 Issue Twenty
PNP sensors provide either normallyopen or normally-open/normally-closed
complementary outputs. LF40 series
sensor prices start at $39.
To see the complete line of proximity sensors, visit :
www.automationdirect.com/proximity
Compact fusible switches
available
GladiatorTM compact fusible
switches have been added to our line of
circuit protection devices. The singlepole, two-pole and triple-pole AC
devices are available in Class CC and
Midget fuse models; single-phase DC
devices are also available. The 35mm
DIN rail mountable switches’ compact
size takes up only one-third the space of
a molded circuit breaker and two-thirds
the space of traditional fusible switches,
saving space in control panels. The full
voltage rating of up to 600 VAC (80
VDC) allows installation flexibility in
many applications where feeder and
branch circuit protection are required.
Equipped with lockout/tagout
capability and finger safe construction,
Gladiator switches promote safe workplace practices by preventing contact
with live components. Open fuse indication provides faster troubleshooting
and reduced downtime.
Starting at $18, Class CC fuse
models are UL98 listed and have a
200kA Short-Circuit Current Rating;
Midget Class fuse models are UL 508
listed and have a 10kA Short-Circuit
Current Rating. A 5A auxiliary contact
with one normally-open and one normally-closed contact is also available for
$9.
View the full line at:
www.automationdirect.com/
disconnect-switches
Current sensing line expands
with ground fault sensors
and DC current transducers
and switches
The acuAMP® line of current
sensors now includes AC ground fault
sensors and DC current transducers and
switches.
The GFS series of ground fault sensors monitors all current-carrying conductors in grounded single and threephase delta or wye systems. Available in
fixed-core models, the GFS series features jumper-selectable setpoints of 5,
10 or 30 mA. The sensors can accommodate up to 14 AWG copper wire and
feature mechanical relay outputs with
either manual or auto reset. The UL and
CE approved GFS series of ground fault
sensors start at $136.
The DCT series of DC current
transducers combines a Hall Effect
sensor and signal conditioner into a
single package for use in DC current
applications up to 400A. Designed to be
compatible with most PLCs, data
loggers and SCADA systems, the DCT
series features jumper-selectable current
input ranges and industry standard 4-20
mA or +/- 10 VDC outputs. Available in
split-core or fixed-core models, DCT
current transducer prices start at $117.
DCS100 series DC current switches
feature jumper-selectable current input
ranges up to 100A and are available in
normally-open solid-state and SPDT
www.automationnotebook.com
relay output models. The switches are
equipped with removable terminal
blocks which accept up to 12 AWG
solid or stranded wire. Prices for
DCS100 DC current switches start at
$90.
All acuAMP sensors are panelmountable; convenient DIN rail
adaptor accessories are also available.
The complete acuAMP series offers
outstanding features, flexibility, and
durability. Backed with a five-year
warranty, the complete line of current
transducers and switches provides
dependable service for virtually any
application.
See the full line of acuAMP current
sensing products at:
www.automationdirect.com/
current-sensors
Photoelectric sensor line
expanded
AutomationDirect’s photoelectric
sensor offering now includes 18mm rectangular plastic DC models. The IP67
rated sensors, available in 12 models, feature an 18mm diameter threaded lens and
M12 quick-disconnect.
The GX3 series is a diffuse photoelectric available with either NPN or PNP
light-on outputs and features background
suppression technology with fixed sensing
distances of 100 mm or 150 mm. GX3
series prices start at $49.
The GXP series is a polarized reflective photoelectric available with either
PNP light-on output or NPN or PNP
dark-on output and feature fixed sensing
distances of up to 20 meters. GXP sensors
include one round reflector. GXP series
Continued, p. 9>>
7
Buy direct and save!
Just about every electrical installation
needs a transformer, so we carry high-quality
Hammond Power Solutions products at great prices,
in stock and ready for shipping the same day.
Control transformers
with lifetime warranty
HPS Imperator control transformers are specifically
designed for high inrush applications requiring reliable output voltage stability. New models expand the
input and output voltage ranges available, all at low
direct prices!
• MGJ Control Series: 50VA to 500VA,
380x277x208 primary, 240x120 secondary
• MLI Control Series: 50VA to 500VA,
480x240 primary, 120x25 secondary
• MQMJ Control Series: 50 VA to 1.5kVA, 230x460
primary, 115x230 secondary
• PG Control Series: 50VA to 1kVA, 120x240
primary, 24x12 secondary
Encapsulated Transformers
The Fortress series of encapsulated transformers are
single phase units, now available in 100VA up to
25kVA ratings.
The NEMA 3R enclosure makes them ideal for indoor
and outdoor applications, such as schools, sports
complexes, office buildings and lighting.
•
•
•
•
•
100VA to 25kVA sizes
Input voltage ranges from 120 to 480 VAC
Output voltages of 240 and 120 VAC
NEMA 3R enclosure
10-year warranty
www.automationdirect.com
www.automationdirect.com/power
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Automation Notebook
Summer 2011 Issue Twenty
Product Snapshots Cont.
Press Releases
Continued from, p. 7
250-600 VAC rated current limiting
Edison Fuses replace more expensive
competitors’ fuses
prices start at $39.
The GXR/E series are through-beam
photoelectric models available with either
NPN or PNP light-on or dark-on outputs
and offer fixed sensing distances of up to
four meters. GXR series receiver prices
start at $35. GXE receiver-dependent
emitters are available for $30.
• Class CC for lighting and heating
loads, small motor circuits
• Class J for inductive loads, including
motor and motor branch circuits
• Class RK for AC power distribution,
lighting
www.automationdirect.com/fuses
Ferraz Shawmut 600 VAC/250 VDC
heavy-duty fusible and non-fusible
disconnects meet UL98 standards,
and are UL, CSA, CE and IEC rated.
65mm mushroom head
metal pushbuttons now
available
• SIRCO non-fusible disconnect
switches up to 800 amp ratings
• FUSERBLOC fusible disconnects
break up to 200 amps; use with class
CC or J fuses
• Accessories include handles and
shafts, terminal lugs and shrouds,
auxiliary contacts
www.automationdirect.com/disconnects
Fuji Command 30mm metal pushbuttons with 65mm mushroom-style
operators are momentary non-illuminated
pushbuttons available in four colors and
come with either a single normally-open
contact block (red available as normallyclosed) or with one normally-open and one
normally-closed contact block.
Replacement contact blocks are
available in single packs. UL listed and
CSA certified, prices start at $19. See the
Fuji Command 30mm pushbuttons at:
www.automationdirect.com/pushbuttons
“A committee is a cul-de-sac down
which ideas are lured and then quietly
strangled.”
Molded Case Circuit Breakers for
branch and feeder circuit protection
– Sir Barnett Cocks (1907–1989)
“The government's view of the
economy could be summed up in a
few short phrases: If it moves, tax it. If
it keeps moving, regulate it. And if it
stops moving, subsidize it.”
– Ronald Reagan (1911–2004)
“What's another word for Thesaurus?”
– Steven Wright
www.automationnotebook.com
•
•
•
•
From 15 to 800 amps
High-speed “blow-open” action
Small size saves panel space
UL489 listing
www.automationdirect.com/mccb
9
Feature Story
Trends in Automation
Upgrading Pump
Stations with PLCs:
When relays and
timer circuits get old,
they cause problems.
Replacing them with
PLCs keeps pumps
running smoothly.
with two motor starters. When the
pump is turned on, the first motor
starter is energized. Then, after a time
delay, the second starter is energized.
Two types of timers were used in
the control logic, pneumatic and
electronic. As the pneumatic timers
aged, they lost their timing repeatability.
It was common to hear the motor strain
while waiting for the second starter to
pull in.
FIgure 2, Before replacement
By Henry Palechek
Process Control Supervisor
O
ne of the most important
jobs of a water distribution
system is to reliably deliver
water to its customers. At our water
district in California, we had pumping
stations (Figure 1) with relay-based
controls that were more than 30 years
old, and the vintage of the controls
caused a definite reliability issue.
Figure 2: Before and after. The original relay-based system (above) was cluttered,
while the updated PLC-based controls are much cleaner.
Figure 1: Typical pumping station in the water
distribution system.
A typical pump station has three or
four pumps, each powered by 100 or
125 horsepower motors. Because of the
relatively large motor size, a part
winding motor starting system is used
10
Electronic timers were sometimes
even worse as their electrolytic
capacitors failed over time. When the
timers failed it was hard on the motor
because it was running on only one
starter until the overload tripped.
Personally, I’ve had to replace more of
the electronic timing relays than any
other device in the control circuit. I
thought it was time to upgrade the
pump controls and my company agreed,
so we decided to investigate alternatives.
Taking a Test Drive
We decided to do a pilot test on
two stations over a one-year period. We
replaced all the pneumatic and electrical
relays with DL05 PLCs from
AutomationDirect (Figure 2). The
PLCs were installed inside the motor
control center (MCC) buckets by our
in-house district electricians.
When the first pilot pump control
circuit was changed over to PLC
control, I set the delay time between the
activation of the two motor starters to
Automation Notebook
Summer 2011 Issue Twenty
0.5 seconds. Our control electrician
didn’t like the way the motor sounded,
so with one quick edit I set the timer to
0.4 seconds. We’ve never had to readjust
them since, and there’s no longer any
drift in the timing because the PLC is a
digital device.
We were concerned about how well
a PLC would hold up in the hot and
electrically noisy environment of an
MCC without cooling or a UPS, but
they have proven to be very robust. The
only failure we had was when a pump
control valve’s solenoid shorted out and
pulled an excessive amount of current.
Installing a fuse on the output solved
the problem. It should be noted that this
failure was our fault as we should have
installed an output fuse in the first
place.
We’ve since installed about 55
DL05 PLCs in our pumping stations,
one on each motor, with no reliability
issues in more than a decade of service.
Another advantage is the PLC
simplifies and enhances pump operation. A typical MCC had hundreds of
wires and dozens of relays (Figure 3) in
multiple buckets. In some cases the wire
numbers had fallen off over time, which
made troubleshooting very difficult. In
addition, the control logic only
provided one alarm pump timeout.
When a pump failed to start properly,
we were never sure why it had failed.
Now, the PLC is programmed so the
alarm can be reset by the operator; this
allows the pump to run, while maintaining failure information in the ladder
logic until the relevant area of the PLC
program is reset by the technician. This
gave us better flexibility in that a failed
pump can be returned to service without losing information vital to the troubleshooting process.
Another enhancement was to
expand the type of alarms sent back to
the central SCADA system. Now, the
alarm is defined three different ways:
pump fail, MCC fail, or pump control
valve fail. Before the upgrade, it was
common to have a few pumps fail to
start every week, but that’s no longer the
case.
Dealing with water hammer
In a water distribution system,
another area of concern is always water
hammer. Water hammer occurs when
water flow is halted abruptly, causing a
shock wave to travel through the line.
The force of the shock wave can cause
severe damage to critical control parts.
When a large pump is started in our
water pumping application, a pump
control valve is used on the output of
the pump to stop the possibility of a
water hammer (Figure 4).
The motor is started into a closed
pump control valve, and the valve is
allowed to open slowly. On shutdown,
the valve is closed slowly and a microswitch notifies the controller to turn off
the motor.
Here’s the sequence of events that
occur when a large pump is started:
1. The first motor starter pulls in
2. The second motor starter
pulls in
3. The pump control valve is
commanded to open
4. The pump control valve is
monitored to ensure it fully
opens
Every step is timed, and if there’s
any failure of the proper sequence the
motor is automatically turned off. The
pump is then held out of service until an
operator investigates the problem and
pushes a reset button.
The old system was a nightmare to
troubleshoot with its pneumatic and
electrical relays. Now, with the PLC,
finding the source of the problem is
much easier.
The PLCs have allowed us to solve
our control issues at a low cost with high
Continued, p. 13>>
Figure 3: The pile of parts left over when a PLC
replaced relays in an MCC.
The specific problem was that
when a pump failed to operate properly,
it would time out and couldn’t be
restarted until manually reset by an
operator. This reset cleared the timeout
relay logic, making it hard for the technician to troubleshoot the problem.
Figure 4: A pump control valve prevents water
hammer by opening and closing according to a careful timing sequence.
www.automationnotebook.com
11
Automation Notebook
Summer 2011 Issue Twenty
Feature Story Cont.
Trends in Automation
Continued from, p. 11
reliability. We still use the brick style
DirectLOGIC DL05 PLC in existing
MCCs, but in our new MCCs we’ve
upgraded to the DL06 PLC, which has
more expandability and a local LCD
display option. We expect similar
reliability from the DL06 PLCs, along
with continued ease of use and superior
vendor support.
Rigid and flexible wire duct &
Liquid-tight tubing
About the Author
Solid duct now available
Henry Palechek is the information systems and process control
supervisor at a water utility in
California. He’s been with the utility
for over 16 years. He holds a
Bachelor of Science in Information
Systems, and has been teaching water
technology courses at the local community college since the mid 90s. He
also holds a California T3 Operator
license.
• All rigid duct comes in 2 meter lengths, with
cover, sold individually or in value packs
• Open slot duct now available in blue and
black, as well as gray and white
• 30-meter liquid-tight tubing, coils in diameters
from 3/8 to 2 inches
www.automationdirect.com/wire_duct
Over 1,600 enclosures from
Hubbell/Wiegmann
• NEMA 1, 3S, 3R, 4, 4X, 6P, 4/12 and 13 metallic
enclosures
• Non-metallic line for harsh outdoor
environments in NEMA 3R or 4X
• Steel and stainless flanged enclosures for
disconnect mounting
www.automationdirect.com/enclosures
Wire ties and accessories sold in 100 or 1,000
piece packs, starting at only $1
“Arithmetic is being able to count up
to twenty without taking off your
shoes.”
• Standard ties in white and black in 4 to
32-inch lengths
• Black nylon lashing ties in 9 to 40-inch lengths
• Releasable ties in 6 to 12-inch lengths
• Mounting head ties available in 4 to 12-inch
lengths
• UV-resistant ties in 7 to 14-inch lengths
• Identification cable ties available from 4 to 12
inches long
– Mickey Mouse (1928–)
www.automationdirect.com/cable-ties
www.automationnotebook.com
13
Automation Notebook
Summer 2011 Issue Twenty
System Integrator Corner
UL 508A Certified Panel Shops
By Tim Roberts,
AutomationDirect
S
everal member integrators in
AutomationDirect’s SIDirect
program have UL 508A certified
panel shops. Although many installations and applications do not specify
adherence to the UL 508A standard, it’s
good to be aware of the benefits of UL
listing for your control panels.
The UL listing mark on an industrial control panel provides evidence of
third party certification. It indicates that
the panel complies with an accepted and
specific safety standard. The listing
mark may be applied to a wide variety of
designs – from custom built to standardized designs with minor modifications.
While there is a confusing array of
electrical safety standards to contend
with, from the overarching national
electrical code (NEC) to specific areas
affecting control panels, such as NEC
Article 409, the most commonly referenced standard for industrial automation applications is UL 508A. Briefly
stated, UL 508A is the standard for
Safety of Industrial Control Panels. The
requirements specified in UL 508A are
in turn based on UL 508, the standard
for Safety of Industrial Control
Equipment, the NEC, NFPA 70 and
the standard for industrial machinery,
NFPA 79. One important service a certified UL 508A panel shop offers is to
apply these standards to customer applications and designs.
Out of the 38 system integration
firms in the USA that are members of
AutomationDirect’s SIDirect Program,
the following ten are UL 508A certified
Panel Shops.
Please contact them to find out
how they can meet your UL 508A panel
requirements.
ADVANCED PROCESS
SOLUTIONS
MILWAUKIE, OR 97267
Contact: Bill Pascoe
Phone: 971-506-9338
Web site: www.YourAPS.com
ENER TECH ASSOCIATES, INC
Harrisburg, PA 17112
Contact: Sam Morello
Web site: www.eta-inc.com
HEYWOOD ENGINEERING, INC
RENO, NV 89511
Contact: Lance Heywood
Web site:
www.heywoodengineering.com
ICAD
Fresno, CA 93725
Contact: Cliff Taylor
Web site: www.icadautomation.com
ROBEY CONTROLS
Raymond, ME 04071
Contact: Timothy Robey
Web site: www.robeycontrols.com
AI CONTROL SYSTEMS
Reading, PA 19605
Contact: Sales
Web site: www.aicontrols.com
INDUSTRIAL AUTOMATION
La Crosse, WI 54602
Contact: Herb Burfield
Web site:
www.industrialautomation.us
ONEIL ELECTRIC CO
Greeley, CO 80631
Contact: Greg O’Neil
Web site: www.oneilelectric.net
PACIFIC COAST
AUTOMATION, INC
Modesto, CA 95356
Contact: John Keller
Web Site: www.pca-inc.com
S&L AUTOMATION, INC
Lenoir, NC 28645
Contract: Lori Pless
Web site: www.sandlautomation.com
“If there's anything unsettling to
the stomach, it's watching actors
on television talk about their
personal lives.”
– Marlon Brando (1924–2004)
www.automationnotebook.com
15
User Solutions
Creative Control Solution
House Theatre
of Chicago
By Ryan Poethke
H
ouse Theatre of Chicago’s
original-script production of
The Nutcracker demanded
moving, changing scenery that
magically transformed the set at the
push of a button. AutomationDirect’s
extensive line of pneumatic and
electrical components helped us realize
these design elements easily, elegantly,
and reliably.
The doors:
The set design consisted of five sets
of custom built French door units which
were completely freestanding. These
door units provided the “theatre-in-theround” entrances for the actors. At the
climax of the show, when young Clara’s
world is about to fall apart, scenic
designer Collette Pollard envisioned the
16
world physically cracking and beginning
to come apart.
Using AutomationDirect’s singleacting pneumatic cylinders, the “door
toppers,” situated above the doors, pivoted from one side, pushed up by the
cylinder.
The cylinders were embedded in
the vertical doorframe posts. The frames
were constructed of 2” square steel box
tube to provide a hollow space for the
cylinders, and then cased in wood to
provide the proper dimensions and
appearance.
To prevent binding, the cylinder
was topped with a plastic ball which
allowed the end to slide as the cylinder
extended. The air line ran down the
frame and out to the control panel
upstage.
The tree:
The closing scene of Nutcracker
called for a small Christmas tree to
magically grow from the stage on
command. The design team wanted a
Automation Notebook
Summer 2011 Issue Twenty
tree that grew from nothing to approximately 18 inches. The tree planter, filled
with fake snow, had a false bottom
which the tree punched through to
magically appear when desired. Our
“Charlie Brown Tree” was built from
various diameters of polyethylene tubing wrapped with soft iron wire and
covered with painted heatshrink tubing.
The hinges at the base of the branches
were simply short lengths of extension
spring which allowed the tree to collapse
into a piece of 1.5” PVC pipe.
The tree was pushed up through
the floor by a 1” bore, 18” stroke
double-acting cylinder. The doubleacting feature allowed the stage crew to
easily retract and reset the tree between
performances.
The cylinder was able to push the
tree around the 90-degree bend because
the tree’s “trunk” was also made of poly
tubing; flexible yet rigid enough to
withstand pushing by the cylinder.
There are three air lines attached to
the under-stage tree mechanism; one
each to extend and retract, as well as a
purge line that was used to blow the
fake snow out of the tree storage tube
before retraction. The purge line was
added after we found that the fake plastic snow which fell into the tube pre-
vented the tree from moving smoothly.
It is important to note that the tree itself
remained vertical and never “turned the
corner.” The horizontal portion contained only the travel of the cylinder
and the poly tubing “pushrod.”
The control panel:
The AutomationDirect three-way
pneumatic valves were operated by an
eight-way MIDI-to-relay card through
single-pole interposing relays. MIDI
control was chosen as it is a control protocol native to the audio world; since
the effects had to fire in time with sound
effects, it made sense to allow the audio
playback computer to control the actuation of the valves.
It might be noticed that even
though we have a double-acting cylinder for the tree, all eight valves are 3way, and not necessarily suited to controlling a double-acting cylinder. We
simply used two 3-way valves, one for
each side of the cylinder, to minimize air
loss around the seals of the cylinders.
Because we could not run our compressor during the show due to noise, our air
supply was limited. Use of the singleacting cylinders was limited to a rather
short time, and the tree’s cylinder did
not need air once it was extended or
www.automationnotebook.com
retracted. The purge line used to blow
the fake snow out from around the tree
was only used post-show, and thus we
were able to run the compressor as needed for additional air.
A large white cylinder was mounted to the left of the panel to serve as a
muffler; it silenced the sound of venting
air as the cylinders were extended and
retracted. It was built from 3” diameter
PVC pipe and fuzzy paint rollers with
their center tubes glued closed. This
forced the air through the nap of the
rollers and out through a grate on the
bottom of the pipe.
Our use of AutomationDirect’s
extensive line of pneumatic and electric
supplies and parts allowed House
Theatre to tell the tale of The
Nutcracker in ways that truly brought
the audience into the story. Without
support from AutomationDirect, House
Theatre would not have been able to
add this dimension of scenery movement and magic to our storytelling.
17
Tech Thread
Temperature Control
PLC-based system
works where single
loop temperature
controllers fell short
By Tim Hanes,
AutomationDirect
Process Instrumentation Equipment
Product Engineer
I
n many applications, single loop
temperature controllers are
sufficient to provide control of
heating and cooling. But in some
applications, including the one detailed
in this article, closely coordinated
control among many temperature
control loops is needed. In those cases
and others, PLC-based temperature
control can be the best solution.
A meltblown machine, a melted
polymer extrusion machine used in
manufacturing nonwoven materials,
consists of four main components. An
extrusion system provides a steady
supply of molten polymer, and a heated
Figure 2, Example of Meltblown Die Assembly
spinbeam distributes the polymer into
an even sheet or web. A heated process
air system is used to attenuate or stretch
the fibers, and a vacuum system removes
the process air as the nonwoven web
is formed.
The spinbeam consists of a large
304 stainless steel die body block weigh-
Figure 1, Machine diagram.
18
ing approximately 8 tons, and heated by
72 1.1 kW electric cartridge heaters.
The heaters are paired into 36 zones
spaced on 4” intervals down the length
of the block.
On this machine, each of the
36 zones had a PT100 RTD
temperature sensor for feedback to that
zone’s single loop temperature
controller. An output from each
controller switched a pair of cartridge
heaters to maintain an average block
temperature around 425°F. Biasing
setpoints for each of the 36 individual
zone temperature controllers could be
entered by the operators of the machine
to adjust the temperature profile across
the length of the spinbeam.
Process air heated by a 320 kW
electric circulation heater is delivered by
a low pressure blower through large air
manifold assemblies. These assemblies
are constructed of 0.75” thick 304 stainless steel plate attached to the die body
using 28 12mm grade-8 bolts.
Varying Rates of Thermal Expansion
Thermal expansion of metal as it is
heated is normally not a problem if all
assembled parts expand at the same rate,
or if clearances with tolerances down to
the thousandths of an inch aren’t
required. But in this case, there were
Automation Notebook
Summer 2011 Issue Twenty
However, due to their complex shape
and space limitations, this solution was
cost prohibitive.
A better solution was an improved
automation system in the form of a PLC
and a Human Machine Interface
(HMI). Historically, PLCs were used for
discrete control applications, but today’s
powerful PLCs have greatly expanded
capabilities, particularly in the area of
analog monitoring and closed loop
control. These capabilities are provided
in compact and low cost controllers
featuring ease-of-use and a high degree
of connectivity.
On the meltblown machine, the
individual single loop controllers were
eliminated and the 36 RTD zone
temperature sensors were wired to
Figure 3, Example HMI Screen
significantly different rates of thermal
expansion for the die body and the air
manifold. This was causing these two
components to separate to the extent
that the bolts connecting the assemblies
were shearing.
When the meltblown machine was
started, the solid die body was heated
with the cartridge heaters at a rate of 2°
per minute. The air manifold assemblies
were heated only by the pre-heated
process air, and were thus increasing in
temperature at a rate of about 1° per
minute. With the two different heating
rates, it didn’t take long to develop a
significant temperature differential
between the die body and the air
manifold assemblies.
Because the solid stainless steel die
body was more efficient at conducting
heat than the hollow air manifolds, it
could expand in length by as much as
1% (or 1.4 inches) before the air
manifolds could expand. Something had
to give, and in this case it was often one
or more of the 28 bolts attaching the air
manifold assemblies to the sides of
the spinbeam.
The workaround solution was
continuous intervention from the
machine operators to monitor the die
body and air manifold temperatures,
and to adjust the temperature setpoints
on the 36 individual controllers as
Figure 4, Example Bicomponent Meltblown Machine
required. A better solution was needed,
one that replaced constant operator
attention with automated control.
The Power of the PLC
After analysis and process trials,
it was determined that the system
could handle a maximum temperature
differential of about 50°F between the
die body and the air manifolds without
shearing the bolts.
One possible solution to maintain a
maximum temperature differential was
to install heaters and additional controls
on the air manifold assemblies.
www.automationnotebook.com
individual analog inputs at the PLC.
Also, temperature sensors were added to
monitor the incoming temperature of
the pre-heated process air entering the
air manifolds.
Using the PLC’s internal math
functions, the 36 die body zone
temperatures are averaged and
compared to the incoming air
temperature in the air manifolds. Based
on
the
measured
temperature
differential, the PLC automatically
Continued, p. 21>>
19
®
C-more operator touch panels offer:
• Clear TFT 65K color displays
(6-inch STN models also available)
• Analog touch screen for maximum flexibility
• Easy-to-use software
CONNECT TO CONTROLLERS WITH DRIVERS FOR:
• All AutomationDirect PLCs/PACs
• Allen-Bradley
ControlLogix®
CompactLogix®
MicroLogix™ 1100/1400 Ethernet
ENI Adapter for SLC Series
FlexLogix
SLC® 5/05 Ethernet™
MicroLogix™
C-more touch panels in 6" to 15" sizes are a practical way
to give plant personnel easy access to controls and data.
Check out the powerful yet easy-to-use configuration
software by downloading a demo version at:
http://support.automationdirect.com/demos.html
• Modbus RTU and TCP/IP Ethernet
• GE 90/30 SNPX (90/30, 90/70. Micro90, VersaMax Micro)
• Omron Host Link Adapter (C200/C500), FINS Serial
and Ethernet
• Selected Mitsubishi FX Series, Q Series
• Siemens S7-200 PPI and S7-200/300 Ethernet
(ISO over TCP/IP)
ALL C-MORE PANELS INCLUDE:
• Analog resistive touch screen with unlimited touch areas
• One USB A-type and one USB B-type port
• Serial communications interface
FULL-FEATURED MODELS ADD:
• 10/100Base-T Ethernet communications
• CompactFlash slot for data logging
www.automationdirect.com/c-more
REMOTE ACCESS AND CONTROL BUILT-IN
No Additional Hardware required. The C-more Remote
Access feature resides in all panels with Ethernet support,
and requires no option modules. Access real-time data
or initiate an action on a control system from anywhere,
any time. (Requires software and firmware version 2.4 or later*, and an
www.automationdirect.com
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Ethernet C-more panel)
C-more touch
panel line-up:
* Software and firmware are
downloadable for authorized
customers from:
www.automationdirect.com
6-inch STN
grayscale
6-inch TFT
65,538 colors
8-inch TFT
Starting at:
$399
Starting at:
$499
$999
10-inch TFT
12-inch TFT
$1,595
$1,895
15-inch TFT
$2,295
Automation Notebook
Summer 2011 Issue Twenty
Tech Thread Cont.
Temperature Control
Continued from, p. 19
ramps the setpoints of the die body
zones to individually control each zone’s
pair of cartridge heaters. Specifically, the
PLC determines the correct setpoint for
each of 36 PID control loops. Each loop
reads an RTD input as the process
variable, and uses the internally derived
setpoint to modulate a control variable
analog output to control the heaters.
This PLC-based control solution
allows the machine to automatically
heat at a rate that is compatible with the
thermal expansion of the different
components. The bolt shearing problem
was solved, and the need for constant
operator intervention was eliminated.
In addition, pre-programmed
biased setpoint temperature profiles in
the PLC can now be automatically used
as required, eliminating the need for
machine operators to enter separate
biasing setpoints in the individual single
loop controllers.
In addition to the improved
control functionality, the PLC
continuously provides and trends
valuable data to the HMI, such as the
process variable, the setpoint including
any biasing, and the loop output control
variable. Alarm points and conditions,
either globally or for each loop, can also
be viewed at the HMI. Touch screen
HMI inputs allow changes depending
on different conditions such as the
polymer type.
Prior to the use of PLC-based
control, constant operator intervention
was required to provide safeguards
against damage and to manually track
various process conditions. By introducing PLC-based control, possible
machine damage due to varying rates of
thermal expansion has been eliminated,
and valuable insight provided by
tracking and trending data that wasn’t
readily available from the single
loop controllers.
For complex temperature control
applications with different heating or
cooling profiles, PLC-based control
offers a versatile, powerful and costeffective solution. When paired with a
touch screen HMI, additional process
data can be viewed and analyzed, with
adjustments to improve operations
easily entered through the touch screen.
“Instant gratification takes too long.”
– Carrie Fisher (1956–)
“Success is liking yourself, liking what
you do, and liking how you do it.”
– Maya Angelou (1928–)
www.automationnotebook.com
“Money can't buy happiness, but
neither can poverty.”
– Leo Rosten (1908–1997)
21
Business Notes
Goings-on in the Industry
Other videos released recently
include a four-part tutorial series where
product manager Jeff Payne shows you
how to use the many features of the
Productivity3000 PAC programming
software. Watch these under the
Software tab on the Learn site.
By Joan Welty,
Managing Editor
Value Added Services
Kickstart and other
new videos
H
ave you seen the newest
products
launched
by
AutomationDirect? Now
you can watch short videos with product
descriptions, features and tips. Our new
“KICKSTART” video program can be
found on our Learn site and on our
YouTube channel. Check out these short
two-minute videos on products such as
our new compact air cylinders, coiled air
hoses, compact fuse switches and more.
Visit:
http://learn.automationdirect.com and
look for the Kickstart tab along the top.
Or, go to:
www.youtube.com/automationdirect,
where you can subscribe to our YouTube
channel and leave comments on
each video.
22
Give us your 2 cents
In keeping with our objective to
provide the best value in industrial
control products, AutomationDirect’s
new Value Add Services department
provides customers with cost savings by
packaging some of our high-quantity
packaged products into smaller
pre-defined quantities. Product areas
where this has been done include fuses,
supplementary protectors, DIN rail,
and flexible cord.
Other services include some
pre-assembly and customization. We
can pre-assemble Productivity3000
controller racks with I/O modules based
on your specifications. For a nominal
charge, this service can save you time
and effort, allowing you to complete
projects or machine assembly more
quickly. For more information on this
assembly service, please visit the
Productivity3000 Web site.
(www.aboutplcs.com/p3000)
For OEMs, we offer a service to
apply customer-supplied logo overlays
to our products, which gives the
equipment a custom look. We’re
continuing to find more ways to meet
your specific needs. If there is something
we could do for you, we welcome the
opportunity to evaluate the idea.
Our newest online Customer
Forum category is where you can tell us
what you think. The Give Us Your 2
Cents forum is the place to provide
feedback and make requests on anything
from Web seminar topics to Web store
features to our company in general, you
name it. You’ll have opportunities to
participate in brief surveys, provide
application story ideas and answer
occasional
questions.
Go
to
http://forum.automationdirect.com
and look for the “Give Us Your 2 Cents”
Forum.
Get your Warranty
Return number the
easy way - online!
We have tried to make our product
return process one of the easiest and
least stressful you've experienced. As a
matter of fact, we get "love letters" from
customers telling us how pleasant it was
to return a product to us! (We love to
hear that, but we don't recommend
doing it just for the experience.) But
when you really do need to return a
product that is under warranty, you can
now obtain the Return Authorization
Automation Notebook
Summer 2011 Issue Twenty
under your account via the Web. (All
date codes and/or serial numbers must
be supplied before the RA can be
issued.) The process is this easy:
1. After you have logged in to
your AutomationDirect
account, visit our
Returns page and choose
the appropriate return reason.
2. You'll see a list of your orders
which fall within the selected
return window. Choose the
order which contains the items
you wish to return.
3. Verify your contact
information, view the list of
items from your order, and
enter the quantities you need
to return.
Then "Submit" the return.
4. The Returns Team will look
over your return request, and
if everything checks out, the
necessary paperwork and
instructions will be sent to you
immediately. (You can also
obtain a 30-day money-back
return authorization online.)
of 3500 high school, middle school, and
collegiate students came together to
celebrate their accomplishments and
compete with (and against) the best of
the best. These were the top robotics
teams from over 200 VEX tournaments
that took place around the world from
May 2010 to March 2011.
Eleven teams from our local school
system (Forsyth County, GA) qualified
to attend, and one of those teams (from
North Forsyth High) made it to the
semifinal round! Congratulations to all
the teams who made it to Orlando.
After a series of intense back-toback matches and elimination rounds,
the High School Champion alliance
emerged with teams comprised of
Massachusetts' Green Egg Robotics
Club, Washington's W.A.S.A.B.I. 2 and
Ontario, Canada's Simbotics teams.
Program. Middle School, High School
and College Excellence Award winners
included, the VEXMEN: NightCrawler
team from Downingtown Area Robotics
in Downingtown, Pennsylvania, the
Cheesy Poofs from Bellarmine College
Prep in San Jose, California, and Massey
University in New Zealand.
Learn more about VEX:
http://www.vexrobotics.com
AutomationDirect
sponsors VEX
Robotics World
Championships
AutomationDirect was pleased to
sponsor the recent VEX Robotics World
Championships at the ESPN Wide
World of Sports Complex (within
Disney World) near Orlando, Florida
April 14-16. Over 500 teams comprised
The Middle School Champion
represented an alliance of China teams
from Sichuan Chengdu Longjiang Road
Primary School and the Shanghai
Luwan Teenagers Activity Center.
The College Championship title
went to Massey University from New
Zealand. In addition, one team from
each of the three divisions was presented with an Excellence Award, the
highest honor in the VEX Robotics
Competition, given to the team with
the most well-rounded VEX Robotics
www.automationnotebook.com
23
Tech Brief
Variable Frequency Drives
Top 10
Tips: Specifying VFDs
(Part one of a
two-part series)
By Joe Kimbrell,
AutomationDirect
Drives, Motors, and Motion Control
Product Manager
V
ariable frequency drives — or
VFDs — can reduce energy
consumption, improve realtime control, and lengthen motor life;
selecting the right one for your application requires asking the correct
questions. Here are some expert tips to
consider.
Determine if a VFD is right for your
application.
The primary function of a variable
frequency drive is to vary the speed of a
three-phase ac induction motor. VFDs
also provide nonemergency start and
stop control, acceleration and deceleration, and overload protection. In
addition, VFDs can reduce the amount
of motor startup inrush current by
accelerating the motor gradually. For
these reasons, VFDs are suitable for
conveyors, fans, and pumps that benefit
from reduced and controlled motor
operating speed.
A VFD converts incoming ac
power to dc, which is inverted back into
three-phase output power. Based on
speed setpoints, the VFD directly varies
the voltage and frequency of the inverted output power to control motor
speed. There is one caveat: Converting
ac power to a dc bus — and then back
to a simulated ac sine wave — can use
up to 4% of the power that would be
directly supplied to a motor if a VFD
24
were not used. For this reason, VFDs
may not be cost-effective for motors run
at full speed in normal operation. That
said, if a motor must output variable
speed part of the time, and full speed
only sometimes, a bypass contactor used
with a VFD can maximize efficiency.
Consider your reasons for choosing
a VFD.
Typical reasons for considering
VFDs include energy savings,
controlled starting current, adjustable
operating speed and torque, controlled
stopping, and reverse operation. VFDs
cut energy consumption, especially with
centrifugal fan and pump loads.
Halving fan speed with a VFD lowers
the required horsepower by a factor of
eight, as fan power is proportional to
the cube of fan speed. Depending on
motor size, the energy savings could pay
for the cost of the VFD in less than
two years.
Using VFDs to operate fans and pumps can
significantly reduce energy consumption, because
they can tailor fan speed to the application. Fan
horsepower is proportional to the cube of fan
speed, so depending on motor size, energy savings
can compensate for the initial VFD purchase price
in less than two years.
Starting an ac motor across the line
requires starting current that can be
more than eight times the full load amps
(FLA) of the motor. Depending on
motor size, this could place a significant
drain on the power distribution system,
and the resulting voltage dip could
affect sensitive equipment. Using a
VFD can eliminate the voltage sag
associated with motor starting, and cut
motor starting current to reduce utility
demand charges.
Controlling starting current can
also extend motor life because acrossthe-line inrush current shortens life
expectancy of ac motors. Shortened life
cycles are particularly prominent in
applications that require frequent starting and stopping. VFDs substantially
reduce starting current, which extends
motor life, and minimizes the necessity
of motor rewinds.
The ability to vary operating speed
allows optimization of controlled
processes. Many VFDs allow remote
speed adjustment using a potentiometer, keypad, programmable logic
controller (PLC), or a process loop
controller. VFDs can also limit applied
torque to protect machinery and the
final product from damage.
Controlled stopping minimizes
product breakage or loss, as well as
equipment wear and tear. Because the
output phases can be switched electronically, VFDs also eliminate the need for
a reversing starter.
In addition to varying speeds, conveyor applications
typically require frequent starting and stopping.
Here, VFDs substantially reduce starting current to
extend motor life.
Select the proper size for the load.
When specifying VFD size and
power ratings, consider the operating
profile of the load it will drive. Will the
loading be constant or variable? Will
there be frequent starts and stops, or will
operation be continuous?
Consider both torque and peak
current. Obtain the highest peak
current under the worst operating
conditions. Check the motor Full Loads
Amps (FLA), which is located on the
motor’s nameplate. Note that if a motor
has been rewound, its FLA may be
higher than what’s indicated on the
nameplate.
Continued, p. 28>>
General purpose AC motors
Inverter-duty AC motors
Heavy-duty DC motors
IRONHORSE motors are available
in rolled steel (1/3 to 2 hp) and cast
iron (1 to 300 hp) 1800 RPM models.
Selected 1200 and 3600 RPM units
for the most popular horsepower
ratings start at just $70.
MARATHON ELECTRIC inverter-duty
motors have been carefully selected to
be performance-matched with our
DURApulse and GS series AC drives.
IRONHORSE PMDC motors are
available in TENV and TEFC enclosure
styles. Space-saving designs feature
a NEMA 56C flange and removable
mounting base.
•
•
•
•
T-frame cast iron three-phase,
208-230/460V up to 300 hp,
TEFC enclosure
56C frame rolled steel single-phase,
115/208-230V, from 0.33 to 1.5 hp,
TEFC enclosure
56C frame rolled steel three-phase,
208-230/460V, from 0.33 to 2 hp,
TEFC enclosure
TC frame (C-face) cast iron three-phase,
208-230/460V, up to 100 hp,
TEFC enclosure
•
•
•
•
•
1/4 to 100 hp
Dual 230/460V and 575 VAC models
1200 and 1800 RPM base speeds
Factory-mounted encoders on
select models
NEMA Premium Efficiency XRI series
from 1 to 10 hp compliant with Energy
Independence and Security Act of
2007
•
•
•
•
•
•
Rolled steel frame/cast aluminum
end bells
0.33 to 2 hp, 1800 RPM
Electrically reversible
Compatible with SCR (thyristor) DC drives
Large brushes for longer brush life, with
easy access for replacement
90VDC and 180VDC models available
CHECK OUT OUR PRICES ON MOTORS
AutomationDirect
Baldor
Dayton
Emerson
IronHorse
Also Available
AC, 208-230/460V,
3-phase, TEFC,
1800 rpm, 1 hp
$124.00
$419.00
AC, 208-230/460V,
3-phase, TEFC,
1800 rpm, 20 hp
$522.00
MTR-020-3BD18
$2,034.00
M2334T
PMDC, 56C,
2 hp, 180V
$368.00
$2,347.00
MTR-001-3BD18
MTPM-002-1M18
CM3546
CDP3585
$253.25
4THX2
$270.44
U1E2D
$1,391.30
U20E2D
$1,261.00
4Z380 (not 56C)
$2,301.00
G644 (1.5 hp, not 56C)
All prices are U.S. published prices. AutomationDirect prices are from March 2011 Price List. Baldor prices taken from www.baldor.com 3/7/11. Dayton prices taken from www.grainger.com 2/22/11.
Emerson prices taken from www.usmotors.com 2/22/11 or www.mscdirect.com 2/22/11. Prices and specifications may vary by dealer and configuration. Prices subject to change without notice.
www.automationdirect.com/motors
www.automationdirect.com
56C Gearboxes
Go online or call to get complete information,
request your free catalog, or place an order.
Motor Bases
(56 - 449T)
1-800-633-0405
Design a low-cost data acquisition or monitoring
system using KEPDirect OPC Server software and
affordable AutomationDirect control devices.
The new streamlined KEPDirect OPC Server
connects your preferred Windows client software to
AutomationDirect communication-enabled devices
such as programmable controllers, remote I/O and
variable frequency drives (VFDs). This means that
any industrial HMI, SCADA, data historian, MES or
ERP software package that includes an OPC client
interface (most do) can connect directly to those
devices.
What’s included?
• High-performance, certified OPC-compliant connectivity
via Ethernet, with unparalleled compatibility and
performance.
• DL05, DL105, DL06, DL205, and DL405 PLC support
through RS-232, RS-422 serial or DirectLOGIC and
Productivity3000 Ethernet interfaces.
• DL205, DL405 and Terminator controller remote I/O or
AC drive Ethernet interfaces.
• OPC Quick Client application included for testing and
easy troubleshooting.
• Automatically generate tag names by importing
DirectSOFT project Nicknames and Descriptions or
Productivity3000 Tag database.
For complete details or to order, visit:
http://www.automationdirect.com/kepdirect
Our shipping policies make it easier than ever to
order direct from the U.S.!
Free standard shipping is available for orders totaling over $300 U.S. (except for orders
which require LTL shipping, see Web site for details). Also, save on brokerage fees when shipping
standard ground to Canada - you can choose to allow AutomationDirect to nominate a broker
for your shipment for parts shipping via standard ground. This can save you big on brokerage fees.
See Web site for details and restrictions -
www.automationdirect.com/canada
www.automationdirect.com
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Automation Notebook
Summer 2011 Issue Twenty
Student Spotlight
The Future of Technology
Multi-mirror
Solar Array
Pleasantville High School
Pleasantville, Iowa
Provided by Chip McDaniel,
AutomationDirect
T
he Industrial Technology
students at Pleasantville High
School, in Pleasantville, Iowa
(southeast of Des Moines), have spent
the last three years building a multimirror solar array. Students from four
different technology classes have
contributed to the project over the three
year period; the AutoCAD and drafting
classes have helped design and
document the project, students in the
metals class performed much of the
welding and other fabrication tasks,
while students in the electronics class
have wired the machine and programmed the PLC. Instructor Frank
Vanderpool has been the teacher and
mentor who has championed the project
from its inception.
Sunlight is focused on a solar heat
exchanger positioned at the focal point
of the array. Water is warmed inside the
solar heat exchanger and then piped
indoors to a storage tank and radiator in
the nearby school shop where it is used
to heat the room, before circulating
back out to the solar heat exchanger to
be reheated.
The array consists of 96 one-footsquare mirrors positioned in a 10x10
array. The four mirrors in the center of
the array were omitted – because they
would always be occluded from the sun
by the solar exchanger. The array/
exchanger assembly is hinged and fitted
with wheels so that it can track the sun
with both altitude and azimuth motions
during each day. Two SureStep stepping
systems from AutomationDirect are
used to power these two axes of motion
via custom gearboxes designed and built
by the students.
Three simple photo-resistors are
used
as
sunlight
detectors to monitor
the position of the sun.
These photo-resistors
are enclosed in narrow
tubes, each with a slit
facing skyward. The
tubes are aimed ever so
slightly away from the
angle of the array - so
that when sunlight
reaches the bottom of
the tubes and excites
the photo-resistor, this
light signals a need to move the array to
keep alignment with the sun. One
Figure 1
detector is used to monitor the azimuth
axis, as the sun only moves in one direction across the sky each day, but two are
required for the altitude axis, as the sun
rises in the sky during the morning and
then falls in the afternoon.
A DirectLOGIC DL06 PLC
accepts discrete inputs from the sunlight
detectors and uses that information to
control the motion of the two stepper
systems via H0-CTRIO modules.
Additional logic in the PLC is used to
approximately position the array on
cloudy days so that if/when the clouds
dissipate the array is positioned to begin
its automatic operation. The PLC
controls the flow of water through the
www.automationnotebook.com
Figure 2
solar heat exchanger, and also controls a
pump inside the storage tank. Analog
inputs to the PLC allow the monitoring
of temperatures in four locations: at the
solar exchanger, at the point where the
water enters the building, inside the
storage tank, and the temperature of the
air inside the shop. Based on the various
temperatures, the PLC opens and closes
a valve to regulate the flow of water
through the loop, and most importantly
to stop the flow of water if the array is
not producing heat for some reason
(perhaps a cloud is blocking the
sunlight). The PLC also controls the
flow of water across a second heat
exchanger inside the storage tank in
order to maximize the heat transfer into
the storage tank when possible.
On a sunny day the results can be
more than impressive. In fact, on
several occasions, the water has boiled
and pressurized steam (measured at over
104°C) has caused problems such as
blown hoses, requiring the team to
reevaluate their design and method of
operation. Other issues involved the
inadvertent focusing of sunlight on a
wooden component which actually
caught on fire. Today, they have those
issues resolved and water temperatures
in the storage tank average about 165180°F even on moderately sunny days.
They routinely heat the shop exclusively
with solar energy throughout the day
and even for a few extra hours after the
sun goes down due to the thermal
energy stored in the tank.
Continued, p. 29>>
27
Tech Brief Cont.
Variable Frequency Drives
Continued from, p. 24
Web printing presses, paper mills, and material converting applications require the precise speed regulation
of closed-loop control. For such cases, VFDs can be run in a closed-loop control mode. Elsewhere,
volts-per-Hertz (V/Hz) and sensorless (or open-loop vector) modes are used.
Don’t size the VFD according to
horsepower ratings. Instead, size the
VFD to the motor at its maximum
current requirements at peak torque
demand. The VFD must satisfy the
maximum demands placed on the
motor.
Consider the possibility that VFD
oversizing may be necessary. Some applications
experience
temporary
overload conditions because of impact
loading or starting requirements. Motor
performance is based on the amount of
current the VFD can produce. For example, a fully-loaded conveyor may require
extra breakaway torque, and consequent-
28
ly increased power from the VFD.
Many VFDs are designed to operate at 150% overload for 60 seconds. An
application that requires an overload
greater than 150%, or for longer than
60 seconds, requires an oversized VFD.
Altitude also influences VFD sizing,
because VFDs are air-cooled. Air thins
at high altitudes, which decreases its
cooling properties. Most VFDs are
designed to operate at 100% capacity up
to an altitude of 1,000 meters; beyond
that, the drive must be derated or oversized.
Be aware of braking requirements.
With moderate inertia loads, overvoltage during deceleration typically
won’t occur. For applications with highinertia loads, the VFD automatically
extends deceleration time. However, if a
heavy load must be quickly decelerated,
a dynamic braking resistor should be
used.
When motors decelerate, they act
as generators, and dynamic braking
allows the VFD to produce additional
braking or stopping torque. VFDs can
typically produce between 15 and 20%
braking torque without external components. When necessary, adding an
external braking resistor increases the
VFD’s braking control torque — to
quicken the deceleration of large inertia
loads and frequent start-stop cycles.
Determine I/O requirements.
Most VFDs can integrate into
control systems and processes. Motor
speed can be manually set by adjusting a
potentiometer or via the keypad
incorporated onto some VFDs. In
addition, virtually every VFD has some
I/O, and higher-end VFDs have
multiple I/Os and full-feature
communications ports; these can be
connected to controls to automate
motor-speed commands.
Figure 4, VFD Control Modes
Automation Notebook
Summer 2011 Issue Twenty
Student Spotlight Cont.
The Future of Technology
Most VFDs include several discrete
inputs and outputs, and at least one
analog input and one analog output.
Discrete inputs interface the VFD with
control devices such as pushbuttons,
selector switches, and PLC discrete
output modules. These signals are
typically used for functions such as
start/stop, forward/reverse, external
fault, preset speed selection, fault reset,
and PID enable/disable.
Discrete outputs can be transistor,
relay, or frequency pulse. Typically,
transistor outputs drive interfaces to
PLCs, motion controllers, pilot lights,
and auxiliary relays. Relay outputs
usually drive ac devices and other
equipment with its own ground point,
as the relay contacts isolate the external
equipment ground. The frequency
output is typically used to send a speed
reference signal to a PLC’s analog input,
or to another VFD running in follower
mode.
Typically, general-purpose outputs
of most VFDs are transistors.
Sometimes one or more relay outputs
are included for isolation of highercurrent devices. Frequency pulse
outputs are usually reserved for higherend VFDs.
Analog inputs are used to interface
the VFD with an external 0 to 10 VDC
or 4 to 20 mA signals. These signals can
represent a speed setpoint and/or closed
loop control feedback. An analog
output can be used as a feedforward to
provide setpoints for other VFDs so
other equipment will follow the master
VFD’s speed; otherwise, it can transmit
speed, torque, or current signals back to
a PLC or controller.
In Part Two, we will discuss selecting the proper control mode,
understanding your control profile
requirements, and more.
This article originally appeared in
the February 2011 issue of MSD
magazine and on:
http://motionsystemdesign.com/moto
rs-drives/top-10-specifying-vfds0211/?imw=Y
Continued from, p. 27
Future plans include switching the
plumbing over to steam fittings to take
advantage of the higher temperatures
and pressures which have already been
proven possible. Once they make that
leap, they even envision the potential to
run a small steam engine and produce
electricity from the system. Frank
Vanderpool is understandably proud of
what his students have achieved this far.
He reports, “The project has been, and
www.automationnotebook.com
continues to be, a wonderful learning
experience for all of the students
involved. The Multi-Mirror Solar Array
has become a symbol of cooperative
learning at Pleasantville High.”
29
ZIPport Multi-Wire Connectors,
3 to 108 Terminals
Standard and High Construction
Profile (HC) Heavy Duty Connectors
Heavy-duty ZIPport connectors quickly and reliably
connect and/or disconnect wiring in applications such
as electronic machinery, robots, and control and signal
circuits.
ZIPport multi-wire connectors range from a small
3-pin configuration to as large as 108-pin configurations.
Screw terminal connections are available up to 40 pins
and crimp contact connectors are available from 5 to
108 pins.
Why use ZIPport connectors?
• Eliminate repetitive wiring tasks
• Cut down installation time
• Increase reliability and durability of connections
Features
• Complete connectors are built from components including
bases, inserts, hoods, couplers and covers
• Available in 3A, 6B, 10B, 16B and 24B sizes
• Heavy-duty metal housings in polyester powder coated
die-cast aluminum alloy, or self-extinguishing thermoplastic
• Single locking system (one lever locked on two pegs) or
double locking system (two levers locked on four pegs)
• Operating temperatures from-40°C to 125°C
(-40°F to 257°F)
• IP66 degree of protection with enclosure when coupled
• NEMA/UL Type 1, 4, 4X, 12 protection when housings are coupled
• Conforms with EN61984, VDE 0110, VDE 0627,
EN 175301-801, and UL 1977, UL50, UL50E standards
• UL and CE approvals
Build ZIPport multi-wire connectors from
components you select, so you get exactly
what you need!
http://www.automationdirect.com/multi-wire-connectors
www.automationdirect.com
Go online or call to get complete information,
request your free catalog, or place an order.
1-800-633-0405
Automation Notebook
Summer 2011 Issue Twenty
The Break Room
BrainTeasers & Humor
By Chip McDaniel
BrainTeasers
Shopping Cart Jumble
1.) An engineer went to:
www.AutomationDirect.com to purchase
some high-value automation parts. She
purchased various quantities of three parts:
proximity sensors at $50 each, Stable
motor mounting bases at $10 each, and
Nitra pneumatic fittings at $0.50 each.
She purchased a total of 100 parts, and
spent exactly $1000 dollars (qualifying her
order for free 2-day shipping).
Can you calculate how many of each part
she purchased?
IO, IO, It’s off to Work We Go
2.) A PLC system contains 36 I/O
modules and a total of 100 I/O points. All
the input modules are 4 point, and all the
output modules are 2 point – except for
one 6 point input and one 4 point output.
Can you discern the number of input vs.
output modules in the system?
Quarter Time
3.) The hopper of a packaging machine is
filled with widgets on Monday morning.
Each day the machine packages a single
widget as a test sample, and then proceeds
to package one quarter of the remaining
widgets from the hopper. Recordkeeping
is minimal, but it is noted that the number of widgets packaged on Monday and
Wednesday is exactly 100 more than the
number packaged on Tuesday and
Thursday. At the end of the day, Thursday,
the production manager asks how many
widgets remain in the hopper. Can you tell
him?
Henry Ford
Don’t judge a driver by
the car!
As told by a tour guide at the Edison
& Ford Winter Estates Museum in Ft.
Myers, FL. The tour guide prefaced the
story by admitting that they couldn’t
verify it, so read it at your own risk!
It seems that Henry Ford was driving
on a remote road one day and happened
upon a stranded motorist with a brokendown car by the side of the road. As Mr.
Ford was a very competent engineer and
mechanic, he stopped to help. Without
being recognized (or introducing himself)
he rolled up his sleeves and spent more
than a few minutes diagnosing and
ultimately fixing the car’s engine. Once he
was finished, the impressed motorist
thanked him, and tried to offer him some
money for his time and effort. Mr. Ford
had to decline the offered money several
times saying, “No thank you, I have all the
money in the world – it’s simply not necessary.” The motorist apparently got somewhat annoyed by that repeated phrase,
and finally retorted “If you have all the
money in the world, then why are you
driving a Ford?”
If you are ever in the Ft. Myers, Florida
area, be sure to visit the Edison & Ford
Winter Estates. It’s a fascinating museum for
anyone interested in technology or
history. Learn more at:
www.edisonfordwinterestates.org
Please visit www.automationnotebook.com to find the
answers to these puzzles.
31
DREXELBROOK
®
A Leader In Level Measurement Solutions
Z-tron III™ Z02X-Series
Easy-Installation
One-piece unit is easily installed through a single
3/4-inch vessel opening. Calibration is quick and
simple.
Z-tron III™ Point Level Switch, a reliable
low-cost, on/off level switch
The low-cost, Drexelbrook Z-tron III level switch is
unaffected by sticky coatings and impervious to
corrosive liquids. The all-electronic design means
no moving parts to wear, break or fail. Based
on field-proven RF technology, the Z-tron III is a
simple and reliable on/off level switch.
Economical
Effective, low-cost material level detection in
a wide variety of applications, and a desirable
alternative to electromechanical level switches.
No expendable parts to buy and stock. No
expensive, extra-cost options.
The compact one-piece unit is inserted through
a standard 3/4-inch NPT opening into the vessel
so that the sensing element is positioned at the
desired high or low level. (Other connection
types and sizes are also available.) When the
material level reaches a predetermined point on
the sensing element, it causes a change in status
at the electronic unit, resulting in actuation of the
DPDT relay. The relay can be used to operate
alarms, annunciators, valves, or other control or
indication devices.
Maintenance-Free
Drexelbrook's exclusive Cote-ShieldTM
circuitry enables the Z-tron III to ignore
dust pileups, coatings, and sticky
buildups on the sensing element.
Unlike paddle wheels, vibrating tines or other
mechanical instruments, there are no components
to jam, break or wear out. No need for routine
maintenance, cleaning or replacing of worn parts.
Suspended dust particles are also no problem as
the Z-tron III reacts only to actual high or low level
conditions.
Reliable Operation
Cote-Shield circuitry allows the Z-tron III to ignore
coatings or build up on the sensing element.
There are no false signals from dust or tunneling.
Z-tron III™ Z02X-Series
Specifications
Dimensions
Wiring
Power requirement
120 ± 25 Vac, 50/60 Hz (std.)
230 ± 25 Vac, 50/60 Hz (optional)
15-30 Vdc (optional)
(1 Watt maximum)
LED ALARM
WHEN OUT
Output
DPDT relay
TIME DELAY
ADJUSTMENT
SET POINT
ADJUSTMENT
Contact Rating
Non-inductive 5A @ 120 Vac or
2A @ 230 Vac
Min. Rating 100mA/12VDC
FAIL SAFE SELECTOR
FWD/REVERSE TIME
DELAY SELECTOR
NOTE: FAIL SAFE AND TIME DELAY
SELECTED WITH DIP SWITCHES
Spark Tolerance
100 A (std)
POWER
1
GND
Fail Safe
High (HLFS) or
Low (LLFS) field adjustable
2
L1
RELAY CONNECTIONS
3
L2
4
NC
5
C
6
NO
7
NC
8
C
9
NO
Response Time
Approx. 0.2 sec.
Adjustable 0-60 seconds
Sensitivity
0.3 pF
Model Number
Differential
Worst case with horizontal sensing
element, 1/64"(.4mm) or less
Recommended Ambient
Electronics Temperature
-40°F to 145°F*
(-40oC to 63oC)
*Unit will operate above 145°F
but with reduced component life.
Temperature Effect
± 0.5 pF/50°F(10oC)
Line Voltage Effect
± 0.2 pF/20V
Sensing Element Connection
3/4" NPT (Optional Flange Mount)
Sensing Element Wetted Parts
316SS & PEEK (2)
Process Pressure & Temperature
200 psi at 250° F
14 BAR at 121° C
Note: Temperature at electronics
must not exceed 145° F.
Approvals
UL/CUL/508 General Purpose
CE 0344
Housing
NEMA 1through 5 & 12
Technology
Z RF Admittance
Reserved for future use
0
Input
0 120Vac
1 24Vdc
3 230Vac
Output
2 Double pole Double Throw Relay
Sensing Element
Application Sensing Element Pressure/Temperature Wetted Parts
05 General
700-0206-201
[email protected]° C
316SS
Purpose
([email protected]° F)
& PEEK
Cote-Shield™ Length
1
6 inch/152mm
A 10 inch/254mm
Note:
B 3.5 inch/88.9mm
Cote-Shield should extend through Nozzle +
C
2 inch/51mm
Typical "Wall Buildup" + 2 Inches
Insertion Length (IL)
A 6 inch/152mm
B 12 inch/305mm
C 18 inch/457mm
D 36 inch/914mm
E 48 inch/1219mm
F 60 inch/1524mm
H 72 inch/1829mm
Z Other
(1) Private label/OEM optimization available. Contact your Drexelbrook representative or factory for more
detailed information.
(2) PEEK (Polyether-Ether-Ketone) is a special, high-temperature thermoplastic similar to TFE but with
better abrasion resistance.
DREXELBROOK
®
205 Keith Valley Road, Horsham, PA 19044 U.S.A.
Tel: 215-674-1234 Fax: 215 674-2731
Email: [email protected]
Web: www.drexelbrook.com
©AMETEK, Inc. All rights reserved. • Printed in the U.S.A. • ZOX-A • EDO# 09-07-100 • Issue #7
The Do-more H2 series micromodular CPUs are “superchargers” for the
time-tested DL205 hardware. We started with a blank slate and included
many features our customers have been asking for. It’s superfast, has
lots of memory, embedded Ethernet - we know, we’re pretty excited
ourselves!
There are two CPU options:
H2-DM1 $299.00
H2-DM1E $ 399.00
(1) USB port, (1) full-duplex serial port
(1) USB port, (1) full-duplex serial port,
(1) Ethernet port
• Over 1M bytes total memory (includes program, data and documentation)
• Program/monitor/debug over any embedded communication port.
• Supports up to 256 I/O locally and thousands more with optional
Ethernet remote expansion racks.
• Supports inexpensive serial port expansion options for connection
to bar code readers, ASCII devices, printers, etc.
• Four base sizes with built-in power supply support 12/24 VDC,
110/220 VAC and 125VDC (six and nine-slot only) power sources.
• Over 50 option modules are available, from discrete and analog to
high-speed counter and Ethernet modules.
USB port
RS-232
serial port
Ethernet
port
H2-DM1
Note: Do-more CPUs are programmed with the new Do-more Designer
software. DirectSOFT, and ladder programs developed with DirectSOFT,
are not compatible with these CPUs.
Get started fast with a Do-more Starter Kit - you get a prewired, 3-slot
base with your choice of Do-more CPU, 8-point input simulator module,
8-point relay output module, Do-more Designer software on CD, a
hard copy of the user manual, a USB programming cable, and a
coupon for free online training. With the H2-DM1 CPU, the kit is
$536.00; with the H2-DM1E, the kit is $626.00.
Compatible products include:
• C-more and C-more Micro HMI products
• Stride® Ethernet switches
• ZIPLink connector modules - relay, fuse and LED options
• Connectivity to SureServo® and SureStep® motion products
• Variable frequency drives and AC motors
• Discrete and process sensors
H2-DM1E
Watch the Quick Start
Video here:
http://bit.ly/OdXm4Y
Discrete input/output modules
DC Input Modules
D2-08ND3
D2-16ND3-2
D2-32ND3-2
D2-32ND3
$55.00
$91.00
$126.00
$126.00
8 pt. 12-24V sink/source
16 pt. 24V sink/source
32 pt. 5-15V sink/source
32 pt. 24V sink/source
AC input modules
D2-08NA-1
D2-08NA-2
D2-16NA
$77.00
8 pt. 110VAC
$99.00 8 pt. 220VAC
$135.00 16 pt. 110VAC
Volume 14
e38-4
Programmable Controllers
1 - 80 0 - 633 - 0405
Specialty modules
DC output modules
D2-04TD1
D2-08TD1
D2-08TD2
D2-16TD1-2
D2-16TD2-2
F2-16TD1P
F2-16TD2P
D2-32TD1
D2-32TD2
$68.00 4 pt. 12-24V sink, 4A/pt
$58.00 8 pt. 12-24V sink
$58.00 8 pt. 12-24V source
$99.00 16 pt. 12-24V sink
$99.00 16 pt. 12-24V source
$119.00 16 pt. 12-24 VDC sink
$99.00 16 pt. 12-24 VDC source
$129.00 32 pt. 12-24V sink
$129.00 32 pt. 12-24V source
AC output modules
16-point module with
removable terminal block
D2-08TA
F2-08TA
D2-12TA
$110.00 8 pt. 18-220VAC
$120.00 8 pt. 20-125VAC, high current
$135.00 12 pt. 18-110VAC
D2-04TRS
D2-08TR
F2-08TR
D2-12TR
$69.00 4 pt. 4A/pt. 8A/module
$69.00 8 pt. 1A/pt. 4A/module
$77.00 8 pt. form A,
10A/common
$100.00 8 pt. (5 form A,
3 form C, 7A/pt)
$110.00 12 pt. form A, 1.5A/pt
D2-08CDR
$66.00 4 pt. DC in, 4 pt. relay out
Relay output modules
F2-08TRS
Combination
Analog input modules
Input Simulator
F2-08SIM $59.00 8 pt Input Simiulator
Ethernet
H2-ECOM100 $301.00 Master/Slave Ethernet 10/100 Mbps
Serial
H2-SERIO $176.00 Three RS-232 ports
H2-SERIO-4 $176.00 Two RS-232 ports &
one RS-422/485 port
High Speed Counting & Motion Control
H2-CTRIO $291.00 Four 100 kHz inputs,
and two 25 kHz pulse train outputs
H2-CTRIO2 $299.00 Four 250 kHz inputs, or
two 20-250 kHz pulse train
outputs
Ethernet Remote I/O
H2-ERM
$201.00 Remote I/O 10 Base-T (Master)
H2-EBC100 $301.00 Ethernet Base Controller (Slave)
wow!
new!
Ethernet Remote I/O - Use an Ethernet Remote Master module
(H2-ERM $201.00) in the local Do-more base and add up to 16
additional drops of rack-based I/O (with an H2-EBC100 in the
CPU slot of each), or 16 Terminator I/O drops.
Four base sizes
3-slot base
Analog and
Temperature modules
D2-03B-1 110/220 VAC $132.00
D2-03BDC1-1 12/24 VDC $150.00
Wide range of low cost analog
and thermocouple modules
F2-04AD-1
F2-04AD-2
F2-08AD-1
F2-08AD-2
$201.00
$221.00
$247.00
$266.00
4-ch. 4-20mA
4-ch. 0-5V, 0-10V, -5 to +5V, -10 to +10V
8-ch. 4-20mA
8-ch. 0-5V, 0-10V, -5 to +5V, -10 to +10V
F2-02DA-1
F2-02DA-2
$157.00 2 ch. 4-20mA
$164.00 2 ch. 0-5V,
0-10V, -5 to +5V,
-10 to +10V
$150.00 2 ch. 4-20mA
(12VDC supply)
$156.00 2 ch. 0-5V,
0-10V, -5 to +5V,
-10 to +10V
(uses 12VDC supply)
$221.00 2 ch. 4-20mA, 16-bit isolated
$247.00 2 ch. 0-5V, 0-10V 16-bit isolated
$301.00 8 ch. 4-20mA, sink/source selectable
$271.00 8 ch. 0-5V, 0-10V
4-slot base
D2-04B-1 110/220 VAC $143.00
D2-04BDC1-1 12/24 VDC $171.00
Analog output modules
F2-02DA-1L
F2-02DA-2L
F2-02DAS-1
F2-02DAS-2
F2-08DA-1
F2-08DA-2
Company
Information
6-slot base
D2-06B-1 110/220 VAC $176.00
D2-06BDC1-1 12/24 VDC $194.00
D2-06BDC2-1 125 VDC $184.00
9-slot base
D2-09B-1 110/220 VAC $220.00
D2-09BDC1-1 12/24 VDC $238.00
D2-09BDC2-1 125 VDC $238.00
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Safety
F2-4AD2DA $281.00 4-ch. in/2-ch. out 4-20mA
F2-8AD4DA-1 $352.00 8-ch. in/4-ch. out 4-20mA
F2-8AD4DA-2 $352.00 8-ch. in/4-ch. out 0-5V, 0-10V
Appendix
Temperature
Product
Index
$301.00 4-ch. RTD input 0.1C resolution
$301.00 4-ch. 16-bit thermocouple
Volume 14
w w w. a u to m a t i o n d i re c t . c o m / d o - m o re - p l c s
Programmable
Controllers
Limit
Switches
Combination analog
F2-04RTD
F2-04THM
Systems
Overview
Programmable Controllers
e38-5
Part #
Index
Do-more with Extra Communications Ports
Both Do-more CPUs have one serial port built in...
Need more serial ports?
Then check out the two SERIO modules. Previously only available for our
WinPLC product line, the serial port modules are a great addition to the
Do-more PLC line-up, and allow connection of a wide range of serial
devices, such as barcode scanners, scales, printers, modems, etc.
176
H2-SERIO-4 $
176
H2-SERIO $
Three RS-232 ports
Two RS-232 ports &
One RS-422/485
Add serial ports for less than
$60 per port*!
Name your devices!
“Device abstraction” makes it easy to connect
external devices - give then logical names and
then refer to those names throughout your
program code for ease and clarity.
Custom protocol instruction...
...makes it possible to “talk” to almost any device
by letting you define any non-standard data
exchange (serial or Ethernet)!
* $176 for 3-port serial comm module
Download the free Do-more Designer Software today and
take a look at these great features and so much more
Watch the Video
about this topic:
http://bit.ly/PMdOt3
H2-ECOM100
301
$
Improved to Do-more!
NEW
Now all your serial port setup is done through the
Do-More Designer Software, and if you should need to
replace a serial module, all of its parameters and setup
are stored in the CPU and are automatically loaded
and ready to go when the system powers up.
Need more Ethernet?
The first Ethernet port is a real bargain - it’s built into
the Do-more CPU (H2-DM1E) for just $100 more than
the non-Ethernet version (H2-DM1). But many applications require a second Ethernet port. Add an H2ECOM100 and connect your Do-more to segregated
networks for security or isolation.
Volume 14
e38-6
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more with High-speed I/O
High-speed operations
The CTRIO and CTRIO2 modules are capable of a wide
variety of high-speed input and output operations. Many of
these operations take place on board the module, and are
independent of the scan time of your PLC. With flexible
4-channel input and separate output channel design, these
modules can satisfy high-speed counting, timing, and pulse
catch operations, along with high-speed discrete output or
several profile choices of pulse output operations. Not all
combinations of input functions and output functions are
possible within the resources of the module, but these
examples are typical of the applications for these modules.
291
$
NEW
299
The CTRIO and CTRIO2 modules can be configured for timing
functions based on both count or rate. Using a common configuration of a proximity switch sensing the teeth on a gear, the
module is able to calculate the velocity of the gear based on the
rate at which it receives counts. This value can be scaled within
the module to the engineering units required for the application.
Counting & timing up to 250 kHz:
H2-CTRIO2 $299.00
Four 250 kHz inputs, and two
20-250 kHz pulse train outputs
Counter
Quad Counter
Pulse Catch
Edge Timer
Dual Edge Timer
Outputs Supported:
• Pulse train - used for servo/stepper motor control.
Configurable for CW/CCW or step and direction.
• Discrete outputs - assigned to Counter/Timer input
functions
• Raw output - outputs controlled directly from the CPU
interface program
• Programmable limit switch (H2-CTRIO2 only)
Improved to Do-more!
NEW
Now all your CTRIO and CTRIO2 configuration is done
through the Do-More Designer Software - no more separate
software “workbench”. And if you should need to replace a
high-speed module, all the setup parameters and profiles are
stored in the CPU and are automatically loaded and ready to
go when the system powers up.
Field I/O
Software
C-more &
other HMI
Soft
Starters
Gear
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
H2-CTRIO $291.00
Faster
Programmable
Controllers
Drives
PLC with CTRIO2 module
Counting & timing up to 100 kHz:
Inputs Supported:
•
•
•
•
•
High-speed timing
Systems
Overview
Fast
Four 100 kHz inputs, and two
20-25 kHz pulse train outputs
$
Company
Information
Proximity
Sensors
Sensors
High-speed
edge timing
Limit
Switches
High-speed counting
The CTRIO and CTRIO2 modules can be configured for
counting functions via the use of an encoder input. Up to two
quadrature encoders per CTRIO or CTRIO2 module are
available with connections for external reset, capture and inhibit
signals. In a simple cut-to-length application as shown below,
the encoder provides an input position reference for the material to the module. The module's high-speed outputs are wired
to the cutting device and to the clutch and/or braking device.
When the count from the encoder is equal to a pre-programmed
setpoint within the module, the high-speed outputs are activated
to stop and cut the material to a repeatable fixed length.
Additionally, the clutch/brake signal can be used as an inhibit
signal so counts are not accumulated while the material is being
cut.
High-speed cut-to-length application
PLC with CTRIO2 module
Motor
Interface
CTRIO2
high-speed
output
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Enclosures
Tools
Pneumatics
Encoder
Safety
Cutter assembly
Appendix
Material to be
cut to length
Product
Index
Volume 14
w w w. a u to m at i o n d i re c t . c o m / d o - m o re - p l c s
Current
Sensors
Circuit
Protection
Motor
control
lines
Gearbox, clutch and
brake interface
Encoders
Programmable Controllers
e38-7
Part #
Index
Do-more with Precise Motion Control
Here’s why
There are many applications that require accurate
motion control, whether it’s precision position control or
tight speed regulation. The Do-more PLC, using the
high speed pulse output mode on the H2-CTRIO2
module, offers a superior control solution for closedloop motion control using SureServo servo systems, or
super-low-cost open-loop control with SureStep stepping
systems.
C-more Touch panel
Here’s how
When coupled with our
SureServo or SureStep motion
products, the resulting system is
extremely cost-effective.
A Do-more-based motion
control system is very wellsuited to applications such as:
• cut-to-length
• indexing tables or
conveyors
• and many more...
AutomationDirect Do-more PLC with H2-CTRIO2 modules ($299.00) using pulse output feature
Familiar with H2-CTRIO?
Pulse output from
H2-CTRIO or H2-CTRIO2 module
If you’ve used our H2-CTRIO module in
the past, take a look at the new
H2-CTRIO2.
When coupled with a
Do-more CPU, you get:
• Faster pulse output frequency
(20-250 kHz)
• All configuration and motion profiles are
created in the Do-more Designer Software
and are stored in the CPU.
• The new “Axis Mode” instructions make
the code for your motion application a
cinch
Download the free software today and see
for yourself.
* Note: The Do-more PLC is compatible with the legacy H2-CTRIO module and you will benefit from having
the configuration and profiles created in the Do-more
Designer Software and stored on the CPU. This alone
is a big improvement over the previous functionality.
Volume 14
e38-8
Programmable Controllers
1 - 80 0 - 633 - 0405
Company
Information
Systems
Overview
Rotary indexing liquid fill application
Programmable
Controllers
PLC with CTRIO2 module
Field I/O
Fill spout
CTRIO pulse output signals
Software
C-more &
other HMI
Stepper or
servo drive
Drives
Soft
Starters
Stepper motor
inside housing
Circular turn table
The SureServo family of brushless servo systems from
AUTOMATIONDIRECT is fully digital and offers a rich set of
features at dynamite prices. Choose from eight standard
servo motors that can be used in combination with one of
three standard servo drives.
These servos are designed for flexibility and quick implementation. SureServo drives accept a wide range of
command sources:
• Built-in motion controller with preset
position, velocity or torque
• Select presets with switch inputs
and/or the multi-drop Modbus serial
®
interface
• Position commands with “pulse and
direction”or CW/CCW format
(see section 16 of catalog)
• Encoder follower
• Analog voltage Velocity or Torque
command
• Eight standard systems from 100W to
3kW
• Use with DirectLOGIC PLCs or any other
host control
• Drives feature on-board indexer and
adaptive tuning modes
• Free set-up software
• 2 year warranty
For configuration, tuning and diagnostics, use the drive’s integrated
keypad/display or take advantage of the free SureServo Pro™ PCbased software. Tune the system easily with adaptive auto-tuning
selections or manual mode. Adapt to diverse applications with
configurable I/O,including 8 digital inputs, 5 digital outputs, 2
analog monitors and a scalable encoder output.
®
(see section 16 of catalog)
The SureStep stepping family has four standard motors to handle
a wide range of automation applications such as woodworking,
assembly, and test machines. Our square frame or high torque
style stepping motors are the latest technology, resulting in the best
torque to volume. We have NEMA 17, 23, and 34 mounting
Ease of use out
of the box!
flanges and holding torque ranges from 83 oz-in to 434 oz-in.
A 20-foot extension cable with locking connector is a standard
accessory to interface any of the four stepping motors to the
microstepping drive, and can be easily cut to length if desired.
Volume 14
w w w. a u to m a t i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e38-9
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Safety
Appendix
Product
Index
Part #
Index
Do-more with Remote I/O
Expand your I/O
Your local Do-more base can support 8 slots with as many as
32 I/O points in each. If you need more, you can install an
H2-ERM Remote I/O Master module in your local rack and
connect up to 16 remote I/O drops to expand your system.
Each of those 16 drops can provide hundreds more I/O
points. Need more? Add another H2-ERM, and connect 16
more. The Do-more CPUs can easily support thousands of
I/O points in a single system.
Locate I/O anywhere
DL205 (and DL405) remote I/O bases can each be located up
to 100 meters from the local base (or between Ethernet
switches) using EBC100 slave modules in the CPU slot. And
you have the flexibility of using Terminator rackless field I/O
drops as well.
To configure the ERM Master module and its slaves, use a PC running the ERM Workbench tool
(included with Do-more Designer software). The PC may be removed once the system is configured.
Do-more CPU
H2-ERM
Stride
Ethernet
Switch
Up to 100m
segments
between
switches
H2-EBC100 remote I/O
GS-EDRV100
H4-EBC remote I/O
GS3 AC drive
T1H-EBC100 remote I/O
Volume 14
e38-10
Programmable Controllers
1 - 80 0 - 633 - 0405
Kickstart your experience with the
Do-More Starter Kit
Get started fast!
With USB and
Seial Port
Choose the Do-more starter kit to get going fast.
You get a prewired, 3-slot base with your choice
of Do-more CPU, an 8-point input simulator
module, and an 8-point relay output module.
Company
Information
Systems
Overview
536
$
Only
626
With On-board Only
$
Ethernet
included
Also included are a copy of the Do-more
Designer software on CD, a hard copy of the user
manual, a USB programming cable, and a
coupon for free online training.
Programmable
Controllers
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Free online training!
Motors &
Gearbox
Both kits include a coupon for a 30-day free trial
of online training from Interconnecting
Automation (the official training partner of
AutomationDirect). You’ll get full, unlimited access
to all the training videos free for 30 days.
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Includes everything!
Sensors
This is everything you need to evaluate the
product and see for yourself what a powerful and
easy-to-use controller Do-more can be!
Limit
Switches
Watch the Video
about this topic:
http://bit.ly/PzALlp
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
H2-DM1-START - $536.00
H2-DM1E-START - $626.00
This Do-more H2 series PLC starter kit includes:
This Do-more H2 series PLC starter kit includes:
H2-DM1
CPU with RS-232 and USB ports
F2-08SIM
Input simulator
D2-03B-1
D2-08TR
USB-CBL-AB6
H2-DM-M
DM-PGMSW
H2-DM1E
D2-03B-1
Three-slot base (pre wired)
Output module
D2-08TR
Output module
USB programming cable
Do-more Designer Software
CD-ROM
And the coupon for 30 days of FREE Training
Process
Relays/
Timers
CPU with RS-232, USB and Ethernet Port Built-in
Three-slot base (pre wired)
Do-more User Manual
Pushbuttons/
Lights
F2-08SIM
Input simulator
USB-CBL-AB6
H2-DM-M
DM-PGMSW
Comm.
Terminal
Blocks &
Wiring
Power
USB programming cable
Circuit
Protection
Do-more User Manual
Do-more Designer Software
CD-ROM
Enclosures
Tools
And the coupon for 30 days of FREE Training
Pneumatics
Safety
Appendix
NOTE: No substitution of individual part numbers.
Continue Reading about the Do-more Designer Software...
Volume 14
w w w. a u to m a t i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e38-11
Product
Index
Part #
Index
Do-more Designer:
FREE Software that actually does more
Download the free software today and
check out all these great features!
The Do-more Designer Software is a
free download at www.do-more.com
To test your program, use the built-in
simulator or connect to a Do-more
PLC with your choice of a serial, USB
or Ethernet connection.
Built-in simulator
Watch the Video
about this topic:
http://bit.ly/T3GnRj
The built-in simulator creates a
virtual PLC so you can test your
logic without a PLC present.
Windows application uses the same code as the CPU firmware for the most accurate simulation.
Simulates discrete and analog I/O with access to timers, counters,
control bits, etc.
Simulate PID - Use the Simulator coupled with the Trend View for
outstanding visibility into your PID processes.
Use the pop-up instruction “Palette”
to quickly select an instuction and
insert it into your ladder!
Optimized instruction set
The Do-More instruction set was developed by
listening to our customers’ needs and requests,
with flexibility and ease-of-use as our goals.
Download the free software today and take
a look at these powerful and easy-to-use
instructions.
Watch the Video
about this topic:
http://bit.ly/PCgppY
Local I/O is automatically configured
Connect to your PLC, and visit the I/O Configuration window
for full Auto-Discovery of your modules in the local base.
Powerful,
intuitive math
The Spreadsheet style MATH
instruction allows mixing of data
types* and it accepts formulas and
variables. The MATH instruction also allows nesting
with parentheses to 8 levels, plus:
• Ten ‘Real’ Functions, including Natural Log, Log, e, PI,
Square Root, and conversions.
• All the standard Trig Functions
• Eight Statistical Functions, including Average, Min & Max,
RANDINT and RANDREAL (to generate random
values), Standard Deviation functions and more.
• Thirteen Conditional functions, including six CountIF, six
SumIF, and If/Else expressions with a full complement of
binary operators.
If that’s not enough, how about Absolute Value,
Time, Memory, and Indirect addressing? You even
get access to system-level bits such as $IndexError,
$OutOfRange, $Overflow, etc.
* Note about data types: integer and real types are really all you
need but Do-more does include a few BCD and octal conversion
instructions for legacy data types.
Volume 14
e38-12
Programmable Controllers
1 - 80 0 - 633 - 0405
High-speed I/O and
motion control: simplified
Company
Information
All configuration parameters and profiles are
stored in the CPU module – if a High Speed
Module needs to be replaced, just drop it in and
reboot. (There is no separate CTRIO Workbench
application.)
Systems
Overview
Programmable
Controllers
Dedicated instructions greatly simplify and
improve functionality of the H2-CTRIO and H2CTRIO2 modules.
Field I/O
Software
Native support for the new H2-CTRIO2 take ease
of use and power a step further, with
fill-in-the-blank motion profiles and
high-speed counter configuration.
C-more &
other HMI
Drives
Use the ‘Axis Mode’ instructions for
dynamic positioning, jogging, and
trapezoidal moves.
Soft
Starters
Motors &
Gearbox
Assign a logical name to each axis,
and use that
name throughout
your code!
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Communications are easy to define, troubleshoot
Temperature
Sensors
The PEERLINK instruction makes it very easy to share data over Ethernet between
Do-more CPUs, with transparent data sharing in a designated memory area.
Pushbuttons/
Lights
Do-more supports the H2-SERIO and H2-SERIO-4 modules for easy, cost-effective
addition of serial ports.
Process
Do-more offers more security in communications - Modbus and DirectLOGIC
transactions reference reserved “Guest Memory” (Modbus and DL memory) so
there is no direct access to your I/O image registers from other devices.
Relays/
Timers
Comm.
Do-more lets you name yo ur devices and reference those meaningful names
throughout your program code.
Terminal
Blocks &
Wiring
Power
Add 3 serial ports for
just $176
Circuit
Protection
And Do-More can support
up to 25 serial ports in a
9-slot base!
Enclosures
All Communication instructions
can either:
• Set a flag, OR
• Jump to Stage
“on success” or “on error”. This
can really simplify your code!
Volume 14
w w w. a u to m a t i o n d i re c t . c o m / d o - m o re - p l c s
Programmable Controllers
e38-13
Tools
Pneumatics
Safety
Appendix
Product
Index
Part #
Index
The software story just gets better and better
Insightful monitoring and
troubleshooting tools
View Trend Data in its own view and within
specific ladder instructions like PID, RAMPSOAK, and High/Low Alarm.
Tasks and Programs can be suspended to
isolate code; stages can be enabled or
disabled.
The PID Monitoring window allows precise
tuning of your PID loops.
Use the Data View to monitor program
elements and Program Status Bits for behindthe-scenes visibility into PLC internal operations.
Turn on the Do-more Logger and receive
custom error messages via the network
message viewer (free Do-more
Designer utility that runs on
your PC).
Watch the Video
about this topic:
http://bit.ly/P2QqUw
Flexible memory
management
capabilities
Strong data typing keeps your data
organized and protected. Data structures
automatically put the important details at
your fingertips.
Do-more can be as flexible as you need.
You can allocate all that data memory the
way you want it up to specific maximums
(no more rigid, predefined blocks of
wasted space!).
You can even define your custom memory
addresses and assign a data type of your
choice to improve the readability of your
program.
Volume 14
e38-14
Programmable Controllers
1 - 80 0 - 633 - 0405
Organize your code with outstanding
program management tools
Company
Information
Do-more supports a mix of stage and ladder for a best-of-both-worlds
approach that simplifies your code and makes troubleshooting easier.
Systems
Overview
Code can be broken up into Tasks and Programs:
• Tasks run when called; once, continuously, or at a user defined interval
• Programs run based on events
Programmable
Controllers
Tasks and Programs can be suspended to isolate code; stages can be
enabled or disabled.
Field I/O
Software
Get flexible, powerful control over your program code execution:
• Assign tasks or programs a fixed timeslice
• Define “yield points” for logical pauses
• Define priorities and order of execution
Project management
All project files are stored onboard the CPU - no
more searching for the old laptop with the most
recent copy of the program before you can fix
your machine!
C-more &
other HMI
Drives
Soft
Starters
Watch the Video
about this topic:
http://bit.ly/PCgAl9
Motors &
Gearbox
Steppers/
Servos
You can also store your own files with the diskbased version of the project to aid future improvement or troubleshooting efforts. Store PDF, HTML or
virtually any file format (up to 10Mb) that you want
to keep with the project for
reference, or information
to assist your coworkers or
customers whenever they
open the project.
The Project Browser
makes it easy to select the
code block you want to
view or edit. System tasks
are predefined for many
common actions. Jump
directly to any part of your
code with just a few clicks.
The Do-more Designer
software even supports
“restore points”, which
are basically previous
versions of your program
that you saved at known
good operation. It’s nice
to know that you can
easily “roll back” your
project if your development goes awry.
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Security for your code and your organization
Do-More Designer offers versatile password protection. Define multiple
users, assigning combinations of privileges from the available options. Use
code block password protection to allow customers to see enough of the
program to allow basic troubleshooting, while keeping your proprietary
code blocks hidden and secure.
External devices are relegated to “guest memory” areas; your program code
controls all access to actual I/O points. There are separate reserved areas
for Modbus and DL memory (DL memory is used for remote I/O racks).
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
‘Bumpless’ Run-time Edits
Circuit
Protection
Do-more Designer can download a new version
of your code into the Do-more CPU and seamlessly switch to it at the beginning of the next
scan. There is no need for any pause (however
brief) that can wreak havoc on the operation of
your machine or process.
Enclosures
Tools
Pneumatics
Safety
Appendix
Visit www.do-more.com for more details on
all the hardware a nd software features,
and to view all the videos.
Product
Index
Volume 14
w w w. a u to m a t i o n d i re c t . c o m / d o - m o re - p l c s
Pressure
Sensors
Programmable Controllers
e38-15
Part #
Index
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Do-more H2 Series PLC
Modules
The Do-more H2 Series PLC is the newest
technology available that makes control
applications easier to implement. It uses
proven DirectLOGIC hardware as a platform for a powerful, flexible instruction
set, with a user-friendly programming
environment. The Do-more H2 Series
PLC utilizes most of the modules that are
part of the DL205 PLC family. You simply
install a Do-more H2 Series CPU module
into a DL205 base unit. However, the
specifications of the Do-more H2 Series
PLC are very different from the DL205
PLC. This overview covers the key
features of the Do-more H2 Series PLC.
Programmable
Controllers
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
DL205 PLC base unit and I/O modules
Steppers/
Servos
Do-more H2 CPU Module
Motor
Controls
Proximity
Sensors
Sensors
CPU modules
The Do-more H2 Series PLC offers two
CPU modules available, H2-DM1 and
H2-DM1E, both of which must be
programmed using the Do-more Designer
programming software. You cannot use
the existing DL205 CPU modules (D2230, D2-240, D2-250(-1) and D2-260)
with Do-more Designer.
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
H2-DM1
Relays/
Timers
H2-DM1E
(with Ethernet)
Comm.
Base units
Terminal
Blocks &
Wiring
The Do-more H2 Series PLC supports all
of the base units available for the DL205
PLC.
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-17
Do-more H2 Series PLC Overview
Discrete I/O modules
The Do-more H2 Series PLC supports all
of the discrete I/O modules available for
the DL205 PLC.
Analog I/O modules
The Do-more H2 Series PLC supports all
of the analog I/O modules available for
the DL205 PLC.
Volume 14
e38-18
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Specialty modules
Programmable
Controllers
The Do-more H2 Series PLC supports many of the specialty modules
available for the DL205 PLC. The following modules are supported:
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
H2-ECOM100
H2-SERIO
H2-SERIO-4
H2-ERM
H2-CTRIO
H2-CTRIO2
Motors &
Gearbox
F2-08SIM
Steppers/
Servos
Motor
Controls
Specialty modules NOT supported
Proximity
Sensors
The following modules are NOT supported by the Do-more H2
Series PLC.
Sensors
Limit
Switches
Encoders
Current
Sensors
D2-DCM
D2-RMSM
D2-CTRINT
F2-CP128
D2-EM
D2-CM
Pressure
Sensors
D2-RSSS
Temperature
Sensors
Pushbuttons/
Lights
Process
DV-1000
Relays/
Timers
D2-HPP
Comm.
Terminal
Blocks &
Wiring
Programming Software
Power
The Do-more H2 Series PLC can only be programmed by Do-more
DirectSOFT programming software is not compatible with DoDesigner. (D
more PLCs)
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-19
Do-more H2 Series PLC Overview
Module Compatibility
The following table shows which DL205 components are supported by the H2-DM1 and
H2-DM1E Do-more CPUs.
Module
Base Units
Part Number
Module Compatibility Table
Status
Module
D2-03B-1
F2-04AD-1
D2-04B-1
F2-04AD-2
D2-06B-1
F2-08AD-1
D2-09B-1
F2-08AD-2
D2-03BDC1-1
F2-04RTD
D2-04BDC1-1
F2-04THM
D2-06BDC1-1
Status
F2-02DA-1(L)
Analog I/O
Modules
D2-09BDC1-1
F2-02DA-2(L)
D2-06BDC2-1
F2-02DAS-1
D2-09BDC2-1
F2-02DAS-2
D2-08ND3
F2-08DA-1
D2-16ND3-2
F2-08DA-2
D2-32ND3
F2-4AD2DA
D2-32ND3-2
F2-8AD4DA-1
D2-08NA-1
F2-8AD4DA-2
D2-08NA-2
Local Expansion D2-CM
Modules
D2-EM
D2-16NA
Discrete I/O
Modules
Part Number
No
No
D2-04TD1
H2-ERM
D2-08TD1
H2-ERM-F
D2-08TD2
D2-RMSM
No
D2-16TD1-2
D2-RSSS
No
D2-16TD2-2
H2-ECOM100
F2-16TD1P
H2-ECOM-F
F2-16TD2P
D2-DCM
D2-32TD1
H2-EBC100
Specialty
Modules
D2-32TD2
H2-EBC-F
D2-08TA
H2-SERIO
F2-08TA
H2-SERIO-4
D2-12TA
F2-CP128
D2-04TRS
H2-CTRIO
D2-08TR
H2-CTRIO2
F2-08TR
D2-CTRINT
F2-08TRS
F2-08SIM
Programmer
Operator
Interface
D2-12TR
D2-08CDR
= Supported
No
No
No
D2-HPP
No
DV-1000
No
No = Not Supported
Volume 14
e38-20
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Communications
Programmable
Controllers
The Do-more H2 Series PLC supports many communication protocols. The following table shows which CPU module
communications port or specialty module supports each protocol.
CPU Modules
Protocols
Do-more Designer Programming
H2-DM1 / H2-DM1E
RS-232
USB Port Serial
Port
Yes
Yes
C-more &
other HMI
H2-DM1E
H2-ECOM H2-SERIO
H2-ERM
Ethernet H2-ECOM100 H2-ECOM-F H2-SERIO-4 H2-ERM-F
Port
Yes
Yes
Modbus/RTU Client (Master)
Modbus/RTU Server (Slave)
Yes
Yes
Modbus/TCP Client (Master)
Yes
Yes
Modbus/TCP Server (Slave)
Yes
Yes
DirectLOGIC RX/WX Client (Master)
Yes
Yes
Yes
DirectLOGIC RX/WX Server (Slave)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DirectNET Server (Slave)
Steppers/
Servos
Motor
Controls
Sensors
Limit
Switches
Yes
Encoders
Yes
Yes
Yes
Do-more Time Synchronization
Protocol (Client, Server, Alternate
Client)
Yes
Do-more Logger/UDP
Yes
Yes
Yes
TCP Client Programmatic Control
Yes
TCP Server Programmatic Control
Yes
Pressure
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Yes
UDP ad-hoc Programmatic Control
Current
Sensors
Temperature
Sensors
Yes
Do-more/PEERLINK
Soft
Starters
Proximity
Sensors
HEI Ethernet Remote I/O Master
SMTP (EMail) Client
w/Authentication
Simple Network Time Protocol
(SNTP) Client
Drives
Motors &
Gearbox
Yes
Yes
Serial ad-hoc ASCII/Binary
Programatic Control
Software
Specialty Modules
Yes
K-Sequence Server (Slave)
Field I/O
Power
Circuit
Protection
Enclosures
Blank = Not Supported
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-21
Do-more H2 Series PLC Overview
Do-more Designer (Part No. DM-PGMSW)
Do-more Designer is the full-featured programming software for the
Do-more PLC series. Do-more Designer is a free download from
Automationdirect.com. A CD-ROM version is also available for
purchase.
Start Page
When the software is started, the Start Page is
displayed. This page contains a Launchpad with
Projects, Applications and Links windows. It also
contains shortcuts to important help file topics and
the Do-more Simulator.
Launchpad
Help File
Shortcuts
Main Programming Window
The Main Programming Window is displayed
when a new program is started or an existing
program is opened. It is divided into Menus,
Toolbars, and Windows that work together to
make project development as simple as
possible.
Project
Toolbar
Project
Browser
Ladder
View
Ladder
Palette
Bar
Volume 14
e38-22
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Do-more Designer Features
Programmable
Controllers
Do-more Designer has the following main features:
Field I/O
• Supports the Do-more PLC instruction set
• Project Browser (Window to organize the user project)
• Data View (Interface to monitor PLC data in a list)
• Trend View (Interface to monitor PLC data with trend graphs)
• PID View (Interface to monitor and tune the individual PID control loop)
• PID Overview (Interface to monitor multiple PID control loops)
• Debug View (Interface to debug the ladder programs)
Software
C-more &
other HMI
Drives
Soft
Starters
When Do-more Designer is installed on your PC, the following tools are also installed:
Motors &
Gearbox
• Do-more Simulator (Offline simulator of ladder program execution and PID control)
• Do-more Logger (Software tool to log PLC data)
• ERM Workbench (Configuration tool for the ERM modules)
• NetEdit 3 (Configuration tool for the ECOM/EBC Ethernet modules)
Steppers/
Servos
Motor
Controls
PC Requirements
Proximity
Sensors
The Do-more Designer Windows-based programming software works with Windows®
XP (Home or Professional, 32-bit), Vista (Home, Basic, Premium, 32 or 64-bit) or
Windows 7 (Home, Professional, Ultimate, 32 or 64-bit). Please check the following
requirements when choosing your PC configuration:
Sensors
Limit
Switches
Encoders
• Minimum PC to PLC Connectivity, at least one of the following:
- USB Port: connects to the CPU with USB-A connector (USB-A to USB-B cable)
- RS-232 Serial Port: connects to the CPU with RJ-12 connector (RJ-12 to DB9 or RJ-12 to USB-B
serial converter cable)
- Ethernet Port: connects to the CPU (H2-DM1E) with RJ-45 10Base-T or 100Base-T (Cat5 Patch
Cable)
• Hard Disk: 100MB free disk space
• Video Display: 1024x768, 256 colors resolution (1280x720, true color recommended)
• Windows XP, 32-bit:
- 800MHz, single core CPU (2GHz, multi-core or hyperthreaded recommended)
- 512MB RAM (2GB recommended)
• Vista or Windows 7, 32 or 64-bit:
- 1GHz, single core CPU (2GHz, multi-core recommended)
- 1GB RAM (3GB recommended)
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Programming Cables
Terminal
Blocks &
Wiring
The Do-more H2 Series CPU module H2-DM1 has two communication ports (USB
and RS-232 serial) and the H2-DM1E has three communication ports (USB, RS-232
serial and Ethernet). You can use any of those ports for programming and monitoring.
Needed cables for these ports are listed below and can be purchased at
Automationdirect.com.
Power
Circuit
Protection
USB Cables (USB 2.0, Type A-B connectors) available:
Enclosures
• USB-CBL-AB3 (3 ft.)
• USB-CBL-AB6 (6 ft.)
• USB-CBL-AB10 (10 ft.)
• USB-CBL-AB15 (15 ft.)
Tools
Pneumatics
Appendix
RS232 Serial Cable
Product
Index
• D2-DSCBL (12 ft. 9-pin D-sub to RJ12 connector)
Ethernet Cables (Cat5e)
Part #
Index
Automationdirect.com sells many Ethernet patch cables in various colors and lengths. Please
check the Cables section in this catalog for further details.
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-23
Do-more H2 Series PLC Overview
Do-more PLC Instruction Set
This Instruction Set was developed specifically
for the new Do-more PLC; the ‘Instruction
Palette’ displays all available instructions.
You may see some similarities to the
DirectLOGIC PLC instruction set. However, the
instruction set for the Do-more PLC is more
advanced and intuitive. A good example is the
MATH instruction. Now, just one MATH
instruction covers all math operations and
also allows you to mix different data types in
one expression.
There are over 60 operators and functions
available with the MATH instruction.
Note: To learn more about the MATH instruction, please refer to the Do-more Designer
help topic ‘MATH – Math Expression’.
Operators
+, -, *, /, %, **, <, <=, ==, !=, >=, >, &&, ||, &, |, ^, <<, >>, >>>, -, ~, !
Func"ons
ABS, ACOS, ASIN, ATAN, AVGR, COS, COUNTIFEQ, COUNTIFNE,
COUNTIFGE, COUNTIFGT, COUNTIFLE, COUNTIFLT, DEG, E, FRAC, IF,
LN, LOG, MAXR, MAX, MINR, MIN, NOW, PI, RAD, RANDINT, RANDREAL,
REF, ROUND, SIN, SQRT, STDEVR, STDEVPR, SUMIFEQ, SUMIFNE,
SUMIFGE, SUMIFGT, SUMIFLE, SUMIFLT, SUMR, TAN, TICKms,
TICKus, TOINT, TOREAL, TRUNC
Volume 14
e38-24
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Data Types
Programmable
Controllers
The Do-more PLC supports the following seven primary data types:
Field I/O
Software
• Bit (0 or 1)
• Unsigned Byte (0 to 255)
• Signed Byte (-128 to 127)
• Unsigned Word (0 to 65,535)
• Signed Word (-32,768 to 32,767)
• Signed DWord (-2,147,483,648 to 2,147,483,647)
• Real (-3.4028235E+038 to 3.4028235E+038)
Note: As you can see, the BCD data type that is popular for the DirectLOGIC PLC is not
included in this list. However, you can use the BCDTO and TOBCD instructions if you
need to use the BCD data type with your application. Those instructions convert the data
between the BCD data type and the integer/real data types.
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Data Structure
Motor
Controls
The Do-more PLC supports data structures as additional data types. Structures use the
familiar PC programming organization of “dot notation”. All available elements of a
structure are shown in this format. The following data structures are currently available:
Proximity
Sensors
Sensors
• Timer Structure
• Counter Structure
• String Structure
• PID Structure
• Date/Time Structure
• Task Structure
• Rampsoak Structure
• Program Structure
• DeviceRef Structure
• Drum Structure
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
The data structure is a set of data. For instance, a Timer structure (Timer Struct) has the
following set of data:
Temperature
Sensors
Pushbuttons/
Lights
• Acc (Accumulated Time, Signed DWord)
• Done (Bit)
• Zero (Bit)
• Timing (Bit)
• Reset (Bit)
Process
Relays/
Timers
When you use a timer instruction (TMR), a Timer structure is assigned to the instruction.
If you select ‘T0’, you can access the above data with dot notation. For instance, to
access the accumulated time (Acc), enter ‘T0.Acc’. To access the Done bit, enter
‘T0.Done’.
Comm.
Terminal
Blocks &
Wiring
Memory Addressing
Power
With the Do-more PLC, each memory address type has its own specific data type. Here
are some examples:
Circuit
Protection
Enclosures
• V (Unsigned Word)
• N (Signed Word)
• D (Signed DWord)
• R (Real)
Tools
Pneumatics
Appendix
If you see address ‘V123’ in the ladder program, the memory address always stores an
Unsigned Word value. With this memory addressing method, it becomes easier to read
and write the ladder programs.
Although most of the memory addressing is decimal, the memory addresses DLX, DLY,
DLC and DLV use octal. These four memory addresses can be used to exchange data
with DirectLOGIC PLCs, which use octal memory addressing.
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
Product
Index
Part #
Index
Volume 14
e38-25
Do-more H2 Series PLC Overview
Array Addressing
The Do-more PLC supports array addressing with all memory addresses. V-memory
address must be used as the index for an array. With the Do-more PLC, the following
ladder program is valid.
Note: In this example, V0, V100, V101, V102 and V200 are indices.
Code-block, Program and Task
One Do-more project can consist of more than one ladder program. Each ladder
program is called a ‘Code-block’. The Do-more PLC supports two types of code-blocks,
Program and Task. Here are their definitions.
Program
Programs are code-blocks that run based on an event using the RUN instruction. They
can be self-terminating or never terminate. Stage programming is only supported inside
Program code-blocks.
Task
Tasks are code-blocks that are enabled and disabled using the ENTASK instruction. The
ENTASK instruction allows you to specify an interval to execute the task’s logic with a
millisecond resolution or to execute a single time on a leading edge input.
Stages
The Do-more PLC supports Stages. You can use Stages only in the Program code-blocks.
(They are not available in the Task code-blocks.) The Do-more PLC supports the following
instructions for Stage Programming1:
• SG (SG)
• JMP (Jump To Stage)2
• JMPI (Index Jump)
• SGSET (Enable Stage)
• SGRST (Disable Stage)
• SGRSTR (Disable Range of Stages)
• SGCONVRG (Converge Multiple Stages to SG)
• SGDIVRG (Jump to Multiple Stages)
1 There
is no ISG (Initial Stage) instruction for the Do-more PLC; the first stage in the
Program code-block becomes the initial stage automatically.
2 Many
asynchronous instructions can directly initiate a Jump to Stage.
Volume 14
e38-26
Programmable Controllers
1 - 80 0 - 633 - 0405
Do-more H2 Series PLC Overview
Company
Information
Systems
Overview
Comparison with the DL205 PLC
Programmable
Controllers
The following spec table shows the major differences between the
Do-more H2 Series PLC and the DL205 PLC.
Field I/O
Software
C-more &
other HMI
Do-more H2 Series PLC
DL205 PLC
Do-more PLC instruction set
DirectLOGIC PLC instruction set
262.1K
30.4K
Soft
Starters
BCD, HEX and Real
Motors &
Gearbox
Octal
Steppers/
Servos
Yes
No
Motor
Controls
Bit of Memory
Available for all memory addresses (e.g. V100.2,
D200.3)
Yes, D2-250(-1) and D2-260 only
Array Addressing
Available for all memory addresses (e.g. X[V100], Available only for V-memory addresses (e.g. P2000)
D[V200])
Math Calculation
No accumulator, the MATH instruction can support a Using accumulator or using the MATHBCD, MATHmix of different data types.
BIN or MATHR instruction for each data type.
Instruction Set
Total Memory Bytes
Default Data Type
Memory Addressing
Decimal and Real
(Data can be referred in different data types with the
‘Casting’ feature.)
Decimal mainly
(There are some octal memory addresses to
exchange data with DirectLOGIC PLCs easily.)
User-defined Memory Addresses
Number of Code Blocks
Looping
1 system program
6 system tasks
Up to 256 user programs
Up to 256 user tasks
FOR-NEXT, WHILE-WEND,
REPEAT-UNTIL
Subroutines
Drives
Proximity
Sensors
Sensors
Limit
Switches
Encoders
1
Current
Sensors
FOR-NEXT
Pressure
Sensors
No (Use Code-blocks)
Yes
Stored in the CPU module
No (Stored on PC only)
Temperature
Sensors
Multiple passwords
Single password
Bumpless
Ladder program execution is paused during the
ladder program transfer in RUN mode.
Pushbuttons/
Lights
The X, WX and WY addresses are assigned to
analog I/O channels automatically. (Manual
addressing is available also.)
Configured by ladder program
Local Base Expansion
No
Yes (with D2-EM and D2-CM)
Number of PID Loops
Over 2000
4 (D2-250-1), 16 (D2-260)
Included
Optional
CPU module firmware can be updated from
Do-more Designer.
Use firmware update tool
Yes, Full duplex
Yes, Half duplex
Yes
No
Yes (H2-DM1E)
No
Do-more Designer
DirectSOFT
User Document (Nicknames, Rung
Comments…) Storing
Password Protection
Run-time Editing
Analog I/O Configuration
Memory Back-up Battery
Firmware Update
Built-in RS-232 Port
Built-in USB Port
Built-in Ethernet Port
Programming Software
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-27
Do-more H2 Series PLC System
Specifications
General Specifications
General Specifications
Operating Temperature
32°F to 131°F (0°C to 55°C)
Storage Temperature
–4°F to 158°F (–20°C to 70°C)
Ambient Humidity
30% to 95% relative humidity (non–condensing)
Environmental Air
No corrosive gases
Vibration
MIL STD 810C, Method 514.2
IEC60068-2-6
JIS C60068-2-6 (Sine wave vibration test)
Shock
MIL STD 810C, Method 516.2
IEC60068-2-27
JIS C60068-2-27
Noise Immunity
NEMA ICS3-304
Agency Approvals
UL508 (File No. E157382, E316037)
CE (EN61131-2)
Volume 14
e38-28
Programmable Controllers
1 - 80 0 - 633 - 0405
CPU Modules
Specifications
Company
Information
Systems
Overview
Programmable
Controllers
Feature
Total Memory (bytes)
Ladder Memory (instruction words)
V-Memory (words)
Non-volatile V Memory (words)
D-memory (DWORDs)
Non-volatile D Memory (DWORDs)
R-memory (REAL DWORDs)
Non-volatile R Memory (REAL DWORDs)
Boolean execution/K
Stage Programming
Number of Stages
Handheld Programmer
Programming Software for Windows
Built-In communications ports
Program Memory
H2-DM1
<--->
Total I/O points available
Local I/O points available
Ethernet Remote I/O Discrete points
Ethernet Remote I/O Analog I/O Channels
Max Number of Ethernet slaves per Channel
I/O points per Remote Channel
Discrete I/O Module Point Density
Slots per Base
Number of instructions available
Control relays
Special relays (system defined)
Special registers (system defined)
Timers
Counters
System Date/Time structures
User Date/Time structures
ASCII String/Byte buffer structures
Modbus Client memory
H2-DM1E <--->
DL Classic Client memory
Immediate I/O
Interrupt input (hardware / timed)
Subroutines
Drum Timers
Table Instructions
Loops
Math
ASCII
PID Loop Control, Built In
Time of Day Clock/Calendar
Run Time Edits
Supports True Force
Internal Diagnostics
Password security
System error log
User error log
Battery backup
H2-DM1E
H2-DM1
262,144 bytes
65,536 instruction words
Configurable up to 65536 (4096 default)
Configurable up to 65536 (4096 default)
Configurable up to 65536 (4096 default)
Configurable up to 65536 (4096 default)
Configurable up to 65536 (4096 default)
Configurable up to 65536 (4096 default)
50 uSec
Yes
128 per Program code-block; number of code-blocks configurable to memory limit
No
FREE Do-more Designer
USB, RS-232,
USB, RS-232
Ethernet (10/100 Base-T)
Flash ROM
X, Y, each configurable up to 65536 (2048 default); WX, WY (analog in/out) each
configurable up to 65536 (256 default)
256
131,072
32,768
3/4/6/9
>170
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Current
Sensors
Pressure
Sensors
Configurable up to 65536 (2048 default)
1024
512
Configurable up to 65536 (256 default)
Configurable up to 65536 (256 default)
8
Configurable up to 65536 (32 default)
Temperature
Sensors
Pushbuttons/
Lights
Configurable up to memory limit (192 default)
Yes, configurable up to memory limit, default 1024 input bits, 1024 coil bits, 2048
input registers, 2048 holding registers
Up to memory limit, default 512 X, 512 Y, 512 C, 2048 V
No
No
Program and Task code-blocks, up to memory limit
Yes, up to memory limit
Yes
FOR/NEXT, WHILE/WEND, REPEAT/UNTIL loops
>60 operators and functions: Integer, Floating Point, Trigonometric, Statistical,
Logical, Bitwise, Timing
Yes, IN/OUT, Serial, Ethernet TCP and UDP; 11 output script commands
Yes, configurable to memory limit (over 2,000)
Yes
Yes
Yes
Yes
Multi-user, credentialed, session-based security
Yes
Yes
Yes (Battery included)
Programmable Controllers
C-more &
other HMI
Encoders
4/8/12/16/32
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Software
Limit
Switches
16
32,768
>160
Field I/O
e38-29
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
CPU Modules
H2-DM1
H2-DM1E
LED Status Indicators
PWR
RUN
ROM
USB
TX
ERR
RX
Indicator
PWR
H2
H2-DM1
RUN
H2-DM1TERM
RUN
ETH
USB
PGM
PWR
PORT
RUN
ROM
ERR
RS-232
PWR
H2SERIAL E
H2-DM1E
RUN
ROM
ERR
STOP
ETH
USB
TX
RX
H2-DM1E
TERM
USB
ETH
E
Volume 14
e38-30
TERM
STOP
1 T
USB
0 H
PGM
/ E
Programmable
Controllers
1 R
PORT
0 N
0 E
Base Power ON
Low Battery
Green
CPU is in RUN Mode
Yellow
Forces are Active
Yellow
CPU is updating Non-volatile Memory
Red
CPU Fatal Error
Green
Ethernet Link Good
Yellow
Ethernet Activity
Green
USB Receive Activity
Yellow
USB Transmit Activity
Green
RS-232 Transmit Activity
Green
RS-232 Receive Activity
Mode Switch Functions
Mode Switch Position
CPU Action
PORT
RUN
TX
RX
Green
Yellow
USB
TX
STOP
RX
PLC Mode
USB Switch
H2-DM1E
PGM
RUN
RS-232
SERIAL
ROM
ERR
LED Indicators
Status
Description
RUN (Run Program)
CPU is forced into RUN Mode if no errors are encountered.
TERM (Terminal)
RUN, PROGRAM and DEBUG modes are available. In this
mode, the mode of operation can be changed through the
Programming Software.
STOP (Stop Program)
CPU is forced into STOP Mode.
1 - 80 0 - 633 - 0405
CPU Modules
Company
Information
Systems
Overview
Communication Ports
Programmable
Controllers
Field I/O
USB Port
Software
Used exclusively for programming and monitoring via a PC running
Do-more Designer.
C-more &
other HMI
Drives
USB Port Specifications
Description
Cables
(ADC part #)
Soft
Starters
Standard USB 2.0 Slave input for programming and online
monitoring, with built-in surge protection. Not compatible
with older full speed USB devices.
Motors &
Gearbox
USB Type A to USB Type B:
USB-CBL-AB3 (3 ft.)
USB-CBL-AB6 (6 ft.)
Steppers/
Servos
USB-CBL-AB15 (15 ft.)
Motor
Controls
USB-CBL-AB10 (10 ft.)
Pin
1
2
3
4
RS-232 Port
RJ-12 style connector used for:
• Connection to a PC running Do-more
Designer
• Modbus RTU Master connections
• Modbus RTU Slave connections
• ASCII Incoming and Outgoing
communications
• Custom Protocol Incoming and Outgoing
communications
Proximity
Sensors
Description
5V
Bus Voltage Sense
D-
Data -
D+
Data +
0V
Ground
Sensors
Limit
Switches
Encoders
Current
Sensors
RS-232 Port Specifications
Description
Baud Rates
+5V Cable Power
Source
Maximum Output
Load (TXD/RTS)
Minimum Output
Voltage Swing
Output Short Circuit
Protection
Cable Options
(ADC part #)
Non-isolated, full duplex RS-232 DTE port used for programming, online
monitoring or can connect the CPU as a Modbus RTU or ASCII master or
slave to a peripheral device. Includes ESD and built-in surge protection.
1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200
220 mA maximum at 5V, +/- 5%. Reverse polarity and overload protected.
3 K⍀, 1,000 pf
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
+/-5V
Relays/
Timers
+/-15 mA
Comm.
D2-DSCBL
FA-CABKIT
Terminal
Blocks &
Wiring
FA-ISOCON for converting RS-232 to isolated RS-422/485
Power
Pin
1
2
3
4
5
6
Circuit
Protection
Description
0V
Power (-) connection (GND)
5V
Power (+) connection (220 mA max.)
RXD
Receive Data (RS-232)
Enclosures
Tools
TXD
Transmit Data (RS-232)
RTS
Request to Send (RS-232)
CTS
Clear to Send (RS-232)
Pneumatics
Appendix
For a list of protocols supported by each port, please refer to the Communications topic of the Do-more H2 Series PLC Overview
in this section.
Volume 14
w w w. a u to m a t i o n d i re c t . c o m
Programmable Controllers
e38-31
Product
Index
Part #
Index
CPU Modules
Ethernet Port
RJ-45 style connector used for:
• Connection to a PC running Do-more
Designer
• Modbus TCP Client connections (Modbus
requests sent from the CPU)
• Modbus TCP Server connections (Modbus
requests received by the CPU)
Ethernet Port Specifications
Description
Transfer Rate
Cables
Standard transformer isolated Ethernet port with built-in surge
protection for programming, online monitoring and
Modbus/TCP client/server connections (fixed IP or DHCP).
10/100 Mbps
Use a Patch (straight through) cable when a switch or hub is
used.
Use a Crossover cable when a switch or hub is not used.
For a list of protocols supported by each port, please refer to the Communications topic of the Do-more H2 Series PLC Overview
in this section.
Battery Specifications
A battery is included with the Do-more
CPU and is used to retain the Time and
Date along with any Tagname values that
are set up as retentive. It is recommended
that the battery be replaced once every
five years or when one year of cumulative
OFF time has been exceeded.
H2-DM1 and H2-DM1E
Battery Replacement
Part # D0-MC-BAT.
Up to two hours is allowed to change out
a battery without loss of data.
Battery
D0-MC-BAT
Coin type, 3.0V Lithium
battery, number CR2032
Volume 14
e38-32
Programmable Controllers
1 - 80 0 - 633 - 0405
Base Units
Company
Information
Systems
Overview
Programmable
Controllers
To use the Do-more H2 Series PLC, you must have at least one base unit. A base unit
has an internal power supply that converts the input power (110-220VAC, 24VDC or
125VDC) to 5VDC in order to activate the modules installed in the base unit. For the
Do-more H2 Series PLC, 10 types of base units are available.
Field I/O
Software
Base Unit Part Numbers
Number of Module Slots
C-more &
other HMI
Input Power Type
110-220 VAC
24 VDC
125 VDC
D2-03B-1
D2-03BDC1-1
-
D2-04B-1
D2-04BDC1-1
-
D2-06B-1
D2-06BDC1-1
D2-06BDC2-1
D2-09B-1
D2-09BDC1-1
D2-09BDC2-1
3 slot
4 slot
6 slot
9 slot
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
In the base unit, the far left slot is called the ‘CPU Slot’. It is used for a CPU or base
controller. Optional modules (discrete I/O modules, analog I/O modules, and specialty
modules) can be installed in the other slots. For instance, if you pick a base unit with nine
slots, you can install up to eight optional modules.
Motor
Controls
Proximity
Sensors
Module Slots are numbered from left to right starting with zero. The slot to the right of
the CPU slot is Slot 0, the slot to the right of it is Slot 1 and so on. The following is an
example with the nine slot base unit D2-09B-1.
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
The following is a detailed specification table for the base units.
Terminal
Blocks &
Wiring
Power Supply Specifications
Specification
Part Numbers
AC Powered Bases
D2-03B-1, D2-04B-1,
D2-06B-1, D2-09B-1
24 VDC Powered Bases
D2-03BDC1-1, D2-04BDC1-1,
D2-06BDC1-1, D2-09BDC1-1
Power
125 VDC Powered Bases
Circuit
Protection
D2-06BDC2-1,
D2-09BDC2-1
Enclosures
Voltage Withstand (dielectric) 1 minute @ 1,500 VAC between primary, secondary, field ground, and run relay
Insulation Resistance
> 10 M at 500 VDC
Input Voltage Range
85-132 VAC (110 range)
170-264 VAC ( 220 range)
47-63 Hz
10.2-28.8 VDC (24 VDC)
with less than 10% ripple
Auxiliary 24 VDC Output
300 mA max.
none
300 mA max.
Maximum Inrush Current
30A
10A
20A
Maximum Power
80 VA
25W
30W
Tools
100-264 VDC (125 VDC)
with less than 10% ripple
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u to m a t i o n d i re c t . c o m
Programmable Controllers
e38-33
Base Units
I/O Expansion
When you need to use more than eight optional modules or you need to install base units in isolated locations,
the Do-more H2 Series PLC supports the Ethernet remote I/O System.
H2-ERM
Stride
Ethernet
Switch
(See
the
Communications
Products section for details.)
H2-EBC100 I/O
H4-EBC I/O
T1H-EBC100 I/O
Note for DL205 PLC customers
The Do-more H2 Series PLC does NOT support local expansion I/O with the D2-EM/D2-CM or serial remote
I/O with the D2-RMSM.
Volume 14
e38-34
Programmable Controllers
1 - 80 0 - 633 - 0405
Base Units
Module Placement and
I/O Usage Tables
There are very few I/O module placement
restrictions with the Do-more H2 Series
PLC family. In general, any mix of analog
and discrete module types can be used in
any local or Ethernet remote base.
However, specialty modules can’t be used
in the Ethernet remote base except for the
F2-08SIM. Reference the Module
Placement Restrictions table to the right for
the Do-more H2 Series PLC.
Analog I/O in the Ethernet remote
bases
When using an analog module in an
Ethernet remote base, the analog update
time to the CPU will be asynchronous to
the scan time. Critical analog I/O should
be located in the local base.
I/O point usage
The table to the right indicates the number
of I/O points consumed by each module.
Use this information to ensure you stay
within the maximum I/O count of the I/O
system you have chosen.
Company
Information
Systems
Overview
Programmable
Controllers
Module Placement Restrictions
Module/Unit
Local CPU Base
Ethernet Remote Base
CPUs
Discrete I/O
Analog I/O
CPU slot only
✓
✓
✓
✓
Base Controller
H2-EBC100
✓
✓
✓
✓
✓
✓
✓
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Motor
Controls
✓
Proximity
Sensors
I/O Module Point Usage
DC INPUT
RELAY OUTPUT
D2-08ND3
D2-16ND3-2
D2-32ND3
D2-32ND3-2
8X
16 X
32 X
32 X
D2-04TRS
D2-08TR
F2-08TR
F2-08TRS
D2-12TR
SPECIALTY MODULES
8 Y1
8Y
8Y
8Y
16 Y2
F2-08SIM
H2-CTRIO
H2-CTRIO2
H2-EBC100
H2-ECOM100
H2-ERM
H2-SERIO
H2-SERIO-4
AC INPUT
D2-08NA-1
D2-08NA-2
D2-16NA
8X
8X
16 X
DC OUTPUT
D2-04TD1
D2-08TD1
D2-08TD2
D2-16TD1-2
D2-16TD2-2
F2-16TD1P
F2-16TD2P
D2-32TD1
D2-32TD2
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
8 X/8 Y1
Temperature
Sensors
ANALOG
8 Y1
8Y
8Y
16 Y
16 Y
16 X/16 Y
16 X/16 Y
32 Y
32 Y
AC OUTPUT
D2-08TA
F2-08TA
D2-12TA
Sensors
8X
None
None
None
None
None
None
None
COMBINATION
D2-08CDR
8Y
8Y
16 Y2
F2-04AD-1
F2-04AD-2
F2-08AD-1
F2-08AD-2
F2-02DA-1(L)
F2-02DA-2(L)
F2-4AD2DA
F2-8AD4DA-1
F2-8AD4DA-2
F2-02DAS-1
F2-02DAS-2
F2-08DA-1
F2-08DA-2
F2-04RTD
F2-04THM
Software
C-more &
other HMI
CPU slot only
Specialty Modules
H2-CTRIO
H2-CTRIO2
H2-ECOM100
H2-SERIO
H2-SERIO-4
H2-ERM
F2-08SIM
Field I/O
Pushbuttons/
Lights
8 X/4 WX
8 X/4 WX
8 X/8 WX
8 X/8 WX
2 WY
2 WY
8 X/4 WX/2 WY
8 X/8 WX/7 WY
8 X/8 WX/7 WY
2 WY
2 WY
8 WY
8 WY
8 X/4 WX
8 X/4 WX
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Note 1: 4-pt. modules consume eight points. Only the first four points are used.
Note 2: 12-pt. modules consume 16 points. The first six points are assigned, two are skipped,
and then the next six points are assigned. For example, a D2-12TA installed in slot 0
would use Y0-Y5, and Y8-Y13. Y6-Y7, and Y14-Y15 would be unused.
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u to m a t i o n d i re c t . c o m
Programmable Controllers
e38-35
Base Units
Power Budget
When determining the types and quantity
of I/O modules you will be using, it is
important to remember there is a defined
amount of power available from the base
power supply.
The chart on the next page indicates the
power supplied and used by each
module. The adjacent chart shows an
example of how to calculate the power
used by your particular system. These
charts should make it easy for you to
determine if the devices you have chosen
will operate within the power budget of
your system configuration.
If the I/O you have chosen for a base
exceeds the maximum power available
from the power supply, you may be able
to resolve the problem by using remote
I/O bases.
Base power supply specifications
The table below lists base power supply
specifications, including maximum inrush
current and maximum power consumed
from your power source.
Power budget example
The example on the right shows how to
calculate the power budget for the Domore PLC system. The examples are
constructed around a single 9-slot base
using the devices shown. It is recommended you construct a similar table for
your Do-more PLC system. Follow the
steps to the right to determine your power
budget.
1.Using a chart similar to the one below,
fill in column 2.
2.Using the tables on the next page, enter
the current supplied and used by each
device (columns 3 and 4). Devices
which fall into the "Other" category
(Row D) are devices such as the operator interface and the handheld
programmer, which also have power
requirements, but do not directly plug
into the base.
3.Add the current used by the system
devices (columns 3 and 4) starting with
the CPU slot and put the total in the
row labeled “Maximum Current
Required” (Row E).
Column 1
A
4.Subtract the row labeled “Maximum
Current Required” (Row E), from the
row labeled “Current Supplied” (Row
B). Place the difference in the row
labeled “Remaining Current Available”
(Row F).
5.If “Maximum Current Required” is
greater than “Current Supplied” in
either column 3 or 4, the power budget
will be exceeded. It will be unsafe to
use this configuration, and you will
need to restructure your I/O configuration. Note the auxiliary power supply
does not need to supply all the external
power. If you need more than the
300mA supplied, you can add an
external 24V power supply. This will
help keep you within your power
budget for external power.
Column 2
Column 3
Column 4
Device Type
5VDC (mA)
External Power 24
VDC (mA)
9 slot
2,600
300
H2-DM1E
D2-16ND3-2
D2-16ND3-2
D2-16NA
D2-08NA-1
D2-16TD1-2
D2-08TA
D2-08TA
275
100
100
100
50
200
250
250
0
0
0
0
0
80
0
0
EA1-S3ML
90
0
E Maximum Current Required
1415
80
F Remaining Current Available
2600-1415=1185
300-80=220
B CURRENT SUPPLIED
Base
C CURRENT REQUIRED
CPU SLOT
SLOT 0
SLOT 1
SLOT 2
SLOT 3
SLOT 4
SLOT 5
SLOT 6
SLOT 7
D OTHER
Operator interface
Power Supply Specifications
Specification
Part Numbers
AC Powered Bases
D2-03B-1, D2-04B-1, D2-06B-1, D2-09B-1
24 VDC Powered Bases
D2-03BDC1-1, D2-04BDC1-1,
D2-06BDC1-1, D2-09BDC1-1
125 VDC Powered Bases
D2-06BDC2-1, D2-09BDC2-1
Voltage Withstand (dielectric) 1 minute @ 1,500 VAC between primary, secondary, field ground, and run relay
Insulation Resistance
> 10 M at 500 VDC
Input Voltage Range
85-132 VAC (110 range)
170-264 VAC ( 220 range)
47-63 Hz
10.2-28.8 VDC (24 VDC)
with less than 10% ripple
Auxiliary 24 VDC Output
300 mA max.
none
300 mA max.
Maximum Inrush Current
30A
10A
20A
Maximum Power
80 VA
25W
30W
100-264 VDC (125 VDC)
with less than 10% ripple
Volume 14
e38-36
Programmable Controllers
1 - 80 0 - 633 - 0405
Base Units
Power Requirements
This section shows the amount of power
supplied by each of the base power
supplies and the amount of power
consumed by each module. The Power
Consumed charts list how much
INTERNAL power from each power source
is required for the modules. Use this information when calculating the power
budget for your system.
In addition to the internal power sources,
bases offer a 24 VDC auxiliary power
supply with external power connections.
This auxiliary power supply can power
external devices.
Use ZipLinks to reduce power
requirements
If your application requires a lot of relay
outputs, consider using the ZIPLink AC or
DC relay output modules ZL-RRL16-24-1
or ZL-RRL16-24-2. These modules can
switch high current (10A) loads without
putting a heavy load on your base power
budget. Refer to the Terminal Blocks and
Wiring Solutions section in this catalog for
more information.
This logo is placed next to the I/O
modules that are supported by the ZIPLink
connection systems. See the I/O module
specifications at the end of
this section.
Company
Information
Systems
Overview
Programmable
Controllers
Power Supplied
Device
5V(mA)
24V Auxiliary
Bases
Device
5V(mA)
24V Auxiliary
Bases
D2-03B-1
2600
300
D2-04BDC1-1
2600
None
D2-04B-1
2600
300
D2-06BDC1-1
2600
None
D2-06B-1
2600
300
D2-09BDC1-1
2600
None
D2-09B-1
2600
300
D2-06BDC2-1
2600
300
D2-03BDC1-1
2600
None
D2-09BDC2-1
2600
300
Soft
Starters
Motors &
Gearbox
100
5
Steppers/
Servos
F2-04AD-2
110
5
F2-08AD-1
100
5
24V Auxiliary
H2-DM1
250
0
F2-04AD-1
H2-DM1E
275
0
5V(mA)
Analog Modules
DC Input Modules
D2-08ND3
50
0
F2-08AD-2
100
5
D2-16ND3-2
100
0
F2-02DA-1
40
60 (note 1)
D2-32ND3
25
0
F2-02DA-1L
40
70 @ 12V (note 1)
D2-32ND3-2
25
0
F2-02DA-2
40
60
F2-02DA-2L
40
70 @ 12V
AC Input Modules
D2-08NA-1
50
0
F2-02DAS-1
100
50 / channel
D2-08NA-2
100
0
F2-02DAS-2
100
60 / channel
D2-16NA
100
0
F2-08DA-1
30
50 (note 1)
F2-08DA-2
60
140
F2-4AD2DA
60
80 (note 1)
F2-8AD4DA-1
35
100 (note 1)
F2-8AD4DA-2
35
80 (note 1)
F2-04RTD
90
0
F2-04THM
110
60
DC Output Modules
D2-04TD1
60
20
D2-08TD1
100
0
D2-08TD2
100
0
D2-16TD1-2
200
80
D2-16TD2-2
200
0
F2-16TD1P
70
50
F2-16TD2P
70
50
D2-32TD1
350
0
D2-32TD2
350
0
AC Output Modules
D2-08TA
250
0
F2-08TA
250
0
D2-12TA
350
0
Relay Output Modules
250
0
D2-08TR
250
0
F2-08TR
670
0
F2-08TRS
670
0
D2-12TR
450
0
H2-CTRIO
400
0
H2-CTRIO2
275
0
H2-EBC100
300
0
H2-ECOM100
300
0
H2-ERM
320
0
H2-SERIO
80
0
H2-SERIO-4
80
0
F2-08SIM
50
0
200
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Combination In/Out Module
D2-08CDR
Motor
Controls
Process
Specialty Modules
Note 1: Add an additional 20 mA per output loop.
D2-04TRS
C-more &
other HMI
24V Auxiliary
Device
5V(mA)
CPUs
Software
Drives
Power Consumed
Power Consumed
Device
Field I/O
Product
Index
0
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-37
Discrete I/O Modules
The Do-more H2 Series PLC supports all discrete I/O modules available for the DL205 PLC.
IN
12-24
VDC
0
1
2
3
4
5
6
7
D2-08ND3
IN
24
VDC
0
1
2
B 3
4
5
6
7
A
D2-16ND3-2
20-28VDC
8mA
C
CA
0
C
4
1
0
5
2
4
6
3
1
5
7
NC
2
CB
0
6
4
1
3
5
2
7
6
3
10.2-26.4VDC
4-12mA
7
IN
ACT
24
VDC
D2-16ND3-2
A4
A5
A6
A7
CI
B4
B5
B6
B7
CII
C4
C5
C6
C7
CIII
D4
D5
D6
D7
CIV
110
VAC
IN
0
1
2
3
4
5
6
7
D2-08NA-1
220
V
IN
0
1
2
3
187-238V
10-20mA
50/60Hz
8-132VAC
10-20mA
50/60Hz
C
C
C
C
0
0
4
4
1
1
5
5
2
2
6
6
3
3
D2-32ND3
7
7
D2-32ND3-2
D2-08NA-1
D2-08NA-2
110
VAC
IN
A
B
0
1
2
3
4
5
6
7
D2-16NA
80-132VAC
10-20mA
50/60Hz
CA
NC
Discrete Input Modules
4
5
6
7
D2-08NA-2
5-15VDC
4-14mA
CLASS2
22-26VDC
4-6mA
CLASS2
D2-08ND3
5-15
VDC
ACT
A0
A1
A2
A3
CI
B0
B1
B2
B3
CII
C0
C1
C2
C3
CIII
D0
D1
D2
D3
CIV
A4
A5
A6
A7
CI
B4
B5
B6
B7
CII
C4
C5
C6
C7
CIII
D4
D5
D6
D7
CIV
A0
A1
A2
A3
CI
B0
B1
B2
B3
CII
C0
C1
C2
C3
CIII
D0
D1
D2
D3
CIV
IN
D2-32ND3-2
D2-32ND3
of
Part Number Number
Inputs
8
D2-08ND3
16
D2-16ND3-2
32
D2-32ND3
32
D2-32ND3-2
8
D2-08NA-1
8
D2-08NA-2
16
D2-16NA
Description
Price
Sinking/Sourcing DC Input
<--->
Sinking /Sourcing DC Input
<--->
Sinking /Sourcing DC Input
<--->
Sinking /Sourcing DC Input
<--->
AC input
<--->
AC input
<--->
AC input
<--->
CB
D2-16NA
OUT
12-24
VDC
0
1
2
3
D2-04TD1
12-24
VDC
OUT
0
1
2
3
12-24
VDC
0
1
2
3
4
5
6
7
D2-08TD2
D2-08TD1
12-24
VDC
OUT
A 0
4
5
6
7
1
2
B 3
D2-16TD1-2
10.2-26.4
VDC
0.1A
10.2-26.4VDC
0.2mA-0.3A
10.2-26.4VDC
0.2mA-0.3A
10.2-26.4VDC
50mA-2A
OUT
4
5
6
7
12-24
VDC
OUT
A 0
4
5
6
7
1
2
B 3
C
L
L
L
C
4
L
10.2-26.4
VDC
0.1A
1
2
3
1
NC
5
2
C
6
24V
CB
0
1
6
3
3
0
4
5
2
2
A
CA
0
L
1
1
C
L
L
3
2
7
7
3
B
D2-04TD1
OUT
A
B
0
1
2
3
12-24
VDC
4
5
6
7
F2-16TD2P
10.2-26.4
VDC 0.25A
CLASS2
A
0
1
2
3
24V
0
1
2
3
B
0V
4
5
6
7
0V
4
5
6
7
F2-16TD2P
D2-08TD1
OUT
ACT
12-24
VDC
D2-32TD1
A0
A1
A2
A3
CI
B0
B1
B2
B3
CII
C0
C1
C2
C3
CIII
D0
D1
D2
D3
CIV
OUT
ACT
12-24
VDC
A0
A1
A2
A3
CI
B0
B1
B2
B3
CII
C0
C1
C2
C3
CIII
D0
D1
D2
D3
CIV
12-24VDC
0.1A
CLASS2
A4
A5
A6
A7
VI
B4
B5
B6
B7
VII
C4
C5
C6
C7
VIII
D4
D5
D6
D7
VIV
RELAY
D2-04TRS
5-240VAC
2A 50/60Hz
5-30VDC
C0
L
3
D2-08TA
4
5
6
7
0V
4
5
6
7
F2-16TD1P
18-110
VAC
OUT
A
B
0
1
2
3
4
5
D2-12TA
15-132VAC
10mA-0.3A
50/60Hz
C
CA
C
1
0
L
2
L
4
1
3
5
4
CB
2
5
6
C4-7
3
6
7
7
C1
C3
L
L
RELAY
F2-08TR
12-250VAC
10A 50/60Hz
12-28VDC
10mA-10A
NO1
NO2
4
NO3
NO4
5
D2-08TR
OUT
RELAY
0
1
2
B 3
4
5
A
F2-08TRS
D2-12TR
5-240VAC
1.5A 50/60Hz
5-30VDC
5mA-1.5A
C1
NO1
C2
NO2
C4
NO7
NO6
C6
F2-08TR
4
5
6
7
D2-12TA
12-250VAC
7A 50/60Hz
12-28VDC
10mA-7A
NC6
NO6
7
0
1
2
3
C4-7
5-30VDC
5mA-1A
RELAY
OUT
NO4
NO5
6
D2-08TA
4
5
6
7
CO-3
3
D2-04TRS
0
1
2
3
C
0
2
10mA-2A
OUT
NO0
1
C2
F2-08TA
4
5
6
7
C
2
4
5
6
7
15-264VAC
10mA-0.5A
50/60Hz
C0-3
D2-08TR
NC
1
110-220
VAC
0
1
2
3
0
5-240VAC
1A 50/60Hz
NC
0
OUT
4
5
6
7
20-125VAC
50-60Hz
1.5A
RELAY
OUT
0
1
2
3
L
0
1
2
3
20-125
VAC
F2-08TA
D2-32TD2
0
1
2
3
L
OUT
D2-16TD2-2
0V
12-24VDC
0.1A
CLASS2
D2-32TD1
L
D2-16TD1-2
D2-32TD2
A4
A5
A6
A7
VI
B4
B5
B6
B7
VII
C4
C5
C6
C7
VIII
D4
D5
D6
D7
VIV
OUT
D2-08TD2
NO0
CA
C0
NC0
C3
NO3
C5
CB
NO5
NC7
C7
NO7
F2-08TRS
Discrete Output Modules
4
5
6
7
10.2-26.4
VDC 0.25A
CLASS2
V
0
0
1
2
B 3
F2-16TD1P
C
C
L
0
A
D2-16TD2-2
C
+24V
C
12-24
VDC
OUT
of
Part Number Number
Description
Outputs
4
Sinking Output
D2-04TD1
8
Sinking Output
D2-08TD1
8
Sourcing Output
D2-08TD2
16
Sinking Output
D2-16TD1-2
16
Sourcing Output
D2-16TD2-2
16
Protected Sinking Output
F2-16TD1P
16
Protected Sourcing Output
F2-16TD2P
32
Sinking Output
D2-32TD1
32
Sourcing Output
D2-32TD2
8
AC Output
F2-08TA
8
AC Output
D2-08TA
12
AC Output
D2-12TA
4
Isolated Relay Output
D2-04TRS
8
Relay Output
D2-08TR
8
Relay Output
F2-08TR
8
Isolated Relay Output
F2-08TRS
12
Relay Output
D2-12TR
Price
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
<--->
D2-12TR
IN/
OUT
24VDC/
RELAY
A 0
1
2
3
Discrete Input/Output Modules
0 B
1
2
3
D2-08CDR
20-28VDC
8mA
CA
L
0
L
1
L
2
L
3
0
of
Part Number Number
Channels
1
2
3
D2-08CDR
4/4
Description
Price
Sinking/Sourcing DC Input
with Relay Output
<--->
CB
5-240VAC
1A 50/60Hz
5-30VDC
5mA-1A
D2-08CDR
For more detailed specifications and wiring diagrams,
please refer to the DL205 PLC section in this catalog.
Volume 14
e38-38
Programmable Controllers
1 - 80 0 - 633 - 0405
Discrete I/O Modules
Company
Information
Systems
Overview
Programmable
Controllers
The following table may be helpful for you to select the right modules for your application.
Field I/O
Discrete Input Modules
Software
Number of Input Points per Module
Input Type
Specification
4
8
16
4.5 – 15.6 VDC
DC (Sinking/Sourcing)
Drives
D2-32ND3-2
10.2 – 26.4 VDC
D2-08ND3
D2-08CDR1
20 – 28 VDC
AC
C-more &
other HMI
32
D2-16ND3-2
80 – 132 VAC
D2-08NA-1
170 – 265 VAC
D2-08NA-2
Soft
Starters
D2-32ND3
Motors &
Gearbox
D2-16NA
Steppers/
Servos
Note 1: D2-08CDR is a combo I/O module that has four discrete input and four discrete output points.
Motor
Controls
Proximity
Sensors
Discrete Output Modules
Sensors
Number of Output Points per Module
Output Type
Specification
4
4A @ 10.2 – 26.4 VDC
12
16
Encoders
0.25A @ 10.2 – 26.4 VDC
F2-16TD1P
0.1A @ 10.2 – 26.4 VDC
D2-16TD1-2
0.25A @ 10.2 – 26.4 VDC
F2-16TD2P
0.1A @ 10.2 – 26.4 VDC
D2-16TD2-2
F2-08TA
0.5A @ 15 – 264 VAC
D2-08TA
0.3A @ 15 – 132 VAC
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
D2-12TA
10A @ 12 – 28 VDC / 12 - 250 VAC
F2-08TR
7A @ 12 – 28 VDC / 12 -250 VAC
F2-08TRS
Terminal
Blocks &
Wiring
D2-04TRS
1.5 @ 5 – 30 VDC / 5 -240 VAC
1A @ 5 – 30 VDC / 5 -240 VAC
Temperature
Sensors
D2-32TD2
1.5A @ 24 – 140 VAC
4A @ 5 – 30 VDC / 5 -240 VAC
Pressure
Sensors
D2-08TD2
0.1A @ 12 – 24 VDC
DC/AC (Relay)
Current
Sensors
D2-32TD1
0.3A @ 10.8 – 26.4 VDC
AC (SSR)
Limit
Switches
D2-08TD1
0.1A @ 12 – 24 VDC
DC (Sourcing)
32
D2-04TD1
0.3A @ 10.2 – 26.4 VDC
DC (Sinking)
8
Power
D2-12TR
D2-08CDR1
Circuit
Protection
D2-08TR
Note 1: D2-08CDR is a combo I/O module that has four discrete input and four discrete output points.
Enclosures
Tools
For more detailed specifications and wiring diagrams, please refer to the DL205 PLC section in this catalog.
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-39
Analog I/O Modules
The Do-more H2 Series PLC supports all analog I/O modules available for the DL205 PLC.
IN
ANA
ANALOG
4CH
F2-04AD-1
IN
ANALOG
ANA
4CH
10-30VDC
5mA
0V
CH2–
CH2+
CH3–
CH3+
ANALOG IN
4-20mA
F2-04AD-1
F2-04AD-2
CH3+
CH8+
CH4+
ANALOG IN
0-5.0 -10VDC
- 10VDC
+/-5, +/-10VDC
ANALOG IN
4-20mA
F2-08AD-1
Description
Price
F2-04AD-1
4
Analog Current Input
<--->
F2-04AD-2
4
Analog Voltage Input
<--->
F2-08AD-1
8
Analog Current Input
<--->
F2-08AD-2
8
Analog Voltage Input
<--->
F2-04RTD
4
RTD
<--->
F2-04THM
4
Thermocouple
<--->
CH4–
CH7+
CH8+
ANALOG IN
0-5, 0 -10VDC
- 10VDC
+/-5, +/-10VDC
COM
CH3–
CH6+
CH7+
CH4+
COM
CH5+
CH6+
CH4–
CH4+
Number of
Channels
CH2+
CH4+
CH5+
CH3+
CH4–
CH1+
CH2–
CH3+
CH4+
CH2+
CH3–
Analog Input Modules
Part Number
CH1–
CH2+
CH3+
RTD
TEMP
RTD
INPUT
+24V
CH1+
CH2+
CH2–
IN
F2-04RTD
0V
+24V
CH1+
CH1+
ANA
ANALOG
8CH
10-30VDC
5mA
0V
+24V
CH1–
CH1+
IN
F2-08AD-2
10-30VDC
5mA
0V
+24V
CH1–
ANA
ANALOG
8CH
F2-08AD-1
F2-04AD-2
18-26.4VDC
5mA
IN
F2-04RTD
F2-08AD-2
F2-04RTD
TEMP
VOLT
IN
F2-04THM
THERMOCOUPLE
0-5, -5-+5VDC
mV
CH1 +
CH1
CH2 +
CH2
CH3 +
CH3
CH4 +
CH4
+24V
0v
18-26.4VDC, 60mA
F2-04THM
OUT
ANA
ANALOG
2CH
OUT
ANALOG
ANA
2CH
F2-02DA-1L
F2-02DA-1
10-15VDC
70mA
ANALOG OUT
4-20mA
18-30VDC
60mA
ANALOG OUT
4-20mA
0V
0V
OUT
F2-02DA-2
18-30VDC
60mA
ANALOG OUT
0-5VDC
-5-+5VDC
0V
CH2–
CH2–
NC
NC
NC
NC
F2-02DA-1L
F2-02DA1
F2-02DA-1
F2-02DA-1L
F2-02DAS-1
12-32VDC
ANALOG OUT
4-20mA
CH2–
NC
NC
NC
NC
OUT
NC
N/C
0V2
ANALOG
ANA
2CH
+I2
F2-02DAS-1
F2-02DA-2L
ANALOG
OUT
8 CHANNEL
F2-08DA-1
F2-02DAS-2
0V1
IN
+V1
IN
CH1
-V
CH1
+V
4-O
5-O
8-O
0V
0-10VDC
0-5VDC
+V2
+V3
+V4
6-I
IN/
OUT
+V7
+V8
24V
F2-4AD2DA
18-26.4VDC
80mA
ANALOG
4 IN/2 OUT
4-20mA
0V
+24V
IN
CH1+
IN
CH2+
CH3+
CH4+
OUT-
OUT
CH1+
CH2+
F2-08DA-1
ANALOG
IN/
OUT
F2-08DA-2
18-26.4VDC 80mA
8 INPUTS
0-5/0-10VDC
4 OUTPUTS
0-5/0-10VDC
0V
0V
IN2
IN3
0V
IN6
IN7
24V
OUT1
0V
OUT4
IN1
0V
IN4
IN5
0V
IN8
0V
OUT2
OUT3
<--->
2
Analog Voltage Output
<--->
F2-02DAS-1
2
<--->
F2-02DAS-2
2
Isolated Analog Current
Output
Isolated Analog Voltage
Output
F2-08DA-1
8
Analog Current Output
<--->
F2-08DA-2
8
Analog Voltage Output
<--->
<--->
0V
IN2
IN3
0V
IN6
IN7
F2-8AD4DA-1
* F2-02DA-1L and F2-02DA-2L work with external 12VDC power
instead of external 24VDC power.
24V
OUT1
Part Number
Number of
Channels
Description
Price
F2-4AD2DA
4/2
Analog Current Input/Output
<--->
F2-8AD4DA-1
8/4
Analog Current Input/Output
<--->
F2-8AD4DA-2
8/4
Analog Voltage Input/Output
<--->
0V
OUT4
IN1
0V
IN4
IN5
0V
IN8
F2-4AD2DA
F2-4AD2DA
<--->
Analog Voltage Output
Analog Input/Output Modules
F2-8AD4DA-2
18-26.4VDC 100mA
8 INPUTS
0-20mA
4 OUTPUTS
4-20mA
OUT3
Analog Current Output
2
ANALOG
IN/
OUT
F2-8AD4DA-1
OUT2
2
+V6
8-I
F2-08DA-2
ANALOG
ANA
<--->
+V5
7-I
N/C
F2-02DAS-2
F2-02DAS-2
Analog Current Output
+24V
5-I
7-O
2
F2-02DA-1L*
F2-02DA-2
F2-02DA-2L*
+V1
4-I
6-O
ANALOG
ANA
8CH
0V
3-I
3-O
N/C
OUT
2-I
2-O
N/C
0V2
IN
+V2
IN
CH2
-V
CH2
+V
F2-02DAS-1
18-30VDC
80mA
ANALOG OUT
0-5VDC
0-10VDC
1-I
1-O
F2-02DA-1
F2-08DA-2
18-26.4VDC
80mA
4-20mA
SNK-SRC
21.6-26.4 VDC
60 mA CH
ANALOG OUT
Price
+V2
– I2
F2-02DA-2L
F2-02DA-2
Description
+I1
CH2+
0-10VDC
-10-+10VDC
Number of
Channels
Part Number
+V1
NC
F2-02DA-2
Analog Output Modules
– I1
NC
NC
ANALOG
ANA
2CH
0V1
CH2–
NC
NC
NC
NC
F2-02DA-2L
CH1+
CH2+
CH2+
CH2+
NC
OUT
10-15VDC
70mA
ANALOG OUT
0-5VDC
-5+5VDC
CH1–
CH1+
CH1+
ANALOG
ANA
2CH
+12V
CH1–
CH1–
CH1+
OUT
0V
+24V
+12V
+24V
CH1–
ANALOG
ANA
2CH
F2-8AD4DA-2
For more detailed specifications and wiring diagrams,
please refer to the DL205 PLC section in this catalog.
Volume 14
e38-40
Programmable Controllers
1 - 80 0 - 633 - 0405
Analog I/O Modules
Company
Information
Systems
Overview
Programmable
Controllers
The following table may be helpful for you to select the right modules for your application.
Field I/O
Analog Input Modules
Software
Number of Input Points per Module
Input Type
4
8
F2-8AD4DA-1 (16 bit)
Drives
4 – 20 mA
F2-04AD-1 (12 bit)
F2-4AD2DA (12 bit)
F2-08AD-1 (12 bit)
Soft
Starters
0 – 5V, 0 – 10V, ±5V, ±10V
F2-04AD-2 (12 bit)
F2-08AD-2 (12/13 bit)
0 – 20 mA
Current
Voltage
C-more &
other HMI
Specification
0 – 5V, 0 – 10V
Motors &
Gearbox
F2-8AD4DA-2 (16 bit)
0 – 5V, 0 –156.25 mV, ±5V,
±156.25 mV
Steppers/
Servos
F2-04THM (16 bit)
RTD
Pt100, Pt1000, jPt100, CU-10⍀,
CU-50⍀
F2-04RTD (0.1 degree)
Thermocouple
Type J, E, K, R, S, T, B, N, C
F2-04THM (0.1 degree)
Motor
Controls
Proximity
Sensors
Sensors
Analog Output Modules
Limit
Switches
Number of Output Points per Module
Output Type
Current
Voltage
Specification
4 – 20 mA
2
4
8
F2-02DA-1 (12 bit)
F2-02DA-1L1 (12 bit)
F2-02DAS-1 (16 bit)
F2-4AD2DA (12 bit)
F2-8AD4DA-1 (16 bit)
F2-08DA-1 (12 bit)
0 – 5V, 0 – 10V, ±5V, ±10V
F2-02DA-2 (12 bit)
F2-02DA-2L1 (12 bit)
0 – 5V, 0 – 10V
F2-02DAS-2 (16 bit)
Encoders
Current
Sensors
Pressure
Sensors
F2-8AD4DA-2 (15/16 bit)
Temperature
Sensors
F2-08DA-2 (12 bit)
Pushbuttons/
Lights
Note 1: F2-02DA-1L and F2-02DA-2L work with external 12VDC power instead of external 24VDC power.
Process
Relays/
Timers
For more detailed specifications and wiring diagrams, please refer to the DL205 PLC section in this catalog.
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u to m a t i o n d i re c t . c o m
Programmable Controllers
e38-41
Specialty Modules
The Do-more H2 Series PLC supports the following specialty modules.
Ethernet Communication Modules
Part Number
Description
H2-ECOM100
H2-ECOM
100MBit Ethernet Communication Module
10Base-T Ethernet Module
(No longer available)
Serial Communication Modules
Part Number
Description
H2-SERIO
3-port RS-232 Serial I/O Module
H2-SERIO-4
3-port RS-232/RS-485 Serial I/O Module
Ethernet Remote I/O Modules
Part Number
Description
H2-ERM
10Base-T Ethernet Remote Master Module
H2-EBC100
H2-EBC
100MBit Ethernet Base Controller
10Base-T Ethernet Base Controller
(No longer available)
High Speed I/O Modules
Part Number
Description
H2-CTRIO
High Speed Counter Interface Module
H2-CTRIO2
High Speed Counter Interface Module
Input Simulator Module
Part Number
F2-08SIM
Description
8-point Input Simulator
Volume 14
e38-42
Programmable Controllers
1 - 80 0 - 633 - 0405
Specialty Modules
H2-ECOM100 <--->
Company
Information
Systems
Overview
Programmable
Controllers
Modbus TCP communications architecture
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
NetEdit 3 Configuration
Software
H2-ECOM100
Overview
Ethernet Communications Modules offer
features such as:
• High-speed peer-to-peer networking
of PLCs
• Fast updates with Do-more Designer
Software
• High-performance access for Human
Machine Interface (HMI), ERP, MES or
other Windows-based software
• Industry standard Modbus TCP
Client/Server Protocol
Simple connections
Motors &
Gearbox
NetEdit 3 Configuration Software
NetEdit 3 Configuration Software is
included in the free Do-more Designer
software. Use NetEdit 3 to configure the
ECOM modules for your network. Flexible
addressing allows you to use your choice
of protocols and identification methods.
Assign each module a number, a name or
both. You don’t have to use an IP address,
but you can if it’s necessary for your
network. NetEdit 3 uses two protocols for
PC-to-PLC communications: IPX and
TCP/IP. The NetEdit 3 screen displays all
identifiers and troubleshooting information for each module on the network. You
can use NetEdit 3 to adjust parameters for
PLC-to-PLC communications by clicking
on Advanced Settings. The network identifiers can also be changed from Do-more
Designer software.
Use Category 5 UTP cables which can be
run up to 100 meters between nodes. If
needed, use repeaters to extend distances
and expand the number of nodes.
Our HA-TADP (10/100Base-T) PC network
adapter card and Stride Ethernet switches
are compatible with the ECOM modules.
See the Communications Products section
for information on these items.
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
The
H2-ECOM100 supports the
Industry Standard Modbus TCP
Client/Server Protocol
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Message is sent out
of port only
connected to device
Comm.
Terminal
Blocks &
Wiring
Message in
from a device
Power
Circuit
Protection
See the Communications
section for details on
Ethernet Switches
Enclosures
Tools
Specifications
Communications
Data Transfer Rate
Link Distance
Ethernet Port
Ethernet Protocols
Power Consumption
Pneumatics
H2-ECOM100
10/100Base-T Ethernet
Appendix
100 Mbps max.
Product
Index
100 meters (328 ft)
RJ45
TCP/IP, IPX, Modbus TCP,
DHCP, HTML configuration
300 mA @ 5 VDC
Part #
Index
Volume 14
w w w. a u to m a t i o n d i re c t . c o m
Steppers/
Servos
Programmable Controllers
e38-43
Specialty Modules
H2-SERIO
<--->
H2-SERIO-4 <--->
H2-SERIO / H2-SERIO-4 Specifications
H2-SERIO
Serial Communications Module
Approvals
cUL Listed, file number E185989
Number of Serial
Ports per Module
3 ports: all RS-232 (RJ12 jack)
Signals
RS-232: CTS, RXD, TXD RTS, GND
RTS transmision delay times: 5, 50, 250 and
RS-232: CTS, RXD, TXD RTS, GND
500 ms
RTS transmision delay times: 5, 50, 250 and
500 ms
RS-422 (4 wire) : TX+, TX-, RX-, RX+, GND
RS-485 (2 wire): Data+, Data-, GND
H2-SERIO-4
Serial I/O Modules
Add serial ports to your Do-more H2
Series PLC system by simply plugging the
H2-SERIO or H2-SERIO-4 module into
the base.
The H2-SERIO module has three RS-232
ports, while the H2-SERIO-4 module has
two RS-232 ports and one RS-422/485
port.
3 ports: 2 RS-232 ports (RJ12 jack) and 1
RS-422/485 (5 position terminal strip)
RS-232: ZL-RJ12CBL-2
RS-422: ADC L19853-x (Belden 8103)
RS-485: ADC L19954-x (Belden 9842)
Recommended Cables RS-232: ZL-RJ12CBL-2
H2-SERIO
H2-SERIO-4
Module Type
Protocols Supported
Do-more programming, K-sequence slave, MODBUS RTU master/slave, serial ASCII
Power Consumption
80 mA @ 5 VDC
Baud Rates
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity
None, odd, even
1, 2
Start and Stop Bits
Operating
0 to 60°C (32°F to 140°F), 5% to 95% RH (non-condensing); No corrosive gases, Pollution
level 2; Vibration: MIL STD 810C 514.2; Shock: MIL STD 810C 516.2
Environment
Storage Temperature -20 to 70°C (-4°F to 158°F)
H2-SERIO-4 Wiring: RS-422/485
RS422/485
TXD+
TXD(D-) RXD(D+) RXD+
GND
H2-SERIO(-4) Wiring: RS-232
RS-232
H2-SERIO-4 RS-422 Pin
Descriptions
6 pin RJ12 Phone
Type Jack – both ports
6
1
1
2
3
4
5
H2-SERIO(-4) RS-232 Pin
Descriptions
1
2
3
4
5
6
0V
CTS
RXD
TXD
RTS
0V
Power (-) connection (GND)
Clear to Send
Receive data (RS-232)
Transmit data (RS-232)
Request to Send
Signal Ground (GND)
TXD+
Transmit data
TXD(D-) RXDReceive data
(D+) RXD+
GND
Signal Ground (GND)
H2-SERIO-4 RS-485 Pin
Descriptions
1
2
3
4
5
TXD+
N/A
TXD(D-) RXDTransmit/Receive data
(D+) RXD+
GND
Signal Ground (GND)
Volume 14
e38-44
Programmable Controllers
1 - 80 0 - 633 - 0405
Specialty Modules
H2-ERM
<--->
Company
Information
Simple connections
The ERM connects to your control
network using Category 5 UTP cables for
cable runs up to 100 meters. Use
repeaters to extend distances and expand
the number of nodes.
The PLC, ERM and EBC slave modules
work together to update the remote I/O
points. These three scan cycles are occurring at the same time, but asynchronously. Critical I/O points that must be
monitored every scan are best placed in
the CPU base.
Software configuration
ERM Workbench is a software utility that
must be used to configure the ERM and
its remote Ethernet slaves. ERM workbench supports two methods of configuring the ERM I/O network:
• ERM Workbench PLC Wizard greatly
simplifies the configuration procedure
when a PLC is used as the CPU interface.
• ERM Workbench configures the I/O
network whether the CPU interface is a
PLC or WinPLC, and allows access to all
ERM I/O network parameters.
ERM Workbench Software
Networking ERMs with
other Ethernet devices
Overview
H2-ERM
The Ethernet Remote Master H2-ERM
connects a Do-more H2 Series PLC’s
local CPU base to slave I/O over a highspeed Ethernet link.
It is highly recommended that a dedicated Ethernet remote I/O network be
used for the ERM and its slaves. While
Ethernet networks can handle a large
number of data transactions, and
normally handle them very quickly, heavy
Ethernet traffic can adversely affect the
reliability of the slave I/O and the speed
of the I/O network. Ensure ERM networks,
multiple ERM networks and ECOM/office
networks are isolated from one another.
Specifications
10BaseT Ethernet
Data Transfer Rate
10Mbps
Link Distance
100 meters
(328 ft)
Ethernet Port
RJ45
Ethernet Protocols
Power Consumption
TCP/IP, IPX
320mA @5VDC
w w w. a u to m a t i o n d i re c t . c o m
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Sensors
Limit
Switches
Encoders
Current
Sensors
Stride Ethernet Switch
(see the Communications
Products section for details)
Stride
Ethernet
Switch
Do-more CPU
H2-ERM
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Up to 100m
segments
between
switches
H2-EBC100
remote I/O
Power
Circuit
Protection
Enclosures
H2-ERM
Communications
Field I/O
Proximity
Sensors
PC running ERM Workbench to configure the ERM and
its slaves.The PC may be removed once the system is
configured.
Note: Applications requiring an extremely
large number of T1H-EBC100 analog I/O or
H4-EBC 16-channel analog I/O, could
exceed the buffer capacity of a single
H2-ERM module. In these cases, an
additional H2-ERM may be required.
Programmable
Controllers
Motor
Controls
Need a lot of I/O?
Each ERM module can support up to 16
additional
H2-EBC
systems,
16
Terminator I/O EBC systems, or 16 fully
expanded H4-EBC systems. Of course,
combinations are fine, too. The ERM also
supports Edrives. See the Drives section
for details.
Systems
Overview
Tools
Pneumatics
GS-EDRV100
H4-EBC
remote I/O
GS3 drive
T1H-EBC100
remote I/O
Programmable Controllers
Volume 14
e38-45
Appendix
Product
Index
Part #
Index
Specialty Modules
H2-EBC100
<--->
Specifications
10/100Base-T Ethernet
Serial Port / Protocols
RJ12, K-Sequence, ASCII IN/OUT
Modbus RTU
300 mA
100 Mbps max.
100 meters (328 ft)
RJ45, TCP/IP, IPX, Modbus TCP/IP,
DHCP, HTML configuration
Power Consumption
Do-more H2 Series PLC
H2-EBC100
Use EBCs for
Ethernet remote I/O slaves
The H2-EBC100 Ethernet Base Controller
module provides a low-cost, high-performance Ethernet link for the Do-more H2
Series PLC using the H2-ERM module and
Ethernet remote I/O. The H2-EBC100
supports industry standard 10/100BaseT
Ethernet communications and is compatible with TCP/IP, IPX and Modbus TCP/IP
protocols for flexible PC communications.
Easy to use,
reliable and fast
H2-EBC100
Communications
Data Transfer Rate
Link Distance
Ethernet Port /
Protocols
H2-DM1E
H2-ERM
H2-EBC100
Stride
Ethernet
Switch
Up to 16 Ethernet remote
I/O bases
H2-EBC100
H2-EBC100
NetEdit 3 Configuration Software
The H2-EBC100 module plugs into the
CPU slot of any DL205 I/O base and
supports all DL205 discrete and analog
I/O modules. All EBC modules can be
configured using NetEdit 3, included in
the free Do-more Designer software. The
H2-EBC100 also supports HTML configuration.
Volume 14
e38-46
Programmable Controllers
1 - 80 0 - 633 - 0405
Specialty Modules
H2-CTRIO
H2-CTRIO2
<--->
<--->
Company
Information
Systems
Overview
Specifications
Discrete I/O Points Used
Base Power Required
Isolation
Specifications
H2-CTRIO
Overview
H2-CTRIO2
The H2-CTRIO and H2-CTRIO2
Counter I/O modules are designed to
accept high-speed pulse input signals for
counting or timing applications. These
modules also provide high-speed pulse
output signals for servo/stepper motor
control, monitoring and alarming as well
as other discrete control functions.
The CTRIO(2) module offers greater flexibility for applications which call for
precise counting or timing based on
input events or for high speed control
output applications. It can also be used
for applications that call for a combination of both high-speed input and highspeed output control functions.
The CTRIO(2) module has its own microprocessor and operates asynchronously
with respect to the CPU. Therefore, the
response time of the on-board outputs is
based on the module’s scan time, not the
CPU’s scan time.
Inputs
Maximum Input Frequency
Minimum Pulse Width
Input Voltage Range
Maximum Voltage
Input Voltage Protection
Rated Input Current
Minimum ON Voltage
Maximum OFF Voltage
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Programmable
Controllers
General Specifications
H2-CTRIO
H2-CTRIO2
None (I/O map directly in H2-DM1/E data structure)
400 mA Max
275 mA Max
2500V I/O to Logic, 1000V among Input
Channels and All Outputs
1500V I/O to Logic, 1000V among Input
Channels and All Outputs
Input Specifications
H2-CTRIO
H2-CTRIO2
8 pts sink/source
100 kHz
250 kHz
5 µsec
0.5 µsec
9-30 VDC
9-30 VDC
30 VDC
Zener Clamped at 33 VDC
9.0 VDC
2.0 mA
Less than 3 µsec
Less than 0.5 µsec
Less than 3 µsec
Less than 0.5 µsec
H2-CTRIO2
2 channels, 20 Hz to 25 kHz
Pulse/Direction or CW/CCW
5 µsec
Maximum Load Current
1.0 A
Maximum Leakage Current
Inrush Current
ON State V Drop
Overcurrent Protection
OFF to ON Response
ON to OFF Response
All scaling and configuration is done from
within
the
Edit
CTRIO/CTRIO2
Configuration window of Do-more
Designer. This eliminates the need for PLC
ladder programming or other interface
device programming to configure the
module.
0.5 µsec
5-36 VDC
36 VDC
1.0 A at 23°C
0.5 A at 60°C
100 µA
5.0 A for 20 ms
0.3 VDC or less
2.0 A for 10 ms
0.45 VDC or less
Yes
Edit CTRIO/CTRIO2 Configuration Window
Software Configuration
2 channels, 20 Hz to 250 kHz
Pulse/Direction or CW/CCW
less than 3 µsec
less than 3 µsec
less than 1 µsec
less than 1 µsec
Inputs Supported:
•
•
•
•
•
Counter
Quad Counter
Pulse Catch
Edge Timer
Dual Edge Timer
Motors &
Gearbox
Steppers/
Servos
Limit
Switches
Outputs Supported:
• Pulse train - used for servo/stepper
motor control. Configurable for
CW/CCW or step and direction
• Discrete outputs - assigned to
Counter/Timer input functions
• Raw output - outputs controlled
directly from the CPU interface
program
• Programmable limit switch
Programmable Controllers
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Soft
Starters
Encoders
H2-CTRIO
Minimum Pulse Width
Output Voltage Range
Maximum Output Voltage
Drives
Sensors
5.0 mA
4 pts (sink/source), independently isolated
Pulse Outputs
C-more &
other HMI
Proximity
Sensors
2.0 VDC
Outputs
Software
Motor
Controls
8 mA typical 12 mA maximum
Output Specifications
Specifications
Field I/O
e38-47
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Specialty Modules
F2-08SIM
<--->
F2-08SIM Input Simulator
Inputs per Module
Base Power Required 5VDC
Terminal Type
Status Indicator
Weight
8
50 mA
None
Switch side
2.65 oz. (75 g)
F2-08SIM
Volume 14
e38-48
Programmable Controllers
1 - 80 0 - 633 - 0405
Company
Information
Systems
Overview
Understanding the installation requirements for your Do-more H2 Series PLC
system will help ensure that the components operate within their environmental
and electrical limits.
See
the Enclosures section
for an enclosure that may
be suitable for your
application
2"
50.8mm
minimum
Plan for safety
This catalog should never be used as a
replacement for the user manual. The user
manual, H2-DM-M (sold separately or
downloadable online), contains important
safety information that must be followed.
The system installation should comply with
all appropriate electrical codes and standards.
RUN
STOP
E
1 T
0 H
/ E
1 R
0 N
0 E
T
Steppers/
Servos
Proximity
Sensors
Sensors
Environmental Specification
Limit
Switches
Rating
Encoders
Storage Temperature
-4oF - 158oF (-20oC to 70oC)
Ambient Operating Temperature
32oF - 131oF (0oC to 55oC)
Ambient Humidity
30%-95% relative humidity (non-condensing)
Vibration Resistance
MIL STD 810C, Method 514.2
Shock Resistance
MIL STD 810C, Method 516.2
Noise Immunity
NEMA (ICS3-304)
Atmosphere
No corrosive gases
A
(Base Total Width)
Base
3-slot
4-slot
6-slot
9-slot
Pressure
Sensors
Temperature
Sensors
C
(Component Width)
Inches
Millimeters Inches
Millimeters Inches
Millimeters
6.77”
7.99”
10.43”
14.09”
172mm
203mm
265mm
358mm
163mm
194mm
256mm
349mm
148mm
179mm
241mm
334mm
6.41”
7.63”
10.07”
13.74”
5.8”
7.04”
9.48”
13.14”
A
3.62”
(92mm)
4 or 8pt. I/O
C
2.95”
(75mm)
4 or 8pt. I/O
E
1 T
0 H
/ E
1 R
0 N
0 E
T
3.54”
(90mm)
USB
PGM
PORT
RS-232
SERIAL
E
1 T
0 H
/ E
1 R
0 N
0 E
T
Airflow
3.62”
(92mm)
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
Comm.
Terminal
Blocks &
Wiring
Power
(75mm)
2.95”
Circuit
Protection
Pneumatics
Appendix
Product
Index
TERM
STOP
5.85”
(148mm)
RUN
7.91"
(201mm)
H2-DM1E
TERM
RUN
ZL-D24-CBL40
ZipLink cable
D2-DSCBL-1
Approximate
Dimension
Relays/
Timers
Tools
E
1 T
0 H
/ E
1 R
0 N
0 E
T
B
4.76"
(121mm)
Process
Enclosures
2.99”
(76mm)
STOP
STOP
ZL-D24-CBL40-X
ZipLink cable
TERM
E
1 T
0 H
/ E
1 R
0 N
0 E
T
w
RUN
USB
PGM
PORT
USB
PGM
PORT
H2-DM1E
RS-232
SERIAL
0 N
0 E
T
E
1 T
0 H
/ E
1 R
H2-DM1E
USB
PGM
PORT
RS-232
SERIAL
RUN
RUN
TERM
TERM
STOP
STOP
12 or 16pt. I/O
Current
Sensors
Pushbuttons/
Lights
B
(Mounting Hole)
RS-232
SERIAL
Use the diagrams below to make sure the
Do-more H2 Series PLC system can be
installed in your application. To ensure
proper airflow for cooling purposes,
bases must be mounted horizontally. It is
important to check these dimensions
against the conditions required for your
application. For example, it is recommended that approximately 3" of space is
left in front PLC surface for ease of access
and cable clearances. Also, check the
installation guidelines for recommended
cabinet clearances.
USB
PGM
PORT
C-more &
other HMI
Motor
Controls
Base dimensions
and mounting
RS-232
SERIAL
Software
Motors &
Gearbox
1.2"
30mm
minimum
The Environmental Specifications table at
the right lists specifications that apply
globally to the Do-more H2 Series PLC
system (CPUs, bases, and I/O modules).
Be sure that the system is operated within
these environmental specifications.
H2-DM1E
Field I/O
Soft
Starters
Environmental
specifications
OK
Programmable
Controllers
Drives
2""
2
.8
50.8mm
minimum
mi
TERM
USB
PGM
PORT
RS-232
SERIAL
H2-DM1E
OK
Dimensions and Installation
e38-49
Part #
Index
Wiring Solutions
Wiring Solutions using the ZIPLink Wiring System
ZIPLinks simplify the normally tedious process of wiring between
devices by utilizing prewired cables and DIN rail mount
connector modules. It's as simple as plugging in a cable
connector at either end or terminating wires at only one end.
Prewired cables keep installation clean and efficient, using half
the space at a fraction of the cost of standard terminal blocks.
There are several wiring solutions available when using the
ZIPLink System ranging from PLC I/O-to-Z
ZIPLink Connector
Modules that are ready for field termination, options for
connecting to third party devices, GS, DuraPulse and SureServo
Drives, and specialty relay, transorb and communications
modules. Pre-printed I/O-specific adhesive label strips for quick
marking of ZIPLink modules are provided with ZIPLink cables.
See the following solutions to help determine the best ZIPLink
system for your application.
Solution 1: Do-more H2 Series PLC to ZIPLink
Connector Modules
Using the PLC I/O Modules to ZIPLink Connector
Modules selector tables located in this section,
1. Locate your I/O module/PLC.
2. Select a ZIPLink Module.
3. Select a corresponding ZIPLink Cable.
Solution 2: Do-more H2 Series PLC to 3rd Party
Devices
Using the I/O Modules to 3rd Party Devices selector tables
located in this section,
1. Locate your PLC I/O module.
2. Select a ZIPLink Pigtail Cable that is compatible
with your 3rd party device.
Solution 3: GS Series and DuraPulse Drives
Communication Cables
Using the Drives Communication selector tables located in
this section,
1. Locate your Drive and type of communications.
2. Select a ZIPLink cable and other associated hardware.
When looking for quick and easy I/O-to-field termination, a ZIPLink
connector module used in conjunction with a prewired ZIPLink cable,
consisting of an I/O terminal block at one end and a multi-pin
connector at the other end, is the best solution.
When wanting to connect I/O to another device within close proximity
of the I/O modules, no extra terminal blocks are necessary when using
the ZIPLink Pigtail Cables. ZIPLink Pigtail Cables are prewired to an I/O
terminal block with color-coded pigtail with soldered-tip wires on the
other end.
Need to communicate via Modbus RTU to a drive or a
network of drives?
ZIPLink cables are available in a wide range of
configurations for connecting to PLCs and SureServo,
SureStep, Stellar Soft Starter and AC drives. Add a ZIPLink
communications module to quickly and easily set up a
multi-device network.
Volume 14
e38-50
Programmable Controllers
1 - 80 0 - 633 - 0405
Wiring Solutions
Solution 4: Serial Communications Cables
ZIPLink offers communications cables for use with Do-more H2 Series
CPUs, that can also be used with other communications devices.
Connections include a 6-pin RJ12 or 9-pin, 15-pin and 25-pin D-sub
connectors which can be used in conjunction with the RJ12 or D-Sub
Feedthrough modules.
Company
Information
Systems
Overview
Programmable
Controllers
Using the Serial Communications Cables selector
table located in this section,
1. Locate your connector type
2. Select a cable.
Field I/O
Software
C-more &
other HMI
Drives
Soft
Starters
Motors &
Gearbox
Steppers/
Servos
Solution 5: Specialty ZIPLink Modules
For additional application solutions, ZIPLink modules are available in a
variety of configurations including stand-alone relays, 24VDC and
120VAC transorb modules, D-sub and RJ12 feedthrough modules,
communication port adapter and distribution modules, and SureServo
50-pin I/O interface connection.
Motor
Controls
Using the ZIPLink Specialty Module s selector table
located in this section,
1. Locate the type of application.
2. Select a ZIPLink module.
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Current
Sensors
Pressure
Sensors
Temperature
Sensors
Pushbuttons/
Lights
Process
Solution 6: ZIPLink Connector Modules to 3rd Party
Devices
If you need a way to connect your device to terminal blocks without
all that wiring time, then our pigtail cables with color-coded
soldered-tip wires are a good solution. Used in conjunction with any
compatible ZIPLink Connector Modules, a pigtail cable keeps wiring
clean and easy and reduces troubleshooting time.
Relays/
Timers
Using the Unive rs al Conne ctor Modules and Pigtail
Cables table located in this section,
1. Select module type.
2. Select the number of pins.
3. Select cable.
Comm.
Terminal
Blocks &
Wiring
Power
Circuit
Protection
Enclosures
Tools
Pneumatics
Appendix
Product
Index
Part #
Index
Volume 14
w w w. a u t o m a t i o n d i r e c t . c o m / PA C s
Programmable Controllers
e38-51
Wiring Solutions
Do-more PLC Input Module ZIPLink Selector
ZIPLink
PLC
Input
Module
# of
Terms
D2-08ND3
10
D2-16ND3-2
19
Component
Module
Cable †
Output
Module
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
10
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
D2-04TD1³
D2-08TD1
10
Sensor
ZL-LTB16-24
ZL-D2-CBL19*
D2-08TD2
10
Feedthrough
D2-32ND3¹
ZL-RTB40
40
Sensor
Feedthrough
D2-32ND3-2¹
Do-more PLC Output Module ZIPLink Selector
ZIPLink
PLC
ZL-LTB32-24
ZL-RTB40
40
Sensor
ZL-LTB32-24
ZL-D24-CBL40*
ZL-D24-CBL40*X
D2-16TD1-2
19
ZL-D24-CBL40*
ZL-D24-CBL40*X
ZL-D24-CBL40*
D2-16TD2-2
19
ZL-D24-CBL40*X
ZL-D24-CBL40*
F2-16TD1P
19
ZL-D24-CBL40*X
D2-08NA-1
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
D2-08NA-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
D2-16NA
19
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
F2-16TD2P
D2-32TD1¹
19
# of
Terms
Component
Module
Cable
Cable †
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Fuse
ZL-RFU205
ZL-D2-CBL19*
Relay
ZL-RRL16-24-1
ZL-D2-CBL19*
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Fuse
ZL-D2-CBL19*
Relay
ZL-RFU205
ZL-RRL16-24-2
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Relay
ZL-RRL16-24-1
ZL-D2-CBL19*
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Relay
ZL-RRL16-24-2
ZL-D2-CBL19*
Feedthrough
ZL-RTB40
Fuse
ZL-RFU405
Feedthrough
ZL-RTB40
Fuse
ZL-RFU405
40
ZL-D2-CBL19*
ZL-D24-CBL40*
ZL-D24-CBL40*X
D2-08TA
10
Feedthrough
ZL-RTB20
ZL-D24-CBL40*
ZL-D24-CBL40*X
ZL-D24-CBL40*
ZL-D24-CBL40*X
ZL-D24-CBL40*
ZL-D24-CBL40*X
ZL-D2-CBL10*
F2-08TA
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Fuse
ZL-RFU205
ZL-D2-CBL19*
Do-more PLC Analog Module ZIPLink Selector
ZIPLink
PLC
Analog
Module
Module
# of Terms Component
D2-32TD2¹
40
F2-04AD-1
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-08AD-1
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-04AD-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-08AD-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-02DA-1
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-02DA-1L
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-02DAS-1
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-08DA-1
19
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
F2-02DA-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-02DA-2L
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-02DAS-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-08DA-2
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
† X in the part number represents a 45° angle plug
F2-4AD2DA
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-8AD4DA-1
19
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
* Select the cable length by replacing the * with: Blank = 0.5m, -1 = 1.0m, or -2 =
2.0m.
19
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
1 To make a custom cable for the 32-point modules, use: Ribbon-style Connector ZL-
F2-8AD4DA-2
D2-12TA
19
D2-04TRS³
D2-08TR
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
F2-08TRS³
19
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
F2-08TR4
10
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
Feedthrough
ZL-RTB20
ZL-D2-CBL19*
Fuse
ZL-RFU205
ZL-D2-CBL19*
D2-12TR
19
F2-04RTD2
Matched
Only
See Note 2
D24-CON-R, Solder-style 180° connector ZL-D24-CON or Solder-style 45° connector
ZL-D24-CON-X.
F2-04THM2
Matched
Only
See Note 2
2 The F2-04RTD and F2-04THM modules are not supported by the ZIPLink wiring sys-
Do-more PLC Combo In/Out Module ZIPLink Selector
ZIPLink
PLC
Combo
Module
D2-08CDR
# of
Terms
10
tem.
3 Caution: The D2-04TD1, D2-04TRS, and F2-08TRS outputs are derated not to exceed
module specs 2A per point and 2A per common when used with the ZIPLink wiring
system.
4 The F2-08TR outputs are derated not to exceed 2A per point and 4A per common
when used with the ZIPLink wiring system.
Component
Module
Cable
Feedthrough
ZL-RTB20
ZL-D2-CBL10*
5 Note: Fuses (5 x 20 mm) are not included. See Edison Electronic Fuse section for (5 x
20 mm) fuse. S500 and GMA electronic circuit protection for fast-acting maximum
protection. S506 and GMC electronic circuit protection for time-delay performance.
Ideal for inductive circuits.To ensure proper operation, do not exceed the voltage and
current rating of ZIPLink module. ZL-RFU20 = 2A per circuit; ZL-RFU40 = 400 mA per
circuit.
NOTE: ZIPLINK CONNECTOR MODULES AND ZIPLINK CABLES SPECIFICATIONS ARE IN THE ZIPLINK CATALOG SECTION.
Volume 14
e38-52
Programmable Controllers
1 - 80 0 - 633 - 0405
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
