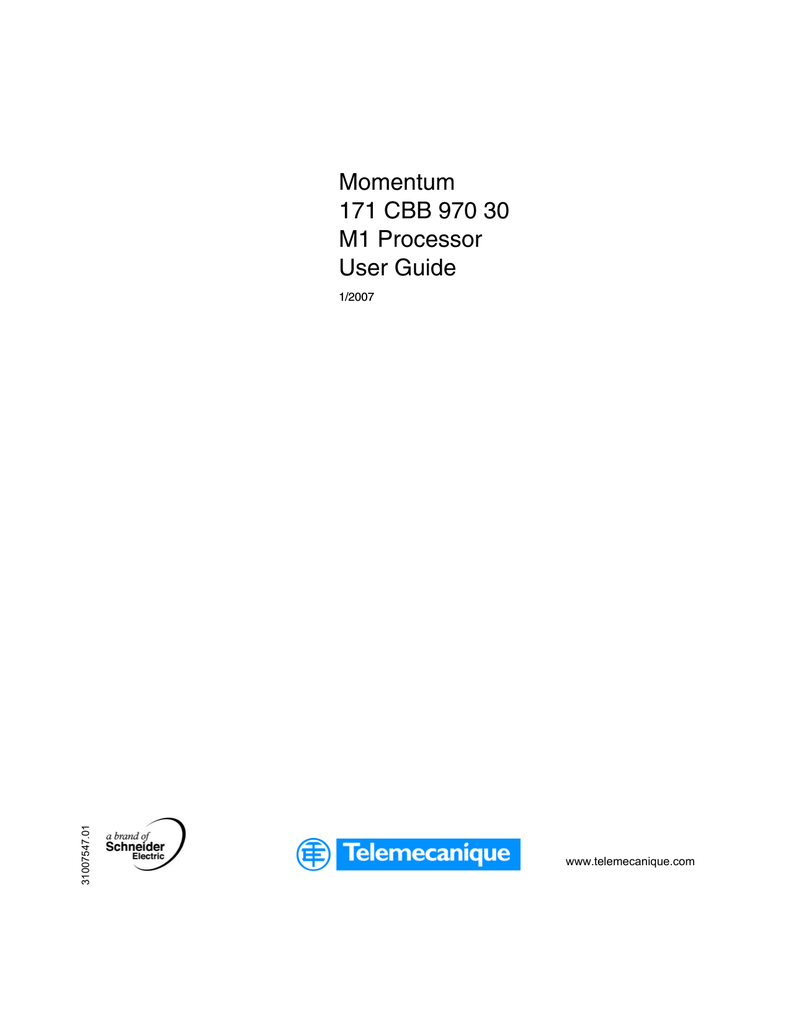

Schneider Electric 171CBB97030 M1 Processor User Guide

Momentum
171 CBB 970 30
M1 Processor
User Guide
31007547.01
1/2007
www.telemecanique.com
2
Table of Contents
Safety Information5
About the Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
The Momentum 171 CBB 970 30 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Physical Components of the 171 CBB 970 30 Processor . . . . . . . . . . . . . . . . . . 10
Panel Software Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Memory Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter 2
The 4-port 10/100BASE-T Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Ethernet Port Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Security Firewalls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assigning Ethernet Address Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using BOOTP Lite to Assign Address Parameters . . . . . . . . . . . . . . . . . . . . . . .
Reading Ethernet Network Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
24
25
26
28
29
31
32
Chapter 3
Using the Modbus Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modbus Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables and Adapters for a Modbus RS232 Connection . . . . . . . . . . . . . . . . . . .
RS485 Communication Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
36
38
40
Chapter 4
Configuring the Controller in Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Momentum 171 CBB 970 30 Processor . . . . . . . . . . . . . . . . . . . .
Accessing Default Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Size of the Full Logic Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Range of Discrete and Register References . . . . . . . . . . . . . . . .
Understanding the Number of Segments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reserving and Monitoring a Battery Coil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the Time-of-day Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading the Time-of-Day Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
42
45
47
48
49
50
53
56
3
4
Chapter 5
Configuring Ethernet Address Parameters and I/O Scanner
with Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Accessing the Ethernet I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Setting the IP Address Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Completing the Ethernet I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Configuring Ethernet I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Chapter 6
Saving to Flash in Concept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Chapter 7
Configuring the Modbus Port Parameters in Concept . . . . . . . . . . . . . . . . . . 71
Accessing the Modbus Port Settings Dialog Box. . . . . . . . . . . . . . . . . . . . . . . . . 72
Changing the Modbus Communication Protocol . . . . . . . . . . . . . . . . . . . . . . . . . 73
Changing Mode and Data Bits on Modbus Port. . . . . . . . . . . . . . . . . . . . . . . . . . 74
Changing the Modbus Port’s Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Stop Bit Should Not Be Changed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Changing Parity on the Modbus Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Changing the Delay on the Modbus Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Changing the Modbus Network Address of the Modbus Port . . . . . . . . . . . . . . . 79
Chapter 8
Configuring Momentum Processor with ProWORX 32 . . . . . . . . . . . . . . . . . 81
Configuring an Momentum Processor with ProWORX 32 . . . . . . . . . . . . . . . . . . 82
Configuring an I/O Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Monitoring the Health of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Saving to Flash with ProWORX32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Appendices
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Appendix A
Momentum 171 CBB 970 30 Processor Specifications . . . . . . . . . . . . . . . . . 93
Appendix B
LED Flash Patterns, Error Codes, and
Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Run LED Flash Pattern and Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Diagnostic Message Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Appendix C
RS485 Accessories for the Modbus Serial Port . . . . . . . . . . . . . . . . . . . . . . 103
Four-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Two-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cable for Modbus RS485 Networks Connecting Momentum Components . . . . 109
Connectors for Modbus RS485 Networks Connecting
Momentum Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Terminating Devices for Modbus RS485 Networks Connecting
Momentum Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Pinouts for Modbus RS485 Networks Connecting
Momentum Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Safety Information
§
Important Information
NOTICE
Read these instructions carefully, and look at the equipment to become familiar with
the device before trying to install, operate, or maintain it. The following special
messages may appear throughout this documentation or on the equipment to warn
of potential hazards or to call attention to information that clarifies or simplifies a
procedure.
The addition of this symbol to a Danger or Warning safety label indicates
that an electrical hazard exists, which will result in personal injury if the
instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, can result
in death, serious injury, or equipment damage.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, can result
in injury or equipment damage.
31007547 1/2007
5
Safety Information
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained only by
qualified personnel. No responsibility is assumed by Schneider Electric for any
consequences arising out of the use of this material.
© 2007 Schneider Electric. All Rights Reserved.
6
31007547 1/2007
About the Book
At a Glance
Document Scope
This manual describes the 171 CBB 970 30 Momentum M1 processor. The
processor contains 544 Kbytes of internal memory and can be programmed with
either:
z
z
Concept, version 2.6 (with service release 4, patch A) or greater
ProWORX 32, version 2.1 or greater
The processor also contains a 4-port 10/100 Ethernet switch.
Validity Note
Related
Documents
The data and illustrations found in this book are not binding. We reserve the right to
modify our products in line with our policy of continuous product development. The
information in this document is subject to change without notice and should not be
construed as a commitment by Schneider Electric.
Title of Documentation
Reference Number
Momentum I/O Base User Guide
870 USE 002
Concept User Guide
840 USE 503
ProWORX 32 Programming Software for PLCs User Guide
372 SPU 780
Ladder Logic Block Library User Guide
870 USE 101
Momentum 170ENT11001/170ENT11002 Ethernet Communications 870 USE 114
Adapter User Guide
Advantys STB Ethernet Modbus TCP/IP Network Interface
Applications Guide
31007547 1/2007
890 USE 177
7
About the Book
Product Related
Warnings
Schneider Electric assumes no responsibility for any errors that may appear in this
document. If you have any suggestions for improvements or amendments or have
found errors in this publication, please notify us. No part of this document may be
reproduced in any form or by means, electronic or mechanical, including
photocopying, without express written permission of Schneider Electric.
All pertinent state, regional, and local safety regulations must be observed when
installing and using this product. For reasons of safety and to ensure compliance
with documented system data, only the manufacturer should perform repairs to
components.
When controllers are used for applications with technical safety requirements,
please follow the relevant instructions.
Failure to use Schneider Electric software or approved software with our hardware
products may result in injury, harm, or improper operating results.
Failure to observe this product related warning can result in injury or equipment
damage.
User Comments
8
We welcome your comments about this document. You can reach us by e-mail at
[email protected]
31007547 1/2007
The Momentum
171 CBB 970 30 Processor
1
At a Glance
Overview
The Momentum 171 CBB 970 30 processor, with its built-in 4-port Ethernet switch,
provides programmable logic control to distributed communication networks, I/O,
and other Modbus TCP/IP-compatible devices connected to an Ethernet network.
This chapter gives you an overview of the processor’s features and capabilities.
Installation and power wiring instructions are also provided.
What's in this
Chapter?
31007547 1/2007
This chapter contains the following topics:
Topic
Page
Physical Components of the 171 CBB 970 30 Processor
10
Panel Software Options
15
Memory Characteristics
16
Installation
17
Power Wiring
19
Lithium Battery
21
9
Processor Overview
Physical Components of the 171 CBB 970 30 Processor
Front Panel View
A front panel view of the Momentum 171 CBB 970 30 processor is shown below.
The interfaces and LED indicators for the Ethernet switch are on the top half of the
module. The interfaces and LED indicators for the M1 processor are on the bottom
half of the module.
1
2
4
3
5
6
1
2
3
4
5
6
10
Connectors for each of the four Ethernet ports
LINK/ACTIVE and 100MB LED indicators for each of the four Ethernet ports
POWER OK LED
PLC Run and PLC LAN Status LEDs
R232/RS485 serial port connector
24 VDC power connector
31007547 1/2007
Processor Overview
Ethernet Switch
Interfaces
The four RJ45 connectors on the top of the processor are for the four 10/100BASET ports provided by the built-in Ethernet switch. The connectors are labeled 1 to 4
from left to right.
You can connect up to four Ethernet 10/100BASE-T devices or network segments
to these ports over twisted-pair or shielded twisted-pair cables. The network
segments may be:
z
distributed I/O modules
z
other Momentum processors
z
supervisory systems
z
computers
z
programming panels
z
other Ethernet products
The functionality of the 4-port Ethernet switch is described in more detail later in this
manual (see p. 23).
Note: The Ethernet connectors and the Modbus port connector at the bottom of the
module are female RJ45 connectors with a similar look. Do not attempt to make a
Modbus connection through an Ethernet connector.
31007547 1/2007
11
Processor Overview
Ethernet Port
LED Indicators
Each Ethernet port has two LED indicators, LINK/ACTIVE and 100MB. Their
indications are described below.
LED
Pattern
Indication
LINK/
ACTIVE
On
A valid link is established on the associated Ethernet port
Blink
A receive or transmit activity is occurring on the associated
Ethernet port.
If the 100MB LED is off, the activity is at a 10BASE-T speed. If
the 100MB LED is on, the activity is at a 100BASE-T speed.
Off
No valid link established on the associated Ethernet port
100MB
On
The link speed on the associated Ethernet port is 100BASE-T
Off
If the LINK/ACTIVE LED is off, there is no link on the associated
Ethernet port
If the LINK/ACTIVE LED is on or blinking, the link speed on the
associated Ethernet port is 10BASE-T
Processor
Interfaces
Two connectors are located on the bottom of the module, a Modbus serial port
connector and a 24 VDC power supply connector.
2
1
1
2
12
Modbus port
24 VDC power supply connector
31007547 1/2007
Processor Overview
The Modbus port is an RJ45 connector on the bottom right part of the module. It is
a general-purpose asynchronous serial port with dedicated RS232/485 slave
functionality. The port can also have master functionality when you use an XXMIT
or XMIT programming function block.
A Modbus host device connected to the port, such as an HMI or PLC programming
panel, can be used for:
z
z
z
z
programming the M1 processor
transferring data between the host device and the M1 processor
uploading and downloading
other host operations
The choice between RS232 and RS485 can be made with PLC programming
software (see p. 15). RS232 is the default protocol.
Modbus communication capabilities are described in more detail later in this manual
(see p. 35).
Note: The Modbus port connector and the Ethernet connectors at the top of the
module are female RJ45 connectors with a similar look. Do not attempt to make an
Ethernet connection through a Modbus connector.
The 171 CBB 970 30 processor requires 19.2 to 42.5 VDC of power to the unit from
an external safety extra-low voltage (SELV) power source. The 3-pin power
connector is located on the bottom left of the module. The connector’s pin
assignments are labeled on the front panel above the connector:
Pin Position
Description
Left
+ 24 VDC
Center
– VDC
Right
Protective earth (PE)
Note: The PE pin must be used at all times. Make sure that PE is attached before
connecting or disconnecting any shielded cables to/from the Ethernet ports.
Power wiring considerations are described in more detail later in this manual
(see p. 19).
31007547 1/2007
13
Processor Overview
M1 Processor
LED Indicators
The processor has three LED indicators, Power OK, PLC Run and PLC LAN Status.
Their functions are described in the table below.
LED
Pattern
Indication
POWER OK
On
Internal power supply is providing normal operating
voltages to the switch circuits
Off
Internal power supply is not at normal operating
voltages
On
The PLC has received power and is solving logic
PLC Run
PLC LAN
Status
14
Blink
Flashes an error pattern (see p. 98)
Off
CPU is not powered up or is not solving logic
On
The PLC is in a normal run condition
Continuous Blink
Normal Ethernet initialization at power-up
4 flashes
Duplicate IP address detected
31007547 1/2007
Processor Overview
Panel Software Options
Overview
The Momentum 171 CBB 970 30 processor can be programmed and configured
with either:
z
z
Concept, version 2.6 (with service release 4, patch A) or greater
ProWORX 32, version 2.1 or greater
The processor can solve control logic written in an IEC programming language or in
the 984 Ladder Logic programming language.
The processor is shipped with the IEC firmware installed. With the IEC firmware, you
can immediately use Concept to configure the device and program your control
application. Chapters 4 (see p. 41), 5 (see p. 57), 6 (see p. 67), and 7 (see p. 71)
describe Concept’s configuration procedures and capabilities in more detail.
ProWORX 32 users can download 984 Ladder Logic firmware from the Schneider
Website, www.telemecanique.com. Chapter 8 (see p. 81) describes configuration
procedures and capabilities of ProWORX 32 in more detail.
31007547 1/2007
15
Processor Overview
Memory Characteristics
Introduction
The Momentum 171 CBB 970 30 processor is equipped with internal memory and
Flash RAM.
Internal Memory
Internal memory comprises user memory and state RAM.
User memory contains the control logic program and the system overhead
(processor adapter configuration, I/O mapping, checksum, system diagnostics,
etc.).
State RAM is the area in memory where all the input and output references for
program and control operations are defined and returned.
You can change the processor’s internal memory allocation using the PLC Memory
Partition feature that is part of your panel software.
Flash RAM
Flash RAM contains the executive firmware, which is the operating system for the
PLC. It also contains a firmware kernel, a small portion of memory that recognizes
acceptable executive firmware packages and allows them to be downloaded to the
processor. The firmware kernel cannot be changed.
You can store a copy of the application program and the state RAM values in Flash
RAM.
When the Momentum 171 CBB 970 30 has successfully established communication
with other devices, we recommend that you stop the processor and save the
application program to Flash. This manual describes the procedures for saving-toFlash with both Concept (see p. 67) and ProWORX 32 (see p. 89).
This procedure saves the processor’s ARP cache, enabling you to rapidly restore
communication if power is lost or removed. It is also useful when a new or substitute
device is installed on the network or when the IP address of a network device is
changed.
16
31007547 1/2007
Processor Overview
Installation
Mounting
Options
The Momentum 171 CBB 970 30 processor can be installed on a DIN rail or
mounted on a wall inside a panel enclosure.
Note: The processor is designated as open equipment per EN61131-2. You need
to install open equipment in industry-standard enclosures with access restricted to
authorized personnel.
DIN Rail
Mounting
Procedure
Step
Action
1
Put the wire lock on the back of the processor is in the down position.
2
Align the mounting channel on the back of the processor to the DIN rail and
press it onto the rail until it snaps into place.
3
Push the wire lock up to lock the processor onto the DIN rail.
Note: The contact springs on the back of the processor may be used as the
functional ground if the DIN rail is grounded.
Panel Wall
Mounting
Two mounting holes are provided on the front of the 171 CBB 970 30 processor.
Mounting holes
31007547 1/2007
17
Processor Overview
Securely fasten the processor to the wall with two metal mounting screws, 4 mm
(0.16 in) in diameter and 25 mm (0.97 in) long with 8 mm (0.31 in) screw heads.
The metal mounting screws may be used as the functional ground if the panel is
grounded.
Mounting
Dimensions
74.2 mm
56.2 mm
min
43.2 mm
min
70 mm
approx.
64.3 mm
95.7 mm
143.8 mm
min 137 mm
18
31007547 1/2007
Processor Overview
Power Wiring
Power Wiring
The 171 CBB 9730 processor requires 19.2 to 42.5 VDC of power from an external
safety extra-low voltage (SELV) power source. The power connector is located on
the bottom of the processor (see p. 12). It is a 3-pin connector with the following pin
assignments:
VDC
+ 24
Grounding
Considerations
VDC
–
The grounding pin (the rightmost pin on the power connector) provides protective
earth (PE).
Note: The grounding pin must be used at all times.
Make sure that PE
is attached before connecting or disconnecting any Ethernet
shielded cables to the device.
31007547 1/2007
19
Processor Overview
Noise Immunity
Considerations
If the processor is operating in a noisy environment, you may insert a jumper
between the – VDC and
VDC
+ 24
pins in your power cable:
VDC
–
If you are using a grounded power supply, the jumper is not required.
If any other devices in your system are connected to the same power supply as the
171 CBB 9730 processor, your power supply connection must not affect any of
these other devices.
You must maintain a voltage of less than 44 VDC between the – VDC and
pins.
Note: Your electrical installation must meet local or nationally applicable safety
standards and regulations.
Power Cable
Recommendations
The PE ground must be capable of supporting 30 A of current for 2 minutes with no
more than 50 mΩ of resistance. The recommended wire size is 3.2 to 0.87 mm2
(12 to 18 AWG). (The maximum wire size must not be exceeded even if your wire
contains the –VDC-to-PE jumper.)
The maximum allowable length of the cable at 18 AWG is 2 m.
Note: A single-point connection between the PE and –VDC is recommended in a
+24 VDC power wiring system.
20
31007547 1/2007
Processor Overview
Lithium Battery
Introduction
Due to the characteristics of the lithium battery, the operating life cannot be
accurately determined. Major factors reducing battery capacity are:
z
z
z
z
storage temperature
operating temperature
time in storage
battery use
If battery backup is required, Schneider Electric recommends configuring the
battery-low coil in the PLC configuration, a setting that allows monitoring of the
battery capacity level. A battery low condition exists when the configured battery low
coil goes to 1.
The Momentum 171 CBB 970 30 processor contains a factory-installed lithium coin
cell battery. It is shipped with the real-time clock disabled, and the SRAM is not
battery backed. When the processor is powered on for the first time, it runs on the
battery and the battery-backed SRAM is enabled.
You can set the time of day using either Concept (see p. 53) or ProWORX 32
(see p. 87). If you do not set the clock, it starts running with a factory-set date of
1 June 2006 at first power-up.
Battery
Characteristics
z
z
Battery-low
Threshold Level
31007547 1/2007
The back-up life of the lithium battery when it is supporting the processor’s
memory while the processor is powered off is typically 3 years after the real-time
clock is set
The back-up life of the lithium battery when the processor is powered up and
running is typically 5 years
A circuit monitors the voltage of the lithium battery. you can set a battery monitoring
coil in the configuration with Concept (see p. 50) or ProWORX 32 (see p. 87). When
the battery voltage gets weak, this battery-low coil turns on—i.e., its value is 1. When
the battery coil turns on, you have 30 days to replace the battery.
21
Processor Overview
22
31007547 1/2007
The 4-port 10/100BASE-T
Ethernet Switch
2
At a Glance
Overview
This chapter explains the capabilities of the 10/100BASE-T Ethernet switch built into
the Momentum 171 CBB 970 30 processor.
What's in this
Chapter?
This chapter contains the following topics:
31007547 1/2007
Topic
Page
The Ethernet Switch
24
The Ethernet Port Connections
25
Network Design Considerations
26
Network Security Firewalls
28
Assigning Ethernet Address Parameters
29
Using BOOTP Lite to Assign Address Parameters
31
Reading Ethernet Network Statistics
32
23
The Ethernet Switch
The Ethernet Switch
Introduction
The Ethernet switch built into the Momentum 171 CBB 970 30 processor allows you
to connect the processor to an Ethernet network. Ethernet connectivity gives you:
z
z
z
z
z
Key Features
high-speed I/O servicing
high-speed data transfer
remote programming
worldwide connectivity via the Internet
interfaces with a wide array of Transparent Ready devices
The Ethernet switch has four 10/100BASE -T ports that can operate independently
at 100 Mb/s full-duplex or half-duplex, or at 10 Mb/s full-duplex or half-duplex. It
supports switched Ethernet networks in accordance with IEEE standard 802.3 or
802.3u using copper technology.
The switch supports:
auto-negotiation The switch automatically negotiates speed (10BASE-T or
100BASE-T) and full- or half-duplex mode. Auto-negotiation is managed
independently on each of the four switch ports.
auto-polarity The switch detects and compensates for an incorrectly wired cable,
i.e., cable where the RX+ and RX- signal inputs need to be swapped. Autopolarity is managed independently on each of the four switch ports.
auto-MDI/MDI/X The switch auto-switches the transmit (TX) and receive (RX) wire
pairs as needed to establish communications with the end device. As a result, the
processor is able to transparently interconnect with any other 10/100BASE-T
Ethernet device with either straight-through or crossover cables. Auto-negotiation
is managed independently on each of the four switch ports.
multi-addressing The switch learns the switching parameters for up to 1024 MAC
addresses. The switch deletes inactive address entries (those exceeding 300 sec
of inactivity).
tagging The switch transmits data packets unchanged with the VLAN tag, in
accordance with IEEE 802.1q.
store-and-forward The switch stores all the data it receives, checks it for the proper
packet length, and executes a CRC validity check. Packets meeting the criteria
are forwarded to their destination. Packets that do not meet both criteria are
discarded.
queuing An output port that is slow or congested never affects the transmission of
frames to ports that are non-congested. Traffic will always be received on the
input port.
24
31007547 1/2007
The Ethernet Switch
The Ethernet Port Connections
Introduction
The Momentum 171 CBB 970 30 processor contains four 10/100BASE-T ports.
Four RJ45 connectors are provided on the top of the module for connectivity to each
of the four ports (see p. 11).
Wiring
The following figure illustrates a standard pin assignment for the four Ethernet RJ45
connectors. Remember that the switch can automatically change the pin
assignments as a function of its auto-MDI/MDI/X and auto-polarity features
(see p. 24).
Pin 8
Pin 7
TD- Pin 6
Pin 5
Pin 4
TD+ Pin 3
RD- Pin 2
RD+ Pin 1
The TD+/- pair (pins 3 and 6) and the RD+/- pair (pins 1 and 2) are swapped when autoMDI/MDI/X occurs. The switch automatically compensates for this swap.
The RD+ and RD- assignments on pins 1 and 2 are swapped when auto-polarity occurs.
The switch automatically compensates for this swap.
Pins 4 and 5 are shorted together and terminated. This pin assignment is standard for
Ethernet devices.
Pins 7 and 8 are shorted together and terminated. This pin assignment is standard for
Ethernet devices.
Ethernet Cable
Selection
Use Ethernet CAT5E or CAT6 grade cables with EIA568 pinouts to connect devices
to the Ethernet ports on the 171 CBB 970 30 processor. The maximum cable length
between devices is 100 m.
In high noise environments, shielded CAT5, CAT5E, or AT6 cables must be used.
31007547 1/2007
25
The Ethernet Switch
Network Design Considerations
Introduction
In a distributed control environment, the Ethernet ports on a Momentum
171 CBB 970 30 processor can connect to:
z
z
z
a network with distributed I/O and control devices
a supervisory network
a network that combines I/O and supervisory functions
The following discussion examines some network design considerations that can
make communication between related devices as effective and deterministic as
possible.
Concurrent
Communication
A maximum of 96 devices can communicate with the Momentum 171 CBB 970 30
processor at any one time over Ethernet. The types of devices and the maximum
number of each device type are as follows:
z
z
z
z
2 programming panels (one of which must be in monitor mode)
14 general-purpose Modbus server paths
16 MSTR elements (MSTR elements support Modbus Read, Modbus Write, and
Modbus Read/Write commands)
64 cyclic configured data slave paths
Obtaining
Network MAC
and IP
Addresses
When installed on a new network, the Momentum171 CBB 970 30 processor
obtains the MAC addresses and IP addresses of the other Ethernet devices on the
network. This process may require several minutes.
Operating
without Battery
Back-up
When the processor is successfully communicating with these devices and battery
back-up is not present, we recommend that you stop the processor and save your
program to Flash, using Concept (see p. 67) or ProWORX 32 (see p. 89). This
saves the processor’s ARP cache and enables it to restore the information rapidly if
power is lost or removed. If you do not save to Flash, the processor must reacquire
the ARP cache information from the network.
Note: Preserve your ARP cache information.
This procedure should also be followed whenever:
z
z
26
a new or substitute device is installed on the network
the IP address of a network device has been changed
31007547 1/2007
The Ethernet Switch
Managing
Distributed I/O
over Ethernet
In an Ethernet I/O network, the Momentum171 CBB 970 30 processor controls
distributed I/O modules equipped with Ethernet interfaces and other Transparent
Ready Ethernet devices. Some examples include Advantys STB I/O islands and
Momentum distributed I/O modules.
The Momentum171 CBB 970 30 processor provides isolation from both MIS data
traffic and unrelated communication between other control devices. Traffic from MIS
data networks can interrupt communication between control devices, causing your
control application to behave unpredictably. The high message rates that may be
generated between the Momentum 171 CBB 970 30 processor and I/O devices may
bog down an MIS network, causing loss of productivity.
CAUTION
UNPREDICTABLE NETWORK BEHAVIOR
Use switches or separate networks to isolate the Momentum 171 CBB 970 30
processor and related devices from MIS data networks.
Failure to follow this instruction can result in injury or equipment damage.
Supervisory
Networks
31007547 1/2007
In a supervisory architecture, several intelligent processing devices share system
data. Many kinds of devices may be part of the network. Be aware of each device
requirement for access to the network and of the impact each device can have on
the timing of your network communications.
27
The Ethernet Switch
Network Security Firewalls
Overview
To restrict access to your Momentum 171 CBB 970 30 processor and to the I/O
network, you may want to consider a firewall. A firewall is a gateway that controls
access to your network. There are two types of firewalls:
z
z
network-level firewalls
application-level firewalls
Network-level
Firewalls
Network-level firewalls are frequently installed between the Internet and a single
point of entry to an internal, protected network.
Application-level
Firewalls
An application-level firewall acts on behalf of an application. It intercepts all traffic
destined for that application and decides whether to forward that traffic to the
application. Application-level firewalls reside on individual host computers.
28
31007547 1/2007
The Ethernet Switch
Assigning Ethernet Address Parameters
IP and MAC
Addresses
The Momentum 171 CBB 970 30 processor is shipped from the factory without an
IP address assignment. At initial start-up, the processor attempts to obtain an IP
address from a BOOTP or DHCP server.
A MAC address is set for every processor at the factory.
Ethernet IP address, default gateway, and subnetwork mask parameters can be
assigned with one of following applications:
z
z
z
z
Concept (see p. 59)
ProWORX 32
The BOOTP Lite software utility
A DHCP server
Obtaining an IP
Address
CAUTION
UNPREDICTABLE NETWORK OPERATIONS
Make sure that your Momentum 171 CBB 970 30 processor has a unique IP
address on the Ethernet network.
Failure to follow this instruction can result in injury or equipment damage.
CAUTION
COMMUNICATION ERRORS
After taking the Momentum 171 CBB 970 30 processor out of service, clear the
program and IP address to prevent future conflicts.
To clear the IP address:
z Go to the Ethernet I/O Scanner dialog in Concept (see p. 58) or the
Configuration Extensions dialog in ProWORX 32, and make sure that the IP
address acquisition method is set to use a BOOTP server.
z With the BOOTP method selected, save the configuration to Flash.
z Then decommission the processor.
Before installing a replacement Momentum 171 CBB 970 30 processor on your
network, verify that it contains the correct IP address and program for your
application.
Failure to follow this instruction can result in injury or equipment damage.
31007547 1/2007
29
The Ethernet Switch
On start-up, an unconfigured processor attempts to obtain an IP address by issuing
BOOTP requests. When a response from a BOOTP or DHCP server is obtained,
that IP address is used.
Consult your system administrator to obtain a valid IP address and appropriate
gateway and subnet mask, if required.
Each IP address on the Ethernet network must be unique. The 171 CBB 970 30
processor checks for duplicate IP addresses on the network before it actively starts
network operations.
If for any reason two or more devices coexist on an Ethernet network with the same
IP address, network operations are unpredictable.
BOOTP and
DHCP Servers
A BOOTP or DHCP server is a program that manages the IP addresses assigned to
devices on the network. Your system administrator can confirm whether a BOOTP
or DHCP server exists on your network and can help you use the server to maintain
the 171 CBB 970 30 processor’s IP address.
Retaining The IP
Address Setting
If the processor has lost its battery back-up capability and you want the IP address
setting to be retained after power is removed from the module, save your program
to Flash using Concept (see p. 67) or ProWORX 32 (see p. 89). IP address retention
on restart differs depending on the way the processor is configured.
If a processor without battery back-up is configured to use the BOOTP server
and an IP address was previously saved to Flash, the processor issues three
BOOTP requests 5 sec apart.
z If a BOOTP response is received from the server, the new IP address is
assigned but not automatically saved to Flash. To save the new IP address to
Flash, you need to use your panel software. If a power cycle occurs on the
processor, the IP address that is currently saved to Flash is used.
z If a BOOTP response is not received from the server, the processor uses the
IP address that is saved in Flash. Three ARP broadcasts are made 5 sec apart
to check for duplicate IP addresses. Three additional ARP broadcasts are
made 2 sec apart with the station’s MAC address and IP address.
If a processor without battery back-up is configured for Specify an IP Address
and an IP address was previously saved to Flash, the processor listens for
any BOOTP messages but does not issue any BOOTP requests. It uses the
saved IP address. Three ARP broadcasts are made 5 sec apart to check for a
duplicate IP address. Three additional ARP broadcasts are made 2 sec apart with
the station’s MAC address and IP address.
30
31007547 1/2007
The Ethernet Switch
Using BOOTP Lite to Assign Address Parameters
The BOOTP LIte
Alternative
Instead of a BOOTP or DHCP server, Schneider Electric’s BOOTP Lite utility
software can be used to provide the IP address, subnet mask, and default gateway
to the processor.
Note: BOOTP Lite and the user document are available for download at
www.telemecanique.com.
Using the
Correct MAC
Address
CAUTION
UNINTENDED OPERATION
z
z
Enter the parameters of the target controller (as described in the BOOTP Lite
user manual). Otherwise, the controller runs on its old, or existing, configuration.
Verify the MAC address of the target device before invoking the BOOTP Lite
Server Software.
Failure to follow this instruction can result in injury or equipment damage.
An incorrect MAC address may result in an unwanted change to another device or
cause unexpected results.
Specifying
Addresses/
Stopping the
Processor
A response from BOOTP Lite causes the processor to enter Stopped state on
completion of power-up, if the processor has been set to Specify IP Address mode
in Concept. This is useful when inappropriate outbound network traffic might result
if the processor immediately transitioned into Run mode after power-up.
Refer to the BOOTP Lite user documentation for instructions.
31007547 1/2007
31
The Ethernet Switch
Reading Ethernet Network Statistics
Overview
Ethernet network statistics are stored in the Momentum 171 CBB 970 30 processor.
They can be viewed with the processor’s on-board Web server.
Table of
Statistics
Network statistics occupy words 0...37 in the Modbus status table:
Word
Data
Description
00 ... 02 MAC Address
03
Board Status
04, 05
Rx Interrupt
Number of frames received by this station. Only broadcast
frames pertinent to this station and individual address match
frames are received and counted.
06, 07
Tx Interrupt
Number of frames transmitted from this station. Includes all
transmitted broadcast frames for ARP and BOOTP.
08, 09
Not used.
10, 11
Total Collisions
This field should always be 0.
12, 13
Rx Missed
Packet Errors
Receive frame was missed because no buffer space was
available to store the frame. Indicates firmware unable to keep up
with link. The only time this should increment is during a saveuser-logic-to-Flash operation, when all interrupts are disabled for
10 sec.
14, 15
Not used.
16, 17
Chip Restart
Count
High Word: Not used, always 0.
18, 19
Framing Errors
(Giant Frame
Error)
Counts the number of received frames addressed to this node
that are longer than 320 bytes. Any such large frame has no
relevance to the 171 CBB 970 30 processor and is skipped. This
error should not occur.
20, 21
Overflow Errors Increments whenever a received frame cannot be copied into the
frame buffer because the frame buffer is full. This situation should
never occur under legal Ethernet traffic.
22, 23
CRC Errors
Low Word: Peak Collision Detector (should always be 0)
Increments when a packet is received with any of the following:
z CRC error
z Extra data error
z Runt error
32
31007547 1/2007
The Ethernet Switch
24, 25
Receive Buffer
Errors (Out of
Server Paths)
Increments when a client attempts and fails to connect to an
Ethernet port because there is no available server path. The
Ethernet switch in the 171 CBB 970 30 processor will support 14
simultaneous data paths and 2 program paths before this counter
increments. This error indicates a poor application architecture.
26, 27
Transmit Buffer
Errors
Increments when the 171 CBB 970 30 processor cannot transmit
an Ethernet response frame because all frame buffers are used.
For example, if all of the processor’s 16 PING buffers contain
PING replies that are ready to be transmitted but the
transmission is delayed because of collisions and back-off, any
newly received PING requests are discarded and the counter is
incremented. This error can occur for PING, ARP, and
connection attempts to a server path. Although this error is
theoretically possible, it is rare.
28, 29
Silo Underflow
(TCP retries)
This field counts processor TCP/IP retries. All processor clients
and servers use the TCP/IP protocol, which implements
sequence numbers and time-outs. Whenever TCP/IP data is
pushed from the processor, the processor must receive an
acknowledgment of the receipt of data within the time-out period.
If not, the processor issues a retry. Retries may result from any
of the following conditions:
z The original data frame was garbled, corrupted, and lost
z The target TCP/IP stack is operating more slowly than the
processor retry rate
For Modbus 502 servers, the processor initiates retries after (1,
1, 2, 2, 4, 8) sec.
For Modbus 502 clients, the processor retry rate is the larger of:
z 1/4 the health timeout for Ethernet I/O Scanner data
z 4 times the previous measured TCP/IP round trip time for i/o
Scanner MSTR block
31007547 1/2007
30, 31
Late Collision
Increments when the transmit frame process is aborted because
of a late collision detection (after the first 64 bytes of the frame
were transmitted collision-free). This field should always be 0.
32, 33
Lost Carrier
Although this error is theoretically possible, it is rare.
Note If you see a non-zero value, please report it to your
Schneider Electric Service Representative.
34, 35
16 Collision Tx
Failure
Transmit frame process aborted after 16 consecutive collisions.
The frame was not successfully transmitted onto the Ethernet
link. This error should never occur.
36, 37
IP Address
33
The Ethernet Switch
34
31007547 1/2007
Using the Modbus Port
3
At a Glance
Purpose
This chapter describes the Modbus port, its communication parameters, cabling
guidelines and pinouts for R232/485 operations, and cable accessories.
What's in this
Chapter?
This chapter contains the following topics:
Topic
Modbus Serial Port
31007547 1/2007
Page
36
Cables and Adapters for a Modbus RS232 Connection
38
RS485 Communication Capabilities
40
35
Modbus Port
Modbus Serial Port
Introduction
The Modbus port is an RS232/485 asynchronous serial port that permits a host
computer to communicate with the processor for:
z
z
z
z
Modbus Port
Parameters
programming
data transfer
upload/download
other host operations
Baud Rates:
50
300
3600
75
600
4800
110
1800
7200
134
2000
9600
150
2400
19.200
Parity Settings:
EVEN
ODD
NONE
Mode/Data Bits:
RTU (8-bit)
ASCII (7-bit)
Stop Bit:
1
Modbus Address:
In the range 1... 247
The factory-set default communication parameters for the Modbus port are:
z
z
z
z
z
z
RS232
9600 baud
EVEN parity
8-bit RTU mode
1 stop bit
Modbus address 1
The Modbus port cannot support more than 1 stop bit. If you change this default
setting in the configuration software, the Momentum processor ignores the change.
All other port parameters can be modified in the configuration software.
Auto-Logout
36
If a programming panel is logged into the CPU via the serial port and its cable gets
disconnected, the CPU automatically logs out of the port. With auto-logout a user
does not accidentally lock other host stations out and stop them from logging in from
other ports.
31007547 1/2007
Modbus Port
Modbus Port
Connector
The Modbus port connector is a female RJ45 connector located on the bottom right
of the processor (see p. 12).
Pinouts for
Modbus Port
The pin assignments on the Modbus serial port differ depending on whether you are
using RS232 or RS485 communications:
Pin
31007547 1/2007
For RS232
For RS485
1
DTR
RXD -
2
DSR
RXD +
3
TXD
TXD +
4
RXD
Not used
5
signal common
signal common
6
RTS
TXD -
7
CTS
Not used
8
cable shield
cable shield
37
Modbus Port
Cables and Adapters for a Modbus RS232 Connection
Overview
To connect a computer or other host device to the 171 CBB 970 30 processor’s
Modbus port, you need a cable with an RJ45 connector on one end and a connector
suitable for host device on the other end. Schneider Electric provides pre-made
Modbus cables in three lengths and two types of SUB-D adapters that can be used
for an RS232 connection to most computers.
Modbus Port
Cables
Schneider Electric’s three pre-made Modbus cables are standard eight-position, foilshielded, flat telephone cables with male RJ45 connectors on each end. One RJ45
connector plugs into the Modbus serial port, and the other plugs into a female SUBD adapter that fits onto the programming station.
Length
Part Number
1 m (3 ft)
110 XCA 282 01
3 m (10 ft)
110 XCA 282 02
6 m (20 ft)
110 XCA 282 03
Permanently connected cables must be less than 3 m long. Temporary cables must
be less than 100 m long.
If you are making you own Modbus cable, the maximum cable length is 9.5 m.
38
31007547 1/2007
Modbus Port
Modbus Cable
Adapters
Two SUB-D adapters are available from Schneider Electric that can be used with a
Modbus cable to enable a host device to connect to the Modbus port:
z
z
A 110 XCA 203 00 9-pin adapter for 9-pin serial ports
A 110 XCA 204 00 25-pin adapter for 25-pin serial ports
These adapters have an RJ45 jack on one end that allows them to clip into your
Modbus cable.
Here is the pinout for the 110 XCA 203 00 9-pin adapter:
CPU
PC-AT Pinouts
RJ45 Connector
9-pin SUB-D
pin 1
pin 9
RJ45 jack
(8x8)
4-40 screw
threads
DTR 1
TXD 3
RXD 4
DSR 2
GND 5
CTS 7
RTS 6
cable 8
shield
50.8mm
(2in)
1
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
cable of
the connector
pin 1
Here is the pinout for the 110 XCA 204 00 25-pin adapter:
CPU
PC-XT Pinouts
RJ45 Connector
25-pin SUB-D
pin 1
DTR 1
RXD 4
TXD 3
CTS 7
RTS 6
pin 25
DSR 2
1
2 TXD
3 RXD
4 RTS
5 CTS
6 DSR
7 GND
8 DCD
20 DTR
cable 8
shield
1 chassis
ground
GND 5
4-40 jack
screws
39.6 mm
(1.56 in)
31007547 1/2007
RJ45 jack
(8x8)
pin 1
39
Modbus Port
RS485 Communication Capabilities
The RS485 protocol handles messaging over long distances with higher level of
noise immunity than RS232 without the need for modems. RS485 supports two-wire
or four-wire cabling. A multimaster/slave system must use two-wire cabling. A single
master/slave system may use two- or four-wire cabling.
Details on cabling and accessories for RS485 networks are described in an
appendix (see p. 103).
40
31007547 1/2007
Configuring the
Controller in Concept
4
At a Glance
Overview
This chapter describes how to configure the CPU functions of the Momentum
171 CBB 970 30 processor using Concept. Configuring this processor requires
Concept version 2.6 (with service release 4, patch A) or greater.
Note: For a full description of Concept capabilities, refer to your Concept user
manuals and the Help system.
What's in this
Chapter?
31007547 1/2007
This chapter contains the following topics:
Topic
Page
Selecting the Momentum 171 CBB 970 30 Processor
42
Accessing Default Configuration Parameters
45
Changing the Size of the Full Logic Area
47
Changing the Range of Discrete and Register References
48
Understanding the Number of Segments
49
Reserving and Monitoring a Battery Coil
50
Configuring the Time-of-day Clock
53
Reading the Time-of-Day Clock
56
41
Configuring with Concept
Selecting the Momentum 171 CBB 970 30 Processor
Introduction
The following procedure describes how to select a Momentum 171 CBB 970 30
processor in Concept when you are starting a new project.
Selecting a
Processor
Step
Action
1
From the File menu, select New Project.
A new project is opened and the file name [untitled] appears over the menu bar.
2
Double-click PLC Selection in the left pane. The PLC Configuration screen appears.
PLC Configuration
Summary:
PLC Selection
Config Extensions
ASCII
PLC
Type:
Unsupported controller
IEC:
UNKNOWN
Coils:
000001
000001
Discrete Inputs:
100001
100001
Input Registers:
300001
300001
Holding Registers: 400001
400001
Specials
Battery Coil:
--
Timer Registers:
---
42
Number installed:
0
Segment Scheduler
Segments:
0
0
400007
Data Protection:
Disabled
ASCII
Number of Messages:
Peer Cop:
Disabled
Message Area Size:
0
Hot Standby:
Disabled
Number of Ports:
0
Config Extensions
Open Dialog
0
Loadables
PLC Memory Partition
Time of Day:
Available Logic Area:
Ethernet:
0
Profibus DP:
0
Help
31007547 1/2007
Configuring with Concept
Step
3
Action
Double click the PLC Selection folder. The PLC Selection dialog box appears. The default PLC Family
selection in the dialog is QUANTUM.
PLC Selection
PLC Family:
QUANTUM
186 IEC: None 984: Eq/IMIO/CHS
CPU/Executive:
IEC
140 CPU 113 02S
140 CPU 113 02X
140 CPU 113 03
140 CPU 113 03S
140 CPU 113 03X
140 CPU 213 04
Runtime:
984 Only
IEC Heap Size (KB):
0
Global Data (KB):
0
8 K logic / 32 K state
OK
31007547 1/2007
Cancel
Help
43
Configuring with Concept
Step
4
Action
From the PLC Family drop-down list, select MOMENTUM. The CPU Executive menu changes to display
the Momentum PLC choices
PLC Selection
PLC Family:
MOMENTUM
Processor Adapter, 512K, RS232, I/O Bus
IEC
CPU/Executive:
171 CBB 970 30-984
171 CBB 970 30-IEC
171 CCC 760 10-984
171 CCC 760 10-IEC
171 CCC 780 10-984
171 CCC 780 10-IEC
Runtime:
984 Only
IEC Heap Size (KB):
0
171
171 CCC
CCC 960
960 20-984
30-IEC
Global Data (KB):
0
18 K logic / 32 K state
OK
44
Cancel
Help
5
From the CPU/Executive menu, click 171 CBB 970 30-984 or 171 CBB 970 30-IEC to select the
Momentum 171 CBB 970 30 processor.The remaining fields fill with corresponding values.
6
Click the OK button. Your PLC type and default configuration parameters are displayed in the PLC
Configuration screen.
31007547 1/2007
Configuring with Concept
Accessing Default Configuration Parameters
The Default
Parameters
The default configuration parameters for the 171 CBB 970 30 processor are:
z
z
z
z
z
z
z
Accessing the
Configuration
Parameters in
Concept
1536 coils in state RAM
512 discrete inputs in state RAM
48 input registers in state RAM
1872 output registers in state RAM
17649 nodes in the full logic area
144 words of user memory for the I/O Map
No memory allocated for configuration extension
From the Config Extensions menu, select Select Extension.
If your configuration is IEC: 984 Only, the following PLC Configuration screen
appears:
PLC Configuration
Summary:
PLC Selection
PLC Memory Partition
Loadables
Specials
Config Extensions
Select Extensions
Ethernet I/O
I/O Map
Segment Scheduler
Modbus Port Settings
ASCII
Open Dialog
31007547 1/2007
PLC
Type: 171 CBB 970 30
IEC
Available Logic Area:
984 Only
PLC Memory Partition
Coils:
Discrete Inputs:
Input Registers:
Holding Registers:
000001
100001
300001
400001
001536
100512
300048
401872
Loadables
Number Installed:
2463
0
Segment Scheduler
Specials
Battery Coil:
Timer Register:
Time of Day:
--400007
Config Extensions
Data Protection:
Peer Cop:
Hot Standby:
Ethernet:
Profibus DP:
Enabled
Enabled
-0
--
Segments:
32
ASCII
Number of Messages:
0
Message Area Size:
0
Number of Ports:
0
Help
45
Configuring with Concept
If your configuration is IEC: IEC Only, the following PLC Configuration screen
appears
PLC Configuration
Summary:
PLC Selection
PLC Memory Partition
Loadables
Specials
Config Extensions
Select Extensions
Ethernet I/O
I/O Map
Segment Scheduler
Modbus Port Settings
ASCII
Open Dialog
46
PLC
Type: 171 CBB 970 30
Available Logic Area:
0
IEC
IEC Heap Size:
160
IEC Only
PLC Memory Partition
Coils:
Discrete Inputs:
Input Registers:
Holding Registers:
000001
100001
300001
400001
001536
100512
300048
401872
Loadables
Number Installed:
0
Segment Scheduler
Specials
Battery Coil:
Timer Register:
Time of Day:
--400007
Config Extensions
Data Protection:
Peer Cop:
Hot Standby:
Ethernet:
Profibus DP:
Enabled
Enabled
-0
--
Segments:
32
ASCII
Number of Messages:
0
Message Area Size:
0
Number of Ports:
0
Help
31007547 1/2007
Configuring with Concept
Changing the Size of the Full Logic Area
Introduction
The number displayed in the Available Logic Area field in the PLC Configuration
screen indicates the amount of memory available for application logic. You cannot
directly enter this field to modify the value. You can, however, change the amount of
memory available by manipulating the sizes in other fields in the PLC Configuration
screen.
Example 1
For example, if you reduce the expansion size of the I/O map, the number in the
Available Logic Area field automatically increases. Say you are using a 12.2K
machine and you change the size of the I/O map from 512 to 256. The Available
Logic Area automatically increases by 256 words from 1198 to 1454.
Example 2
If you allocate some number of words to Peer Cop expansion, you reduce the
Available Logic Area by the number of words allocated for Peer Cop.
31007547 1/2007
47
Configuring with Concept
Changing the Range of Discrete and Register References
Guidelines
If you are changing the range of discrete and register references in Concept, here
are some key guidelines:
z
z
z
z
Procedure
Adjust the range of discretes in increments of 16. Sixteen discretes consume one
word.
Adjust the range of registers in increments of 1. A register consumes one word.
The total number of register and discrete references cannot exceed the maximum
of state memory displayed at the top of the dialog.
A minimum configuration of 16 discrete outputs, 16 discrete inputs, one input
register, and one output register is required.
Use the PLC Configuration screen to change the range of discrete and register
references, and follow the procedure below.
Step
1
Action
From the Configure menu, select Memory Partitions. The PLC Memory
Partition dialog box appears, showing the maximum memory size and the
register allocation for the processor.
PLC Memory Partition
Maximum State Memory:
6144
State Memory Used:
2538
State Memory Usage:
41%
Discretes
Coils (0xxxx): 1536
Discretes Inputs (1xxxx): 512
Registers
Input Registers (3xxxx): 48
Holding Registers (4xxxx): 1872
OK
48
Cancel
Help
2
Modify the range of your discrete and register references by changing the value
in the variable boxes, according to the guidelines above.
3
Click the OK button.
31007547 1/2007
Configuring with Concept
Understanding the Number of Segments
The number of segments specified in the Configuration Overview screen
determines the number of I/O drops you can set up for your processor. The default
number of segments is 32.
31007547 1/2007
49
Configuring with Concept
Reserving and Monitoring a Battery Coil
Introduction
The Momentum 171 CBB 970 30 processor does not have an LED to indicate the
battery’s health, we recommend that you reserve a 0x reference to monitor the
health of the battery.
Note: For a full description of and instructions for using Concept, refer to the set of
manuals shipped with the software. Your version of Concept may vary from the
sample screens shown here.
Reserving a
Battery Coil
The following procedure describes how to reserve and monitor a battery coil, using
the Specials... dialog box in Concept.
Step
1
Action
From the Configure menu, select Specials.... The Specials dialog box
appears.
Specials
Maximum
Battery Coil
0x
1536
Timer Register
4x
1872
Time of Day
4x
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
50
Cancel
Help
31007547 1/2007
Configuring with Concept
Step
2
Action
Check the Battery Coil box at the top left of the dialog.
Specials
Maximum
Battery Coil
0x
1536
Timer Register
4x
1872
Time of Day
4x
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
3
Cancel
Help
Type a number in the range of available 0x references in the 0x box. In the
example below, the number 1536 is used.
Maximum
Battery Coil
0x 1536
1536
Timer Register
4x
1872
Time of Day
4x
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
4
31007547 1/2007
Cancel
Help
Click the OK button. The dialog box closes and the register you have specified
is displayed on the PLC Configuration screen.
51
Configuring with Concept
Monitoring the
Battery Coil
You can monitor the battery coil in ladder logic or tie it to a lamp or alarm that turns
on to indicate that the battery should be changed.
The state of the battery coil is either 0 or 1, where:
z
z
52
0 indicates that the battery is healthy
1 indicates that the battery should be changed
31007547 1/2007
Configuring with Concept
Configuring the Time-of-day Clock
Time-of-day
Values
The Momentum 171 CBB 970 30 processor has a time-of-day (TOD) clock. To use
this feature, reserve a block of eight contiguous 4x registers
Reserving
Registers for the
TOD Clock
Use the following procedure to reserve these eight TOD registers:
Step
Action
1
From the Configure menu, select Specials.... The Specials dialog box appears
Specials
Maximum
Battery Coil
0x
1536
Timer Register
4x
1872
Time of Day
4x
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
31007547 1/2007
Cancel
Help
53
Configuring with Concept
Step
Action
2
Check the Time of Day box, the third item on the top left of the dialog.
Specials
Maximum
Battery Coil
0x
1536
Timer Register
4x
1872
Time of Day
4x
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
3
Cancel
Help
Type the number of the first 4x register in the series of eight. The number must be in
the range of available 4x references, and there must be at least seven more
contiguous registers after it in the available range. In the example below, a value of
100 is entered, indicating that the eight TOD registers will be 40100 ... 40107.
Specials
Maximum
Battery Coil
0x
1536
Timer Register
4x
1872
Time of Day
4x 100
-400007
1865
Allow Duplicate Coils (LL984 only)
Watchdog Timeout (ms*10):
30
Online Editing Timeslice (ms):
20
OK
4
54
Cancel
Help
Click the OK button. The registers you have specified are displayed on the PLC
Configuration screen.
31007547 1/2007
Configuring with Concept
The TOD
Registers
After you have reserved the block of TOD registers, you need to set the correct time.
With Concept, go online and set the register bits individually, as indicated in the table
below. The CPU must be running.
Register
Data Content
4x
The control register
4x + 1
Day of the week (where a value of 1 = Sunday, 2 = Monday, etc.)
4x + 2
Month of the year (where a value of 1 = Jan, 2 = Feb, etc.)
4x + 3
Day of the month (a value between 1...31)
4x + 4
Year (a value between 00...99)
4x + 5
Hour in military time (a value between 0...23)
4x + 6
Minute (a value between 0...59)
4x + 7
Second (a value between 0...59)
The first TOD register is the control register. Its four most significant bits report TOD
clock status.
1 2
3
4
5
6
7
8 9 10 11 12 13 14 15 16
1 = error
1 = All clock values are set
1 = Clock values are being read
1 = Clock values are being set
31007547 1/2007
55
Configuring with Concept
Reading the Time-of-Day Clock
Example
56
If you reserve registers 400100...400107 as your eight TOD clock registers and set
the clock at 9:25:30 A.M. on Thursday, July 16, 1998, the register values are as
follows:
Register
Reading (in decimal)
Indication
400100
0110000000000000
All clock values are set and are being read
400101
5
Thursday
400102
7
July
400103
16
16
400104
98
1998
400105
9
9 A.M.
40010 6
25
25 min
40010 7
30
30 sec
31007547 1/2007
Configuring Ethernet Address
Parameters and I/O Scanner
with Concept
5
At a Glance
Overview
This chapter describes how to configure the Ethernet address parameters of the
Momentum 171 CBB 970 30 processor and how to set I/O scanner parameters with
Concept. Configuring this processor requires Concept version 2.6 (with service
release 4, patch A) or greater.
Note: For a full description of Concept capabilities, refer to your Concept user
manuals and the Help system.
What's in this
Chapter?
31007547 1/2007
This chapter contains the following topics:
Topic
Page
Accessing the Ethernet I/O Configuration
58
Setting the IP Address Parameters
59
Completing the Ethernet I/O Configuration
61
Configuring Ethernet I/O
64
57
Ethernet Parameters and I/O Scanner
Accessing the Ethernet I/O Configuration
To access and edit the processor’s Ethernet IP address and I/O scanning
parameters, select the Config Extensions → Ethernet I/O menu in Concept. The
Ethernet I/O Scanner dialog box appears. If you have not modified any of the
Ethernet port parameter settings, this dialog box appears the default parameters, as
shown in the example below.
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
171 CBB 970 30
Internet Address:
Gateway:
0.0.0.0
0.0.0.0
Go Subnet Mask: 255.255.255.0
Copy
Cut
Paste
Import
Delete Fill Down Export
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
Ref Read Ref Read Last Value Write Ref Write Ref Write
Link Type Read
Master
Slave
Length (Input)
Master
Slave
Length
1
2
3
4
5
6
7
8
9
10
11
Description
9
OK
Cancel
Help
If you have previously modified any communication port parameters, the configured
values appear in this dialog box.
58
31007547 1/2007
Ethernet Parameters and I/O Scanner
Setting the IP Address Parameters
Introduction
The following Ethernet IP address parameters can be set for your controller using
Concept:
z
z
z
Use Bootp Server (default)
Specify IP Address
Disable Ethernet
WARNING
UNINTENDED OPERATION - DUPLICATE IP ADDRESS
Having two or more devices with the same IP address can cause unpredictable
operation of your network.
z Obtain a valid IP address from your system administrator to avoid duplication.
z Ensure that this device will receive a unique IP address.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
Note: The IP address parameters need to be set in the Ethernet I/O Scanner
screen before you can continue on to set I/O scanner parameters.
Make the IP address parameter selection by pushing one of the three radio buttons
in the top left corner of the Ethernet I/O Scanner screen:
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
171 CBB 970 30
300001
Copy
0
Link Type
0Normal
Cut
Delete
Read Ref Read Ref Read Last Value Write Ref Write Ref Write
Master
Slave
Length (Input)
Master
Slave
Length
400008 400050
1 Hold Las 400001 400040
Paste
Import
Fill Down Export
Description
10
9
OK
31007547 1/2007
GoSubnet Mask: 255.255.255.0
-300004
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
1 192.168.138.50 0
2
3
4
5
6
7
8
9
10
11
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Cancel
Help
59
Ethernet Parameters and I/O Scanner
Getting an IP
Address from the
BOOTP Sever
The default configuration setting is for the processor to get its IP address is from a
BOOTP server. The Use Bootp Server button should be auto-selected, as shown
above; if it is not and you want to use the BOOTP option, click on this radio button.
The Specify IP
Address Option
The Specify IP Address option allows you to type in an IP address, gateway, and
subnet mask of your choice. If you choose to Specify IP Address, you need to enter
parameter data in the Internet Address, Gateway, and Subnet Mask fields on the
top right side of the screen.
Note: Consult your system administrator to determine the appropriate gateway
and subnet mask numbers.
Disabling
Ethernet
60
If you choose the Disable Ethernet option, you will no longer be able to
communicate with the processor over any of the Ethernet ports. Your programming
and communications functions must be conducted via RS232 or RS485 over the
Modbus serial port (see p. 36).
31007547 1/2007
Ethernet Parameters and I/O Scanner
Completing the Ethernet I/O Configuration
Introduction
You can use the Copy, Cut, Paste, Delete, Sort, and Fill Down buttons to complete
your Ethernet I/O configuration.
Copy and Paste
To save time when typing similar read and write commands, you can copy and paste
entire rows within your configuration. Follow the steps in the procedure below:
Step
1
Action
Select the row you want to copy by clicking on the row number in the leftmost column:
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X): 300001
Diagnostic Block (3X/4X):
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Copy
-300004
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
1 192.168.138.50
2
3
4
5
6
7
8
9
10
11
0
Go Subnet Mask: 255.255.255.0
0
Cut
Delete
Ref Read Ref Read Last Value Write Ref Write Ref Write
Link Type Read
Master
Slave Length (Input)
Master
Slave
Length
0 Normal
400008 400050
1 Hold Las
Cancel
Help
OK
400001 400040
Paste
Import
Fill Down Export
Description
10
2
Click the Copy button above the I/O configuration list.
3
Select the row where you would like to paste the data (by clicking on a new row number in the leftmost
column).
31007547 1/2007
61
Ethernet Parameters and I/O Scanner
Step
4
Action
Click the Paste button above the I/O configuration list.
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X): 300001
-300004
Diagnostic Block (3X/4X):
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
1 192.168.138.50
2 192.168.138.50
3
4
5
6
7
8
9
10
11
0
0
0
0
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Copy
Cut
Paste
Import
Delete Fill Down Export
Ref Read Ref Read Last Value Write Ref Write Ref Write
Link Type Read
Master
Slave Length (Input)
Master
Slave Length
0 Normal
0 Normal
OK
5
Go Subnet Mask: 255.255.255.0
400008 400050
400008 400050
1Hold Las
1 Hold Las
Cancel
Help
400001 400040
400001 400040
Description
10
10
Click the <OK> button when finished. Your updated Bootp parameters are displayed in the Ethernet / I/O
Scanner screen.
Cut and Paste
To move a row within the configuration list, follow the procedure above, using the
Cut button instead of the Copy button.
Delete
To delete a row from the configuration list, select the row by clicking on the row
number in the leftmost column and clicking the Delete button.
Sort
To sort the I/O configuration list numerically or alphabetically, select a column by
clicking on the column heading you want to sort and click the Sort button.
62
31007547 1/2007
Ethernet Parameters and I/O Scanner
Fill Down
Step
1
To copy part of any row to the next row or to a series of adjoining rows, use the Fill
Down button, following the steps in the procedure below:
Action
With your mouse, select the data you want to copy and the cells where you want the data to go. You
must select a block of contiguous cells, with the data to be copied in the first row. You cannot select
two separate blocks.
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X): 300001
-300004
Diagnostic Block (3X/4X):
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
1 192.168.138.50
2
3
4
5
6
7
8
9
10
11
0
0
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Copy
Ref Read Ref Read Last Value Write Ref Write Ref Write
Link Type Read
Master
Slave Length (Input)
Master
Slave Length
400008 400050
0 Normal
Health Rep
Slave IP Address Unit ID Timeout Rate
(ms)
(ms)
1 192.168.138.50
2
3
4
5
6
7
8
9
10
11
Cancel
1Hold Las
400001 400040
Import
Description
10
Help
0
0
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Go Subnet Mask: 255.255.255.0
Copy
Cut
Paste
Import
Delete Fill Down Export
Ref Read Ref Read Last Value Write Ref Write Ref Write
Link Type Read
Master
Slave Length (Input)
Master
Slave Length
0 Normal
Normal
Normal
OK
31007547 1/2007
Paste
Click the Fill Down button. The data from the first row is copied to the selected cells.
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X): 300001
-300004
Diagnostic Block (3X/4X):
3
Cut
Delete Fill Down Export
OK
2
Go Subnet Mask: 255.255.255.0
400008 400050
400008 400050
400008 400050
1 Las
Hold
1 Las
Hold
1 Las
Hold
Cancel
Help
400001 400040
Description
10
Click the OK button. Your updated BOOTP parameters are displayed in the Ethernet / I/O Scanner
dialog.
63
Ethernet Parameters and I/O Scanner
Configuring Ethernet I/O
Overview
Once the Ethernet port address parameters have been set, you can configure the
remaining parameters in the Ethernet / I/O ScannerI dialog.
Health Block
Enter a starting reference in the window to the right of the Health Block (1x/3x)
entry. The health block contains a health bit for each of the IO Scanner transactions
that you intend to configure. The reference may be either a 3x register or a 1x
discrete input reference.
Health Block (1X/3X):
Diagnostic Block (3X/4X):
Ethernet / I/O Scanner
Ethernet Configuration:
Specify IP Address
Use Bootp Server
Disable Ethernet
I/O Scanner Configuration:
Internet Address: 0.0.0.0
Gateway: 0.0.0.0
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X):
300001
1 192.168.138 .
2 192.168.138
3
4
5
6
7
8
9
10
11
Go
255.255.255.0
Subnet Mask:
Copy
-300004
Cut
Paste
Delete Fill Down
Diagnostic Block (3X/4X):
Slave IP Address
300001
Health Rep
Ref Read Ref Read Last Va Write Ref Write Ref Write
Unit ID Timeout Rate Link Type Read
Master
Slave Length (Input) Master
Slave Length
(ms) (ms)
400001 400040
10
400008 400050
1 Hold L
0
0 Normal
0
400050 400055
1
5 Hold L
0
400020 400050
0 Normal
0
OK
Cancel
Import
Export
Description
Help
If you designate a 3x register (as shown in the example above), the health bits for
64 transactions (maximum) are stored in 4 contiguous registers starting at the
address you specify.
If you designate a 1x discrete input reference, the health bits are stored in 64
contiguous registers, using 1 bit/register.
A health bit is set only if the associated transaction completes successfully within the
last health time-out period for that transaction (see below). When the PLC is started,
the health bit for each configured transaction is preset to 1. If a transaction
subsequently fails, its health bit is cleared after the programmed health time-out
period expires.
64
31007547 1/2007
Ethernet Parameters and I/O Scanner
Diagnostic Block
If an you want to display Ethernet diagnostic information on your I/O scanner
transactions, check the box next to the Diagnostic Block (3x/4x) entry (just below
the Health Block (3x/4x) entry, and enter a starting reference in the window. The
reference may be either a 3x or a 4x register. The system automatically reserves 64
contiguous registers starting with the reference value you enter.
When the box is checked, a new column called Diag Code appears in the Ethernet
I/O Scanner dialog. Whenever a diagnostic error is detected, a hexadecimal integer
code appears in this Diag Code column. The meanings of these diagnostic codes
are described in an appendix (see p. 100).
IP Address
Type the IP address of the slave module in the IP Address column (item 1 below).
This address is stored in a pull-down menu so that you can use it in another row by
clicking on the down arrow and selecting it:
Ethernet Configuration:
Specify IP Address
Use Bootp Server
1
2
Disable Ethernet
I/O Scanner Configuration:
3
4
5
Internet Address: 0.0.0.0
6 Gateway:
7
8
0.0.0.0
Master Module (Slot): 171 CBB 970 30
Health Block (1X/3X):
300001
Copy
-300004
1 192.168.138 .
2 192.168.138
3
4
5
6
7
8
9
10
11
Cut
255.255.255.0
11
Paste
Delete Fill Down
Diagnostic Block (3X/4X):
Slave IP Address
Go
9Subnet10Mask:
Health Rep
Ref Read Ref Read Last Va Write Ref Write Ref Write
Unit ID Timeout Rate Link Type Read
Master
Slave Length (Input) Master
Slave Length
(ms) (ms)
0
0 Normal
400008 400050
1 Hold L
400001 400040
10
0
1
0
0
0 Normal
400020 400050
5 Hold L
400050 400055
OK
Cancel
Import
Export
Description
Help
Unit ID
If the slave module is an I/O device attached to the specified slave module, use the
Unit ID column (item 2 above) to indicate the device number.
Health Timeout
Use the Health Timeout column (item 3 above) to specify in ms how long to try a
transaction before timing out. Valid values are 0 ... 65,000 ms (1 min). To avoid
timing out, specify 0.
Rep Rate
Use the Rep Rate column (item 4 above) to specify how often in ms to repeat the
transaction. Valid values are 0 ... 65,000 ms (1 min). To repeat the transaction
continually, specify 0.
31007547 1/2007
65
Ethernet Parameters and I/O Scanner
Read
Use a Read function to read data from the slave to the master. The Read Ref Slave
column (item 6 above) specifies the first address to be read. The Read Length
column (item 7 above) specifies the number of registers to read. The Read Ref
Master column (item 5 above) specifies the first address to read to.
Write
Use a Write function to write data from the master to the slave. The Write Ref
Master column (item 8 above) specifies the first address to write. The Write Length
column (item 10 above) specifies the number of registers to write. The Write Ref
Slave column (item 9 above) specifies the first address to write to.
Read and Write
You may include read and write commands on the same line.
Description
You can type a brief description (up to 32 characters) of the transaction in the
Description column (item 11 above).
66
31007547 1/2007
Saving to Flash in Concept
6
Saving to Flash in Concept
You save flash so that in the event of an unexpected loss of power the application
logic state RAM values are preserved.
Note: The following conditions apply for saving to Flash:
z All Momentum programs using the 984LL Exec. have the option of saving to
Flash.
z
The contents of memory may be retained using batteries, which are contained
in the Momentum processor.
z
The 171 CBB 970 30 can use either an IEC or a 984LL Exec. The minimum
984LL Exec. version that can be used is 1V.1.06. Both IEC and 984LL Execs.
allow the option of saving to Flash.
Note: The 171 CBB 970 30 require Concept 2.6 with service release 4, patch A.
31007547 1/2007
67
Saving to Flash
Saving to Flash
Step
1
Action
From the Online menu on the main menu bar, select Connect. The Connect to
PLC dialog box appears.
Connect to PLC
Protocol type:
Protocol settings: Modbus
Mode
PLC Node:
RTU
001
ASCII
Modbus
Modbus Plus
TCP/IP
IEC Simulator (32-bit
Device:
COM1
9600,e,8,1
Port Settings...
List of nodes on Modbus Plus network:
Access Level
Monitor only
Change Data
Change Program
Change Configuration
Host adapter:
Cancel
OK
Rescan
< Previous
Next >
Help
2
Configure the parameters you want to use with your PLC.
3
In the Access Level field, select the Change to Configuration radio button and
click OK.The Connect to PLC dialog box disappears and Concept connects to
your PLC.
4
From the Online menu on the main menu bar, select Online Control Panel.The
following screen appears.
Online Control Panel
Controller Executive ID is 898, Version 0200.
Time of Day clock
clock not configured
Start controller...
Clear controller...
Invoke constant sweep...
Invoke single sweep...
Constant sweep settings
register for target scan time
target scan time (ms)
free-running scan time (ms)
Single sweep settings
single sweep time base (ms)
sweep trigger count
Set clock...
Invoke optimized solve
-----------
0
1
Flash program...
Close
68
Help
31007547 1/2007
Saving to Flash
Step
5
Action
Click the Flash program... button. The Save to Flash dialog box appears.
Save To Flash
Flash Type
Internal
Controller State
Start After Power Up
PCMCIA
Stop After Power Up
Save To Flash
Clear Flash
Cancel
Save State Ram
Help
31007547 1/2007
6
Select the appropriate parameters in the dialog box and click Save To Flash. A
confirmation screen appears.
7
Click Yes to confirm the save-to-Flash operation. When Concept completes the
operation, a message appears on the screen confirming completion.
69
Saving to Flash
70
31007547 1/2007
Configuring the Modbus Port
Parameters in Concept
7
At a Glance
Overview
This chapter describes how to access the Modbus Port Settings dialog box and
edit the default parameters for the delay, protocol, and address. The communication
parameters on the Modbus port are set at the factory.
What's in this
Chapter?
This chapter contains the following topics:
Topic
Accessing the Modbus Port Settings Dialog Box
31007547 1/2007
Page
72
Changing the Modbus Communication Protocol
73
Changing Mode and Data Bits on Modbus Port
74
Changing the Modbus Port’s Baud Rate
75
Stop Bit Should Not Be Changed
76
Changing Parity on the Modbus Port
77
Changing the Delay on the Modbus Port
78
Changing the Modbus Network Address of the Modbus Port
79
71
Configuring Modbus Port Parameters
Accessing the Modbus Port Settings Dialog Box
Introduction
Accessing the
Modbus Port
Setting Dialog
Modbus port parameters can be modified using the Modbus Port Settings dialog
box in Concept.
Step
1
Action
From the PLC Configuration menu, select Modbus Port Settings.
PLC Configuration
Summary:
PLC Selection
PLC Memory Partition
Loadables
Specials
Config Extensions
I/O Map
Segment Scheduler
Modbus Port Settings
ASCII
PLC
Type: 171 CBB 970 30
Available Logic Area:
0
IEC
IEC Heap Size:
160
IEC Only
PLC Memory Partition
Coils:
Discrete Inputs:
Input Registers:
Holding Registers:
000001
100001
300001
400001
001536
100512
300048
401872
Loadables
Number Installed:
Segment Scheduler
Specials
Battery Coil:
Timer Register:
Time of Day:
--400007
Config Extensions
Data Protection:
Peer Cop:
Hot Standby:
Ethernet:
Profibus DP:
Enabled
Enabled
-0
--
Segments:
32
ASCII
Number of Messages:
0
Message Area Size:
0
Number of Ports:
0
Open Dialog
2
0
Help
If you have not previously modified any port parameters, the default Modbus port
settings appear. If you have modified any communication port parameters, the
new values display in the dialog box.
Modbus Port Settings
Bridge Mode
Baud
1
2 9600
Data bits
8
OK
72
Stop bits
1
Parity
Delay(ms) Address Head slot
Even
10
Cancel
1
0
Mode
RTU
Protocol
RS232
Help
31007547 1/2007
Configuring Modbus Port Parameters
Changing the Modbus Communication Protocol
The Modbus port on the Momentum 171 CBB 970 30 processor can operate using
either the RS232 or RS485 communication protocol (see p. 36). The default setting
is RS232.
You can change the setting to RS485 in the Modbus Port Settings dialog. In the
Protocol column (the rightmost column in the dialog box), click the down arrow and
choose RS485.
Modbus Port Settings
Bridge Mode
Baud
Data bits
Stop bits
Parity
Delay (ms) Address
Head slot
Mode
Protocol
1
2
9600
8
1
Even
10
1
0
RTU
RS485
RS232
RS485
OK
31007547 1/2007
Cancel
Help
73
Configuring Modbus Port Parameters
Changing Mode and Data Bits on Modbus Port
From the Modbus Port Settings dialog box, you can configure the port to operate
in RTU or ASCII mode.
z
z
In RTU mode, the number of data bits is 8
In ASCII mode, the number of data bits is 7
The default mode is RTU.
To change the mode and data bit parameters from the default settings, click the
down arrow in the Mode column and select ASCII.
Modbus Port Settings
Bridge Mode
Baud
Data bits
Stop bits
Parity
Delay (ms)
Address
Mode
Protocol
1
2
9600
8 1
OK
Even
10
Cancel
1
RTU
ASCII
RS232
Help
The Modbus Port Settings dialog updates the mode type, and the value in the Data
bits column automatically changes from 8 to 7.
74
31007547 1/2007
Configuring Modbus Port Parameters
Changing the Modbus Port’s Baud Rate
The Modbus serial port can be configured for one of 16 possible baud rates in the
range 50 ... 19,200 (see p. 36). The default is 9600 baud.
To change the baud rate, click the down arrow in the Baud column and select the
desired rate from the list.
Modbus Port Settings
Bridge Mode
Baud
1
2
31007547 1/2007
9600
2000
2400
3600
4800
7200
9600
Data bits
Stop bits
8 1
OK
Parity
Even
Delay (ms)
10
Cancel
Address
1
Mode
RTU
Protocol
RS232
Help
75
Configuring Modbus Port Parameters
Stop Bit Should Not Be Changed
The stop bit default is 1. Do not change.
76
31007547 1/2007
Configuring Modbus Port Parameters
Changing Parity on the Modbus Port
Introduction
From the Modbus Port Settings dialog, you can configure the Modbus serial port
for even, odd, or no parity checking. The default is even.
To change the parity parameter, click the down arrow in the Parity column ad select
either Odd or None.
Modbus Port Settings
Bridge Mode
Baud
1
2
Data bits
9600
8 1
OK
31007547 1/2007
Stop bits
Parity
Even
None
Odd
Even
Delay (ms)
10
Cancel
Address
1
Mode
RTU
Protocol
RS232
Help
77
Configuring Modbus Port Parameters
Changing the Delay on the Modbus Port
Introduction
The Delay parameter is set to 10 ms and should be left at this value for most
applications. Do not change this parameter unless your application demands it.
This parameter can be any value from 10 ... 1000 ms, in 10 ms increments.
If your baud setting (see p. 75) is lower than 4800 for delay timing, adjust the delay
timing as indicated:
Baud Setting
Delay (in ms)
2400
20
1200
30
600
50
300
100
Click in the entry field of the Delay column. The default value, 10, is displayed. To
change it, enter a new value in the range 20 ... 1000, in increments of 10.
Modbus Port Settings
Bridge Mode
Baud
Data bits
Stop bits
Parity
Delay (ms) Address
Head slot
Mode
Protocol
1
2
9600
8
Ok
78
1
Even
10
Cancel
1
0
RTU
RS232
Help
31007547 1/2007
Configuring Modbus Port Parameters
Changing the Modbus Network Address of the Modbus Port
Introduction
The Modbus serial port has Modbus network address in the range 1 ... 247. That
address must be unique with respect to all other device addresses on the same
Modbus network. The default Modbus network address is 1.
To change the Modbus address; go to the field in the Address column in the
Modbus Port Settings dialog. The default value 1 appears. Type a new value in the
range 2 ... 247.
Modbus Port Settings
Bridge Mode
Baud
Data bits
Stop bits
Parity
Delay (ms) Address
Head slot
Mode
Protocol
1
2
9600
8
Ok
31007547 1/2007
1
Even
10
Cancel
1
0
RTU
RS232
Help
79
Configuring Modbus Port Parameters
80
31007547 1/2007
Configuring Momentum
Processor with ProWORX 32
8
At a Glance
Overview
This chapter explains how to configure the Momentum 171 CBB 970 30 processor
using ProWORX 32. Configuring this processor requires ProWORX 32 version 2.1
or greater.
Note: For a full description of ProWORX 32 capabilities, refer to the Help system
in the software.
What's in this
Chapter?
31007547 1/2007
This chapter contains the following topics:
Topic
Page
Configuring an Momentum Processor with ProWORX 32
82
Configuring an I/O Map
86
Monitoring the Health of the System
88
Saving to Flash with ProWORX32
89
81
Configuring with ProWORX 32
Configuring an Momentum Processor with ProWORX 32
Introduction
Creating a New
Project
Use the ProWORX 32 Configuration wizard to configure the Momentum
171 CBB 970 30 processor. The Configuration wizard walks you through the steps
for creating a new project or modifying an existing one. Each screen in the wizard
has a caption indicating the step you are currently working on and a diagram with a
description detailing what the current step involves.
Step
Action
1
Start ProWORX 32.
2
Select File → New Project.... The New Project - Select creation method
dialog appears:
New Project (NewProject) - Select creation method
Look in:
If you need to immediately connect to a controller,
select ‘Online to Controller.’ If you want to create a
new controller project offline, please select one of the
three offline project creation options.
Online to Controller
Offline
Use as a Macro
Select Controller Type
Base on Existing Project
Read from Controller
---
--Help
3
82
Cancel:
<Back
Next>
Finish
Select Offline → Select Controller Type, and click Next.
Other options are available, but Schneider Electric recommends selecting the
default.
31007547 1/2007
Configuring with ProWORX 32
Selecting the
Controller Family
and the
Controller
In the Select Controller dialog, go to item 1, Pick a controller family, and select
Momentum.
Then from item 2, Pick a controller, select 171 CBB 970 30
New Project (New970) - Select Controller
Select a controller to see its size and performance
ratings. Click Next to select the current controller and
continue with its configuration,
1. Pick a controller family:
Momentum
2. Pick a controller:
M1 970-30
User Memory - 18k, Data Memory - 512k, Discrete IO - 8192/8192, Register IO - 26032, Scan Speed - 0.16 ms\k of logic,
Modbus ports - 1, Ethernet ports - 4
Supported IO Types
Help
31007547 1/2007
Cancel
<Back
Next>
Finish
83
Configuring with ProWORX 32
Modbus
Communication
Settings
The possible communication modes for a controller type can be accessed in the
Communications Setup dialog. The dialog has four tabs—Modbus, Modbus
Plus, Gateway, or TCP/IP.
In the case of the 171 CBB 970 30 processor, select the Modbus tab. The following
information appears in the dialog:
New Project (NewProject) - Communications Setup
Select the desired communication mode:
Selected Communications Type:
Modbus
Modbus ModbusPlus Gateway TCP/IP
Modbus Communications Setup
1
COM 1
9600
Even
1
RTU
3 Seconds
None
Modbus Address
Port
Baud Rate
Parity
Stop Bits
Data Mode
Timeout
Modem Type
Change Setting...
Modem Setup...
Network Explorer...
Use server to communicate
-Help
Cancel
--
<Back
Next>
Finish
If you want to change a port parameter setting, select it with your mouse and click
the Change Setting... button. A dialog appears, allowing you to enter any valid
value associated with the selected parameter. The software supports range
checking at this level, and it does not allow you to apply invalid values to the selected
parameters.
Once you have changed all the settings to meet your configuration needs, click the
Next > button.
Note: Make sure that the Modbus tab is still selected when you click the Next >
button.
84
31007547 1/2007
Configuring with ProWORX 32
Finishing the
Configuration
After you have finished viewing and changing the configuration settings displayed
by the Configuration wizard, you can close the wizard and save any changes you
have made via the Finish dialog.
New Project (New970) - Finish
Click Finish to complete the operation.
Controller Type: M1 970-30
User Memory - 18k, Data Memory - 512k, Discrete IO - 8192/8192, Register IO - 26032, Scan Speed 0.16ms\k of logic, Modbus ports - 1, Ethernet ports - 4
Progress:
Help
Cancel
<Back
Next>
Finish
This dialog confirms the controller type and user memory settings. If you need to
make more changes, click the < Back button and make your changes.
Once your project and communication settings are complete, click the Finish button.
The newly created project appears in the project navigation tree in the Projects
panel.
31007547 1/2007
85
Configuring with ProWORX 32
Configuring an I/O Map
Introduction
As part of the configuration process, you need to set the controller properties for the
Momentum 171 CBB 970 30 processor. The controller properties set the
appropriate range and type of reference values (0x, 1x, 3x, or 4x) for the CPU’s state
RAM.
Use the ProWORX 32 configuration tool to edit or view your project’s current
configuration.
Using the
Configuration
Tool
To use the Configuration tool, you need to open a project. For the examples used
below, the name of the project is New970.
In the following screen, the icon for the Configuration tool is selected in the tree
hierarchy of the Projects tab, and the Configuration [New970] panel appears to
the right of the Projects tab.
ProWORX 32 - [New970] Offline
File
Edit
View
Project
Controller Server Utilities Window Help
Configuration [New970]
Direct To Online
Workspace
New970 <Offline>
Configuration
Traffic Cop
Communications
Logic
Data Editors
Configuration Extensions
PLC Status
Analyze Device
Knowledge Base
General Ports Loadables
Controller Properties
Controller Details
Controller Type
Modules
Total Logic
Config Extension Used
Config Extension Size
Enable Skips
Watch Dog Time (*10ms)
Bridge Mode
Project Info
Projects
New970
Nxt_demo
Q43
M1 970-30
00
17672
Ranges
0xxxx
1xxxx
3xxxx
4xxxx
Segments
I/O Words
Duplicate Coil Start
Specials
Battery Coil (0x)
Timer Register (4x)
Time of Day Clock (4x)
01600
00256
00099
018000256
01
00032
00000
00000
00000
00000
00000
00000
True
00000
False
M1 970-30 - MB: 1
984-A145 - MB: 1
Quantum 534 - MBP: 59...
M1E 970 30 Throughput - <M1 970-30 - MB: 1>
My Projects
Plant
86
My Computer
Documents
Utilities
Apply
31007547 1/2007
Configuring with ProWORX 32
Configuration
Extensions
To access the Configuration Extensions tool, you must allocate memory. Enter the
amount of memory required in the Config Extension Size field. If you do not enter
a value in this field, the Configuration Extensions tool does not open.
Monitoring
Battery Coils
To monitor the battery coil, you must enter an address in the Battery Coil (0x) field.
Configuring a
Time-of-day
Clock
To set the time-of-day (TOD) clock, you must have the necessary rights and you
must configure that a starting register in the Configuration panel.
Step
Action
1 Put the controller in an Online and Running state.
2 In the Configuration panel, select the Time of Day Clock (4x) field and enter a value into that field.
3 Close the Configuration panel.
4 Select the Logic icon in the hierarchy tree of the Projects tab.
The Logic panel with the Network Navigator tree appears.
5 Right-click the Network Navigator tree. Result: A shortcut menu appears.
6 Select Hardware Clock from the shortcut menu. Result: The Hardware Clock dialog box appears.
7 The First Day of Week field contains a drop-down list box. In the list box, select the day, Sunday through Saturday, that
the controller will use as the first day of the week.
Setting the Time
The time-of-day clock requires that you reserve eight contiguous 4x registers in your
processor.
Register
Content
4x
Controller Information, from left to right
Bit 1: Set Clock Values
Bit 2: Read Clock Values
Bit 3: Done
Bit 4: Errors
4x + 1
Day of week (from 1 to 7)
4x + 2
Month
4x + 3
Day
4x + 4
Year
4x + 5
Hour (in 24-hour format)
4x + 6
Minutes
4x + 7
Seconds
You can set the date and time automatically (using Auto Set) or manually by
entering the correct values in the TOD registers.
31007547 1/2007
87
Configuring with ProWORX 32
Monitoring the Health of the System
Configuring
Parameters –
Health Block
Once you have established communication with the controller, you may assign
parameters for I/O scanning (see p. 64).
Specify the starting register of the register block which will contain the health bits for
each of the I/O Scanner transactions that you intend to configure.
If you designate a 3x register, the health bits for 64 transactions (maximum) will be
stored in 4 contiguous registers starting at the address you specify.
If you designate a 1x register, the health bits will be stored in 64 contiguous discrete
registers.
A health bit is set only if the associated transaction has completed successfully
within the last health timeout period for that transaction. When the PLC is started, all
configured transactions have their respective health bit preset to 1. If the transaction
subsequently fails, then the health bit is cleared after the programmed health
timeout period has expired.
Additional health bits can be viewed by clicking on the PLC Status icon located in
the project tree.
88
31007547 1/2007
Configuring with ProWORX 32
Saving to Flash with ProWORX32
Overview
You save to Flash so that in the event of an unexpected loss of power the application
logic and state RAM values are preserved.
This topic describes how to save the application logic and state RAM values to Flash
using ProWORX32.
Procedure for
Saving to Flash
Follow the steps in the table below to save to Flash.
Step
1
Action
Go to the Projects tab in the left panel.
z Right click the project icon; a sub menu appears.
z Select Online Commands I Write I Transfer to Flash/EEPROM.
ProWORX 32 - [New970] Offline - [Logic Editor [New970]]
File
Edit
View Project
Controller Server Utilities Window Help
Instructions
Direct to Online
Workspace
New970 <O
Configura
Traffic Co
Commun
Logic
Data Edit
Configura
PLC Stat
Analyze
Knowled
Start/Stop
Online Commands
Initialize Controller Logic
Project State
Read
Change Controller Type
Write All
Write
PLC Web Link
Relocate Logic and Data
Get from Server
#00500
Write Extended Memory
Get from Server with Lock
Transfer to Flash/EEPROM
UCTR
Put to Server
Unlock Project
01301
#65535 #00000
Get Previous Version
Off
Get Backup Version
T.01
SUB
Get Previous Compare
401301 401302
Update Lock Status
Import Documentation
Export Documentation
Logbook
Projects
New970
Nxt_demo
Q43
Audit Trail
P
M
98
Q
M1E 970 30 Throu
My Projects
Plant
Backup Project
Restore Project
Close Project
00002 001305 001304
Off
Off
Properties
Name
NCBT
00010
Properties...
My Computer
Utilities
Documents
001304
Off
New970
M1 970-30
Offline
Used:00029/17672
The Logic Editor is used to enter logic elements, edit register values, display input/output data, and add descriptors and comments to a network.
Logged in user: tvq (Administrator)
2
31007547 1/2007
PROGRAM
Tracking Help
While online, data is gathered from the controller instead of a database (as offline does). It uses programming commands for Modbus and Modbus Plus
communication protocols to retrieve the data.
View3
Message Central
Logic Editor
New970 - <M1 970-30 @ MB:1 > Offline D:\SoSoWORX\32\Projects\New970.pwx
Select Transfer when the Transfer to Flash option appears.
89
Configuring with ProWORX 32
90
31007547 1/2007
Appendices
At a Glance
Purpose
These appendixes provides Momentum 171 CBB 970 30 processor specifications,
LED flash patterns and error codes, and information about RS485 cabling
accessories.
What's in this
Appendix?
The appendix contains the following chapters:
Chapter
A
31007547 1/2007
Chapter Name
Momentum 171 CBB 970 30 Processor Specifications
B
LED Flash Patterns, Error Codes, and Diagnostic Messages
C
RS485 Accessories for the Modbus Serial Port
Page
93
97
103
91
Appendices
92
31007547 1/2007
Momentum 171 CBB 970 30
Processor Specifications
A
Specifications
General
Specifications
Memory
Internal Memory
544 Kbytes
User Memory
18 Kwords 984LL Exec
Flash RAM
1 Mbyte
Clock Speed
50 MHz
200 kwords IEC Exec
984LL Input and Output References Registers
IEC Input and Output References
26048
Discretes
8192 0x references
8192 1x references
Registers
11200
Discretes
4096 0x references
4096 1x references
I/O Servicing
Scan Time
Formula for
984LL Exec
Watchdog Timeout
335 ms
Logic Solve Time
See the scan time formula below
for the 984LL Exec
The following formula applies to a Momentum 171 CBB 970 30 processor using the
984LL exec.
scan time = (0.25 ms/Ethernet device + 0.002 ms/word) + 0.13 ms/K of logic +
0.40 ms
Note: Modbus messages add from 1 to 2 ms per scan, depending on the length of
the message.
31007547 1/2007
93
Specifications
Note: The formula above presumes that all MSTR blocks and all configured
connections are set to go as fast as possible. When these conditions are true, the
Momentum processor attempts to exchange data with each device once per scan.
Note: If several devices are configured to communicate on a timed basis that is
substantially larger than the scan time calculated, then the communications to
those devices will be spread out over several scans.
Example
You have 3 drops of Ethernet I/O modules connected to one 171 CBB 970 30
processor. The processor has a configured time of 50 ms each, and a total of 4k
user logic. The scan time for all modules configured as fast as possible is
75 ms + 0.12 ms + 0.52 ms = 1.79 ms.
Ethernet Ports
Communications ports
4 ports
10/100BASE-T
Half/full duplex, auto-negotiated
RJ45 connectors
10/100BASE-T ports
Shielded RJ45
Ethernet protocols supported
All applicable IEEE 802.3 standards
Auto-crossover (auto-MDI/MDI-X)
Yes
Auto-negotiating
10/100BASE-T or 100BASE-TX
Ethernet Port Status LEDs
100MB; LINK/ACTIVE
Processor Status LEDs
POWER OK, PLC Run, PLC LAN Status
Ethernet isolation
1500 VRMS for 1 min
Cable recommended
Twisted pair (CAT5 or better)
Maximum cable distance
100 m
Shielding recommended for noisy environments
Environmental protection (IP20)
94
31007547 1/2007
Specifications
Serial Port
Serial port types
1 port
RJ45 connector
RS232/RS485 (selectable)
RS232 (default)
Communication rates
50...19.2k baud
{Protocol
Modbus
Shock
+/-15 g peak, 11ms, half sine wave
Ref. IEC 68-2-27 EA
RFI Susceptibility/Immunity Meets CE mark requirements for open equipment.
Open equipment should be installed in an industry-standard
enclosure, with access restricted to qualified service personnel.
Mechanical
Performance
Specifications
Weight
232 g (7.5 oz
Dimensions (HxDxW)
143.8 x 43.2 x 7.42 mm (5.6 x 1.7 x 2.9 in)
Enclosures/Bezel Material
Lexan
Operating
Conditions
Temperature
-25 ... 70 degrees C
Chemical
Interactions
Enclosures and bezels are made of Lexan, a
polycarbonate that can be damaged by strong alkaline
solutions.
Altitude, Full
Operation
2000 m (6500ft.)
Vibration
10 ... 57 Hz @ 0.075 mm displacement amplitude
57 ... 150 Hz @ 1g
Ref. IEC 68-2-6 FC
Shock
+/-15 g peak, 11 ms, half sine wave
Ref. IEC 68-2-27 EA
RFI Susceptibility/
Immunity
Meets CE mark requirements for open equipment.
Open equipment should be installed in an industrystandard enclosure, with access restricted to qualified
service personnel.
Temperature
-40 ... +85 degrees C
Humidity
5 ... 95% (noncondensing)
Storage
Conditions
31007547 1/2007
95
Specifications
Safety
Degree of Protection
Parameters
Di-electric Strength
Unintentional access (UL 508 Type 1, NEMA250 Type
1, IP20 conforming to IEC529)
Ethernet is isolated from logic common 500 VDC
Ground Continuity
30 A test on the exposed metal connector
Agency Approvals
UL 508, CSA, CUL, CE
Electrical
96
Power Range
19.2 to 42.5 VDC input from a safety extra-low voltage
(SELV) source
Operating Input Current
(Typical)
0.1 A at 24 VDC
Maximum Inrush Current
50 A (for less than 2 ms)
Overload Current Protection
Non-replaceable fuse
0.12 A at 19.2 VDC
31007547 1/2007
LED Flash Patterns, Error Codes,
and Diagnostic Messages
B
At a Glance
Overview
This appendix describes Run LED flash patterns and error codes on the Momentum
171 CBB 970 30 processor and the Ethernet diagnostic messages that can be
viewed when you enable the Diagnostic block in the Ethernet I/O Scanner dialog
(see p. 64).
What's in this
Chapter?
This chapter contains the following topics:
Topic
Run LED Flash Pattern and Error Codes
Diagnostic Message Codes
31007547 1/2007
Page
98
100
97
LED Patterns, Error Codes, and Diagnostic Messages
Run LED Flash Pattern and Error Codes
Error Codes
Table
98
The following table lists the flash pattern of the PLC Run LED on 171 CBB 970 30
Momentum processor and the associated codes (in hex format).
Number of Blinks
Code (hex)
Error
Continuous
0000
Requested Kernel mode
2
080B
RAM error during sizing
080C
run output active failed
082E
MB command handler stack error
0835
Main loop broken
0836
Power down / Power holdup
0837
Power down reset absent
3
072B
master config write bad
4
0607
modbus cmd-buffer overflow
0608
modbus cmd-length is zero
0609
modbus abort command error
0614
mbp bus interface error
0615
bad mbp response opcode
0616
timeout waiting for mbp
0617
mbp out of synchronization
0618
mbp invalid path
0619
page 0 not paragraph aligned
061E
bad external uart hardware
061F
bad external uart interrupt
0620
bad receive comm state
0621
bad transmit comm state
0622
bad comm state trn_asc
0623
bad comm state trn_rtu
0624
bad comm state rcv_rtu
0625
bad comm state rcv_asc
0626
bad modbus state tmr0_evt
0627
bad modbus state trn-int
0628
bad modbus state rcv-int
0631
bad interrupt
31007547 1/2007
LED Patterns, Error Codes, and Diagnostic Messages
5
ram address test error
052D
P.O.S.T BAD MPU ERROR
6
0402
ram data test error
7
0300
EXEC not loaded
0301
EXEC Checksum
8
31007547 1/2007
0503
8001
Kernal prom checksum error
8003
unexpected exec return
8005
Flash program / erase error
8007
Watchdog timeout event
99
LED Patterns, Error Codes, and Diagnostic Messages
Diagnostic Message Codes
TCP/IP
Diagnostic
Messages
The following table describes the diagnostic messages associated with the hex
numbers displayed in the Diag code column of the Ethernet I/O Scanner dialog
when the Diagnostic Block is selected in Concept (see p. 64).
Diagnostic
Description
Code (in hex)
1001
User has disabled the row in the Ethernet I/O Scanner dialog.
2001
not applicable
2002
not applicable
2003
Invalid value in a length field of the row in the Ethernet I/O Scanner dialog.
2004
Invalid value in a Ref. field of the row in the Ethernet I/O Scanner dialog.
2005
Invalid values in the length and Ref. fields of the Ethernet I/O Scanner dialog.
2006
Invalid slave device data area.
2008
not applicable
3000
not applicable
30ss*
Modbus slave
exception response:
3001 =Slave device does not support the requested operation.
3002 = Nonexistent slave device registers requested.
3003 = Invalid data value requested.
3004 is reserved
3005 = Slave has accepted long-duration program command.
3006 = Function cannot be performed now; a long-duration command is in
effect.
3007 =Slave rejected long-duration program command.
4001
Inconsistent MODBUS slave response.
F001
Optional module not responding
F002
Module not fully initialized
5004
interrupted system call
5005
I/O error
5006
no such address
5009
socket descriptor is invalid
500C
not enough memory
500D
permission denied
5011
entry exists
5016
an argument is invalid
100
31007547 1/2007
LED Patterns, Error Codes, and Diagnostic Messages
Diagnostic
Description
Code (in hex)
5017
an internal table has run out of space
5020
connection is broken
5028
destination address required
5029
protocol wrong type for socket
502A
protocol not available
502B
protocol not supported
502C
socket type not supported
502D
operation not supported on a socket
502E
protocol family not supported
502F
address family not supported
5030
address already in use
5031
cannot assign requested address
5032
socket operation on a non-socket
5033
network is unreachable
5034
network dropped connection on reset
5035
network caused connection abort
5036
connection reset by peer
5037
no buffer space available
5038
socket is already connected
5039
socket is not connected
503A
cannot send after socket shutdown
503B
too many references, cannot splice
503C
connection timed-out (see note, below.)
503D
connection refused
503E
network is down
503F
text file busy
5040
too many levels of links
5041
no route to host
5042
block device required
5043
host is down
5044
operation now in progress
5045
operation already in progress
5046
operation would block
5047
function not implemented
31007547 1/2007
101
LED Patterns, Error Codes, and Diagnostic Messages
Diagnostic
Description
Code (in hex)
5048
hardware length is invalid
5049
route specified cannot be found
504A
collision in select call: these conditions have already been selected by another task.
504B
task ID is invalid
5050
no network resource
5051
length error
5052
addressing error
5053
application error
5054
client in bad state for request
5055
no remote resource; may indicate no path to remote device (See note, below.)
5056
nonoperational TCP connection
5057
incoherent configuration
Note: Error 5055 can occur before a 503C error. No remote device takes precedence over a timeout.
102
31007547 1/2007
RS485 Accessories for the
Modbus Serial Port
C
At a Glance
Overview
When you are using RS485 communication on the Modbus serial port, four-wire and
two-wire cabling networks are supported.
What's in this
Chapter?
This chapter contains the following topics:
31007547 1/2007
Topic
Page
Four-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components
104
Two-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components
107
Cable for Modbus RS485 Networks Connecting Momentum Components
109
Connectors for Modbus RS485 Networks Connecting Momentum
Components
111
Terminating Devices for Modbus RS485 Networks Connecting Momentum
Components
112
Pinouts for Modbus RS485 Networks Connecting Momentum Components
113
103
RS485 on the Modbus Port
Four-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components
Introduction
Four-wire cabling schemes may be used for single master/slave communications.
Only one master is allowed. The master may be located anywhere in the network.
Length
The maximum length of cable from one end of network to other is 2000 ft (609 m).
Number of
Devices
The maximum number of devices in a network is 64 if all are Momentum devices.
Otherwise, the maximum is 32.
Termination
You must terminate both ends of the cable run with special terminating resistors.
Master Cable
Description
Part Number
Modbus Plus or Modbus RS485 terminating RJ45 resistor plugs
(pack of 2)
Color code: red
170 XTS 021 00
The master of this master/slave cabling scheme must be connected on at least one
side to a master cable, a special cable that crosses the transmit and receive lines.
The other side may be connected to a master cable, or, if the master is at one end
of the cable run, a terminating resistor.
Description
Slave Cabling
104
Part Number
Modbus RS485 (RJ45/RJ45) Master Communication Cable
170 MCI 041 10
Modbus Plus or Modbus RS485 terminating RJ45 resistor plugs
(pack of 2)
Color code: blue
170 XTS 021 00
The slaves use a pin-for-pin cable, such as the Modbus Plus / Modbus RS485 short
interconnect cable or any Cat. 5 4-twisted pair Ethernet cable AWG#24.
Description
Part Number
Modbus Plus / Modbus RS485 short interconnect cable
Color code: black
170 MCI 020 10
31007547 1/2007
RS485 on the Modbus Port
Single Master/
Slave Option 1
The following illustration shows components used in a four-wire single master/slave
cabling scheme. In this view, a master cable (#3) is used on both sides of the
master. Each Momentum module must include a processor adapter or option
adapter with a Modbus RS485 port.
3
2
2
3
2
4
2
4
5
1
1
Slave
Master
Slave
Slave
Slave
Note: Each cable has different colored boots. The color of the boots signifies the
cable’s function.
Legend:
31007547 1/2007
Label
Description
Part Number
1
Terminating resistor plug
170 XTS 021 00
2
Modbus RS485 connector "T" (DB9 base)
170 XTS 040 00
3
Modbus RS485 master communication cable
170 MCI 041 10
4
Modbus Plus / Modbus RS485 short interconnect cable
170 MCI 020 10
5
Modbus RS485 connector "T" (RJ45 base)
170 XTS 041 00
105
RS485 on the Modbus Port
Single Master/
Slave Option 2
The following illustration shows components used in a four-wire single master/slave
cabling scheme. In this view, the master is at one end of the network and is
connected by a single master cable (#3). Terminating resistors (#1) are used at both
ends of the network.
Each Momentum module must include a processor adapter or option adapter with a
Modbus RS485 port.
3
2
2
4
2
4
2
4
5
1
1
Master
Slave
Slave
Slave
Slave
Legend:
106
Label
Description
Part Number
1
Terminating resistor plug
170 XTS 021 00
2
Modbus RS485 connector "T" (DB9 base)
170 XTS 040 00
3
Modbus RS485 master communication cable
170 MCI 041 10
4
Modbus Plus / Modbus RS485 short interconnect cable
170 MCI 020 10
5
Modbus RS485 connector "T" (RJ45 base)
170 XTS 041 00
31007547 1/2007
RS485 on the Modbus Port
Two-Wire Cabling Schemes for Modbus RS485 Networks Connecting
Momentum Components
Introduction
Two-wire cabling schemes may be used for single master/slave or multimaster/
slave communications. Masters may be located anywhere in the network.
CAUTION
POTENTIAL FOR MULTIMASTER CONFLICTS
Conflicting messages to a slave module can cause problems.
z Configure a multimaster network carefully to avoid masters issuing
simultaneous or conflicting commands to the same slave module.
Failure to follow this instruction can result in injury or equipment damage.
Length
The maximum length of cable from one end of network to other is 2000 ft. (609 m).
Number of
Devices
The maximum number of devices in a network is 64 if all are Momentum devices.
Otherwise, the maximum is 32.
Termination
One end of the cable run must be terminated with a terminating resistor (color code
is red).
The other end of the cable must be terminated with a terminating shunt, which
connects the transmit pair to the receiver pair (color code is blue).
Cable
31007547 1/2007
Description
Part Number
Modbus Plus or Modbus RS485 terminating RJ45 resistor plugs
(pack of 2)
170 XTS 021 00
Modbus RS485 terminating RJ45 shunt plugs
170 XTS 042 00
All devices are connected with the same pin-for-pin cable, such as the Modbus Plus
or Modbus RS485 short interconnect cable or any Cat. 5 4-twisted pair Ethernet
cable AWG#24. A master/slave system using 2-wire cabling does not require the
special master communication cable.
Description
Part Number
Modbus Plus or Modbus RS485 short interconnect cable
Color code: black
170 MCI 020 10
107
RS485 on the Modbus Port
Multimaster/
Slave Cabling
The following illustration shows components used in a multimaster/slave network.
Each Momentum module must include a processor adapter or option adapter with a
Modbus RS485 port.
3
2
2
4
3
3
2
3
2
1
5
Master
Slave
Master
Slave
Slave
Legend:
108
Label
Description
Part Number
1
Terminating resistor plug
Color code: red
170 XTS 021 00
2
Modbus RS485 connector "T" (DB9 base)
170 XTS 040 00
3
Modbus Plus / Modbus RS485 Short Interconnect Cable
Color code: black
170 MCI 020 10
4
Modbus RS485 connector "T" (RJ45 base)
170 XTS 041 00
5
Terminating shunt plug
Color code: blue
170 XTS 042 00
31007547 1/2007
RS485 on the Modbus Port
Cable for Modbus RS485 Networks Connecting Momentum Components
Overview
This section describes the cables which should be used in constructing an RS485
network for Momentum components.
Master
Communication
Cable
This cable is required for master/slave communications in a four-wire cabling
scheme. This cable is 10" long and has a blue boot.
Interconnect
Cables
31007547 1/2007
Description
Part Number
Modbus RS485 (RJ45/RJ45)
master communication cable
170 MCI 041 10
Illustration
Cable for connecting two Modbus RS485 devices, such as Momentum modules, is
available from Schneider Automation in four lengths. These cables have a black
boot.
Description
Part Number
Modbus Plus or Modbus RS485
short interconnect cable (10")
Can be used for Ethernet
170 MCI 020 10
Modbus Plus or Modbus RS485
3 ft. interconnect cable
Can be used for Ethernet
170 MCI 020 36
Modbus Plus or Modbus RS485
10 ft. interconnect cable
Cannot be used for Ethernet
170 MCI 021 80
Illustration
109
RS485 on the Modbus Port
Other Premade
Cable
Description
Part Number
Illustration
Modbus Plus or Modbus RS485
30 ft. interconnect cable
Cannot be used for Ethernet
170 MCI 020 80
Interconnect and Ethernet cable in various lengths and boot colors may be obtained
from other vendors, including Amp.
Description
Amp Part Number
2 ft
621 894-2
5 ft
621 894-4
7 ft
621 894-5
10 ft
621 894-6
14 ft
621 894-7
Custom Cable
For custom cabling, use Cat. 5 4-twisted pair Ethernet cable AWG#26. It may be
shielded or unshielded. Shielded cable is recommended for long runs and for noisy
environments. You may use stranded or unstranded cable. Keep in mind that
stranded cable is more f
Custom Cable
Vendors
Vendors include:
Crimping Tool
110
Vendor
Part # for Shielded Cable
Part # for Unshielded Cable
Belden
1633A
1583A non plenum
1585A plenum
Berk/Tek
530131
540022
Alcatel Cable Net
--
Hipernet Cat. 5 - UTP (LSZH-rated cable)
Schneider Automation provides a crimping tool (490 NAB 000 10) and an RJ45 die
set (170 XTS 023 00) to attach the 170 XTS 022 00 connector to the cable.
31007547 1/2007
RS485 on the Modbus Port
Connectors for Modbus RS485 Networks Connecting Momentum Components
Overview
This section describes the connectors which should be used in constructing an
RS485 network for Momentum components.
RJ45
Connector "T"
This connector is used with the RS485 port:
DB9
Connector "T"
Description
Part Number
Modbus RS485 connector "T" (RJ45 base)
170 XTS 041 00
Illustration
This connector is used with the RS485 port:
Description
Part Number
Illustration
Modbus RS485 connector "T" (DB9 base) 170 XTS 040 00
Connectors for
Custom Cabling
31007547 1/2007
This RJ45 connector should be used when constructing custom cable for an RS485
network:
Description
Part Number
RJ45 connector (pack of 25)
170 XTS 022 00
Illustration
111
RS485 on the Modbus Port
Terminating Devices for Modbus RS485 Networks Connecting Momentum
Components
Overview
This section describes terminating devices which should be used in constructing
Modbus RS485 networks for Momentum devices.
Terminating
Resistor Plugs
Terminating resistor plugs are used with the RS485 connector (RJ45 base) at the
last device on either end of a four-wire cable network or at one end of a two-wire
cable network.
Description
Part Number
Illustration
Modbus Plus or Modbus RS485 terminating 170 XTS 021 00
RJ45 resistor plugs (pack of 2)
Color code: red
Shunt Plugs
112
Shunt plugs are used with the RS485 connector (RJ45 base) at one end of a twowire cable network. The plug is used at the last device on the network.
Description
Part Number
Modbus RS485 terminating RJ45 shunt plugs
Color code: blue
170 XTS 042 00
Illustration
31007547 1/2007
RS485 on the Modbus Port
Pinouts for Modbus RS485 Networks Connecting Momentum Components
Overview
The pinouts for wiring an RS485 network to a Momentum 171 CBB 970 30
processor are described below.
RJ45 Pinout
pin 8
pin 1
pin 1 RXD pin 2 RXD +
pin 3 TXD +
pin 4 reserved
pin 5 signal common
pin 6 TXD pin 7 reserved
pin 8 shield
Master
Communication
Cable
The illustration below shows the pinout for the 170 MCI 041 10 Modbus RS485
(RJ45/RJ45) master communication cable.
RJ45 Connector
31007547 1/2007
RJ45 Connector
RXD-
1
1
RXD-
RXD+
2
2
RXD+
TXD-
6
6
TXD-
TXD+
3
3
TXD+
Not used
4
4
Not used
Signal
common
5
5
Signal
common
Not used
7
7
Not used
Shield
8
8
Shield
113
RS485 on the Modbus Port
Interconnect
Cables
The illustration below shows the pinout for the 170 MCI 02x xx Modbus RS485
interconnect cables (10 in, 3 ft, 10 ft and 30 ft).
RJ45 Connector
Modbus RS485
Connector "T"
(DB9 Base)
RJ45 Connector
RXD-
1
1
RXD-
RXD+
2
2
RXD+
TXD+
3
3
TXD+
TXD-
6
6
TXD-
Not used
Signal
common
Not used
4
4
5
5
7
7
Not used
Signal
common
Not used
Shield
8
8
Shield
The illustration below shows the pinout for the Modbus RS485 connector "T" (DB9
base).
RJ45 Shielded Connector
RJ45 Shielded Connector
RXD-
1
1
RXD-
RXD+
2
2
RXD+
TXD+
3
3
TXD+
4
4
5
5
6
6
7
7
8
8
TXD-
Shield
100V
CER
1206
.1UF
Shell
7
2
1
4
RXD- RXD+ TXD+
3
6
5
8
9
51.1
M1
1/8W
1%
1206
Signal
common
Shield
Shell
M2
TXDSignal
common
DB9 Connector
114
31007547 1/2007
RS485 on the Modbus Port
Terminating
RJ45 Resistor
Plugs
RJ45 Connector
1
2
1/4W
121Ohm
1%
3
4
5
1/4W
121Ohm
1%
6
7
8
Terminating
RJ45 Shunt
Plugs
RJ45 Connector
1
2
3
4
5
6
7
8
31007547 1/2007
115
RS485 on the Modbus Port
116
31007547 1/2007
B
AC
Index
Numerics
C
100MB indicators, 12
cables
Modbus port, 38
connectors
Ethernet switch ports, 11
Modbus port, 13, 37
control register
TOD clock, 55
A
adapters
Modbus host device, 39
address parameters, 29
ASCII mode
Modbus port, 36
auto-logout feature
Modbus port, 36
auto-MDI/MDI/X
on the Ethernet ports, 24
auto-negotiation
on the Ethernet ports, 24
auto-polarity
on the Ethernet ports, 24
B
battery back-up
operating without, 26
battery coil
in Concept, 50
in ProWORX 32, 87
baud rates
Modbus port, 36
BOOTP server
for IP address management, 30
31007547 1/2007
D
data bits
Modbus port, 36
DHCP server
for IP address management, 30
diagnostic block
I/O scanner configuration, 65
diagnostic message codes
Ethernet network, 100
distributed I/O networks
design considerations, 27
duplicate IP addresses, 29
E
error codes, 98
Ethernet address parameters, 29
Ethernet network statistics, 32
Ethernet switch
capabilities, 24
Ethernet switch port connectors, 11
117
Index
F
firewalls, 28
Flash
saving to, 89
Flash RAM, 16
front panel view, 10
full-duplex mode
on the Ethernet ports, 24
G
grounding requirements, 19
H
half-duplex mode
on the Ethernet ports, 24
health block
I/O scanner configuration, 64
I
I/O scanner transactions
configuration, 64
IP address assignment, 29
L
LED
error codes, 98
LEDs
Ethernet port status indicators, 12
M1 processor indicators, 14
LINK/ACTIVE indicators, 12
Modbus port, 36
auto-logout feature, 36
cable, 38
changing protocol RS485, 73
pinouts, 37
Modbus port connector, 13, 37
Modbus port parameters, 36
Modbus RS485, 40
cable, 109
Connectors, 111
four-wire cabling schemes, 104
pinouts, 113
terminating devices, 112
two-wire cabling schemes, 107
multi-addressing
on the Ethernet switch, 24
P
parity
Modbus port, 36
physical components of the processor, 10
PLC LAN Status indicator, 14
PLC Run indicator, 14
POWER OK indicator, 14
power supply
external source, 13
grounding, 19
wiring, 19
protective earth, 19
ProWORX32, 81
Q
queuing outputs data packets
by the Ethernet switch, 24
M
MAC address assignment, 29
MDI/MDI/X, 24
Modbus address range, 36
Modbus cable
SUB-D adapters, 39
118
R
RS232 protocol
Modbus port, 73
RS485 communications
Modbus serial port, 40
RS485 protocol
Modbus port, 73
31007547 1/2007
Index
RTU mode
Modbus port, 36
S
save to Flash, 16
saving to Flash with ProWORX32, 89
specifications, 93
state RAM, 16
statistics
Ethernet, 32
stop bit
Modbus port, 36
supervisory networks
design considerations, 27
T
tagging data packets
by the Ethernet switch, 24
time-of-day clock
reading in Concept, 56
reading in ProWORX 32, 87
set up in Concept, 53
set up in ProWORX 32, 87
TOD clock, 53, 56, 87
U
user memory, 16
31007547 1/2007
119
Index
120
31007547 1/2007

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
