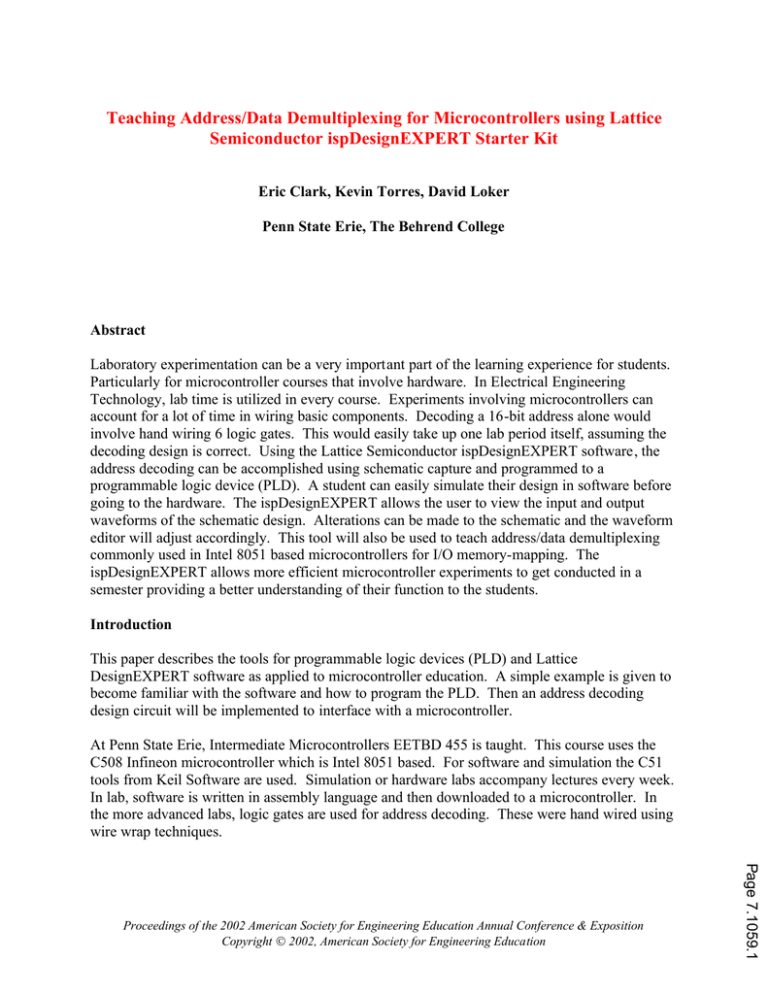

Teaching Address/Data Demultiplexing for Microcontrollers using Lattice

Semiconductor ispDesignEXPERT Starter Kit

Eric Clark, Kevin Torres, David Loker

Penn State Erie, The Behrend College

Abstract

Laboratory experimentation can be a very important part of the learning experience for students.

Particularly for microcontroller courses that involve hardware. In Electrical Engineering

Technology, lab time is utilized in every course. Experiments involving microcontrollers can account for a lot of time in wiring basic components. Decoding a 16-bit address alone would involve hand wiring 6 logic gates. This would easily take up one lab period itself, assuming the decoding design is correct. Using the Lattice Semiconductor ispDesignEXPERT software, the address decoding can be accomplished using schematic capture and programmed to a programmable logic device (PLD). A student can easily simulate their design in software before going to the hardware. The ispDesignEXPERT allows the user to view the input and output waveforms of the schematic design. Alterations can be made to the schematic and the waveform editor will adjust accordingly. This tool will also be used to teach address/data demultiplexing commonly used in Intel 8051 based microcontrollers for I/O memory-mapping. The ispDesignEXPERT allows more efficient microcontroller experiments to get conducted in a semester providing a better understanding of their function to the students.

Introduction

This paper describes the tools for programmable logic devices (PLD) and Lattice

DesignEXPERT software as applied to microcontroller education. A simple example is given to become familiar with the software and how to program the PLD. Then an address decoding design circuit will be implemented to interface with a microcontroller.

At Penn State Erie, Intermediate Microcontrollers EETBD 455 is taught. This course uses the

C508 Infineon microcontroller which is Intel 8051 based. For software and simulation the C51 tools from Keil Software are used. Simulation or hardware labs accompany lectures every week.

In lab, software is written in assembly language and then downloaded to a microcontroller. In the more advanced labs, logic gates are used for address decoding. These were hand wired using wire wrap techniques.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Using a Lattice Mach4 PLD and DesignEXPERT software, all the logic gates would be programmed into the PLD saving valuable laboratory time. Another advantage is fast design time. Faster changes can be made and simulated with the software than wire wrapping.

LED Example

From Lattice Semiconductor Corporation University Program, ispStarter Kits part# Mach4-sk44 can be obtained. These kits include:

· IspDesignEXPERT Starter and ispVM System software

· 44-pin in-system programming (isp) board with LED display

· ispDOWNLOAD cable with 10 pin JTAG Connector

· (2) MACH4 sample devices

· Full documentation and user manuals

There are four seven segment LEDs on the isp board. This example will take advantage of all four. The name “Eric” will be displayed, one character for each LED. Along with the LED displays the board offers three push button switches. The example was designed to display

“Eric” when both SW1 and SW2 are pushed, and only when these two are pushed together.

Figure 1 shows the schematic that will display “Eric.” It was designed in the schematic editor of the DesignEXPERT software. Reference Appendix A for instructions on designing circuits

within the editor.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

so that o1, o2, o3, o4, and o5 are for the first LED and display the letter E. o6 and o7 display a lowercase r on the second LED, and so on with the rest.

Once completed in the editor, the schematic can be complied for the PLD. In this case a

MACH4 32/32 is used. Reference Appendix A for starting ispDesignEXPERT. Figure 2 shows a screen capture of ispDesignEXPERT.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Figure 3: ISP Starter Board

Address Decoding Example

The goal in this example is to address decode and memory map an I/O device to the addresses

8000H – 8001H. Without the use of a PLD this decoding circuit requires the use of six logic

ICs. A DM74LS138 Decoder is simulated using the Lattice schematic editor. This will allow it to be programmed into the PLD. There are three enable inputs and three select inputs. The equivalent circuit for the decoder is seen in figure 4.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

The address 8000H can be converted to binary. It will result in 16-bits, A15 –A0, 1000 0000

0000 0000

B

. In this case, A15 is the only high level and will be connected to the G1 pin of figure 3. A0 – A2 are assigned to connect to the A, B, and C select pins. A0 – A2 will also be used to select one of the eight I/O addresses. The remaining 12-bits, A3 – A14 are all low levels, therfore, are all OR’ed together as seen in figure 5. This is then connected to G2A of figure 4.

Finally, G2B is connected directly to ground.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

The outputs Y0 – Y7 are used as chip enables signals for addresses 8000H – 8007H. Figure 8 shows the output enables for addresses 8000H – 8002H. Reference “Creating waveforms and test vectors” Appendix A for waveform simulation. In order to memory map an I/O device to these addresses, Y0 is then ANDed with the WRITE signal from the micrcontroller to geneartate a memory WRITE cycle. Y1 can be ANDed with the READ signal from the micrcontroller to geneartate a memory READ cycle.

Figure 8: Simulation for combined circuit

Conclusion

One method of simplifying hardware circuits in microcontroller labs is to introduce PLDs for logic design. By using Lattice Semiconductor ispDesignEXPERT software a logic circuit can be designed and simulated. The simulation capability makes it easier for students to visualize the timing diagrams of the signals invloved. This helps explain memory mapping I/O devices for data READ and data WRITE instructions. The logic design are all done in softare which makes for rapid prototyping as the students troubleshoot their circuits as they design for example an interface for a liquid crystal display. The use of PLDs also reduces the amount of wirewapping and increases the reliability of the circuit.

Acknowledgements

The authors would like to thank Mr. Tim Schnettler, Design Tools Marketing Manager with

Lattice Semiconductor Corporation.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Bibliography

Design Verification Tools User Manual Version 8.0, Copyright December 1999

Lattice Semiconductor Corporation

Schematic Entry User Manual Version 8.0, Copyright December 1999

Lattice Semiconductor Corporation ispDesignExpert Tutorial Version 8.0, Copyright December 1999

Lattice Semiconductor Corporation

ERIC CLARK

Eric Clark is a senior in the Electrical Engineering Technology Program at Penn State Erie. He expects to receive his B.S. degree in Electrical Engineering Technology from Penn State Erie May of 2002.

KEVIN TORRES

Kevin M. Torres is a lecturer in engineering and received the B.E.E. degree (Cum Laude) from Auburn University in 1990, and the M.S.E.E. degree from Georgia Institute of Technology in 1996. In 1990 he joined Georgia Tech

Research Institute (GTRI) as a research engineer. In 1998, he joined the faculty at Penn State Erie, in the Electrical

Engineering Technology Program. Since 1998 he has been teaching courses in C++, Intermediate Microcontrollers and Advanced Microcontrollers. He is a member of IEEE, IMAPS, and ASEE.

DAVID LOKER

David R. Loker is an assistant professor of engineering and received the B.E.E. degree from Gannon University in

1984, and the M.S.E.E. degree from Syracuse University in 1986. In 1984, he joined General Electric (GE)

Company, AESD, as a design engineer. While at GE, Mr. Loker was primarily involved in the design and development of military communication systems. In 1988, he joined the faculty Penn State Erie, in the Electrical

Engineering Technology Program. Mr. Loker's research interests include PC-based control systems, communication systems, and instrumentation systems.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Appendix A

Installing Lattice Starter Software from CD ROM

1. Open file folder of disk and start “setup.exe”.

2. Click on the install button and continue to follow setup instructions.

3. Be aware that it will take up 610MB of space on your hard disk.

4. Reboot your PC to finalize the install

Obtain License file

1. Go to website www.latticesemi.com

2. Click on licensing on the left side.

3. You’ll see a list; you want a starter license for ispDesignEXPERT-Starter

4. Next, request a license, you need to provide your hard disk serial number. Follow on screen instructions. To get your hard disk serial number go to DOS prompt, and type vol c:

5. The file will be sent immediately to your email address.

6. Save this file as “license.dat” in C:\ispTOOLS\ispcomp\license

Starting ispdesignEXPERT

1. Go to Start/Lattice Semiconductor/ispdesignEXPERT

2. Go to File/ New Project. Save it in the student directory

3. screen is divided into two columns. (Sources in project, and Processes for current source)

4. We need to select the proper device. Under the Sources in Project, double click on ispLS15384VA-125LB388.

5. A window will pop open. Under family, scroll down until it says “Mach 4”. The device number and part name are written on the PLD itself. You will see either M4-32/32 or

M4-64/32 which indicates the device. Under that is the part number which ends in JC or

JI. When selecting the part number choose the one ending in JC. Click OK and the device is selected correctly. A window may pop open to suggest another device click

“OK” and then “YES” for continue with operation.

Starting Schematic Editor

1. Go to the "Window" pop down menu and select Schematic Editor. You will see a window pop open.

2. To add a logic gate, go to Add menu and select symbol.

3. A window pops opens. You will see a list of libraries. Make sure \generic\gates.Lib is highlighted.

4. A list of symbols will be shown. The number in front of the logic names identifies how many inputs. The number after the logic name shows how many of those inputs are inverted. ex. (G_3AND1 means a 3 input AND gate with one inverted)

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

5. For wiring, go to Add menu and select wire. Click on end points and double click to complete connection. Right click mouse to end wiring.

6. Before a wire can be labeled an input or output, it must first be given a 'Net Name'. To do so, Add menu and select net name.

7. You will see at the bottom of the schematic editor window a cursor blinking where it says, Enter Net Name=.

8. Create a name and hit enter.

9. Now, the 'net name' is attached to the mouse. Move the mouse to the location you want to name. (this is usually at the end of wires)

10. Left click on the spot you want to put it and hold. Now drag it out a bit, and unclick.

You will see that the wire extended and the 'Net Name' was placed in front of it.

11. After all the wires are labeled with 'Net Names', go to Add menu and select I/O Marker.

12. A window will pop open with four options. Mark all the 'net names' as input or output.

To do so, click at the end of wire right in front of the 'net name'. If done correctly, a box will be drawn around the net name and pointing in the direction, you desired.

13. Save and close Schematic Editor.

Import Schematic into Design

1. While in the ispDesignEXPERT Project Navigator window, go to Source menu and select Import.

2. Go to the folder you saved it. Click it and hit open.

3. It will appear in the left column under sources in project. Click on it.

Create Simulation File and Import it

1. Another set of processes will show up on the right. We are interested in the process

'ABEL Test Vector Template'.

2. Double click and it will pop open a new window.

3. Go to File menu and select Save As. Save it to the same file as your schematic. The default file extension is *.abt. This needs to be changed to .abv.

¨¨If this is not done,

the program will not work.

¨¨

4. To import it, go Source menu and select Import. Open the file you just created with the

.abv extension name. It will appear in the left column under sources in project.

Creating waveforms and test vectors

1. Double click on the Test Vector Template you just made. It will bring open a text editor window.

2. Scroll down to Test_vectors. The test vectors need to be manually added.

3. Example: if the given test_vector template is ([input1, input2] -> [Output])

The tests needed then are

[0,0] -> [.R.];

[0,1] -> [.R.];

[1,0] -> [.R.];

[1,1] -> [.R.];

The .R. is a code that produces the proper output depending on the input conditions. Save and close.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

4. The 0 and 1 combinations are all the possible logic conditions of the example circuit.

5. Back in the project navigator, with this file highlighted, there will be a list of processes on the right side. Double click Compile Test Vectors.

6. Once completed double click Timing Simulation.

7. Simulator Control Panel window will open. Go to Simulate menu and select Run.

8. This will open the Waveform Editor window showing all the test vectors conditions given.

9. The test vectors used that generate figure 5 are shown below.

([A9,A8,A7,A6,A5,A4,A3,A14,A13,A12,A11,A10] -> [G2A])

[0,0,0,0,0,0,0,0,0,0,0,0] -> [.R.];

[0,0,1,0,0,0,0,0,0,0,0,0] -> [.R.];

[0,0,0,0,1,0,0,0,0,1,0,0] -> [.R.];

[0,0,1,0,0,0,0,0,0,0,0,1] -> [.R.];

[1,1,1,1,1,1,1,1,1,1,1,1] -> [.R.];

10. The test vectors used that generate figure 8 are shown below.

([A15,A14,A13,A12,A11,A10,A9,A8,A7,A6,A5,A4,A3,A2,A1,A0] ->

[Y7,Y6,Y5,Y4,Y3,Y2,Y1,Y0])

[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] -> [.R.,.R.,.R.,.R.,.R.,.R.,.R.,.R.];

[1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] -> [.R.,.R.,.R.,.R.,.R.,.R.,.R.,.R.];

[1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1] -> [.R.,.R.,.R.,.R.,.R.,.R.,.R.,.R.];

[1,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0] -> [.R.,.R.,.R.,.R.,.R.,.R.,.R.,.R.];

END

Running Constraint Editor

1. While in ispDesignEXPERT project navigator, double click Constraint Editor. This will open another window.

2. Go to Edit menu and select Location Assignment.

3. In Filter section, make sure Input and Output/Bidi are checked.

4. Select a signal from the list, and then under Assignment select the desired pin number . A list of the pins for the isp board is given in the kit and at the bottom of this appendix.

5. When this combination is met, click the Add button and it will be added the existing pin list at the bottom.

6. Repeat for all the pins you wish to control.

7. Click OK and close.

8. Back on in the ispDesignEXPERT project navigator; double click Fit Design to compile the whole project.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Running LatticePRO

1. While in ispDesignEXPERT project navigator go to Tools pop down menu and select

LatticePRO Software. This will pop open a new window.

2. Start a new file. Once that is complete go to Edit menu and select Add Device.

3. Under part name, click on Select Part. This will open a new window.

4. Device Family needs to be set to MACH4XX. There are 2 devices provided with the starter kits - M4 32/32 and M4 64/32. Make sure in Device the correct one is selected for the one you’re using. Package stays at 44-pin PLCC. Click OK and close.

5. JTAG Operation needs to be set to the operation we want. Select P for erase, program & verify Device w/JEDEC file. Always use this case.

6. Specify where the JEDEC file is. This file was generated automatically when Constraint

Editor and Fit Design were run.

7. Click Ok and window will close.

8. A GO button will be lit; click on it and that will program it.

Proceedings of the 2002 American Society for Engineering Education Annual Conference & Exposition

Copyright

Ó 2002, American Society for Engineering Education

Pin list for the ISP Board

29

30

31

32

33

25

26

27

28

21

22

23

24

17

18

19

20

34

35

36

37

38

39

40

Device Pin Pin Definition MACH Inputs

1 GND

2

3

I/O 0

I/O 1

4

5

6

7

8

9

I/O 2

I/O 3

I/O 4

I/O 5

I/O 6

I/O 7 SW 1

10

11

12

13

14

15

16

TDI

CLK 0 / I O

GND

TCK

I/O 8

I/O 9

I/O 10

CK0 Clock

I/O 11

I/O 12

I/O 13

I/O 14

I/O 15

VCC

GND

I/O 16

I/O 17

I/O 18

I/O 19

I/O 20

I/O 21

I/O 22

I/O 23

TMS

CLK 1 / I 1

GND

TDO

I/O 24

I/O 25

I/O 26

I/O 27

I/O 28

SW 2

SW 3

CK 1 Clock

41

42

43

44

I/O 29

I/O 30

I/O 31

VCC

LED

U24 - A

U24 - B

Comment

U24 - C

U24 - D

U24 - E

U24 - F

U24 - G

U24 - H (DP)

Use as Input only

U23 - A

U23 - B

U23 - C

Select with jumper

U23 - D

U23 - E

U23 - F

U23 - G

U23 - H (DP)

Use as Input only

U26 - A

U26 - B

U26 - C

U26 - D

U26 - E

U26 - F

U26 - G

U26 - H (DP)

Use as Input only

4 Hz Clock signal

U22 - A

U22 - B

U22 - C

U22 - D

U22 - E

U22 - F

U22 - G

U22 - H (DP)
