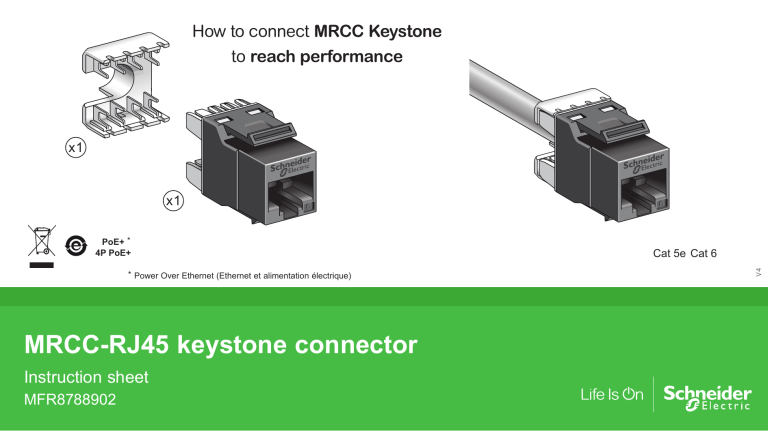

Schneider Electric MRCC-RJ45 Keystone connector - Cabling Instruction Sheet

How to connect MRCC Keystone
to reach performance
x1
x1
* Power Over Ethernet (Ethernet et alimentation électrique)
MRCC-RJ45 keystone connector
Instruction sheet
MFR8788902
Cat 5e Cat 6
V4
PoE+ *
4P PoE+
Cliquer sur l’onglet de votre choix
Cable preparation
Cable termination
MRCC Keystone Mounting
On 19 Inch MRCC patch panel
On front plate
Cable preparation > Stripping
1
1’
60
mm
60
x1
mm
Cable preparation > Stripping
2
3
4
2
1
5
2 mm maxi
3
Cable preparation > Cabling
Cliquer sur l’onglet de votre choix
Convention A
Convention B
EIA-TIA 568A (100Ω)
EIA-TIA 568B (100Ω)
Cable preparation > Cabling > Convention A
Convention A
1
2
Cat 5e & 6
2 mm maxi
EIA-TIA 568A (100Ω)
3
Cable preparation > Cabling > Convention A
Convention A
4
5
6
7
Cat 5e & 6
EIA-TIA 568A (100Ω)
2 mm maxi
Cable preparation > Cabling > Convention B
Convention B
1
2
3
4
Cat 5e & 6
EIA-TIA 568B (100Ω)
2 mm maxi
Cable preparation > Cabling > Convention B
Convention B
5
6
7
8
Cat 5e & 6
EIA-TIA 568B (100Ω)
2 mm
maxi
Cable termination > Tool
Cliquer sur l’onglet de votre choix
With Punch down tool
With Quick termination tool
Cable termination > Tool > With Punch down tool
Caution
RISK OF HAND INJURY
• This product must be
connected with punch
tool ACTTRJ45PDT
• Do not holdthe RJ45 in
hand during connection
x1
• This product must be
installed, connected
and used in compliance
with prevalling standard
and/or installation
régulations
Failure to follow
these instructions
may result in injury
Ref. ACTTRJ45PDT
1
Cat 5e & 6
Cable termination > Tool > With Punch down tool
2
Cable termination > Tool > With Punch down tool
3
Connector wiring
Radial cable exit
Connector wiring
Axial cable exit
1
2
Cable termination > Tool > With quick termination tool
Caution
x1
1
RISK OF HAND INJURY
• Tool has parts that can
pinch/cut.
• Keep hands and
fingers clear use
protective cap and close
the tool
Cat 5e
&
Cat 6
x1
Cat 6A
x1
Ref. VDIB2736
• Use protective cap
Failure to follow
these instructions
may result in injury
1
2
Cable termination > Tool > With quick termination tool
2
3
x1
Cat 5e
&
Cat 6
Cat 5e
&
Cat 6
Replacement of cutting module
1
x1
Cat 6A
Ref. VDIB2736CM
Cat 6A
2
Cable termination > Tool > With quick termination tool
4
5
Mount of the
cutting module
Dismount the
cutting module
3
1
2
Maxi Ø 4 mm
Cable termination > Tool > With quick termination tool
6
Cable termination > Tool > With quick termination tool
7
Cable termination > Tool > With quick termination tool
8
Caution
RISK OF HAND INJURY
• Tool has parts that can pinch/cut.
• Keep hands and fingers clear use
protective cap and close the tool
Failure to follow these instructions
may result in injury
Cable termination > Tool > With quick termination tool
3
9
Connector wiring
Radial cable exit
Connector wiring
Axial cable exit
1
2
MRCC Keystone Mounting > 19 Inch MRCC patch panel - Rack Mounting
Composition
VDIEG113241U Patch panel
24 Ports empty UTP
VDIEG113241U60 Patch panel 24 Ports
VDIEG113241U50 Patch panel 24 Ports
1
+ 24 MRCC Keystone CAT6 UTP W/JACKS
+ 24 MRCC Keystone CAT5E UTP W/JACKS
MRCC Keystone Mounting > MRCC connector insertion
On panel
1
On front plate
1
MRCC Keystone Mounting > MRCC connector extraction
From the MRCC patch panel
1
3m
mm
1
2
From the front plate
1
1
2
axi
MRCC Keystone Mounting > 19 Inch MRCC patch panel - Cable fixation
2

2
3

MRCC Keystone Mounting > 19 Inch MRCC patch panel - Ports identification
1
2
1
2
3
