Schneider Electric Dolog AKF -> A120/A250, AKF125 V7.10 User Guide

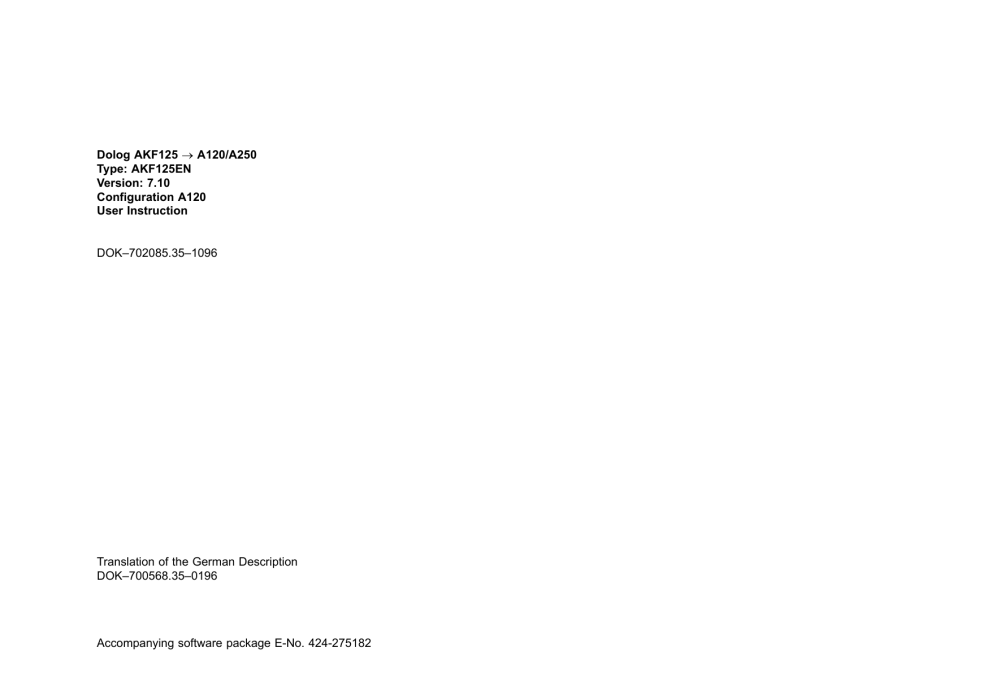

Dolog AKF125 → A120/A250 Type: AKF125EN Version: 7.10 Configuration A120 User Instruction DOK–702085.35–1096 Translation of the German Description DOK–700568.35–0196 Accompanying software package E-No. 424-275182 Documents in the software package Kit 1 Documentation Installation User Instruction DOK-702082 Explains the usage and installation of the diskette s included. How do you proceed? User Instruction DOK-702084 Serves as a ”red thread” through the documentation of the software packet and should be gone over before the start. Kit 2 Documentation AKF125 for Beginners User Instruction DOK-702083 Area of application Serves to introduce new customers to AKF125. The user learns how to use the software in samll steps. Short Form Guide A120 User Instruction DOK-702087 Tables for validity ranges and symstem markers, SFB-Formal operands for quick use onsite. Sort Form Guide A250 User Instruction DOK-702088 Tables for validity ranges and symstem markers, SFB-Formal operands for quick use onsite. Configuration A120 User Instruction DOK-702085 35 Area of application Contains the new features of the current version and explains th efunctions of th individual software menus for the configurer. Documents in the software package iii Kit 3 Documentation Configuration A250 (Vo1) User Instruction DOK-702086 Configuration A250 (Vo2) User Instruction DOK-707695 Masterindex User Instruction DOK-702089 iv Area of application Contains the new features of the current version and explains th efunctions of th individual software menus for the configurer. The explanation of the individual software menus will continued. Index of all documentation. Documents in the software package 35 Notes Application Note Caution The relevant regulations must be observed for control applications involving safety requirements. For reasons of safety and to ensure compliance with documented system data, repairs to components should be performed only by the manufacturer. Training Schneider Automation GmbH offers suitable training that provides further information concerning the system (see addresses). Data, Illustrations, Alterations Data and illustration are not binding. We reserve the right to alter our products in line with our policy of continuous product development. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us by using the form on the last page of this publication. Addresses The addresses are given at the end of this publication. 20 v Copyright All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including copying, processing or any information storage, without permission in writing by the Schneider Automation GmbH. You are not authorized to translate this document into any other language. Trademarks All terms used in this user manual to denote Schneider Automation GmbH products are trademarks of the Schneider Automation GmbH. 1996 Schneider Automation GmbH. vi 20 Terminology Note This symbol emphasizes very important facts. Caution This symbol refers to frequently appearing error sources. Warning This symbol points to sources of danger that may cause financial and health damages or may have other aggravating consequences. Expert This symbol is used when a more detailed information is given, which is intended exclusively for experts (special training required). Skipping this information does not interfere with understanding the publication and does not restrict standard application of the product. Path This symbol identifies the use of paths in software menus. Figures are given in the spelling corresponding to international practice and approved by SI (Système International d‘ Unités). I.e. a space between the thousands and the usage of a decimal point (e.g.: 12 345.67). 20 vii Abbreviatons ABS Adr. AE AZ AKF ALD ALS AWL AWP BGT BSS DAE DAZ DIB DB0....9 DPB DSB DW I/O FB FUP FW HW IB KB KF KFW KOP KS LZS MW OB PB PaDT RK SFB SK viii absolute Adressing Adresse (signal adresse) Block for one time actions Block for cyclicel actions Instructionlist, Contaktplan, Functionlist Sequentiel Flow Chart with Diagnostics Sequentiel Flow Chart Instructionlist User programm Subrack Serviceconnection for PC ore VS210 Diagnostics Block for one time actions (AE) Diagnostics Block for cyclicel actions (AZ) Diagnostics Block for Block independent Diagnostics SYM/KOM-Datablock for A120 Diagnostics Block for Programm Blocks (PB) Diagnostics Structure Block Double word Input– / Output signales (e.g. from a Module) Function block Function list Floatingpoint Hardware (z.B. PLC) Initial value block Sequentiel block Sequentiel errorbit Sequentiel errorword Kontaktplan Kettenstatus für Simultankette Run Time System Markerword Organisations Block Program Block Programming- and Diagnostics testequipment Controlloop Standard-Function Block Step marker 20 SM Systemmarker SSP Signal memory SW Software SYM symbolic Adressing SYM/COM Symbol und Comment SZ Step Counter TB Transitionsblock TN Teilnehmer VBGT Virtuelle Subrack (InterBus-S, Modnet 1/IS)) ZVT Time organiasationtable (Controlle) ZZ Time Counter <Return> Applay the key Return <Esc> Applay the key Esc <Ctrl>+<Alt>+<Applay in the same time the keys Ctrl, Alt und Del (beginning with Ctrl.and finnishing with Del) 20 ix Objectives The functions of the software for the A120 configuration are described. The documentation is set up like a reference document. Frequent consultation of the index is recommended. Arrangement of this guide x Chapter 1 contains new features and a broad overview of the software structure. Chapter 2 goes into how the software is used. Chapter 3 contains the actual function descriptions, divided up into Edit, Load, On–line, Print, Special and Setup. 33 Related Documents A250 User Manual A250 804 BHB 000 00 A250 User Manual A250 Regeln mit Dolog AKF 804 BHB 001 00 A250 User Manual A250 Prozessperipherie Frontanschlusstechnik 899 BHB 000 00 A250 User Manual A250 Cable 899 BHB 001 00 A250 Blockbibliothek Standard Funktionblocks A250 Vol. 1 (AKF125 V4.x, ALD25 V4.1) 804 BSB 001 00 A250 Blockbibliothek Standard Funktionblocks A250 Vol. 2 (AKF125 V4.x, ALD25 V4.1) 804 BSB 002 00 20 xi Validity Note These User Instructions apply to the AKF125 software, version 7.1, on the DOS operating system. The current intention is for remote control data only to be edited with the AKF125 configuration software and not with ALD25. Therefore, within systems U250 and UZ250, remote control modules KOS140, KOS141 and DEZ161 should not be used as REAL–TIME variants. Correspondingly, the KOS 20x modules of the U120, Z120 and UZ120 systems are not to be used. xii 20 Table of Contents 35 Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.1 1.2 1.3 1.4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Differences between this version and AKF125 V4.0 . . . . . 3 Validity ranges and differences between versions . . . . . . . 4 Broad overview of the software structure . . . . . . . . . . . . . . 4 Chapter 2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1 2.2 2.2.1 2.2.2 2.2.3 2.2.4 2.2.5 2.2.6 2.2.7 2.2.8 Using the mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 US/German keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Keyboard sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Line editor, ”Line editor” . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Screen copy, ”Screensave” . . . . . . . . . . . . . . . . . . . . . . . . 12 Key input memory, ”Learning” . . . . . . . . . . . . . . . . . . . . . . 13 Key text buffer, ”Key macros” . . . . . . . . . . . . . . . . . . . . . . 14 Auto Repeat Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Chapter 3 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.1 3.2 3.2.1 3.2.2 3.2.3 3.3 3.3.1 3.3.2 3.3.3 3.3.4 3.3.5 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Dolog AKF main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Status line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Pulldown menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Help function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Symbols and Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Equipment list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Title Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Table of Contents xiii 3.3.6 3.3.7 3.3.8 3.4 3.4.1 3.4.2 3.4.3 3.4.4 3.4.5 3.4.6 3.4.7 3.4.8 3.4.9 3.5 3.5.1 3.5.2 3.5.3 3.5.4 3.5.5 3.6 3.6.1 3.6.2 3.6.3 3.6.4 3.6.5 3.6.6 3.6.7 3.7 3.7.1 3.7.2 3.7.3 3.7.4 3.7.5 3.7.6 3.7.7 3.7.8 3.7.9 3.7.10 3.7.11 3.8 3.8.1 3.8.2 3.8.3 3.8.4 3.9 xiv Replacement of Signals . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Compile (Blocks) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Compile data blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 Link program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Program to PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Exchange online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Read Equipment list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Read out PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Set Date / Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Process EPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 Bootload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 Start PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 StOp PLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Dynamic status Display . . . . . . . . . . . . . . . . . . . . . . . . . . 157 Online-Liste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 PLC status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Program protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Symbols and Comments . . . . . . . . . . . . . . . . . . . . . . . . . 188 cross–reference list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Signal assignment list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Equipment list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Entire Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Special . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Backup the Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Restore a station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198 Erase a station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Format diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 Copy diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203 Erase Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Copy files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206 Operating sys. MS–DOS . . . . . . . . . . . . . . . . . . . . . . . . . 209 System information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 End station handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 PLC station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218 Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 Hardware Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 Table of Contents 35 Index 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233 Table of Contents xv xvi Table of Contents 35 Chapter 1 Introduction This chapter contains general information about this manual. In addition, the new features of the software version described are explained briefly and a rough structure is given for the functions available in the present software. 33 Introduction 1 1.1 Introduction This programming guide is intended as reference material when using the DOLOG AKF software → A120/A250 with version number 7.1. This software comprises two parts: Dolog AKF → A120 (version 6.0) Dolog AKF → A250 (version 6.0) The DOLOG AKF software is described below → A120 for A120. The software is used for structured programming of PLC user programs with the aid of up–to–date window technology (with pulldown menus). Note After installation you can press <F10> twice to call up an overview of Help texts. In this overview, look under ”Information on Help” and ”DOLOG AKF software overview” to obtain general information about DOLOG AKF software and the operator interface. The text of the chapter on ”Programming” is organised in the order of the DOLOG AKF main menu, working from left to right. Within the description, the alphabetic index explains where to find function descriptions in the text. 2 Introduction 33 1.2 Differences between this version and AKF125 V4.0 It is only necessary to compile and load the program into the PLC if you want to use the additional functions in this version. Introduction New modules: DEP 215, DEP 217 DAP 217 ADU 216 ADU 210 TXT 2E1, TXT 2C1 FRQ 204 New SFBs: FRQ 204 ALU type The ALU type is entered in the component list under ” Enter module → CPU”. Link mode The selection ”automatic adaptation” in Link Mode is no longer available. Printer The printer directory allows the HP Laser-Jet II/III/IV to be used. Baud rate You can select an additional Baud rate for the V.24 interface: 150 Bd Colors in the help window You can set the colors for the index call. 33 Introduction 3 1.3 Validity ranges and differences between versions You will find the validity ranges for AKF125 version 7.1 and other differences between this version and the previous versions in the AKF125 help texts (menu commands: ”validity ranges”, ”expanded functions”); called via <F10>, <F10>. 1.4 Broad overview of the software structure In the following broad overview of the structure the software is divided up as follows: Edit Overview Blocks Symbols and Comments Equipment List Title Block Replacement of Signals Compile (blocks) Compile (Data Blocks) Laden Link Program Program to PLC Exchange online Read Equipment list Read out PLC Compare Set Date / Time Process EPROM Bootload 4 Introduction 33 Online Start PLC Stop PLC Dyn. Status Display Online–List PLC status Print Overview Program Protocol Symbols and Comments Cross–Reference List Signal Assignment List Equipment List Complete Documentation Special Table of Contents Backup the station Restore a station Erase a Station Format diskettes Copy diskettes Erase Files Copy files Operating System MS-DOS System information End station handling Setup System PLC station Print Colors 33 Introduction 5 6 Introduction 33 Chapter 2 Operation Programming with Dolog AKF Software is carried out on commercially available IBM compatible PCs. The work is performed with a mouse and/or keyboard. 32 Operation 7 2.1 Using the mouse In addition to the typewriter–style keyboard, line editor and arrow keys, you can also use the mouse. Please note that a parallel mouse (”bus mouse”) needs its own slot in the PaDT and has to be configured. Die Installation einer Maus entnehmen Sie bitte den Unterlagen des Herstellers. Mouse functions with the software The left key is used to call and confirm a function. It is therefore equivalent to the <Return> key. The right key is used to cancel or break, and is equivalent to the <Esc> key. Pressing both keys at the same time is equivalent to the key combination <Ctrl>+<Return>. Warning: By select with the parameter /NOPLC the mouse is used at the interface COM1. The function<Ctrl>+<Return> (pressing both mouse keys at the same time) is not possible in this case. By Select without /NOPLC the mouse has to used at the interface COM2. 8 Operation 32 2.2 Using the keyboard 2.2.1 US/German keyboard The following key legends are different on the German and English keyboards: US / UK keyboard <Esc> <Ctrl> <Home> <End> <Prtsc> <PgUp> <PgDn> <Ins> <Del> 2.2.2 German keyboard <Eing Lösch> <Strg> <Pos1> <Ende> <Druck> <Bild > <Bild > <Einfg> <Lösch> oder <Entf> Keyboard sections The programming panel keyboard is divided into three different sections: Typewriter keyboard and control keys The typewriter keyboard is located in the middle (light keys) and is surroundet by darker control keys. Only the white keys cause a display of the imprinted symbol to appear on the screen when they are pressed. In the Dolog AKF Software, these are used to operate the line editor, the key macros and the reference characters (s. ”Special keys” Chapter 2.2.8) and to enter text. 32 Operation 9 Function keys These play a lesser role in pulldown menu, since all functions are selected with the mouse, reference characters or arrow keys. These keys are located above or alongside the typewriter keyboard (depending on the PaDT model) and are labeled <F1> ... <Fx>. Numerical pad The arrow keys and numerical pad are located to the right of the of the typewriter keyboard.You can toggle between the numerical pad and the cursor pad with the <NumLock> key. Of those in the numerical pad, the arrow keys are needed chiefly for the Dolog AKF Software. They are used among other things for selecting the various menu lines (see below). The numbers are used to call Graphics characters (e.g. in the title block): <Alt> + <number>. 10 Operation 32 2.2.3 Line editor, ”Line editor” The line editor helps you to input text and/or numbers and consists of combining the use of control keys and the typewriter keyboard. It places the following editor functions at your disposal: <Home> Cursor to the beginning of the input line <End> Cursor to the end of the input line < ³> Cursor to the right < ²> Cursor to the left <Return> End of input <backspace>, < ä> Delete character to the left <Del> Delete character at cursor <Ctrl>+<T> Delete input <Ctrl>+<R> Restore original text <Ins> Toggle between insert / overwrite (big Cursor)/ overwrite (little Cursor) <Esc> input eliminate Using the <Esc>-key interrupts input and the previous text ist restored. You can use the key macros to insert stored texts (e.g. symbols, comments, hardware adresses, File names and parts of them.). 32 Operation 11 2.2.4 Screen copy, ”Screensave” This function is used to copy the complete current screen contents into a file. No printer need be connected. The file is stored in the directory of the current station in IBM-ASCII format. The copy (file) thus generated can then be edited using a text editor. Step Simultaneously press the <Alt>+<F2> keys to generate a screen copy. The first screen is saved under the name ”BILD0.BLD”. Screen 2 is called ”BILD1.BLD” etc. Note If you leave Dolog AKF and start over, screen numbering begins again at Bild0.bld. This means that copies created earlier with the same name will be overwritten. 12 Operation 32 2.2.5 Key input memory, ”Learning” This function can combine up to 40 procedures (key inputs) Step 1 Simultaneously press the <Alt>+<F8> keys to activate the function. Step 2 Press the key combination to which input sequences are to be assigned. You can assign <Alt>+<0>, <Alt>+<1> etc. up to <Alt>+<9>. ”Learning”appears in the status line. Step 3 Choose the required menus with the reference characters (up to 40 entries per assigned key). Step 4 Press <Alt>+<F8> to end learning. ”Learning” disappears from the status line. Step 5 For storing you terminate Dolog AKF. Step 6 Start Dolog AKF again. Step 7 Press<Alt>+<0>, <Alt>+<1> etc. bis <Alt>+<9> the procedures you have saved. to run Note The menus should be selected with reference characters in order to make the learned functions independent of the current menu bar position. 32 Operation 13 2.2.6 Key text buffer, ”Key macros” This simplifies the editing of symbols, comments, hardware addresses etc. Frequently used absolute or symbolic addresses can be stored as text. Proceed as follows. Step 1 Press <Alt>+<F9> to activate the function. Step 2 Press the key combination to which text is to be assigned. You can assign <Alt>+<A>, <Alt>+<B> etc. up to <Alt>+<Z>. Step 3 Enter up to 19 characters of text. Step 4 Press <Return> to save. Step 5 Press <Alt>+<A>, <Alt>+<B> etc. up to <Alt>+<Z> to call the stored text to the cursor position. At step 4 you can break off input by pressing <Esc>. Example: the text Valve was stored. It was inserted as part of symbol/comment inputs (Valve 1 on, Valve 2 off, Valve 1 half, ...). 2.2.7 Auto Repeat Function Most of the keys on a PaDT are equipped with the auto repeat function: When you press down a key the symbol on the key itself is displayed on the screen or a corresponding function is executed. If the key is held down for longer than about 0.5 s, the key function is repeated up to 10 times a second until the key is released. Therefore take care not to use this key function unintentionally. 14 Operation 32 2.2.8 Special keys The following keys are of particular importance for controlling menus: Reference characters Reference characters are used to select and execute a menu directly from the typewriter keyboard. You access the corresponding function by inputting the specially marked capital letter. The highlighting colors may be adjusted in the ”Setup” und ”Color” sections. <Ctrl>+reference character Within an editor, the individual functions can be called with<Ctrl>+reference character, without having to open the menu. Arrow keys With the arrow keys (movement keys, Cursor keys, direction keys) <°>, <±>, <³>, <²> you can select individual menu lines. The keywords are selected using the latter in the helptext. (When editing) A key depression corresponds to: <± > one line down (in the same column) <°> one line up (in the same column) <³> one column to the right (in the same line) <²> one column to the left (in the same line) Make sure you have switched the <NumLock> key off, so that the key respond. When editing a block you can move the cursor with the mouse as much as you like without restriction. <Return>-key, <Ctrl>+<Return> The <Return>-key (also <Enter>, <Übernahme>, <Cr>) is used to call certain functions or to accept (translate) (beenden). You can also toggle with it. Call within the help function in order to call the help texts for the selected keyword. in the pulldown menus in order to call the selected menu line (menu function. in ”Edit” (Blocks, Equipmentlist etc.): mit <Ctrl.>+<Return>calls the editing function windows. Exit, Accept 32 Operation 15 when editing a network and when making entries with the line editor, press the <Return>-key to accept the parameter, hardwareadresse or comment etc. you have just entered. ”Toggle” Many menu functions provide direct selection of prepared settings. Thus, for example, you can switch between ”off” and ”on” or ”IL”, ”LD”, ”FBD” directly (”toggling”), without having to enter text. You can toggle in the following manner: 1 type the referenced character 2 Go to the line using the arrow keys and toggle by pressing <Return>.The <Return> key is equivalent to the left button on the mouse. <Esc>-key Using the <Esc>-key you can interrupt, i.e. break off any function ore input within the Dolog AKF Software. The <Esc> key is equivalent to the right mouse button Caution If you are at operating system level, you can interrupt only with <Ctrl>+<C>. Dies trifft bei den Funktionen im Menü ”Sonder” zu. <Ins> key In the line editor, in the case of comments and headers, you can use this key to toggle between the ”Insert” and ”Overwrite” text input modes. in the block edtor, ”insert” has the effect of automatically performing a vertical spread in the network. Table of Important Keys At this stage it is not appropriate to list the most important special keys and key combinations. The same key combinations can perform different functions. When questions arise, please consult the index, where a key assignment table can be found. In addition, the explanation of each menu describes the available keys and their meanings. 16 Operation 32 Chapter 3 Programming This chapter describes programming with the DOLOG AKF software for A120. The chapter is intended as a reference for the person configuring the system. Its structure follows the menu structure. Menu points that occur more than once are only discussed once (the first time). The index contains the page numbers for the description of menu points that occur more than once. 33 Programming 17 3.1 General The individual menu points are described in the following order: Dolog AKF main menu Chapter 3.2 Edit Chapter 3.3 Load Chapter 3.4 Online Chapter 3.5 Print Chapter 3.6 Special Chapter 3.7 Setup Chapter 3.8 First you will be shown to select the menu line required (the ”path” from the main menu). The functions which you can execute at this point (programming, documentation, backup etc.) are then described. This symbol shows how you can select the described functions. The steps are always given starting from the main menu. e.g.: - ”Edit”, ”Equipment List”, ”Controller”, ”Marker Bits” means: Select the ”Edit” menu, Press Return to confirm the ”Equipment list” line, Select ”Controller” and confirm by pressing Return, ”Marker Bits” is the function which is now described. Note Some characters are written as capitals in the following description. They denote reference characters: e.g. SeTup 18 Programming 33 3.2 Dolog AKF main menu Status line, in this case the path of the current system/ station; depending whether installed on Ser. No. of the disketA: tes as B: shown on C: slipcase D: or E: 33 Ser. No. of your software package (in accordance with software license agreement) Version No. of the present software Pulldown menus can be selected with reference characters, arrow keys + Return, or mouse Programming 19 3.2.1 Status line The bottom line of the display is known as the status line. The 78 characters of the status line are divided up as follows: 12345678901234567890123456789012345678901234567890123456789012345678901234567 8 1 32 50 65 3.2.2 - 30 48 64 78 complete path of system and station name message: LEARN Dolog AKF Status: FORCE active PLC scan status: PLC stopped / PLC active Pulldown menus Individual menu lines can be selected and called with reference characters, arrow keys and <Return>, or the mouse (refer to chapter on ”Operation”). 20 Programming 33 3.2.3 Help function Help texts describe a function. They tell you what can be carrid out with the currently selected menu line or the current window. Help texts are also available for the higher menus. The <F10> key is always used to display the help text belonging to a menu line selected from the pulldown menu. This text may contain things known as keywords. These are terms and expressions that have a further explanatory help text attached to them. Use the arrow keys to select them and press <Return> to call them. This makes the help texts easy to follow. The texts are generally reminders for DOLOG AKF beginners. Keywords are highlighted in color. <Alt>+<F10> takes you back to the help text selected previously. Press <F10> again, which brings you to ”Overview Help Texts”. This shows you the keywords you can select, without menu lines of their own. You may call references for any keyword in the index (index for help texts). The bottom edge of every help window contains a line in which the available functions are listed: <°>, < ± >, <²>, <³> Select keywords <Return> Call of helptext to the keyword <Esc> Abort and exit the help windows <F10> <Alt> + <F10> <PgUp>, <PgDn> 33 Overview helptext The helptext befor will called backword, forword scroll inside the helptext Programming 21 3.3 Edit The funktions into the Pulldown–menu ”Edit” are used for the configuration of the User programs. You can select and call the following menu lines: Edit Load Online Print Special Setup Help=F10 Overview Blocks Symbols and Comments Equipment list Title Block Replace Signals Compile Blocks Compile Data Blocks Caution The system / station set under ”Setup”, ”system”, ”PLC station” is processed. Enter the equipment list before the blocks. If you want to carry out symbolic programming, enter the data block under ”Symbols and Comments”. 22 Programming 33 3.3.1 Overview - ”Edit”, ”Overview” This function provides you with a graphical program run overview in a tree structure. This overview shows you how the complete program is structured, i.e. where and how often each block is called. This function enables you to shift the image, select with the cursor (with the possibility of switching to edit mode) and search for a block. The overview is generated on the basis of the OB1. The display is sorted by networks. If several blocks are called in a network it may be that they do not appear in the right order in this display. Figure 1 BScreen output for a program overview 33 Programming 23 After selecting <Ctrl>+<Return> you can select further special functions via a pulldown window: Structure Edit Block Scroll Forward Scroll Backward Search Block Terminate Outside the pulldown menu the functions can be called using <Ctrl>+<reference character>. In addition, the following special keys are available: <Esc> Abort < ±> Use cursor to move one element deeper <°> Use cursor to move one element higher <³> Use cursor to move right <²> Use cursor to move left <PgDn> Next page <PgUp> Previous page Edit Block - ”Edit”, ”Overview”, ”Edit Block” First of all select the block to be modified with the arrow keys or the search run. Press <Return> to switch to Edit mode. The block on which the cursor was located can be edited. Caution After exiting from Editing mode no new program overview is created. If you deleted or inserted block calls during editing, these will not be displayed on the screen. 24 Programming 33 Page up / page down - ”Edit”, ”Overview”, ”Page up” - ”Edit”, ”Overview”, ”Page down” This enables you to scroll to the previous or next page in the Overview. <PgUp> is equivalent to Scroll backwards, <PgDn> is equivalent to Scroll Forward. Search block - ”Edit”, ”Overview”, ”Search Block” Here you can search for blocks within the Overview. The search direction can be specified by prefixing a ”+” or ”–”. The block name must be declared in full. Exit overview - ”Edit”, ”Overview”, ”Exit” This terminates the Overview function. You can also exit from the overview with the <Esc> key. 33 Programming 25 3.3.2 Blocks - ”Edit”, ”Blocks” This pulldown menu is used to generate the actual program. You can use the editors to programindividual blocks in the display format you have selected. First of all the blocks editors will be described, then the individual menu lines will be explained. The following functions are available in this pulldown menu: Edit Blocks Start Entry Block Number: Network Number: Block: Input Mode: Adressing: Output Monitoring 1 1 PB1 FBD ABS off Block Editors The available Block Editors are the IL-, LD- and FBD-Editor (depending on the ”Input mode”). The blocks OB, PB can be entered and reproduced in the special language DOLOG AKF in an instruction list (IL), ladder diagram (LD) and function block diagram (FBD). The network 1 of an FB can only be entered and reproduced in IL. The networks shown below (2 – 999) can be ebtered and reproduced in IL, LD and FBD. During editing of the user program (after ”Start Entry”) you can change the type of presentation under ”PrEsetting” (”toggle”). Networks are presented on screen in the display format selected, regardless of wich display format they were programmed in. 26 Programming 33 There are exceptions. For example, if a network is programmed in IL and is then to be displayed in FBD, this cannot be done since it contains commands (LD, T, jumps) which cannot be shown in FBD. Also if the screen is not wide enough because of the number of elements to be displayed (LD cannot display an ”AND” with more than 7 inouts, an ”OR” with more than 16 inputs or several FBD elements in a parallel path). Exceptional cases such as these are always presented in IL, regardless of the display format selected. During editing and reproduction of a network the type of addressing can be modified as you choose. After input, the program is automatically examined for syntactical accuracy. Start Entry - ”Edit”, ”Blocks”, ”Start Entry” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block” Note Only once the other settings in the pulldown menu have been defined is editing started here with <Return> or the reference character. If the block set is not available it will be created. To call the editing pulldown menu (”Edit network”) press <Ctrl>+<Return>. In addition you can up a relevant help text at any step using <F10>. You can exit from the editing procedure at any time with the <Esc>. All the data entered until that time, apart from the comments and symbols of signals, will however be lost. 33 Programming 27 Editing in different display formats You can program in three display formats. It is possible to switch between the individual technical languages at any time. The various Editors will now be explained. Certain menu lines or functions are present at several locations in the editor, or are the same in several editors, for example the ”Edit Network” menu. These positions are only described the first time they occur. The keyword register provides further guidance. Instruction list IL IL Editor - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Note If you select an existing block in the required display format, you can then edit it. After pressing <Ctrl>+<Return> you switch to the menu ”Edit network”, the structure of which is the same for all display formats. The common functions are described here in IL. 28 Programming 33 You are now in the IL editor, which is described below. You can edit in IL in the pulldown menu ”Edit network” using the reference characters, by selecting the menu line with arrow keys and calling with <Return> or using the mouse. Insert Erase Copy Modify Scroll forwards Scroll backwards Terminate (save) Break Search Signal Search Network Exchange online Dynamic Status Display If you press the <Return> key you can also select the functions listed above via the menu line of the pulldown menu ”Edit network” which is displayed in the bottom right hand corner of the screen. During network creation in IL editing takes place line by line and in tabular form. In other words, certain tab positions are reserved for the IL operations (operations), the operands and the IL Line comments. These can be reached by pressing the <Tab> key or the Arrow keys. For OBs, PBs and FBs each Il line can be given its own comment (max. 32 characters). Within the input fields the line editor (typewriter keyboard) can be used with all keys (including e.g. <Backspace>). 33 Programming 29 Edit IL, LD, FBD / Network insert - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Insert” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. With this function ”insert” in the pulldown menu ”Edit network” you can insert a new empty network before the network displayed. Exception: Insertion of an FB in front of the first network is not permitted. After inserting the new, initially empty network you will be in the correction mode of the Editor. Edit IL, LD, FBD / Delete network - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Delete” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. With the ”Delete” function from the ”Edit network” pulldown menu, you can delete the indicated network. The last remaining network of a block or the block end network cannnot be deleted using this function. To delete the entrie block use ”Special Delete”. 30 Programming 33 Edit IL, LD, FBD / Copy Network - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Copy” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. With this function ”Copy” in the pulldown menu ”Edit network” you can insert (copy) a network created preciously elsewhere before the network displayed. Exception: Insertion of an FB in front of the first network is not permitted. After selecting the function a window is displayed in which you enter the network to be copied. It is then copied in front of the current network. Copy NW Start Copy Source Plant: Source Station: Source Block: Source Network: C:\AKF125\ BEISP OB1 1 After copying the network you will be in the correction mode of the Editor. Edit IL, LD, FBD / Modify network - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can set the block editor to correction mode using the function ”Modify” in the pulldown menu ”Edit network”. You may then modify the network display on the screen. The block end network cannot be modified. 33 Programming 31 IL-Editor / Correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return> - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can move from the menu ”Edit network” (present block) or from the menu ”Edit IL” (new block) into the correction mode of the IL Editor. a) The pulldown menu ”Edit Il” consists of the following functions: Edit IL Insert Line Erase Line NW Terminate NW Break NW Header NW Comment FBD Elements NW End Character Presetting b) The following functions are available via the special keys: <²>, <³ >, <± >, <°> <Ctrl>+<PgUp> <Ctrl>+<PgDn> <tab> <backtab> <Esc> Move the cursor Move screen up line by line Move screen down line by line next input field (Tab position) previous input field (Tab position) Breack off input without saving If you press the <Return> key, you can also carry out the indicated functions by means of the menu lines in the ”Edit IL” pulldown menu. 32 Programming 33 Edit IL / Insert line in correction mode - ”Edit”, ”BLocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Insert line” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can use this function to insert IL lines at any point in networks. Insertions are always placed in the line before the cursor. Example: :U M2.4 :O E3.12 := A4.3 : *** Insert before 2nd line :U M2.4 : :O E3.12 := A4.3 : *** Line inserted :U :U :O := : *** Enter M2.4 M4.15 E3.12 A4.3 instruction Edit IL / Erase Line in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”DeLete line” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function allows you to delete IL lines at any point in networks. The line on which the cursor is situated is erased. 33 Programming 33 Edit IL / exit from correction mode - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Exit” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Use this function to exit from the correction mode of the Editor and thus to end correction of the network and accept the (inserted, copied or modified) network. Caution If the ”Edit network” menu is terminated with ”Break” (i.e. Cancel, Abort) or <Esc>, the amendment is ignored. In order to transfer and accept it onto the user drive ”Exit”, ”Edit network” must be selected here too. Edit IL, LD, FBD / Break in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Abort” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Use this function or <Esc> to end the correction mode of the network. Changes are ignored and the original status remains unchanged. Edit IL, LD, FBD / Network header (NW Overwrite) in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”NW Overwrite” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”NW Overwrite” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. A network header of 32 characters can be entered in the status line. 34 Programming 33 Edit IL, LD, FBD / Network comments in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”NW comments” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. A maximum of 15 x 60 characters of comment on the network can be entered in a window. The lines can be laid out as required. Use the keys <Ctrl>+<Return> to call the following window: Edit Comment Break Terminate Text Start Text End Insert Line Erase Line Erase Comments Exit from Editors without saving Save comments and exit from Editor Ste cursor to start of text Set cursor end of text Insert BlankLine in front of current line Delete cursor line, subsequent text moves up Delete all text without exiting from the Editor The following functions are available via the special keys: <³ >, <² >, <° >, <± > Move the cursor <Ins>, Toggle between insert/ overwrite mode <Del> Delete character under cursor <backspace, Delete character in front of cursor. At the start of a line: current line appended to precious <Ctrl>+<Y> Delete current line, subsequent text moves up <Home> Move cursor to line start <End> Move cursor to line end <Esc> Exit from the Editor without saving <Return> Cursor to line end: Cursor in next line Cursor in line: Text from cursor position in next line 33 Programming 35 Edit IL / FBD Elements in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, Create element, <Ctrl>+<Return>, ”FBD Elements” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Return>, ”FBD Elements” - ”Edit”, ”Overview”, Select block, <Ctrl>+<Return>, ”Edit Block”,.. The elements can be called from the pulldown menu using <Ctrl>+<reference characters> or by selection the menu lines and <Return>. After selecting an FBD element the Editor specifies the appropriate order of instructions without an operand. Note The FBD element called begins without an AND–link in the first line. The following FBD elements can be inserted in IL: 36 Programming 33 Edit Il, LD, FBD / PrEsetting in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”PrEsetting” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function enables you to change the basic setting of the Editor. In correction mode the IL Editor provides you with the following functions in the presettings menu: Select Editor Setting Output Monitoring off Enter Symbol in DB off Edit IL, LD, FBD / Enter symbol in DB - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”PrEsetting”, ”Enter symbol in Db” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can toggle between ”on” and ”off”. With the switch position ”on” you can enter a symbol and a comment for an absolute address in the present data block (DB) in the IL, LD or FBD Editor. An entry can be made (an input window appears): provided the input is closed off in the editor with the <Return> key, the input is error–free and no symbol yet exists for the hardware address. Your input signal appears in the first line for checking. Under it you can enter a symbol with a maximum length of 8 characters. The comment can be up to 40 characters long. All input must be closed off with the <Return> key. When the entry has been closed off, the symbol or comment can only be changed in the ”Symbols and comments” menu. Press ”Abort” or <Esc> to retain the entries in the data block. 33 Programming 37 Edit IL, LD, FBD / Scroll network forward - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”page up” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. The next network is cannled by selecting this function or with <PgDn>. If the network cannot be displayed in the current display mode (FBD/LD), there is an automatic switch to IL. Edit IL, LD, FBD / Scroll network backward - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”page down” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. The previous network is called by selecting this function or <PgDn>. If the network cannot be displayed in the current display mode (FBD/LD), there is an automatic switch to IL. Edit IL, LD, FBD / Terminate (save) - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Exit (Save)” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Editing is terminated when you select this function. The block entered is checked for syntactically accuracy, transferred and saved on the user drive. 38 Programming 33 Edit IL, LD, FBD / Break - ”Edit”, ”Block”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Break” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Select this function or use <Esc> to terminate editing after acknowledgement. All program changes will be rejected on acknowledgement. Symbol and comment entries in the data blocks will be retained. Edit IL, LD, FBD / Signal Search - ”Edit”, ”BLocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Signal search” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”Dyn. status display”, <Ctrl>+<Return>, ”Signal search” - ”Online”, ”Dyn. status display”, ”Start Display”, <Ctrl>+<Return>, ”Signal search” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Use the search function to look for signals within the block. Signal names can be entered absolutely or symbolically. By prefixing one of the optional characters (”+”,”-”) the search direction can be specified as forward or backward.No prefix causes forward searching. The search begins before or after the network currently set. Press the <Return> key to enable this function in the window. Use the <Esc> key to close the window again. Absolute or symbolic addresses can be entered. The search direction is specified by placing a < - > or < + > in front. 33 Programming 39 Edit IL, LD, FBD / Network Search - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Network search” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”Dyn. status display”, <Ctrl>+<Return>, ”Network search” - ”Online”, ”Dyn. status display”, ”Start Display”, <Ctrl>+<Return>, ”Network search” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can search for networks within a block with this search function. To do so, enter the network number. Press the <Return> pushbutton to enable the function in the window. Use the <Esc> key to close the window again. Edit IL, LD, FBD / Exchange Online - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Exchange Online” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Note 40 The description is shown under ”Load Exchange Online”. Programming 33 Edit IL, LD, FBD / network / Dyn. status display - ”Edit”, ”Blocks”, ”Start Entry, present block, <Ctrl>+<Return>, ”Dyn. status display” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. After pressing <Return> the signal status is dynamically entered in the current network. Use <Esc> to return to the Editing mode. After pressing <Ctrl>+<Return> the following pulldown menu will be displayed. Dynamic Display Scroll Forwards Scroll Backwards Break Search Signal Search Network MW Mode Online list Start PLC Stop PLC Display NW Comment Presetting 33 The functions which can be used in dynamic status display are shown below. After pressing <Return> the signal status will be entered dynamically into the current network. Use <Esc> to return to Editing mode. Programming 41 Edit IL, LD, FBD / network / PrEsetting - ”Edit”, ”Blocks”, ”Start Entry, present block, <Ctrl>+<Return>, ”PrEsetting” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. You can use this function to change the default settings of the Editor. The following functions can be selected: Select Editor Setting Input Mode FBD Addressing ABS Data Block file DB0 Cursor Positioning horizontal Output Monitoring off Enter Symbol in DB off (LD/FBD/IL) (absolute/symbolic) (DB0 to DB9) (horizontal/vertical/off) (on/off) (on/off) In the correction mode of the IL Editor the functions ”Output monitoring” and ”Enter symbol in DB” are available. Edit IL, LD, FBD / PrEsetting / Data block file - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”PrEsetting”, ”Data block file” - ”Setup”, ”PLC station”, ”Data block file” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Here you must specify a data block edited previously in the menu line ”Edit”, ”Symbols and Comments”. 42 Programming 33 Edit IL, LD, FBD / PrEsetting / Cursor Positioning -”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”PrEsetting”, ”Cursor Positioning” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. With automatic Cursor Positioning you can toggle to set the direction in which the cursor is to move when making entries in LD/FBD between the question mark fields. Horizontal position: When entering ladder address input, the cursor moves horizontally from one element to the next in a network line. Vertical position: When entering ladder address input, the cursor moves vertically from one element to the next in a network column. Off position: The cursor moves from one character position to the next on the screen. 33 Programming 43 Ladder diagram LD LD Editor - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> (when selecting an existing block) - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Note A present block can still be edited subsequently. After pressing <Return> you move to the ”Edit network” menu, the structure of which is the same for all display formats. The shared functions are dealt with in IL. You are now in the LD editor, which is described below. You can edit in LD a) in the pulldown menu ”Edit network” using <Ctrl>+<reference character>, by selecting the menu line with arrow keys and calling with <Return> or using the mouse, b) with the special keys. a) The following functions are available in the pulldown menu ”Edit network”. Edit Network Insert Erase Copy Modify Scroll Forwards Scroll Backwards Terminate (Save) Break Search Signal Search Network Exchange Online Dynamic Status Display Presetting 44 Programming 33 b) Special keys for the present block; Edit network <PgDn> <PgUp> <Esc> scroll to next network scroll to previous network Break off entry without saving You can also press <Ctrl>+<Return> and select the functions listed above from the menu lines of the ”Edit network” pulldown menu that is displayed at bottom right of the screen. Use the <Esc> key to close the window again. When creating a network in LD note that elements can only be entered in certain cursor positions. These positions must be reached using the arrow keys. For editing the cursor must be on the line. Insert: To the right of the cursor Insert FBD element: Cursor must be on first character of the contact (if necessary spread or toggle into insert mode previously) Löschen: To the right of the cursor Erase FBD element: Elements of the same type can be swapped if the cursor is on the first input (path). For entering the address you can position the cursor automatically under the ”PrEsetting” menu. Address input begins at the first question mark. 33 Programming 45 LD-Editor / correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return> - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. From the ”Edit network” menu (present block) or the ”Edit LD” menu (new block after inputting the first element), you can access the correction mode of the LD editor. a) There are 3 ”Edit LD” pulldown menus that appear during editing: Edit IL 46 Programming 33 b) The following functions are available via the special keys: <²>, <³ >, < ± >, <°> Move the cursor <Ins> Spread Vertical <Del> Erase Element <PgUp> Shift image upwards line by line <PgDn> Shift image downwards line by line <Ctrl>+<PgDn> Shift image up page by page (page up) <Ctrl>+<PgUp> Shift image downwards page by page (page down) <letter> Change Contact address <Esc> Break off without saving <Home> Exit from correction If you press <Ctrl>+<Return> you can also execute the functions listed above via the menu lines in the various pulldown menus ”Edit” LD”. Edit LD / Horizontal spread in correction mode - ”Edit”, ”Blocks”, ”STart Entry”, create element, <Ctrl>+<Return>, ”Spread Horizontal” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Spread Horizontal” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function spreads the network horizontally to the right of the cursor position. It is not possible to spread before the first input (left edge of the screen).The network is optimized by inserting FBD elements. In insert mode spreading is not required since space is provided by DOLOG AKF. 33 Programming 47 Edit LD / Vertical spread in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, ”Spread Vertical” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Return>, ”Spread Vertical” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. It is necessary to spread vertically before inserting a new parallel path. The cursor must be situated below the horizontal series path. Spreading takes place above the cursor position. Spread Vertical is equivalent to the <Ins> key In insert mode spreading is not required since space is provided by DOLOG AKF. Edit LD / Normally open contact in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, ”normally open contact” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”normally open contact” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character <S> This function is used to edit a normally open contact to the right of the cursor position: a) in a serial path: In a new network the output is inserted at the same time as the function is selected. b) in a parallel path: With this function, a normally open contact, as the first element of a parallel path, can be edited. For this the cursor must be located at least 3 lines below an element or insert mode must be active. 48 Programming 33 Edit LD / Normally closed contact in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, ”normally closed contact” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”normally closed contact” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character: <O> This function is used to edit a normally closed contact to the right of the cursor position: a) in a serial path: An output is inserted in a new network at the same time as the function is selected. b) in a parallel path: A normally closed contact can be edited as the first element of a parallel path using this function. For this the cursor must be located at least 3 lines below an element or insert mode must be active. 33 Programming 49 Edit LD / Connector - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Connector” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Connector” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol –> >– Reference character <C> With the connector, a signal is laid on an intermediate marker or output without register initialization. Example NW1 Q4.2 M3.3 M4.6 M3.4 M4.5 > > Q4.3 In NW1 a connector has marker M4.5 assigned. Edit LD / Output in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, ”normally closed contact” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”normally closed contact” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character: <R> This function is used for inserting an output: This function is used to reproduce an output signal. The cursor must be located at least 3 lines below the previous output or insert mode must be active. 50 Programming 33 Edit LD / Exclusive OR block in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Exclusive OR” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Exclusive OR” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol =2k+1 reference character <X> This function is used to edit an exclusive OR block. Two inputs: Several inputs: if the block has two inputs, the output is activated if a ”1” signal or ”0” signal is applied to both of the inputs (exclusive OR). if the block has more than two inputs, the input is activated when an odd number of inputs carry a ”1” signal or ”0” signal (”odd element”). Insertion optimizes the network structure. Edit LD, FBD / Conditional PB/FB - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”PB/FB Cond’al” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. With this function you call a block conditionally. By this method, whether a block is called depends on the result of a signal address. e.g. E2.2 PB4 * PB4 is called only if E2.2 = 1 You must enter the address of the condition and the block to be called yourself. The call condition is negatable. 33 Programming 51 FB: PB: OB: User standard FB must be declared before calling. can be called (even before programming) cannot be called Edit LD, FBD / PB/FB Uncond’al - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”PB/FB Uncond’al” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function is used to call a block unconditionally, i.e. the block is executed in each cycle. You must enter the address of the block to be called yourself. FB: PB: OB: User standard FB must be declared before calling. These can be called (even in advance of programming) cannot be called Edit LD, FBD / FBD elements in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, ”FBD Elements” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”FBD Elements” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. The elements can be called from the pulldown menu using a <reference character> or by selecting the menu lines and pressing <Return>. The descriptions for the LD/FBD Editor and for ”Edit”, ”Blocks” apply to the entry of FBD elements.In addition:The network is optimized when the element is inserted.Exchanging FBD elements of the same type (at the same place) is permissible. To do so the cursor must be on the path of the first input and the overwrite mode must be active. You will find a list of possible FBD Elements in the Section entitled ”Input mode”. 52 Programming 33 Edit LD / Erase in correction mode - ”Edit”, ”Blocks”, ”Stary Entry”, create element, <Ctrl>+<Return>, ”Delete” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Delete” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function is used for erasing elements from a network. All LD elements to the right of the cursor are erased in the LD editor. When dealing with FBD elements, the cursor must be situated on the first input path in order to erase. Edit LD / Parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, Parallel path - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. The pulldwn menu which can be called via <Ctrl>+<Return> is used to edit or correct a Parallel path. The menu remains available until the termination of the parallel path.You can select the following functions: Edit IL 33 Programming 53 Edit LD / Normally open contact in parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path, normally open contact - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ” Edit Block”,.. Symbol Reference character: <S> This function is used for inserting a serial normally open contact in a parallel path. Edit LD / Normally closed contact in parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path, normally closed contact - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character: <O> This function is used for inserting a serial normally closed contact in a parallel path. Edit LD / connector in parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path, Connector - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol -> >Reference character: <C> This function is used for inserting a serial connector in a parallel path. 54 Programming 33 Edit LD / Cross–connection of the parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path, cross–connection - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character: <V> This is used to close the still open parallel path at the cursor position. It is only permissible to insert the symbol if the parallel path has been created correctly, otherwise the wrong path is deleted. Edit LD / Continuation in parallel path - ”Edit”, ”Blocks”, ”Start Entry”, create element, <Ctrl>+<Return>, Parallel path, continuation - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character: <H> The path is continued without contacts. 33 Programming 55 Function block diagram FBD FBD editor - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> (when selecting a present block) - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Note A present block can still be edited subsequently. After pressing <Return> you move to the ”Edit network” menu, the structure of which is the same for all display formats. The shared functions are dealt with in IL. You are now in the FBD editor, which is described below. You can edit in FBD a) in the pulldown menu ”Edit network” using the <Ctrl>+<reference characters>, by selecting the menu line with arrow keys and calling with <Return> or using the mouse, b) with the special keys. a) In the pulldown menu ”Edit network”. Edit Network Insert Erase Copy Modify Scroll Forwards Scroll Backwards Terminate (Save) Break Search Signal Search Network Exchange Online Dynamic Status Display Presetting 56 Programming 33 b) Special keys outside the pulldown menu <PgDn> <PgUp> <End> <Esc> Scroll to next network Scroll to previous network End, compile and save input Break off input without saving If you press the <Return> key you can also select the functions listed above via the menu line of the pulldown menu ”Edit network”, which is displayed in the bottom right hand corner of the display. When creating a network in FBD note that elements can only be entered in certain cursor positions. These positions must be reached with the arrow keys (or mouse): Insert: To the right of the cursor; the cursor must be on the path of the input. to the left of the cursor; cursor must be on the path of the output. Delete: To the right of the cursor; the cursor must be on the path of the input. Exchange: Elements of the same type can be exchanged, if the cursor is on the first input (path) and overwrite mode is active. For address input the cursor can be positioned automatically under the ”PrEsetting” menu. Address input begins at the first question mark. 33 Programming 57 FBD Editor / correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return> - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return> - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. From the ”Edit network” menu (present block) or the ”Edit FBD” menu (new block after inputting the first element), you can access the correction mode of the FBD editor. a) There are 3 pulldown menus ”Edit FBD” which appear during editing: 58 Programming 33 b) The following functions are available via the special keys: <²>, <³ >, < ± >, <°> <Ctrl>+<³> <Del> <PgUp> <PgDn> <Ctrl>+<PgDn> <Ctrl>+<PgUp> <Letter> <Esc> Move the cursor Spread Horizontal Delete elemtent Shift image up line by line Shift image down line by line Shift image up page by page (page up) Shift image down page by page (page down) Change contact address Break off without saving If you press the <Ctrl>+<Return> key, you can also execute the functions listed above via the menu lines in the various pulldown menus ”Edit FBD”. Edit FBD / AND block in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”AND” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”AND” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol & reference character <U> This function is used to edit an AND block (with maximum 46 inputs). The network is optimized when this element is entered. 33 Programming 59 Edit FBD / Negated input in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Negated input” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Negated input” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character <N> DThis function is used to negate an input. Outputs cannot be negated. You can only negate an existing input if the cursor is on the path of the input. A negated input is inserted when the cursor is immediately to the left of the block edge. The network is optimized when this element is entered. Edit FBD / Input in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”input” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”input” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol Reference character <E> This function is used to edit an input. An additional input can be inserted if the cursor is directly to the left of the existing symbol. Negated inputs can be overwritten with . The network is optimised when the element is inserted. 60 Programming 33 Edit FBD / OR block in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”OR” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”OR” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol >=1 Reference character <O> This function is used to edit an OR block (with maximum 46 inputs). The network is optimized when this element is entered. Edit FBD / Exclusive OR block in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Exclusive OR” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Exclusive-OR” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol =2k+1 Reference character <X> This function is used to edit an exclusive OR block. Two inputs: Several inputs: if the block has two inputs, the output is activated if a ”1” signal or ”0” signal is applied to both of the inputs (exclusive OR). if the block has more than two inputs, the output is activated, if a ”1” signal or ”0” signal is applied to an odd number of inputs (”odd element”). Insertion optimizes the network structure. 33 Programming 61 Edit FBD / Connector - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Connector” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Connector” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Symbol –> >– Reference character <C> With the connector, a signal is laid on an intermediate marker or output without register initialization. Example NW1 M3.3 * & Q4.5 M4.5 > > * & M4.5 * >=1 M5.1 Q4.2 In NW1 a connector has marker M4.5 assigned. The content of the marker is used in the same scan as input of the OR block. In addition, the marker M4.5 is used as input of the first AND block in the next network. NW2 M5.8 * & M4.5 * & M5.9 62 Q4.6 Programming 33 Edit FBD / Spread Horizontal in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Spread Horizontal” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Spread Horizontal” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function or <Ctrl>+<> is used to spread the network horizontally to the right of the cursor position. The network is optimized by inserting FBD elements. In insert mode spreading is not required since space is provided by DOLOG AKF. Edit FBD / Spread Vertical in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Spread Vertical” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Spread Horizontal” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. Vertical spreading is necessary in order to insert further inputs into an FBD symbol. The cursor must be below the first input path of the FBD symbol. The network is optimized when the element is inserted. This function is equivalent to the <Ins> key. In insert mode spreading is not required since space is provided by DOLOG AKF. 33 Programming 63 Edit FBD / Deleting in correction mode - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, create element, <Ctrl>+<Return>, ”Delete” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”Modify”, <Ctrl>+<Return>, ”Delete” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. This function or <Del> is used to delete elements from a network. Deleting an element: The cursor has to be in the upper left corner of the block. Deleting several continuous elements: The cursor must be at the start of the element sequence to be deleted. Deleting inputs: The cursor must be on the signal to which an input has been assigned. The network is optimised when this function is executed. 64 Programming 33 Block number - ”Edit”, ”Blocks”, ”Block number” - ”Load”, ”Exchange Online”, ”Block number” - ”Online”, ”dynamic state display”, ”Current display”, ”Block number” Enter the number of the block which you want to edit (1-999) here. After pressing the <Return> key you can enter or change the number using the line editor (typewriter keyboard). Note For OB block number must be 1! Block type - ”Edit”, ”Blocks”, ”block type” - ”Load”, ”Exchange Online”, ”block type” - ”Online”, ”dynamic state display”, ”Current display”, ”block type” The type of block to be edited is entered here (organization block OB, program block PB, function block FB). Note 34 Exchange Online: for OB block number must be 1! Programming 65 Organization block OB1 The organization block contains the information content of the whole user program. The OB is processed by cyclical scanning. Each scan starts by processing network 001 and ends when the last network present in the OB is processed. PB calls, FB calls and possibly user programs exist in networks with consecutive numbering, starting with network 001. Each network may contain only one PB or FB call (with the exception of IL). It calls conditional or unconditional PBs, FBs and SFBs. It can also contain program parts in IL, LD or FBD. Program block PB A PB consists of a sequence of networks, consecutively numbered starting with network 001. It can call conditional or unconditional PBs, FBs und SFBs. The same PB can be called several times. It contains program parts in IL, LD or FBD. In OB (or another PB), a block that is to be called is displayed as a square (in LD/FBD) in the network. The PB number is above the square. In the case of conditional PB calls the signal address of the condition is immediately to the left of the square. A PB that is not called from any place is never processed. 66 Programming 34 Conversion of a program block into a function block: Program blocks which have been tested and founded to be suitable by users can easily be converted into function blocks. To do this, proceed as follows: Step 1 Under ”Edit”, ”Blocks” here set the ”Input mode” ”IL” for instruction list. Step 2 Also set the desired program block here and choose the network. Step 3 Insert a further network (dummy network)in front of the first network and save the program block on the hard disk. Step 4 Copy this program block within your station using ”Special”, ”Copy” to form a new function block (the source block is the PB, the destination block is the new FB). Delete the old program block if necessary. Step 5 Under ”Edit”, ”Blocks”, ”Start Entry” call the new function block and select network 1. This network is still empty. Simply enter the new function block name (overwrite NW end). If necessary you can still edit the new function block by inserting formal operands. Note The ”key macros” function is useful for inputting formal operands (cf. Chapter 2.2.6). Step 6 Save the new function block. Don’t forget to then delete the appropriate program block calls within your user program and to program new function block calls. 34 Programming 67 Function block (FB) 999 user function blocks can be parameterized (named FB1 – FB999). The FB contains a part of a user program in instruction list, ladder diagram, function block diagram. Calling an FB ensures that the FB is then processed exactly to the runtime when the appropriate call is triggered in the user program. This enables you to optise the program yourself, thereby achieving shorter scan times. For the processing of the block, the formal operands of the FB are replaced with the declared actual operands. Formal operands are a maximum of 6 character long. The first character is a letter, the rest may be any characters. An FB which is not called from any point will not be processed. Structure The FB consists of the declaration part (network 001) and the instruction part (following networks). Declaration part In the declaration part is the name of the FB and the list of the formal operands, stating the type. Table 1 Example of the declaration part of an FB Formal operand Name: EXAMP1 IDT: OP1 IDT: OP2 IDT: OP3 IDT: OFF : *** 68 Type Possibilities (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/TN/B2/B8/B16/ANZ) (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/TN/B2/B8/B16/ANZ) (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/TN/B2/B8/B16/ANZ) (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/TN/B2/B8/B16/ANZ) Programming Type (I/O) E (I/O) E (I/O) E (I/O) A I I I O 34 The series (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) provides information on the possible type statement. The meanings are as follows: E : input Ex : input (x = B, W, D: byte, word, double word) A : output Ax : output (x = B, W, D: byte, word, double word) M : marker (as bit) Mx : marker (x = B, W, D: byte, word, double word) SM : system marker (as bit) SMx : system marker (x = B, W, D: byte, word, double word) T : Timers Z : Counters TN : Nodes Bx : Bit string ANZ : Number I O : : The signal is an input parameter of the block The signal is an output parameter of the block. The appropriate representative must be specified from each of these two groups. A declaration from the group (I/O) is used to state whether the parameter is to be displayed in ther graphical display as an input an the left edge of the block or as an output on the right edge of the block. The declaration part ends with ”***”, Network end. The formal operand name can be changed at any time, but the block calls must be reprogrammed whenever changes are made. Instruction part The instruction part makes the algorithmic correlations between the formal operands of the declaration part (in IL/LD/FBD). In the instruction part the formal operands must be marked with an ”=” sign. Where appropriate, to the right of the instruction list is a number stating the nesting depth of the line in question. The instruction list always ends with ”***”, the instruction part with ”:BE” (Block end). 34 Programming 69 The following figures show the instruction part of the above function block ”EXAMP1” in IL, LD and FBD. IL Statement of nesting depth LD FBD call * Conditional call of a function block in ladder diagram or function block diagra * = condition instruction Instead of the question marks operands which are still relevant (M1.1, A2.4 ...) are to be input. An FB may be called from another FB or a PB. 70 Programming 34 The FB is shown as a square in the network (in LD/FBD). In the square, its description is once again displayed, in short form. On the left of the square is the imput formal operands and to the left of the square the actual operands, and possibly a further condition. On the right of the square is the output formal operands and to the right of the square the actual operands. In IL the block is called using the operand BA or BAB. Conditional call of a function block in instruction list. Actual operands (M1.1, A2.4, ...) are to be input in place of the question marks. The first line (condition) is to be created manually and linked logically. If formal operands are edited, deleted or inserted during editing of the declaration part if a function block, all the function block calls must be re–parameterized. The points in the user program at which the function block calls of the FB in question are located can be established using the global cross–reference list. It is also possible to call a function block from the instruction part of another function block (nesting). The function block called may contain its formal operand as an actual operand in the instruction part of the calling FBs. Thus for the runtime of the user program actual operands can be forwarded down to the deepest nesting level (10). Program blocks tried and tested by users can easily be converted into function blocks FB1...FB999 (see PB). 34 Programming 71 Network number - ”Edit”, ”Blocks”, ”Network number” - ”Online”, ”dynamic state display”, ”continuous display”, ”Network number” Here set the network (1 to 999) of the block which you want to edit after ”Start Entry”. After pressing the <Return> key you can enter or change the number with the line editor (typewriter keyboard). Input mode (Display Formats ILs, KOP, FUP) - ”Edit”, ”Blocks”, ”Input mode” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”Dyn. status display”, <Ctrl>+<Return>, ”Preset”, ”Input mode” - ”Online”, ”Dyn. status display”, ”Current display”, ”Start Entry”, <Ctrl>+<Return>, ”Preset”, ”Output mode” - ”Online”, ”Dyn. status display”, ”Triggered display”, ”Start Entry”, <Ctrl>+<Return>, ”Preset”, ”Output mode” Here toggle to set the display format to be used during editing or reproduction (special language). 72 Programming 34 Display Formats Instruction list IL The following applies to DOLOG AKF A120: In IL OBs, PBs and FBs are programmable. A maximum of 45 input or output operands can be defined in the declaration part of an FB, but not more than 64 parameters in total. Only formal operands defined previously in the declaration part are accepted in the IL of a user functional block, and each formal operand muct be preceded by an ”=” sign. This enables it to be clearly distinguished from a generally valid symbol name. A maximum of 24 jump marks are possible within a user FB per network. Likewise, there are also PB and FB calls (conditional or unconditional) in IL. During network creation in IL the DOLOG AKF software carries out syntax checks, so that impermissible input is refused. Rules for constructing an instruction list Network start / end Example: : U..., O... or L... Each network must start with the operations U, O (for logic) or L (for arithmetic) : *** and end with ” *** ”. initiating pulse The system marker SM2 (switch–on marker) is used as an initiating pulse. The valency of the switch–on marker is only for the 1st cycle = 1. Utilization: For initializing the actual values of timers and counters in hot restart operating mode when powering–up or on program start. For details of how to program memories with preferred state after power–up, see ”Memory”. 34 Programming 73 Marker bit Example Network 001 : A I2.1 : A I2.2 : O I2.3 : = M5.1 : *** Network 002 : A I2.4 : A M5.1 : = Q3.1 Markers (binary intermediate results) save the results of logical operations for use elsewhere in the program. They have to be defined before the scan. For nesting, it is advisable to work with markers or bracket operations. Bracket operations (only in IL) Example : A ( Bracket operations can also be used in place of : A I2.1 markers. : A I2.2 After an instruction ”Open brackets”, just as at the start of : O I2.3 the program, the next instruction has to begin with A or O. : ) The maximum nesting depth for bracket operations is : A I2.4 13. The number of ”Open brackets” operations must be the same as:=Q3.1the number of ”Close brackets” operations. : *** Block end The last network of each block contains only the ”block end”: : BE 74 Programming 34 Logic functions Order of logic operations Example : A I2.1 When logical operations are being calculated, the rule ”AND : A I2.2 before OR” is applied, as in Boolean algebra, I.e. no superfluous brackets must be entered. : O I2.3 The accompanying IL obeys this rule : O I2.4 (I2.1 ∧ I2.2) ∨ I2.3 ∨ I2.4 = Q3.1 : = Q3.1 : *** Normalizing operations Instruction with normalizing Example : U E2.1 With the operations such as S..., R... the link result is : S M5.19 normalized. The result cannot be used directly for the next : U E2.2 instruction. Consequently, the following instruction must always start with operation U or O. The : *** same behavior applies to the instructions U(, O(, X(, UN(, ON(, XN(. Instruction without normalization : U M5.4 The result of logic operation UM5.4, UM5.5 is not normalised on : U M5.5 assignment of ”=”, i.e. it is available for further assignments : = M5.6 (multiple assignment is possible). : = M5.7 : = M5.8 : U E2.7 Prior to execution of the subsequent ”AND” operation the register is first normalized, i.e. erased, so that the previous : *** result of logic operation can no longer be used. 34 Programming 75 Connector With the connector, =C, a signal is placed on an intermediate marker or register. The register is not initialized (reset), so networks can be saved. The marker type must be congruent with the operands of the other instructions in the command sequence. Examples Logic : A M3.2 : A M4.5 : =C M3.5 : O M4.8 : = Q3.7 : *** Arithmetic Network 001 : L K12 : ADD MW1 : =C MW30 : SUB MW2 : = MW44 : *** Network 002 : L MW30 Intermediate result from NW001. : : : 76 Programming ADD = BE MW15 MW45 34 Save operations The sequence of IL commands must be strictly followed. The preferred state after power–on (startup marker) SM2 or additional instructions before the ”=” assignment are optional. In cases where no additional instructions precede the ”=” assignment, the marker M* can also be replaced with Q3.*t in the examples mentioned below. Example: SR memory, dominant resetting, preferred state after power–on 1 : U ( : O E2.1 : O SM2 The system marker SM2 has a ”1” signal in the 1st program cycle, : ) therefore preferred state after power–on 1. : S Q3.1 : A I2.2 The reset condition is processed after setting, hence : R Q3.1 dominant reset. : = Q3.1 : *** Example: pk memory, dominant setting, preferred state after power–on 1 : U E2.2 : R A3.2 : U ( : O E2.1 The system marker SM2 has a ”1” signal in the 1st program cycle, : O SM2 therefore preferred state after power–on 1. : ) : S A3.2 The set condition is superordinate to the reset condition, i.e. : = A3.2 dominant setting. : *** Note For examples of dominance, preferred state after power–on 0 and preferred state after power–on 1 refer to page 100. 34 Programming 77 Counters Please adhere strictly to the command sequence C, S, L and R in order to avoid syntax errors. There can be additional instructions between commands. CU, counter up 0 ... 32 767 Example: : A I2.1 Counting pulse input (count with 0 1 edges on I2.1). With the first edge, the counter output is set to ”1”. : CU Z10 C10, up counter. : A I2.2 With ”1” signal on I2.2, the setpoint value is loaded with K30. : S C10 : L K30 : A I2.3 Reset input (actual value and counter output are set to ”0” : R C10 with ”1” signal on I2.3). : = Q3.1 When actual value = setpoint value: ”0” signal on Q3.1. CD, counter down 0 ... 32 767 Example: : A I2.1 Counting pulse input (count with 0 1 edges on I2.1). With the first edge, the counter output is set to ”1”. : CD C12 C12, down counter. : A I2.2 With ”1” signal on I2.2, the setpoint value is loaded : S C12 with CSW12. : L ZSW : A I2.3 Reset input (actual value and counter output are set to ”0” : R C12 with ”1” signal on I2.3). : = Q3.2 When actual value = setpoint value: ”0” signal on Q3.2. 78 Programming 34 C+, C-, counter up, down -32 768 ... +32 767 It is possible to count both up and down with this counter. Example: : A I2.1 Counting pulse input (count up with 0 1 edges on input I2.1). : Z+ C12 Z12, count up : A I2.2 counting pulse input (count down with 0 1 edges on input I2.2). : ZC12 Z12, count down : A I2.3 With ”1” signal on I2.3, the setpoint value ZWS13 : S Z12 is loaded. : L CSW : A I2.4 Reset input (actual value and counter output are set to ”0” : R C12 with ”1” signal on I2.4). : = Q3.2 When actual value = setpoint value: ”1” signal on Q3.2. : *** 34 Programming 79 Timers In the case of IL input, the function and operating time characteristics of timers are exactly equivalent to the FBD elements of the FBD or LD editor. There are 5 timer functions available. The associated timing diagrams can be found under ”FBD elements”. Please adhere strictly to the defined command sequence in order to avoid syntax errors. There can be additional instructions between commands. Example: TI, pulse (monostable–circuit – monoflop) : A I2.1 Start (input signal) timing element T30 : SI T30 : DZB 100MS Define the time base in ms: 10, 100 or 1000 or input 10MS, 100MS, 1000MS : L K30 load the constant K30 for the setpoint value : U E2.2 reset the time block : R T30 : = A3.1 With 0 1 edge on I2.1: ”1” signal on O3.1. TV, extended pulse : A I2.1 : SV T31 : DZB 100MS : L TSW30 : A I2.2 : R T31 : = Q3.1 : *** TS, stored on–delay : A I2.1 : SS T33 : DZB 100MS : L MW32 : A I2.2 : R T33 : = Q3.3 : *** 80 Programming TE, on–delay : : : : : : : : A SE DZB L A R = I2.1 T32 100MS TSW31 I2.2 T32 Q3.2 *** TA, off–delay : : : : : : : : A SA DZB L A R = I2.1 T34 100MS MW33 I2.2 T34 Q3.4 *** 34 Edge recognition The following operations are able to detect pulse edges. FLP FLN FL Detection of an edge transition Detection of an edge transition Detection of edge transitions Examples FLP : A I2.1 : FLN M1.10 : = M1.11 : *** FLN : A : FLP : = : *** I2.1 M1.10 M1.11 0³ 1 1³0 0 ³ 1 and 1 ³ 0 FL : : : : U FL = E2.1 M1.10 M1.11 *** Shift (only in IL) These operations can be used to shift the contents of the register by a user–defined number of bits. The moved bits are lost. Sign information would be lost. Therefore, shift is only sensible in logic. 1 0 1 0 0 1 1 0 Example: SHL, shift : A : SHL : = : *** → Shift to the left by 3 bits, SHL K3 → 0 0 1 1 0 0 0 0 to the left MB1 The contents of MB1 are moved 3 bits to the left. K3 SHL is only possible with constants. MB1 The moved value is in MB1. Example: SHR, shift to the right : A MB1 The contents of MB1 are moved 5 bits to the right. : SHR K5 SHR is only possible with constants. : = MB1 The moved value is in MB1. : *** 34 Programming 81 Rotate (only in IL) These operations can be used to rotate the contents of the register by a user– defined number of bits. The rotated bits are reinserted in the opposite direction. 1 0 1 0 0 1 1 0 → Rotate to the left by 4 bits, ROL K3 → 0 1 1 0 1 0 1 0 Example: ROL, rotate to the left : A MB1 The contents of MB1 are rotated 4 bits to the left. : ROL K4 ROL is only possible with constants. : = MB1 The moved value is in MB1. : *** Example: ROR, rotate to the right : A MB1 The contents of MB1 are rotated 5 bits to the right. : ROR K5 ROR is only possible with constants. : = MB1 The moved value is in MB1. : *** Incrementing/decrementing (only in IL) The following functions can be used to increase or decrease the contents of a byte, word or doubleword by 1. This is used to modify setpoint values, for example. INC DEC increase value by 1 decrease value by 1 Example INC : A MW1 : INC : = MW1 82 Programming DEC : A : DEC : = MB1 MB1 34 Load, Transfer (only in IL) LBB, LBW: bit ³ byte, word Operations LBB and LBW are used to load (read into the register) a defined bit string (byte register, word register). The operand following the load operation is the least significant binary signal of the bit string. Upon input, an equipment list dependent syntax control of the acceptability of the bit string is carried out. TBB, TBW: byte, word ³ bit Operations TBB and TBW assign the register contents (binary) to a bit string. The transfer begins with the bit of least significant value from the register content. The start of the bit string is determined by the operands. In order to avoid damage to memory areas and undesired memory content, a function is introduced in which the user states the width of the bit string. The statement of bit string width is carried out with the command DBB ANZ xx Define bit string width The operand number (ANZ) can accept the following values: LBB, TBB with bit operand DBB ANZ 1...8 for maximum 8 bits in byte register Formal parameter in FB declaration part: B8 LBW, TBW with bit operand DBB ANZ 1...16 for maximum 16 bits in word register Formal parameter in FB declaration part: B16 LBW, TBW with byte operand DBB ANZ 1...2 for maximum 2 bytes in word Formal parameter in FB declaration part: B2 Rules for creating IL: It is absolutely necessary that the instruction DBB directly follows its bit string instruction. In the formal parameter declaration, the declaration for the number must directly follow the declaration of the address. Otherwise, testing and assignment are not possible. The declaration of the setpoint types B2, B8 and B16 must be followed by the declaration of a setpoint type ANZ. 34 Programming 83 Note The maximum number of instructions and moved bits (DBB ANZxx) in a user function block is < 1,000. Σ instructions + Σ xxx < 1,000 Example: Network 1 FB3 Name: FBTEST IDT: BYE1 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B2 I IDT: EG1 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ I IDT: IDT: BYA1 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B16 O BSP2 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ O IDT: IDT: BIT2 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B8 I BSP3 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ I IDT: IDT: BIA2 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B8 O BSP4 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ O IDT: IDT: BIT3 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B16 I BSP5 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ I IDT: IDT: *** BIA3 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) B16 O BSP6 (E/Ex/A/Ax/M/Mx/SM/SMx/T/Z/NODE/B2/B8/B16/ANZ) (I/O) ANZ O Network 2 : LBW =BYE1 : DBB =BSP1 : A KH000F : TBW =BYA1 : DBB =BSP2 : : : = MW12 : *** 84 Programming Load 1...2 bytes in word register Define bit string width 1...2 Transfer word register to bit string Define bit string width 1...16 34 Network 3 : LBB =BIT2 : DBB =BSP3 : A MB10 : TBB =BIA2 : DBB =BSP4 : : : = MB20 : *** Network 4 : LBW =BIT3 : DBB =BSP5 : A MW10 : TBW =BIA3 : DBB =BSP6 : : : = MW13 : *** Network 5 : LBW E8.12 : DBB =BSP5 : = MW22 : TE 34 Load bit string in byte register Define bit string width 1...8 Transfer byte register to bit string Define bit string width 1...8 Load bit string in word register Define bit string width 1...16 Transfer word register to bit string Define bit string width 1...16 Absolute addressing Define bit string width 1...5, since I8.12...I8.16; if LBW, LBB is absolute, ANZ xx must be entered. Programming 85 LLD, LHD: Load Low Data/ Load High Data ³ word, doubleword The operations LLD and LHD load: bytes from the signal memory into the word register, or words from the signal memory into the doubleword register A word consists of a high byte and a low byte. The low byte contains the less significant word part, the high byte contains the more significant word part. Accordingly, a double word consists of a high word and a low word. With the command LLD the user can: define any byte as the low byte of a word, or define any word as the low word of a doubleword With the command LHD the user can: define any byte as the high byte of a word, or define any word as the high word of a doubleword 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 11 1 0 0 0 1 0 0 0 1 0 0 0 1 0 27 27 27 27 20 LHD MB 20 LLD MB LHD MB 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 215 20 20 LLD MB 1 1 1 0 0 0 1 0 0 0 1 0 0 0 1 0 20 215 LHD MW 20 LLD MW 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 1 1 1 0 0 0 1 0 0 0 1 0 0 0 1 0 231 215 20 Examples: Using the operation LLD, the contents of MB112 (decimal 100) are loaded into the low word of marker word MW223. :L := :LLD :LHD := K0 MB113 MB112 MB113 MW223 86 Programming 00000000 01100100 00000000 00000000 01100100 34 Using the operation LLD, the contents of MW212 (decimal 32 612) are loaded into the low word of marker double word MD200. :L := :LLD :LHD := 34 K0 MW213 MW212 MW213 MD200 00000000 01111111 00000000 00000000 00000000 01111111 00000000 01100100 00000000 01100100 Programming 87 TLD, THD: Transfer Low Data/ Transfer High Data ³ word, doubleword The operations TLD and THD transfer: bytes from the word register into the signal memory, or words from the doubleword register into the signal memory A word consists of a high byte and a low byte. The low byte contains the less significant word part, the high byte contains the more significant word part. Accordingly, a double word consists of a high word and a low word. With the command TLD, the user can: define the low byte of a word as any byte, or define the low word of a doubleword as any word With the command THD, the user can: define the high byte of a word as any byte, or define the high word of a doubleword as any word 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 11 1 0 0 0 1 0 0 0 1 0 0 0 1 0 27 27 27 27 20 THD MB 20 TLD MB THD MB 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 215 20 20 TLD MB 1 1 1 0 0 0 1 0 0 0 1 0 0 0 1 0 20 215 THD MW 20 TLD MW 1 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 1 1 1 0 0 0 1 0 0 0 1 0 0 0 1 0 231 215 20 Examples Using the operations TLD and THD, the contents of marker word MW219 (decimal 1 024) are transferred into low byte MB117 (0) and MB118 (4). :L MW219 :TLD MB217 :THD MB118 88 00000100 00000000 00000000 00000100 Programming 34 Using the operations TLD and THD, the contents of marker double word MD17 (decimal 2 097 168) are transferred into low word MW220 (16) and high word MW221 (32). :L MD17 :TLD MW220 :THD MW221 00000000 00100000 00000000 00010000 00000000 00010000 00000000 00100000 The analog value EW5.1 (15 928) is loaded into the marker double word MD18. Then the contents are loaded into the low word MW69 and the highword MW70. :L := :LLD :LHD := :L :TLD :THD 34 K0 MW68 EW5.1 MW68 MD18 MD18 MW69 MW70 00000000 00111110 00000000 00000000 00000000 00111110 00000000 00000000 00111110 00111110 00000000 00000000 00111000 00000000 00111000 00111000 00111000 00000000 Programming 89 Jumps (only in IL) Inputting jump marks When creating a network in IL, you can include conditional and unconditional jumps within it. The mark that is entered for the jump call must also be entered at the jump goal. Jump marks are introduced with an ”=” sign, just like formal parameters. The jump goal should be a load instruction, in the case of arithmetic, or the start of a logical connection, since the register is thereby initialised. Since the register is initialised after an assignment, this has an effect on the jump goal (see Example SPB, conditional jump) Example: SP, unconditional jump : A I2.1 Jump mark goals are entered to the left of : A I2.2 the colon. You will need to move the cursor there : = Q3.1 to do this (arrow keys or mouse). Jump marks : SP =AM0012 consist of up to six characters. The first of : ... these must be a capital letter. The rest of AM0012 : A Q3.1 the characters can be numbers, special characters or : ... letters, but spaces are not allowed. Example: SPB, conditional jump with initialization : S I2.3 : S I2.4 : SPB =AM0022 The jump is carried out : ... on a ”1” signal. : = M4.1 AM0022 : A I2.5 with initialization : ... AM0022 : = Q3.2 without initialization Note 90 Reproduction of the jumps in LD and FBD is not available. Programming 34 NOP instruction (only in IL) The ”NOP” instruction is a dummy for an operation. Note ILs with ”NOP” instructions cannot be reproduced in LD or FBD. FREE instruction (only in IL) FREE is a dummy in instruction list. Unlike NOP, which can stand for any instruction, FREE is only valid for inputs from memories, timers and counters. Example: without dummy : A I2.1 : SV T31 : DZB 100MS : L K10 : A I.2 : R T31 : = Q3.1 : *** 34 : with dummy : A I2.1 : SV T31 : DZB 100MS : L K10 FREE : = Q3.1 : *** In this network, note that the time block cannot be reset when it is with dummy. Programming 91 Arithmetic functions Load Arithmetic Functions are always with ”L”. Constants Constants K, KO and KH are loaded with operation ”L”. Calculating Essentially all arithmetic operations must begin with a load operation. Example : L K12 : ADD MW1 Several arithmetic commands may follow each other : SUB MW12 : = MW20 : *** : L rule. : MUL : ADD : = : *** MW22 In the case of arithmetic there is no ”point-before-dash” MW33 MW11 MW44 The expression <MW11> + <MW22> x <MW33> = <MW44> must be programmed as shown here. It is possible to convert between data types, see ”Converting”. Brackets cannot be used in arithmetic commands. If intermediate results are to be used later, intermediate marker must be inserted. Overflow markers are set when executing arithmetic operations. You will find these in the user instructions ”A120 Pocket Guide”. Each type of operand has its own overflow marker. If system markers are to be used, they must be called directly after the arithmetic operation. 92 Programming 34 Generating two’s complement For BCN switches with a separate sign, the two’s complement should be calculated for negative values. + – 0 0 0 0 0 : : : : : 9 9 9 9 9 0 ... 32 767 I2.1 ... I2.15 I3.1 (1 = –, 0 = +) corresponding IL: END 34 : : : : : : : : : : LBW DBB = A SPZ L SUB = L = I2.1 ANZ MW1 I3.1 =END K0 MW1 MW1 MW1 MD1 Programming 93 Comparator Comparators can only be used with operands of the same data type (in accordance with conversion rules). If you do not require reproduction in LD/FBD, arithmetic instructions are permissible between load and comparison operations. Several instructions on bit logic operation can precede the ”=” assignment. = : : : : equal to L MW30 == MW31 = Q3.1 <> : : : : 94 *** does not equal L MW32 <> MW33 = Q3.4 *** Programming > : : : : greater L > = than MB30 MB31 M5.22 : : : *** < less than L K20 < MW51 = Q3.3 : *** ≥ greater than/equal to ≤ less than/equal to : : : : : : : : L >= = *** MD40 MD42 M5.23 L <= = K21 MW52 Q3.6 *** 34 Conversion Note Two types of processing and various operand types exist. The possible conversions occur automatically. The user can use mixed operand types and mixed types of processing in IL. The following functional description makes clear how the values in the dynamic display arise. Converting into other operand types Logic: Operand types without a sign bit, byte, word and double word Arithmetic: Operand types with a sign byte, word and double word Conversion is always from a smaller to a larger operand type. Logic: Operand type without sign; when converting, the more significant unassigned bits are filled with ”0”. Example: Converting from MB to MW 0 0 1 0 0 0 1 0 27 20 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 215 20 Arithmetic: Operand types with sign; when converting, the more significant unassigned bits are filled according to sign. More significant bits with positive values are filled with ”0”. More significant bits with negative values are filled with ”1”. Examples: Converting from MB to MW. 34 Programming 95 0 0 1 0 0 0 1 0 27 20 1 0 1 0 0 0 1 0 27 20 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 215 20 1 1 1 1 1 1 1 1 1 0 1 0 0 0 1 0 215 Conversion between two types of processing (logic ³ ³ logic) 20 arithmetic, or arithmetic The conversion from logic to arithmetic is always without sign. The conversion from arithmetic to logic is always with sign. 96 Programming 34 ladder diagram LD In the LD the OBs, PBs and FBsare programmable. Per ladder diagram network, as inputs, a maximum of 16 signals in parallel and 7 signals plus output in series can be linked. There is only one output per LD network. This cannot be negated. The valence of the output signal can be set on a maximum of 16 contacts. No jumps are valid in the LD, only block calls. Processing of the called block is followed by return to behind the place that called. In LD, a program or function block can only be alone in a network. When generating networks in LD, one must be aware that the elements can only be entered in certain cursor positions. The following symbols can be selected when generating networks in LD: normally open contact (inquiry 1 signal) normally closed contact (inquiry 0 signal) connector =2k+1 exclusive OR block connection of parallel paths continuation in parallel path without contacts output (not stored) FBD elements further elements that can be called in LD and FBD (memories, timers, counters and comparators) can be selected and called. Note on FBD elements: Normally, when programming in LD, only one FBD element per network is possible. Exceptions are several timers, counters, memories beside one another in the upper cross– path. 34 Programming 97 possible not possible M0.1 M0.1 S S M0.2 M0.2 R Q S R Q R Q S M0.4 M0.3 R Q M0.1 S M0.4 M0.2 R Q Figure 2 Inputting FBD elements into a ladder diagram 98 Programming 34 Function block diagram FBD In the FBD the OBs, PBs and FBs are programmable. Function block diagram allows a maximum of 6 FBD elements per network horizontally, and 46 input signals together with a maximum of 12 FBD elements with two inputs each vertically. There is only one output per FBD network. This cannot be negated. The valence of the output signal can be set on a maximum of 16 contacts . In FBD there are no jumps, instead only block calls. Processing of the called block is followed by return to the place from which the call was made. In FBD, a program or function block call must always be alone in a network. For generating networks in FBD, it is important to note that elements can only be entered at certain cursor positions. The following symbols can be used for geneating networks in FBD: & >=1 =2k+1 FBD elements: 34 AND block OR block exclusive OR block input (inquiry 1 signal) negated input (inquiry 0 signal) connector The elements that can be called in LD and FBD (memories, timers, counters and comparators) can be selected and called. Programming 99 FBD Elements The FBD elements are standard blocks which you can select in the FBD or LD Editor. All AKF functions (FBD elements) show latching properties, i.e. following momentary power drop–out on the PLC all signals and words are unchanged. To achieve initial state characteristics (initialisation upon voltage recovery), the system marker SM2 should be used as the initialisation input of the function. An example of each FBD element is shown below. Memory RS Flipflops dominant set SR Memory dominant reset Q3.3 Q3.3 I2.1 S I2.2 R Q Q3.3 I2.2 R I2.1 S Q Q3.2 preferred state after power–on 0 (initial state) preferred state after power–on 0 (initial Q3.3 SM2 SM2 I2.1 S >=1 >=1 Q32 I2.2 Q3.3 I2.2 R Q R I2.1 >=1 Q3.3 I2.1 100 I2.2 S I2.2 Programming R Q Q3.2 preferred state after power–on 1 Q3.2 SM2 I2.2 R >=1 preferred state after power–on 1 SM2 S Q S Q Q3.2 Q3.3 34 Counters CU, counter up 0 ... 32 767 Input Z10 I2.1 ZV Set I2.2 S Reset 65535 K30 I2.3 SW Actual value 0 R Q Q3.1 Preset value default SW = 2 SW = 3 SW = 2 0 Output Figure 3 FBD element and timing diagram counter up With a ”1” signal on reset input ”R”, the actual value and the output ”Q” are set to ”0”. With a 0 ³ 1 edge on set input ”S”, the setpoint value ”SW” is imported into the set point value register. The actual value becomes ”0”. Only after at least one setpoint value has been accepted, is a setpoint value/actual value comparison undertaken. The permissible setpoint values ”SW” are: K, MW, ZSW The output ”Q” is set to ”1” when the actual value is between 0 and the setpoint value. With a 0 ³ 1 edge on input ”CU”, the actual value is increased by 1 (up to a maximum of 65 535) and compared with the setpoint value. The actual and setpoint values (ZIW, ZSW) in the counter can be controlled through the on–line list and/or initial values. The counter actual and setpoint va- 34 Programming 101 lues can be scanned via a load instruction and transferred to other operation areas. CD, counter down 0 ... 32 767 Input Z12 I2.1 CD Set I2.2 S Reset IW=SW=setpoint value input MW13 SW I2.3 R Actual value Q Q3.1 0 Output Figure 4 FBD element and timing diagram counter down With a ”1” signal on reset input ”R”, the actual value and the output ”Q” are set to ”0”. With a 0 1 edge on set input ”S”, the setpoint value ”SW” is imported into the set point value register. The actual value is set equal to the setpoint value. Only after at least one setpoint value has been accepted, is a setpoint value/actual value comparison undertaken. The permissible setpoint values ”SW” are: K, MW, ZSW The output ”Q” is set to ”1” when the actual value is between 0 and the setpoint value. With a 0 1 edge on input ”CD”, the actual value is reduced by 1 (down to a minimum of 0) and compared with the setpoint value. The actual and setpoint values (ZIW, ZSW) in the counter can be controlled through the on–line list and/or initial values. The actual and setpoint counter values can be scanned using a load assignment and transferred to other operand areas. 102 Programming 34 CUD, up/down counter –32 768 ... +32 767 Z12 I2.1 Z+ input Z- input Z+ Set I2.2 Z– Reset I2.3 S Output K30 SW I2.4 R Actual value Q Q3.2 setpoint value Preset value default Figure 5 FBD element and timing diagram counter up, down With a ”1” signal at reset input ”R” the actual value and the output are set to ”Q” and the system marker SM26 to ”0”. With a 0 1 edge on set input ”S”, the setpoint value ”SW” is imported into the set point value register. The actual value remains unchanged. Only after at least one setpoint value has been accepted, is a preset value/actual value comparison undertaken. The permissible setpoint values ”SW” are: K, MW, ZSW The output ”Q” is set to ”1” as soon as the actual value is greater than or equal to the setpoint value. With a 0 1 edge on input Z+, the actual value is increased by 1. With a 0 1 edge on input Z–, the actual value is reduced by 1. If as a result of the next count operation of the counter the actual value became greater than 32 767 or less than -32 768, then the system marker SM26 (actual value overflow) is set to ”1”. The system marker SM26 is updated by another counter in the user program. 34 Programming 103 The actual and setpoint values in the counter (ZIW, ZSW) can be controlled via the Online–List. The actual and setpoint counter values can be scanned using a load assignment and transferred to other operand areas. Timers TI, timer function pulse I2.1 T30 I2.1 1^ 100MS ZB Time K30 SW I2.2 I2.2 R Q3.1 Q Q3.1 Figure 6 FBD element and timing diagram pulse TV, timer function extended pulse I2.1 T31 I2.1 1^V 100MS ZB TSW30 SW I2.2 R Time I2.2 Q Q3.3 Q3.2 Figure 7 FBD element and timing diagram extended pulse 104 Programming 34 TE, timer function on–delay I2.1 T32 I2.1 T-0 100MS ZB TSW31 SW I2.2 R Time Q Q3.3 I2.2 Q3.3 Figure 8 FBD element and timing diagram on–delay TS, timer function stored on–delay T33 I2.1 T-S 100MS ZB MW32 SW I2.2 R I2.1 Time Q Q3.3 I2.2 Q3.3 reset only possible with reset Figure 9 FUP element and timing diagram stored on–delay timer 34 Programming 105 TA, timer function off–delay I2.1 T34 I2.1 0–T 100MS ZB MW33 SW I2.2 R Time I2.2 Q Q3.3 Q3.3 Figure 10 FBD element and timing diagram off–delay 106 Programming 34 Comparator The contents of two bytes or two words or two double words are compared. Six different comparators can be used. > greater–than MB30 P>Q = equal to MW30 P=Q MW31 < K20 MW51 Q Q3.1 less–than Q3.3 >= greater than/equal to MD40 P>=Q MD42 Q Q M5.22 not equal to <> MW32 P<>Q P<Q Q MB31 M5.23 MW33 <= K21 MW52 Q Q3.4 less than/equal to P<=Q Q Q3.6 When the condition described in the FBD element applies the output ”Q” is = 1. 34 Programming 107 Edge recognition Three FBD elements are available for pulse edge detection. FLP, Edge detection 0 –> 1 M1.10 I2.1 FLP M11.1 FLN, Edge detection 1 –> 0 M1.10 I2.1 FLN M11.1 FL, Edge detection 0 –>1 and 1 –> 0 M1.10 I2.1 FL M11.1 When the condition described in the FBD element is met, the output for a cycle ”Q” = 1. The intermediate marker (here M1.10) and the output marker (here M11.1) cannot be identical. During network creation in FBD syntax checks are carried out by the DOLOG AKF software, so that impermissible input is refused. Additional information on network creation in function block diagram can be found in the FBD editor and in the ”correction mode” of the FBD editor. 108 Programming 34 ADU 205 Note Programming for ADU 205: In the ”Example” system supplied on diskette the function block FB2 provides you with one application. To copy the FB2 from the example system to another station, proceed as follows: 34 Step 1 Under ”Setup”, ”system” enter the system in which you want to insert ADU 205 Step 2 Select ”Setup”, ”PLC station”, ”PLC Station Name” and enter a station Step 3 Select the ”Special”, ”Copy files” menu Step 4 Enter the following for source: A:\Example\FB2 (Note A:\ is the diskette drive in which your AKF125 diskette is inserted – this could also be B:\) Step 5 Do not enter anything for destination (blank): the files will be copied under the station set in Setup Programming 109 Addressing - ”Edit”, ”Blocks”, ”Addressing” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”PrEsetting”, ”Addressing” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”Dyn. status display”, <Ctrl>+<Return>, ”PrEsetting”, ”Addressing” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit Block”,.. - ”Online”, ”Dyn. status display”, ”Start display”, <Ctrl>+<Return> ”PrEsetting”, ”Addressing” - ”Setup”, ”PLC station”, ”Addressing” You can address all inputs, outputs, markers, marker words, etc. absolutely (e.g. I 2.15, M 1.17) or symbolically, if you have previously created a data block.You can toggle between the two forms of addressing. Output monitoring - ”Edit”, ”Blocks”, ”Output monitoring” - ”Edit”, ”Blocks”, ”Start Entry”, present block, <Ctrl>+<Return>, ”PrEsetting”, ”Output monitoring” - ”Edit”, ”Blocks”, ”Start Entry”, <Ctrl>+<Return>, ”Dyn. status display”, <Ctrl>+<Return>, ”PrEsetting”, ”Output monitoring” - ”Edit”, ”Overview”, select block, <Ctrl>+<Return>, ”Edit block”,.. - ”Online”, ”Dyn. status display”, ”Start Display”, <Ctrl>+<Return>, ”PrEsetting”, ”Output monitoring” - ”Setup”, ”PLC station”, ”Output monitoring” You can toggle between ”on” and ”off”. When output monitoring is ”on” the address allocation is monitored during editing. If an output address already in use is entered again, a warning message is given. This draws the programmer’s attention to multiple assignments. The message must be acknowledged. 110 Programming 34 3.3.3 Symbols and Comments -”Edit”, ”Symbols and Comments” This software function is used to create the data blocks. A data block contains symbolic names and comments for absolute addresses. You can select and call the following menu lines in the pulldown”Symbols and Comments” menu: Symbols and Comments Start Input Data Block DB DB0 Start Entry ”Edit”, ”Symbols and Comments”, ”Start Entry” First enter the desired number under ”data block file”. If this DB does not yet exist it will be created automatically. Press the <Return> key to begin editing the data block. Data block DB The general description of the data block is contained in the user instructions ”AKF125 for beginners”. absolute addresses are given symbolic names and Comments to clarify the association between the address (inputs/outputs, markers, etc.) and their technological function The text of the symbolic names and comments is stored in the Data block under the current station name Activation of the DB by setting the addressing to ”SYM” Documentation of the DB under ”Print””, ”Symbols and Comments” Standard data block DB0 for the system markers (bit, byte snd word) The system markers are automatically copied to each new DB 32 Programming 111 Data block Editor The data block DB contains the assignment of symbolic names and comments to the hardware addresses. This assignment is made using the data block editor. They describe how inputs, outputs, markers, marker words etc. are used within your program. To make input as user–friendly and simple as possible, the editor has various menus, key macros and the line editor. Input symbol, comment - ”Edit”, ”Symbols and Comments”, ”Start Entry”, <Ctrl>+<Return> The data block is input by means of the data block editor: When ”Start Entry” is activated the signal, symbol and comment table for the first inputs are displayed You can assign the hardware address symbols (maximum 8 characters) and comments (maximum 40 characters) displayed with the following special keys, the line editor and the key macros. Special keys: <²>, <³ >, < ± >, <°> <Del> <backspace>, < ä > <Return> ³ (tab) shift ² (tab) <PgUp> <PgDn> <Ctrl>+<PgUp> <Ctrl>+<PgDn> <Home> <End> <Ins> <F1> bis <F8> <Esc> 112 Programming Move the cursor Delete character under cursor Delete character to the left End input on a line next input field previous input field previous page next page scroll line up scroll line down jump to top of screen jump to bottom of screen insert on/off text memory break without saving 32 You may possibly see an asterisk (*) in front of a signal. This means that this hardware address is not entered in the component list. You can assign symbols and comments to these signals to use later, but you cannot program them in the block editor. Note Note: All changes made in this editor using its functions apply only to the data block, not to the OB, PB, FB. After pressing <Ctrl>+Return a window with the following functions is displayed: Command Exit (save) Search Function Search Operand Delete Field Copy Area Erase Area Move Area Editor for Text Memory Double assignment on Exit (save) - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Exit (save)” The symbols and comments entered or changed for the hardware addresses are saved in the preset data block under the preset station. You exit from the editor at the same time. 32 Programming 113 Search Function - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Search Function” If you are looking for a particular signal or a symbol which has been entered previously within the data block, use this function. A window is displayed on the screen in which you enter the search mask. The input is checked for errors.You can terminate with either the <Esc> key or by entering a space. If the search mask is found it will be entered in the first line of the editor. If a symbol sought is not present the cursor will remain in its old position and the search will be terminated following a message. Search Operand - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Search Operand” Symbols and comments can be entered for the following operands: I O IB OB Binary inputs Binary outputs inputs byte outputs byte IW inputs word OW outputs word ID inputs double word OD outputs double word M Marker bit (central) MB Marker byte MW Marker word MD Marker double word SM SMB SMW SMD system marker bit system marker byte system marker word system marker double word T time (Timer) TIW Timer actual value TSW Timer setpoint value Z counter ZIW counter actual value ZSW counter setpoint value An operand can be selected with: Reference characters, by selecting the menu line with arrow keys and calling with <Return> or the mouse. The first possible hardware address of the operand selected is set in the first line of the display. See also Search Function 114 Programming 32 Delete field - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Delete field” The input field on which the cursor was positioned before the menu was called up will be erase. See also Erase Area Copy Area - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Copy Area” You can assign symbols and comments to other signals. After selecting this function a window will be displayed on the screen. From Signal Till Signal To Signal Copy Area : : : first signal to be copied last signal to be copied target address The input may be made absolutely or symbolically. Even with symbolic Programming it is better to state the hardware addresses when copying. If you copy to another point you will have double symbols which you should correct. Avoid duplicate symbols. Correct all double assignments. 32 Programming 115 Erase Area - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Erase Area” You can erase symbols and comments in a block. After selecting this function a window is displayed on the screen. From Signal Till Signal Erase Area : : First Signal to be Deleted Last Signal to be Deleted The input can be made absolutely or symbolically. Move Area - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Move Area” You can move symbols and comments as a block. After selecting this function a window is displayed on the screen. From Signal Till Signal To Signal Move Area : : : first signal to be moved last signal to be moved target address The input can be made absolutely or symbolically. Even with symbolic programming it is better to state the hardware addresses when moving. 116 Programming 32 Text Memory Editor - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Text Memory Editor” You do not have to enter comments which you want to use frequently during editing again each time. Use the convenient Text Memory Editor to assign texts of your choice to the <F1> to <F8> keys using the line editor. The input must not exceed 40 characters. When the appropriate function key is pressed the text will be used in the data block editor at the current cursor position. Note Key macros (permanent memory) can also be used instead of the function keys. Double assignment on/off - ”Edit”, ”Symbols and Comments”, ”Start Entry, <Ctrl>+ <Return>, ”Double assignment on/off” In operating mode ”on”, when symbols are input a check is made to see whether the symbol has been assigned previously. If it is already assigned you will see an error message where the double symbols occur. Double assignment should be avoided. However, if you want to describe hardware addresses which have not yet been entered in the component list you can disable the message on the screen with this option. The status (on/off) can be seen in the status line. DaTa block file - ”Edit”, ”Symbols and Comments”, ”DaTa block file” - ”Editieren”, ”Übersetzen (Datenbaustein)”, ”DaTenbausteindatei - ”SeTup”, ”SPS-Station”, ”DaTenbausteindatei” Here enter the number of the data block which you wish to edit. If this DB does not yet exist it will be created automatically. 32 Programming 117 3.3.4 Equipment list - ”Edit”, ”Equipment List” This editor is where you specify the Hardware configuration and Presettings for the operation of your station. Note When entering the nodes note whether there are jumps in the node numbers. (see A120 User Manual, chapter 3.1). The Equipment List Editor is used for inputting or changing the I/O module types inserted in the subrack. After selecting this function a window is displayed in which you can edit the equipment list. edit equipment list - ”Edit”, ”equipment list”, <Ctrl>+<Return> In this menu the I/O modules are assigned to the appropriate slots in the subrack. In addition, a comment of a maximum of 40 characters can be entered for each entry using the line editor. Here you have a) a pulldown menu b) special keys available. 118 Programming 32 a) Press <Ctrl>+<Return> in the module column and the following menu will be offered: Command Exit (save) Abort Enter Module Parameterize Central Controller Switch–off Mode Initiate Equipment list Select ALU b) Special keys <Home> <End> <Esc> <Del> <backspace>, < ä > <²>, <³ >, < ± >, <°> ³ (tab) shift ² (tab) <Return> jump to top of screen jump to bottom of screen exit from editor delete character under cursor delete character to the left Move the cursor next input field previous input field Edit Comment equipment list / exit - ”Edit”, ”equipment List”, <Ctrl>+<Return>, ”Exit (save)” Editing is terminated when you select this function. The equipment list entered is checked for accuracy and saved on the user drive. equipment list / Abort - ”Edit”, ”equipment list”, <Ctrl>+<Return>, ”Abort” If this function is selected and confirmed, editing is terminated. All changes are lost after the user has acknowledged. (is equivalent to <Esc> key) 32 Programming 119 enter modules - ”Edit”, ”equipment list”, <Ctrl>+<Return>, ”Enter modules” This function is used to enter the modules in the equipment list. A maximum of 18 nodes can be entered in the equipment list. The following window is first displayed for selection : 120 Programming 32 modules Digital I/O - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Enter modules”, ”Digital I/O” The following digital I/O modules can be entered: 32 Programming 121 modules AnalogI/O - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Enter modules”, ”AnalogI/O” The following analog I/O modules can be entered: Expert modules - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Enter modules”, ”Experts” The following intelligent modules can be entered: 122 Programming 32 Other modules - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Enter modules”, ”Other” the following modules can be entered: Note For the ALU 201/ALU 202 the node 1 in the subrack must be a power supply (DNP 205 or DNO 201). Note The KOS 201 can only be assigned to one of the first three nodes. Delete modules - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Enter modules”, ”Delete modules” This function is used to delete an item in the equipment list. 32 Programming 123 Parameterize Central Controller - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Parameterize Central Controller” The controller controls the PLC. It executes the various program instructions in line with rules laid down by the basic software. This means: it organises the reading in of external data and signals into the signal memory it processes this data and performs calculations it continuously stores the results of processing in the signal memory organizes the output of results During parameterization of the controller you set the number of markers, timers and counters. To get back, press the <Esc> key. The following entries are required: Note The total of all markers, I/O modules, setpoint value times and setpoint value counters must not exceed 3970 Bytes. For checking you can see the rest of the marters to the right of the input window. This means you can decide yourself where and how you want to change the markers set. Setting a marker bit the number of markers may be between 0 and 3970 and is entered in full 32 groups. If the rest of the markers allow it, your entry will be rounded off to the next 32 group. The factory setting is 1600 (1.1 – 50.32). 124 Programming 32 Setting a marker byte The number of marker bytes may be between 0 and 3970. The factory setting is 600. Setting a marker word The number of marker may be between 0 and 1985. The factory setting is 300. Setting a marker double word The number of marker may be between 0 and 992. The factory setting is 100. Setting timers The number of timers may be between 0 und 567. The factory setting is 40. Setting counters The number of counters may be between 0 and 794. The factory setting is 40. 32 Programming 125 switch–off mode - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”switch–off mode” In the event of a fault or failure of the I/O bus supply the switch–off mode determines how the outputs of the PLC react. The switch–off mode can be specified for the individual nodes. A menu appears in which you can toggle between ”SSP contents” and ”dominant 0” for all 18 node entries. Normalize equipment list - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”Normalize equipment list” Here all the values in the equipment list are set to the values on delivery. All node entries will be deleted. ALU select. - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”ALU select.” The desired ALU is selected here. If using the ALU 201 or ALU 202 the second slot of the subrack (corresponds to the first node) is reserved for the power supply DNP 205. When operating the PLC with the ALU 200 no power supply is to be entered for node 1 since the power supply is integrated into the ALU. 126 Programming 32 The following pulldown menu is available: ALU select Entry ALU typ ALU 200 Note This menu is opened automatically when you move the cursor onto the ALU entry. Enter - ”Edit”, ”Equipment List”, <Ctrl>+<Return>, ”ALU select.”, ”Enter” The ALu selected is entered in the equipment list. ALUtype - ”Edit”, ”Equipment list”, <Ctrl>+<Return>, ”ALU select.”, ”ALUtype” Press <Return> to open a menu containing all the available ALUs. 32 Programming 127 3.3.5 Title Block - ”Edit”, ”Title Block” The following functions are available in the ”Title Block” pulldown menu: Edit Title Block Star Entry Title Block name Title.DOC Title Block width 132 Title Block High 0 Entries are made using a title block editors. Start Entry - ”Edit”, ”Title Block”, ”Start Entry” After specifying the Title Block Name, Title Block Width and height and confirming with the <Return> key you can begin editing the Title Block File.The title block can then be used for all print operations. If the Title Block File does not exist it will be created automatically using the following functions in the pulldown menu. Title Block Editor - ”Edit”, ”Title Block”, ”Start Entry” This editor allows you to specify the title block for all station documentation lists to either be printed or displayed on the monitor. The Title Block Editor uses special keys and graphics characters. Rather than constructing your own Title Block File you can use a standard Title Block File in which you only need to enter the current details. This standard Title Block File is automatically copied under your station to the user drive. 128 Programming 32 You can use the following special keys to edit any text in the frame displayed. special keys <Del> <backspace>, < ä > Arrow keys <Return> ³ (tab) shift ² (tab) <PgUp> <PgDn> <Ins> Delete character under cursor Delete character to the left Move the cursor End input of a line by x columns to the right by x columns to the left shift screen to left shift screen to right insert on/off Below is a printout of the title block of the example system: graphics characters: You can also use graphics characters when drawing a new title block. There are created via the keyboard using the <Alt> key and the keys of the right numerical keypad. Press and hold down the <Alt> key. Enter a 3–digit number using the keys of the right numerical keypad and release the <Alt> key again.The appropriate graphic character appears on the screen at the current cursor position. The following graphics characters are available (3–digit number on the left, corresponding character on the right) 32 Programming 129 Figure 11 Graphics characters available in the title block editor Title block name - ”Edit”, ”Title Block”, ”Title Block Name” Input the name of the title block file here which you would like to process. The standard title block file is called ”HEAD.DOC”. The extension ”.DOC” is usually given to title block file names. Title block width - ”Edit”, ”Title Block”, ”Title Block Width” Input the required width of the title block here. 64-132 characters are permissible. The width cannot be changed subsequently. 130 Programming 32 Title Block Height - ”Edit”, ”Title Block”, ”Title Block Height” Enter the number of lines you wish to have in your title block here (permissible values 1-12). The height cannot be changed subsequently. 32 Programming 131 3.3.6 Replacement of Signals - ”Edit”, ”Replace Signals” This function allows you to replace several signal addresses in your user program with other signals (e.g. I3.1 with I3.6) or exchange signals (e.g. I3.1 with I5.1 and I5.1 with I3.1) In this pulldown menu you can select and call the following functions: Replace of Signals Start Replace Old Signals M1.1 New Signals M10.1 Block list PB Load Block list Store Block list Signal lists are declared. This enables you to make relacements module–by–module, for example. In addition, the block list makes replacements block by block. A ”*” in the block list means the whole station will be replaced. Note Data block Make sure that each block edited is asigned a data block. All the data blocks assigned are changed automatically, i.e. a) the symbols and comments of the addresses to be replaced are assigned to the new addresses b) the entry is deleted in the replaced address If other data blocks are to be replaced these must be declared individually in the block list. 132 Programming 32 Note Signal replacement You can exchange signal A for signal B by proceeding as follows: Step 1 ”Old signal” A, ”New signal” Auxiliary contact, Start Replace Step 2 ”Old signal” B, ”New signal” A, Start Replace Step 3 ”Old signal” Auxiliary contact, ”New signal” B, Start Replace Start Replace - ”Edit”, ”Replace Signals”, ”Start Replace” After declaring all the data required (see the following pulldown menu lines) a safety check is first carried out by the software. If the new signals are unknown to the Data block the replacement is started. If signals and comments are already present in the data block replacement does not take place until after an interrogation. Note Repeated replacement with the same signals results in the deletion of symbols and comments. 32 Programming 133 Old or New Signals - ”Edit”, ”Replacement of Signals”, ”Old Signals” - ”Edit”, ”Replacement of Signals”, ”New Signals” State here the desired addresses areas (I, O, M, TIW, SM ...) in which the replacement is to be carried out. The following rules apply to the replacement: The signal lists must be complete and must not contain any Replace character (e.g. * or ?) Signal lists must be of equal length The signal lists for ”old” and ”new” must differ (otherwise replacement makes no sense) Overlapping signal lists for ”old” and ”new” are possible Examples of signal list input (according to editor) correct I1.1-3.16 M2.2-2.7 Q3.3 134 Programming fincorrect I1.8-1.1 I1.1-I3.4 Q1.1-I2.1 32 Old and new signals must have the same validity status in the equipment list Example of signal list input (according to equipment list) Equipment List: Signal list input Column1: Input module correct Column2: bare ”Old” I1.1-3.32 Column3: Input module ”New” I10.1-12.32 : Column5: Input module incorrect, where Column2 not used and Co– lumn6 input Column6: Input module ”Old” I1.1-3.32 Column7: Input module ”New” I5.1-7.21 : Column10: Input module Column11: bare Column12: Input module 32 Programming 135 Block list - ”Edit”, ”Replacement of Signals”, ”Block list” ”Load”, ”Read–out PLC”, ”Block list” ”Load”, ”Compare”, ”Blocks with PLC”, ”Block list” ”Print”: ”Program protocol” / ”cross–reference list” / ”Signal assignment list”, ”Block list” Enter here a list of the blocks to be processed. The list may consist of a maximum of 200 characters. Permissible inputs: * Processing of all the blocks existing under the station ”*” is the preset. OB, PB, FB e.g. OB1, PB1, FB55, ... PBxxx-yyy e.g. PB8-19 FB10 FB10 only In a list one declaration must be separated from the next by a comma: e.g. PB1-19, PB23-24, FB5-8, FB13-28 You can overwrite existing entries or delete them with the <space> bar and then replace them. This list can be saved under a name with the command ”Save Block List” and then be reloaded when and where you wish. Load block list - ”Edit”, ”Replacement of Signals”, ”Load block list” ”Load”, ”Read–out PLC”, ”Load block list” ”Load”, ”Compare”, ”Blocks with PLC”, ”Load block list” ”Print”: ”Program protocol” / ”cross–reference list” / ”Signal assignment list”, ”Load block list” The list which is programmed under ”Block list” and saved under ”Save Block List” can be loaded using this function, if required. The block list name should not contain a period. 136 Programming 32 Save block list - ”Edit”, ”Replacement of Signals”, ”Save block list” ”Load”, ”Read–out PLC”, ”Save block list” ”Load”, ”Compare”, ”Blocks with PLC”, ”Save block list” ”Print”: ”Program protocol” / ”cross–reference list” / ”Signal assignment list”, ”Save block list” The list which is input under ”Block List” can be stored under a name chosen by the user. If required, it can be called again using ”Load Block List”. The block list name should not contain a period. 3.3.7 Compile (Blocks) - ”Edit”, ”compile (blocks)” This function compiles all the blocks of the station set (data blocks only). After installing a new version of DOLOG AKF the old stations must be adjusted using the function ”Compile Blocks” and thus matched to the current software version. 3.3.8 Compile data blocks - ”Edit”, ”compile (Data blocks)” This function is used to compile the data block entered and thus to match it to the current software version. The following entries are required: Compile Blocks Start Compile Data Block DB DB0 33 Programming 137 3.4 Load The load function serves as a means of communicating with the PLC and processing the user program in the PLC. Note Note that all the Functions except ”Link Program” and ”EPROM processing” are only possible with a properly connected PLC. The PLC ”A120” is only to be connected to the serial port COM1 of the PaDT. The EPROM programming station kit ”EPS 2000” is connected to the serial port COM1 of the PaDT. The following loading functions are available under this pulldown menu: Edit Load Online Print Special Setup Help=F10 Linl Program Program to PLC Exchange Online Read Equipment list Read out PLC Compare Set Date / Time Process EPROM Bootload 138 Programming 33 3.4.1 Link program - ”Load”, ”Program Link” When this function is selected, the PLC program is generated . Here the OB and all blocks called by the OB are together links into the run–ready SPC program. This completely program is stored in the file ”CODE.PLC” and can then be transferred to the PLC using the function ”Program to PLC”. Linking takes place with the link mode and ALU type set in ”Setup”, ”PLC station”. In Link Mode you can determine the extent of the additional information to be transferred into the PLC. Complete Representation: This setting enables an unrestricted representation of the IL. Here the representation is not of the symbols and comments from the data block, but of line comments, network comments, parameter symbols and labels. Comments, symbols and labels are identical to the original. without comments : As complete representation, with the restriction that the comments are no longer available. without comments, symbols and labels: No comments, symbols or labels are available for the representation. Only the structural information required for reproduction are transferred to the PLC. Without Representation: A representation is no longer possible with this setting.<F 6Ã@R@Z7@Lge>. Automatic Adjustment: If the program is too large with complete reproduction, the link mode is switched back to the level at which the program still fits into the PLC. 33 Programming 139 3.4.2 Program to PLC - ”Load”, ”Program to PLC” This function transfers the linked program and the equipment list to the PLC. If the program file check (”CODE.PLC”) finds that an ”Online exchange” has already taken place after linking a safety inquiry is made as to whether the transfer should really take place. If the IL area of the PLC is equipped with an EPROM, loading is terminated. 3.4.3 Exchange online ”Load”, ”Exchange online” - ”Edit”, ”Blocks”, ”Start entry”, ”existing block, <Ctrl>+<Return>, ”Exchange online” - ”Edit”, ”Overiew”, Select Block, <Ctrl>+<Return>, ”Edit Block”,.. This function allows you to load a new block into the program with the PLC running or stationary. In addition, a existing changed block in the program can be exchanged with the PLC running or stationary. Note New SFBs cannot be loaded into the PLC using this function. If new SFBs are to be loaded into the PLC the program is to be linked and loaded into the PLC. When approaching the limit of available memory, an online exchange may no longer be possible. In such a case, try to load the whole program into the PLC after relinking. 140 Programming 33 The following entries are available in this menu: Exchange Start Exchange Plock Number 1 Block Typ OB Start exchange ”Load”, ”Exchange online” - ”Edit”, ”Blocks”, ”Start entry”, ”existing block, <Ctrl>+<Return>, ”Exchange online” - ”Edit”, ”Overiew”, Select Block, <Ctrl>+<Return>, ”Edit Block”,.. After determining the block to be exchanged (type and number), the exchange is carried out.Small windows indicate at what point you are in the process. 3.4.4 Read Equipment list - ”Load”, ”Read Equipment List” This function reads the actual equipment of the PLC into the programming panel and saves it in the file ”BES.DAT” (of the current station). If ”BES.DAT” already exists in the station it will be overwritten following an inquiry! 33 Programming 141 3.4.5 Read out PLC - ”Load”, ”Read out PLC” This function is used to read out from the PLC: individual blocks or the complete program including equipment list Then use the following functions to select the desired Block list and set the desired system and station: Read out PLC Start Read out To Plant: C:\AKF125 Station name: BEISP Block list X Load Block list Store Block list Start read–out - ”Load”, ”Read out PLC”, ”Start PLC Read-Out” After specifying the blocks to be read out (possibly present, i.e. block list to be loaded) reading out from the PLC to the declared system and station is started. If this system and station already exist the station will be overwritten following a safety inquiry. If the system and/or station do not yet exist, they will be created following confirmation. 142 Programming 33 Read out to system - ”Load”, ”Read–out PLC”, ”To system” Here you can determine the system to which the blocks read out will be written. The preset for this system directory is the system set in the PLC. Read out / Station Name - ”Load”, ”Read–out PLC”, ”Station Name” Here you can determine the station to which the blocks read out are written. The preset for this Station Name is the station name set in the PLC. 33 Programming 143 3.4.6 Compare - ”Load”, ”Compare” These functions compare data from the AKF station in the PaDT with that in the PLC. The following Compare functions are available: Compare Block with PLC Program with PLC Equipment list Compare Blocks with PLC - ”Load”, ”Compare”, ”Blocks with PLC” The following functions are available: Compare Block Start Print Compare Mode Title Block: Title Block file Output Unit Block list Load Block list Store Block list 144 Programming Byte Compare off Title.DOC Monitor * 33 Start printing - ”Load”, ”Compare”, ”Blocks with PLC”, ”Start Print” The blocks named in the block list are compared in the PaDT and PLC according to the specified mode. The following example shows a successful block comparison. Comparison Mode ”Load”, ”Compare”, ”Blocks with PLC”, ”Comparison Mode” You can choose between the following by toggling: Byte comparison: Quick comparison: 33 The blocks are compared byte by byte (highest level of certainty) Only one test polynome is compared per block Programming 145 Output Unit –”Load”, ”Compare”, ”Blocks with PLC”, ”Output unit” –”Load”, ”Compare”, ”Program with PLC”, ”Output unit” –”Load”, ”Compare”, ”Equipment Lists”, ”Output unit” –”Online”, ”PLC status”, ”Output unit” –”Print”, ”Overview”, ”Output unit” –”Print”, ”Program protocol”, ”Output unit” –”Print”, ”Symbols and Comments”, ”Output unit” –”Print”, ”cross–reference list”, ”Output unit” –”Print”, ”Signal assignment list”, ”Output unit” –”Print”, ”Equipment List”, ”Output unit” –”Print”, ”All documentation”, ”Output unit” ”Special”, ”System information”, ”Output unit” A menu appears from which you can choose: Output Unit Monitor Printer File 146 Programming - output takes place page by page on the screen - output takes place on the printer selected under ”Setup” - output takes place into the MS–DOS file determined by the entire path. If a file exists with the same name as entered, then a message appears asking if the file should be overwritten. 33 Program with PLC - ”Load”, ”Compare”, ”Program with PLC” This comparison checks different parameters and all the linked blocks of the entire program in the PLC with that on the PaDT. The following functions are available: Complete Program Compare Start Print Title Block Title Block file Output Unit off Title.DOC Monitor The following Example shows a successful program comparison. 33 Programming 147 Equipment List - ”Load”, ”Compare”, ”Equipment Lists” After selecting this function you will see on the screen the equipment list in the PaDT compared with the actual equipment in the PLC. Prior to transfer any program created must be linked to the PLC and must agree with the equipment list of the PLC. The following functions are available: Compare Equipment list Start Print Title Block Title Block file Output Unit 148 Programming off Title.DOC Monitor 33 3.4.7 Set Date / Time - ”Load”, ”Set Date/Time” This menu point is used for setting date and time for the PaDT as well as for the PLC. When the function Setup PLC is selected the date and time are transferred to the PLC. This brings the system marker bytes SMB6 to SMB12 up to date. The following functions are available: Date / Time Set Date Set Time Setting PLC Set date - ”Load”, ”Set date/time”, ”Set date” In the first line you will see the date currently set on your PaDT. This date mat be today’s date if you set the date and time on start–up or if your PaDT has a built–in multi–function card. In diesem Fall verlassen Sie den Editor mit der Taste <Esc>. Enter a new date in the second line. The entry must be repeated until a valid date has been entered or until you exit from the editor. Note Your PaDT’s date will be overwritten with the new date. Here is an example of a valid input: (Date,Month,Year) 12.3.1989 12 3 1989 12/3/1989 12,3,1989 12-3-1989 12:3:1989 33 Programming 149 Set time - ”Load”, ”Set date/time”, ”Set time” In the first line you will see the time currently set on your PaDT. This time may be the current time if you set the date and time on start–up or if your PaDT has a built–in multi–function card. In diesem Fall verlassen Sie den Editor mit der Taste <Esc>. Enter a new time in the second line. Die Eingabe muß wiederholt werden, bis eine gültige Zeit eingegeben wurde oder der Editor mit <Esc> verlassen wird. Note Your PaDT’s time will be overwritten with the new time. Here is an example of a valid input: (Hours,Minutes,Seconds) 12.13.19 12 13 19 12/13/19 12,13,19 12-13-19 12:13:19 SEtting PLC - ”Load”, ”Set Date/Time”, ”PLC Set Up” If you have just entered the new time and date, these will be sent to the PLC.If no new setting has been made the system date and time will be sent to the PLC. Then, the system markers SMB6 to SMB12 in the PLC are brought up to date. The date and time of the system can also be set on the PaDT using the operating system functions ’Date’ and ’Time’ after power–up (or warm restart). 150 Programming 33 3.4.8 Process EPROM - ”Load”, ”Edit EPROM” Note The EPROM programming station kit ”EPS 2000” is connected to the serial port COM1 of the PaDT. The file created during linking can be burned into the EPROM or compared with the EPROM’s contents, using the ”EPS 2000” programming station. In this menu the following functions are available: Process EPROM Test if empty Program EPROM Compare EPROM Read PLC Test if empty - ”Load”, ”Edit EPROM”, ”Test if empty” In this function all the memory cells of the EPROM are checked to see if they are empty, i.e. hexadecimal ’FF’. 33 Programming 151 Program EPROM - ”Load”, ”Edit EPROM”, ”Program EPROM” This function is used to program EPROMs with the user program and the equipment list (File ”CODE.PLC”). The file was created either through ”Link Program” (see Kapitel 3.4.1) oder durch Kopieren nach ”SPS Lesen” (s. below). The transmission depends on the Setup setting and the ALU type. ALU 201 and ALU 202 ”Setup”, ”PLC station” as ”Memory Variant” ”EPROM” This function is used to transfer the equipment list and the user program to the EPROM in the programming station. EPROMtype: 1 Mbit EPROM (PC001) Step 1 In ”Setup”, ”PLC station” enter ”EPROM” as the ”Memory Variant”. If you want to transfer a new program, continue with Step 2. If you want to transfer a program read out from the PLC, go to Step 3. Step 2 Link the program under ”Load”, ”Link Program” and go to Step 4. Step 3 Copy the file ”CODEAUS.120” as ”CODE.PLC”. Step 4 Attach the empty EPROM in EPS 2000. Step 5 Start the function ”Load”, ”Edit EPROM”, ”Program EPROM”. ”Setup”, ”PLC station” as ”Memory Variant” ”RAM” setting is invalid. 152 Programming 33 ALU 200 ”Setup”, ”PLC station” as ”Memory Variant” ”EPROM” This function is used to transfer the basic software, the equipment list and the user program to the EPROM in the programming station. EPROMtype: 512 kBit EPROM Step 1 In ”Setup”, ”PLC station” enter ”EPROM” as the ”Memory Variant”. If you want to transfer a new program, continue with Step 2. If you want to transfer a program read out from the PLC, go to Step 3. Step 2 Link the program under ”Load”, ”Link Program” and go to Step 4. Step 3 Copy the file ”CODEAUS.120” as ”CODE.PLC”. Step 4 Attach the empty EPROM in EPS 2000. Step 5 Start the function ”Load”, ”Edit EPROM”, ”Program EPROM”. ”Setup”, ”PLC station” as ”Memory Variant” ”RAM” Programming the basic software on EPROM. EPROMtype: 512 kBit EPROM During installation the basic software is also installed on the PaDT. It can now only be programmed on EPROMs as follows. 33 Step 1 In ”Setup”, ”PLC station” enter ”RAM” as the ”Memory Variant”. Step 2 Attach the empty EPROM in EPS 2000. Step 3 Start the function ”Load”, ”Edit EPROM”, ”Program EPROM”. Programming 153 Compare EPROM ”Load”, ”Edit EPROM”, ”Compare EPROM” This function compares the contents of the EPROM file ”CODE.PLC” and EPROM. The EPROM is divided into four pages. The comaprison is carried out for each page. Read PLC - ”Load”, ”Edit EPROM”, ”Read PLC First interconnect the PLC with the PaDT via the serial port COM1 . This function transfers the complete user program and the equipment list from the PLC into the PaDT (in file ”CODEAUS.120”). Its content is identical to the file ”CODE.PLC”, from which the user program was transferred. The file can be backed up and restored, so that if necessary the same EPROMs can be burned again and again. If the file is used to program further EPROMs, it should be copied to the name ”CODE.PLC”. Instead of the PLC the EPS 2000 must now be connected to the serial port of the PaDT. 154 Programming 33 3.4.9 Bootload - ”Load”, ”Bootload” This function is used to load the basic software into the RAM structure of an ALU 201L or ALU 202L (”RAM ALU”). To do so, make an ordinary connection between the PLC and PaDT (RS–232C). Bootloading via the programming interface (PaDT) will be carried out if: no PC001 is inserted a blank PC001 is inserted the PC001 contains only the user program (e.g. ALU bootloaded and with AKF125 user program V. 4.0 on PC001) Bootloading of the PC001 will be carried out if: the PC001 contains the basic software and the user program (e.g. ALU bootloaded and with AKF125 user program V. 4.0 on PC001) With a PC001 programmed with AKF125 and the PaDT-ALU connection the basic software will always be loaded from the PC001. The ”Bootload” function then brings about the GSW lading from the PC001. Note The yellow LED on the ALU flashes until the basic software is loaded or in the event of a transmission error. The function ”Bootload” must then be carried out. For the meaning of the various flashing frequencies please see the module description for the corresponding ALU. Note The procedure for switching from ALU 201/ALU 202 to ALU 201L/ALU 202L may be found in the user instructions ”How do I proceed?” 33 Programming 155 3.5 Online The online functions are used to test the program in the programmable controller. Note Note that all the Functions except ”Link Program” and ”EPROM processing” are only possible with a properly connected PLC. The PLC ”A120” is only to be connected to the serial port COM1 of the PaDT. The EPROM programming station kit ”EPS 2000” is connected to the serial port COM1 of the PaDT. In order to be able to carry out a dynamic state display with the ALU 200, DIP switch B2 must be set to ”OFF”. The following online functions are selectable: Edit Load Online Print Special Setup Help=F10 Start PLC Stop PLC Dynamic Status Display Online list PLC Status 3.5.1 Start PLC - ”Online”, ”Start PLC” This function is used to start the program in the programmable controller. Before the PLC program is started, the start must be acknowledged. After the start the status line is updated (PLC active). 156 Programming 33 3.5.2 StOp PLC - ”Online”, ”Stop PLC” This function is used to stop the program in the programmable controller and to update the state display of the programmable controller. Prior to stopping the programmable controller, an acknowledgement is required. After stopping the status line is updated (PLC stopped). 3.5.3 Dynamic status Display - ”Online”, ”Dyn. Status display” The dynamic condition of a program in the programmable controller can be displayed by using this function. After selecting this menu line the following functions first appear: Dynamic Status Display Current Display Triggered Recording Output Mode IL Addressing ABS 33 IL/LD/FBD SYM/ABS Programming 157 Current display ”Online”, ”Dyn. status display”, ”Current display” In this form of display, updated information on changing signals is taken into account. The following functions can be selected: Current Display Start Display 1 Block Number: Block Typ OB Network Number: 1 1 – 999 OB/PB/FB 1 – 999 Start Display - ”Online”, ”dynamic state display”, ”Current display”, ” Start Display” After you have selected all the other functions as desired, use this line to start the display. Display dynamically - ”Online”, ”dynamic state display”, ”Current display”, ” Start display”, Ctrl>+<Return> - ”Edit”, ”Block”, ”Start entry”, <Ctrl>+<Return>, ”Modify”, ”dynamic state display”, <Ctrl>+<Return> A pulldown menu is now displayed with which you can carry out various operations during the dynamic display. You are in dynamic display mode. 158 Programming 33 a) By pressing the <Return>-key you can select the following functions: Dynamic Status Display Scroll Forwards Scroll Backwards Break Search Signal Search Network MW–Mode Online list Start PLC Stop PLC Display NW Comment Presetting With the <Esc>-key you close the window again. b) You can carry out the following functions with the special keys: <PgDn> <PgUp> <> <> <Esc> 33 page to the next network page to the previous network move cursor up move cursor down abort the the dynamic status display Programming 159 Scroll forward / scroll backwards - ”Online”, ”Dynamic status display”, ”Current display”, or. ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Page up” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Page up” - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Page down” - ”Edit”, ”Blocks”, ”Star entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Page down” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function is used for paging up and down, network by network, within the selected block. abort - ”Online”, ”Dynamic status display”, ”Current display”, or. ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Abort” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Abort” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. After selecting this function the dynamic display is terminated. After selecting the <Return>-key, you can start this function. Use <Esc>-key to close the window again. 160 Programming 33 Signal search - ”Online”, ”Dynamic status display”, ”Current display”, or. ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Search Signal” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, Search signal” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function allows you to search for a signal in the block selected. Geben Sie dazu das gewünschte Signal bei ”Bezeichner” ein und bestätigen Sie mit <Return>. Die Suchrichtung wird durch vorangestelltes <+> (vorwärts) bzw. <–> (rückwärts) vorgegeben. Network search - ”Online”, ”Dynamic status display”, ”Current display”, or. ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Search network” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, Search network” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function enables you to search for a network in the block selected. Geben Sie dazu das gewünschte Netzwerk ein und bestätigen Sie mit <Return>. 33 Programming 161 MW mode - ”Online”, ”Dynamic status display”, ”Current display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”MW–mode” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”MW–Mode” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. IL The status line always displays the symbol and the comment for the signal selected with the cursor. The following are displayed in the IL line.: MW mode = off signal status in decimal and the line comments MW mode = on signal status in decimal and binary LD/FBD The following are displayed in the status line: MW mode = off symbol and comment of the signal selected MW mode = on signal and signal status in decimal, binary, hexadecimal and ASCII Mit der <Esc>-Taste schließen Sie das Fenster wieder. Online-List - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Online list” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function allows you to edit the lists within the dynamic status display. It is described under ”Online–List”. 162 Programming 33 Start PLC - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Start PLC” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Start PLC” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function makes it possible to start the user program in the programmable controller during the dynamic status Display. Stop PLC - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Stop PLC” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Stop PLC” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function is used to stop the user program in the programmable controller during the dynamic status Display. NW–Display comments - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Display network comments” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Display network comments” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. The network comment generated in a window under ”Edit” can be retrieved at this point. 33 Programming 163 PrEsetting - ”Online”, ”Dynamic status display”, ”Current display”, or ”Triggered recording”, ”Start display”, <Ctrl>+<Return>, ”Presetting” - ”Edit”, ”Blocks”, ”Satrt entry”, <Ctrl>+<Return>, ”Modify”, ”Dynamic status display”, <Ctrl>+<Return>, ”Presetting” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. You can select the following functions at this point: Select Status Display Setting Input Mode IL Adressing: ABS Data Bolck DB DB0 164 Programming IL/LD/FBD ABS/SYM DB0 – DB9 33 triggered recording - ”Online”, ”Dynamic Status Display”, ”Triggered Recording” The signal status of selected signals is recorded over several cycles. Caution This function requires the programmable controller to be in scan. The following functions can be carried out in the pulldown menu: Triggered Recording Start Display IL Trigger conditions Block list: * Online list: Start Display - ”Online”, ”dynamic state display”, ”triggered recording”, ”Start Display” Once the signals to be recorded and the trigger conditions have been fixed, the function is stated with this menu line. First of all two message windows appear. With the first window you can abort this function sinc recording (with<Esc>-key). The second window shows the ready message with the number of records made. Network 1 of the first block (first record) is then overlaid. 33 Programming 165 Triggered display - ”Online”, ”Dynamic status display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return> a)A window appears on the right hand side of the screen with the following functions: Dynamic Display Scroll Forwards Scroll Backwards Break Search Signal Search Network MW–Mode Online list Start PLC Stop PLC Display NW Comment Select Block Next Recording Previous Recording Select Recording Presetting b) The following special keys are available outside the pulldown menu: <PgDn> <PgUp> <> <> <Esc> 166 page to the next network page to the previous network move cursor up move cursor down abort the the dynamic status display Programming 33 Choose Block - ”Online”, ”Dynamic status display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return>,”Select Block” Use this function to select any block you like. The following menu is displayed for this Block Number Block Typ: Network Number: Select Block 1 OB 1 1 – 999 OB/PB/FB 1 – 999 next Recording - ”Online”, ”Dynamic status display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return>,”Next Recording” Use this function to select the next recording. The recording number may be found in the footer line in the bottom right of the screen. previous recording - ”Online”, ”Dynamic status display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return>,”Previous Recording” Use this function to select previous recordings. The record number is in the bottom line, in the bottom right hand corner of the screen. 33 Programming 167 Choose Recording - ”Online”, ”Dynamic status display”, ”Triggered recording”, ”Start display”, <Ctrl>+<Return>,”Select Recording” This function is used for displaying any desired recording The record number is in the bottom line, in the bottom right hand corner of the screen. The following menu is used for selection: Records (1–10) No. of Run–on’s: Run–on Number: 1 2 0 Number of recordings incl. run–ons Starting number of run–ons Number of run–on selected TriggerConditions - ”Online”, ”Dynamic Status Display”, ”Triggered Recording”, ”Trigger Conditions” To carry out triggering, various conditions should be laid down in the ”Trigger Conditions” menu: the the the the condition for carrying out a recording condition for starting the recording(Start condition) condition for stopping the recording(Stop condition) number of records after the stop condition (run–on) The following pulldown menu is available: 168 Programming 33 For each of the record, start and stop conditions, select one of the following functions from the right hand window and use <Return> to transfer it to the left hand window. Unconditional Status 0 Status 1 Transition 0 1 Transition 1 0 Any Transition l <= Trigger level >= Trigger level Condition always applies Condition applies, if signal status is 0 (low) Condition applies, if signal status is 1 (high) Condition applies, if status transition 0 to 1 (positive edge) Condition applies, if status transition 1 to 0 (negative edge) Condition applies for each status transition Condition applies if signal (Byte, Word oder Double word) is less than or equal to the entered trigger level Condition applies if signal (Byte, Word oder Double word) is greater than or equal to the entered trigger level The associated signal address (symbolic or absolute) is then declared. When setting the condition ”Uncond’al” this statement is not made. In this case signal declarations which already exist are ignored. In addition, the declaration of the run–ons is entered (0 – N). All entries will entered with the <Esc>-key, if they are correct. 33 Programming 169 Examples of triggerted status display Note The figures for the time sequences of the various conditions do not show the value signals (0 or 1) but the ”meeting” of the specified condition (yes or no). a) Triggering on state ”1”, with run–on records Timing diagram Trigger conditions Rec. Cond. Start Cond. Stop Cond. run–on Rec. Scans Recording conditionunconditional Record signal Start condition State 1 Start signal M4.4 Stop condition State 1 Stop signal M4.4 Number of run–on records 1 b) Pre-triggering on positive edge Timing diagram Trigger conditions Rec. Cond. Start Cond. Stop Cond. run–on Rec. Scans Recording conditionunconditional Record signal Start condition unconditional Start signal Stop condition Transition 0-1 Stop signal M4.5 Number of run–ons 0 c) Mid-triggering on positive edge, run–ons Timing diagram Trigger conditions Rec. Cond. Start Cond. Stop Cond. run–on Rec. Scans Recording conditionunconditional Record signal Start Condition unconditional Start signal Stop condition Transition 0-1 Stop signal M4.6 Number of run–ons 5 170 Programming 33 d) Recording of all the changes in Marker M4.7 until Marker M4.8 enters state ”1”. If the available memory is insufficient for saving all the recordings, at least the events can be counted. Timing diagram Trigger conditions Rec. Cond. Start Cond. Stop Cond. run–on Rec. Scans Recording conditionany change Record Signal M4.7 Start condition unconditional Start Signal Stop condition State 1 Stop Signal M4.8 Number of run–ons 0 Output mode - ”Online”, ”Dyn. status display”, ”Output mode” - ”Print”, ”Program protocol”, ”Output mode” In this menu line, you can choose the mode of output of your program listing. Available modes are instruction list (IL), ladder diagram (LD) and function block diagram (FBD). Select by toggling between the modes. The following example shows the same program in three output modes: :A :A := I1.2 I1.3 Q4.3 IL I1.2 I1.3 Q4.3 I1.2 & () I1.3 LD Q4.3 FBD Online–List - ”Online”, ”Dynamic Status Display”, ”Triggered Recording”, ”Online List” If you enter a name in the online list under ”Triggered Recording”, the signals in the list will also be recorded. Thus an extended program investigation is possible. 33 Programming 171 3.5.4 Online-Liste - ”Online”,”Online list” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This list is used for testing, checking and monitoring of the user program in the PLC. For this, access is made directly to the signal memory of the PLC. You may edit several lists per station. Each list may include status, control and forcing instructions. If you select this function the following window first appears: Online list Load Online list Delete Online list Load On–line List - ”Online”, ”Online list”, ”Load Online list” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function is used to load and to call up the online lists. Several lists can be created for each station. The lists are station-specific. When the function is selected, a menu line is displayed to enter a name. If lists already exist, the latest list edited is displayed. Dieser Name kann mit <Return> bestätigt oder mit dem Lineeditor geändert werden. Zusätzlich erscheint mit einem Leerzeichen und <Return> ein Fenster, in dem Sie mit den Cursortasten eine bereits vorhandene Liste auswählen können. Now the window appears in which you can edit and run the online list. 172 Programming 33 Edit Online–List - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return> - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. A window with four columns appears. Column 1 Column 2 Column 3 Column 4 Signals can be displayed (status), controlled, and forced. Once the list has been entered, you can use the <Ctrl>+<Return>–keys to process (execute) the list with a pulldown-menu. 33 Programming 173 Column 1 (ID) To set individual signals without having to discard the entire list, the following identifiers (ID) are possible. KE brings about F FE S SE ”nothing” marker set to force, not Active force on, current signal becomes active on power–up marker set to control, not active control on, current signal becomes active on power–up status display active after selection Column 2 (signal) The following Signal types are possible for the individual parts of the list (see also Chapter 3.1). Operand Status Control Force I IB IW ID O OB QW QD M MB MW MD SM (bit) SMB SMW SMD T TIW TSW C CIW CSW possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible not possible not possible not possible not possible not possible not possible possible not possible possible possible possible possible possible possible possible possible possible possible possible possible possible possible not possible not possible not possible not possible not possible not possible possible not possible possible possible 174 Programming 33 Column 3 (FRM) The format of the signal value from column 4 is declared in this column. The following formats are available: FRM Format Example of signal value ASC BIN DEZ GLP HEX ASCII binary decimal float. point hexadecimal Otto 11011001 1234567890 12.234 9AFF Column 4 (Forcing/Status/Control Value) In this column the signal content is displayed in the format selected under ”FRM” (see also Column 3). Edit A new list can immediately be edited (see header of the list). The following special keys can be used when editing: <²>, <³ >, <± >, <°> <Esc> <tab> <Shift>+<tab> <PgUp> <PgDn> <backspace> <Del> 33 Move Cursor in the ”edit”-Mode: Abort in the ”active” mode: switch in the ”edit”-Mode Cursor to the next input field of a line Cursor to the previous input field of a line Page the list back one page Page the list forward one page Delete character to the left of the cursor Delete character above the cursor Programming 175 Once the list has been entered, you can use the <Ctrl>+<Return>–keys to process (execute) the list with a Online-menu. Online Functions Status Display Switch on Control UPdate Force Force & Control Switch of Force Enter Force Status Edit Online list Store Online list Terminate Abort status display - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Status display” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Status display” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. After selecting this function, the entire online list changes to the ”active” state (display in the header) and cannot be edited. In this mode, the current actual values of all signals entered in the list are cyclically scanned by the PLC and displayed in the column for the signal value. You can display them in the numerical system in the ”Format” column. The keys < ² >,< ³ >,< ° > und < ± > retain their functions even if the list is active. You are also provided with the functions of the online menu except for the functions ”Status Display” (already active) and ”Accept Force Status”. To go back to ”Edit”–mode from the active list, press <Esc> or use the ”Edit Online list”(Online menu). Simultaneously the status display becomes inactive again and any signal values already overwritten automatically return. 176 Programming 33 Control Enable - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Control enable” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Control enable” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. All signals available in the list with the identifier ”CO” (Control On) are controlled to the corresponding signal value, after this function has been selected. Controlling is effective only within the space of one program scan of the PLC. The state of the signals controlled remains until the signals are overwritten with new values by the program in the PLC or by functions of the online list (forcing, control). Signals with the identifier ”C” are not controlled! The identifier ”S” is merely a classification of the signal and is required for editing. Update Force - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Update force” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Update force” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. Signals of the online list with the identifier ”FO” (Forcing On) are forced to the corresponding signal value, after this function is selected. Forcing remains active until explicitly disabled. Use the function ”Force Completely Off” (online menu) to terminate forcing. It can also be disabled by changing the identifier for the signal in question from ”FO” to ”F”, then performing the function ”Update Force”. A forced signal is recognisably by a change in color. 33 Programming 177 Force & Control - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”force & control” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”force & control” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function combines the two functions ”Control On” and ”Update Force”. Forcing and control of the signals then takes place at the same time. Force Completely off - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”force completely off” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”force completely off” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. Forcing is inactive for all signals currently being forced. The respective identifiers remain unchanged. Accept Force Status - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Accept force status” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Accept force status” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. If some signals which are not entered in the selected online list are forced in the PLC through previous operations, this function can be used to adjust the list to the status in the PLC. Missing entries are always inserted behind the last list entry. If a F-signal is in the list but is forced with a different Signal value to that in the PLC, then the si- 178 Programming 33 gnal is given the value from the PLC. Superfluous force signals present in the Online List are not affected by this function. Edit Online–List - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Edit Online list” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Edit Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. Use this function if you want an active online list (with the entry ”active” in the first line) to be in the ”edit” state. Only in the ”edit” state you can make changes in the list. Die gleiche Funktion ist mit Taste <Esc> möglich. Store Online List - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Store Online list” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Store Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function is used to store the list under the current station. The new file name may be selected as desired. Wird ein Leerzeichen und <Return> eingegeben, erscheint ein Fenster mit allen bisher verfügbaren Listen. The list is stored under the name selected. Do not quit the list editor. 33 Programming 179 Exit - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”Exit” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”Exit” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function is used to end and store the list. Abort - ”Online”, ”Online list”, ”Load Online list”, Name, <Return> <Ctrl>+<Return>,”abort” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Load Online list, ”Name, <Return>, <Ctrl>+<Return>,”abort” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. With ths function you quit the list without storing it. Delete Online list - ”Online”, ”Online list”, ”Delete Online list” – ”Online”, ”Dynamic status display”, ”Start display”, <Ctrl>+<Return>, ”Online list”, ”Delete Online list” - ”Edit”, ”Overview”, Select Block, <Ctrl>+<Return>, ”Edit Block”.. This function erases the list selected from the station directory. 180 Programming 33 3.5.5 PLC status - ”Online”, ”PLC Status” You can output the following list on the screen, on the printer set in ”Setup” or in a file. This on-line function is used to display different parameters and system markers of the PLC. The following figure shows only a segment of the printout. 33 Programming 181 3.6 Print You can output different presentations and lists on the printer, the screen or in a file. Select the reference characters to select the corresponding menu line directly. Another way of getting into the sub–menu is to move the cursor to the appropriate menu line and press <Return>. The following functions are available in this pulldown menu: Edit Load Online Print Special Setup Help=F10 Overview Program Protocoll Symbols and Comments Cross–Reference list Signal assignement list Equipment list Complete Documentation 182 Programming 33 3.6.1 Overview - ”Print”, ”Overview” At this point you can print out the program overview created under ”Edit”, ”Overview”. The following functions are available: Start printing - ”Print”, ”Overview”, ”Start printing” ”Print”, ”Program protocol”, ”Start printing” ”Print”, ”Symbols and Comments”, ”Start printing” ”Print”, ”Cross–reference list”, ”Start printing” ”Print”, ”Signal assignment list”, ”Start printing” ”Print”, ”Equipment List”, ”Start printing ”Print”, ”Complete Documentation”, ”Start printing” ”Load”, ”Compare”, ”Blocks with PLC”, ”Start printing” ”Load”, ”Compare”, ”Program with PLC”, ”Start printing” ”Load”, ”Compare”, ”Equipment List”, ”Start printing” ”Online”, ”PLC status”, ”Start printing” ”Special”, ”System information”, ”Start printing” You can use this function to start the printout in accordance with the other entries in the pulldown menu. 33 Programming 183 Title Block - ”Load”, ”Compare”, ”Blocks with PLC”, ”Title Block” ”Load”, ”Compare”, ”Program with PLC”, ”Title Block” ”Load”, ”Compare”, ”Equipment List”, ”Title Block” ”Online”, ”PLC status”, ”Title Block” ”Print”, ”Overview”, ”Title Block” ”Print”, ”Program protocol”, ”Title Block” ”Print”, ”Symbols and Comments”, ”Title Block” ”Print”, ”Cross–reference list”, ”Title Block” ”Print”, ”Signal assignment list”, ”Title Block” ”Print”, ”Equipment List”, ”Title Block” ”Print”, ”Complete documentation”, ”Title Block” ”Special”, ”System information”, ”Title Block” You can print with it the Title Block which you created using ”Edit”, ”Title Block” or which is provided as standard under the name ”HEAD.DOC”. You can toggle between ”on” and ”off”. The entry ”on” means that the Title Block whose file name is entered under the menu line ”title block file” will appear on the printout.If the header desired is not under the station with the entry ”one”, then the output is rejected with an error message. 184 Programming 33 header file - ”Load”, ”Compare”, ”Blocks with PLC”, ”header file” ”Load”, ”Compare”, ”Program with PLC”, ”header file” ”Load”, ”Compare”, ”Equipment List”, ”header file” ”Online”, ”PLC status”, ”Title Block” ”Print”, ”Overview”, ”header file” ”Print”, ”Program protocol”, ”header file” ”Print”, ”Symbols and Comments”, ”header file” ”Print”, ”Cross–reference list”, ”header file” ”Print”, ”Signal assignment list”, ”header file” ”Print”, ”Equipment List”, ”header file” ”Print”, ”Complete documentation”, ”header file” ”Special”, ”System information”, ”header file” Here you should enter the name of a header file which exist under the station if you actigated the entry ”one” in the ”Title Block” menu line. Otherwise, when starting the printing process, you will receive the message, ”Header not found”. Press any key.” You must then enter either the name of another header file exisiting under the station or copy the header file created previously under this station in the ”Special”, ”Copy” menu line. You can enter the file name with the line editor. Start Page number - ”Print”, ”Print”, ”Print”, ”Print”, ”Print”, ”Print”, ”Print”, ”Overview”, ”Start Page number” ”Program protocol”, ”Start Page number” ”Symbols and Comments”, ”Start Page number” ”cross–reference list”, ”Start Page number” ”Signal assignment list”, ”Start Page number” ”Equipment List”, ”Start Page number” ”Complete documentation”, ”Start Page number” With this function, you can enter the page number (1 to 9999) for the first page of the printout. In block–wide page mode each block or each list is started anew. The output is continuously numbered if the page mode is continuous. 33 Programming 185 3.6.2 Program protocol - ”Print”, ”Program Protocol” This function can be used to output your user program (OB, PB, FB) which you created under ”Edit”, ”blocks” in IL, LD or FBD to a printer, screen or file. In this pulldown menu you can select and call the following functions: Symbols and Comments - ”Print”, ”Program protocol”, ”Symbols and Comments” - ”Print”, ”cross–reference list”, ”Symbols/Comments” You can toggle between ”on” and ”off”. The entry ”on” means that the symbolic names and comments which you assigned to the individual signals (inputs, outputs, markers, etc.) appear next to the signals as additional information on output. The entry ”off” prevents this Additional information (Symbolic names and comments) from appearing in the program protocol or cross–reference list. 186 Programming 33 local cross reference list - ”Print”, ”program protocol”, ”local cross reference list” The local cross–reference lists contain all the inputs, outputs, markers, etc. which you have used (in the blocks according to the Block list). In addition, the networks of the blocks in question in which the addresses occur is stated. You can toggle between ”on” and ”off”. The entry ”on” means that the local cross reference list appears in the program protocol. On printout the networks in which the signals additionally occur is then stated for each block: IL/LD/FBDentry ”is used in NW: 1(I) 4(O)” means: the signal inquired about appears in network 1 as an input (I) and in network 4 as an output (O) Page mode - ”Print”, ”program protocol”, ”Page mode” - ”Print”, ”cross–reference list”, ”Page mode” - ”Print”, ”Signal assignment list”, ”Page mode” Using this function, you can determine how the page numbering should be carried out by toggling: continuously by block 33 the starting page number is specified only at the beginning, then counting up through the various blocks of the listt numbering starts again with each new block / each new list (with Start Page number) Programming 187 3.6.3 Symbols and Comments - ”Print”, ”Symbols and Comments” You can print out the signals (inputs, outputs, markers, etc.) to which you assigned symbolic names and comments under ”Edit”, ”Symbols and Comments”. The following functions are available under this pulldown menu: Print Symbols and Comments Start Print Data Block DB DB0 off Title Block Title.DOC Title Block file Monitor Output Unit Signal List * Start Page Number: 1 DaTa block file (DB number) - ”Print”, ”Symbols and Comments”, ”Data Block file” - ”Print”, ”cross–reference list”, ”Data Block file” A data block (FB0 to DB9) editied previously in the menu item ”Edit”, ”Symbols and Comments” is specified here. 188 Programming 33 Signal list - ”Print”, ”Symbols and Comments”, ”Signal List” - ”Print”, ”Cross–Reference List”, ”Signal List” - ”Print”, ”Signal assignment list”, ”Signal List” Here you must enter the signal areas for which you want to create cross–reference lists or allocation lists. For example, the following entries are available (with line editor): ”*” : all the inputs, outputs, markets, marker words, etc. existing under the station ”operand” (I,O,M etc.) : all the signals of an operand ”Operand x.y-a.b” : signals of the operand from x.y to a.b ”Operand x.y” : only one particular signal Multiple entries in these menu lines must be separated by commas (without spaces). 33 Programming 189 3.6.4 cross–reference list - ”Print”, ”Cross–Reference List” All the inputs, outputs, markers, etc. which have been used by you in the cross reference list are listed and the parts of the program in which they appear are specified. Here you can output either the global, i.e. across blocks, cross–reference list or the local, i.e. block–wise, cross–reference list. The following functions are available under this pulldown menu: Print Cross Reference list Start Print Data Block DB DB0 Symbol / Comment on off Title Block Title.DOC Title Block file Monitor Output Unit Cross Reference Mode Local (blockwise) Signal List * Block list OB1 Load Block list Store Block list Page Mode Blockwise Start Page Number: 1 190 Programming 33 Cross–reference mode - ”Print”, ”cross–reference list”, ”Cross–reference mode” Here you must decide whether you want the global, i.e. across blocks, or the local, i.e. block–wise, cross–reference list output. You can toggle between ”global” and ”local”. The global cross–reference list, in addition to the local cross–reference list, also specifies the blocks in which the signals which you entered in the ”Signal list” (inputs, outputs, markers, etc.) occur. In the ”Block list” you have to decide the blocks from which the cross–reference lists are to be created. 33 Programming 191 3.6.5 Signal assignment list - ”Print”, ”Signal assignment list” In the signal assignment list all the inputs, outputs, markers, etc. which you used in the blocks of the block list are output. An ”X” in the corresponding position of the signal table means that this signal occurs in the blocks which are entered in the ‘‘Block List”. Here you can output either the global, i.e. across blocks, or the local, i.e. block– wise, signal assignment list. The following functions are available in this pulldown menu: Print Signal assignment list Start Print Title Block Title Block file Output Unit Assignment Mode Signal List Block list Load Block list Store Block list Page Mode Start Page Number: 192 Programming off Title.DOC Monitor Local (blockwise) * OB1 Blockwise 1 33 Allocation mode - ”Print”, ”Signal assignment list”, ”Allocation mode” Here you must decide whether you want the global, i.e. across blocks, or the local, i.e. block–wise, signal assignment list output. You can toggle between ”global” and ”local”. local: global: the allocation list covers only blocks specified in the Block list the allocation list covers blocks specified in the block list and all the blocks called from these (direct or indirect call, across all subordinate levels) Example: OB1/global = all blocks(*)/local In the ”Block list” you have to decide the blocks from which the signal assignment lists are to be output. The following illustration is an example of the signal assignment list on the screen. 33 Programming 193 3.6.6 Equipment list – ”Print”, ”Equipment List” The equipment list contains the I/O module types mounted in the subracks. They can be output with the presettings. The following functions are available under this pulldown menu: Print Equipment list Start Print Title Block Title Block file Output Unit Start Page Number: 3.6.7 off Title.DOC Monitor 1 Entire Documentation - ”Print”, ”Entire Documentation” This function is used to output a total output of all the lists. Sequence: Equipment list, signal assignment list, cross–reference list, Symbol comments list, Program protocol with connecting table of contents Here the presettings of each menu (block list, signal list, etc.) are taken into consideration. The following functions are available under this pulldown menu: Print entire Documentation Start Print Page Mode: Start Page Number: Title Block Title Block file Output Unit 194 Programming Blockwise / listwise 1 off Title.DOC Monitor 33 3.7 Special In this menu applay the functions of PaDT. The following system functions are available: Edit Load Online Print Special Setup Help=F10 Table of contents Archive the Station Restore a Station Delete a Station Formate diskettes Copy diskettes Delete files Copy files Operating System MS–DOS System Information End Station handling 3.7.1 Table of contents - ”Special”, ”Table of contents” This function allows you to display the table of contents of your current station. This will give you an overview of the blocks and files existing there. Enter a maske for displaying the files, with help from a Lineeditor: e.g. *.* *.TXT FB* Display all files Display all text files Display all function blocks After displaying the last part of the table of contents press any key to return to the pulldown menu. 33 Programming 195 3.7.2 Backup the Station - ”Special”, ”Back up the station” This function can be used to back up entire stations on diskette. Caution all ”old” files on the diskette will be deleted on bakkup. Backup and restoring should be carried out with the same MS-DOS version (see also MS-DOS Manual under ”Backup” and ”Restore”). The following functions are available: Archiv Start Back up From Station To Station: C:\AKF125}BEISP\*.* A: Start backup ”Special”, ”Back up the station”, ”Start Back up” After enter the station (s) to be backed up and the Target plant the back up will started. Follow the information on the screen. Caution kup. all ”old” files on the diskette will be deleted on bak- You can only interrupt the backup by pressing the keys <Ctrl>+<C> at the same time. After backup you are taken straight back to the menu. 196 Programming 33 Backup from station - ”Special”, ”Back up from Station”, ”From Station” Enter the station (s) to be backed up here using the typewriter keyboard (line editor): e.g.: C:\AKF12\EXAMPLE\*.* Input: a) <Return> (initiate edit) b) enter station name c) end by pressing <Return> Backup to station - ”Special”, ”Back up the Station”, ”To Station” Now it will enter the target drive with help from the keyboard(Lineeditor). For diskette e.g.: A: Input: a) <Return> (initiate edit) b) enter target drive c) end by pressing <Return> 33 Programming 197 3.7.3 Restore a station - ”Special”, ”Restore a station” With this function the backed up station will restored under the same name as backed up. Warning Existing files with the same name will be overwritten without an inquiry. Backup and restoring should be carried out with the same MS-DOS version (see also MS-DOS Manual under ”Backup” and ”Restore”). The following functions are available: Restore Start Restore From Station To Station: A: C:\AKF125}BEISP\*.* Start restore - ”Special”, ”Restore a Station”, ”Start Restore” After Enter the source drive and station name the restore function will started. Follow the information on the screen. Caution The name of the target system must be the name with which the system was backed up. You can only interrupt the restoration by pressing the keys <Ctrl>+<C> at the same time. After the restoration you are taken straight back to the menu. 198 Programming 33 Restore from station - ”Special”, ”Restore a Station”, ”From Station” Now it will enter the source drive with help from the keyboard(Lineeditor). For diskettes e.g.: A: Input: a) <Return> (initiate edit) b) enter source drive c) end by pressing <Return> Restore to station - ”Special”, ”Restore a station”, ”To Station” Enter the target drive using the typewriter keyboard (line editor): e.g.: C:\system\station\*.* Warning Existing files with the same name will overwritten! Input: a) <Return> (initiate edit) b) enter station name c) end by pressing <Return> 33 Programming 199 3.7.4 Erase a station - ”Special”, ”Delete from a Station” This function enables you to erase an entire table of contents and its subdirectories. Prior to erasing a sub–directory you will be asked whether this directory is really to be erased. This enables you to erase a number of directories selectively. Press <Return> and a window will appear with a list of all the existing stations of the system set. Use the arrow keys and <Return> to select a station. The current station cannot be erased. 3.7.5 Format diskettes - ”Special”, ”Formate from diskettes” Sometime new diskettes has to be formated befor using for store.Formatting prepares the diskette so as to enable data from the can be saved and read. Caution ted. While the formating all files on the diskette will dele- The following functions are available under this pulldown menu: Formate diskettes Start Formate Drive: Parameter: 200 Programming A: /V 33 Start formatting - ”Special”, ”Formating from diskettes”, ”Start Formateing” After starting the drive and if necessary the parameter, formatting is started here. After select of the function please follow the information on the screen. Caution The formating can not be brocken. Drive for formatting - ”Special”, ”Formating from diskettes”, ”Drive” The data carrier to be formatted is entered here using the line editor. B: Diskette in drive B: will be formatted A: Diskette in drive A: will be formatted 33 Programming 201 Parameters for formatting - ”Special”, ”Format diskettes”, ”Parameters” Here you can specify additional parameters for the formatting using the line editor (additional information may be found in the MS-DOS Manual). Note To make later identification easier it is recommended that you assign the station name as a parameter with ”/V”. Examples of parameters (apply to portable AEG programming panels; some parameters are specific to manufacturers so please note what it says in your MSDOS Manual): /1 Only the first side of a diskette will be formatted. The diskette will be formatted with 9 sectors/track, unless you specify /8 /3 Formats a 720 KByte diskette in a 1.44 MByte drive /4 The diskette will be formatted with 40 tracks/side. /4 The diskette will be formatted with 40 tracks per side. This parameter is used to format a 5 1/4 inch diskette with 360 KB in a 1.2 MB drive. This allows you to use 360 KB diskettes in a high density drive. /8 8 sectors are formatted per track. Without this parameter the diskette will be formatted with 9 or 15 sectors/track, depending on the type of drive. /N:nn formats a 3 1/2 inch diskette with the number of sectors specified under nn. Enter 9 for a 720 KByte diskette. /T:nn Formats a 3 1/2 inch diskette with the number of tracks specified below under nn. Enter 80 for a 720 KByte or 1.44 MByte diskette. /V After formatting the disk an automatic request is made for a data carrier code to be entered.. /S MS-DOS system files are copied from the diskette in the preset drive to the newly formatted diskette. /* Generates a status line during formatting. 202 Programming 33 3.7.6 Copy diskettes - ”Special”, ”Copying from diskettes” With this function the complete contents of a diskette will copied on an other diskette (same capacity). Caution This function destroys any data already on the target diskette since the target diskette is formatted during copying. The following functions are available in this pulldown menu: Copy diskettes Start Copying Source drive: Target drive: A: B: Start copying diskette - ”Special”, ”Copying frm diskettes”, ”Start Copying a Diskette” After enter from Source– and Targetdrive now the copying will started. After select the function please follow the information on the screen. After this function has been started it can be aborted by pressing <Ctrl>+<C>. 33 Programming 203 Copy diskette / source or target drive - ”Special”, ”Copy diskettes”, ”source drive” - ”Special”, Copy diskettes”, ”target drive” Using the line editor, you can enter the same drive twice or different drives. Ex.1, one drive: source drive: A: target drive: A: Ex.2, two drives: source drive: A: target drive: B: - or B to A. 204 Programming 33 3.7.7 Erase Files - ”Special”, ”Erase Files” Thids function can be used to erase any number of files. To do this, a mask is declared for the file(s) to be erased using the line editor: e.g. *.* C:\AKF12\BSPANL\*.* DB* C:\AKF12\BSPANL\FB10 erase all the files of the system/station set in Setup erase all the files of the system/station stated erase all the data blocks of the system/station set in Setup erases the function block FB10 on the hard disk of station ”BSPANL” You can only interrupt the erasing by pressing the keys <Ctrl>+<C> at the same time. 33 Programming 205 3.7.8 Copy files - ”Special”, ”Copy files” This command can be used to load parts of a station (files, blocks, etc.) to or from a diskette. Files on the hard disk can also be copied from one station to another. The following functions are available under this pulldown menu: Copy files Start Copying files Source Target: Parameter: *.* A: /V You can use the replace characters (”wildcards”) ”?” and ”*” in the names of the source and target.When using replacement characters, please be certain that you will not unknowingly overwrite important files. Start copying files - ”Special”, ”Copy files”, ”Start copying files” After stating the source, target and if necessary perameters, the copying process is started here. 206 Programming 33 Copy Files / Source - ”Special”, ”Copy files”, ”Source” Using the line editor, enter under source the file to be copied along with the entire path. e.g.: C:\AKF12\EXAMPLE\PB7 Program block 7 of station ”EXAMPLE” of system AKF12 on hard disk will be copied to ”target”. If no path is intered but only a block name, the block of the current station will be copied. Copy Files / target - ”Special”, ”Copy files”, ”Target” This is where the target directory for the files under ”Target” is entered with the help of the line editor. Target e.g.: A: C:\TEST C:\TEST\FB10 no statement 33 - to diskette - to hard disk under directory ”TEST” - to hard disk under directory ”TEST” is where the source will be copied to ”FB10”. - to the current station Programming 207 Copy Files / Parameters - ”Special”, ”Copy files”, ”Parameters” here you can specify additional parameters for the copying using the line editor (additional information may be found in the MS-DOS Manual). Parameter: /V: Check the copy /A: The file will be treated as a text file. Source: The file will be copied up to, but not including, the EOF character. Target: The file is terminated with the EOF character. /B: Source: The entire file will be copied. Target: The file will not be terminated with an EOF character. 208 Programming 33 3.7.9 Operating sys. MS–DOS - ”Special”, ”Operating sys. MS–DOS” Excerpt from the MS-DOS Manual: ”What is MS-DOS ? MS-DOS stands for Microsoft Disk Operating System and is an ”operating system”. It controls the basic functions of the computer and links the individual modules of the device to allow user programs (word processing, spreadsheets, databank, etc.) to use this module easily. MS-DOS allows data in files on diskette or Hard disk to be saved and called up again and data input via the keyboard to be printed out again. MS-DOS lets you copy, delete, compare, rename, save and backup files from diskette. It creates tables of contents for your data carriers and furnishes each entry with time and date. In addition, it controls the backup of your data from the hard disk onto a tape drive.” You can now carry out the functiond described in the MS-DOS Manual. Enter ”EXIT” to return to the DOLOG AKF software. 33 Programming 209 3.7.10 System information - ”Special”, ”System Information” This function provides you with an overview of the current hardware configuration of your programming panel. This includes information on the processor, DOS version, ports and main memory. This overview can be output on the screen, to a file or printer. Print System information Start printing off Title Block: Title Block file Title.DOC Output unit: Monitor 3.7.11 End station handling - ”Special”, ”End Station Handling” This function is used to end processing by the DOLOG AKF software A120. You can now only start the AKF software again by a new call. 210 Programming 33 3.8 Setup The SeTup functions serve as a means of presetting fixed system data. This includes the following settings: Edit Load Online The menu commands ”System” and ”PLC Station” have to be edited before the user-programmed logic. Print Special Setup Help=F10 Plant PLC–Station Print Colors Directory structure on the PaDT The DOLOG AKF software is installed to two different directories on the hard disk. 33 Programming 211 C:\ <AEG-A91> <SET> <AKF12> <AKF12> <A> <Stationx> <Example> 3.8.1 - the program path (Presetting ”C:\AEG-A91”) It must be specified during installation. - the data path (Presetting ”C:\AKF12”) Divided into the system and station path. Marking: This is the data path of the example system. Ot must be specified during installation. system - ”SeTup”, ”system” A system corresponds to a directory on the PaDT. It many contain several different stations. This function is used to set systems If the system entered does not yet exist it will be created after a safety inquiry. With existing systems, the last station worked on is automatically set up again. Example: C:\AKF12 212 Programming 33 3.8.2 PLC station - ”SeTup”, ”PLC Station” This function is used to set presettings for the station created by the user: Station Presetting PLC Station name LAUF12 Adressing: SYM DB Number: DB0 Max. Block Number: 10 ALU Typ: 200; 201; 202 Link mode Full Representation Memory Variant: RAM 33 Programming 213 Station Name - ”SeTup”, ”PLC Station”, ”PLC Station Name” This function can be used to select or create a station via the line editor (typewriter keyboard). Enter a space and <Return> and a window will appear showing all the existing stations of the current system. From this window you can select a station using the arrow keys and <Return>. If the station entered does not exist it will be created after acknowledgement with the <Return> key (in accordance with the directory on the PaDT). e.g.: TEST All the subsequent processing functions will then be carried out in the station TEST and the files generated stored under this directory. maximum block number - ”Setup”, ”PLC station”, ”Max. No. of Blocks” The number of blocks that you can enter in this menu lies between 1 and 500.‹ DOLOG AKF reserves the appropriate amount of space in the PLC when the program is linked. A maximum of 500 blocks can be transferred to the memory of the PLC. If the number is set too low, it is not possible to link the program. When linking for the last time, you should enter an additional 10 to 20% to the number of blocks in this place. The number of blocks in the program will be indicated as an event after linking. Irrespective of the number set here, block numbers between 1 und 999 can be set. However, the total of all the blocks must not exceed the number set here. Note 214 If the list is full, no new block can be added on-line. Programming 33 ALUtype - ”Setup”, ”PLC station”, ”ALUtype” Use this function to change the PLC by changing the ALUtype. You can toggle between: ”200; 201, 202” for Modicon A120 ”15X; 204; 205” for Modicon A250 (for software documentation refer to ”A250 Configuration” user instructions) For exact technical information please refer to the Modicon A120 User Manual. When using the ALU 201 or ALU 202 the second slot of the subrack (corresponds to the first node) is reserved for the power supply unit, e.g. DNP 205. When operating the PLC with the ALU 200, instead of the power supply another module can be entered for node 1, since the power supply is integrated into the ALU. Link Mode - ”SeTup”, ”Station”, ”Link Mode” You can specify here the amount of additional information which is to be loaded into the PLC. You can choose between: Link Mode Full Representation Without Comment Without Comments, Symbols Without Representation Automatic Adjustment 33 Programming 215 Link Mode / Complete Representation - ”Setup”, ”Station”, ”Link Mode”, ”Complete Representation” This setting enables an unrestricted representation of the IL. Comments, symbols and labels are identical to the original. Line comments, network comments and parameter symbols and labels are represented. Link Mode / Without Comments - ”SeTup”, ”PLC Station”, ”Link Mode”, ”Without Comments” With this setting the comments are not represented. Otherwise the function is the same as ”Complete representation”. Link Mode / Without Comments, Symbols - ”Setup”, ”PLC station”, ”Link Mode”, ”Without Comments, Symbols” No comments, symbols or labels are available for the representation. Only the structure information required for representation is transferred to the PLC. Link Mode / Without Representation - ”SeTup”, ”PLC Station”, ”Link Mode”, ”Without Representation” A representation is no longer possible with this setting.<F 6Ã@R@Z7@Lge>. Link Mode / Automatic Adjustment - ”Setup”, ”PLC station”, ”Link Mode”, ”Automatic Adjustment” With this setting adjustment is carried out using the unused memory existing in the PLC. If the program is too large, the additional information is switched back step–by–step. 216 Programming 33 Memory Variant - ”Setup”, ”PLC station”, ”Memory Variant” This function applies only to the ALU 200. Here you can toggle between RAM mode and EPROM mode. Compare this with the functions under ”Load”, ”EPROM processing”. 33 Programming 217 3.8.3 Print ”Setup”, ”Print” The following settings are possible in the Print menu: Output unit ”Setup”, ”Print”, ”Output unit” A menu appears from which you can choose: - output takes place page by page on the screen - output takes place to a printer chosen under ”Setup” - output takes place into the MS–DOS file established by the entire path. If a file exists with the same name as entered, then a message appears asking if the file should be overwritten. A further windows opens under the menu line ”Printer”, in which you can select the printer: 218 Programming 33 On the case of DIN A4 printers the line length must be noted: the signal comment may contain up to 32 characters. 33 Programming 219 Freely configurable V.1 interface (serial) - ”Setup”, ”Print”, ”Output unit”, ”Printer”, ”Freely config.V24” The following parameters must be entered for a printer with a freely configurable V.24 interface: Printer interface - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”Printer Interface” You can toggle between ”COM1” and ”COM2”. Please make sure that the PLC is correctly connected to the COM1. Caution When using a serial interface, you must have the following setting in the operating system before starting the AKF: MODE COM1:96,,,,P or MODE COM2:96,,,,P 220 Programming 33 Baud rate - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”Baud Rate” You can choose one of the following baud rates: 110 Bd, 300 Bd, 600 Bd, 1200 Bd, 2400 Bd, 4800 Bd, 9600 Bd The baud rate is set by toggling. Please check your printer setting. Parity - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”Parity” You can toggle between ”even,” ”, ”odd” and ”no” parity. DaTa Bits - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”DaTa Bits” You can toggle between ”8 Bits” and ”7 Bits”. StOp-Bits - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”StOp Bits” You can toggle between ”1” and ”2” stop bits. 33 Programming 221 Initialisation - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”Initialization” ASCII sequence for initialization of the printer e.g. character set, auto LF etc. or FILE=dddd.eee Name of initialisation file e.g. for laser printer. normal font - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”NoRmal Font” ASCII sequence for initialization to 80 characters / line equals 10 cpi e.g. for DRU096 ’15’ or FILE=dddd.eee Name of initialisation file e.g. for laser printer. Narrow font - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”Narrow Font” ASCII sequence for initialization to 143 characters / line equals 20 cpi e.g. DRU096 ’0F’ or FILE=dddd.eee Name of Initialisation file e.g. for laser printer. 222 Programming 33 INitialize Printer - ”SeTup”, ”Print”, ”Output Unit”, ”Printer”, ”Freely Config.V24”, ”INitialize Printer” Press <Return> to transfer the parameters set. DRU 096 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”DRU096” This is where you choose between: 33 Programming 223 DRU 120 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”DRU120” This is where you choose between: DRU 292 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”DRU292” This is where you choose between: 224 Programming 33 DRU 293 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”DRU293” This is where you choose between: PRT 294 - ”SeTup”, ”Print”, ”Outout unit”, ”Printer”, ”PRT294” This is where you choose between: 33 Programming 225 PRT 295 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”PRT295” This setting is used to initialize PRT 1 and PRT 294 The selection is effected here between: DRU 1200 - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”DRU1200” This is where you choose between: 226 Programming 33 Printer_xyz - ”SeTup”, ”Print”, ”Output unit”, ”Printer”, ”Printer_xyz” This is where you choose between: Lines/page - ”SeTup”, ”Printer”, ”Lines/Page” You can specify the number of lines per page corresponding to the paper format which is used in your printer here with the aid of the line editor. Note Note: If using purely DIN A4 printers no more than 32 characters of signal comment may be input, otherwise pagination after 132 character will bring about line displacement. Of the AEG printers the DRU 120 and DRU 292 are affected. Page advance ”SeTup”, ”Print”, ”Form feed” The outputs can be carried out with or without form feed, depending on the type of printer used. If the form feed is switched off, the print program outputs a number of lines which corresponds to the number of blank lines. You can toggle between ”on” and ”off”. 33 Programming 227 Upgrade of printer driver To include a new printer in the AKF system you only need a simple editor, with which you edit the file ”DRUAKF40.DRV” in the sub–directory ”AKF12”. Up to 15 printers can be entered into this file. A printer description is started with the name ”Printer=”. The name which follows is displayed by the AKF software in a pulldown menu. There are then 3 initialization sequences to be entered in a hexadecimal representation. Please take note of capitalization. You will find the initialization sequences in the printer manual. Examples: Printer=DRU293 parallel/serial 1B3C Initialization 12 Switch to 80 characters 0F Switch to 132 characters Printer=DRU096 parallel 1B3C Initialization 12 Switch to 80 characters 0F Switch to 132 characters 228 Programming 33 Defining the Epson Fx-80 Printer=Epson FX-80 parallel 1C1B04 Initialization 040577 Switch to 80 characters 0F444488 Switch to 132 characters Caution When using a serial interface, you must have the following setting in the operating system before starting the AKF: MODE COM1:96,,,,P or MODE COM2:96,,,,P There are restrictions with reference to: Character set: Cable Assignment: 33 The IBM graphic character set is required. see printer manual and PaDT. Programming 229 3.8.4 Colors ”SeTup”, ”Colors” If your PaDT is equipped with a color monitor and the corresponding board, you can set the colors by yourself. You may set the colors for pulldown windows, help windows and message windows as you like. The software has to be called with the extension ”/COL”. Furthermore, you may use the screen parameters ”/GR” for grey scales and ”/BW” for black and white. If the software is called with these parameters, the system uses fixed settings. Recommendation: Color monitor ”/COL”, liquid crystal display ”/BW”, monochrome monitor ”/GY”. If the software is called with the parameter /COL, a further pulldown menu appears for each window type. Here the color settings for the following sections of a window can be selected for the color selection: Pulldown window Window Part Frame Normal Text Inverse Text Catchword Inverse Catchword Background Inverse Background Help window Window Part Frame Normal Text Inverse Text Catchword Background Inverse Background Messages window Window Part Frame Normal Text Inverse Text Background Inverse Background 230 Programming 33 By selecting one of these menu lines, a window appears with a color palette from which you can select a color value. The current adjustment is visible in the demonstration windows. Press <Esc> to exit from the ”Colors” menu. The new Color settings will appear after you exit from the Setup pulldown menu. 3.9 Hardware Settings You will find information on initial start–up in the manual mentioned below. You will find information on the hardware, e.g. on configuration, connections, settings and specifications in the manual: A120 modular programmable controller 33 Programming 231 232 Programming 33 Index A Abort Online–List, 180 equipment list, 119 abort, Dyn. Display, 160 actual operands, 71 Addressing, 110 Allocation mode, 193 -ALU select., 126 -ALUtype, 127 ALUtype, 215 analog , 122 -AND block, 59 -Arithmetic functions, IL, 92–110 --Auto Repeat Function, 14 B Backup from station, 197 Backup to station, 197 Baud rate, 221 Block list, 136 Block number, 65 Block type, 65 Block-Editor, 26 Bootload (Basic–Software into ALU), 155 Break Correction-mode, 34 Edit, 39 C call parameter /BW, 230 call parameter /COL, 230 call parameter /GY, 230 Choose Block, 167 35 Choose Recording, 168 Comparator IL, 94 LD/FBD, 107 Compare Blocks with PLC, 144 Program with PLC, 147 Comparison Mode, 145 Complete Representation, 216 conditional block call, , 66 Conditional jump SPB, IL, 90 Connector, 50, 54, 62 Continuation of parallel path, 55 Control Enable, 177 Conversion of PB into FB, 67 Copy, area, 115 Copy Network, 31 Copy pulldown-menus, NW, 31 -correction mode, 46, 58 Correction-mode, 32 Counter down CD, IL, 78 Counter down CD, LD/FBD, 102 Counter range CU, CD, CUD, 78, 79 Counter up CU, IL, 78 Counter up CU, LD/FBD, 101 Counter up down CUD, LD/FBD, 103 Counters IL, 78 LD/FBD, 101 Cross–connection of parallel path, 55 Cross–reference mode, 191 Ctrl+Referenzbuchstaben, 15 Current display, 158 Index 233 D Data bits, 221 Data block DB, 111, 205 Data block file, 117, 137, 188 Data block-Editor, 112 Decrementing, DEC, 82 Delete, 64 Field, 115 module, 123 Network, 30 Diagnose, 157–171 digital , 121 Directory structure on PaDT, 211 Diskette, Copy, Source target drive, 204 diskette, start, copying, 203 does not equal, IL, 94 does not equal, LD/FBD, 107 Double assignment, 117 Drive for formatting, 201 DRU 096, 223 DRU 120, 224 DRU 1200, 226 DRU 292, 224 DRU 293, 225 Dynamic display, 158 dynamic state display abort, 160 network, 41 E Edge recognition, LD/FBD, 108 Edit, 4, 18, 22–40 Online–List, 173, 179 Blocks, 4, 26–40 Compile Blocks, 4 Compile blocks, 137 Compile Data Blocks, 4 Compile data blocks, 137–138 Equipment List, 4, 118 Equipment list, 118–127 Overview, 4, 23–25 Replacement of Signals, 4, 132 234 Index Symbols and Comments, 4, 111–117 Title Block, 4, 128–131 edit, equipment list, 118 Edit Block, 24 Enter, 127 Enter symbol in DB, 37 equal to, IL, 94 equal, LD/FBD, 107 Equipment list, Compare, 148 equipment list, normalize, 126 Erase area, 116 Line, 33 erase, 53 Exchange, Online, 40 --Exclusive OR block, 51, 61 Exit Online–List, 180 Correction-Mode, 34 Equipment list, 119 Overview, 25 Symbols and Comments, 113 Expert modules, Experts, 122 F -FBD Editor, 41, 42, 43, 51, 52, 56, 57, 58, 59, 60, 61, 62, 63, 64, 100, 108 -FBD editor, 108 -FBD Elements, 52, 98, 100 -FBD elements, 97 FBD-Editor, 26, 30, 31, 34, 35, 37, 38, 39, 40 FBD-Elements, 36 Field, delete, 115 files, Copy Parameters, 208 target, 207 files, copy, Source, 207 files, start, copying, 206 FL, 81 LD/FBD, 108 35 FLN, 81 LD/FBD, 108 FLP, 81 LD/FBD, 108 Follow signal contents, 171 Force & Control, 178 Force Completely off, 178 Freely configurable V.24 interface, 220 Function block diagram FBD, 66, 99, 101, 104, 105, 108 function block diagram FBD, 100, 107 Function block FB, 26, 52 function block FB, 29, 65, 67, 68, 71, 97, 99, 136, 195, 207 actual operands, 71 block parameters, 69 call in IL/LD/FBD, 70 declaration part, 68, 71 instruction part, 68, 69 function block fiagram FBD, 26 formal operands, 71 Funktionstasten, 10 G greater than, IL, 94 greater than/equal to, IL, 94 greater, LD/FBD, 107 greater/equal, LD/FBD, 107 H Hard copy. Siehe Bildschirm-Kopie HardwareSettings, 231 header file, 185 Help text, 2, 21 I I/O modules analog I/O, 122 digital I/O, 121 I/O-bus fault, 126 IL-Editor, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43 correction mode, 35 Incrementing, INC, 82 35 Initialisation, 222 Initialize Printer, 223 Input, 60 Input mode, Display Formats IL, LD, FBD, 72 Insert Line, 33 network, 30 Instruction list IL, 66, 74, 77, 78, 80, 81, 82, 83, 84, 90, 93, 94, 95 instruction list IL, 26, 68, 73, 75, 91, 92 K Key assignement Ctrl, 9 Del, 9 End, 9 Esc, 9 Home, 9 Ins, 9 PgDn, 9 PgUp, 9 PrtSc, 9 Key assignment Alt+F10, 21 Alt+F2, 12 Alt+F8, 13 Alt+F9, 14 Alt+letter, 13, 14 Alt+number, 10 Arrow keys, 20, 24, 32, 35, 47, 59, 112, 119, 129 backspace, 112, 119, 129 backtab, 32, 35 Ctrl+C, 16 Ctrl+PgDn, 32, 47, 59, 112 Ctrl+PgUp, 32, 47, 59 Ctrl+Return, 27, 28, 45 Ctrl+Right arrow, 59 Ctrl+Y, 35 Del, 35, 47, 59, 112, 119, 129 End, 35, 57, 112, 119 Index 235 Esc, 21, 24, 27, 32, 35, 45, 47, 57, 59, 112, 119 F1, 112 F10, 21, 27 Graphics characters, 10 graphics characters, 129 Home, 35, 47, 112, 119 Ins, 16, 35, 47, 112, 129 Letters, 59 letters, 47 PgDn, 24, 45, 47, 57, 59, 112, 129 PgUp, 21, 24, 45, 47, 57, 59, 112, 129 Return, 20, 21, 29, 35, 57, 59, 112, 119, 129 shift+tab, 112, 119, 129 tab, 32, 112, 119, 129 key assignment Alt, 129 Arrow keys, 21, 29 Ctrl+C, 196, 198, 205 Ctrl+Return, 24 graphics characters, 128 Return, 44, 56, 65, 72 tab, 29 -Key input memory. Siehe Lernen -Key macros, 14 L Ladder diagram LD, 66, 97 ladder diagram LD, 26, 98 Laden, 4 Datum/Uhrzeit stellen, 149–150 LD-Editor, 26, 30, 31, 34, 35, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 100 Learning, 13 less than, IL, 94 less than/equal to, IL, 94 less, LD/FBD, 107 less/equal, LD/FBD, 107 Line Erase, 33 Insert, 33 236 Index Line comments, IL, 29 Line editor, 11 Lines/page, 227 Link Mode, 215 Automatic Adjustment, 216 without comments, 216 Without Comments and Symbols, 216 Without Representation, 216 Load, 18, 138–155 Block list, 136 Bootload, 4 Compare, 4, 144 Exchange online, 4, 140–141 Link Program, 4 link program, 139 Process EPROM, 4, 151–154 Program to PLC, 4, 140 Read Equipment list, 4, 141 Read out PLC, 4, 142–143 Set Date / Time, 4 Load High Data, LHD, 88 Load Low Data, LLD, 88 Loadable Basic–Software, 155 local cross reference list, 187 -Logic functions, IL, 75–91 Löschen, Online-Liste, 180 M maximum block number, 214 Memory IL, 77 LD/FBD, 100 Memory variant, 217 Modifiy, Network, 31 module, delete, 123 module, enter, 120 Modules ADU 205, 109 other (power supplies etc.), 123 modules ALU 200, 153 ALU 201, 123, 152 ALU 202, 123, 152 35 Mouse, 8 mouse, 29, 44, 56 Move, area, 116 MS-DOS. Siehe Betriebssystem N Narrow font, 222 Negated input, 60 nesting depth, 71 Network Delete, 30 Modify, 31 Search, 40 network copy, 31 Insert, 30 search, 161 Network number, 72 Network-comments, 35 Network-header, 34 next recording, 167 Normal font, 222 Normalize, Equipment list, 126 Normally closed contact, 49, 54 Normally open contact, 48, 54 O Off–delay TA IL, 80 LD/FBD, 106 on–delay stored TS, LD/FBD, 105 On–delay TE IL, 80 LD/FBD, 105 On–delay, stored TS, IL, 80 Online, 5, 18, 156–180 PLC status, 181–182 Dynamic Status Display, 5 Dynamic status display, 157–171 -Online–List, 5 Online-Liste, 172–180 -PLC status, 5 Start PLC, 5 Starte SPS, 156 35 Stop PLC, 5 Stoppe SPS, 157 Online List, 162 Online-Liste, löschen, 180 Only burn basic software ALU 200 (EPROM), 153 operands IL, 29 operations IL, 29 -OR block, 61 Organization block OB, 52, 66 organization block OB, 23, 26, 29, 65, 97, 99, 136, 139 Output, 50 Output mode, 171 Output monitoring, 110 Output unit, 218 P PaDT, 10, 14 Page advance, 227 Page down, Overview, 25 Page mode, 187 Page up, Overview, 25 Parallel path, 53 parameterize, controller, 124 Parameters for formatting, 202 Parity, 221 Path, explanation, 18 PB-/FB-/SFB-Conditional call, 51 PB-/FB-/SFB-Uncond’al call, 52 PC001, 155 pk-memory, IL, 77 PLC initial start–up, 231 PLC switch–off mode. Siehe Abschaltverhalten SPS PrEsetting, correction-mode, 37 Presetting Cursor Positioning, 43 Data block, 42 Dyn. status display, 164 network, 42 previous recording, 167 Print, 5, 18, 182–194 Complete Documentation, 5 Index 237 Cross–Reference List, 5 cross–reference list, 190–191 Entire Documentation, 194–195 Equipment List, 5 equipment list, 194 Lines/page, 227 Overview, 5, 183–185 Page advance, 227 Program protocol, 186–187 Program-Protocol, 5 Signal -Assignment List, 5 Signal assignment list, 192 Symbols and Comments, 5, 188–189 Printer driver, 228 Printer interface, 220 Printer_xyz, 227 Program block PB, 52, 66 program block PB, 26, 29, 65, 67, 71, 97, 99, 136, 207 Program with PLC, 147 PRT 294, 225 PRT 295, 226 -pulldown menu Digital I/O, 121 Dyn. Display, 41 Select Editor Setting, 42 pulldown menu, Edit, 22 -Pulldown menus, Edit LD, 46 Pulldown menus Colors messages, 230 Output unit, 218 Print Presetting, 218 Setup Print, 218 V.1 Configuration, 220 -pulldown menus AnalogI/O, 122 Commands, 113 Copy Area, 115 Edit equipment list, 119 Edit FBD, 58 Edit network, 44 Enter modules, 120 Erase Area, 116 Experts, 122 238 Index Move Area, 116 Other, 123 Parameterize the controller, 124 Replacement of Signals, 132 Symbols and Comments, 111 Title Block, 128 pulldown menus Colors Help, 230 Colors Pulldown, 230 Dyn. Display, 166 main menu, 19 Online exchange, 141 port, 223, 224, 225, 226, 227 Print system information, 210 Printer selection, 218 Special, 195 -pulldown menus, -ALU select., 127 pulldown-menu Edit IL, 32 Edit network, 29 Pulldown-Menüs, Dyn. Anzeige, 159 Pulldown-menus Edit comments, 35 FBD-Elements, 36 program-overview, 23 pulldown-menus Commands, 119 Data block-Editor, 113 Edit Blocks, 26 Edit network, 56 intelligent modules (Experts), 122 program-structure, 24 Pulse TI IL, 80 LD/FBD, 104 Pulse, extended TV IL, 80 LD/FBD, 104 R Read out to system, 143 Read PLC (EPROM), 154 recursive call, 71 Reference characters, 15 35 reference characters, 18, 20, 44, 56, 182 Referenzbuchstaben, 16 refernce characters, 29 Replace, old/new signal, 134 Replace characters, 134 Restore from station, 199 Restore to station, 199 Rotate left, ROL, 82 Rotate right, ROR, 82 RS memory, LD/FBD, 100 Rules for instruction lists Bracket operations, 74 Calculating, 92 Comparator, 94 Connector, 76 Conversion, 95 Counters, 78 Edge recognition, 81 -FREE instruction, 91 Incrementing/decrementing, 82 initiating pulse, 73 Jumps, 90 Load, Arithmetic, 92 Load, Transfer, 83, 84 Logic, 83 Marker bit, 74 Network start/end, 73 NOP-instruction, 91 Normalizing operations, 75 Order of logic operations, 75 Rotate, 82 Save operations, 77 Shift, 81 Timers, 80 Two’s complement, 93 S Save, Block list, 137 -Screen copy, 12 Screensave. Siehe Bildschirm-Kopie Scroll Backward, Network, 38 Scroll backwards, network, 160 Scroll Forward, Network, 38 35 Scroll forward, network, 160 Search Block, 25 Network, 40 operand, 114 Signal, 39 Search Contents of signal, 157–171 Search Function, 114 Set date, 149 Set PLC (Date/Time), 150 Set time, 150 SeTup, Colors, 230–232 Setup, 5, 18, 211–231 Colors, 5 -PLC station, 5 PLC station, 213–217 Print, 5, 218–229 System, 5 system, 212 Shift left, SHL, 81 Shift right, SHR, 81 Signal Search, 161 search, 39 Signal list, 189 Special, 5, 18, 195–210 Backup the Station, 196–197 Backup the station, 5 Copy diskettes, 5, 203–204 Copy files, 5, 206–208 End station handling, 5, 210–212 Erase a Station, 5, 200 Erase Files, 5, 205 Format diskettes, 5, 200–202 -Operating sys. MS–DOS, 5 Operating sys. MS–DOS, 209 Restore a station, 5, 198–199 System information, 5, 210 Table of Contents, 5 Table of contents, 195 Special keys, 15 Spread Horizontal, 47, 63 Spread Vertical, 48, 63 SR memory, LD/FBD, 100 Index 239 SR-Memory, IL, 77 Start, printing, Block Comparison, 145 Start backup, 196 Start Display, 158 triggered recording, 165 Start Entry Blocks, 27 Symbols and Comments, 111 Title Block, 128 Start exchange, 141 Start formatting, 201 Start Page number, 185 Start PLC, 163 Start read–out, 142 Start restore, 198 Start Translation (DB), 137 Station Name (PLC), 214 Station Name (Read out), 143 status display, 176 Stop Bits, 221 Stop PLC, 163 Store, Online–List, 179 switch–off mode PLC, 126 Symbols and Comments, 186 T Tastentabelle backspace, 11, 175 Bild, 9 Ctrl+K, 11 Ctrl+Return, 15 Ctrl+T, 11 Del, 11, 175 Druck, 9 Einfg, 9 Eing Lösch, 9 End, 11 Ende, 9 Esc, 11, 16, 159, 166, 175 Home, 11 Ins, 11 Lösch oder Entf, 9 Pfeiltasten, 11, 15, 16, 159, 166, 175 240 Index PgDn, 21, 159, 166, 175 PgUp, 159, 166, 175 Pos1, 9 Return, 11, 15, 16 shift+tab, 175 Strg, 9 tab, 175 Terminate, Edit, 38 Test if empty (EPROM), 151 Text Memory Editor, 117 -The following functions are available in the pulldown menus, Edit network, 56 Time base TI, TV, TE, TS, TA, 80 Timers IL, 80 LD/FBD, 104 Title Block, 184 Title Block Height, 131 Title block name, 130 Title block width, 130 Title Block-Editor, 128 To system (read out), 143 Toggle, 16 toggle, 26, 72 TriggerConditions, 168 Triggered display, 166 Triggered recording, 165 Triggered Status Display, Examples, 170 Type Writer keyboard / Control keys, 9 -Typewriter keyboard, 15 U unconditional block call, , 66 Unconditional jump SPB, IL, 90 Update Force, 177 -Using the keyboard, 9–16 Z Ziffernblock, 10 35
